SKU: 500042

| Model: 1030VC

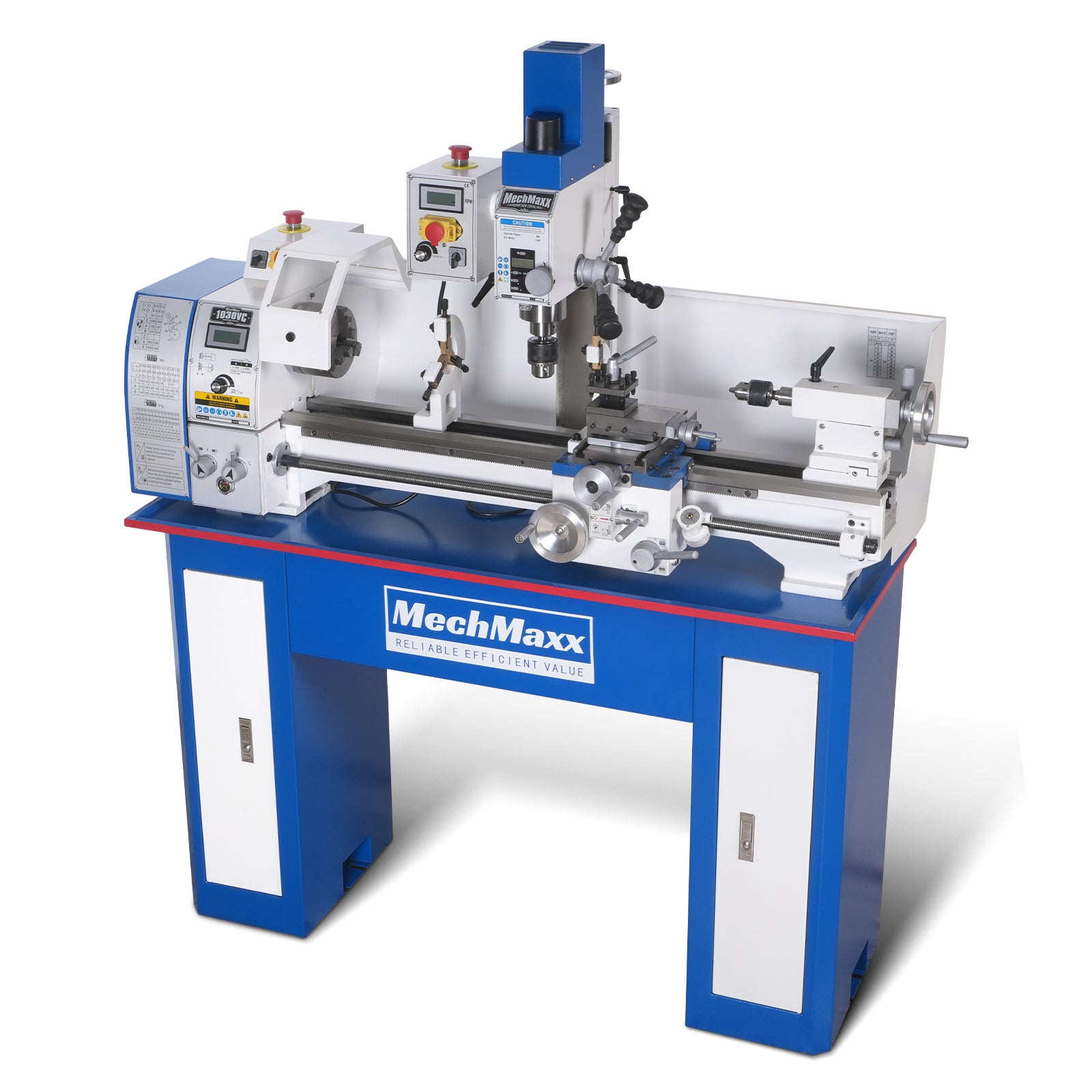

1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – With Stand 1030VC

Name: 1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – With Stand 1030VC
Brand: MechMaxx
SKU: 500042
Price: 4618.0 USD
Availability: InStock

1.5 HP 10'' x 30'' Combination Lathe Milling Drilling Machine, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – With Stand 1030VC

$461800

$4,838.00

Save $220

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Swing x Dist. Between Centers : 10" x 30" (250 x 750 mm)

10" x 30" (250 x 750 mm) 8" x 16" (210 x 400 mm) 10" x 22" (250 x 550 mm) 11" x 30" (280 x 750 mm) 13" x 37" (330 x 940 mm) 13" x 40" (330 x 1000 mm) 14" x 40" (355 x 1000 mm) 16" x 16" Combo 16" x 32" Combo

Digital Readout (DRO) : Without DRO

Without DRO

Stand Configuration : With Stand

With Stand Benchtop

Configuration : 3-in-1 Combo

3-in-1 Combo Standard With Wedge Type QCTP

Availability: In Stock

Payment:

Lifetime Technical Support

Get expert troubleshooting and operational assistance via phone or email for the life of your equipment.

Warranty Coverage

Backed by our dependable equipment warranty for long-term protection.

Official Website Lowest Price Guarantee

Shop directly from our official website with confidence. If you find an identical product currently listed at a lower price on another website, we'll refund the difference.

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

Larger 1.5''(38mm) Spindle Bore：The 1-1/2" (38mm) spindle bore is significantly larger than typical models, allowing for the processing of larger workpieces with greater flexibility and improving overall workpiece handling capabilities. This feature is perfect for larger diameter materials and enhances the lathe's cutting capacity.
Powerful 1.5 HP Brushless Motor: Equipped with a 1.5 HP brushless motor, the machine offers smooth and consistent power for demanding tasks. The brushless technology ensures longer lifespan, reduced maintenance, and quiet operation, making it perfect for both small projects and heavy-duty machining.
R8 Spindle Taper: The R8 spindle taper offers excellent compatibility with a wide range of milling and drilling tools, providing users with more versatility in tooling. This feature ensures that you can easily switch between turning, milling, and drilling operations, all in one machine.

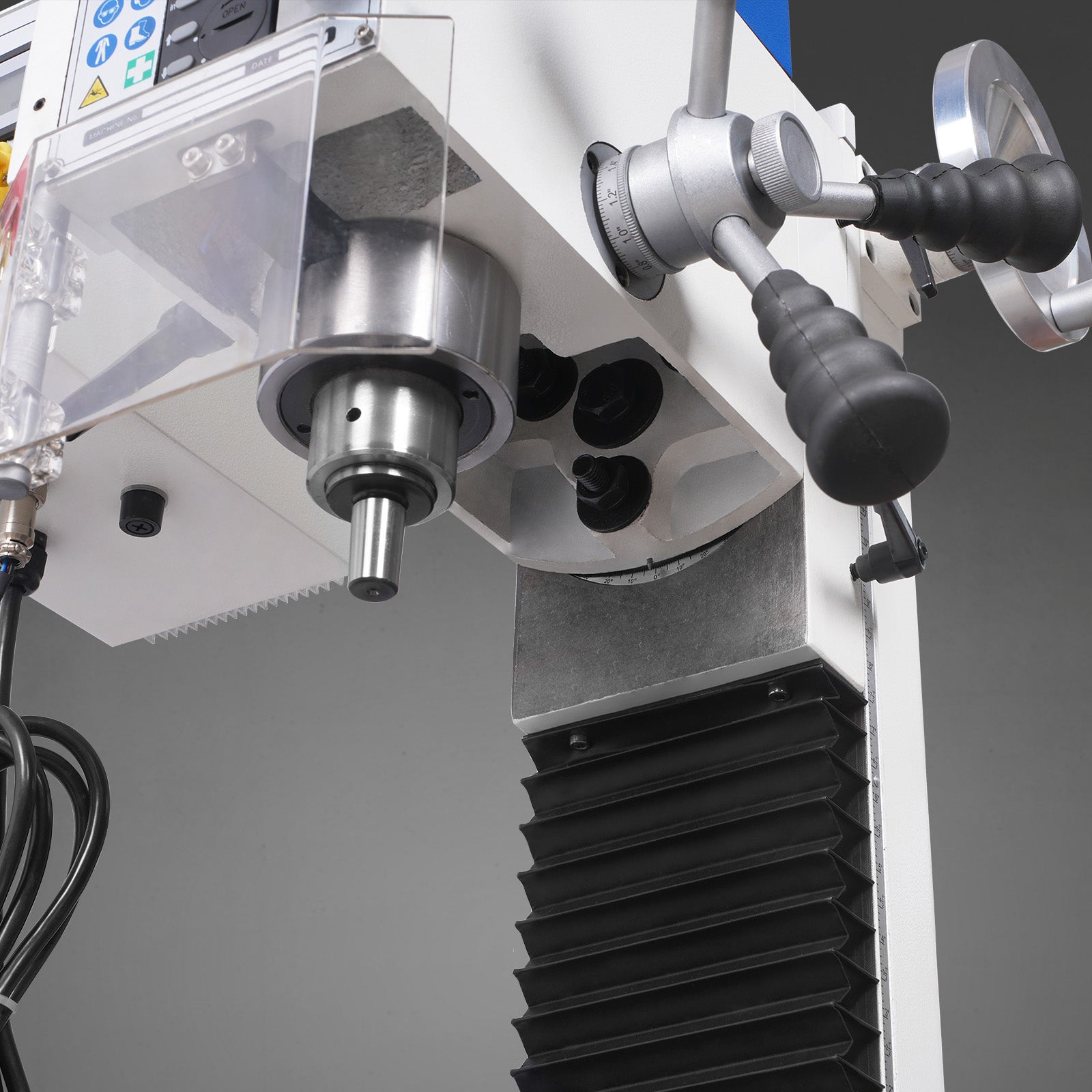

±90° Tilting Head for Versatile Machining: The ±90° head tilt allows for angling cuts and milling operations, giving you greater flexibility in handling complex machining tasks. The head's tilt ensures that the machine can accommodate different machining angles, making it ideal for tasks that require precision and flexibility.
Variable Speed Control (0–2000 RPM): The variable spindle speed range of 0–2000 RPM ensures the machine is highly adaptable to different materials. Whether you're working with softwoods, metals, or plastics, the adjustable speed ensures optimal cutting conditions for each task, providing consistent performance across materials of varying hardness.

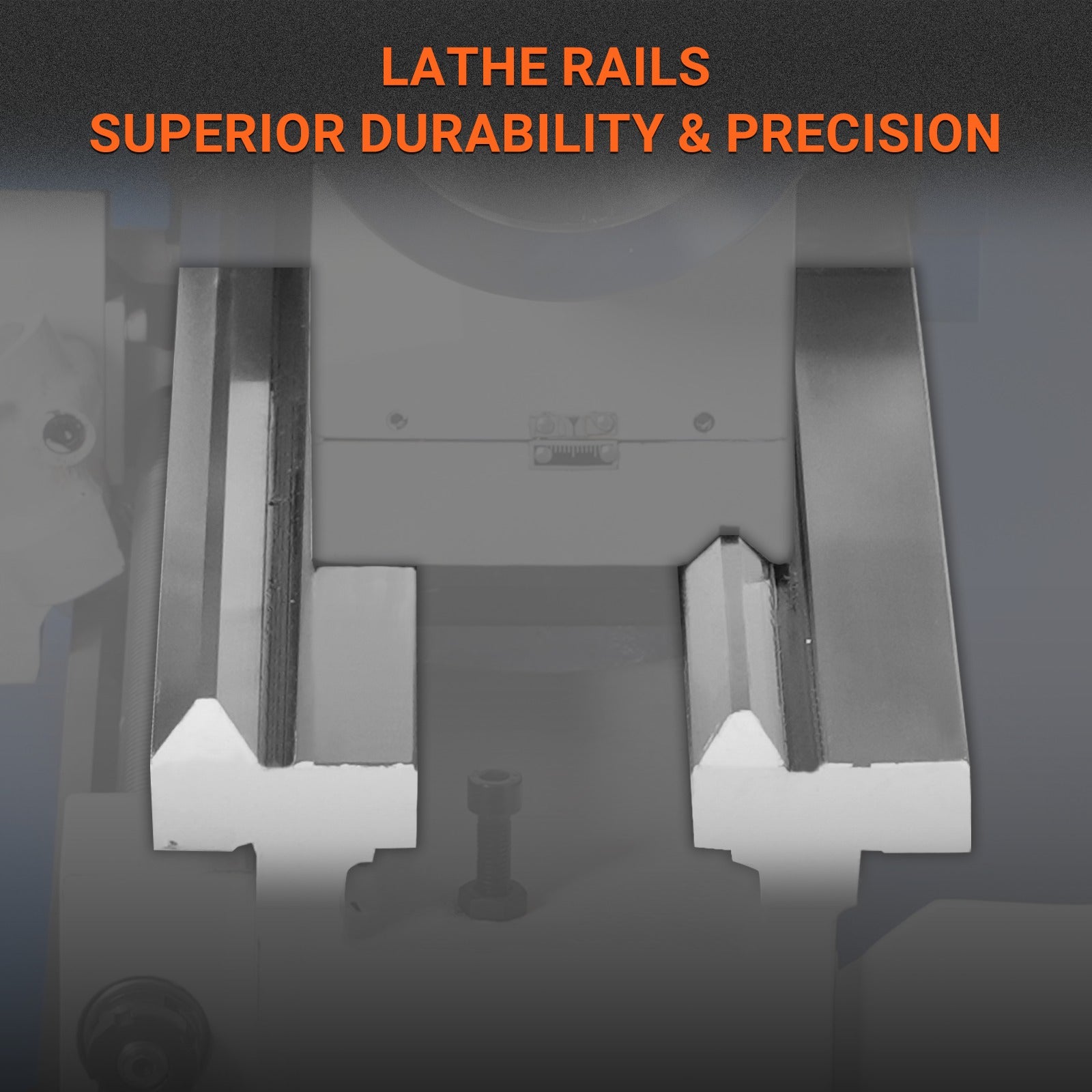

Precision Ground Bed for Smoother Movement:
The precision-ground bed provides smooth and consistent movement of the carriage and slides, ensuring higher accuracy in your machining operations. The ground surface reduces vibrations and increases the precision of cuts and milling operations.
Compact yet Robust Design: The 1030VC is designed to provide high performance in a compact form factor. Its sturdy construction, built with durable materials, ensures long-term reliability. Despite its robust build, it maintains a small footprint, making it suitable for workshops with limited space.

Product manual (PDF)

16'' x 16'' Multifuctional Metal Lathe and Drill/Mill Combo Machine 1.0.pdf

Product Features

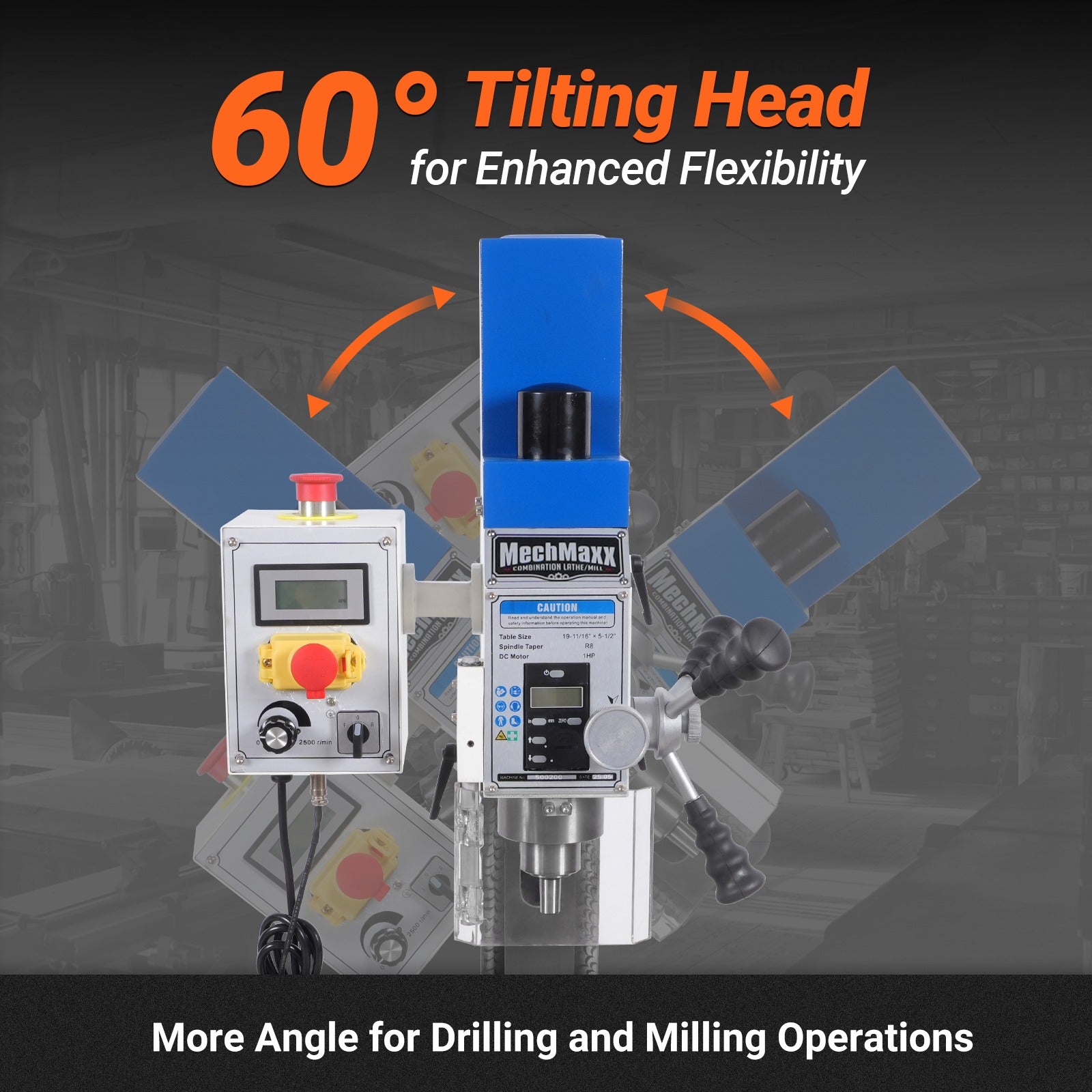

±60° Head Tilt for Angular Versatility

Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

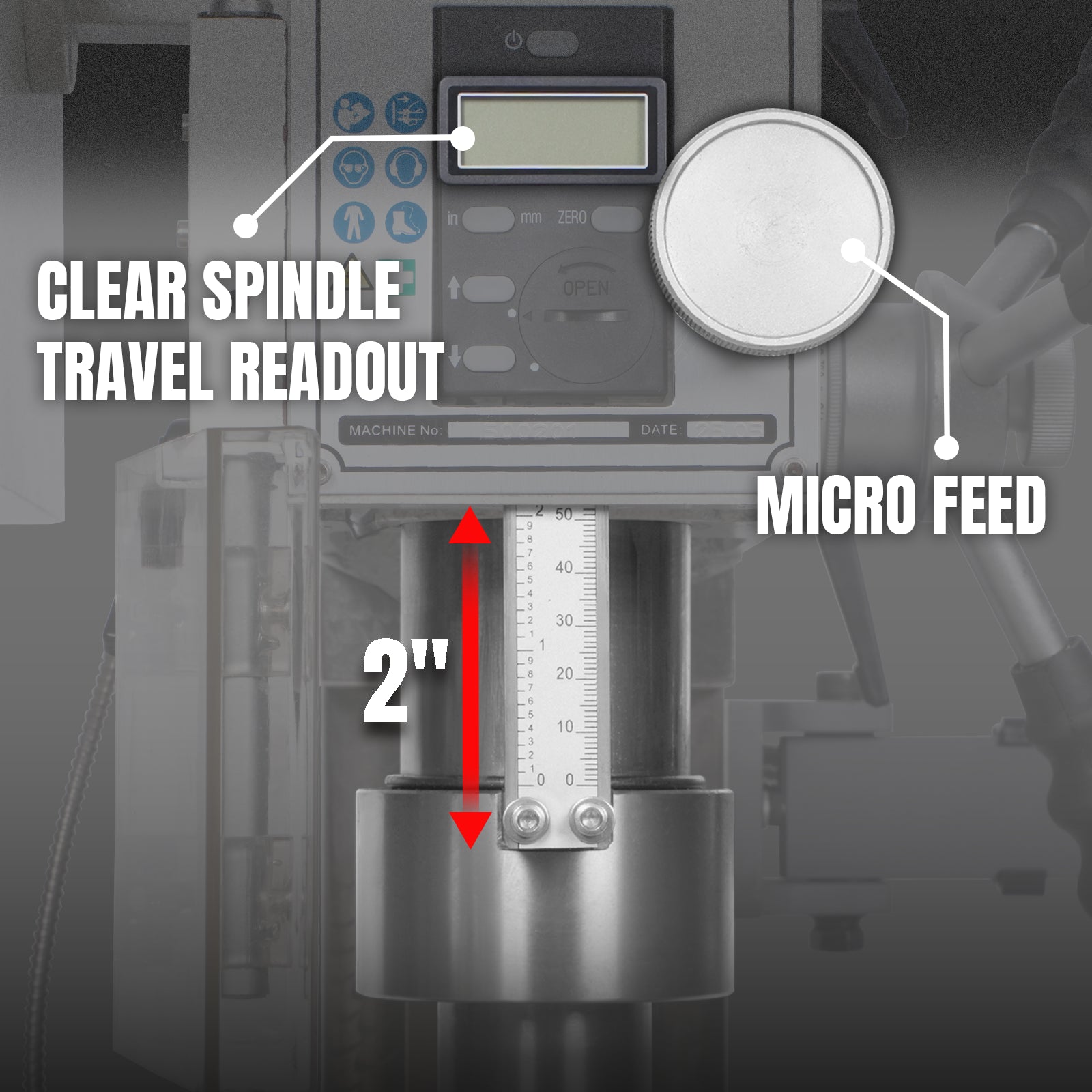

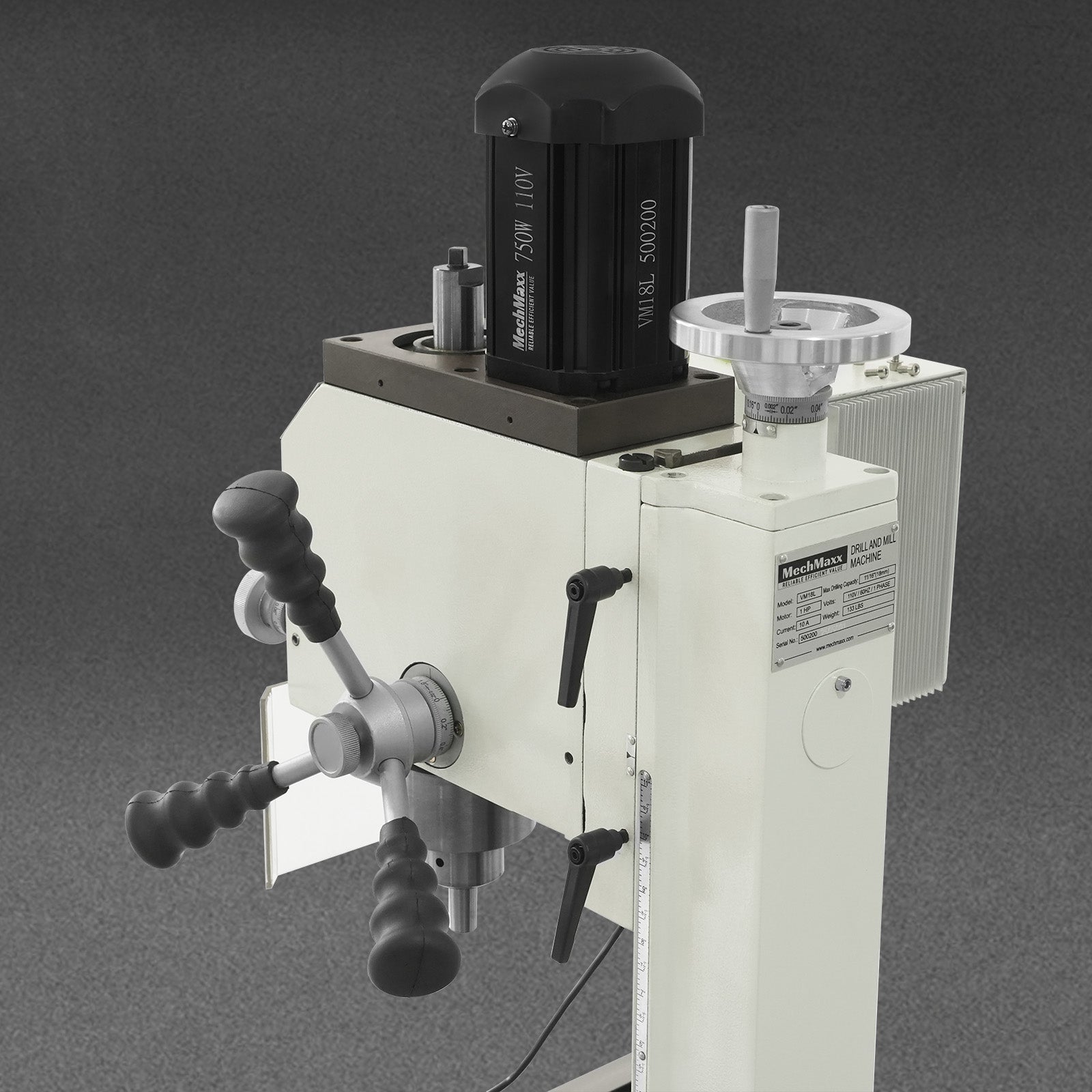

Engineered for Precision Drilling

Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

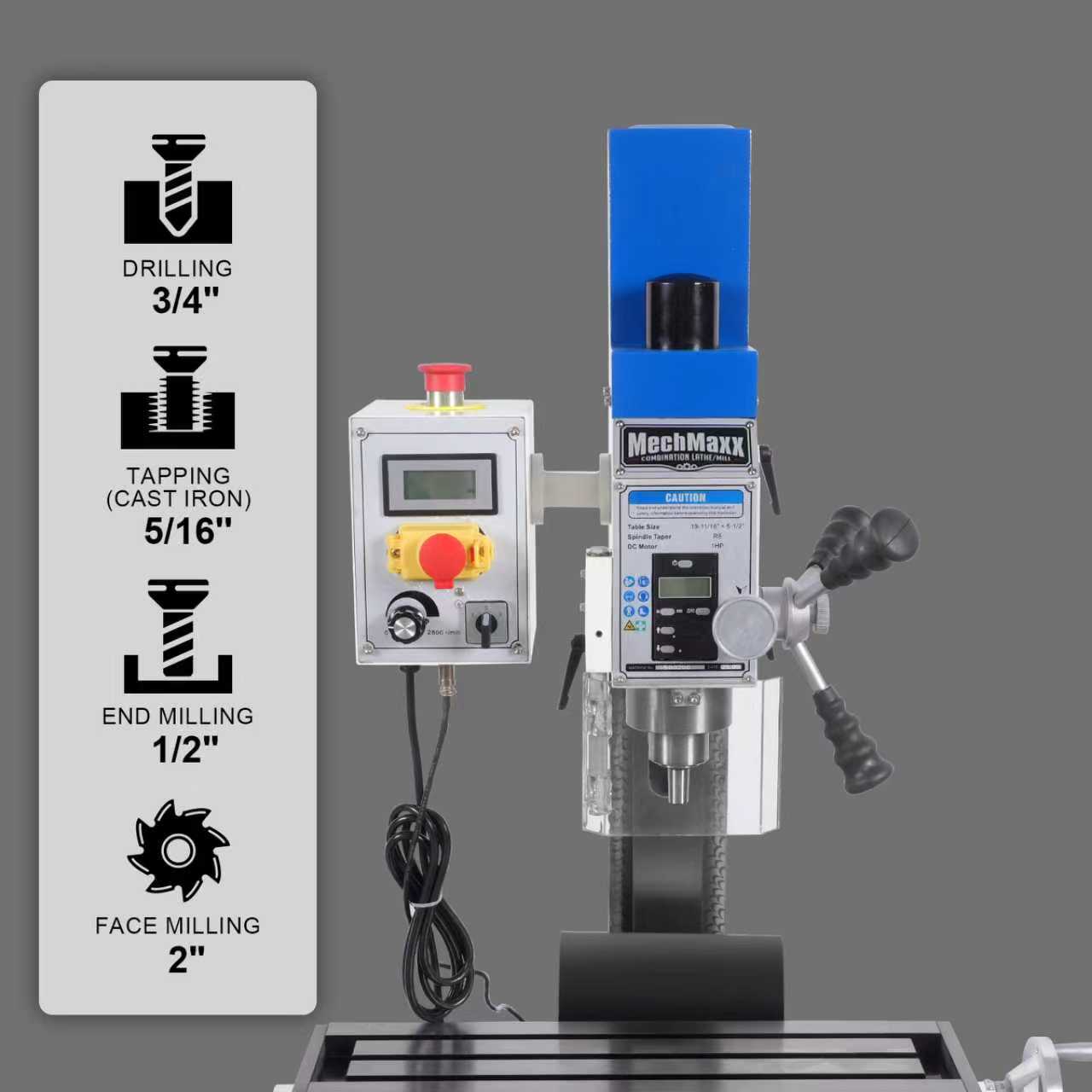

Cutting Capacities You Can Count On

Handle a wide range of tasks with the VM18L: Drilling up to 3/4", Tapping (Cast Iron) up to 5/16", End Milling up to 1/2", and Face Milling up to 2". Compact yet capable — this machine gets real work done.

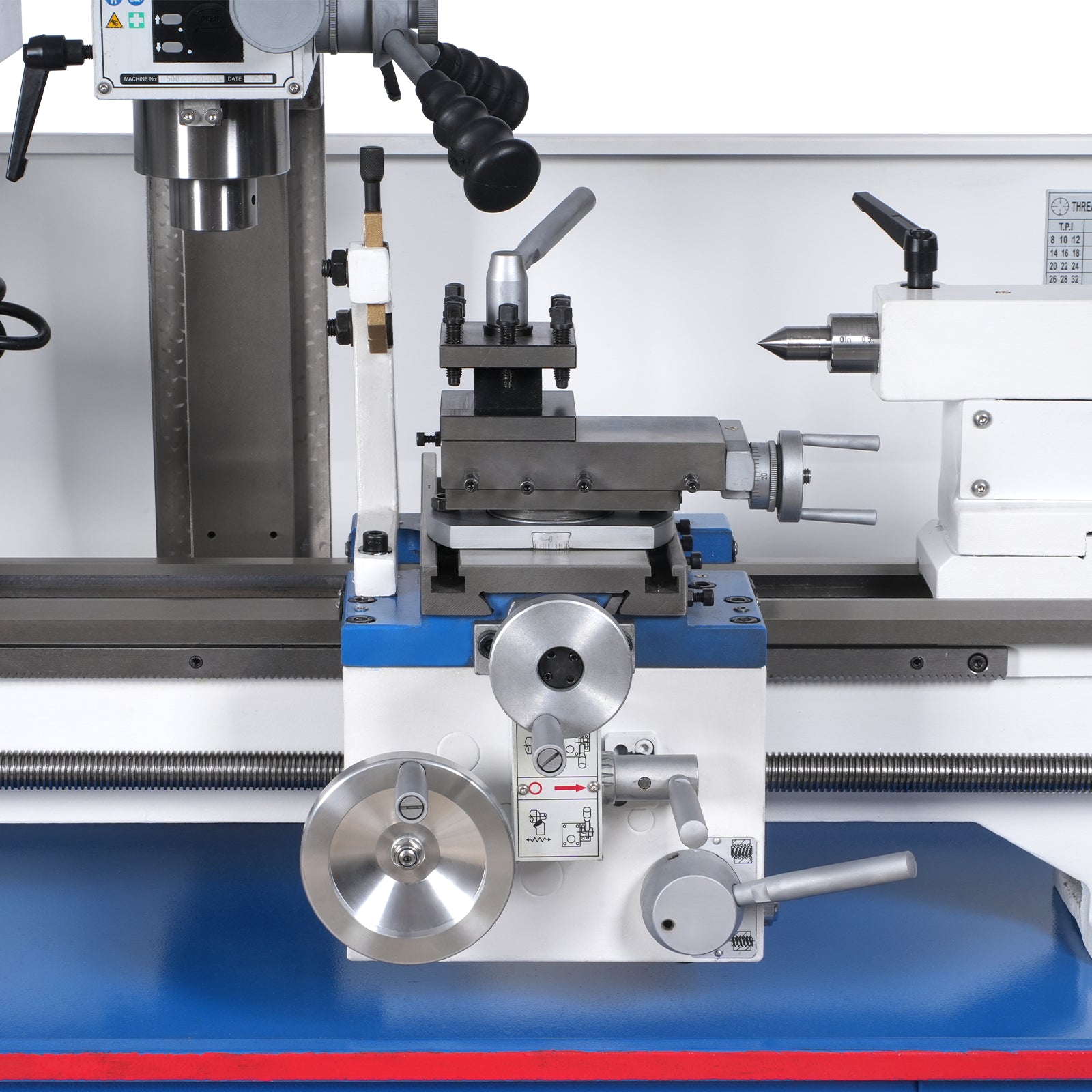

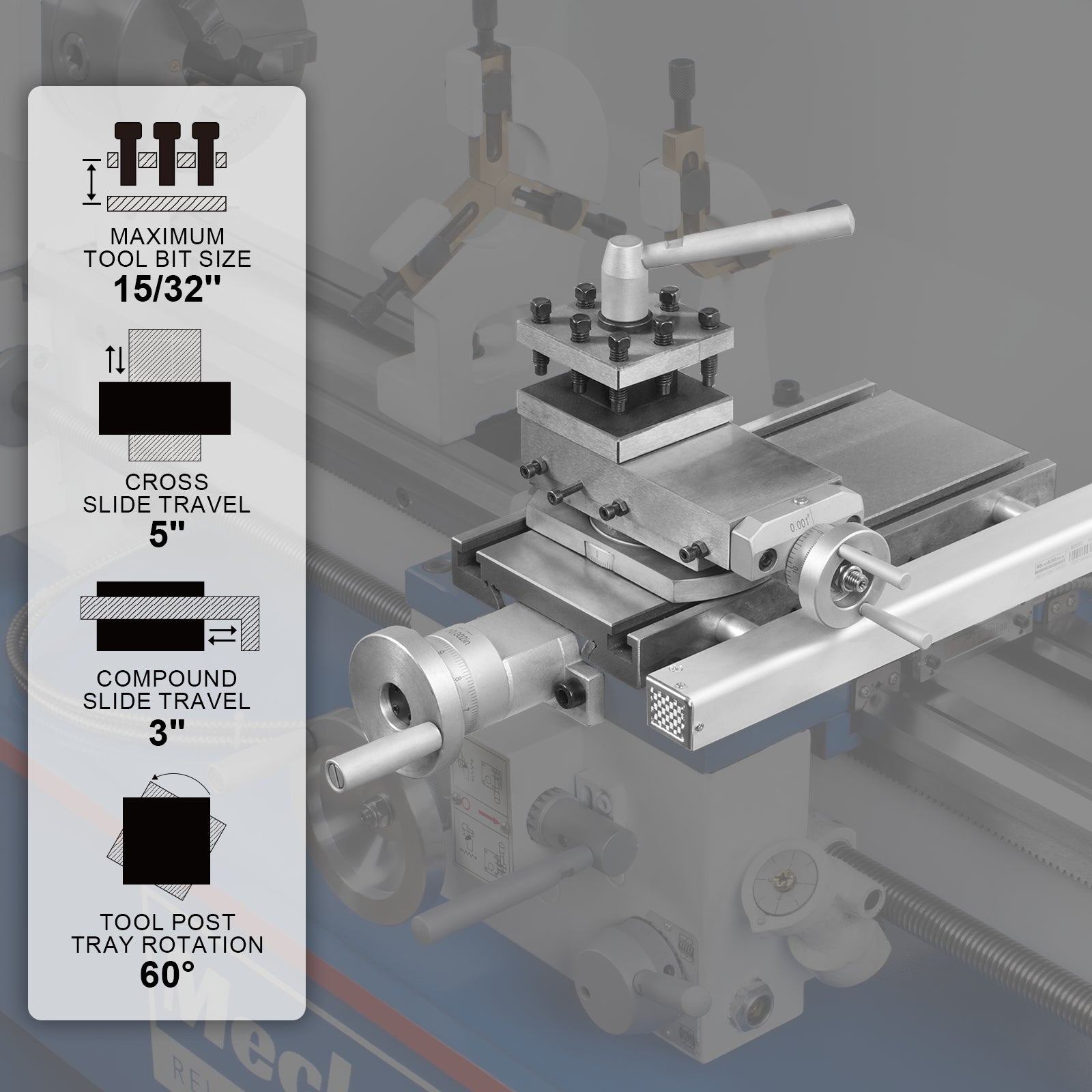

Precision Tool Post with Adjustable Rotation

This tool post offers superior support for turning and threading operations. With 5" cross slide travel and 3" compound slide travel, it ensures smooth, precise movements. The 60° rotation of the tool post tray allows you to easily position tools for different angles, enhancing versatility and precision in every cut. Perfect for a variety of tasks, from fine-tuning to heavy-duty operations.

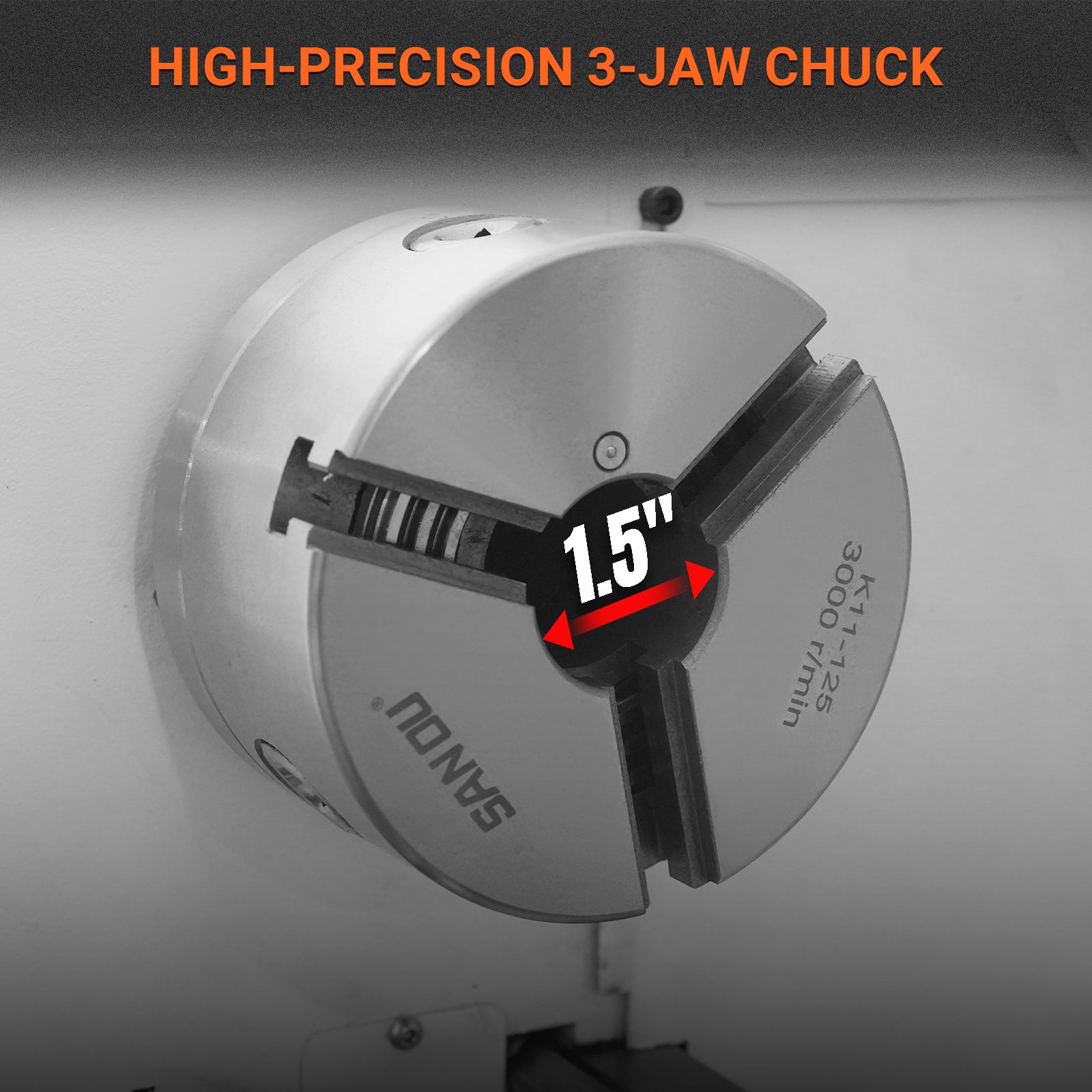

High-Precision 3-Jaw Chuck with Large 1.5" Spindle Bore

This 5" 3-jaw chuck pairs with a powerful 1.5" spindle bore—larger than most in its class—offering exceptional clamping capacity for longer or thicker workpieces. The MT#5 taper one-piece spindle ensures minimal runout and high concentricity, making it ideal for bar feeding, precision turning, and demanding jobs that require both strength and accuracy.

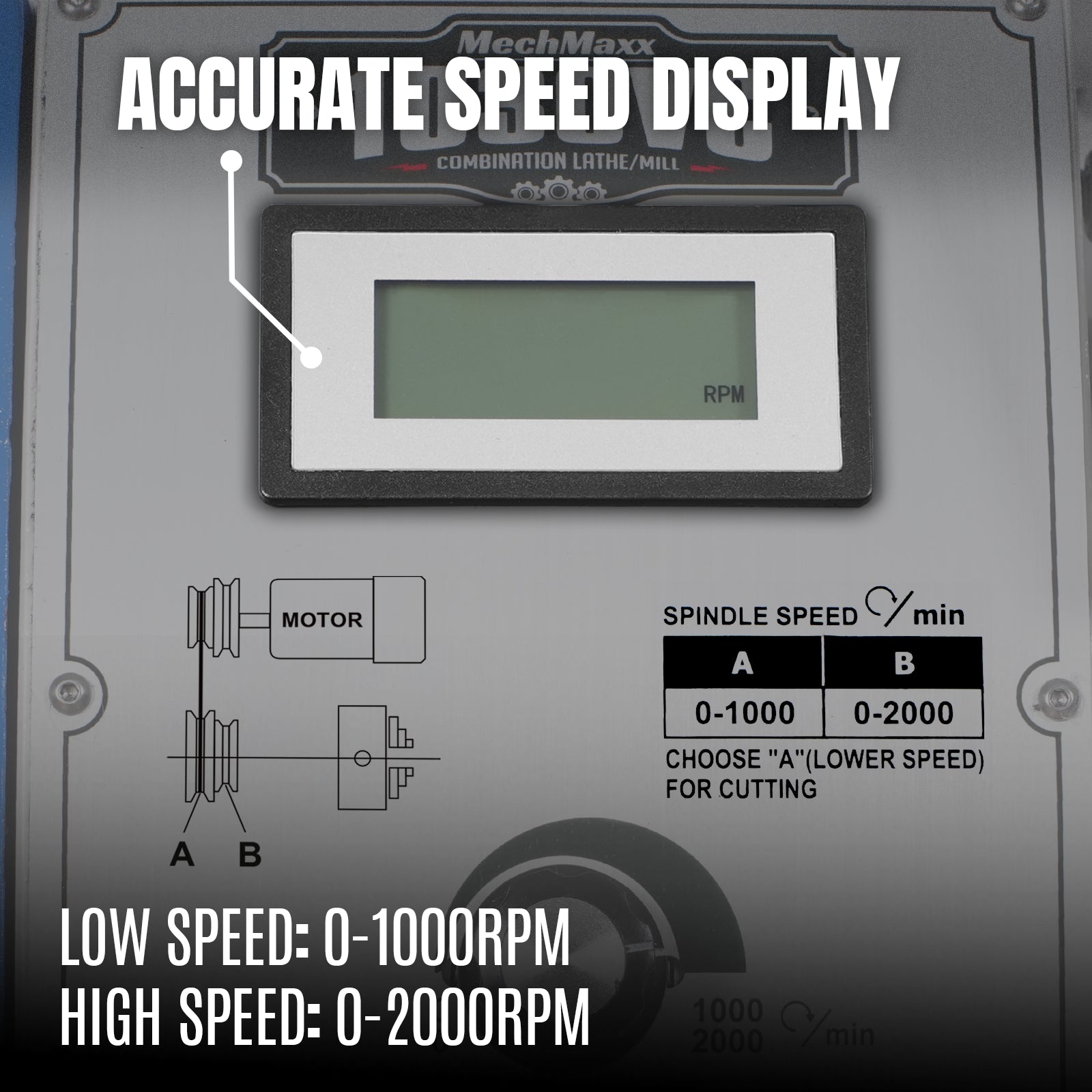

Electronic Control with Stepless Speed Adjustment

The high-quality electronic control system provides stepless speed adjustment, allowing for smooth, continuous speed changes for different workpieces. With a clear speed display, you can easily monitor and adjust settings, ensuring precise control and flexibility for all your machining tasks. Effortlessly switch between tasks and materials, and achieve the best results every time.

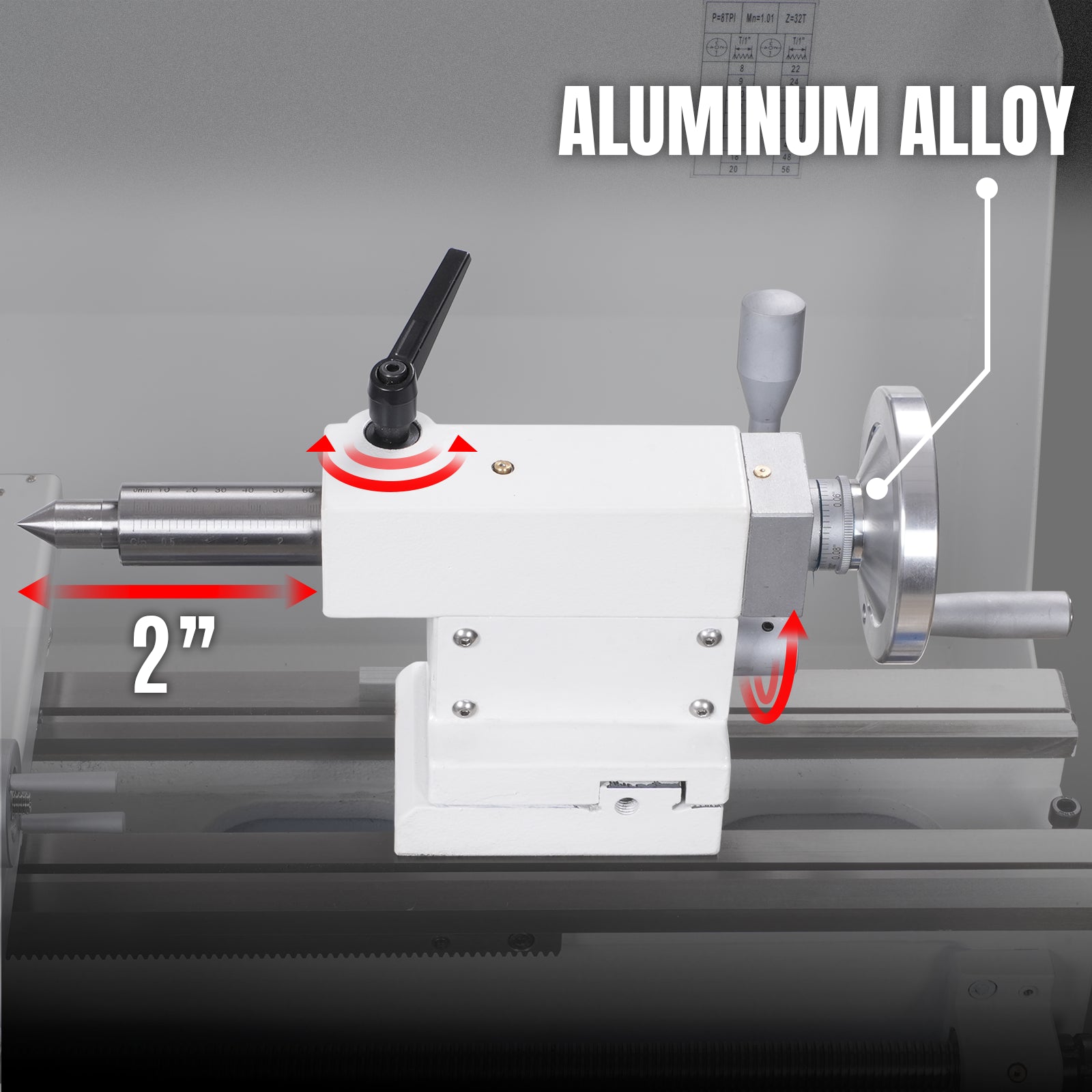

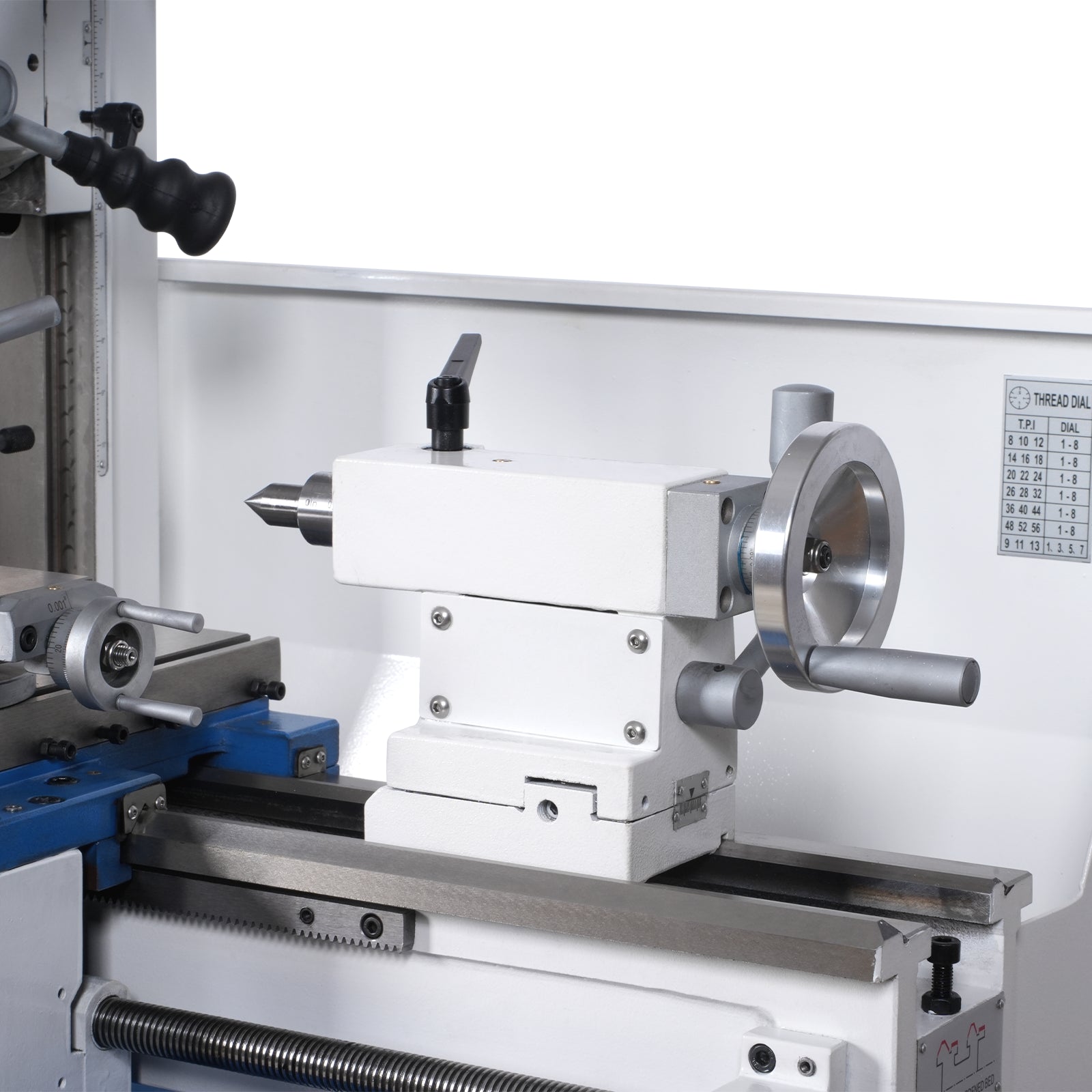

Quick-Lock Tailstock with Durable Aluminum Alloy Construction

This tailstock features a quick-lock design for fast, secure adjustments with minimal effort. Made from high-quality aluminum alloy, it offers durability while reducing weight. The streamlined design maintains strength without the excess material, providing an efficient and user-friendly solution for precise operations.

Automatic Longitudinal and Cross Feed Support

Equipped with automatic feed in both longitudinal and cross directions, this lathe allows for smooth, hands-free cutting operations. It enhances precision and consistency while reducing operator effort—ideal for threading, facing, and extended turning tasks where surface finish and accuracy matter most.

Heavy-Duty Cast Iron Construction

Crafted from high-density, premium-grade cast iron treated with precision induction quenching for maximum structural rigidity and superior surface hardness. The ultra-durable solid body resists twisting, thermal expansion, and harsh workshop wear, ensuring years of trouble-free, heavy-duty operation.

Video

Product Warranty

Specifications

Lathe Parameter
Motor Power (Lathe)	1.5 HP, 110V, single-phase, 10A
Swing Over Bed	9-7/8" (250 mm)
Swing Over Cross Slide	5-1/2" (140 mm)
Swing Over Saddle	5" (127 mm)
Distance Between Centers	29-1/2" (750 mm)
Bed Width	5-3/8" (135mm)
Spindle Bore	1-1/2" (38 mm)
Spindle Mount	Intrinsic back plate
Spindle Taper	MT#5
Tailstock Taper	MT#2
Tailstock Quill Travel	3" (75 mm)
Tailstock Offset
Carriage Travel	27-1/2" (700 mm)
Cross Slide Travel	5" (127 mm)
Compound Slide Travel	3" (75 mm)
Spindle Speed Range	0–2000 RPM
Number of Speed Ranges	Variable
Longitudinal Feed Rate	0.0025 – 0.014 in./rev.
Transverse Feed Rate	0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch	20mm(8TPI)
Threading Capacity – Inch	8–80 TPI(37KINDS)
Threading Capacity – Metric	0.35 – 3.0 mm(21kinds)

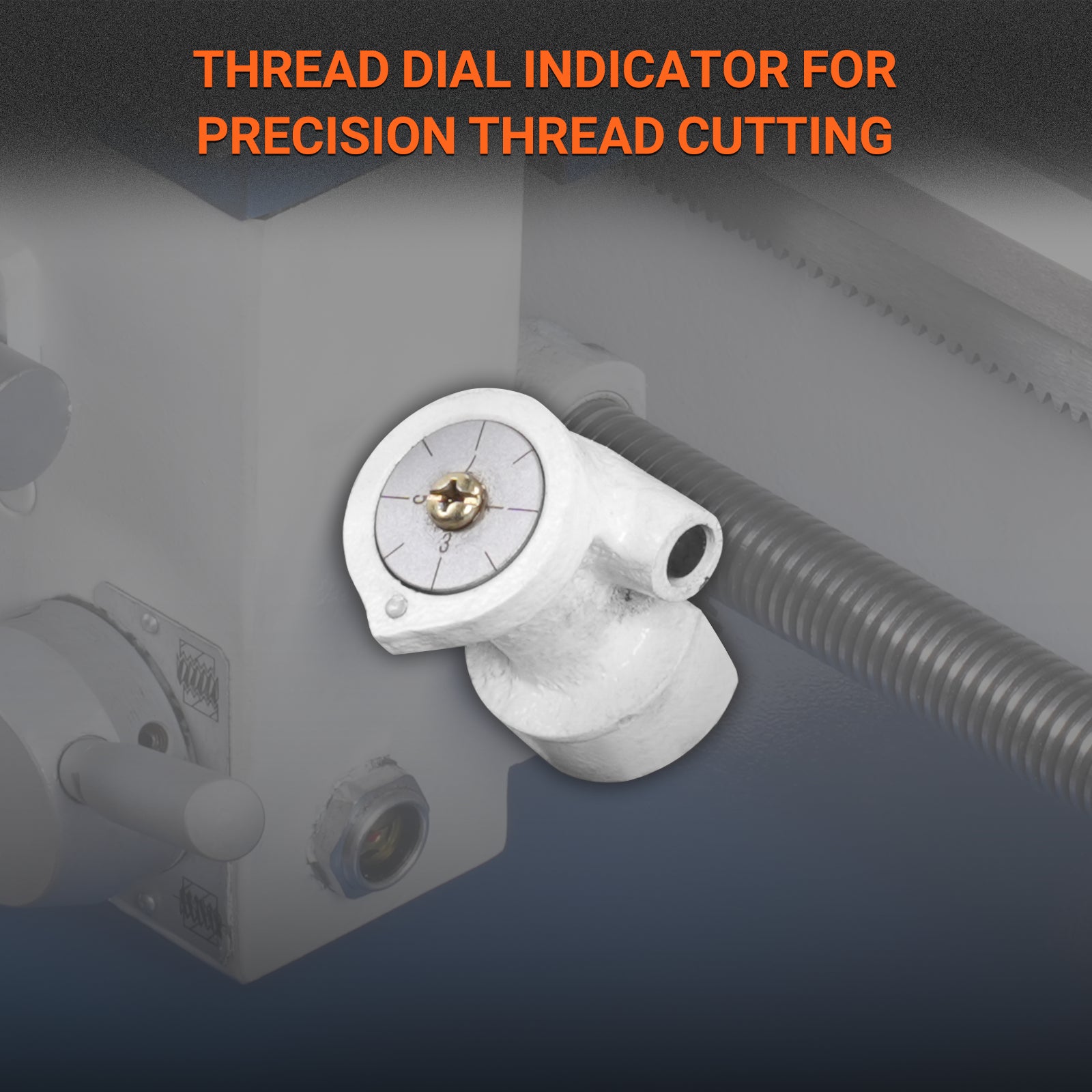

Thread Dial Indicator	YES
Tool Post Type	4-way
Max Tool Bit Size	15/32''(12mm)
Mill/Drill Head Specifications
Motor Power (Mill Head)	1HP(750W)
Spindle Taper	R8
Spindle Speed Range	0-2500RPM
Spindle Travel (Quill Stroke)	2"(50mm)
Quill Diameter	Ø60 mm
Drawbar Thread Size	7/16"-20
Drilling Capacity	5/8"(16mm)
End Milling Capacity	1/2"(12mm)
Face Milling Capacity	2"(50mm)
Vertical Travel (Z-Axis)	10-7/8"(275mm)
Head Tilt Angle	±90°
Distance: Spindle to Table	10-7/8"(275mm)
Distance: Spindle to Column	6-5/8"(170mm)
Column Type	Dovetail Slot
Drive Type	Belt Drive Brushless

Machine Dimensions & Utilities
Electrical Requirements	110V 1PHASE
package Left Column Dimensions	32-1/16" L x 16-5/16" W x 12-13/16" H (815 x 415 x 325 mm)
package Left Column N.W. / G.W.	35.3 lbs (16 kg) / 37.0 lbs (16.8 kg)
package Right Column Dimensions	32-1/16" L x 16-5/16" W x 11-1/4" H (815 x 415 x 285 mm)
package Right Column N.W. / G.W.	41.9 lbs (19 kg) / 44.1 lbs (20 kg)
package Combo Machine Dimensions	55-1/8" L x 24-7/16" W x 38-3/16" H (1400 x 620 x 970 mm)
package Combo Machine N.W. / G.W.	407.9 lbs (185 kg) / 518.1 lbs (235 kg)
