SKU: 500016

| Model: 1030VDW

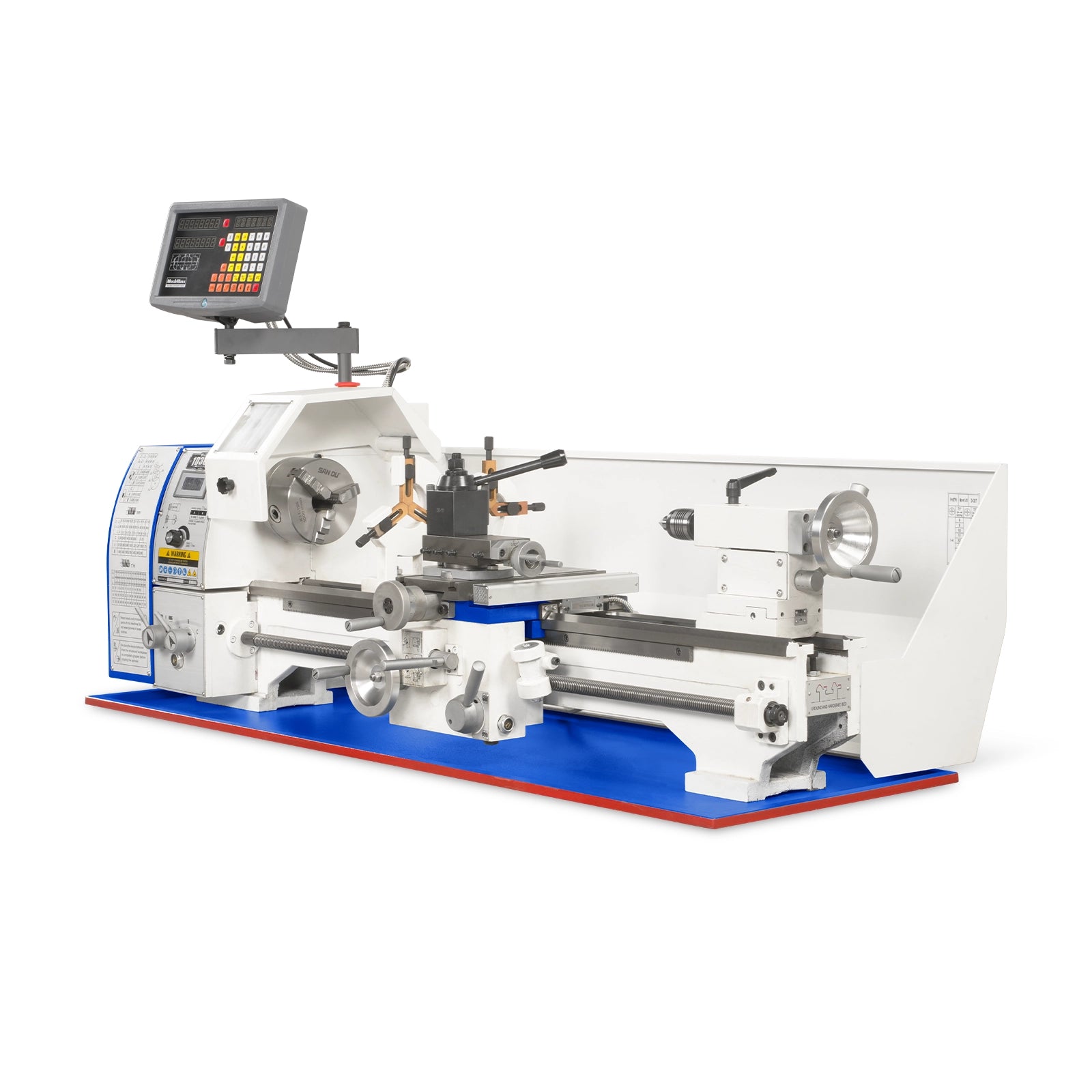

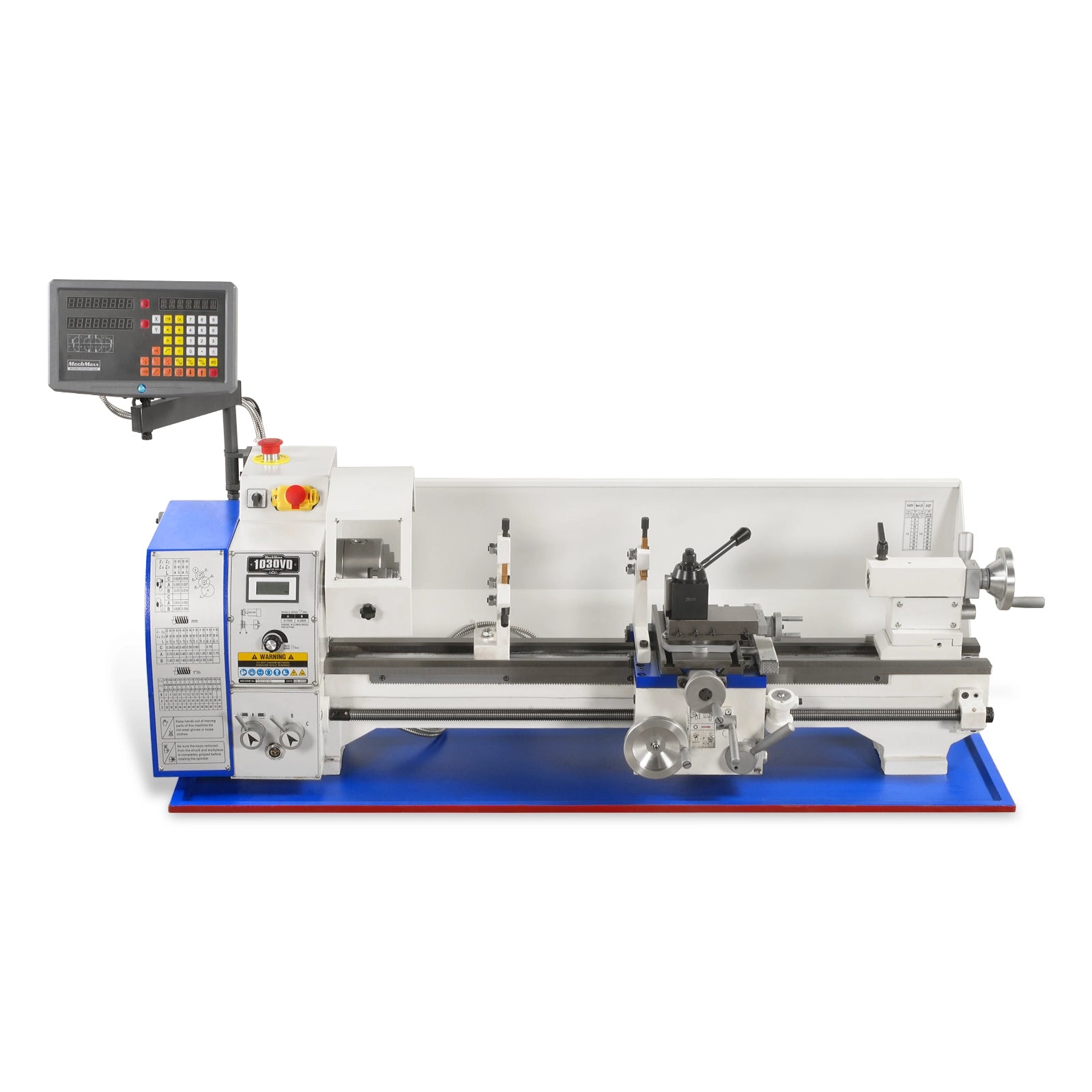

1.5'' Spindle Bore Metal Lathe Machine with DRO and Wedge Type Quick Change Tool Post(QCTP), 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand 1030VDW

Name: 1.5'' Spindle Bore Metal Lathe Machine with DRO and Wedge Type Quick Change Tool Post(QCTP), 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand 1030VDW
Brand: MechMaxx
SKU: 500016
Price: 3599.0 USD
Availability: InStock

1.5'' Spindle Bore Metal Lathe Machine with DRO and Wedge Type Quick Change Tool Post(QCTP), 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand 1030VDW

$359900

$4,319.00

Save $720

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Swing x Dist. Between Centers : 10" x 30" (250 x 750 mm)

10" x 30" (250 x 750 mm) 10" x 22" (250 x 550 mm) 8" x 16" (210 x 400 mm) 11" x 30" (280 x 750 mm)

Digital Readout (DRO) : With DRO

With DRO Without DRO

Tool Post & Stand : Wedge QCTP (Benchtop)

Wedge QCTP (Benchtop) Standard Lathe (Benchtop) Standard Lathe (With Stand) 3-in-1 Combo (Benchtop) 3-in-1 Combo (With Stand)

Availability: In Stock

Payment:

Lifetime Technical Support

Get expert troubleshooting and operational assistance via phone or email for the life of your equipment.

Warranty Coverage

Backed by our dependable equipment warranty for long-term protection.

Official Website Lowest Price Guarantee

Shop directly from our official website with confidence. If you find an identical product currently listed at a lower price on another website, we'll refund the difference.

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

Storage Stand For Metal Lathe Machine 1030 Serial （SKU:500005）(SKU:500006)（SKU：500101））without Oiltray

6"x20'' Benchtop Mill Drill Machine, Variable Speed, R8 Spindle, 1 HP, 110V, Brushless Motor Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM18L

7‘’ x 27-1/2‘’ Benchtop Mini Mill Drill Machine, Variable Speed, Brshless Motor, R8 Spindle, 1.5 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM25L

Storage Stand For Metal Lathe Machine 1030 Serial （SKU:500005）(SKU:500006)（SKU：500101））without Oiltray $41900 $439.00

6"x20'' Benchtop Mill Drill Machine, Variable Speed, R8 Spindle, 1 HP, 110V, Brushless Motor Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM18L $159900 $1,799.00

7‘’ x 27-1/2‘’ Benchtop Mini Mill Drill Machine, Variable Speed, Brshless Motor, R8 Spindle, 1.5 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM25L $219900 $2,399.00

Total Price

$

Product Overview

Larger Spindle Bore for Increased Flexibility: With a 38mm spindle bore, this lathe can accommodate larger workpieces than typical lathes, providing more flexibility and versatility for various projects. The MT#5 spindle taper supports a wide range of tooling options, adding to its adaptability.
Powerful and Flexible Performance: The lathe features variable spindle speeds from 0 to 2000 RPM, giving you full control for different materials and tasks. The 1.5 HP motor provides ample power, ensuring smooth operation even for more demanding machining tasks.
High-Quality Construction: The lathe is constructed with premium cast iron, which is quench-hardened for added strength and rigidity. Compared to other lathes in its class, the heavier bed ensures better stability, allowing for more precise machining and minimal vibrations during operation.
Precision Machining:
With an 9-7/8" (250 mm) swing over bed and 29-1/2" (750 mm) distance between centers, this lathe is ideal for handling a variety of small to medium-sized workpieces. The cross slide travel and compound slide travel ensure smooth and precise movements, making internal cutting, face cutting, and bevel cutting quick and easy.
Enhanced Thread Cutting: Equipped with a thread dial indicator, it simplifies the threading process, ensuring precise and repeatable thread cuts.
Enhanced Precision with DRO: Digital Readout (DRO) system provides real-time measurements for increased accuracy, allowing for quicker setups and precise adjustments across all axes.
Rapid Tool Changes with Wedge-Type QCTP: The integrated wedge quick-change tool post enables seamless tool swaps in seconds while maintaining strict center-height accuracy. Its heavy-duty locking wedge delivers far greater holding power and vibration resistance than standard tool posts, maximizing machining efficiency across facing, turning, and parting operations.

Product manual (PDF)

10'' x 30'' Metal Lathe Machine 1.0.pdf

Product Features

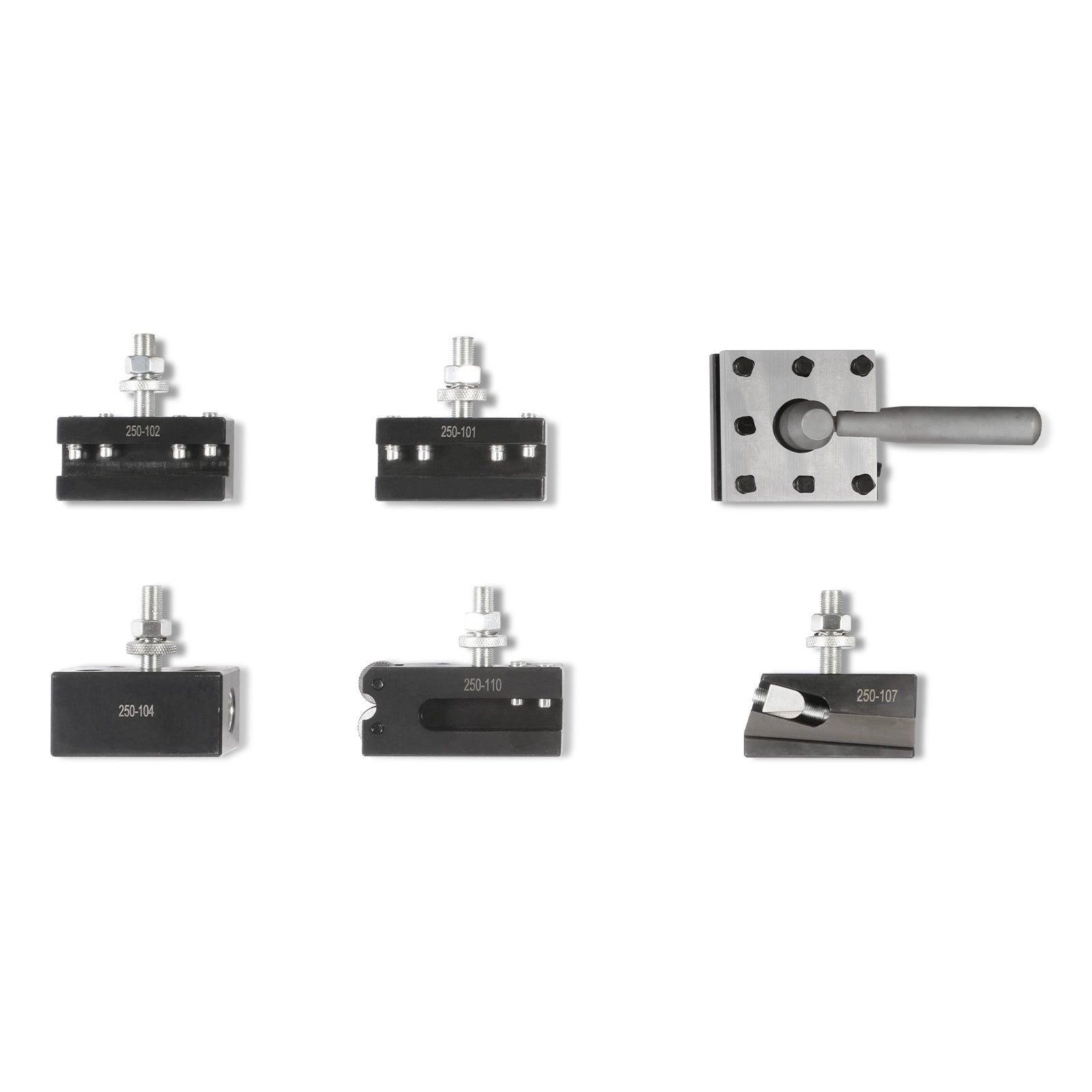

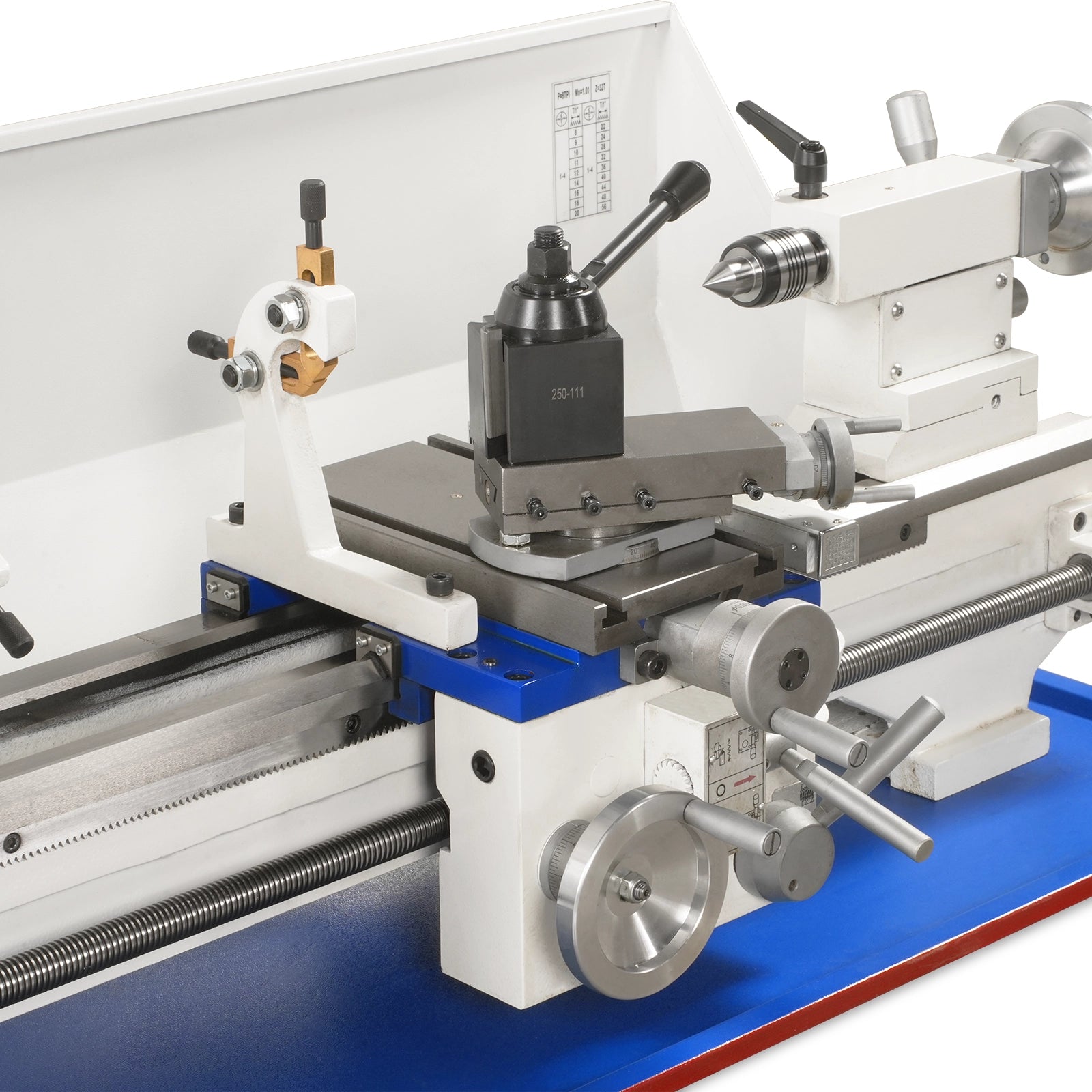

Wedge-Type Quick Change Tool Post (QCTP)

The integrated wedge quick-change tool post enables seamless tool swaps in seconds while maintaining strict center-height accuracy. Its heavy-duty locking wedge delivers far greater holding power and vibration resistance than standard tool posts, maximizing machining efficiency across facing, turning, and parting operations.

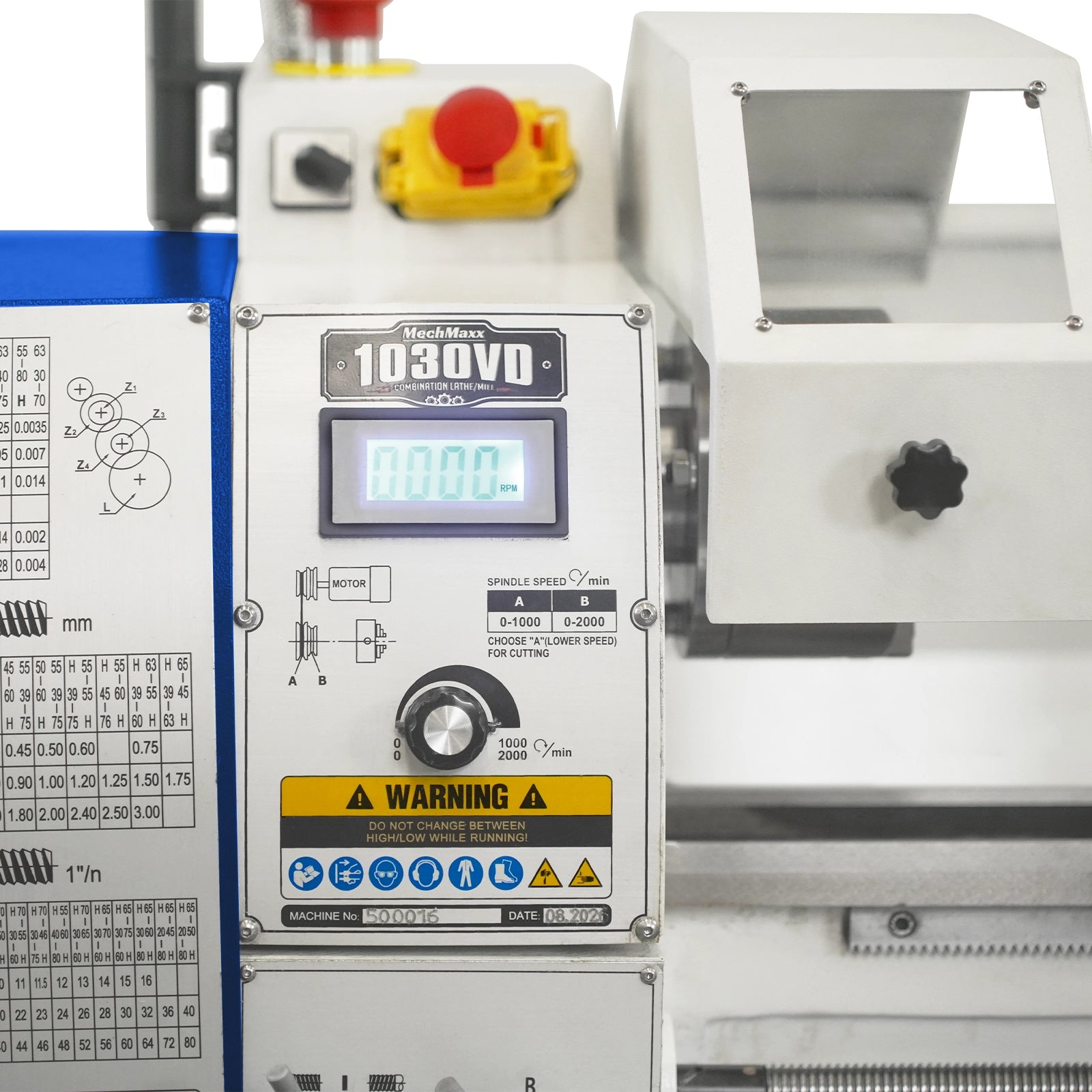

Electronic Control with Stepless Speed Adjustment

The high-quality electronic control system provides stepless speed adjustment, allowing for smooth, continuous speed changes for different workpieces. With a clear speed display, you can easily monitor and adjust settings, ensuring precise control and flexibility for all your machining tasks. Effortlessly switch between tasks and materials, and achieve the best results every time.

High-Precision 3-Jaw Chuck with Large 1.5" Spindle Bore

This 5" 3-jaw chuck pairs with a powerful 1.5" spindle bore—larger than most in its class—offering exceptional clamping capacity for longer or thicker workpieces. The MT#5 taper one-piece spindle ensures minimal runout and high concentricity, making it ideal for bar feeding, precision turning, and demanding jobs that require both strength and accuracy.

Heavy-Duty Cast Iron Construction

Crafted from high-density, premium-grade cast iron treated with precision induction quenching for maximum structural rigidity and superior surface hardness. The ultra-durable solid body resists twisting, thermal expansion, and harsh workshop wear, ensuring years of trouble-free, heavy-duty operation.

Quick-Lock Tailstock with Durable Aluminum Alloy Construction

This tailstock features a quick-lock design for fast, secure adjustments with minimal effort. Made from high-quality aluminum alloy, it offers durability while reducing weight. The streamlined design maintains strength without the excess material, providing an efficient and user-friendly solution for precise operations.

Precision Handwheel with Fine Adjustment

The handwheel allows for fine adjustments with precision control, perfect for tasks requiring high accuracy. Whether you're fine-tuning feed rates or making detailed cuts, this feature ensures smooth and exact movements for precise machining results.

Thread Dial Indicator for Precision Thread Cutting

The thread dial indicator enables accurate thread cutting by providing precise control over the feed rate. It helps synchronize the carriage with the leadscrew, allowing for smooth threading and reducing the chances of misalignment. While it doesn’t directly eliminate vibrations, its role in ensuring accurate cuts helps minimize errors that could lead to instability, enhancing the overall cutting quality and stability.

Automatic Longitudinal and Cross Feed Support

Equipped with automatic feed in both longitudinal and cross directions, this lathe allows for smooth, hands-free cutting operations. It enhances precision and consistency while reducing operator effort—ideal for threading, facing, and extended turning tasks where surface finish and accuracy matter most.

Dual-Axis Digital Readout for Precise Control

The dual-axis digital readout (DRO) system allows for precise tracking of both the longitudinal and cross slide movements, providing real-time position feedback. This feature ensures accurate machining and quick adjustments during operations, improving efficiency and reducing the chances of error, especially when working on complex or detailed parts.

Motor	1.5 HP, 110V, Single-Phase, 10A, 60HZ
Swing Over Bed	9-7/8" (250 mm)
Swing Over Cross Slide	5-1/2" (140 mm)
Swing Over Saddle	5" (127 mm)
Distance Between Centers	29-1/2" (750 mm)
Bed Width	5-1/2" (140 mm)
Spindle Bore	1-1/2" (38 mm)
Spindle Mount	Intrinsic back plate
Spindle Type	One-piece Spindle
Spindle Taper	MT#5
Tailstock Taper	MT#2
Tailstock Quill Travel	3" (75 mm)
Cross Slide Travel	5" (127 mm)
Compound Slide Travel	3" (75 mm)
Carriage Travel	27-1/2" (700 mm)
Spindle Speeds	0–2000 RPM
Number of Speed Ranges	Variable
Longitudinal Feeds	0.0025 – 0.014 in./rev.
Transverse Feed Rate	0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch	20mm(8TPI)
Threading Capacity - Inch	8–80TPI(37KINDS)
Threading Capacity - Metric	0.35 – 3.0 mm(21kinds)
Maximum Tool Bit Size	15/32''(12mm)
Thread Dial Indicator	YES
Overall Dimensions	52.0" × 25.0" × 19.0" (1320 × 635 × 480 mm)
Approximate Shipping Weight	399 lbs (181 kg)
