SKU: 500423

| Model: GH4235

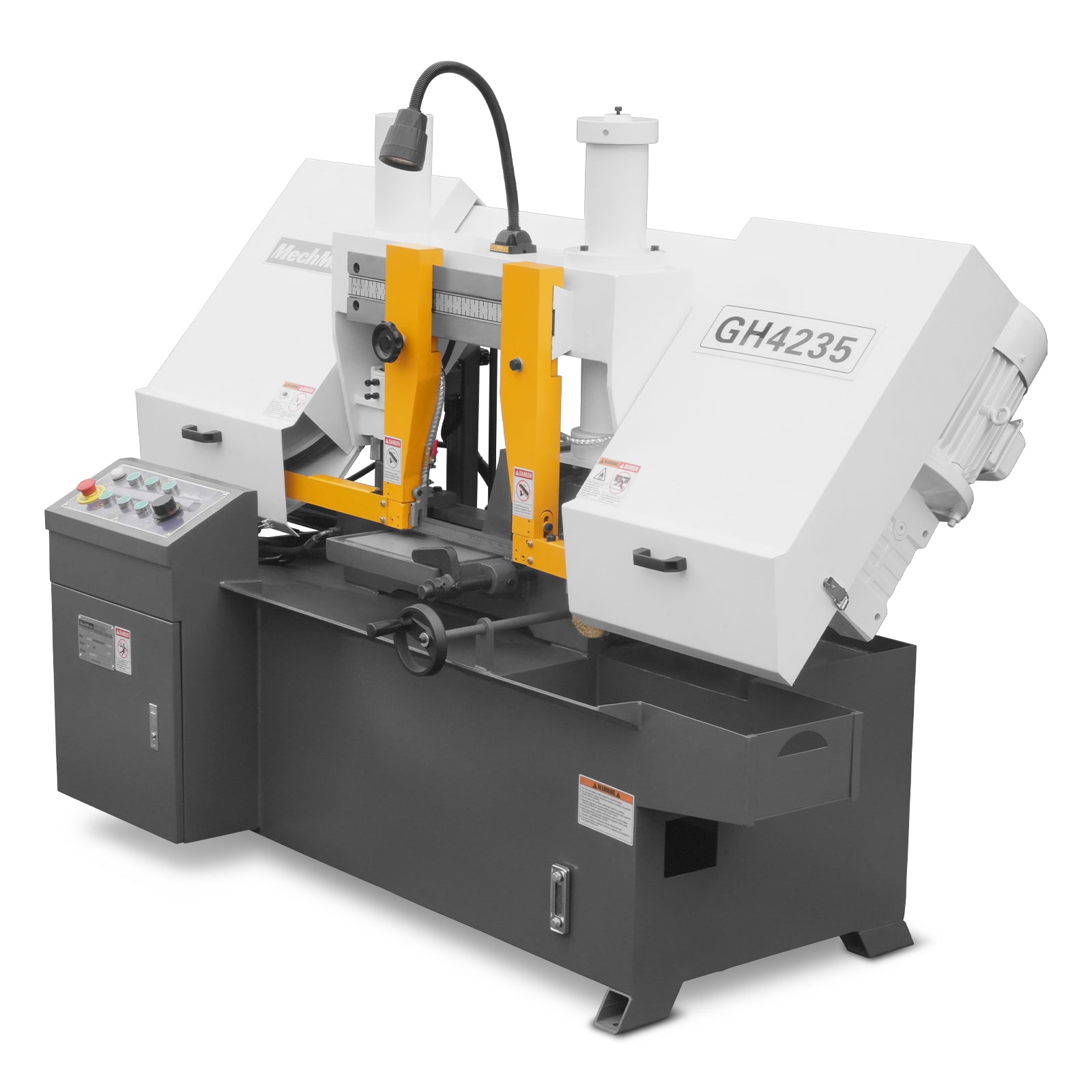

13" Double Column Horizontal Metal Cutting Band Saw | Hydraulic Feed | 2‑Speed | 2.2/2.8kW Industrial Metal Saw for Fabrication, Steel, Alloy, Carbon Steel GH4235

Name: 13" Double Column Horizontal Metal Cutting Band Saw | Hydraulic Feed | 2‑Speed | 2.2/2.8kW Industrial Metal Saw for Fabrication, Steel, Alloy, Carbon Steel GH4235
Brand: MechMaxx
SKU: 500423
Price: 9999.0 USD
Availability: InStock

13" Double Column Horizontal Metal Cutting Band Saw | Hydraulic Feed | 2‑Speed | 2.2/2.8kW Industrial Metal Saw for Fabrication, Steel, Alloy, Carbon Steel GH4235

$999900

$13,999.00

Save $4,000

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Bandsaw Type : Double Column Bandsaw

Double Column Bandsaw Horizontal Bandsaw

Cutting Capacity & Power : 13" / 350 mm (3.0/3.8 HP)

13" / 350 mm (3.0/3.8 HP) 8" / 200 mm (1.1/2.0 HP) 11" / 280 mm (3.0/3.8 HP) 15.7" / 400 mm (4.0/5.4 HP)

Workpiece Clamping : Hydraulic Clamping

Hydraulic Clamping

Availability: In Stock

Payment:

Lifetime Technical Support

Get expert troubleshooting and operational assistance via phone or email for the life of your equipment.

Warranty Coverage

Backed by our dependable equipment warranty for long-term protection.

Official Website Lowest Price Guarantee

Shop directly from our official website with confidence. If you find an identical product currently listed at a lower price on another website, we'll refund the difference.

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

【13-3/4” LARGE CUTTING CAPACITY】Max round cut φ13-3/4”, square cut 13-3/4”x13-3/4”, handles big solid bars, pipes, profiles easily
【2 BLADE SPEEDS + HYDRAULIC FEED】two gear speeds + stepless hydraulic downfeed, perfect for carbon steel, alloy, high-hardness metal
【2.2/2.8kW POWERFUL MOTOR】Heavy-duty worm drive transmission, strong torque, stable cutting, low noise, long service life
【DOUBLE COLUMN STABLE STRUCTURE】Vertical lifting design, minimal vibration, straight & clean cuts, high precision for industrial use
【COMPLETE COOLANT SYSTEM】Adjustable oil-water ratio, cools blade & workpiece, reduces wear, extends blade life significantly

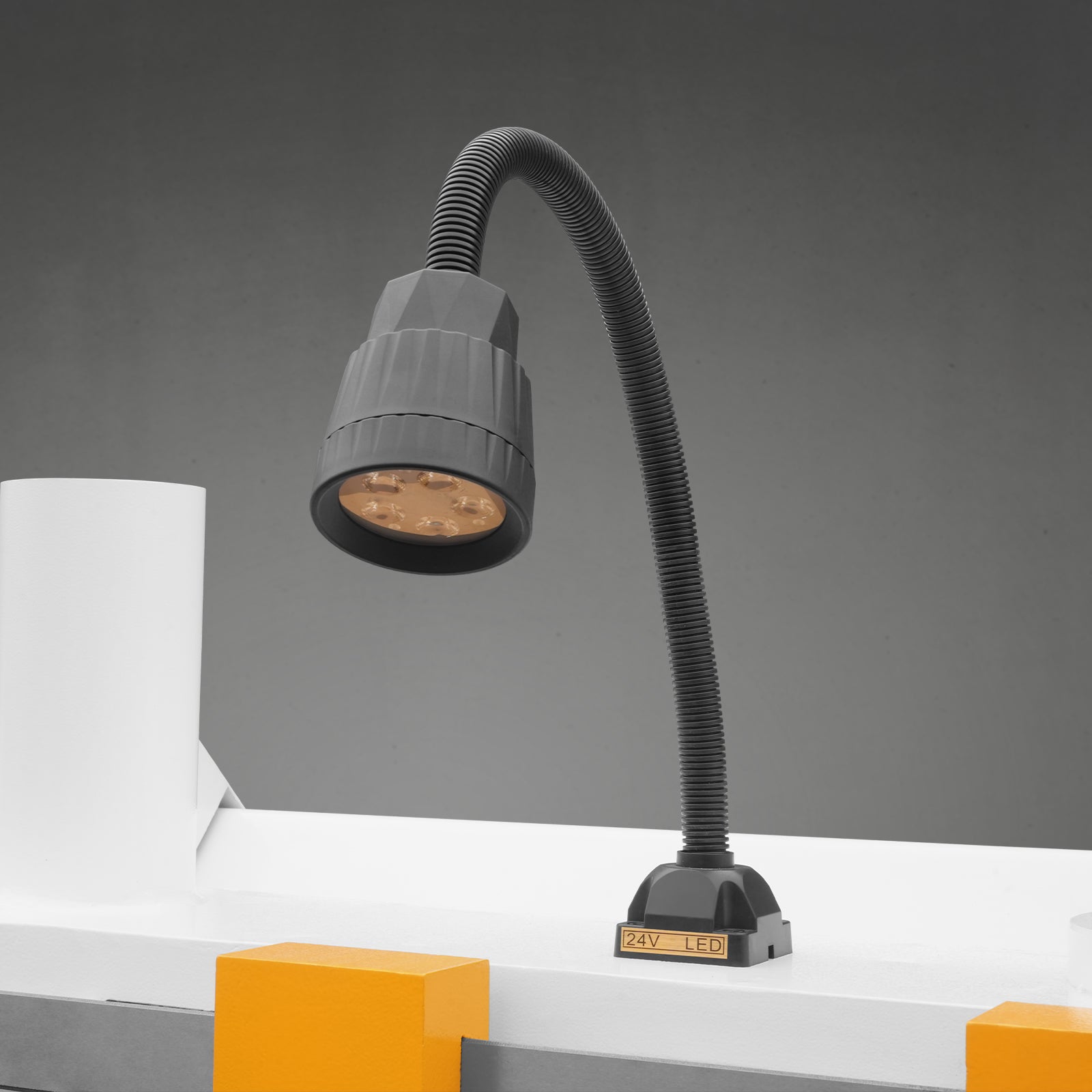

【SAFE & EASY OPERATION】Manual clamping, work light, overload protection, emergency stop, user-friendly control station
【INDUSTRIAL DURABILITY】Solid base, standard parts, easy maintenance, ideal for fabrication shops, maintenance, metalworking

Product manual (PDF)

500423 GH4235 13 in Metal Band Saw.pdf

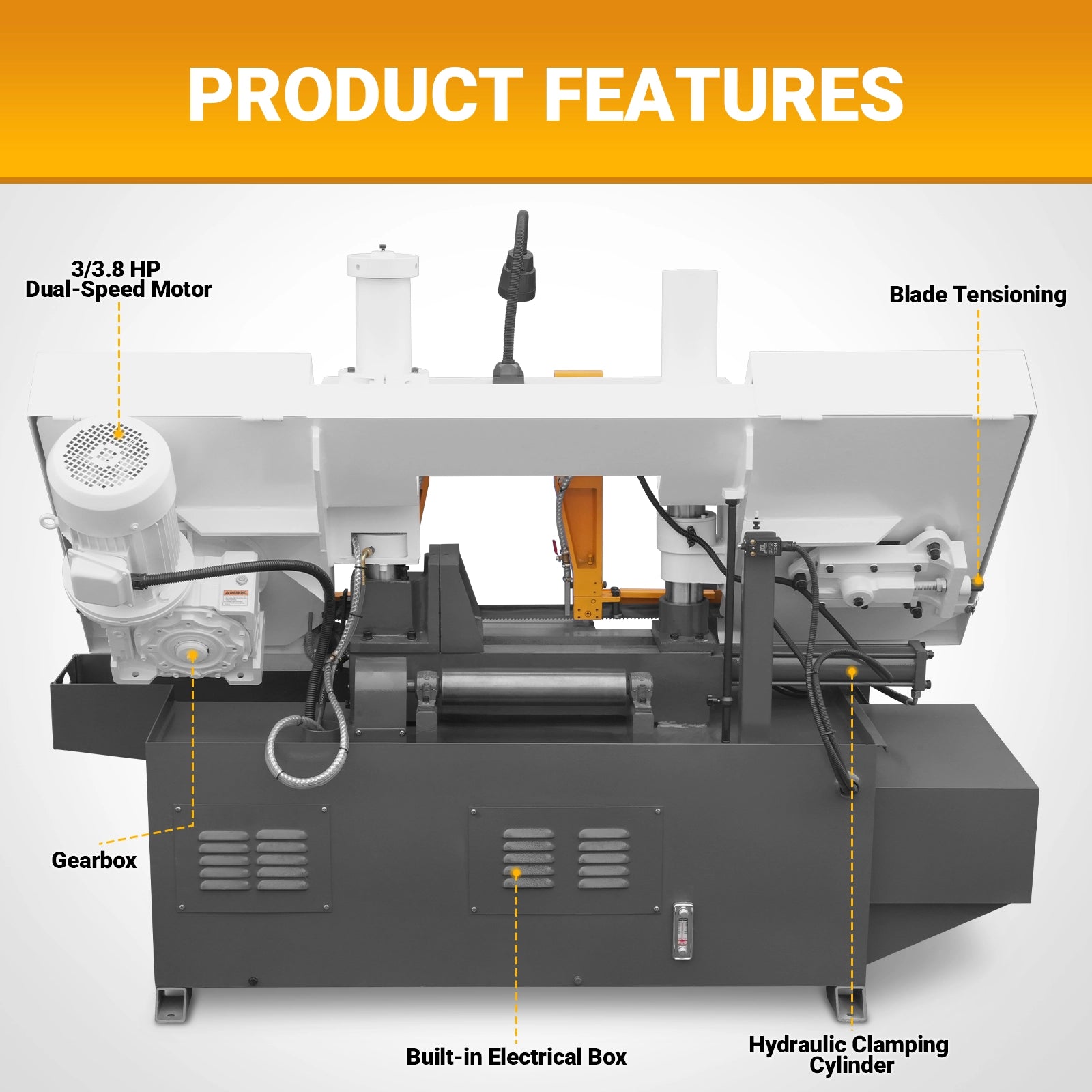

Product Features

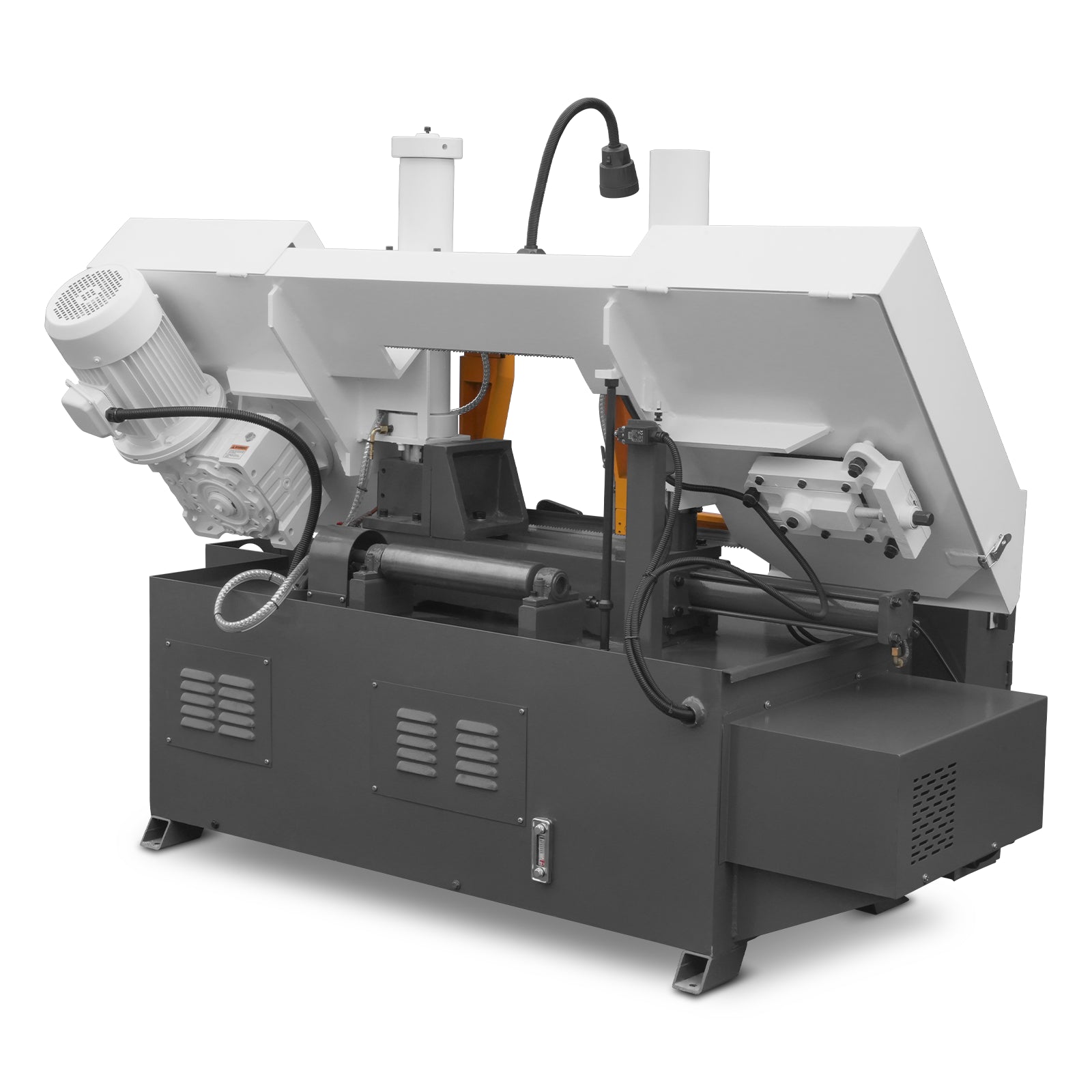

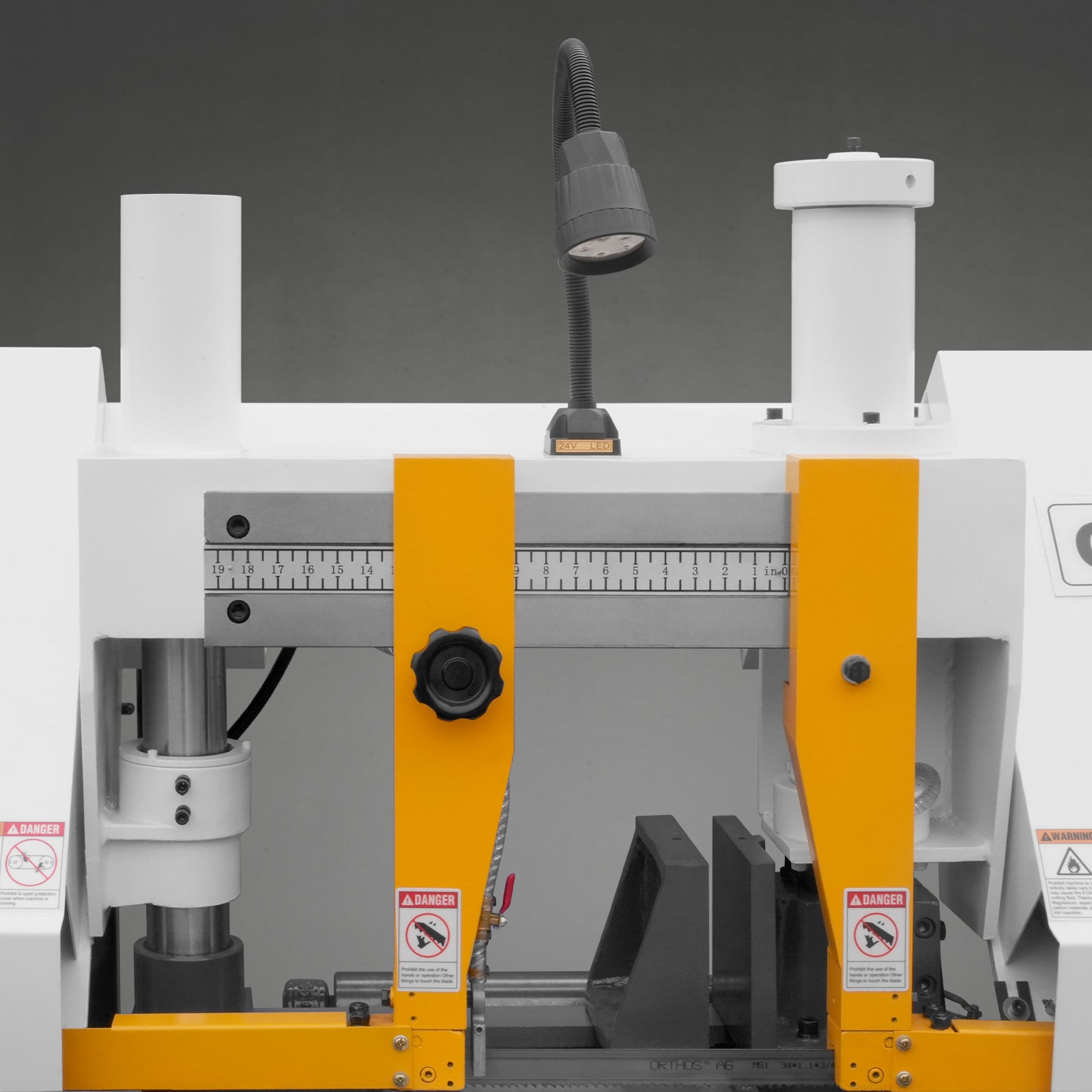

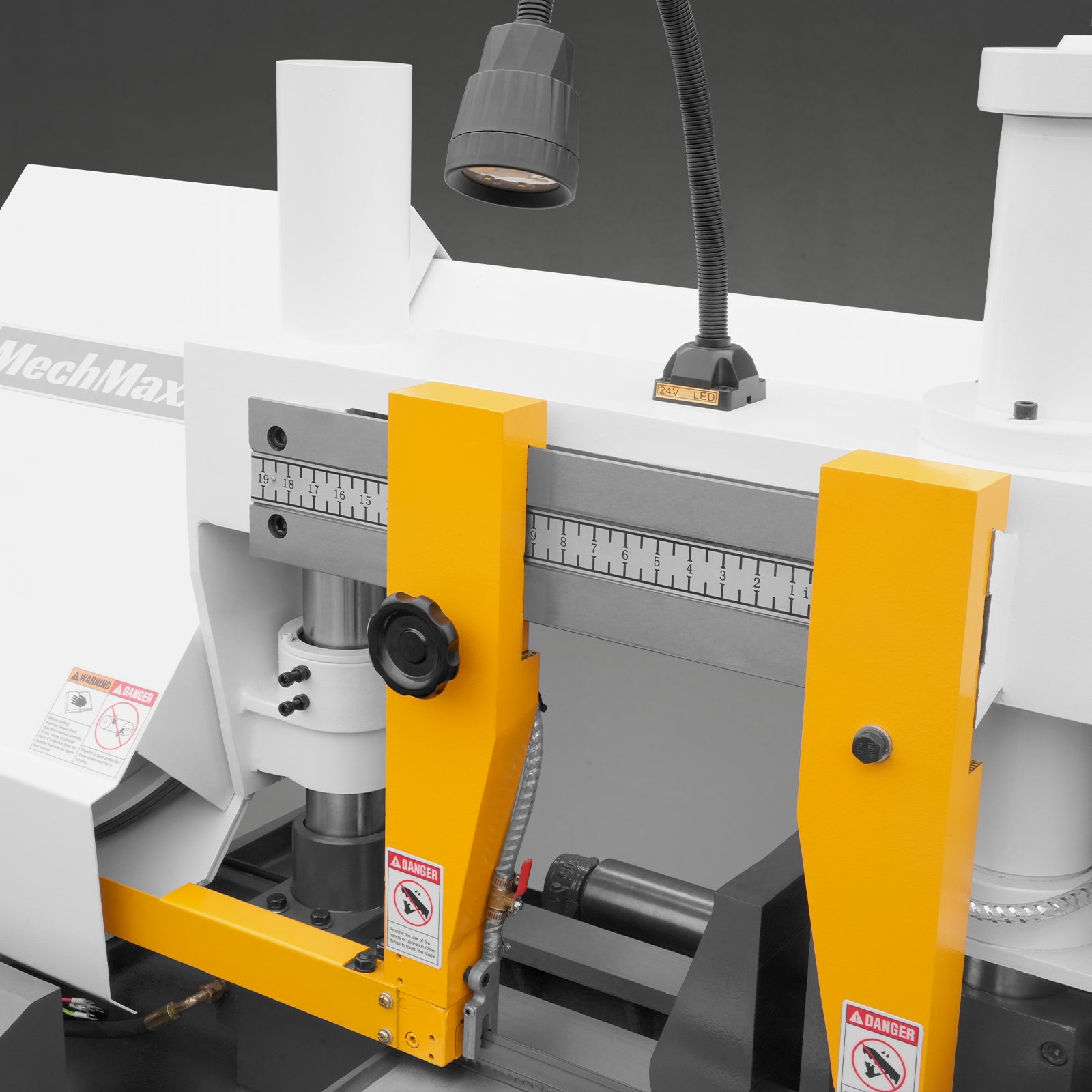

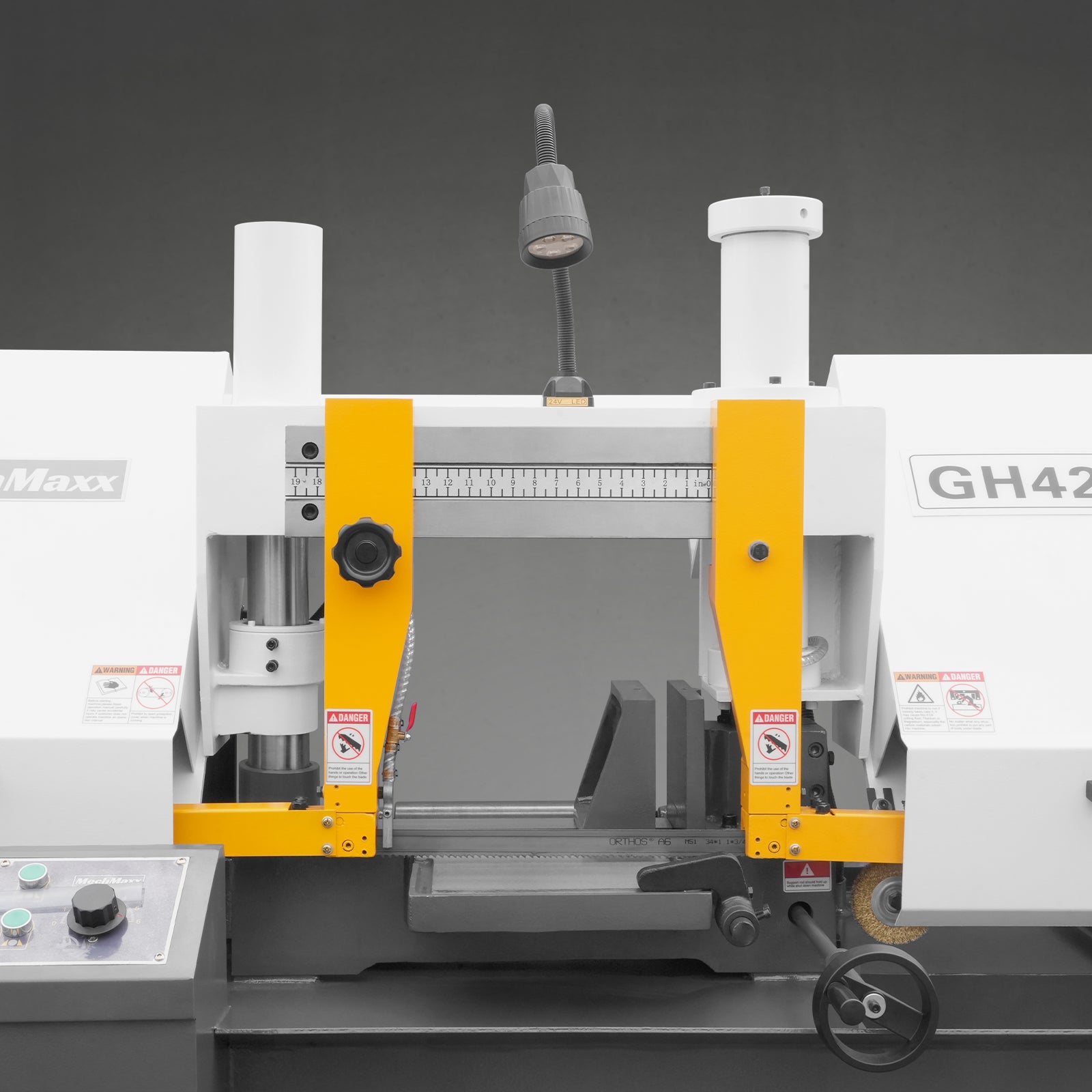

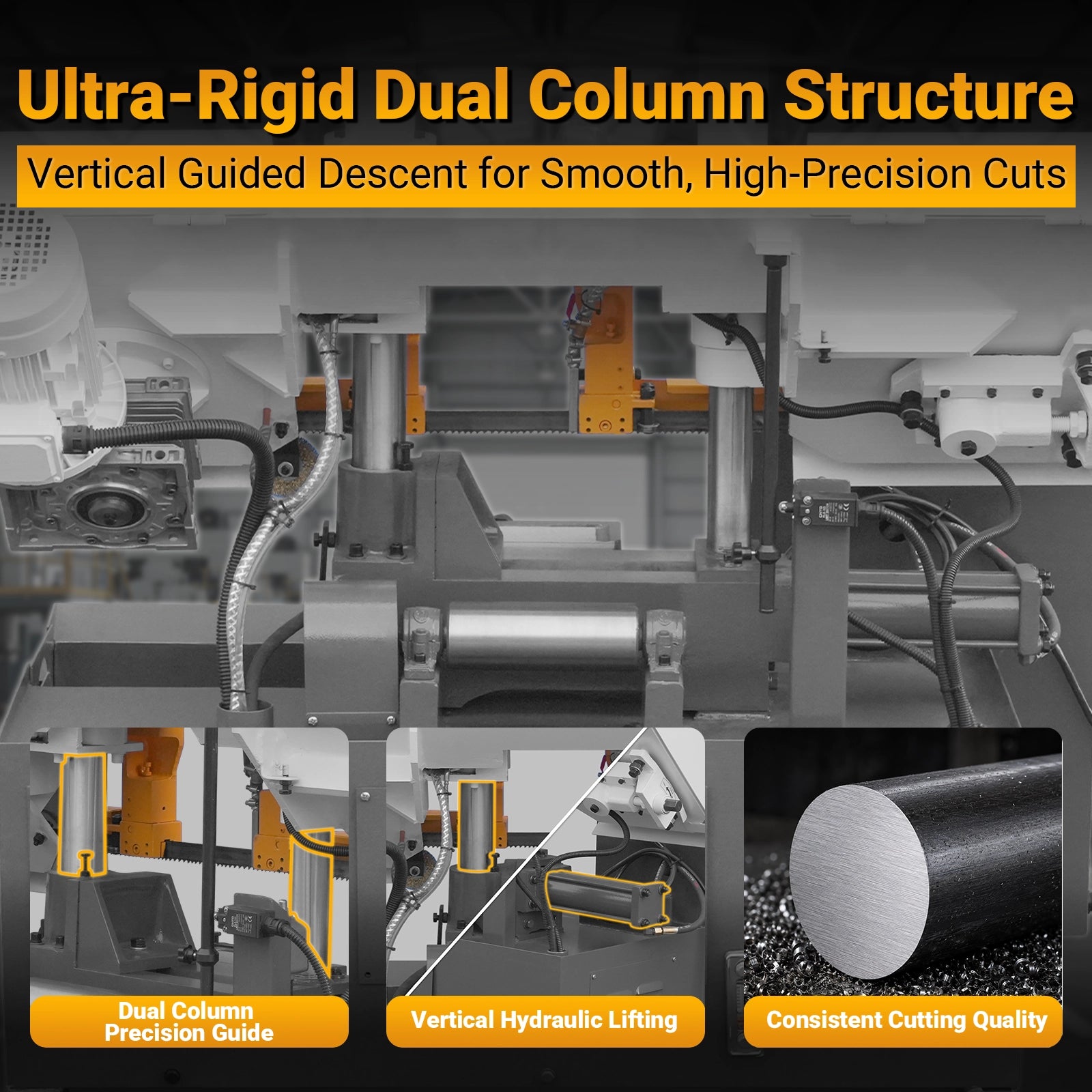

Rigid Dual-Column Structure

Engineered with heavy-duty twin guide columns for vertical frame travel. Dramatically minimizes vibration and blade deflection under heavy cutting loads, ensuring superior squareness and long-term repeatability.

13" Heavy-Duty Cutting Capacity

Delivers a 13" (330 mm) round and square cutting capacity. Optimally suited for high-volume processing of structural tubing, solid alloy steels, mold blanks, and custom industrial metal profiles.

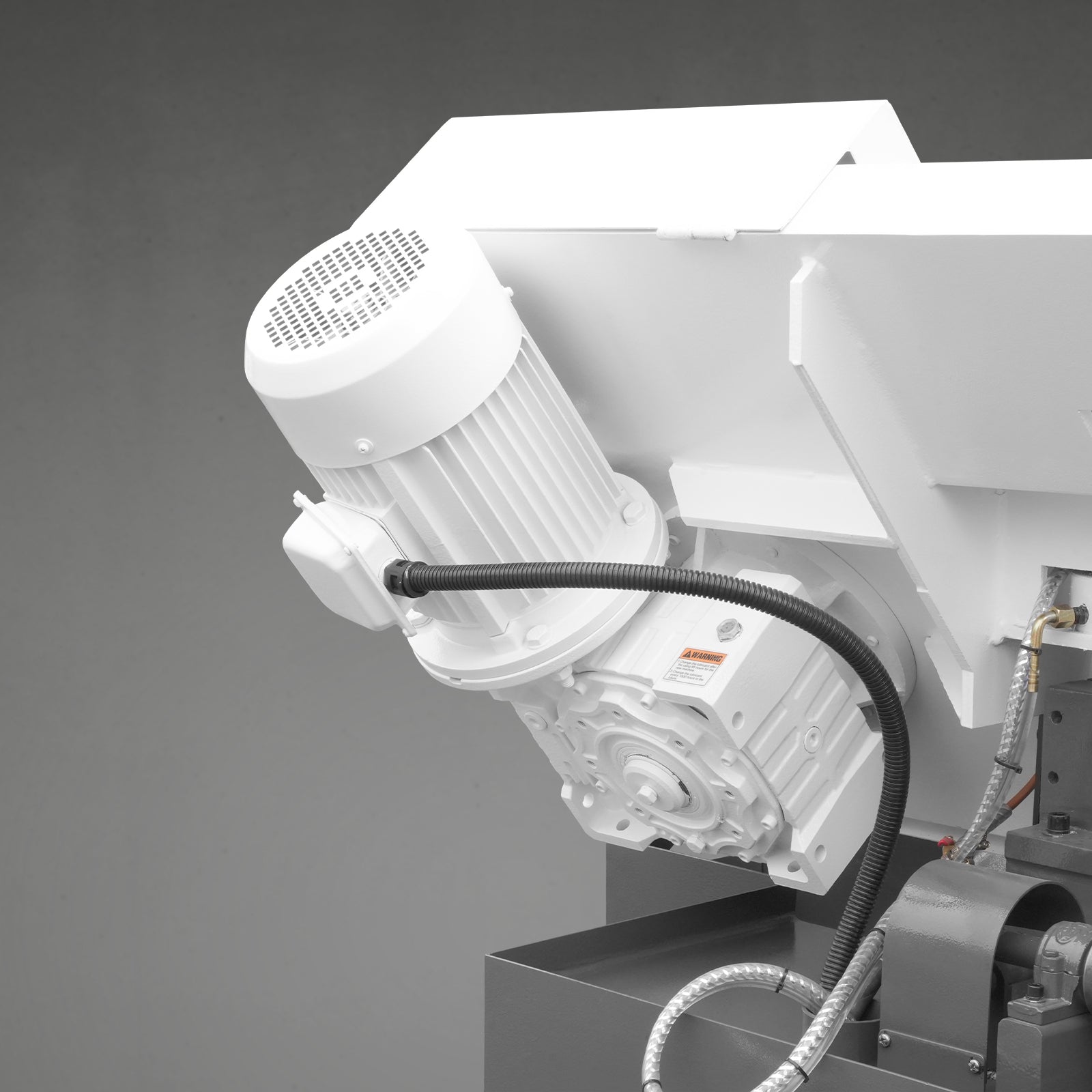

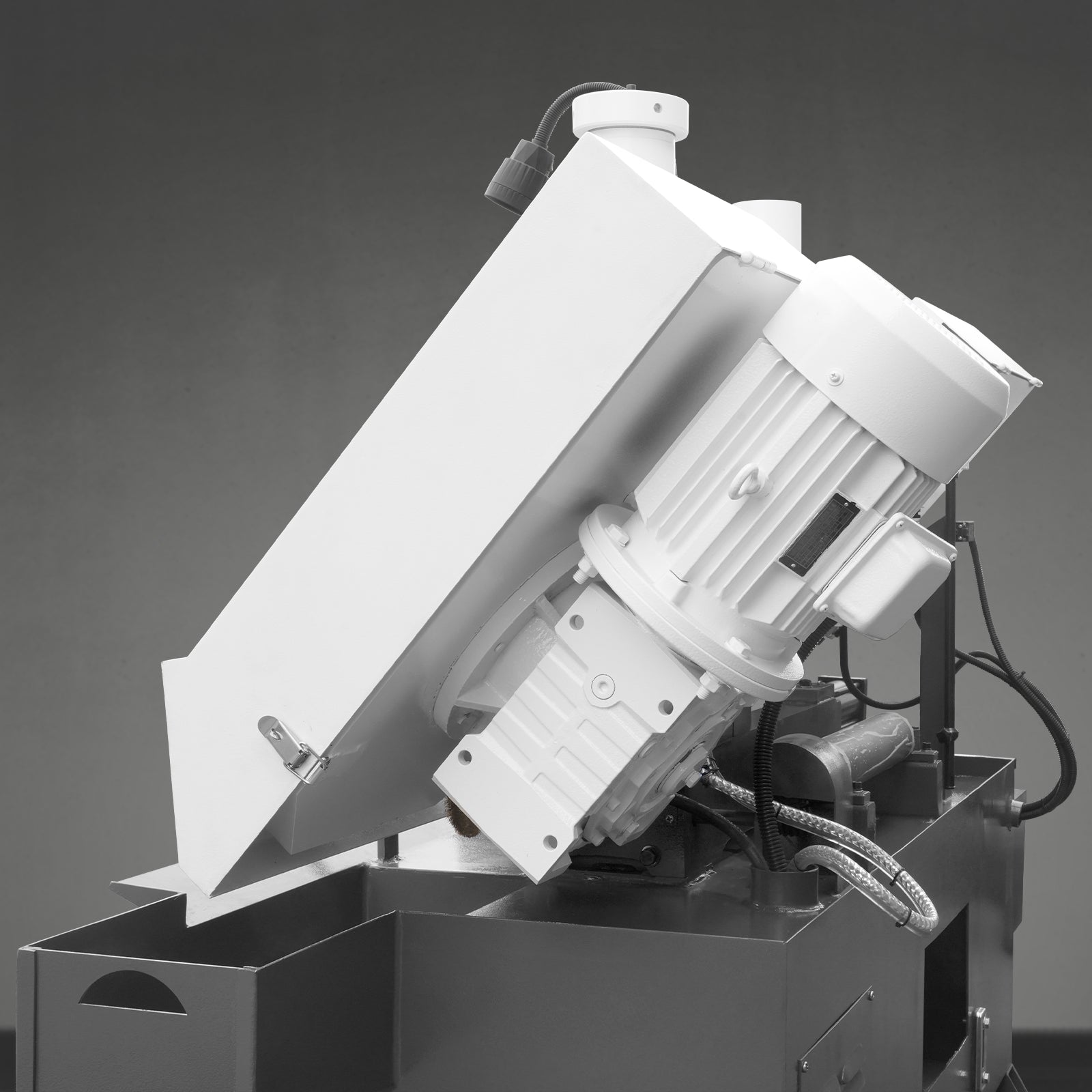

3.0/3.8 HP Motor

Driven by a powerful 3.0/3.8 HP (2.2/2.8 kW) industrial motor paired with a sealed gearbox transmission. Delivers positive, non-slip power directly to the drive wheel, providing relentless torque through dense solid metals.

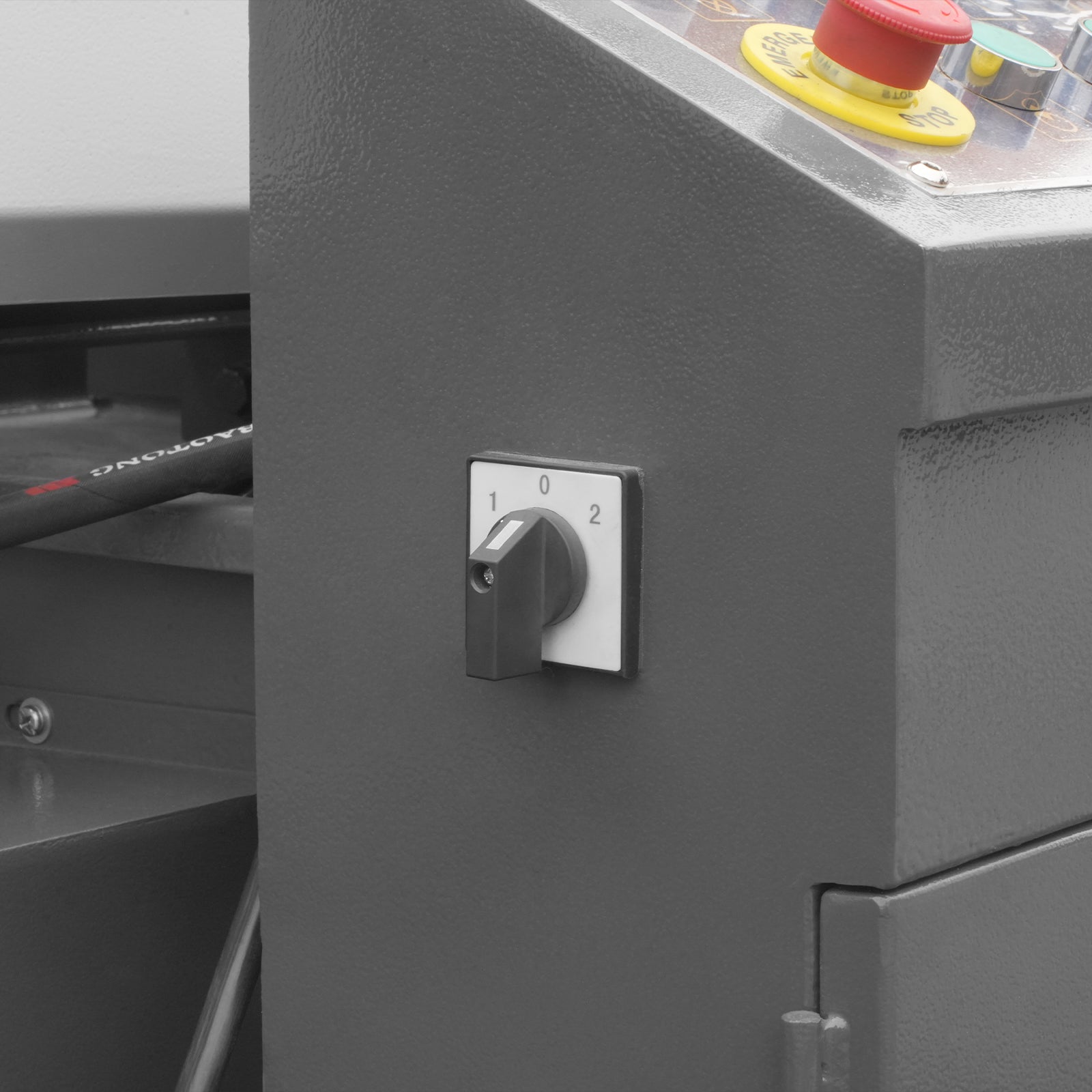

Two-Speed Motor Versatility

Features convenient two-speed blade regulation to optimize Surface Feet per Minute (SFPM). Run low speed for dense stainless and tool steel to extend tooth life, or high speed for rapid cutting of carbon steel and aluminum.

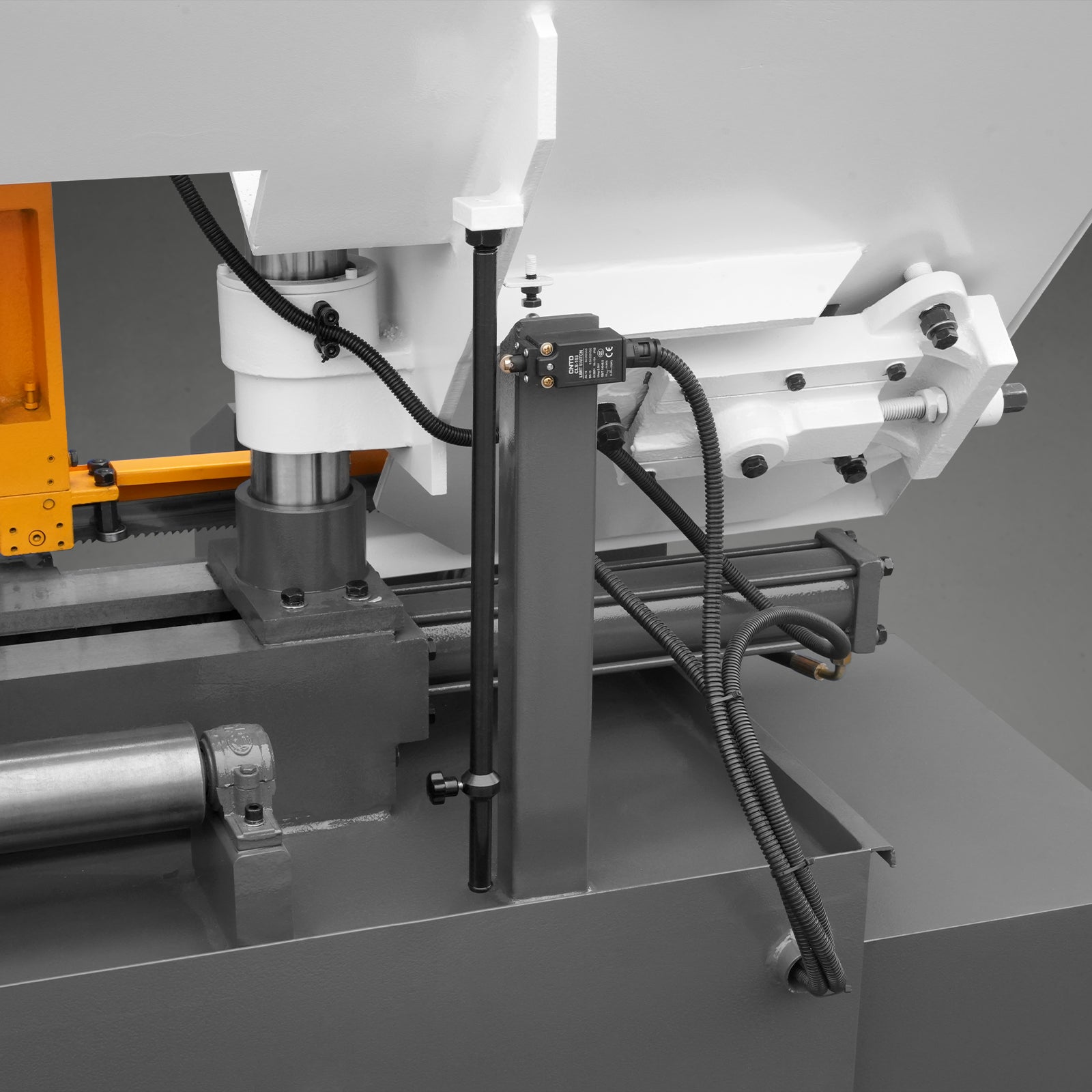

Stepless Hydraulic Downfeed

Precision variable-flow hydraulic throttle cylinder delivers smooth, continuous vertical descent. Allows fine-tuned feed rates tailored to material hardness and cross-section to eliminate tooth stripping.

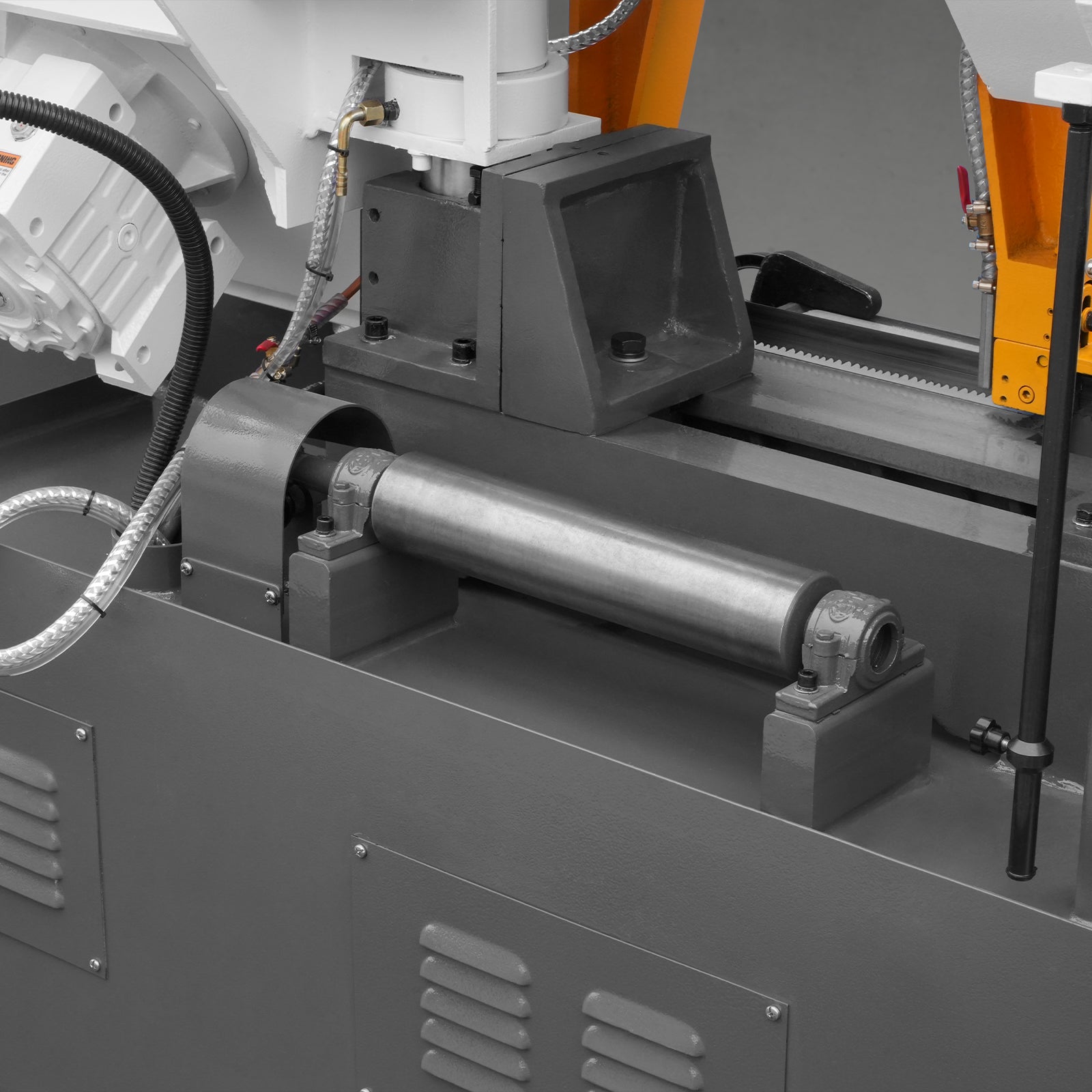

Precision Heavy-Duty Vise

Rigid cast-iron vise features smooth acme-thread lead screw actuation and hardened grip faces. Provides immovable clamping pressure to guarantee zero slippage or material shift during high-force cut cycles.

Flood Coolant & Chip Flushing

High-capacity recirculating coolant pump with adjustable dual flex-nozzles rapidly dissipates thermal stress at the cutting interface, flushes swarf away from teeth, and dramatically extends band service life.

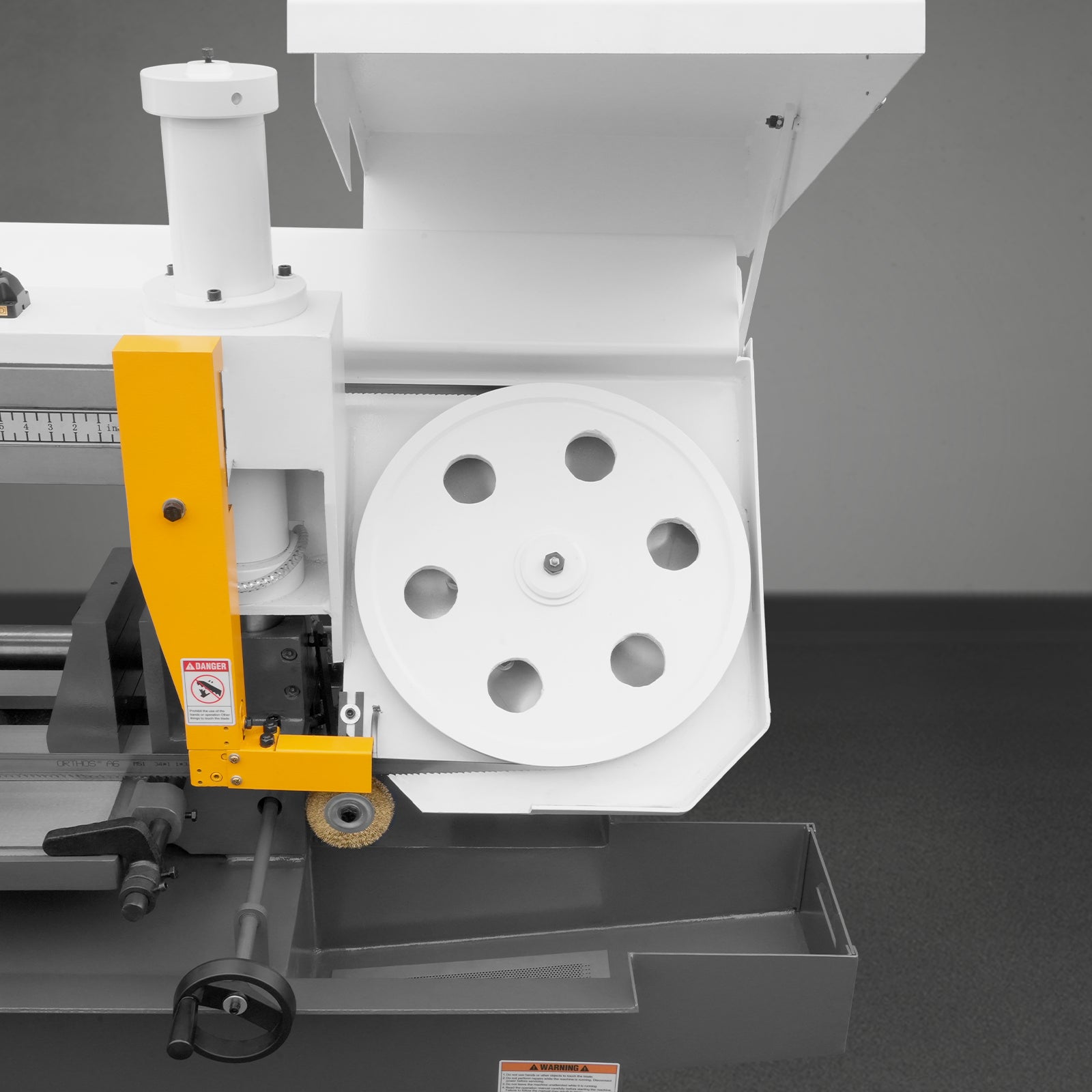

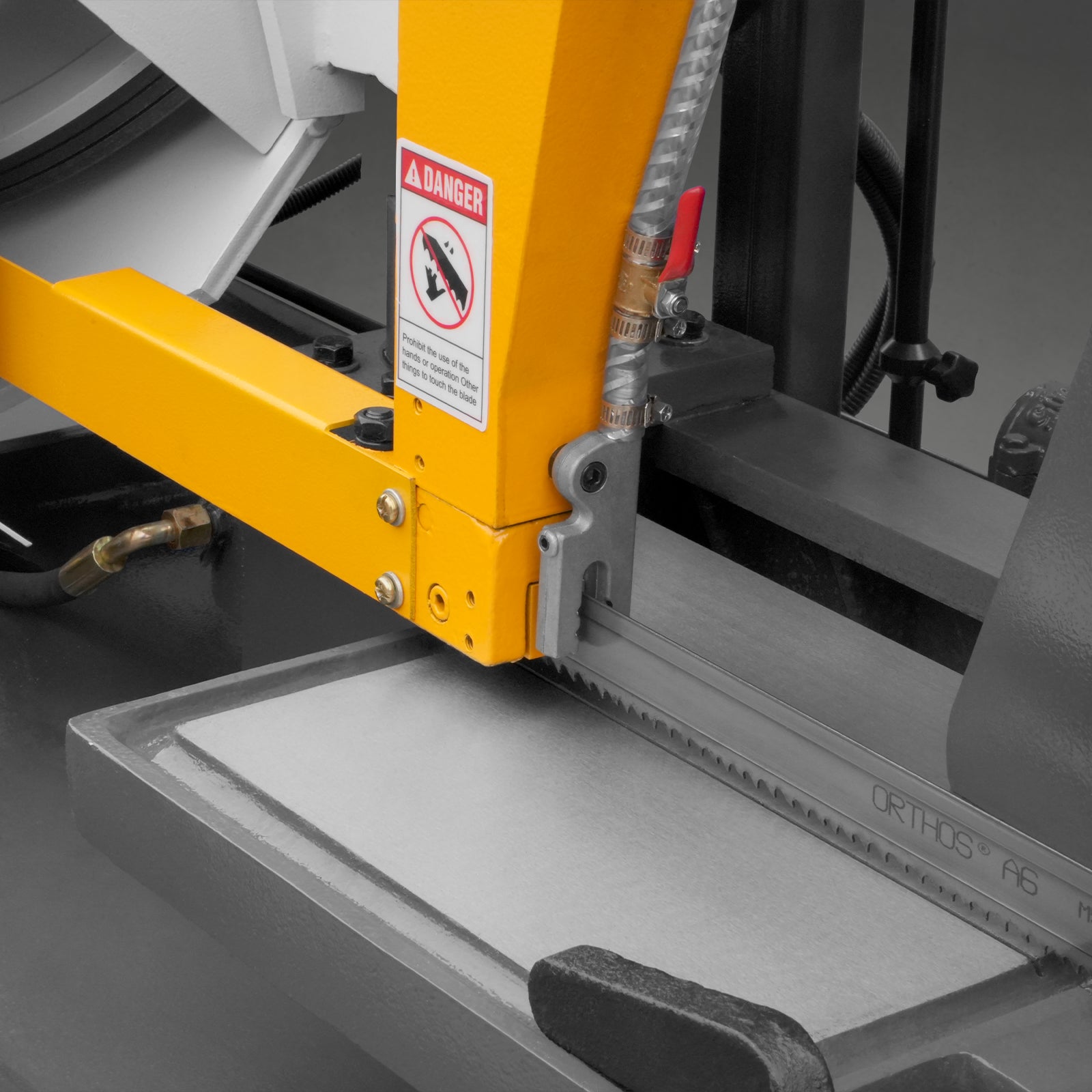

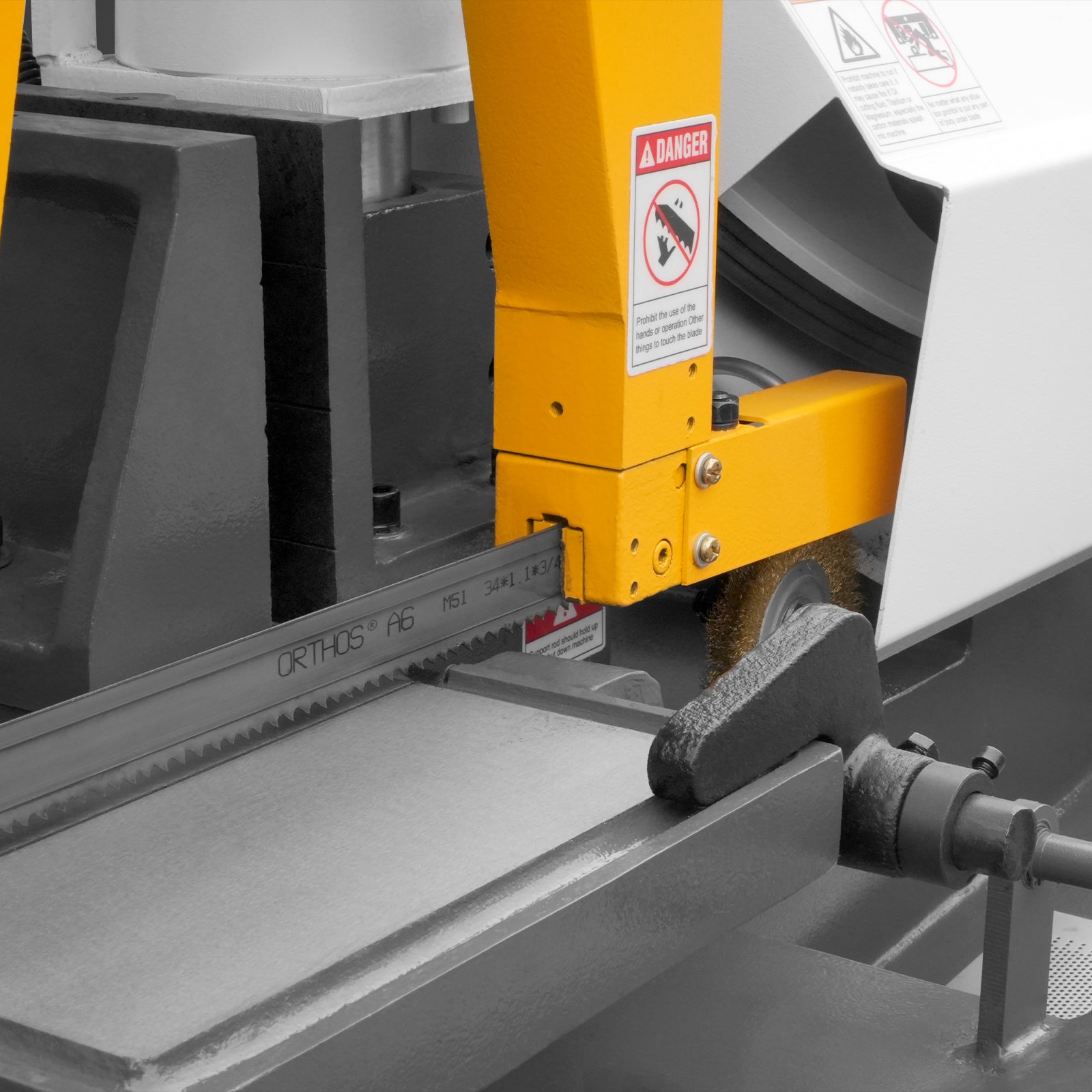

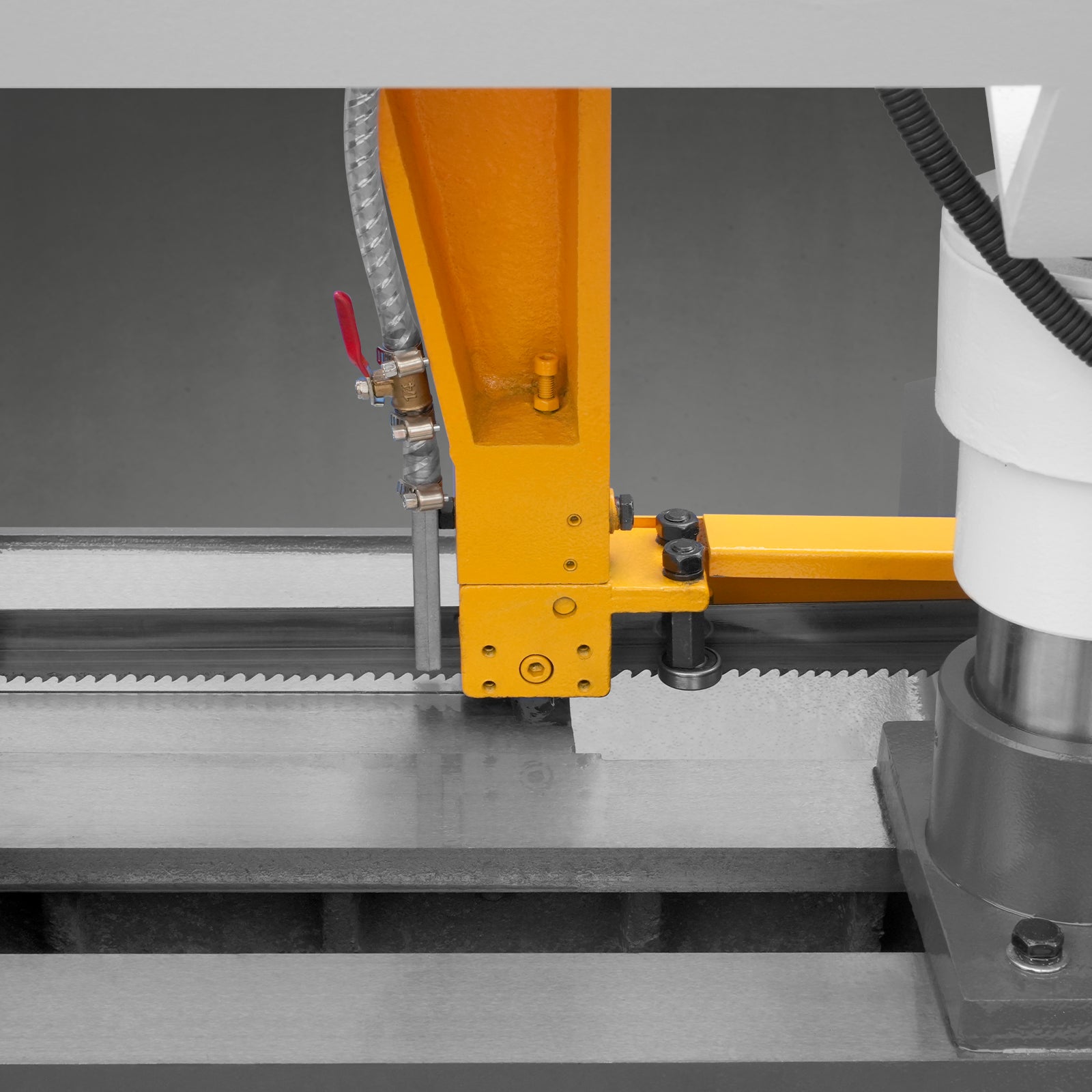

Carbide Guides for True Tracking

Combines heavy-duty ball-bearing side guides with durable tungsten carbide insert blocks to maintain rigid vertical blade alignment, guaranteeing flat, perpendicular, and burr-free end cuts every time.

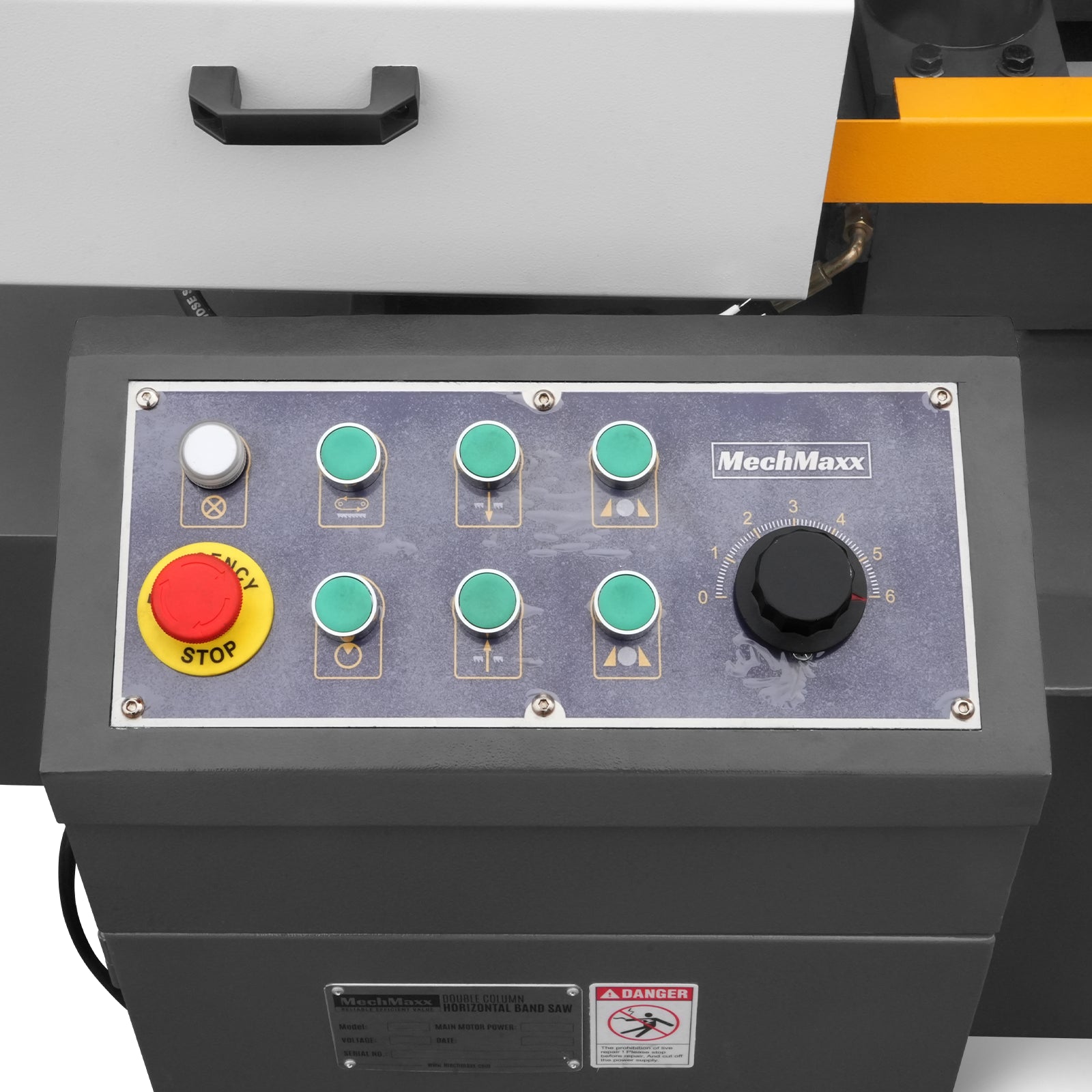

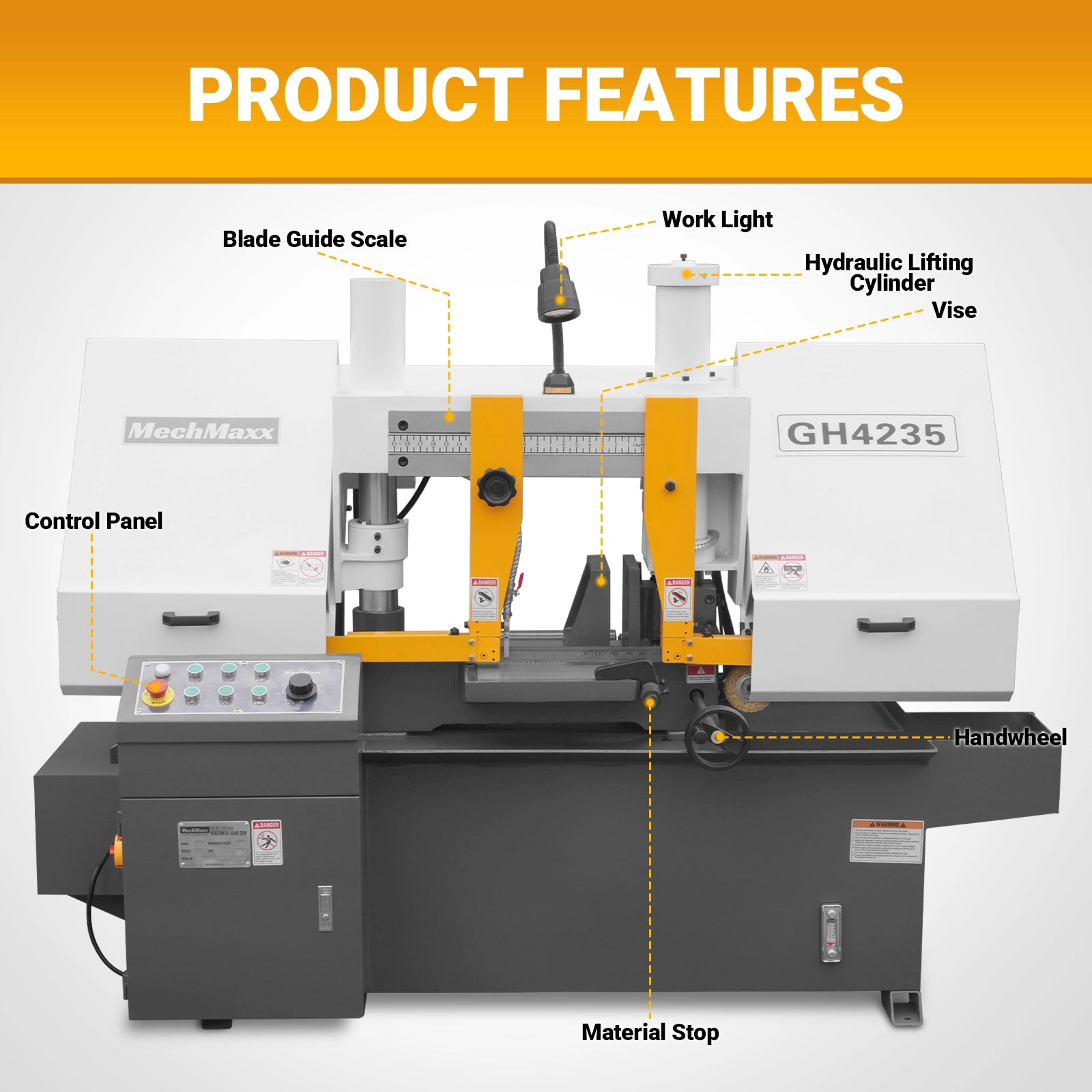

Centralized Panel & Operator Safety

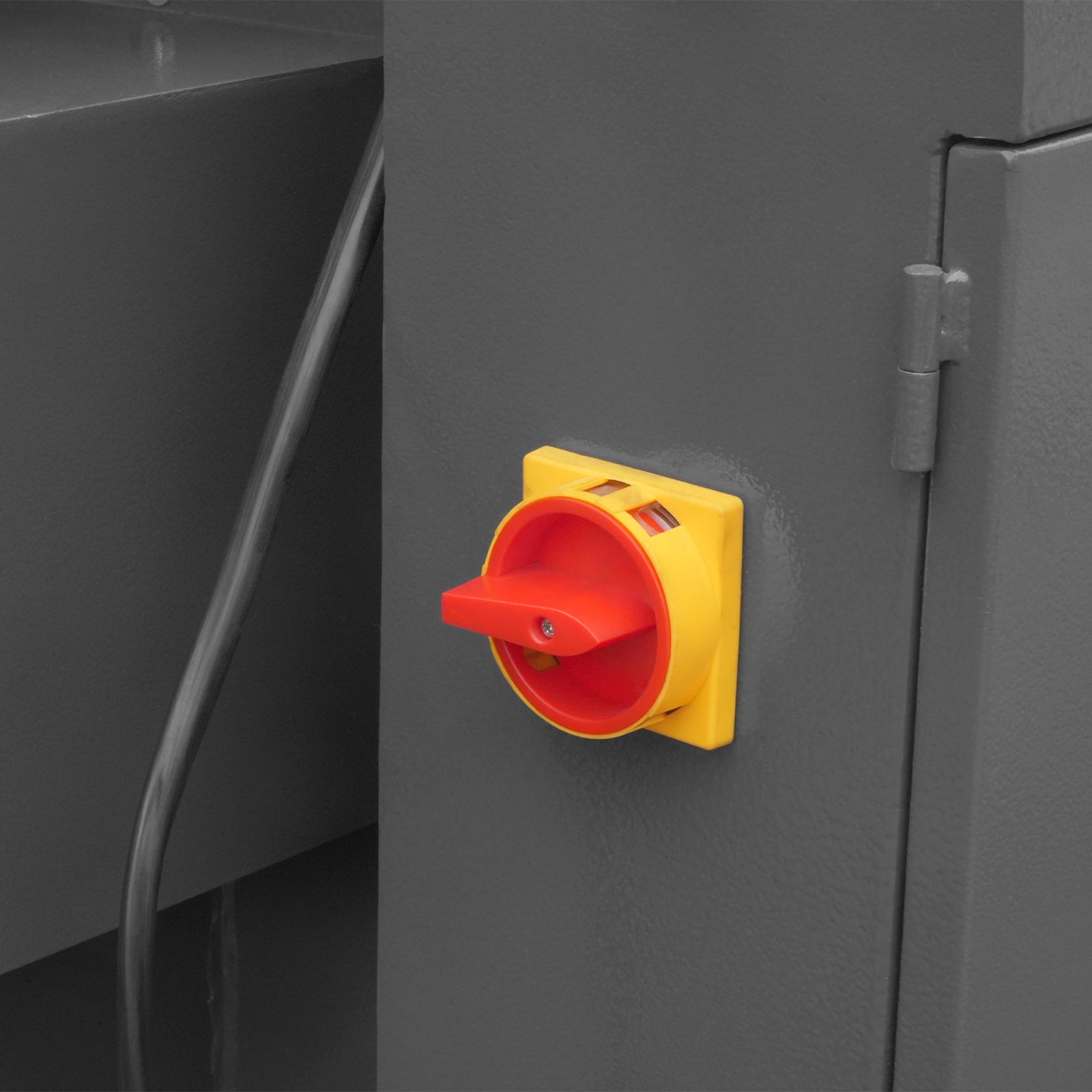

Human-centric control station gathers main switch, motor speed toggle, emergency stop, and coolant control within easy reach. Fully enclosed blade safety guards ensure total compliance with workshop safety.

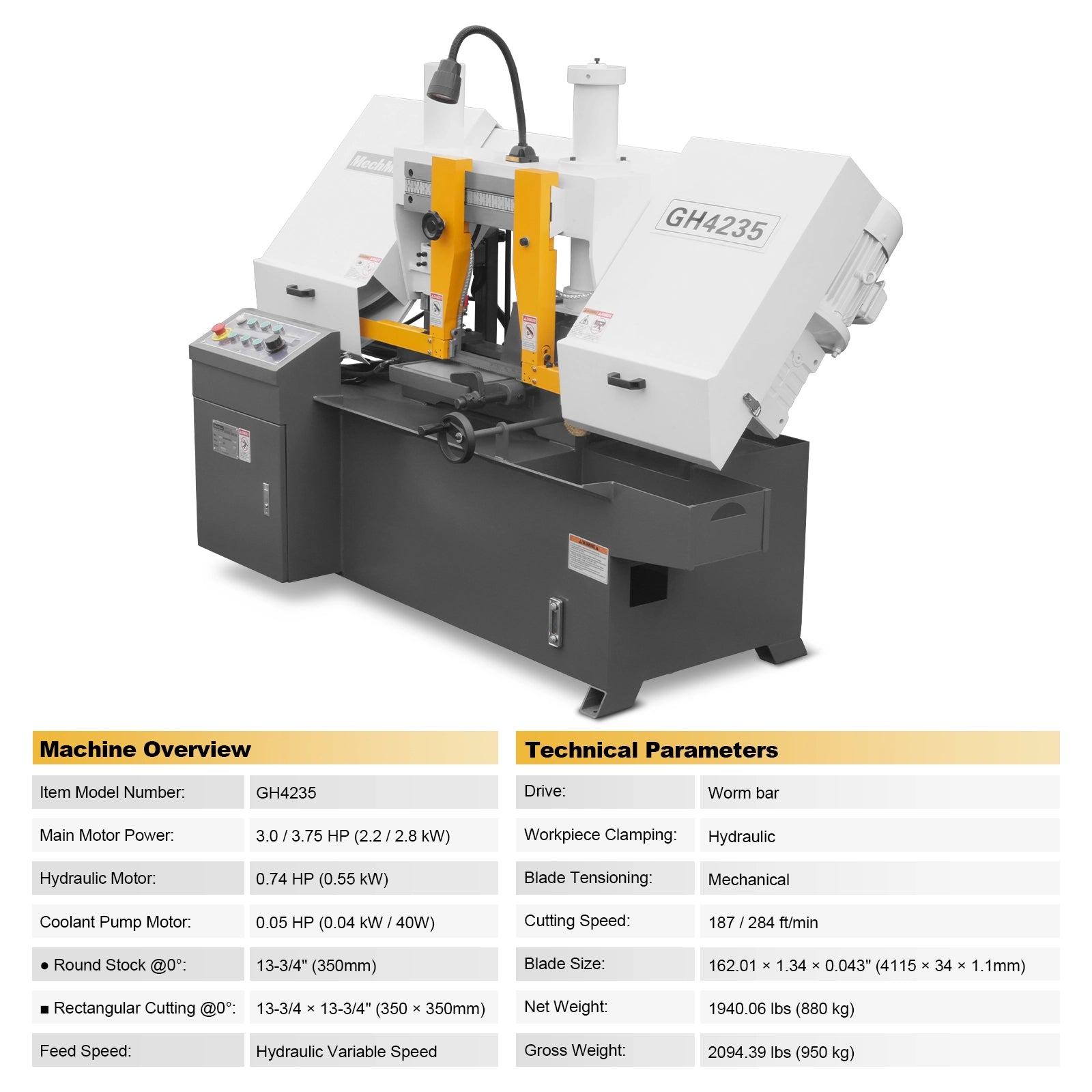

Model	GH4235
SKU	500423
Max. Cutting Capacity	● Ø13-3/4" (350 mm) ■ 13-3/4"×13-3/4"
Cutting Speed	187 / 284 ft/min
Feed Speed	Hydraulic Variable Speed
Blade Size	162.01"×1.34"×0.043" (4115×34×1.1 mm)
Workpiece Clamping	Hydraulic

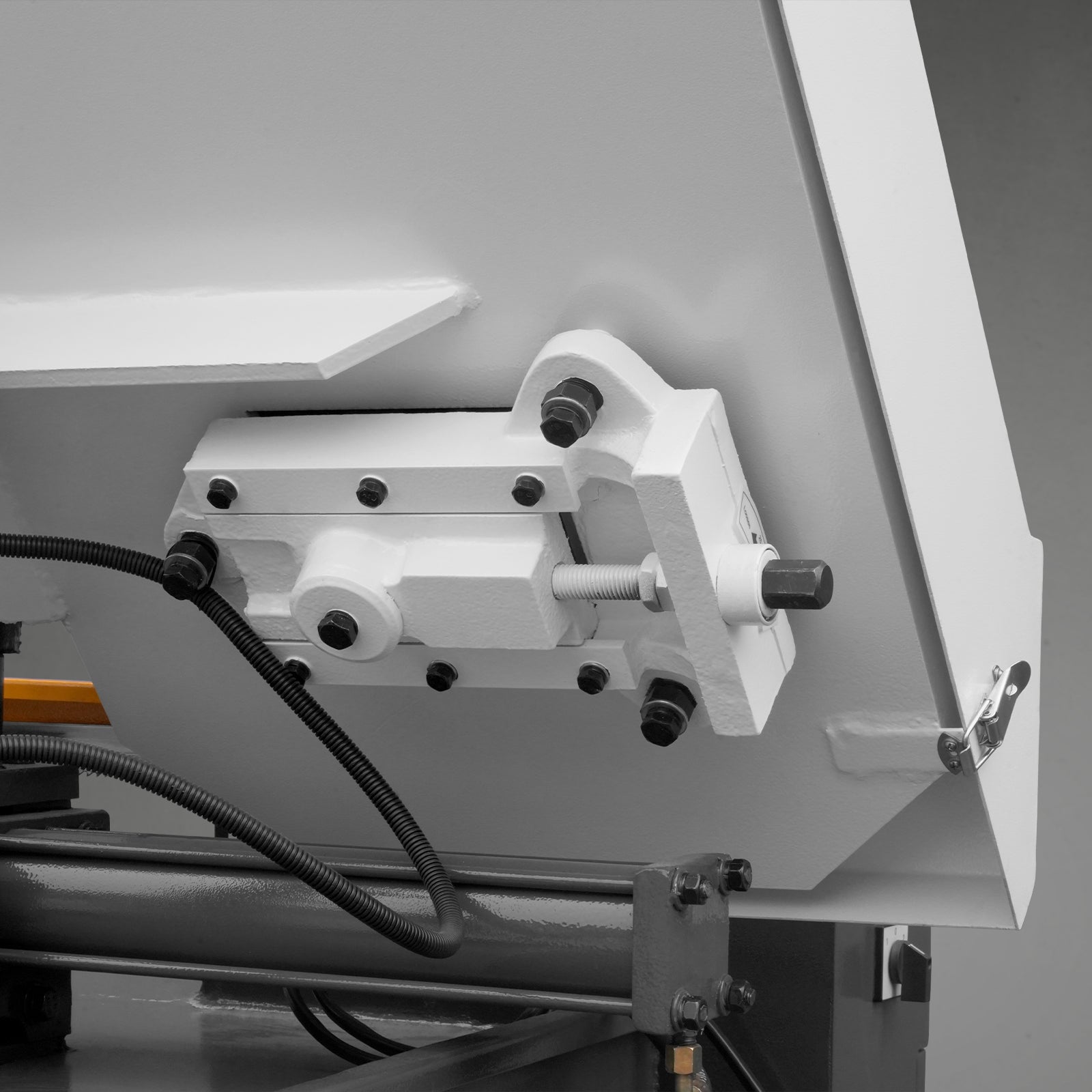

Blade Tensioning	Mechanical
Main Motor Power	2.2 / 2.8 kW (2.95 / 3.75 HP)
voltage	220V/60hz/3ph
Hydraulic Motor	0.55 kW
Coolant Pump Motor	0.04 kW (40W)
Drive	Worm bar
Net Weight	1940.06 lbs (880 kg)
Gross Weight	2094.39 lbs (950 kg)

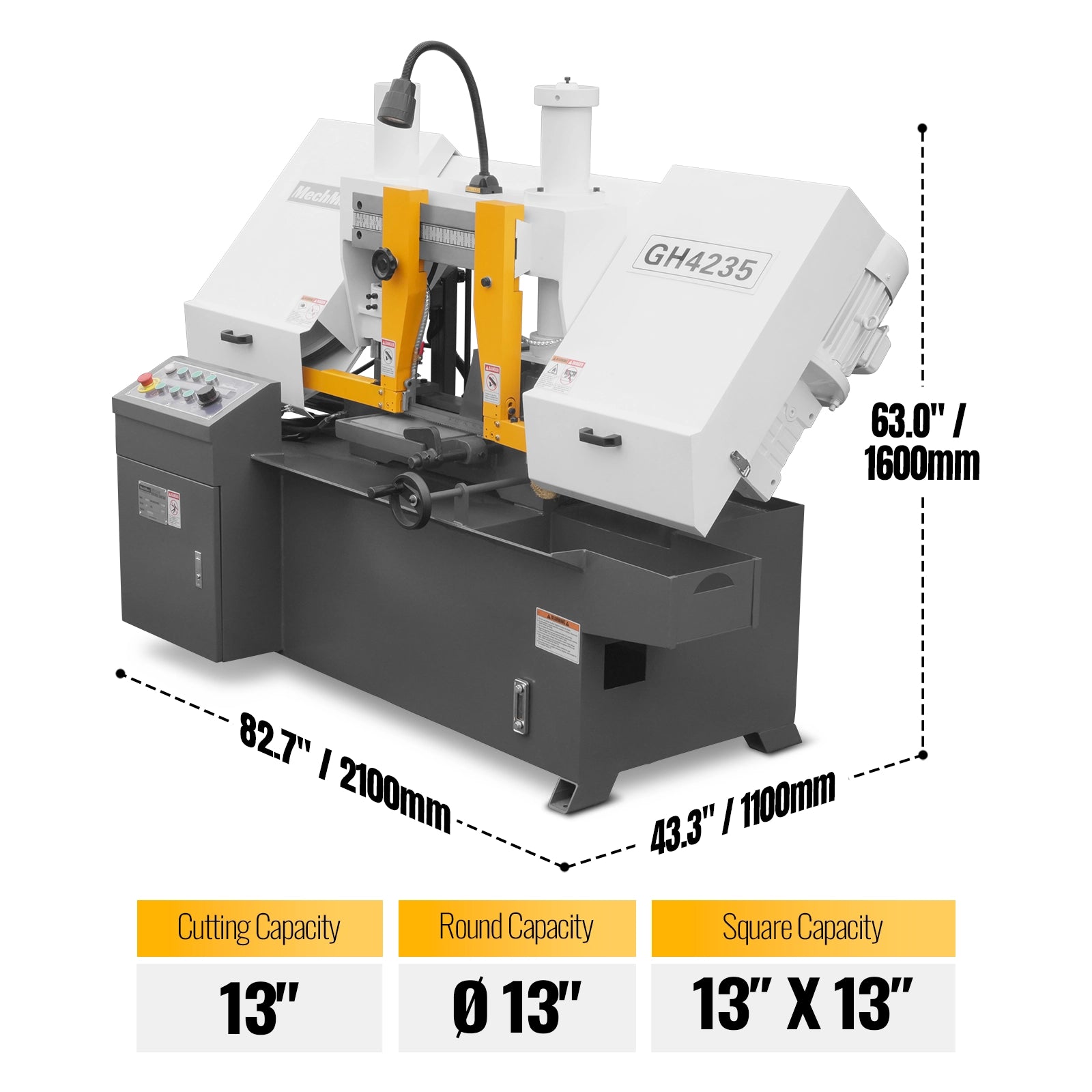

Packing Dimensions	82.68" × 45.28" × 63.78" (2100 × 1150 × 1620 mm)
