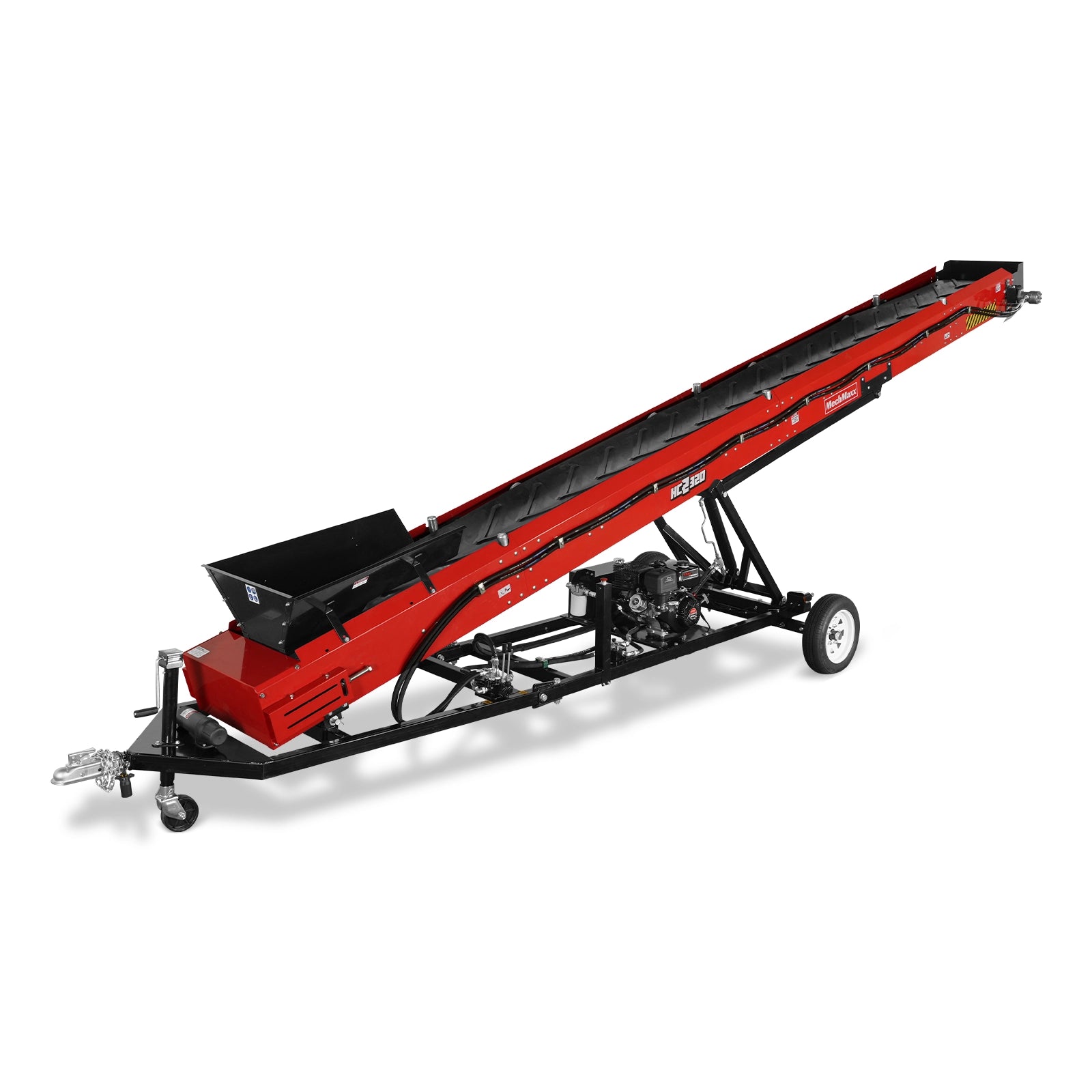

Product Overview

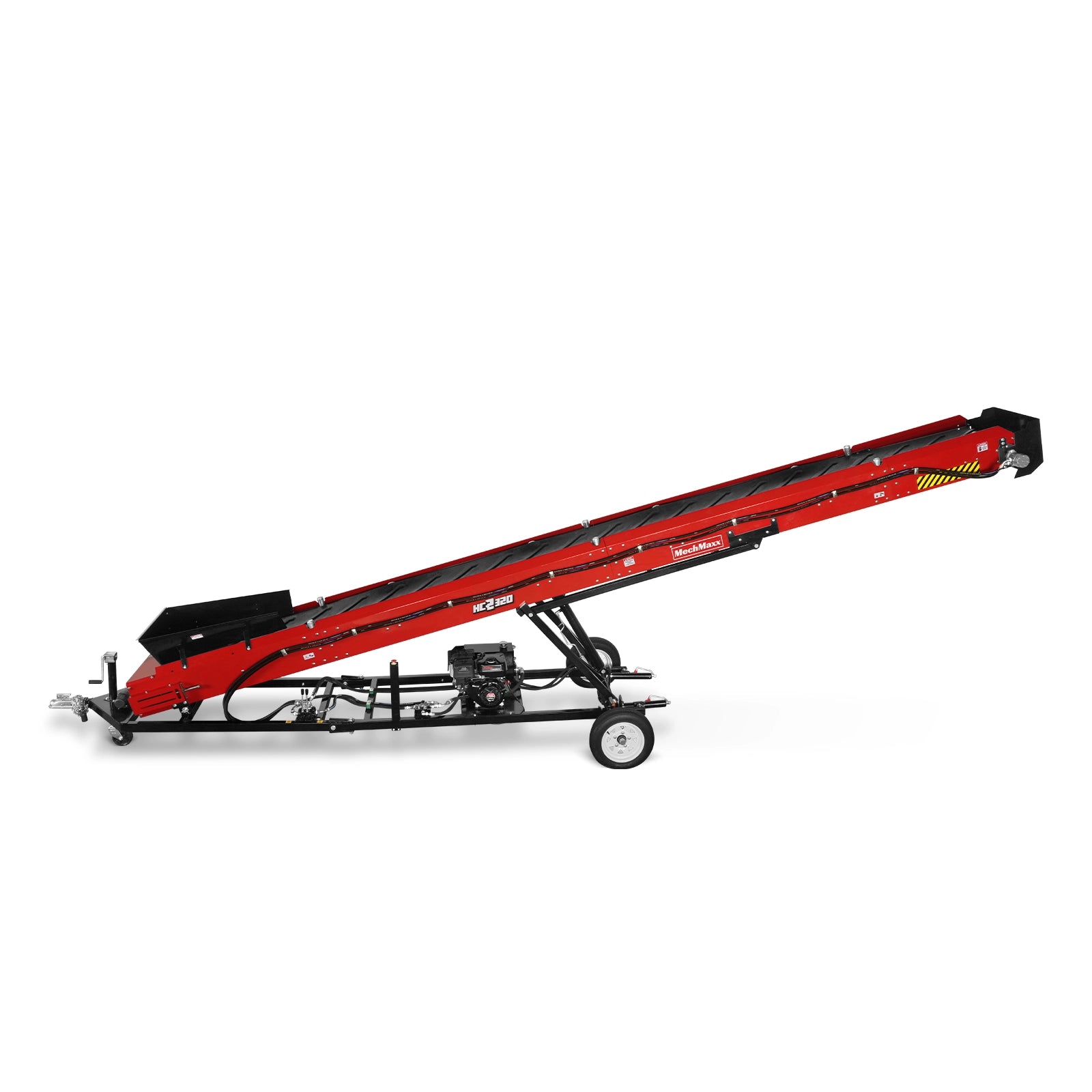

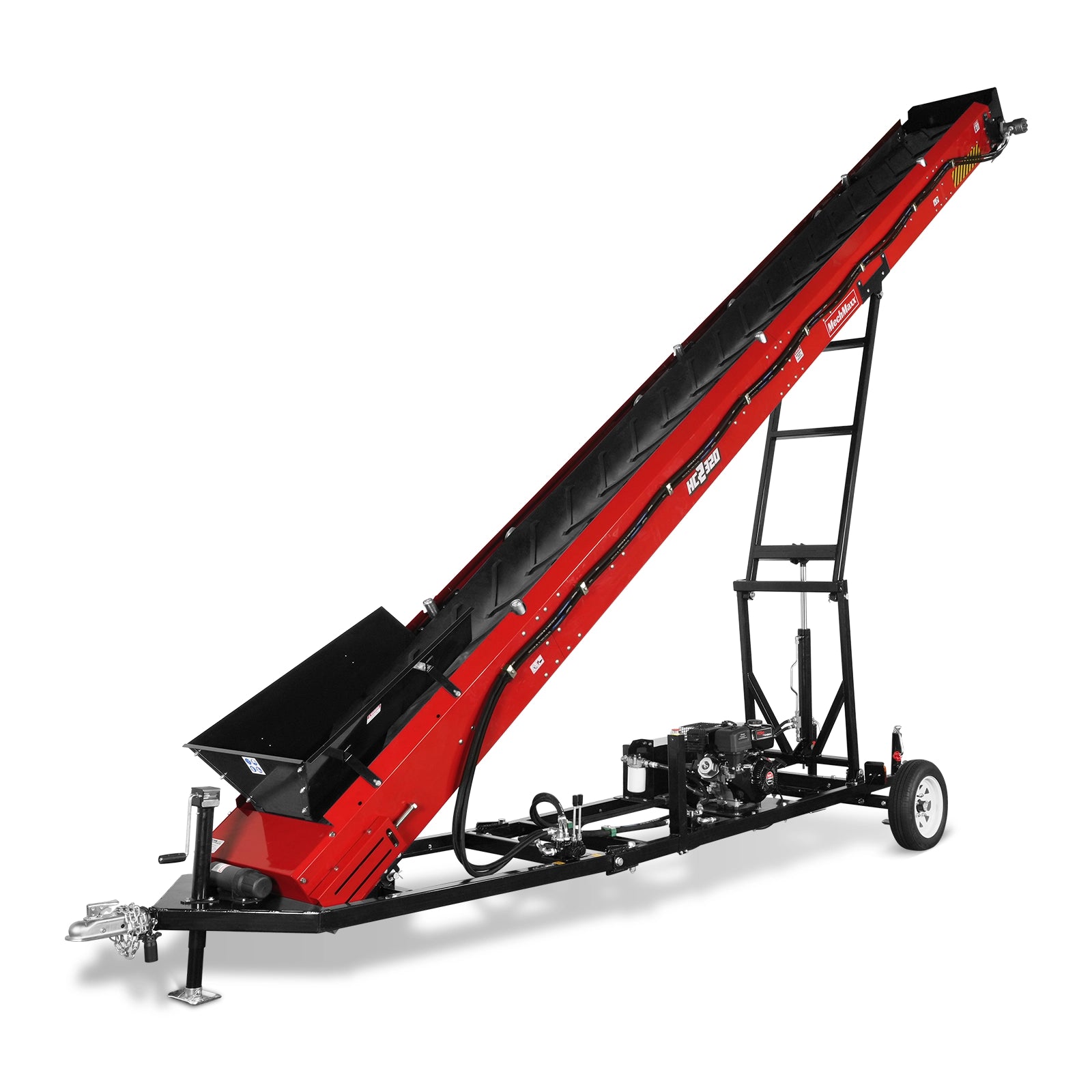

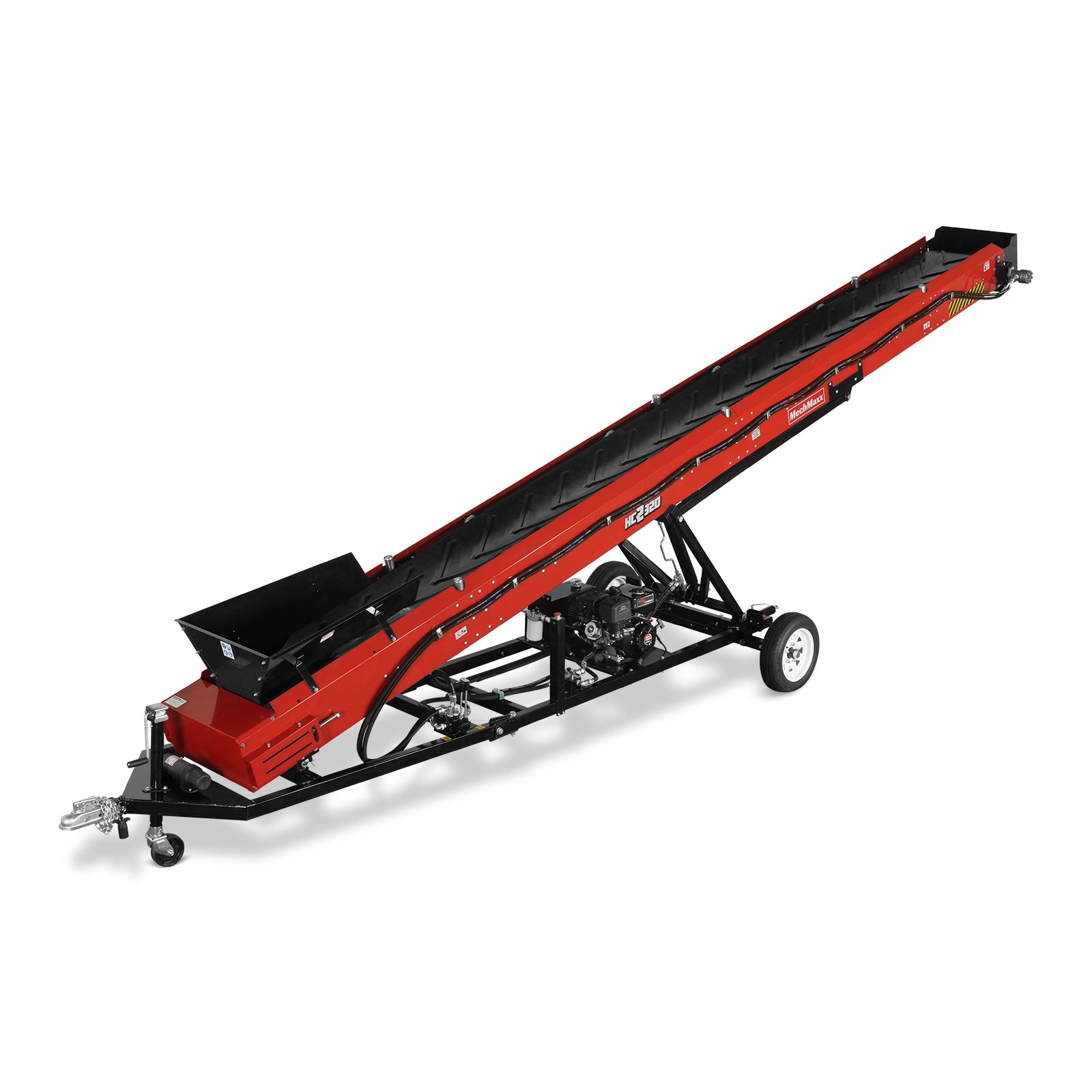

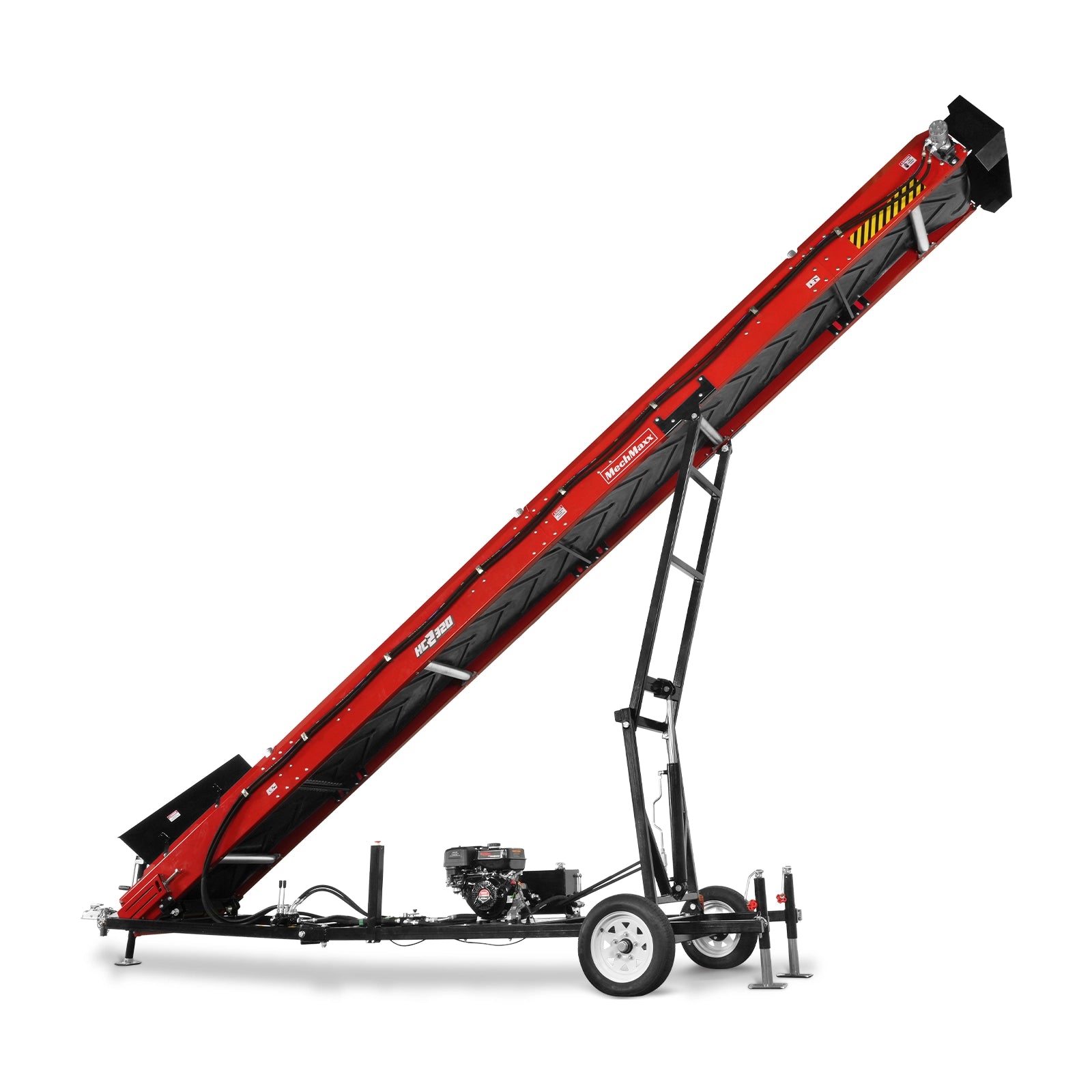

This firewood conveyor offers efficient, powerful and safe performance, making it an essential tool for conveying and lifting firewood in diverse settings.
This wood conveyor equipped with a 9HP gasoline-powered hydraulic driven system operates with high efficiency and powerful performance. The belt speed is variable by changing the engine speed.
With an adjustable reach up to 180 inches, this conveyor's speed, efficiency, reliability, and safety are unmatched in the conveying industry.
Our top priority is the safety of our customers. Our portable concrete conveyor systems can make your job easier for a variety of applications including ready-mix concrete, steel fiber, ice, batching, and more.

Product manual (PDF)

HC2320 Product manual 1.0.pdf

Engine manual (PDF)

DUCAR DH275 Manual.pdf

Product Features

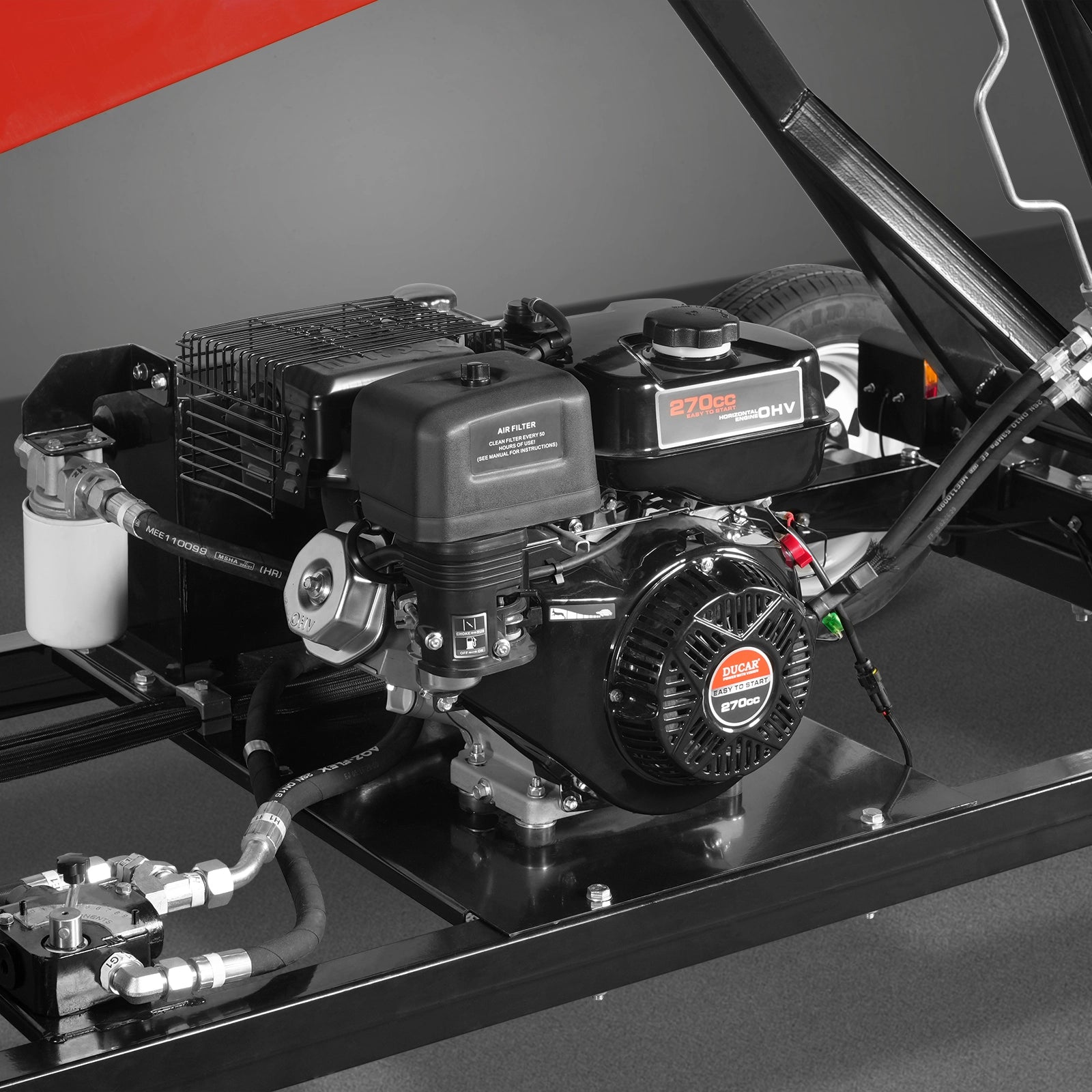

Engine

HC2320 is powered by a Ducar DH275 9hp gasoline engine, so you can run the conveyor anywhere, from the woods to the neighborhood.

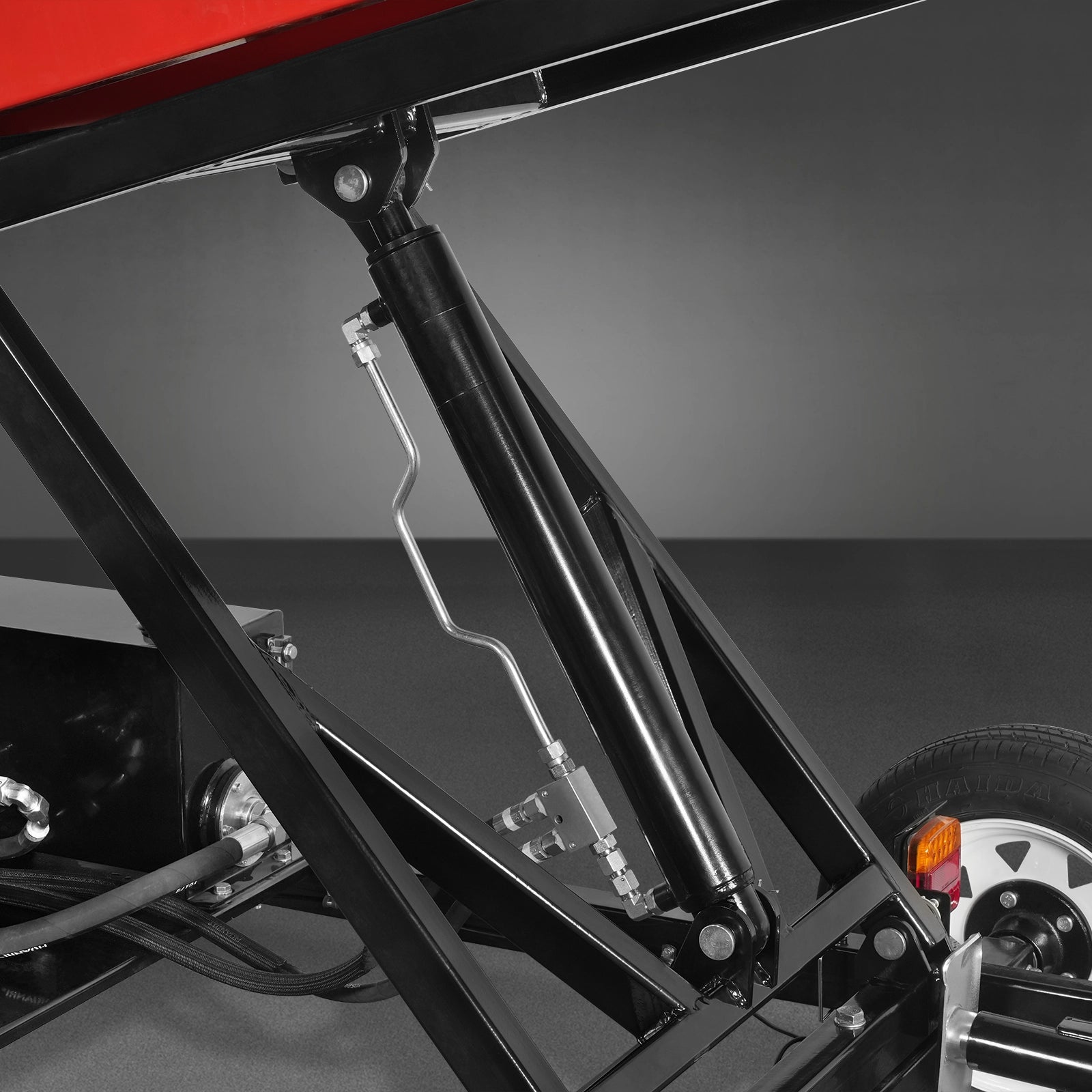

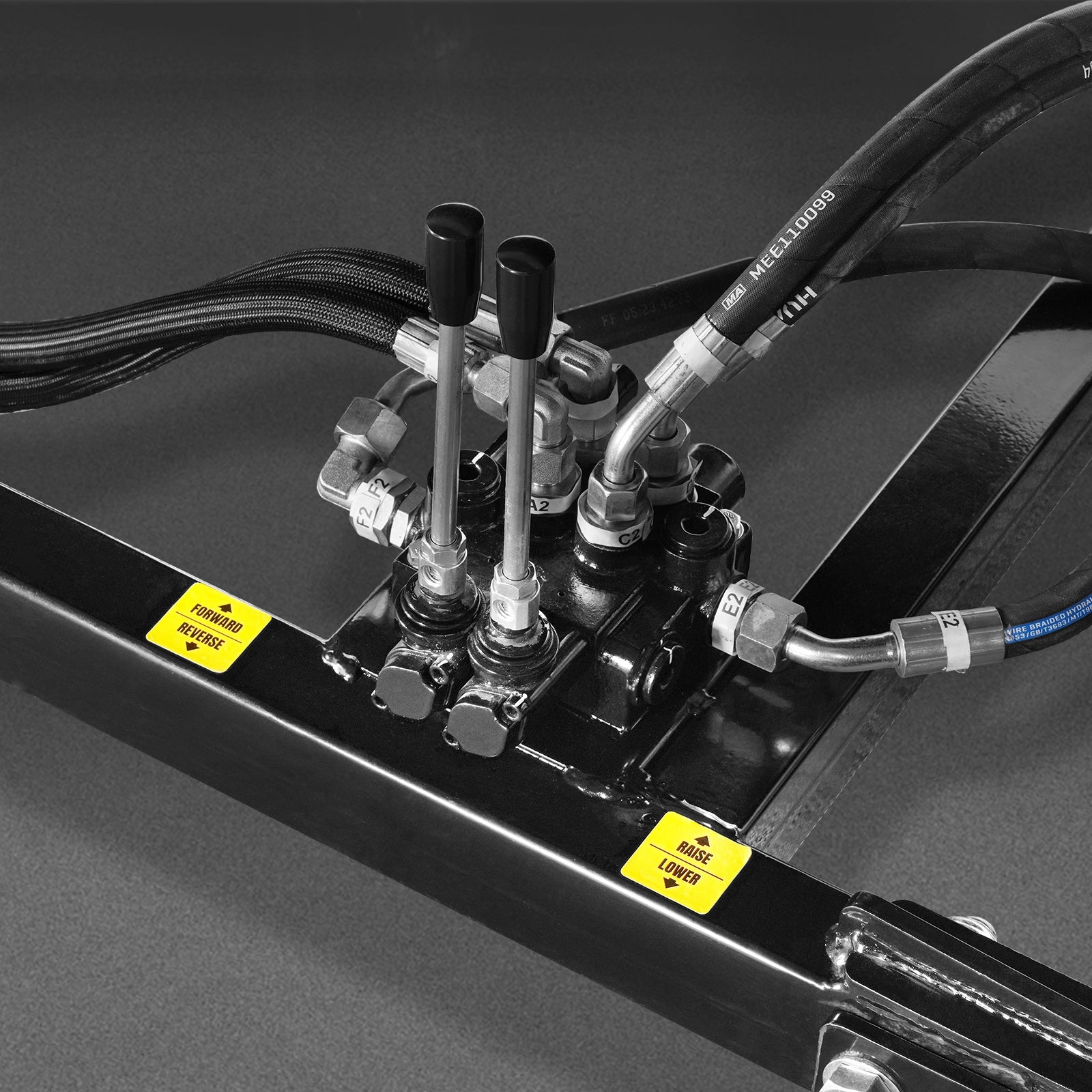

Hydraulic Lift Cylinder Controlled

The height of the HC2320 can be easily adjusted using our hydraulic lift cylinders. Connected to a tandem center spool, the hydraulic lift cylinders are controlled by the operator and can be adjusted multiple times to suit the needs of any project.

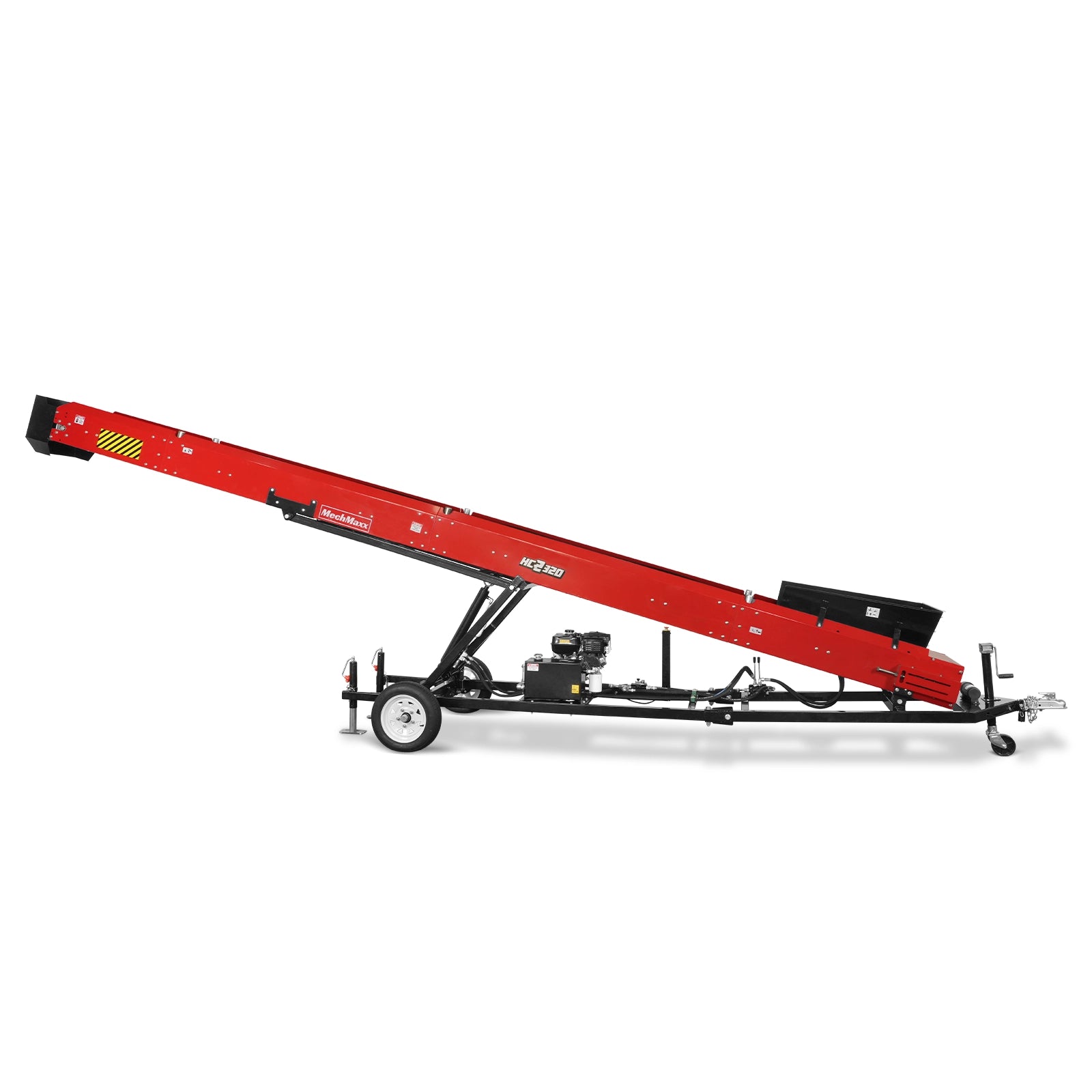

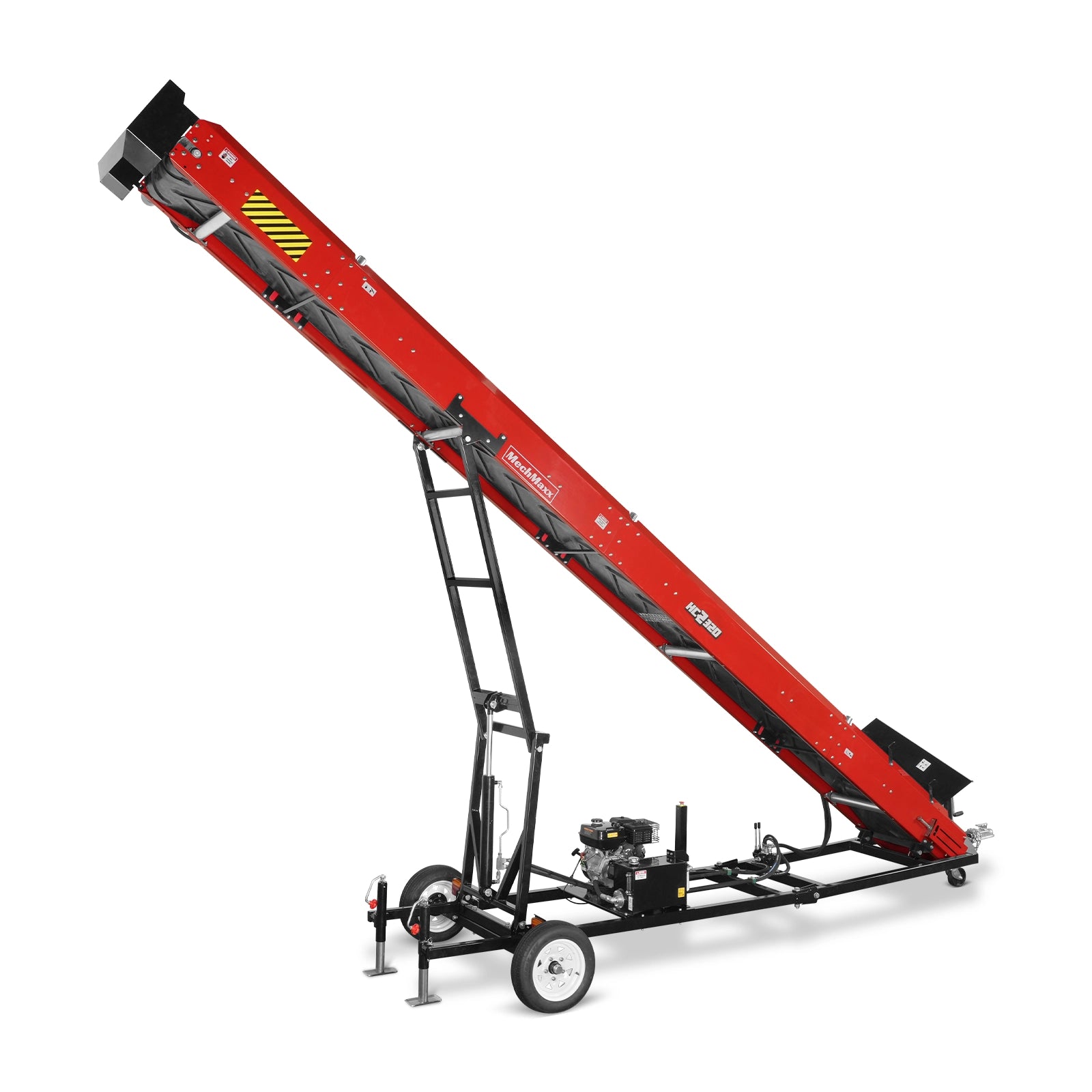

Adjustable Height

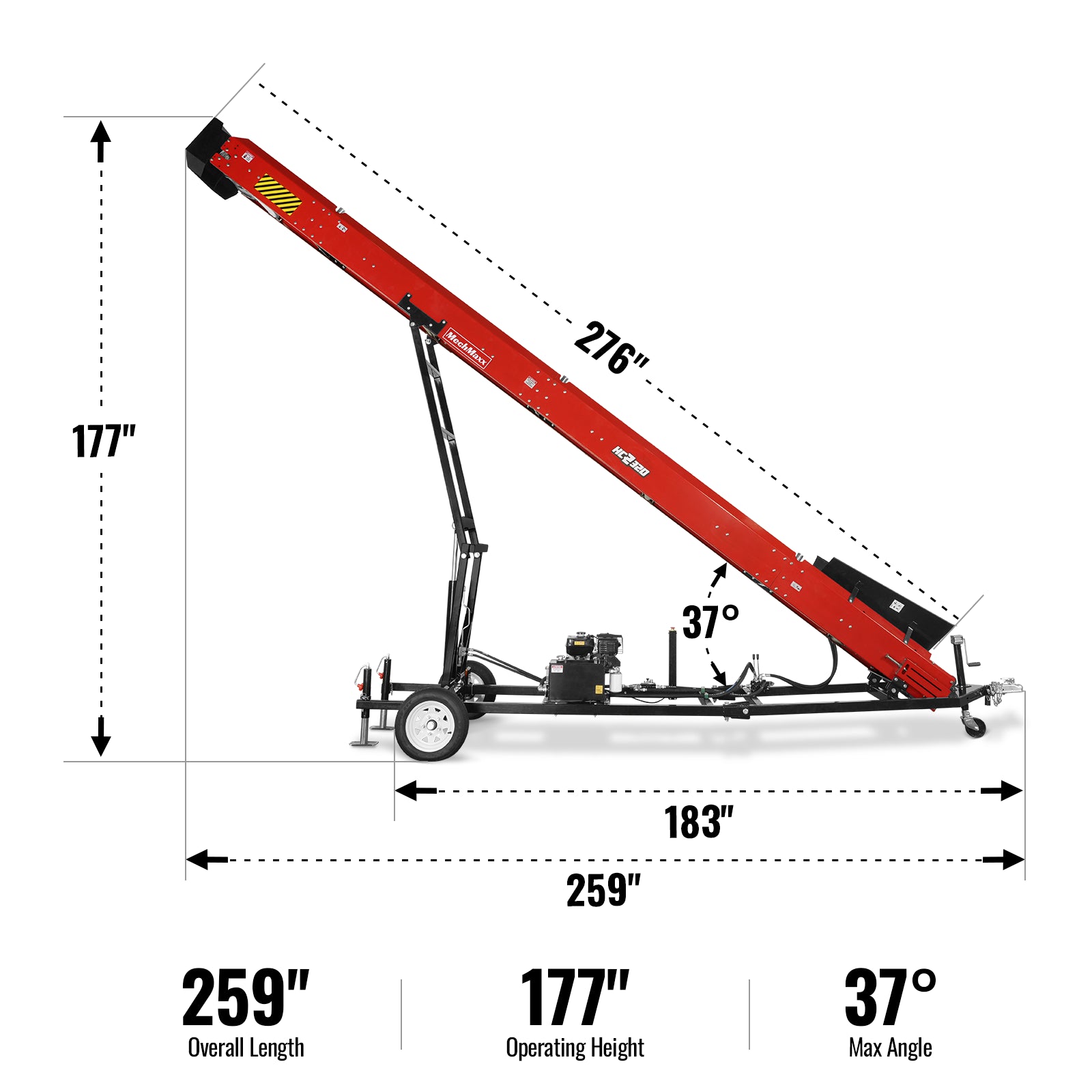

The hydraulic system offers a maximum adjustment angle of 37°, with a lockable height range from 94 to 177 inches. It supports a maximum load of 440 lbs at the lowest position (94 in) and 352 lbs at the highest position (177 in), ensuring strength and stability across the entire height range.

Modular Hopper

The modular hopper on the conveyor makes log loading simple, as it is shaped like a funnel and can be filled directly with the loader bucket. The hopper is bolted on for easy removal and upgrading.

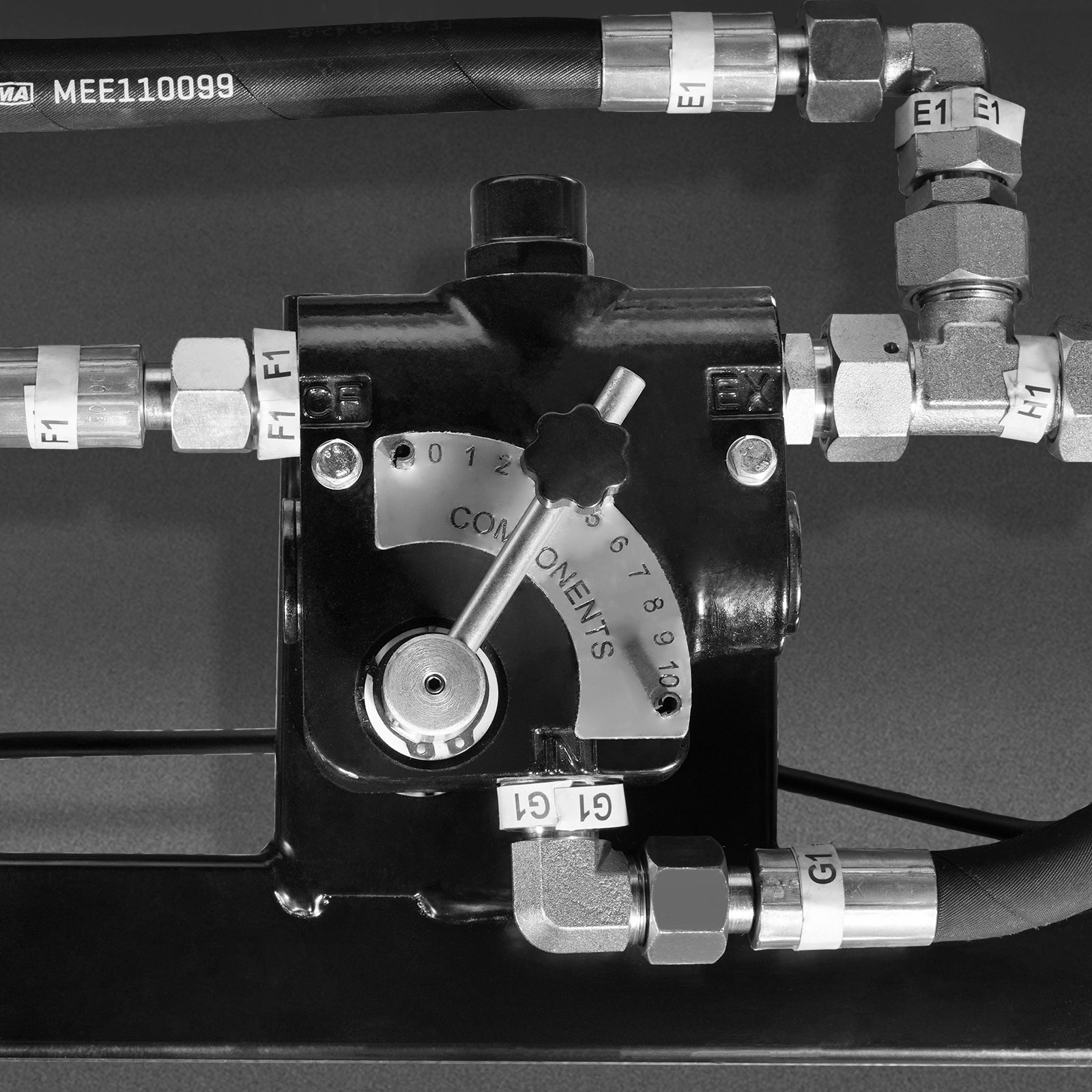

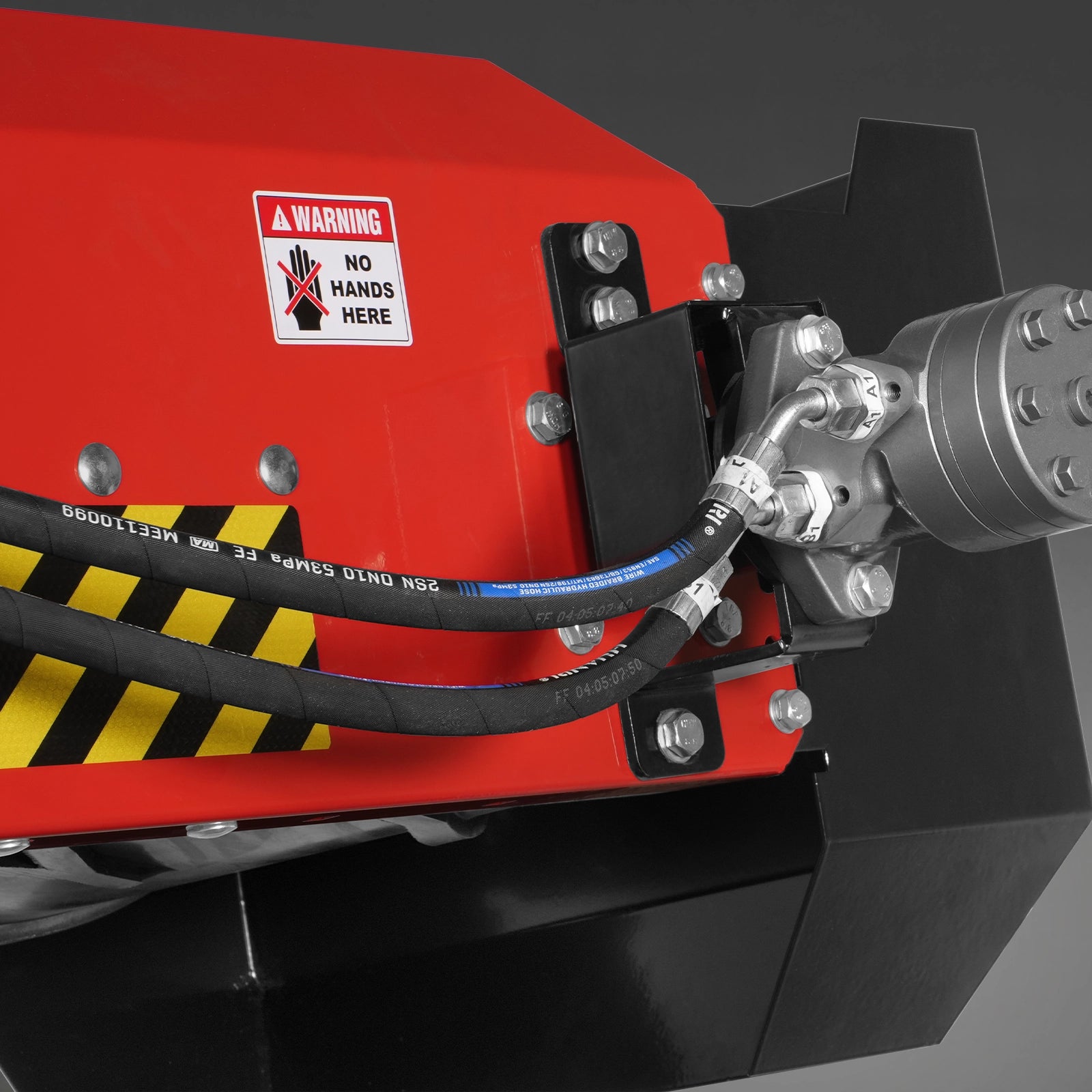

Hydraulic Motor and Speed Adjustment Valve

The speed of the motor is controlled by a valve. The valve has a speed indication of 0-10, “0” is slowest and “10” is fastest. Set the throttle control lever to the slow speed position to reduce the stress on the engine when not cutting and extend the life of the engine.

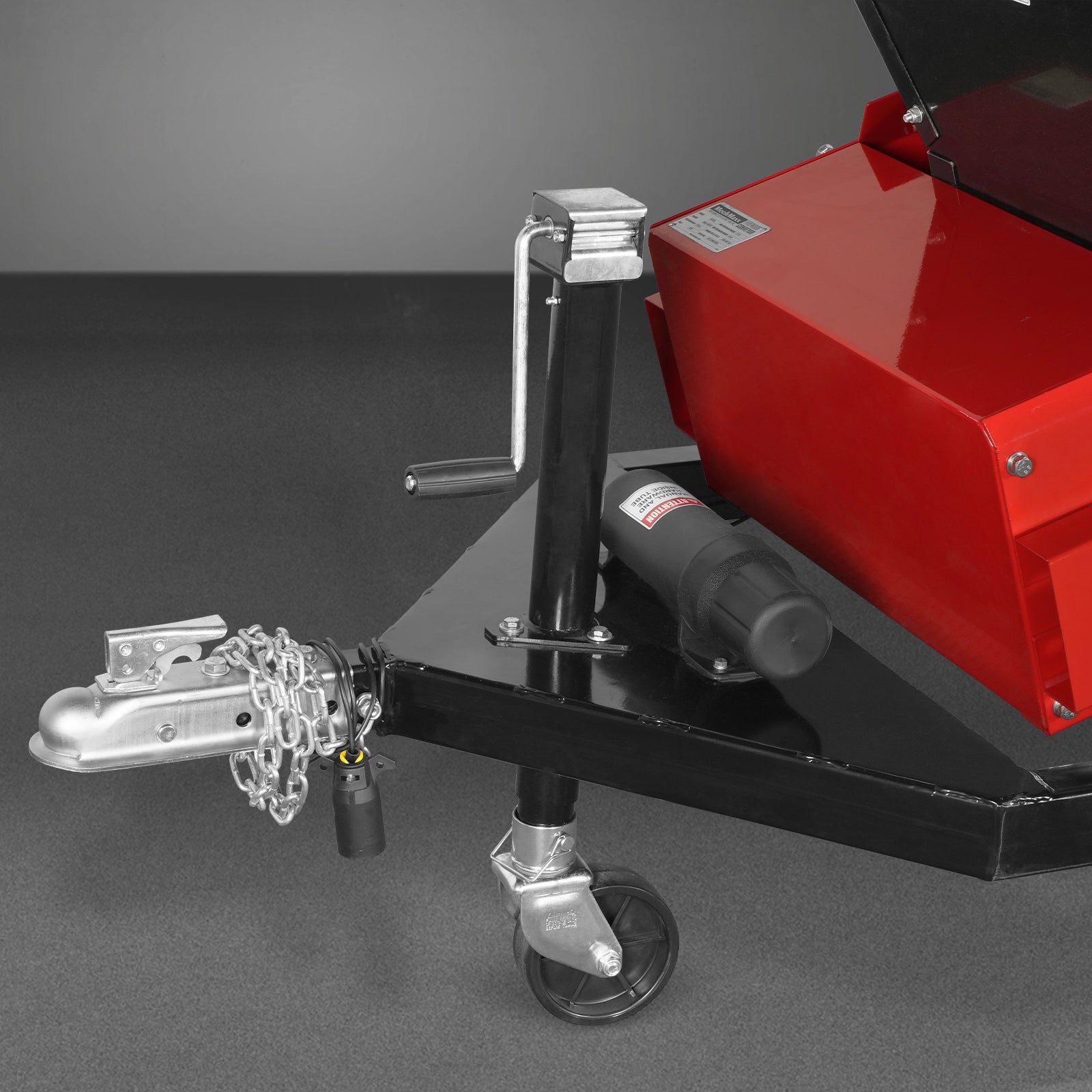

Trailer Hitch and Jockey Wheel

A 2-inch coupler is concealed on the trailer hitch, compatible with a 2-inch trailer ball. The jockey wheel adopts a single wheel design with a wheel diameter of 6 inches and the height can be adjusted during operation.

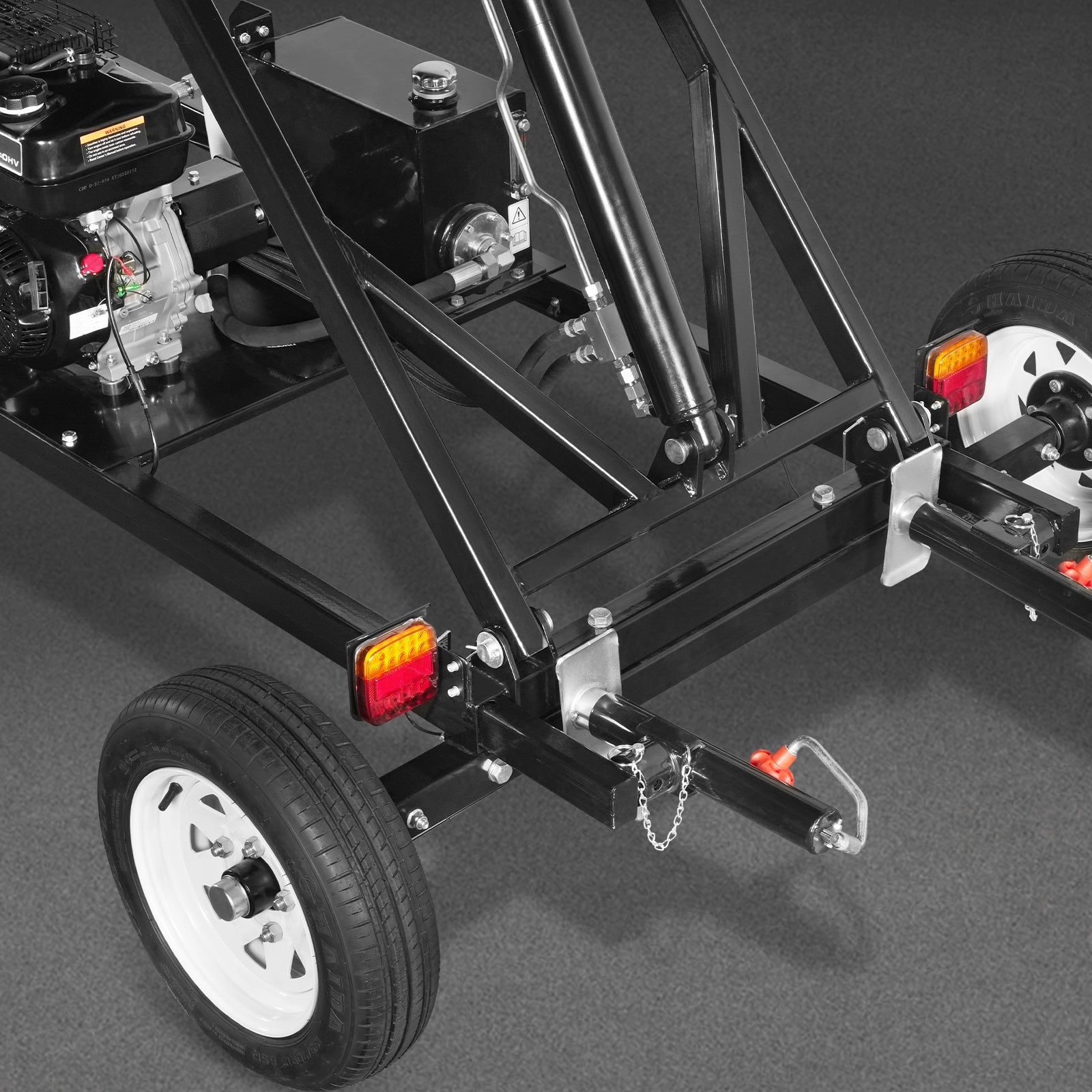

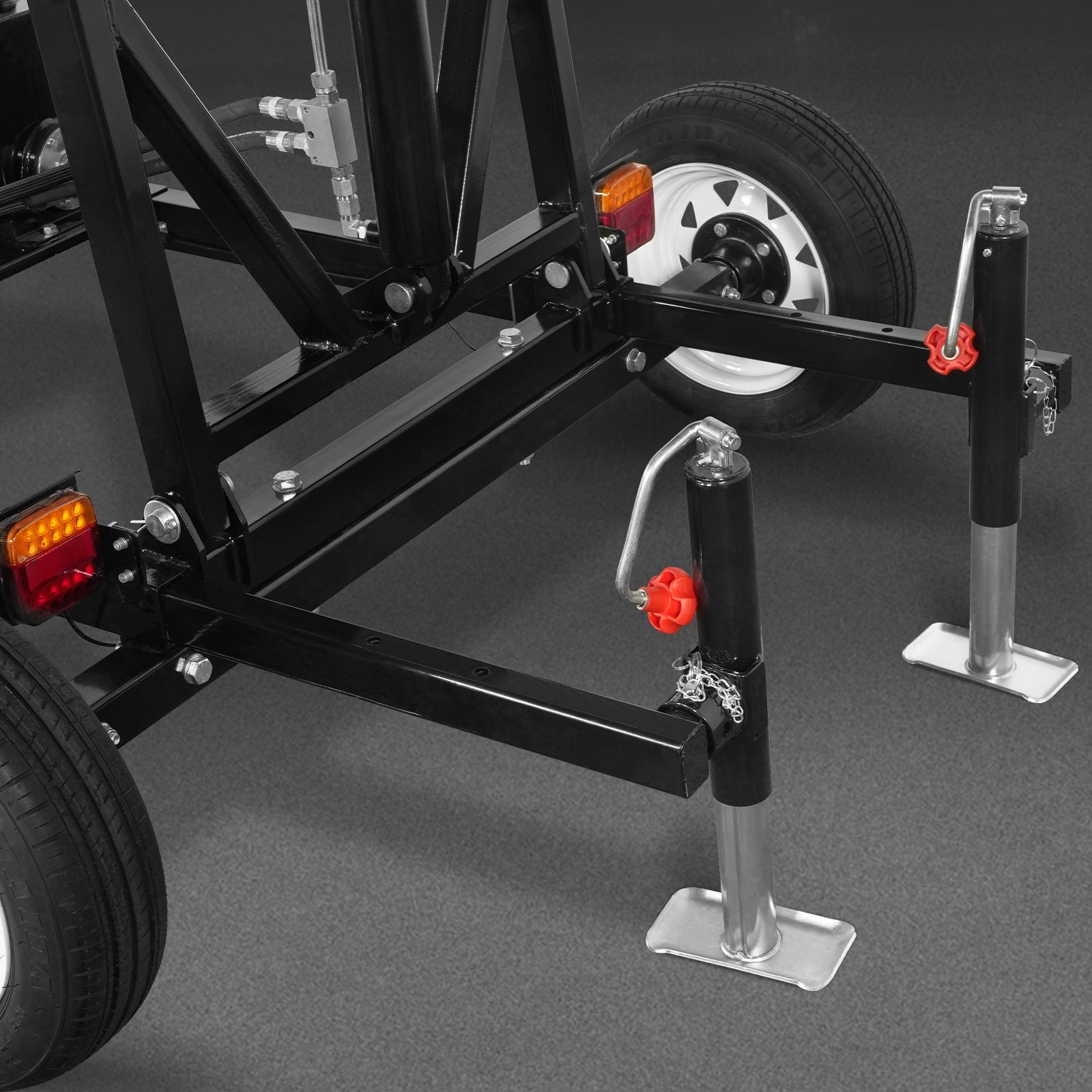

REAR SUPPORT STAND

To enhance operational safety, the unit is equipped with a rear support stand. The rear support stand provides a stable base for the firewood conveyor, effectively reducing the risk of tipping. Simply pull out and secure the rear support to gain additional support and stability.

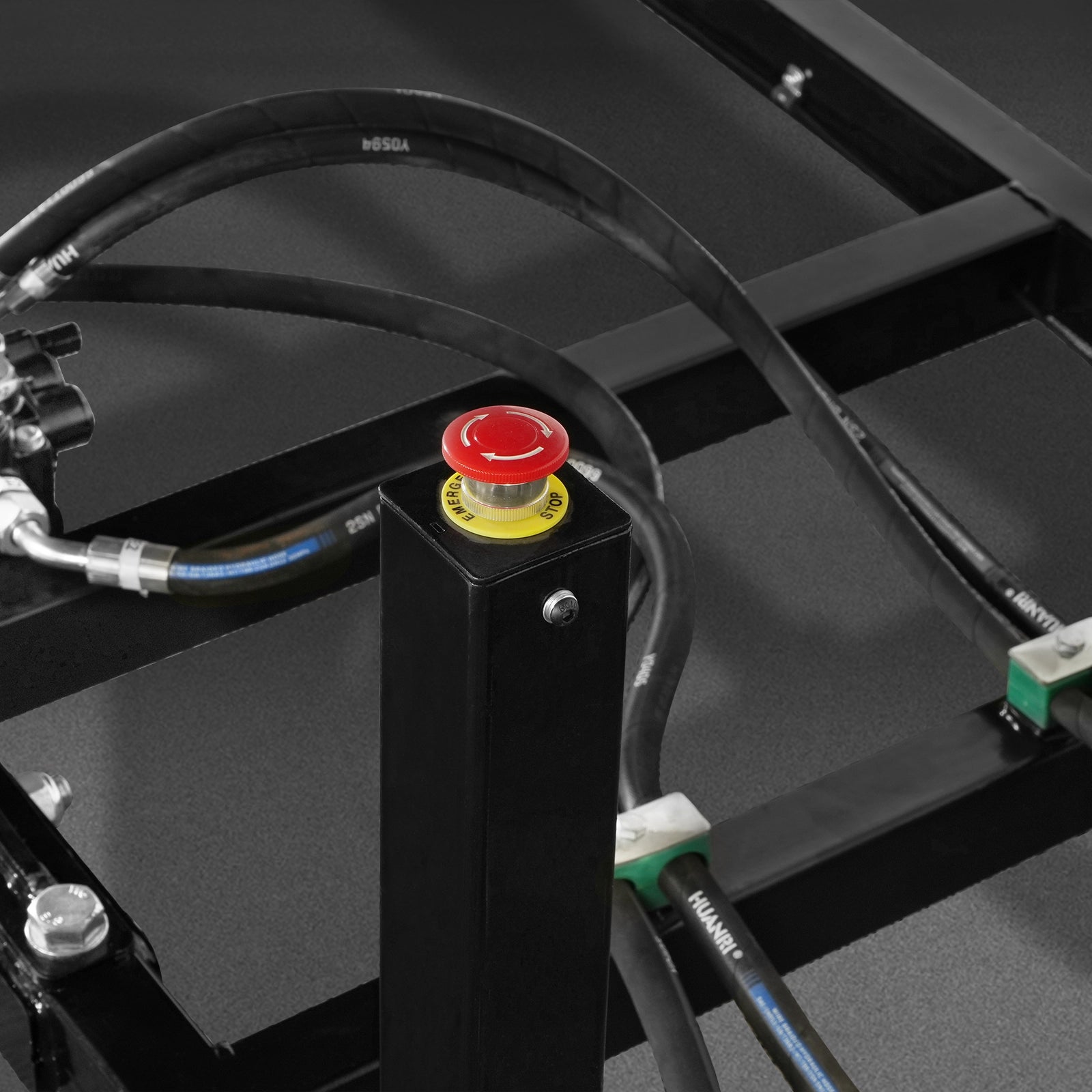

Emergency Stop Button

The emergency stop is placed close to the operator, allowing you to quickly halt the wood elevator during malfunctions or emergencies, ensuring safe and controlled operation.

Reinforced Conveyor Belt

The reinforced belt wood elevator is stronger, more durable, low-maintenance, and ensures safe, efficient operation.

Video

Product Warranty

Specifications

Customer Reviews

Explore These Items Picked for You

Heavy Duty Conveyor, 9HP 270cc Gasoline Powered...

SKU: 150302

3-Point PTO Stump Grinder with 34 Carbide Teeth...

SKU: 150151

Lift Gate Service Fee

SKU: 400002

3-Point PTO Stump Grinder with 34 Carbide Teeth...

SKU: 150151G

( 1 Pack / 18 Pcs ) Teeth and Nut for Stump Gri...

SKU: 409501

Engine Power	Ducar 270cc; 9hp
Start	Recoil
Conveyor Belt length	276 in
Conveyor Belt Wide	24 in
Max Discharge Height	180 in
Min Discharge Height	8 ft
Height Adjustment	Hydraulic
Drive System	Hydraulic
Hydraulic Pump	5.7 GPM Single Stage Pump
Hydraulic Fluid Type	AW-46

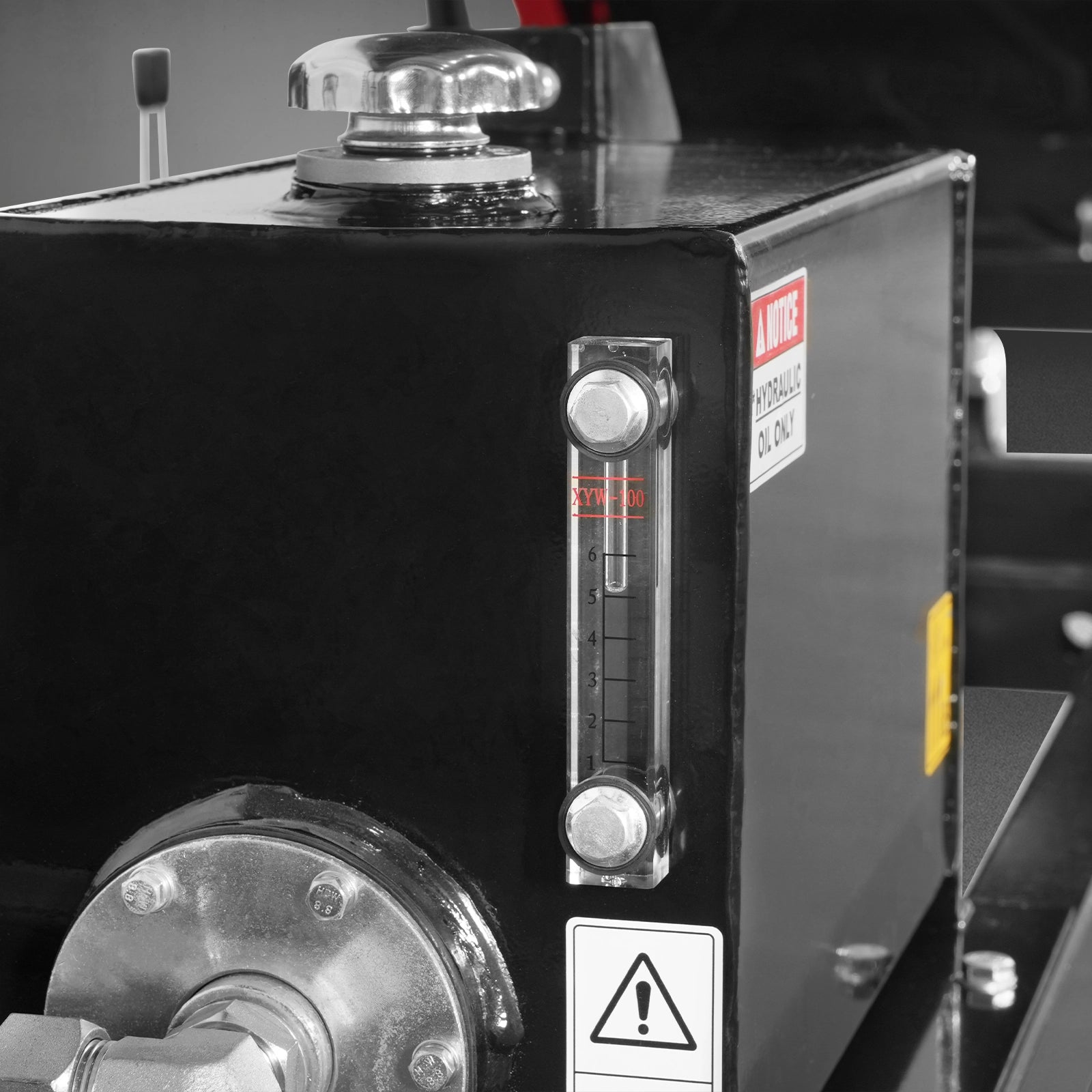

Hydraulic Tank Capacity	4.2 gal

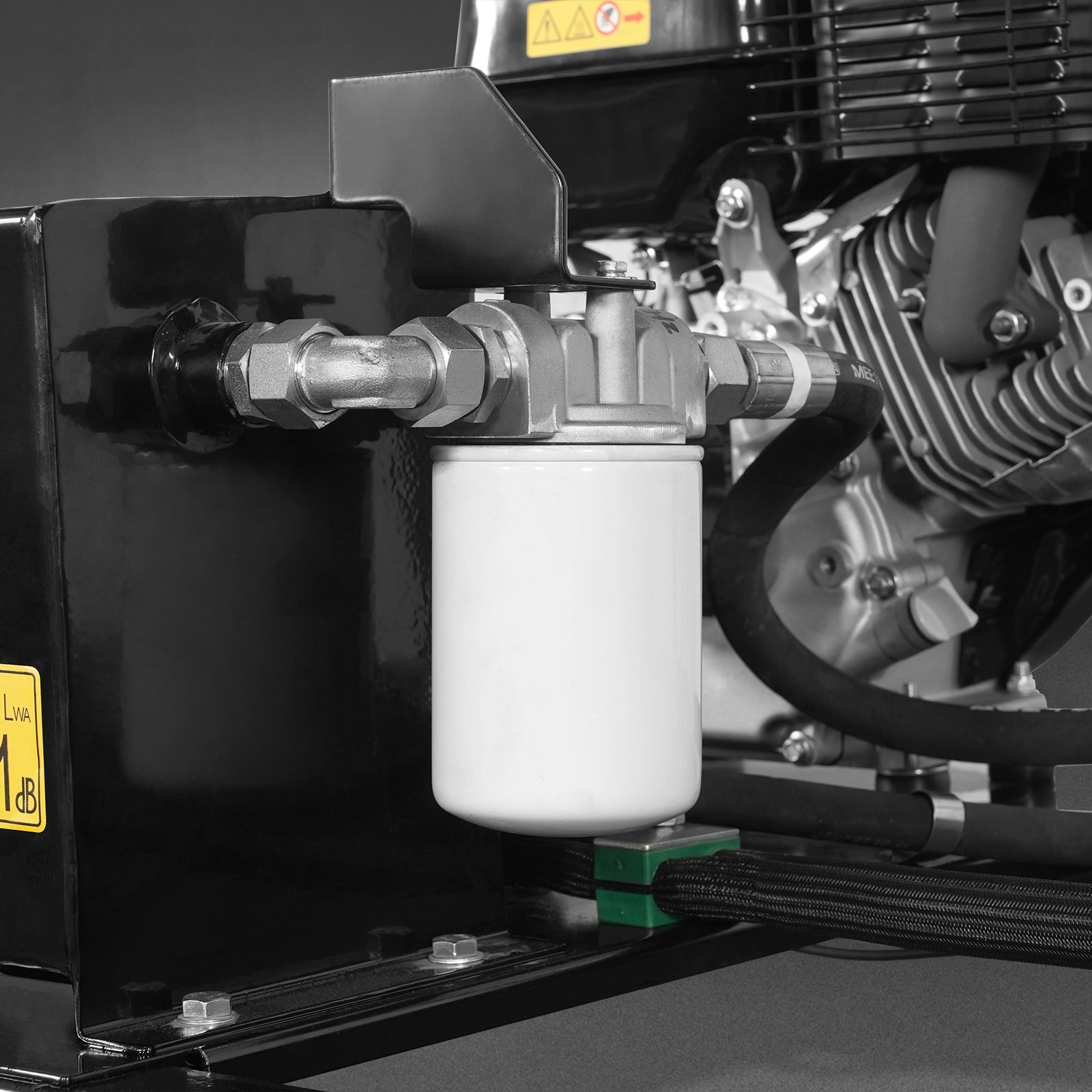

Hydraulic Oil Filter Fineness	10 micron
Towing	Tow Bar with 2 in Coupler
Maximum Towing Speed	45 mph
Maximum Load (Minimum Height 94 in)	440 lbs
Maximum load (Maximum Height 177 in)	352 lbs
Tires Rims	12 in
Tires	19 in Radial (O. D.)

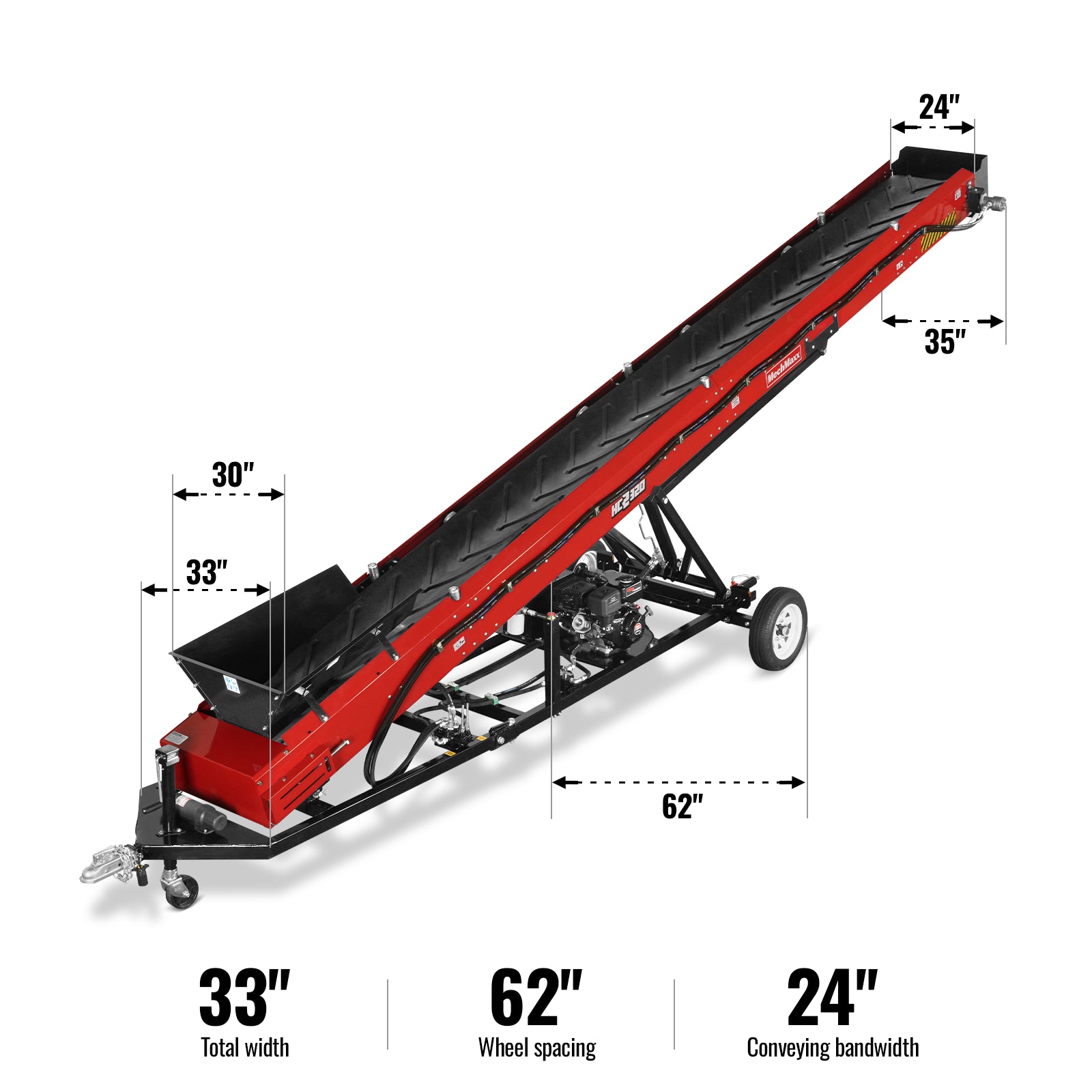

Overall Dimensions (LxWxH)	304x62x106 in
Finish	Powder Coating
Weight (N.W./G.W.)	1565/1755 lbs
Packing Method	Plywood case
Packing Size	90x45x45 in
