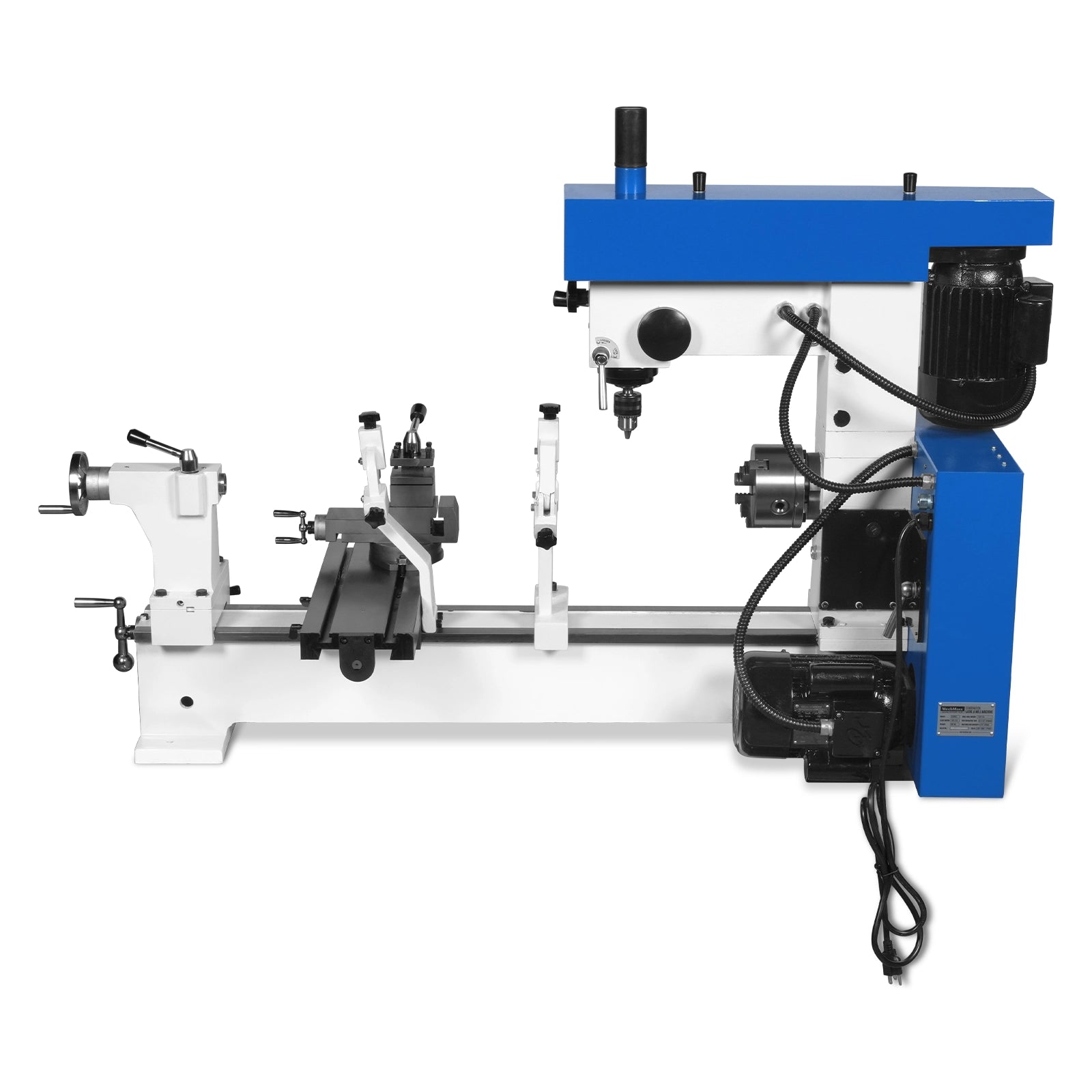

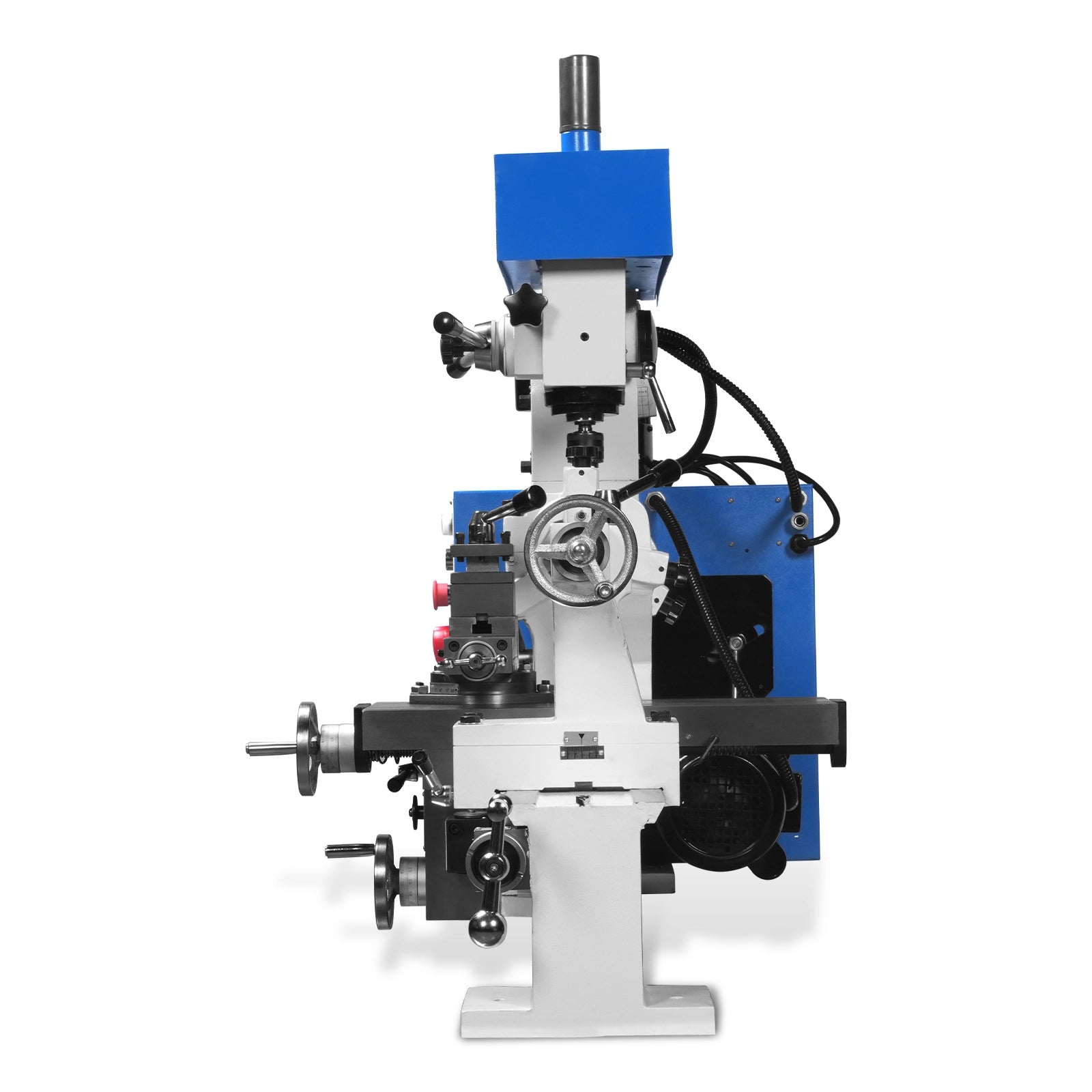

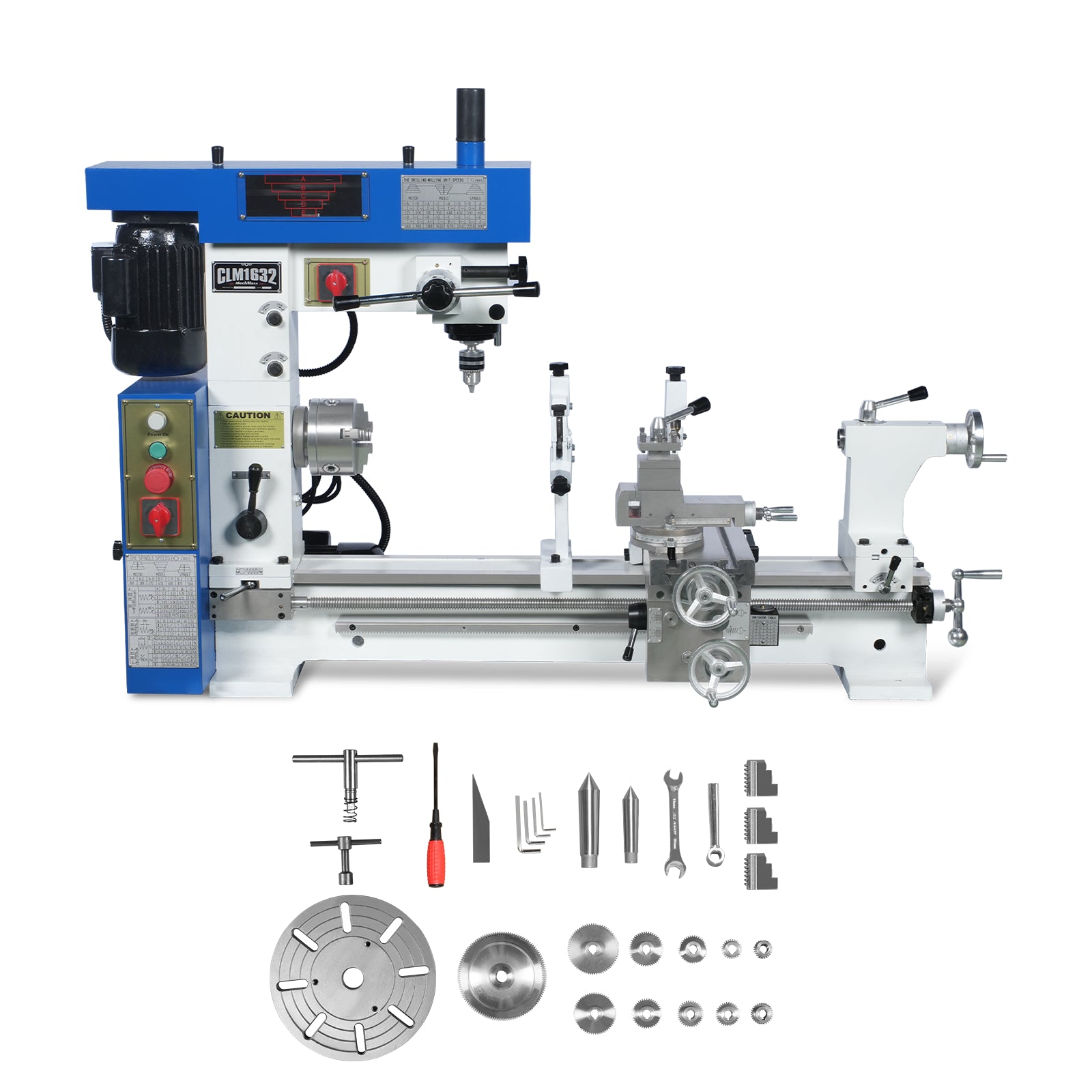

1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632

Name: 1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632
Brand: MechMaxx
SKU: 500105
Price: 2699.0 USD
Availability: OutOfStock
Rating: 5.0 (5 reviews)

1 HP 16''x32'' Multi-Function Metal Lathe Milling Machine Head for Metalworking – Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Metalworking Projects without Stand CLM1632

AMERICA 250 MEGA SALE | Ends in

Days : :

$269900

$3,099.00

Save $400

AMERICA 250 MEGA SALE | Ends in

Days : :

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Model : 16 in x 32 in Combo 1HP

Out of Stock

16 in x 32 in Combo 1HP 8 in x 16 in Lathe 1.5HP 8 in x 16 in Lathe DRO 1.5HP 10 in x 30 in Lathe 1.5HP 10 in x 30 in Lathe DRO 1.5HP 11 in x 30 in Lathe 2HP 11 in x 30 in Lathe DRO 2HP 14 in x 40 in Lathe DRO 2HP 14 in x 40 in Gunsmith Lathe 3HP 13 in x 37 in Lathe Norton Gear Box 1.5HP 13 in x 37 in Lathe Four-axis 1.5HP 13 in x 40 in Lathe 2HP 10 in x 22 in Lathe 1.5HP 10 in x 22 in Lathe DRO 1.5HP 10 in x 30 in Combo 1.5HP 11 in x 30 in Combo 2HP 16 in x 16 in Combo 1HP

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

8-1/4"x33'' Industrial Benchtop Mill Drill Machine with DRO, Variable Speed, Brushless Motor, R8 Spindle, 2 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM32LD

7‘’ x 27-1/2‘’ Benchtop Mini Mill Drill Machine, Variable Speed, Brshless Motor, R8 Spindle, 1.5 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM25L

6"x20'' Benchtop Mill Drill Machine, Variable Speed, R8 Spindle, 1 HP, 110V, Brushless Motor Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM18L

2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC

8-1/4"x33'' Industrial Benchtop Mill Drill Machine with DRO, Variable Speed, Brushless Motor, R8 Spindle, 2 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM32LD $349900 $3,499.00

7‘’ x 27-1/2‘’ Benchtop Mini Mill Drill Machine, Variable Speed, Brshless Motor, R8 Spindle, 1.5 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM25L $219900 $2,399.00

6"x20'' Benchtop Mill Drill Machine, Variable Speed, R8 Spindle, 1 HP, 110V, Brushless Motor Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand VM18L $149900 $1,799.00

2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand 1130VC $489900 $5,199.00

Total Price

$

Product Overview

Powerful Motor: The 1PH (750W) motor provides ample power for efficient turning operations.
Swing Over Bed: The lathe features a 16-8/15" (420mm) swing, allowing you to work with larger workpieces.
Swing Over Cross Slide: The machine offers a 11-1/2" (120mm) swing over the cross slide, providing more clearance for your workpieces.
Threading Capacity: Capable of cutting 4-120 TPI in inches and 0.2-6mm in metric, providing flexibility for various threading applications.
Spindle Bore: With an 1-1/10" (28mm) spindle bore, it allows for a wide range of tool bits and workpieces.
Carriage Travel: The 29-1/8" (740mm) carriage travel ensures flexibility for larger workpieces, making it suitable for long and intricate turning operations.

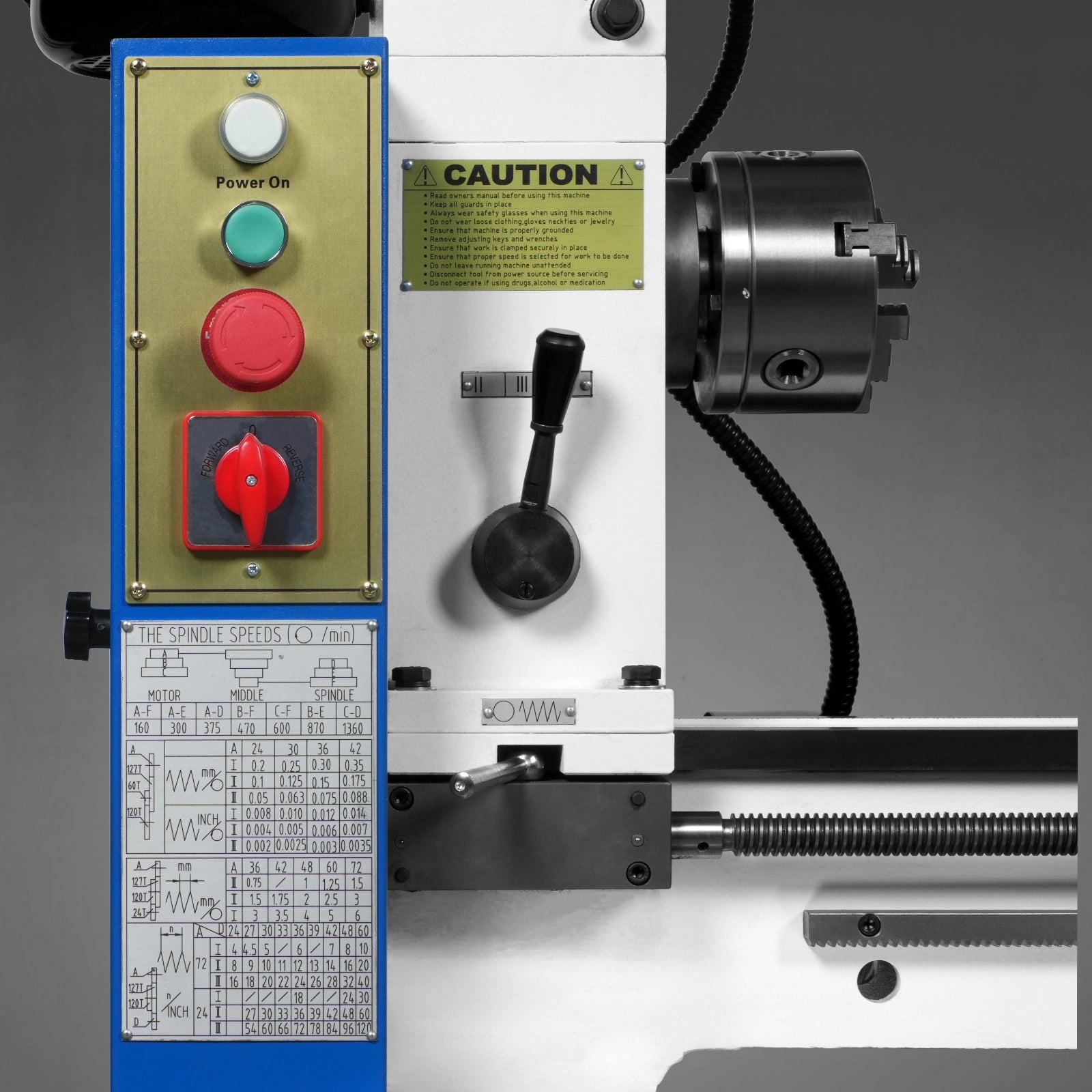

Spindle Speed Range: The lathe's 7-speed spindle operates from 160 to 1360 RPM, allowing for precise control over the turning speed for various materials.
Powerful Milling Head: The 1PH (750W) motor powers the mill head, delivering reliable performance for drilling and milling tasks.
Speed Range: With a 16-step spindle speed range from 120 RPM to 3000 RPM, the machine is adaptable to a variety of milling operations, ensuring high efficiency for various materials.
Drill and Milling Capacities:
Drill Capacity: Capable of drilling up to 7/8" (22mm).
End Milling Capacity: Provides up to 1-1/8" (28mm) for end milling.
Face Milling Capacity: The machine can handle up to 3-5/32" (80mm) for face milling, making it ideal for high-precision milling jobs

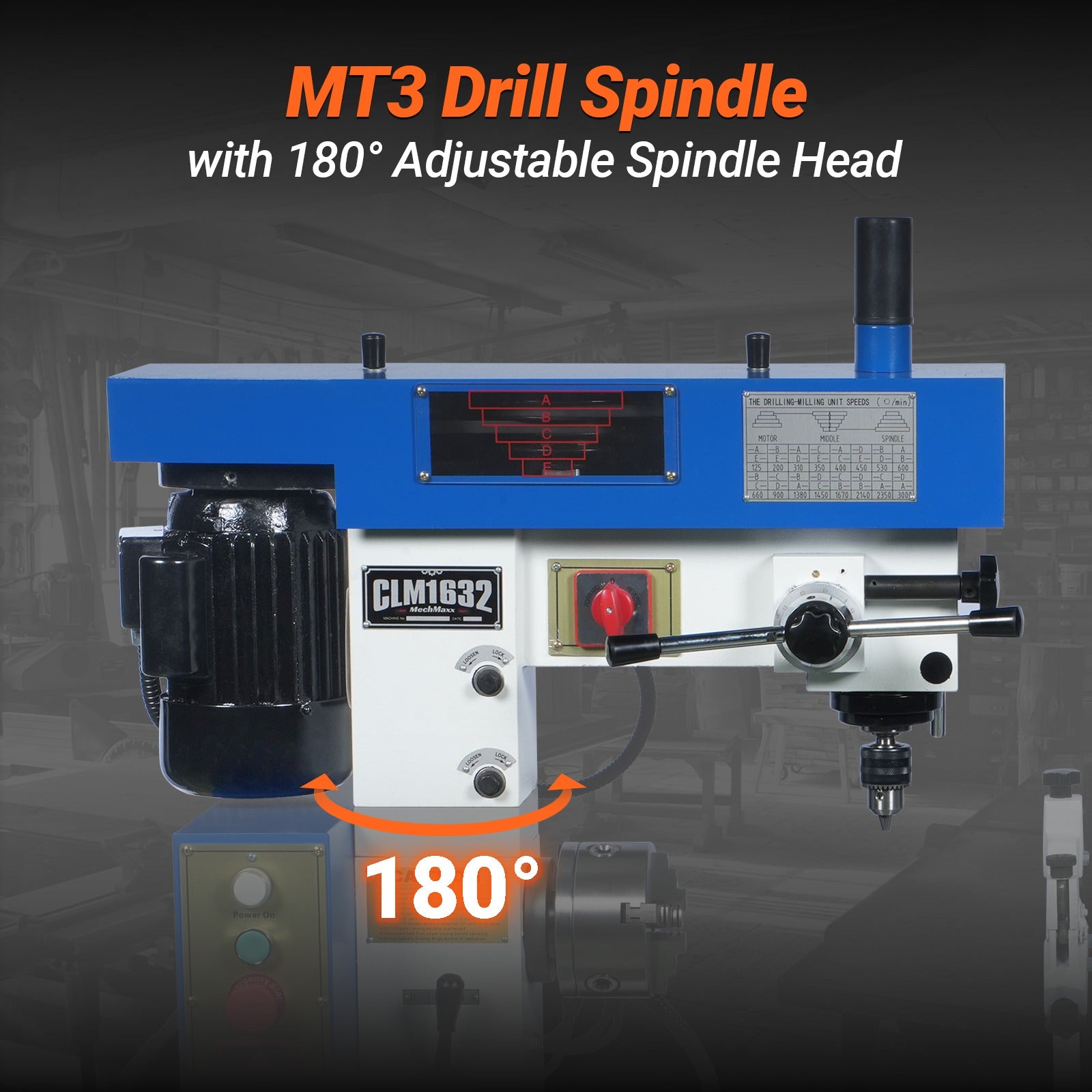

Vertical and Horizontal Milling: Features 360° swiveling headstock with 0° head tilt, providing the flexibility for complex milling tasks in multiple orientations
Spindle Travel: The 4-5/16" (110mm) spindle travel offers great depth for different drilling and milling tasks.
Headstock Height: The 3-1/8" (79.4mm) headstock height provides sufficient clearance for various workpieces.

Product manual (PDF)

16'' x 32'' Multifuctional Metal Lathe and Drill/Mill Combo Machine 1.0.pdf

Product Features

Dual Motor System for Lathe and Mill with Independent Power

This machine features TWO 1 HP motors—one dedicated to lathe operations and the other to milling tasks. While the systems are independent, they allow for quick switching between lathe and mill functions, ensuring reliable performance and optimized power delivery for each task. This design enhances efficiency and provides versatility without the risk of simultaneous operation.

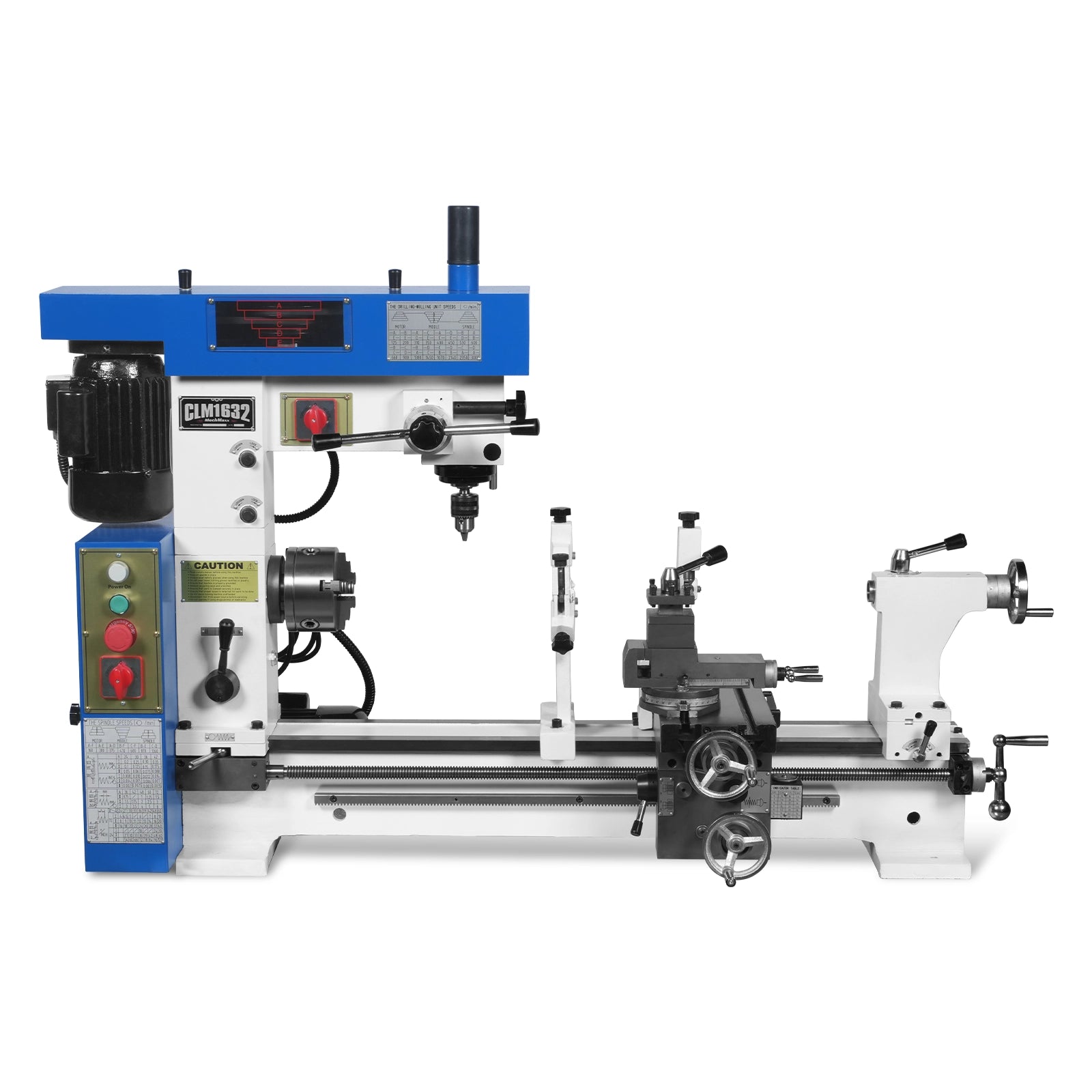

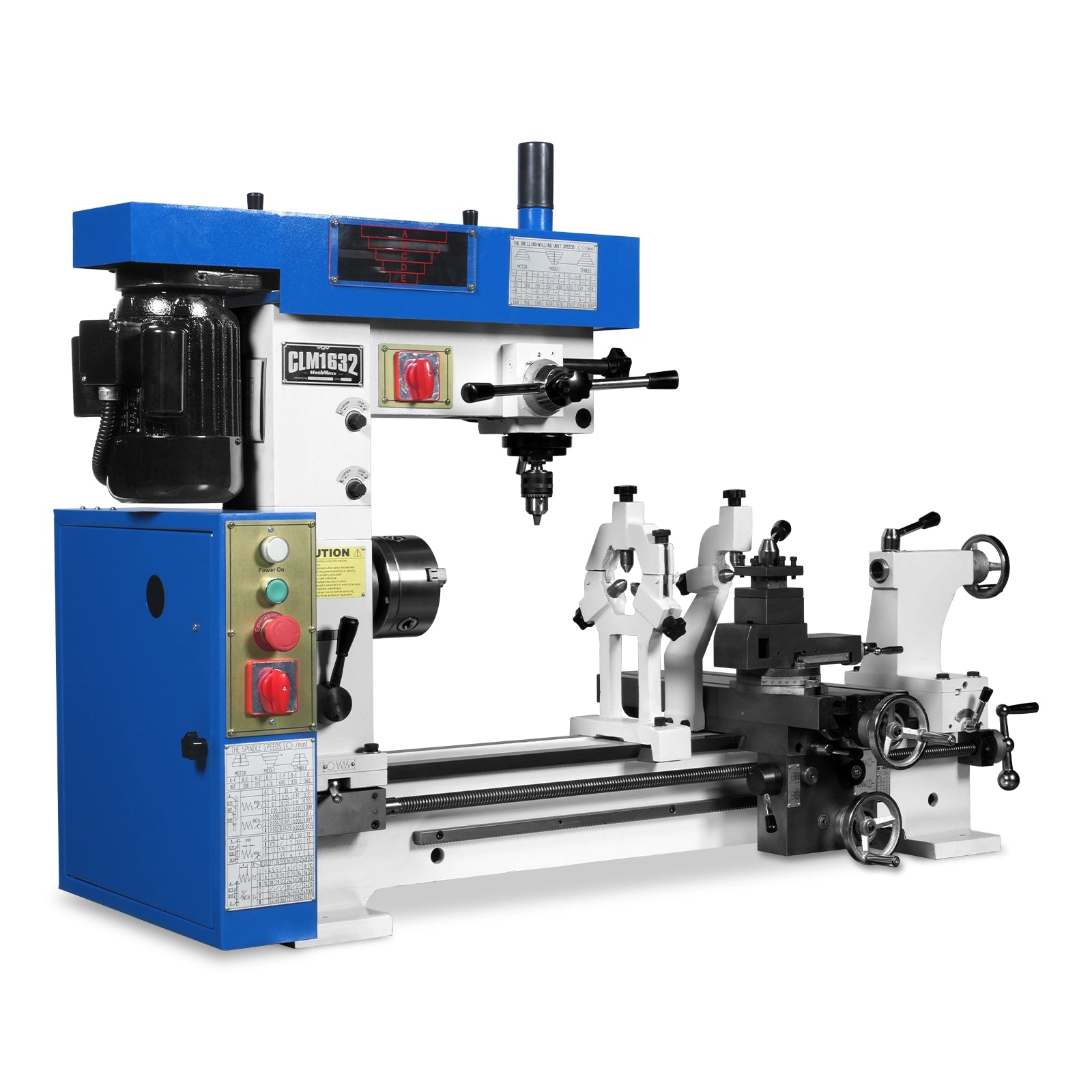

3-in-1 Versatility: Turning, Drilling & Milling

Save space without sacrificing capability. This multi-functional lathe integrates turning, drilling, and milling operations into a single compact machine—ideal for small workshops, DIY users, and repair jobs. Perfect for precision metalworking in tight spaces.

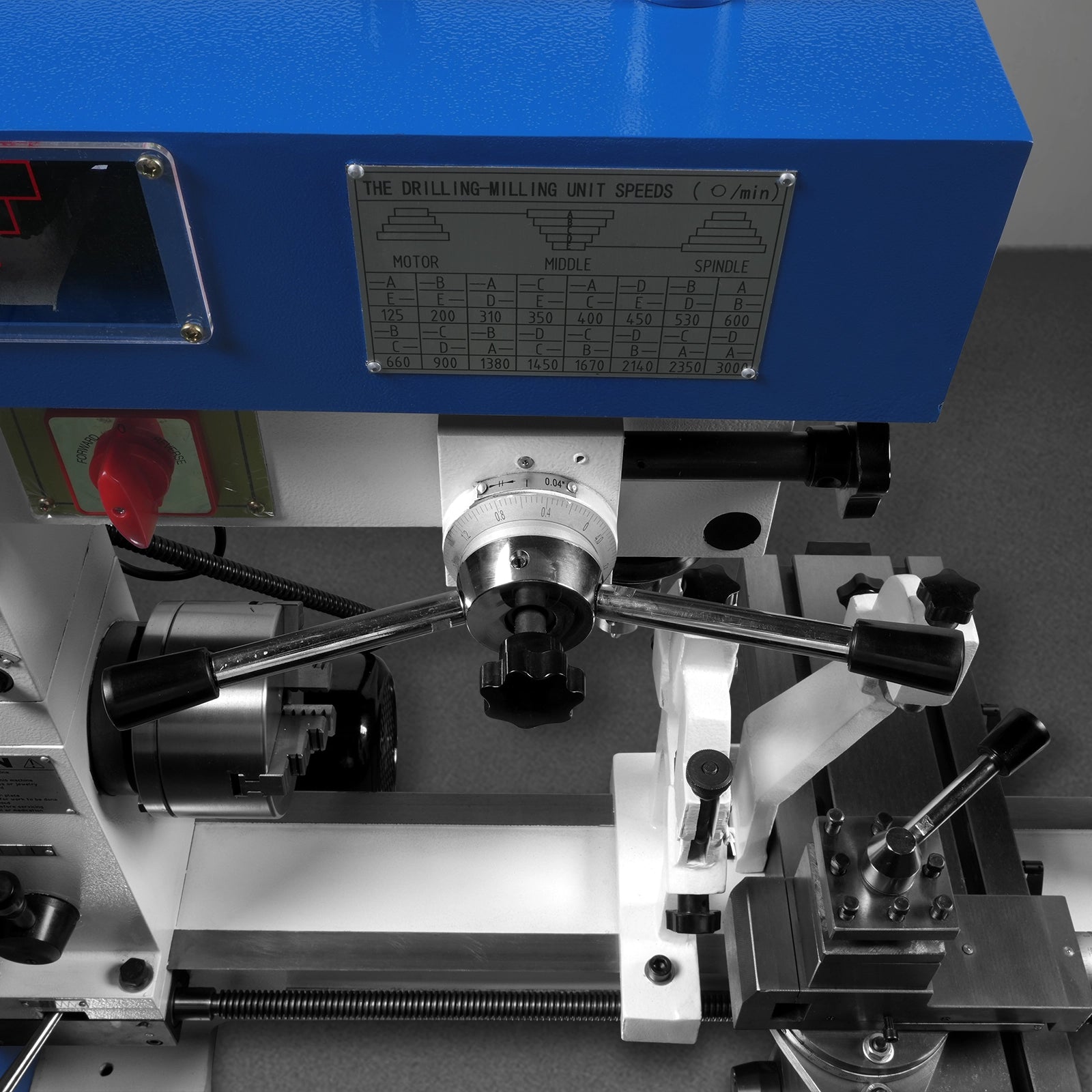

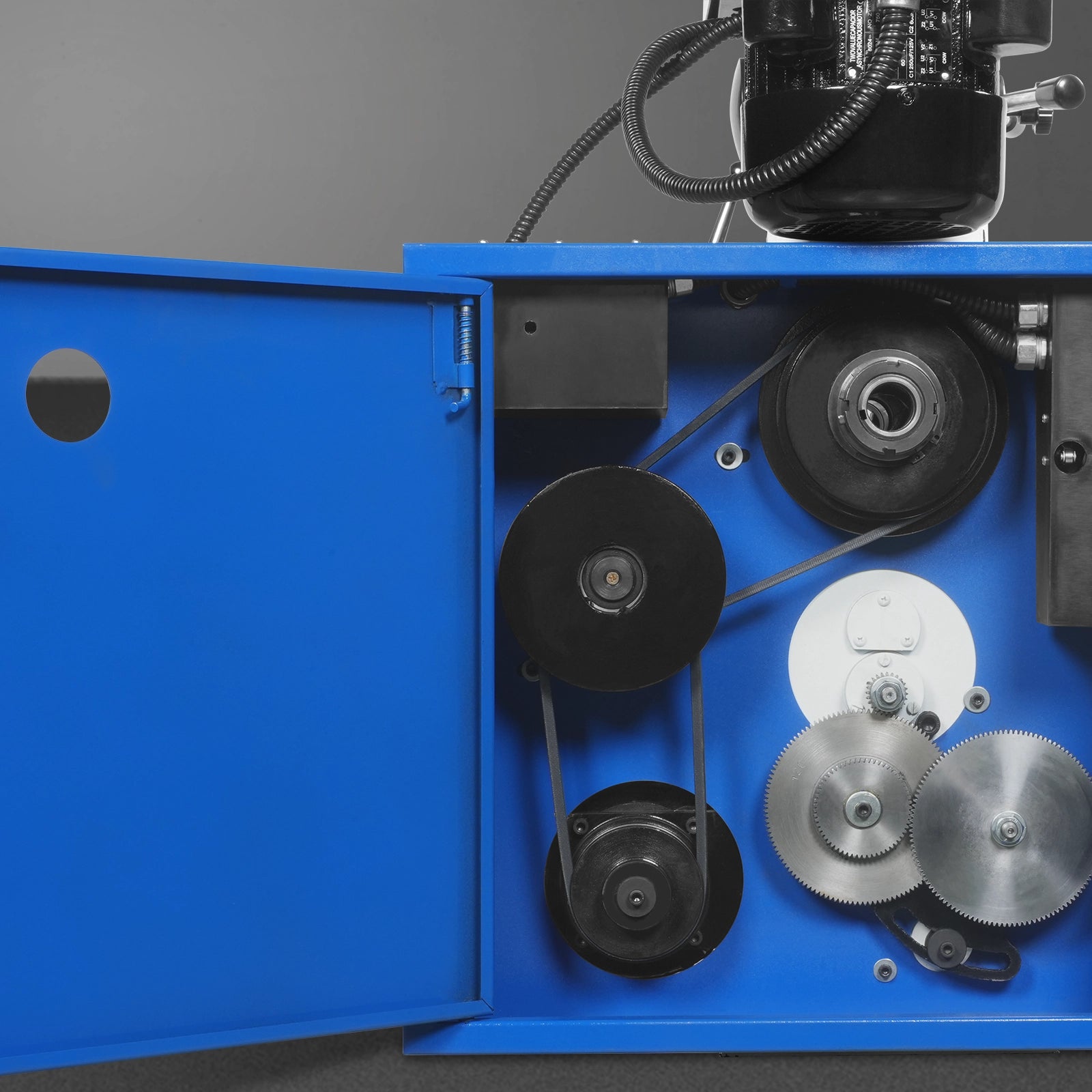

Multi-Speed Belt Drive for Versatile Milling

This belt-driven system provides 14 spindle speed settings—from 117 to 1300 RPM—via easy pulley adjustments. The vibration-free, low-noise design ensures smooth transitions across drilling and milling tasks, giving you full control over cutting speed and torque for various materials.

Effortless Precision with Automatic Feed Control

Experience smooth, hands-free operation with automatic longitudinal and cross feeds. This feature ensures consistent cuts, reduces operator fatigue, and enhances machining efficiency—ideal for repetitive tasks and precision work.

Precision-Ground, One-Piece Table

Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

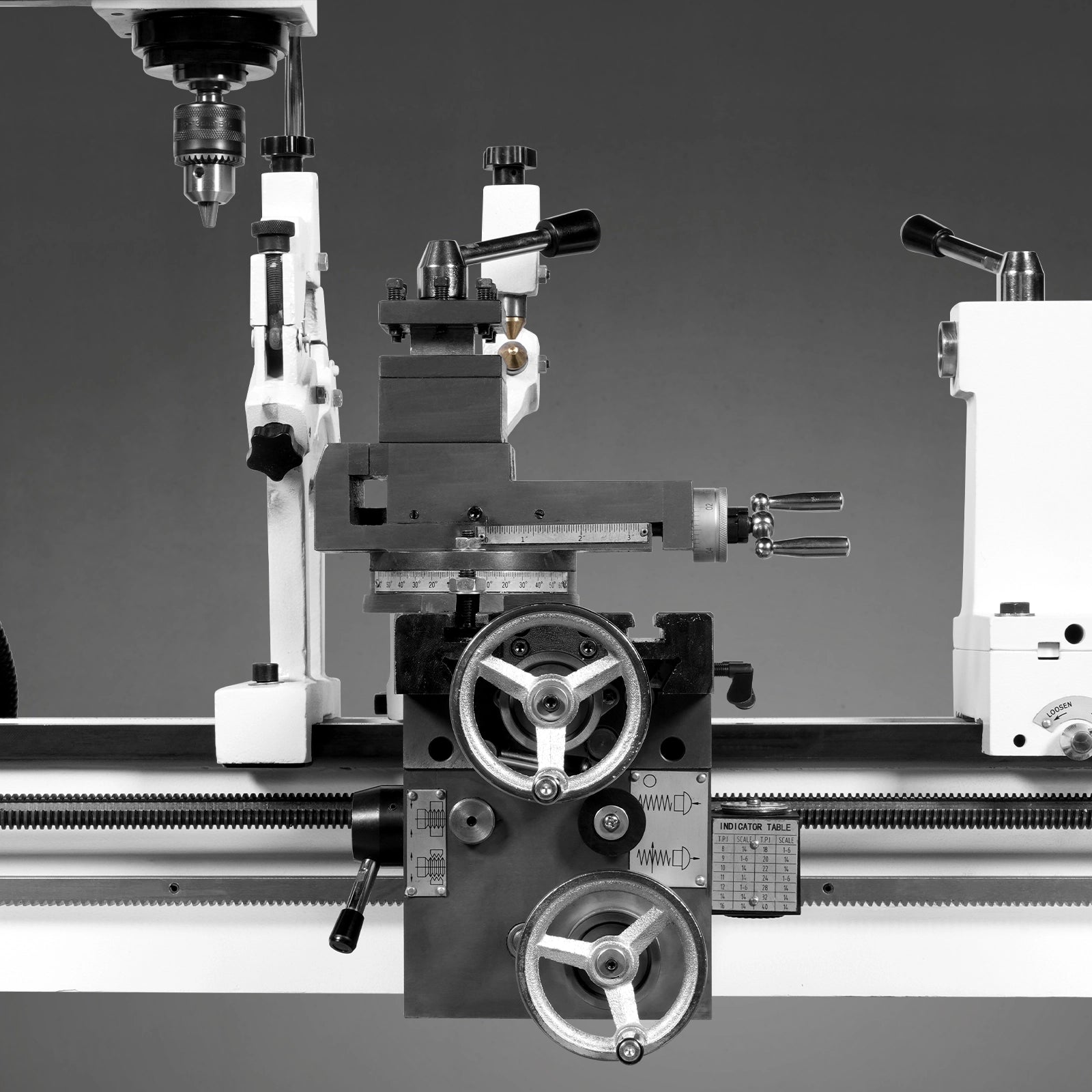

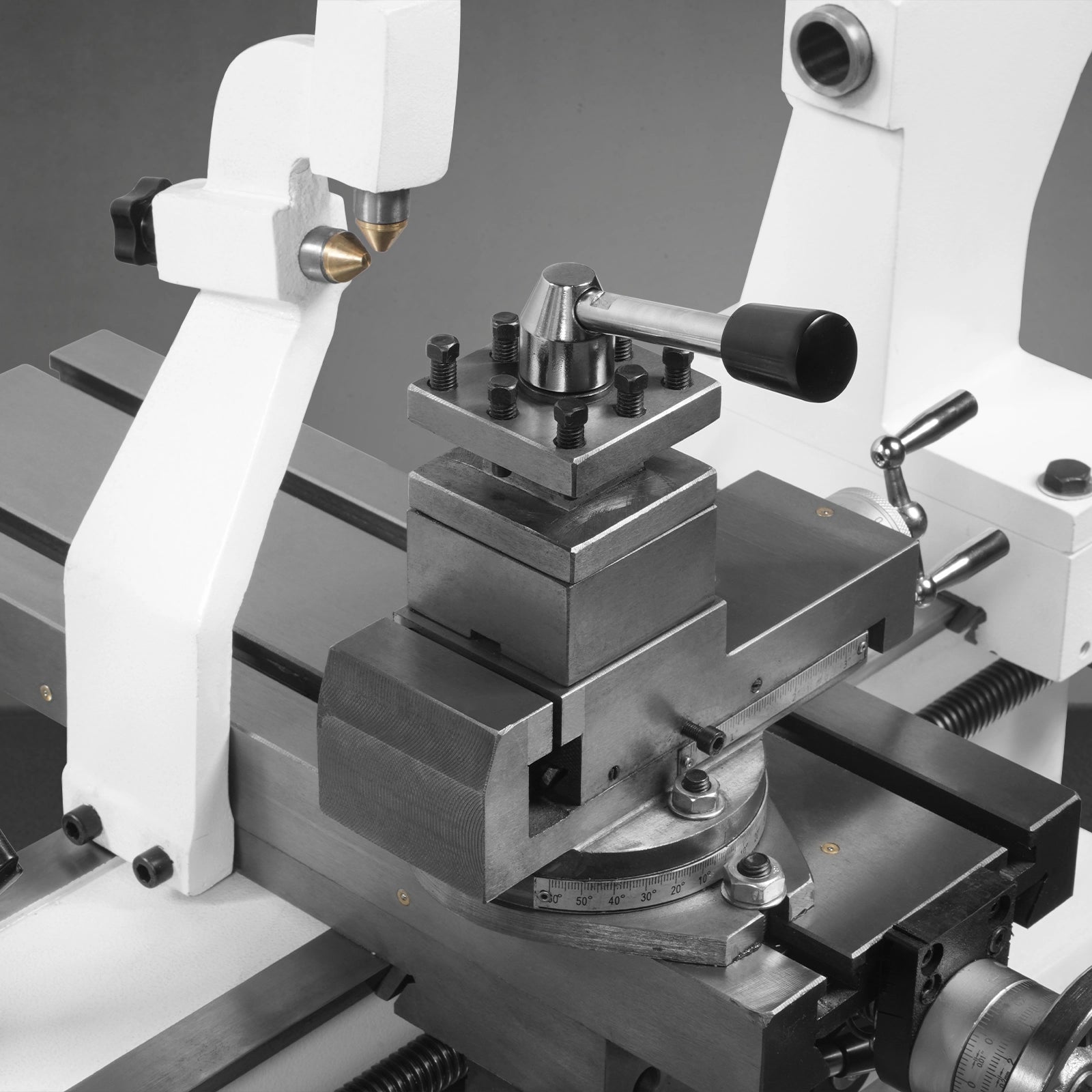

Smooth Travel, Stable Cutting

Built for precision and control, the cross and compound slides ensure smooth tool movement and firm support during every cut. Whether you're facing, turning, or tapering, this rigid assembly provides the accuracy you need for professional-quality results in your garage or workshop.

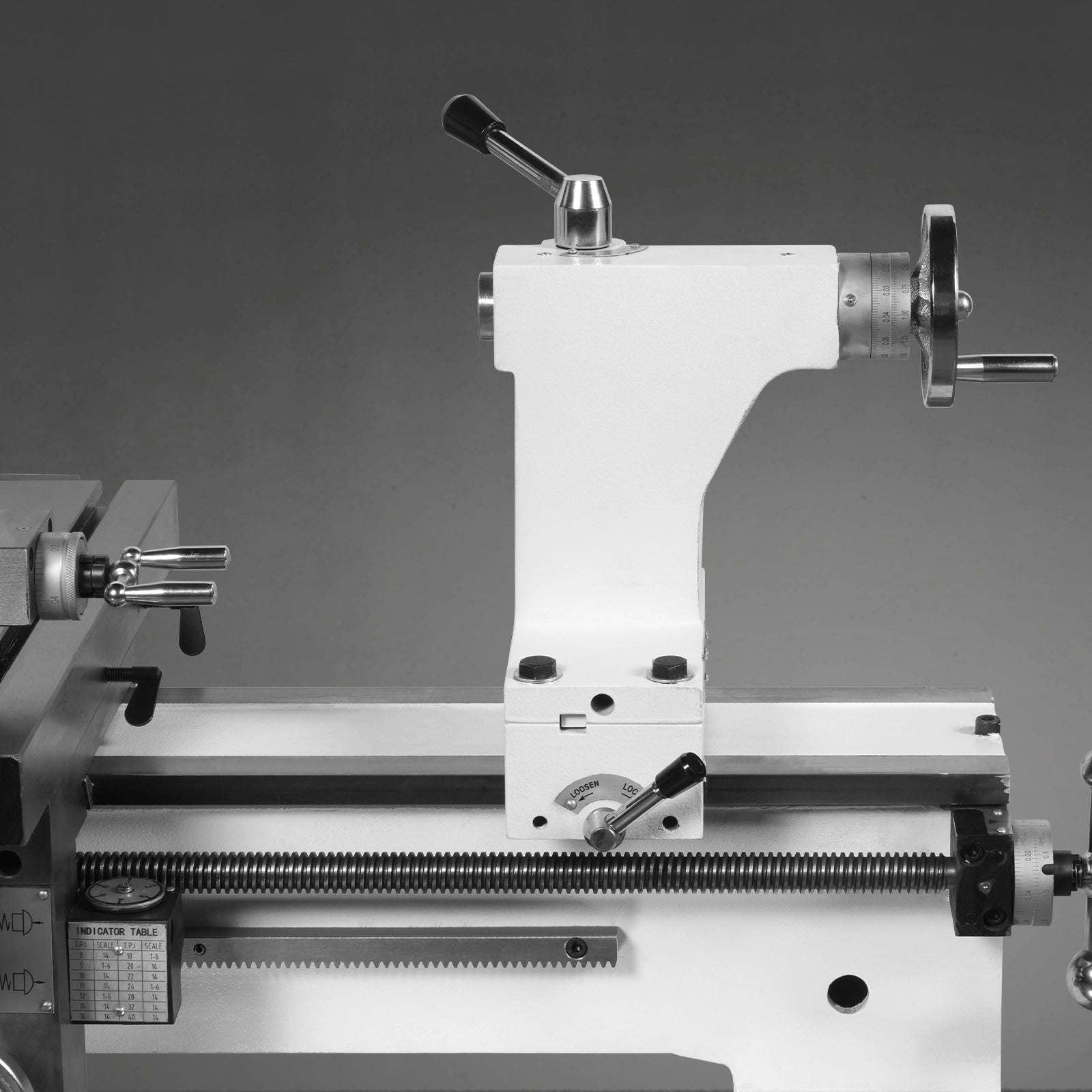

Precision Tailstock with Fast-Action Lock

Designed for accuracy and convenience, the tailstock features 2-3/4inch quill travel and an MT3 taper—perfect for drilling, centering, and support tasks. The quick-locking lever allows rapid repositioning without tools, boosting productivity and ensuring consistent alignment during turning operations.

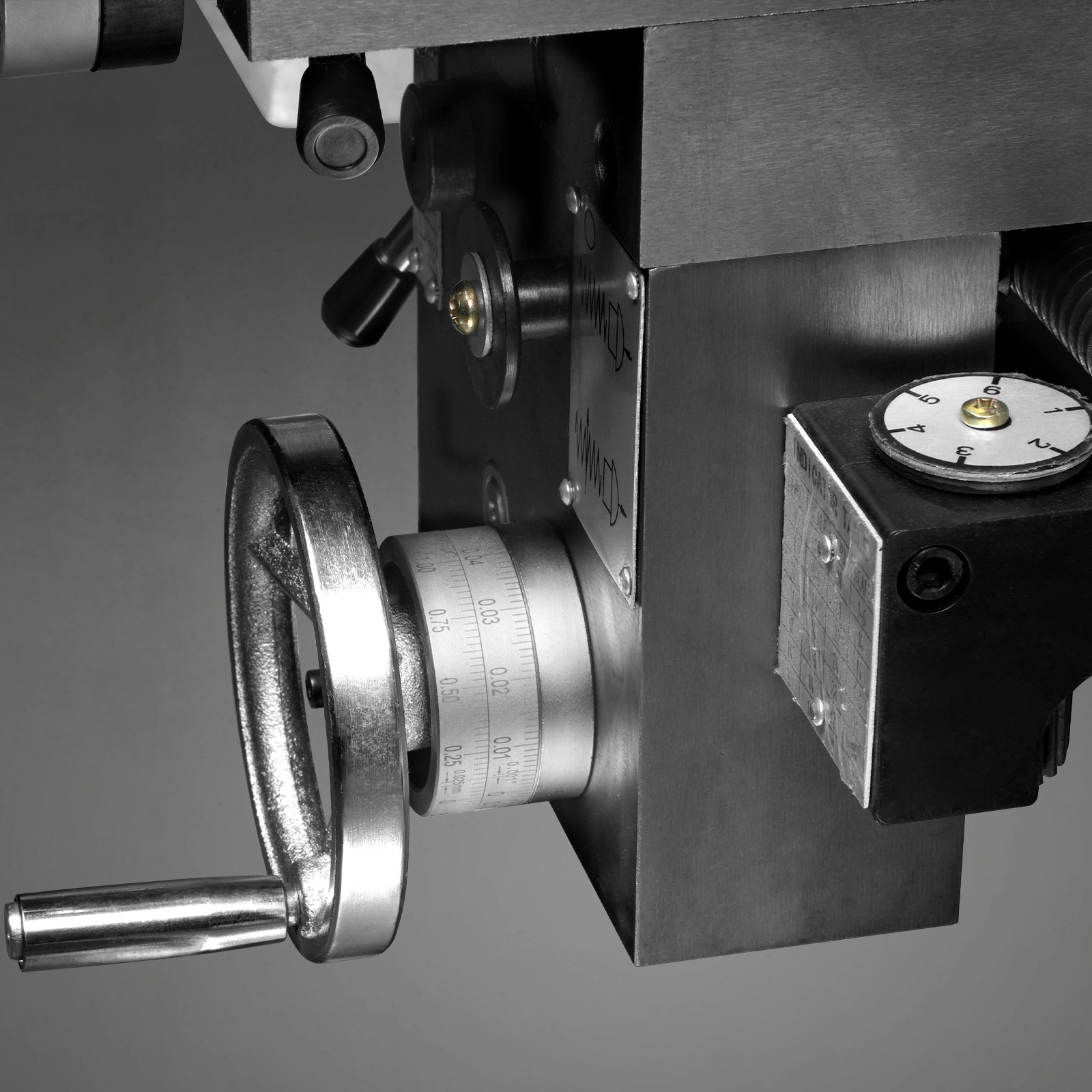

Clear Dials for Precise Manual Control

Every handwheel features engraved graduations for fine depth adjustment during turning, drilling, or milling. Whether you're threading or facing, precise dial feedback lets you make accurate cuts with confidence—perfect for hobbyists and professionals alike.

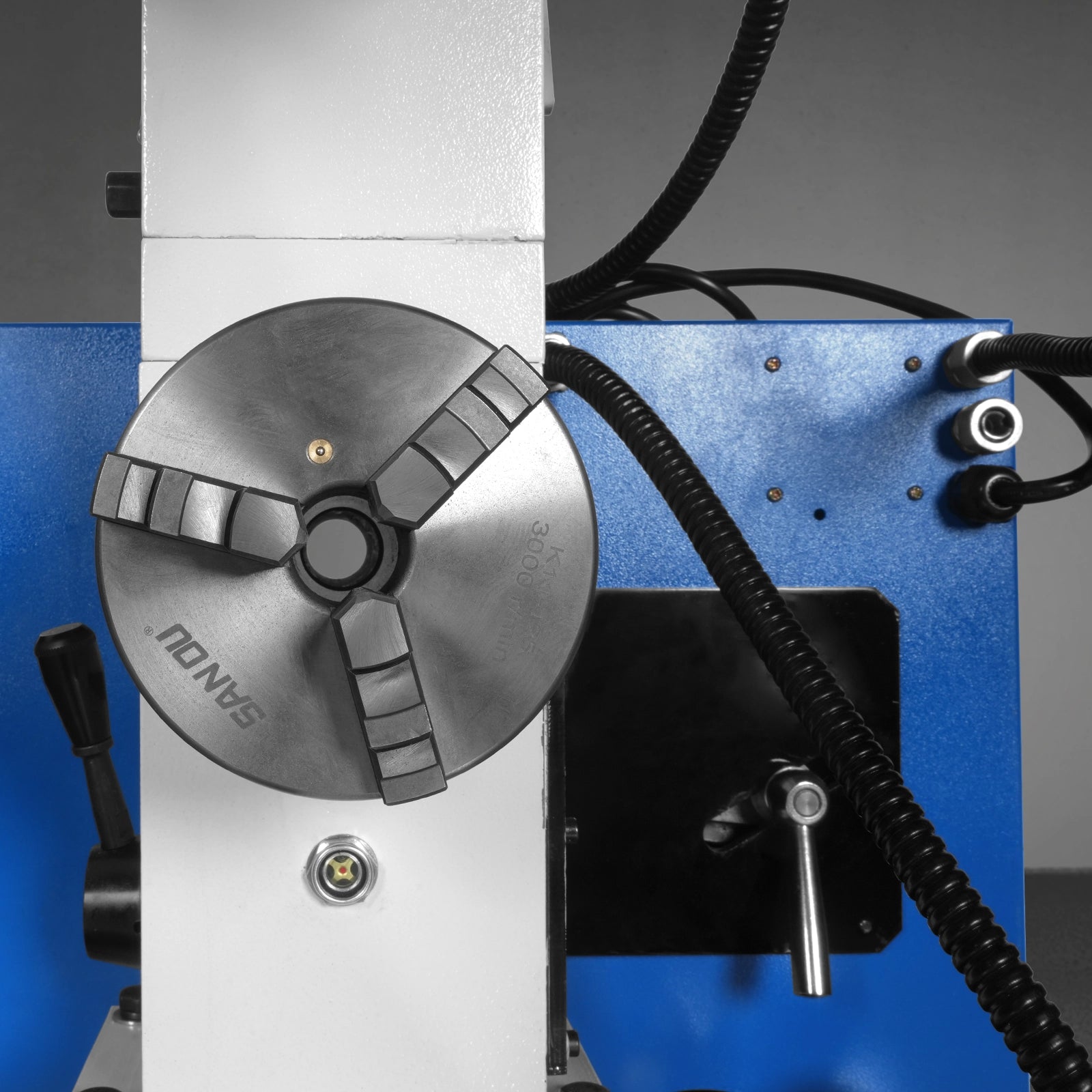

1-1/10'' Spindle Bore and MT4 Spindle Taper

This lathe is equipped with a 5" chuck, providing a strong, secure grip for a wide range of workpieces. The MT4 spindle taper ensures a tight, stable fit for precise turning operations, while the 1-1/10'' spindle bore allows you to work with longer materials, enabling continuous operations without limitation.

Lathe
Motor Power (Lathe)	1PH(750W), Single-Phase, 110V, 60HZ
Swing Over Bed	16-8/15''(420mm)
Swing Over Cross Slide	11-1/2"(120mm)
Distance Between Centers	31-1/2''(800mm)
Bed Width	5-5/16''(135mm)
Spindle Bore	1-1/10''(28mm)
Spindle Mount	Flange mount
Spindle Type	Integrated Spindle
DIA of the chuck	5''(125mm)
Spindle Taper	MT4
Tailstock Taper	MT3
Tailstock Quill Travel	2-3/4''(70mm)
Carriage Travel	29-1/8''(740mm)
Carriage Leadscrew Diameter	25/32"(20mm)
Cross Slide Travel	7-7/8''(200mm)
Compound Slide Travel	3''(76.2mm)
Spindle Speed Range	160-1360RPM
Number of Speed Ranges	7
Longitudinal Feed Rate	0.002''-0.014''
Transverse Feed Rate	0.002''-0.014''
Leadscrew Size & Pitch	20mm 6TPI
Threading Capacity – Inch	4-120TPI
Threading Capacity – Metric	0.2-6mm
Thread Dial Indicator	YES
Maximum Tool Bit Size	1/2''x1/2''(12x12mm)


Drill/Mill
Motor Power (Mill Head)	1PH(750W)
Mill Taper	MT3
Spindle Speed Range	120, 200, 310, 350, 400, 450, 530, 600, 660, 900, 1380, 1450, 1670, 2140, 2350, 3000 RPM
Number of Speed Steps	16
Spindle Travel	4-5/16"(110mm)
Drawbar Thread Size	3/8''(9.52mm)
Drawbar Length	13''(330mm)
Drawbar Thread Pitch	16TPI
Drill Capacity	7/8''(22mm)
End Milling Capacity	1-1/8"(28mm)
Face Milling Capacity	3-5/32''(80mm)
Vertical Travel (Z-Axis)	/
Distance: Spindle to Table	14-1/2''(370mm)
Distance: Spindle to Center Line	6-1/8''(156mm)
Headstock Height	3-1/8''(79.4mm)
Head Tilt Angle	0°
Swivel angle of the headstock	360°
Drive Type	Belt-driven AC Motor
Overall Dimensions	57''x23''x45''(1440x580x1140mm)
N.W/G.W	595/653lbs(270/296kg)
