SKU: 500202

| Model: VM25L

7‘’ x 27-1/2‘’ Benchtop Mini Mill Drill Machine, Variable Speed, Brshless Motor, R8 Spindle, 1.5 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand

Name: 7‘’ x 27-1/2‘’ Benchtop Mini Mill Drill Machine, Variable Speed, Brshless Motor, R8 Spindle, 1.5 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand
Brand: MechMaxx
SKU: 500202
Price: 2199.0 USD
Availability: InStock

7‘’ x 27-1/2‘’ Benchtop Mini Mill Drill Machine, Variable Speed, Brshless Motor, R8 Spindle, 1.5 HP, 110V, Compact Milling Drilling Tool for Garage Shop, DIY Metalworking without Stand

NEW YEAR SALE EXTENDED Ends in

Days : :

$219900

$2,399.00

Save $200

NEW YEAR SALE EXTENDED Ends in

Days : :

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Model : VM25L

In Stock

VM25L VM18L VM18LD VM25LD VM32L VM32LD 1030VC COMBO 1130VC COMBO CLM1620 COMBO CLM1632 COMBO

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

Heavy Duty Stand For VM25L Serial Metal Milling and Drilling Machine (SKU:500202) (SKU:500203)

1 HP 16''x16'' Multi-Function Metal Lathe Milling Machine Head for Metalworking Combo Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Combination Metalworking Projects without Stand

1.5‘’ Spindle Bore Metal Lathe Machine 10'' x 30'' High Precision Brushless Motor Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand

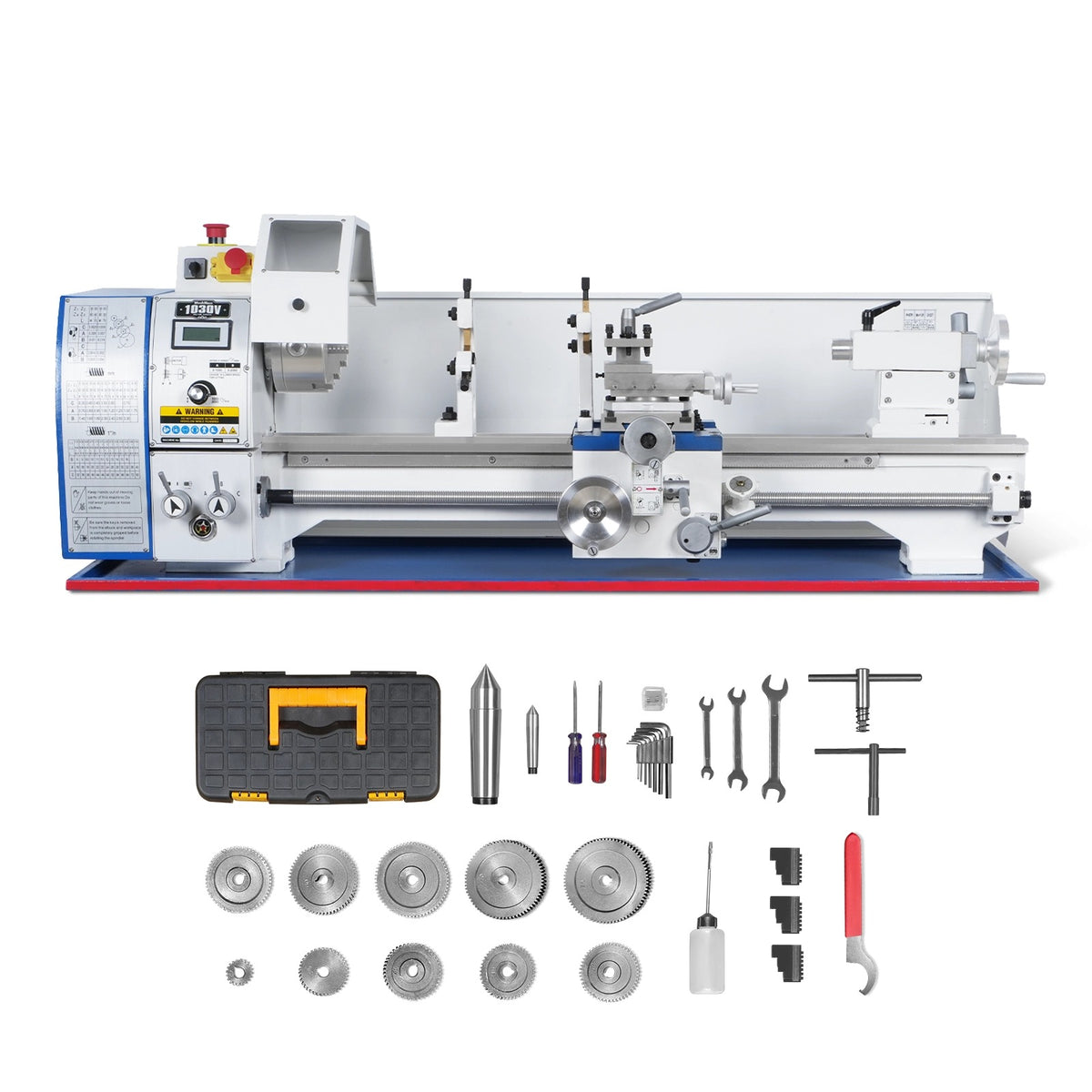

1.5‘’ Spindle Bore Metal Lathe Machine with DRO 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand

Heavy Duty Stand For VM25L Serial Metal Milling and Drilling Machine (SKU:500202) (SKU:500203) $33900 $369.00

1 HP 16''x16'' Multi-Function Metal Lathe Milling Machine Head for Metalworking Combo Lathe, Drilling, and Milling Operations with Powerful Motor, Perfect for DIY, Workshops, and Professional Combination Metalworking Projects without Stand $229900 $2,799.00

1.5‘’ Spindle Bore Metal Lathe Machine 10'' x 30'' High Precision Brushless Motor Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand $279900 $2,999.00

1.5‘’ Spindle Bore Metal Lathe Machine with DRO 10'' x 30'' High Precision Benchtop 0-2000 RPM Variable Speed Metal Working Machine 1.5HP Small Lathe without Stand $319900 $3,399.00

Total Price

$

Product Overview

1.5 HP DC Brushless Motor: Low maintenance, smooth, and powerful motor for consistent operation.
R8 Spindle Taper: Offers compatibility with a wide range of accessories, providing flexibility for various cutting tasks.
±90° Head Tilt: Allows for versatile angled cutting and precise milling operations.
Large Table Size: 7" x 27-1/2" for handling larger workpieces and providing ample space for more complex tasks.
Variable Speed Range: 0-2500 RPM, ensuring optimal performance across a wide variety of materials.
Precision Ground Ways: For smooth and accurate movement, ensuring a more reliable machining process.
Enhanced Safety Features: Chip guard, rubber chip guards, and built-in safety switch to ensure user safety during operation.

Product manual (PDF)

VM25L Metal Milling And Drilling Machine.pdf

Product Features

Powerful Brushless Motor with Variable Speed

Powered by a 1.5HP brushless DC motor, the VM25L delivers quiet, vibration-free operation. Seamlessly adjustable speed from 0 to 2500 RPM gives you full control for drilling, milling, or tapping.

Engineered for Precision Drilling

Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

Precision-Ground, One-Piece Table

Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

Dual Control for Spindle Rotation

Switch spindle direction by foot or hand — perfect for tapping operations. The foot pedal leaves your hands free, while manual control ensures quick direction changes when needed.

±60° Head Tilt for Angular Versatility

Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

Precision-Ground Dovetail Ways

Built with hand-scraped dovetail ways and adjustable tapered gibs, this machine delivers outstanding rigidity, surface contact, and wear resistance. Perfect for heavy loads and precise milling operations.

Cutting Capacities You Can Count On

Handle a wide range of tasks with the VM25L: Drilling up to 1", Tapping (Cast Iron) up to 3/8", End Milling up to 5/8", and Face Milling up to 2-1/2". Compact yet capable — this machine gets real work done.

Fine Increments. Consistent Results.

Graduated handwheels with precise scale markings help you make accurate, repeatable adjustments. Essential for fine milling operations and careful depth control.

Depth Stop & Feed Locks

Adjustable depth stop ensures consistent hole depth, X-axis limiters prevent overtravel for safe and precise milling, and feed locks stabilize the axis during cutting — no drift, better finish.

Spindle Specifications
Spindle Taper	R8
Spindle Travel	2"(50mm)
Quill Diameter	Ø2-3/8''(60mm)
Spindle Speed Range	0-2500RPM
Number of Speed Steps	Variable
Drawbar Thread Size	7/16"-20''
Head Tilt Angle	±90°
Spindle to Table Distance	14-1/2"(370mm)
Spindle to Column Distance	7-1/2"(190mm)

Cutting Capacity
Drilling Capacity	1''(25mm)
End Milling Capacity	5/8"(16mm)
Face Milling Capacity	2-1/2"(63mm)

Table & Travel
Table Size	7''x27-1/2"(180x700mm)
T-Slot Size / No. / Centers	3 X 1/2''(12mm)
X-Axis Travel	19-1/2''(495mm)
Y-Axis Travel	6-11/16''(170mm)
Z-Axis Travel	12-5/8''(320mm)

Construction & Drive
Column Type	Square Column，Dovetail Slide
Drive Type	Belt
Motor Power	1.5HP 110V Single-Phase Brushless
Motor Type	DC Brushless

Electrical & Setup
Net / Gross Weight	260/286lbs(118/130KG)
Overall Dimensions	36''x22''x37''(922X549X935mm)
Base Size	14''x11''(340X275mm)
Shipping Dimensions	28''x29''x37''(710X730X920mm)
