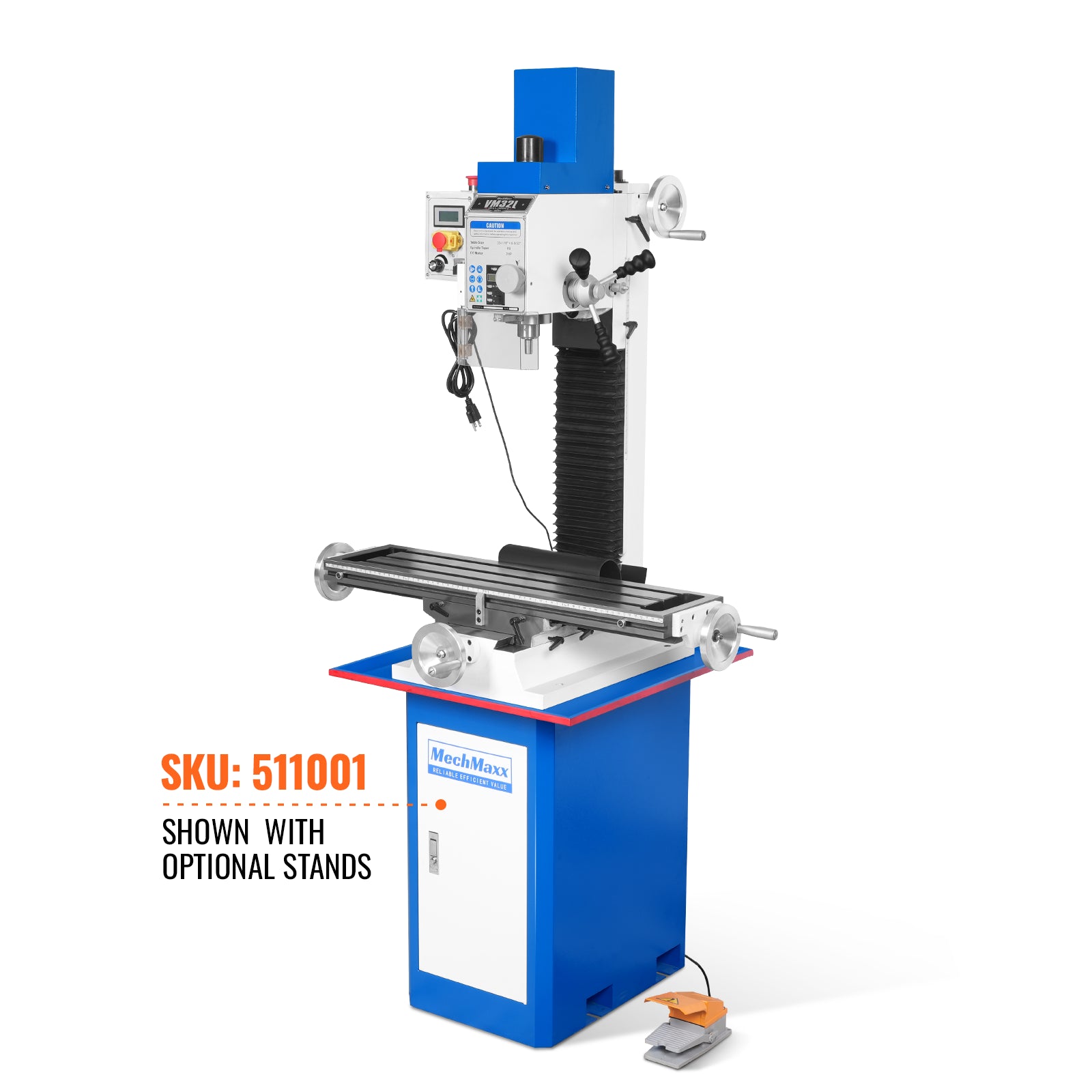

Heavy Duty Stand For VM32L Serial Metal Milling and Drilling Machine (SKU:500204) (SKU:500205)

Industrial Metal Lathe Machine with DRO 14' x 40'' High Precision 84-1850 RPM Variable Speed Metal Working Machine 2HP Small Lathe with Stand

2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand

Metal Lathe Machine with DRO 11'' x 30'' High Precision Benchtop 0-2000 RPM Brushless Motor Variable Speed Metal Working Machine 2HP Small Lathe without Stand

Heavy Duty Stand For VM32L Serial Metal Milling and Drilling Machine (SKU:500204) (SKU:500205) $39900 $439.00

Industrial Metal Lathe Machine with DRO 14' x 40'' High Precision 84-1850 RPM Variable Speed Metal Working Machine 2HP Small Lathe with Stand $739900 $7,699.00

2 HP 11'' x 30'' Combination Lathe Milling Drilling Machine Brushless Motor, 1.5'' Spindle Bore, 0-2000 RPM Variable Speed, High Precision Benchtop Lathe for Metalworking – Without Stand $489900 $5,199.00

Metal Lathe Machine with DRO 11'' x 30'' High Precision Benchtop 0-2000 RPM Brushless Motor Variable Speed Metal Working Machine 2HP Small Lathe without Stand $409900 $4,299.00

Total Price

$

Product Overview

Powerful 2 HP Brushless Motor: Delivers smooth, reliable power for heavy-duty tasks, with low maintenance and quiet operation.
3-Axis DRO System for Enhanced Precision: Provides real-time digital measurements on X, Y, and Z axes, ensuring accurate adjustments and consistent results.
R8 Spindle with Versatile Cutting Capacity: Offers wide tool compatibility, capable of drilling up to 1-1/4" (32mm), end milling up to 3/4" (20mm), and face milling up to 3" (76mm).
±60° Tilting Head for Flexible Operations: Allows for angled cuts and complex milling with a precise head tilt for versatility in machining.
Generous Travel and Large Table Size: Features a 7-1/4" x 33" (180 x 700mm) table and large axis travel, enabling easy handling of larger workpieces and complex machining tasks.
Durable and Stable Construction: Built with a square column and dovetail slide, ensuring increased rigidity and long-lasting precision during operation.

Product manual (PDF)

VM32L Metal Milling And Drilling Machine.pdf

Product Features

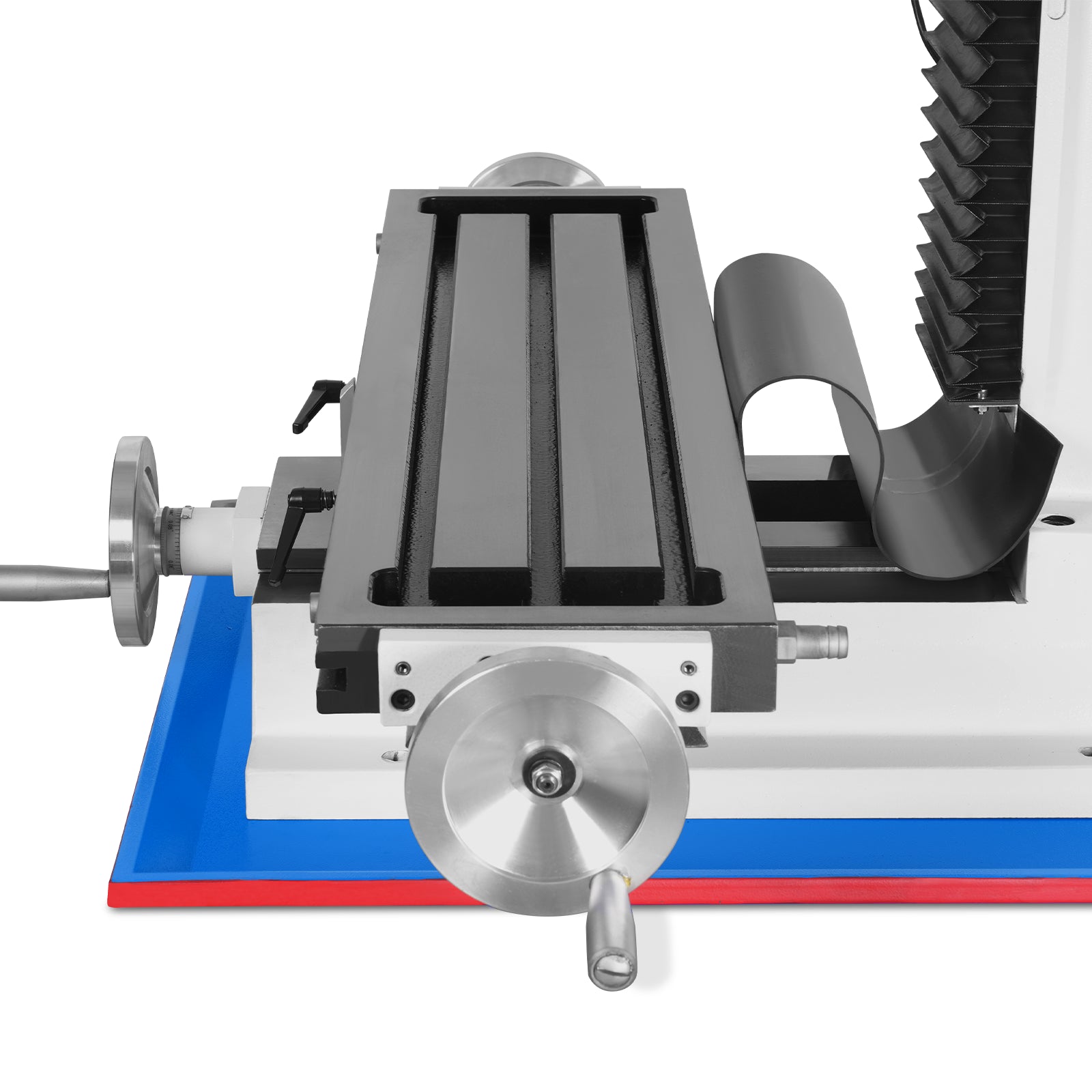

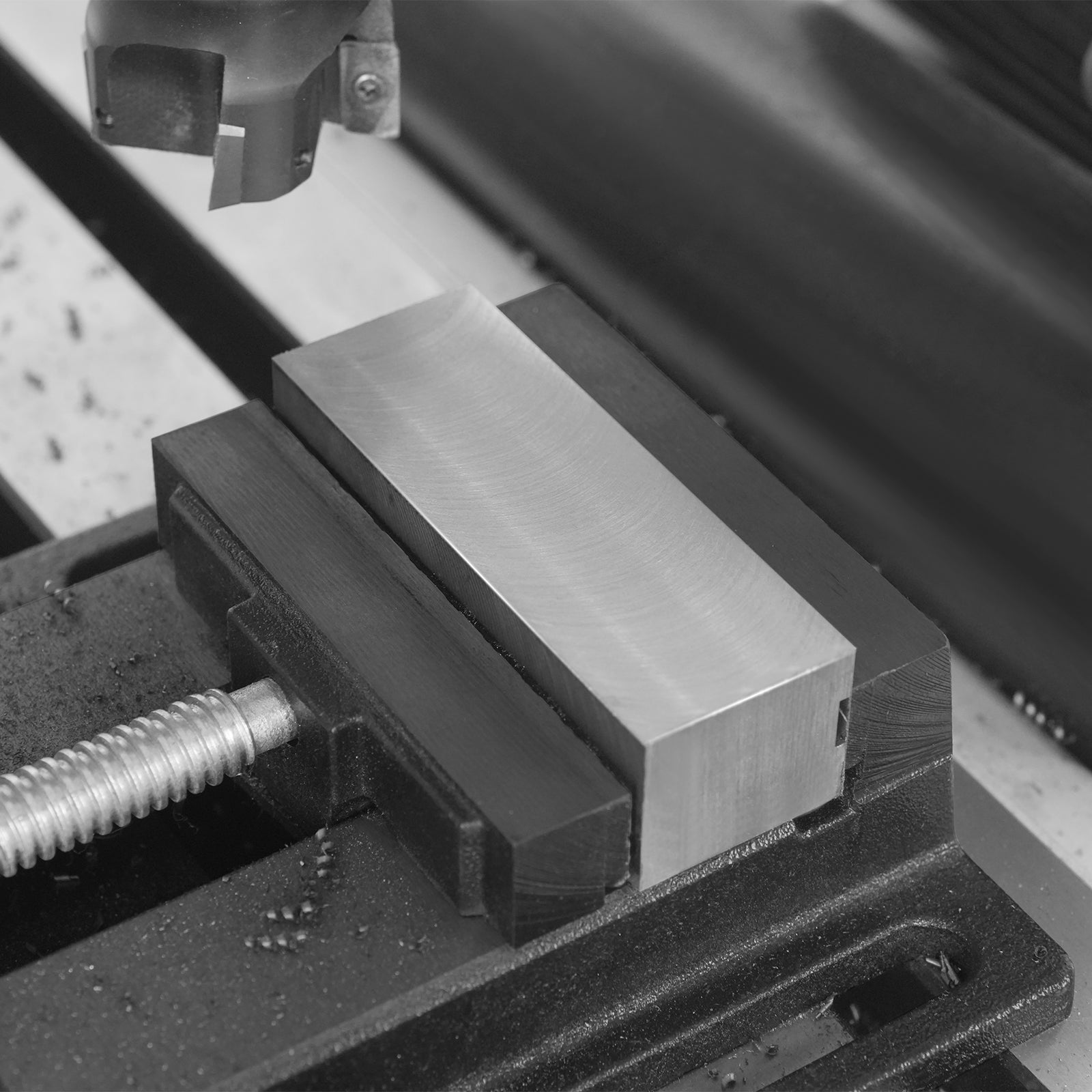

Precision-Ground, One-Piece Table

Built from a single cast piece and precision-ground for flatness, the table offers exceptional rigidity and accuracy. Wide working surface with 3 x 3/8" T-slots makes fixture setup fast and reliable.

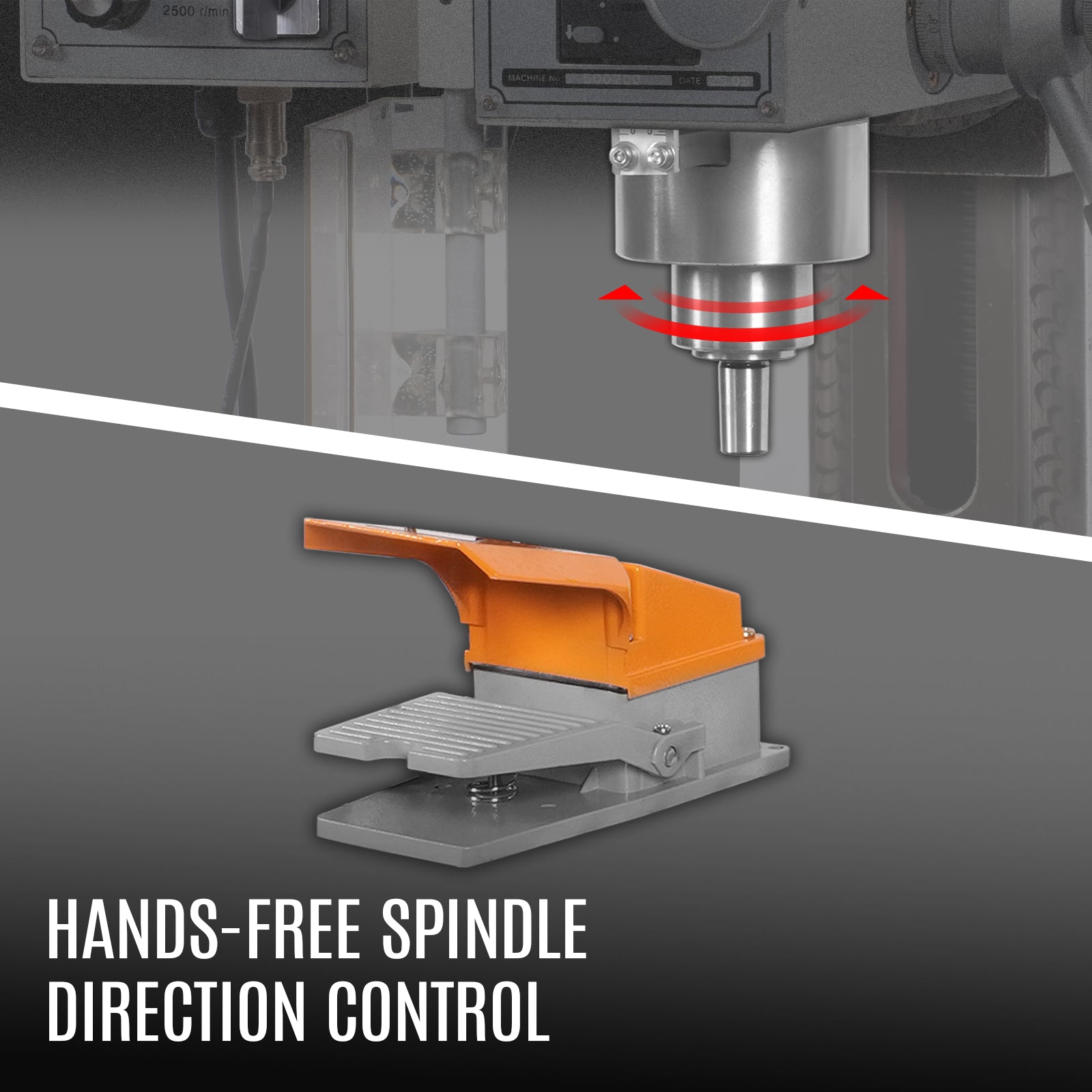

Dual Control for Spindle Rotation

Switch spindle direction by foot or hand — perfect for tapping operations. The foot pedal leaves your hands free, while manual control ensures quick direction changes when needed.

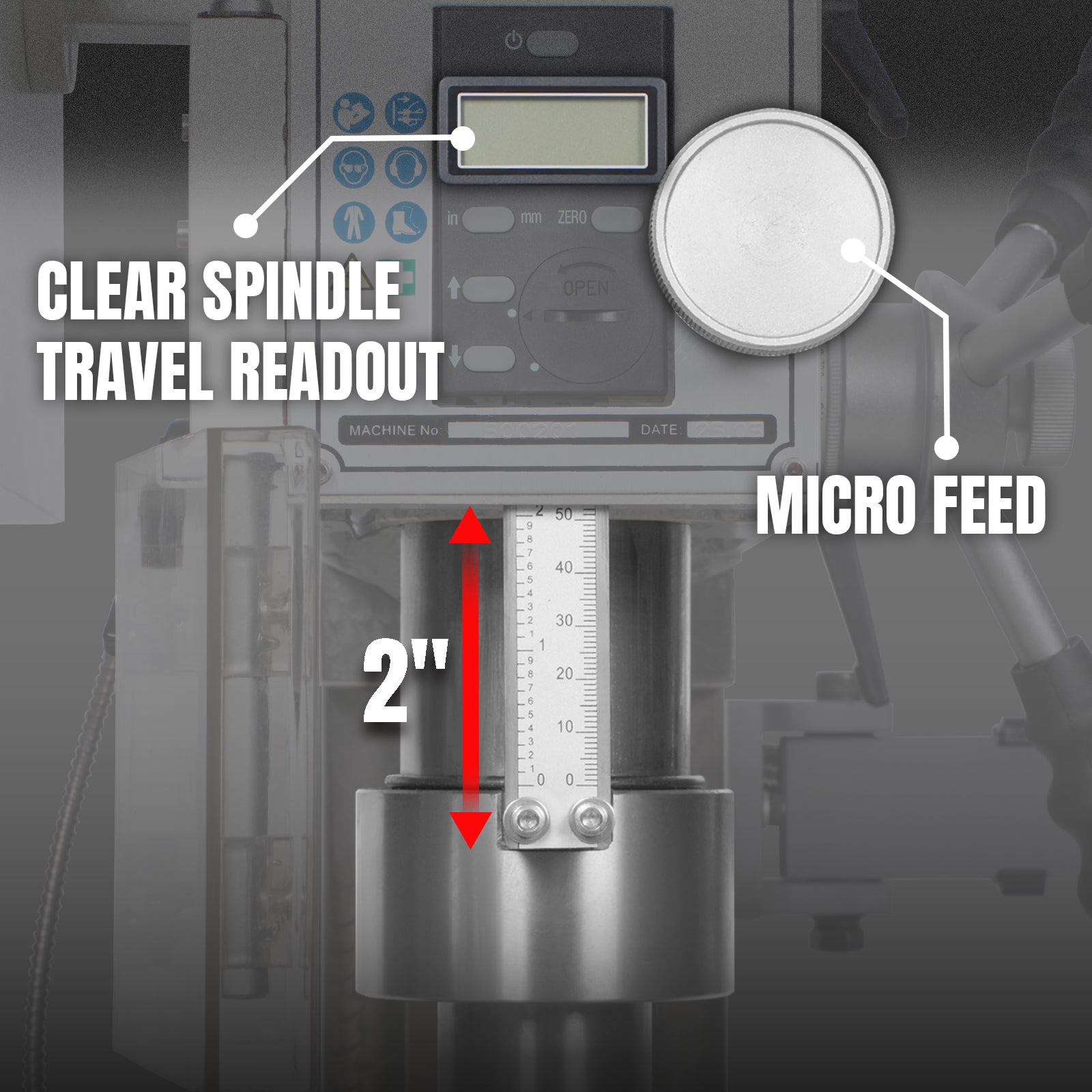

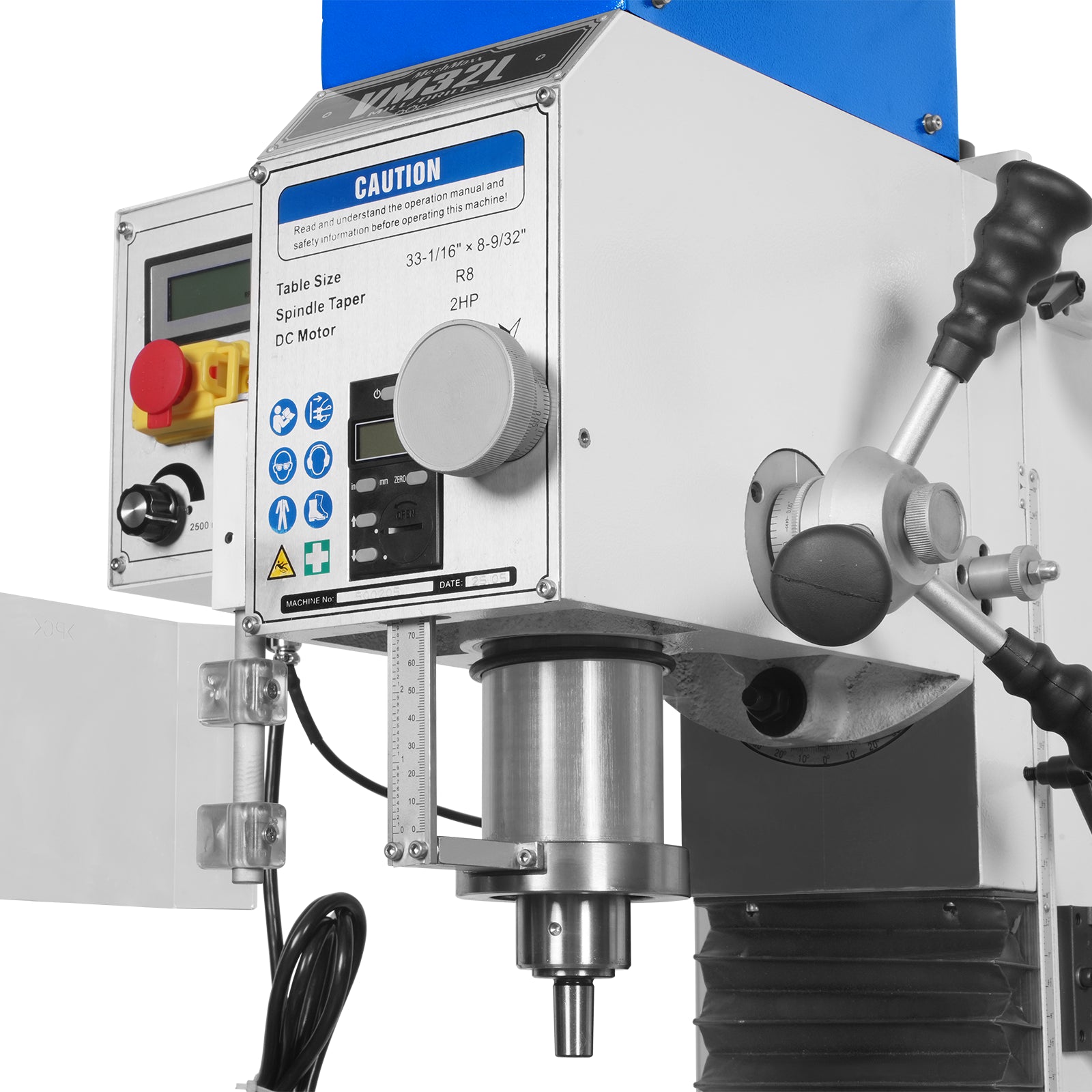

Engineered for Precision Drilling

Fine-tune every move with the micro feed knob, and track progress in real time with the spindle travel scale. Accuracy meets convenience in every pass.

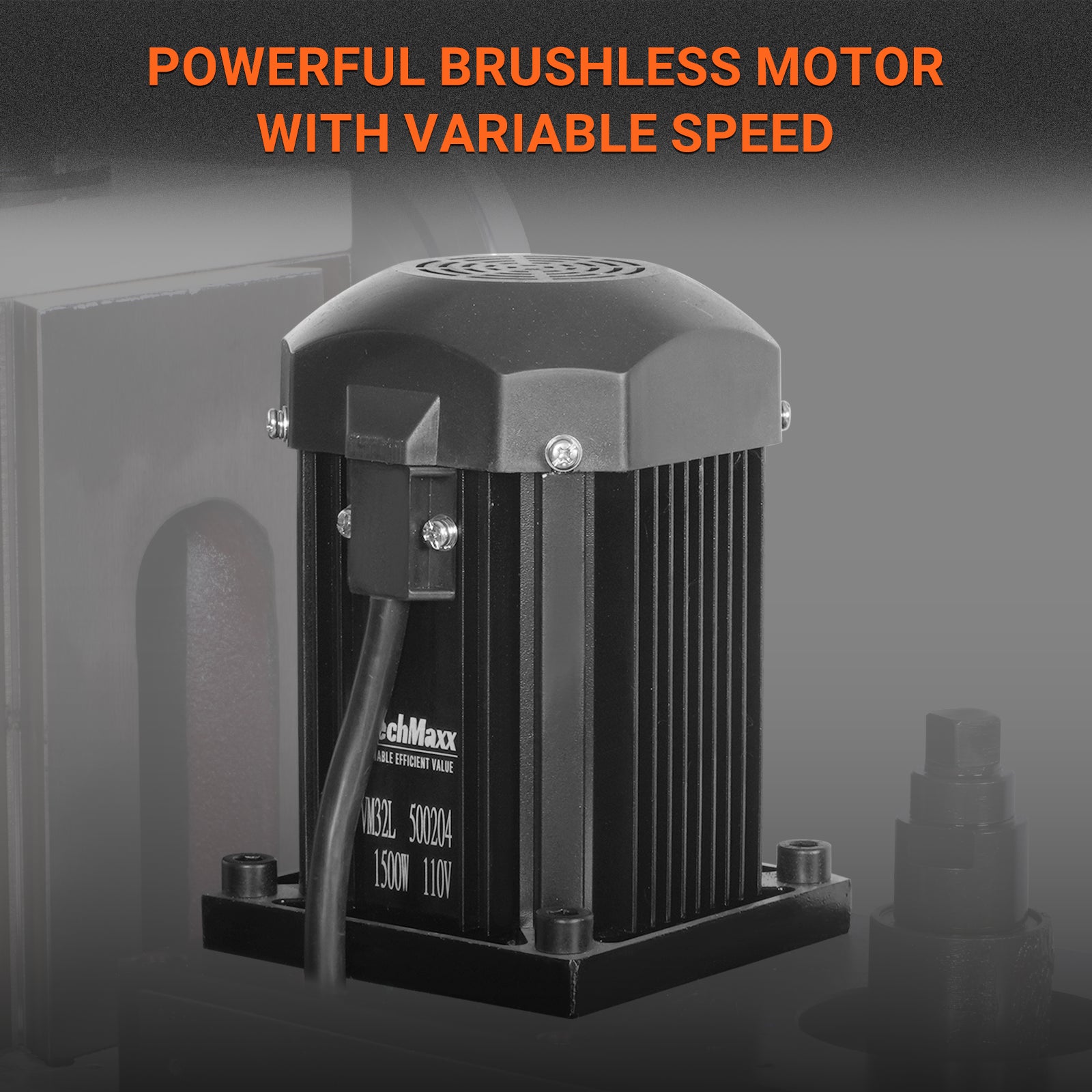

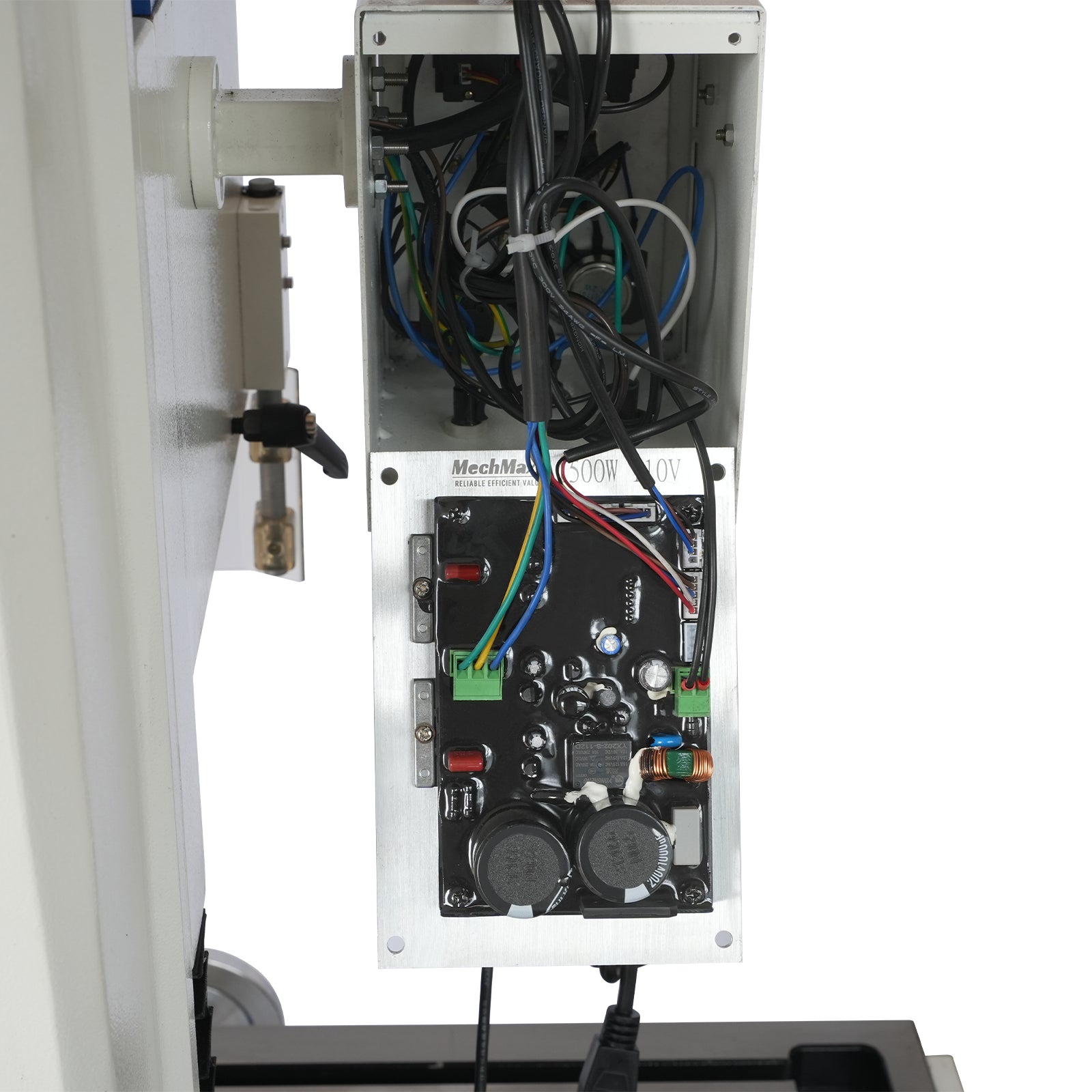

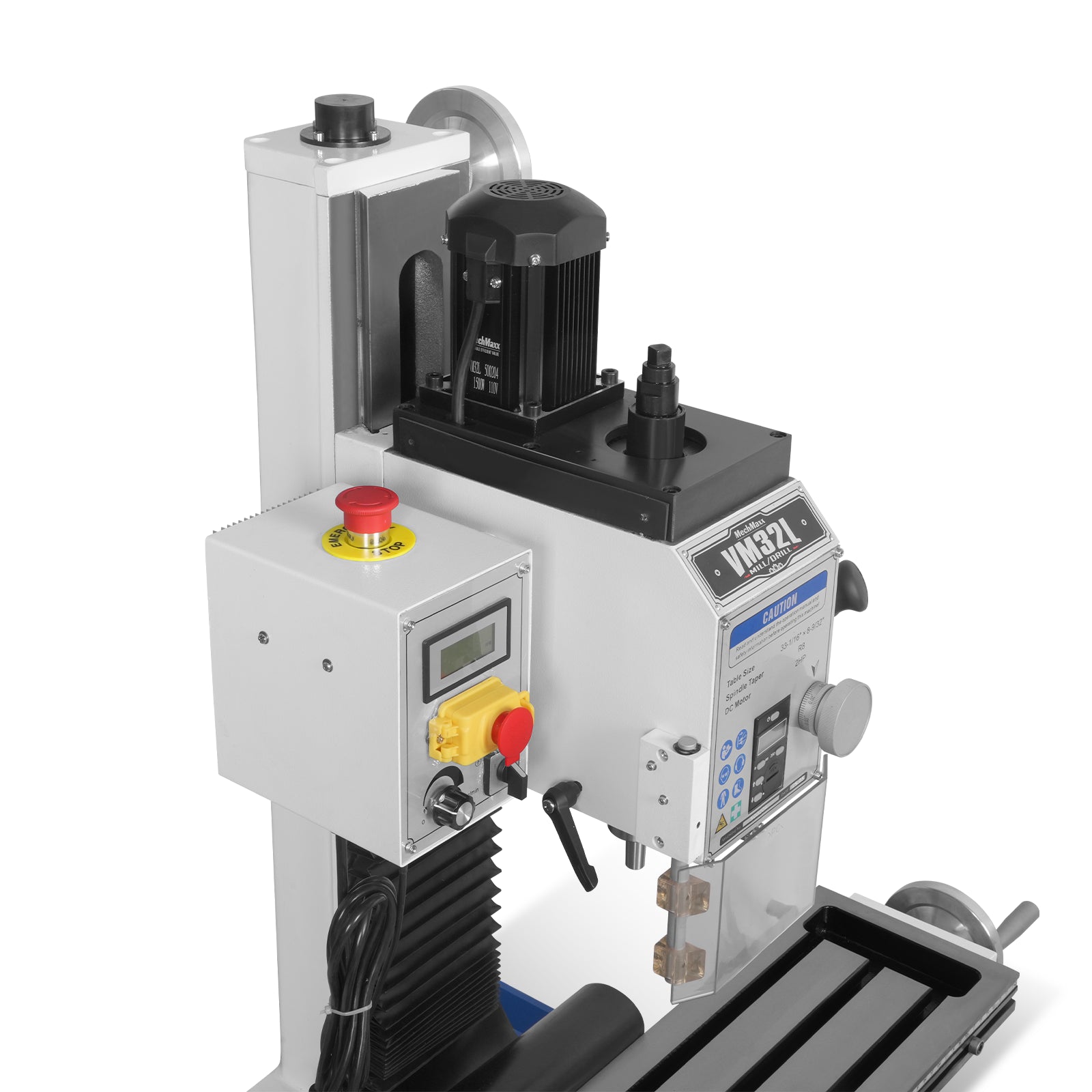

Powerful Brushless Motor with Variable Speed

Powered by a 2HP brushless DC motor, the VM32L delivers quiet, vibration-free operation. Seamlessly adjustable speed from 0 to 2500 RPM gives you full control for drilling, milling, or tapping.

Depth Stop & Feed Locks

Adjustable depth stop ensures consistent hole depth, X-axis limiters prevent overtravel for safe and precise milling, and feed locks stabilize the axis during cutting — no drift, better finish.

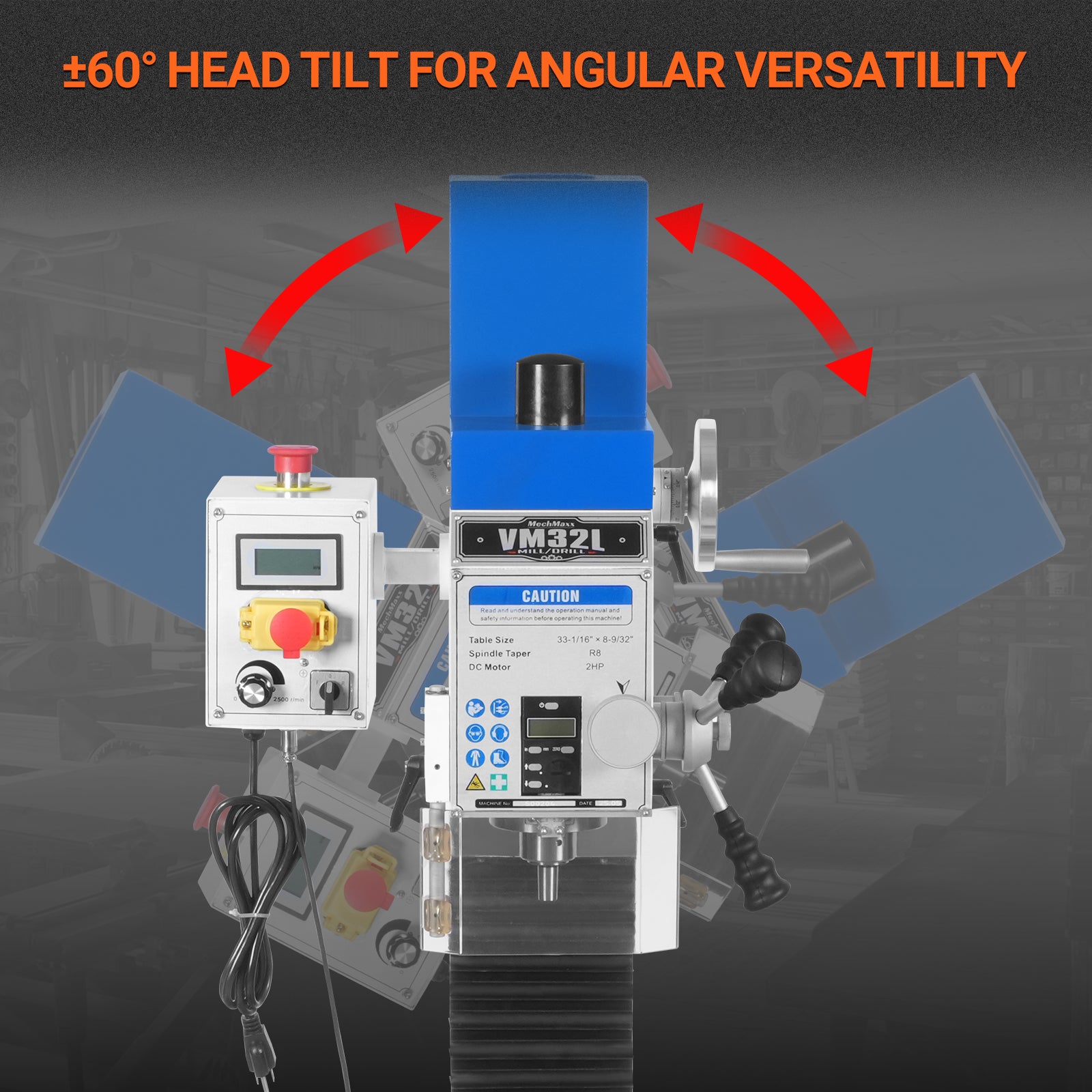

60° Rotation for Versatile Machining

Adjust the head left or right up to 60 degrees for beveling, angle drilling, or chamfering. Ideal for complex setups — flexibility without repositioning your workpiece.

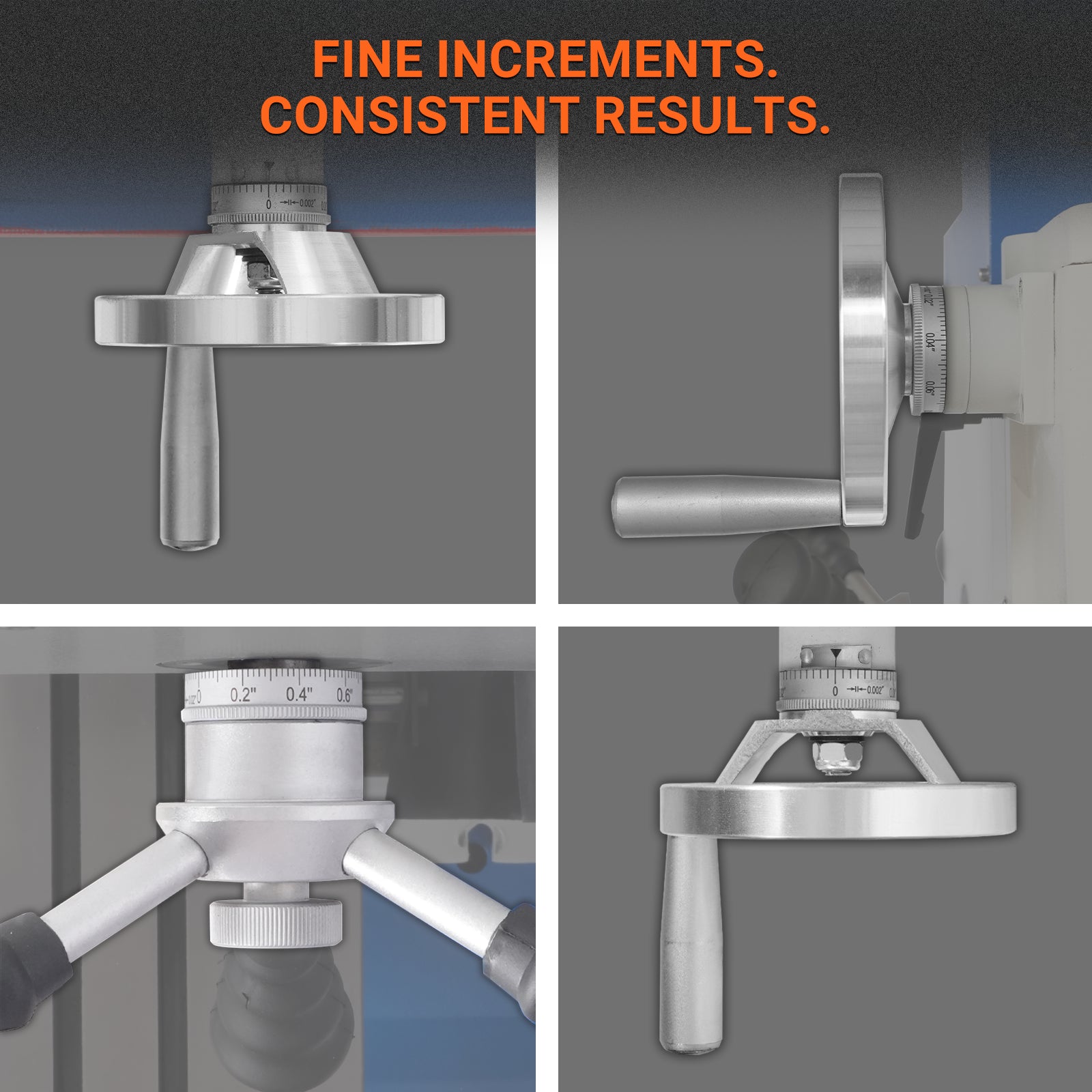

Graduated Handwheels for Precise Control

Graduated handwheels with precise scale markings help you make accurate, repeatable adjustments. Essential for fine milling operations and careful depth control.

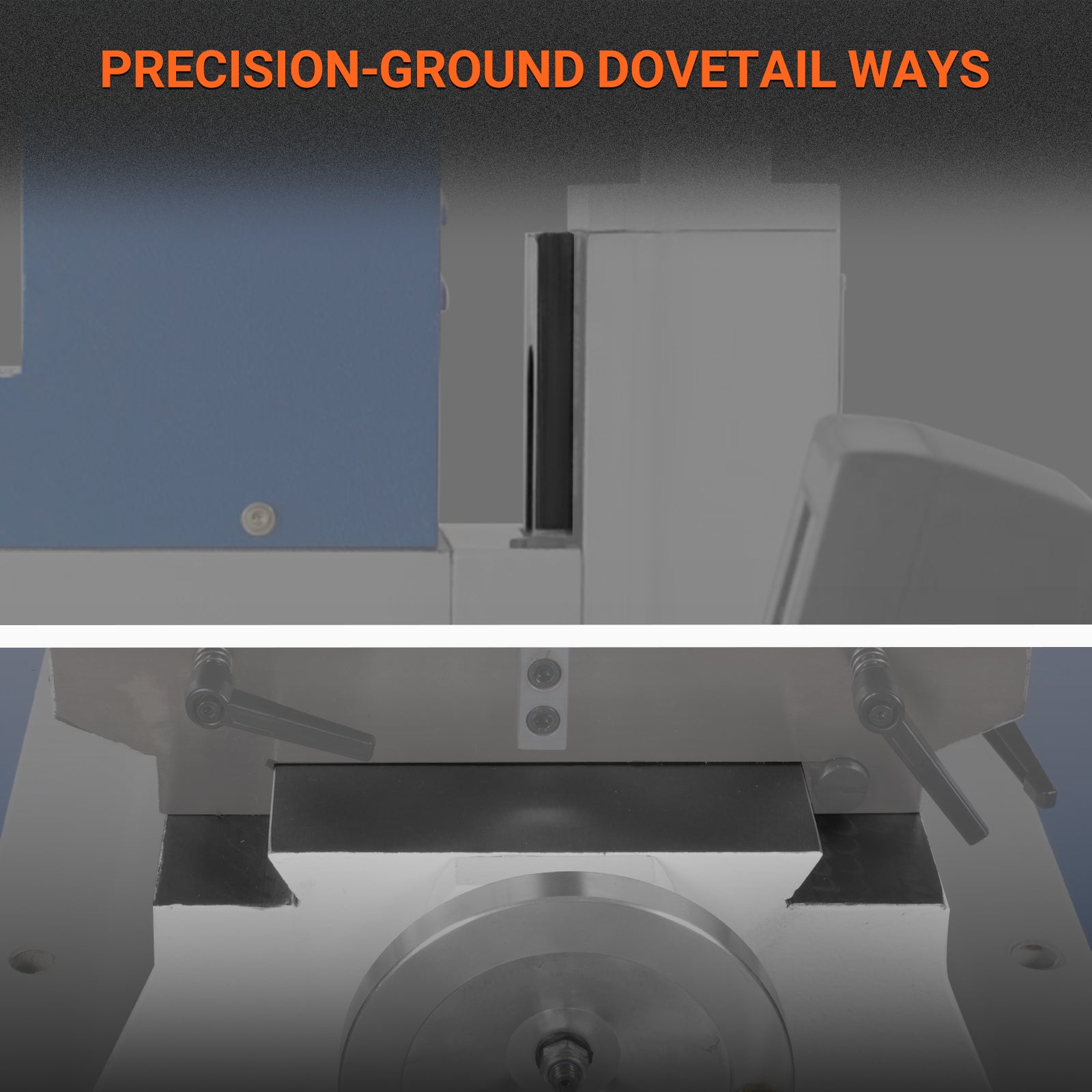

Precision-Ground Dovetail Ways

Built with hand-scraped dovetail ways and adjustable tapered gibs, this machine delivers outstanding rigidity, surface contact, and wear resistance. Perfect for heavy loads and precise milling operations.

Cutting Capacities You Can Count On

Handle a wide range of tasks with the VM32L: Drilling up to 1", Tapping (Cast Iron) up to 3/8", End Milling up to 5/8", and Face Milling up to 2-1/2". Compact yet capable — this machine gets real work done.

Spindle Specifications
Spindle Taper	R8
Spindle Travel	2"(50mm)
Quill Diameter	Ø2-3/4''(70mm)
Spindle Speed Range	0-2500RPM
Number of Speed Steps	Variable
Drawbar Thread Size	7/16"-20''
Head Tilt Angle	±90°
Spindle to Table Distance	18-1/2"(470mm)
Spindle to Column Distance	8-1/4"(210mm)

Cutting Capacity
Drilling Capacity	1-1/4"(32mm)
End Milling Capacity	3/4"(20mm)
Face Milling Capacity	3''(76mm)

Table & Travel
Table Size	8-1/4"x33''(210x840mm)
T-Slot Size / No. / Centers	3 X 9/16''(14mm)

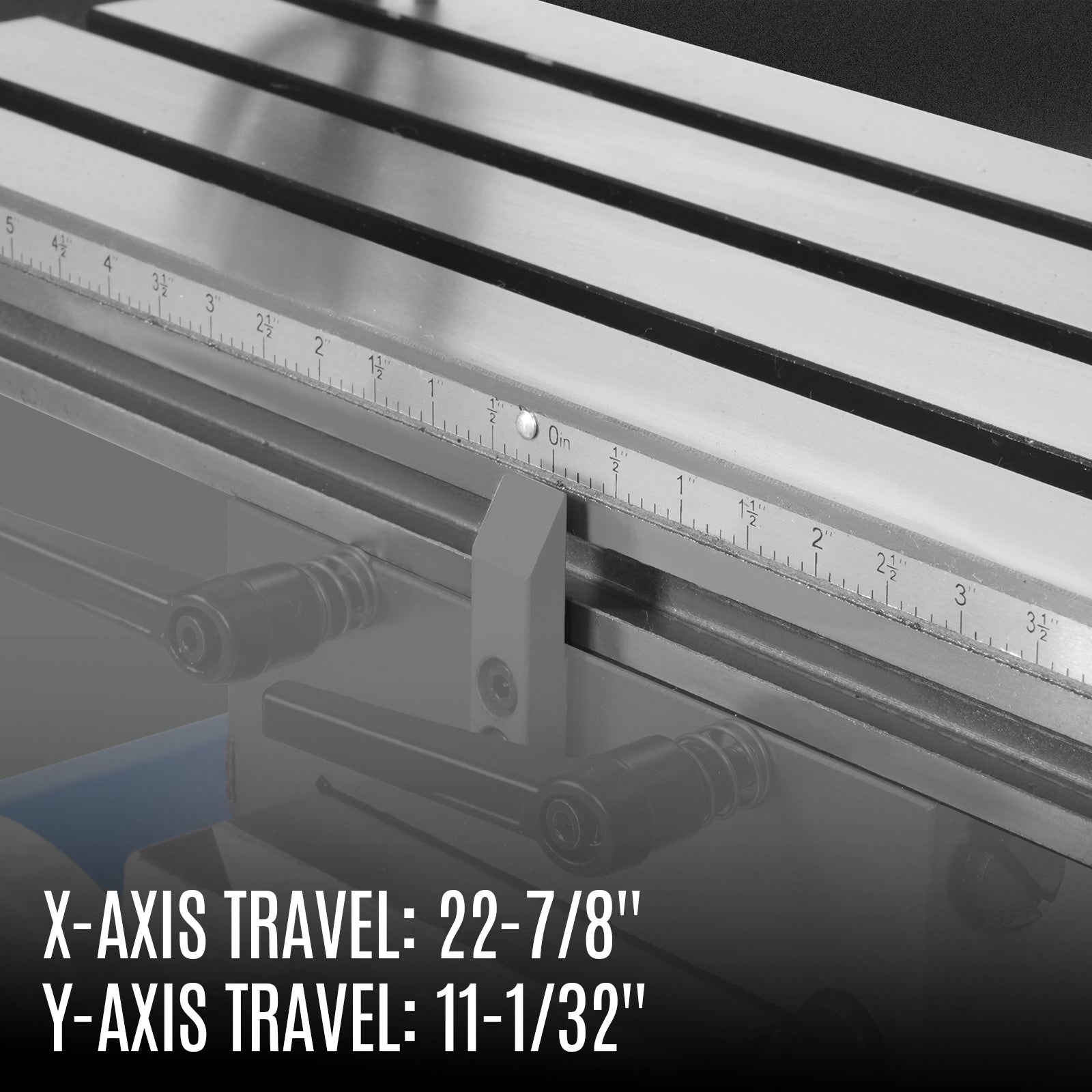

X-Axis Travel	22-7/8''(580mm)
Y-Axis Travel	11-1/32''(280mm)
Z-Axis Travel	18-1/2''(470mm)

Construction & Drive
Column Type	Square Column，Dovetail Slide
Drive Type	Belt
Motor Power	2HP 110V Single-Phase Brushless
Motor Type	DC Brushless

Electrical & Setup
Net / Gross Weight	462/528lbs(210/240KG)
Overall Dimensions	45''x28''x47''(1130X710X1190mm)
Base Size	21''x15''(535X380mm)
Shipping Dimensions	44''x29''x46''(1100X730X1160mm)
