SKU: 110602

| Model: P4205

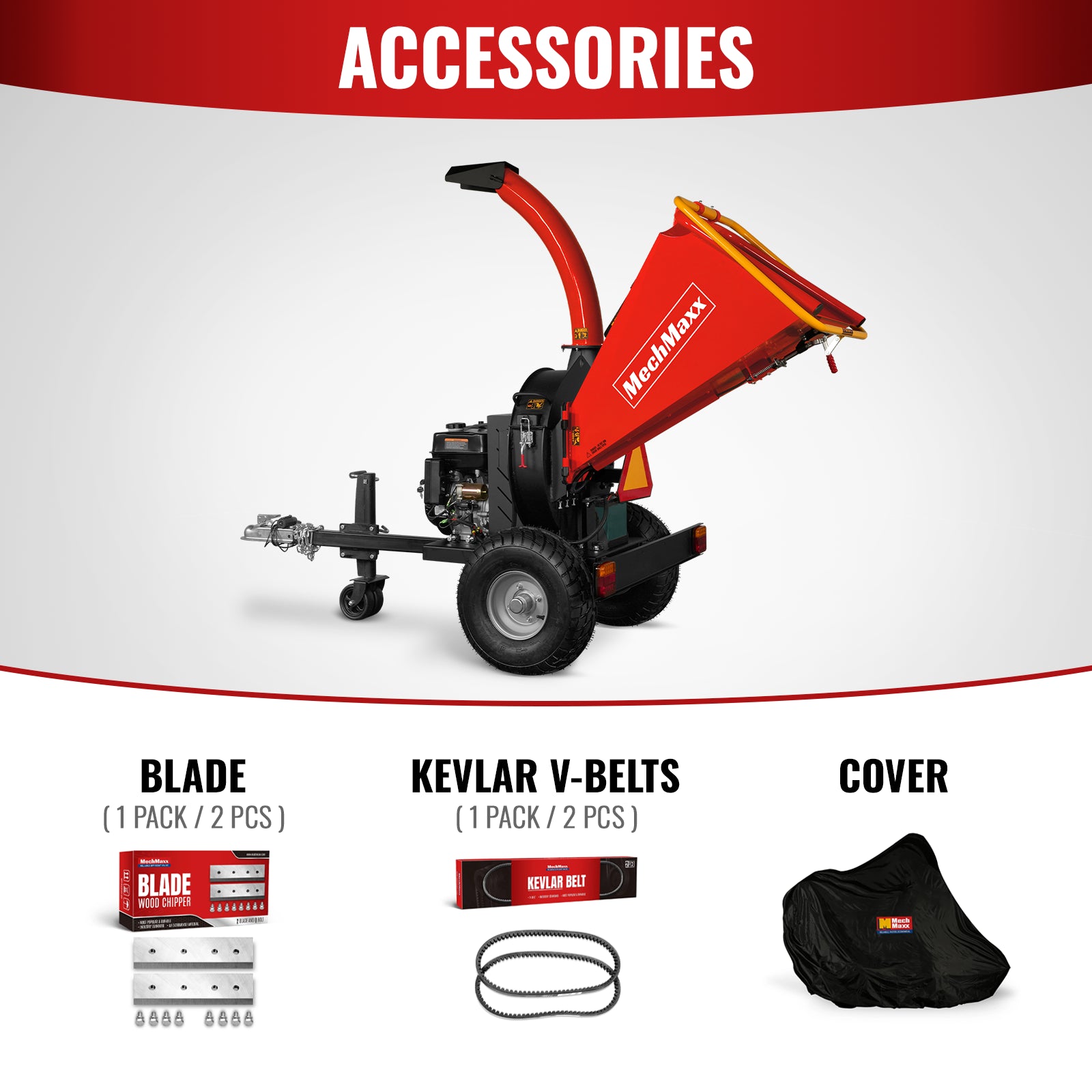

5 inch E-start DUCAR 420cc 15hp Gasoline Engine Powered Disc Wood Chipper with Taillight , P4205

Name: 5 inch E-start DUCAR 420cc 15hp Gasoline Engine Powered Disc Wood Chipper with Taillight , P4205
Brand: MechMaxx
SKU: 110602
Price: 2099.0 USD
Availability: InStock
Rating: 4.88 (25 reviews)

$209900

4 interest-free payments with Afterpay.

Free Shipping (Lift-Gate Included)

Details

Delivery in 10 - 15 Business Days

Details

Color : Red

In Stock

Red Yellow

Payment:

917-772-7273

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

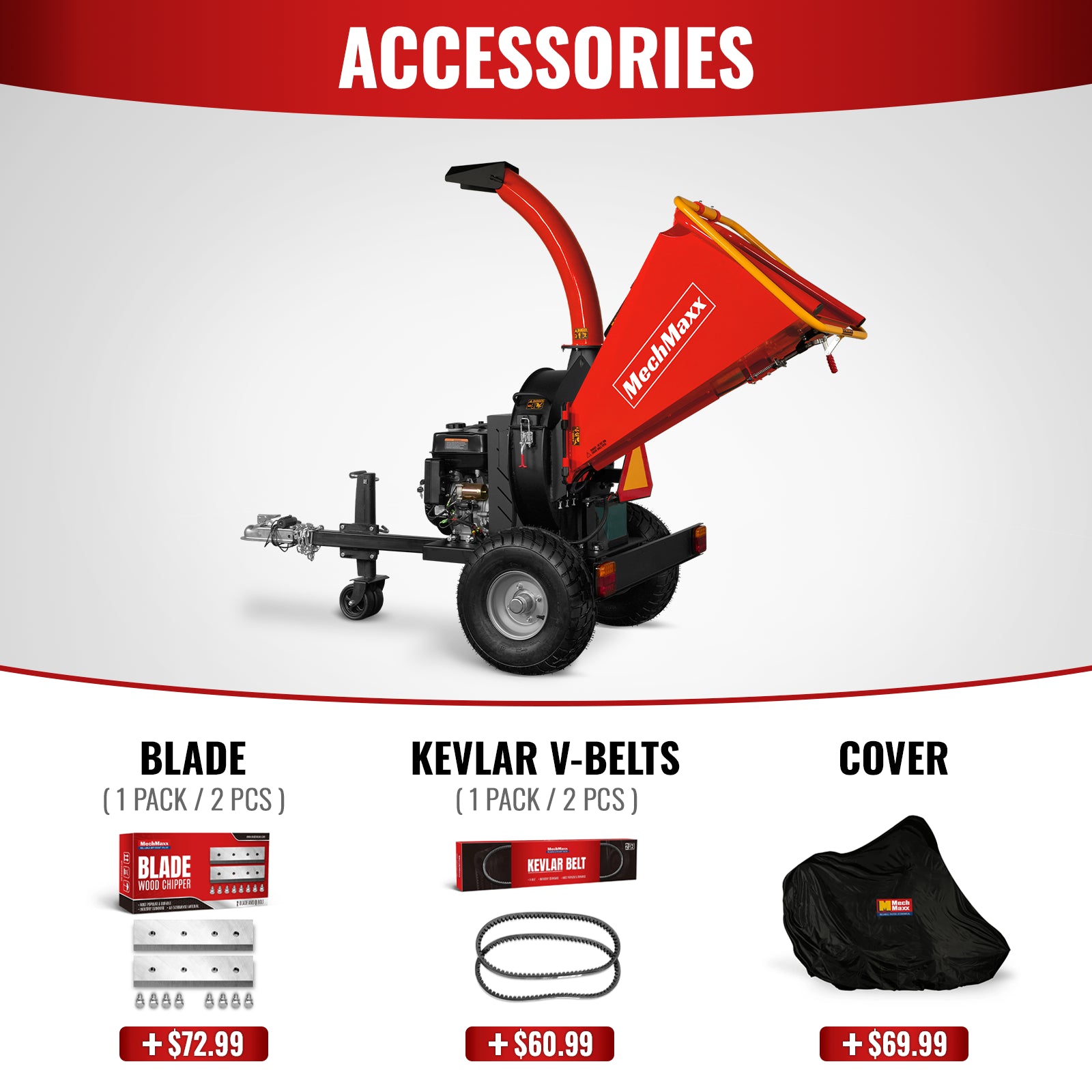

Frequently Bought Together

( 1 Pack / 2 Pcs ) Blade for Wood Chipper P4205 (SKU: 110601; 110602; 110602Y）

( 1 Pack / 2 Pcs ) Kevlar V-Belts for Wood Chipper P4205, 17*900Li (SKU: 110601; 110602）

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4205 ( SKU: 110601; 110602; 110602Y )

5 inch E-start DUCAR 420cc 15hp Gasoline Engine Powered Disc Wood Chipper with Taillight , P4205 $209900

( 1 Pack / 2 Pcs ) Blade for Wood Chipper P4205 (SKU: 110601; 110602; 110602Y） $4999

( 1 Pack / 2 Pcs ) Kevlar V-Belts for Wood Chipper P4205, 17*900Li (SKU: 110601; 110602） $3999 $59.99

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4205 ( SKU: 110601; 110602; 110602Y ) $5999

Total Price

$

Product Overview

MechMaxx 5in Disc wood chipper ,connected to a 15HP electric start MechMaxx gasoline engine
It has a long service life with two double sided usable blades on the disc. The feeding chute has hinge so that it can be opened quickly to replace the blades. The discharge chute can rotate 360 degrees due to the shaped steel tube. The 72-inch high output chute easily dumps chips directly into your truck bed. This wood chipper is equipped with two 19x7.00-8 DOT tires and the American plug and taillight. In tow driving, when you plug into the rear socket of your car, the taillight of the wood chipper follow your car’s taillights to brake, turn left or turn right. That would improve the safety. Tow bar has a collapsible double jockey wheels, which improves the stability and the convenience of driving it.
You can stop the engine quickly in a crisis to improve operator safety with a jerk button and the emergency stop press bar above the feeding chute .
This is a high-performance wood chipper fit for professionals and leasing companies.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30

Product manual (PDF)

P4205 Product manual 1.0.pdf

Engine manual (PDF)

Ducar DH420E Manual.pdf

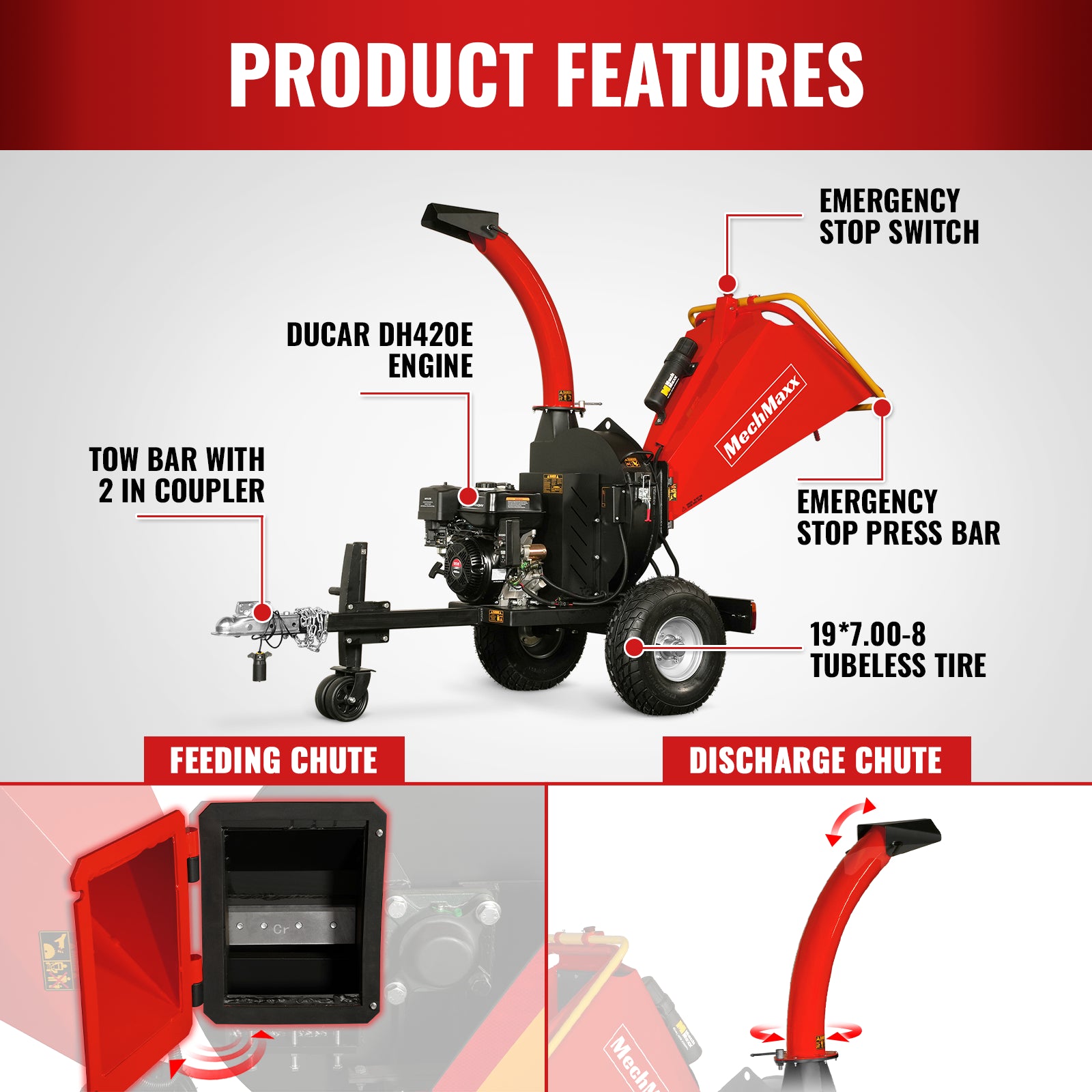

Product Features

Electric Start and Battery

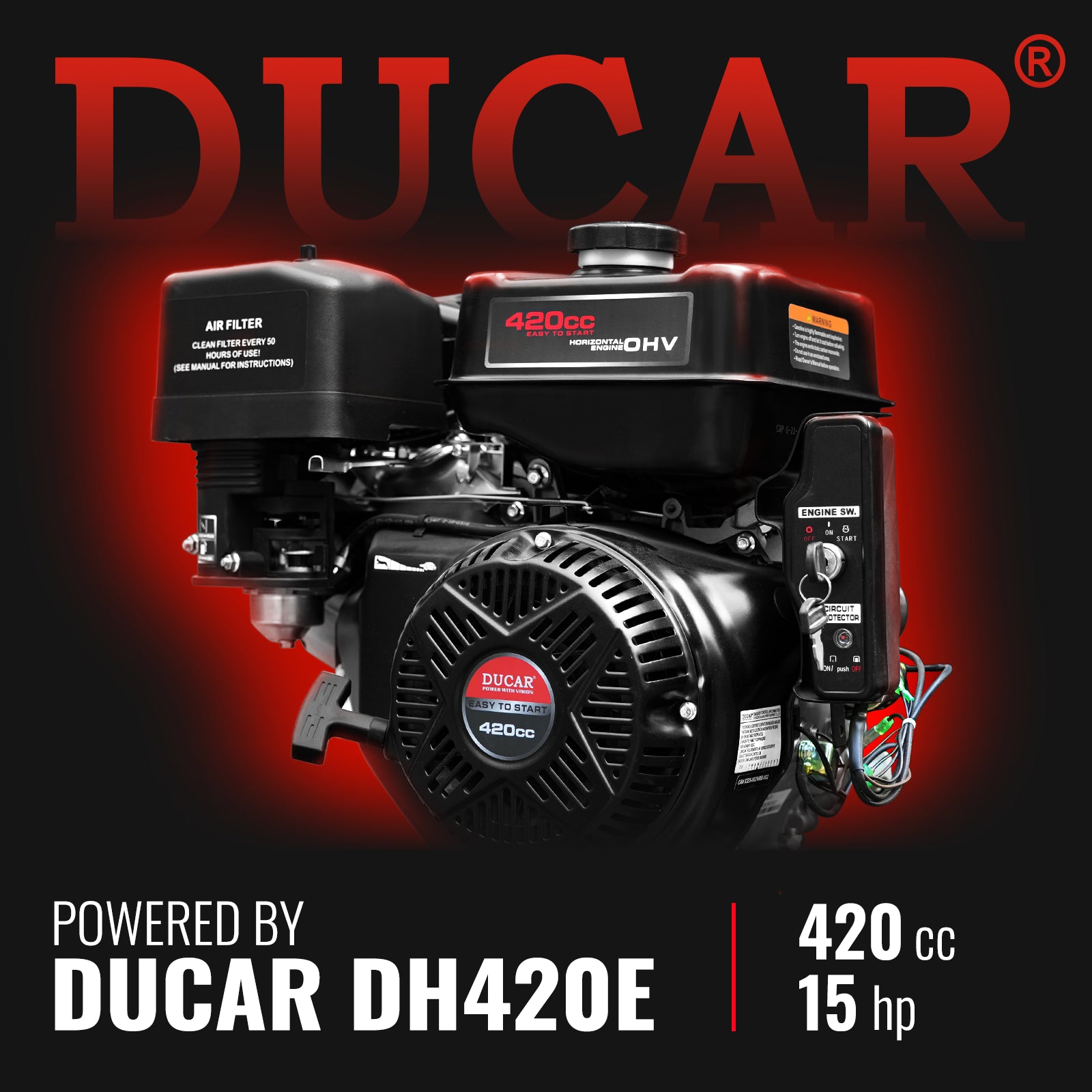

The P4205 Wood Chipper is powered by a 15hp 420cc electric start gasoline engine, and equipped with a 12V20Ah lead-acid battery.

Feeding Chute

The left side of the feeding chute is designed with hinges, allowing for convenient side opening to clean residual wood chips and replace blades.

Discharge Chute

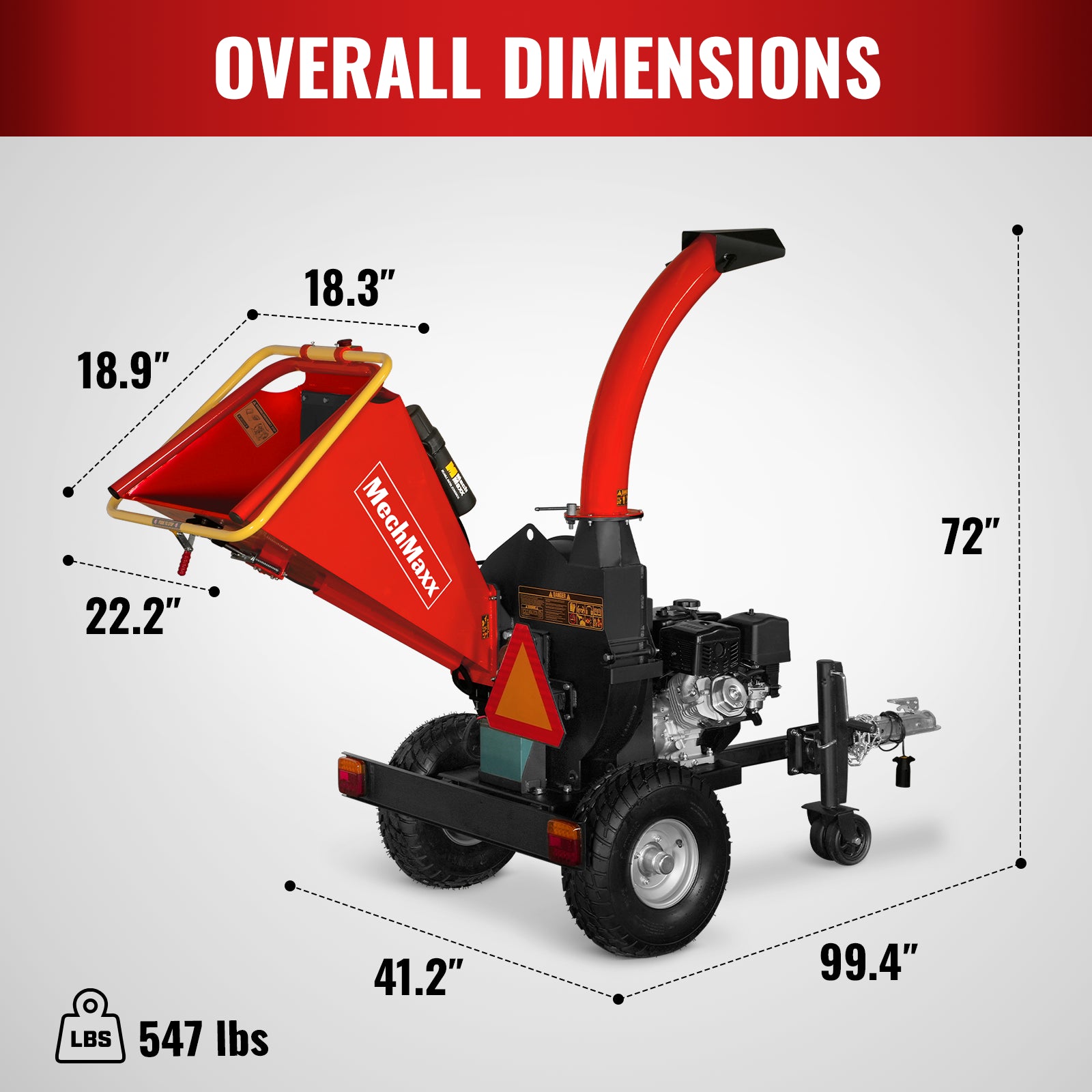

The discharge chute consists of a 4.8’’ diameter bend pipe, and the top of the discharge chute can reach a height of 72 inches from the ground. The connection between the discharge chute and the blade box features a fastening design, enabling the discharge chute to rotate 360 degrees.

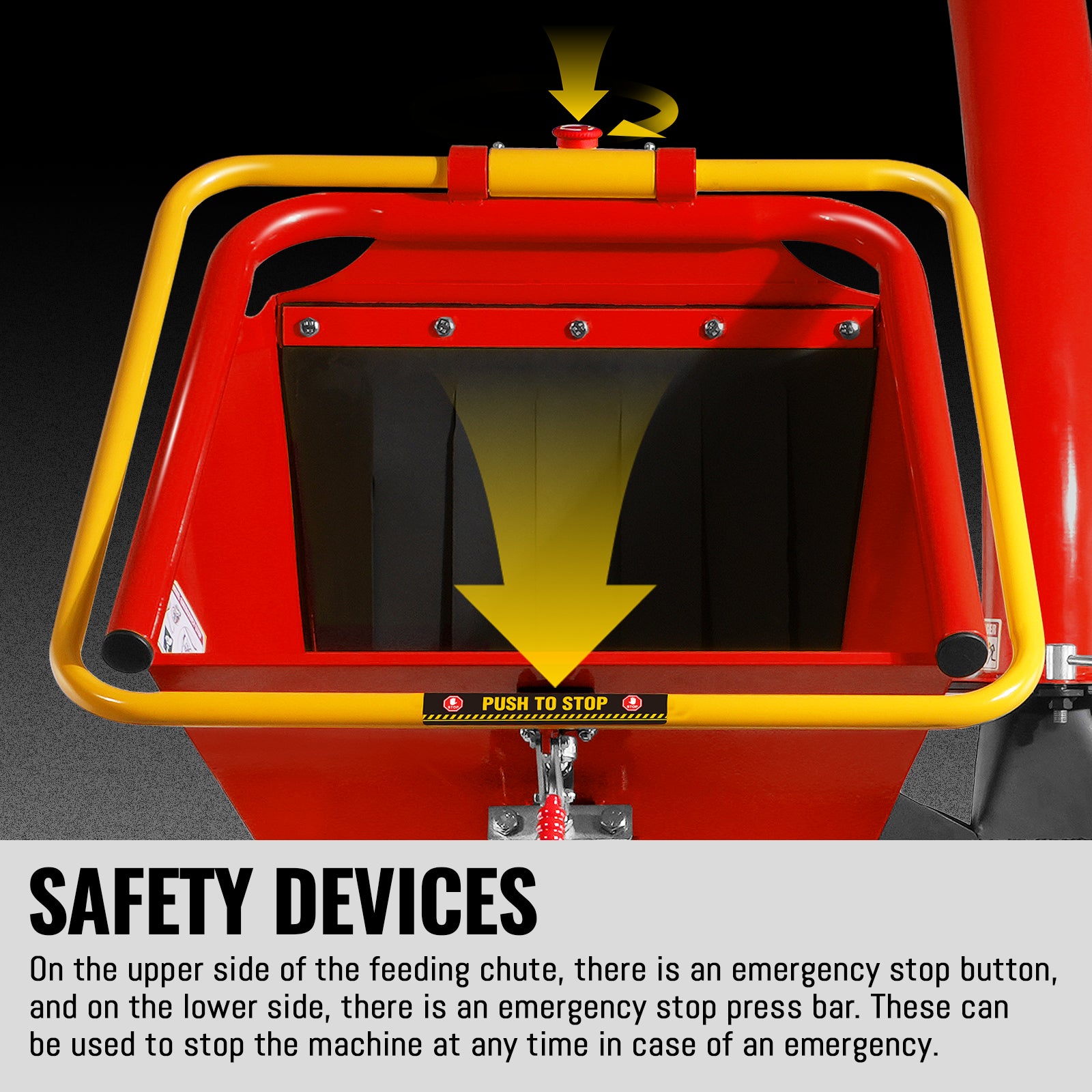

Safety Devices

On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

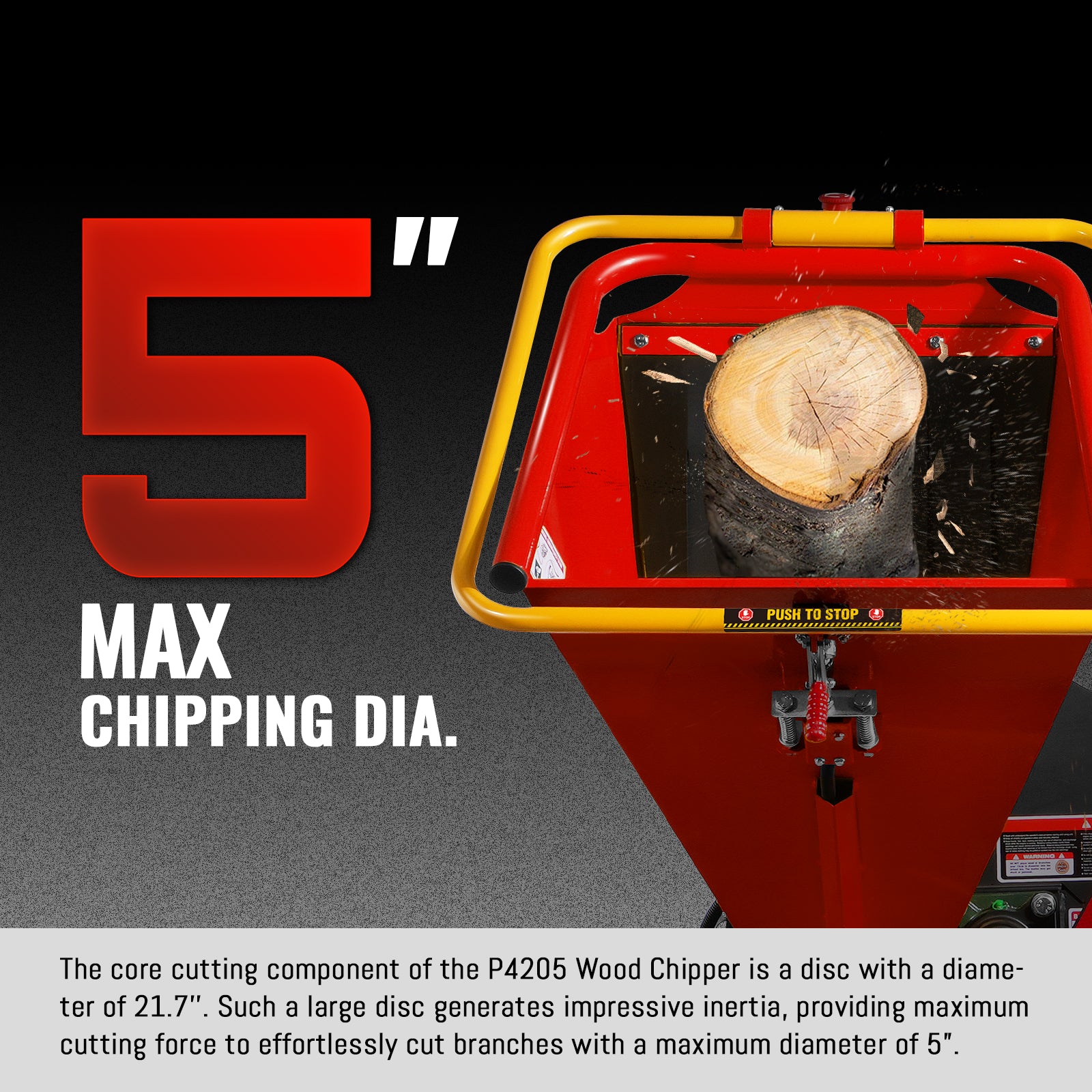

Maximum Wood Chip Diameter 5’’

The core cutting component of the P4205 Wood Chipper is a disc with a diameter of 21.7’’. There are 2 cutting blades and 4 fins on the disc. Such a large disc generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 5” .

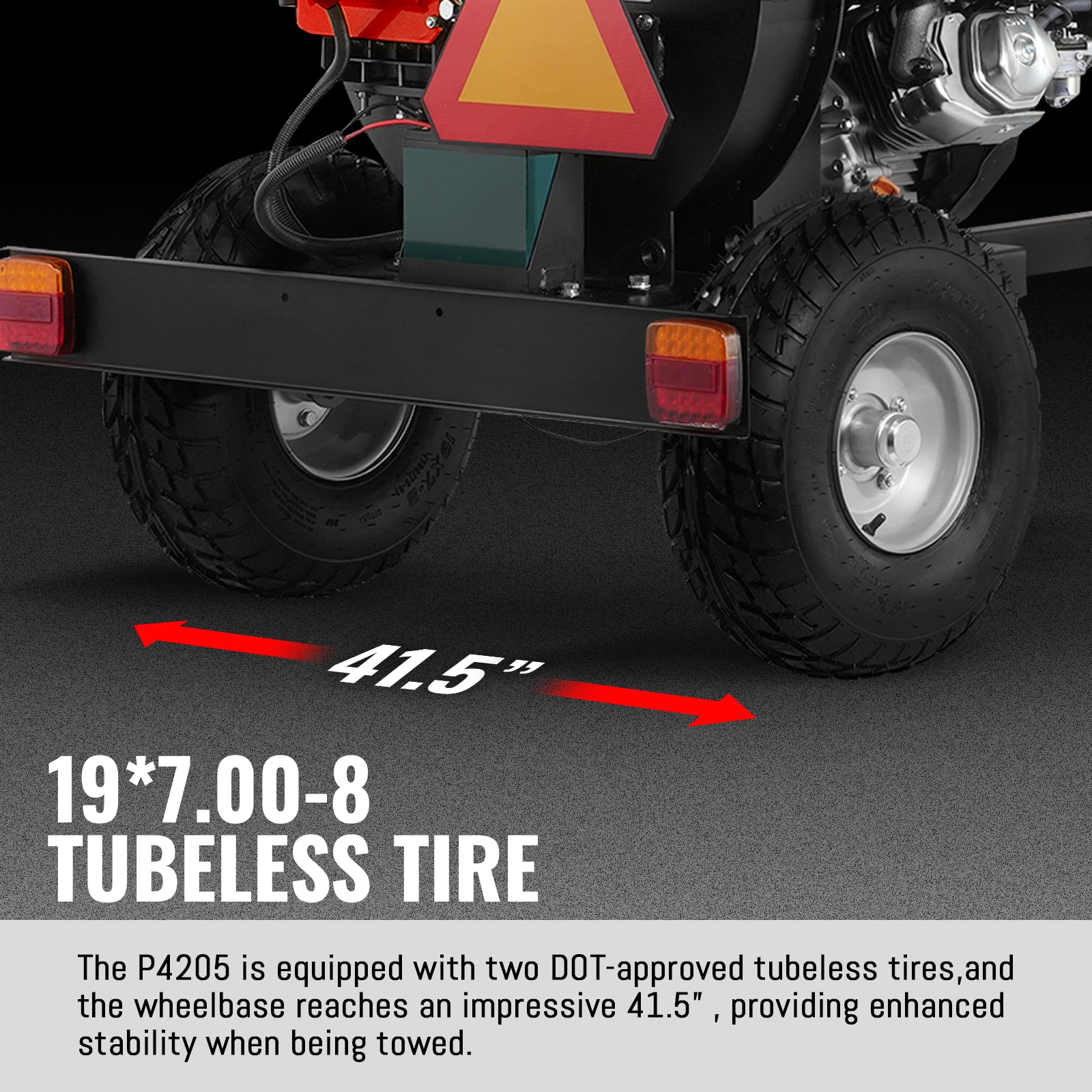

19*7.00-8 tubeless tire

The P4205 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 41.5” , providing enhanced stability when being towed.

Tail Light and Plug

The P4205 is equipped with tail light, and on one side of the trailer, there is an American nine-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of P4205 to synchronize with the vehicle's braking and turning signals.

Blade and Belt Material

Dual-belt drive transmission with 6.7’’ double-edge reversible cutting blades. The belts are made of Kevlar, which is more wear-resistant than ordinary neoprene belts, greatly reducing maintenance frequency. The blades are made of professional A8(5Cr5MoWS), providing the appropriate strength and toughness, significantly extending the blade's lifespan.

Trailer Hitch and Jockey Wheel

A 2-inch coupler is concealed on the trailer hitch, compatible with a 2-inch trailer ball. The jockey wheel has a dual-wheel design, with a wheel diameter of 6 inches. It can be folded up during towing and its height can be adjusted when in operation.

Engine	DUCAR DH420E	Blades Material	A8 （5Cr8MoVSi）
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Blades Type	Double Edge Blade
Displacement	420 cc; 15 HP	Discharge Chute	360 Degree Rotating
Start	E-Start	Emergency Stop	Stop Bar + Button
Battery	12V 20Ah Lead-Acid	Feed Chute Opening Method	Hinge
Belt	2 x V-Belts	Towing	Tow Bar With 2 in Coupler
Belts Material	Kevlar	Tire	19 x 7.00-8 Tubeless
Clutch	Centrifugal Clutch	Wheelbase	41.5 in
Cutting Method	Disc	Package Method	Plywood Case
Chipping Dia.	5 in	Weight (N.W./G.W.)	547 / 610 lbs
Reduction Ratio	20:1	Packing Size (LWH)	43 x 31 x 50 in
Blades Nos.	2 x Blade; 1 x Anvil	Warranty	1 Year
