SKU: 110805

| Model: B150

6 inch HONDA E-Start Gasoline Engine Powered 4 - Wheel Drum Wood Chipper with Taillight , B150

Name: 6 inch HONDA E-Start Gasoline Engine Powered 4 - Wheel Drum Wood Chipper with Taillight , B150
Brand: MechMaxx
SKU: 110805
Price: 3499.0 USD
Availability: InStock
Rating: 4.62 (61 reviews)

$349900

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

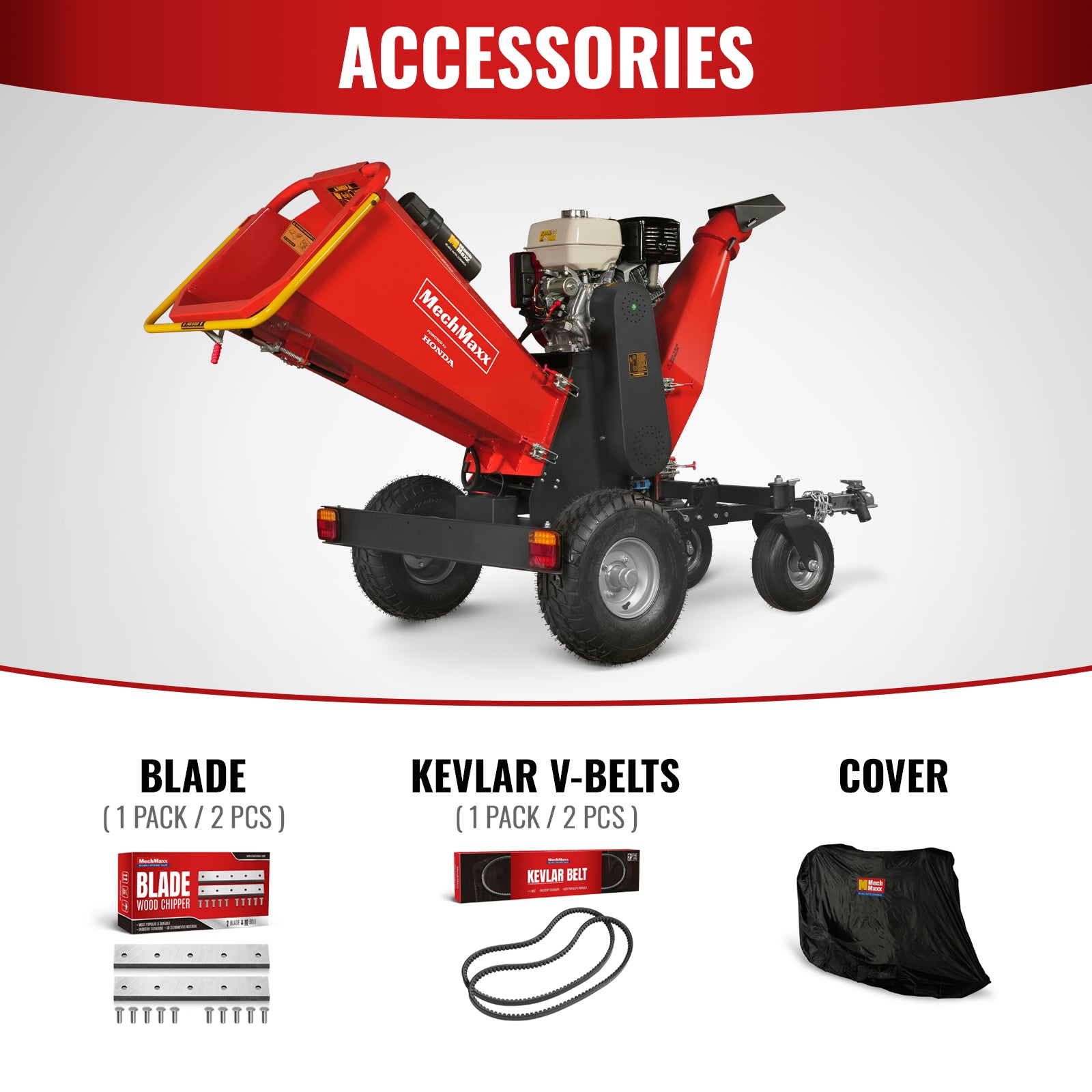

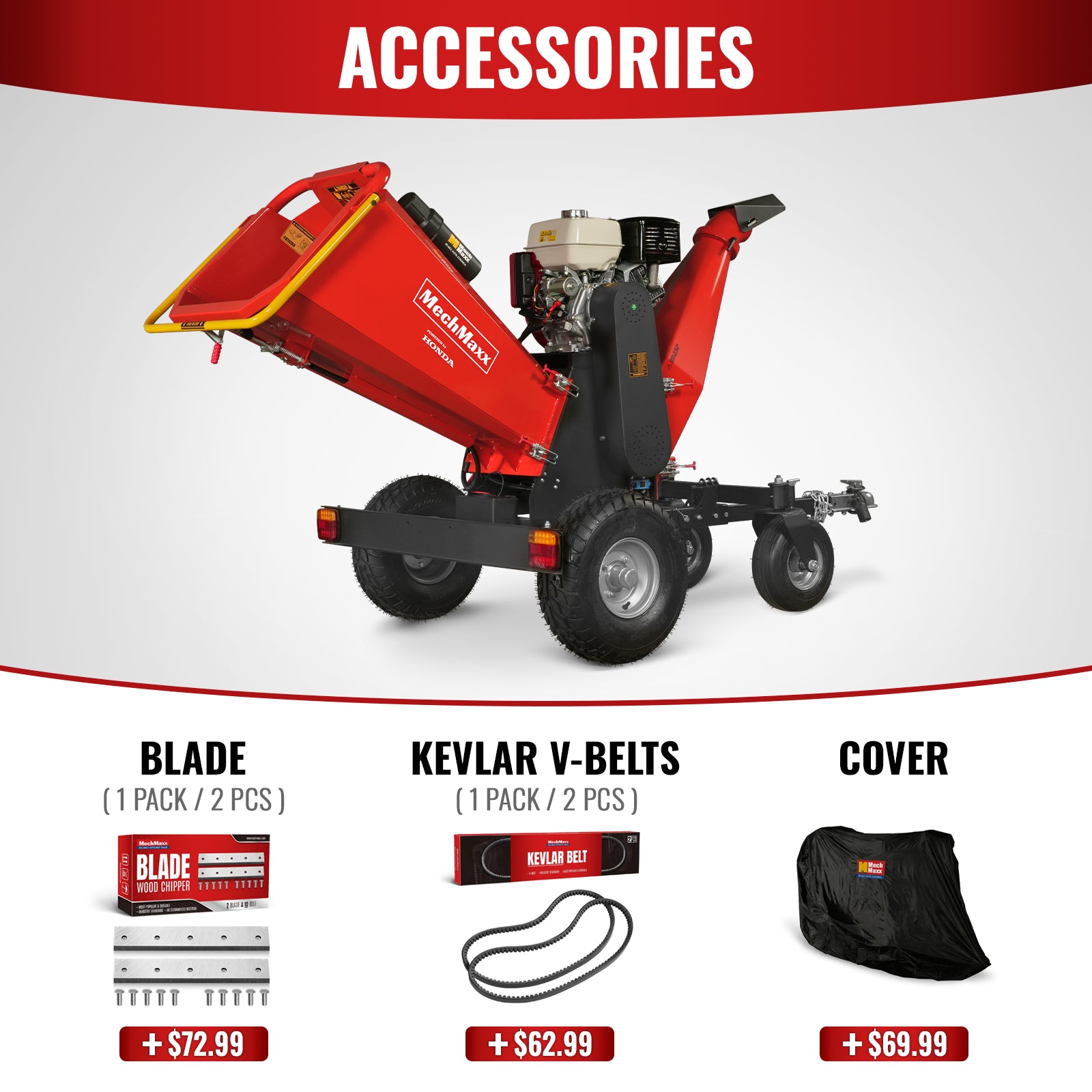

Frequently Bought Together

( 1 Pack / 2 Pcs ) Blade for Wood Chipper GS1500, PGS1500, P4206, B150 (SKU: 110200; 110400; 110800; 110801; 110802; 110803; 110804; 110805）

Kevlar V-belts for Wood Chipper P4206 and B150, 17*1255 (sku：110800; 110801; 110802; 110803; 110804; 110805）

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 )

6 inch HONDA E-Start Gasoline Engine Powered 4 - Wheel Drum Wood Chipper with Taillight , B150 $349900

( 1 Pack / 2 Pcs ) Blade for Wood Chipper GS1500, PGS1500, P4206, B150 (SKU: 110200; 110400; 110800; 110801; 110802; 110803; 110804; 110805） $7299 $89.99

Kevlar V-belts for Wood Chipper P4206 and B150, 17*1255 (sku：110800; 110801; 110802; 110803; 110804; 110805） $6299

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 ) $6999

Total Price

$

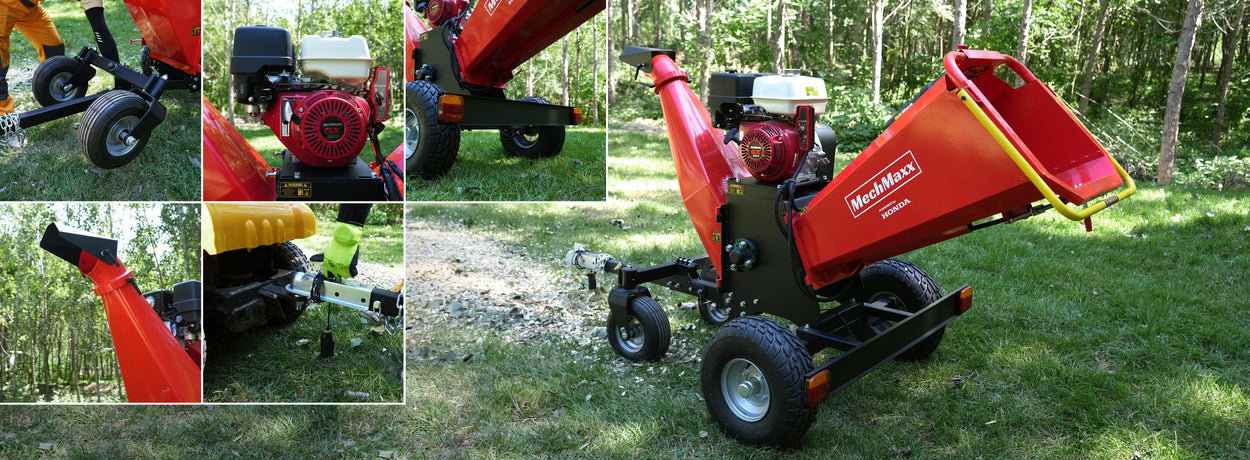

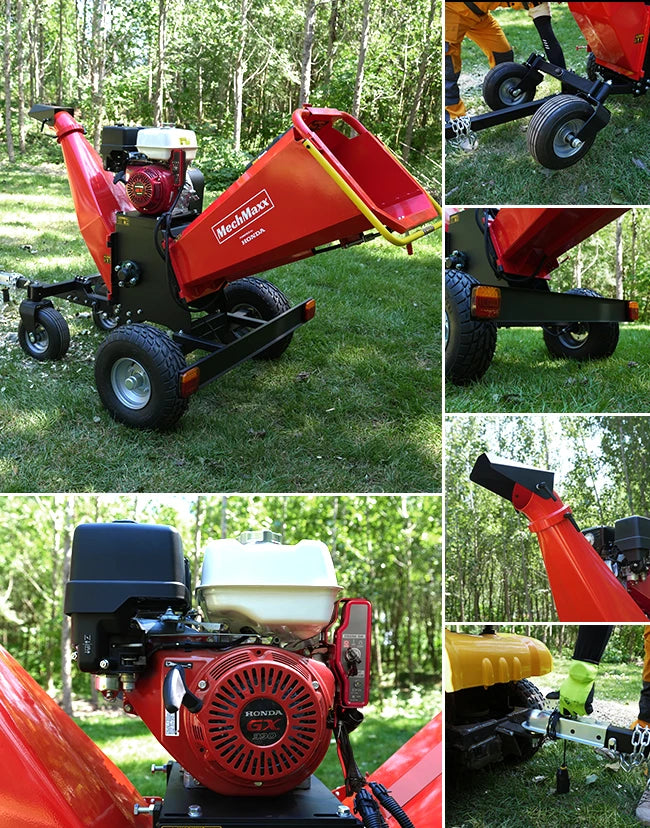

Product Overview

MechMaxx 6 in. gasoline engine wood chipper, attach to two 12in. blades, DOT road legal tires, wheelbase 48 in., 56in. discharge chute
This wood chipper has extremely powerful roller with the diameter of 14in., which can shred branches up to 6 inches.
Double-edge cut reversible blades greatly increase the service life.
Both the feeding chute and the discharge chute can be opened quickly and easily for the maintenance and repair.
By adopting whole shaped technology, the discharge chute is both attractive and practical with the ability to rotate 360 degrees.
You can stop the engine quickly in a crisis to improve operator safety with a safety button above the feeding chute and the emergency stop press bar on lower side of the feeding chute.
With front 13x5.00-6; rear 19x7.00-8 Tubeless tires and 48in. super-wide wheelbase, this wood chipper has the ability of driving on steep ground with the high stability.
This is a high-performance wood chipper fit for professionals and leasing companies.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30

Product manual (PDF)

B150 Product Manual 1.0.pdf

Engine manual (PDF)

Honda GX390 Manual.pdf

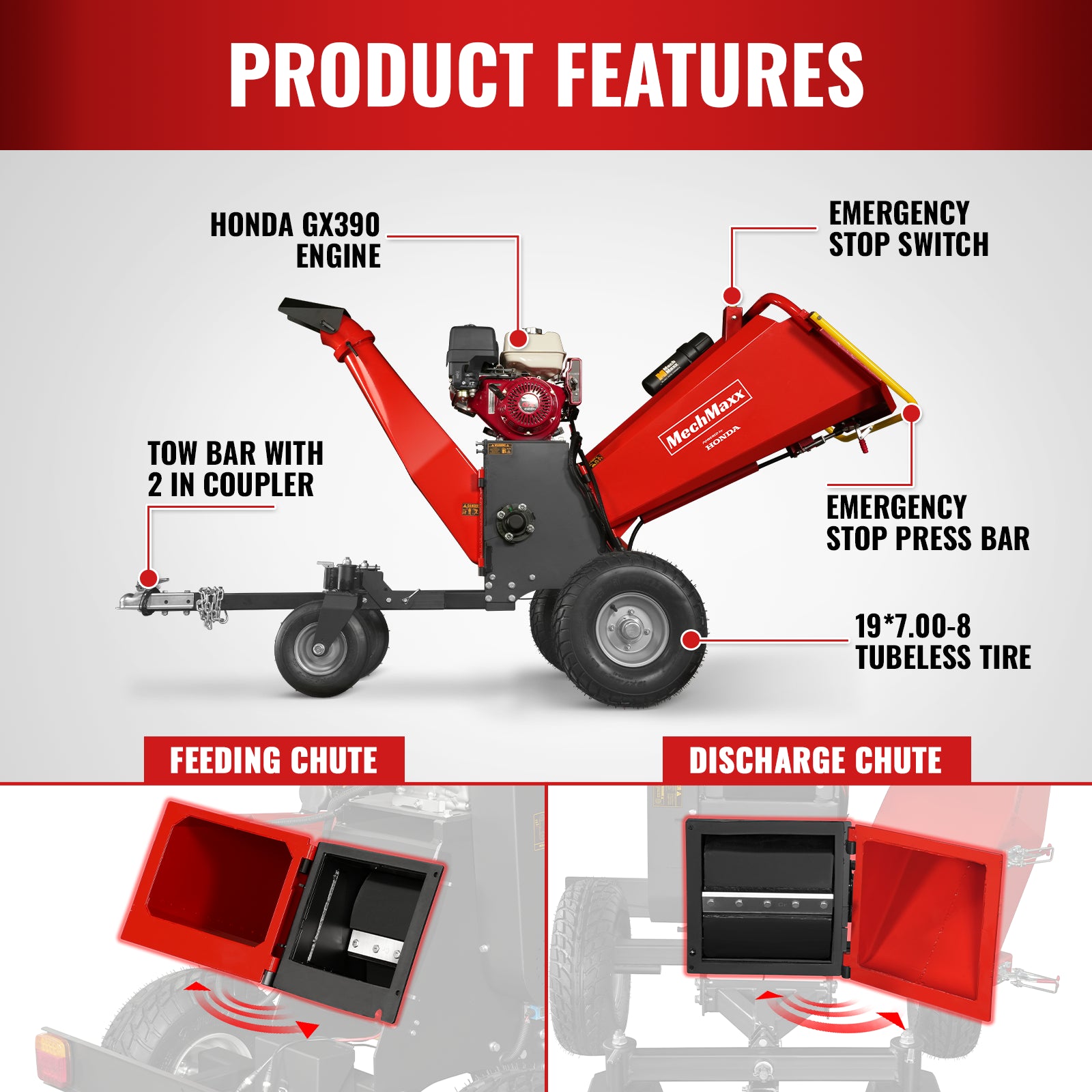

Product Features

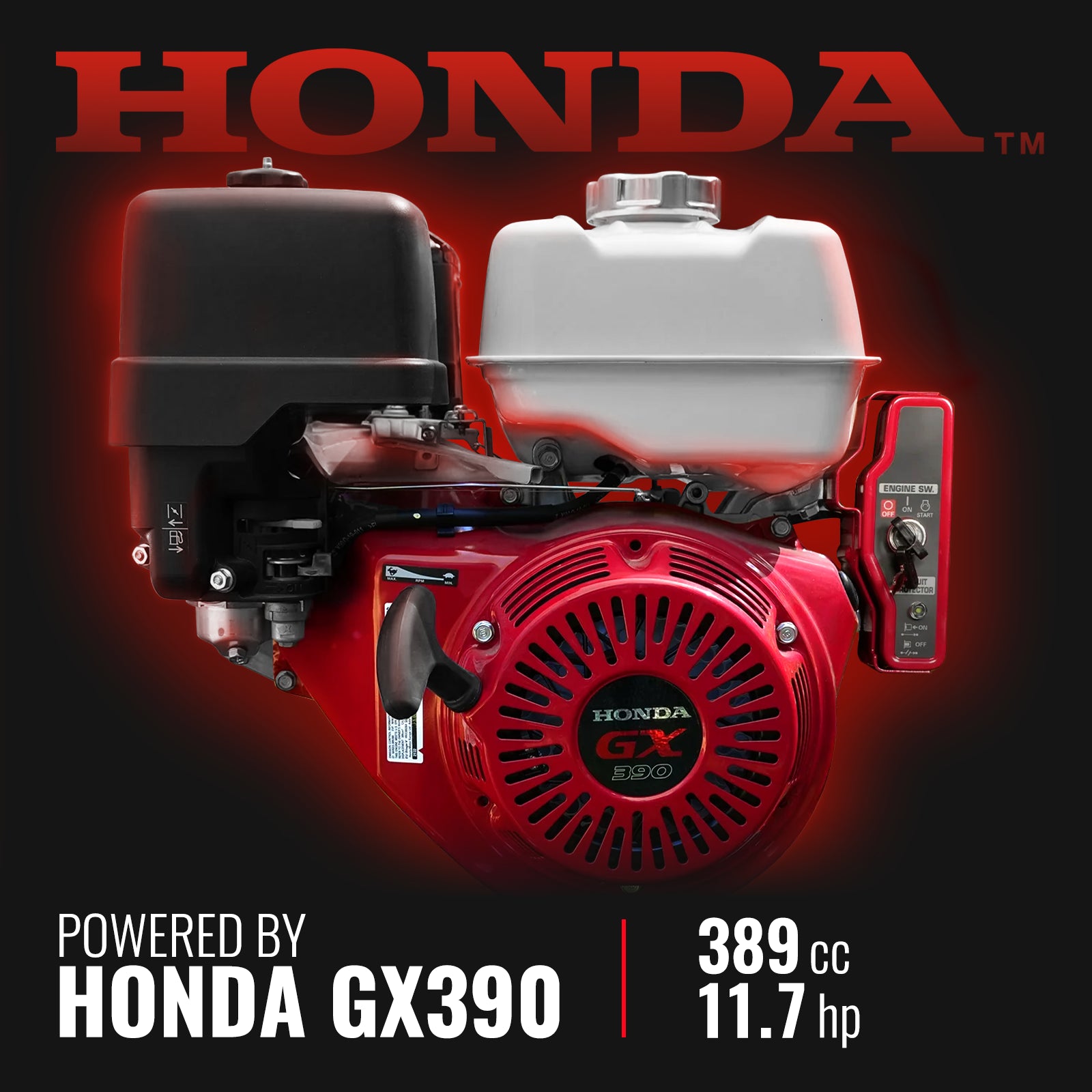

With the GX390, you’re looking at some of the best engines in the business. Powerful, reliable, durable, and quiet. Honda’s GX Series is power you can trust. Honda’s GX series engines are legendary for superior reliability and performance. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

Electric Start

The B150 Wood Chipper is powered by a Honda electric start gasoline engine. The start key is installed at the position of the feeding chute, making it easier to start and stop the engine.

Feeding Chute

There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

Discharge Chute

Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

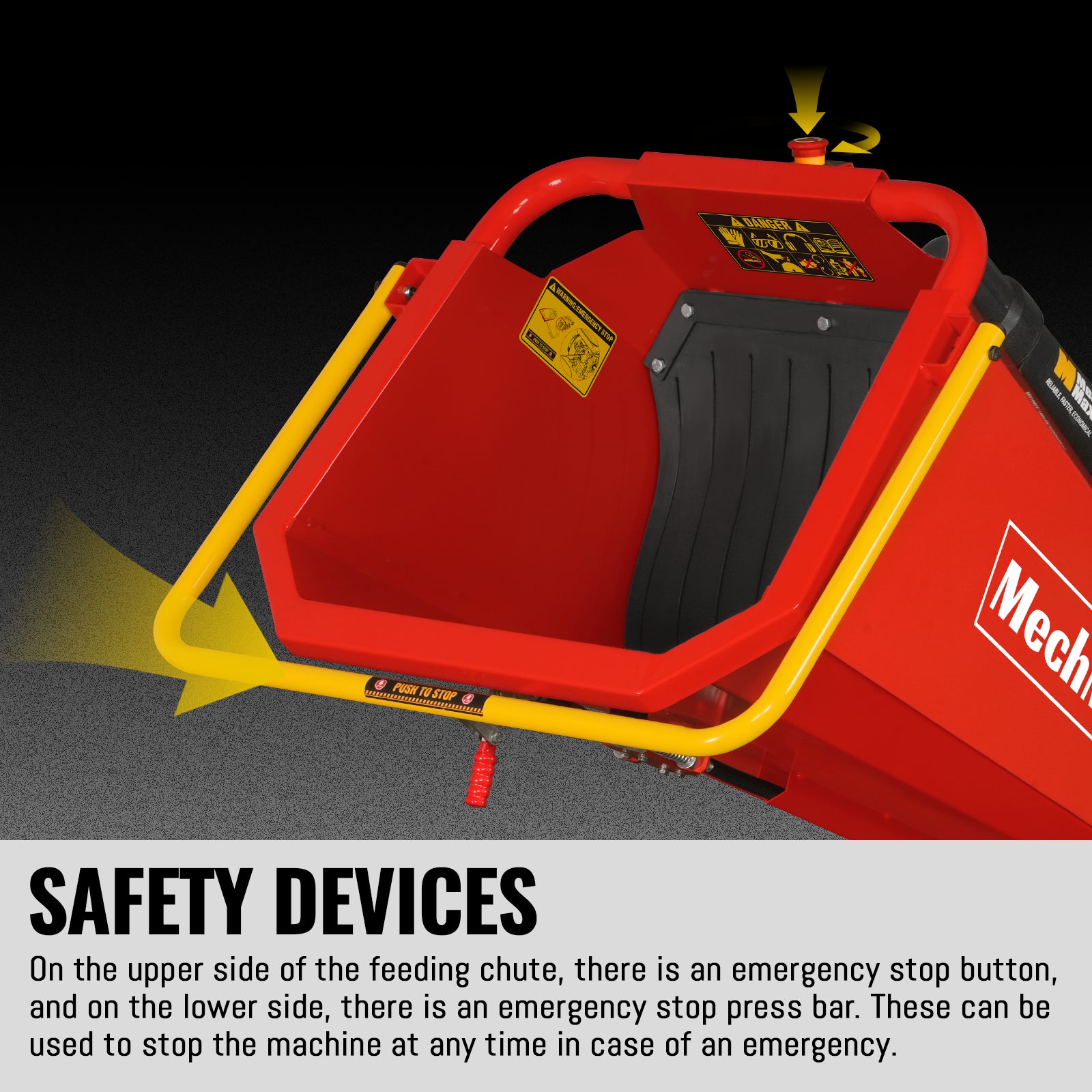

Safety Devices

On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

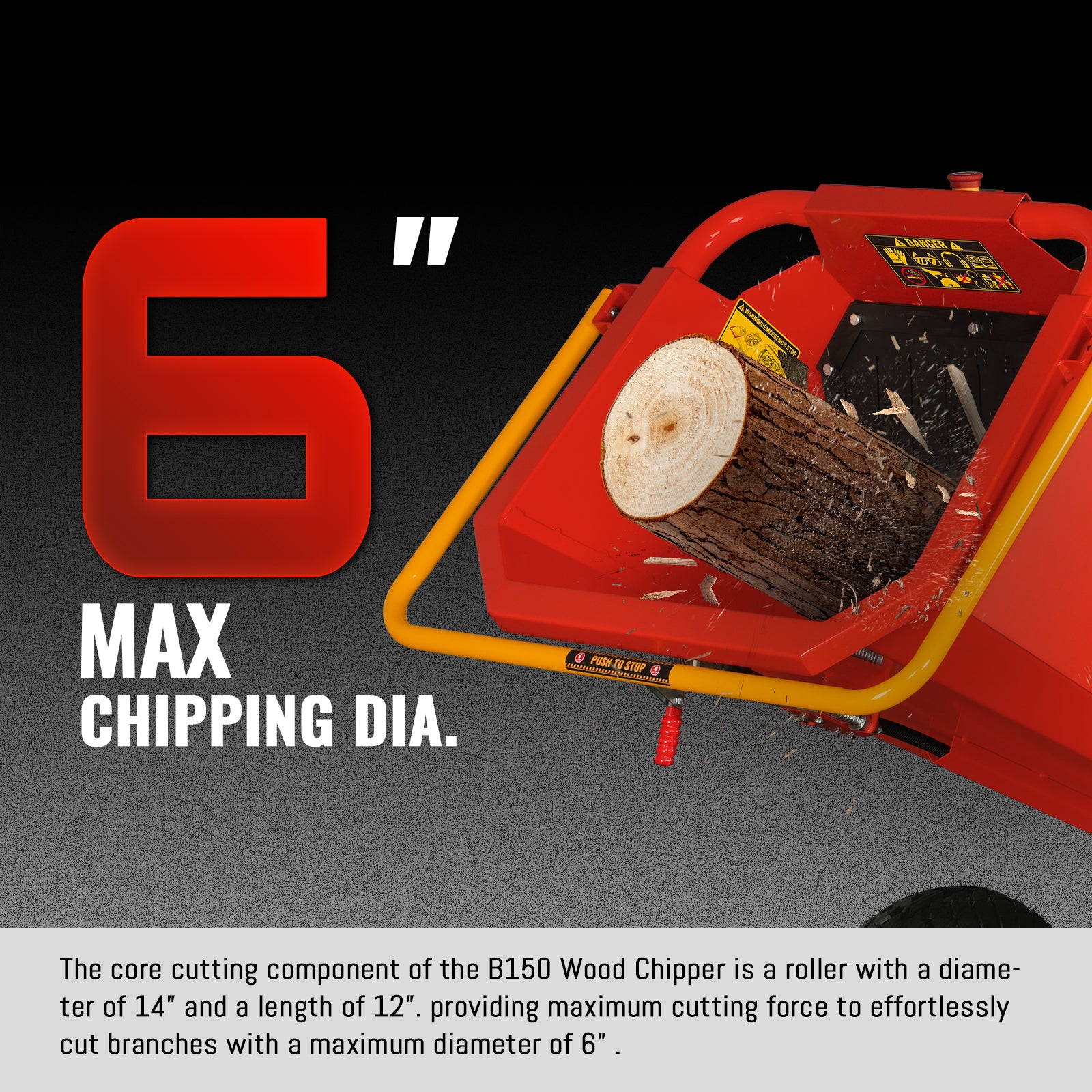

Maximum Wood Chip Diameter 6’’

The core cutting component of the B150 Wood Chipper is a roller with a diameter of 14” and a length of 12”. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 6” .

19*7.00-8 Tubeless Tire

The B150 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48” , providing enhanced stability when being towed.

Tail Light and Plug

The B150 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of B150 to synchronize with the vehicle's braking and turning signals.

Foldable and Lockable Front Wheels

When the B150 is being towed, the two 13*5.00-6 tubeless tires need to be folded up. When the B150 is operational, they can be lowered. When the B150 needs to be pushed to a designated work area, the two wheels can be locked to ensure straight-line movement.

Discharge Chute Design

The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

Engine	HONDA GX390	Blades Type	Double Edge Blade
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Discharge Chute	360 Degree Rotating
Displacement	389 cc; 11.7 HP	Emergency Stop	Stop Bar + Button
Start	Electric Start	Feed Chute Opening Method	Hinge
Belt	2 x V-Belts	Discharge Chute Opening Method	Hinge

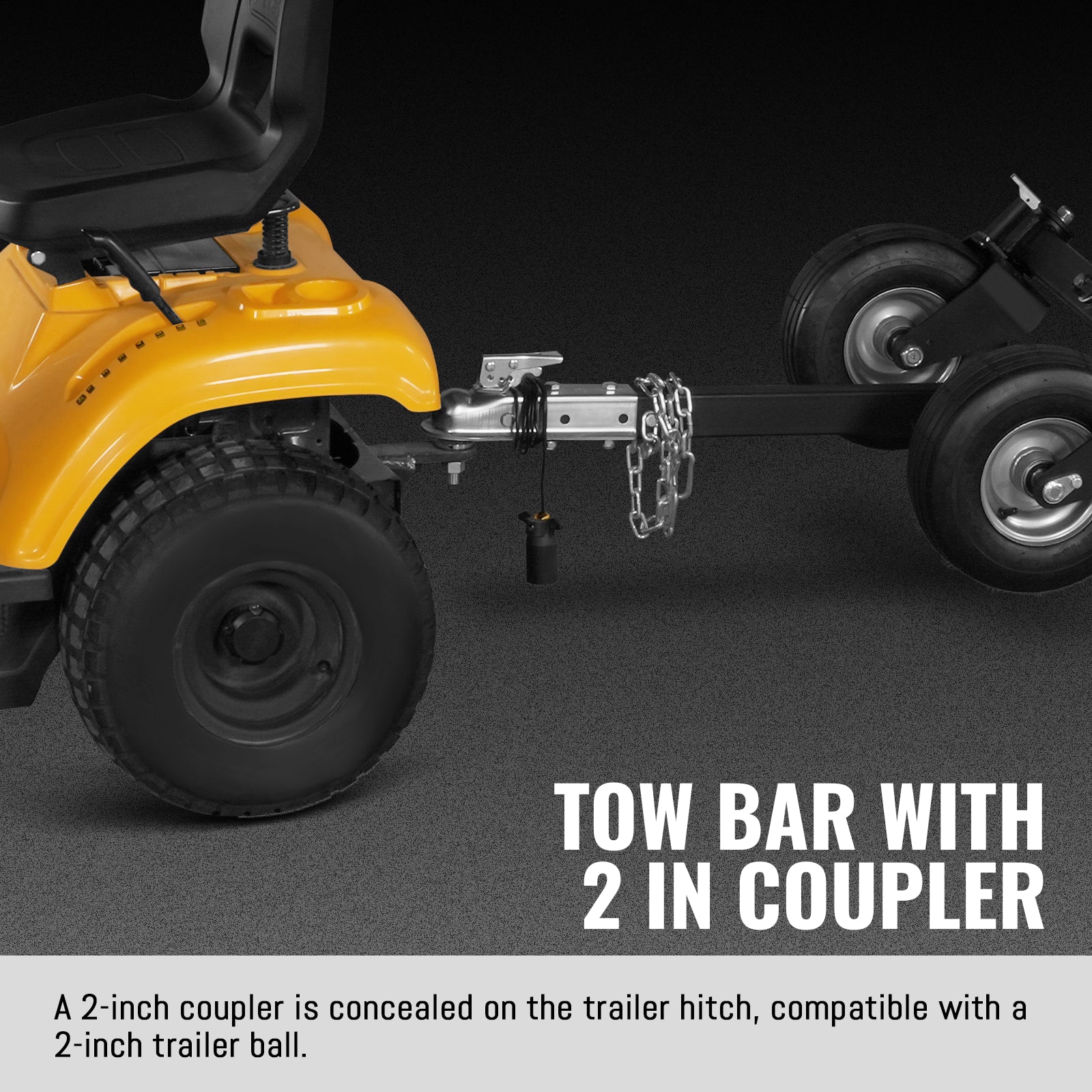

Belts Material	Kevlar	Towing	Tow Bar With 2 in Coupler
Clutch	Centrifugal Clutch	Tire	19 x 7.00-8 Tubeless
Cutting Method	Drum	Wheelbase	48 in
Chipping Dia.	6 in	Package Method	Plywood Case

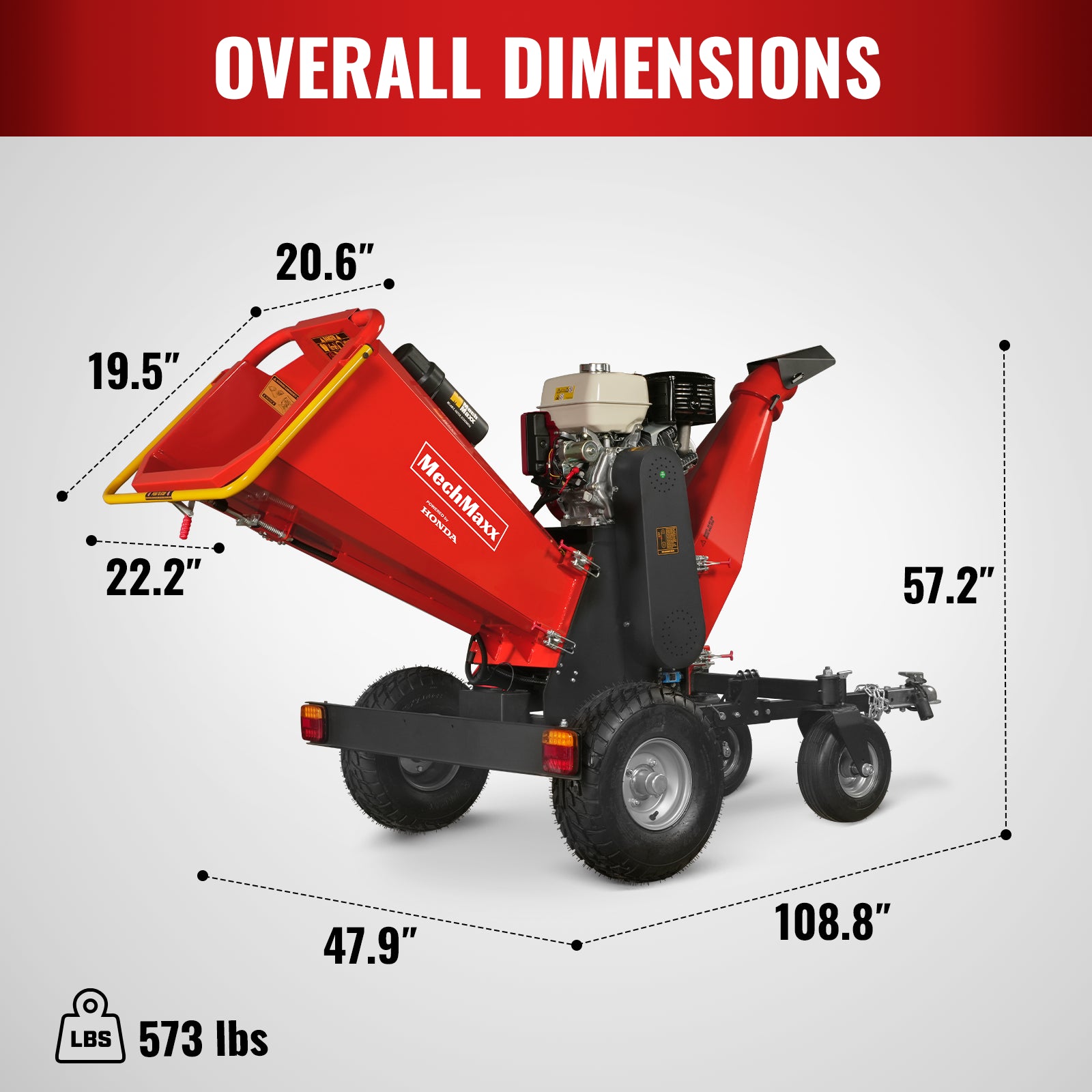

Roller	13.8 in	Weight (N.W./G.W.)	573 / 639 lbs
Reduction Ratio	20:1	Packing Size (LxWxH)	43 x 31 x 50 in
Blades Nos.	2 x Blade; 1 x Anvil	Machine Warranty	2 Years
Blades Material	A8 （5Cr8MoVSi）	Engine Warranty	2 Years
