SKU: 202009

| Model: F33-98S

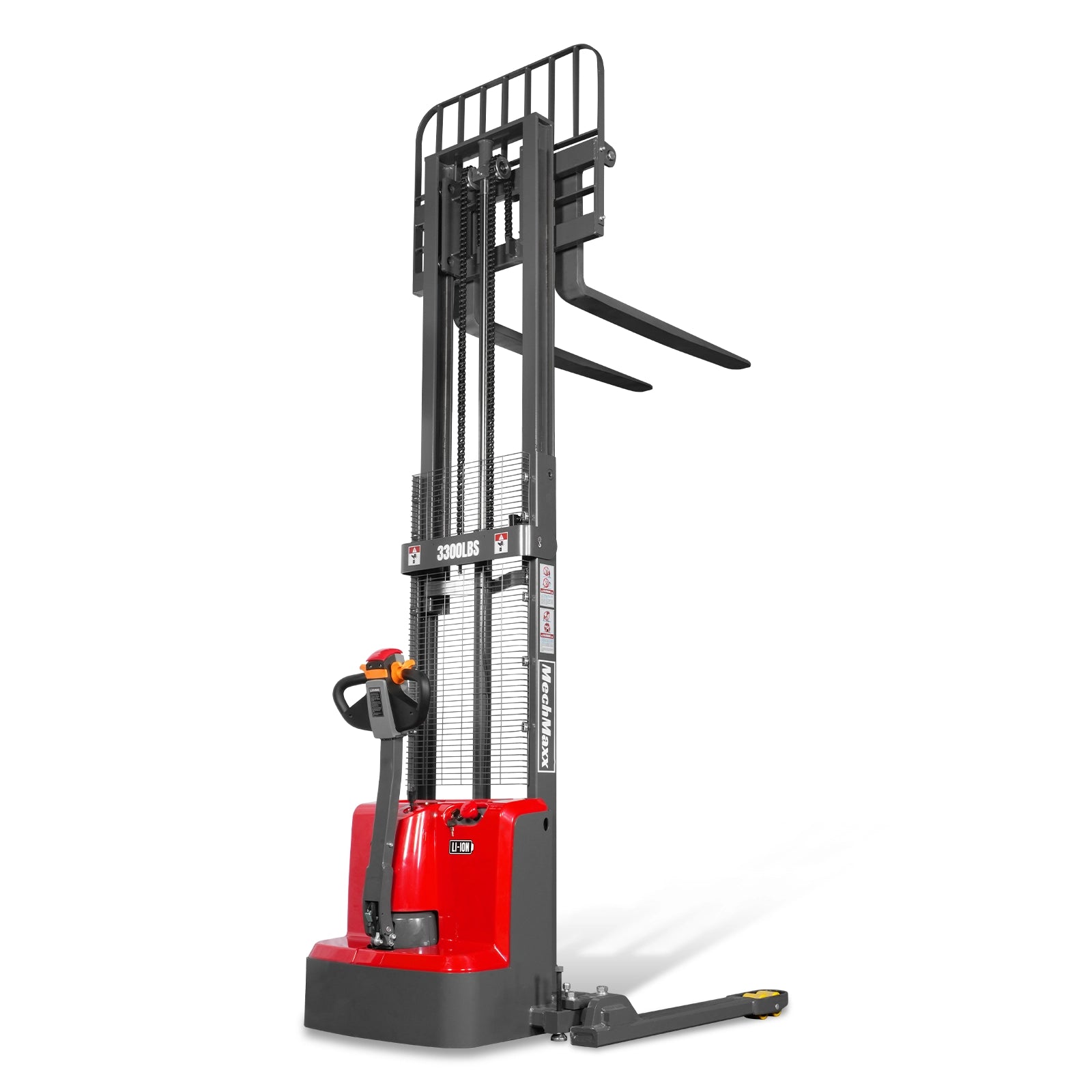

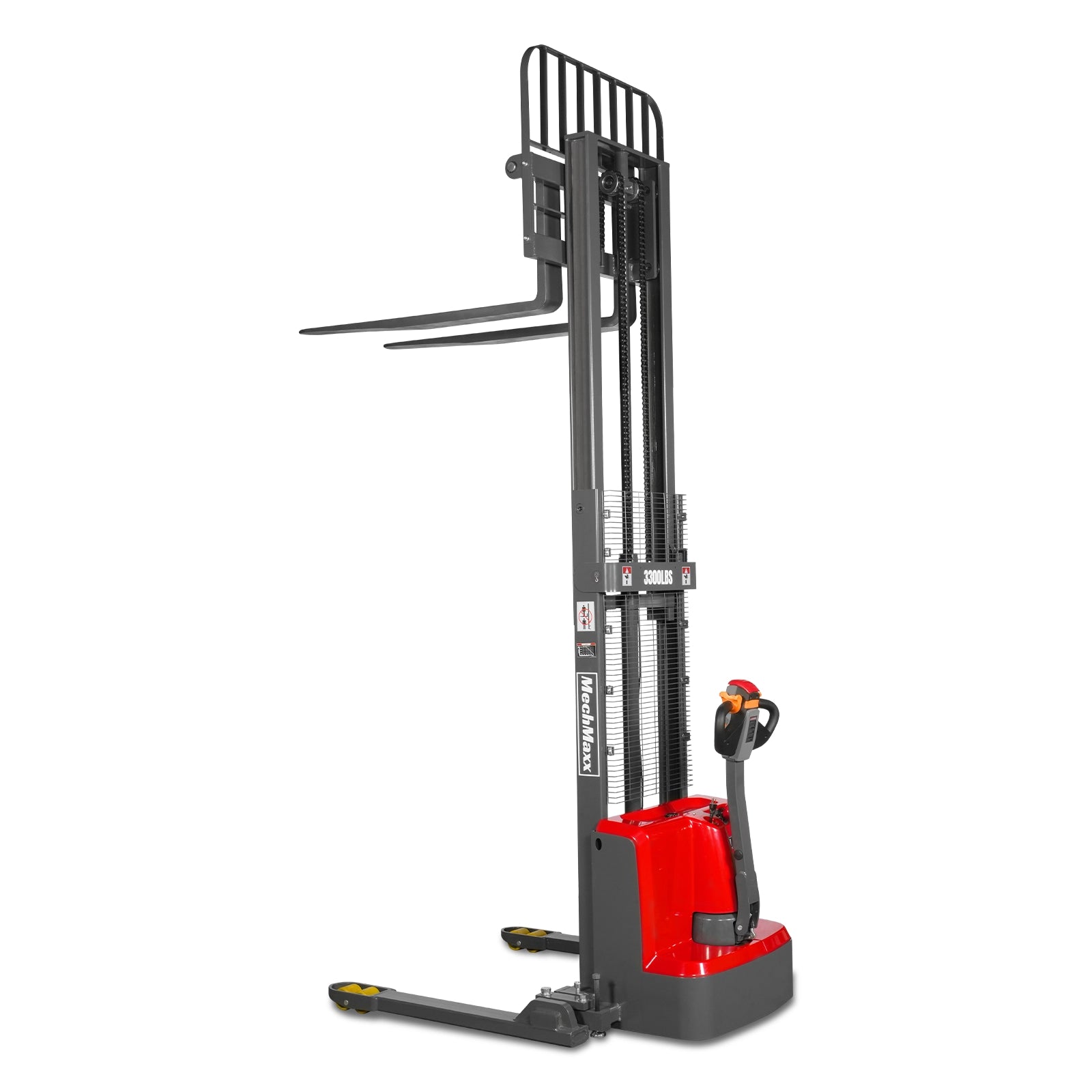

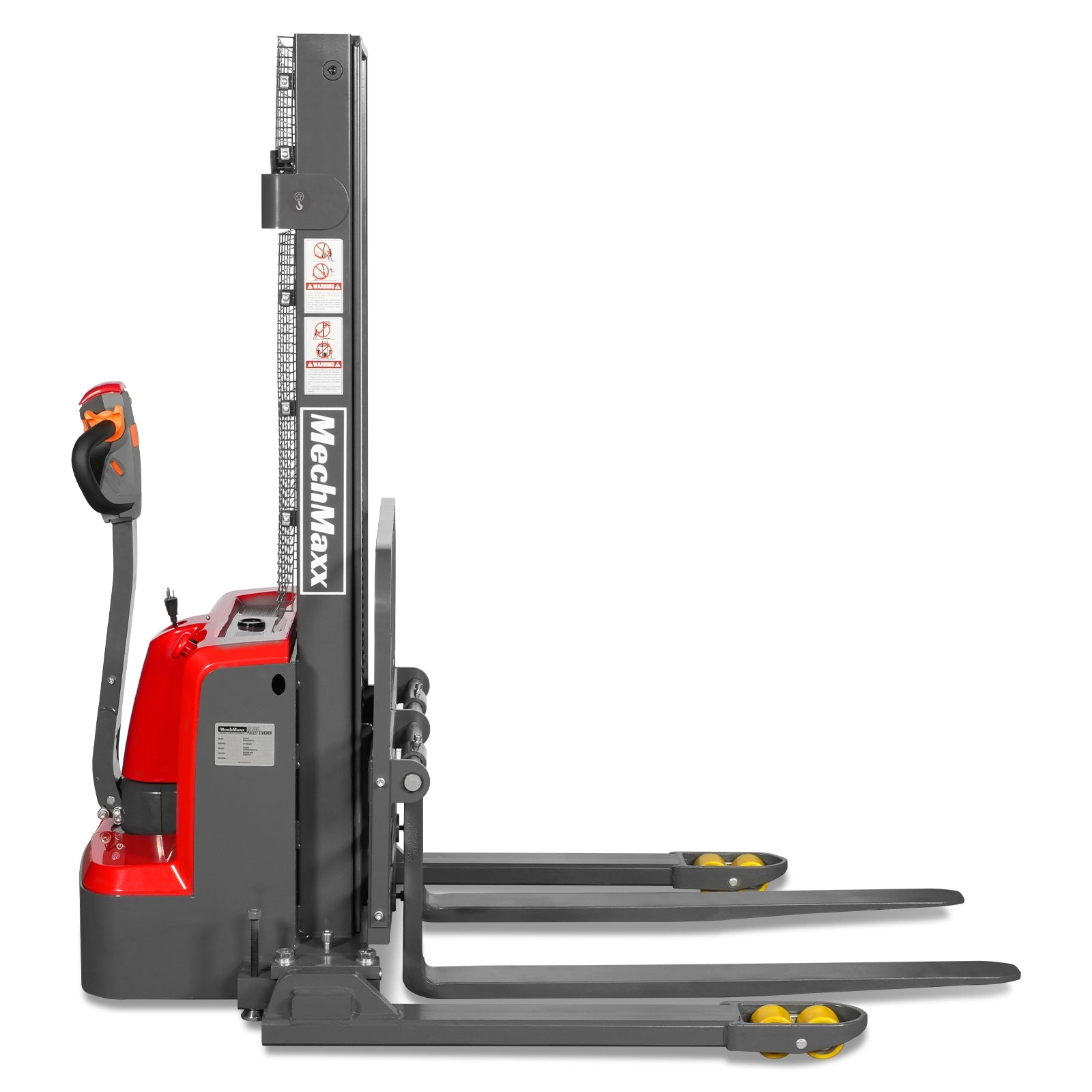

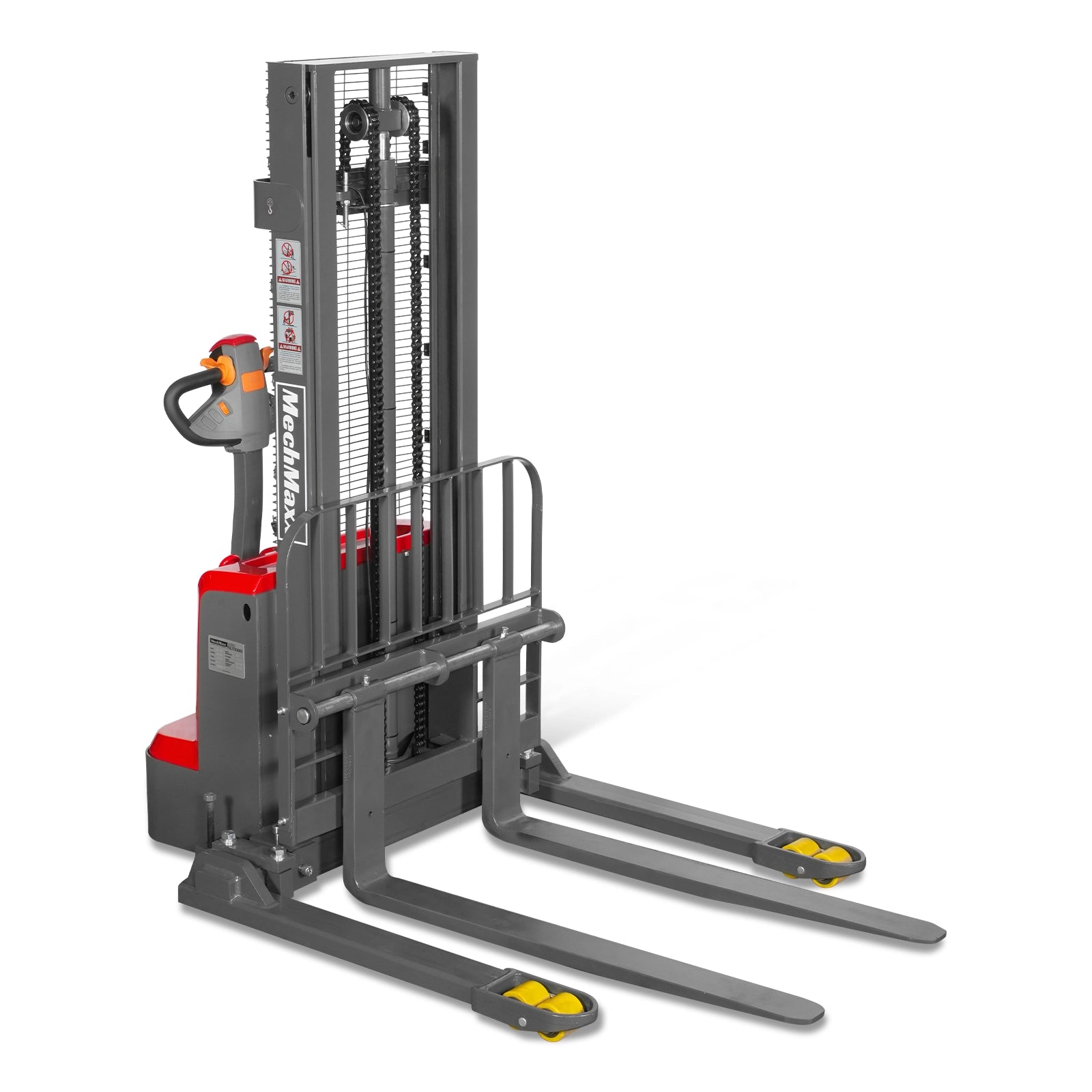

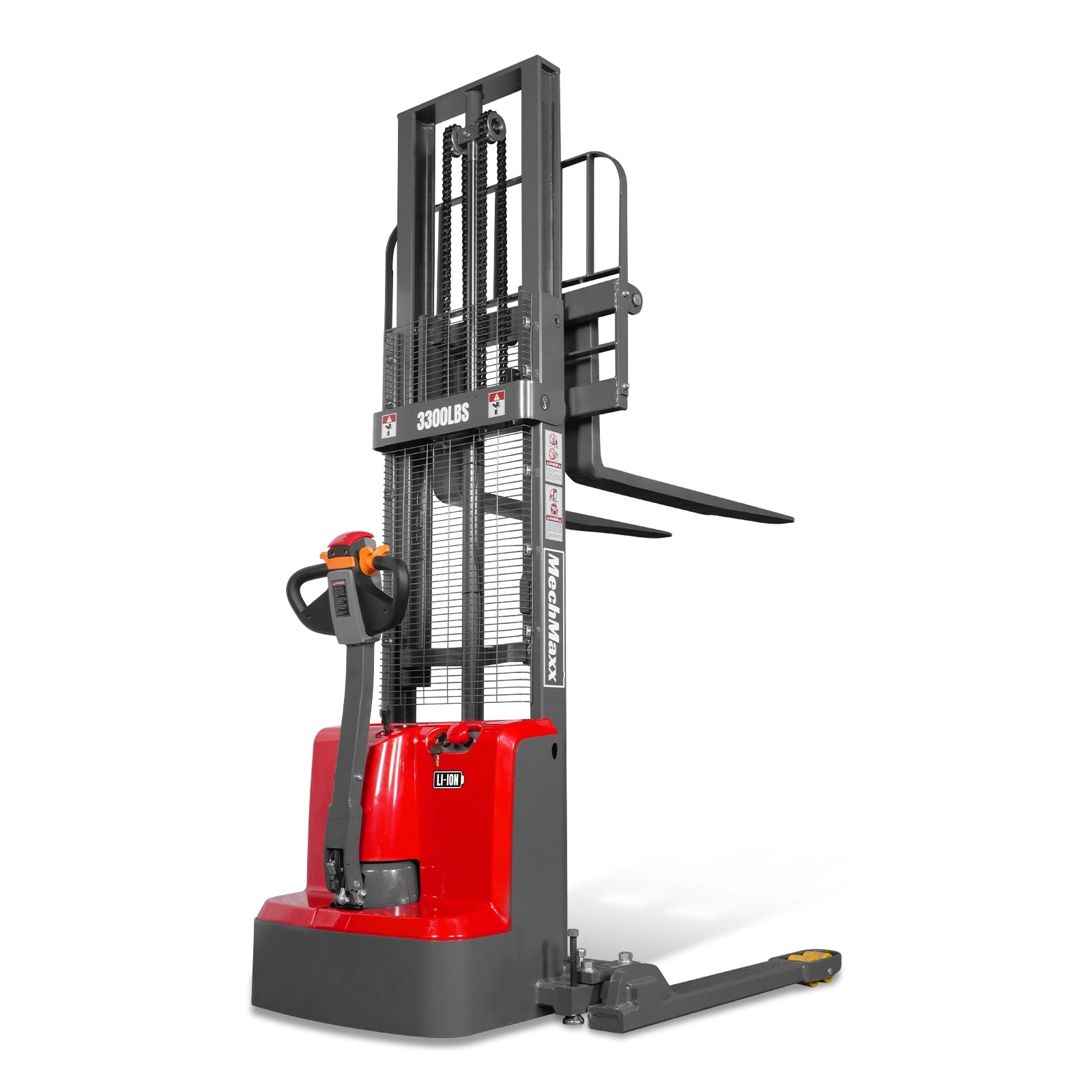

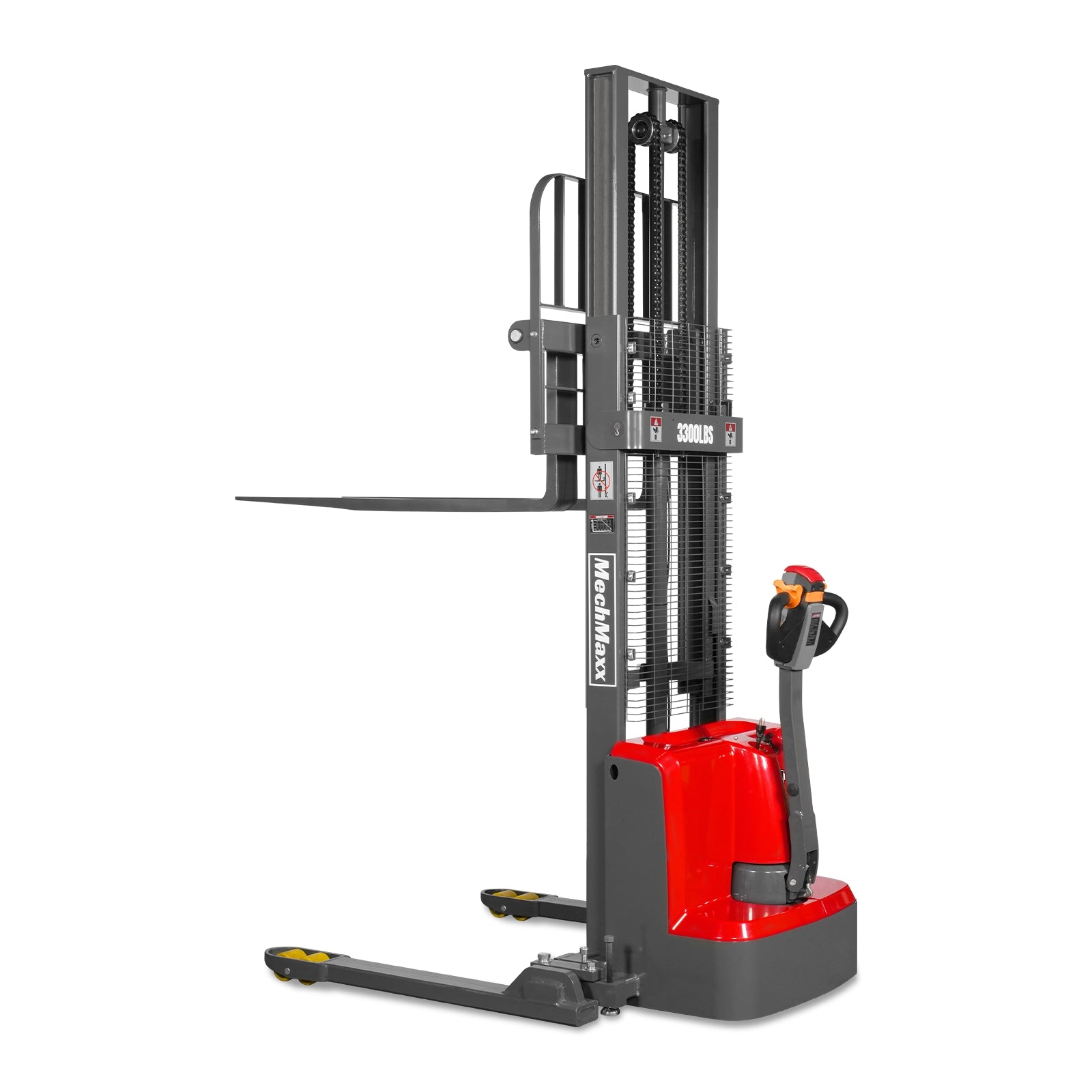

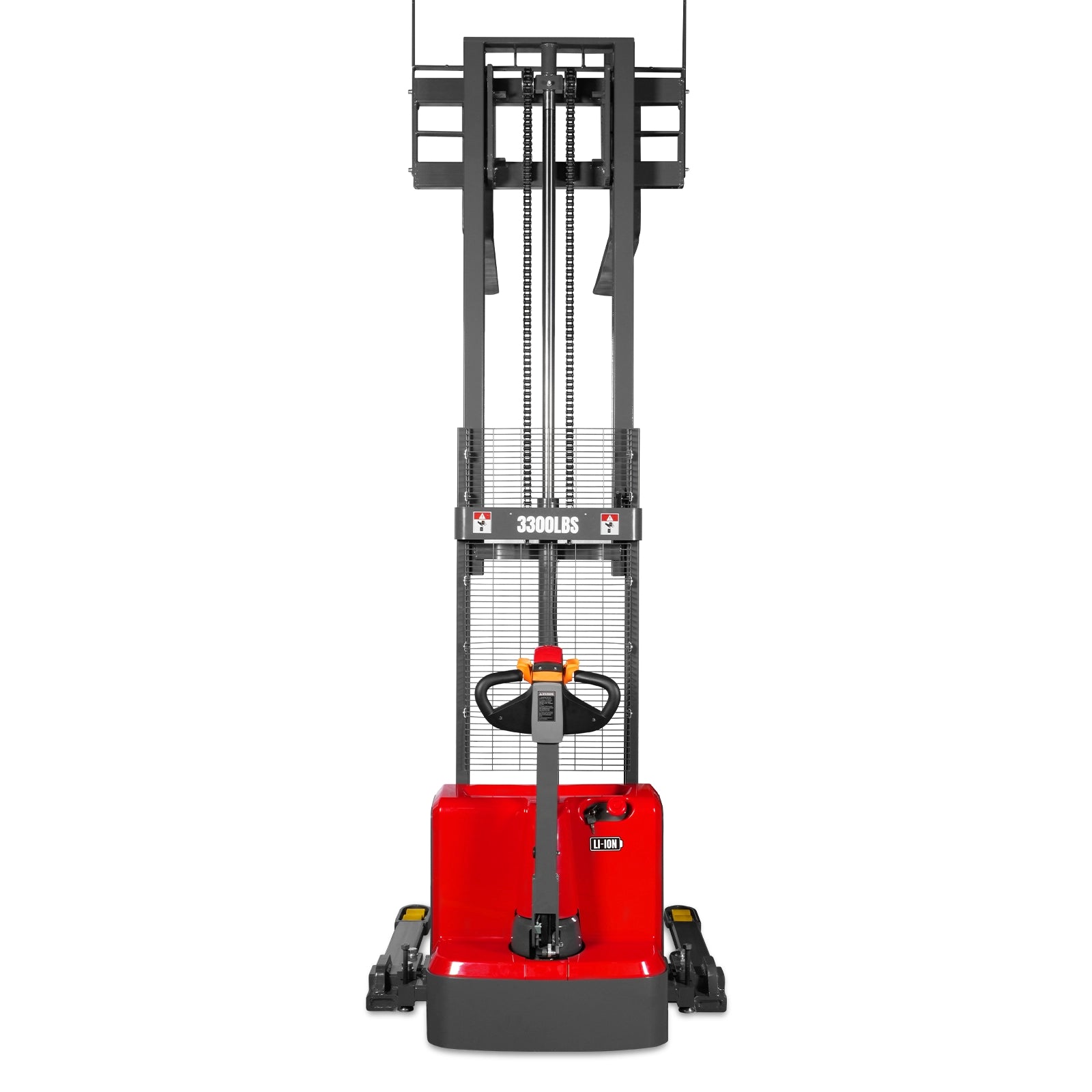

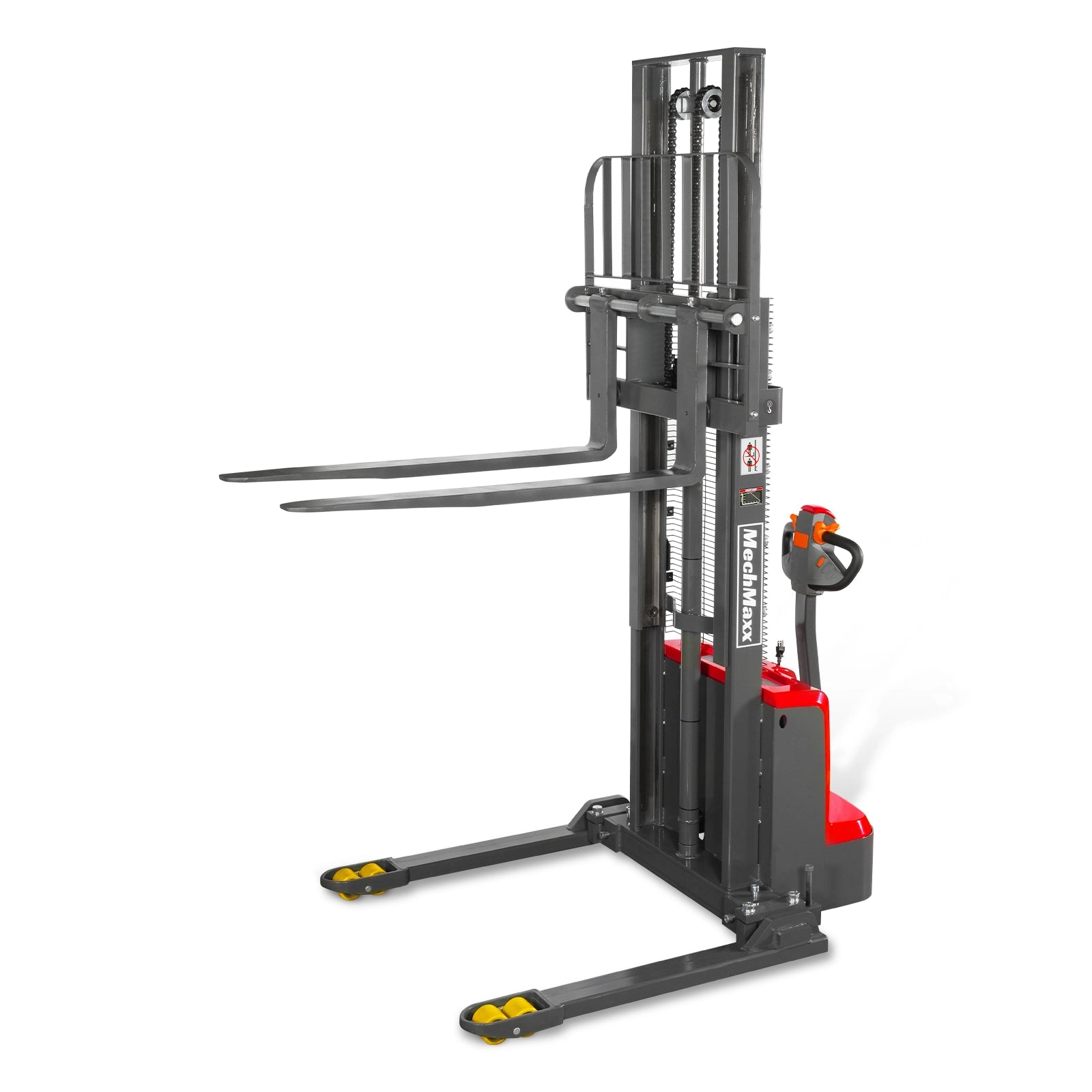

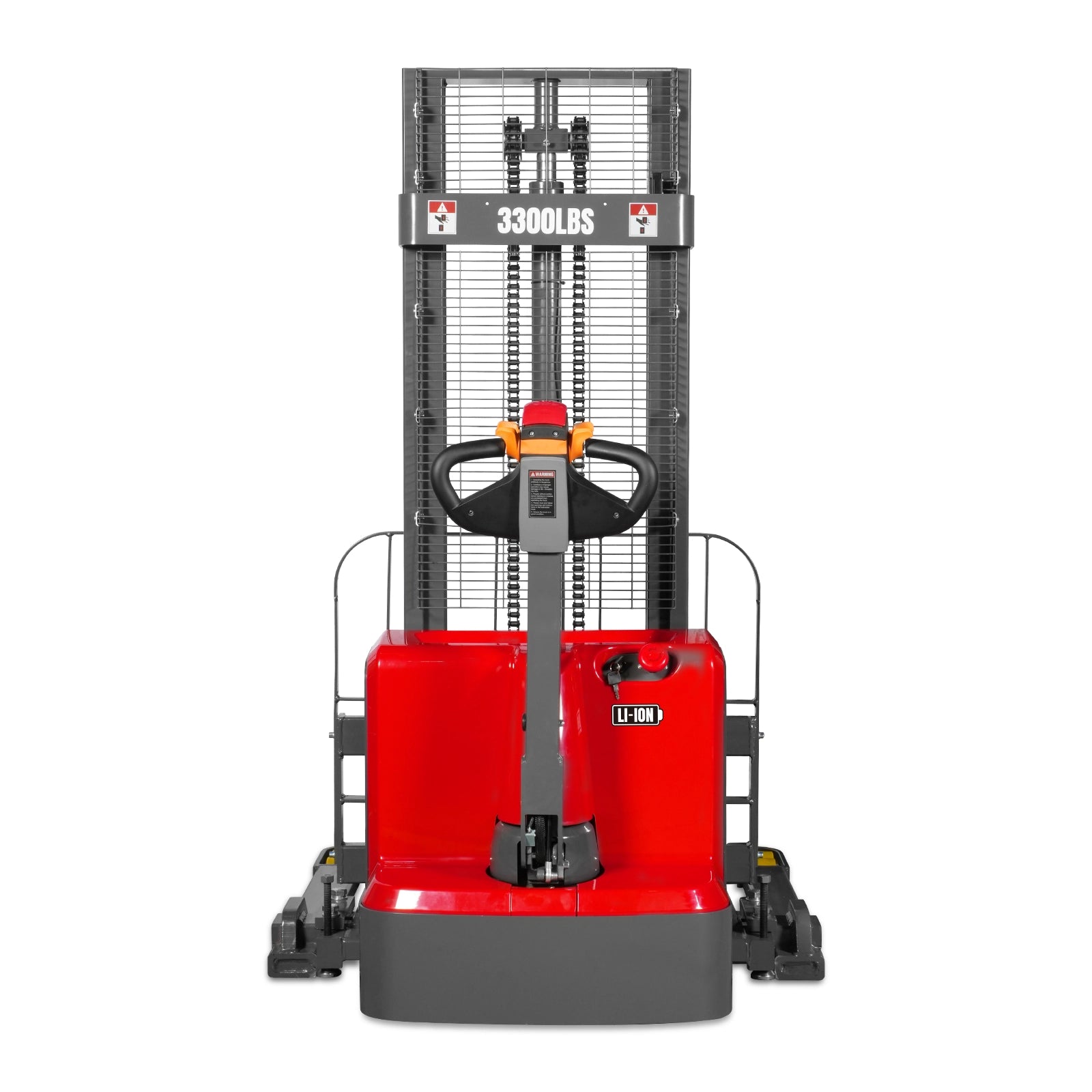

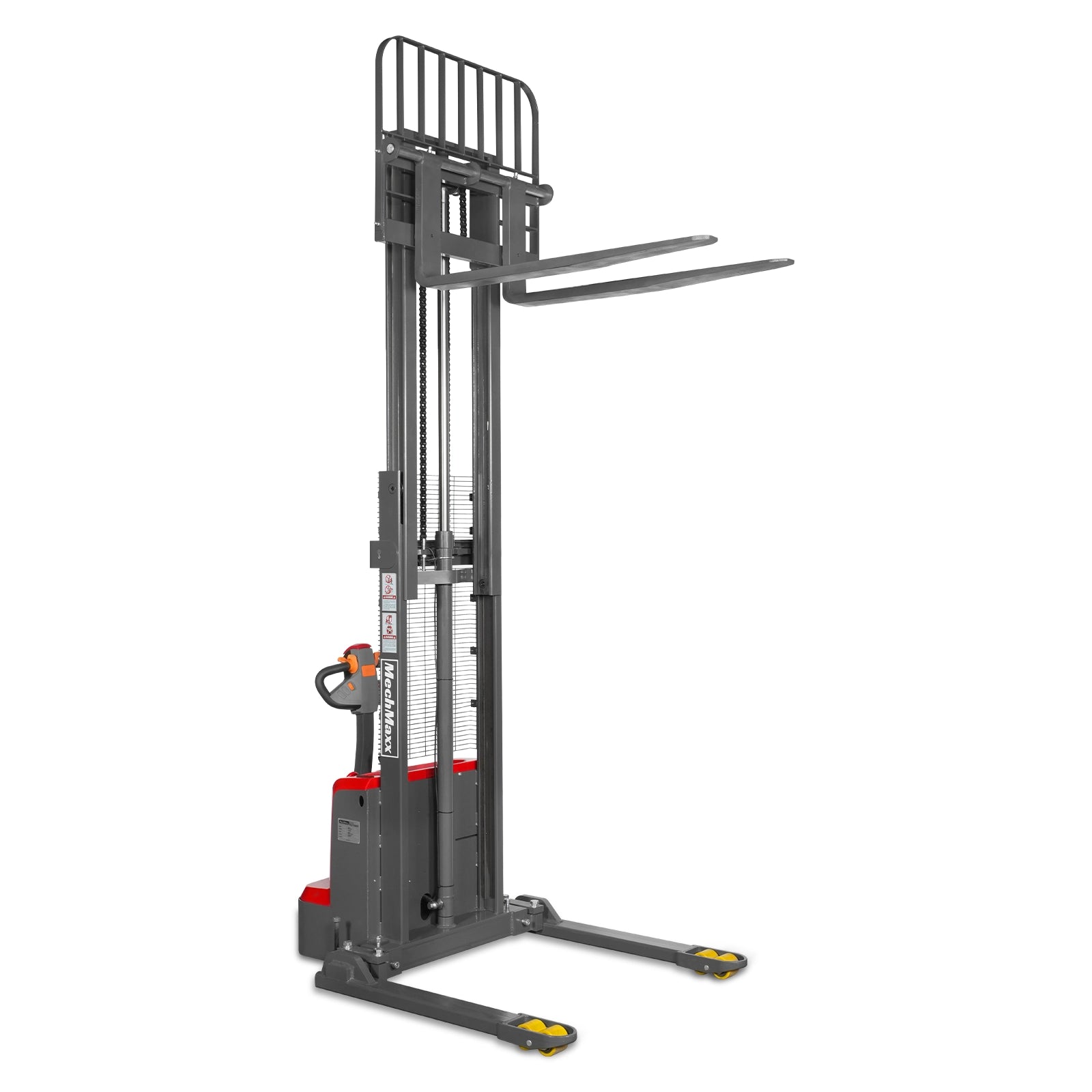

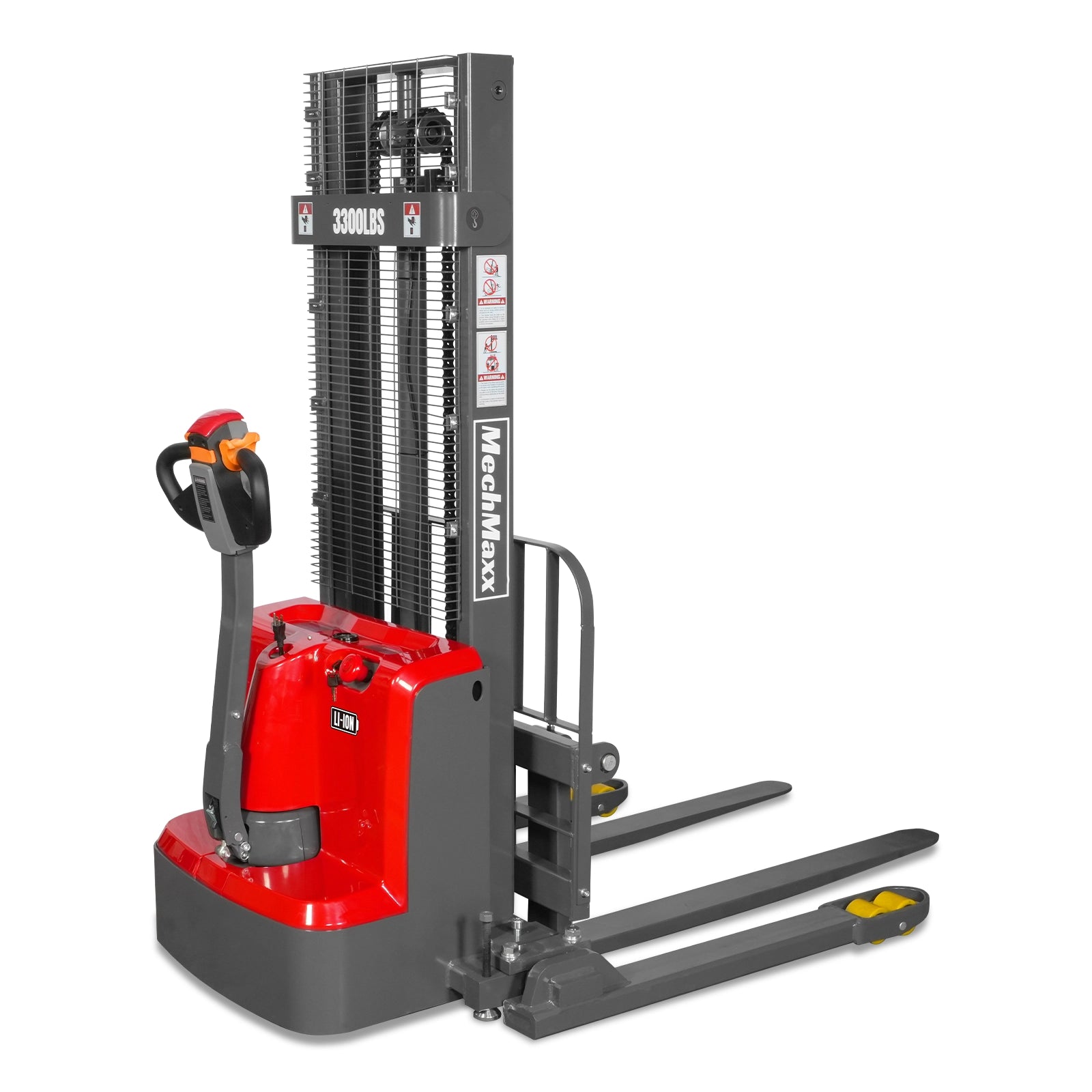

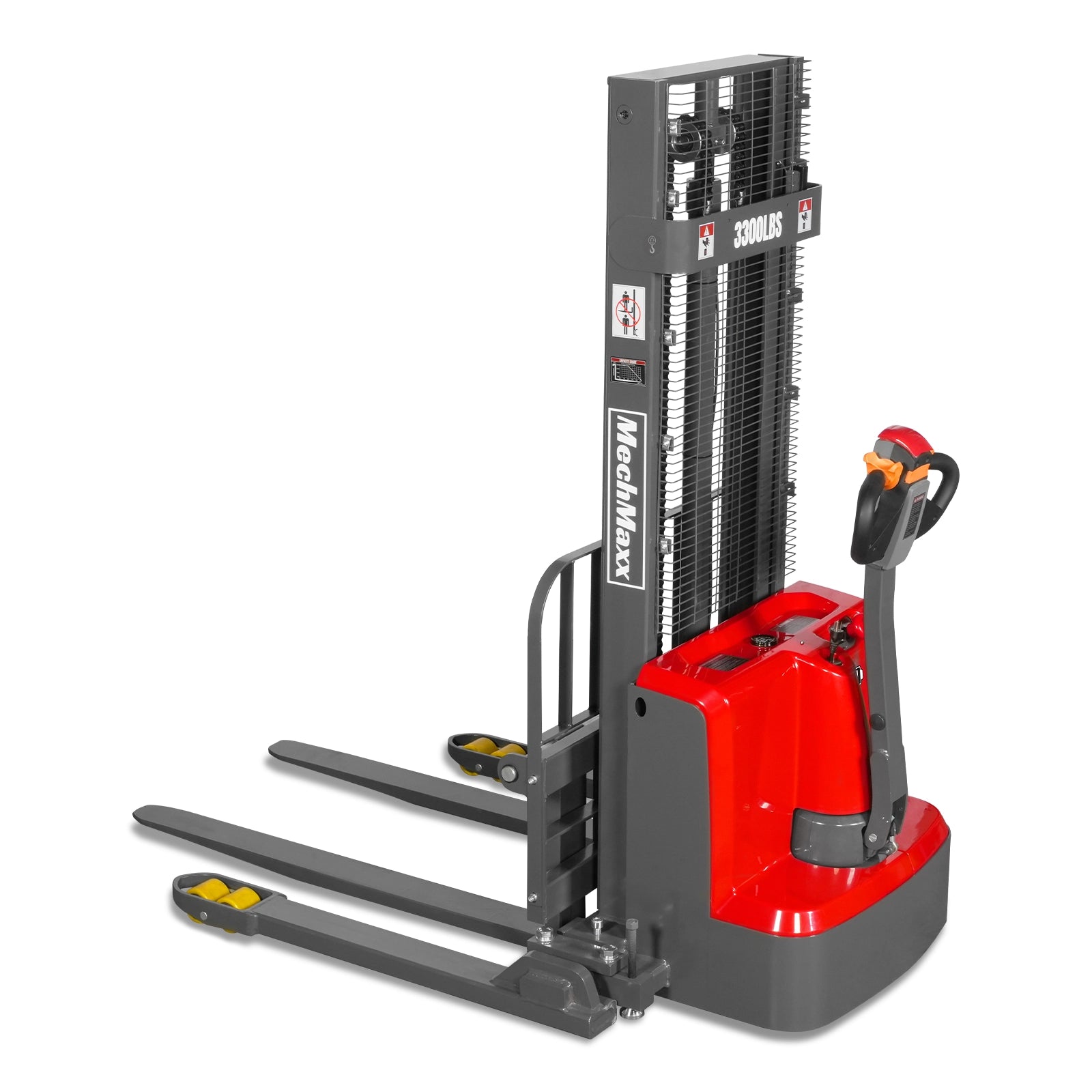

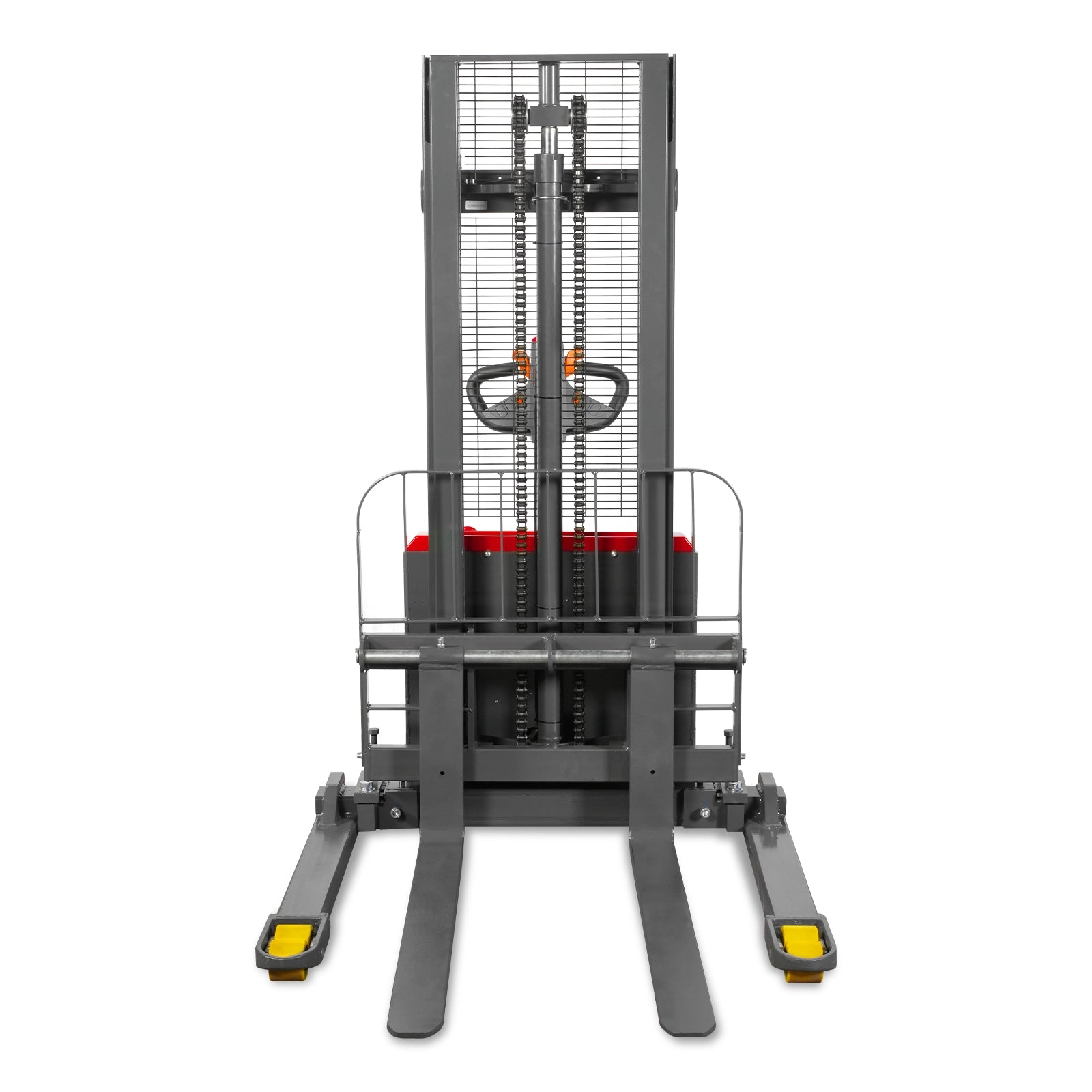

Full Electric Straddle Stacker 98'' Lift 3300lbs Capacity with Adj. Legs and Forks, F33-98S

Name: Full Electric Straddle Stacker 98'' Lift 3300lbs Capacity with Adj. Legs and Forks, F33-98S
Brand: MechMaxx
SKU: 202009
Price: 5499.0 USD
Availability: OutOfStock

$549900

$6,799.00

Save $1,300

FREE SHIPPING

Details

Delivery in 10 - 15 Business Days

Details

Max Load - Max Height : 3300 lbs - 98 in

Out of Stock

3300 lbs - 98 in 2640 lbs - 118 in 2640 lbs - 138 in 3300 lbs - 118 in

Payment:

917-772-7273

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Product Overview

24V/100Ah maintenance-free AGM battery.

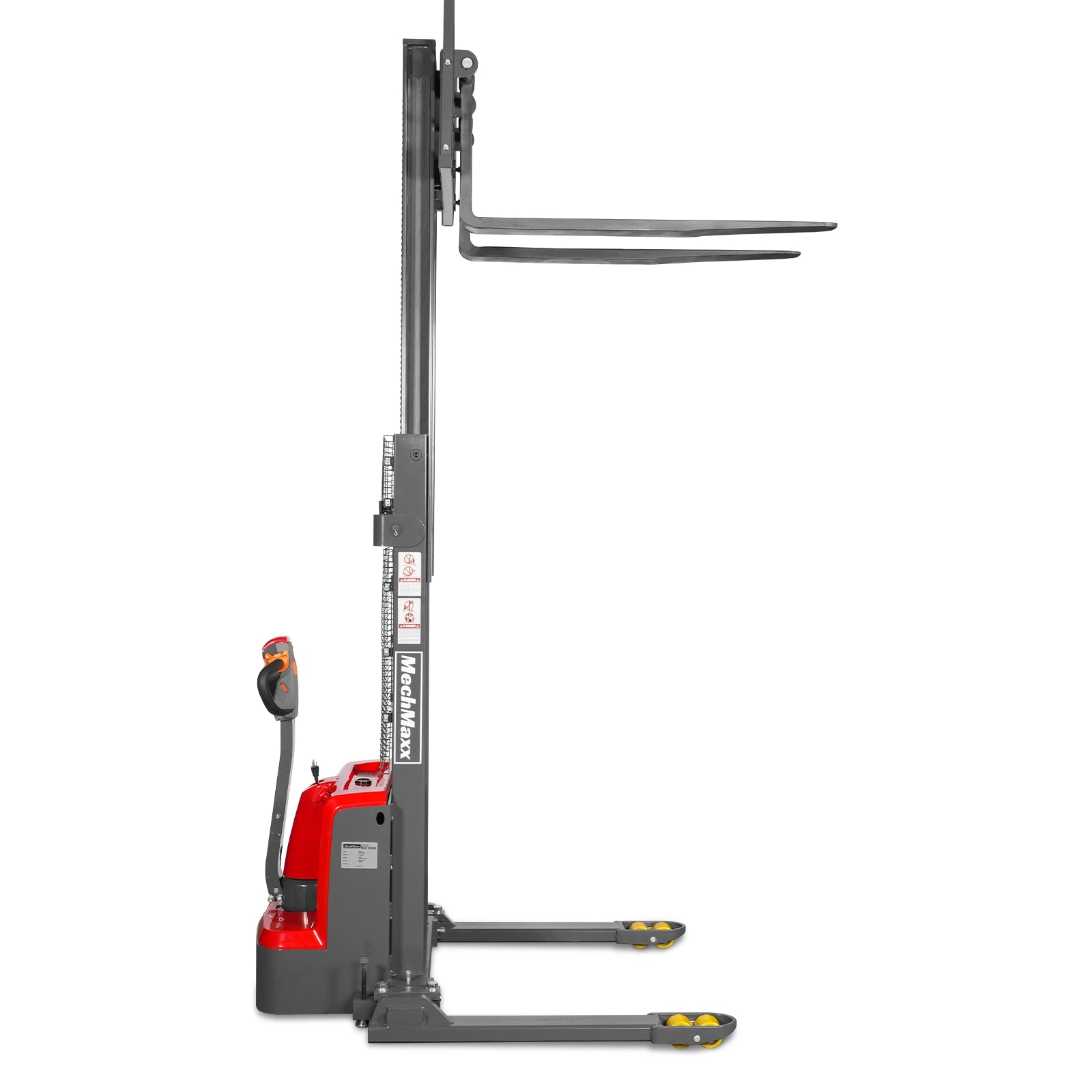

3300 lbs weight capacity, 98" lifting height.

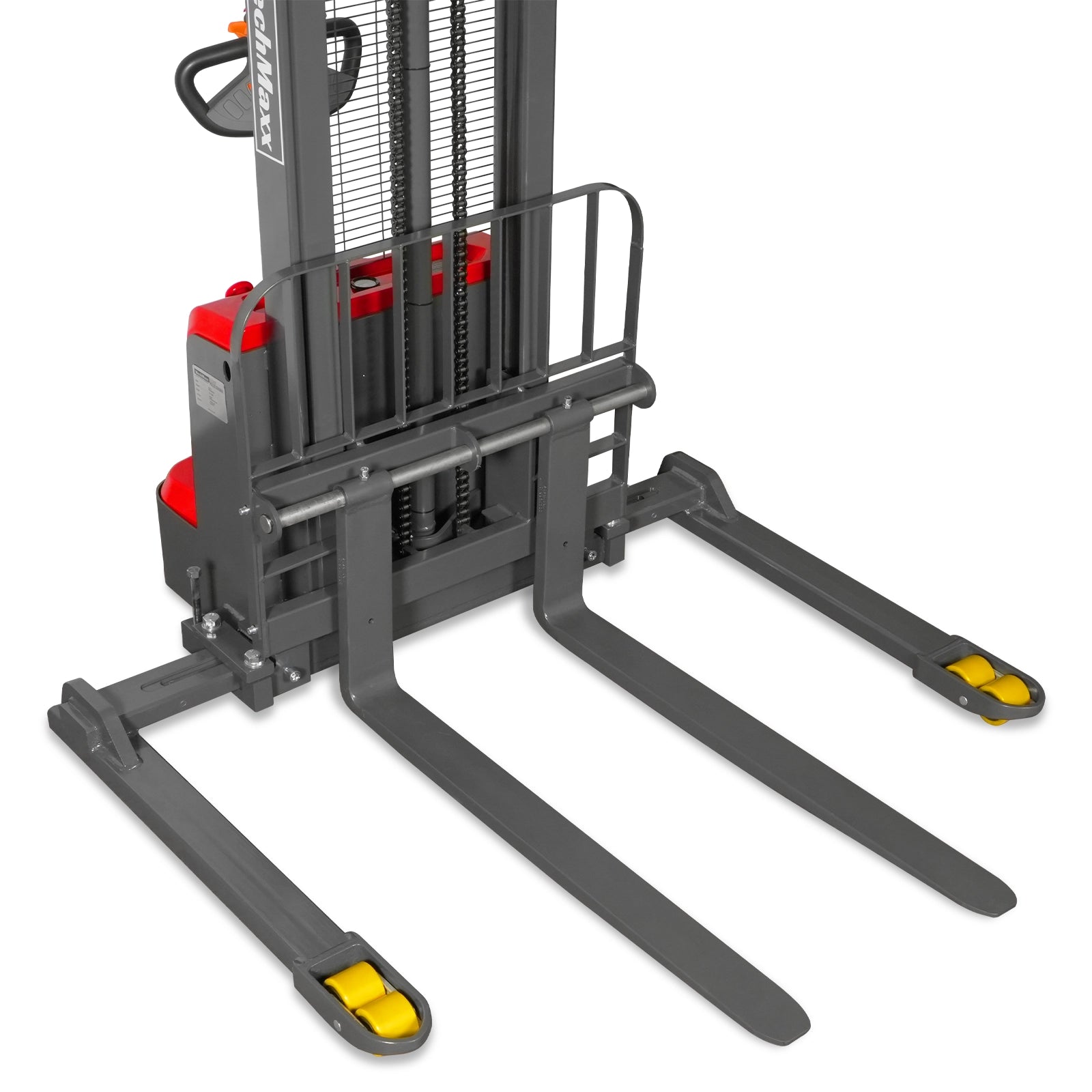

Forks adjust from 8.3" - 33.5".

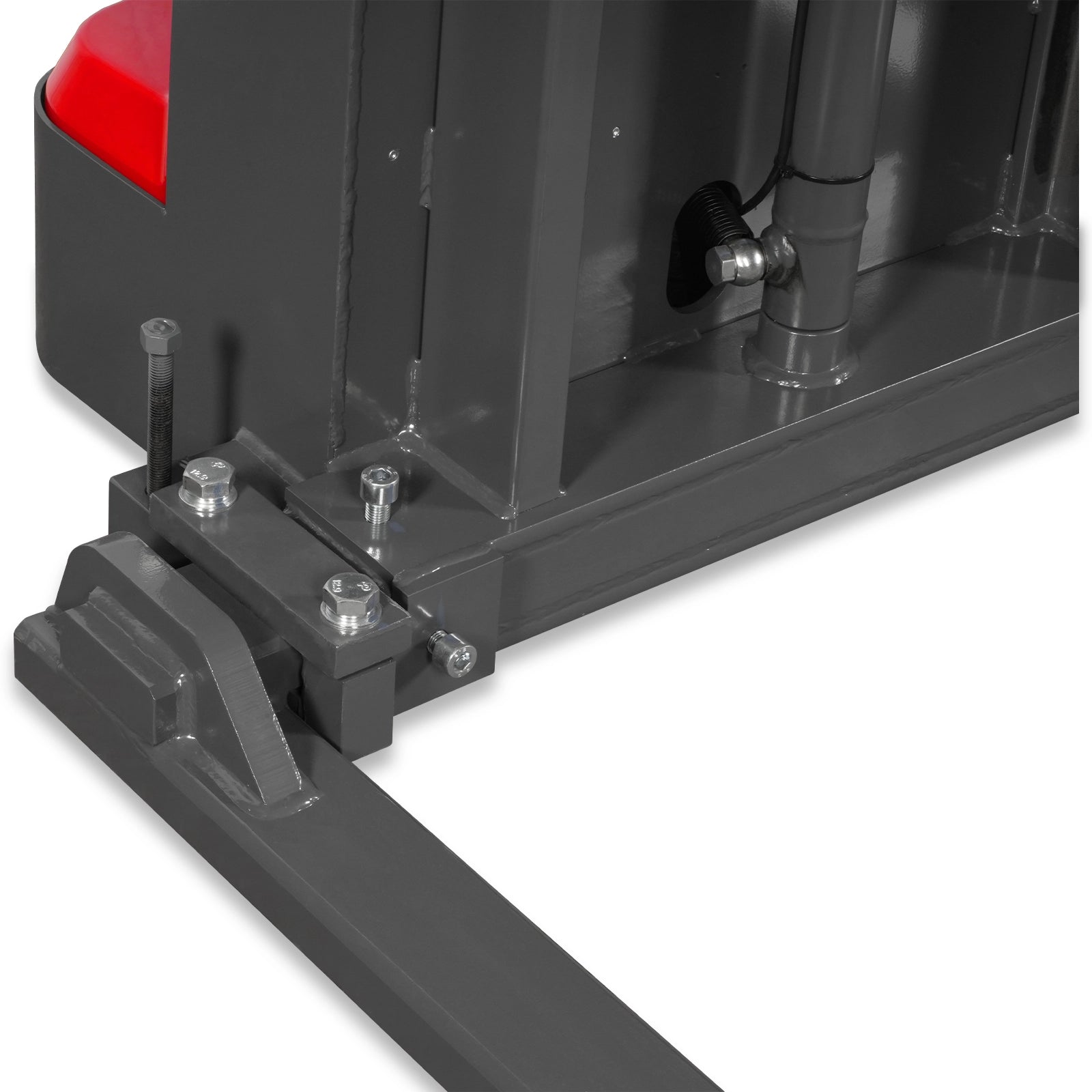

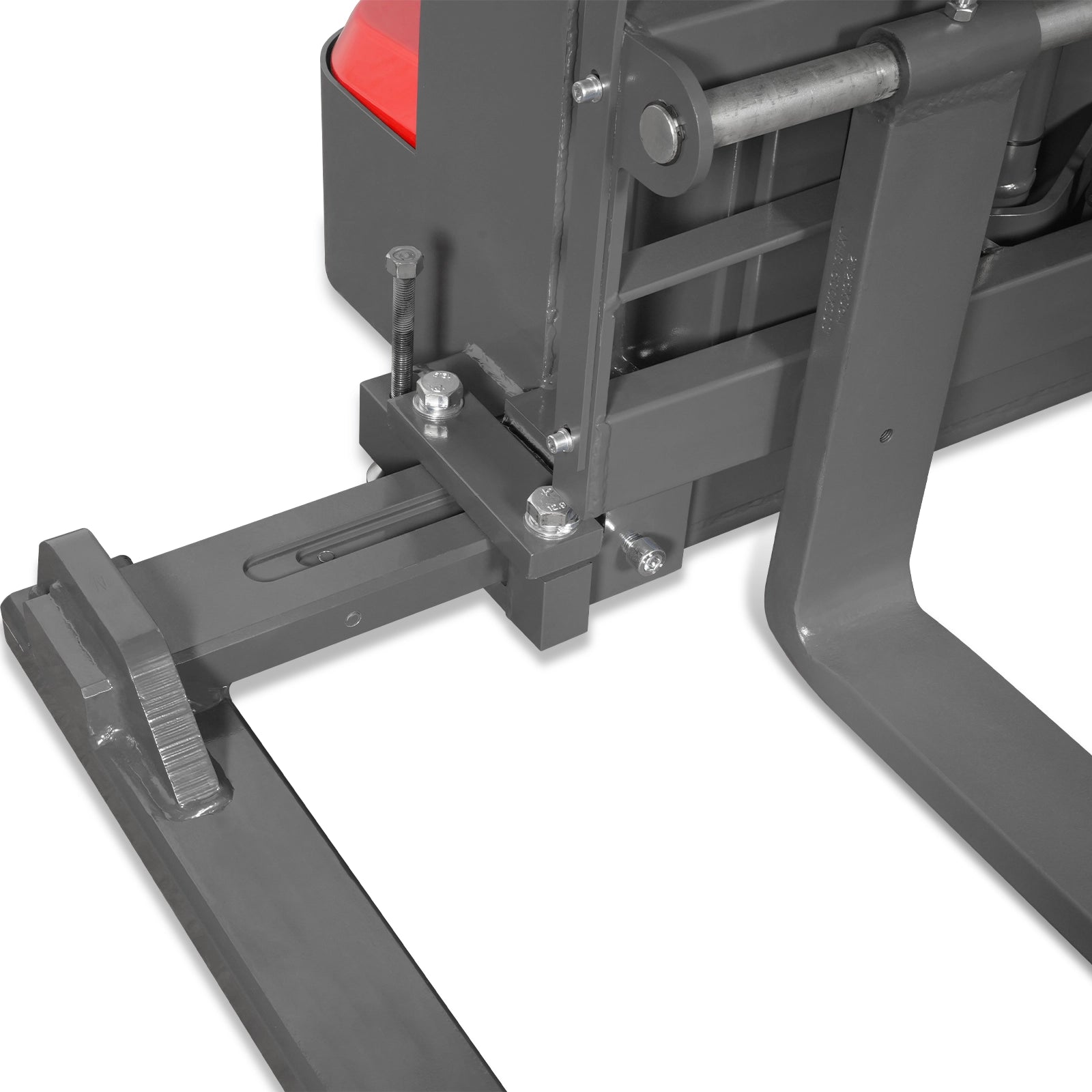

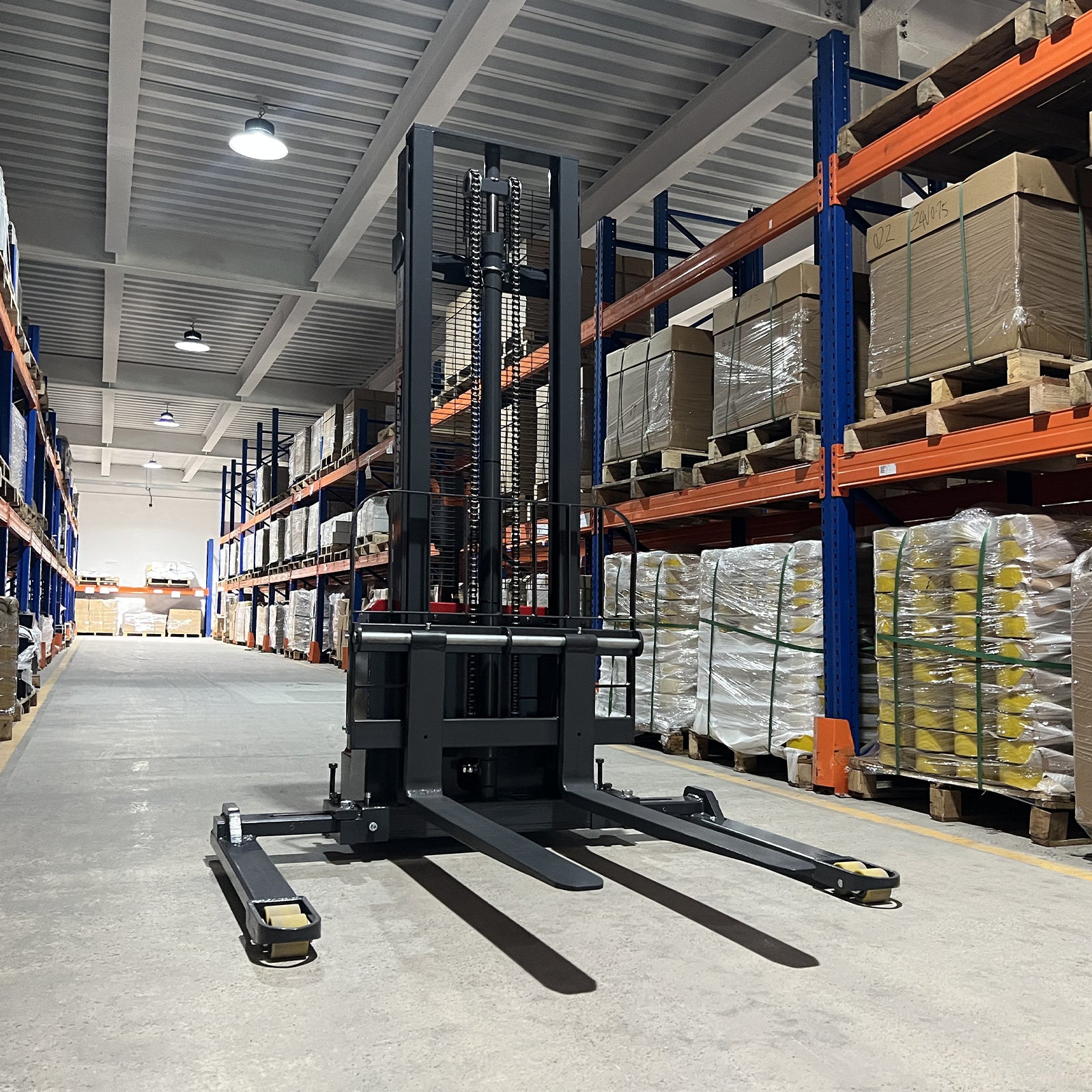

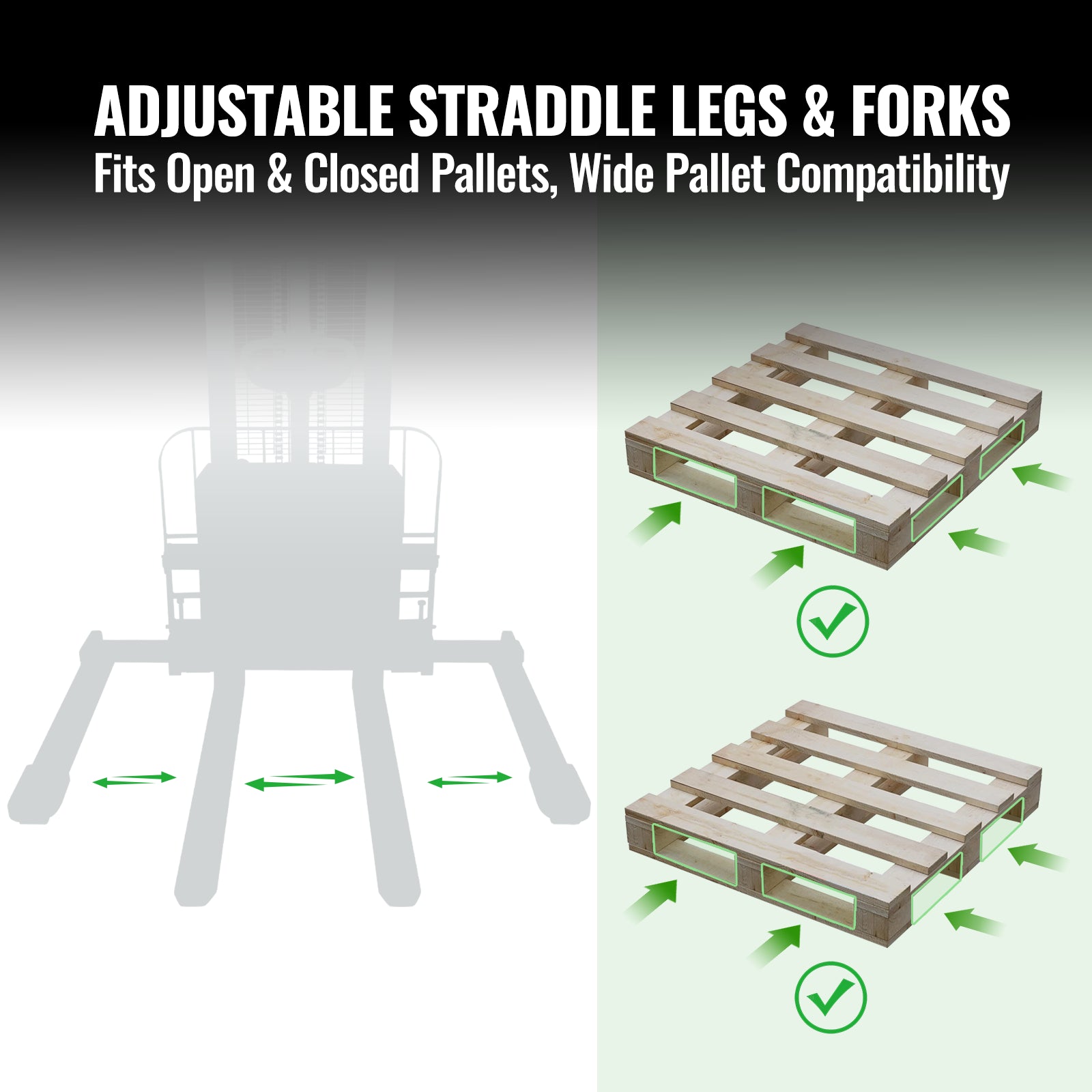

Straddle legs adjust from 45.2" - 61" for varying pallet sizes.
2.5 laden and 2.6 unladen mph travel speed.
53" turning radius perfect for use in narrow aisles.
Fully electric operation for forward and reverse travel as well as lifting work.

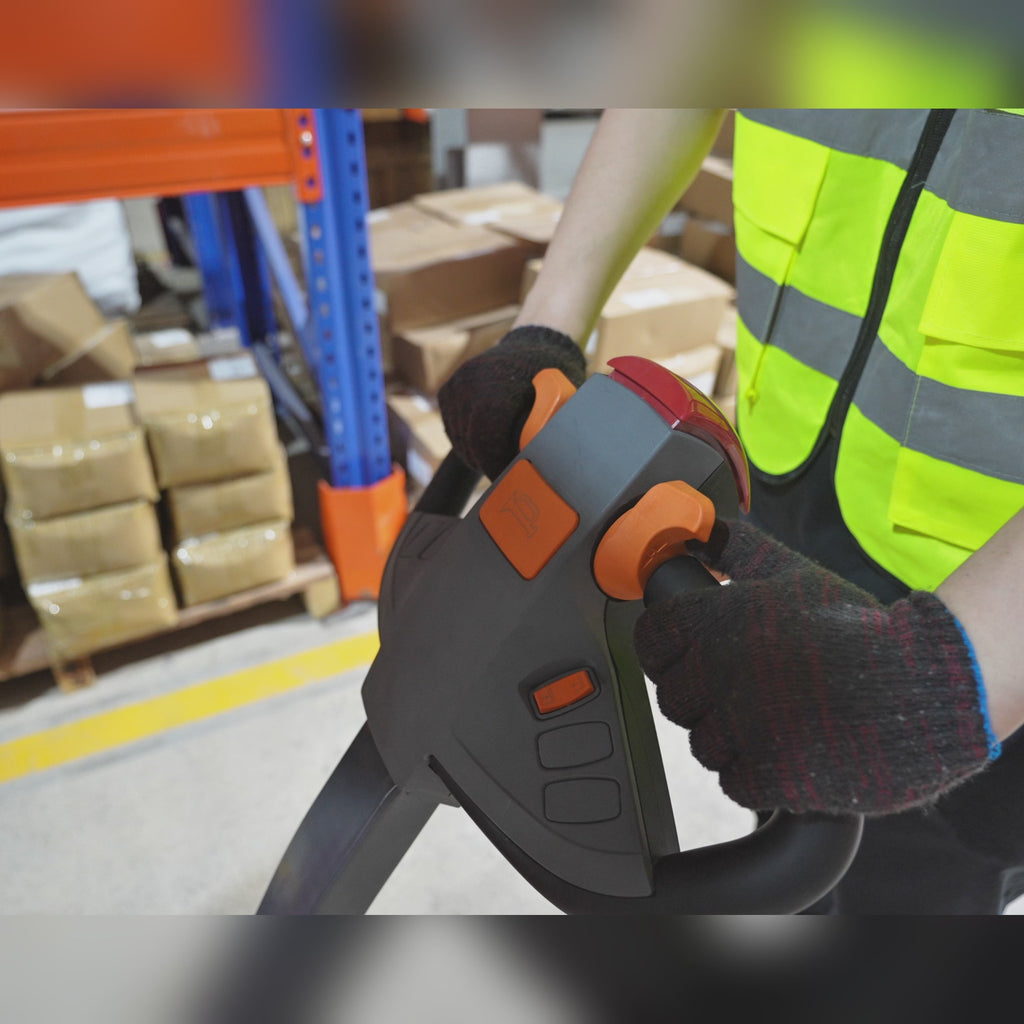

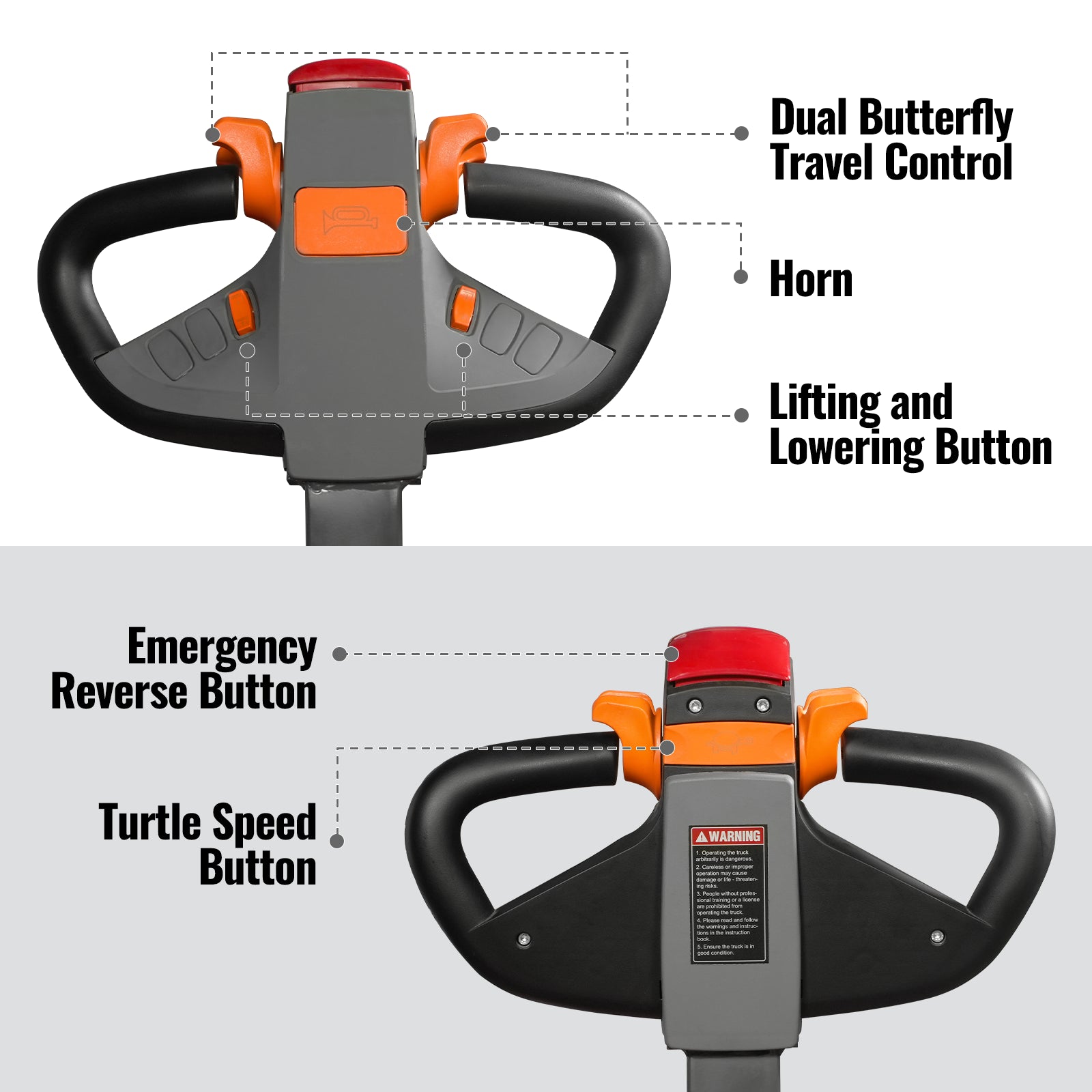

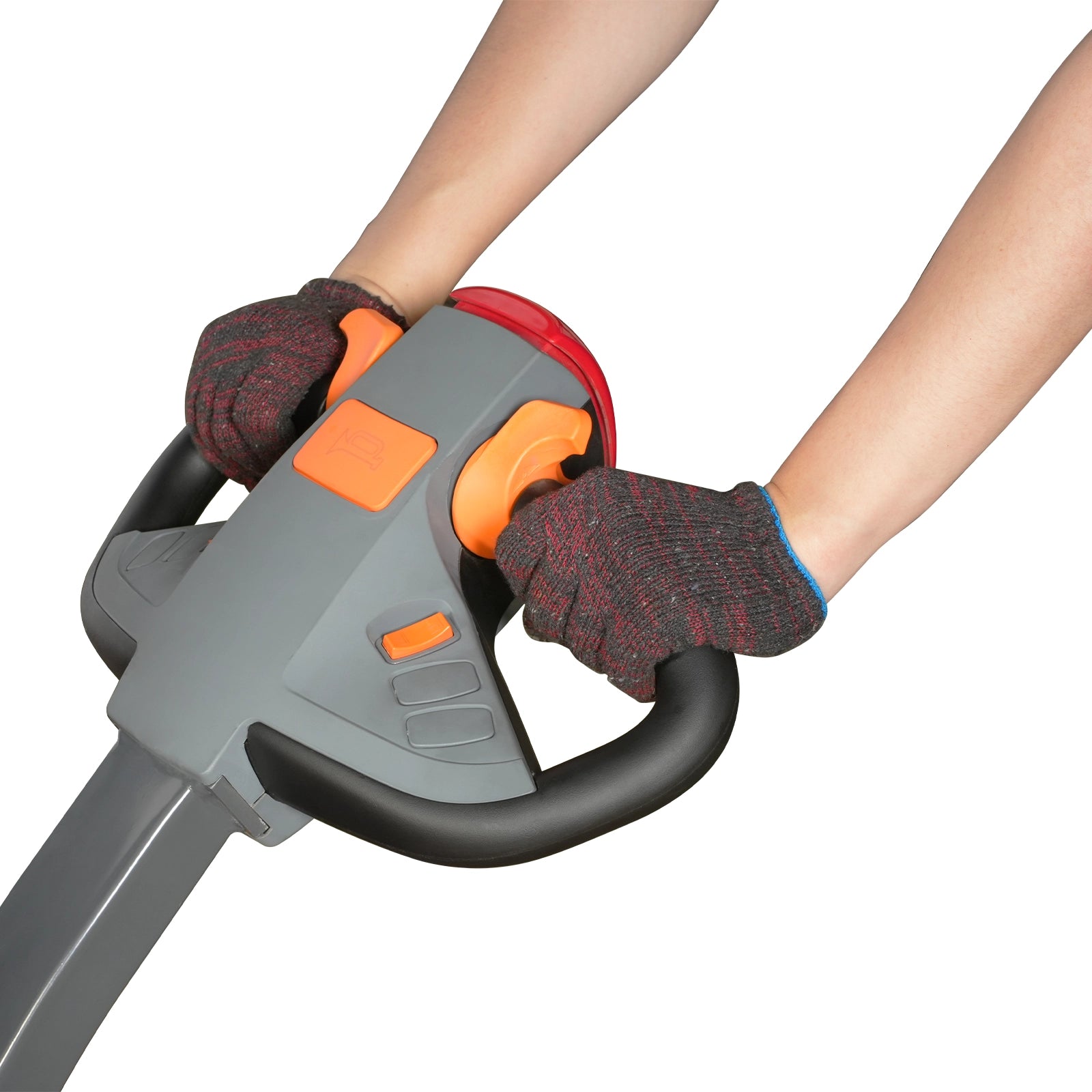

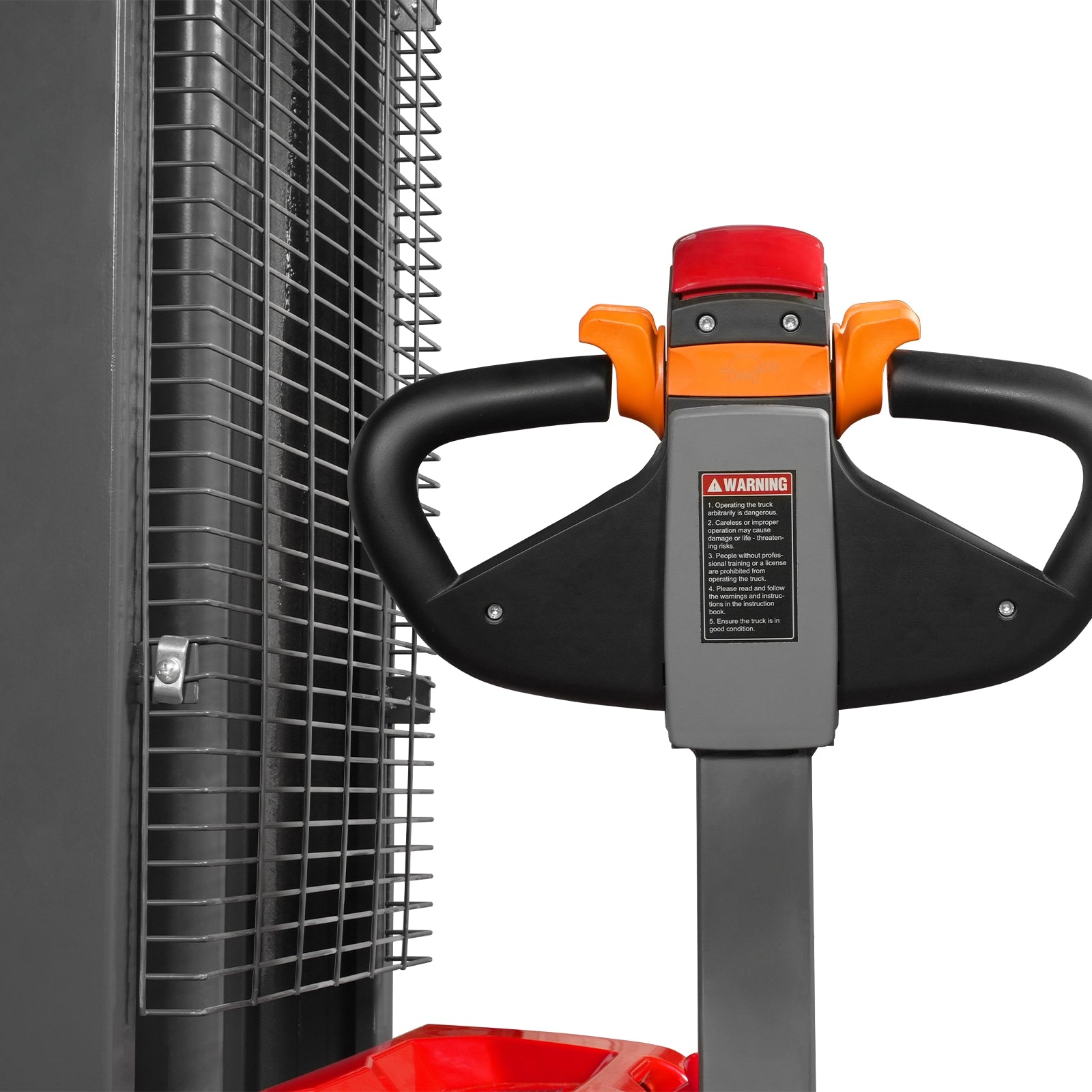

Ergonomic handle designed for operating with either hand.

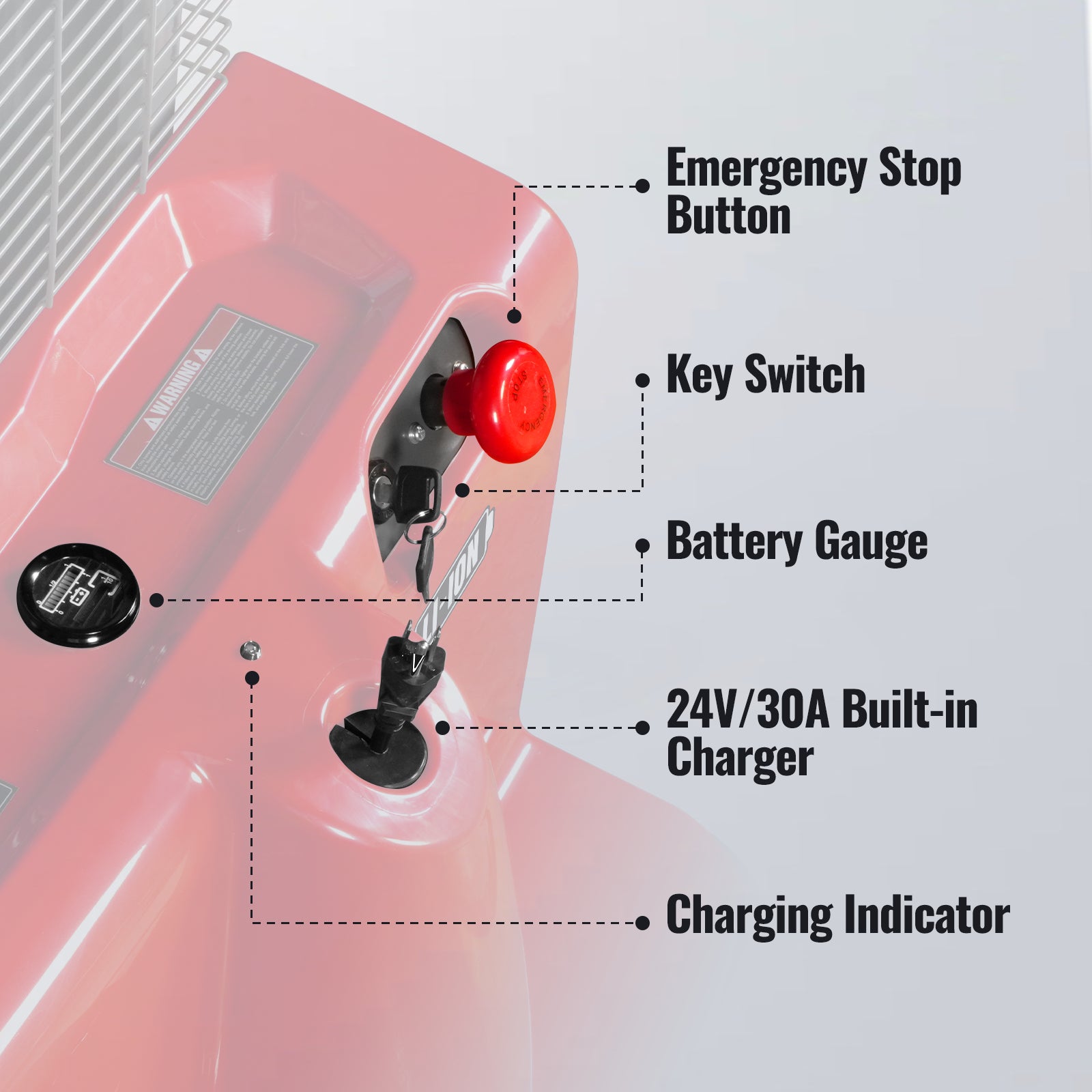

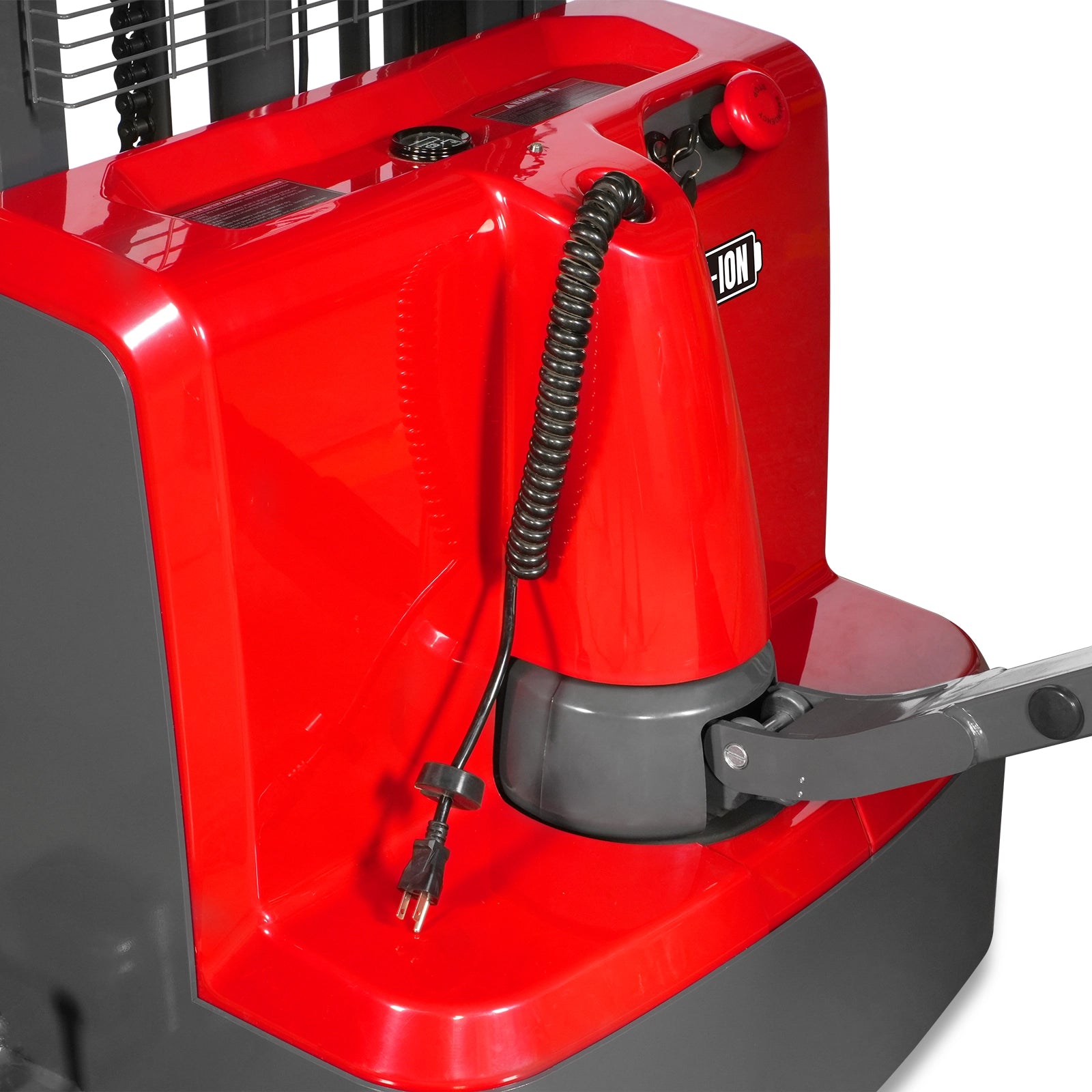

Built-in 10A battery charger adopted to provide convenient usage.
The Curtis controller provides accurate speed and torque control.

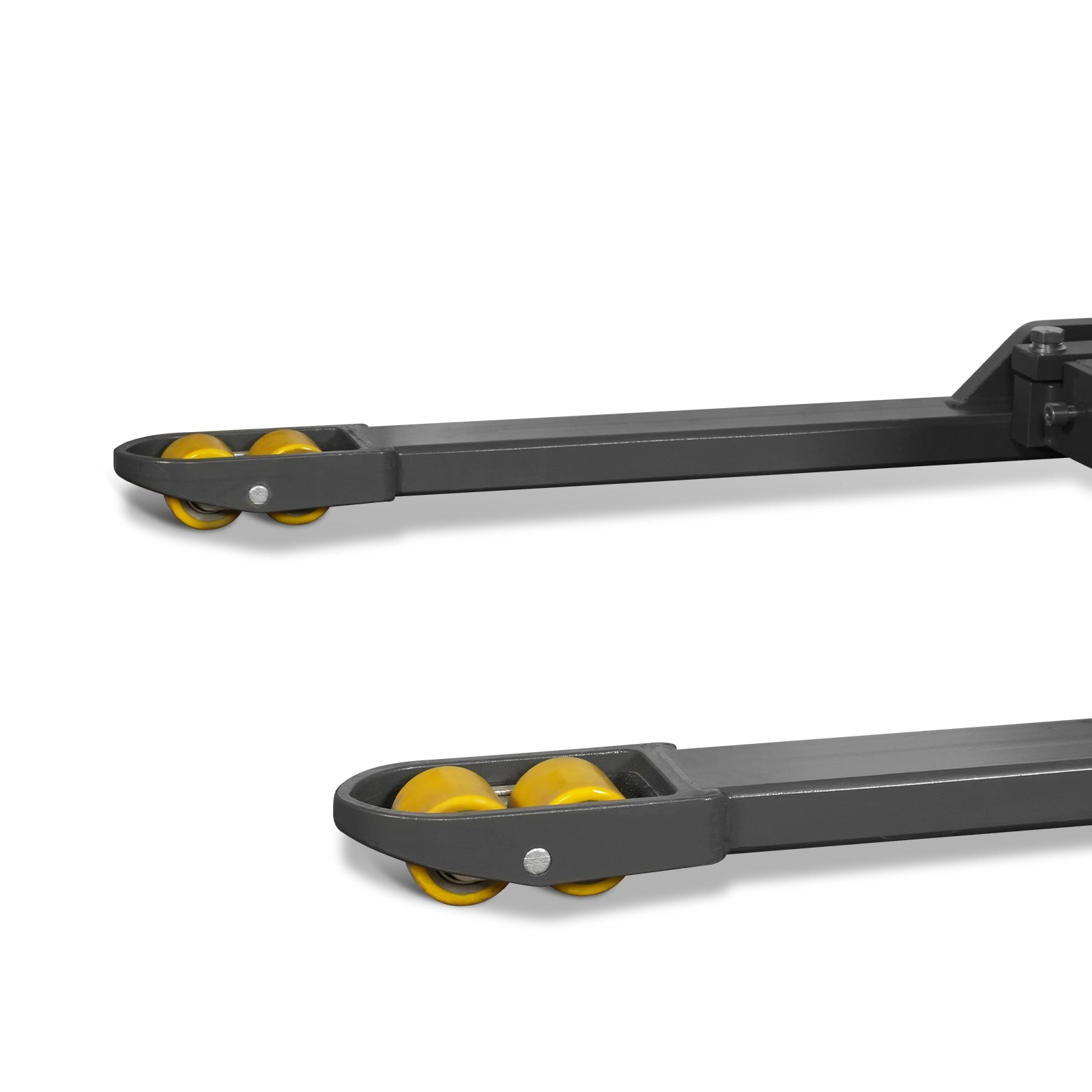

Equipped with polyurethane drive and load wheels, leave no scratches on the floor.
Electromagnetic brake and automatic safety release braking system fully considers the operator's driving safety.
Battery charging and maintenance: Fully charge battery in time after discharge. Over recharging and over discharging should be avoided. Charge the truck at least once a month even it's not in use. The battery should be stored in a cool and dry place, away from heat sources.

Note!
The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.

Product manual (PDF)

F33-98S Product manual 1.0.pdf

Parts manual (PDF)

F33-98S Parts manual 1.0.pdf

Load Capacity	3300 lbs
Controller Brand	Curtis
Tire Type	Polyurethane
Battery	24V/100Ah Maintenance-free Battery
Charger	24V/10A Internal Charger 110V

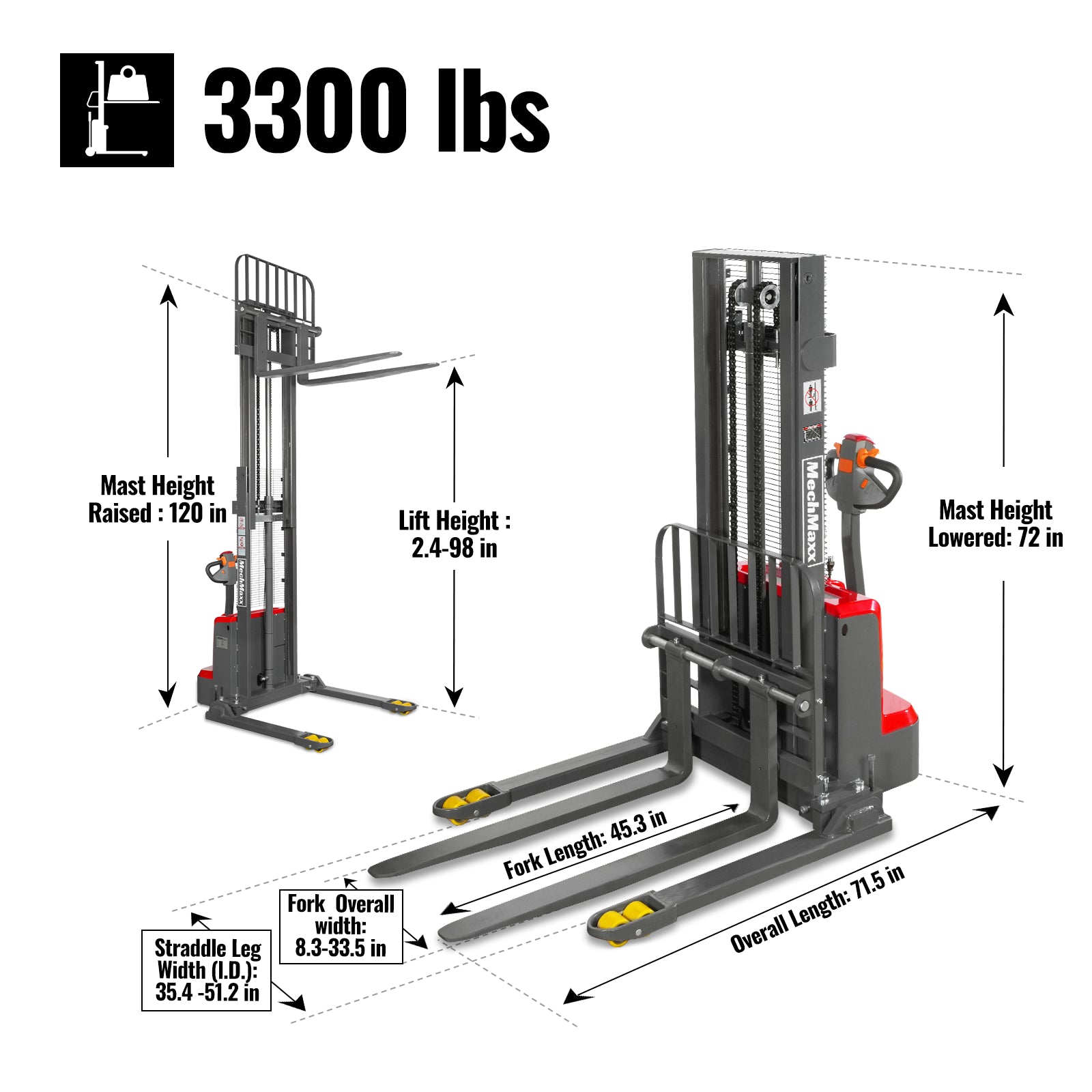

Load Center	23.6 in
Max Lift Height	98.4 in
Min Lift Height	2.6 in
Mast Height, Raised	120 in
Mast Height, Lowered	72 in
Fork Adjustment Width	8.3 - 33.5 in
Straddle Leg Adjustment Width	45.2 - 61 in
Overall Length	70 in
Fork Length	45.3 in
Fork Width	3.9 in
Turing Radius	53 in
Lifting Speed, laden/unladen	18.1/26.8 fpm
Lowering Speed, laden/unladen	22/19.3 fpm
Driving Speed (laden/unladen)	2.5/2.6 mph
Max Gradeability (laden/unladen)	3/8%
Packing	Plywood case
Packing Size (LxWxH)	41 x 39 x 80 in
Weight (N.W/G.W.)	1397/1500 lbs
