Load Capacity |
3300 lbs |
Tire Type |
Polyurethane |
Battery |
12V/120Ah Maintenance-free Battery |

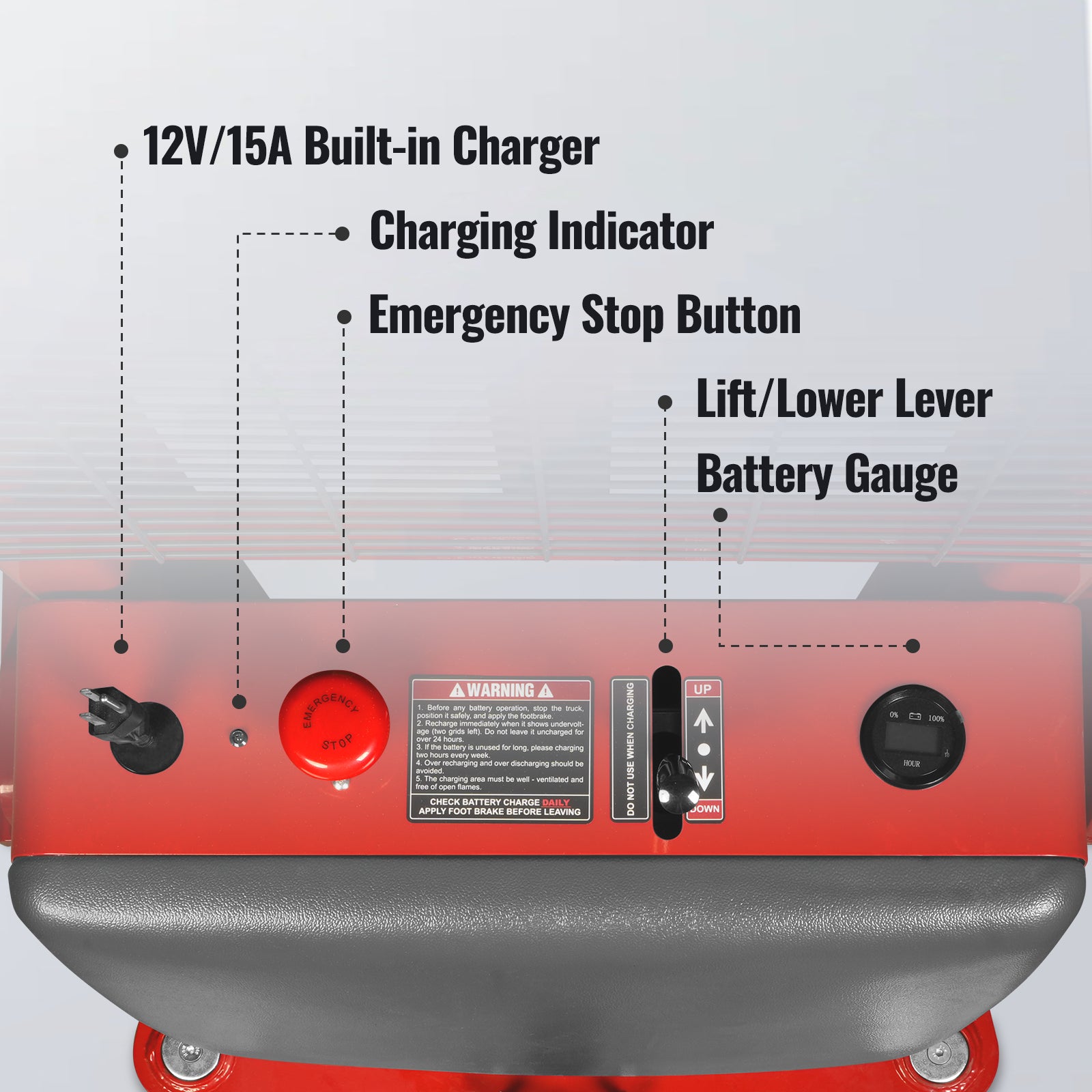

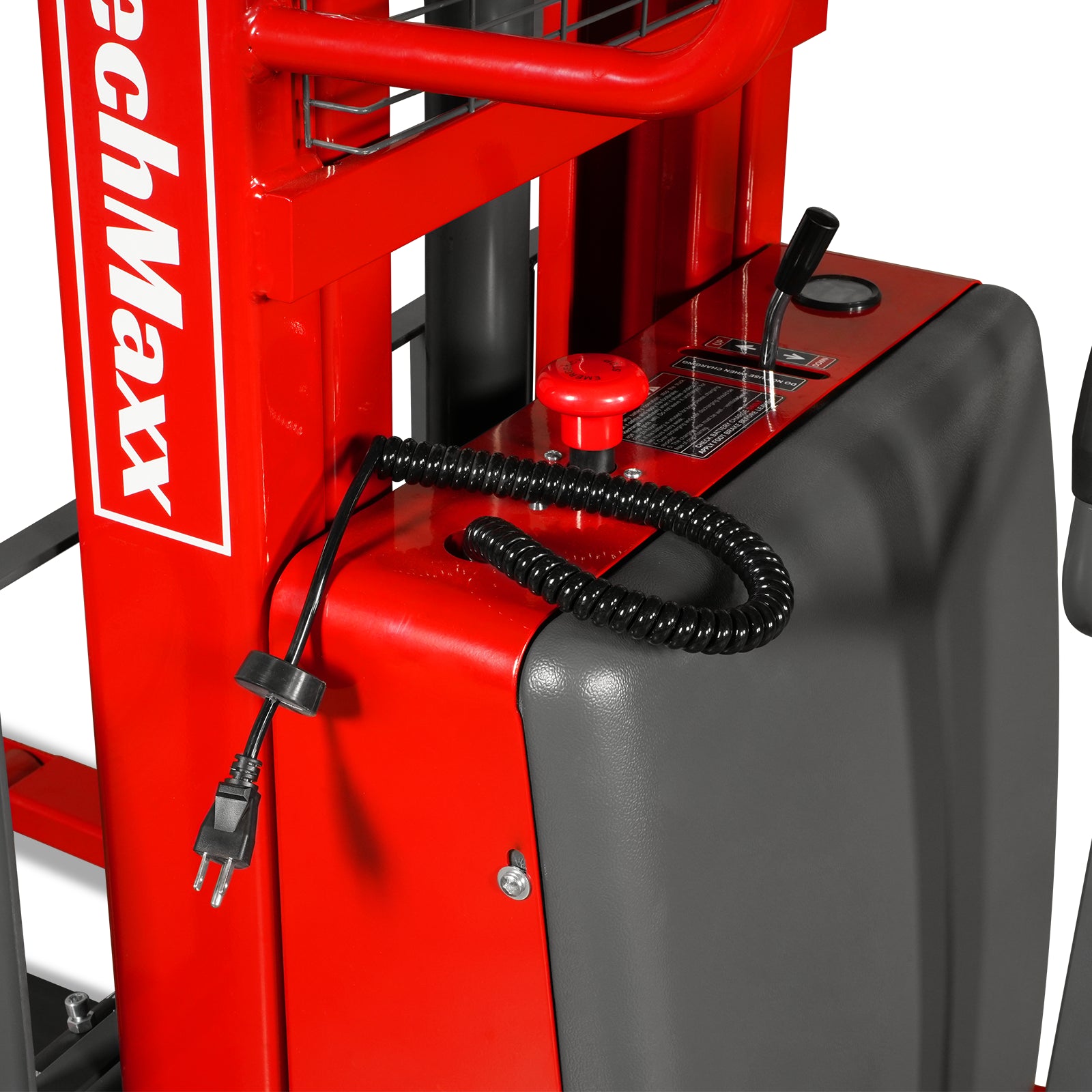

Charger |
12V/15A Internal Charger 110V |

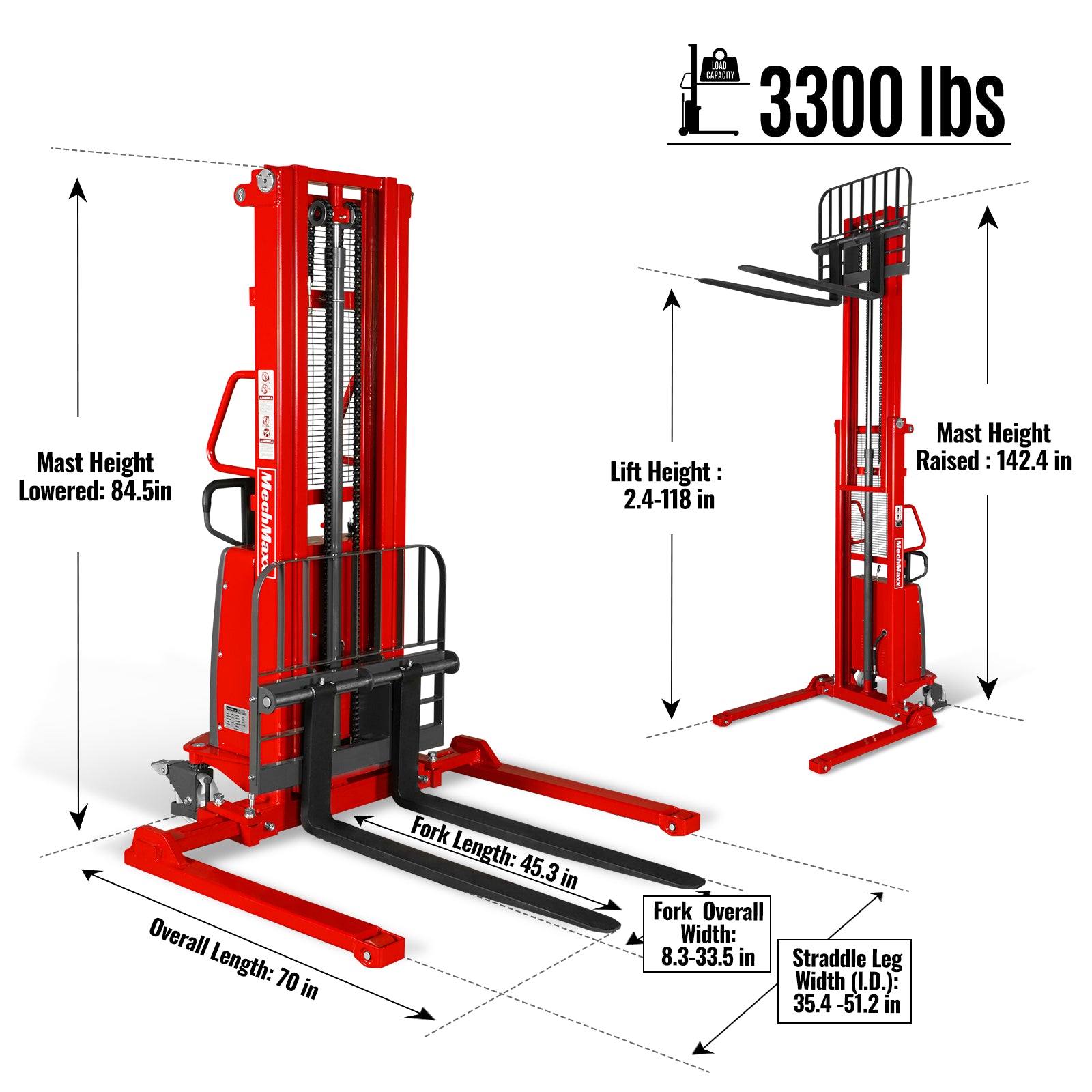

Load Center |
23.6 in |
Max Lift Height |
118 in |
Min Lift Height |
2.4 in |
Mast Height, Raised |
142.4 in |
Mast Height, Lowered |
84.5 in |

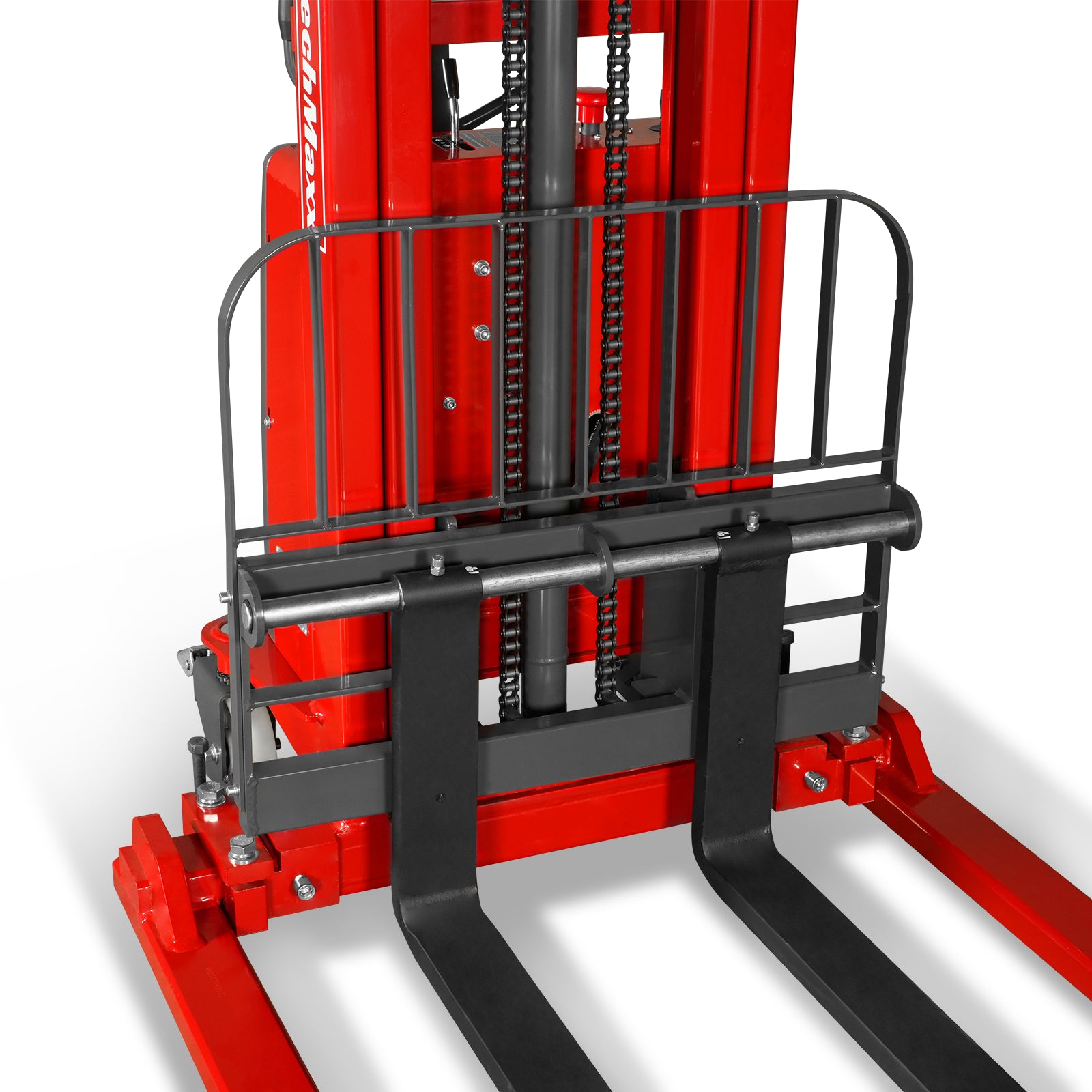

Fork Adjustment Width |
8.6 - 33.5 in |

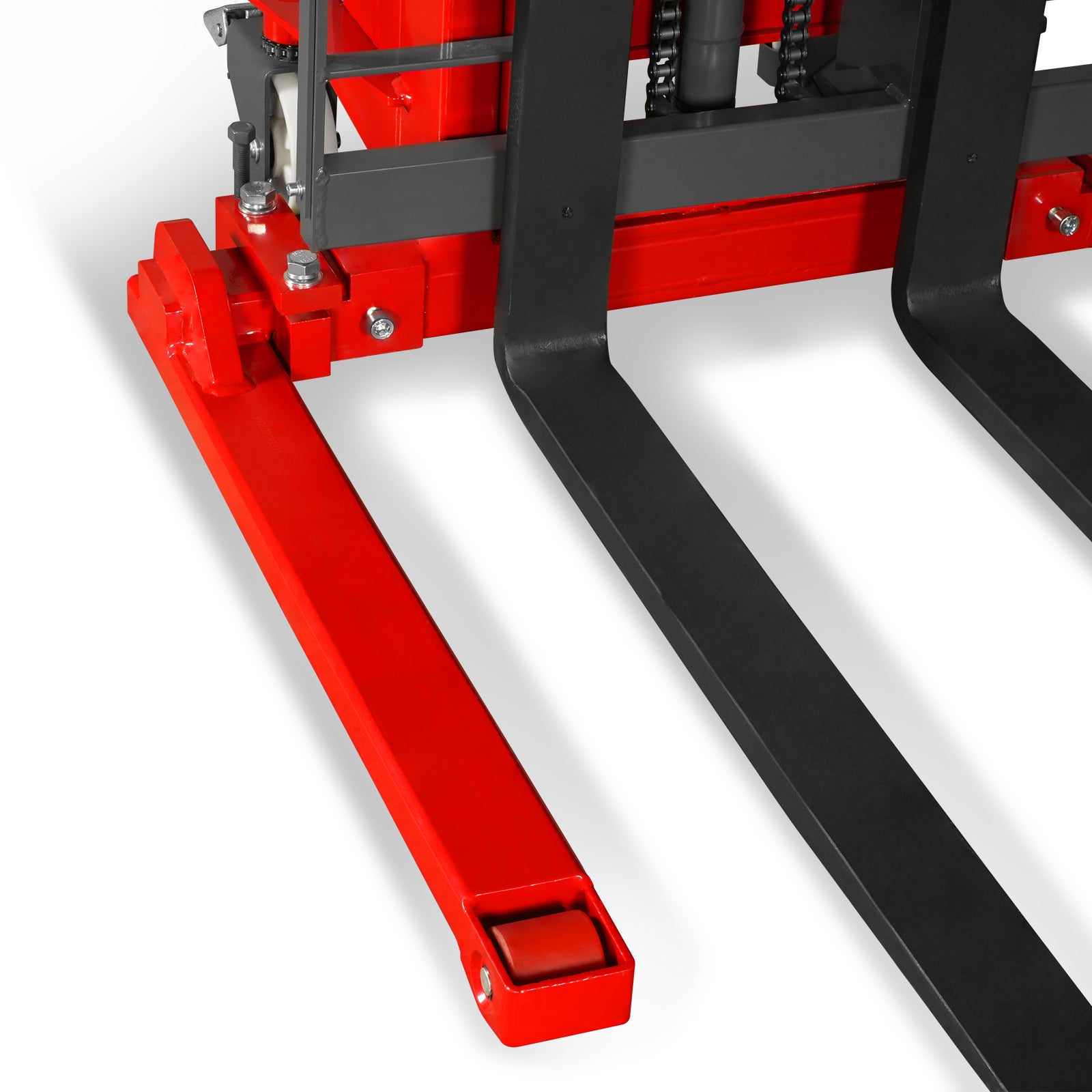

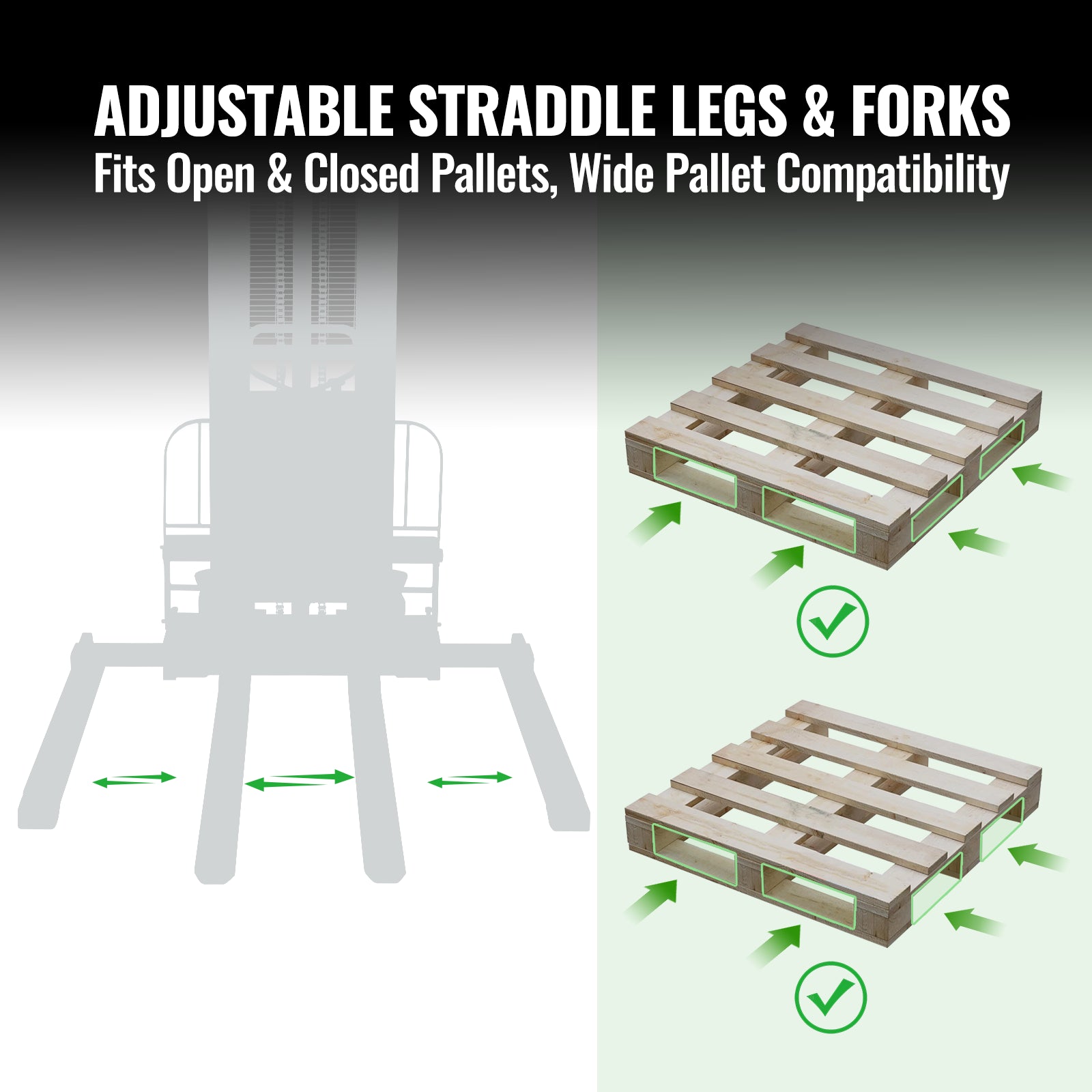

Straddle Leg Adjustment Width |
43.3 - 59 in |
Overall Length |
70 in |
Fork Length |
45.3 in |
Fork Width |
3.9 in |
Turing Radius |
53.2 in |
Lifting Speed, laden/unladen |
15/28.2 fpm |
Lowering Speed, laden/unladen |
21.3/19.1 fpm |
Packing |
Plywood case |
Packing Size (LxWxH) |
39 x 37 x 93 in |
Weight (N.W/G.W.) |
1212/1500 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
