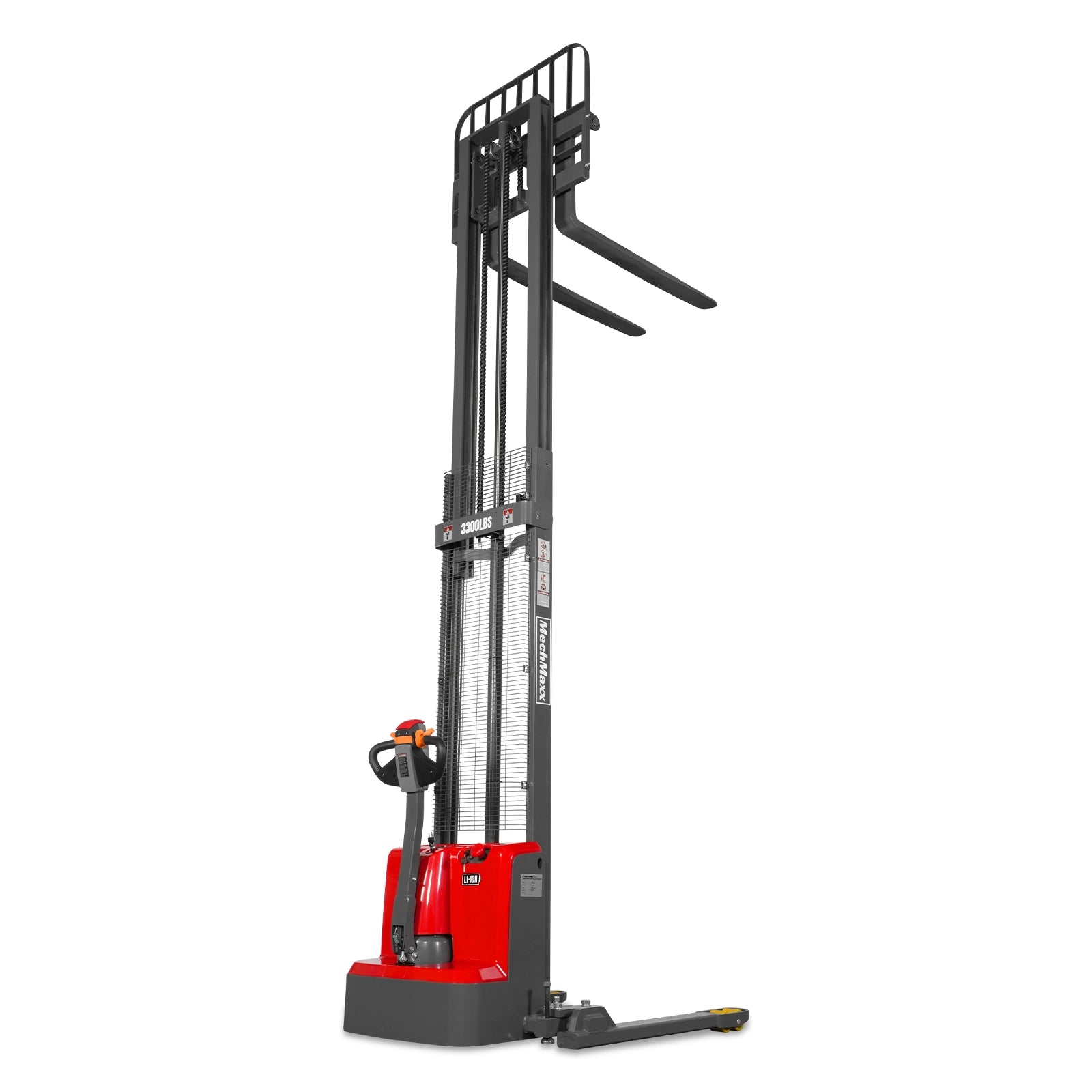

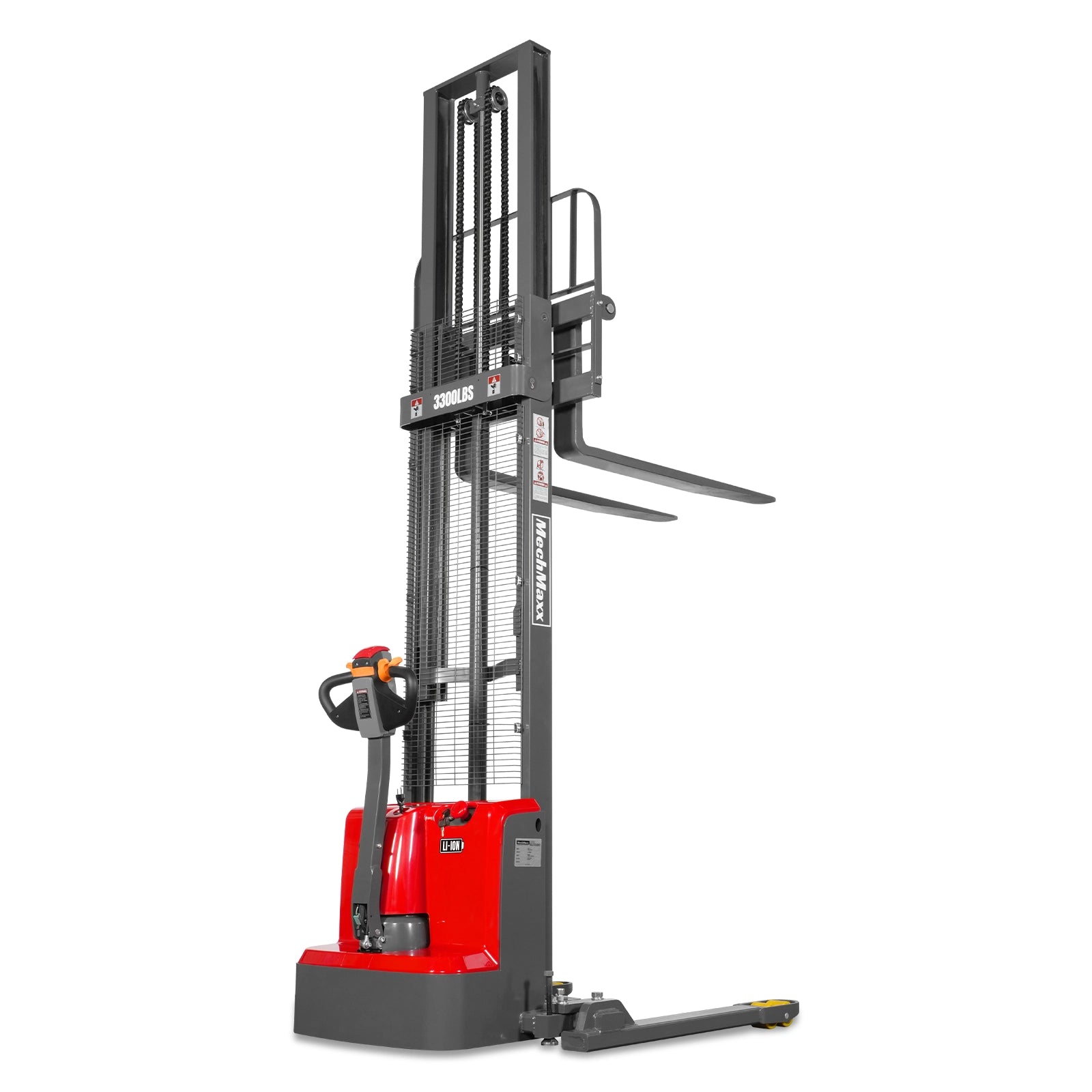

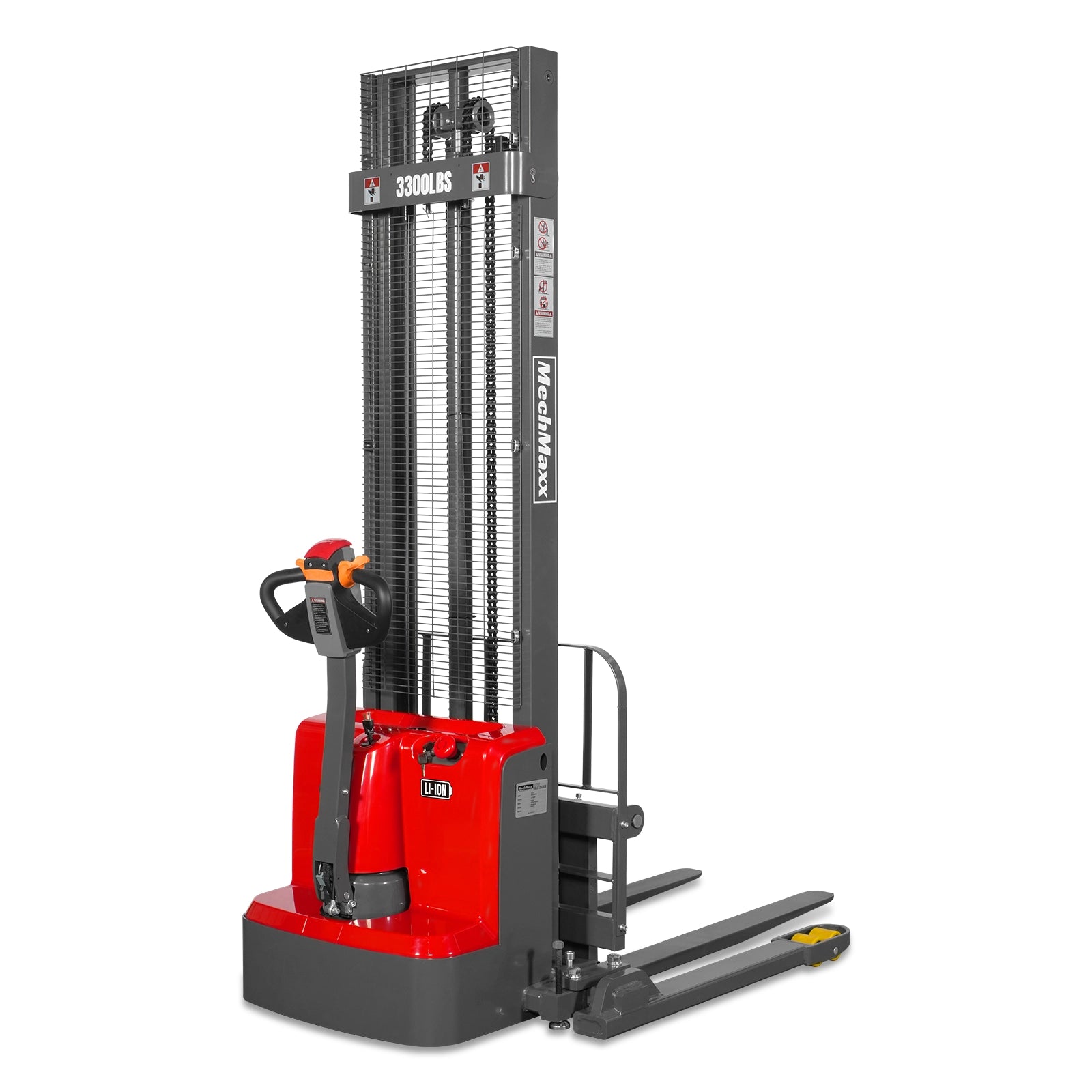

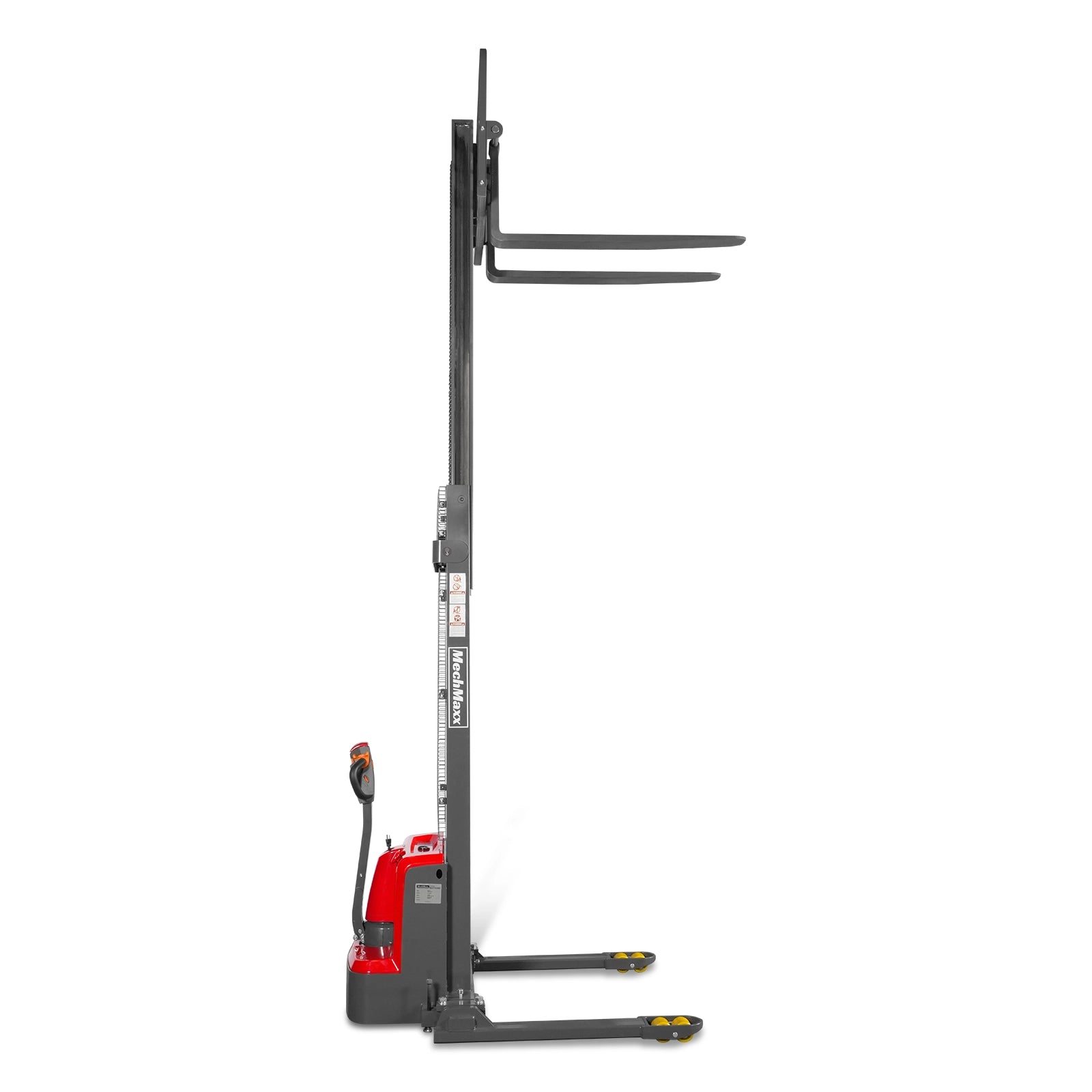

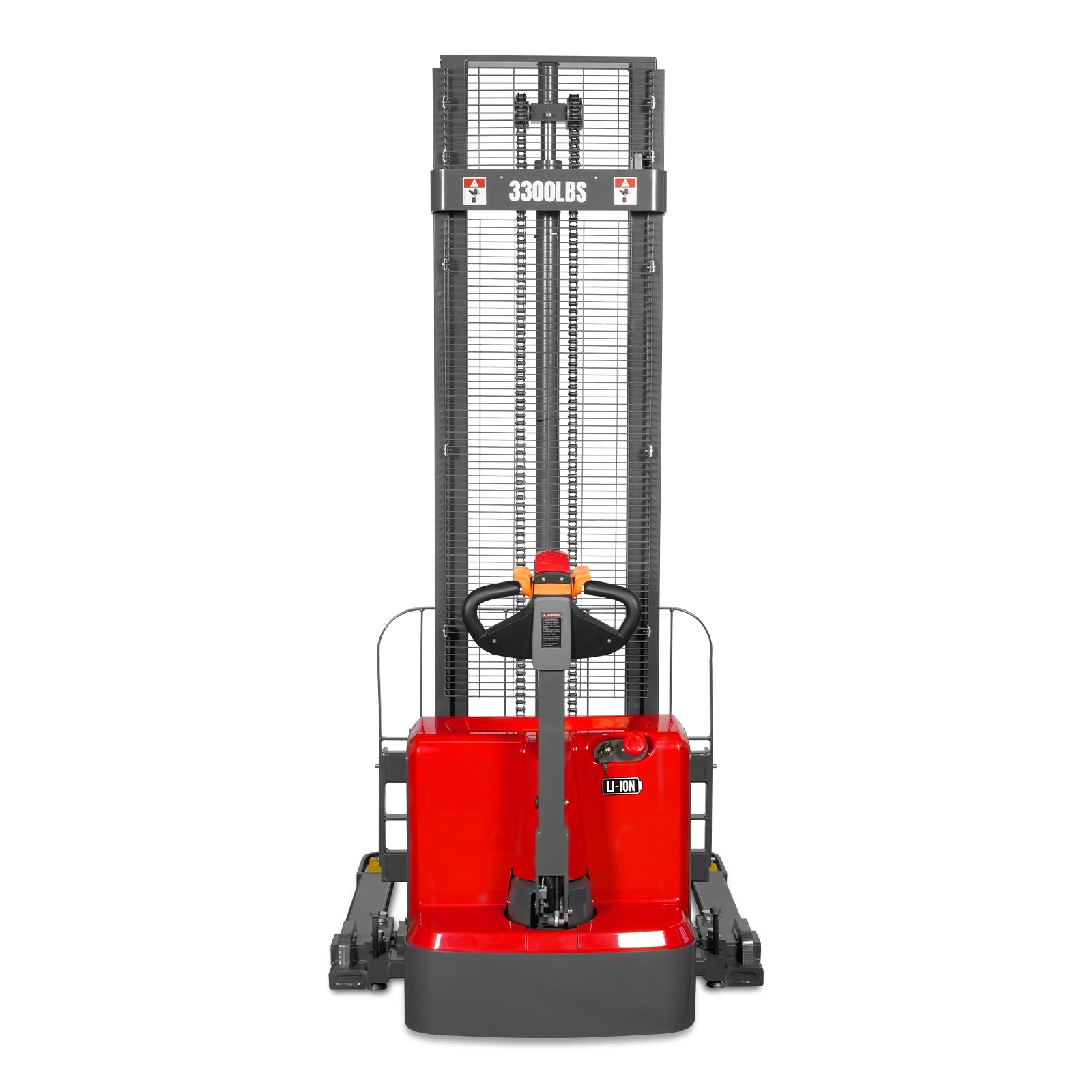

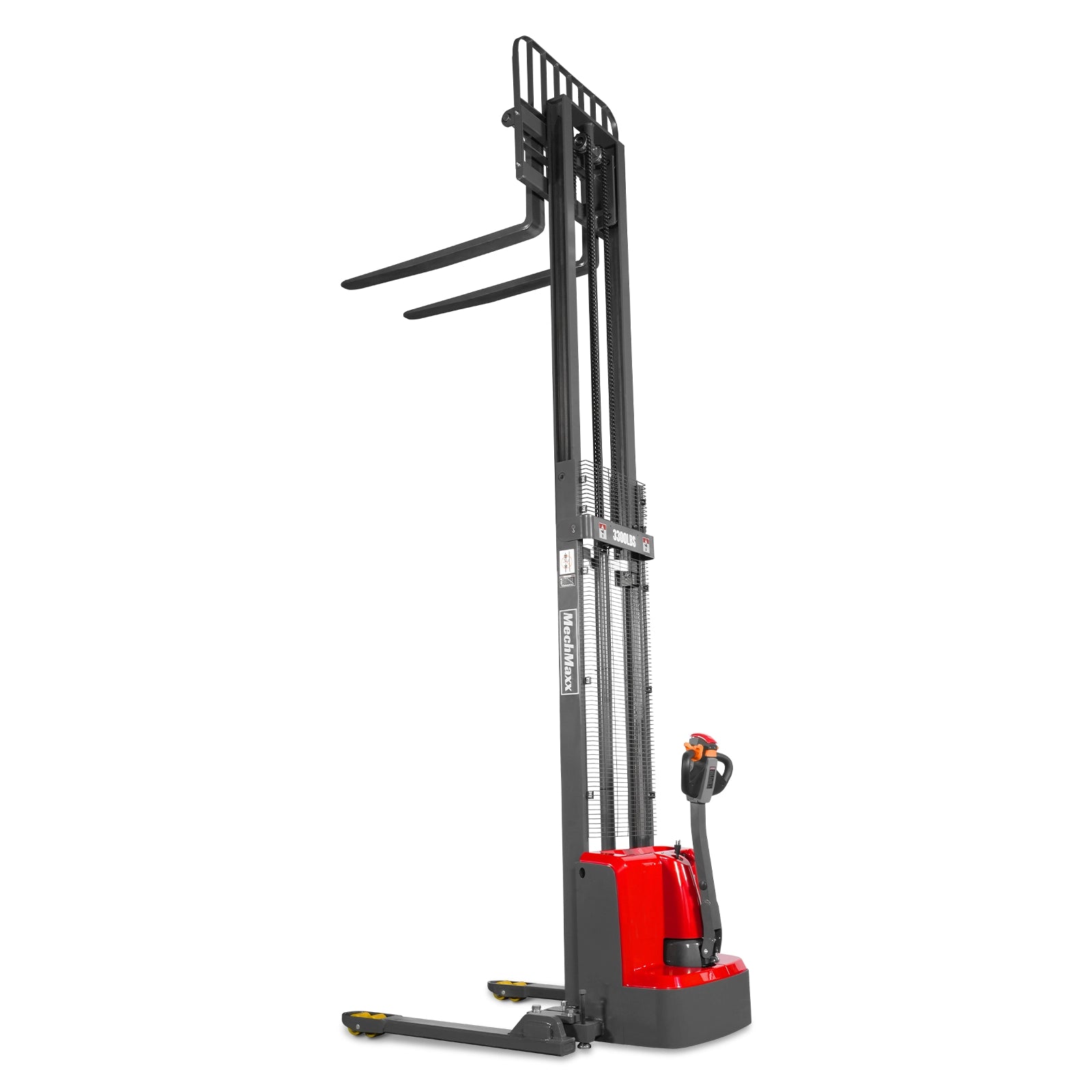

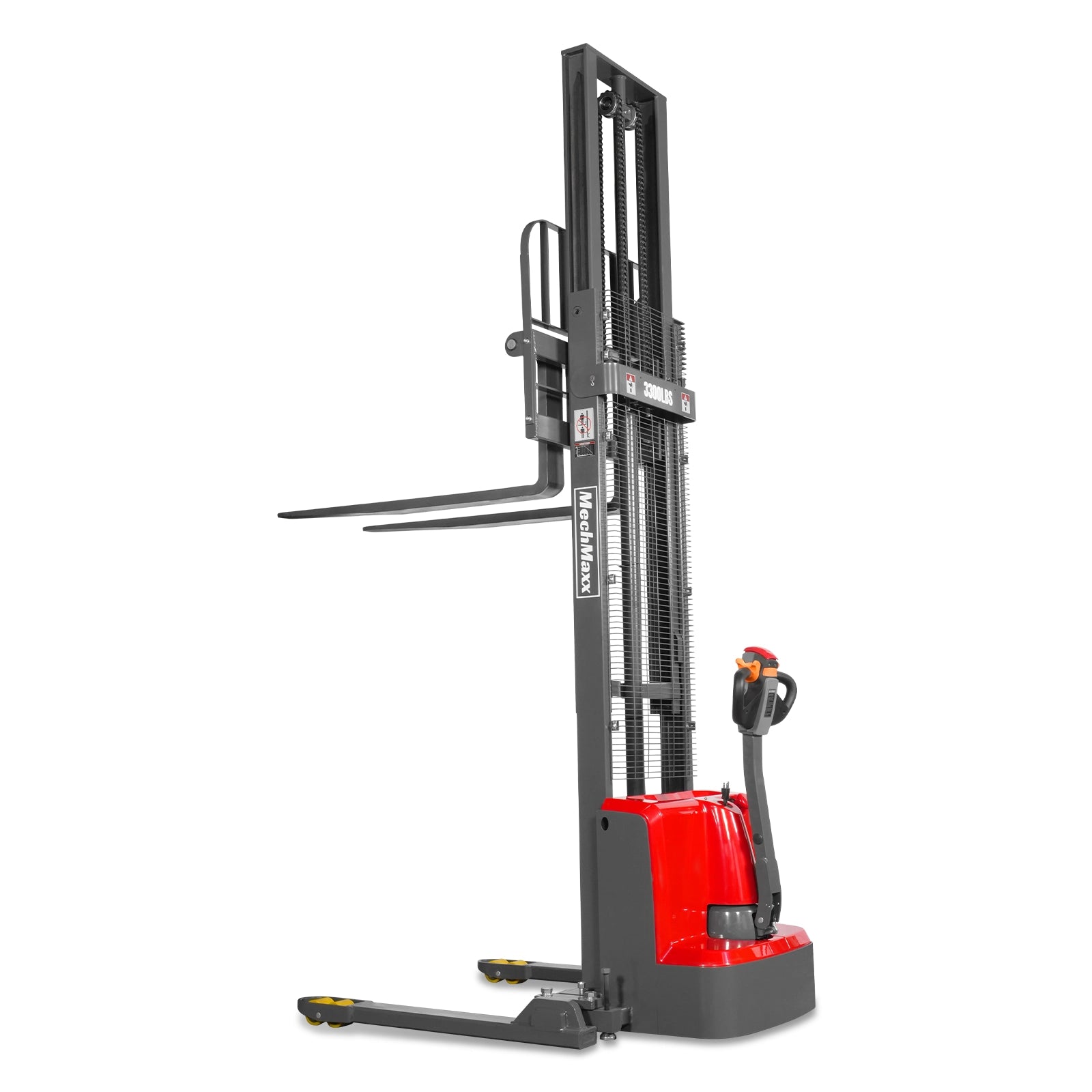

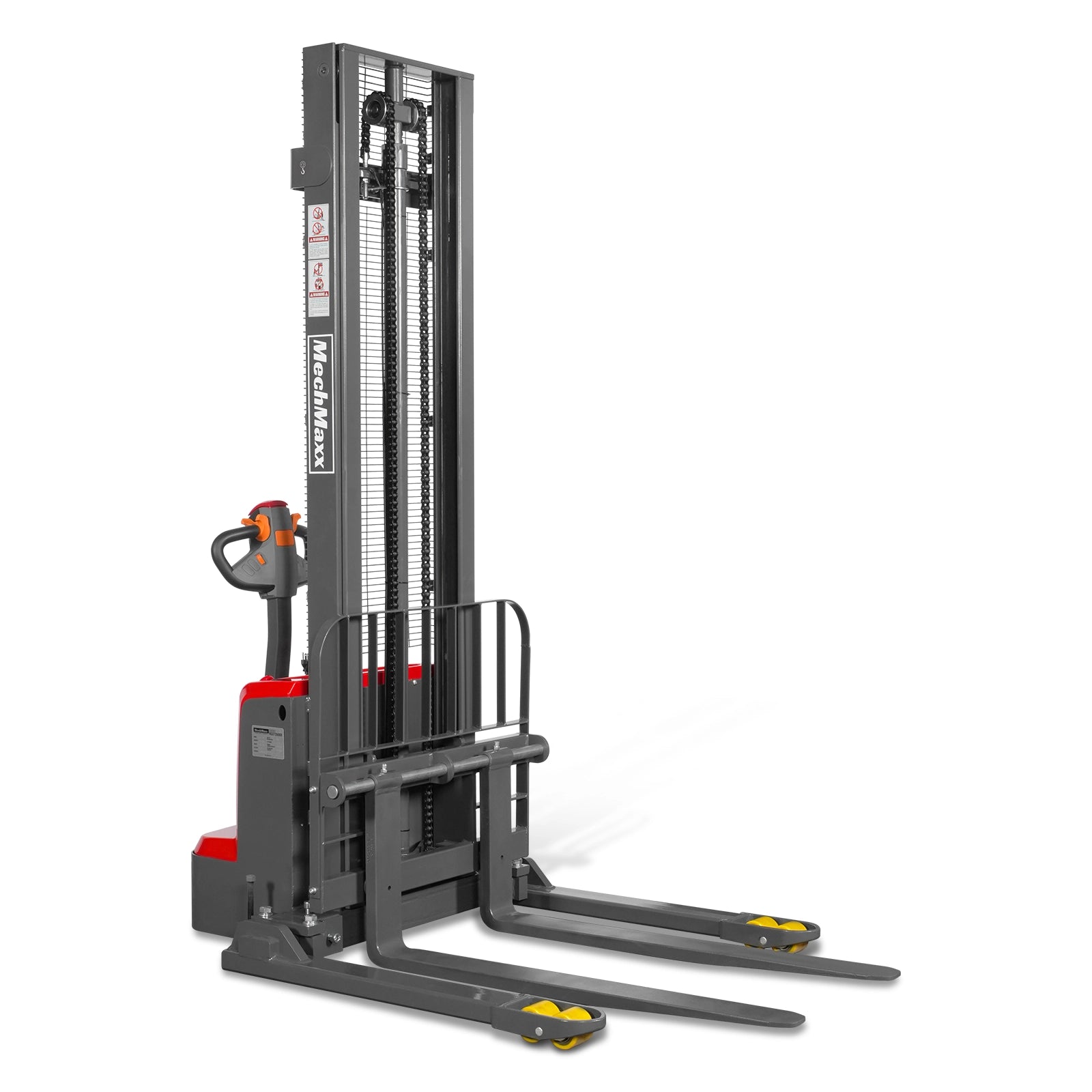

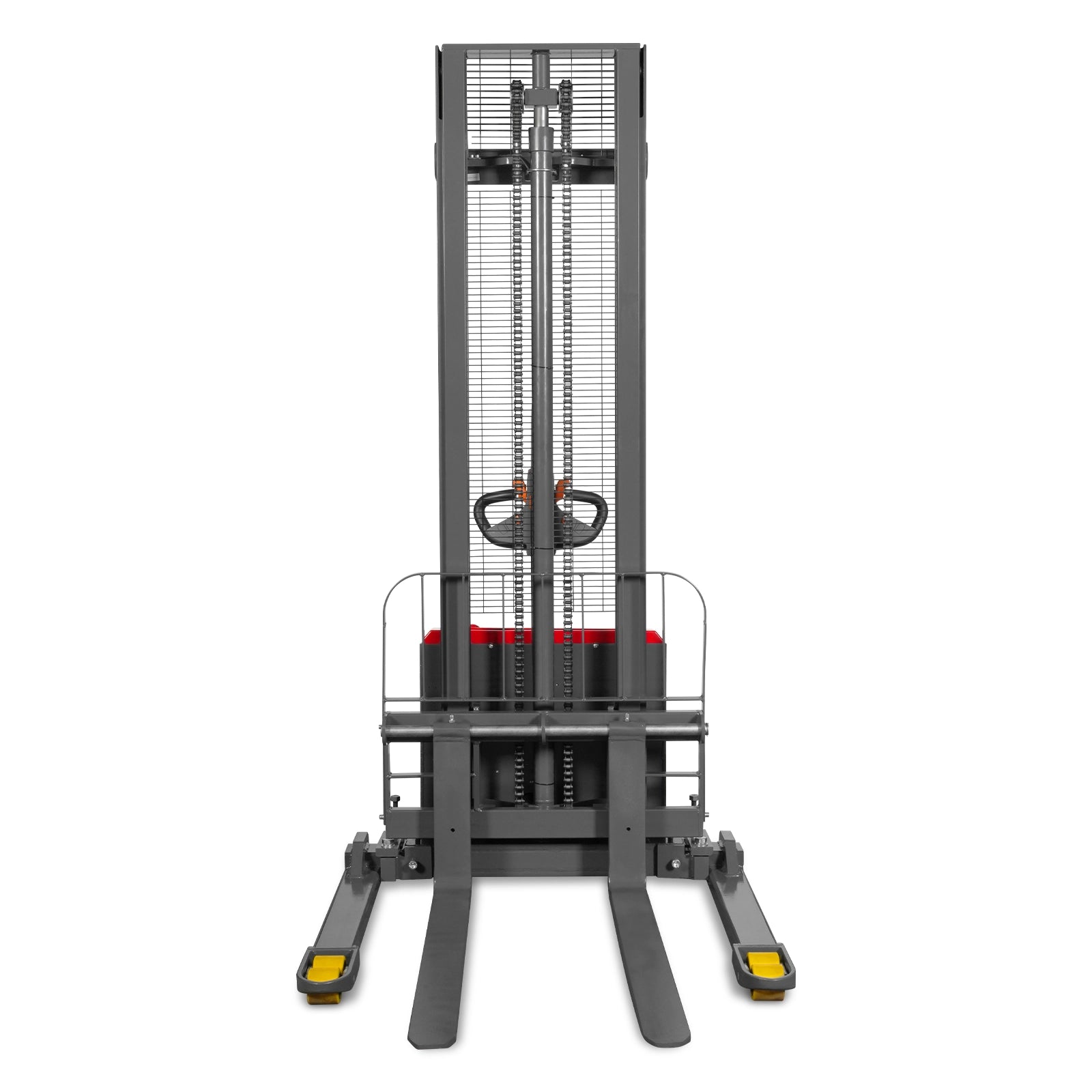

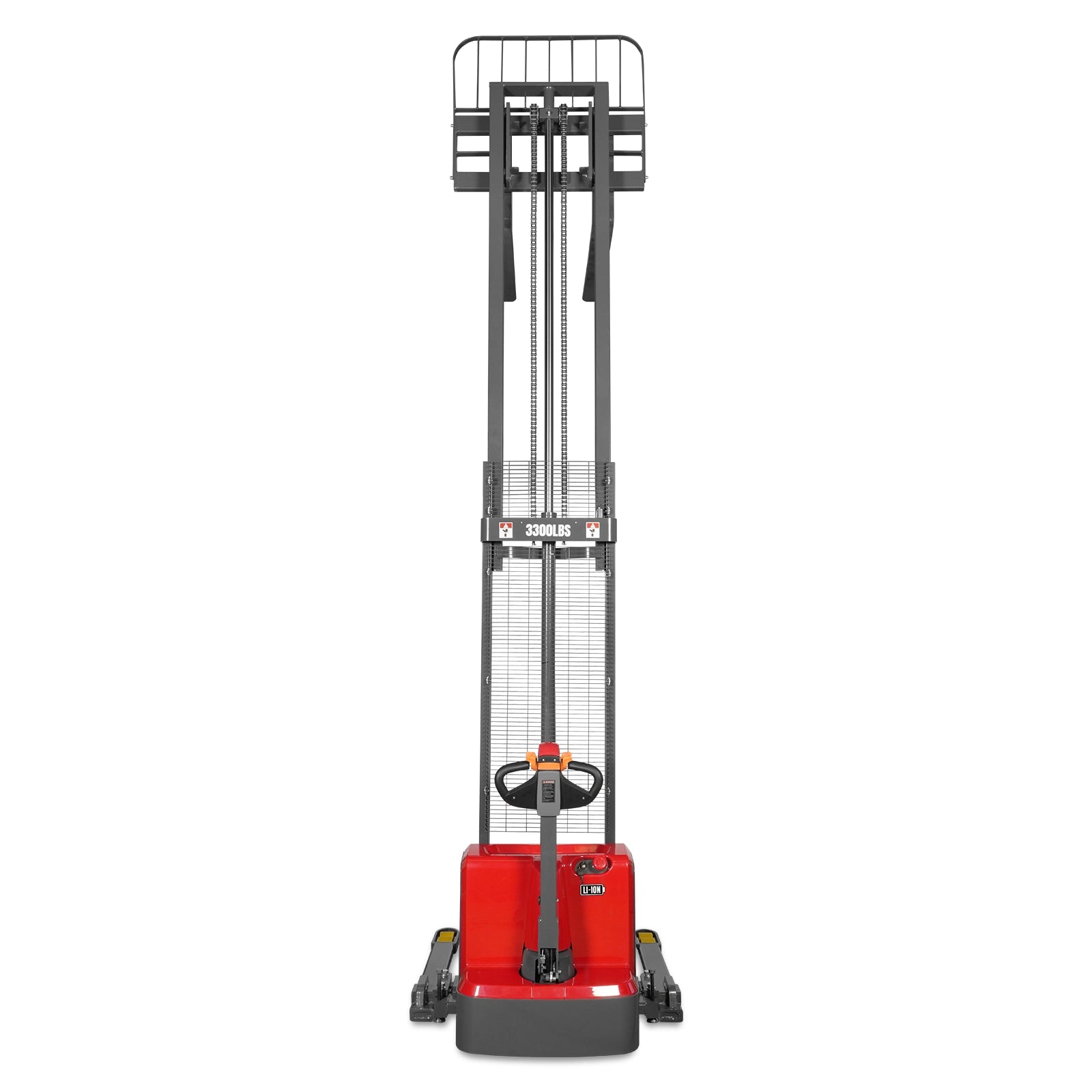

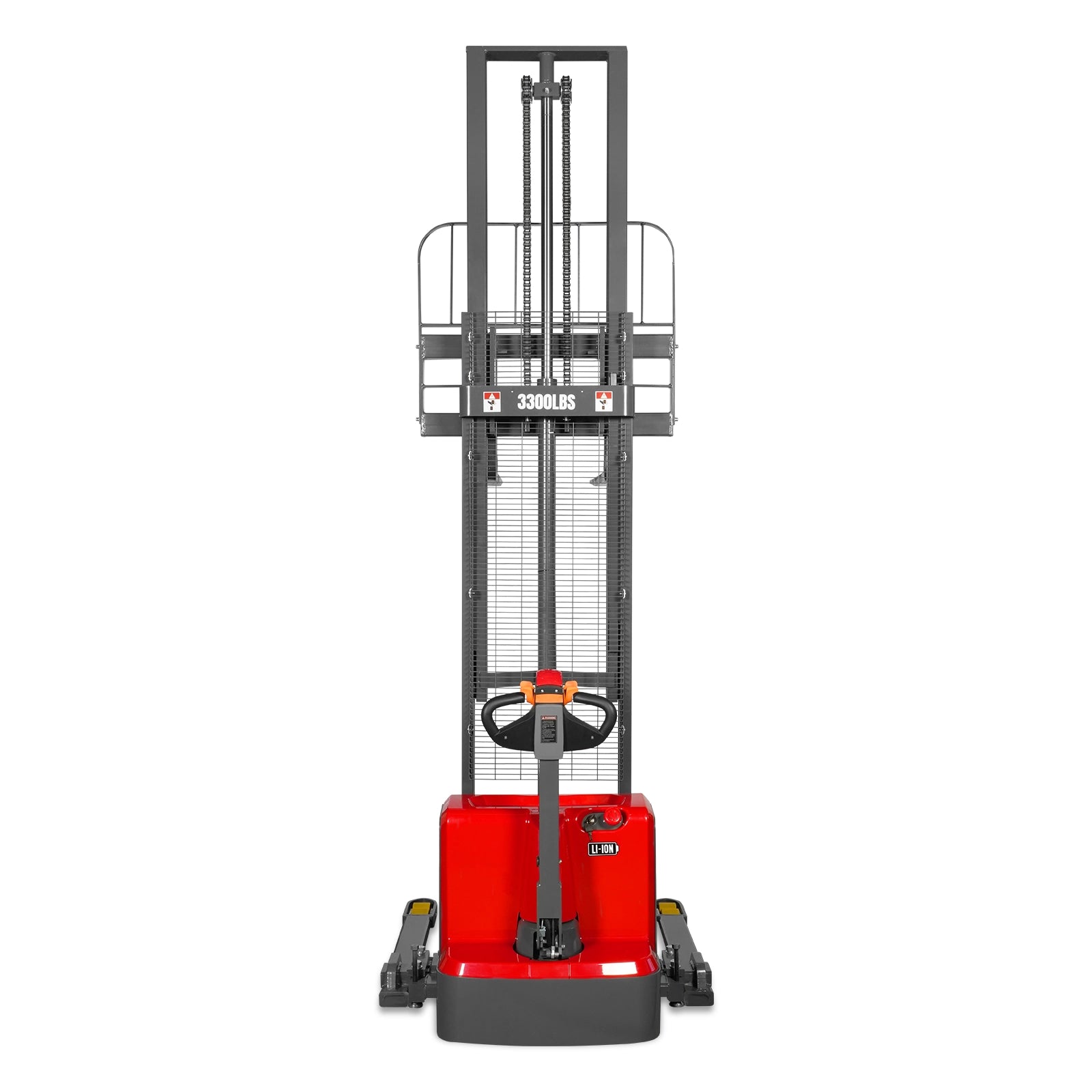

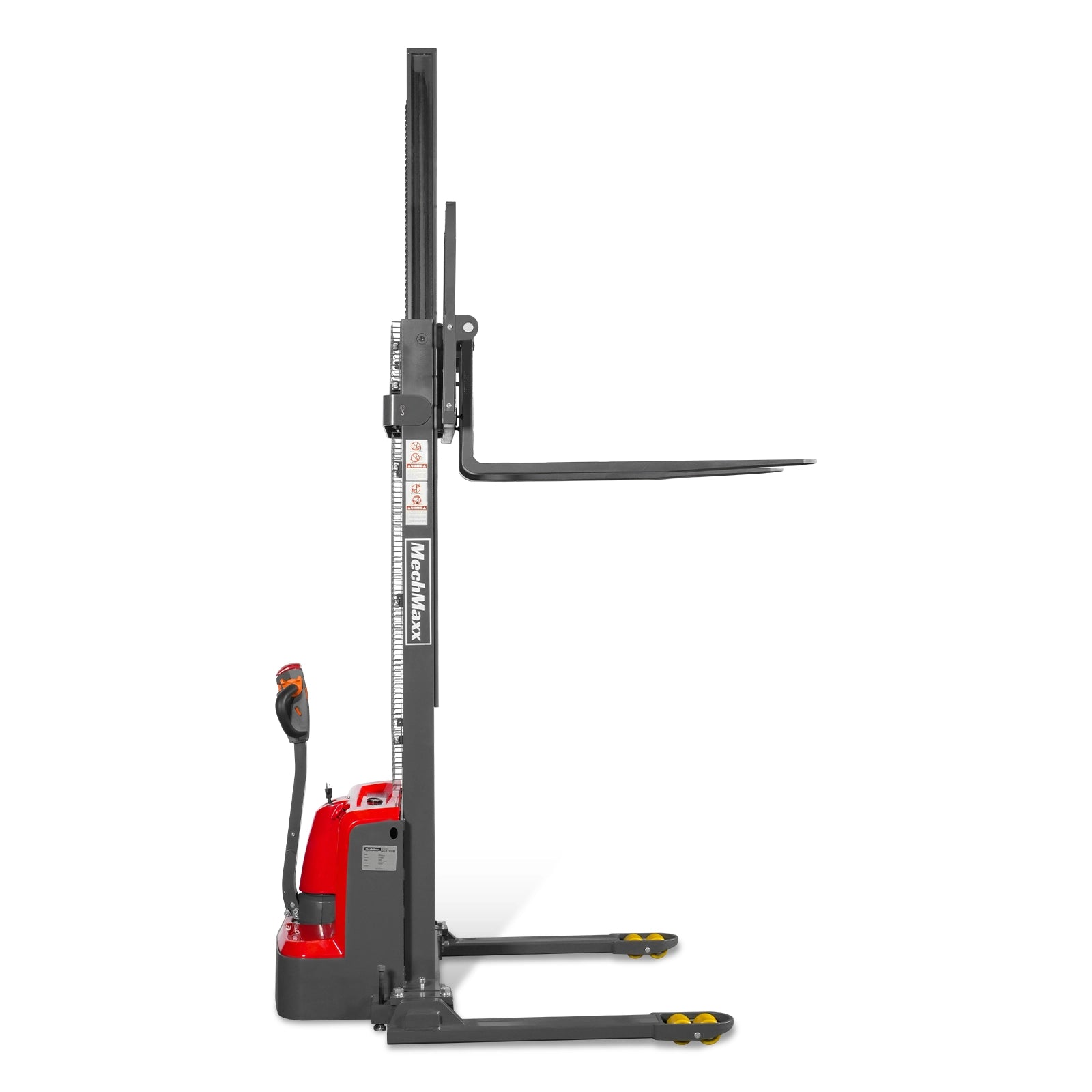

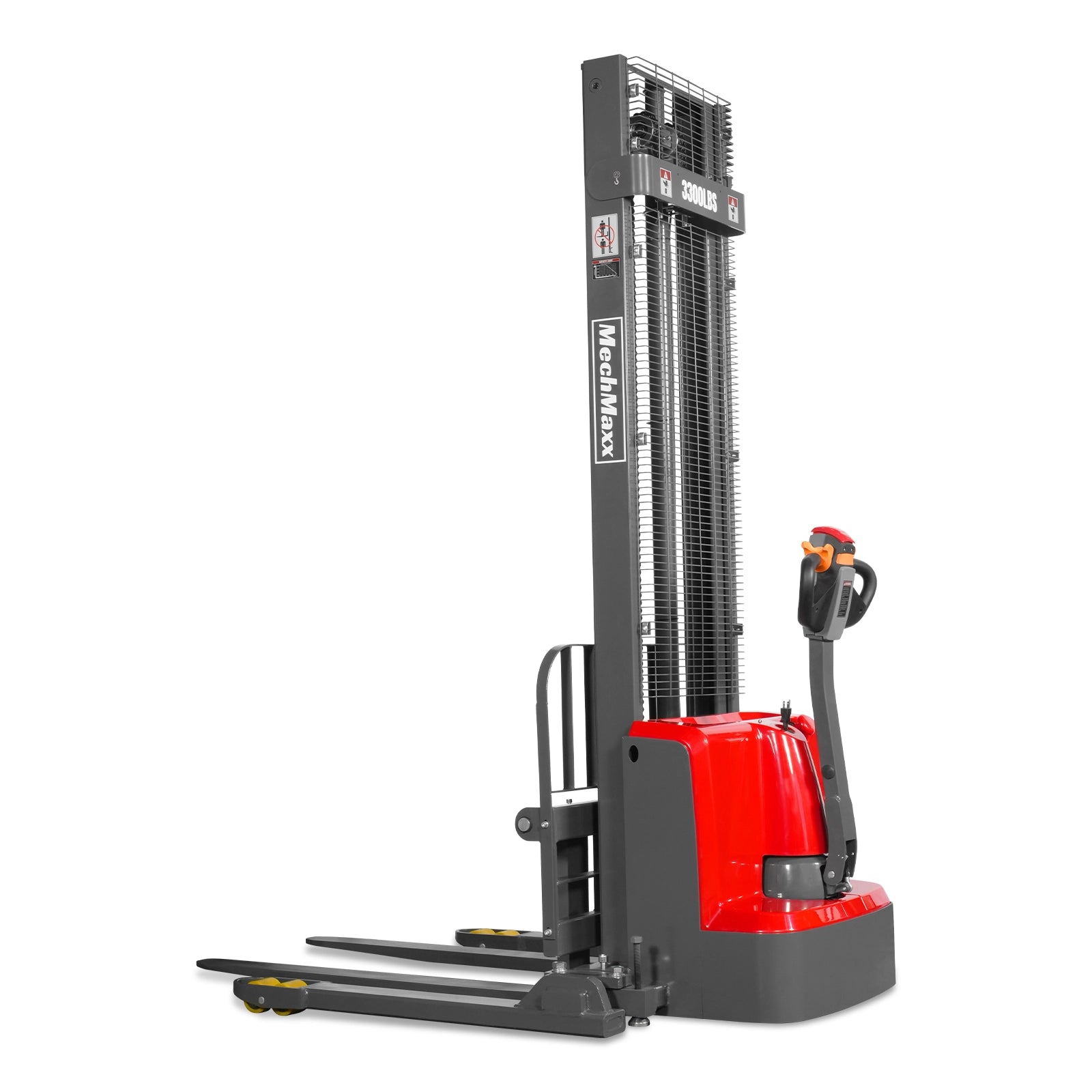

3300lbs Lithium-ion Electric Straddle Stacker, 138" Lift, Adjustable Legs & Forks, F33-138S

The MechMaxx F33 Series electric straddle stacker delivers efficient, reliable handling with up to 3,300 lb capacity. Its smooth, fast operation and low-maintenance design navigate narrow aisles with ease, while adjustable forks and straddle legs fit a range of pallet widths. Powered by a 24V/60Ah maintenance-free lithium-ion battery with 24V/30A built-in charger and opportunity-charge capability, it runs longer across multiple shifts. Ergonomic controls and solid load stability make the F33 ideal for warehouses, distribution centers, and industrial environments.

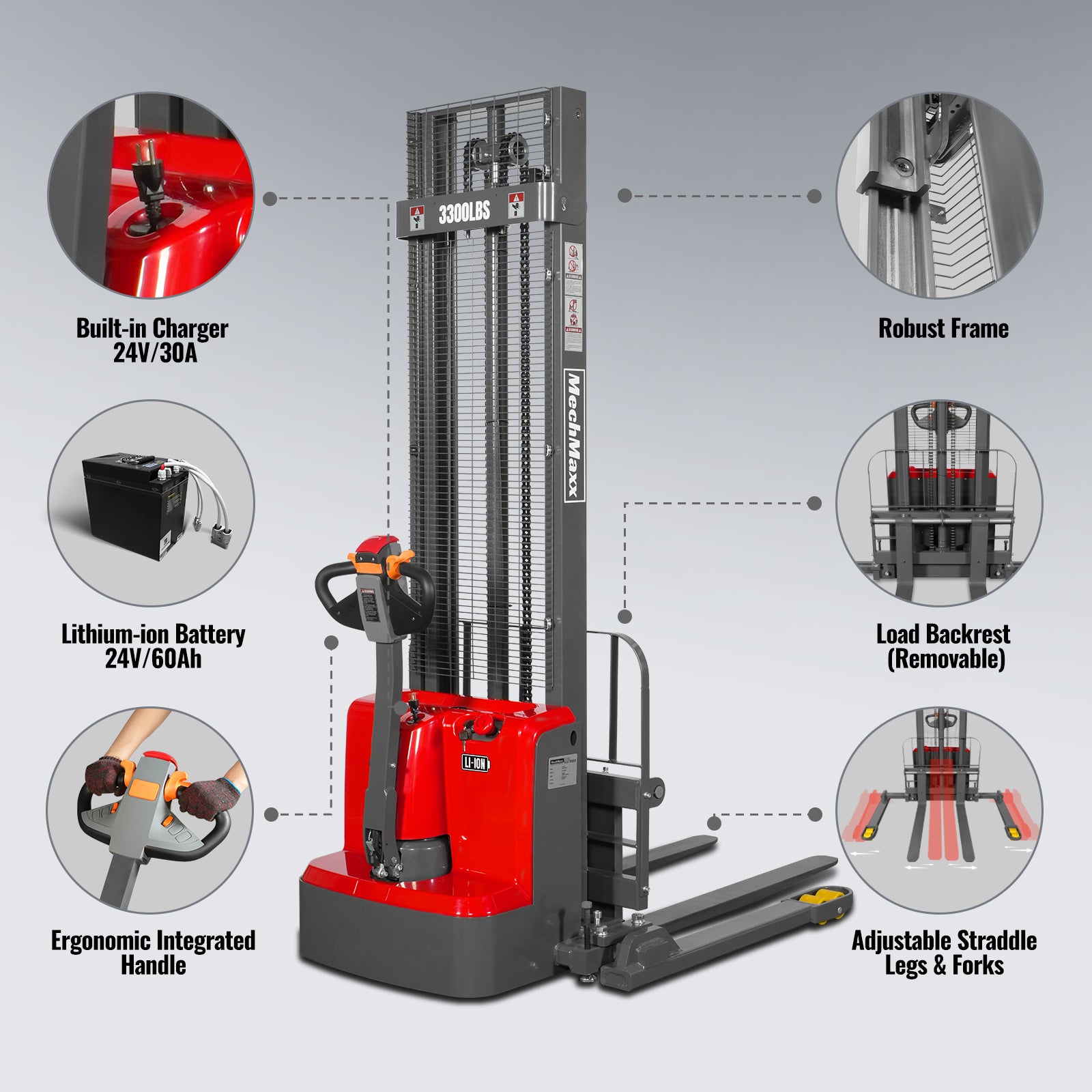

• The American Curtis Travel Controller offers accurate, high-efficiency and stable control performance.
• 24V/60Ah maintenance-free lithium-ion battery for extended runtime.
• Built-in 24V/30A charger for on-board convenience and fast charging.
• 3300 lbs capacity with 138" maximum lift height.
• Adjustable forks (8.3" – 33.5") allow flexible handling of various load sizes.

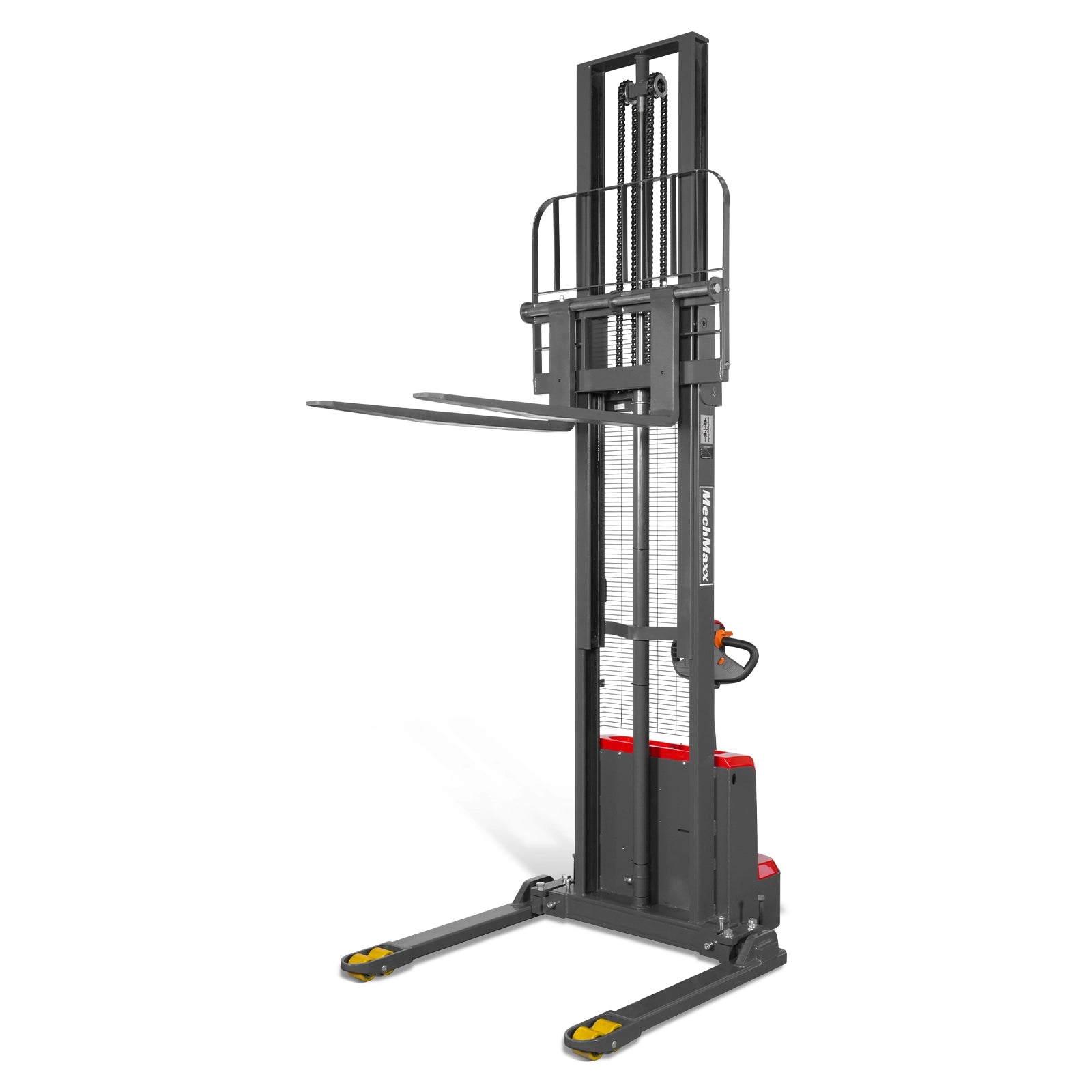

• Adjustable straddle legs (35.4" – 51.2" I.D.) for different pallet widths.
• 2.5 laden and 2.6 unladen mph driving speed.
• 53" turning radius with turtle mode ideal for narrow aisles.
• Fully electric operation for forward and reverse travel as well as lifting work.
• Powerful 2.2 kW motor for efficient lifting.
• Ergonomic handle designed for operating with either hand. Gas spring support absorbs shock.
• Load backrest prevents goods from falling backward for improved safety.
• Equipped with polyurethane drive and load wheels, leave no scratches on the floor.
• Equipped with an emergency reverse button, electromagnetic brake, automatic safety release system, electronic lift limit switch, explosion-proof valve, and mesh guard, the vehicle offers comprehensive protection to ensure operator safety at all times.

  IMPORTANT – Battery Charging & Maintenance
• Always read the product manual and review all safety labels before operation.
• Fully charge the battery promptly after each use.
• Never overcharge or deeply discharge the battery.
• Charge the battery at least once a month, even when the truck is not in use.
• Store in a cool, dry place away from direct heat sources.
  Proper battery maintenance extends battery life and ensures safe operation.

  Note!
• The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.
