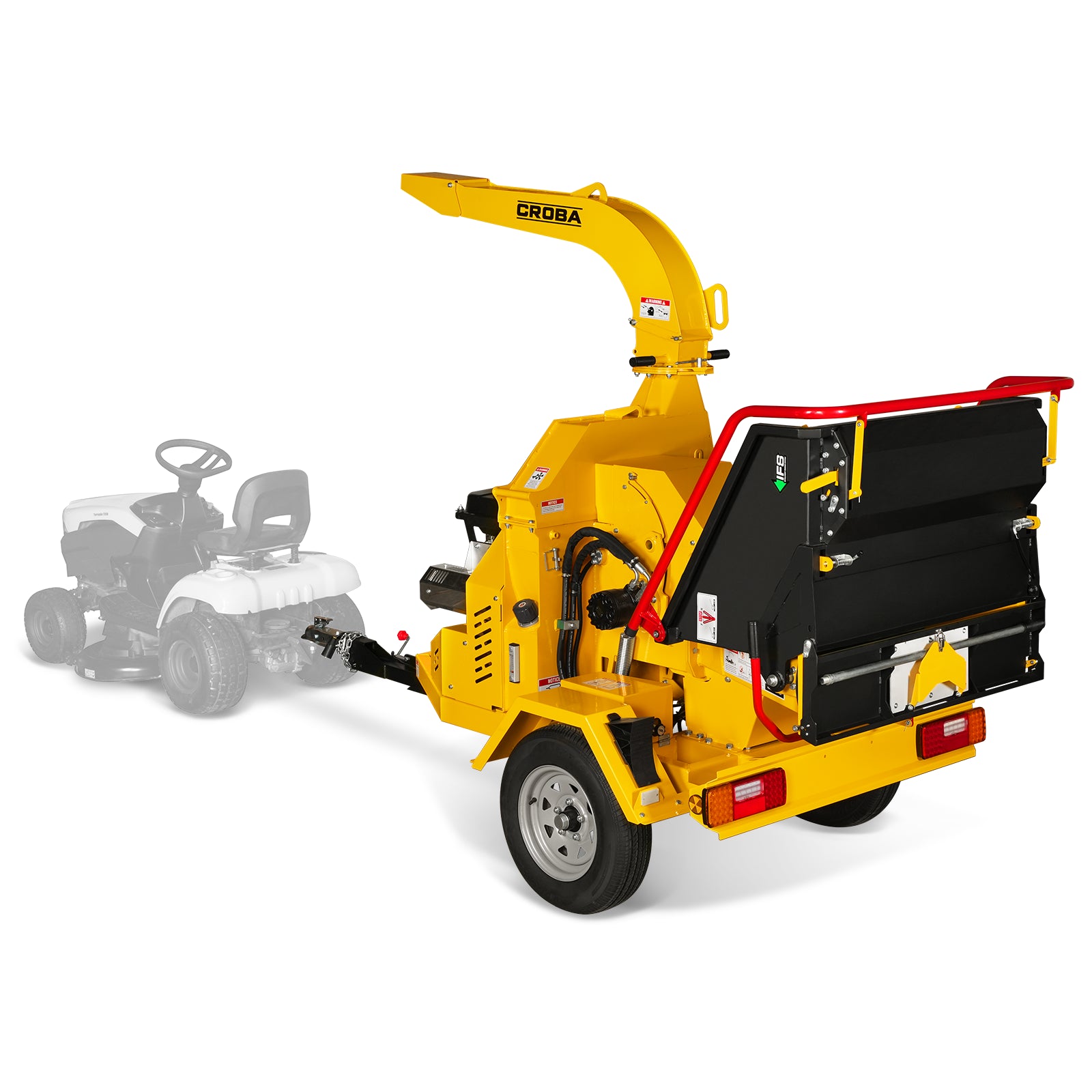

35hp 1000cc ZONSEN E-Start 8 inch Gas Powered Commerical Wood Chipper with Intelligent Hydraulic Feeding System , CROBA TX1000

Name: 35hp 1000cc ZONSEN E-Start 8 inch Gas Powered Commerical Wood Chipper with Intelligent Hydraulic Feeding System , CROBA TX1000
Brand: MechMaxx
SKU: 110701
Price: 14699.0 USD
Availability: InStock

$1469900

$20,999.00

Save $6,300

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

Blade for Wood Chipper TX1000 (SKU: 110701)

( 1 Pack / 1 Pcs ) Wood Chipper Cover for TX1000 ( SKU: 110701 )

Cutter Belt for Wood Chipper TX1000 (SKU: 110701)

Oil Pump Belt for Wood Chipper TX1000 (SKU: 110701)

Anti-slip Device for Wood Chipper TX1000 (SKU: 110701)

35hp 1000cc ZONSEN E-Start 8 inch Gas Powered Commerical Wood Chipper with Intelligent Hydraulic Feeding System , CROBA TX1000 $1469900 $20,999.00

Blade for Wood Chipper TX1000 (SKU: 110701) $9999 $129.99

( 1 Pack / 1 Pcs ) Wood Chipper Cover for TX1000 ( SKU: 110701 ) $13299 $159.99

Cutter Belt for Wood Chipper TX1000 (SKU: 110701) $6999 $85.99

Oil Pump Belt for Wood Chipper TX1000 (SKU: 110701) $4999 $59.99

Anti-slip Device for Wood Chipper TX1000 (SKU: 110701) $6999 $85.99

Total Price

$

Product Overview

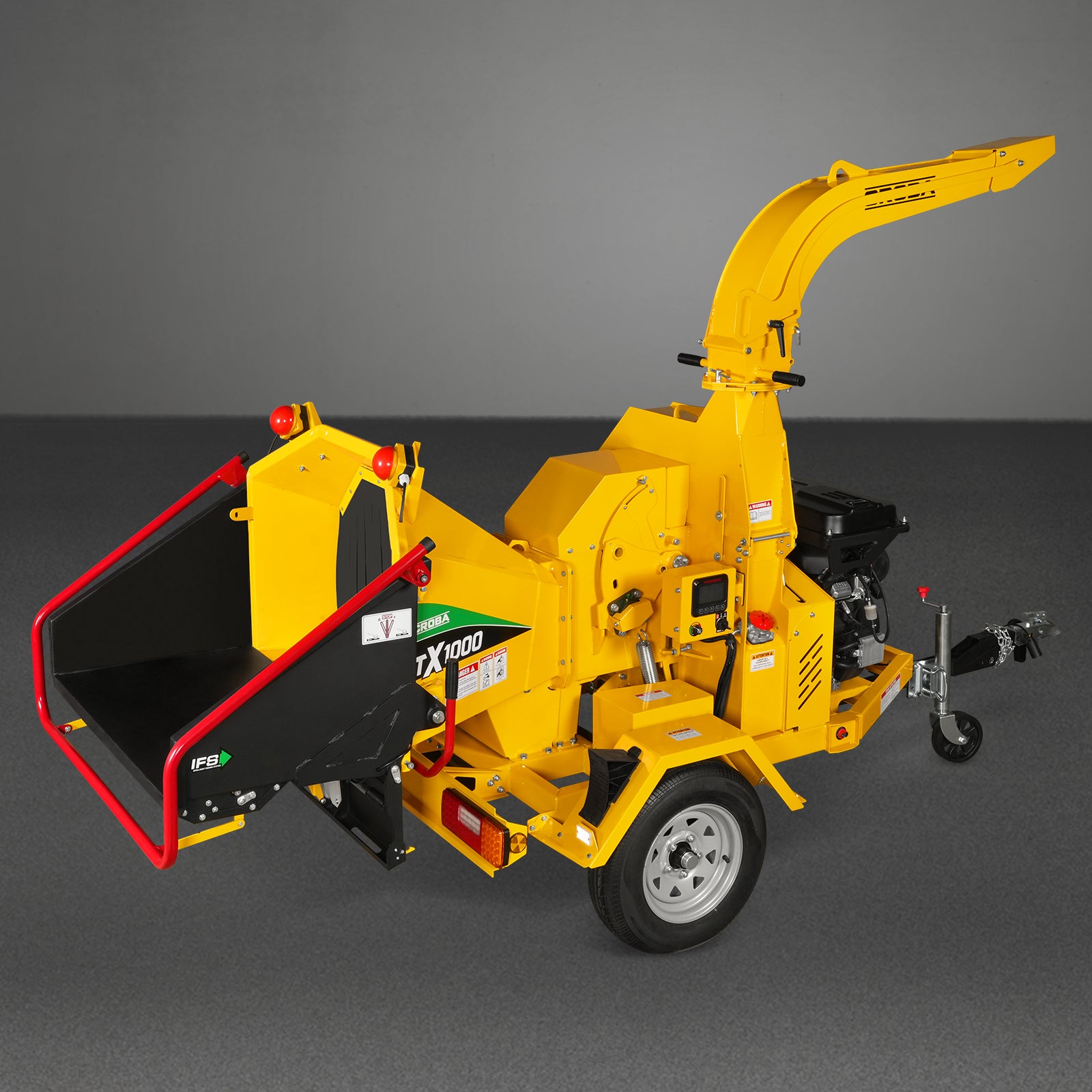

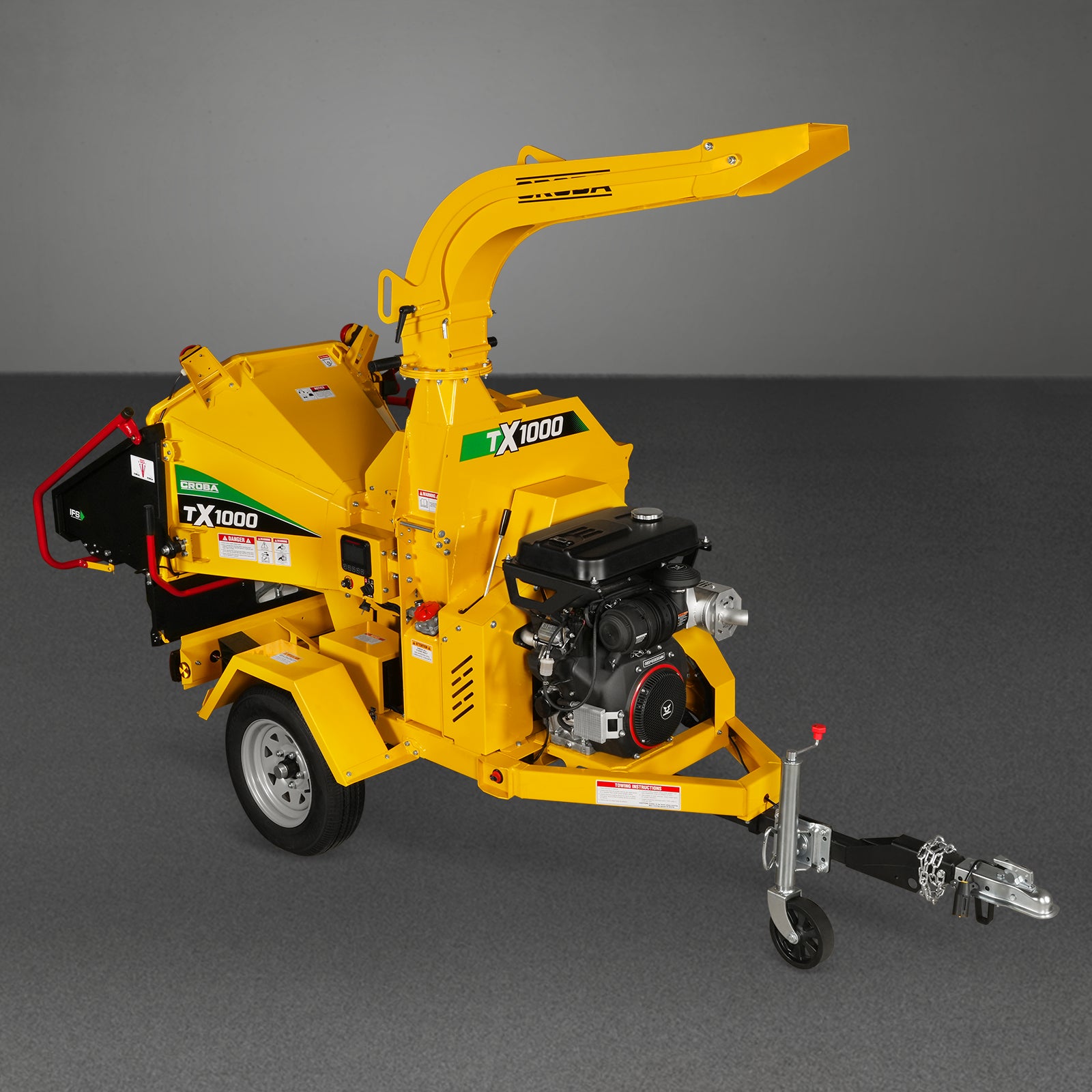

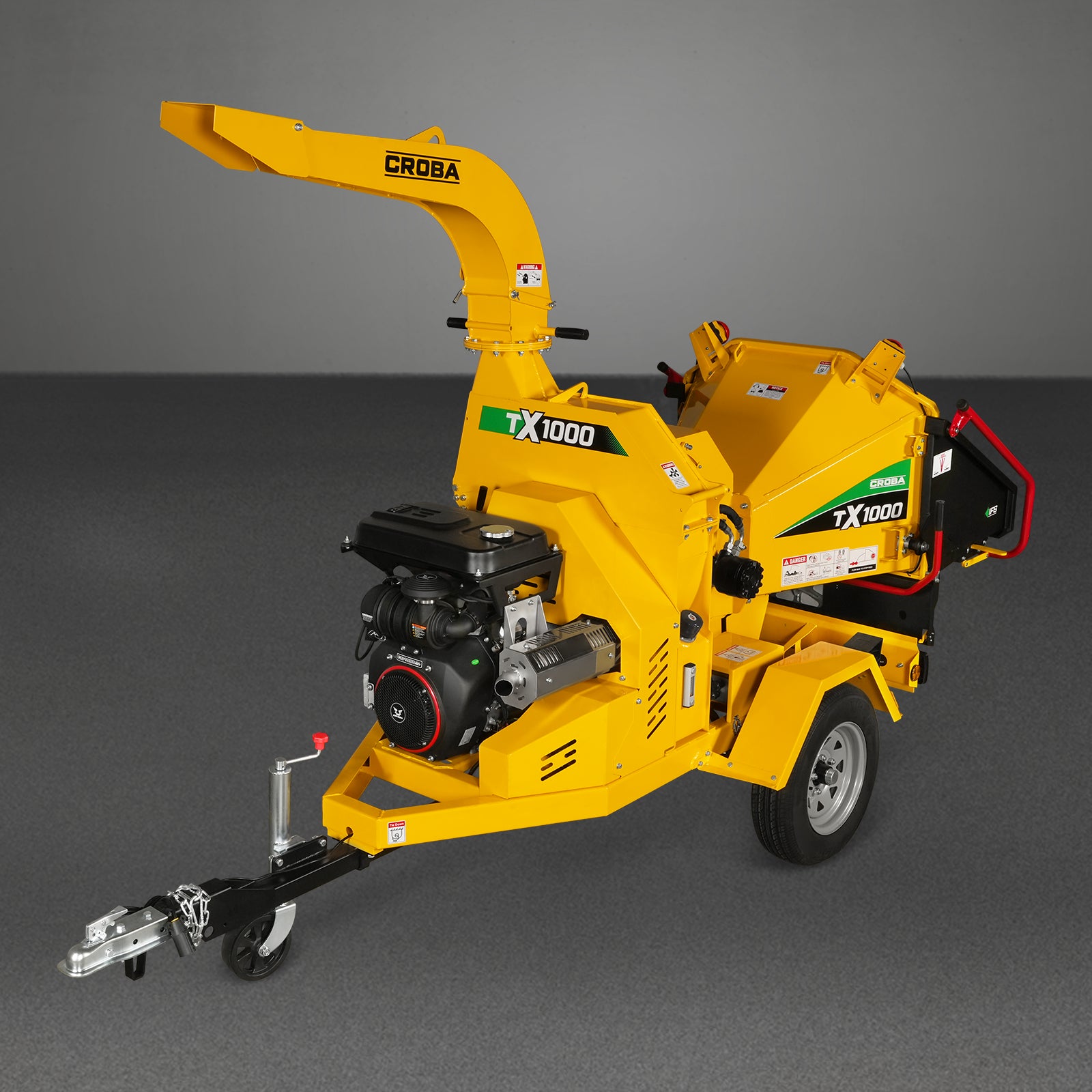

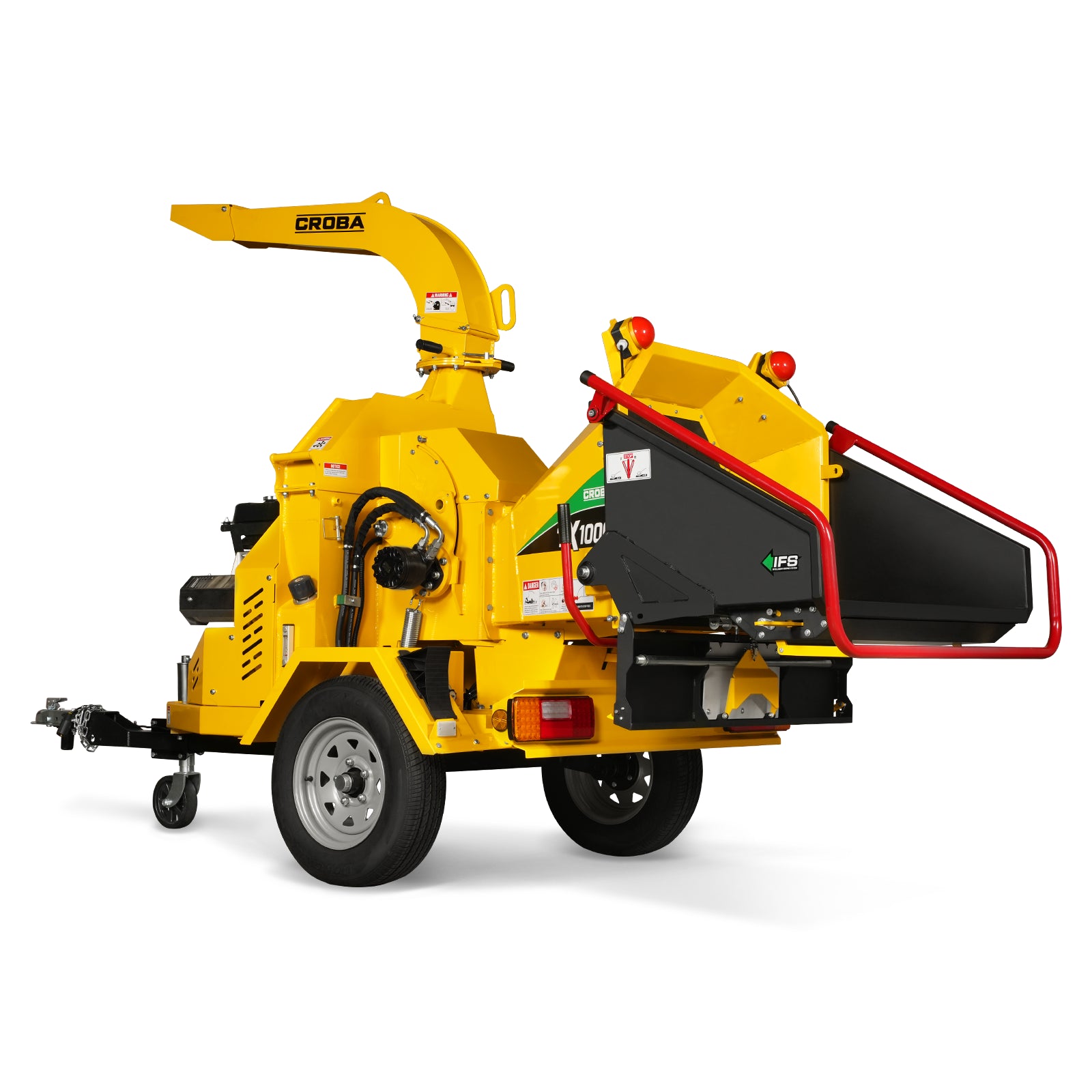

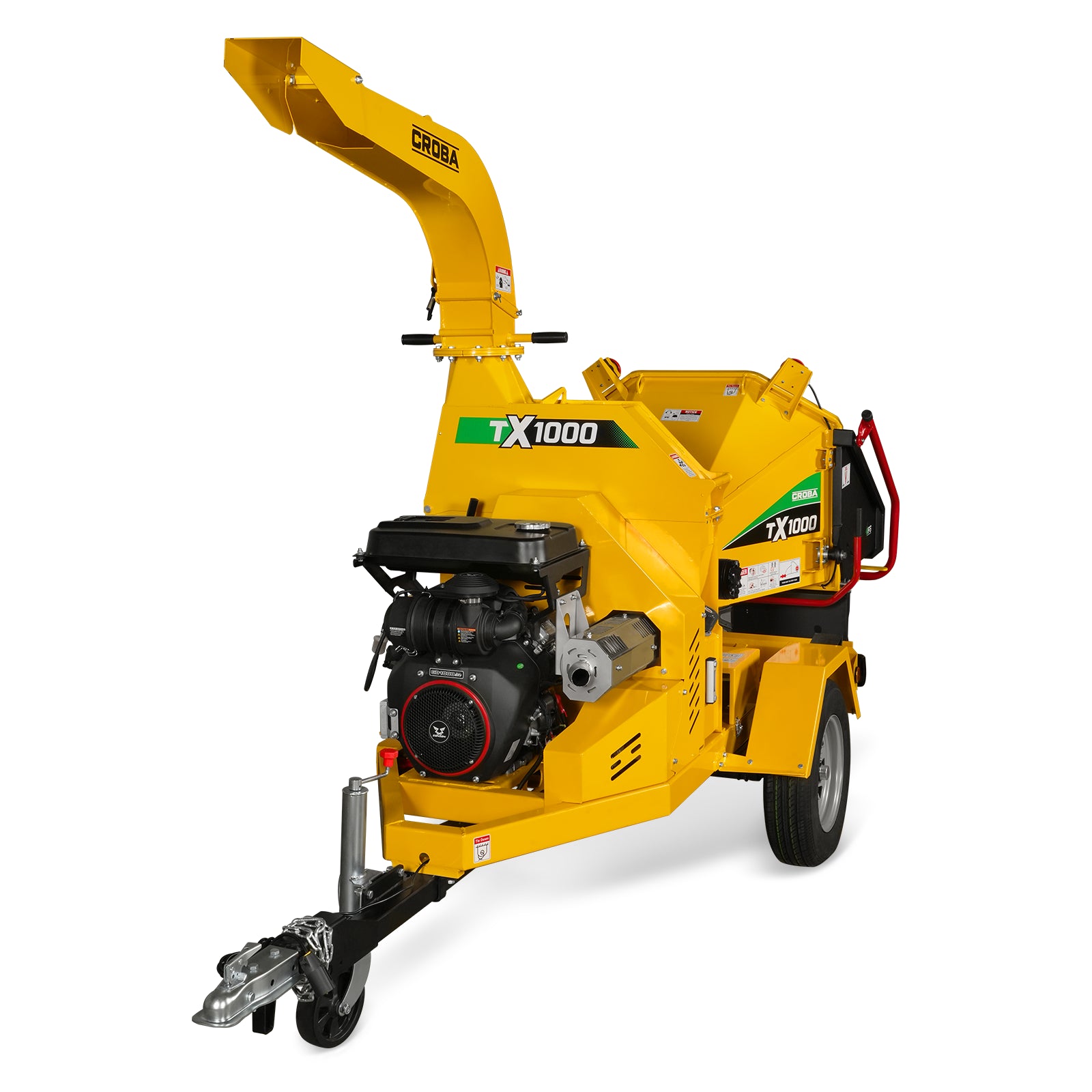

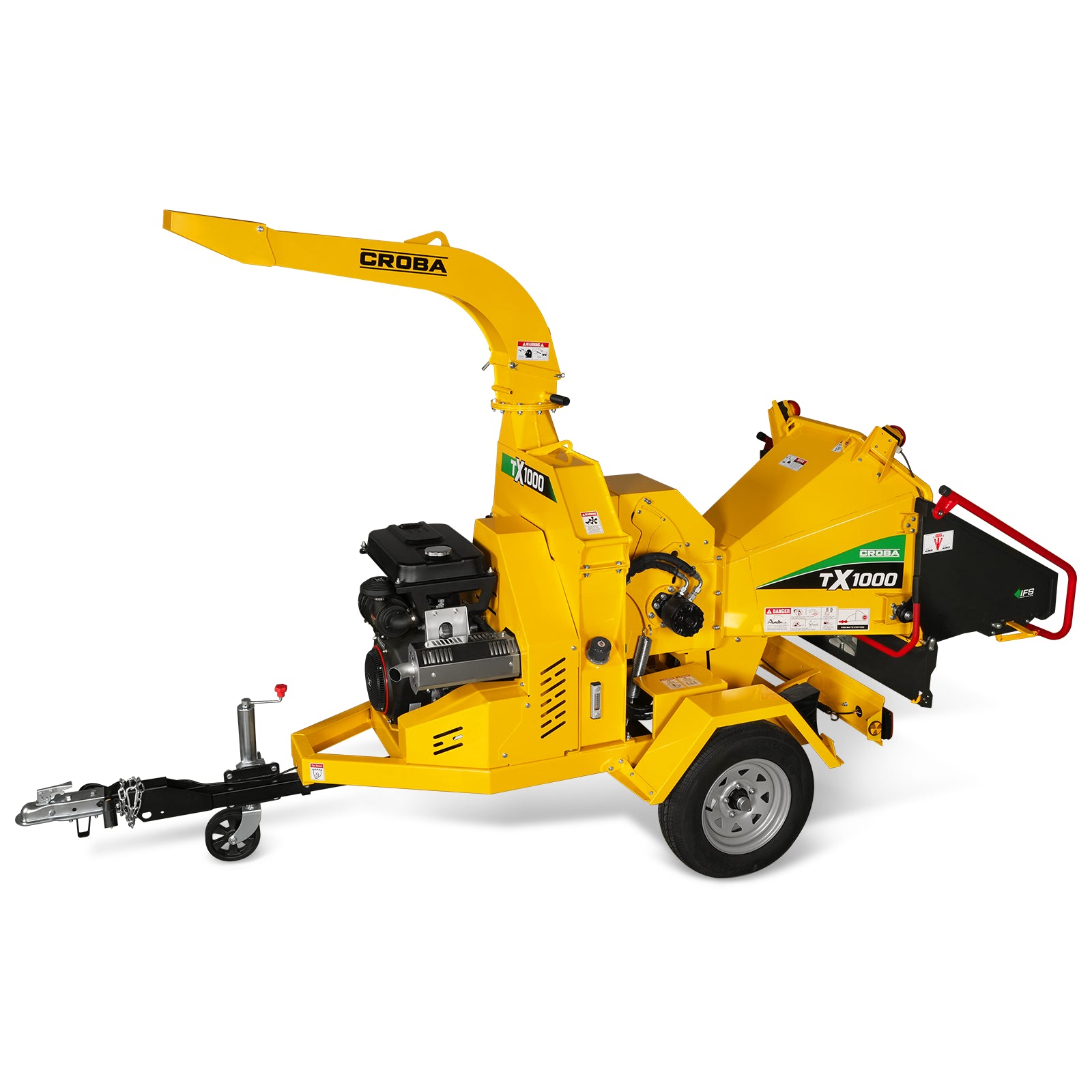

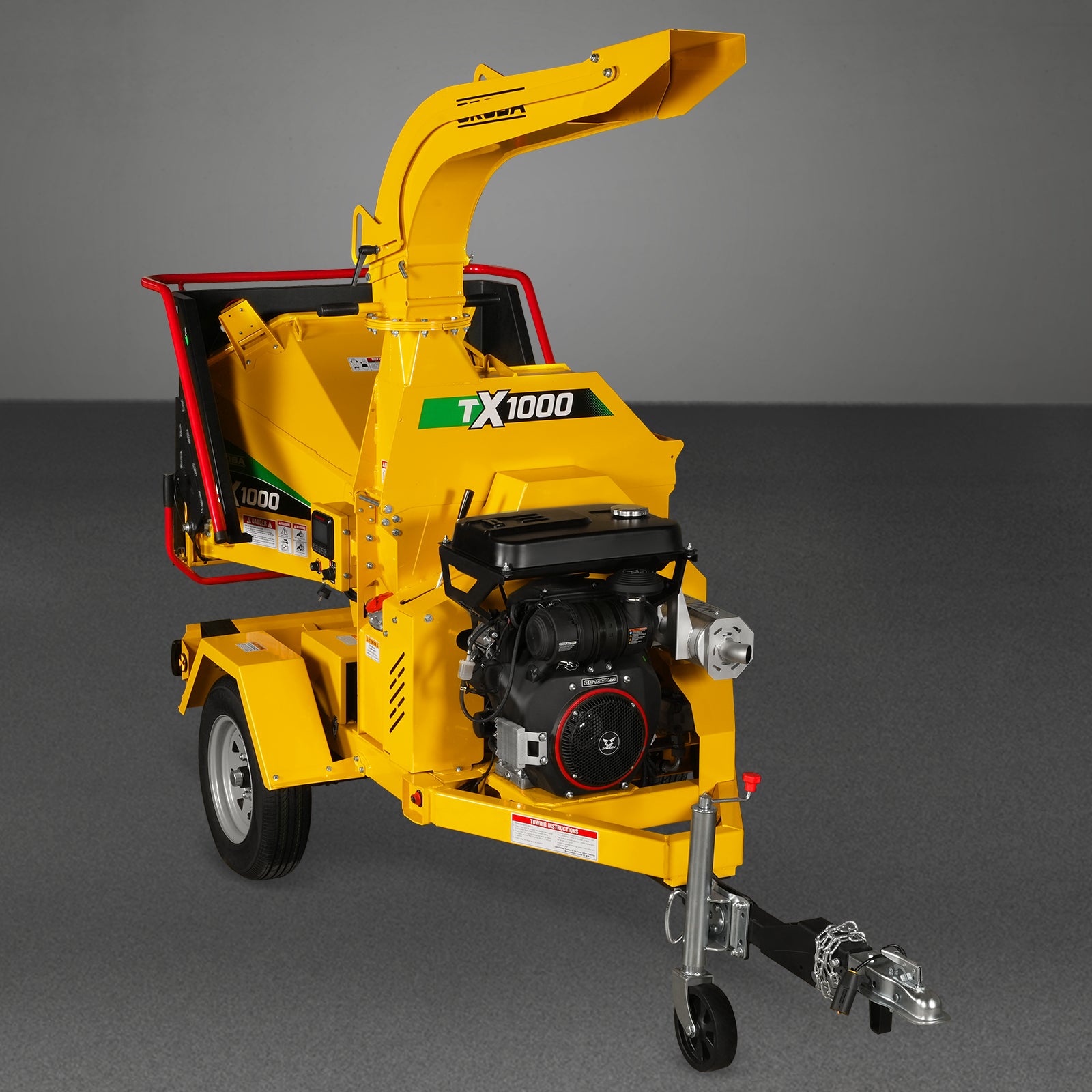

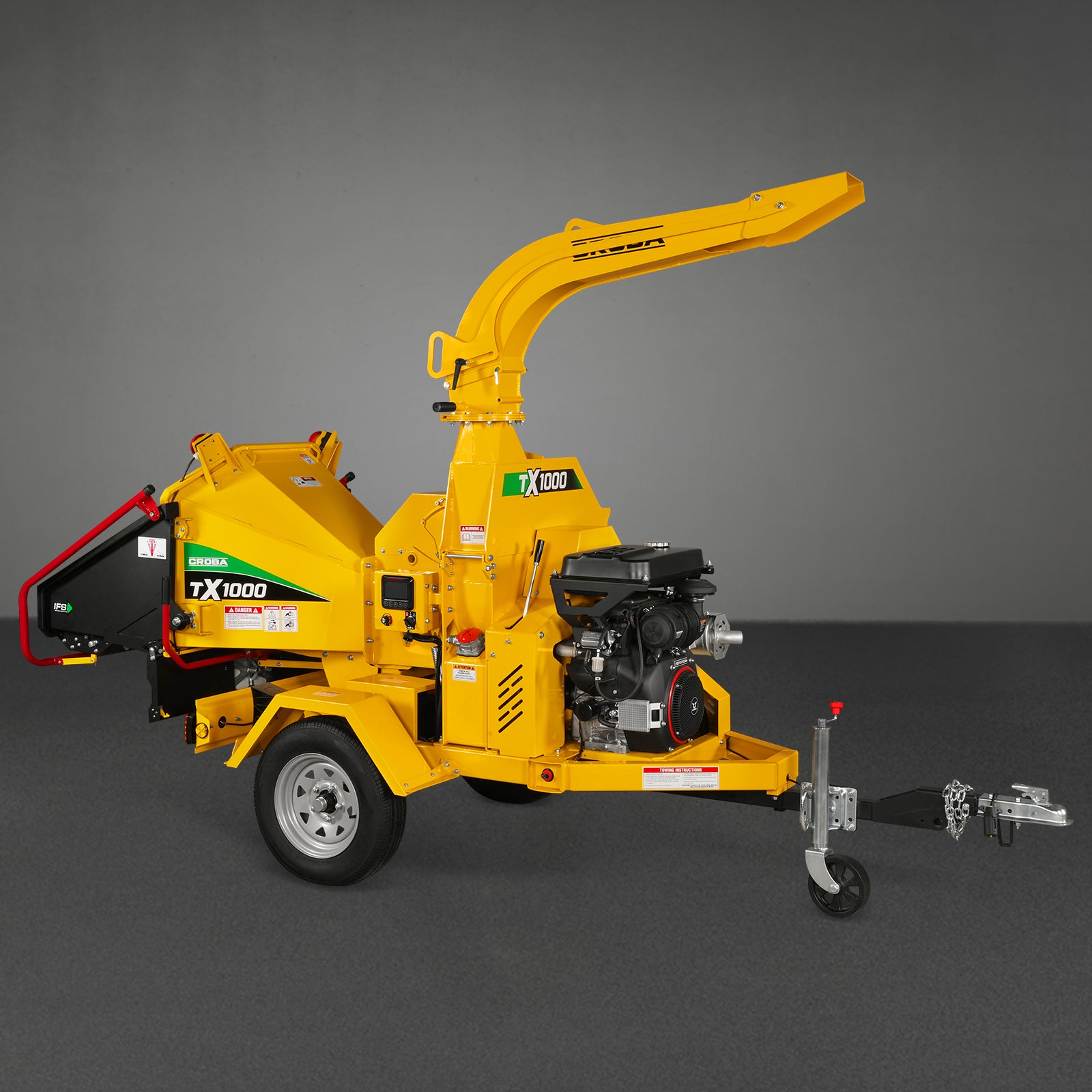

TX1000 35HP gasoline engine wood chipper, electric start, equipped with a 12V 48Ah battery.
The TX1000 is equipped with an intelligent Feeding System that monitors engine RPM and controls the feed rollers, boosting operational efficiency while reducing engine strain.
This wood chipper has extremely powerful roller with φ12 *11in, which can shred branches up to 8 inches.
You can stop the machine including engine quickly in a crisis to improve operator safety with two safety button above the feeding chute .
To prevent jams, the TX1000 is equipped with a quick-reverse feed roller to adjust the feed direction, ensuring smooth operation for operators and reducing downtime. Feeding stops instantly with a simple push, and resumes smoothly and efficiently by pulling up the handle.
The feed box has a foldable design and can be easily folded upwards when not in use.
This is a high-performance wood chipper fit for professionals and leasing companies.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30

Product manual (PDF)

TX1000 Product Manual 1.0.pdf

Engine manual (PDF)

Zonsen GB1000 Manual.pdf

Product Features

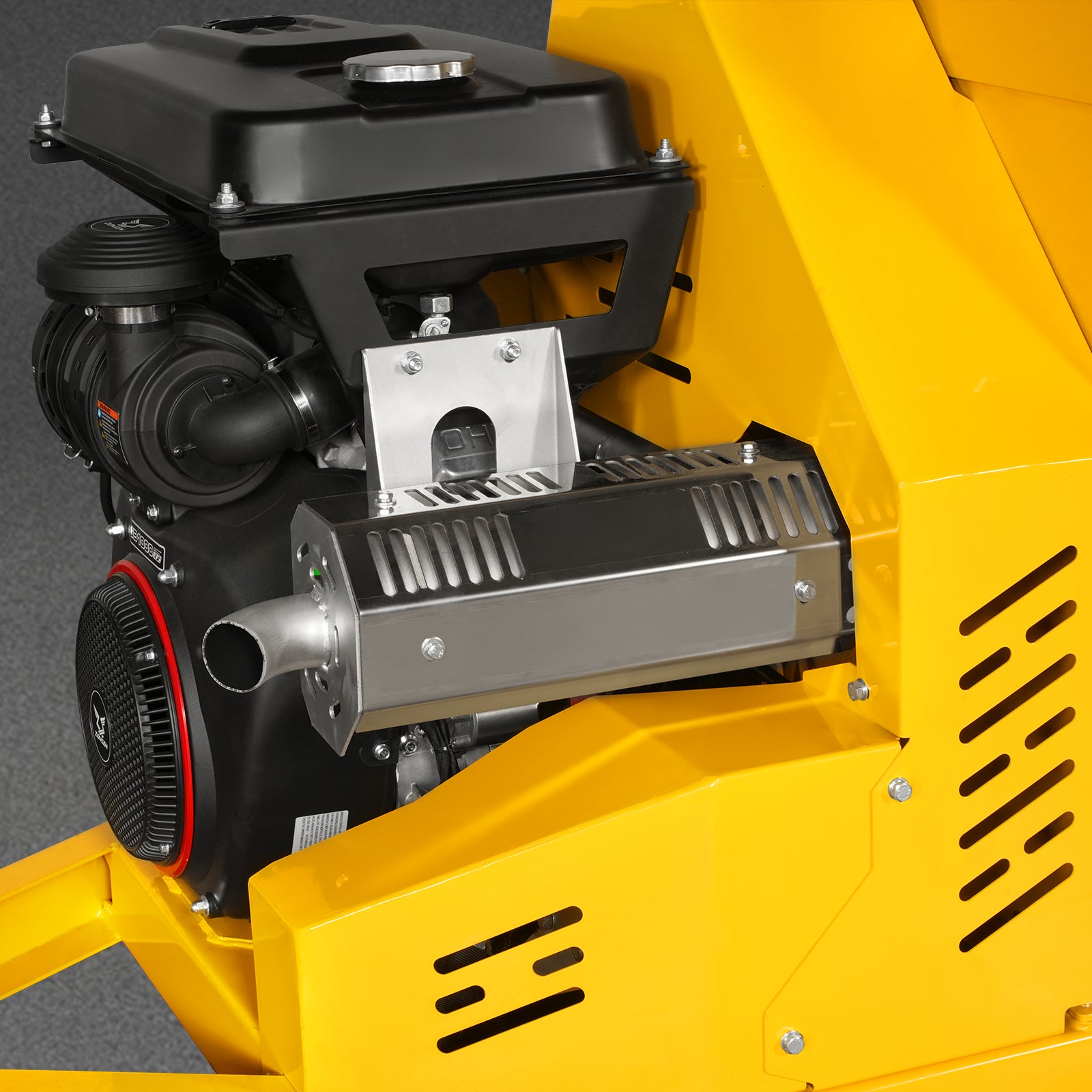

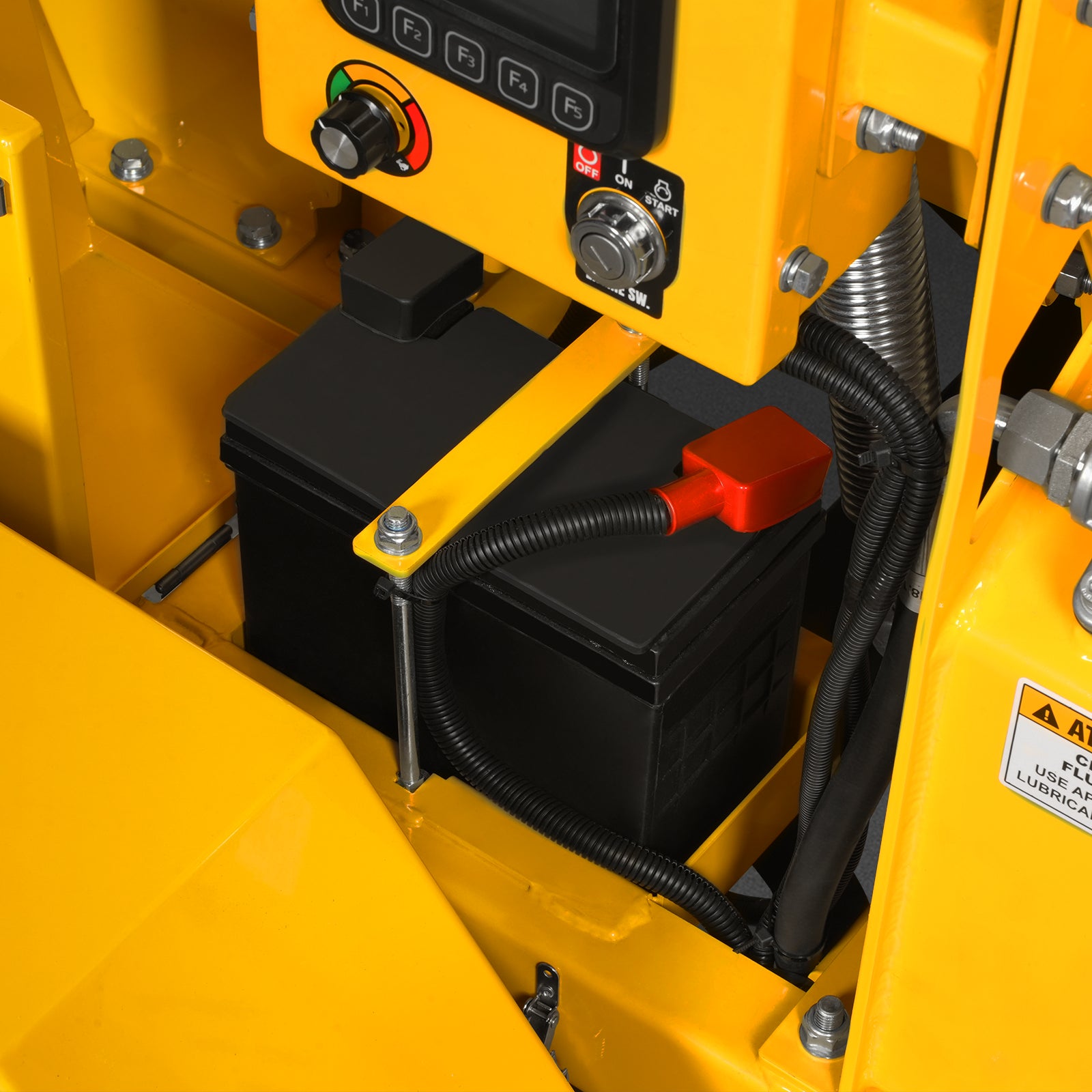

Electric Start and Battery

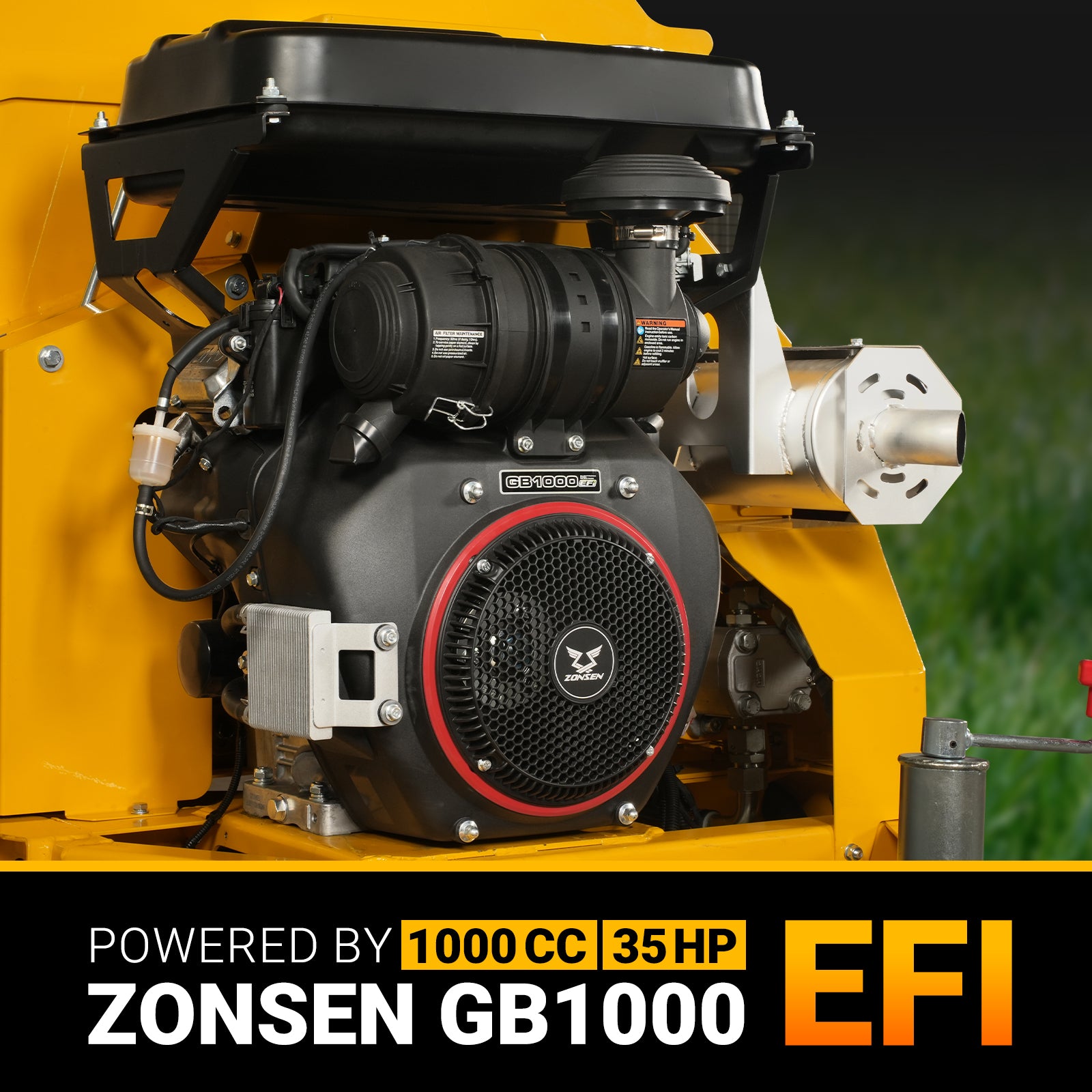

The TX1000 Wood Chipper is powered by a 35hp, 1000cc electric start EFl gasoline engine with a torque of 74Nm,and is equipped with a 12V 48Ah battery.

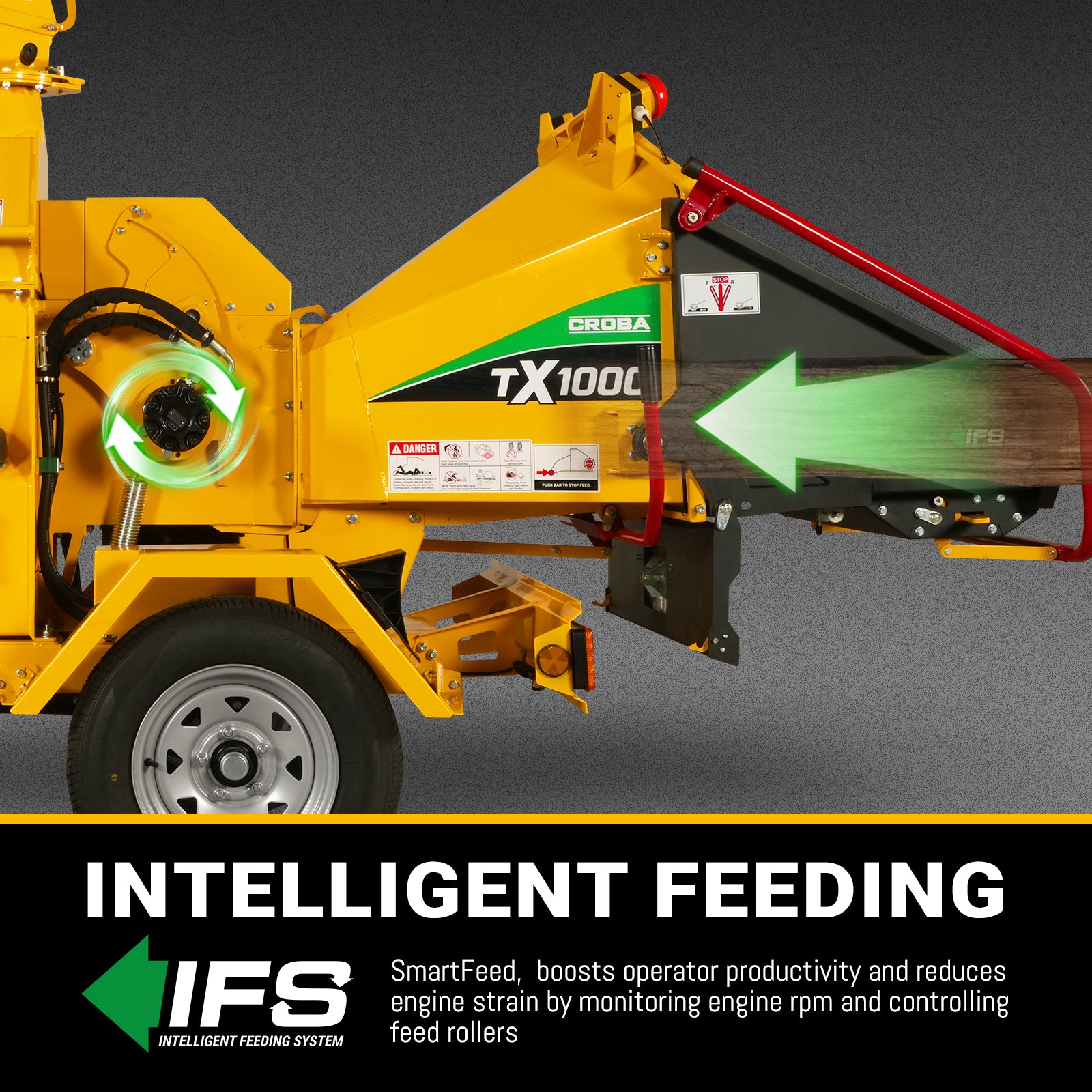

Intelligent Feeding System

The TX1000 is equipped with an intelligent Feeding System that monitors engine RPM and controls the feed rollers, boosting operational efficiency while reducing engine strain.

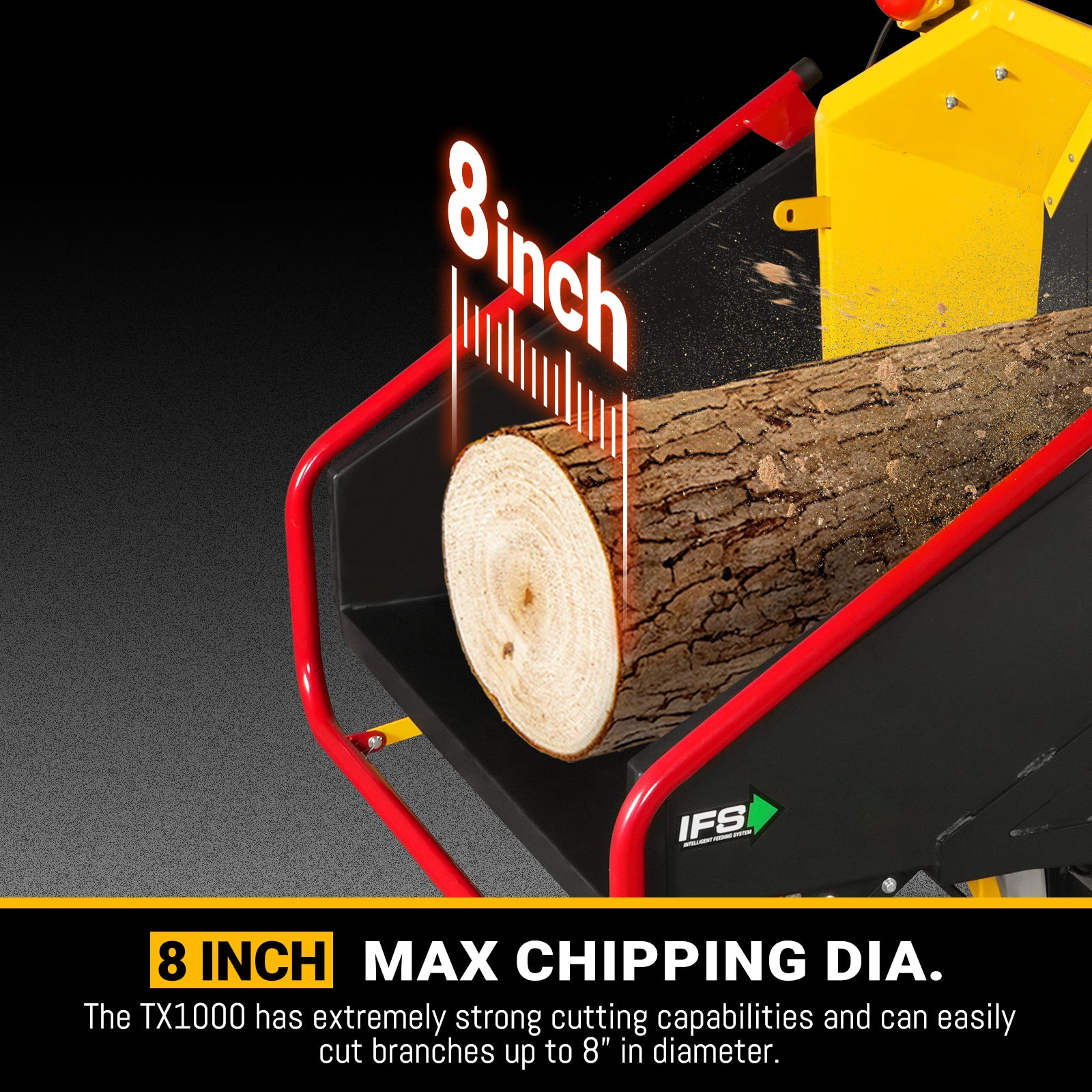

Maximum Wood Chip Diameter 8 in

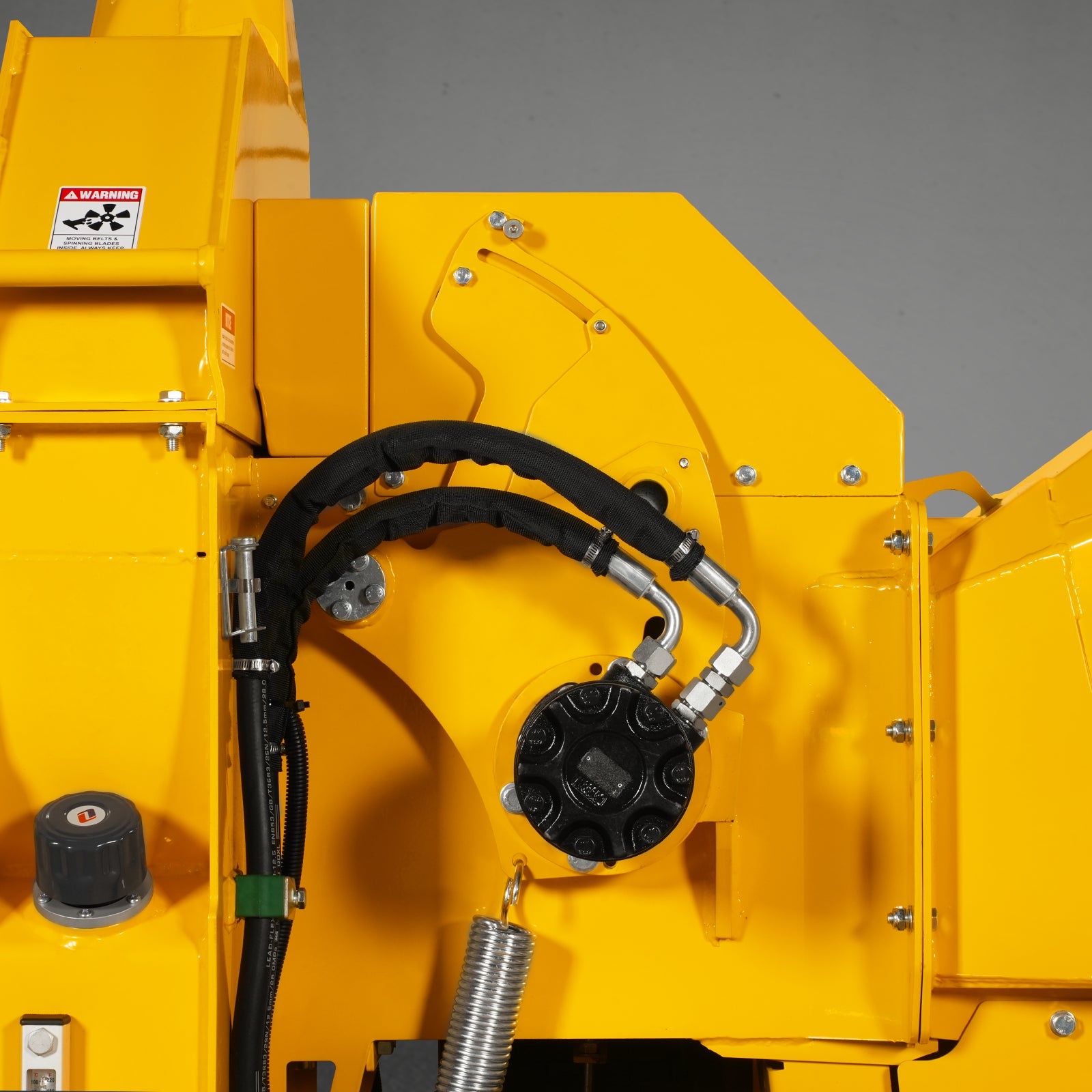

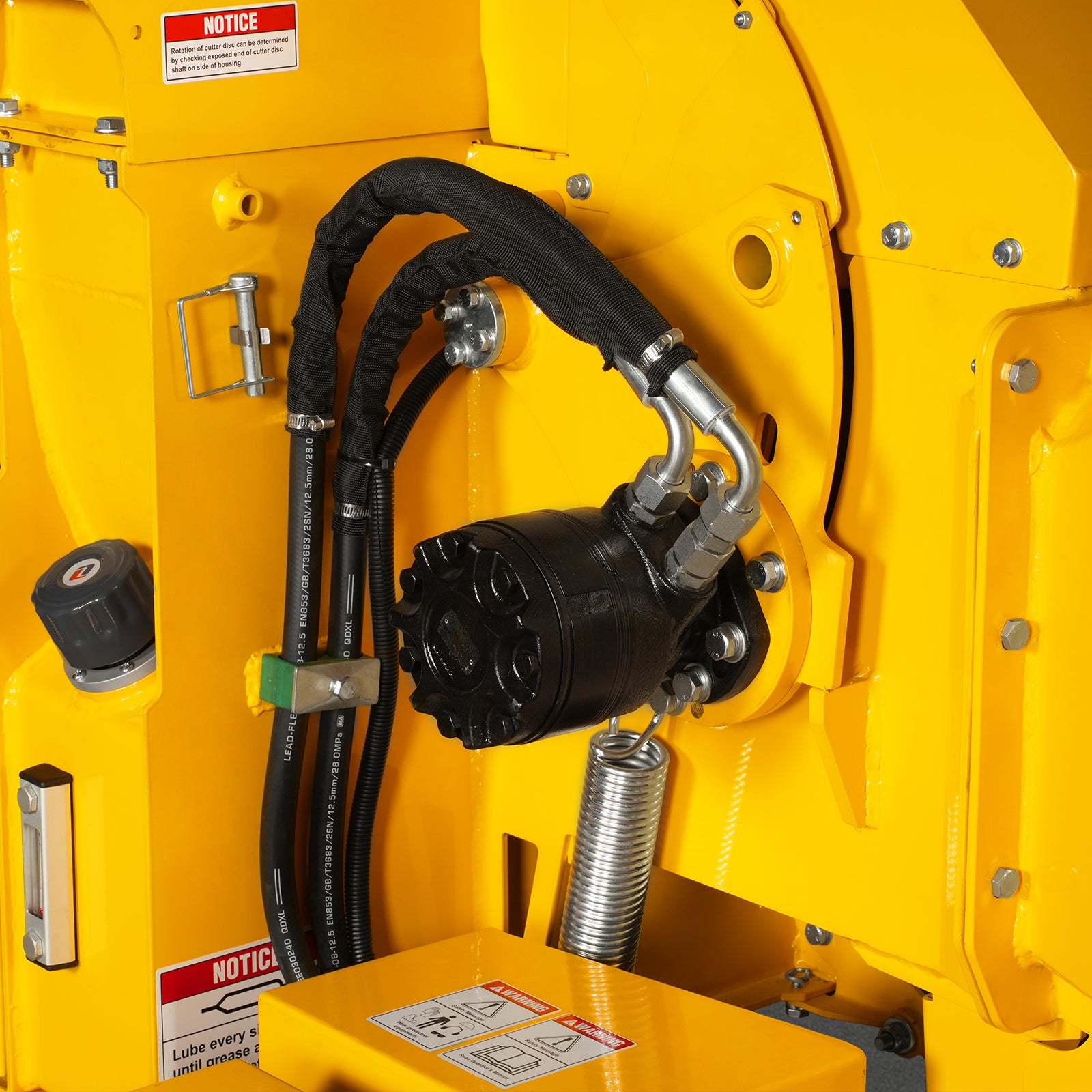

The TX1000 Wood Chipper is driven by a motor that powers hydraulic feed, allowing it to operate efficiently against walls. It delivers maximum cutting force, effortlessly shred-ding branches up to 8 inches in diameter.

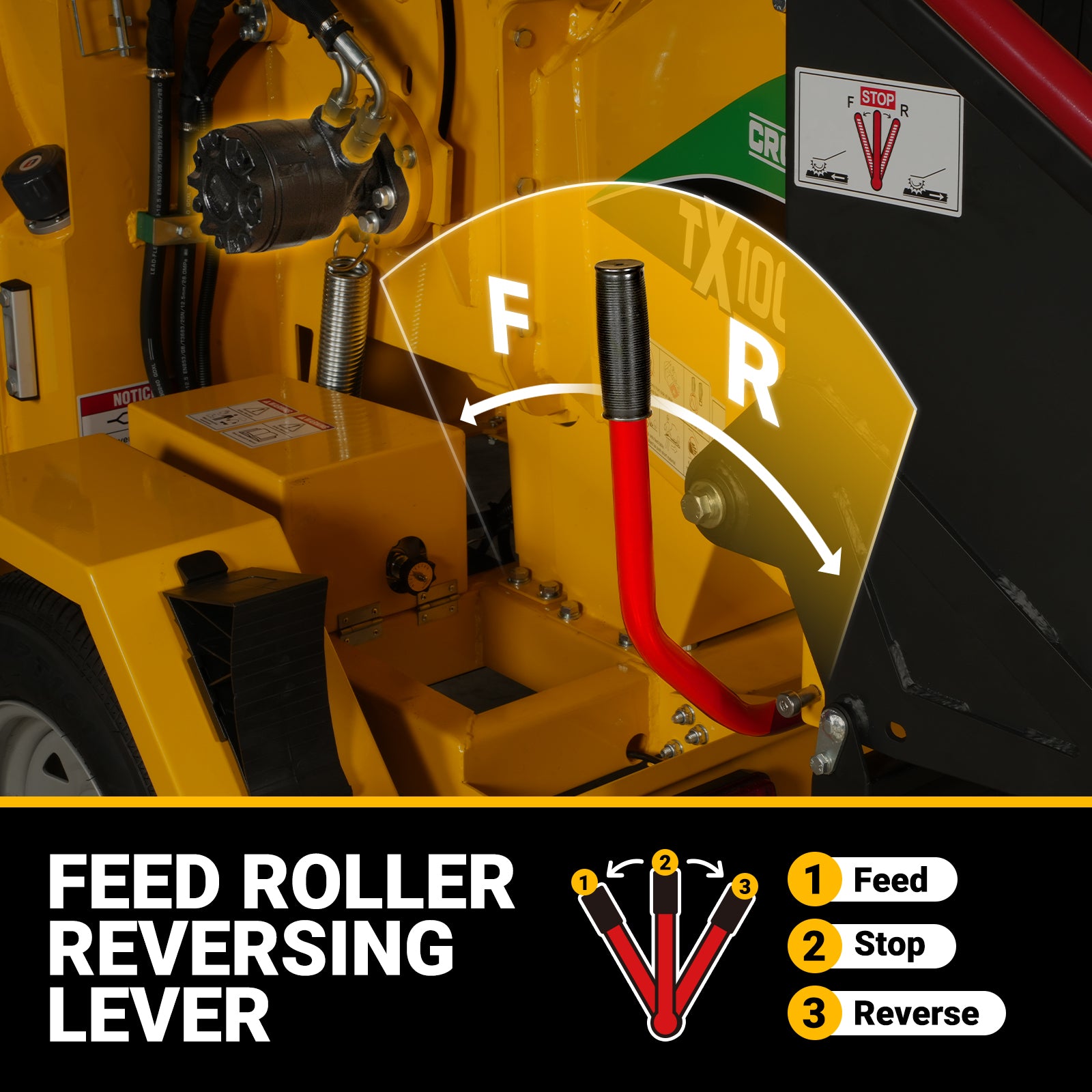

Feed Roller Reversing Lever

Specifically designed for convenience and safety, it allows quick reversal of the feed rollers to clear jams or adjust feed direction, ensuring smooth operation, reducing downtime, and protecting both the machine and the operator during intensive chipping tasks.

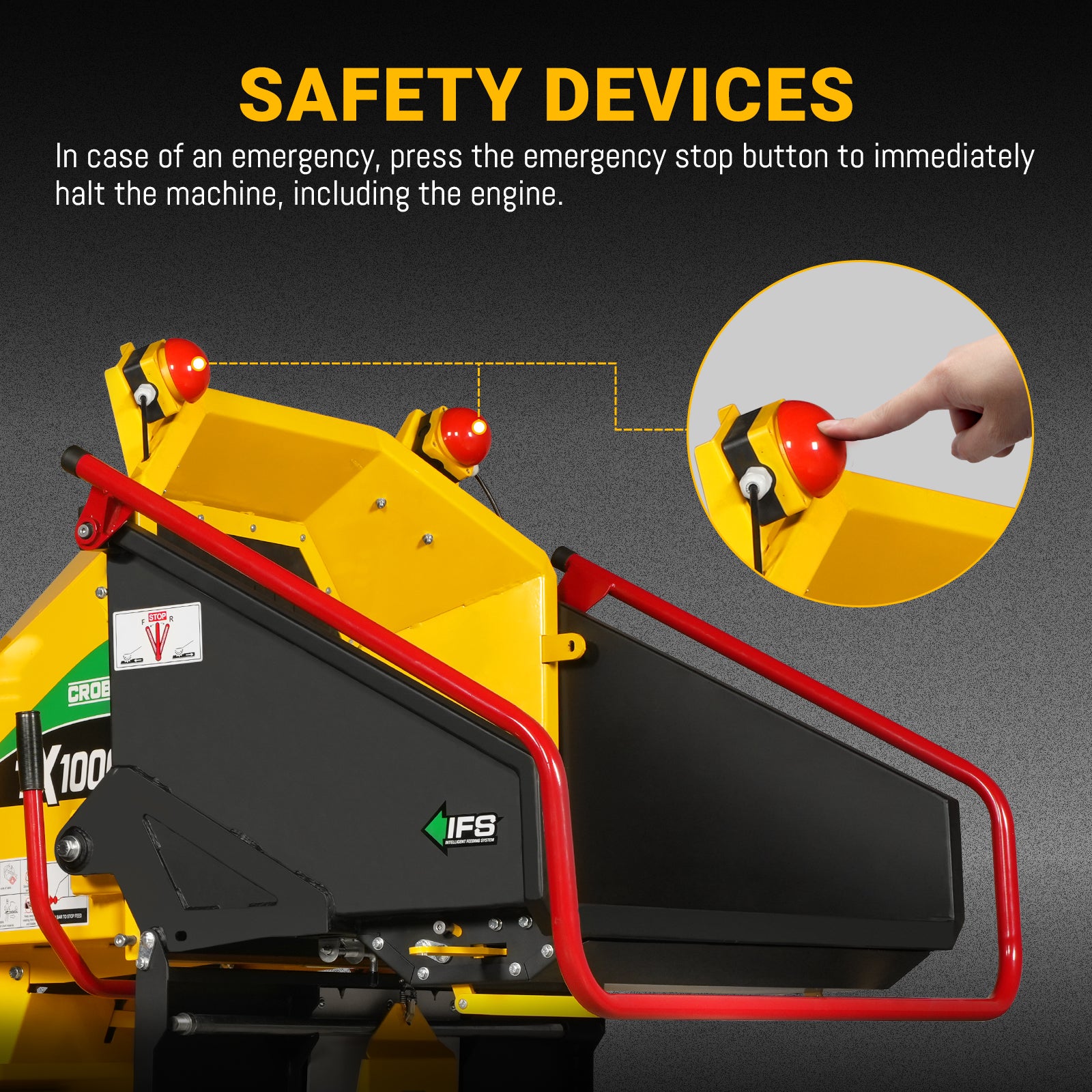

Safety Devices

Two emergency stop buttons are installed on both sides of the upper feeding chute. In case of an emergency, these devices can stop the machine (including the engine) at anytime, ensuring operational safety.

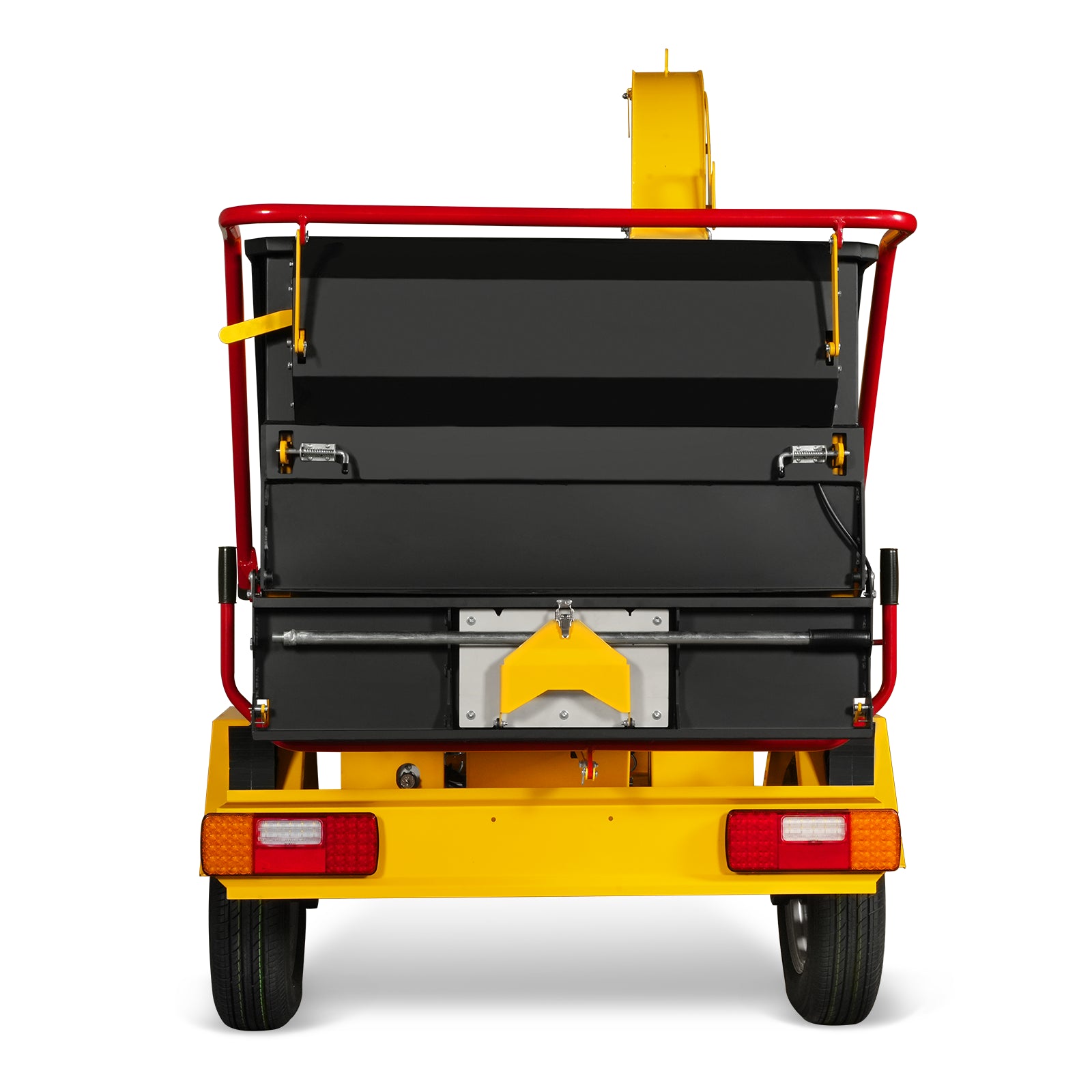

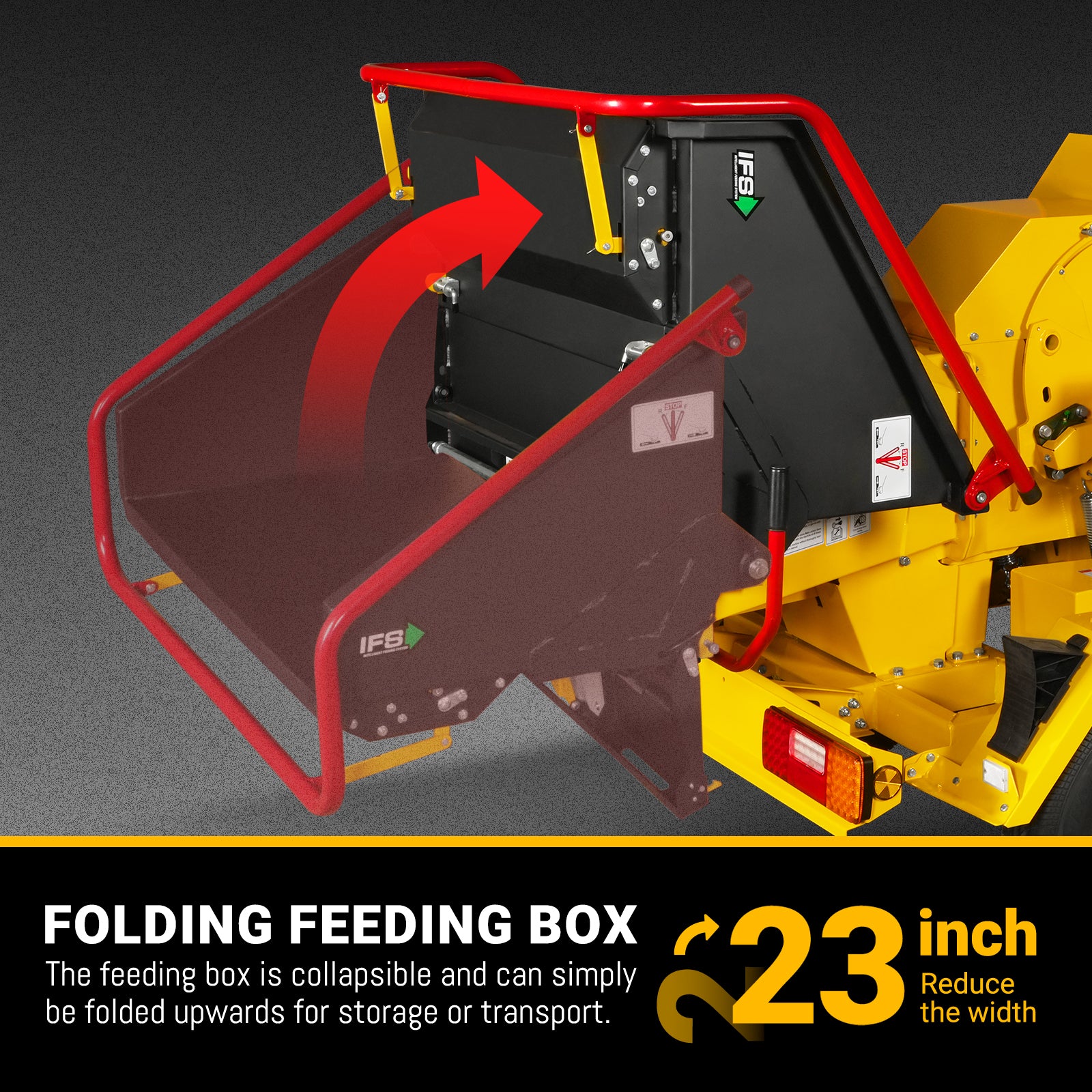

Folding Feeding Box

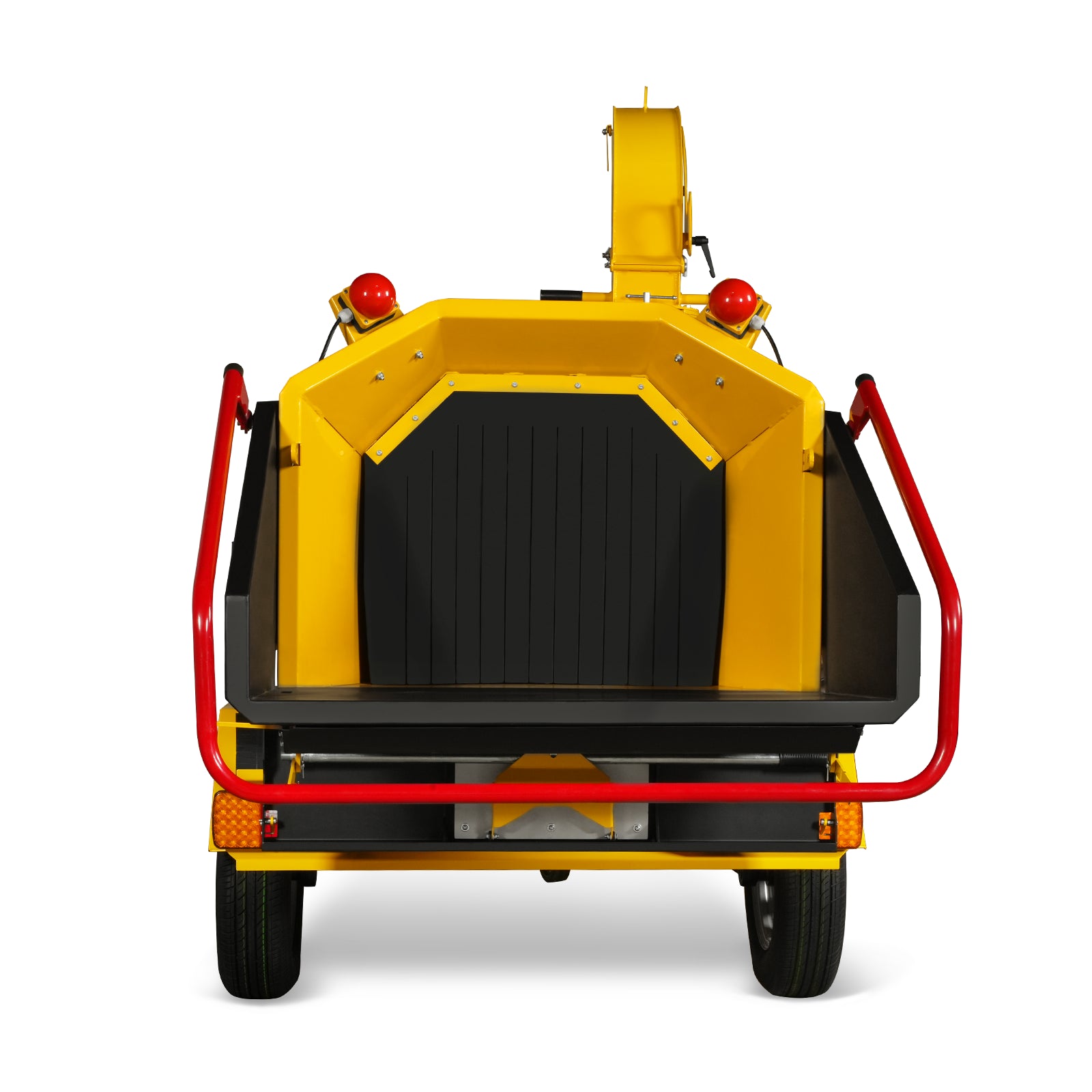

The feeding box is designed to be collapsible, allowing it to be easily folded upwards when not in use. This feature makes storage and transport more convenient, saving space and making the machine more portable and user-friendly.

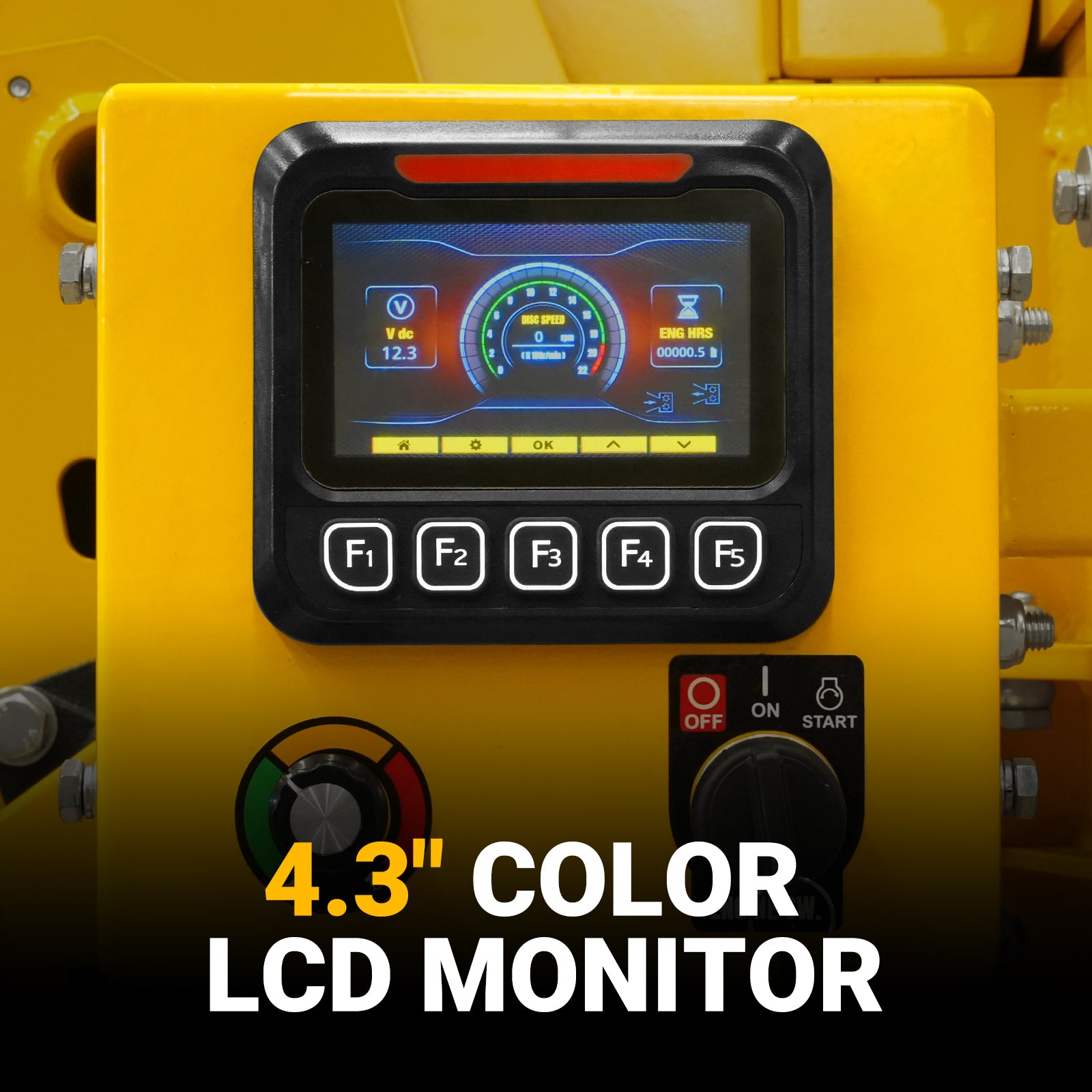

4.3’’ Color LCD Monitor

The TX1000 features a 4.3-inch color LCD monitor, enabling real-time monitoring of the machine's status. This simplifies maintenance and improves overall efficiency.

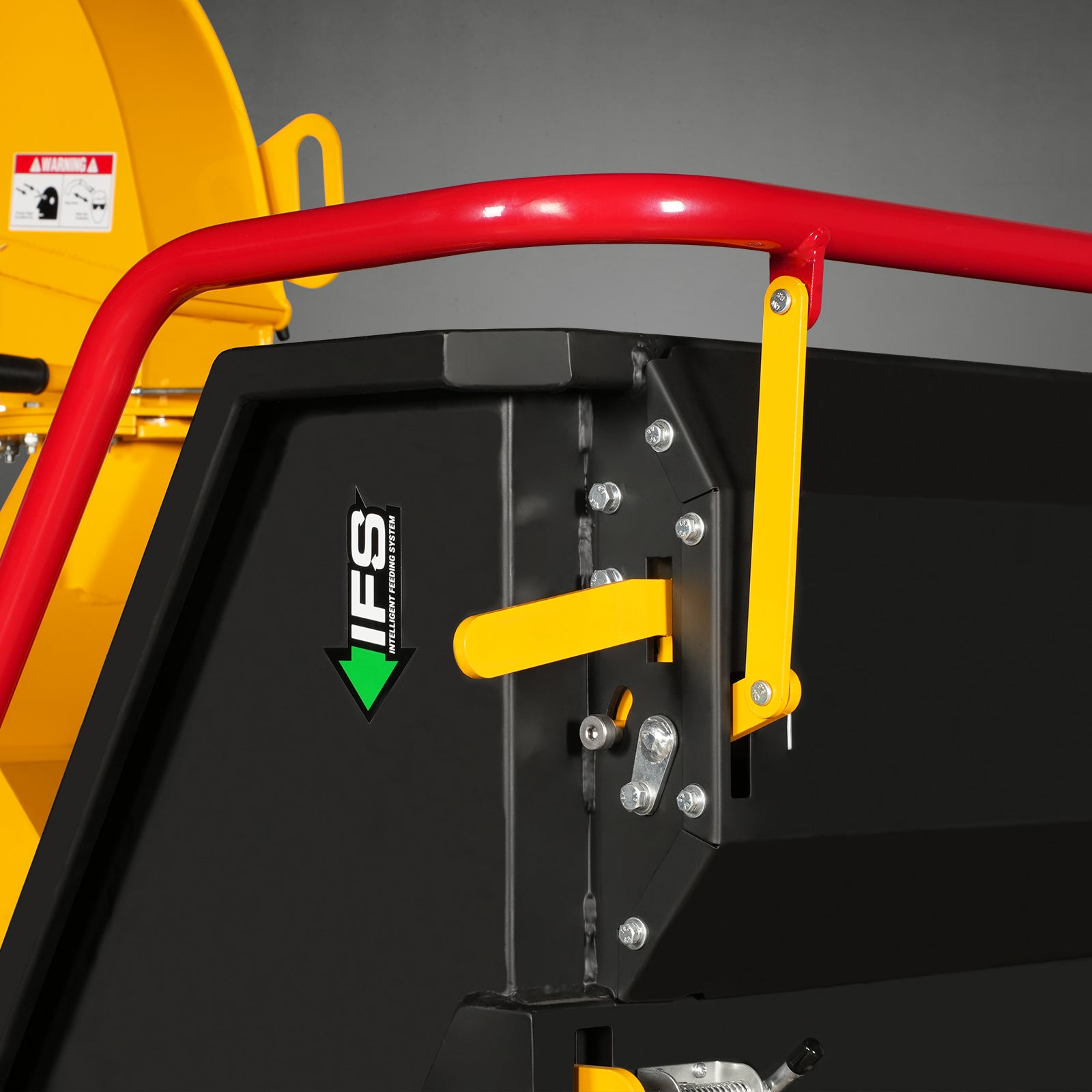

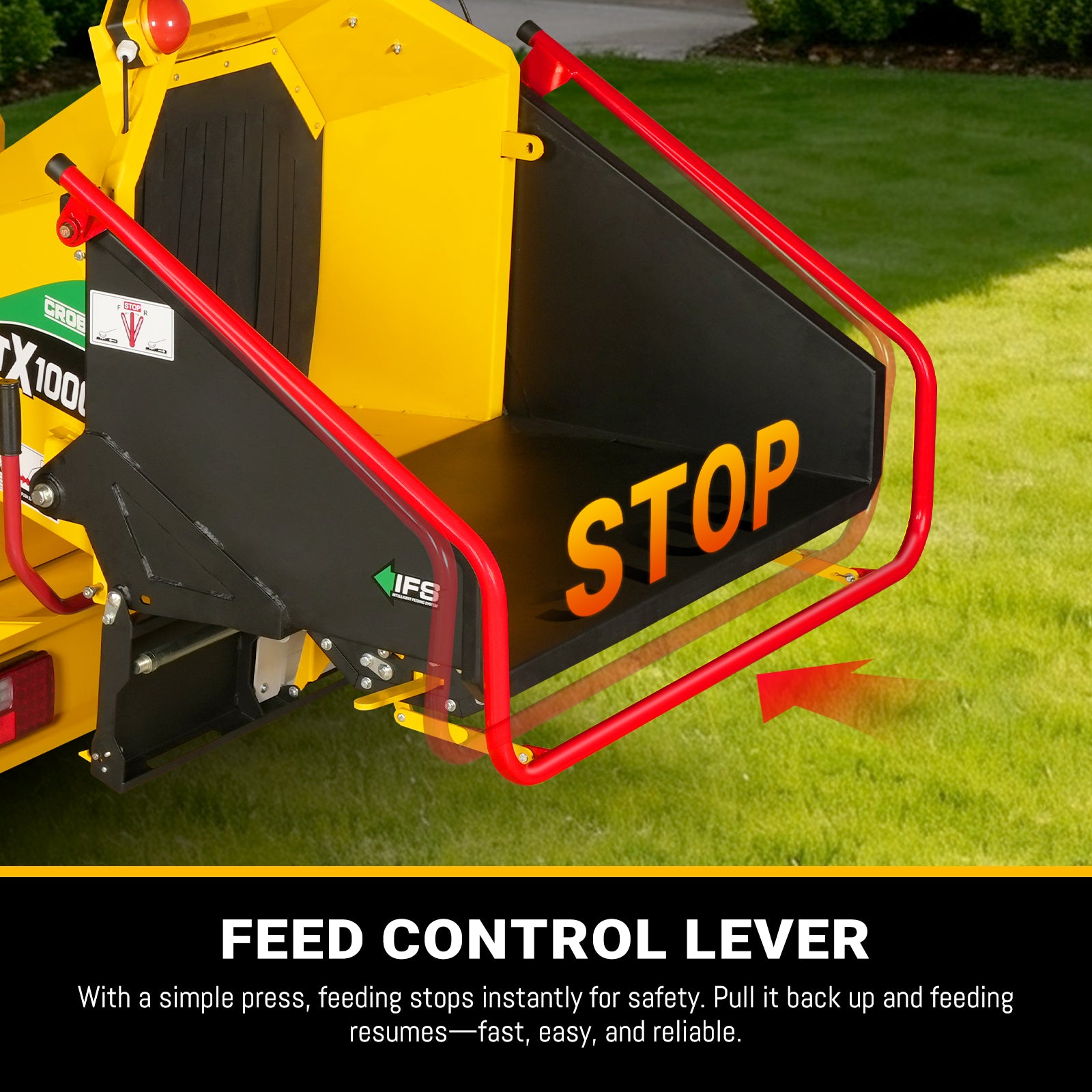

Feed Control Lever

With a simple press, feeding stops instantly to ensure maximum operator safety during operation. When the handle is pulled back up, feeding resumes smoothly and efficiently-making the process fast, easy, and reliable for continuous work.

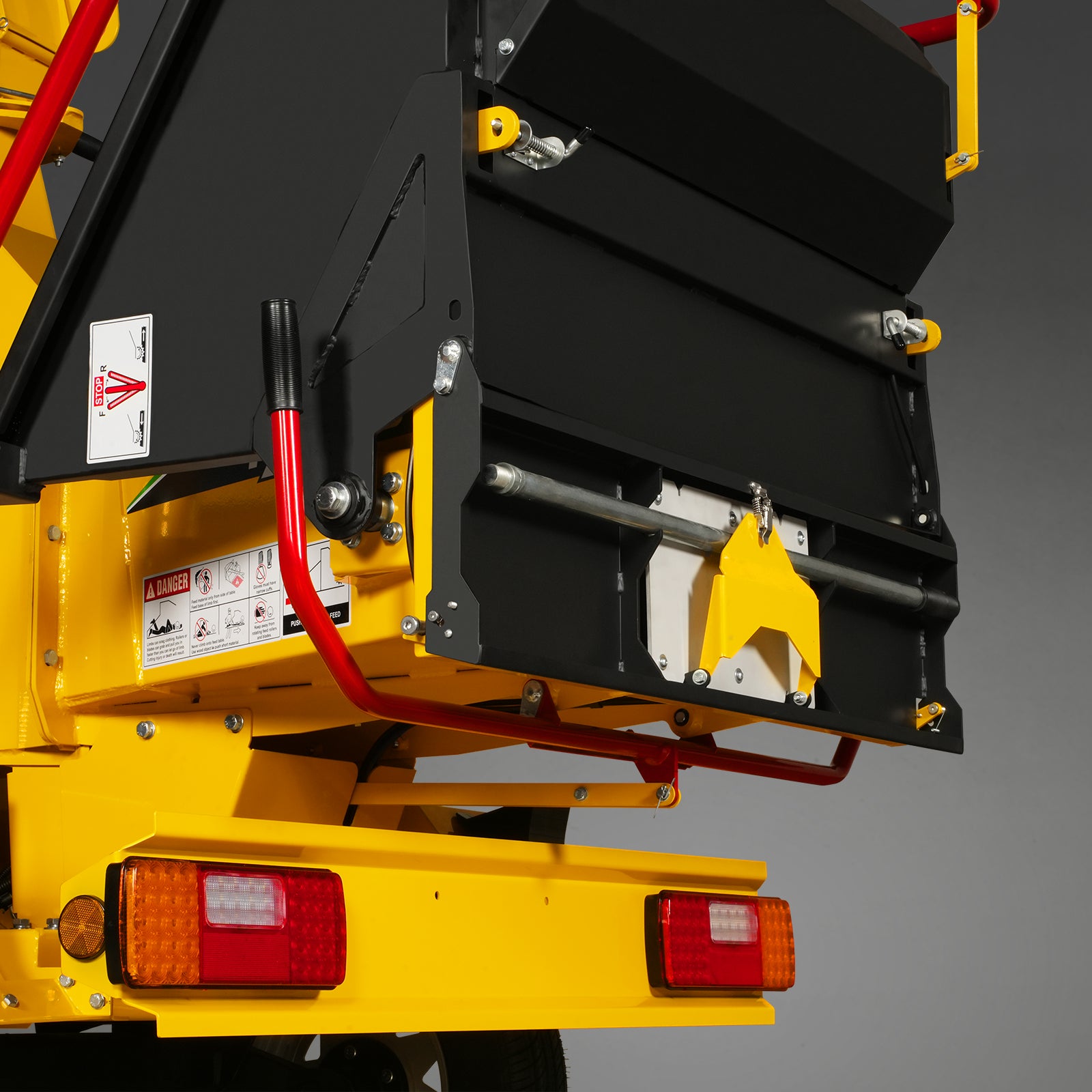

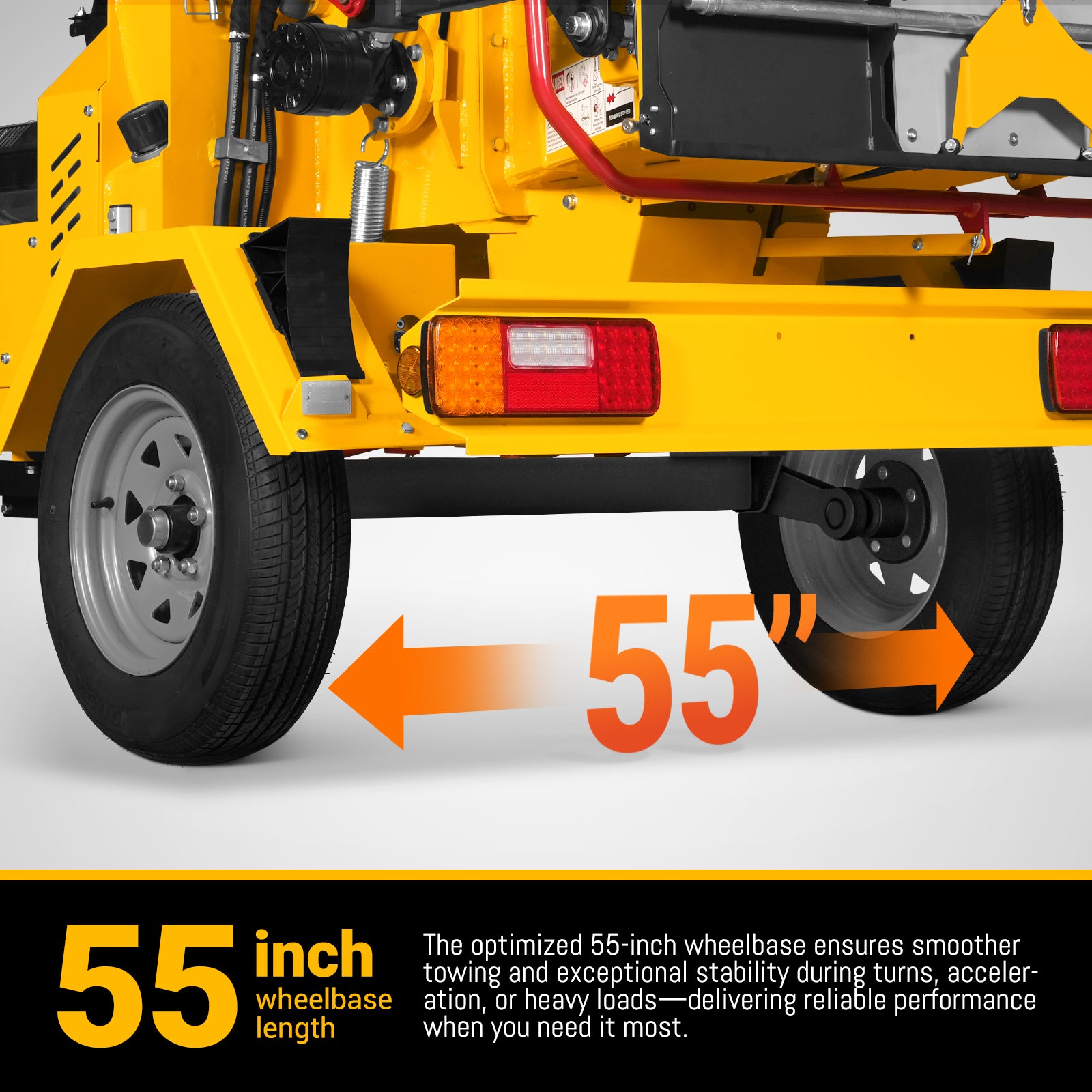

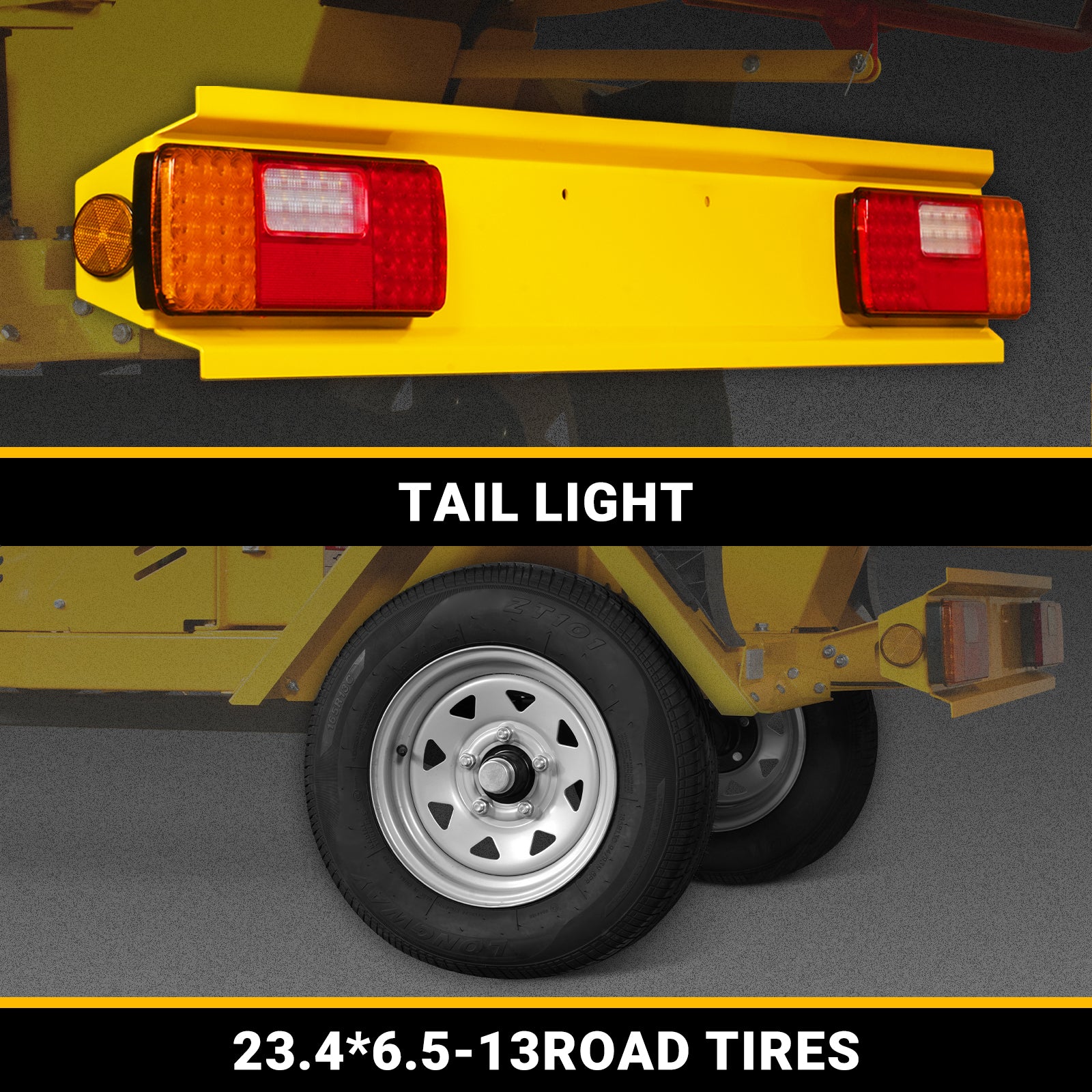

Tail Light and Wheelbase

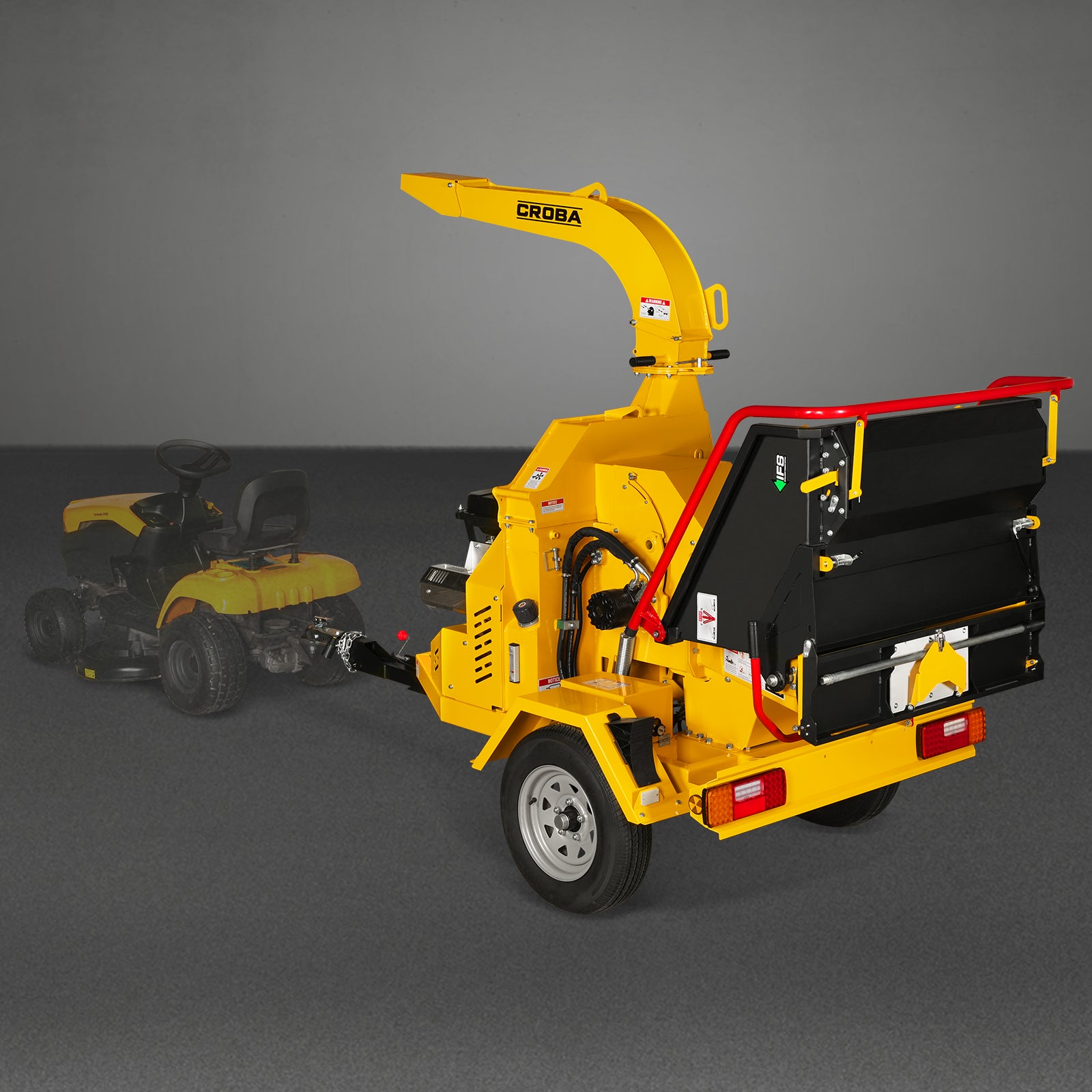

The TX1000 features a tail light with an American 7-pin plug for synchronized brake and turn signals when towed. It comes with φ594 x 165R13 tires and a 55’’ wheelbase for stable performance.

Video

Product Warranty

Specifications

Engine Parameter
Engine Brand Model	Zonsen GB1000EI
Engine Power	35HP
Torque	74Nm
Fuel Tank Capacity	18L
Max Fuel Consumption	2.38gal/h
Fuel Type	Gasoline 92#
Air Cleaner	Double Filtration
Oil Filter	Screw Mountiing
Recommended Oil	SAE 10W-30
Oil Volume with Filter	2.5L
Maximum Continuous Working Angle	20°
Cooling Medium	Forced Cooling
Alternator	25A/300W
Clutch Type	Manual Clutch
Engine Shaft Diameter	1.125 in
Tensioner	Spring Automatic Tensioning
Belt	2SB1505LE

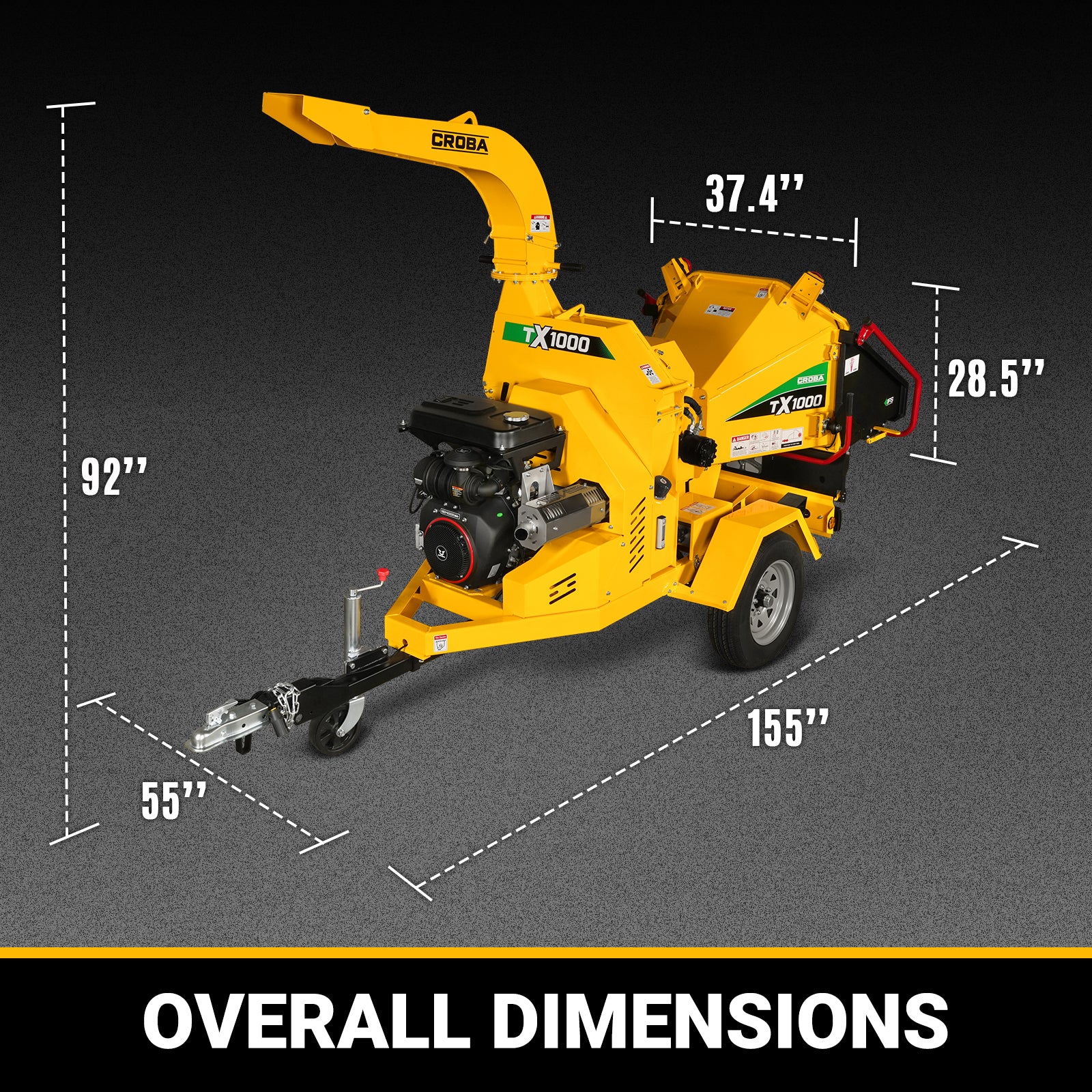

General Dimensions And Weight
Overall Length-Feed Table Up	135 in
Overall Length-Feed Table Down	155 in
Overall Width	55 in
Overall Height-Discharge Chute Up	79 in
Overall Height-Discharge Chute Down	92 in
Overall Weight	1874 lbs
Tongue Weight	198 lbs
Feed System
Feed Roller Orientation	Horizontal
Feed Roller Nos.	1
Feed Roller Clamp Load	344 lbs
Knife Nos.	4
Number Of Feed Roller Motors	1
Feed Roller Clamping Mechanism Type	Spring + Feeding Roller Weight
Feed Roller Dimension	φ12*11 in
Minimum Distance From Feed Roller To Blade Housing	5 in
Weight Of Feed Roller Assembly	123 lbs
Feed Speed	54ft/min
Infeed Table Height	22 in
Infeed Table Length	24 in
Infeed Table Width	41 in
Infeed Throat Size	12*8 in
Distance From Feed Roller To End Of Feed Table	61 in
Distance From Feed Table To Ground	30 in
Safety System
Bottom Feed Stop Bar Function	Feed Roller Stopped - Reset
Bottom Feed Stop Bar	Standard
Bottom Feed Stop Bar Diameter	1.2 in
Bottom Feed Stop Bar Material Thickness	0.07 in
Stop Bar Resetting Method	Manual Reset
Three-Position Feed Control Bar	Standard
Control Bar Diameter	1 in
Control Bar Material Thickness	0.07 in
Control Bar Position Function	Forward/Stop/Reverse
Red Emergency Stop Button	Stop The Engine
Red Emergency Stop Button Reset Method	Manual Reset

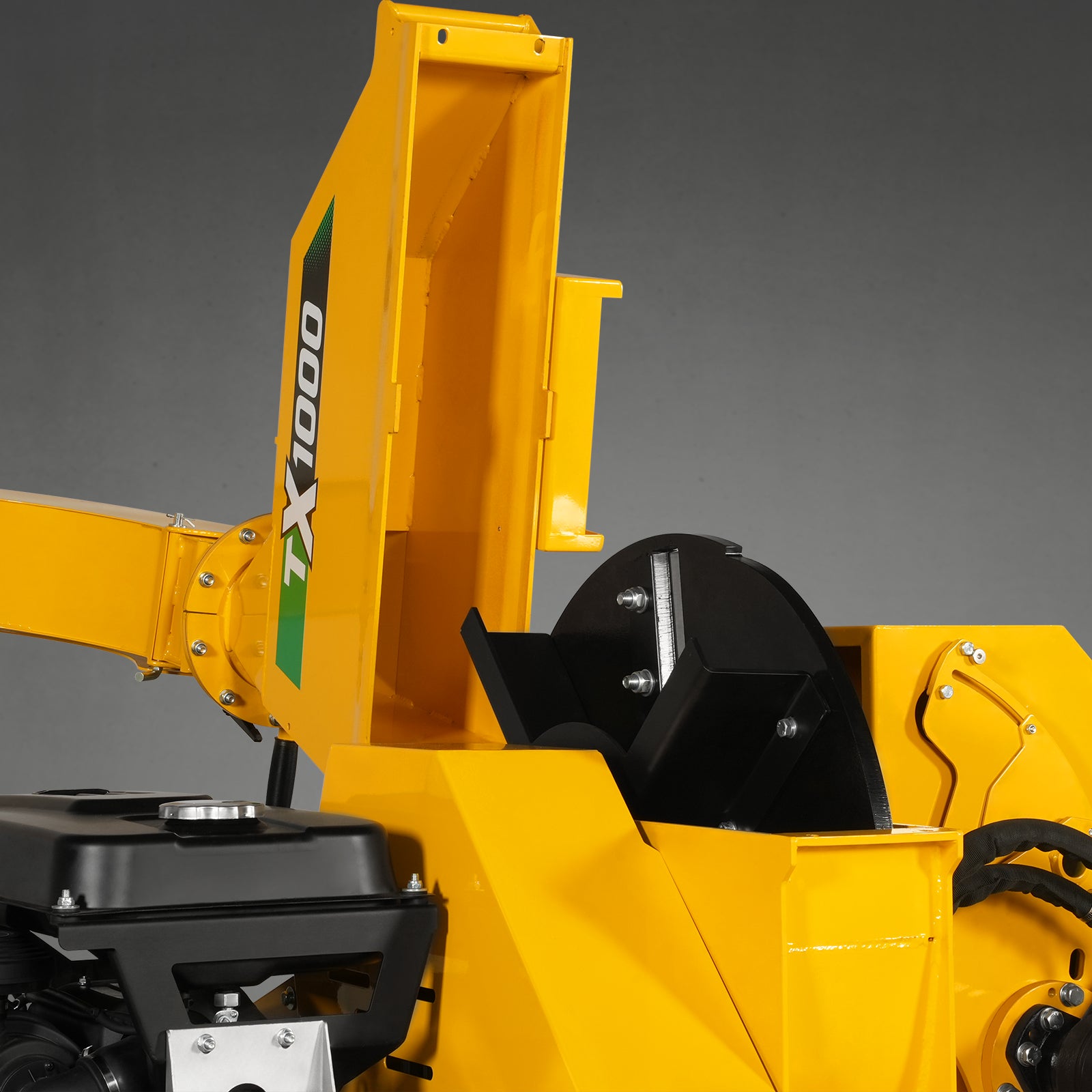

Blade Housing Parameter
Chipping Capacity	8 in
Blade Housing Width	7 in
Cutting Disc Size	30*0.7 in
Cutting Disc Rotating Speed	1800
Weight With Shaft	225 lbs
Safety Lock - Number Of Positions	1
Blade Size	410.5 in
Blade Cutting Edge Nos.	2
Blade Bolt Nos.	3
Vertical Anvil Size	3.57.80.5 in
Vertical Anvil Cutting Edge Nos.	2
Horizontal Anvil Size	3.711.60.4 in
Horizontal Anvil Cutting Edge Nos.	2
Blade Material	A8 Steel
Anvil Material	Cr12
Blade Holder Replaceable	No
Fan Blades Nos.	4
Fan Blade Fixation Method	Bolt Fixing
Fan Blade Air Flow	3249CFM
Disc
Bearing Nos.	2
Bearing Hole Diameter	2 in
Bearing Type	Spherical Bearing
Bearing Brand	SKF
Dynamic Capacity	23.2KN
Static Capacity	27KN
Tensioner	Automatic Tensioning
Belt Type	Combined Belt
Discharge System

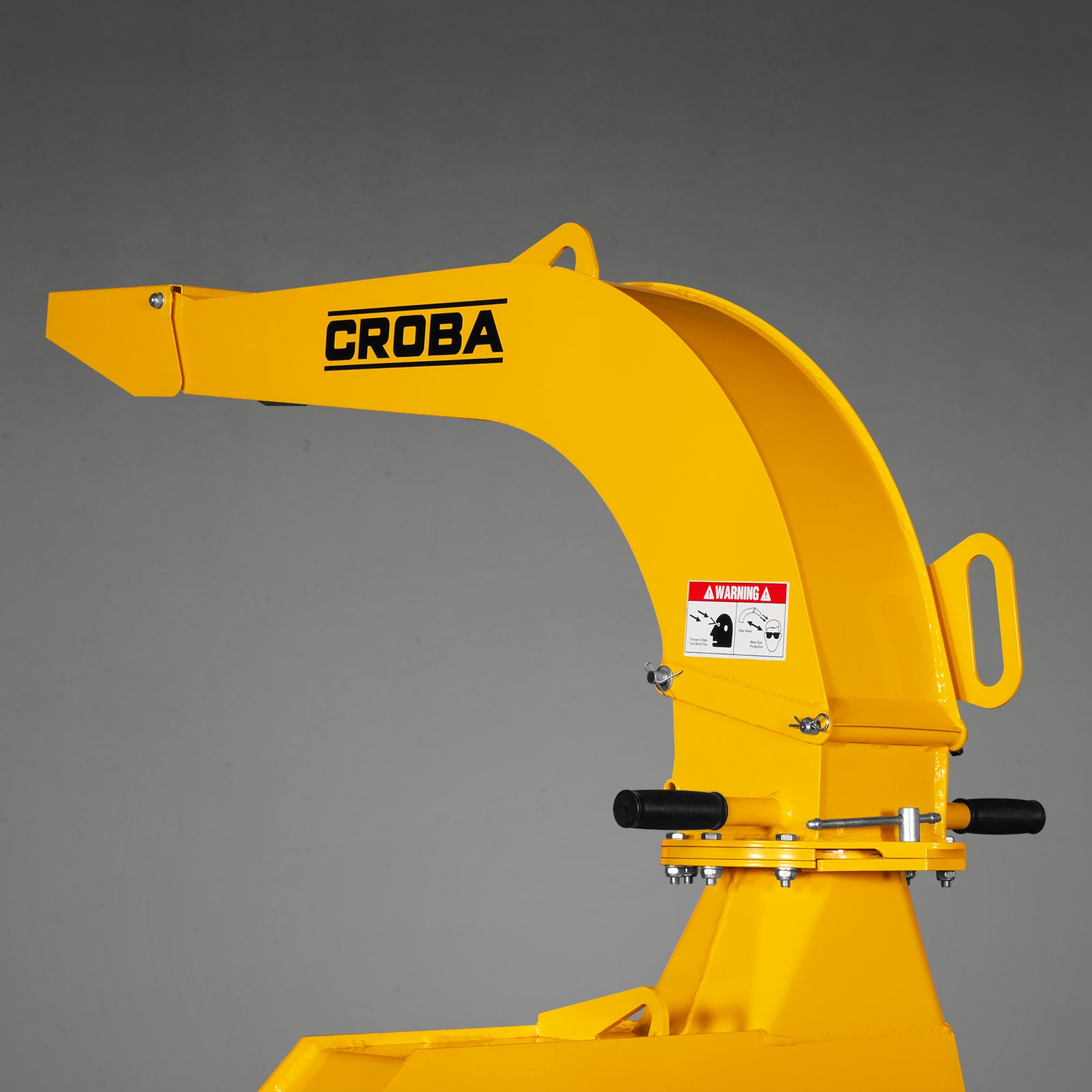

Chute Height	97 in
Flange Thickness	0.2 in
Side Wall Thickness	0.07 in
Chute Rotation Angle	360°
Rotation Type	Manual
Rotatation Lock	Included
Rotational Lock Type	Tighten The Dual Handle Bolts

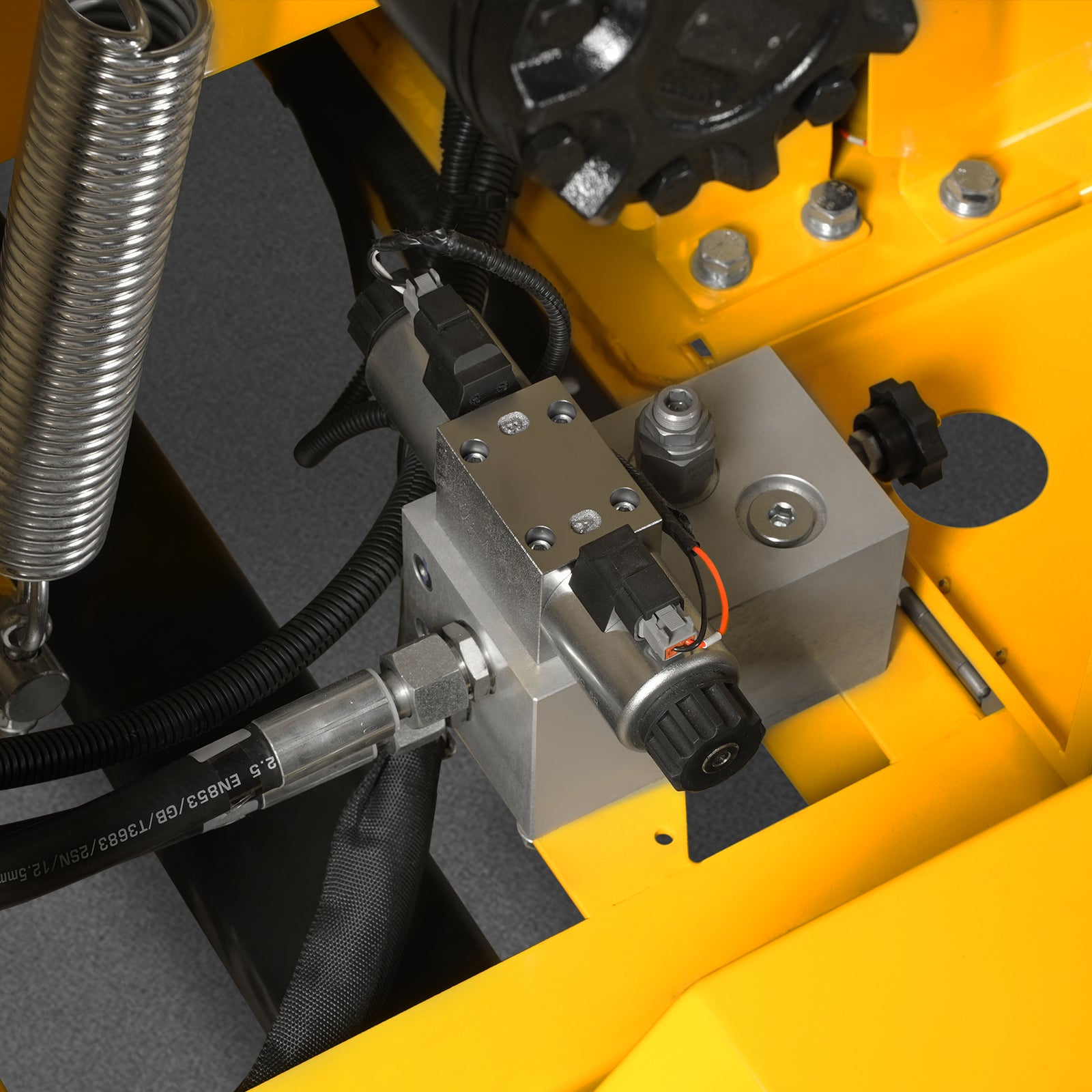

Hydraulic System
Tank Capacity	7.4 gal
Recommended Oil Type	hm46
System Type	Open Center
Filtration Method	Return Oil Filtration - 10um
Pump flow at the maximum RPM	4.2 gal
Maximum Pressure	2102psi
Electric Control Parameter
System Voltage	12V
Battery	12V 48AH
Display Screen Size	4.3 in.
Controller Function	Timer, Automatic Control, Status Display, Speed Display, Etc.
Shutdown System	Engine
Trailer Lights	Vehicle Power Supply
Others

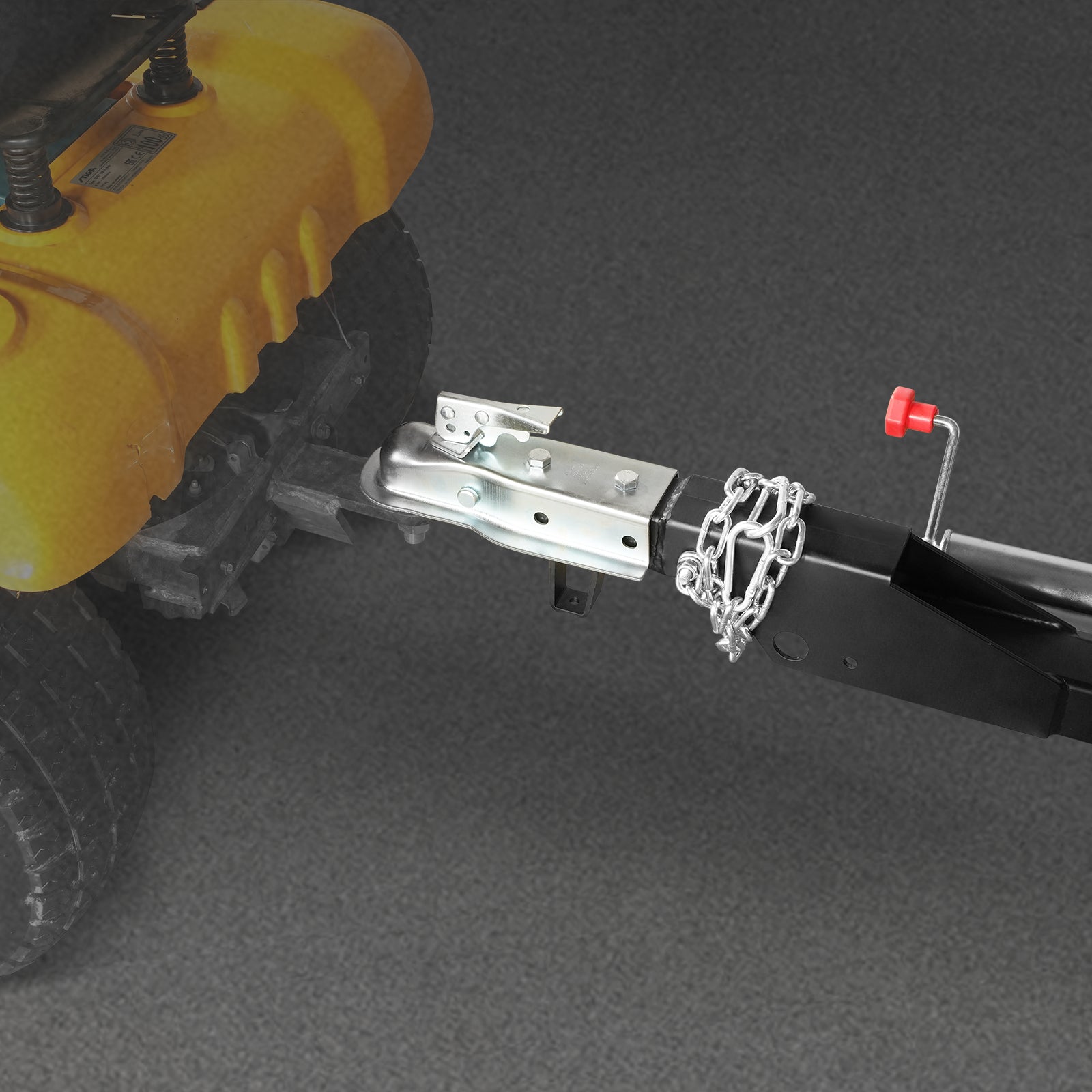

Tow Ball Size	2" Coupler Hitch / 2" Ball Coupler
Hook Type	Ball Coupler
Axle Load-Bearing Capacity	2756 lbs Torsion Shaft
Mud Guard	Bolt Fixing
Torque Shaft Type	Solid Torque Shaft
Tyre	φ594x165R13

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
