SKU: 110803Y

| Model: B150

6 inch E-start DUCAR 420cc 15hp Gas Powered 4 - Wheel Drum Wood Chipper with Taillight , B150

Name: 6 inch E-start DUCAR 420cc 15hp Gas Powered 4 - Wheel Drum Wood Chipper with Taillight , B150
Brand: MechMaxx
SKU: 110803Y
Price: 2399.0 USD
Availability: InStock

$239900

FREE DELIVERY, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Color : Yellow

In Stock

Yellow Red

Payment:

917-772-7273

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Frequently Bought Together

( 1 Pack / 2 Pcs ) Blade for Wood Chipper GS1500, PGS1500, P4206, B150 and B200 (SKU: 110200; 110400; 110800; 110801; 110802; 110803; 110804; 110805; 110810）

Kevlar V-belts for Wood Chipper P4206 and B150, 17*1255 (sku：110800; 110801; 110802; 110803; 110804; 110805）

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 )

6 inch E-start DUCAR 420cc 15hp Gas Powered 4 - Wheel Drum Wood Chipper with Taillight , B150 $239900

( 1 Pack / 2 Pcs ) Blade for Wood Chipper GS1500, PGS1500, P4206, B150 and B200 (SKU: 110200; 110400; 110800; 110801; 110802; 110803; 110804; 110805; 110810） $4999 $89.99

Kevlar V-belts for Wood Chipper P4206 and B150, 17*1255 (sku：110800; 110801; 110802; 110803; 110804; 110805） $4999 $59.99

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 ) $5999

Total Price

$

Product Overview

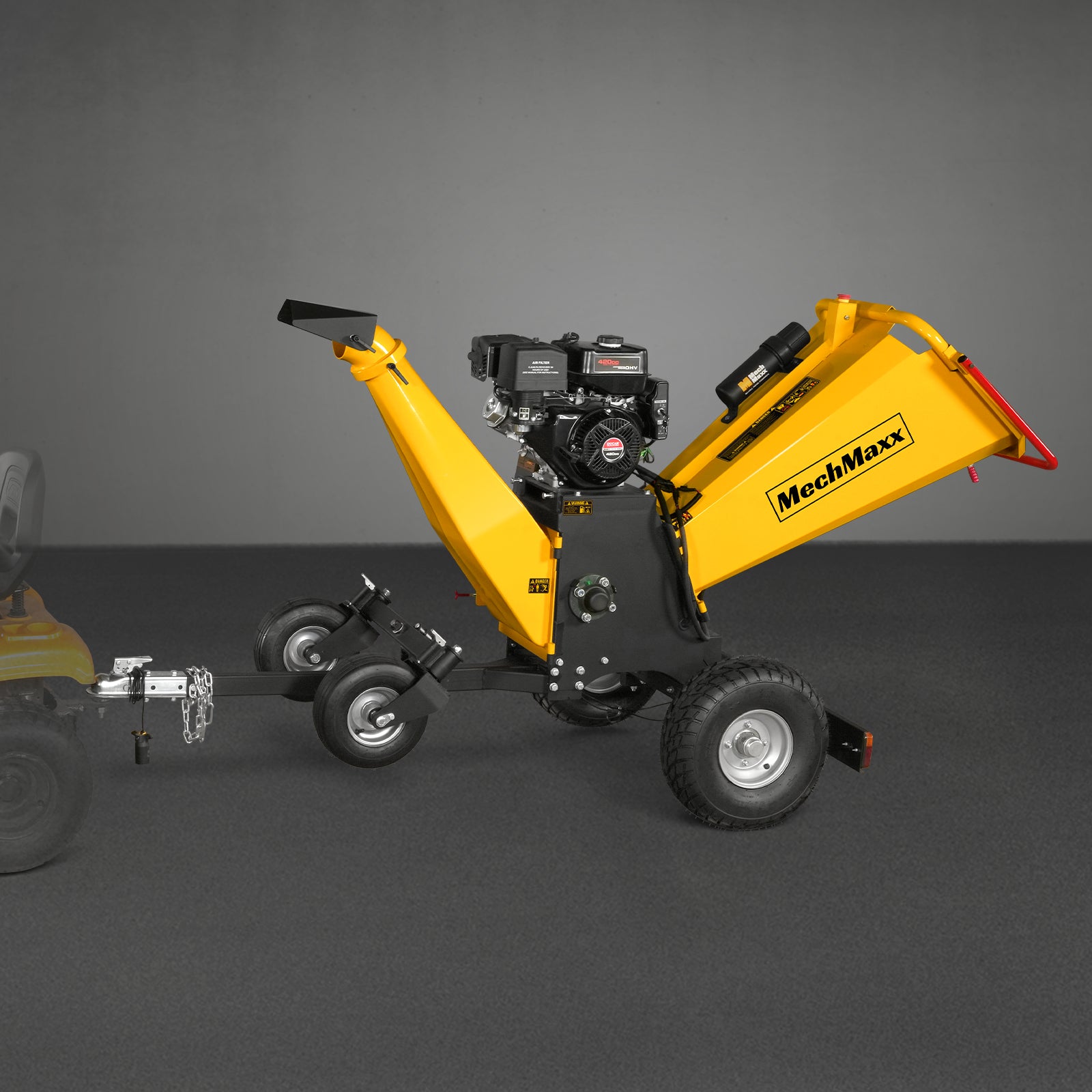

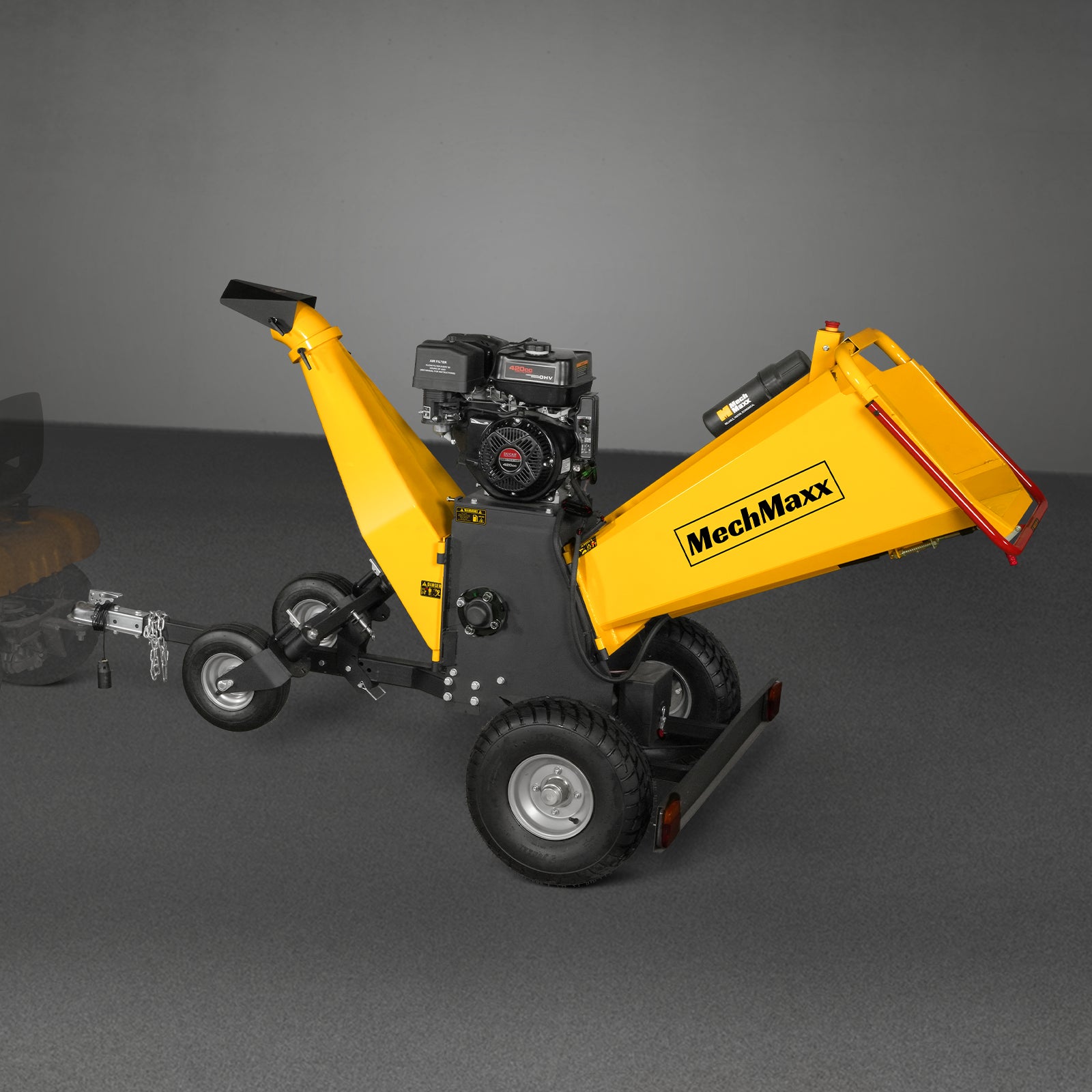

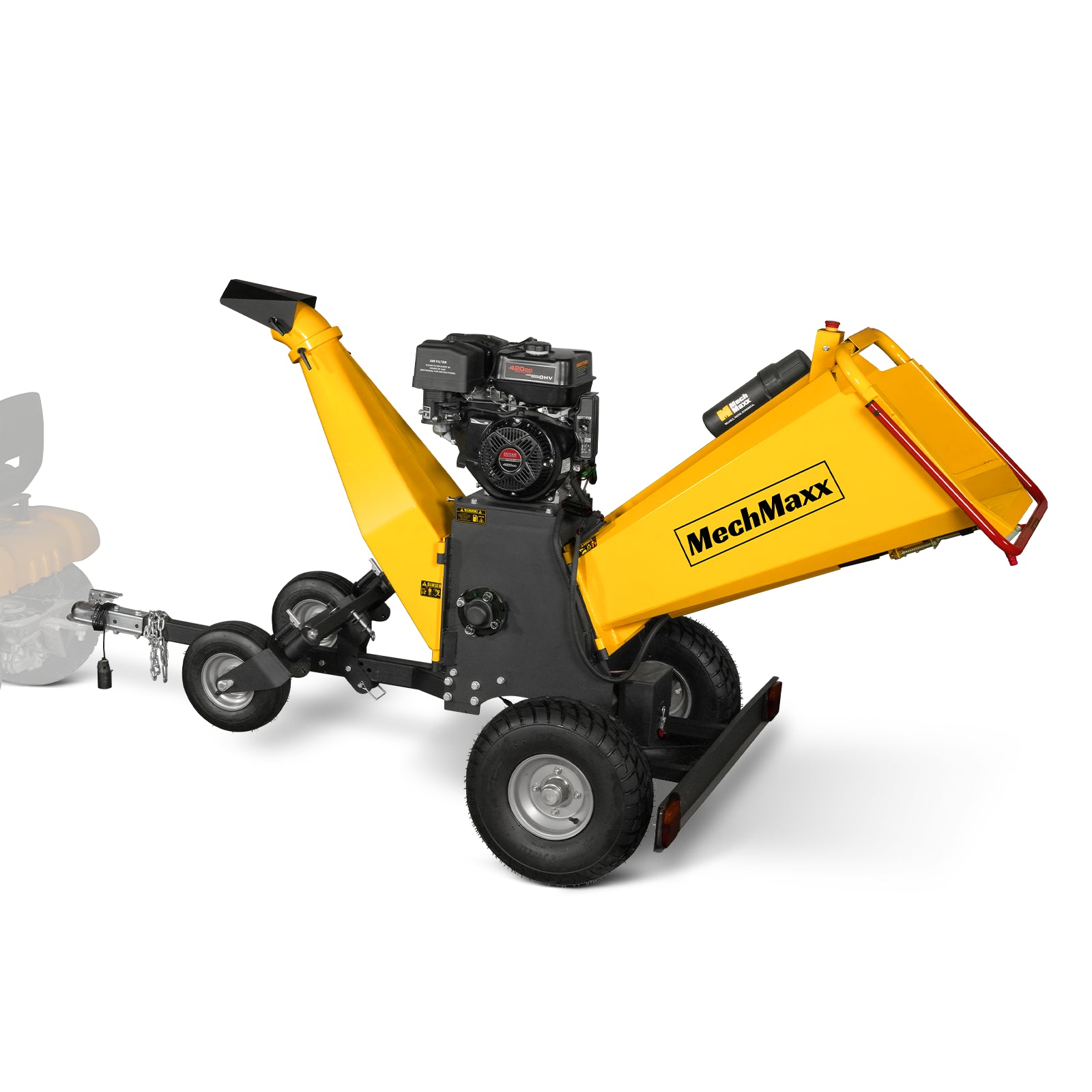

MechMaxx 6 in. 15HP gasoline engine wood chipper, electric start, attach to two 12in. blades, DOT road legal tires, wheelbase 48 in., 56in. discharge chute
This wood chipper has extremely powerful roller with the diameter of 14in., which can shred branches up to 6 inches.
Double-edge cut reversible blades greatly increase the service life.
Both the feeding chute and the discharge chute can be opened quickly and easily for the maintenance and repair.
By adopting whole shaped technology, the discharge chute is both attractive and practical with the ability to rotate 360 degrees.
You can stop the engine quickly in a crisis to improve operator safety with a safety button above the feeding chute and the emergency stop press bar on lower side of the feeding chute.
With front 13x5.00-6; rear 19x7.00-8 Tubeless tires and 48in. super-wide wheelbase, this wood chipper has the ability of driving on steep ground with the high stability.
This is a high-performance wood chipper fit for professionals and leasing companies.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30

Product manual (PDF)

B150 Product manual 1.0.pdf

Engine manual (PDF)

Ducar DH420E Manual.pdf

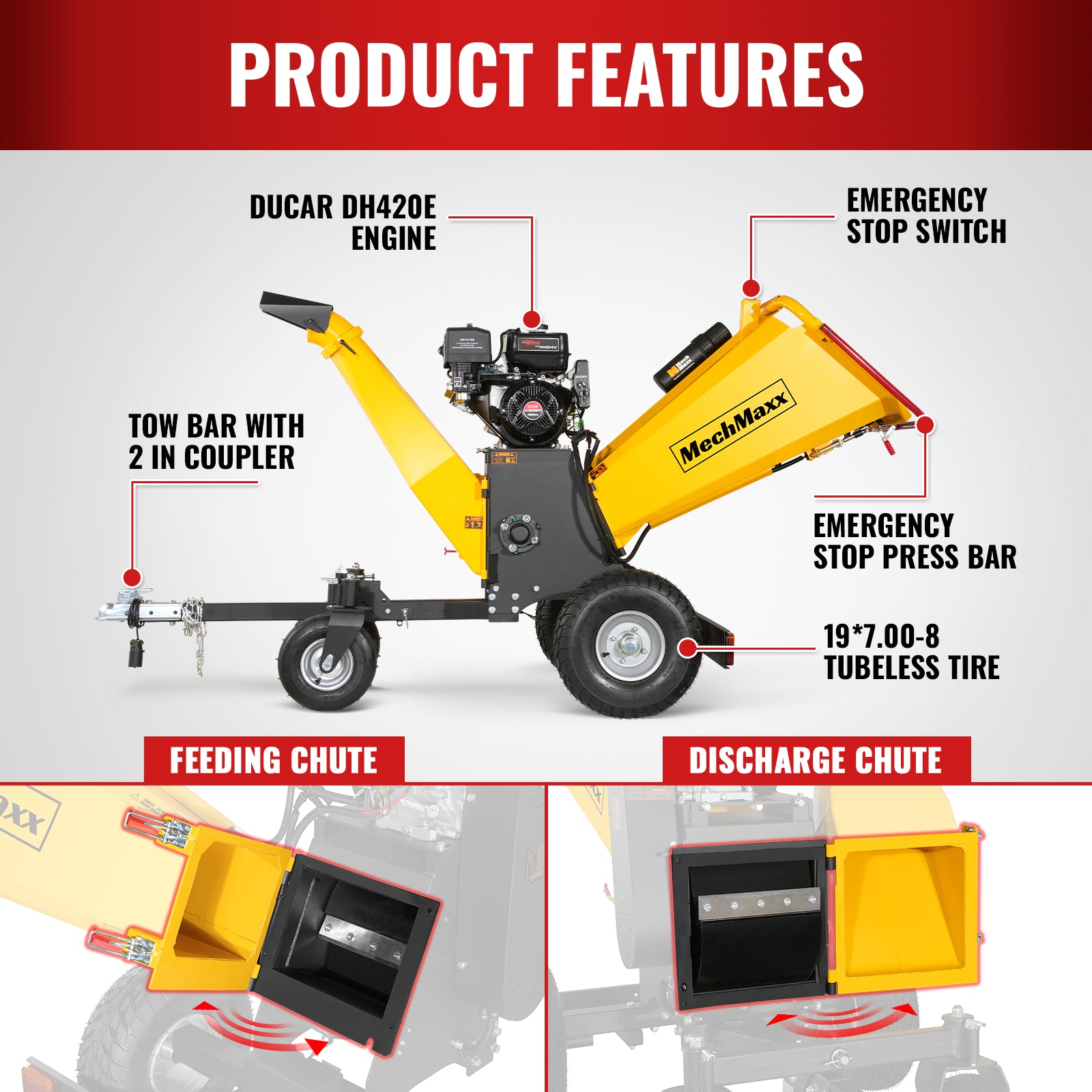

Product Features

Electric Start and Battery

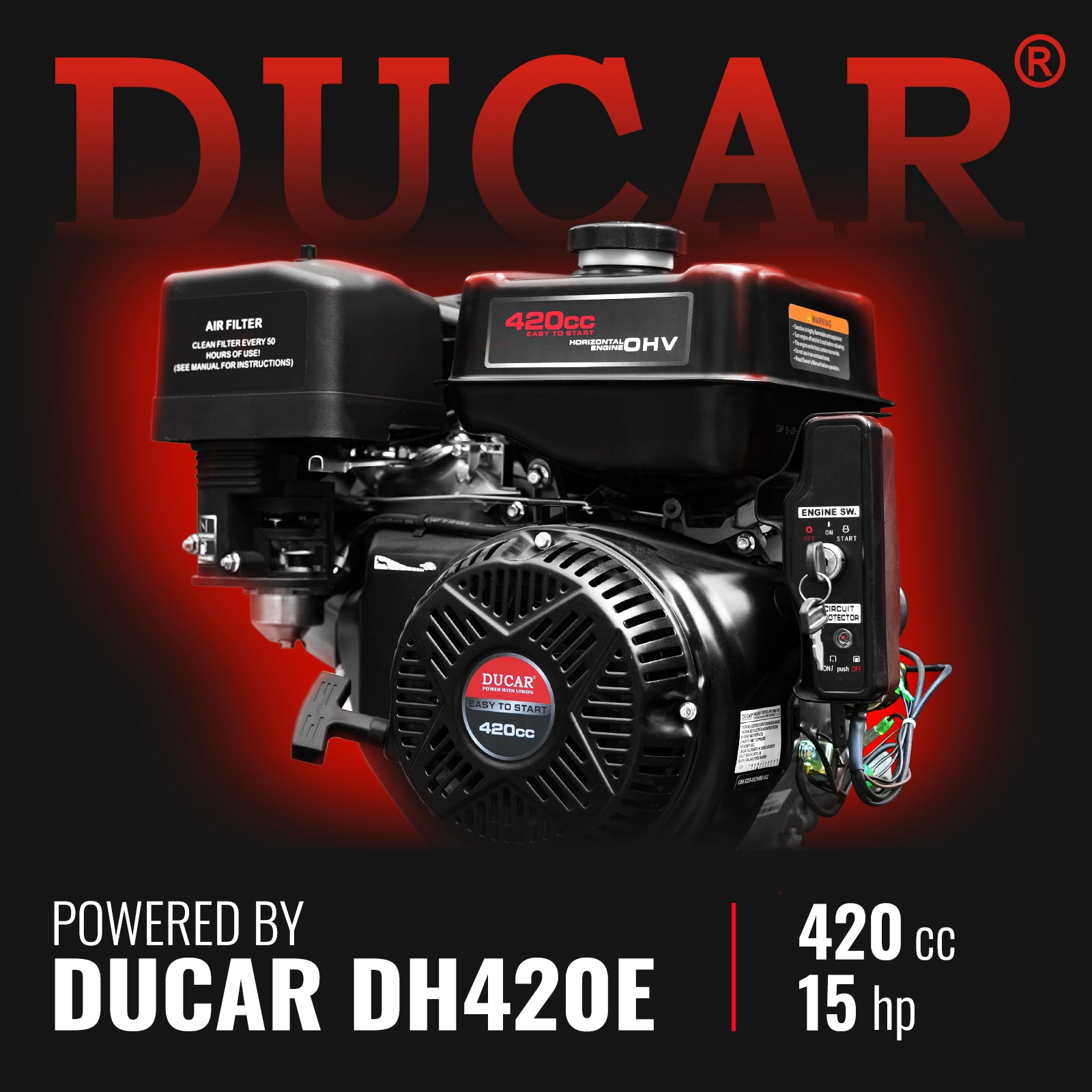

The B150 Wood Chipper is powered by a 15hp 420cc electric start gasoline engine, and equipped with a 12V20Ah lead-acid battery.

Feeding Chute

There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

Discharge Chute

Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

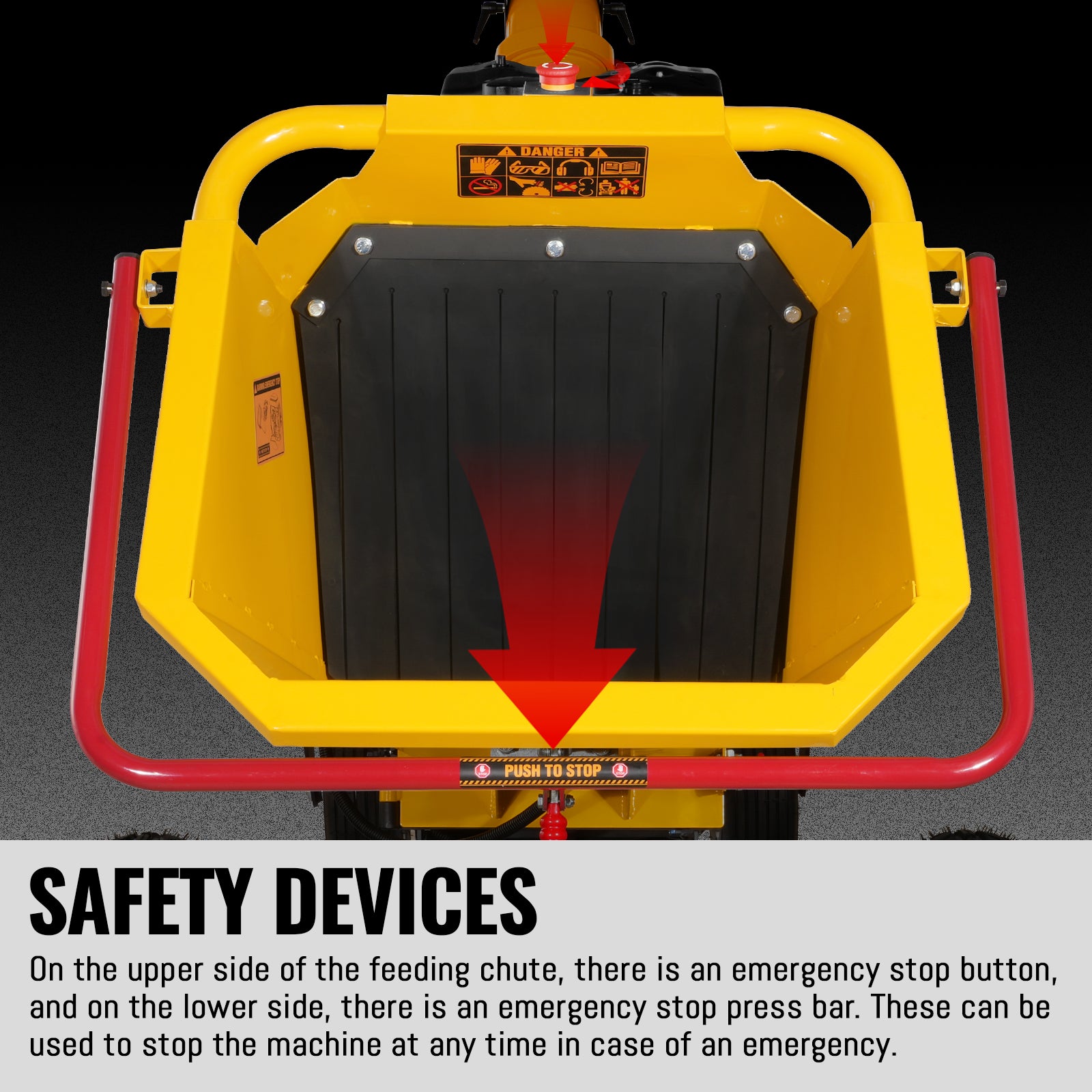

Safety Devices

On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

Maximum Wood Chip Diameter 6’’

The core cutting component of the B150 Wood Chipper is a roller with a diameter of 14” and a length of 12”. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 6” .

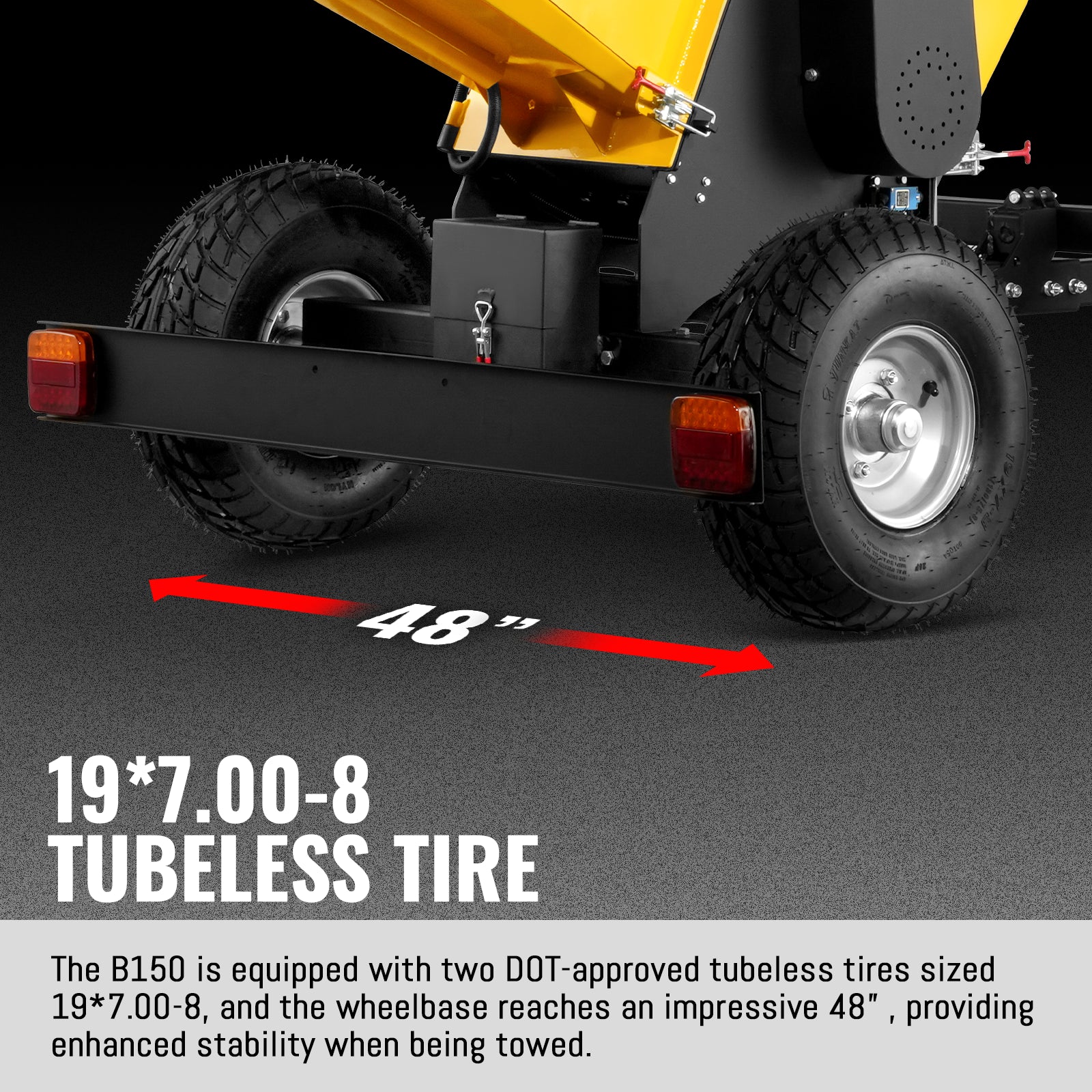

6.19*7.00-8 tubeless tire

The B150 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48” , providing enhanced stability when being towed.

Tail Light and Plug

The B150 is equipped with tail light, and on one side of the trailer, there is an American nine-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of B150 to synchronize with the vehicle's braking and turning signals.

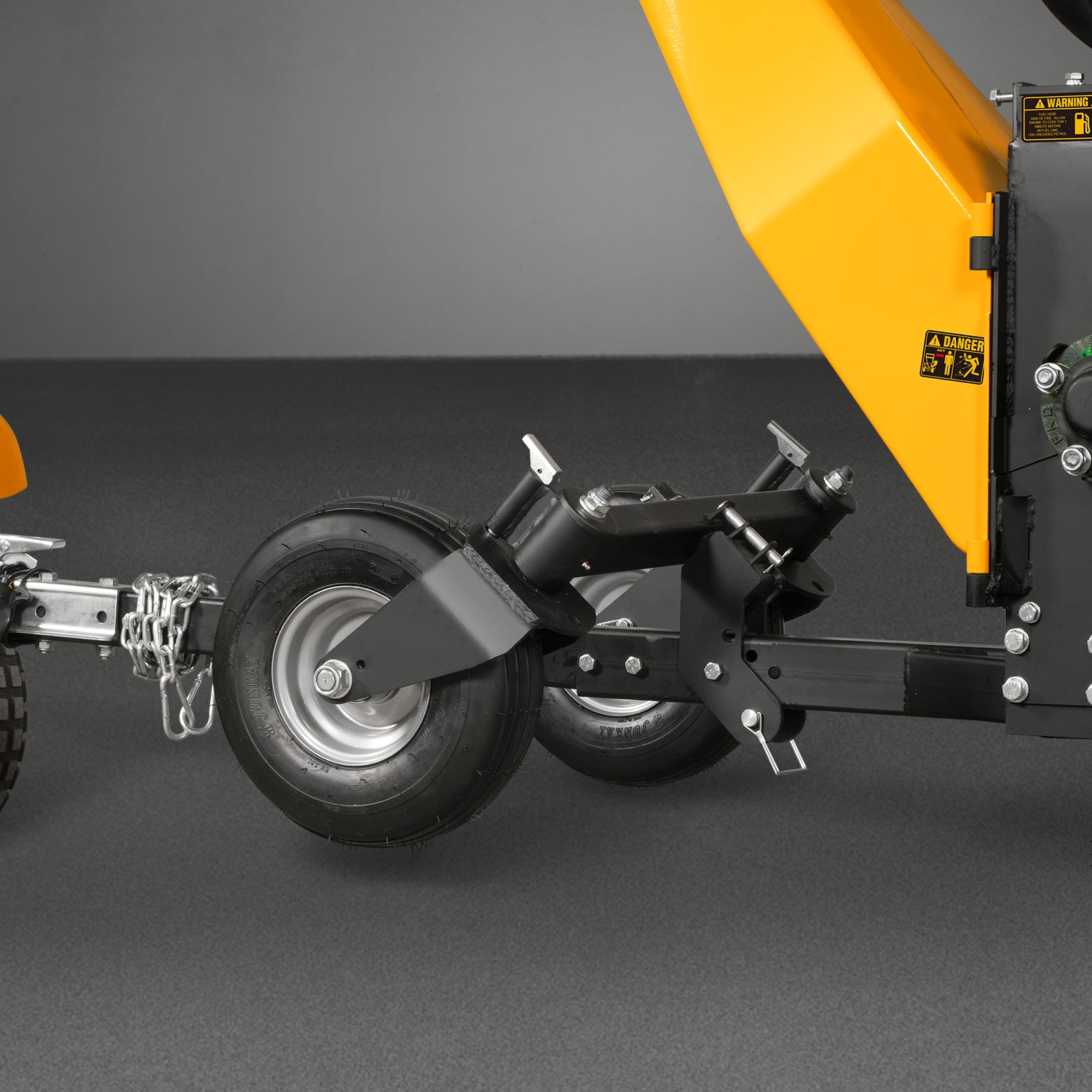

Foldable and Lockable Front Wheels

When the B150 is being towed, the two 13*5.00-6 tubeless tires need to be folded up. When the B150 is operational, they can be lowered. When the B150 needs to be pushed to a designated work area, the two wheels can be locked to ensure straight-line movement.

Discharge Chute Design

The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

Engine	DUCAR DH420E	Blades Type	Double edge blade
Engine Type	Single cylinder,4 stroke, air-cooled,OHV	Discharge Chute	360 degree rotating
Displacement/HP	420cc; 15hp	Emergency Stop	Stop bar + button
Start	E-start	Feed Chute Opening Method	Hinge
Battery	12V 20Ah Lead-acid	Discharge Chute Opening Method	Hinge

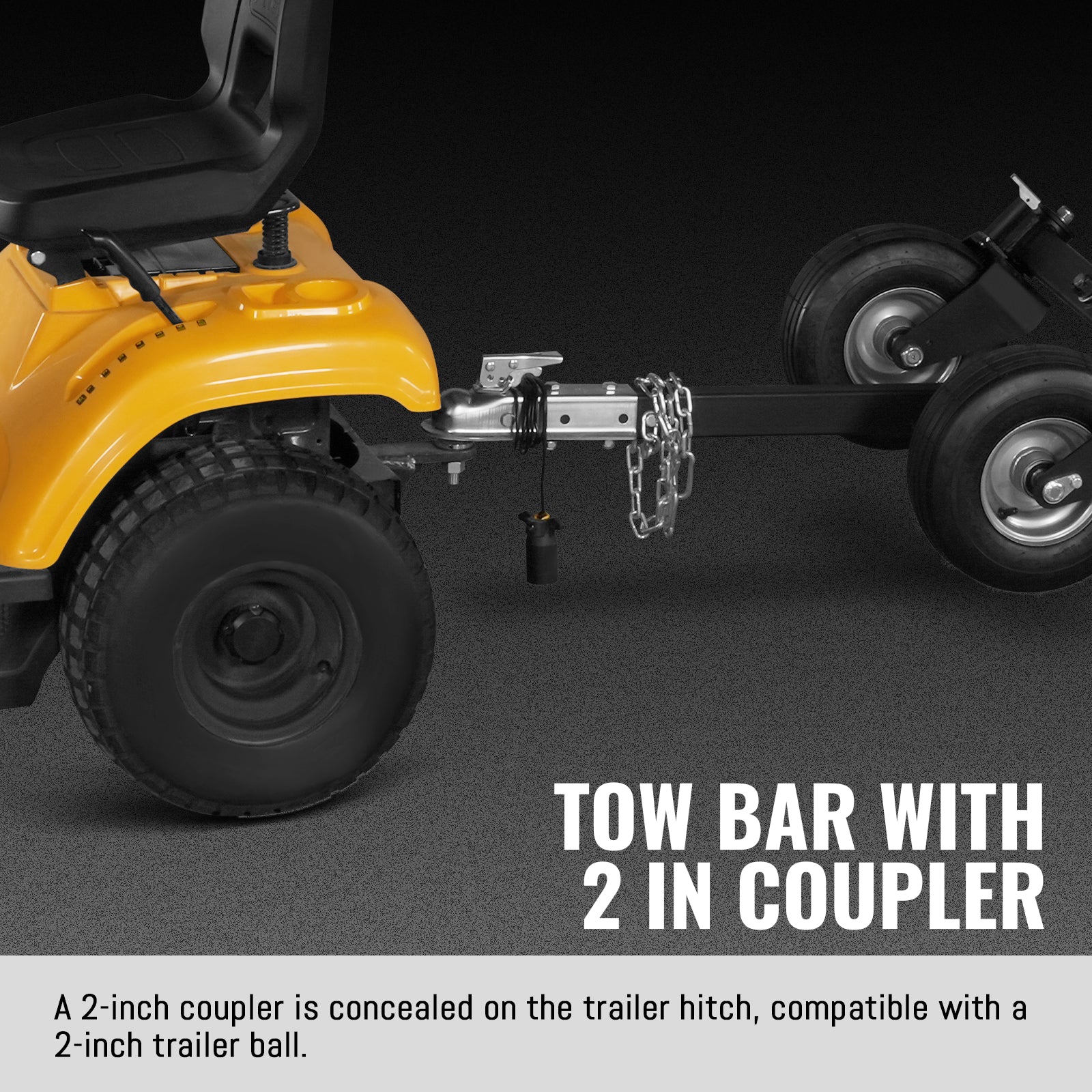

Belt	2 x V-belts	Towing	Tow bar with 2 ft coupler
Belts Material	Kevlar	Tire	19*7.00-8 Tubeless
Clutch	Centrifugal clutch	Wheelbase	48in
Cutting Method	Drum	Package Method	Plywood case
Chipping Dia.	6 in	Weight (N.W./G.W.)	573/639lbs
Roller	13.8in	Packing Size (LWH)	433150 in
Reduction Ratio	20:1	Machine Warranty	1 year
Blades Nos.	2 x blade; 1 x anvil	Engine Warranty	1 year
Blades Material	A8 （5Cr8MoVSi）
