SKU: 500322

| Model: MSMB1250E-R

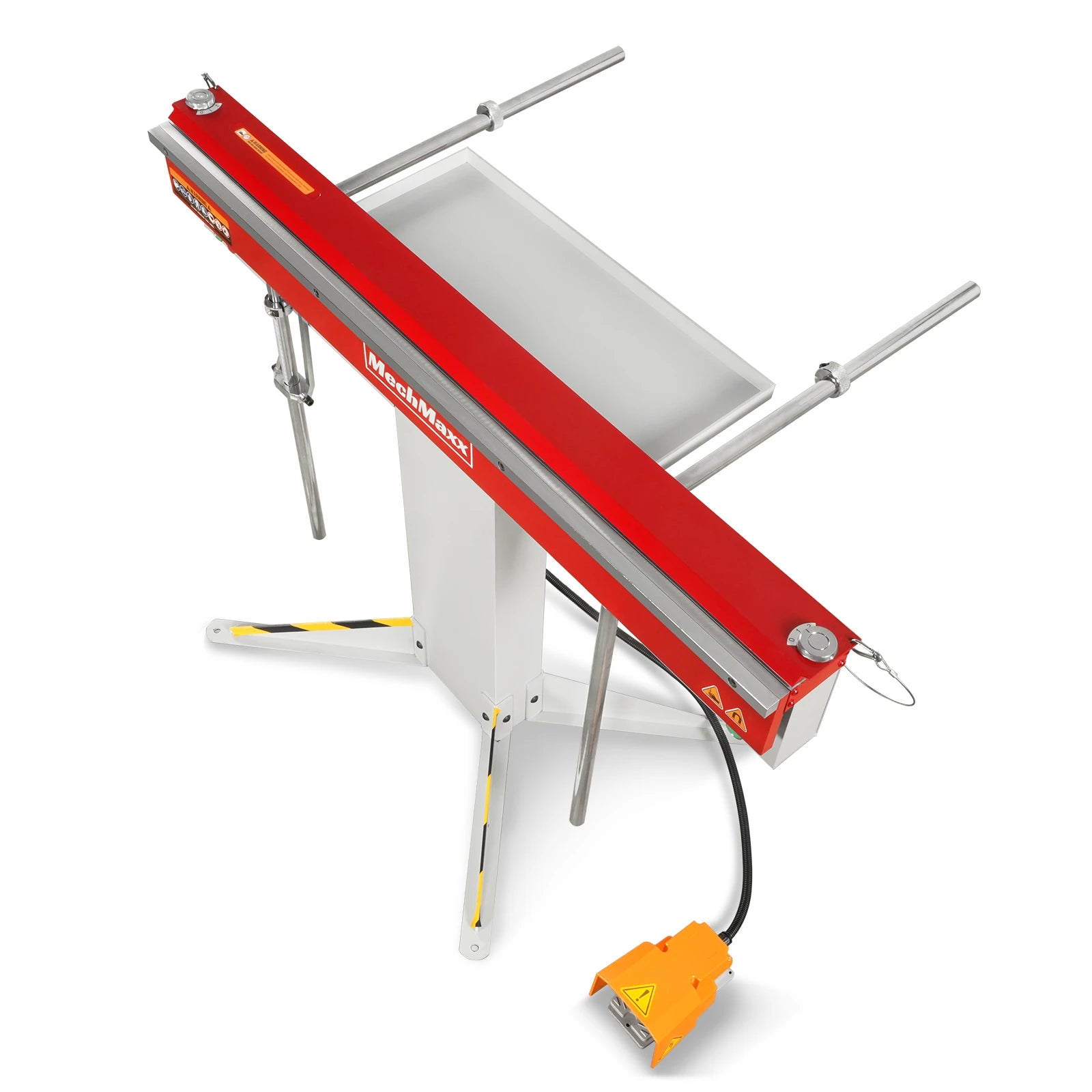

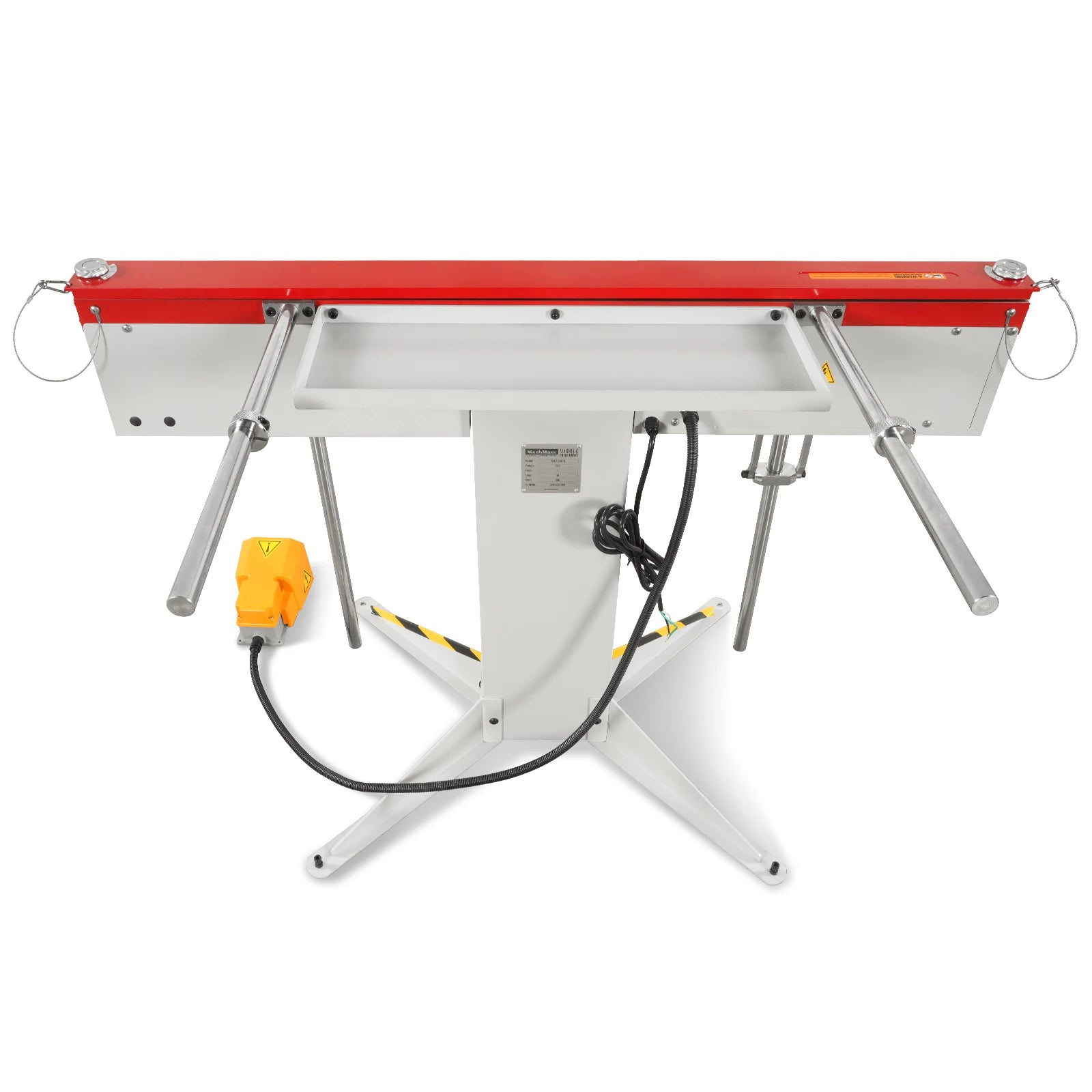

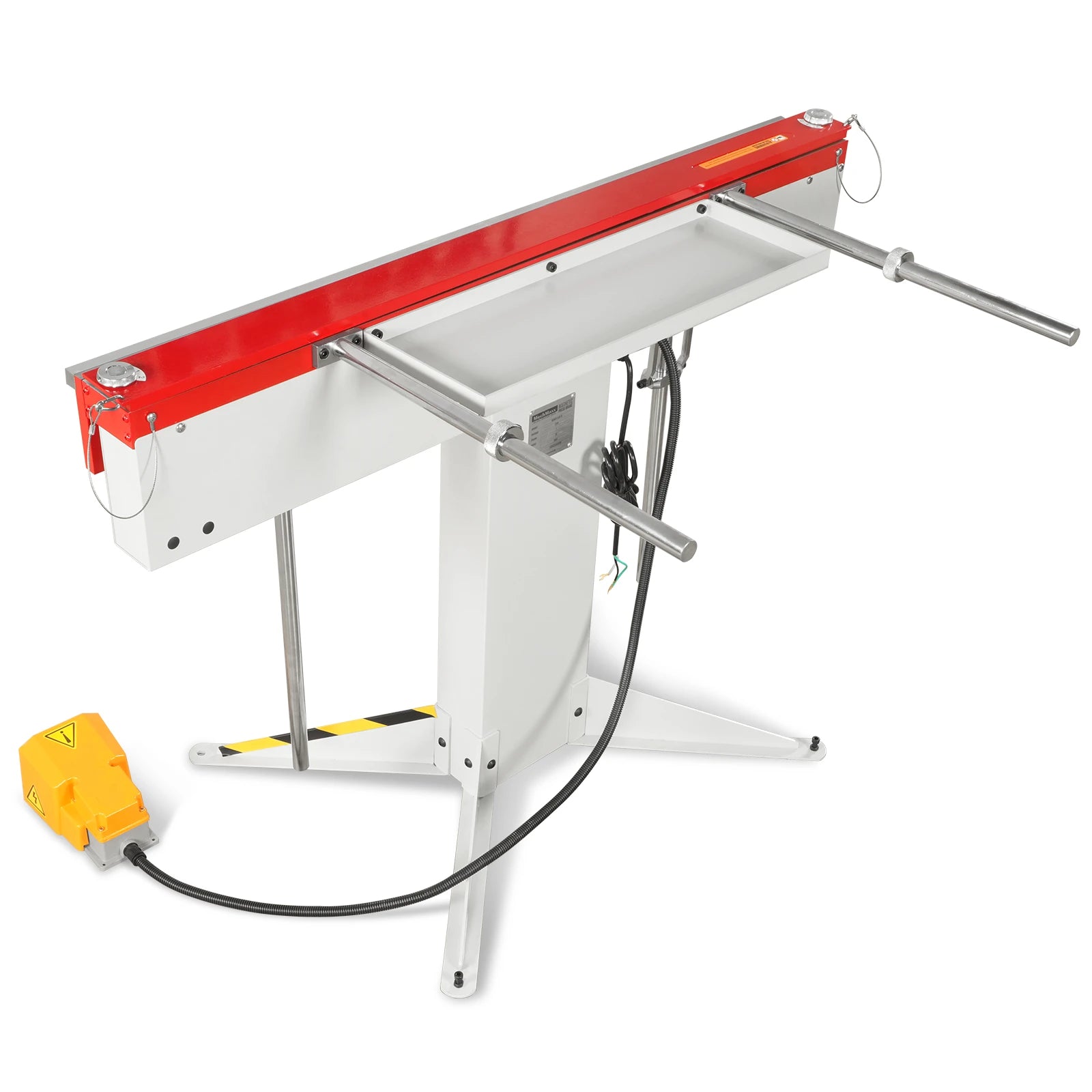

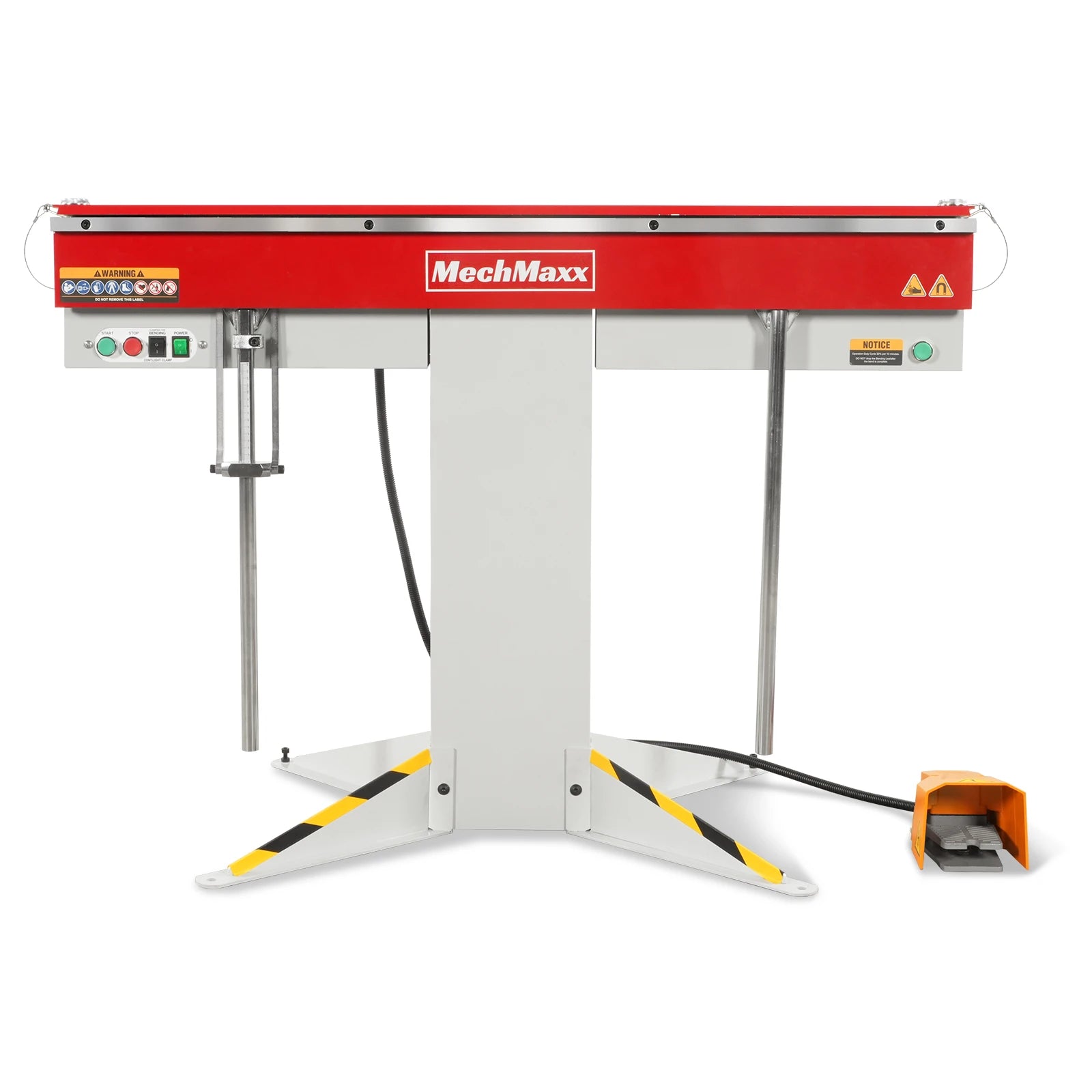

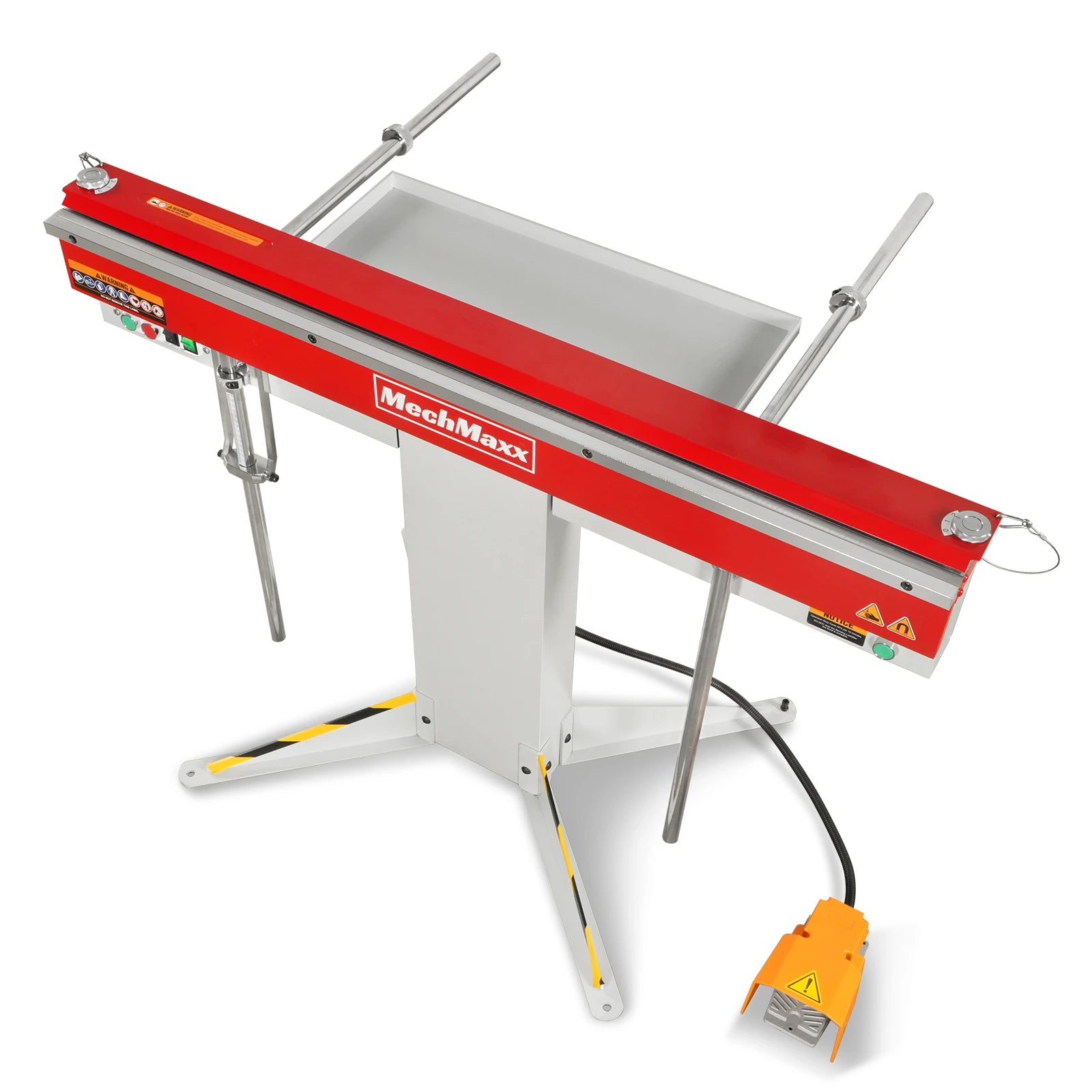

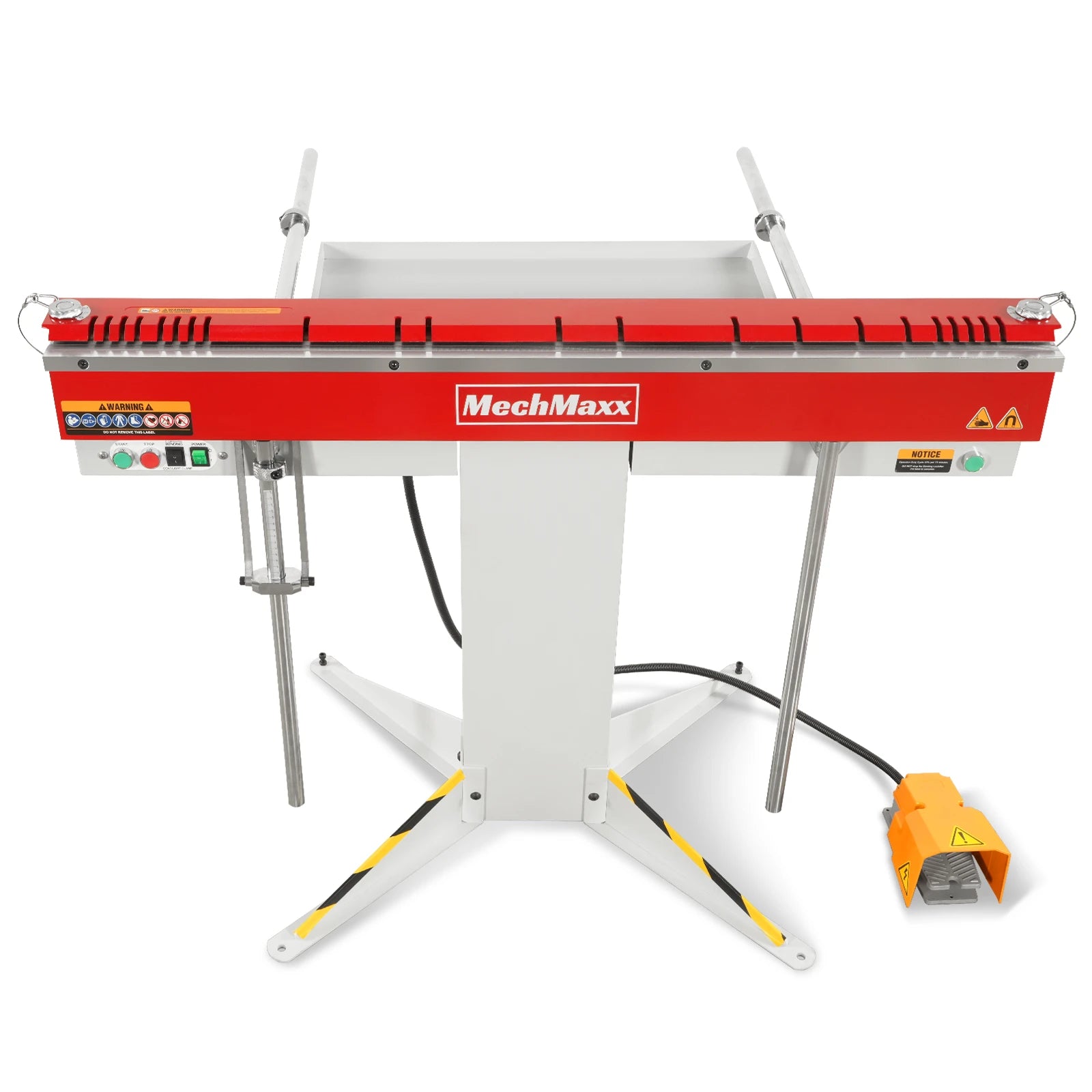

48'' Industrial Magnetic Pan and BOX Heavy Duty Sheet Metal Brake 20 Gauge Capacity Shear Press Brake, MSMB1250E-R

Name: 48'' Industrial Magnetic Pan and BOX Heavy Duty Sheet Metal Brake 20 Gauge Capacity Shear Press Brake, MSMB1250E-R
Brand: MechMaxx
SKU: 500322
Price: 2699.0 USD
Availability: OutOfStock

$269900

$2,899.00

Save $200

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Model : 48'' Magnetic Pan and Box Brake-Red

Out of Stock

48'' Magnetic Pan and Box Brake-Red 24'' Magnetic Pan and Box Brake-Red 24'' Magnetic Pan and Box Brake 48'' Magnetic Pan and Box Brake 48'' Manual Brake 16Gauge 48'' Manual Brake 12Gauge 80'' Manual Brake 12Gauge 100'' Manual Brake 12Gauge 120'' Manual Brake 14Gauge 30'' 3-in-1 Combo Brake 16Gauge 40'' 3-in-1 Combo Brake 20Gauge 52'' 3-in-1 Combo Brake 20Gauge 52'' 3-in-1 Combo Brake 16Gauge 50'' Foot Clamp Brake 50'' Foot Clamp Industrial Brake

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

Electromagnetic rather than mechanical clamping.
Excellent design easy to use - forming deep channels and closed sections, deep boxes.
Much greater versatility than conventional sheet metal benders.
No limitation to depth of boxes.
Can form deep channels, and completely closed sections.
Automatic clamping and unclamping means faster operation, less fatigue.

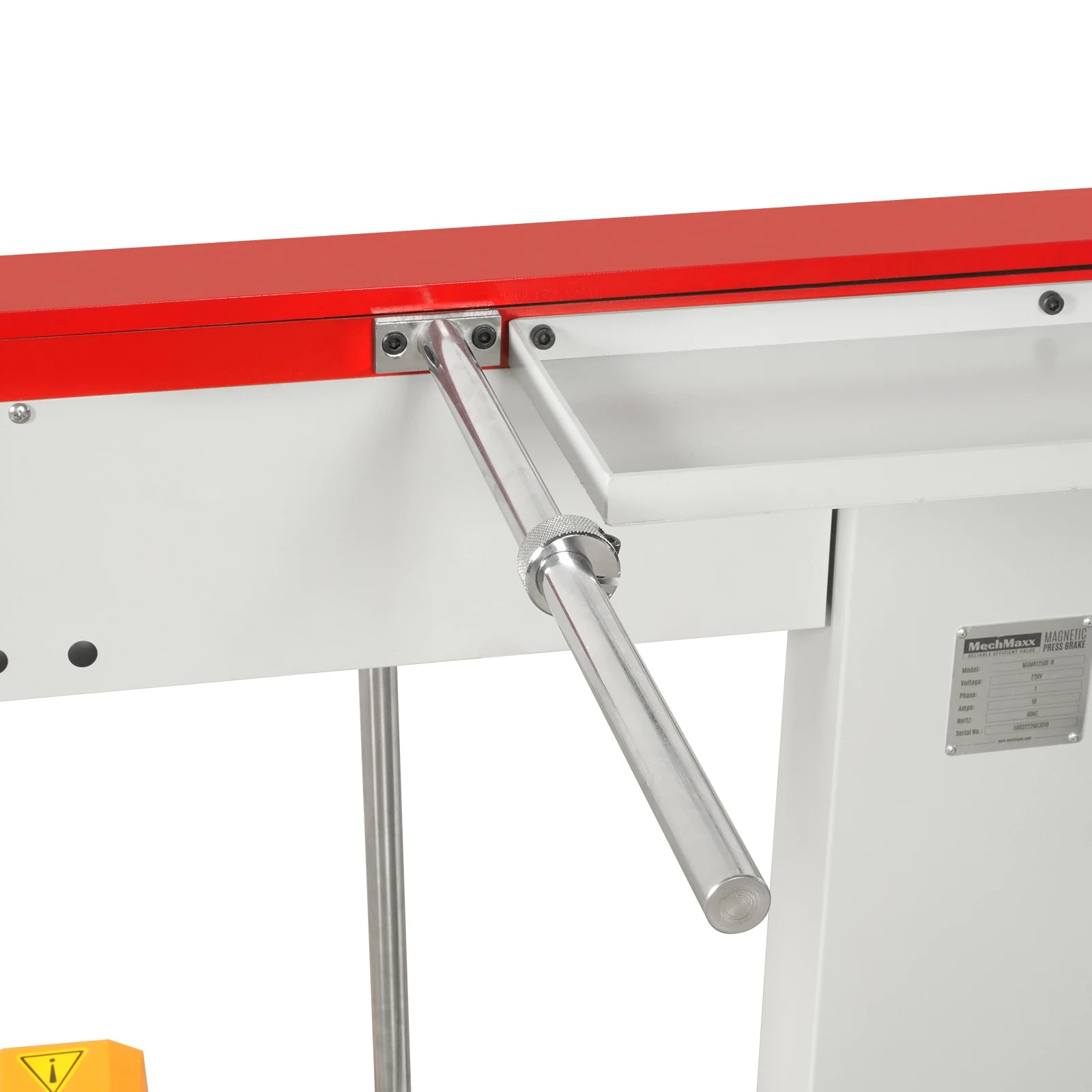

Quick and accurate sliding angle guide on bending arm.
Infinite length bending in stages is possible.

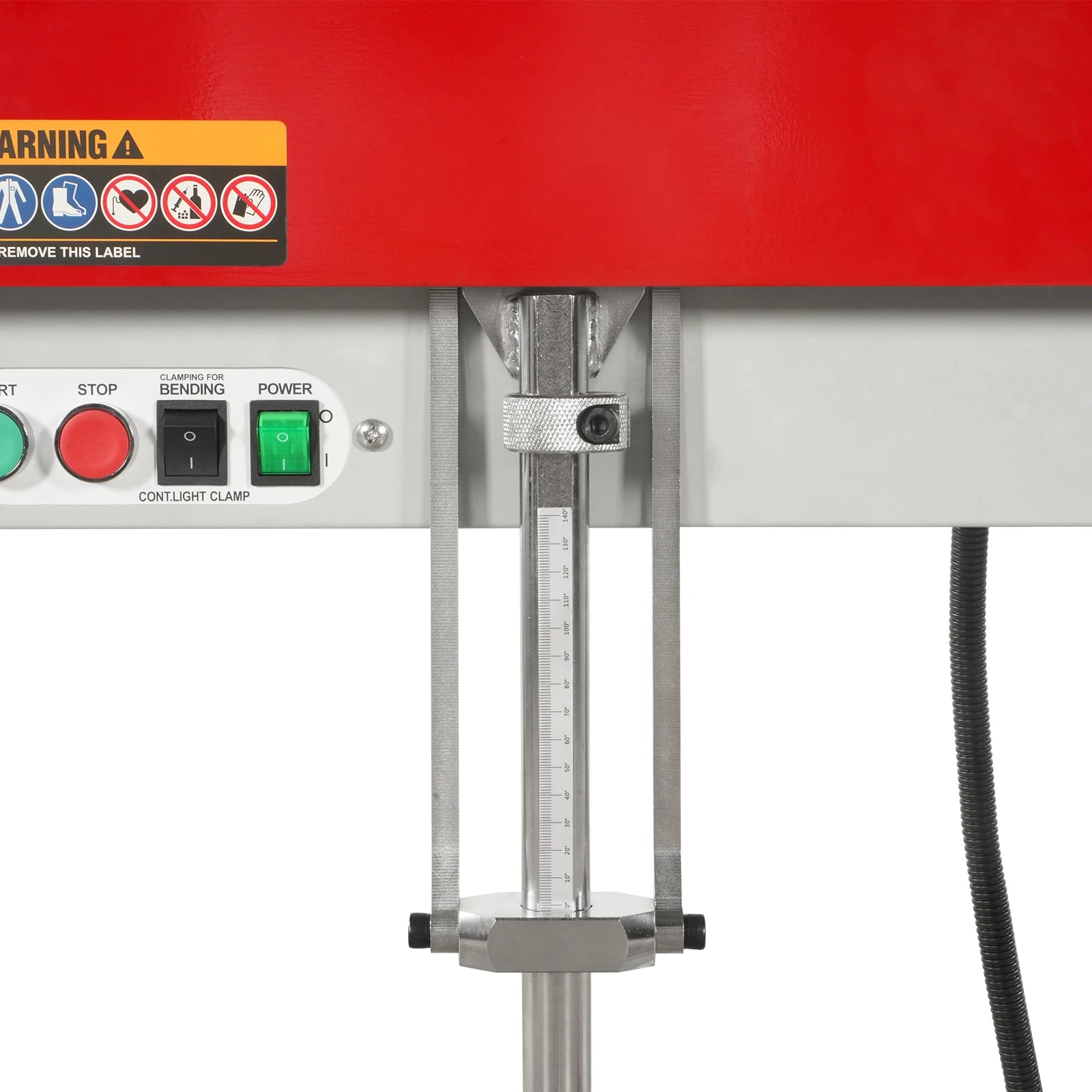

Accurate and continuous indication of beam angle.
Open ended design allows folding of complex shapes.
Machines can be ganged end-to-end for long bending.
Adapts easily to customised tooling (clamp bars of special cross-sections).
Includes foot control, full length narrow, slotted & segmented clamp bars.
Mild steel capacity is rated on hot rolled material with 250MPA.

Product manual (PDF)

Magnetic Sheet Metal Press Brake Product Manual.pdf

Product Features

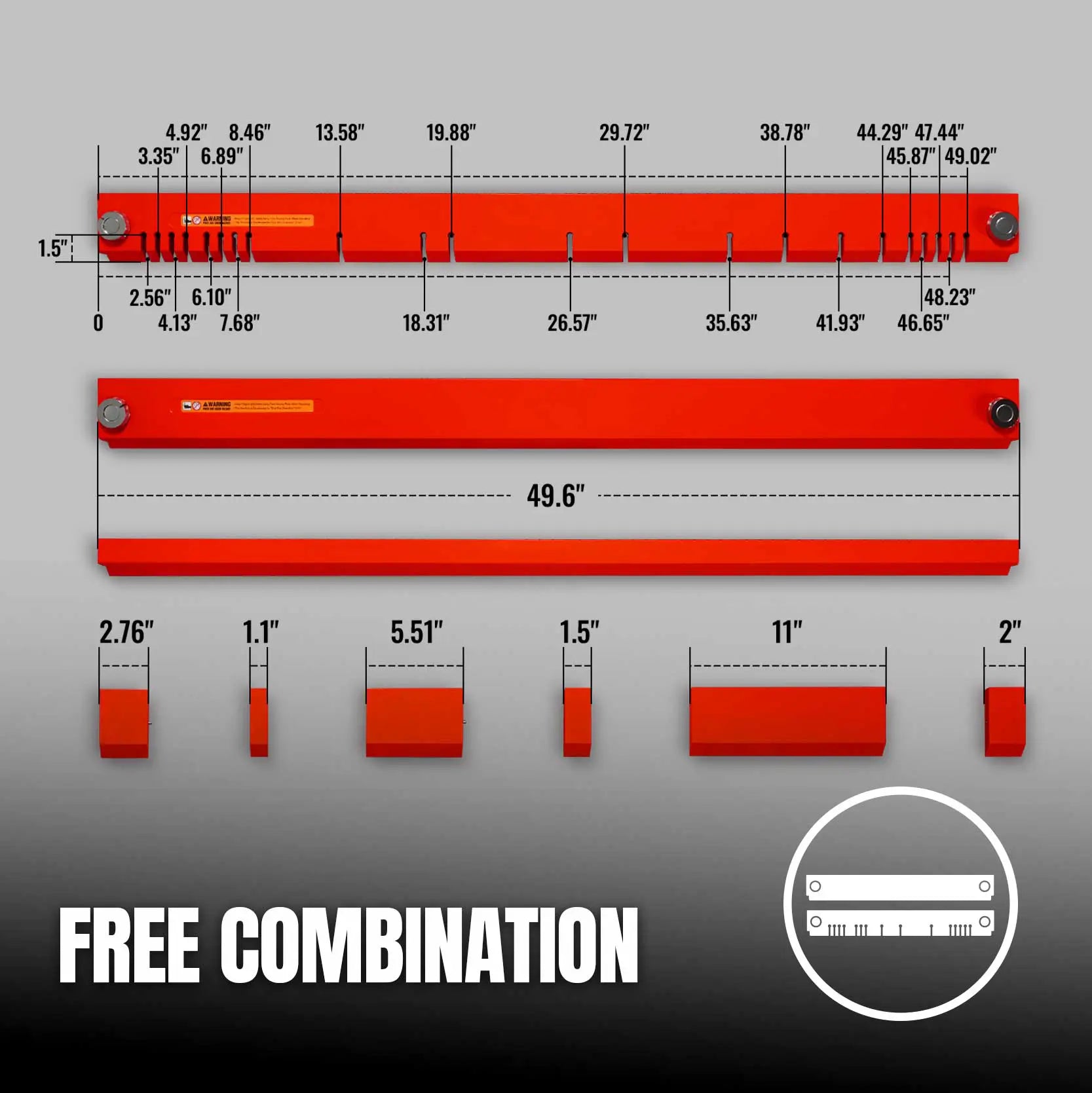

Modular Clamp Bars — Bend Your Way

Includes a full set of segmented clamp bars in multiple widths. Easily arrange the bars to match your bending layout—whether it’s a deep channel, a tight box, or a unique profile. No tools required for adjustment.

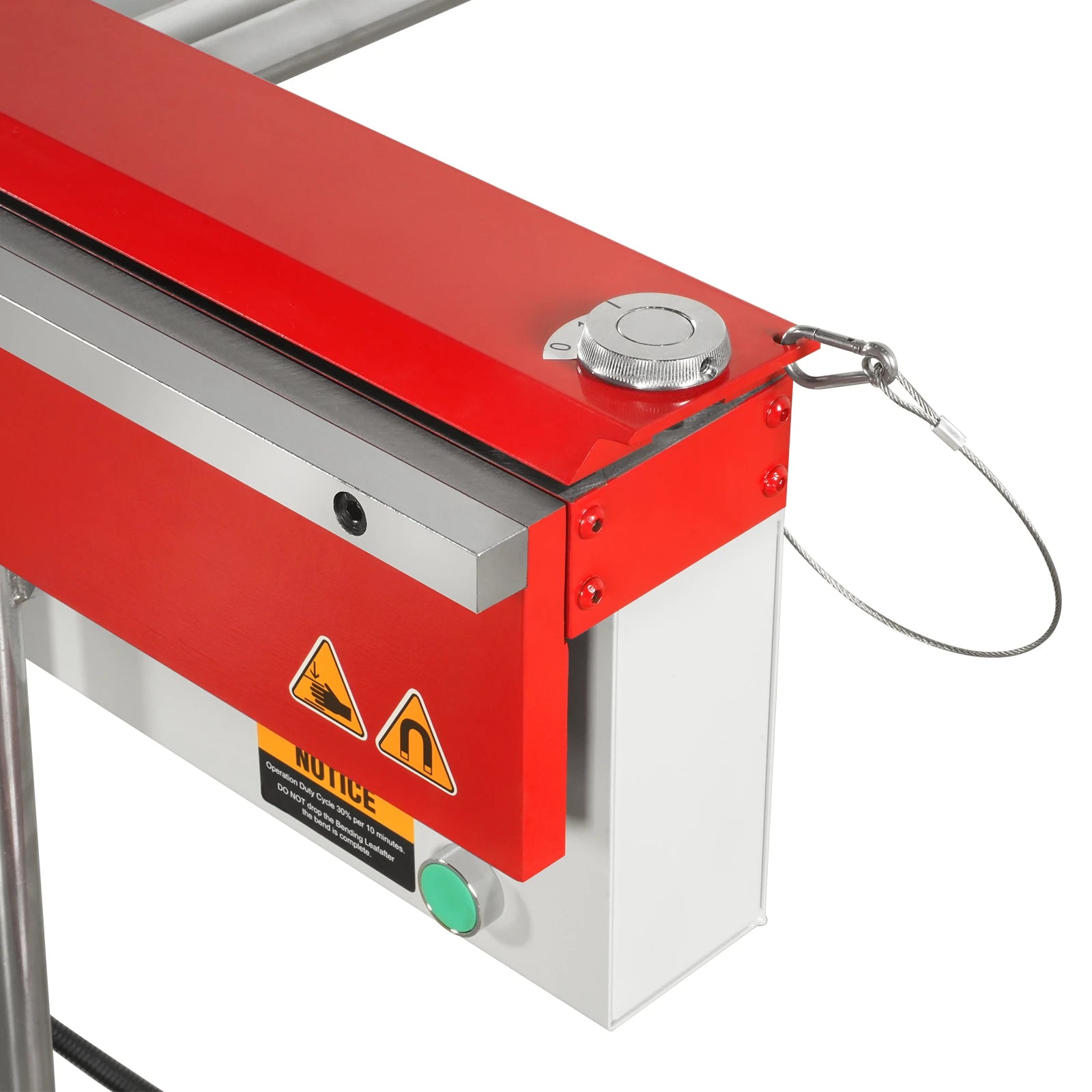

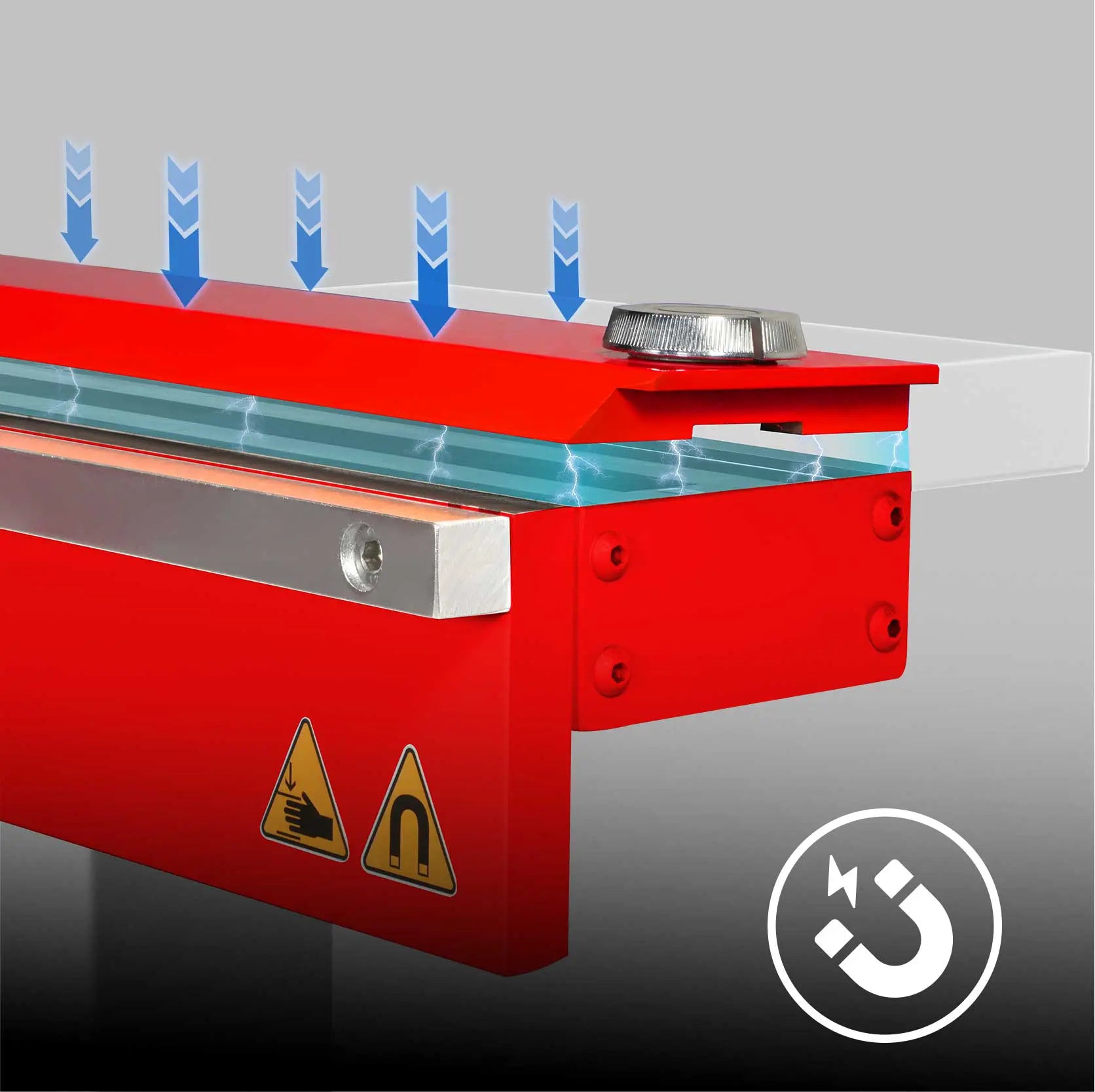

Electromagnetic Clamping – No Fingers Needed

Powerful magnetic force secures the clamp bar across its full length. No mechanical fingers, no obstructions—just clean, precise, and versatile bending.

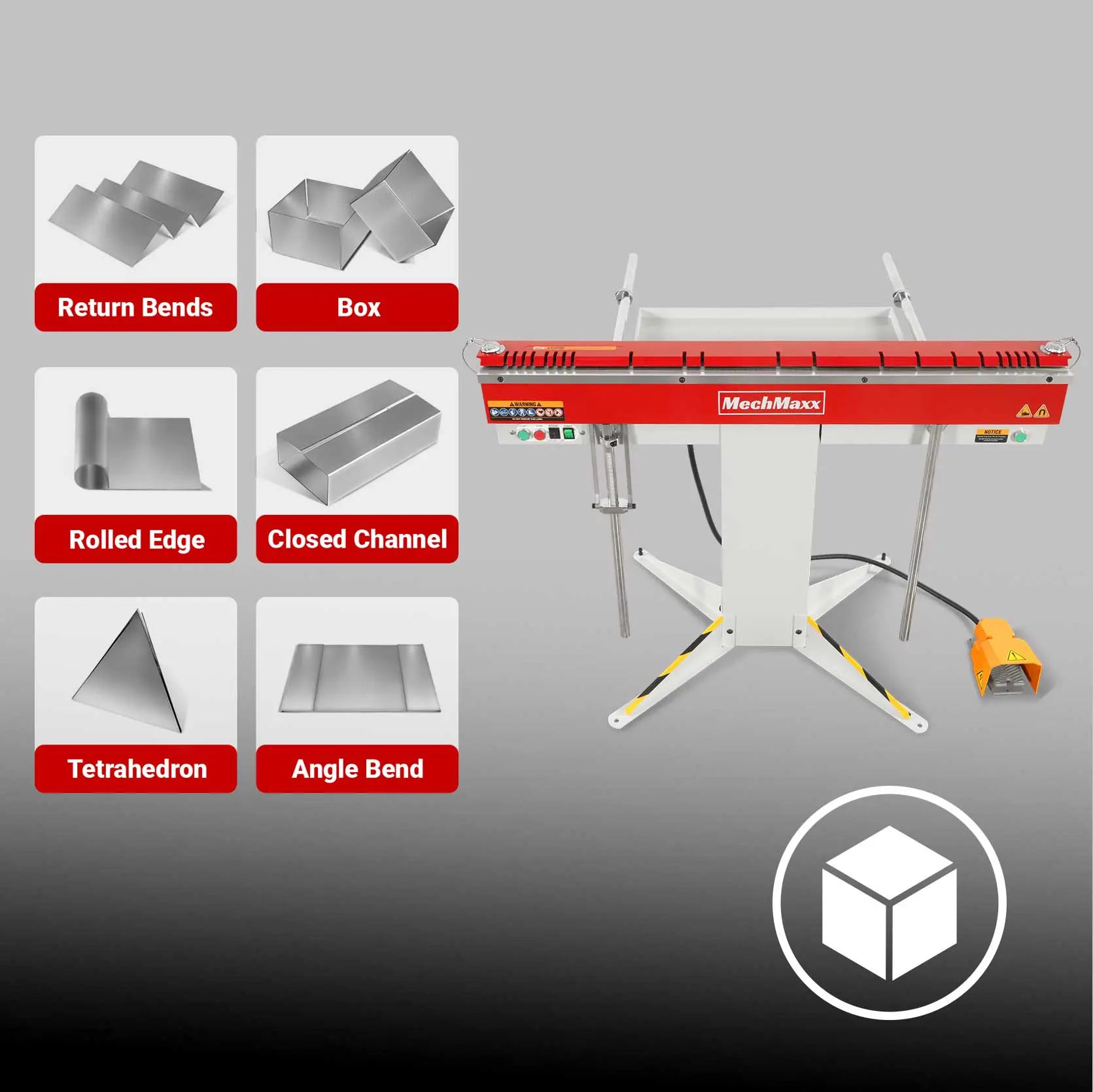

Master All Metal Shapes with Ease

From boxes and return bends to rolled edges and closed channels, the magnetic brake delivers unmatched flexibility for forming a wide variety of profiles—all with a single setup.

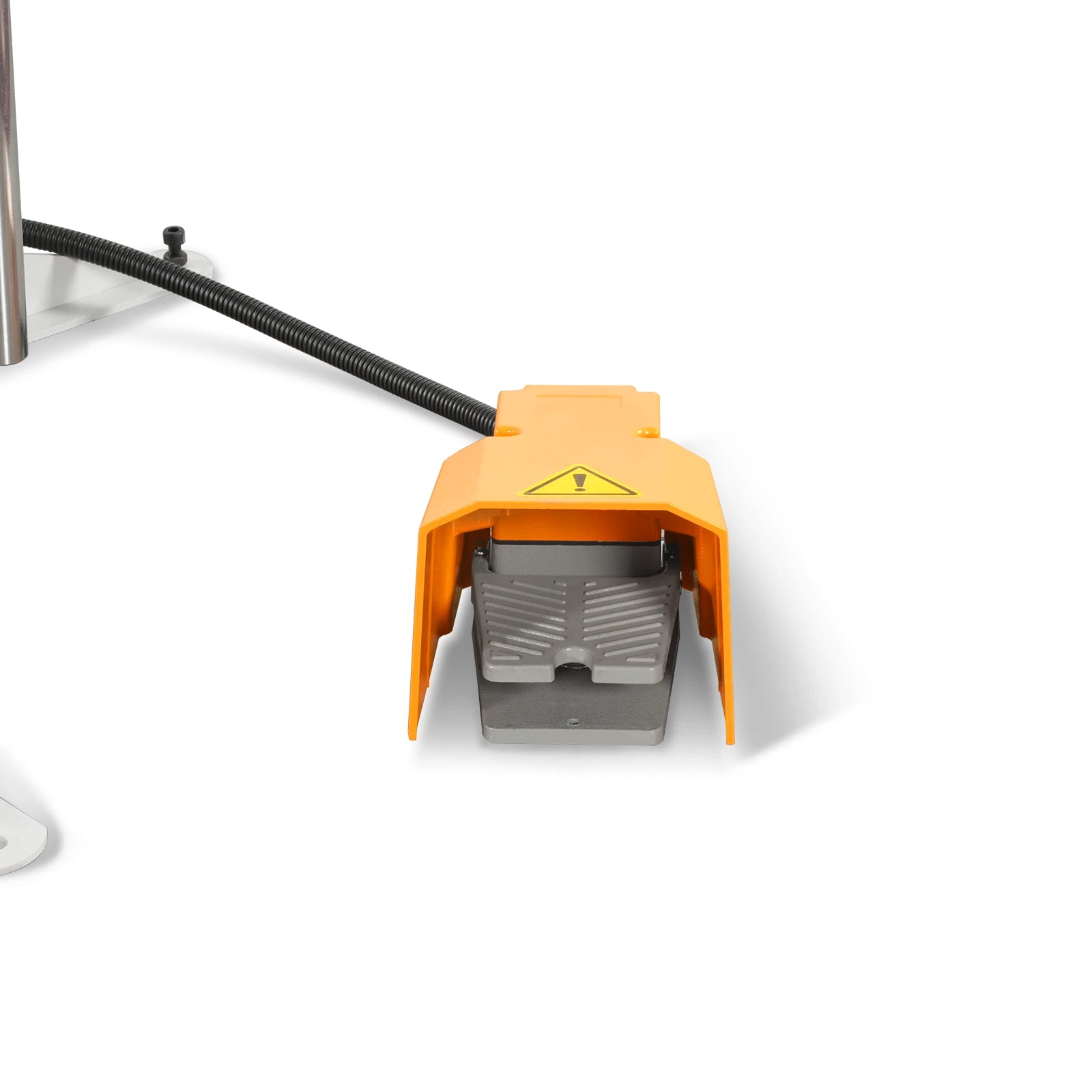

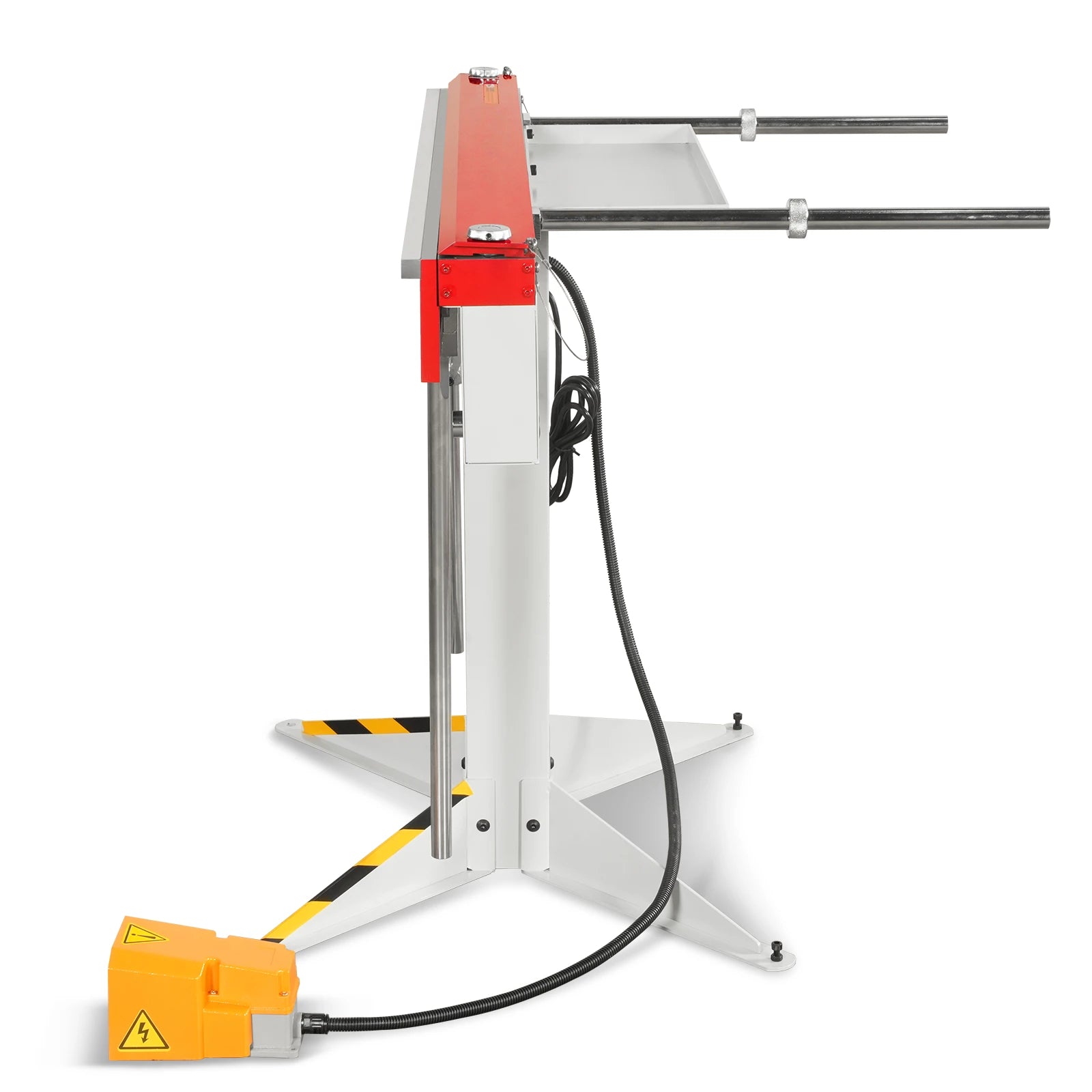

Foot Pedal Control – Clamp with a Tap

Electric foot switch allows quick clamping and release with a light press. Keep your hands on the workpiece for faster alignment and safer operation.

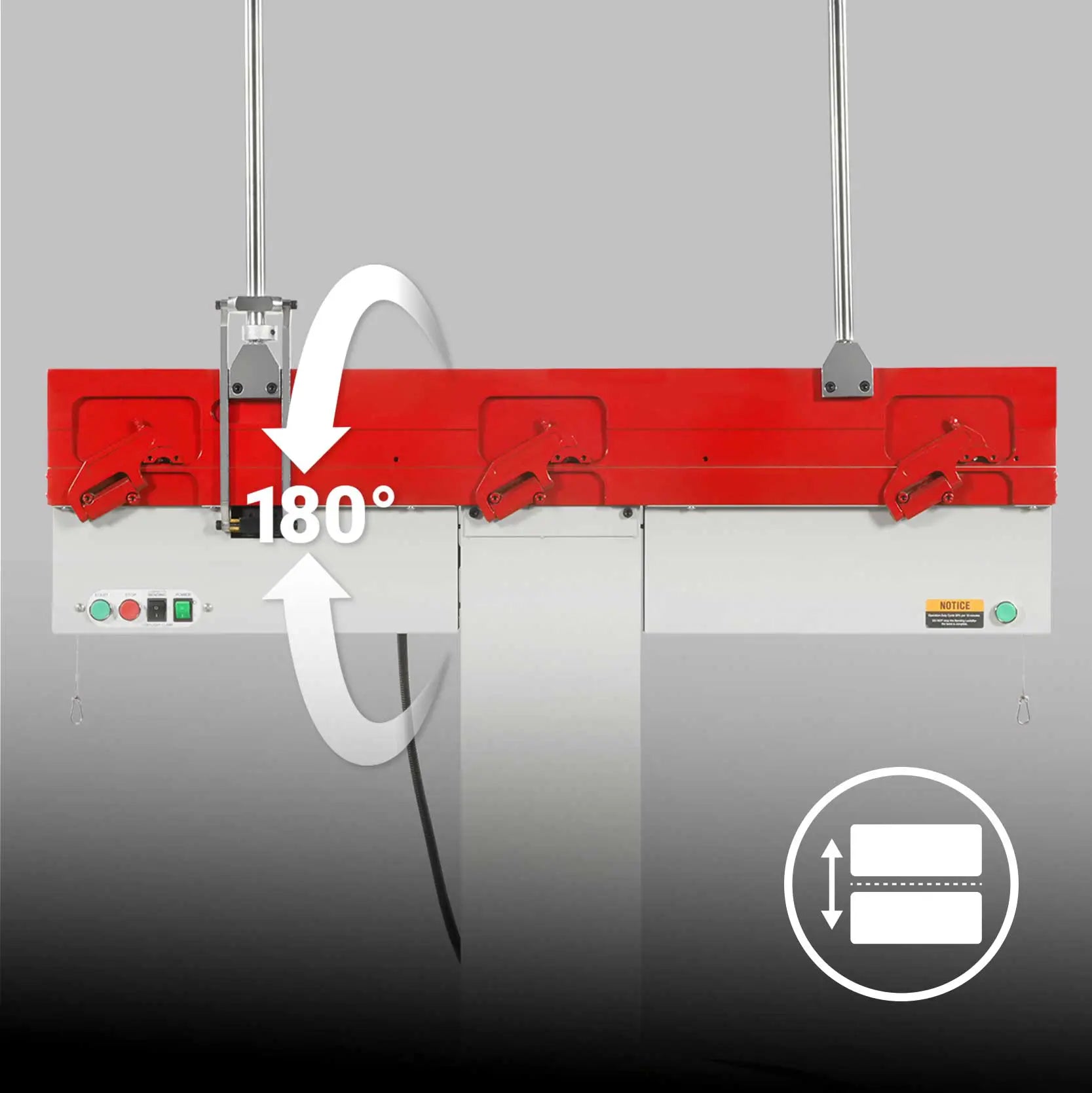

180° Swivel Press Bar – Flip It Your Way

The press bar can rotate 180°, making it easy to switch positions and bend at various angles.

Versatile for All Your Metals

Handles copper, mild steel, stainless steel, aluminum, and galvanized sheets with ease. One machine for all your fabrication needs

Power	220V (±5%), 1 Phase, 60Hz, 12A

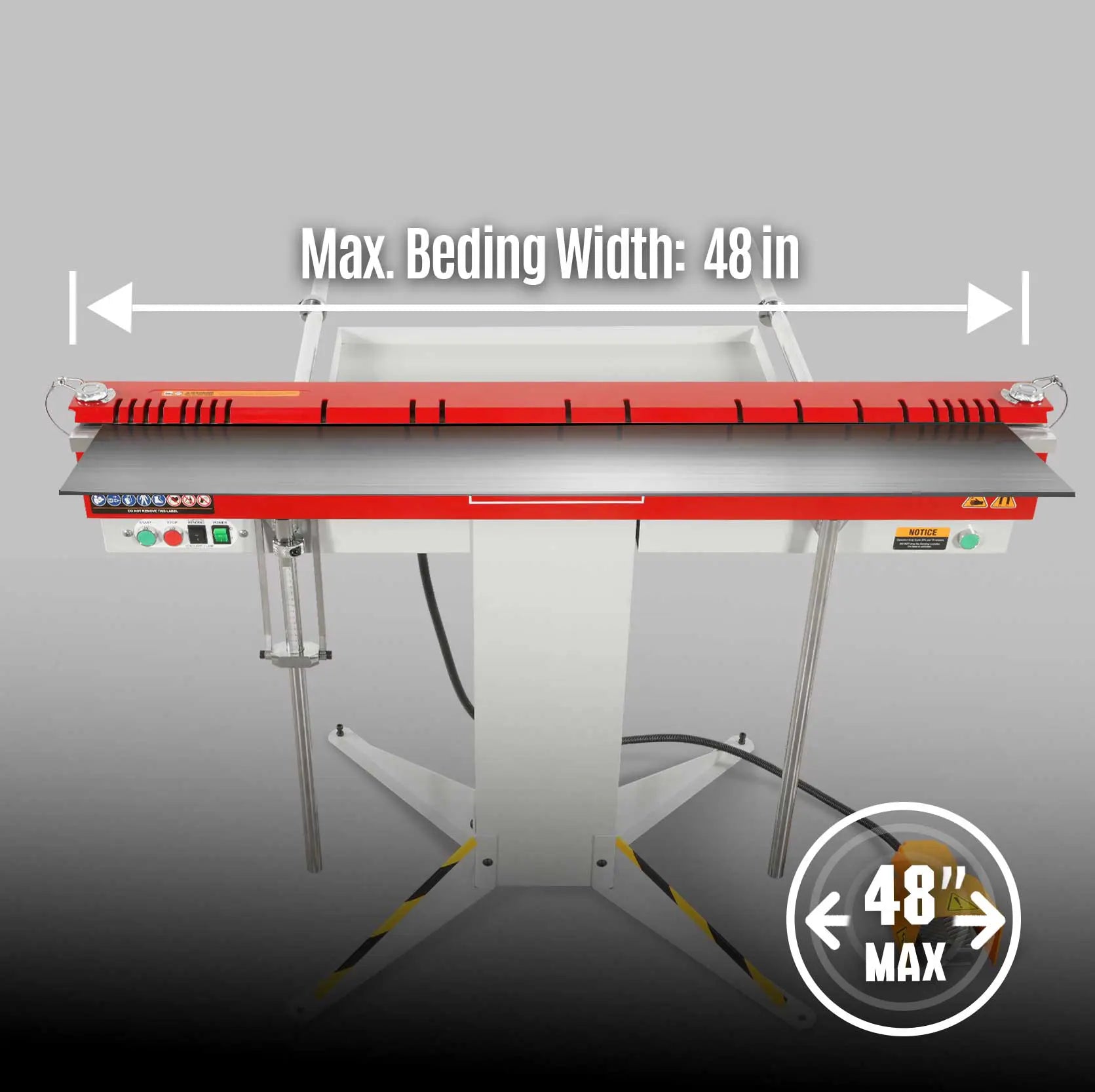

Max Material Width	48''
Max Capacity – Mild Steel & Aluminum	16 Gauge
Max Capacity – Stainless Steel	20 Gauge
Duty Cycle	30%
Rotation Angle	180°
Clamping Force	6 Tonne
Foot Pedal	Included
Overall Dimensions (L × W × H)	52″ × 38″ × 35″
Shipping Dimensions (L × W × H)	57″ × 16″ × 18″
Weight (N.W/G.W.)	331/386 lbs
