SKU: 500001

| Model: MSMB1250E

48'' Industrial Magnetic Pan and BOX Heavy Duty Sheet Metal Brake 20 Gauge Capacity Shear Press Brake, MSMB1250E

Name: 48'' Industrial Magnetic Pan and BOX Heavy Duty Sheet Metal Brake 20 Gauge Capacity Shear Press Brake, MSMB1250E
Brand: MechMaxx
SKU: 500001
Price: 2899.0 USD
Availability: InStock
Rating: 4.9 (10 reviews)

$289900

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Model : MSMB650E

In Stock

MSMB650E MSMB1250E

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

Electromagnetic rather than mechanical clamping.
Excellent design easy to use - forming deep channels and closed sections, deep boxes.
Much greater versatility than conventional sheet metal benders.
No limitation to depth of boxes.
Can form deep channels, and completely closed sections.
Automatic clamping and unclamping means faster operation, less fatigue.
Quick and accurate sliding angle guide on bending arm.
Infinite length bending in stages is possible.
Accurate and continuous indication of beam angle.
Open ended design allows folding of complex shapes.
Machines can be ganged end-to-end for long bending.
Adapts easily to customised tooling (clamp bars of special cross-sections).

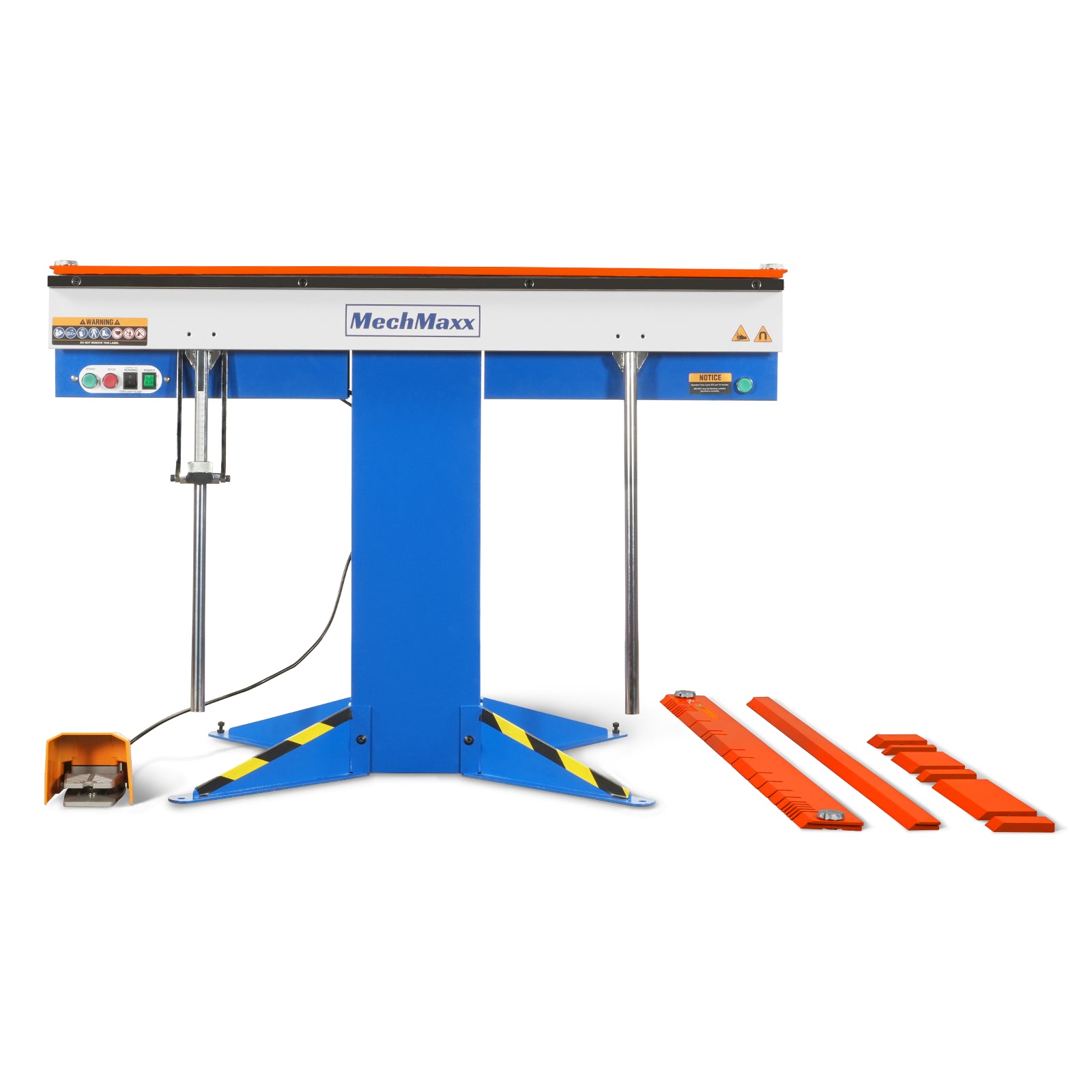

Includes foot control, full length narrow, slotted & segmented clamp bars.
Mild steel capacity is rated on hot rolled material with 250MPA.

Product manual (PDF)

Magnetic Sheet Metal Press Brake Product Manual.pdf

Product Features

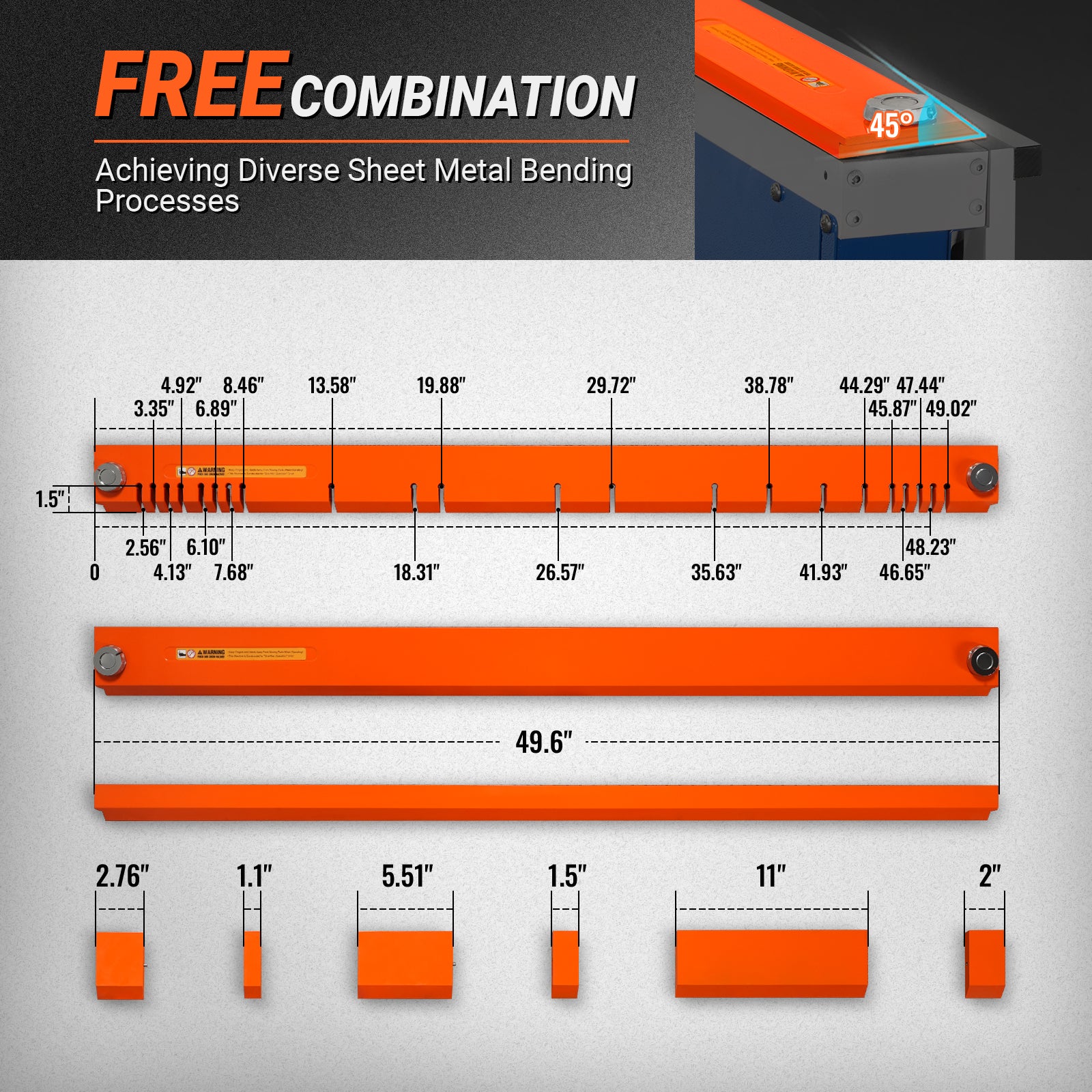

Modular Clamp Bars — Bend Your Way

Includes a full set of segmented clamp bars in multiple widths. Easily arrange the bars to match your bending layout—whether it’s a deep channel, a tight box, or a unique profile. No tools required for adjustment.

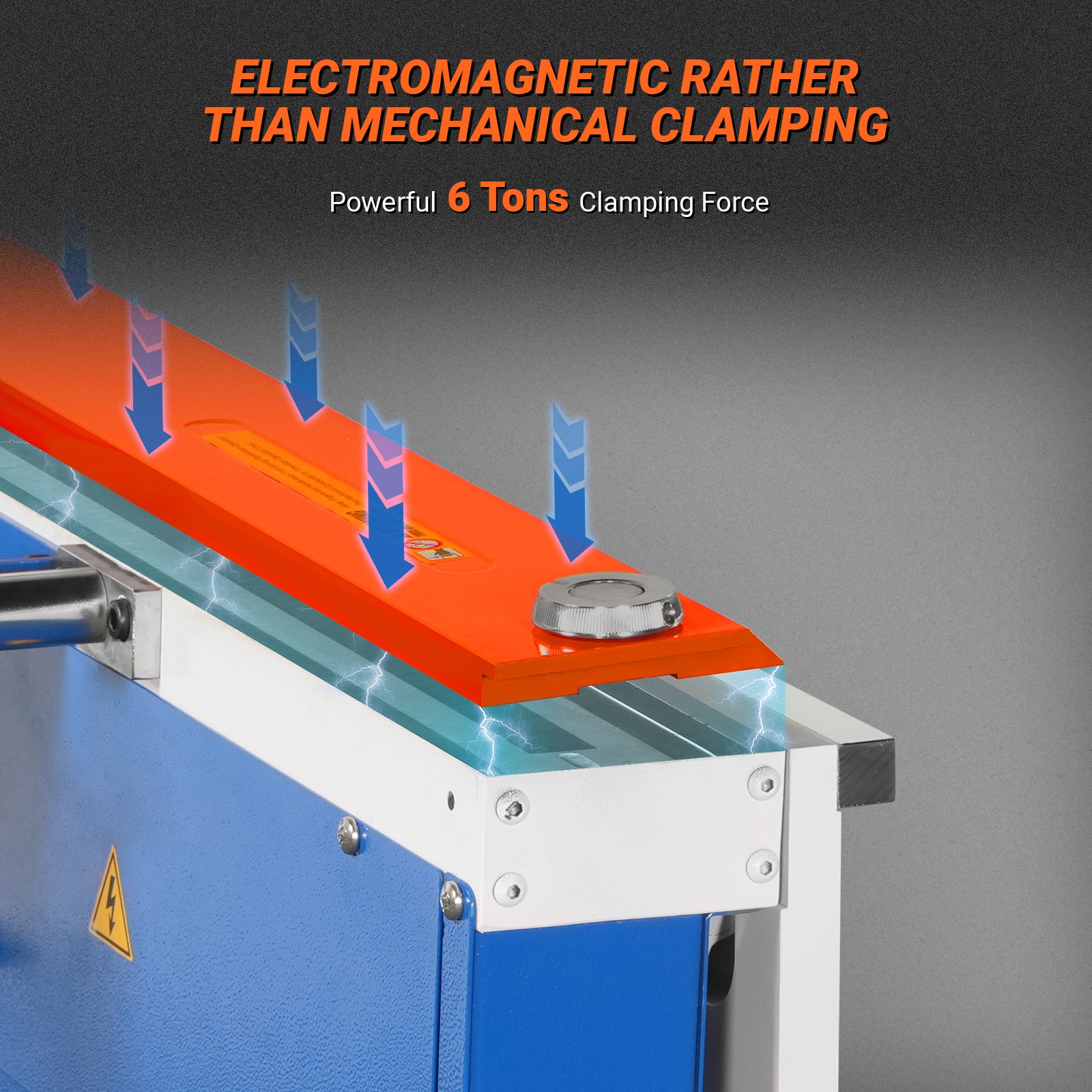

Electromagnetic Clamping – No Fingers Needed

Powerful magnetic force secures the clamp bar across its full length. No mechanical fingers, no obstructions—just clean, precise, and versatile bending.

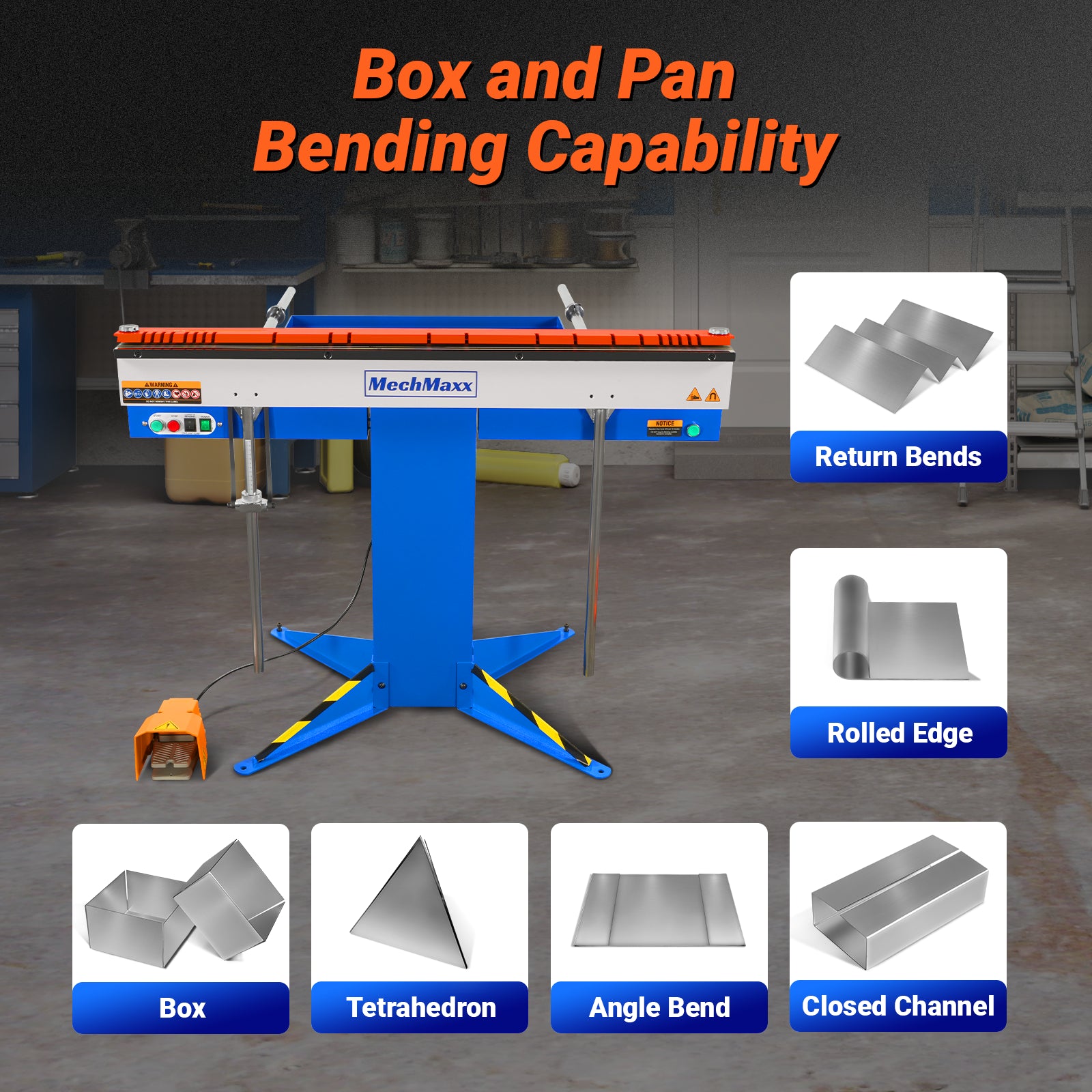

Master All Metal Shapes with Ease

From boxes and return bends to rolled edges and closed channels, the magnetic brake delivers unmatched flexibility for forming a wide variety of profiles—all with a single setup.

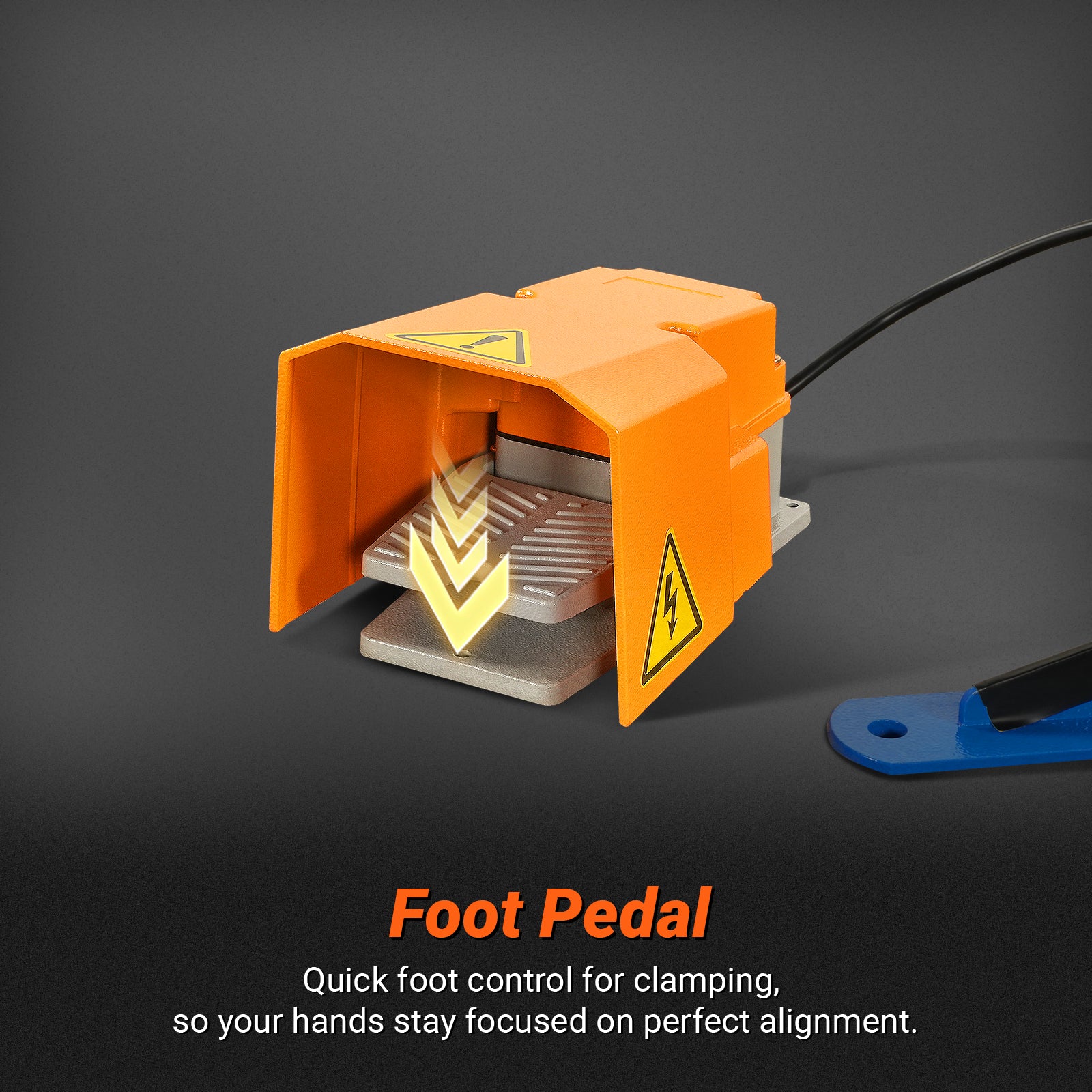

Foot Pedal Control – Clamp with a Tap

Electric foot switch allows quick clamping and release with a light press. Keep your hands on the workpiece for faster alignment and safer operation.

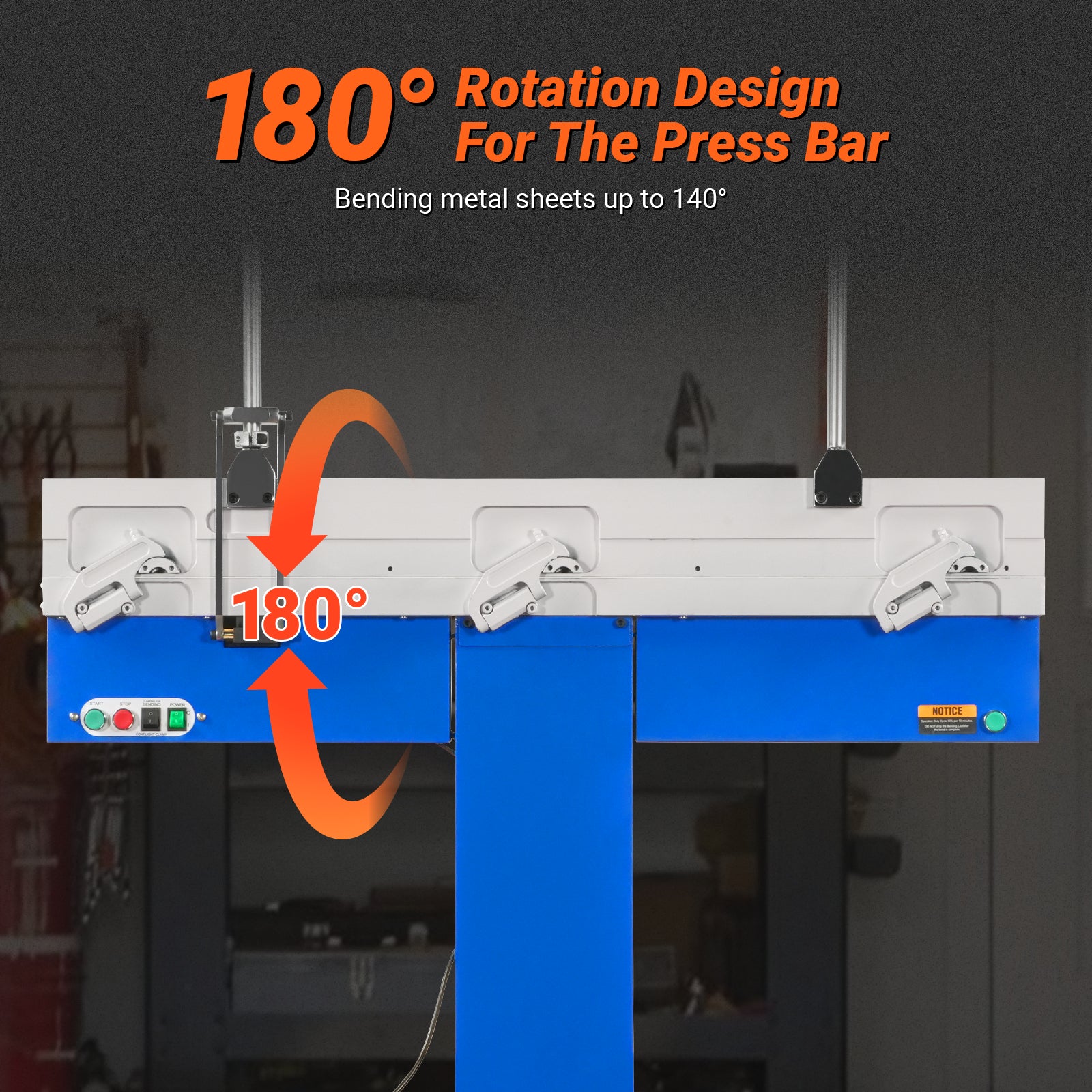

180° Swivel Press Bar – Flip It Your Way

The press bar can rotate 180°, making it easy to switch positions and bend at various angles.

Versatile for All Your Metals

Handles copper, mild steel, stainless steel, aluminum, and galvanized sheets with ease. One machine for all your fabrication needs

Video

Product Warranty

Specifications

Customer Reviews

This thing is awesome. Setup was quick and easy, and I was bending steel in no time. Way easier than my old box brake.

Super strong magnet. I bent a full 48" piece of 16ga steel with no slip. Clean bends every time.

Honestly wasn’t sure what to expect, but I’m impressed. Build quality is solid, and it came well-packed in a wooden crate.

Way less fiddling than my pan-and-box brake. Just clamp and bend. Saved me a ton of time.

I’ve used this on stainless and aluminum so far. No issues at all. The magnet holds like a beast.

1 2

Power	220V (±5%), 1 Phase, 60Hz, 12A

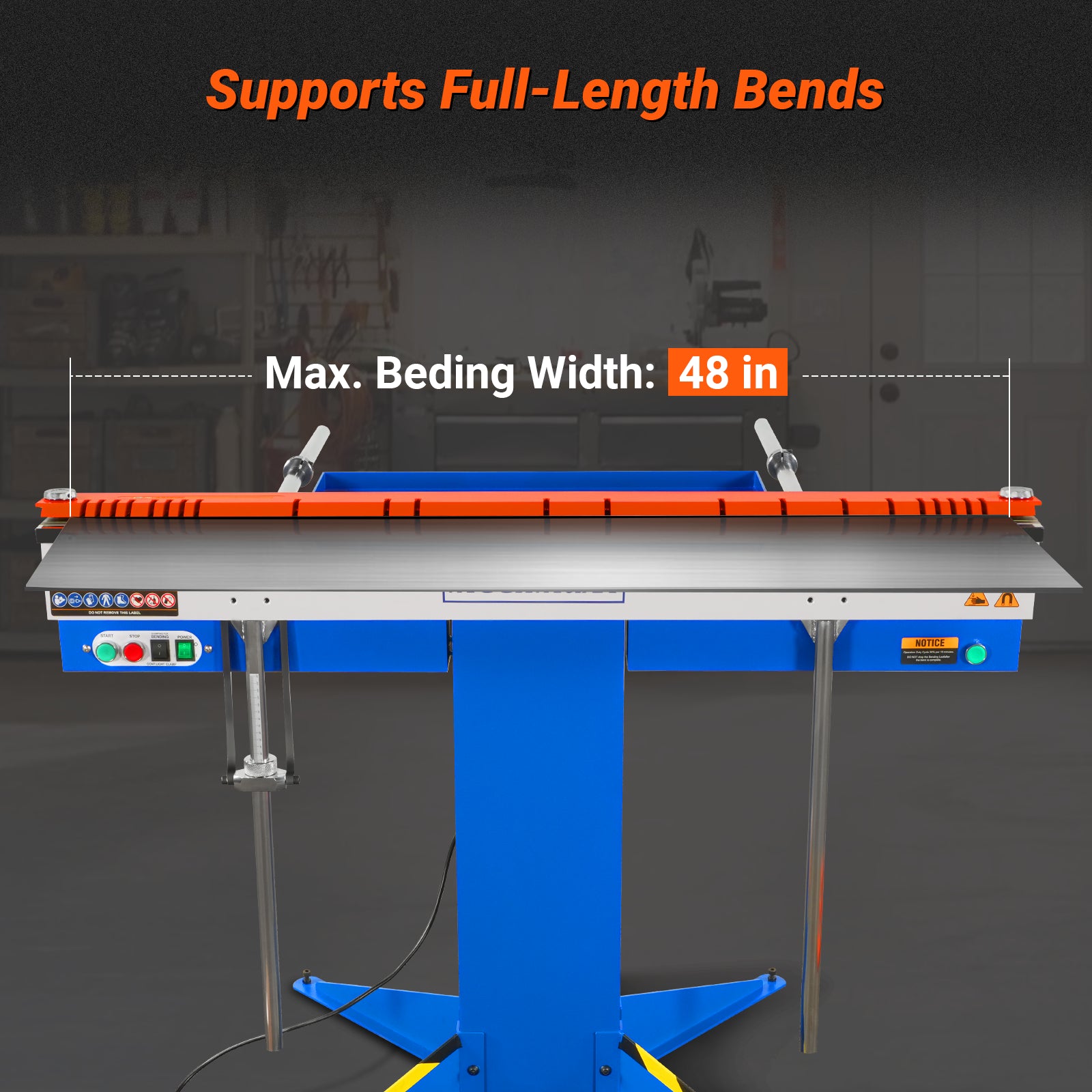

Max Material Width	48''
Max Capacity – Mild Steel & Aluminum	16 Gauge
Max Capacity – Stainless Steel	20 Gauge
Duty Cycle	30%
Rotation Angle	180°
Clamping Force	6 Tonne
Foot Pedal	Included
Overall Dimensions (L × W × H)	52″ × 38″ × 35″
Shipping Dimensions (L × W × H)	57″ × 16″ × 18″
Weight (N.W/G.W.)	331/386 lbs
