SKU: 500321

| Model: MSMB650E-R

24'' Industrial Magnetic Pan and BOX Heavy Duty Sheet Metal Brake 20 Gauge Capacity Shear Press Brake, MSMB650E-R

Name: 24'' Industrial Magnetic Pan and BOX Heavy Duty Sheet Metal Brake 20 Gauge Capacity Shear Press Brake, MSMB650E-R
Brand: MechMaxx
SKU: 500321
Price: 1799.0 USD
Availability: OutOfStock

$179900

$1,999.00

Save $200

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Model : 24'' Magnetic Pan and Box Brake-Red

Out of Stock

24'' Magnetic Pan and Box Brake-Red 48'' Magnetic Pan and Box Brake-Red 24'' Magnetic Pan and Box Brake 48'' Magnetic Pan and Box Brake 48'' Manual Brake 16Gauge 48'' Manual Brake 12Gauge 80'' Manual Brake 12Gauge 100'' Manual Brake 12Gauge 120'' Manual Brake 14Gauge 30'' 3-in-1 Combo Brake 16Gauge 40'' 3-in-1 Combo Brake 20Gauge 52'' 3-in-1 Combo Brake 20Gauge 52'' 3-in-1 Combo Brake 16Gauge 50'' Foot Clamp Brake 50'' Foot Clamp Industrial Brake

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

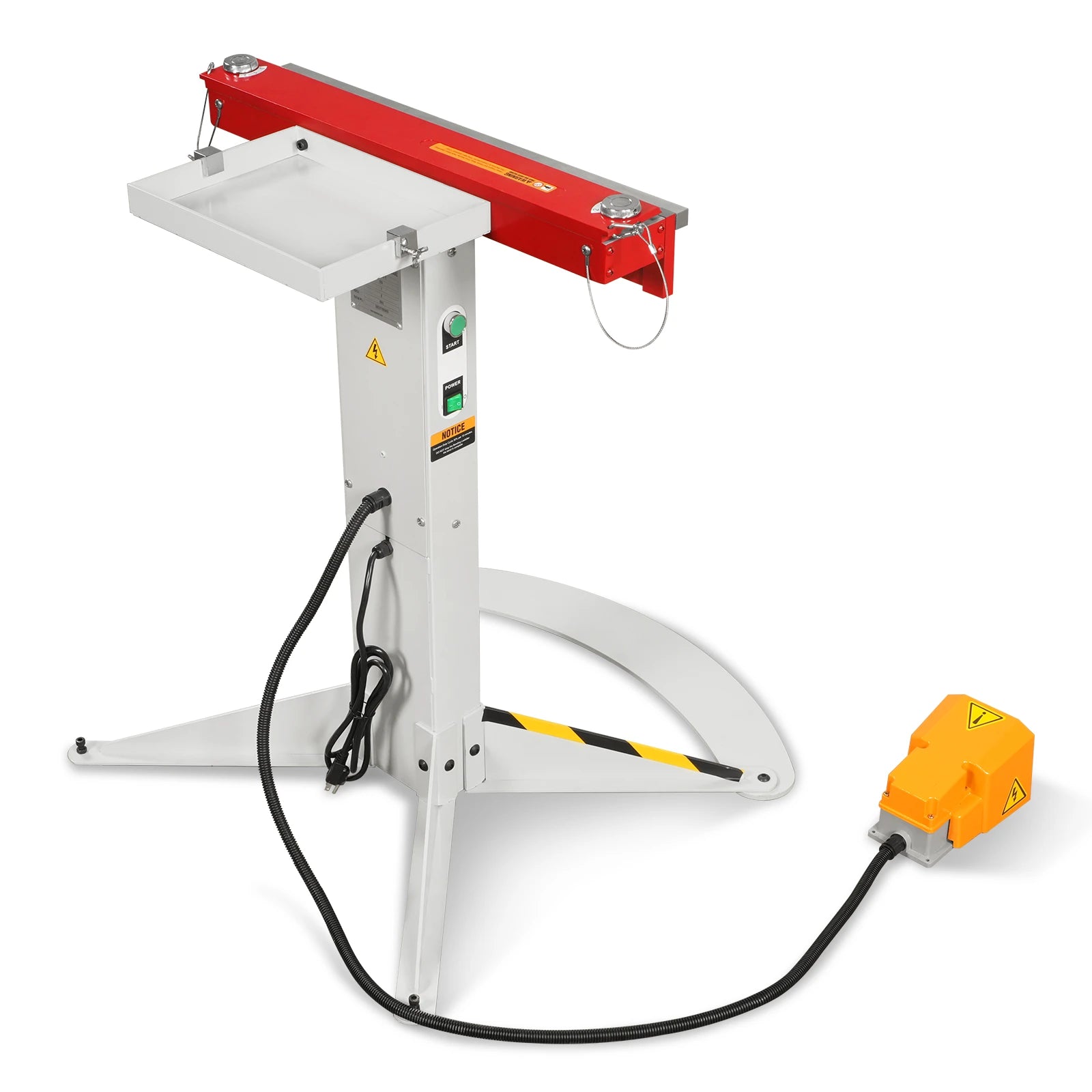

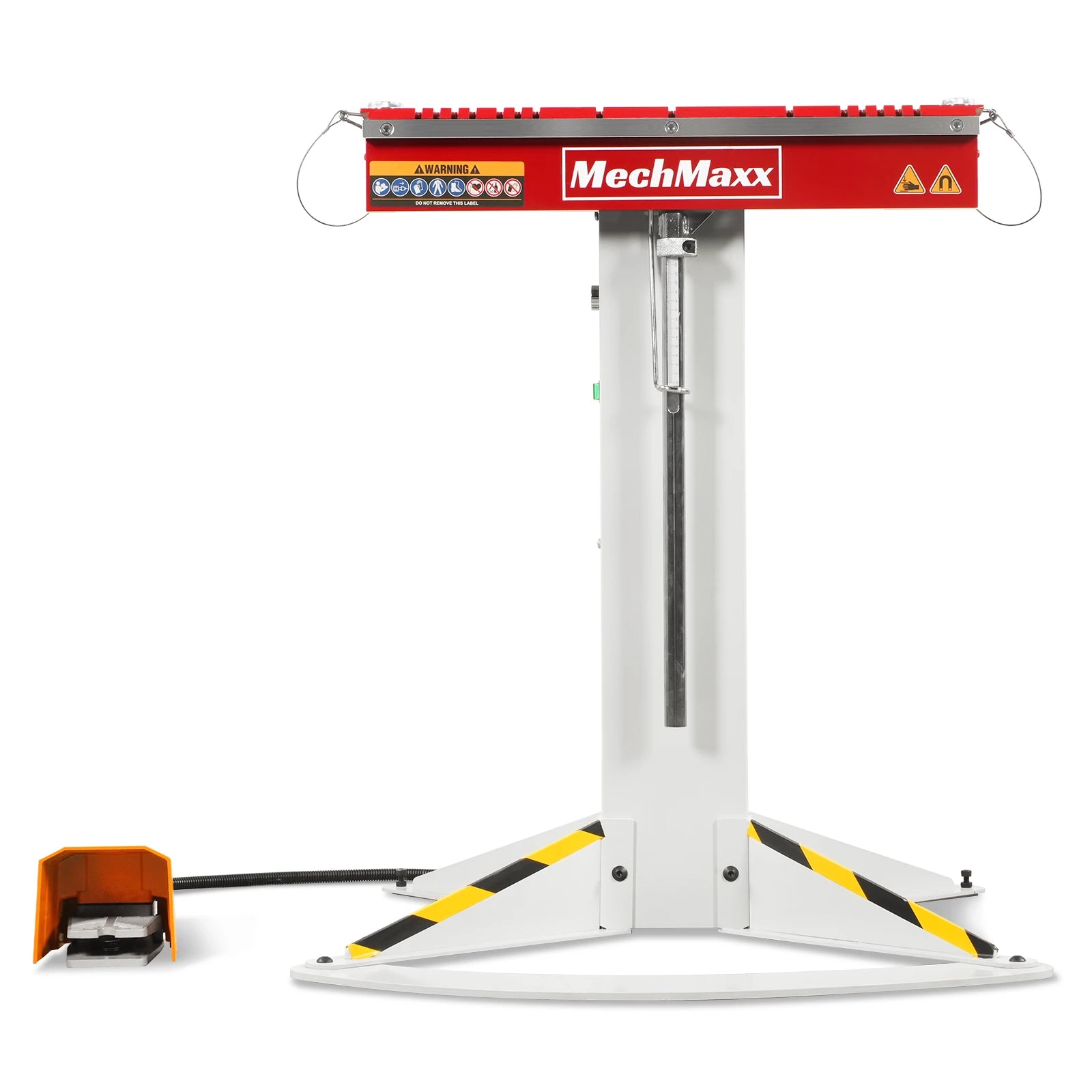

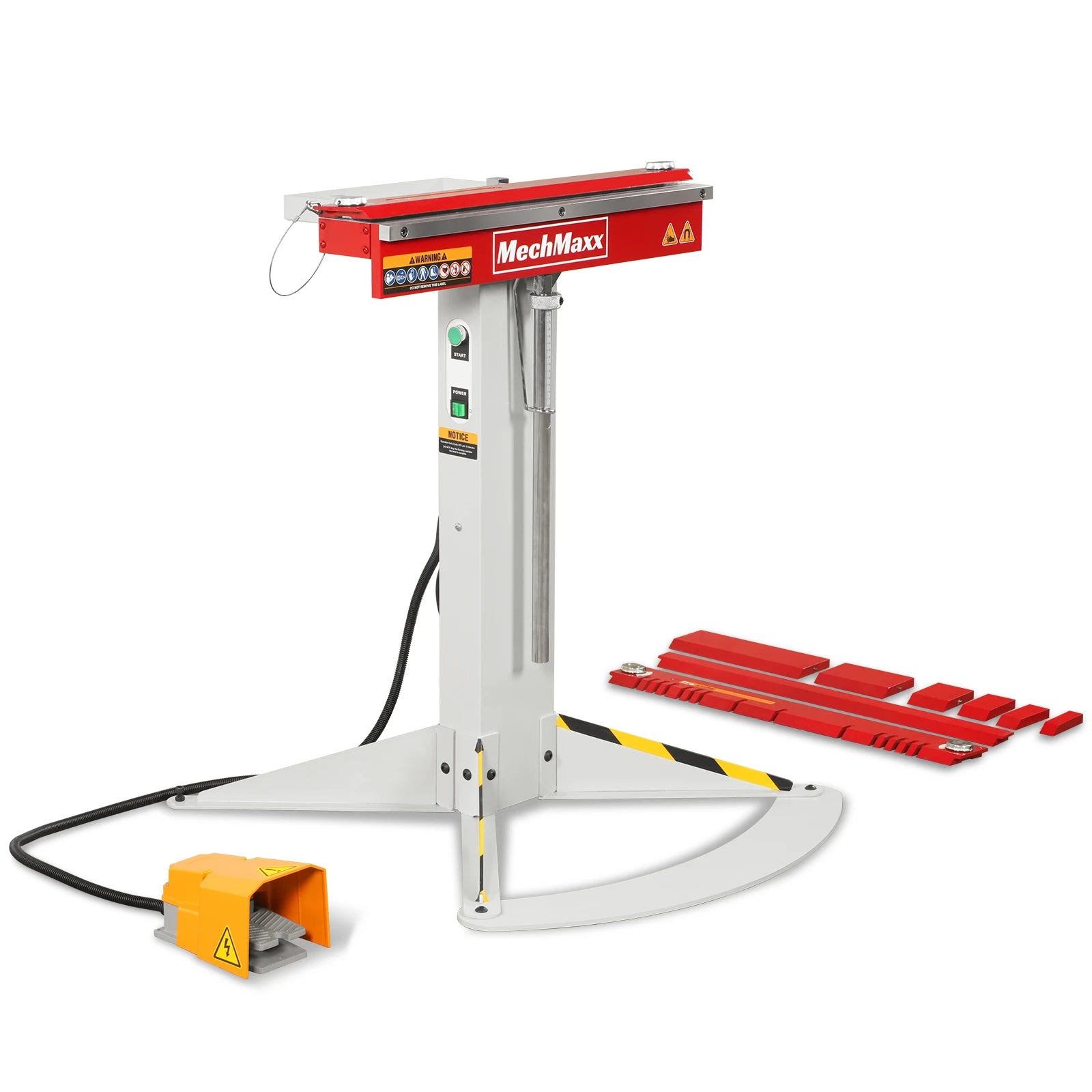

Product Overview

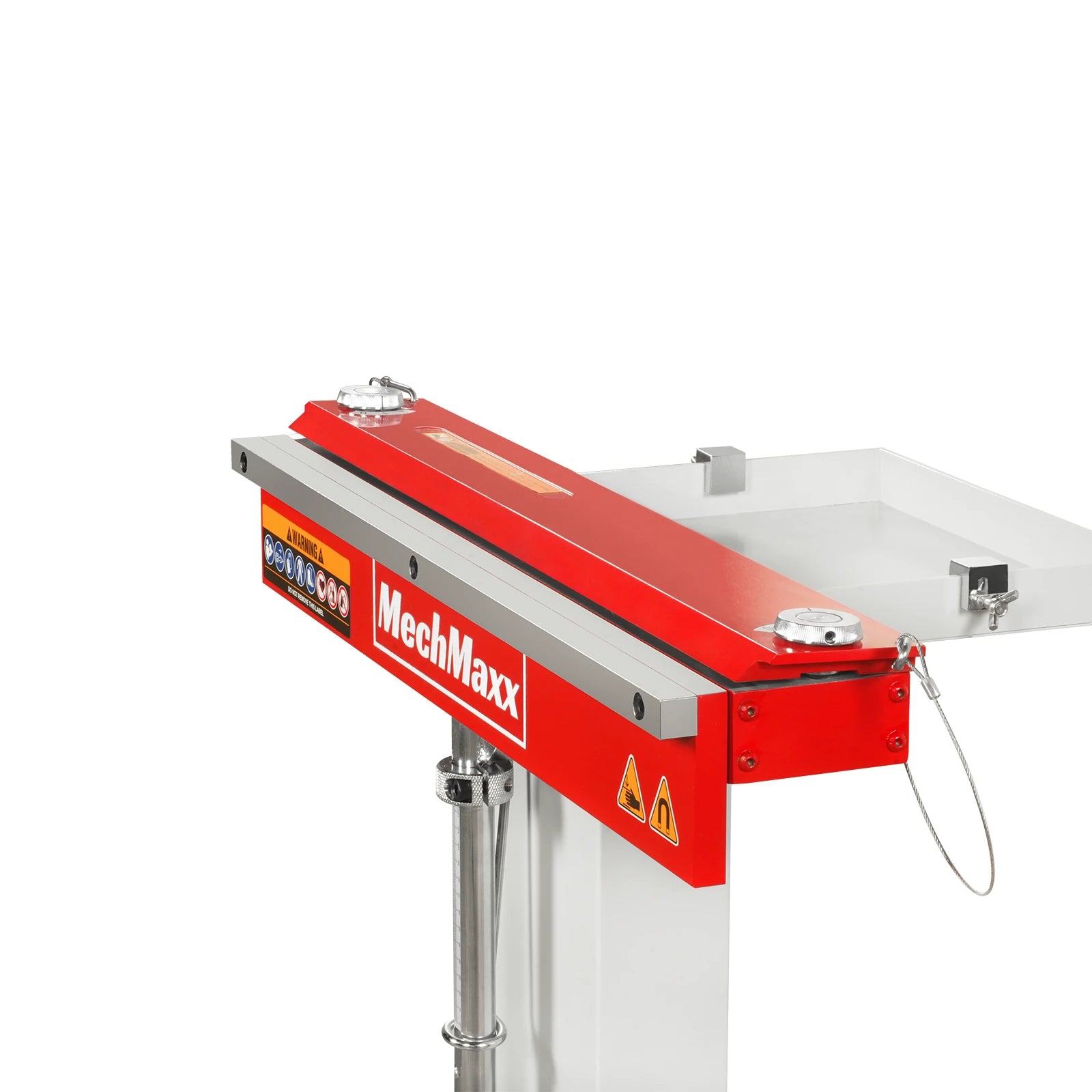

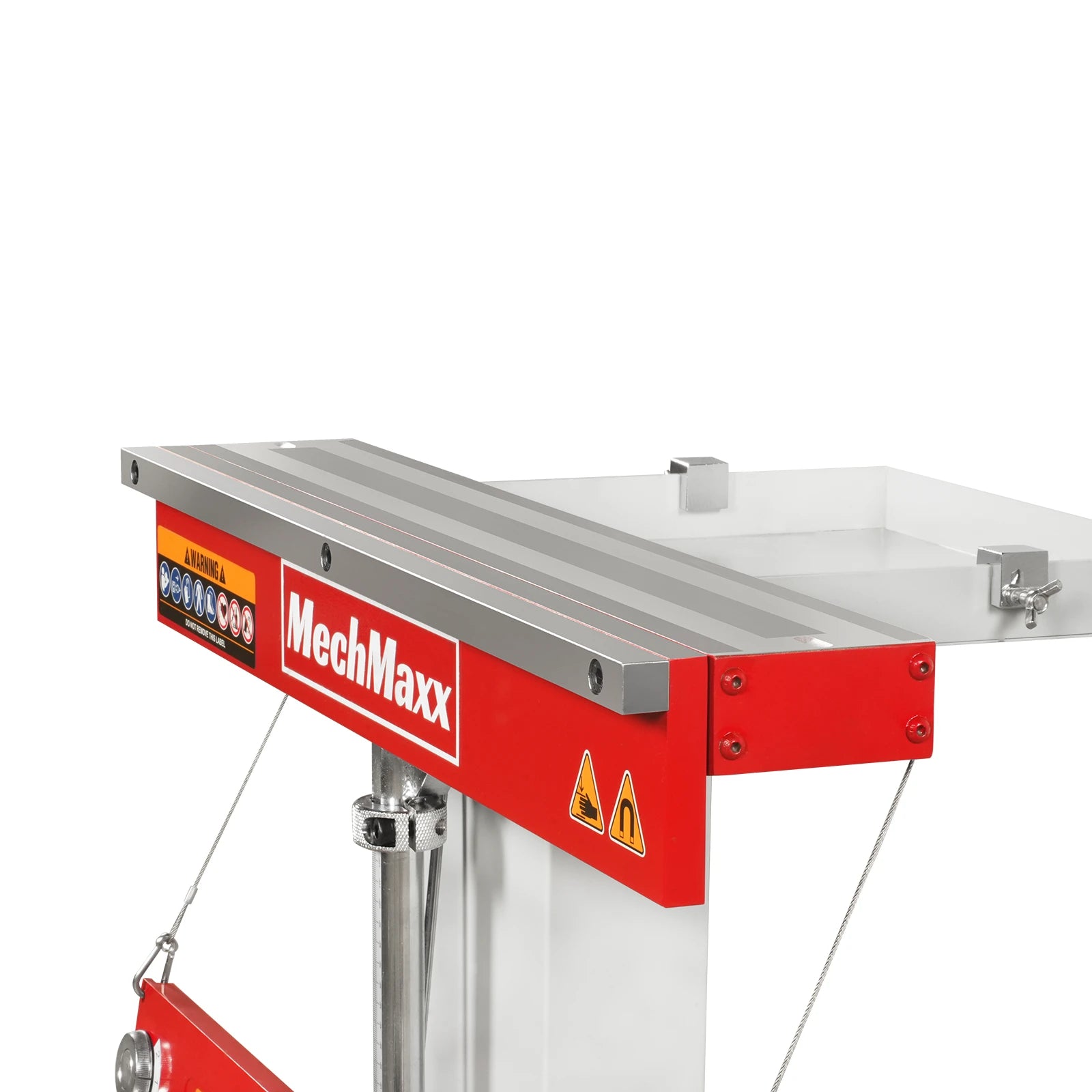

Electro-magnetic clamping system replaces mechanical fingers, allowing full-length, unobstructed clamping.
3 tons of holding force ensures secure grip and accurate bends across the entire working width.
Bends up to 24 inches wide—ideal for boxes, trays, and custom panels.
Handles 16-gauge mild steel, aluminum, and 20-gauge stainless steel.
No limit on box depth—perfect for deep channels and fully enclosed sections.

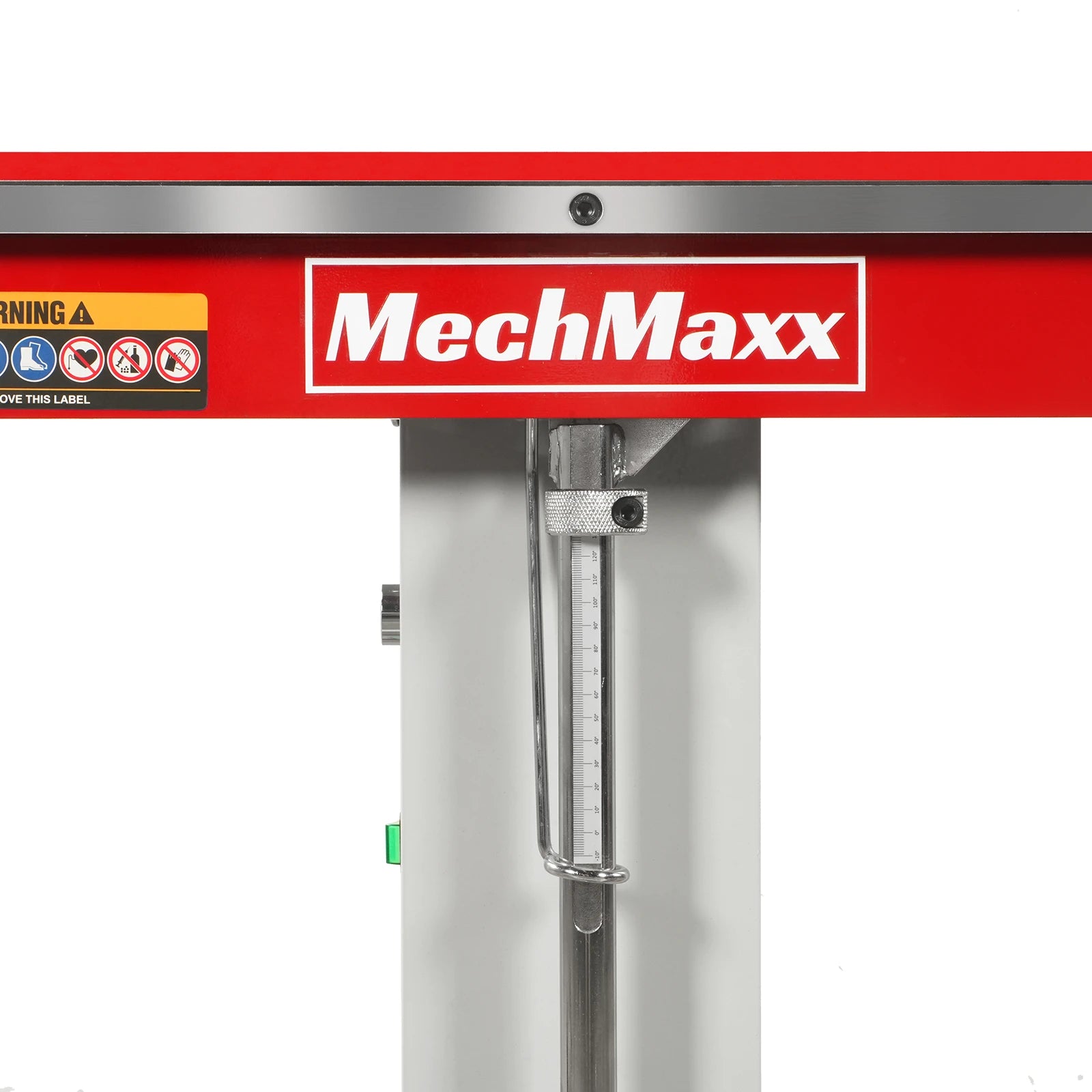

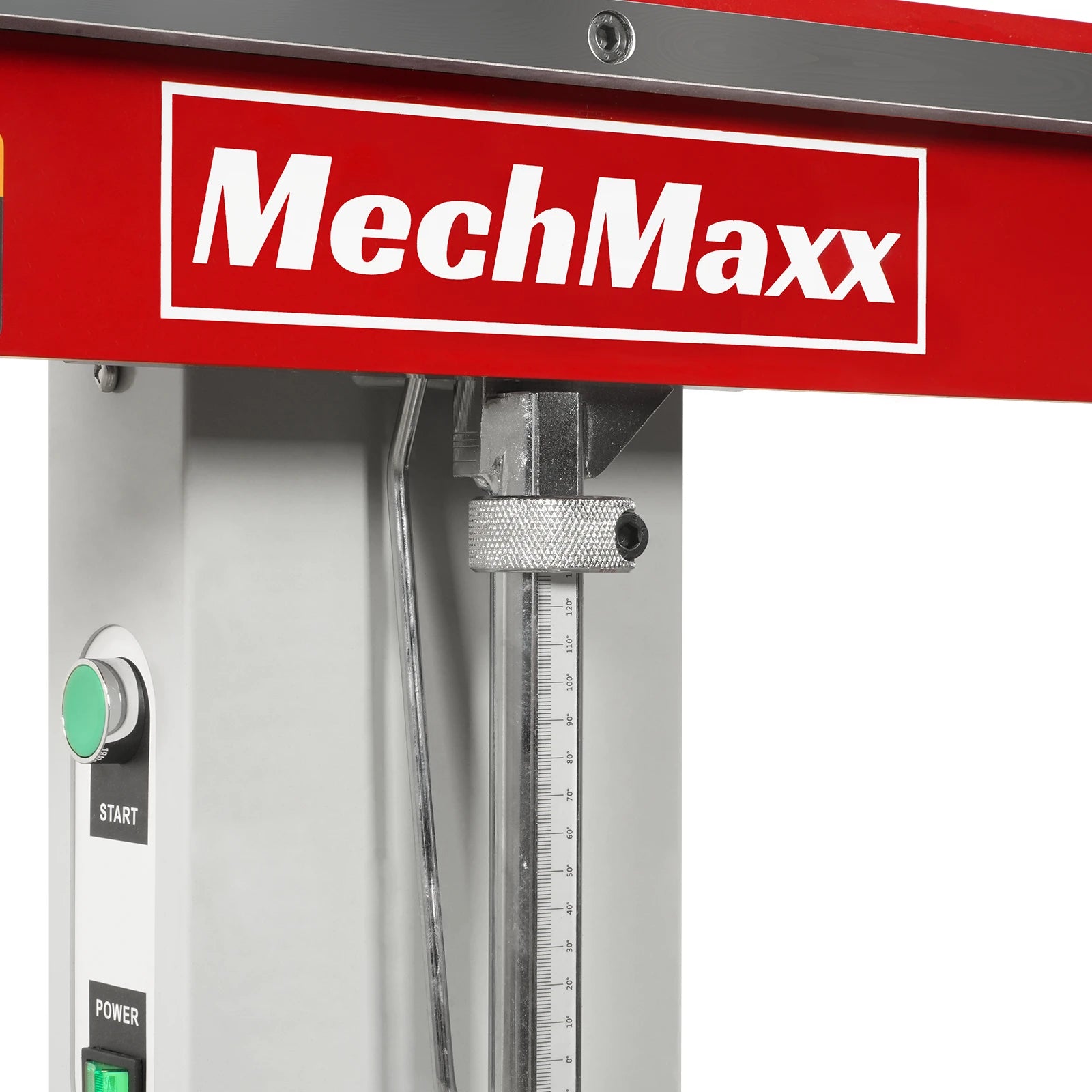

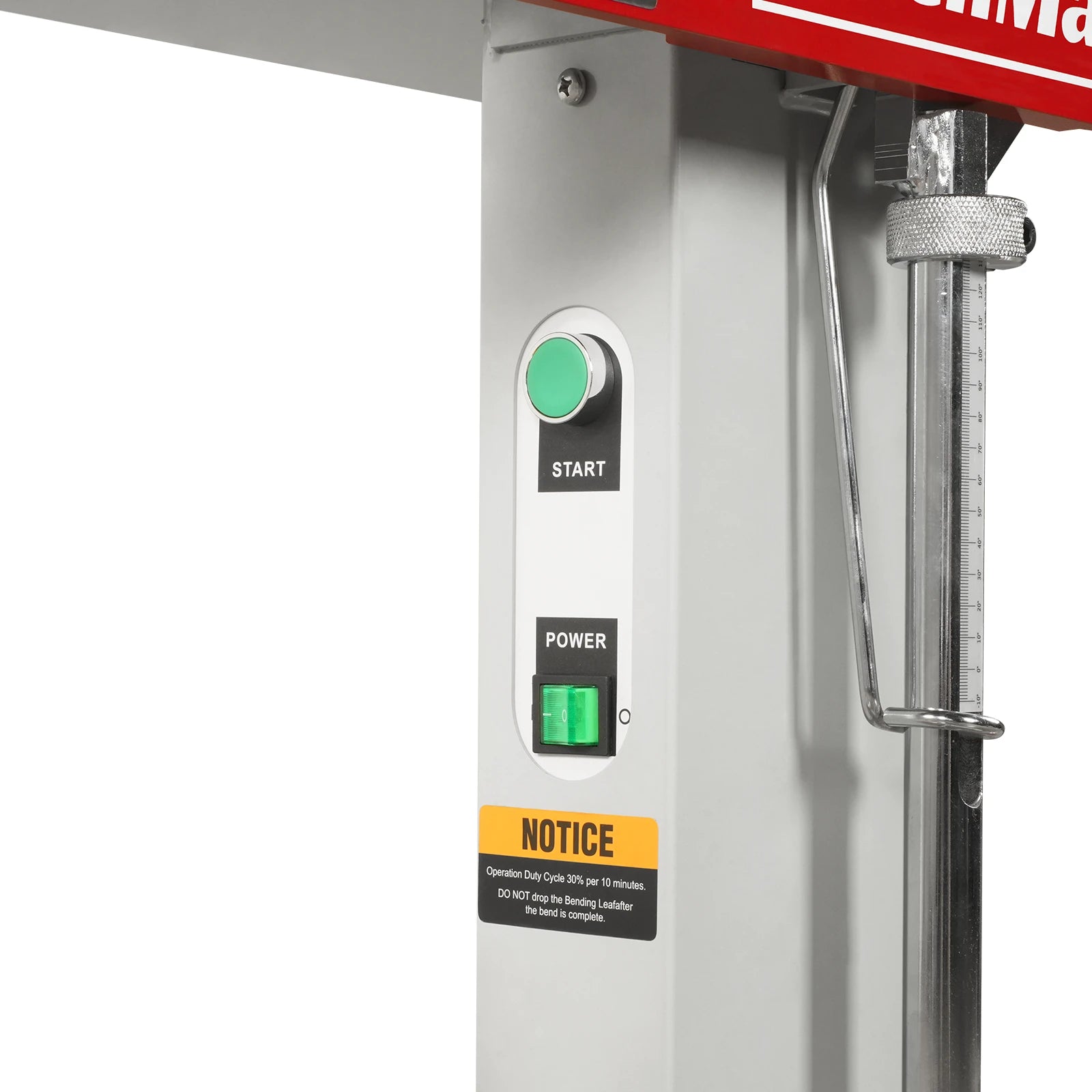

Built-in angle guide and material stop for repeatable, precise setup.

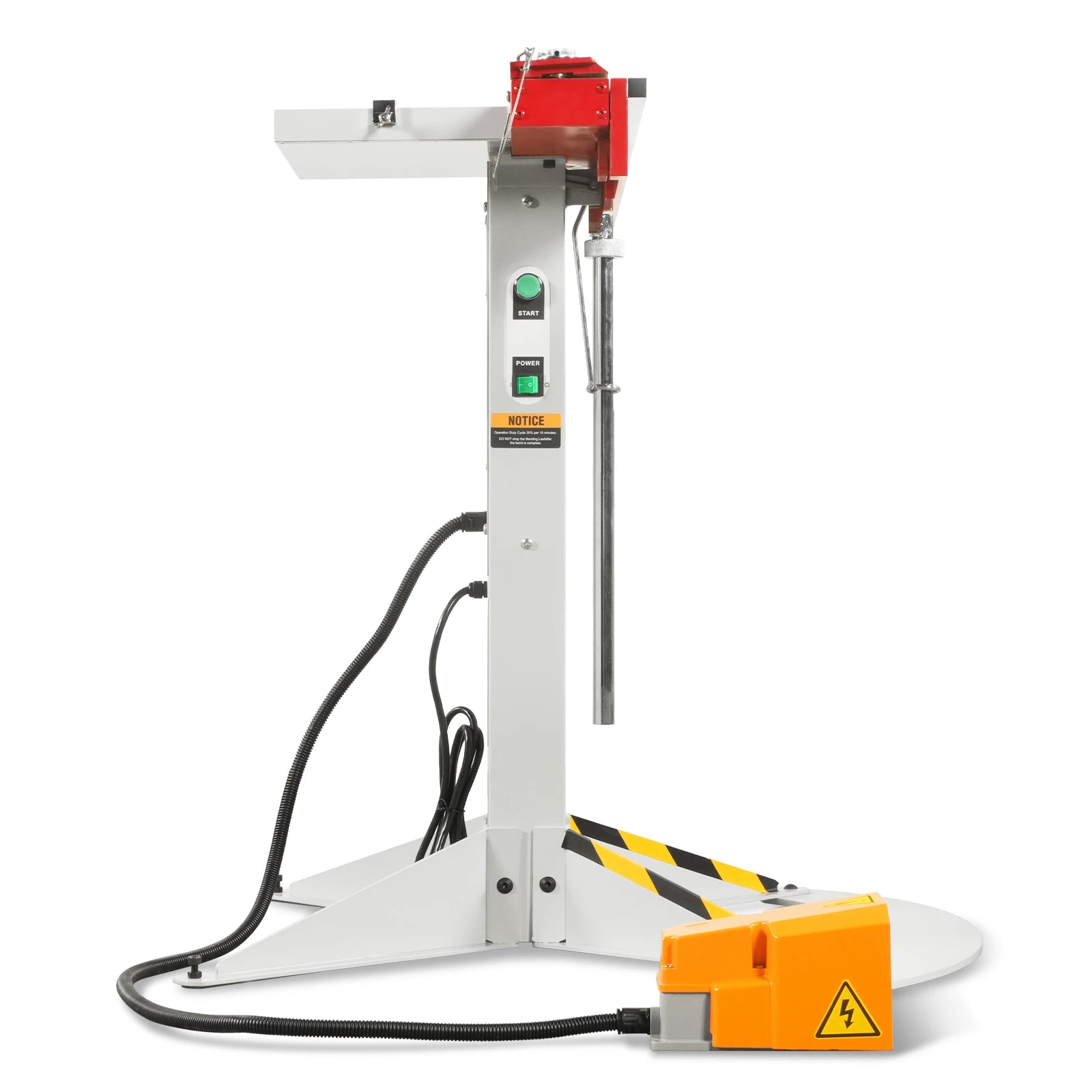

Foot pedal included for hands-free clamping and improved workflow.
Open-ended design allows bending of large, complex or irregular shapes.

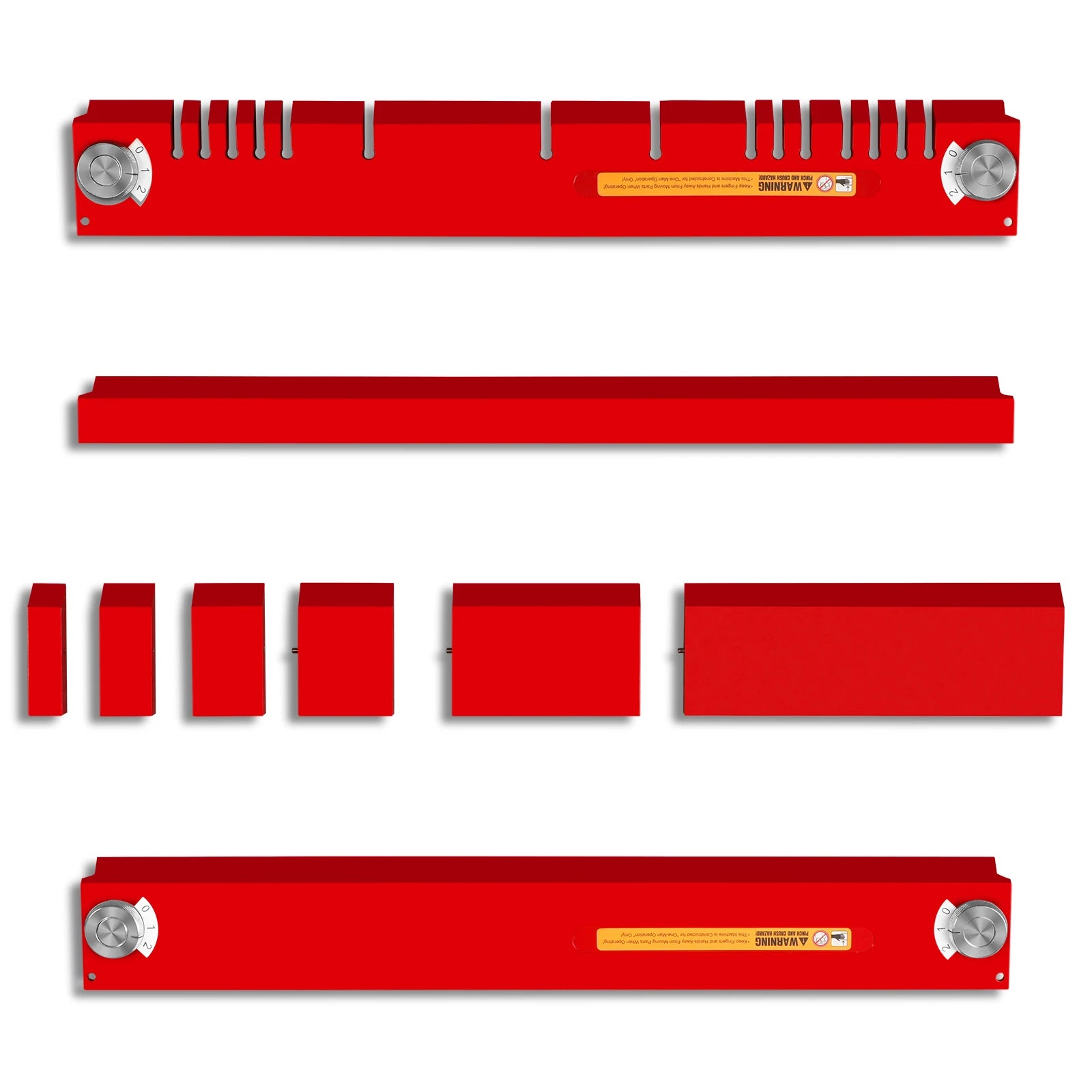

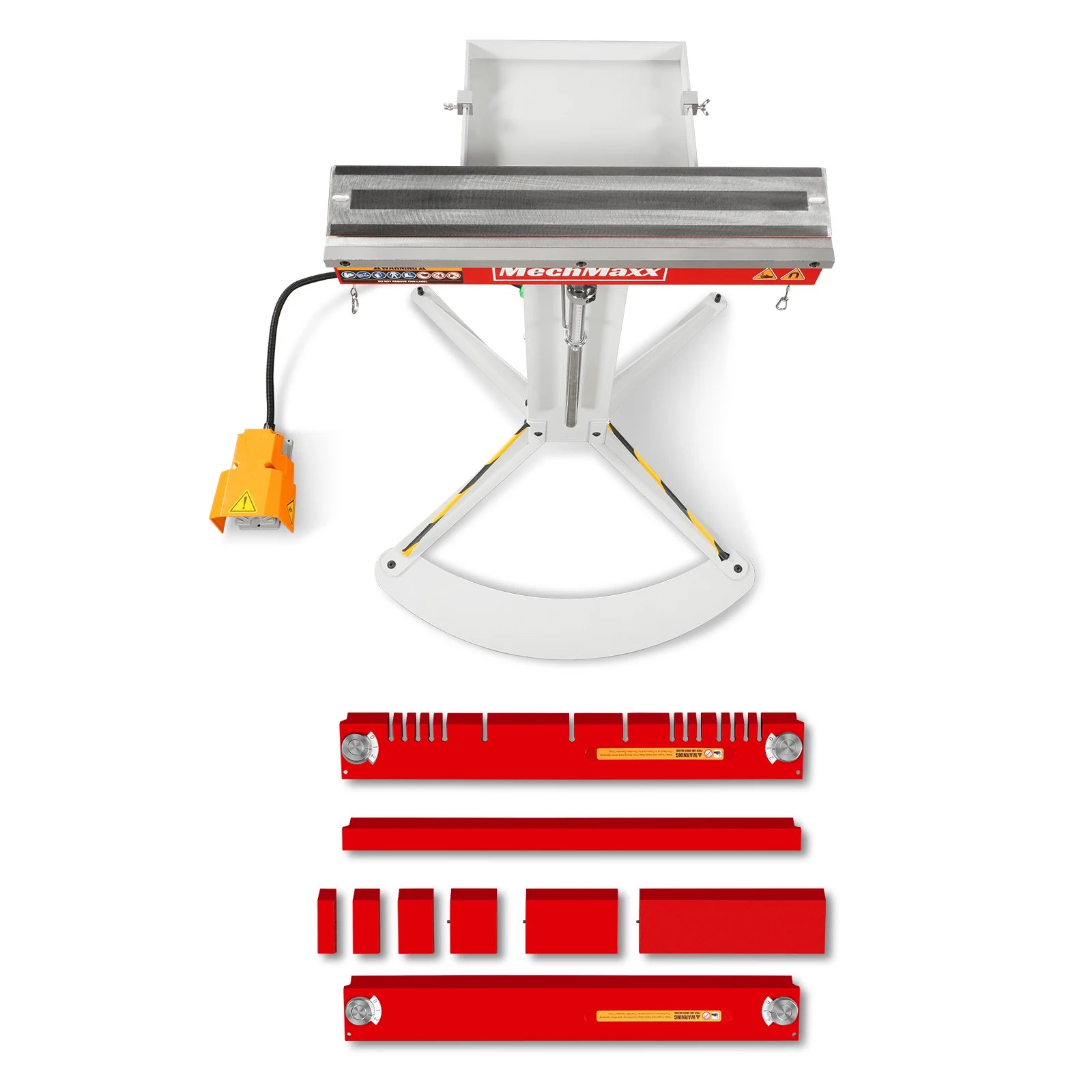

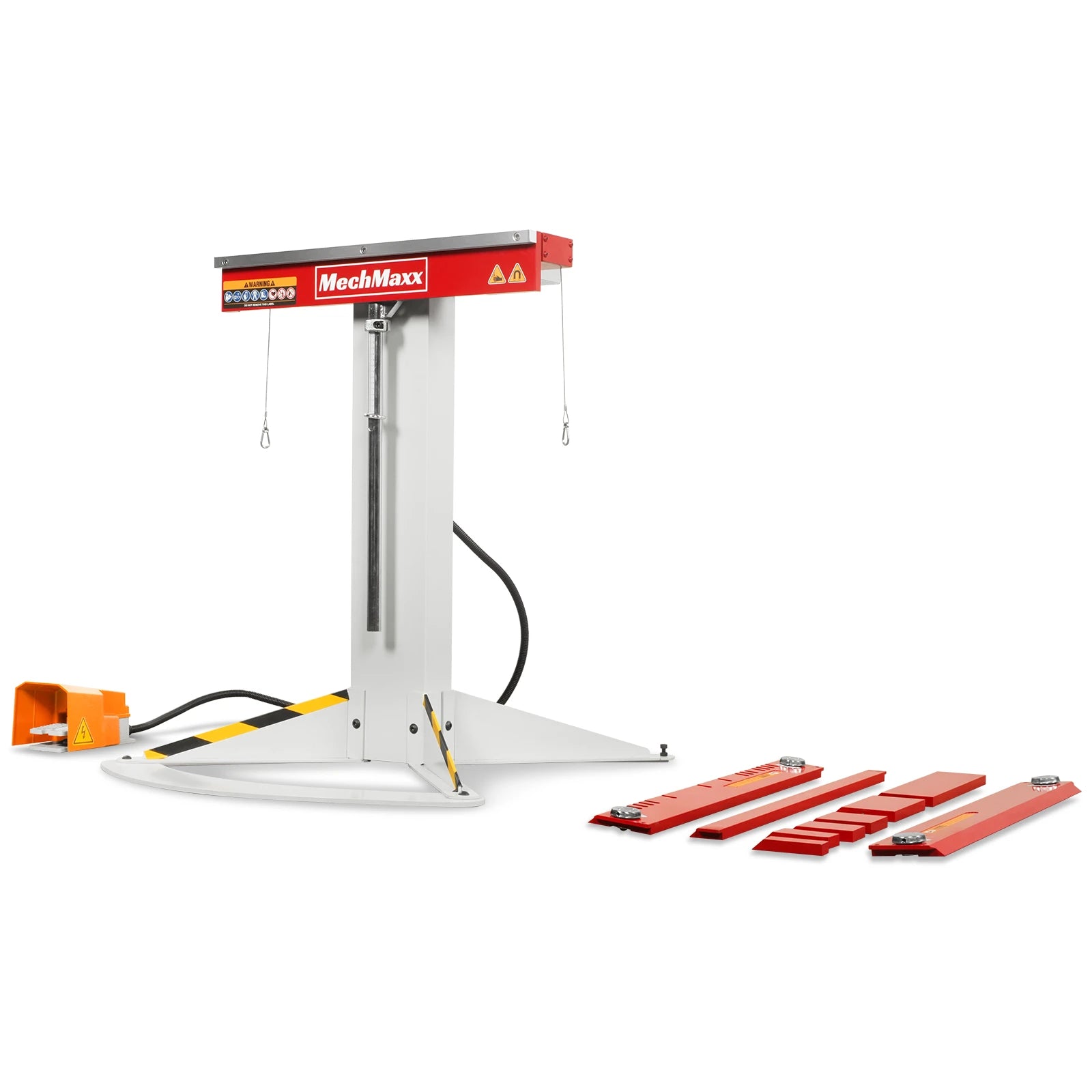

Segmented, slotted, narrow and full-length clamp bars are included for flexible setups.
Supports custom clamp tooling with special cross-section bars.
Multiple units can be linked end-to-end for long part stage bending.

Product manual (PDF)

Magnetic Sheet Metal Press Brake Product Manual.pdf

Product Features

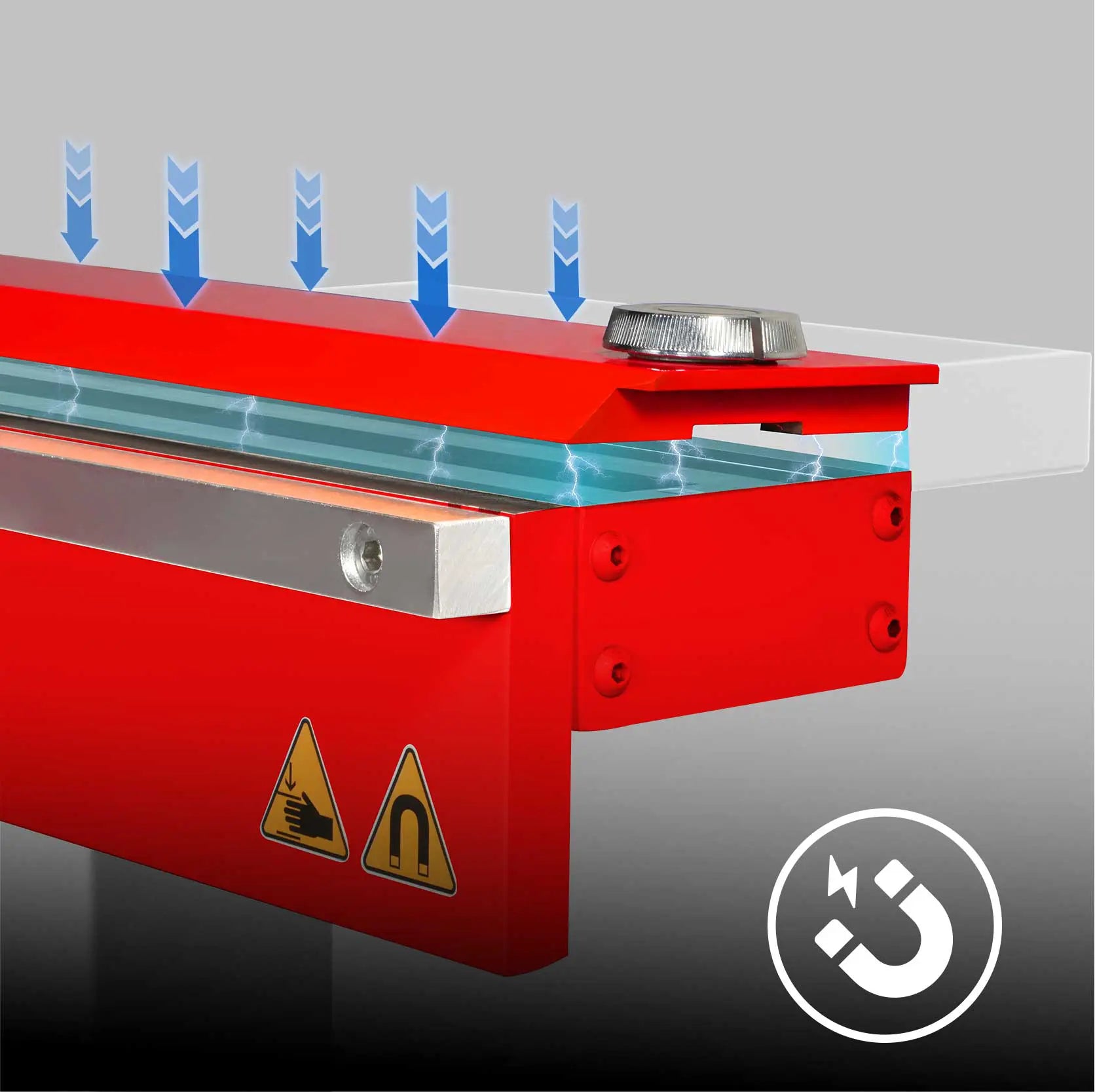

Electromagnetic Clamping – No Fingers Needed

Powerful magnetic force secures the clamp bar across its full length. No mechanical fingers, no obstructions—just clean, precise, and versatile bending.

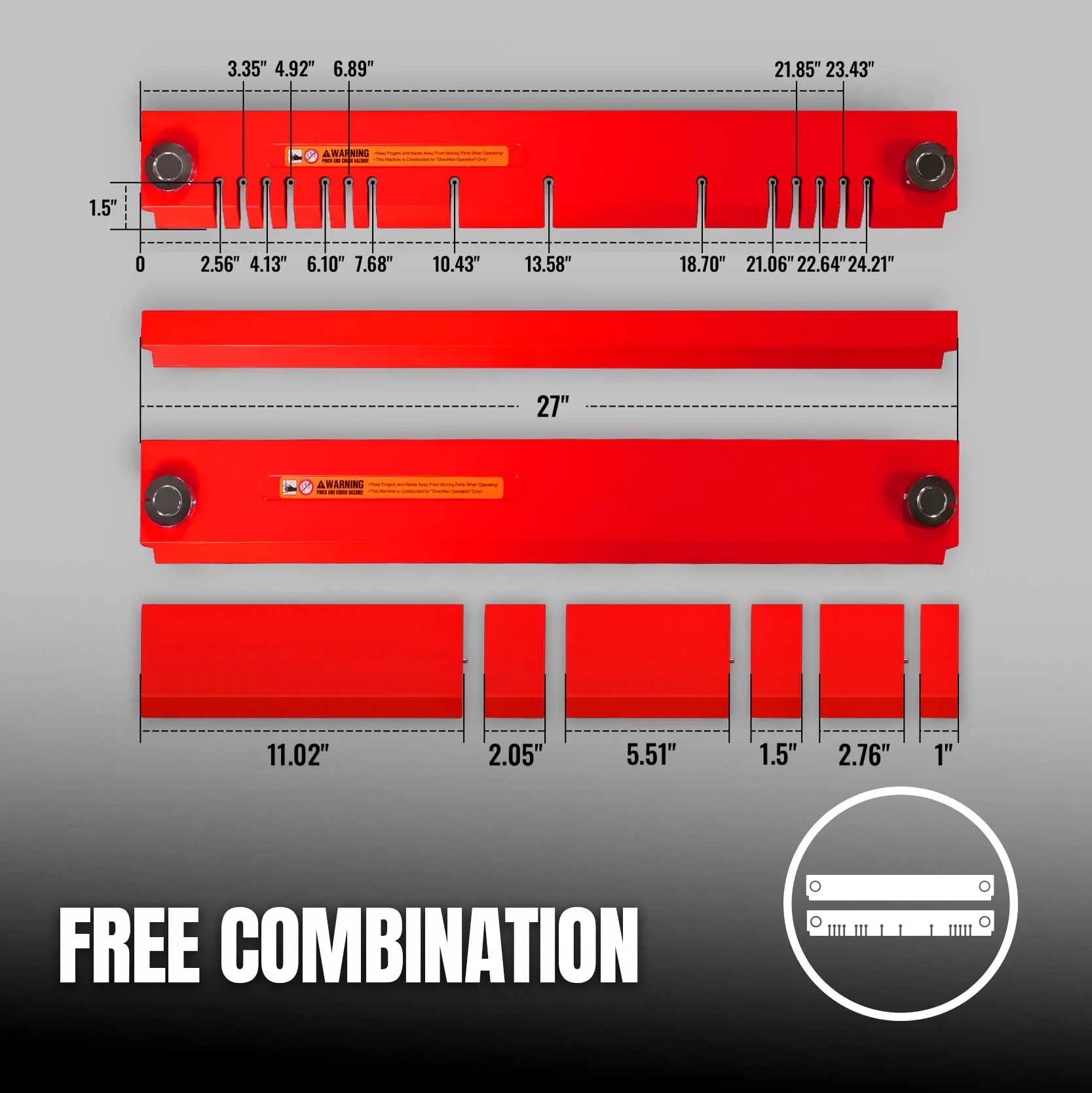

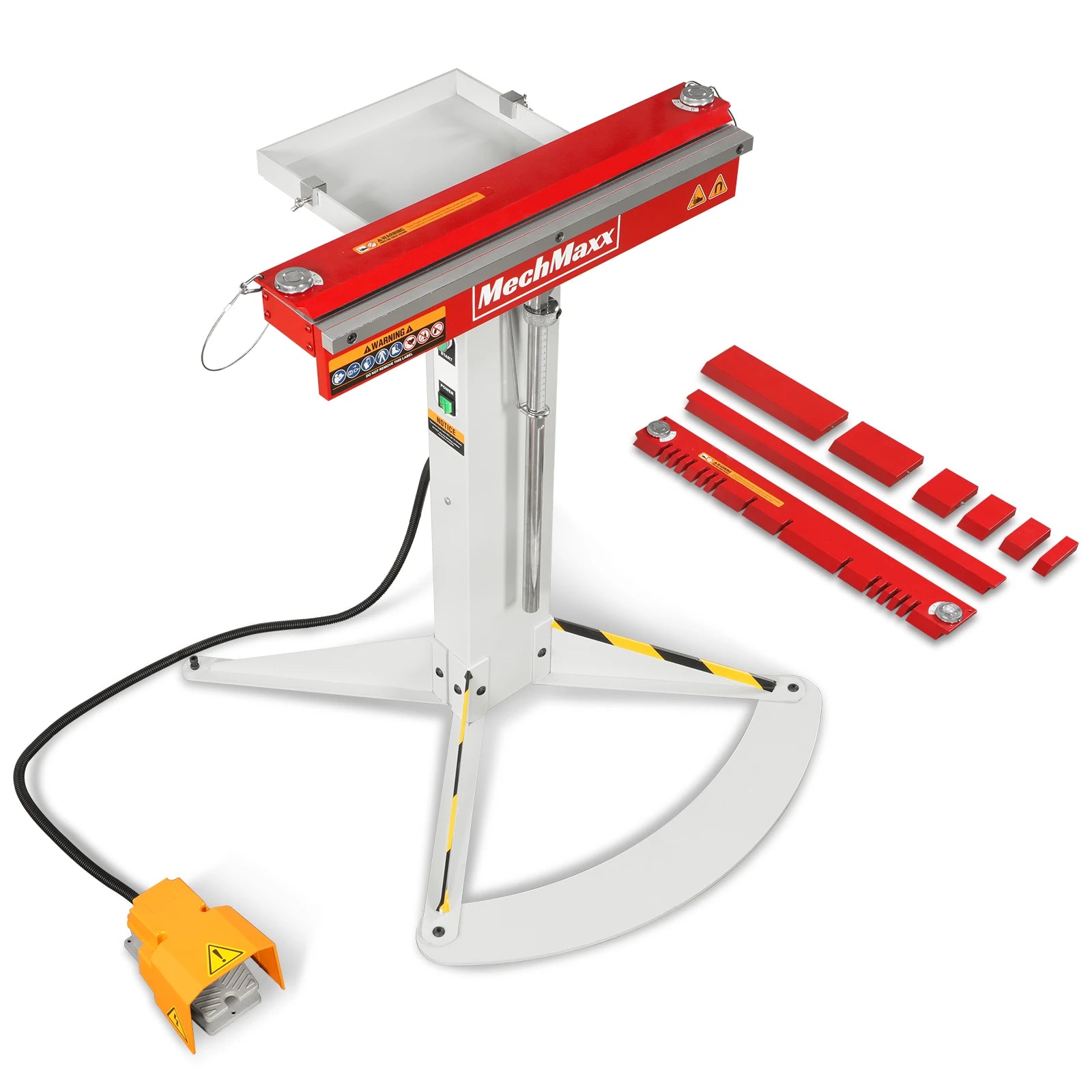

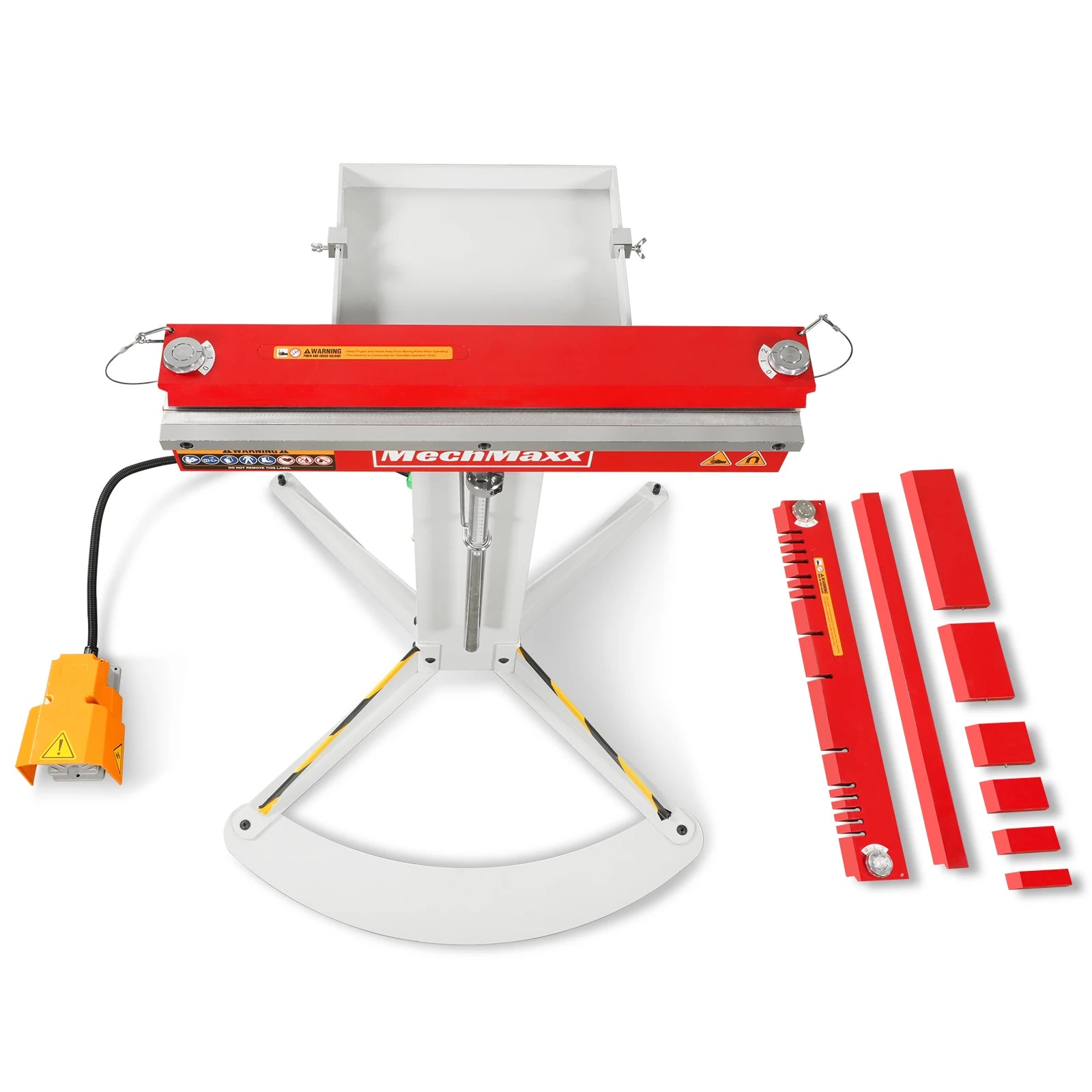

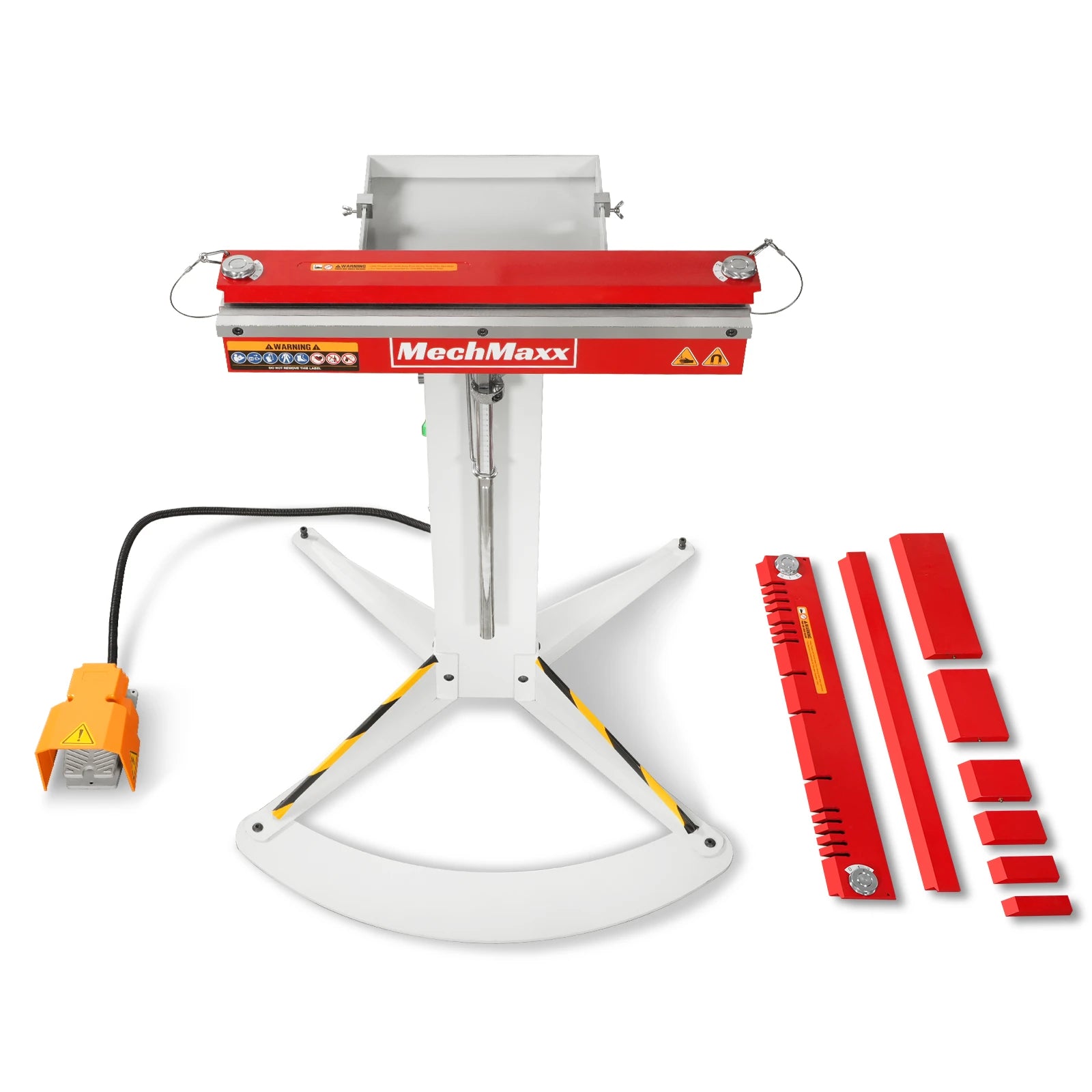

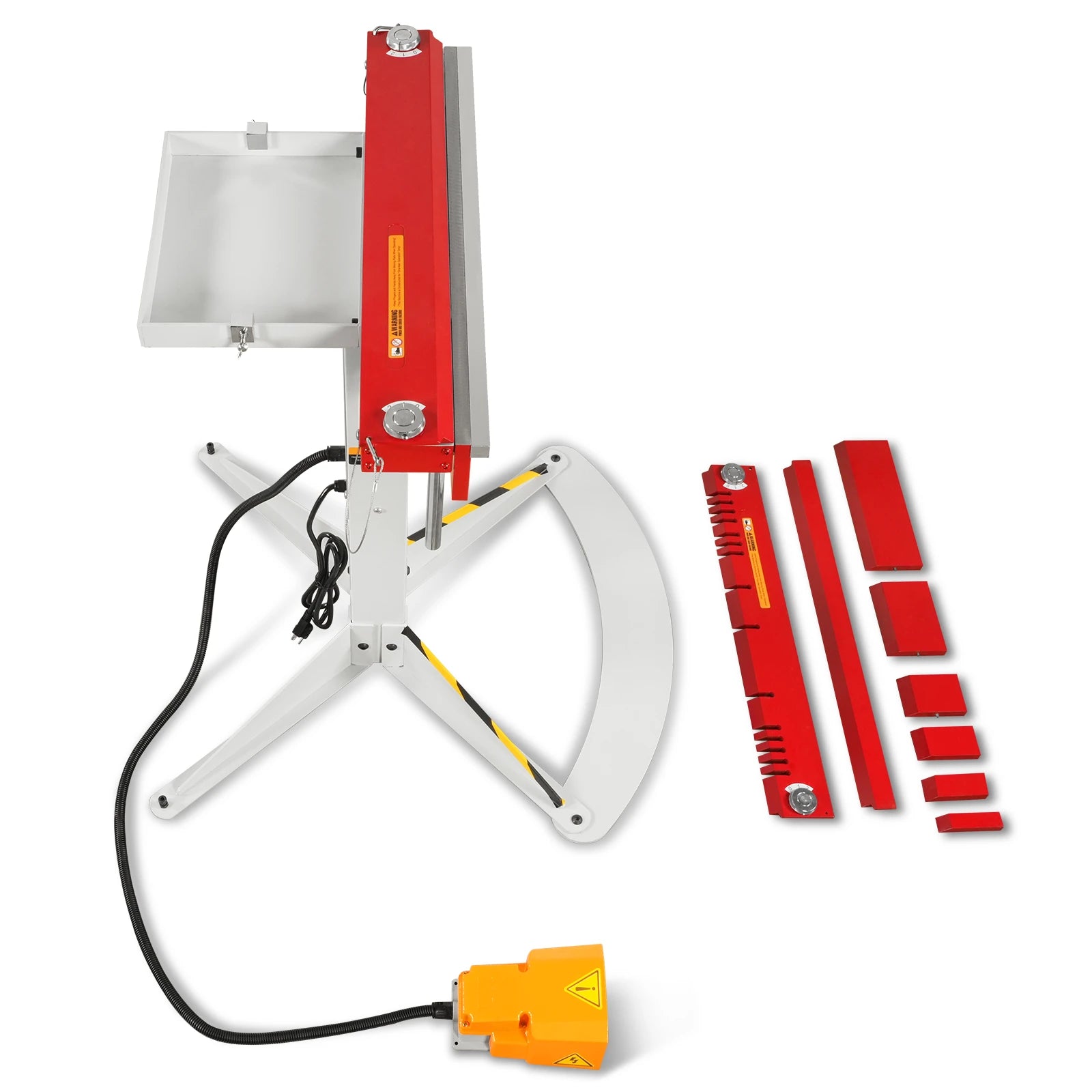

Modular Clamp Bars — Bend Your Way

Includes a full set of segmented clamp bars in multiple widths. Easily arrange the bars to match your bending layout—whether it’s a deep channel, a tight box, or a unique profile. No tools required for adjustment.

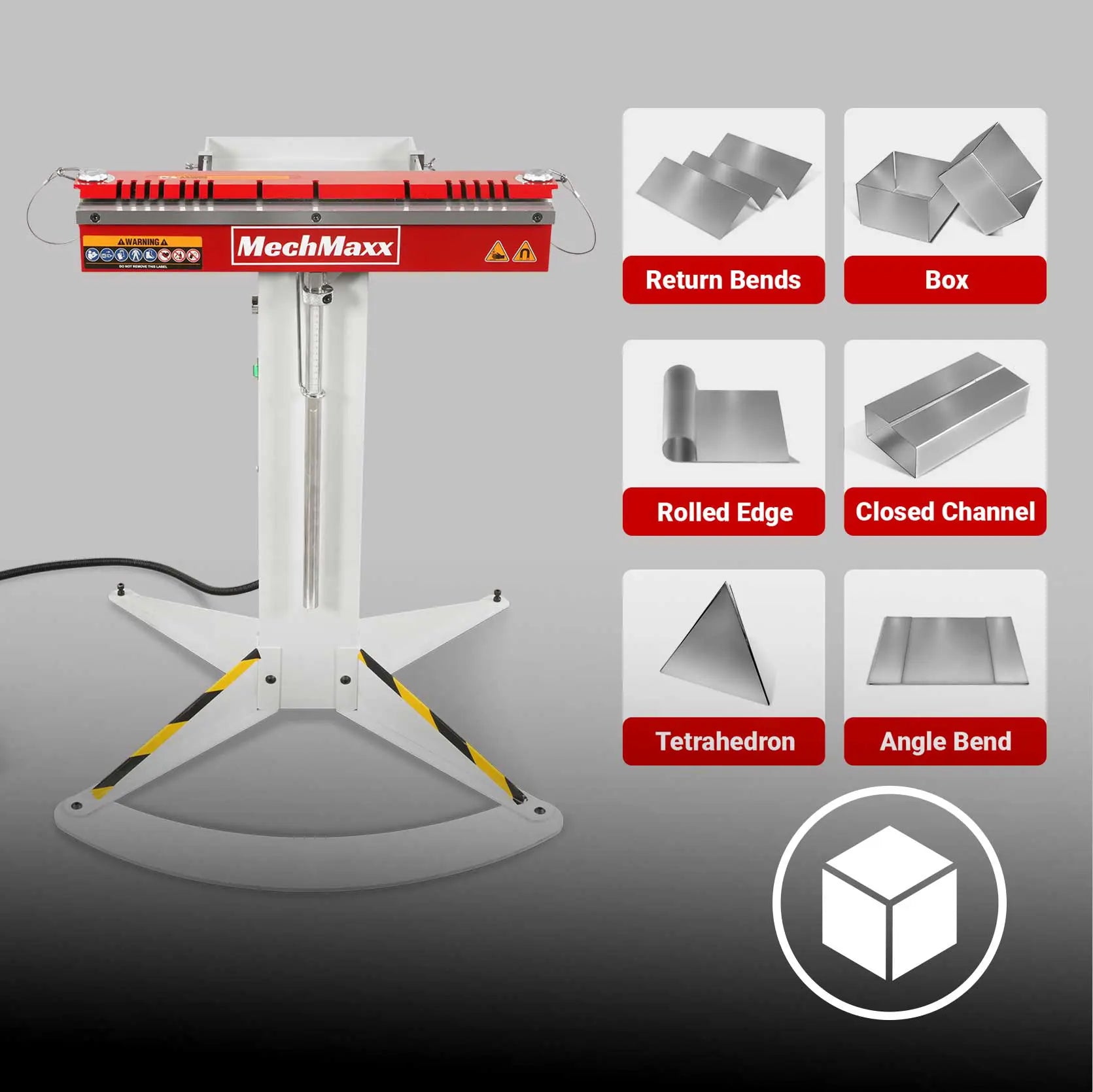

Master All Metal Shapes with Ease

From boxes and return bends to rolled edges and closed channels, the magnetic brake delivers unmatched flexibility for forming a wide variety of profiles—all with a single setup.

Versatile for All Your Metals

Handles copper, mild steel, stainless steel, aluminum, and galvanized sheets with ease. One machine for all your fabrication needs

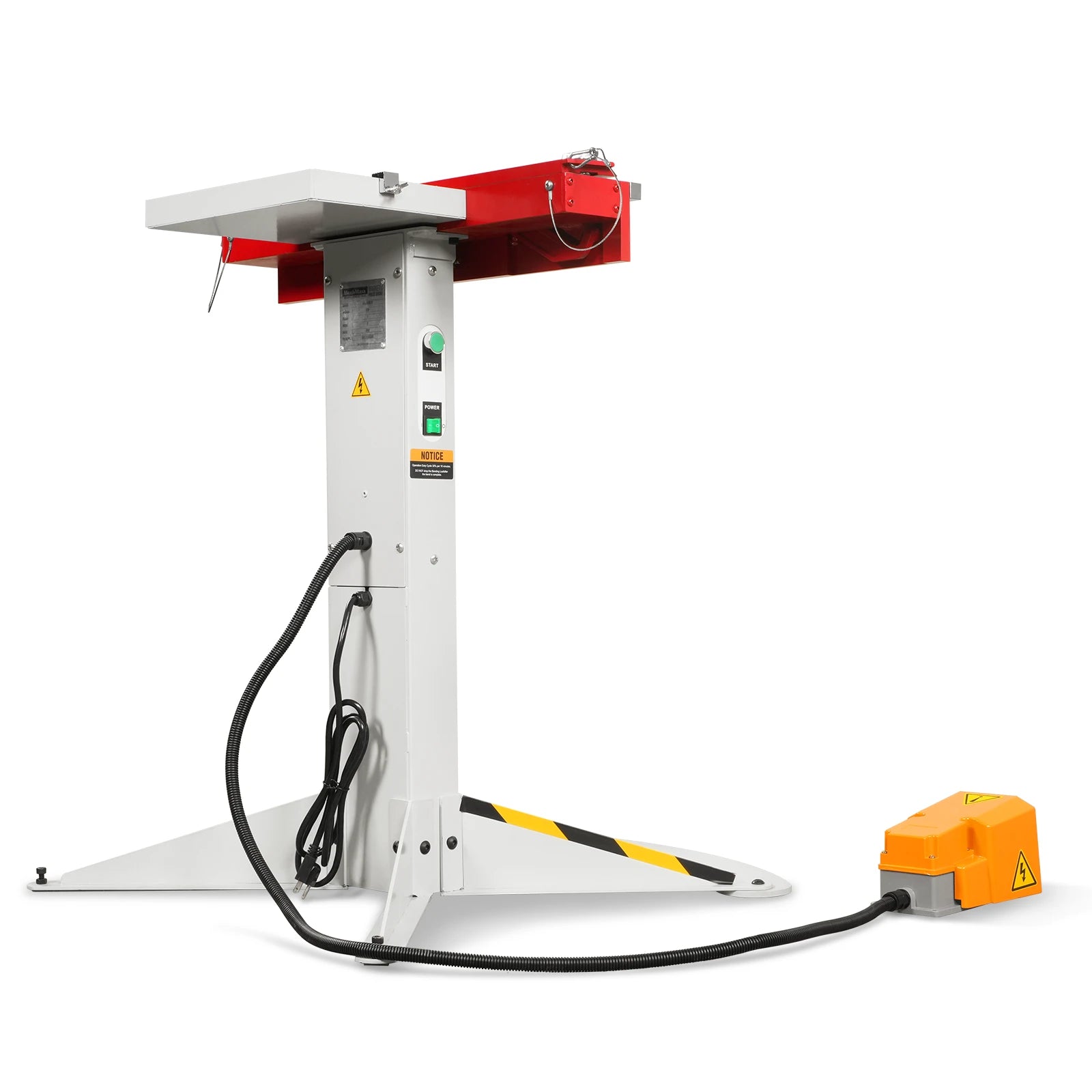

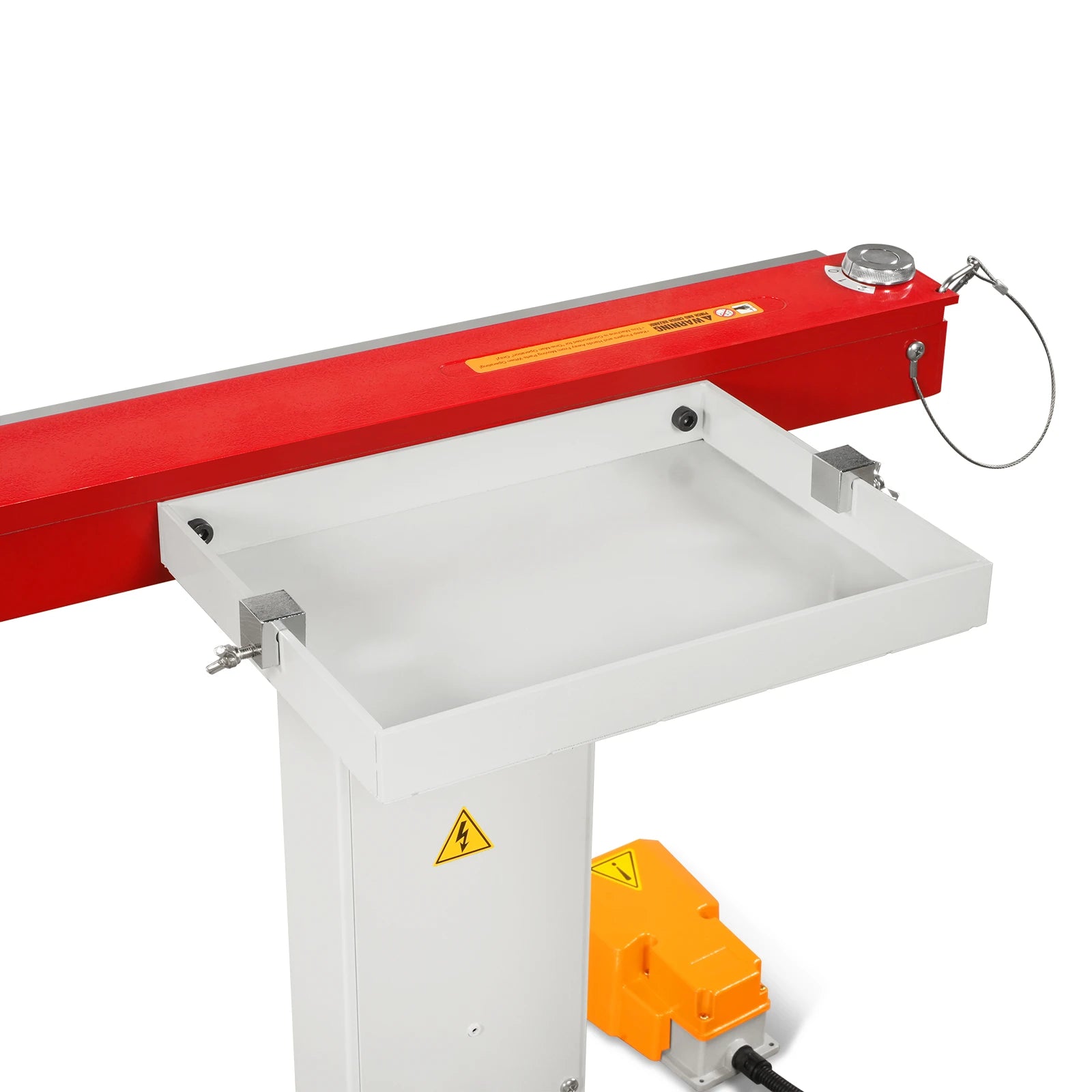

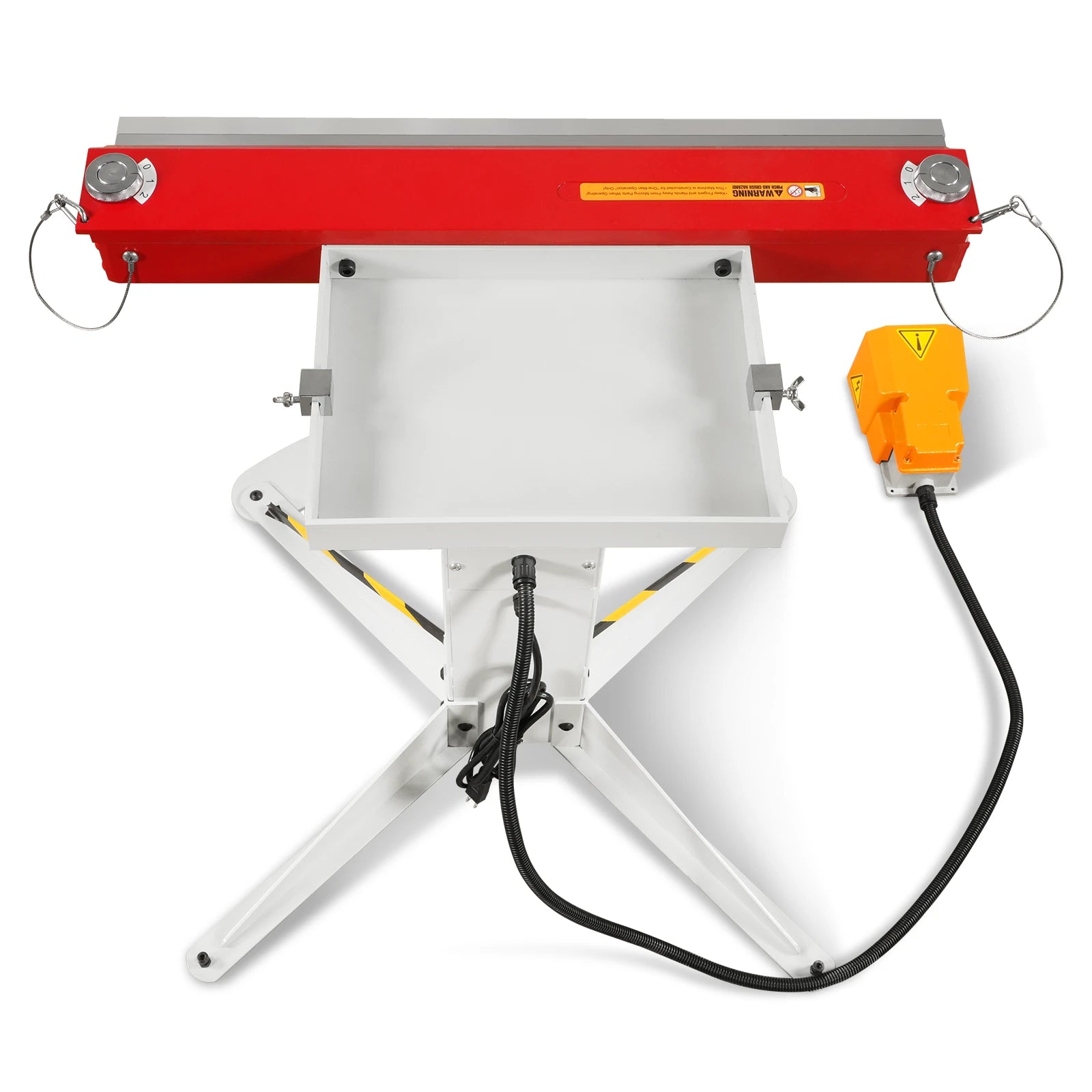

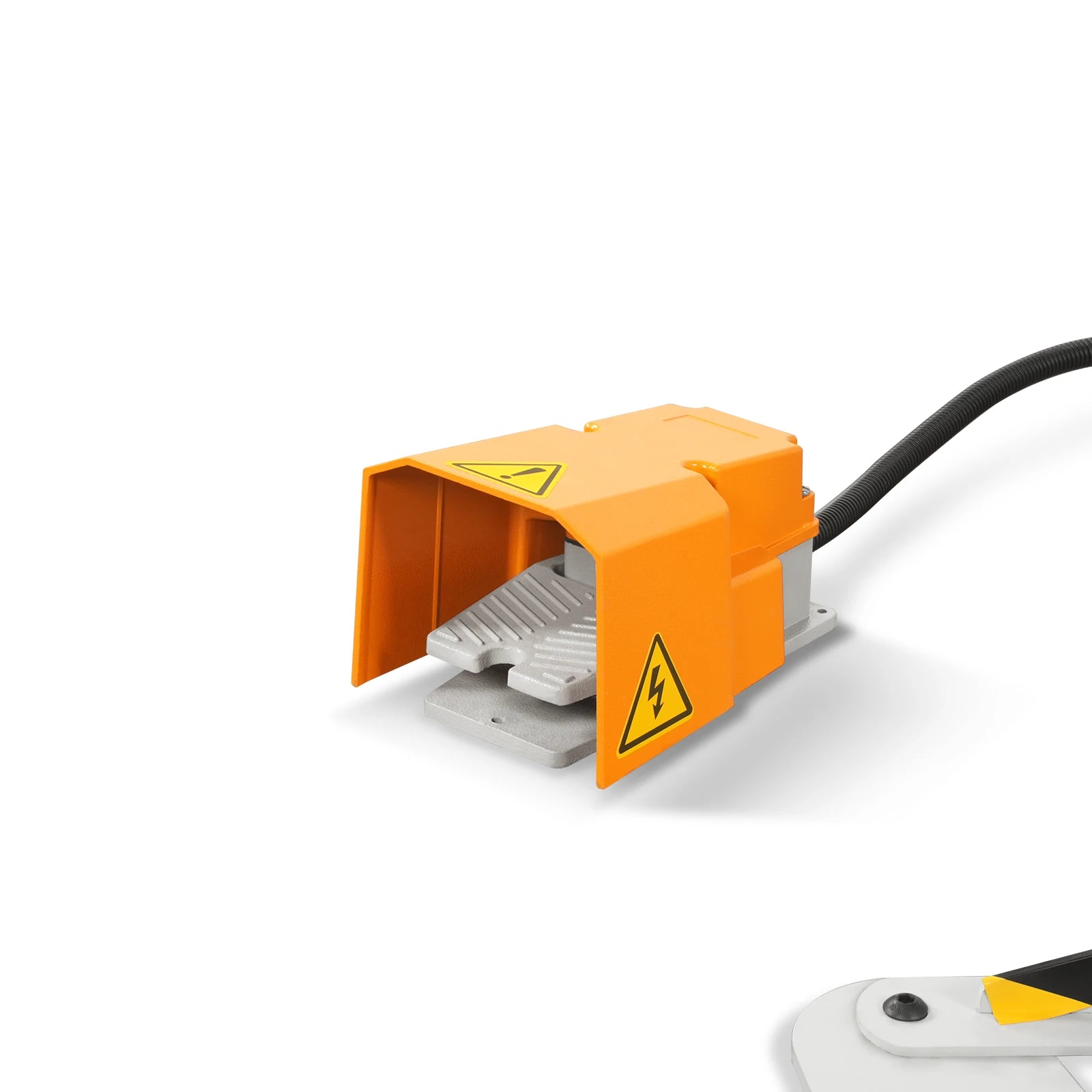

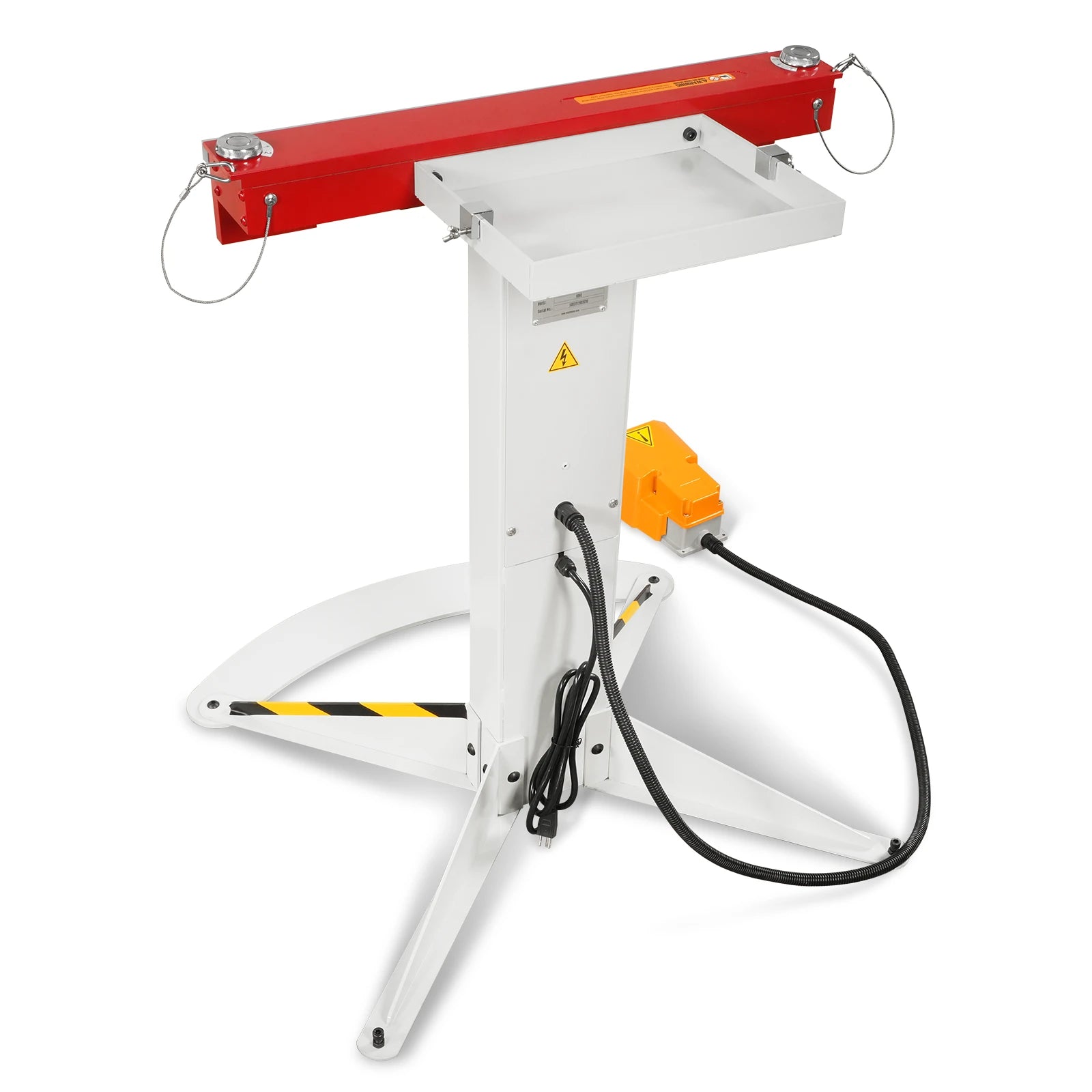

Foot Pedal Control – Clamp with a Tap

Electric foot switch allows quick clamping and release with a light press. Keep your hands on the workpiece for faster alignment and safer operation.

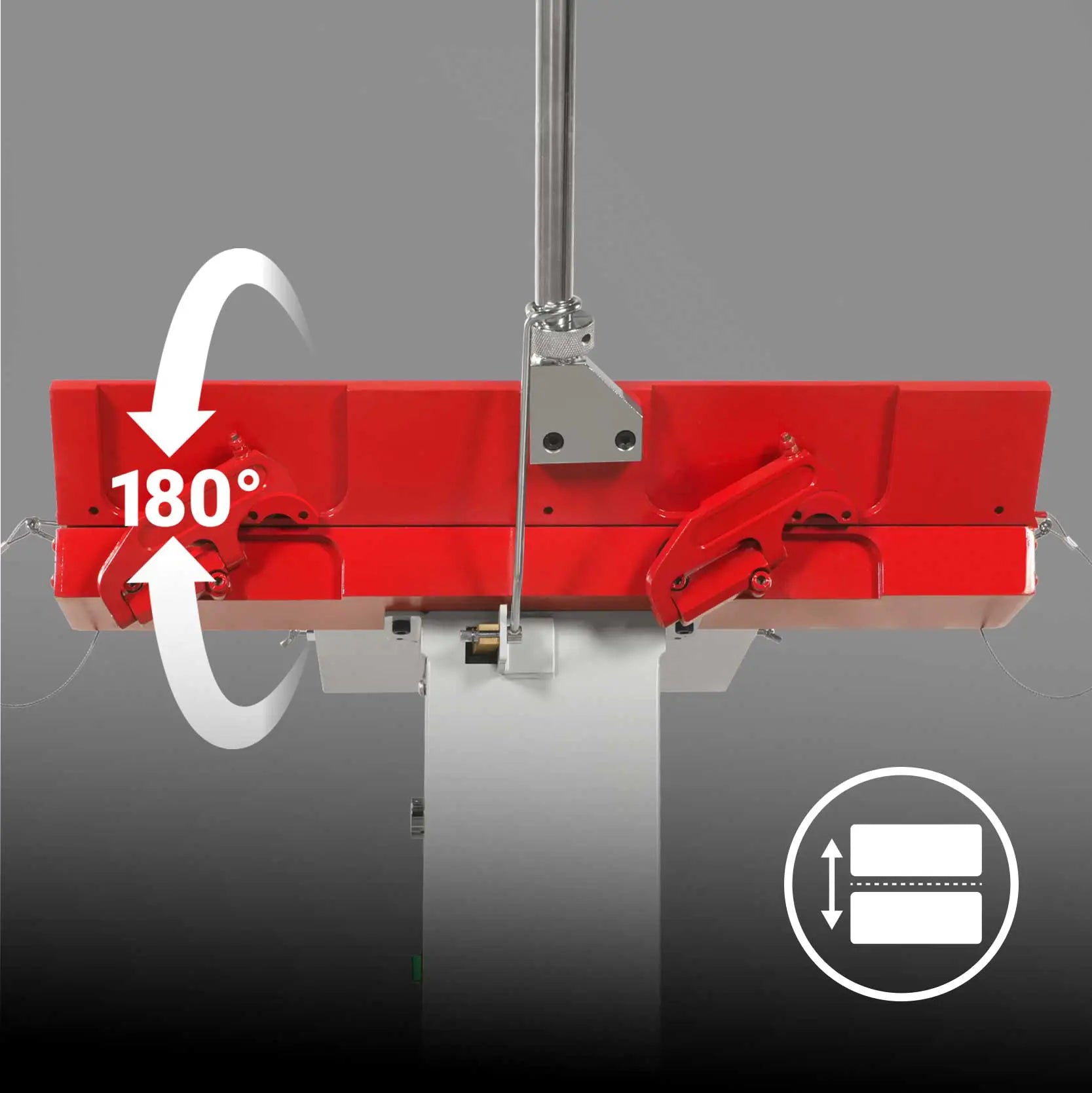

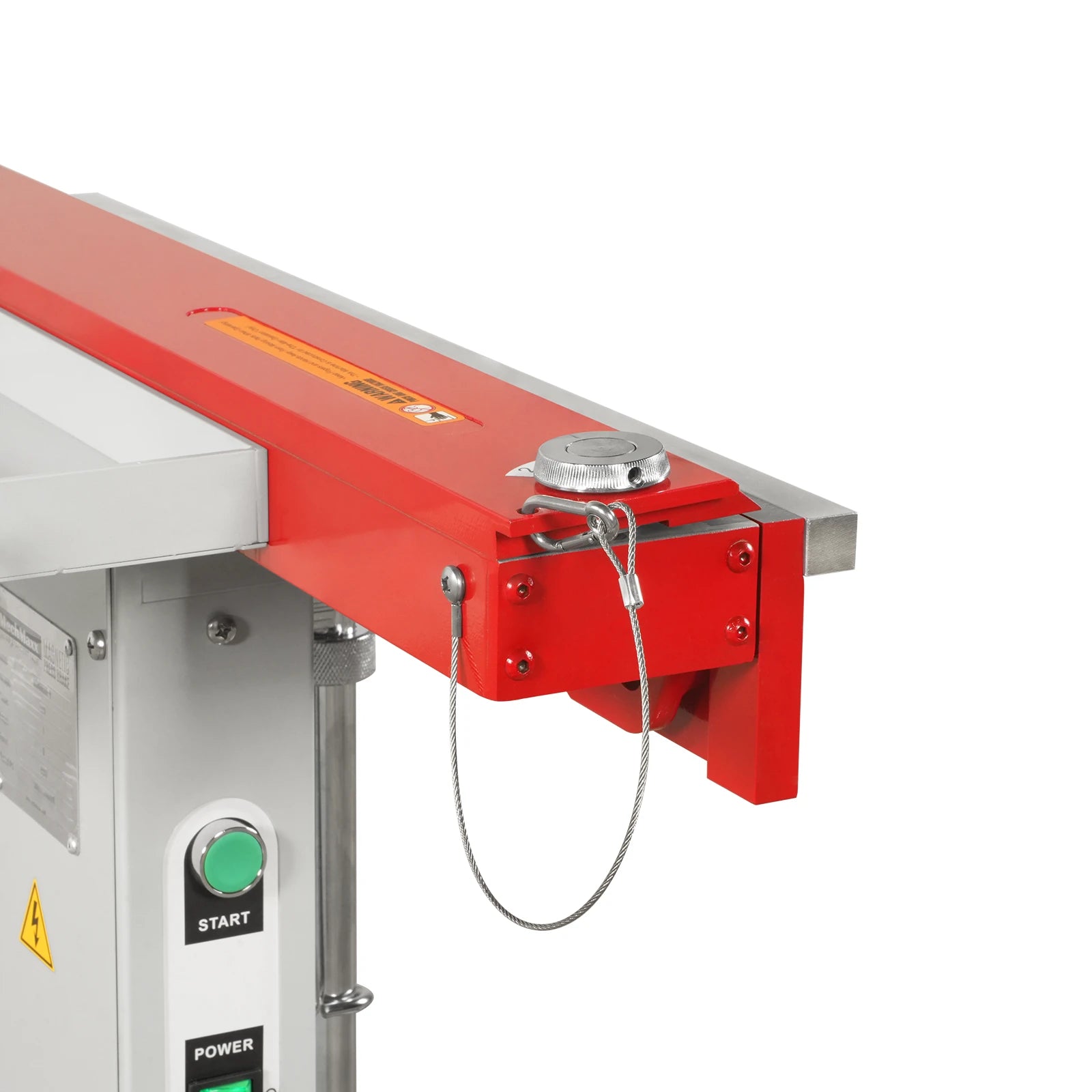

180° Swivel Press Bar – Flip It Your Way

The press bar can rotate 180°, making it easy to switch positions and bend at various angles.

Power	110V (±5%), 1 Phase, 60Hz, 12A
Max Material Width	24''
Max Capacity – Mild Steel & Aluminum	16 Gauge
Max Capacity – Stainless Steel	20 Gauge
Duty Cycle	30%
Rotation Angle	180°
Clamping Force	3 Tonne
Foot Pedal	Included
Overall Dimensions (L × W × H)	27″ × 37″ × 35″
Shipping Dimensions (L × W × H)	33″ × 16″ × 17″
Weight (N.W/G.W.)	154/190 lbs
