SKU: 500000

| Model: MSMB650E

24'' Industrial Magnetic Pan and BOX Heavy Duty Sheet Metal Brake 20 Gauge Capacity Shear Press Brake, MSMB650E

Name: 24'' Industrial Magnetic Pan and BOX Heavy Duty Sheet Metal Brake 20 Gauge Capacity Shear Press Brake, MSMB650E
Brand: MechMaxx
SKU: 500000
Price: 1739.0 USD
Availability: InStock

$173900

$1,988.00

Save $249

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Estimated to ship by Jun 7, 2025. Date is subject to change due to transit delays.

Details

Model : MSMB650E

MSMB650E MSMB1250E

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

Electro-magnetic clamping system replaces mechanical fingers, allowing full-length, unobstructed clamping.
3 tons of holding force ensures secure grip and accurate bends across the entire working width.

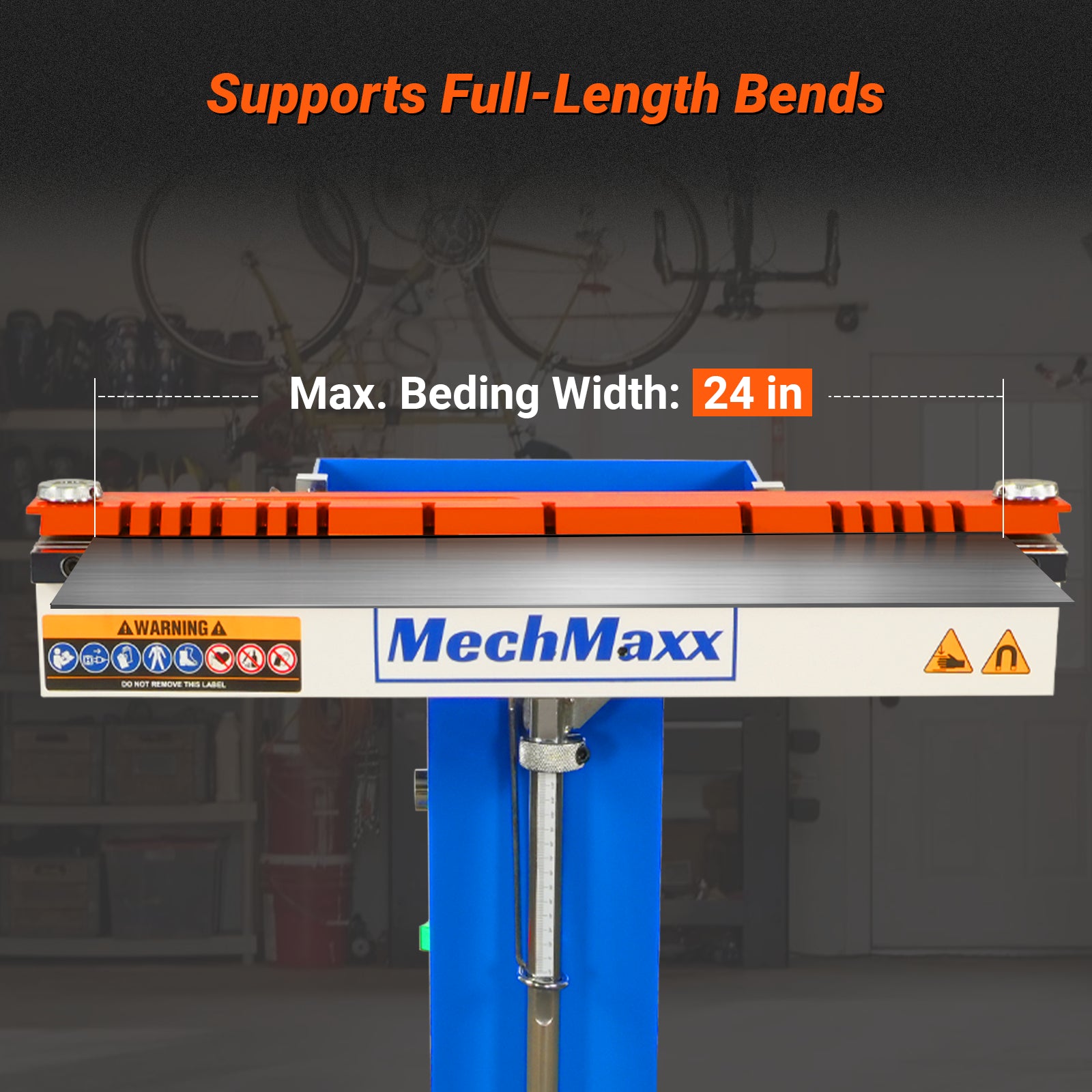

Bends up to 24 inches wide—ideal for boxes, trays, and custom panels.
Handles 16-gauge mild steel, aluminum, and 20-gauge stainless steel.
No limit on box depth—perfect for deep channels and fully enclosed sections.

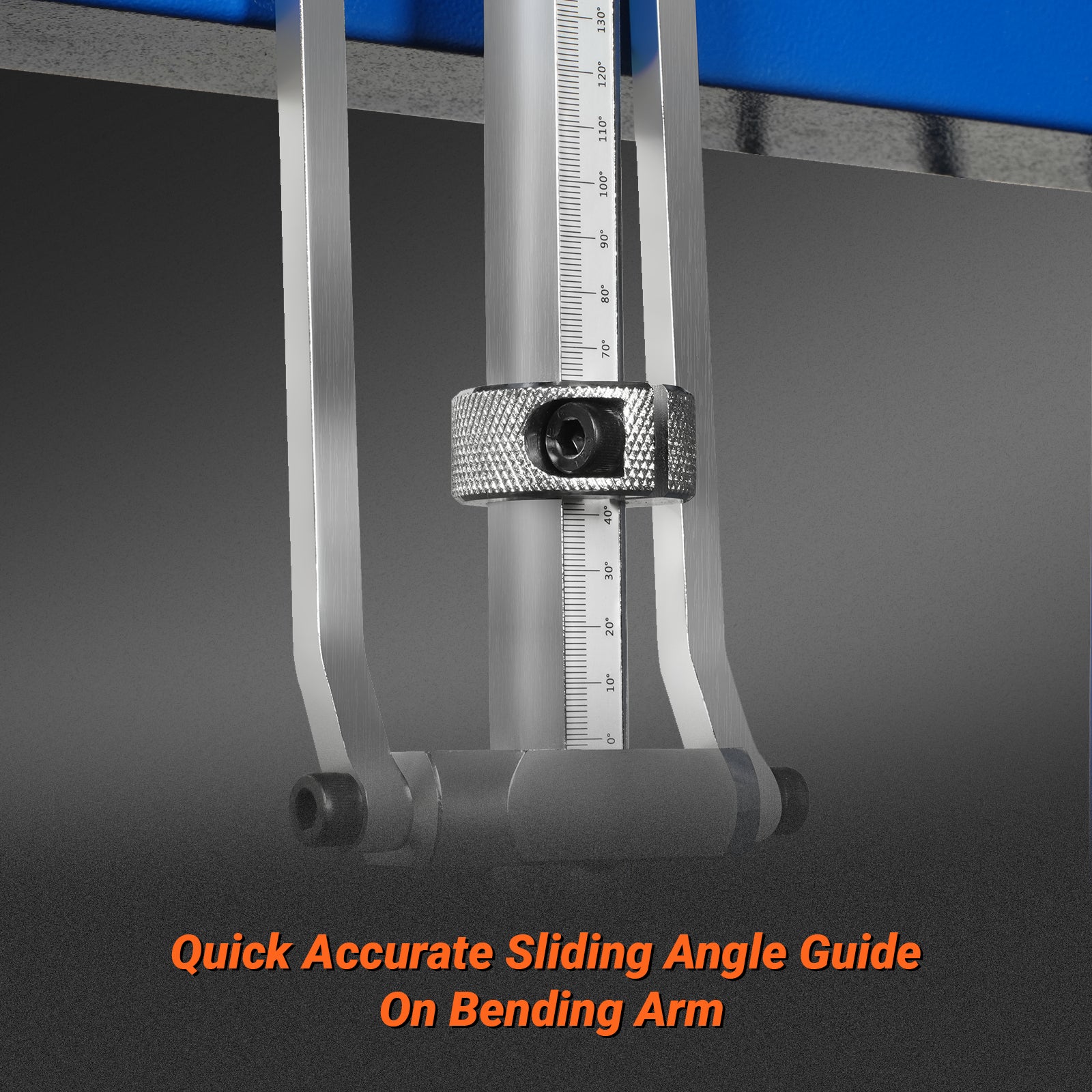

Built-in angle guide and material stop for repeatable, precise setup.

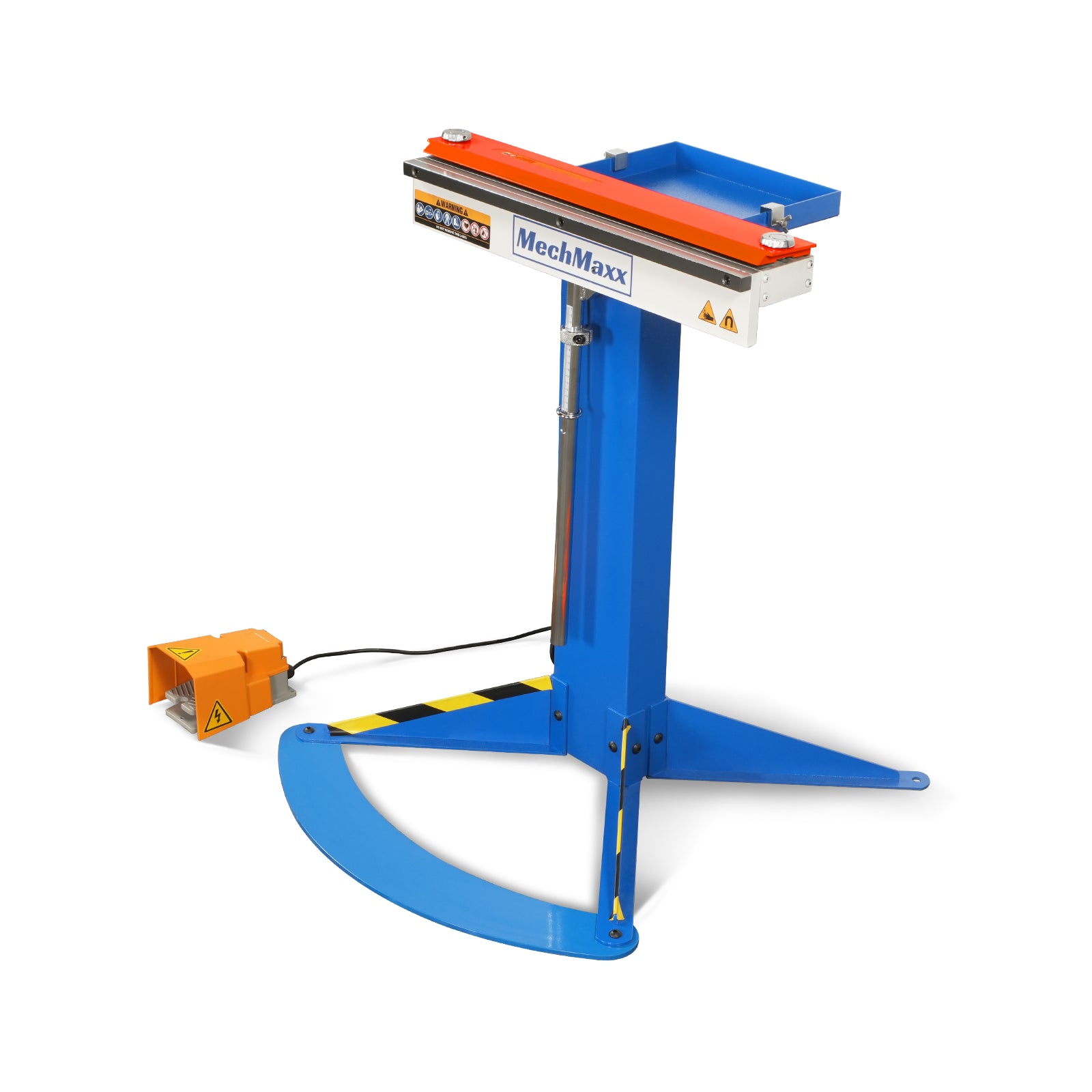

Foot pedal included for hands-free clamping and improved workflow.
Open-ended design allows bending of large, complex or irregular shapes.

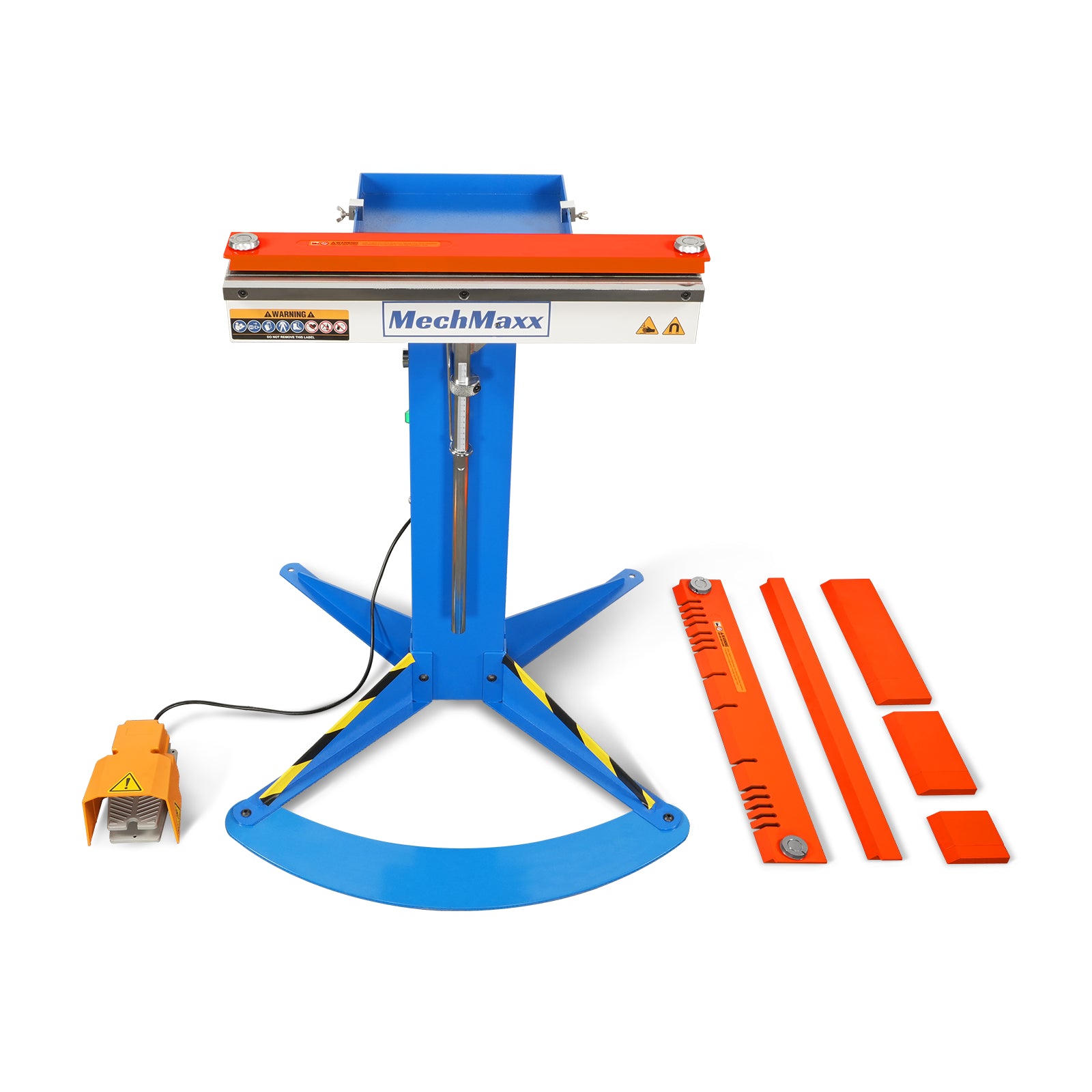

Segmented, slotted, narrow and full-length clamp bars are included for flexible setups.
Supports custom clamp tooling with special cross-section bars.
Multiple units can be linked end-to-end for long part stage bending.

Product manual (PDF)

Magnetic Sheet Metal Press Brake Product Manual.pdf

Product Features

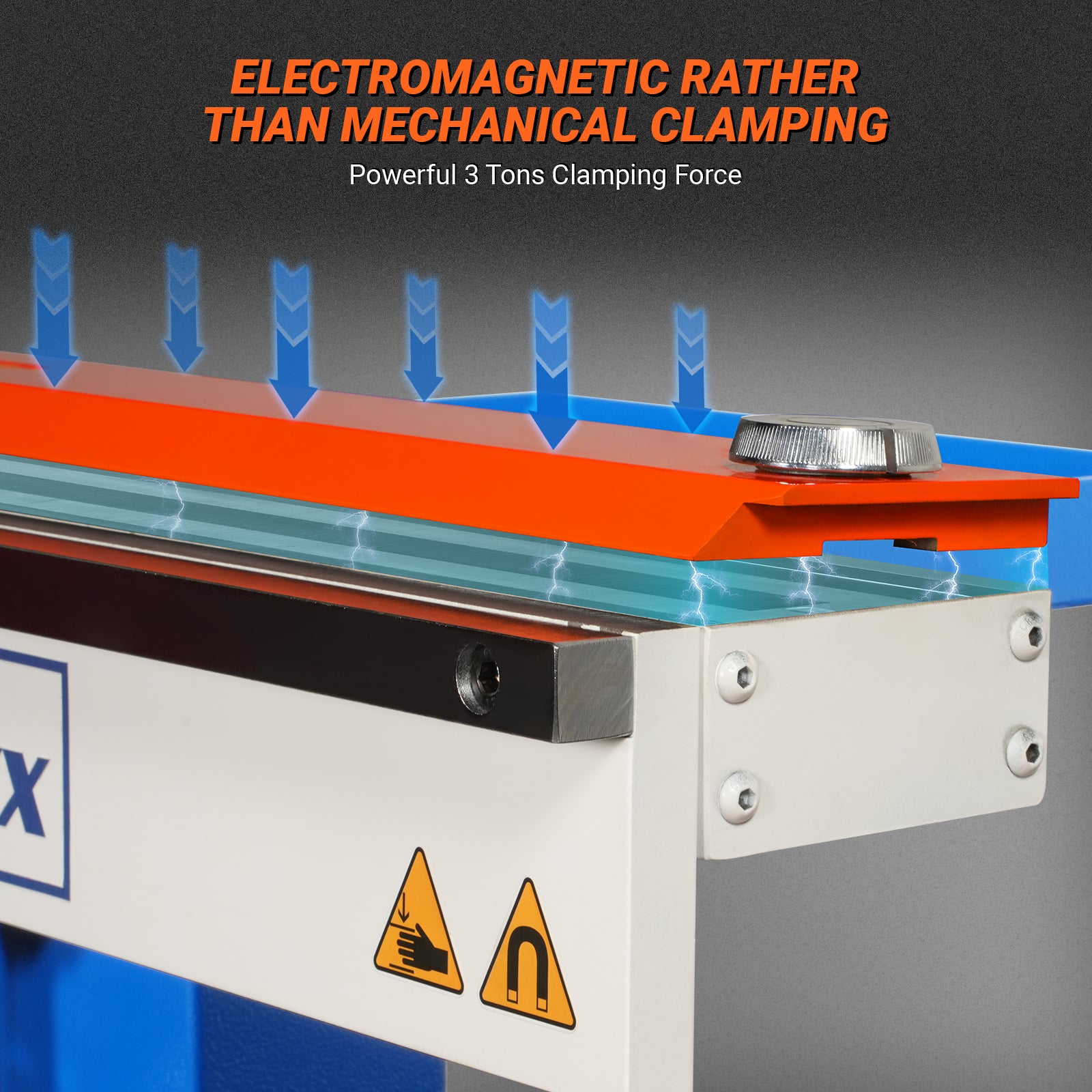

Electromagnetic Clamping – No Fingers Needed

Powerful magnetic force secures the clamp bar across its full length. No mechanical fingers, no obstructions—just clean, precise, and versatile bending.

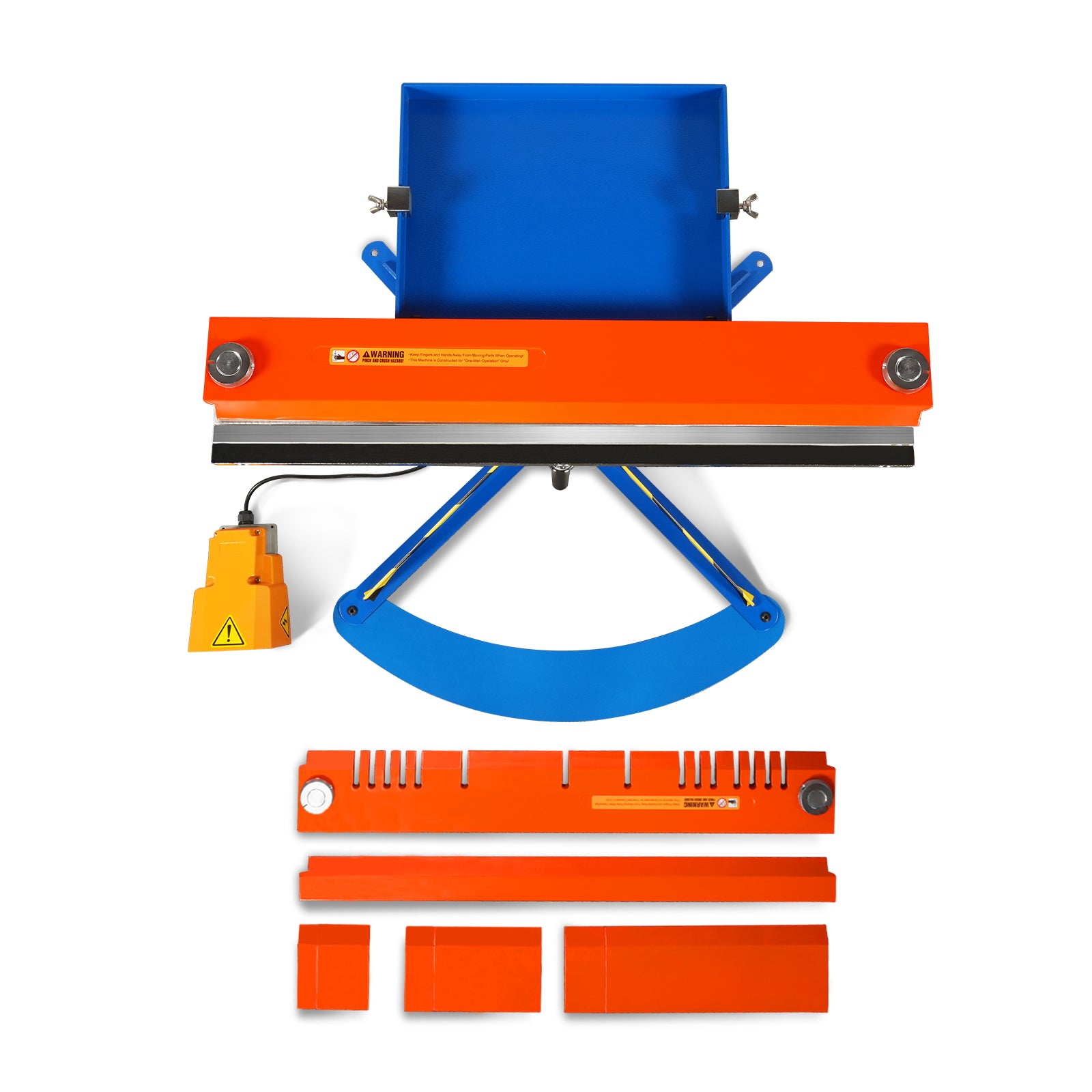

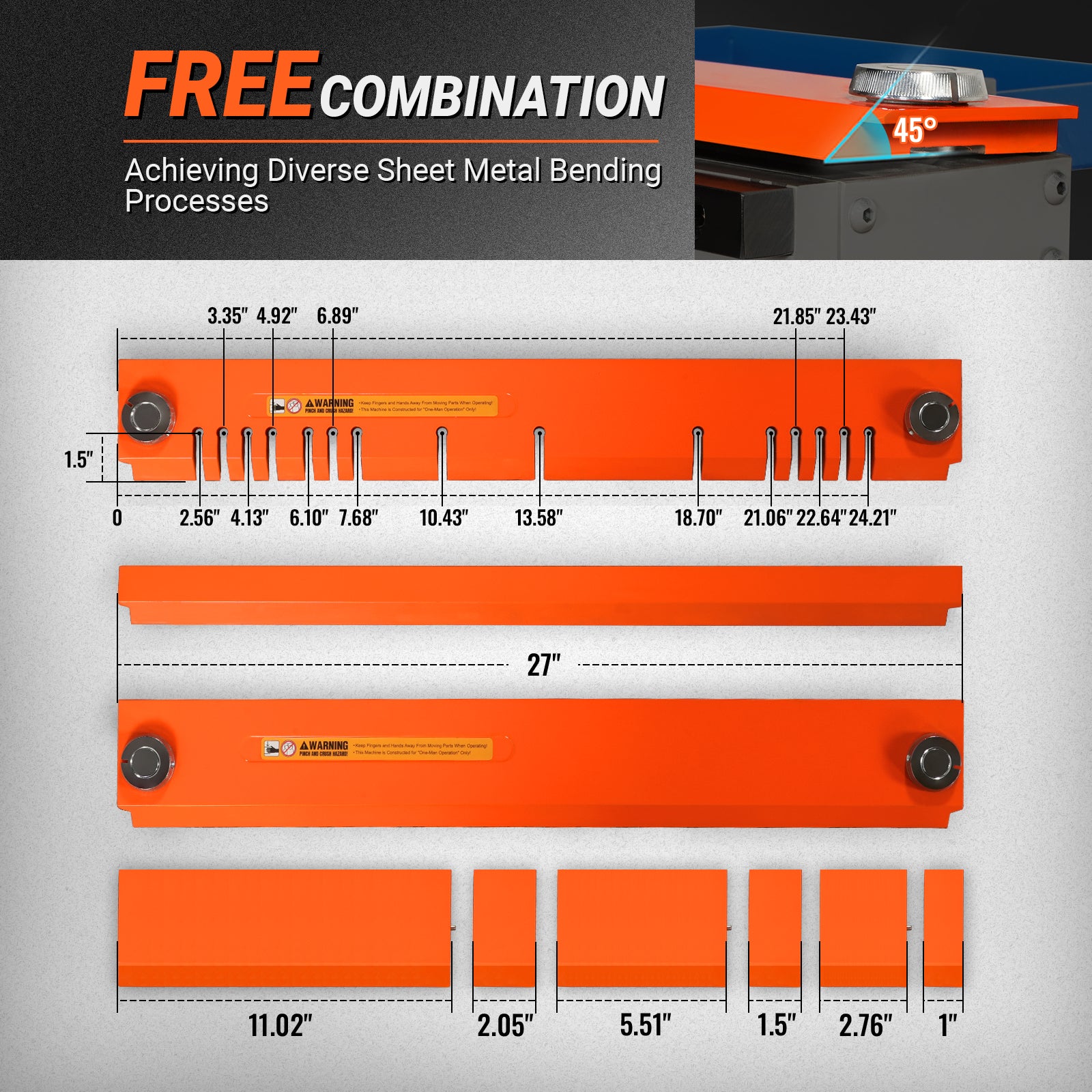

Modular Clamp Bars — Bend Your Way

Includes a full set of segmented clamp bars in multiple widths. Easily arrange the bars to match your bending layout—whether it’s a deep channel, a tight box, or a unique profile. No tools required for adjustment.

Master All Metal Shapes with Ease

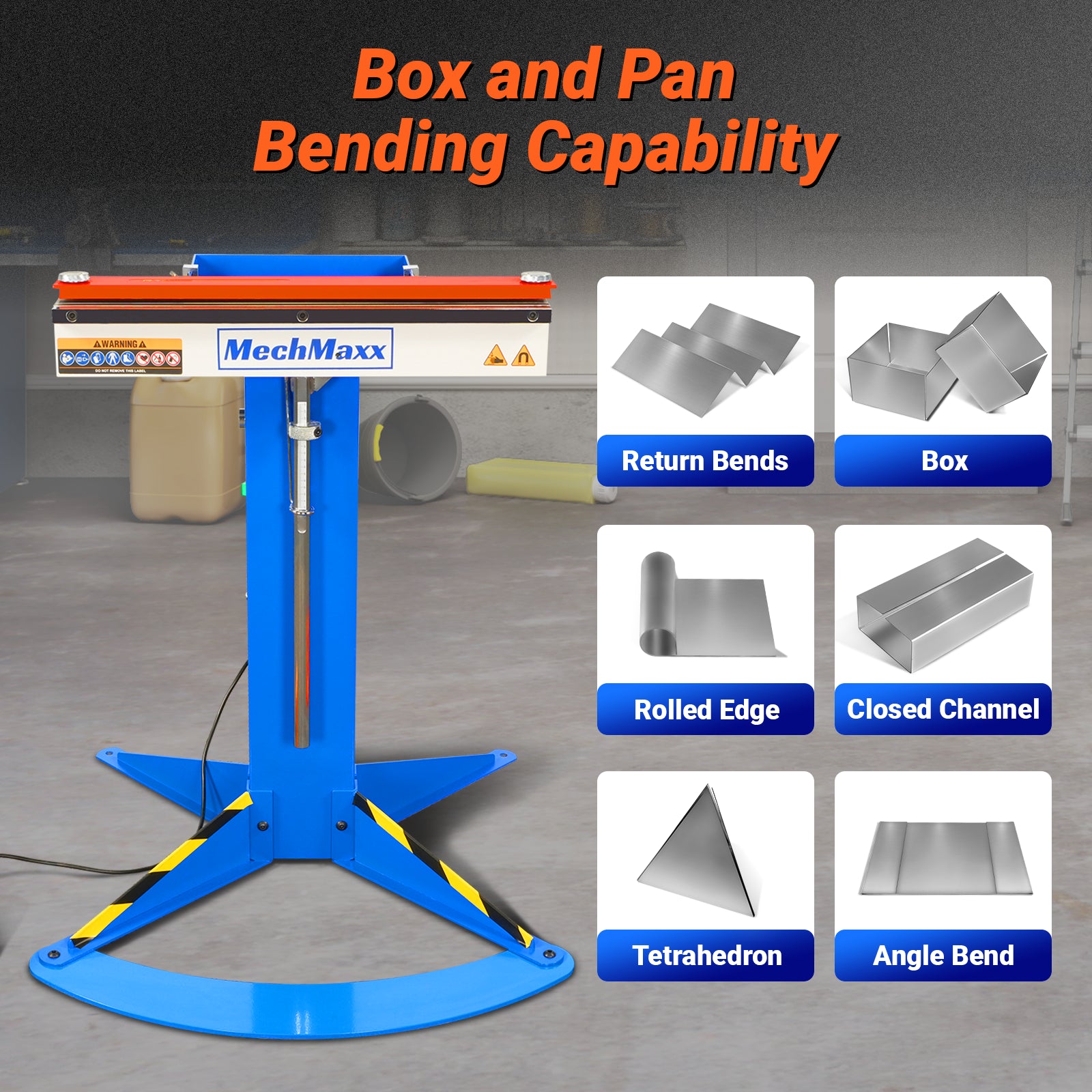

From boxes and return bends to rolled edges and closed channels, the magnetic brake delivers unmatched flexibility for forming a wide variety of profiles—all with a single setup.

Versatile for All Your Metals

Handles copper, mild steel, stainless steel, aluminum, and galvanized sheets with ease. One machine for all your fabrication needs

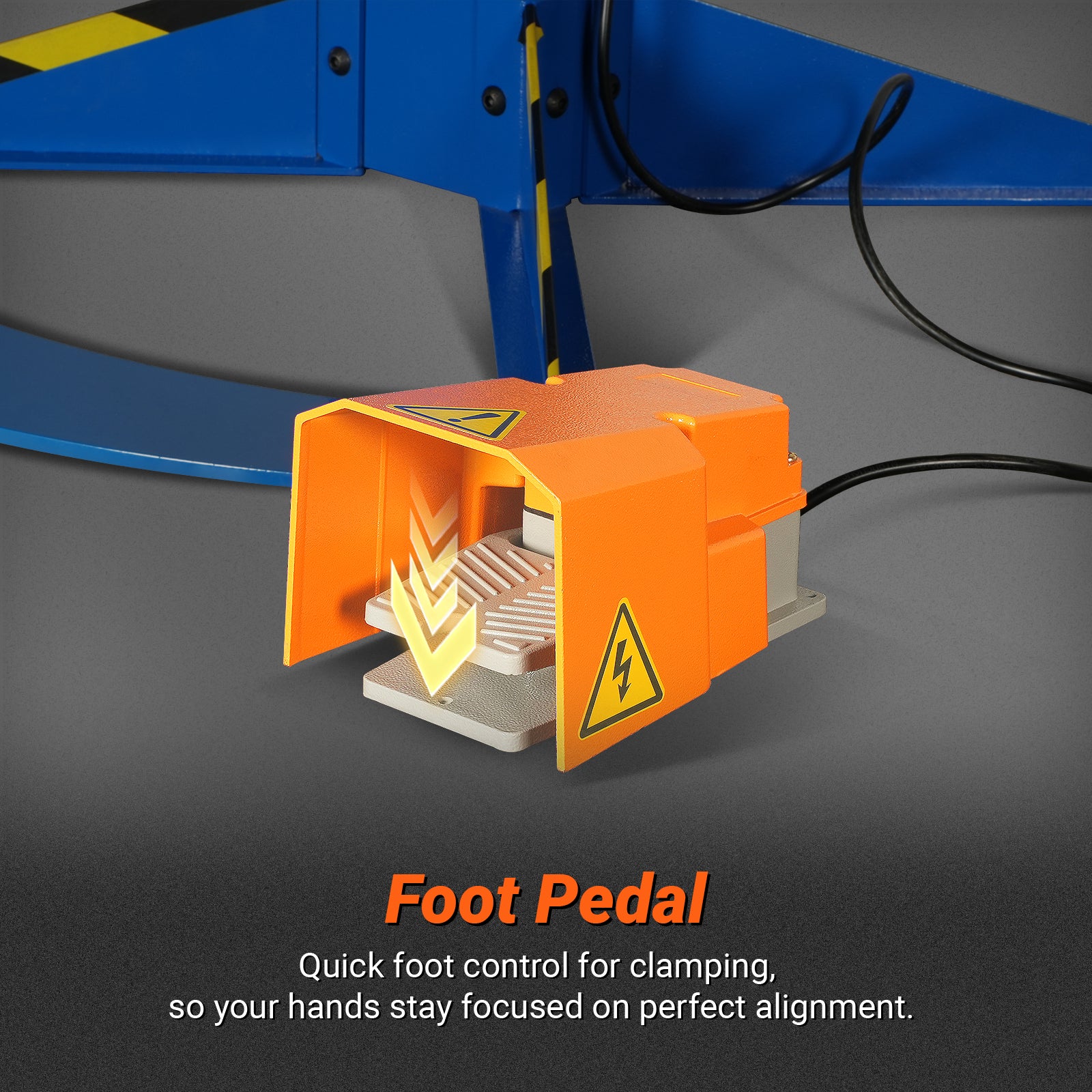

Foot Pedal Control – Clamp with a Tap

Electric foot switch allows quick clamping and release with a light press. Keep your hands on the workpiece for faster alignment and safer operation.

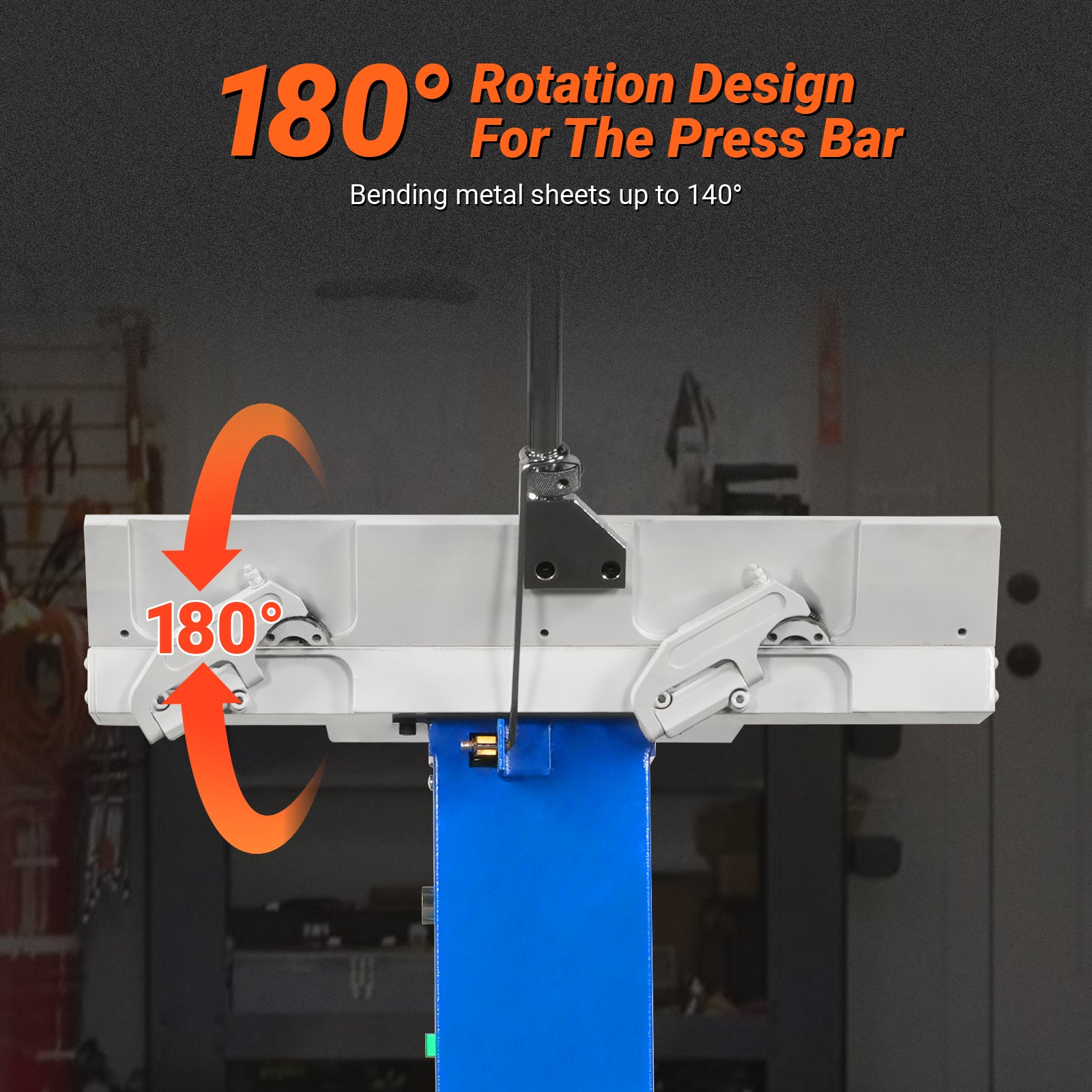

180° Swivel Press Bar – Flip It Your Way

The press bar can rotate 180°, making it easy to switch positions and bend at various angles.

Power	110V (±5%), 1 Phase, 60Hz, 12A
Max Material Width	24''

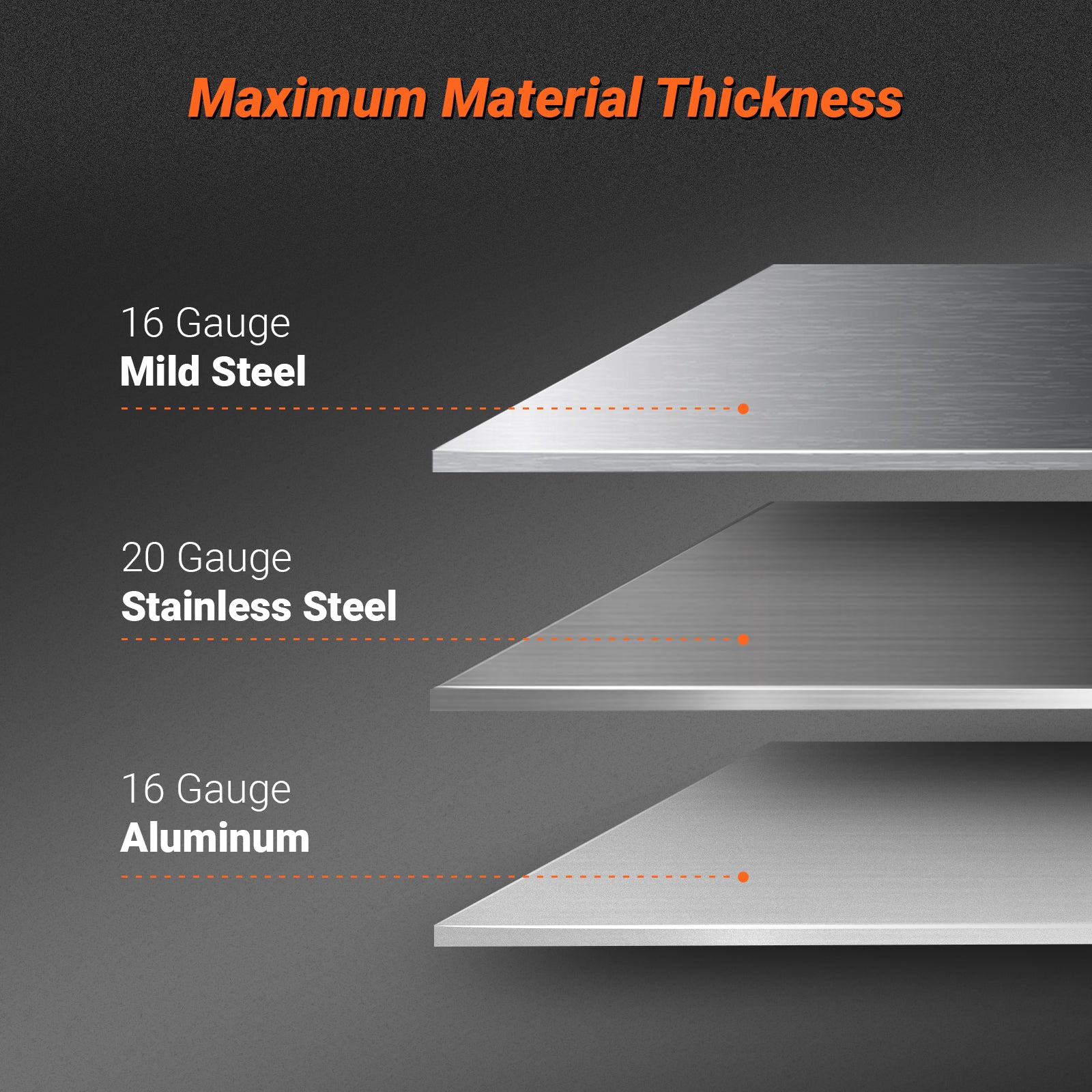

Max Capacity – Mild Steel & Aluminum	16 Gauge
Max Capacity – Stainless Steel	20 Gauge
Duty Cycle	30%
Rotation Angle	180°
Clamping Force	3 Tonne
Foot Pedal	Included

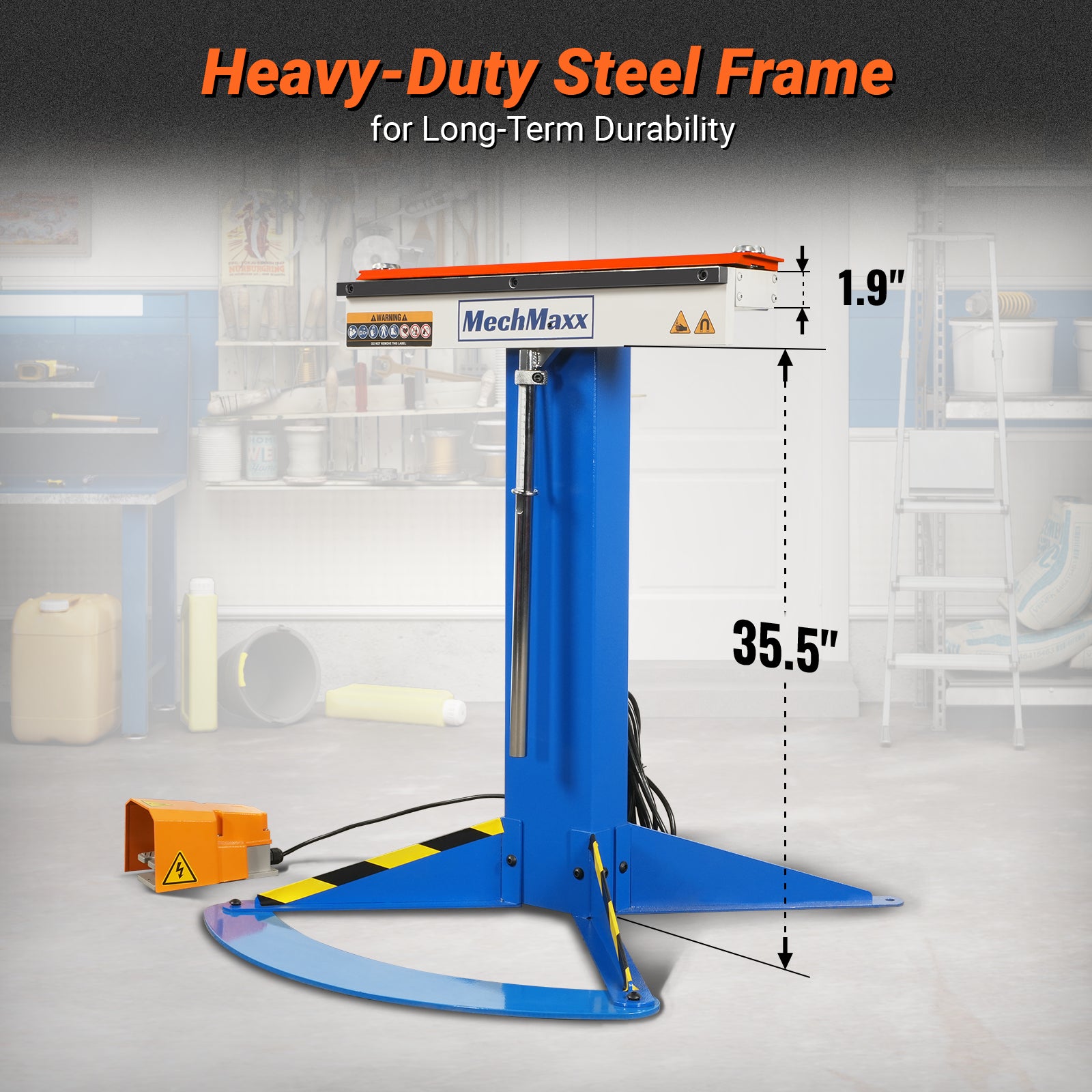

Overall Dimensions (L × W × H)	27″ × 37″ × 35″
Shipping Dimensions (L × W × H)	33″ × 16″ × 17″
Weight (N.W/G.W.)	154/190 lbs
