SKU: 500015

| Model: 1022VD

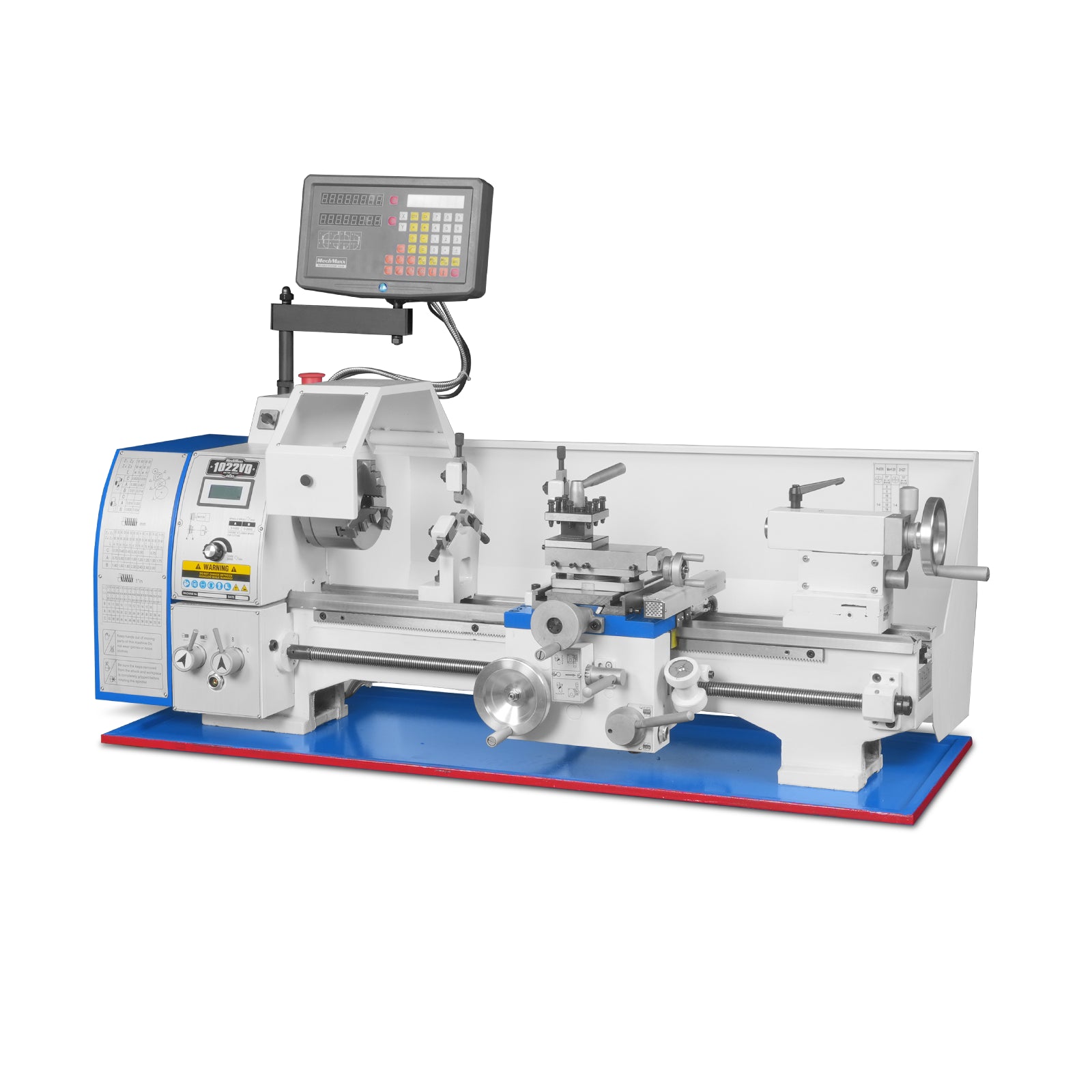

10'' x 22'' Industrial Metal Lathe Machine with DRO High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine Small Lathe without Stand 1022VD

Name: 10'' x 22'' Industrial Metal Lathe Machine with DRO High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine Small Lathe without Stand 1022VD
Brand: MechMaxx
SKU: 500015
Price: 2999.0 USD
Availability: InStock

10'' x 22'' Industrial Metal Lathe Machine with DRO High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine Small Lathe without Stand 1022VD

$299900

$3,410.00

Save $411

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Estimated to ship by Sep 11, 2026. Date is subject to change due to transit delays.

Details

Model : 10 in x 22 in Lathe DRO 1.5HP

10 in x 22 in Lathe DRO 1.5HP 10 in x 30 in Combo 1.5HP 11 in x 30 in Combo 2HP 16 in x 16 in Combo 1HP 16 in x 32 in Combo 1HP 8 in x 16 in Lathe 1.5HP 8 in x 16 in Lathe DRO 1.5HP 10 in x 30 in Lathe 1.5HP 10 in x 30 in Lathe DRO 1.5HP 11 in x 30 in Lathe 2HP 11 in x 30 in Lathe DRO 2HP 14 in x 40 in Lathe DRO 2HP 14 in x 40 in Gunsmith Lathe 3HP 13 in x 37 in Lathe Norton Gear Box 1.5HP 13 in x 37 in Lathe Four-axis 1.5HP 13 in x 40 in Lathe 2HP 10 in x 22 in Lathe 1.5HP

Payment:

Lifetime Technical Support

Get expert troubleshooting and operational assistance via phone or email for the life of your equipment.

Warranty Coverage

Backed by our dependable equipment warranty for long-term protection.

Freight & Heavy Shipping

Safe and dependable transit. With our optimized freight solutions, we streamline the delivery of oversized machinery to make buying heavy equipment online simple and hassle-free.

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

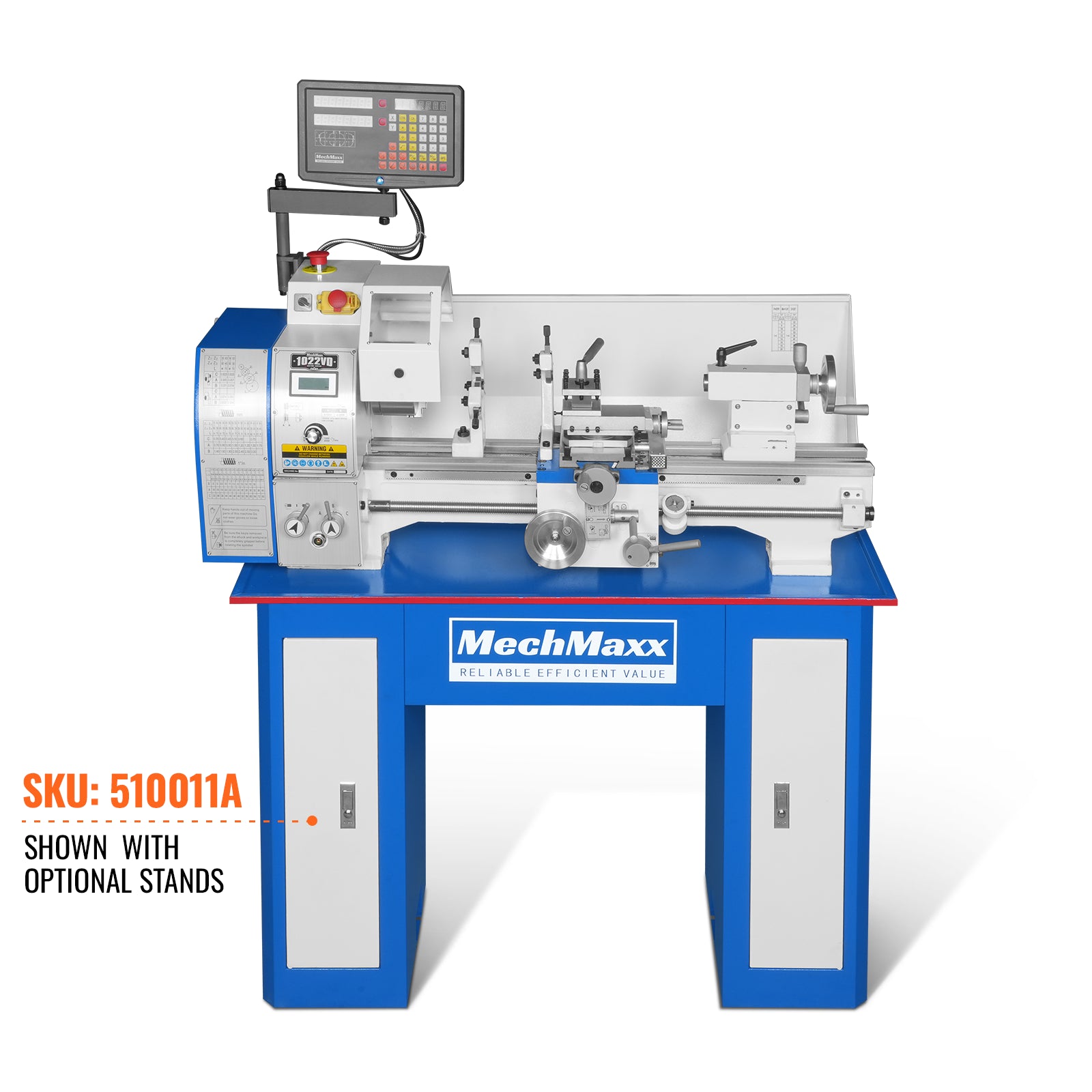

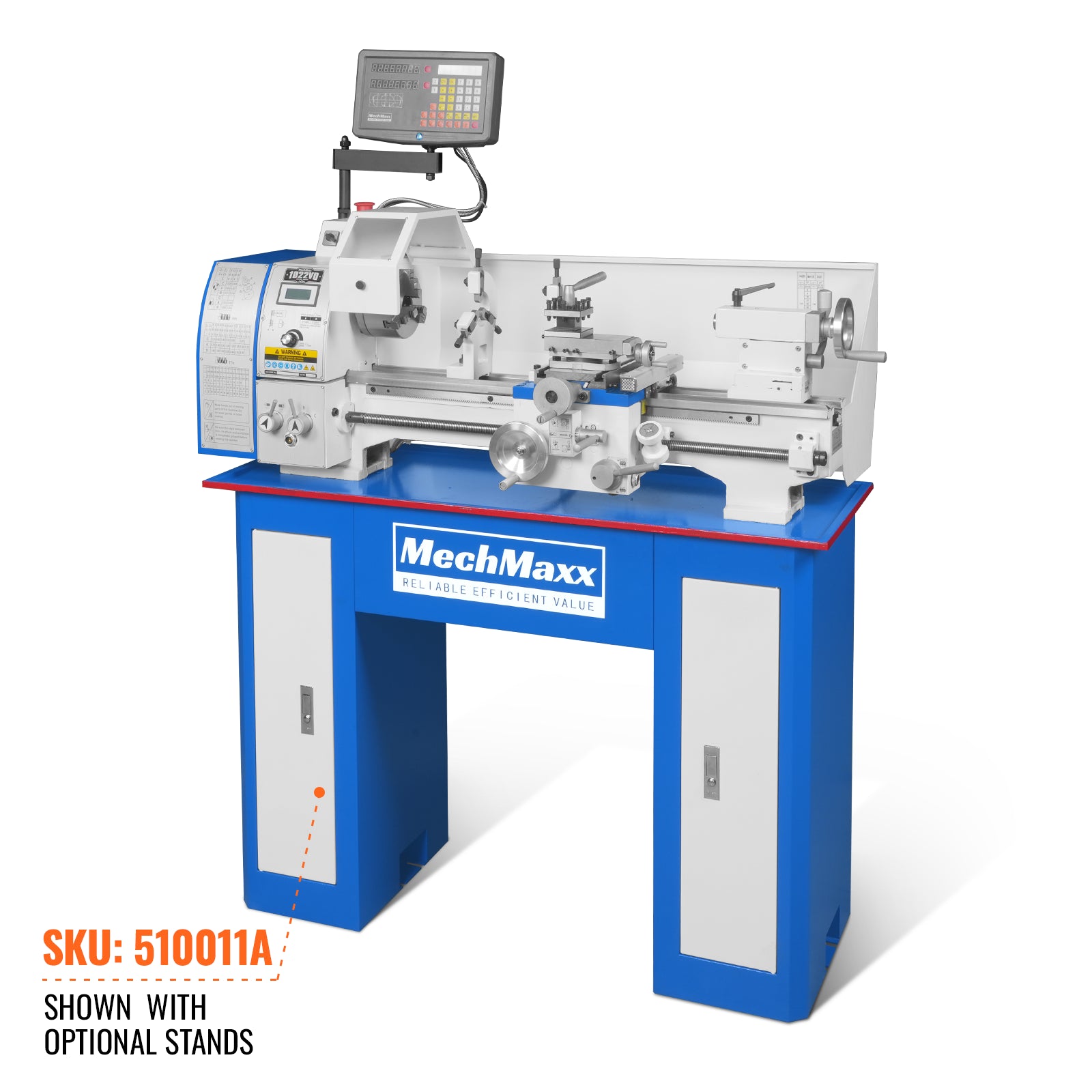

Storage Stand For Metal Lathe Machine 1022 Serial （SKU:500014）(SKU:500015)

10'' x 22'' Industrial Metal Lathe Machine with DRO High Precision Benchtop 1.5HP Brushless Motor 0-2000 RPM Variable Speed Metal Working Machine Small Lathe without Stand 1022VD $299900 $3,410.00

Storage Stand For Metal Lathe Machine 1022 Serial （SKU:500014）(SKU:500015) $44900 $528.00

Total Price

$

Product Overview

Larger Spindle Bore for Increased Flexibility: With a 1-1/2" (38 mm) spindle bore, this lathe can accommodate larger workpieces than typical lathes, providing more flexibility and versatility for various projects. The MT#5 spindle taper supports a wide range of tooling options, adding to its adaptability.
Powerful and Flexible Performance: The lathe features variable spindle speeds from 0 to 2000 RPM, giving you full control for different materials and tasks. The 1.5 HP motor provides ample power, ensuring smooth operation even for more demanding machining tasks.
High-Quality Construction: The lathe is constructed with premium cast iron, which is quench-hardened for added strength and rigidity. Compared to other lathes in its class, the heavier bed ensures better stability, allowing for more precise machining and minimal vibrations during operation.
Precision Machining: With an 9-7/8" (250 mm) swing over bed and 21-5/8" (550 mm) distance between centers, this lathe is ideal for handling a variety of small to medium-sized workpieces. The cross slide travel and compound slide travel ensure smooth and precise movements, making internal cutting, face cutting, and bevel cutting quick and easy.
Enhanced Thread Cutting: Equipped with a thread dial indicator, it simplifies the threading process, ensuring precise and repeatable thread cuts.
Enhanced Precision with DRO: Digital Readout (DRO) system provides real-time measurements for increased accuracy, allowing for quicker setups and precise adjustments across all axes.

Product manual (PDF)

10'' x 22'' Metal Lathe Machine.pdf

Product Features

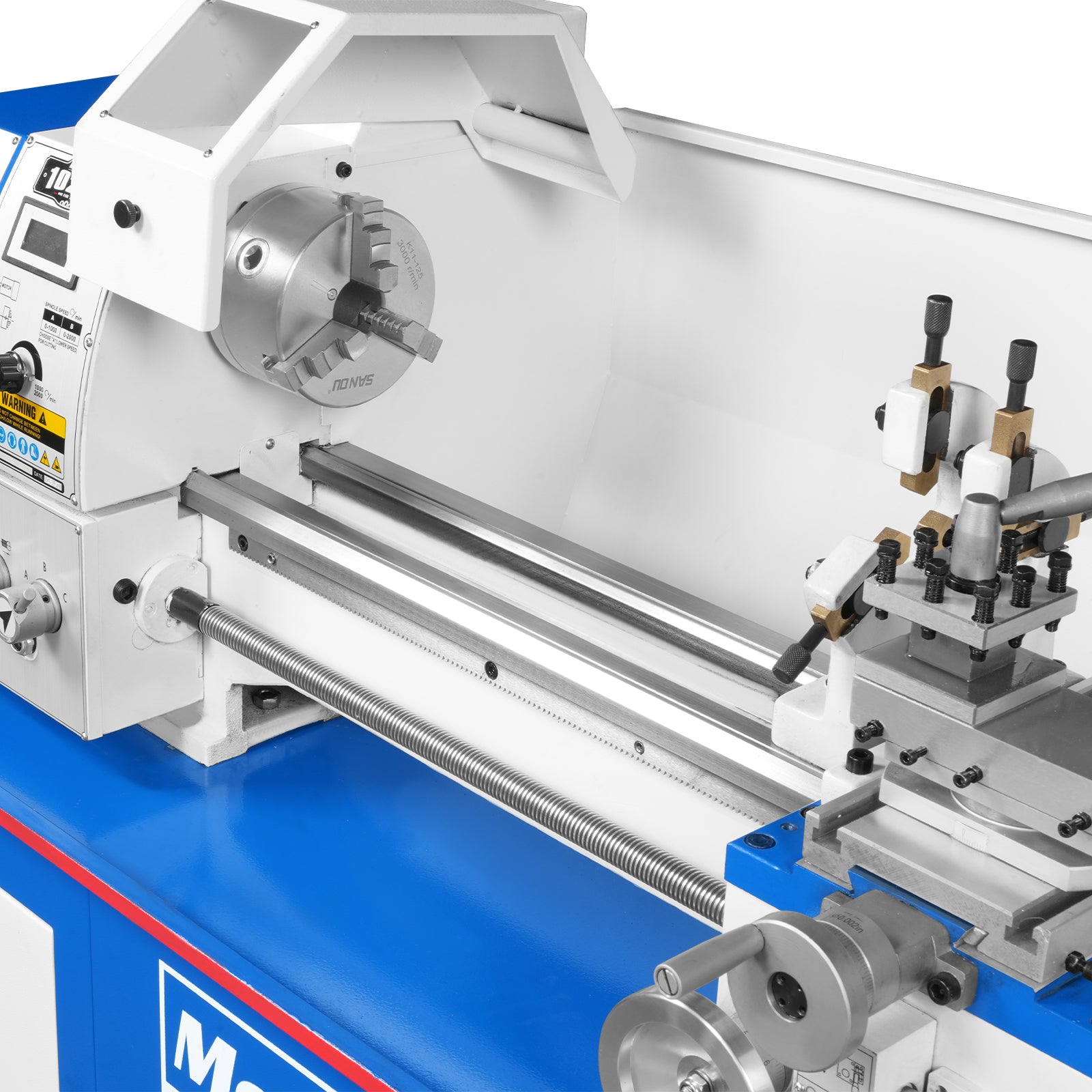

Precision Tool Post with Adjustable Rotation

This tool post offers superior support for turning and threading operations. With 5" cross slide travel and 3" compound slide travel, it ensures smooth, precise movements. The 60° rotation of the tool post tray allows you to easily position tools for different angles, enhancing versatility and precision in every cut. Perfect for a variety of tasks, from fine-tuning to heavy-duty operations.

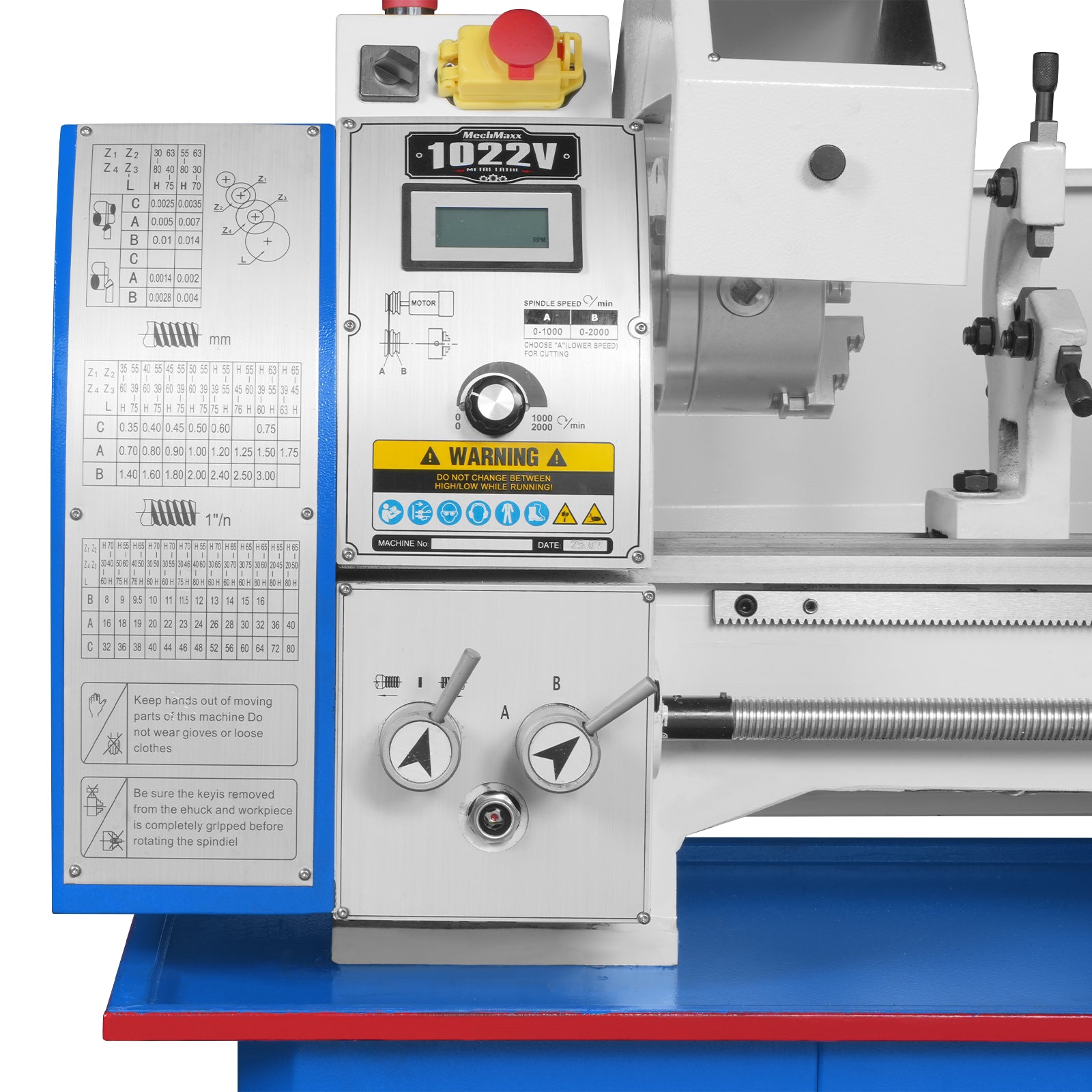

Electronic Control with Stepless Speed Adjustment

The high-quality electronic control system provides stepless speed adjustment, allowing for smooth, continuous speed changes for different workpieces. With a clear speed display, you can easily monitor and adjust settings, ensuring precise control and flexibility for all your machining tasks. Effortlessly switch between tasks and materials, and achieve the best results every time.

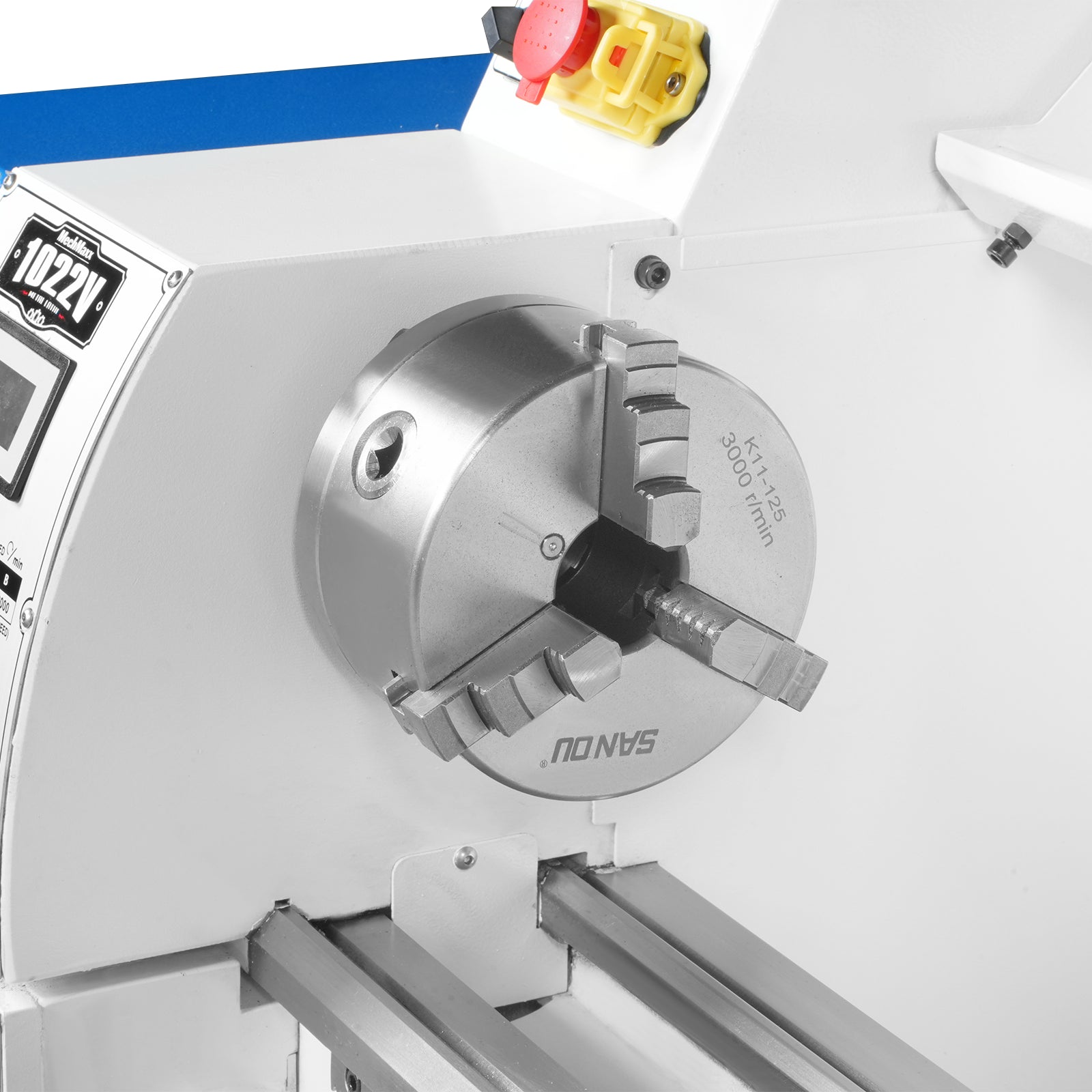

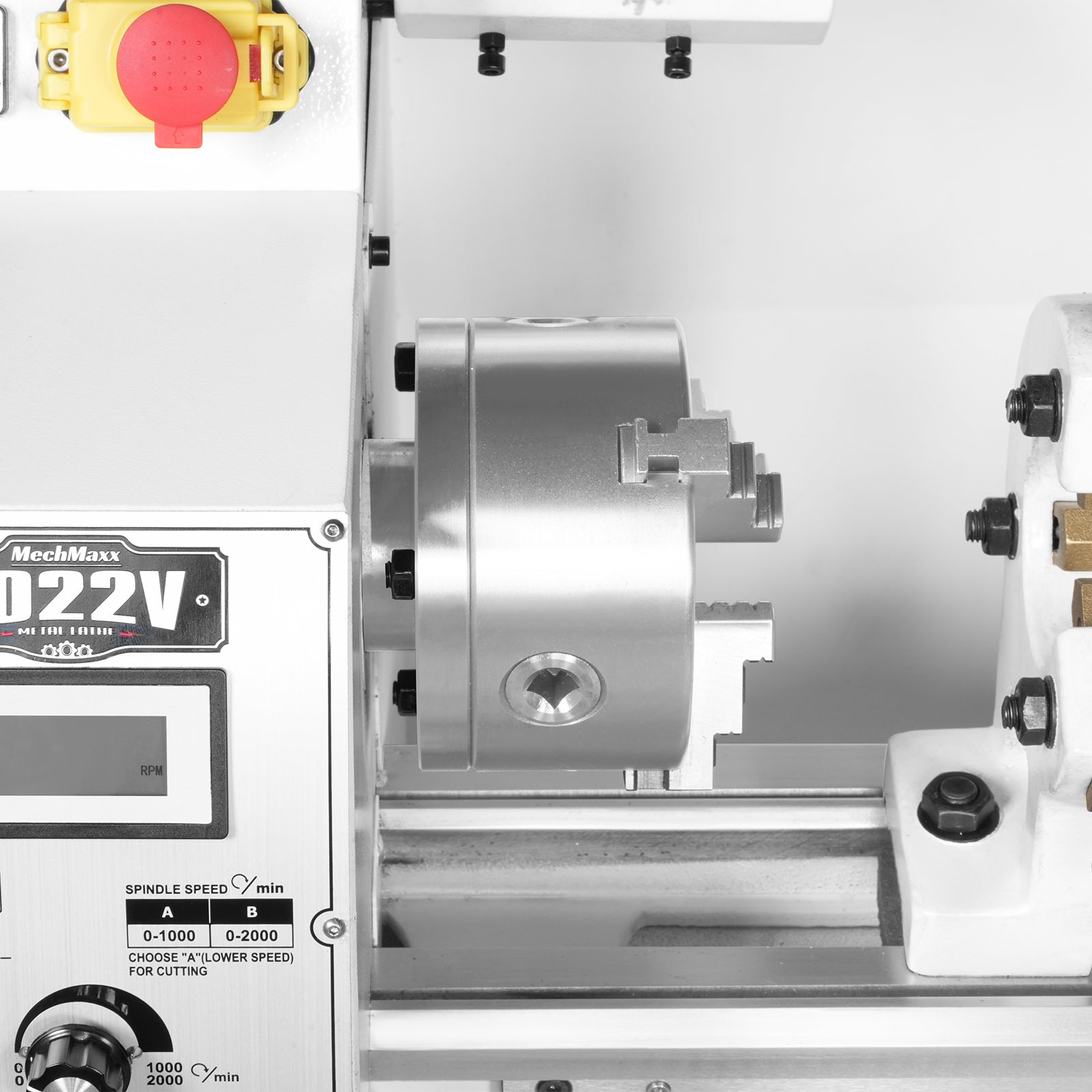

High-Precision 3-Jaw Chuck with Large 1.5" Spindle Bore

This 5" 3-jaw chuck pairs with a powerful 1.5" spindle bore—larger than most in its class—offering exceptional clamping capacity for longer or thicker workpieces. The MT#5 taper one-piece spindle ensures minimal runout and high concentricity, making it ideal for bar feeding, precision turning, and demanding jobs that require both strength and accuracy.

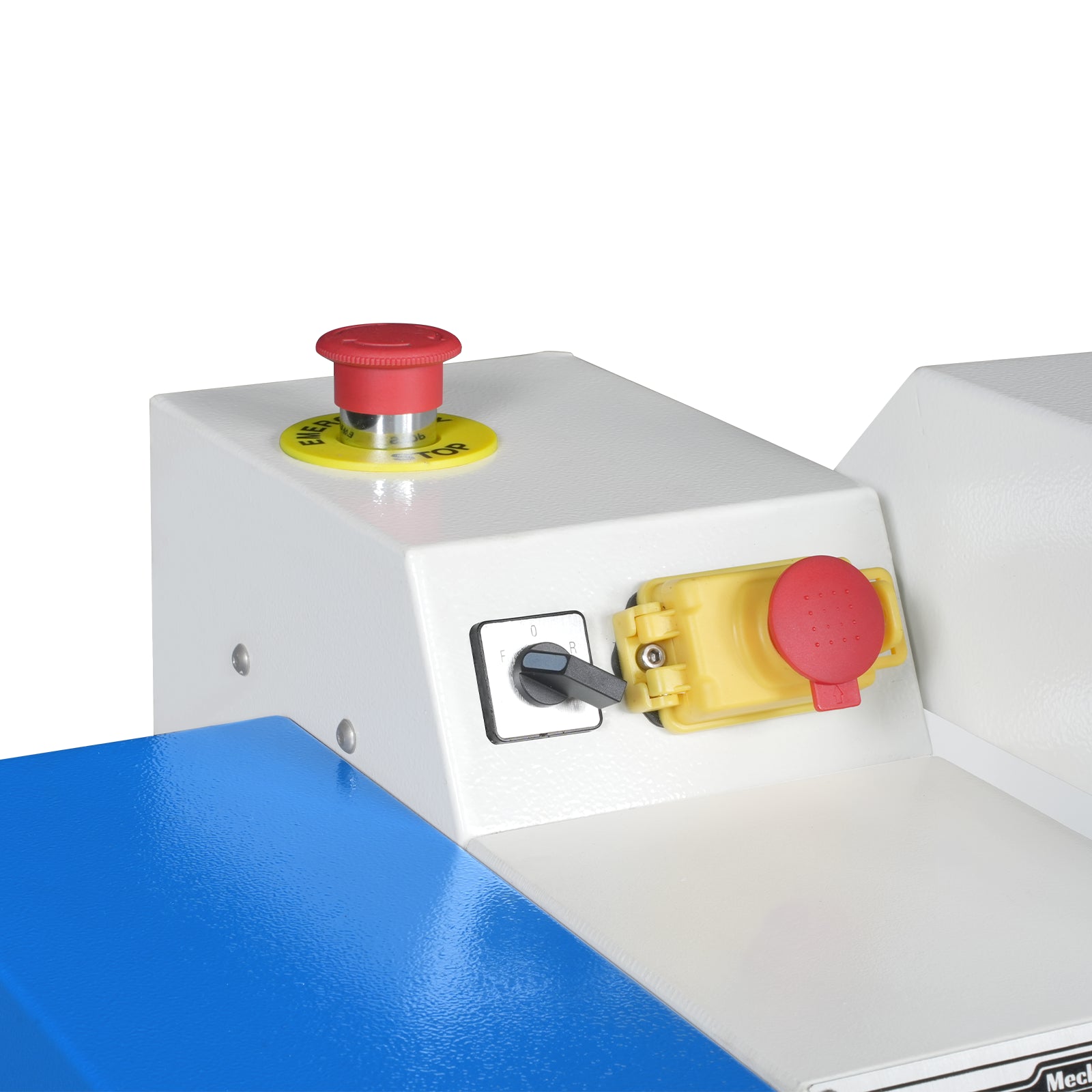

Safety Mechanisms with Power Disconnect

To ensure operator safety, this machine features automatic power cut-off when the chuck guard or gearbox cover is removed. This protective design prevents the machine from operating during maintenance or adjustments, reducing the risk of accidents and ensuring a safer working environment.

Quick-Lock Tailstock with Durable Aluminum Alloy Construction

This tailstock features a quick-lock design for fast, secure adjustments with minimal effort. Made from high-quality aluminum alloy, it offers durability while reducing weight. The streamlined design maintains strength without the excess material, providing an efficient and user-friendly solution for precise operations.

Precision Handwheel with Fine Adjustment

The handwheel allows for fine adjustments with precision control, perfect for tasks requiring high accuracy. Whether you're fine-tuning feed rates or making detailed cuts, this feature ensures smooth and exact movements for precise machining results.

Thread Dial Indicator for Precision Thread Cutting

The thread dial indicator enables accurate thread cutting by providing precise control over the feed rate. It helps synchronize the carriage with the leadscrew, allowing for smooth threading and reducing the chances of misalignment. While it doesn’t directly eliminate vibrations, its role in ensuring accurate cuts helps minimize errors that could lead to instability, enhancing the overall cutting quality and stability.

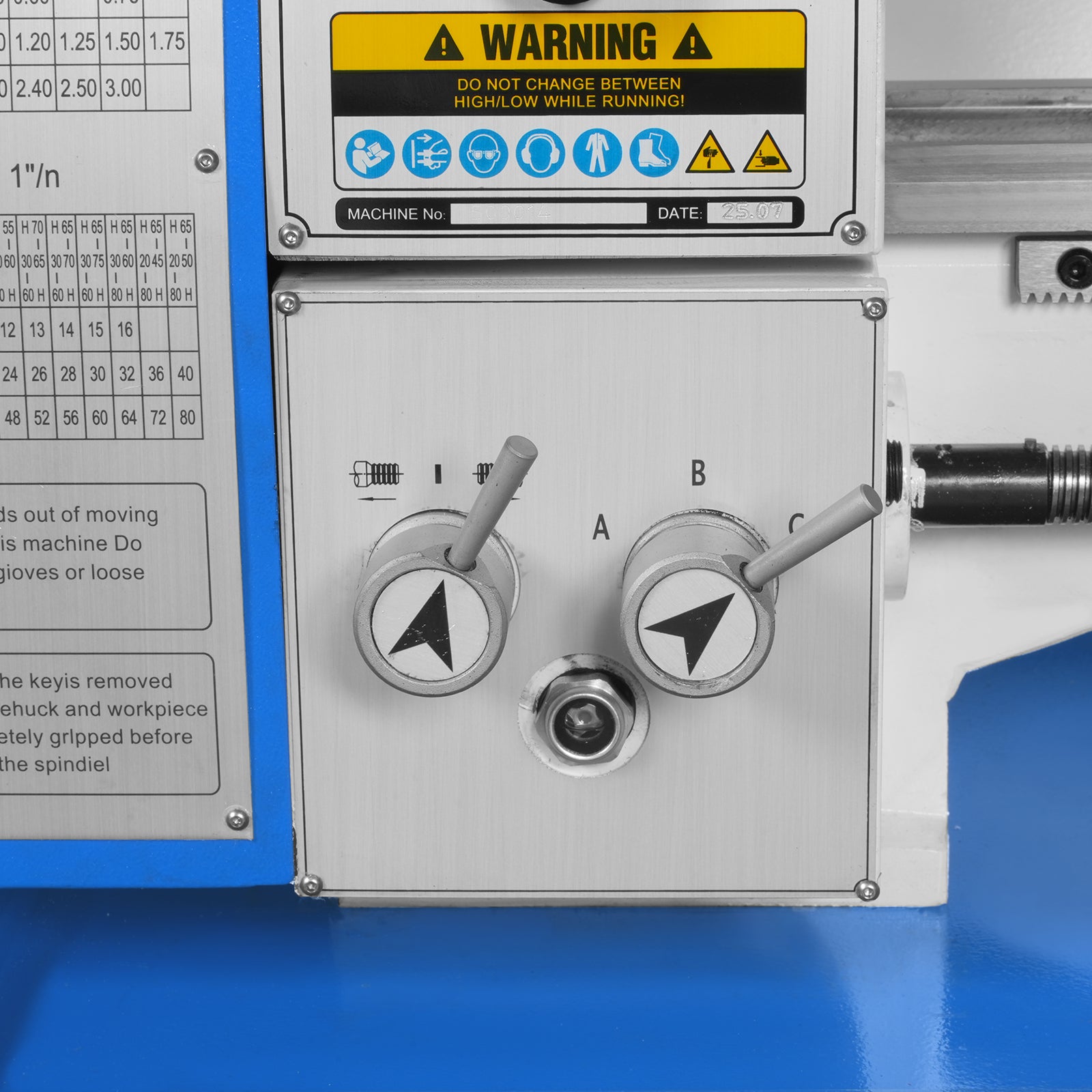

Automatic Longitudinal and Cross Feed Support

Equipped with automatic feed in both longitudinal and cross directions, this lathe allows for smooth, hands-free cutting operations. It enhances precision and consistency while reducing operator effort—ideal for threading, facing, and extended turning tasks where surface finish and accuracy matter most.

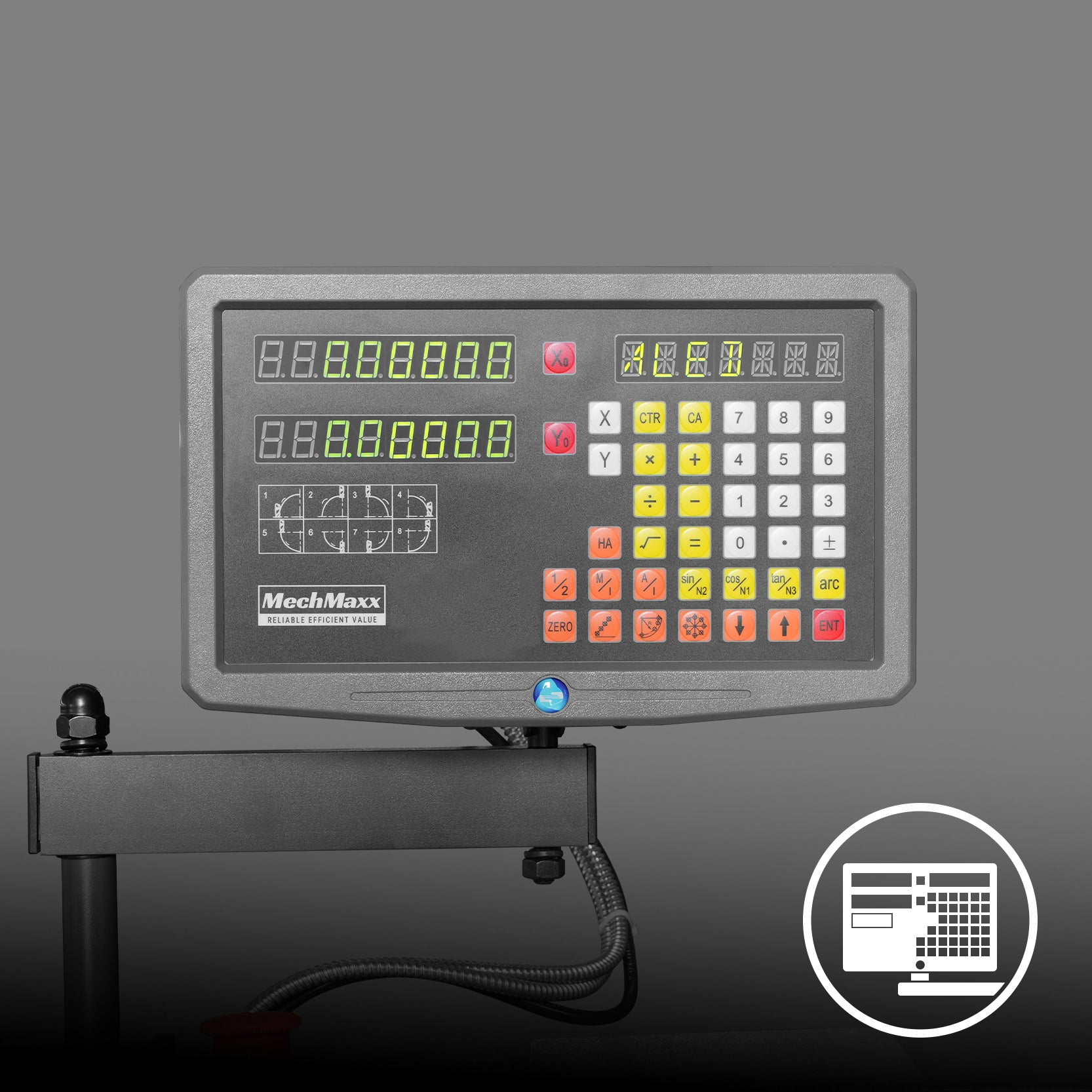

Dual-Axis Digital Readout for Precise Control

The dual-axis digital readout (DRO) system allows for precise tracking of both the longitudinal and cross slide movements, providing real-time position feedback. This feature ensures accurate machining and quick adjustments during operations, improving efficiency and reducing the chances of error, especially when working on complex or detailed parts.

Specification	1022VD
Motor	1.5 HP, 110V, single-phase, 10A
Swing Over Bed	9-7/8" (250 mm)
Swing Over Cross Slide	5-1/2" (140 mm)
Swing Over Saddle	5" (127 mm)
Distance Between Centers	21-5/8" (550 mm)
Bed Width	5-3/8" (135mm)
Spindle Bore	1-1/2" (38 mm)
Spindle Mount	Intrinsic back plate
Spindle Type	One-piece Spindle
Spindle Taper	MT#5
Tailstock Taper	MT#2
Tailstock Quill Travel	3" (75 mm)
Cross Slide Travel	5" (127 mm)
Compound Slide Travel	3" (75 mm)
Carriage Travel	19-5/8"(500mm)
Spindle Speeds	0–2000 RPM
Number of Speed Ranges	Variable
Longitudinal Feeds	0.0025 – 0.014 in./rev.
Transverse Feed Rate	0.0014 – 0.004 in./rev.
Leadscrew Size & Pitch	20mm(8TPI)
Threading Capacity - Inch	8–80 TPI(37KINDS)
Threading Capacity - Metric	0.35 – 3.0 mm(21kinds)
Maximum Tool Bit Size	15/32''(12mm)
Thread Dial Indicator	YES
Coolant System	OPTIONAL
Overall Dimensions	44.0" × 25.0" × 19.0" (1220 × 635 × 480 mm)
Approximate Shipping Weight	308/352 lbs (140/160 kg)
