Product Overview

This MechMaxx TC9682 tire changer delivers true performance, unparalleled control, and increased efficiency. It features an adjustable tilt-back design that handles wheels up to 28", and allows the tire changer to easily maneuver the tire without strain or damage to the machine or the car's rims.
It features a multi-function assist arm to handle run flat and low profile tires. Come with a drop center cone which holds the bead in the drop-center, further helping protect the tire during external clamping procedures. Bead roller used to assist in holding the tire bead down to lube both the tire and wheel. Disc used to hold tires in the up position to reduce the effort in second bead removal.
A sturdy body, rigid vertical shaft and hardened-steel horizontal outrigger support arm eliminate flex during all tire service procedures to reduce the chance of expensive wheels getting damaged.
This tire changer comes with a powerful bead blaster inflation system. This system efficiently shoots a burst of air into most stubborn tires, seating beads quickly without doing damage to the tire structure.
Large storage trays provide ample space for wheel weights, tools and accessories on this tire changer.
It works with all types of tires, including run flat, high profile, and motorcycle tires with tubes. Truly cover with ease the widest range and combination of wheels and tires of any machine on the market. Great for a commercial shop looking to expand to almost any tire.
Also can be used for motorcycle tires when the optional motorcycle tire changer adapters are used.

The MechMaxx WB857 wheel balancer, are accurate on all wheel types, reliable in demanding shops, have ALU programs for tape on weights on nice rims. This wheel balancer is a compactly designed and capable equipment. Increase your tire changing capabilities with this tire changer. Great for a commercial shop looking to expand to almost any tire.
The laser line can help place balancing weight precisely at 12 o’clock position to increase balancing accuracy. LED inspection light can meet your lighting needs.
Ergonomic foot brake for easy weight placement. Side-position brake hold wheels at precisely 12-o’clock for proper weight placement.
Also can be used for motorcycle tires when the optional motorcycle tire changer adapters are used.

Product Features

Multiple Accessories Included

This machine comes with multiple accessories. Including air clean gun, 2 sets bead breaking shovel protection, bead lubrication brush, 2 sets clamp protection, drop center tool, bead lubrication grease, 5 sets demounting head protection, metal bead lever, rim protection, 2 sets flat spring+spring, valve stem puller and plastic mounting head assy.

Multi-Function Assist Arm

Powerful right-side helper arm features a multi-profile travelling drop-center tool for precise mounting. Bead roller used to assist in holding the tire bead down to lube both the tire and wheel. Disc used to hold tires in the up position to reduce the effort in second bead removal.

Tilt-Back Tower

The foot operated tilt-back design tower increase ground clearance, feature allows the user to quickly and easily mount and un-mount tires from the table without worrying about moving an arm or hitting the column, which lets you load and lock larger tire. Also makes removing them easier.

Hand Held Bead Blaster System

Hand held bead blaster system included. Using a powerful blast from an attached hose, forces air to help seat stubborn beads.

Rigid Hex. Shaft & Hardened Arm & Reinforced Tower Base

Rigid spring-assist hexagonal vertical tool shaft combines with a hardened steel horizontal support arm to maintain perfect position of the mount/demount tool head. Smooth arm movement thanks to high-quality sliding roller. The large and reinforced tower base adds greater rigidity to the structure.

Pneumatic Locked Shaft & Upgraded Stainless Steel Mount/Demount Head

Pneumatic locking and automatic setting of the tool to allow appropriate distance from the rim. The stainless steel mounting head is specially designed to eliminate contact and prevent damage to the rim and tire. Demount head has plastic protectors to limit damage to wheels. Rigid 41mm hex bar support to resist flex on tough low profile tires and keep the mount-demount head perfectly still during operations.

Foot-controlled Inflator & Tool Box

Foot-controlled tire inflator. Inflate tires without lifting a finger. An air pressure dump valve lets you release air from the tire. This machine comes complete with space to keep your tools. It helps you keep a more efficient and highly organized workspace.

Conveniently-placed Foot Pedals

Conveniently-placed foot pedals that give you precise control over every step of the changing process. The pedal assembly can be removed as an integral unit allowing easy servicing.

High-Torque Turntable & Durable Cylinder

The high-torque electric turntable efficiently spins tires to seat or remove beads. Fits 12-28 inches tire, suitable for more tire maintenance requirements. Two-way rotation. High clamping force. Scientifically designed durable working table aluminum cylinder provide powerful grip and long service life.

High Quality Filter-regulaer

Explosion-proof filter, lubricator and regulator. High quality Filter-regulator (FRL) safeguards pneumatic components.

Internal Reinforced Steel Tube

Reinforced steel tubes ensure rigidity and robustness during tire mounting and demounting process.

Copper Core Motor & Maintenance-free Gearbox

The motor features strong copper rotor construction, high-quality bearings, thermal-cool insulation and durable rolled steel frames. Maintenance-free gearbox is installed between two steel plates avoiding flex during operation.

Multiple Accessories Included

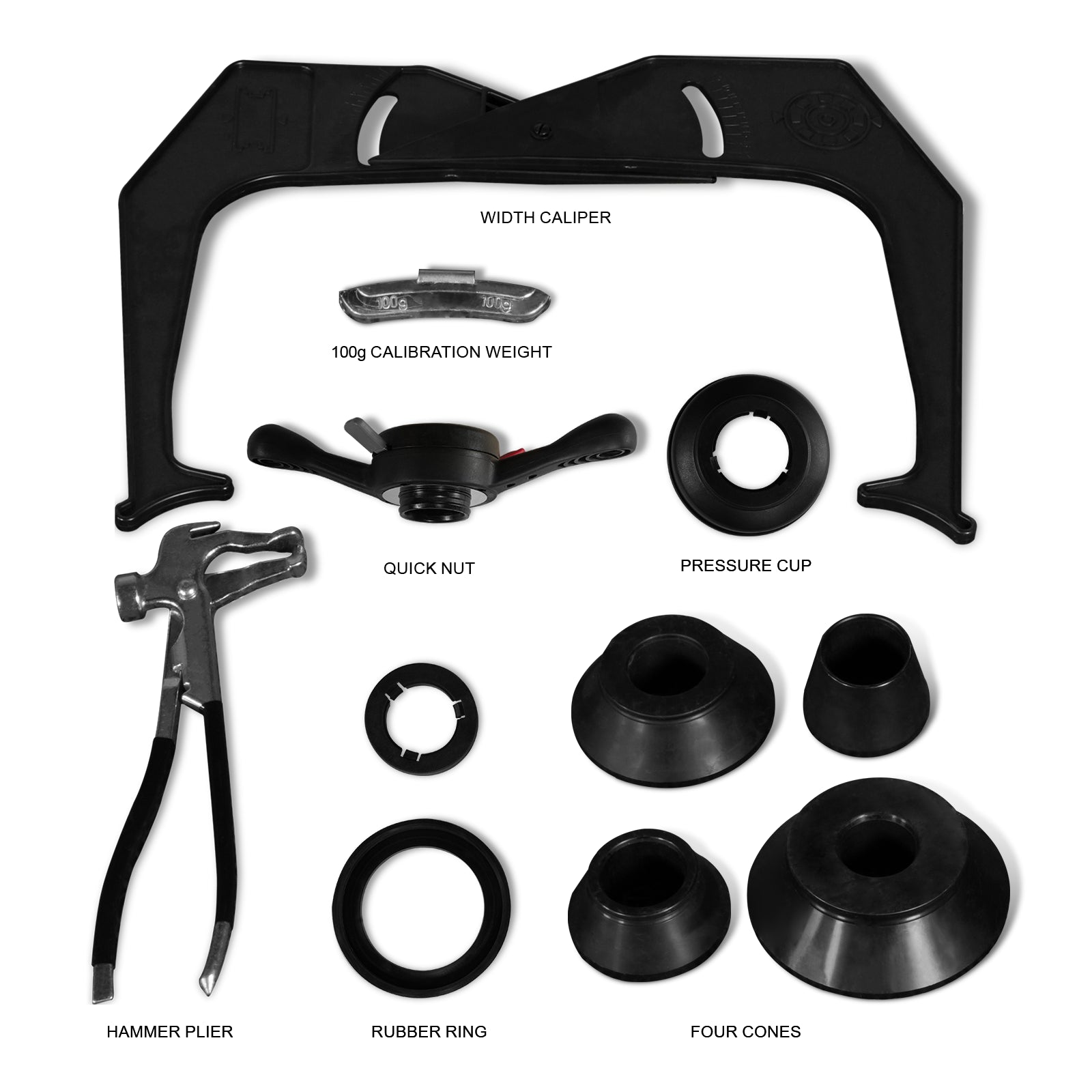

This machine comes with multiple accessories. Including width measurement guage, 4 cones, 100g calibration weight, hammer plier and quick nut+pressure cup+rubber ring.

Laser Guided & LED Illuminator

The laser line can help place balancing weight precisely at 12 o’clock position to increase balancing accuracy. LED inspection light can meet your lighting needs.

Foot Pedal Brake

Ergonomic foot brake for easy weight placement. Side-position brake hold wheels at precisely 12-o’clock for proper weight placement.

Ergonomic Control Keypad

Ergonomic display tilts at 40° for comfortable use. The display panel features tire and wheel assembly graphics to help simplify speed entry of wheel data and guide technicians through balancing procedures. Self-diagnosis. Five separate balancing modes ( static and dynamic mode, three Alu modes for different shaped alloy rims).

Hood Auto Start

Protection hood that has an automatic stop/start feature when the hood is raised/lowered for maximum safety and protection. New hood design allows for a broader coverage of tire shapes and sizes.

1.57in (40mm) Shaft

1.57in (40mm) Shaft. Rust-proof and high precision balancing shaft. Precision-machined, hardened steel.

High-performance Microprocessor

High-performance microprocessor provides fast seven-second cycle time. It increases productivity and offers reliability.

High Precision Encoder

High precision encoder to receive and send imbalance position signal.

Powerful Motor

High-performance, powerful and quiet motor provides strong torque.

Multi-size Cones & Quick Nut Cup Adaptor

Multi-size cones and a Quick Nut cup adaptor makes mounting wheels fast and easy and minimizes the risk of costly wheel damage. Quick-release nut for dramatically reduced set-up times.

Sturdy Base

Modern and functional design, lengthened body base provide more stability when working with big wheels.

Optional Motorcycle Rim Adapter (Sold Seperately, SKU: 200021)

You need a set of optional motorcycle rim adapter to accompany your tire changer purchase if you need to service motorcycles. They’re rugged, dependable and guaranteed to add versatility to your work efforts.

Voltage	110v / 60hz / 1 phase
Motor Power	1.5 HP
Inside Rim Clamp Range	14-28 in
Outside Rim Clamp Range	12-26 in
Max Wheel Diameter	43 in
Wheel Width	3-15 in
Working Pressure	117-145 psi (8-10 bar)
Bead Breaking Force	6170 lbs
Packing	Plywood case
Machine Packing Size (LxWxH)	40 x 30 x 44 in
Assist Arm Packing Size (LxWxH)	51 x 16 x 16 in
Machine Weight (N.W/G.W.)	496/551 lbs
Assist Arm Weight (N.W/G.W.)	146/168 lbs

Voltage	110v / 60hz / 1 phase
Motor Power	1/3 HP
Rim Diameter	10-24 in
Shaft Size	40 mm
Max Wheel Diameter	40"
Rim Width	1.5-20 in
Max Wheel Weight	154 lbs
Calibration Wheel	Recommended 15 in steel rim wheel
Balancing Speed	200 RPM
Packing	Plywood case
Packing Size (LxWxH)	40 x 26 x 45 in
Weight (N.W/G.W.)	207/258 lbs
