SKU: 150202

| Model: AGF72

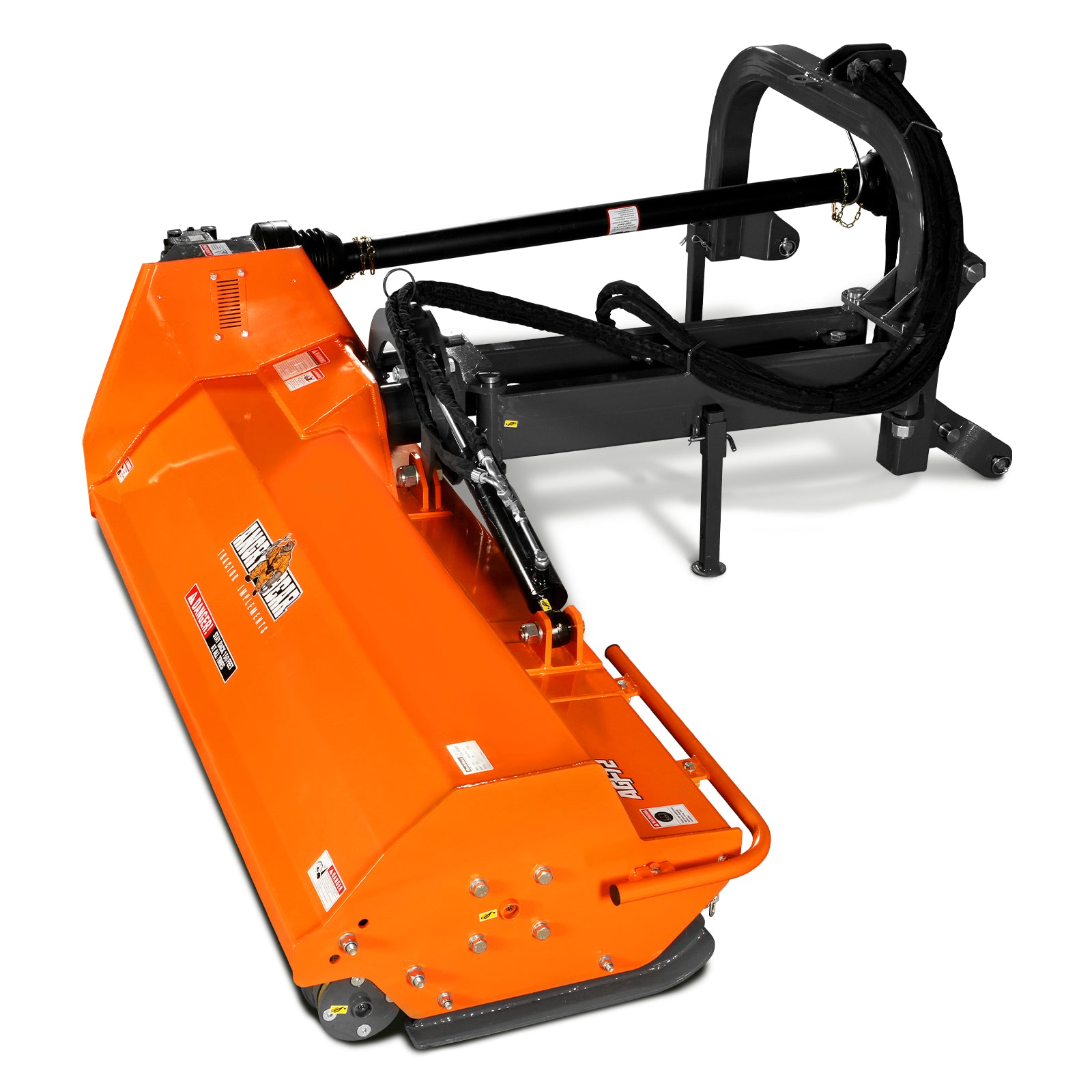

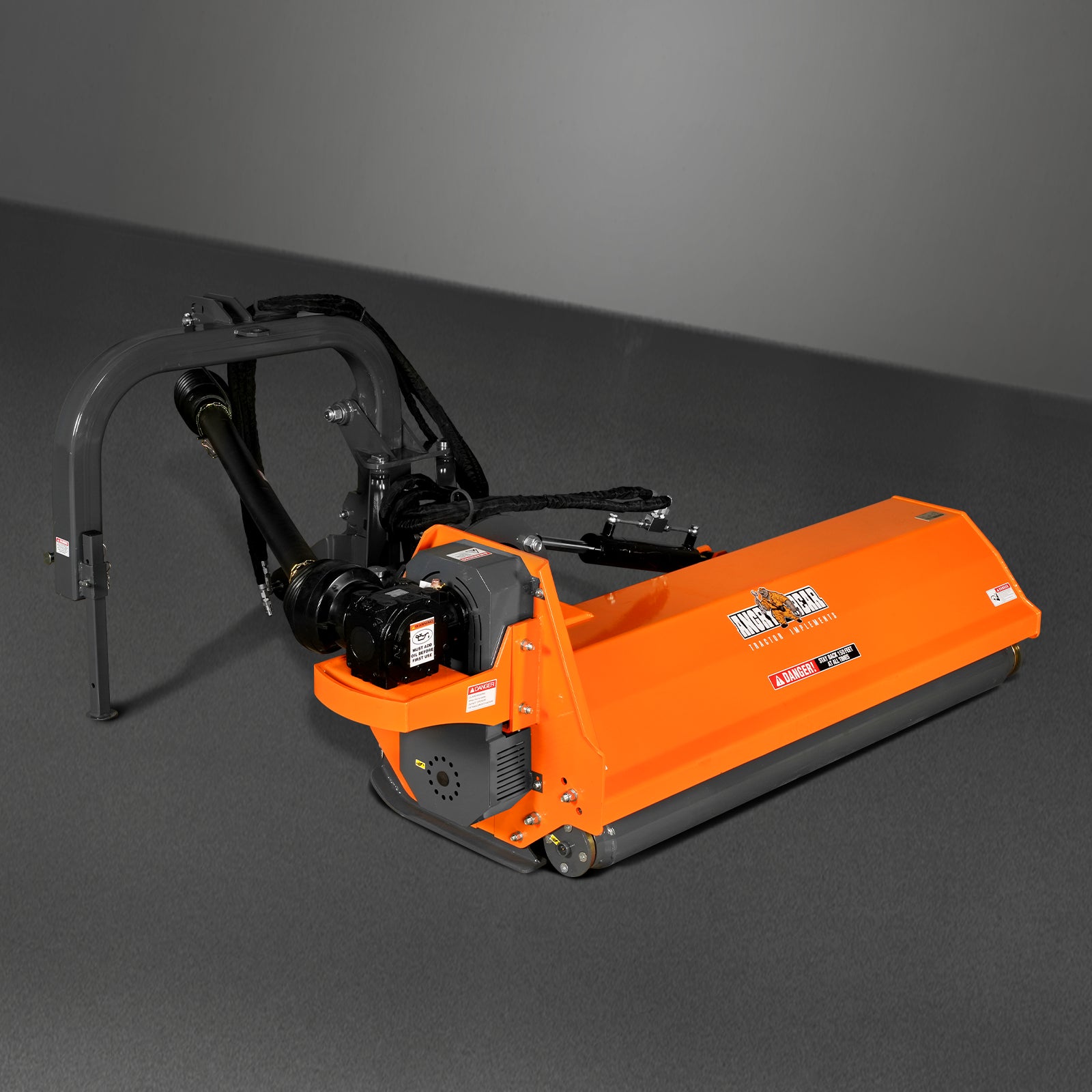

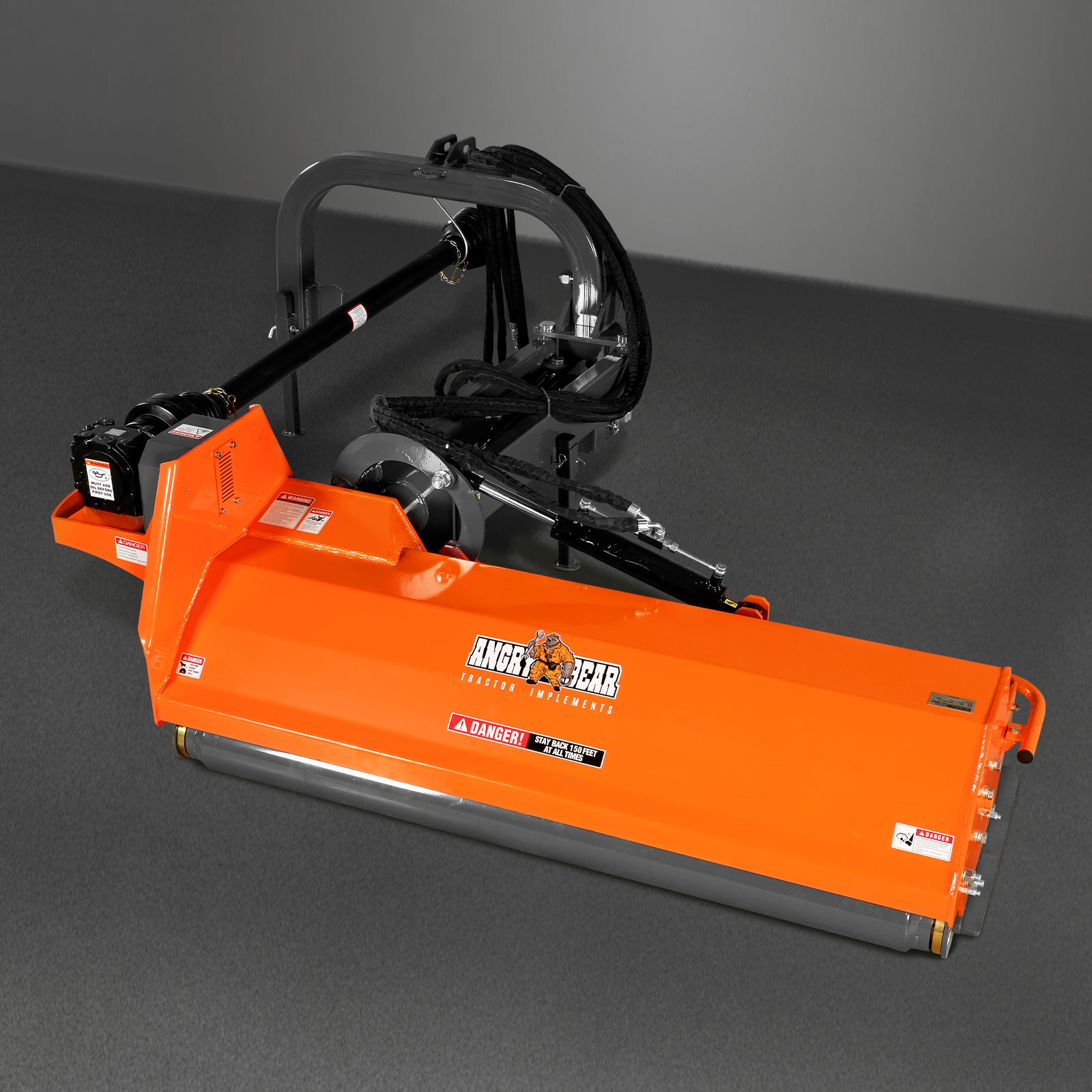

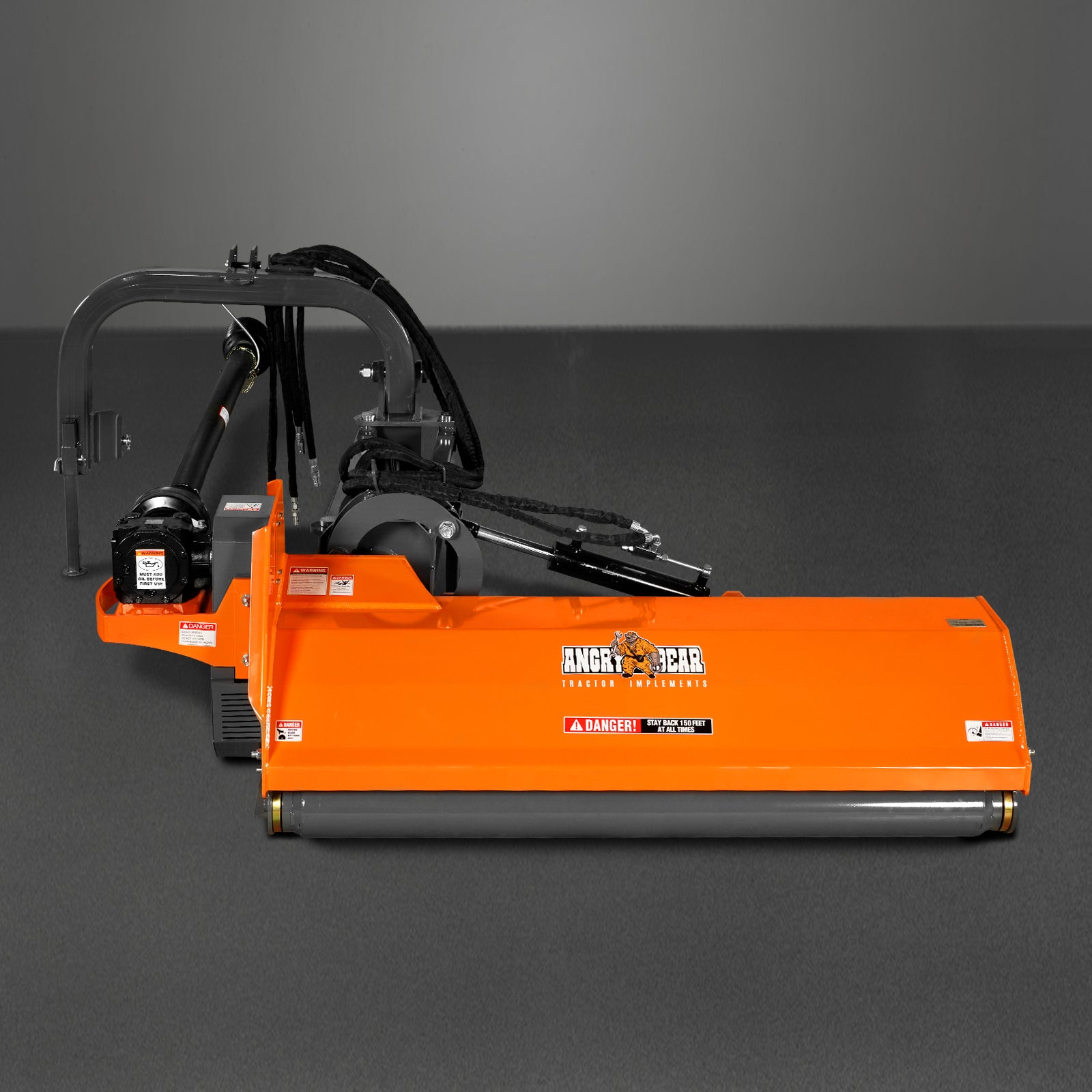

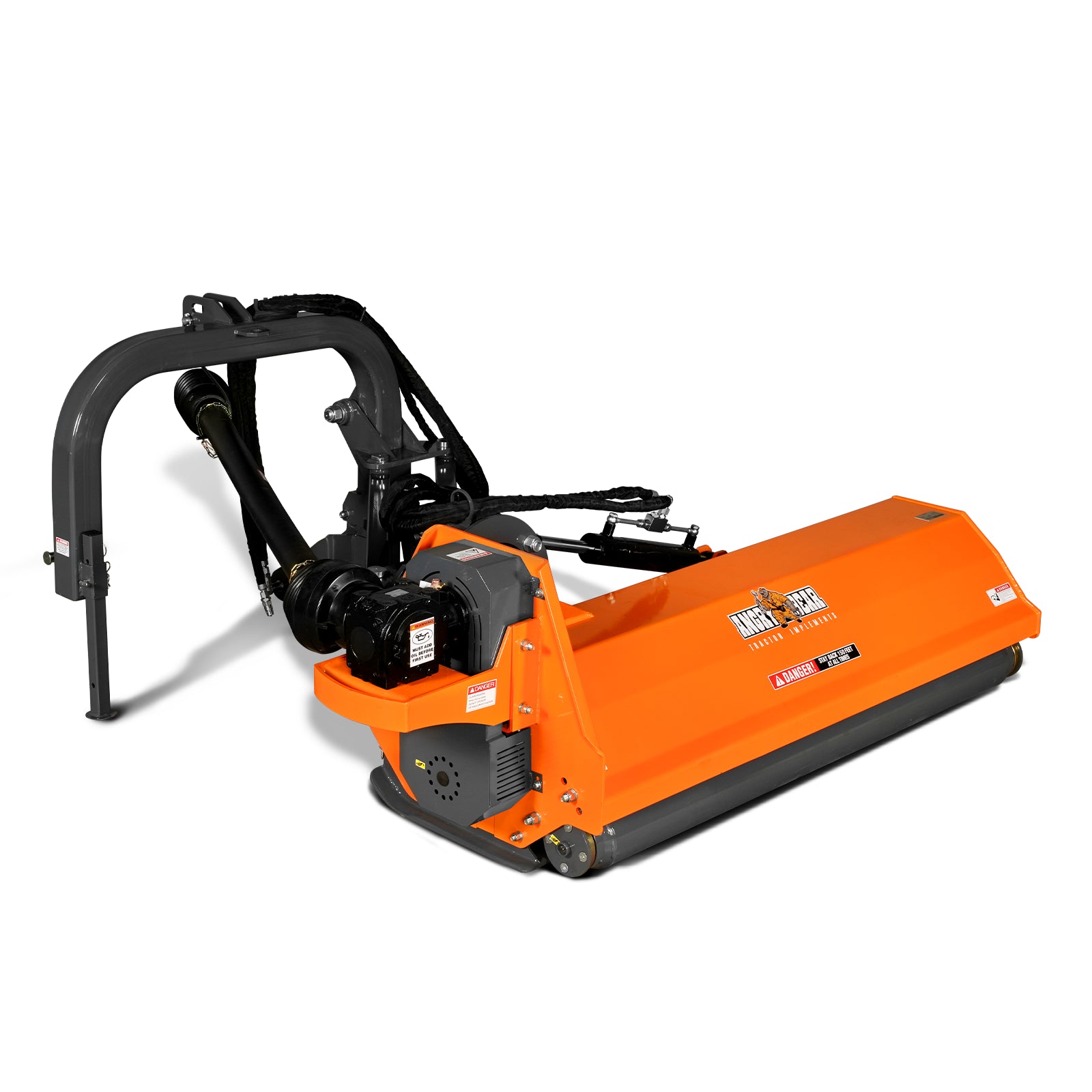

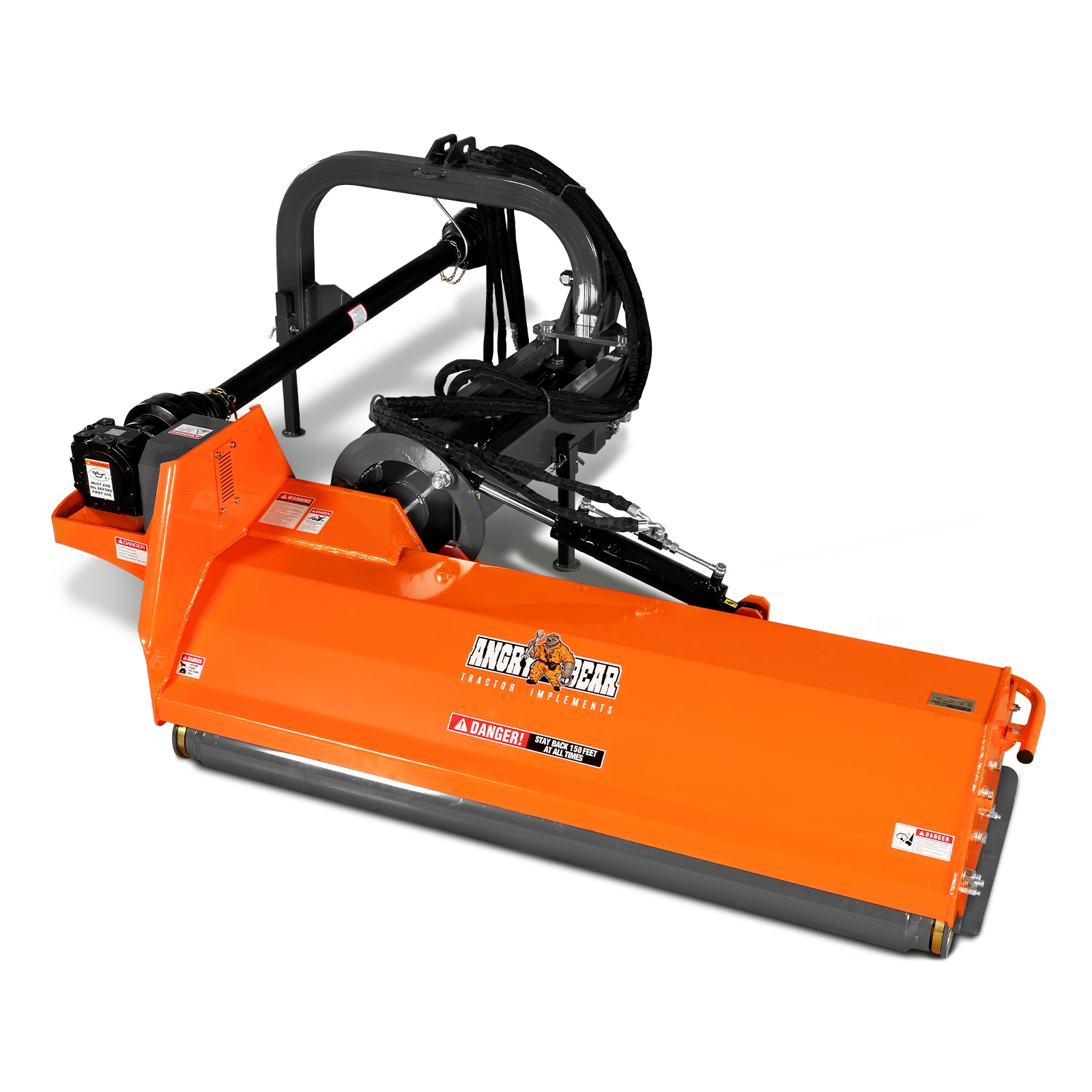

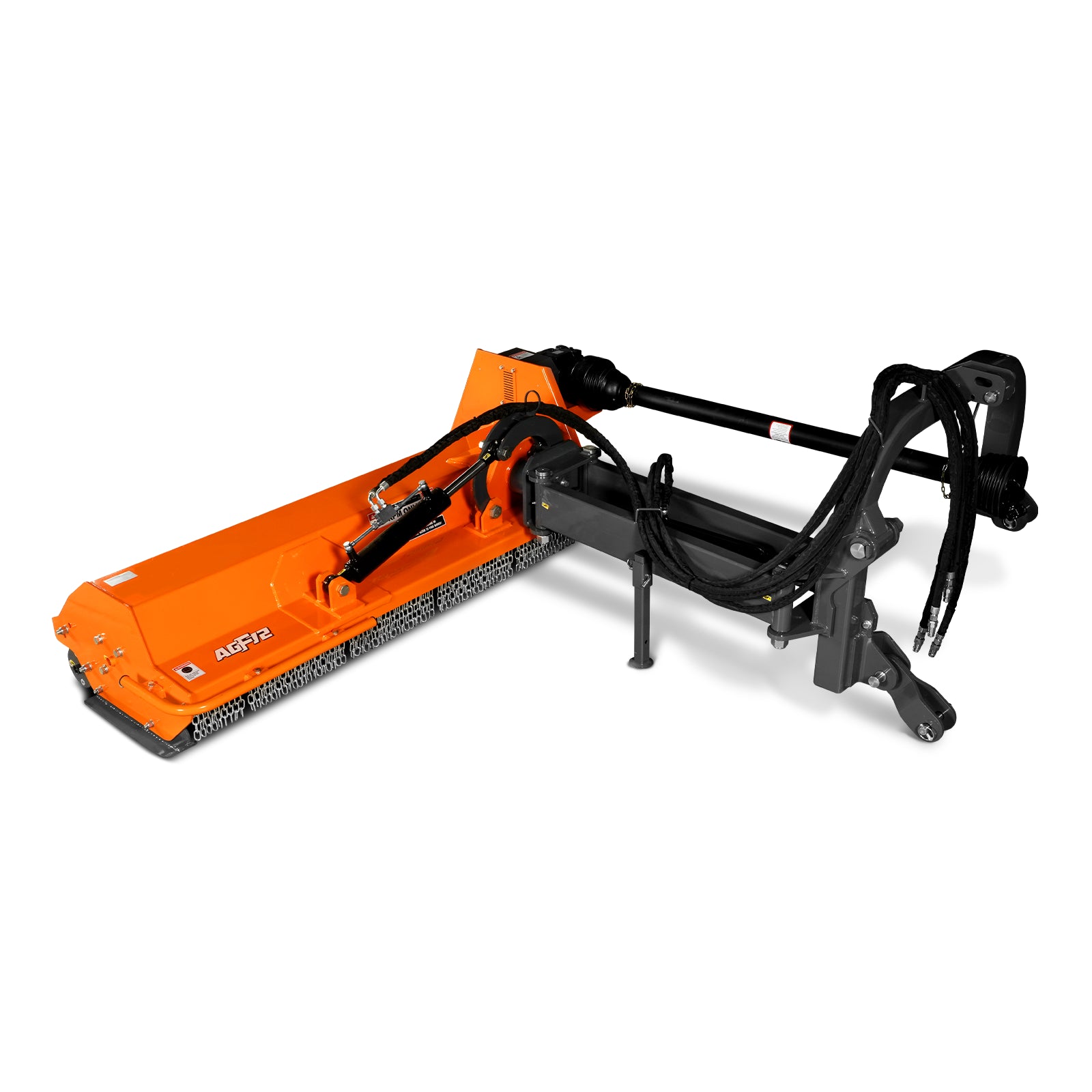

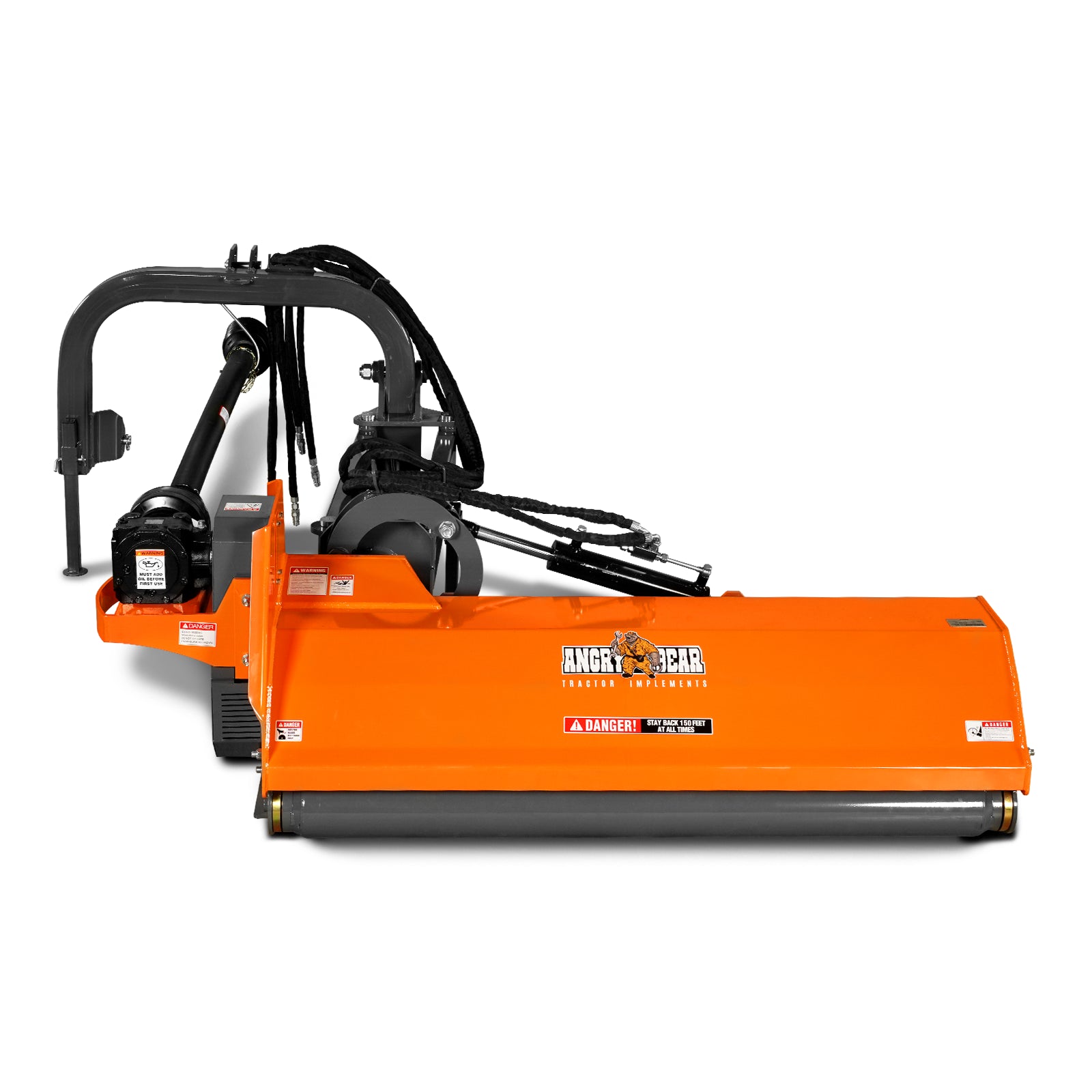

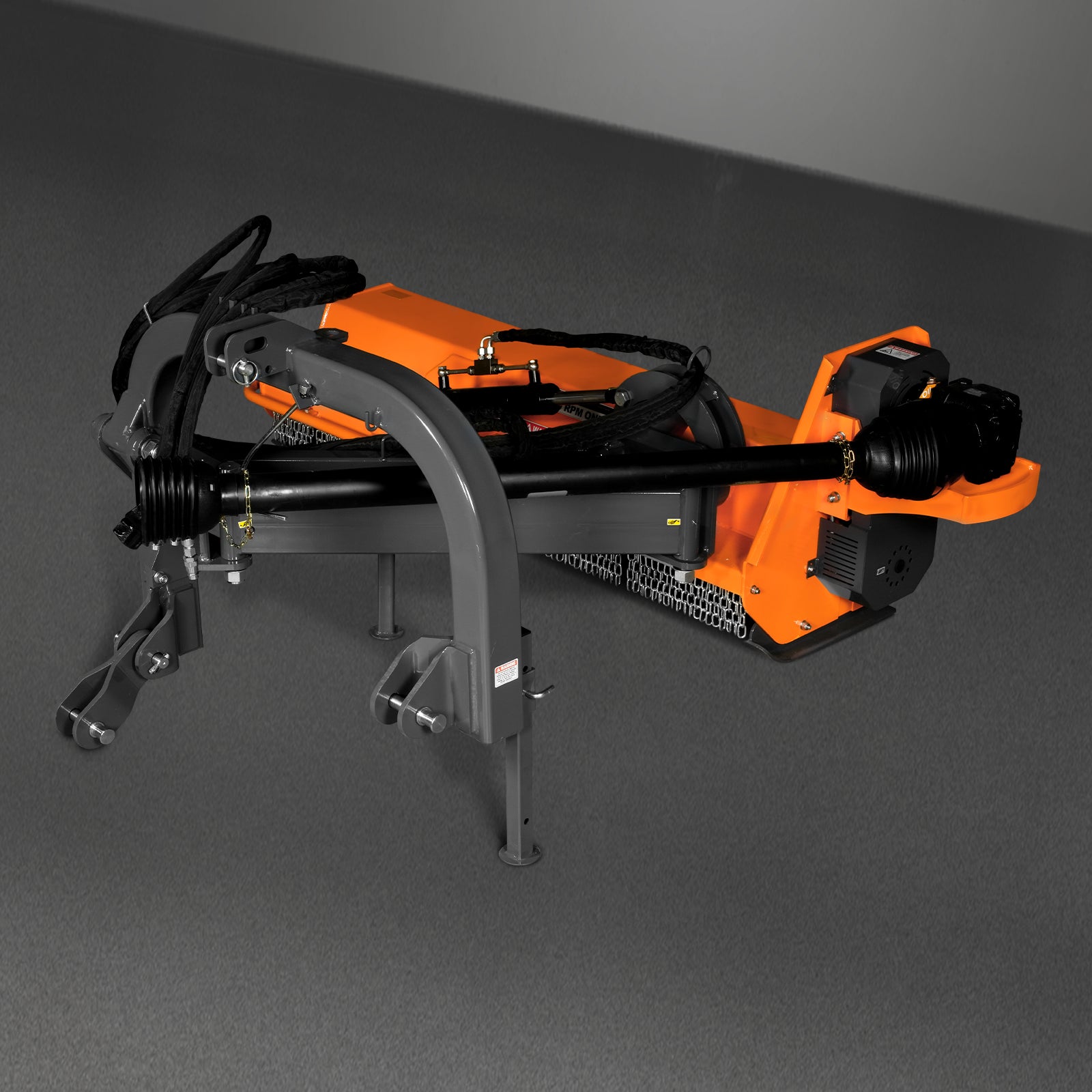

72" Heavy Duty 3Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 70-110HP, PTO Driven, AGF72

Name: 72" Heavy Duty 3Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 70-110HP, PTO Driven, AGF72
Brand: MechMaxx
SKU: 150202
Price: 4399.0 USD
Availability: InStock
Rating: 5.0 (14 reviews)

MEMORIAL DAY SALES Ends in

Days : :

$439900

$4,699.00

Save $300

MEMORIAL DAY SALES Ends in

Days : :

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Estimated to ship by Aug 15, 2026. Date is subject to change due to transit delays.

Details

Model : AGF72

AGF72 VBM78 VBM86 VBM100

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

( 1 Pack / 8 Pcs ) Hammer for AGF; VBM; KDK Flail Mower (SKU: 150202; 150203; 150204; 150205; 150206; 150207; 150208; 150205; 150206; 150207; 150208; 150290）

( 1 Pack / 4 Pcs ) Belt for AGF; VBM Flail Mower (SKU: 150202; 150203; 150204; 150290）

72" Heavy Duty 3Point Offset Ditch Bank Verge Flail Mower Italy CMR Gearbox, 70-110HP, PTO Driven, AGF72 $439900 $4,699.00

( 1 Pack / 8 Pcs ) Hammer for AGF; VBM; KDK Flail Mower (SKU: 150202; 150203; 150204; 150205; 150206; 150207; 150208; 150205; 150206; 150207; 150208; 150290） $7999 $129.99

( 1 Pack / 4 Pcs ) Belt for AGF; VBM Flail Mower (SKU: 150202; 150203; 150204; 150290） $5999 $169.99

Total Price

$

Product Overview

Our bank mowers are built to efficiently handle overgrown grass on ditches and embankments.

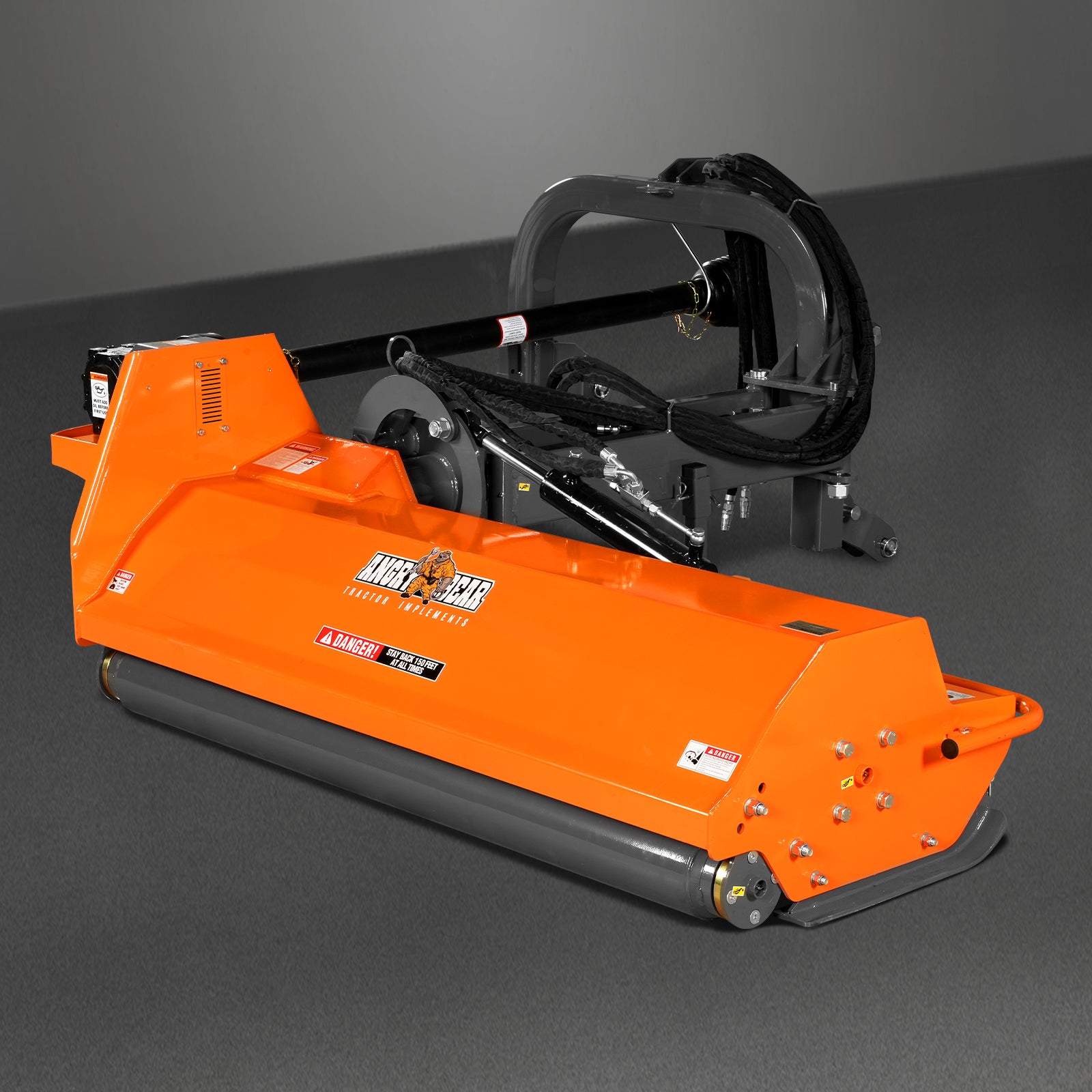

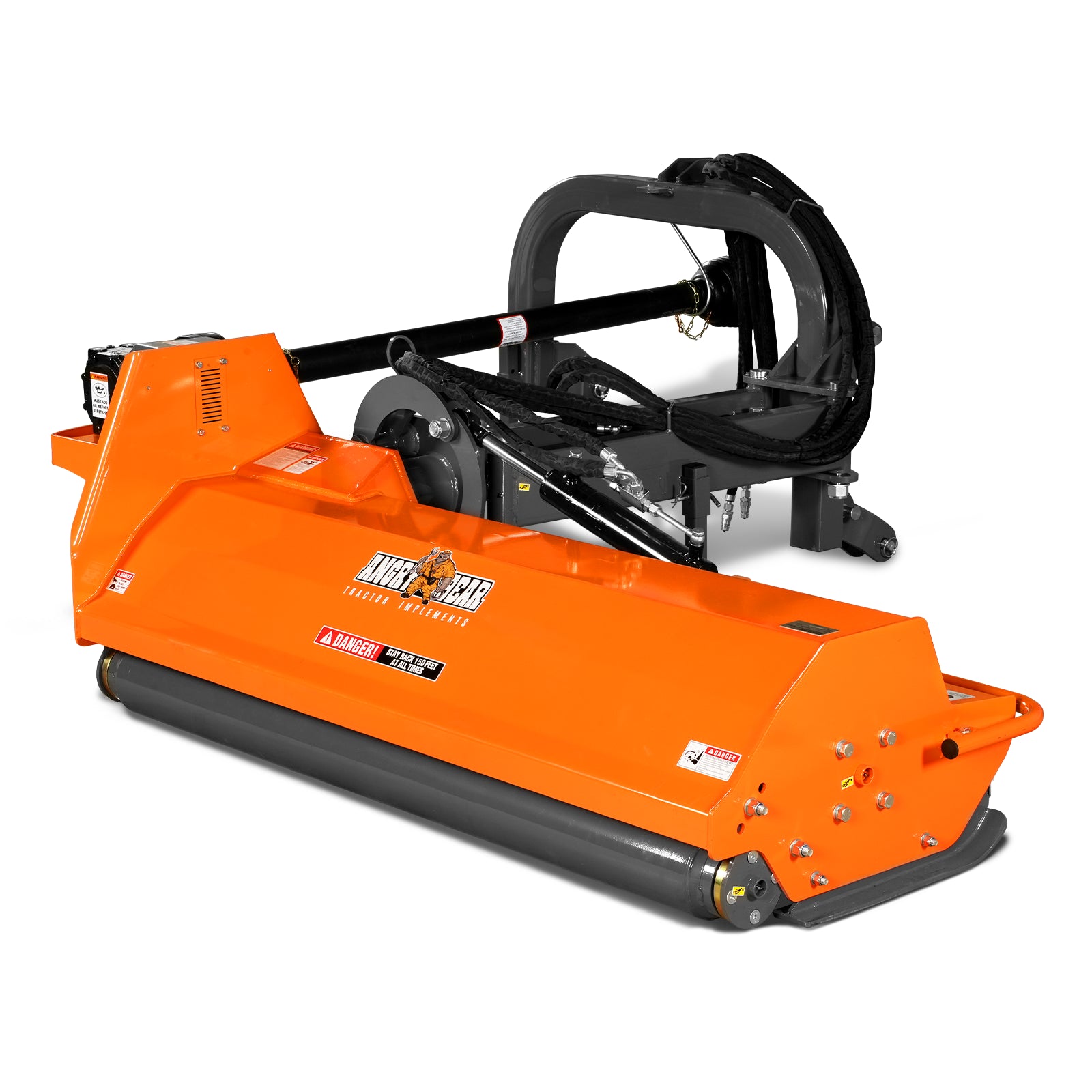

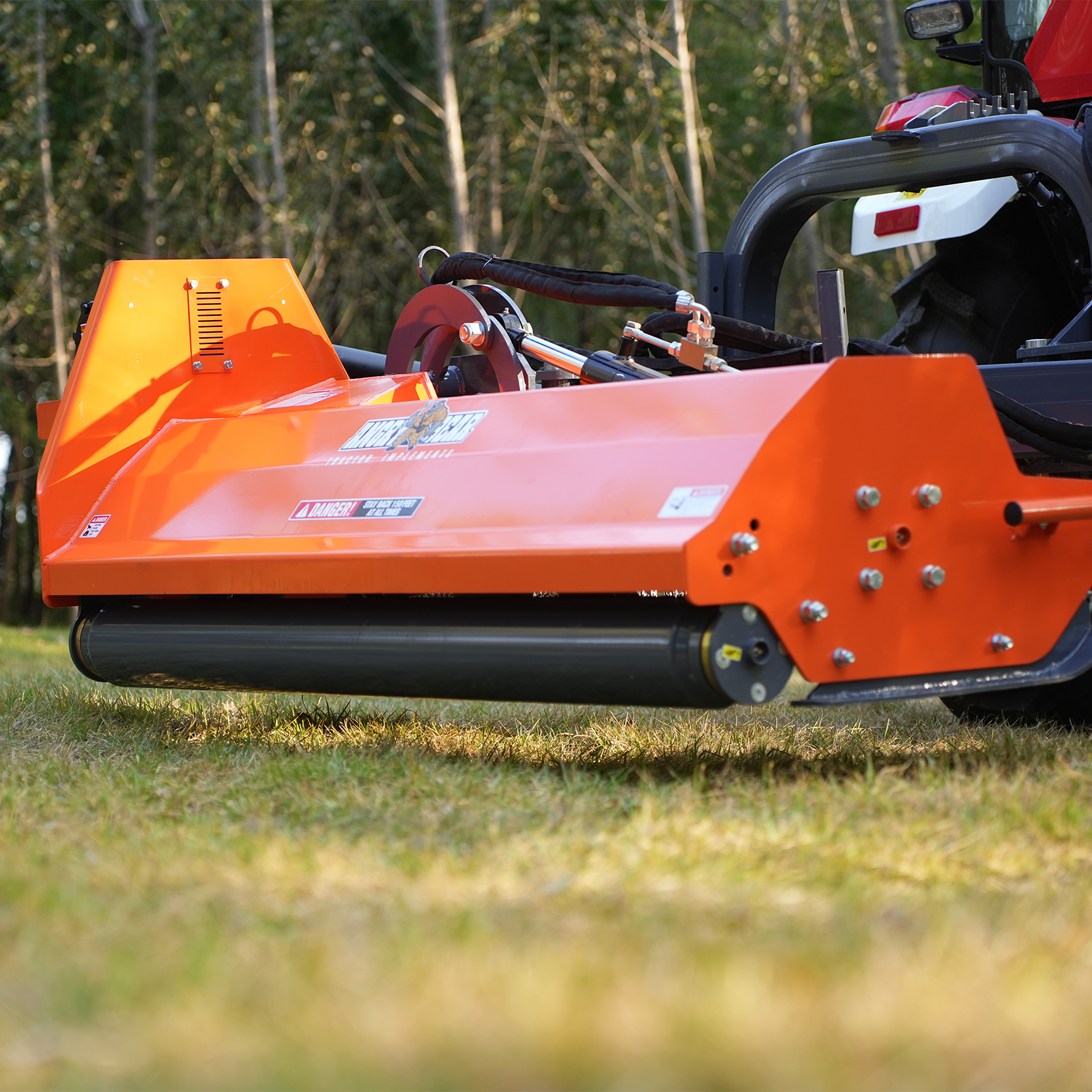

Powered by a 65HP CMR gearbox from Italy for consistent performance, Equipped with forged hammer flail blades,The mowers can cut and mulch material up to 6" in diameter in one pass. The finely shredded cuttings act as a fast-decomposing, micronutrient-rich fertilizer, nourishing your land. The trimmings drop directly to the ground, reducing debris. Plus, an adjustable rear roller provides precise cutting height control, ensuring a clean, even cut on uneven terrain.

The 72" model, built for Category 2 tractors, pivots 90 degrees up and 55 degrees down, delivering a precise, clean cut every time. PTO shaft w/safety pin; dynamically balance tested for safe and reliable operation

Product manual (PDF)

AGF 72 Mower Product manual 1.0.pdf

Product Features

•72 in working width for time-saving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards

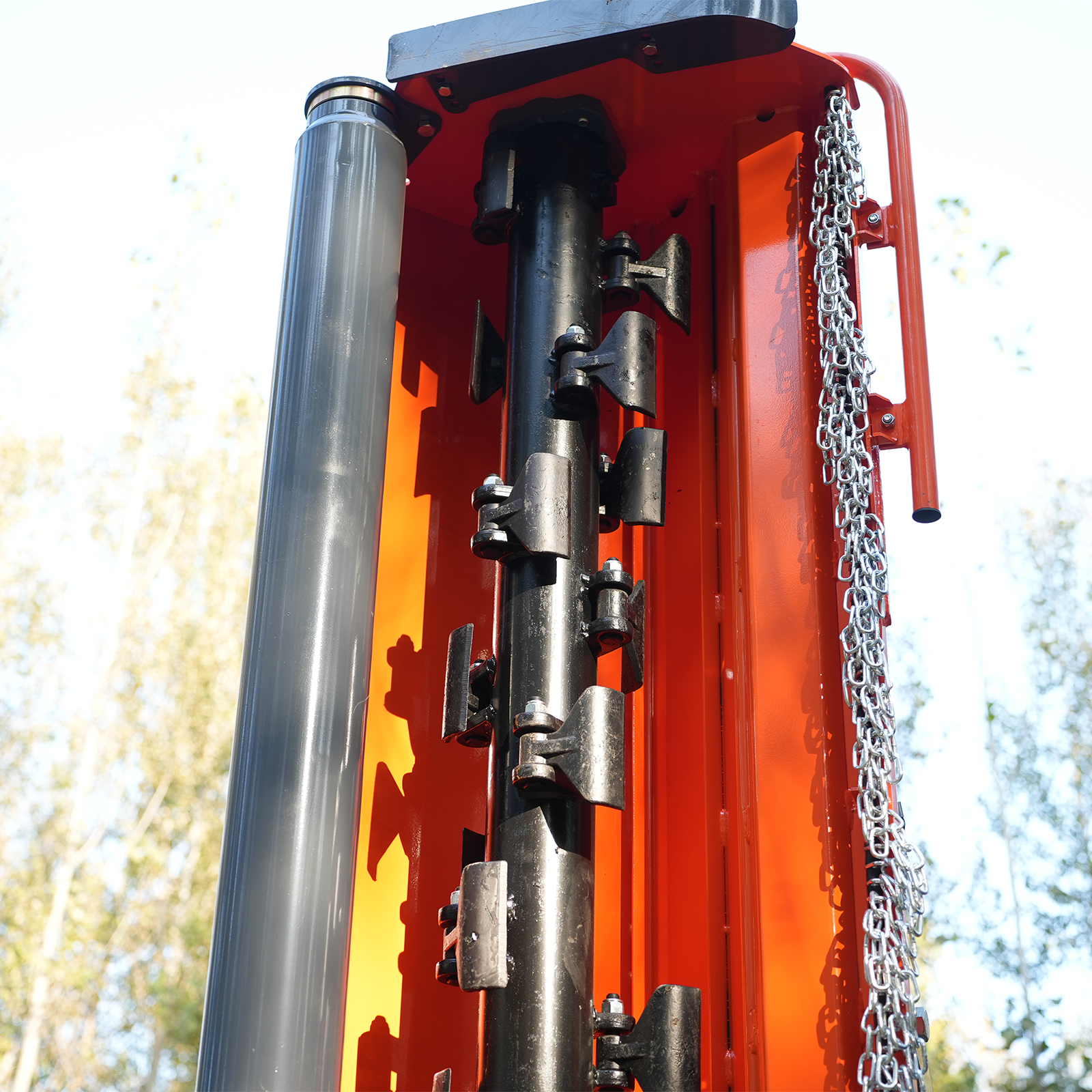

•This mower can keep your mowing area as short as possible with 16 number of blades.

•Compatible with 70-110 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities.

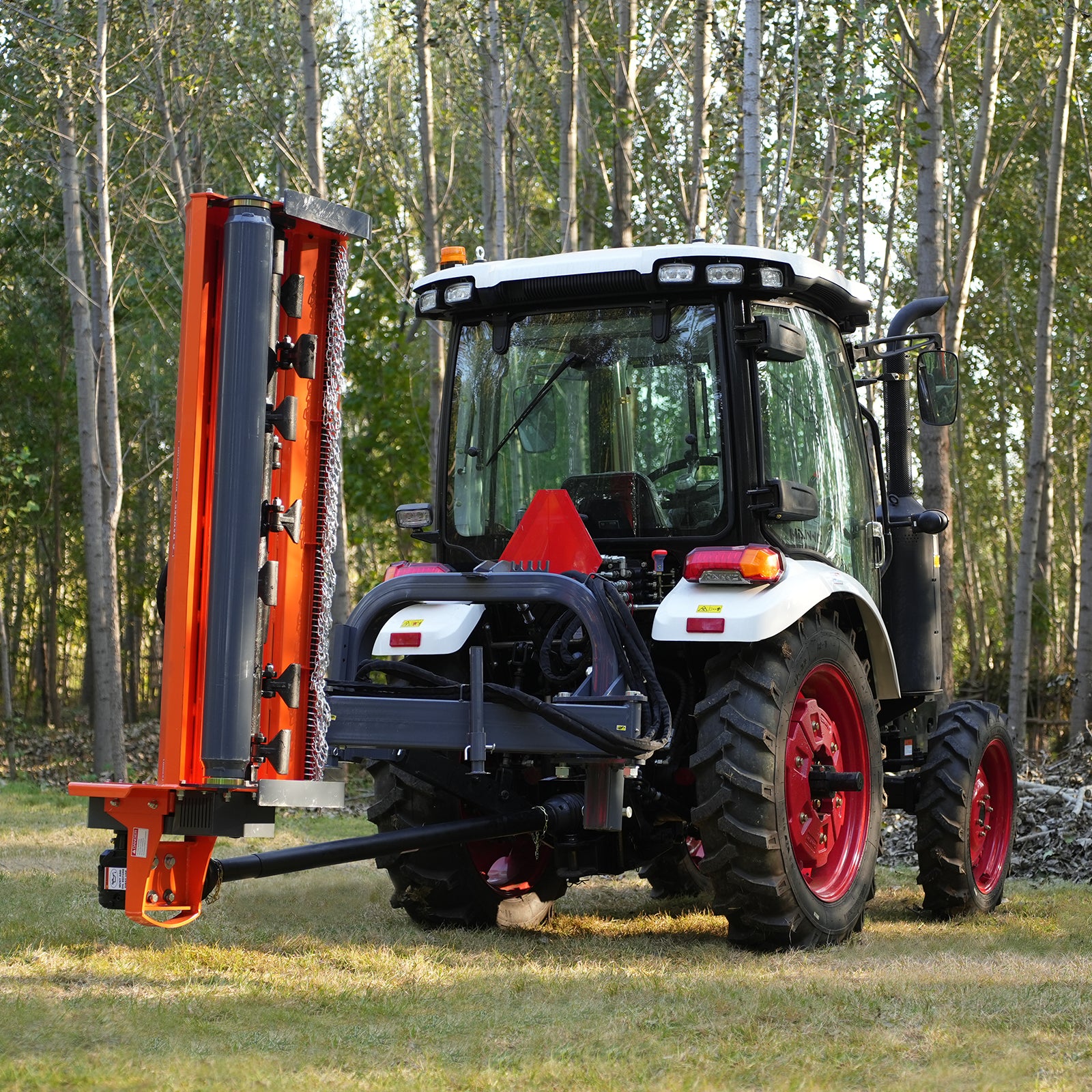

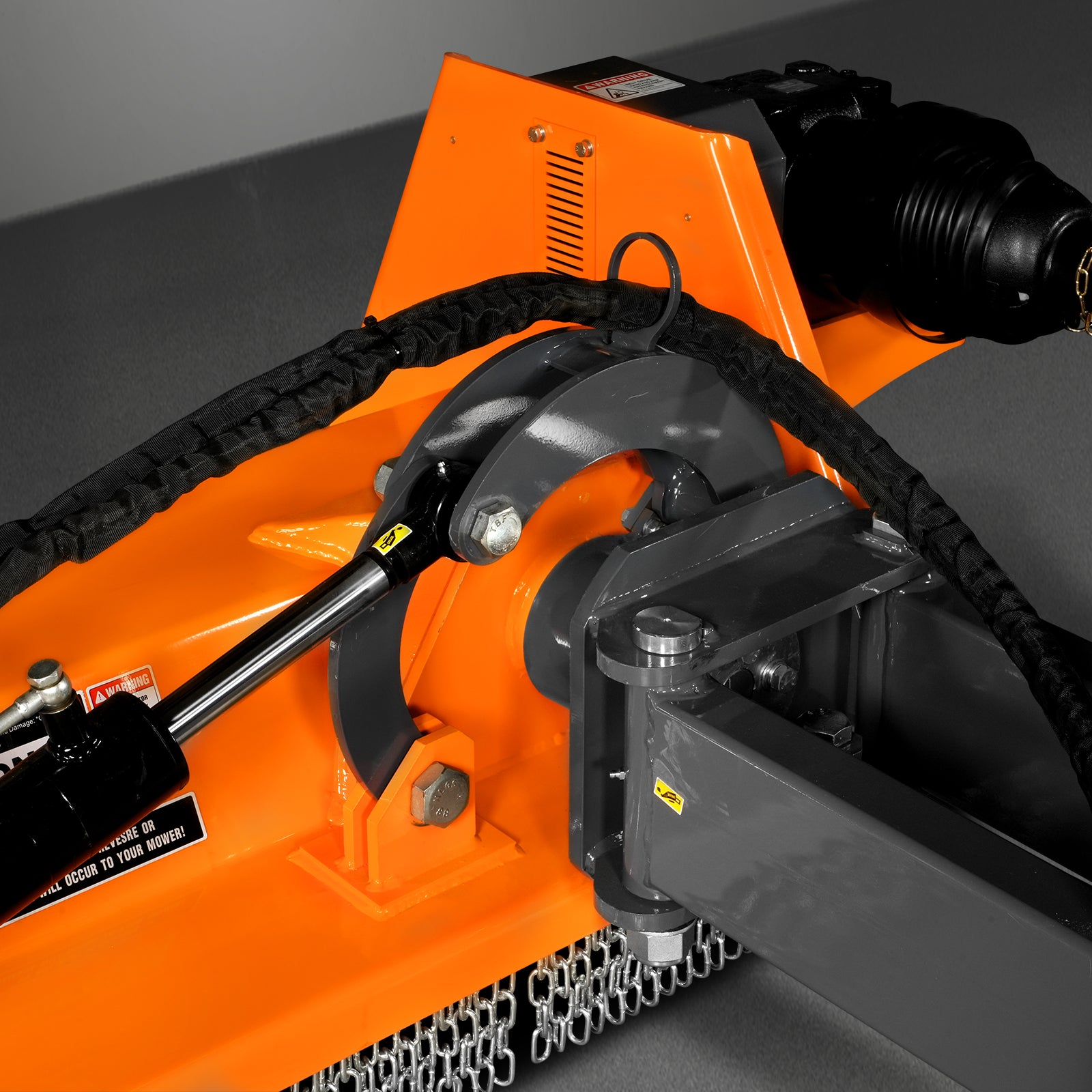

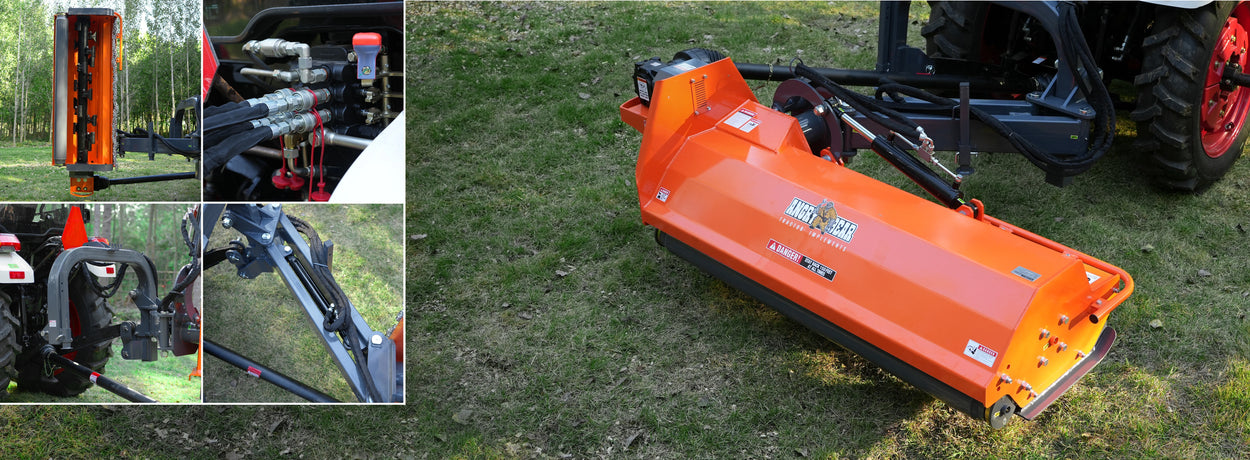

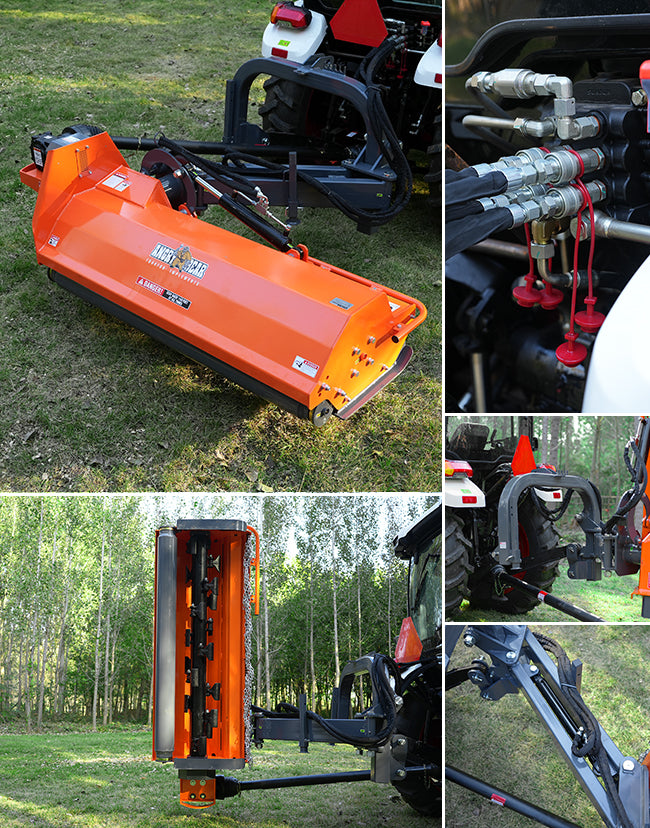

Rotation Angle

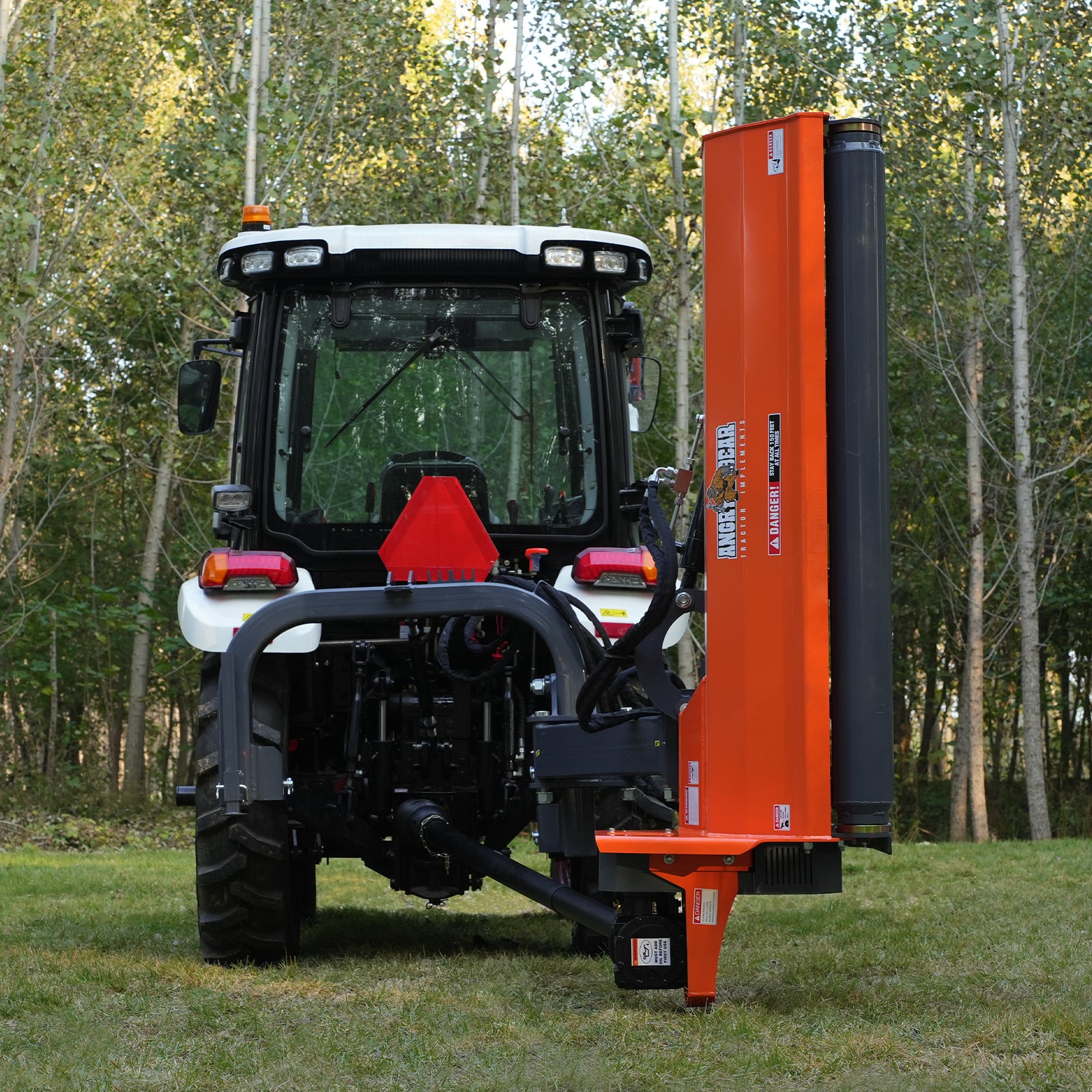

Hydraulically controlled with 55°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities.

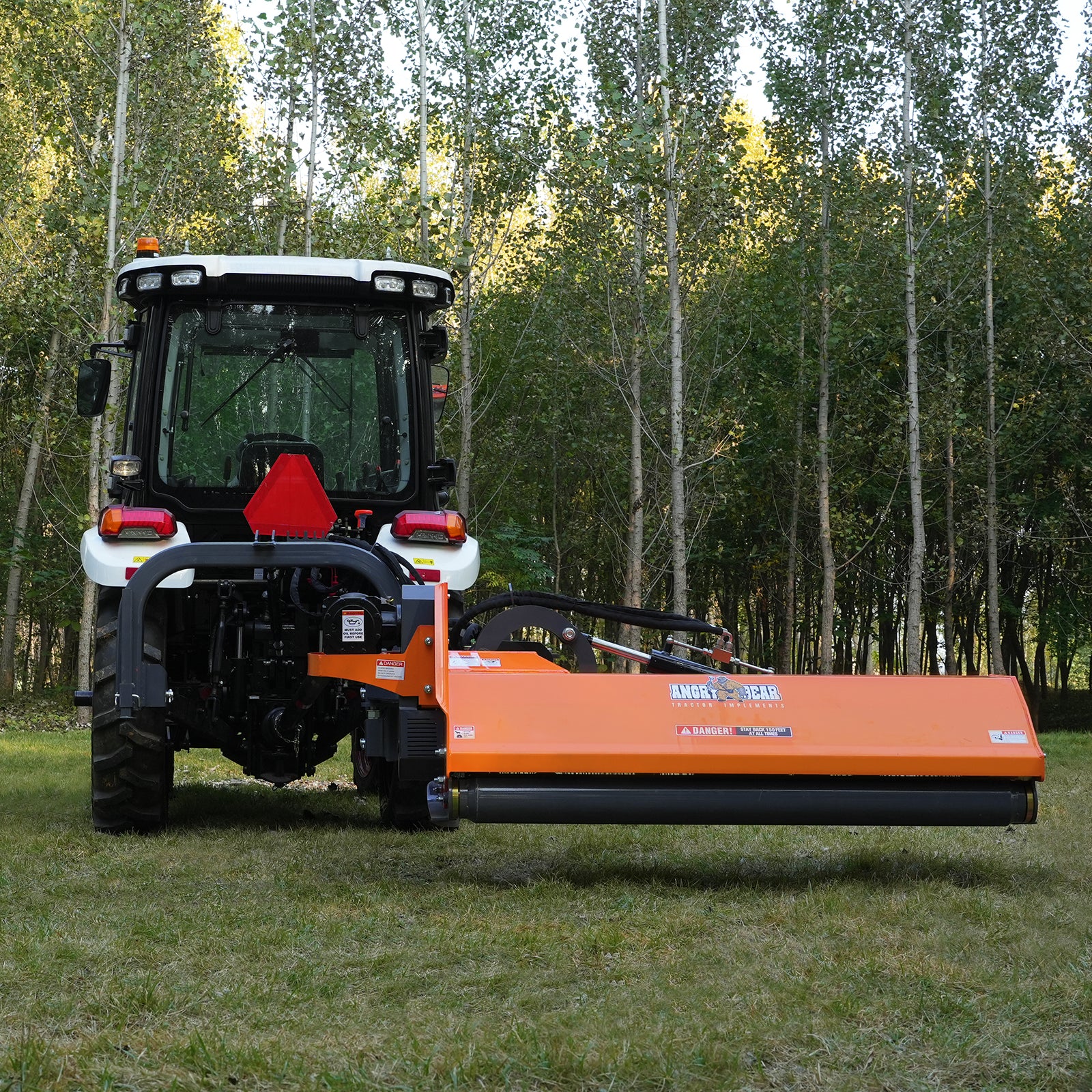

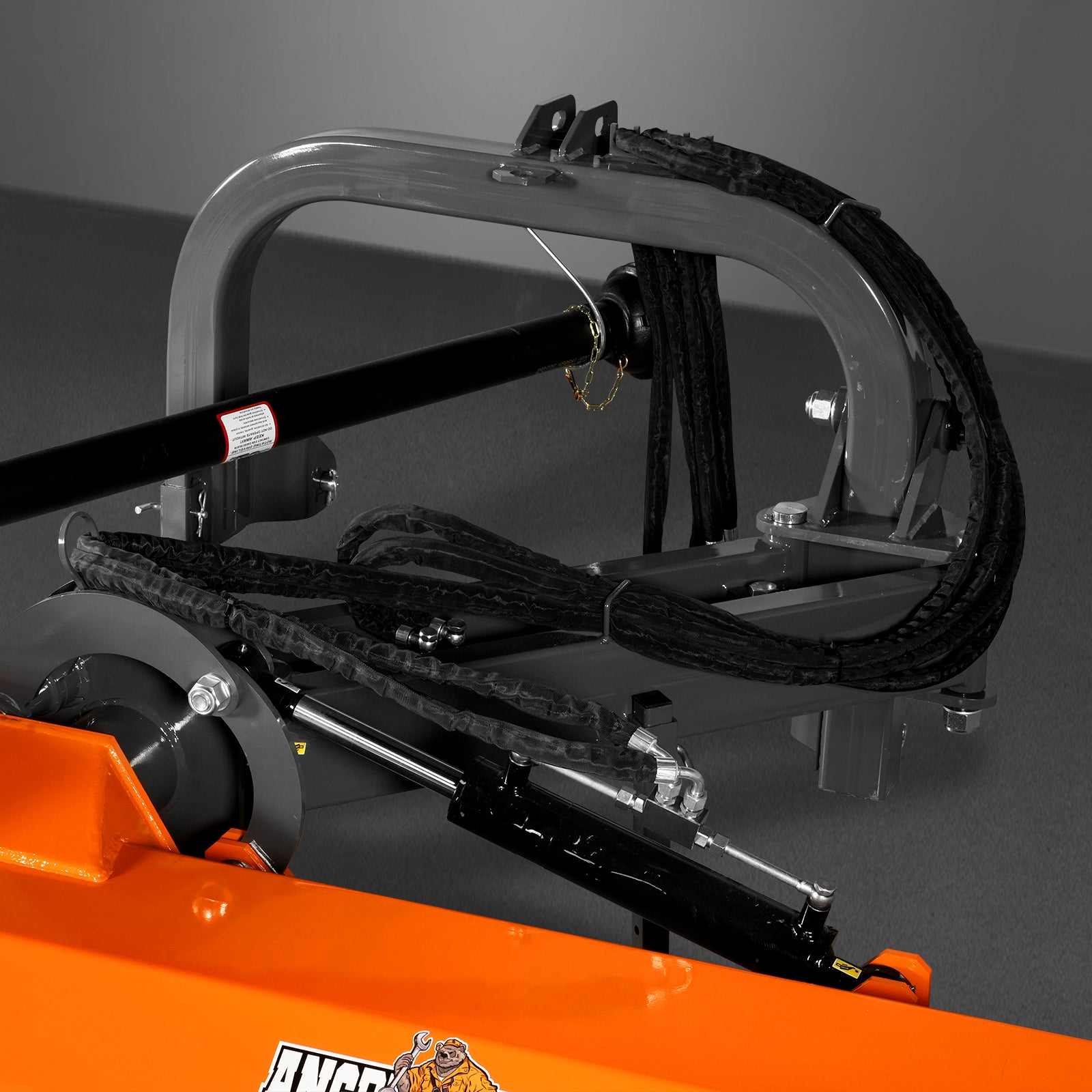

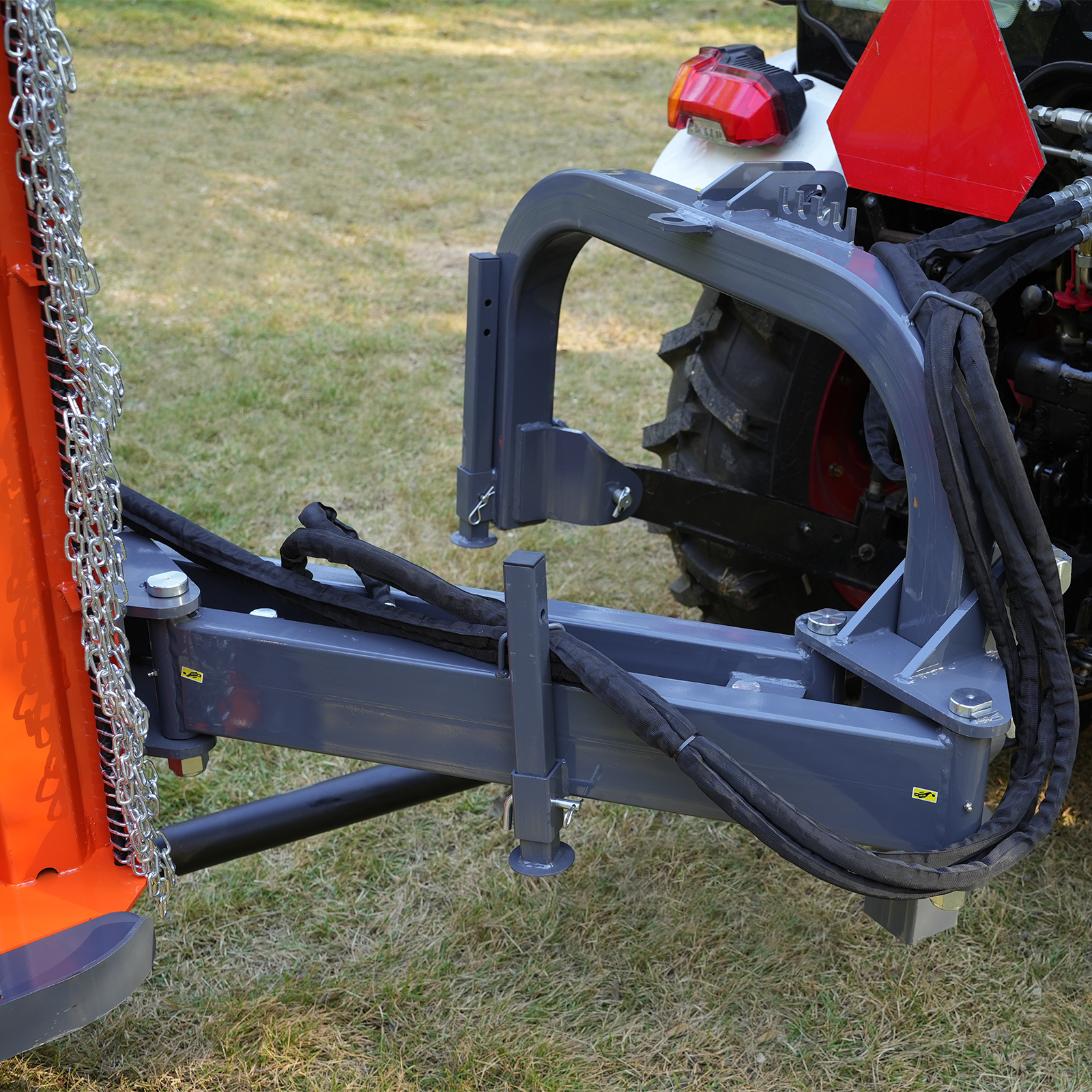

Side Movement

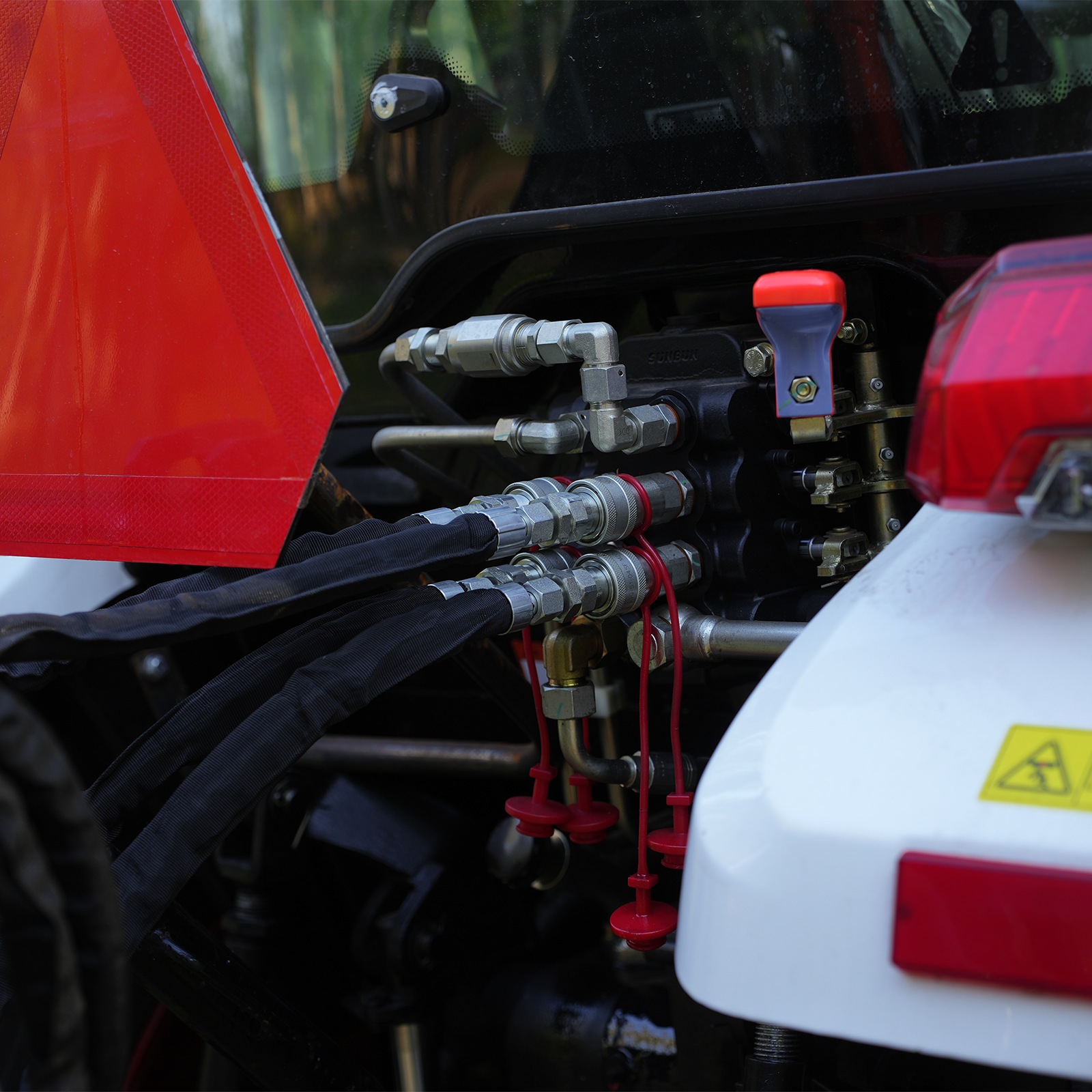

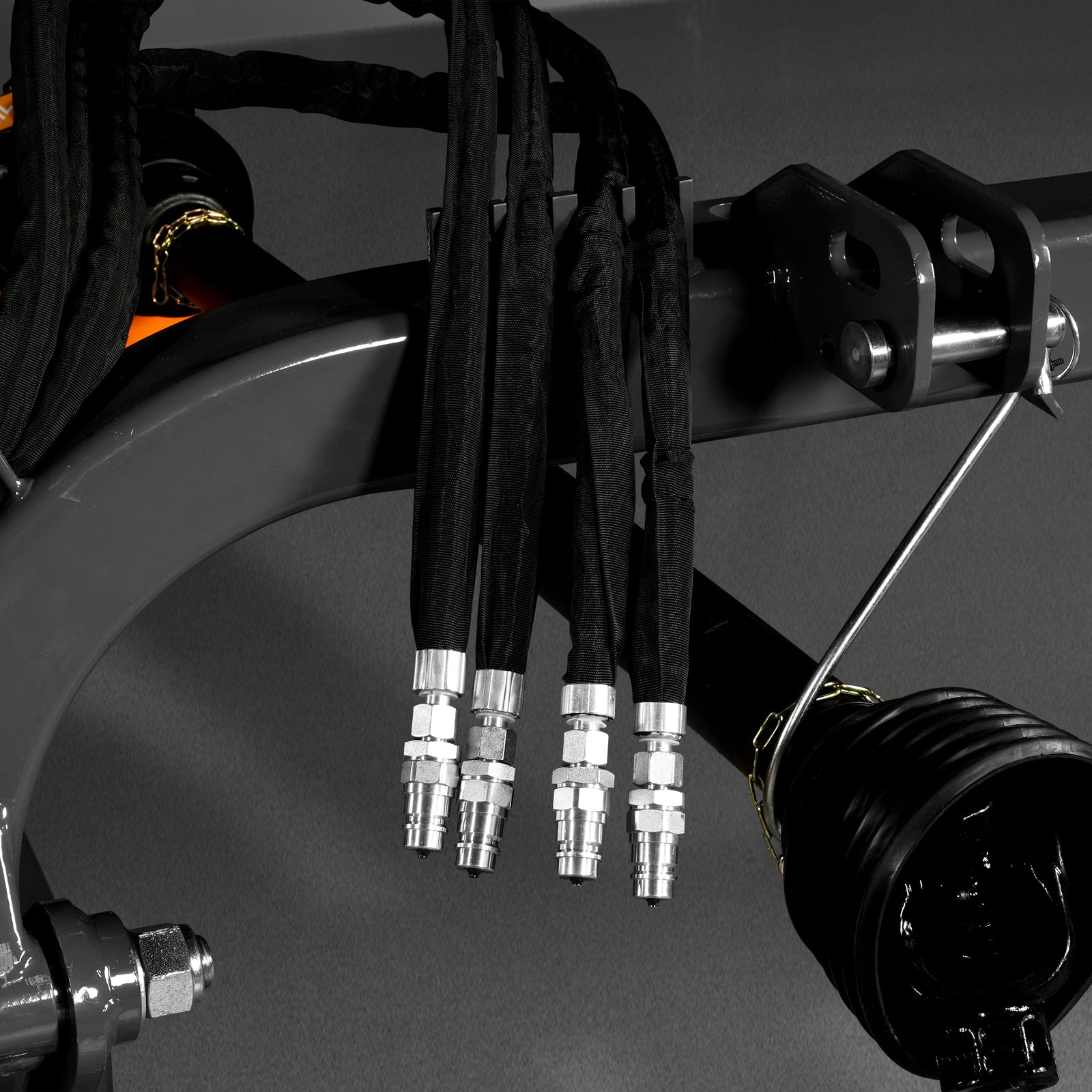

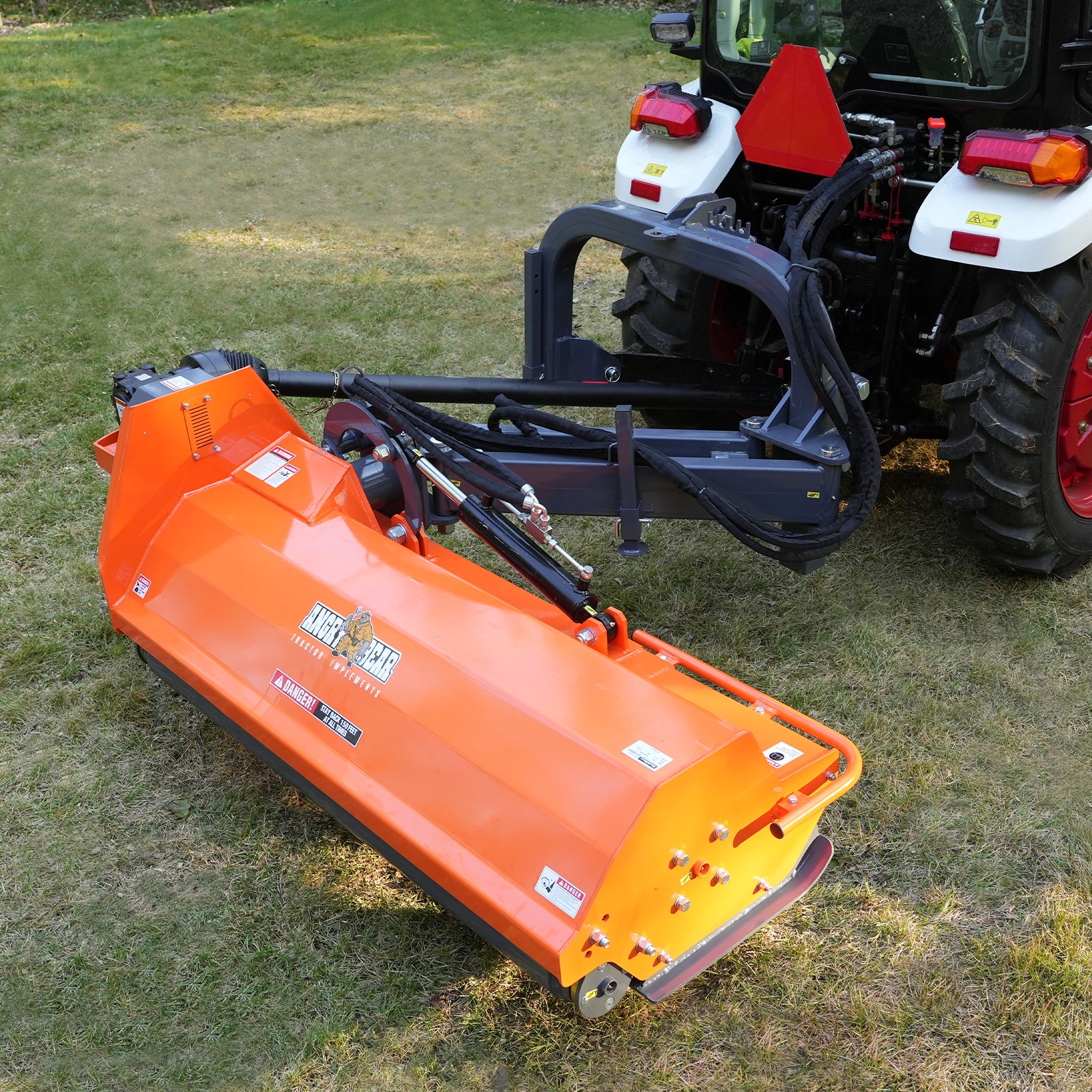

Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.

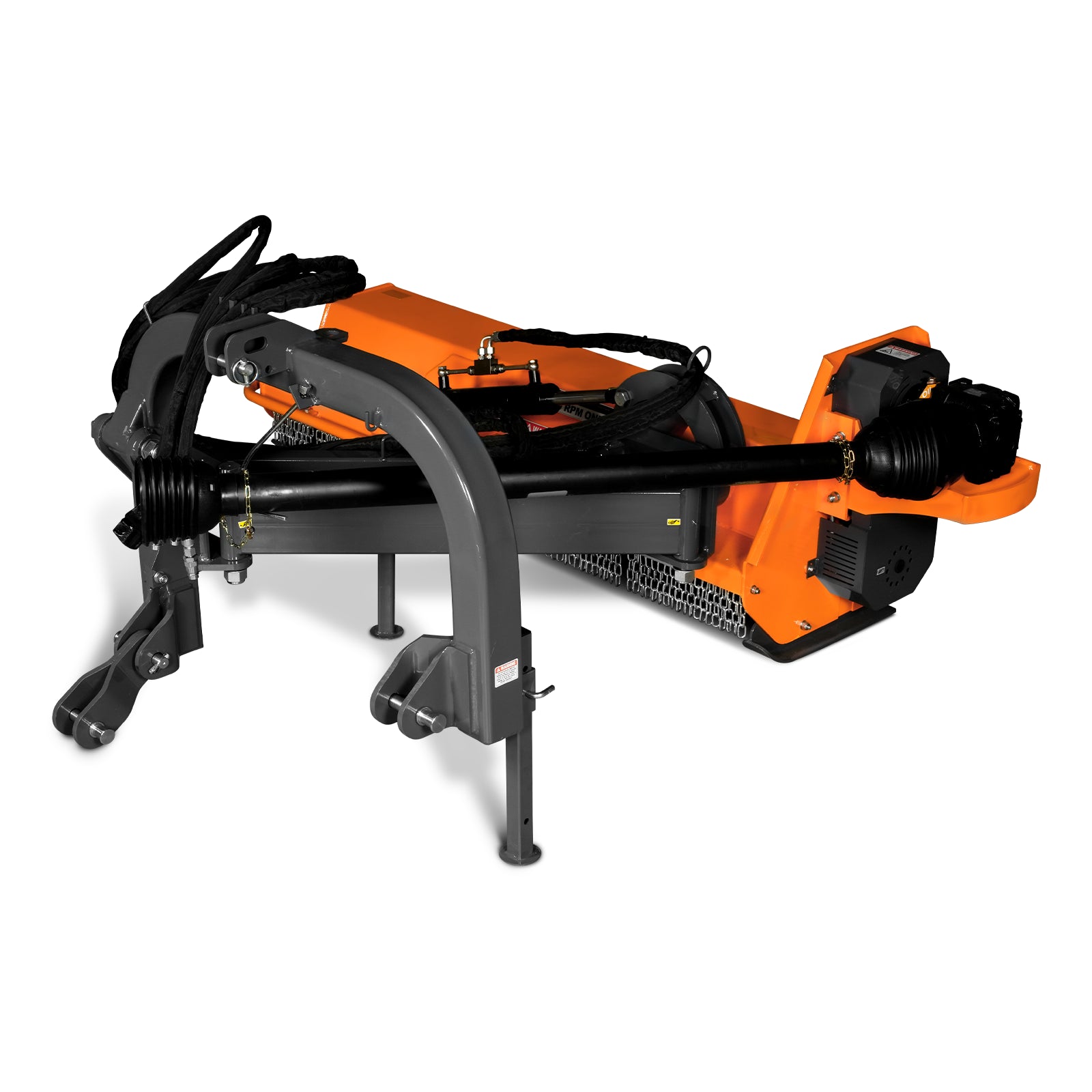

PTO shaft(1- 3/8’’ Z6)

Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-73 With Shear Bolt ; 73in-126in

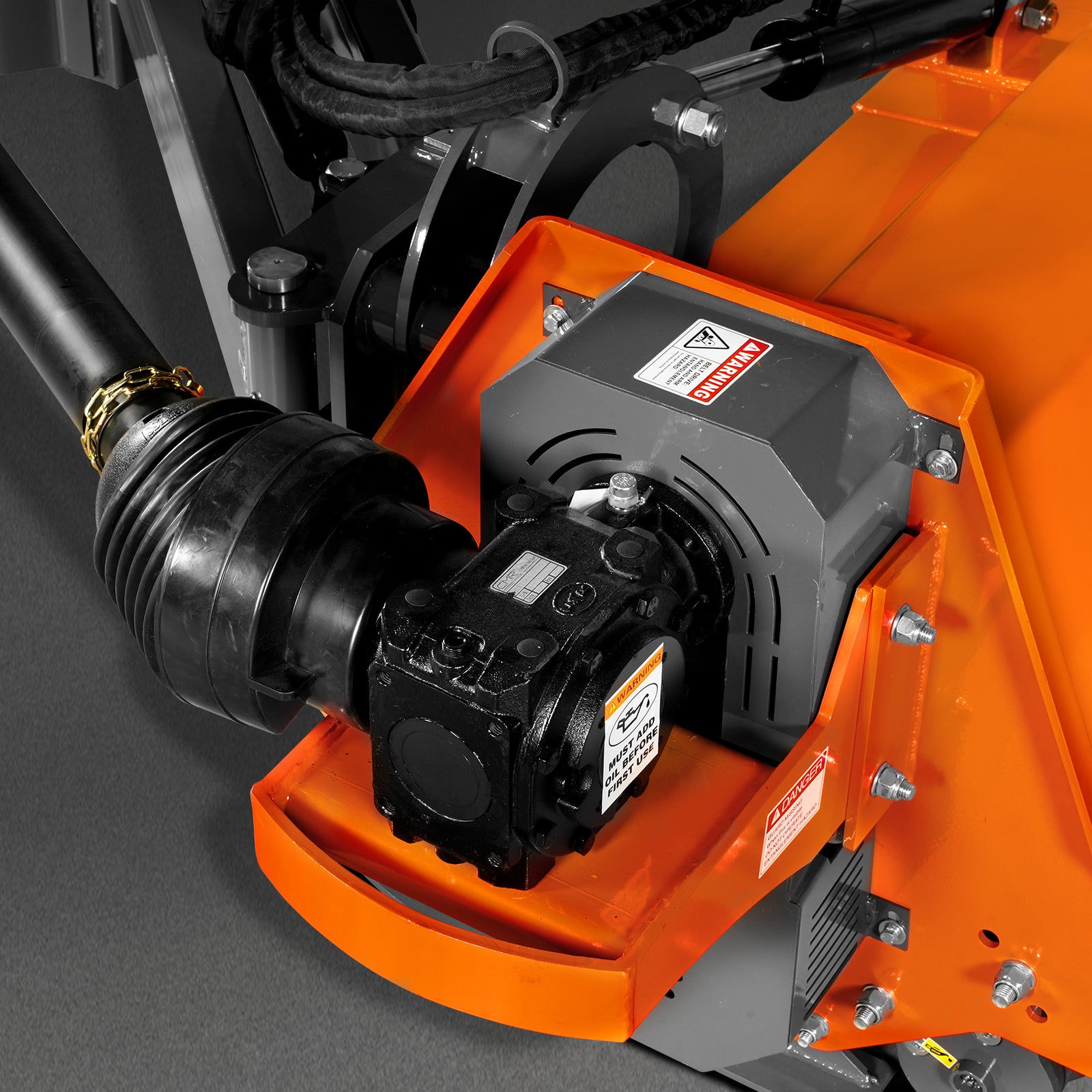

CMR Gearbox

High-quality CMR bearings from Italy transmits motive power to the various other components of the machine.

SKF Shaft Bearing

We use Swedish brand SKF shaft bearings. The high-quality bearings of this type are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly.

Anti-collision Bar

Anti-shock With Spring can act as a buffer to protect the machine from damage when it collides with hard objects.

Engine Power Required	70-110 Hp	Belt Adjustment	Bolt Tightening
Working Width	72 in	Working Efficiency450 cu.ft./Hr.	450 cu.ft./Hr.
Overall Width	86 in	PTO Shaft Speed	540 rpm
Blade Ground Clearance	0.5 in-2.6 in	Deck Thickness	2 in
Max. Cutting Diameter	Depends On The Type Of Grass	Side Plate Thickness	0.25 in
Offset Distance from The Center (Maximum)	111 in	Driveline Shaft Length	T6-LF-73 With Shear Bolt ; 73in-126in
Tilt-Up Angle	90°	Spline End	1.375in Z6
Tilt-Down Angle	55°	3-Point Hitch	CAT 2

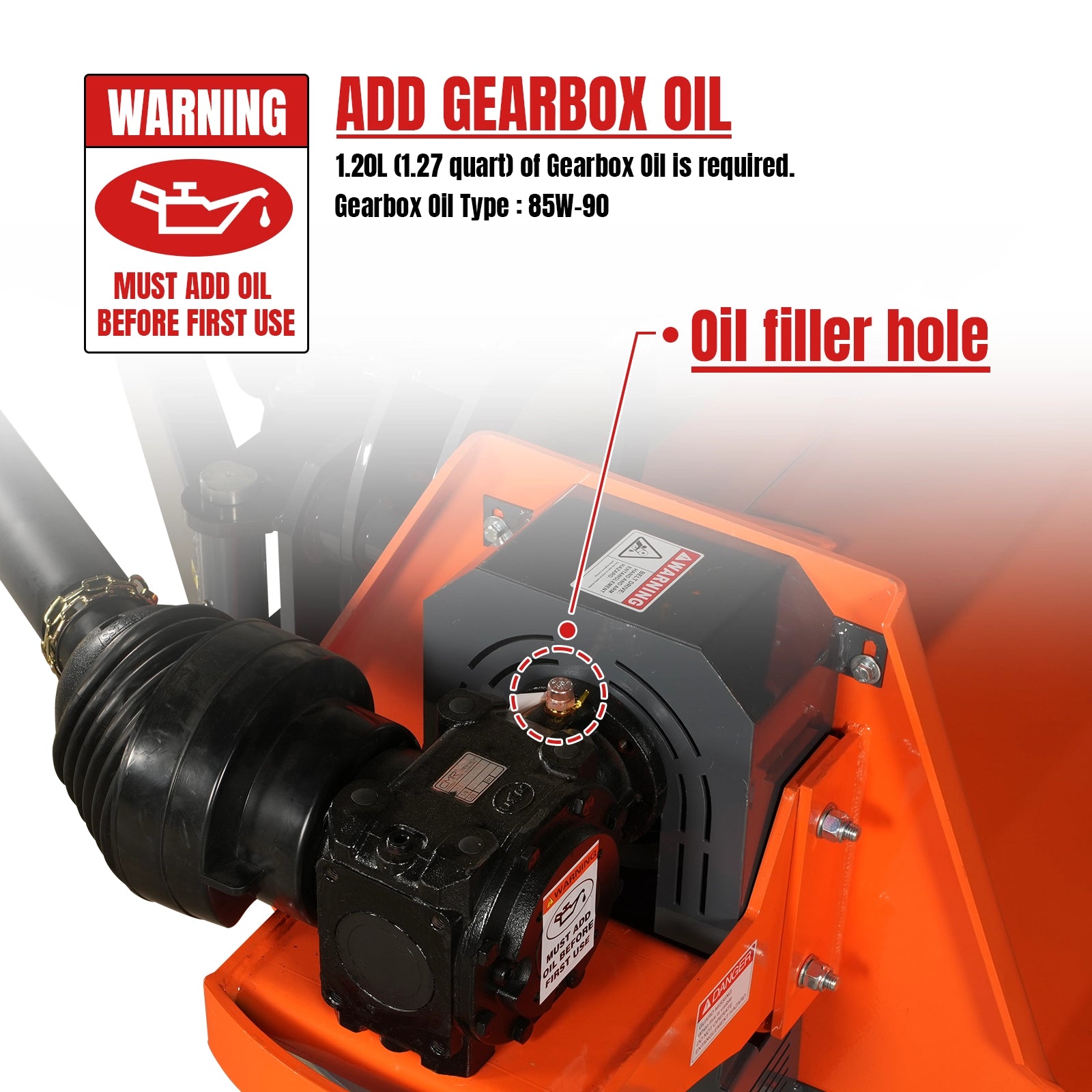

Number Of Blades	16	Gearbox 0il Type	85W-90
Number of Belts	4	Finish	Powder Coating
Blade Type	Hammer	Warranty	1 Year
Blade Weight	2.6 lbs	Shipping Box	89 X 39 X 31in
Blade Material	Cast Steel	Weight (N.W./G.W.)	1429 /1587 lbs
