SKU: 150204

| Model: VBM86

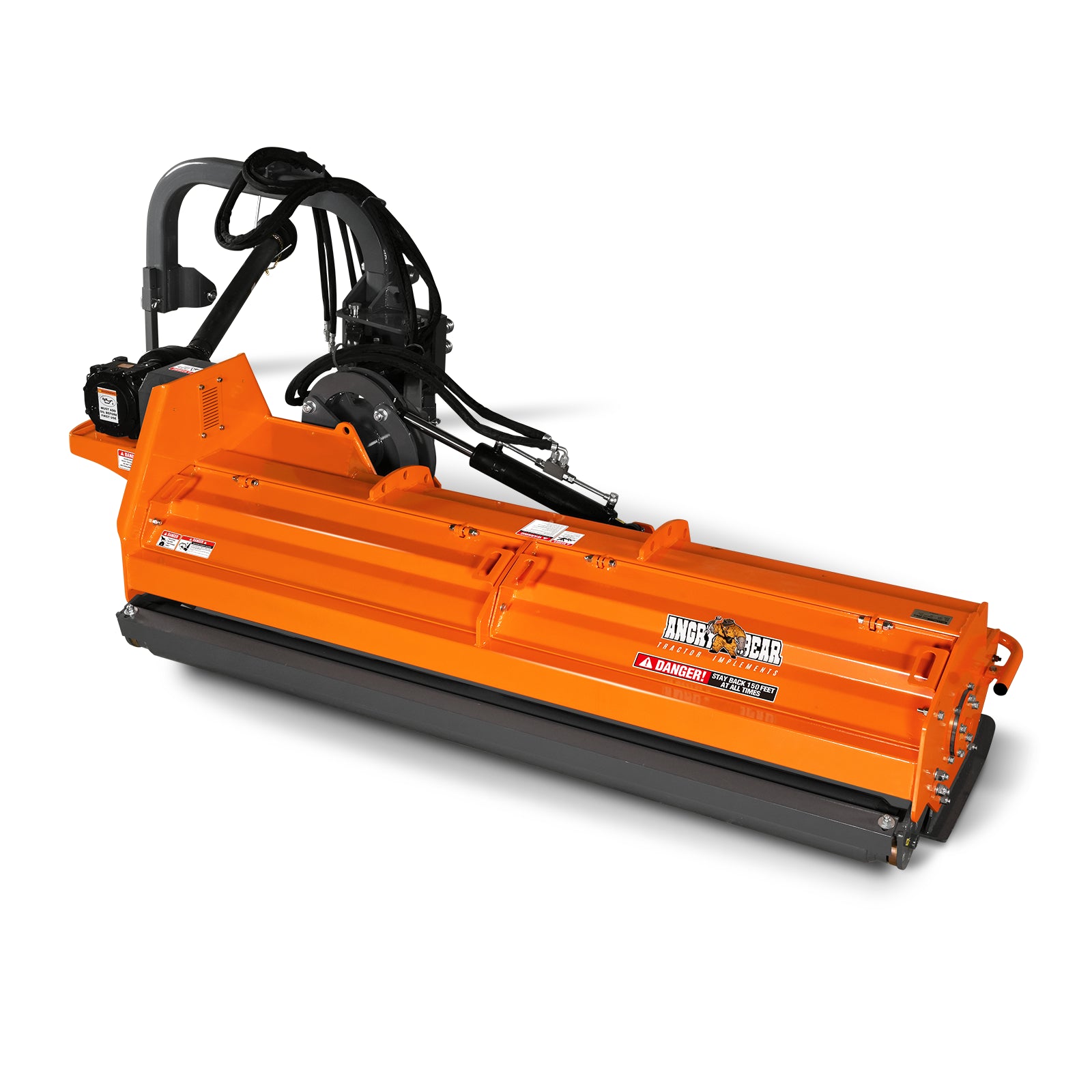

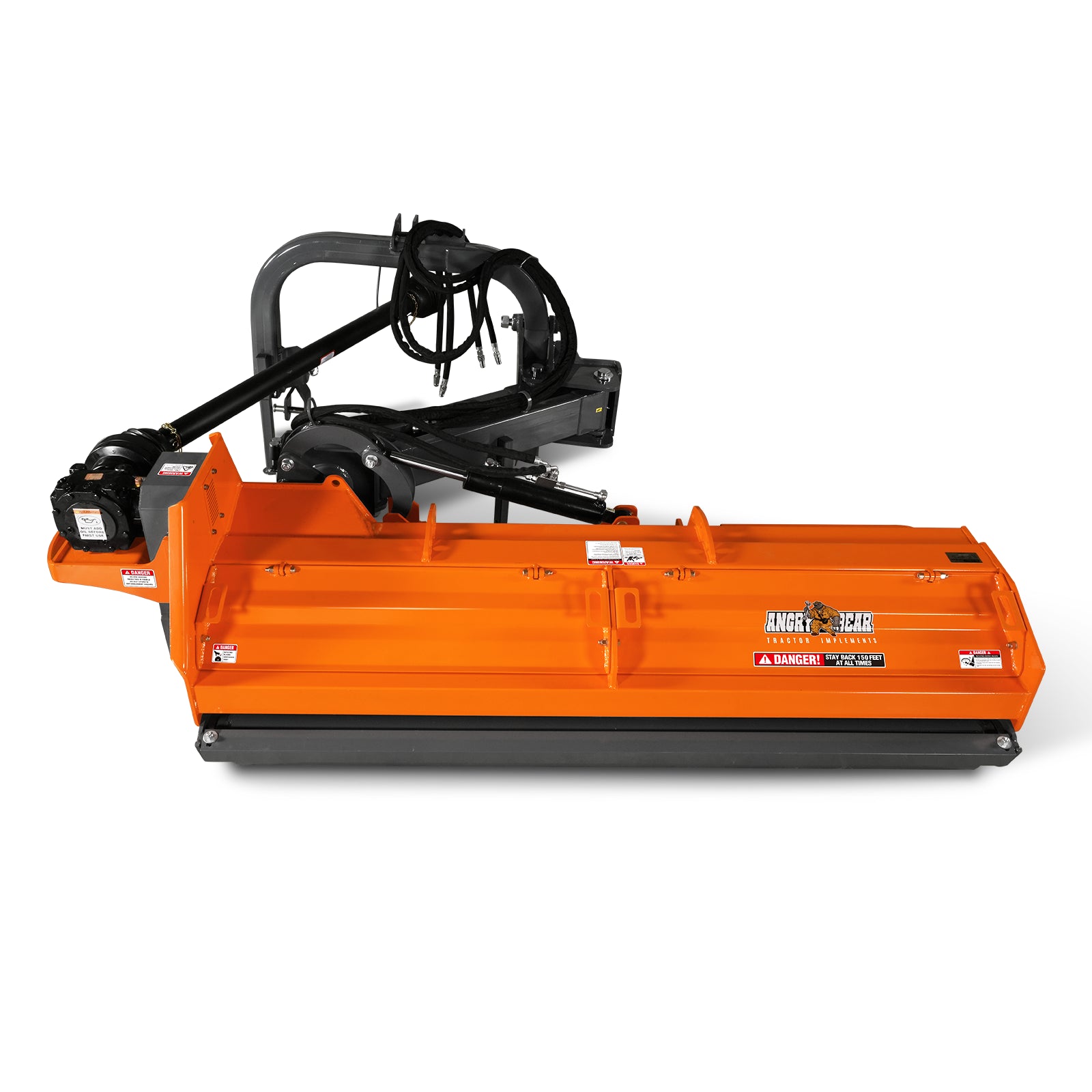

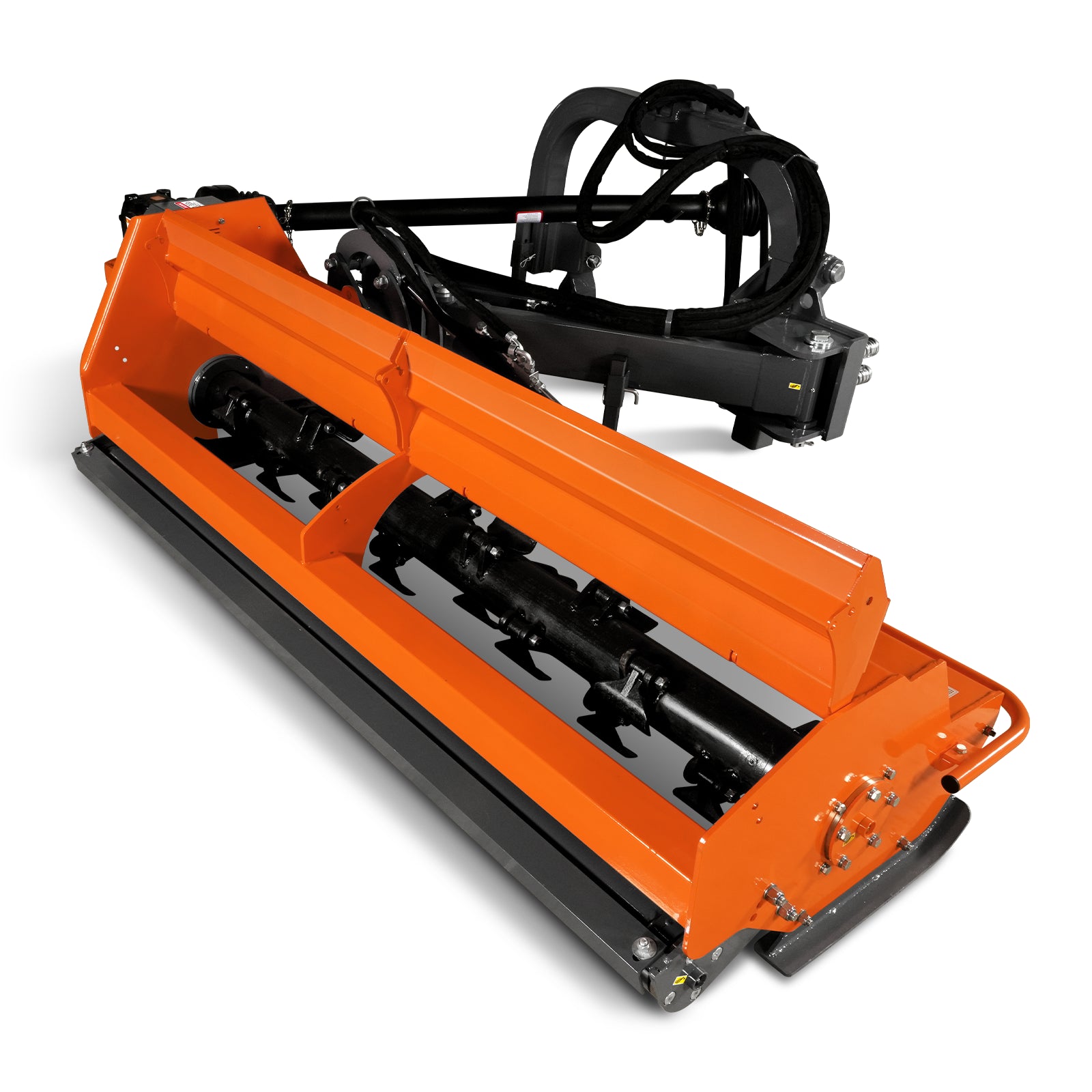

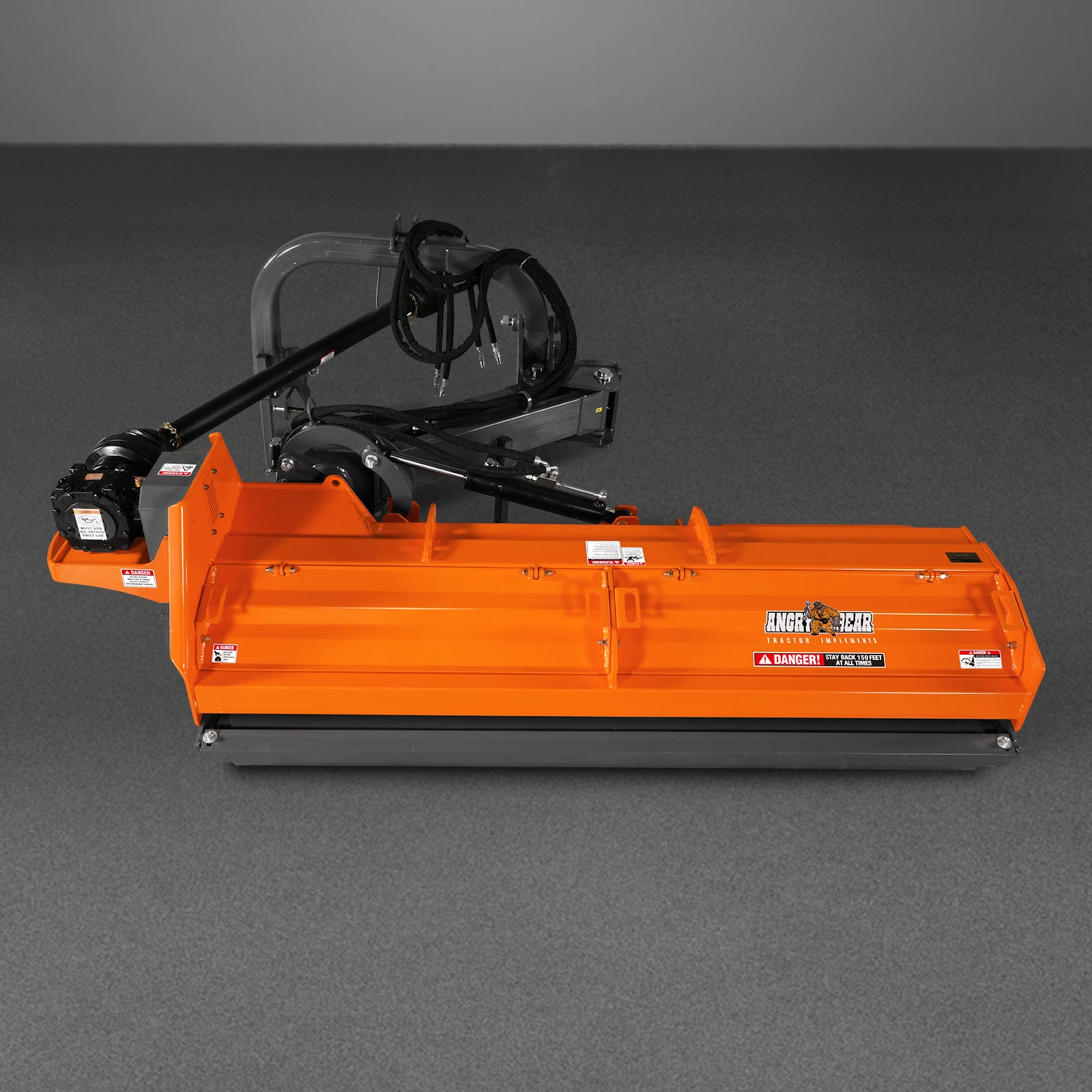

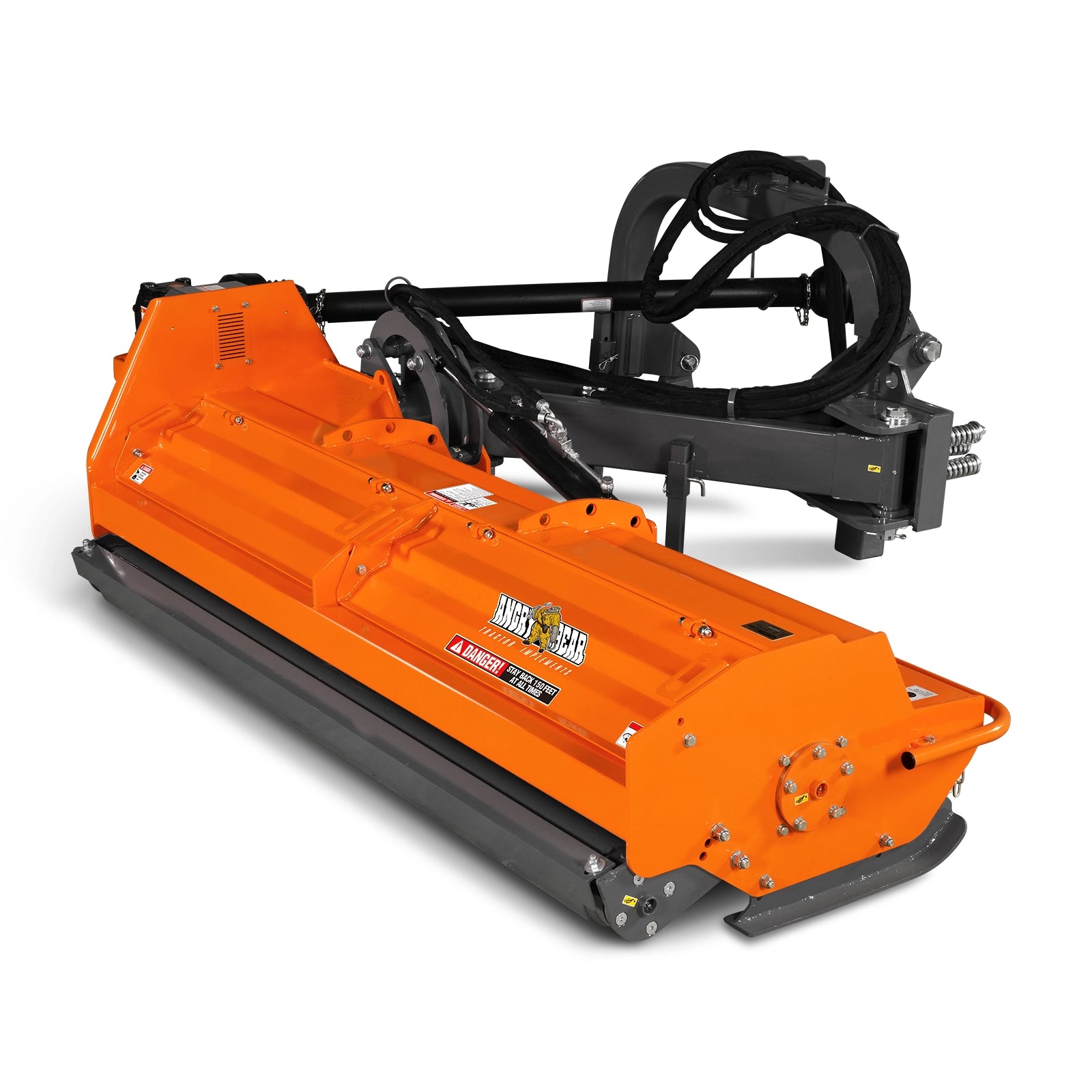

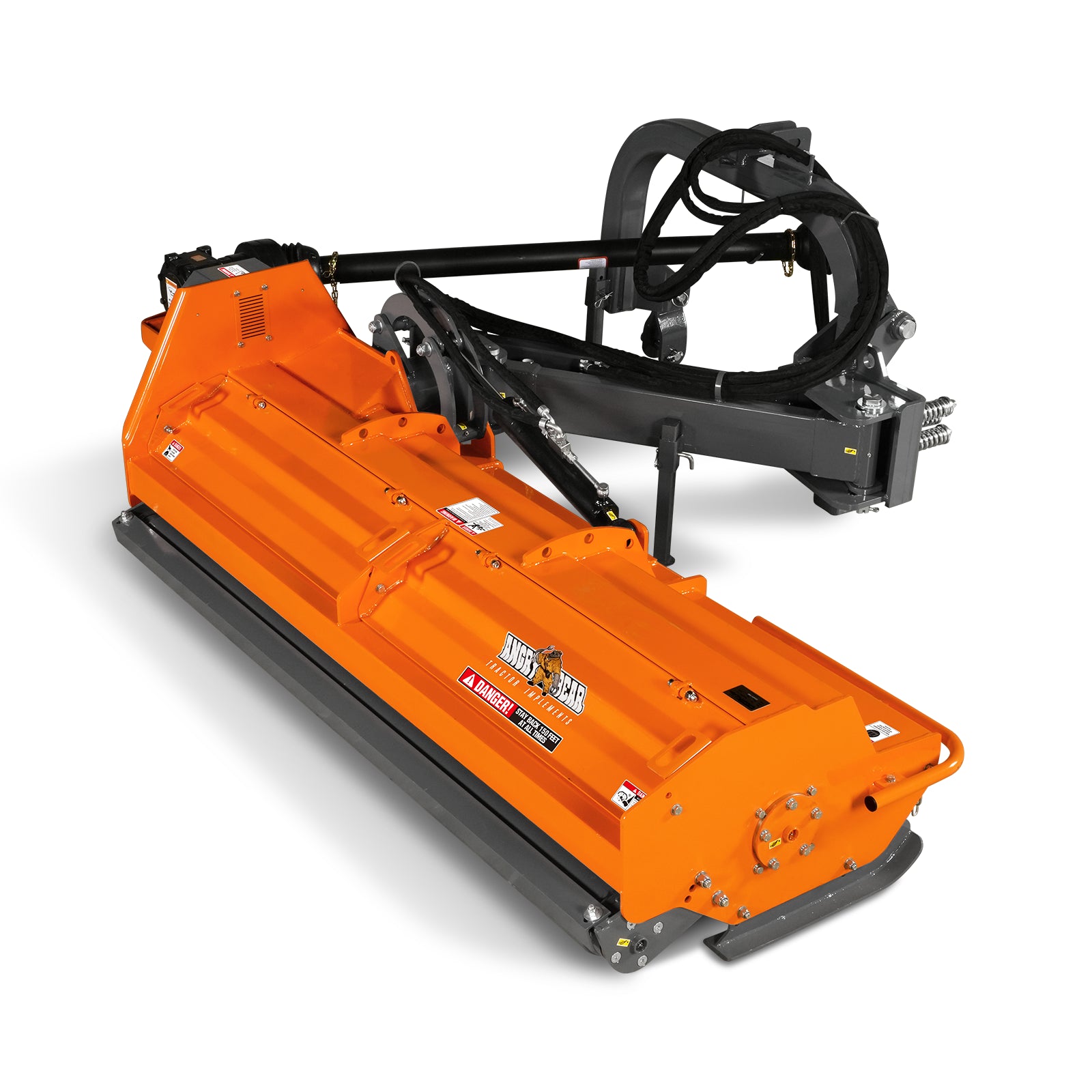

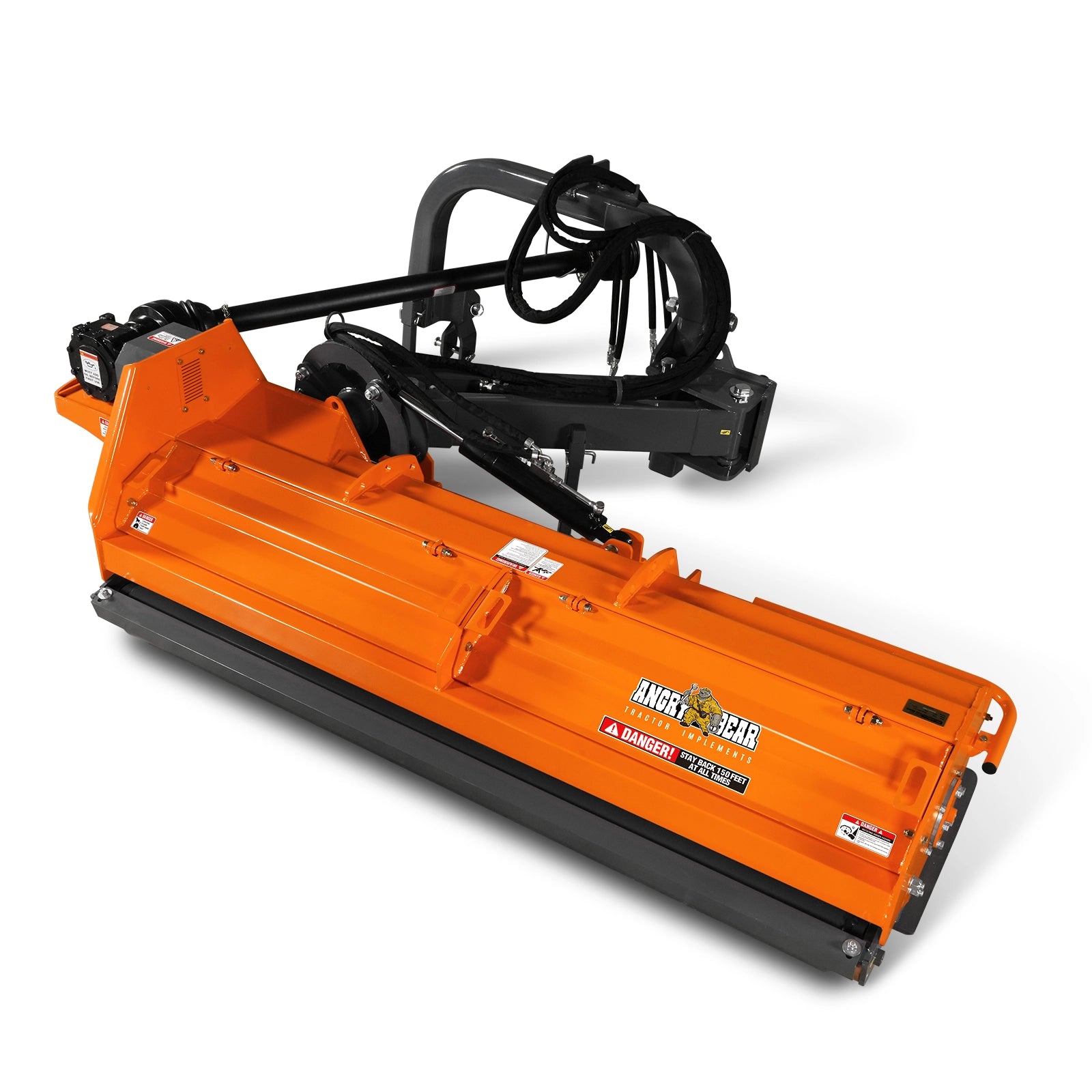

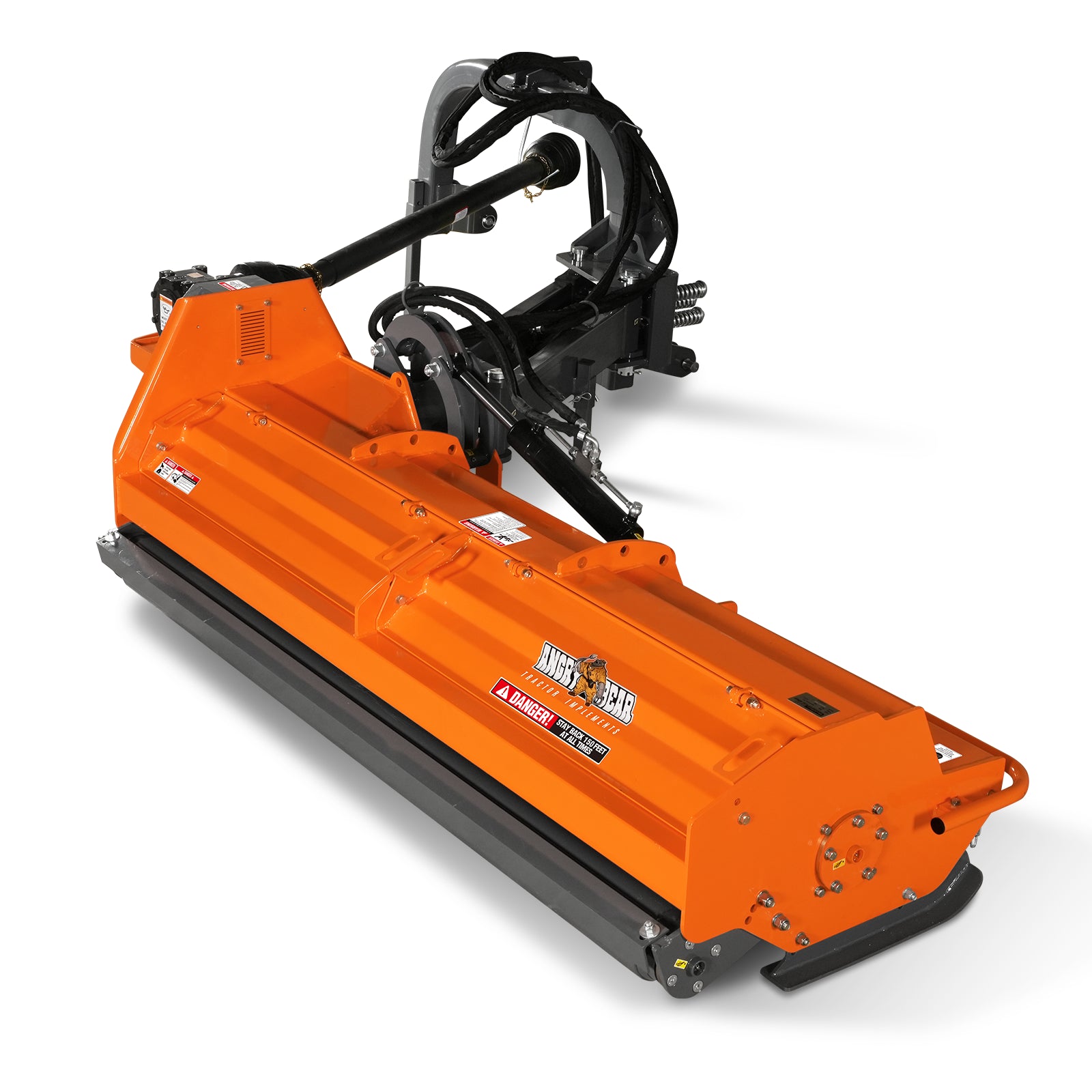

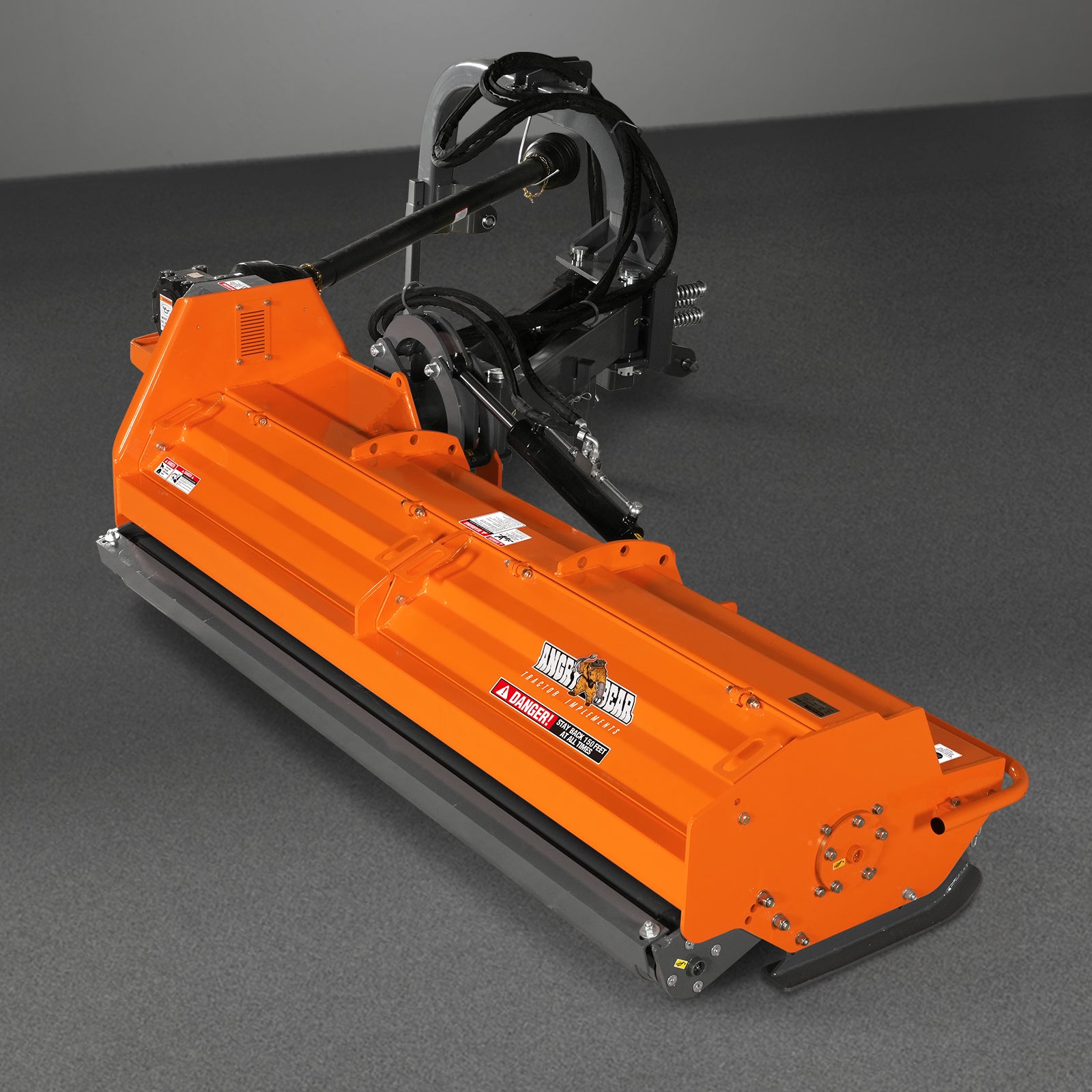

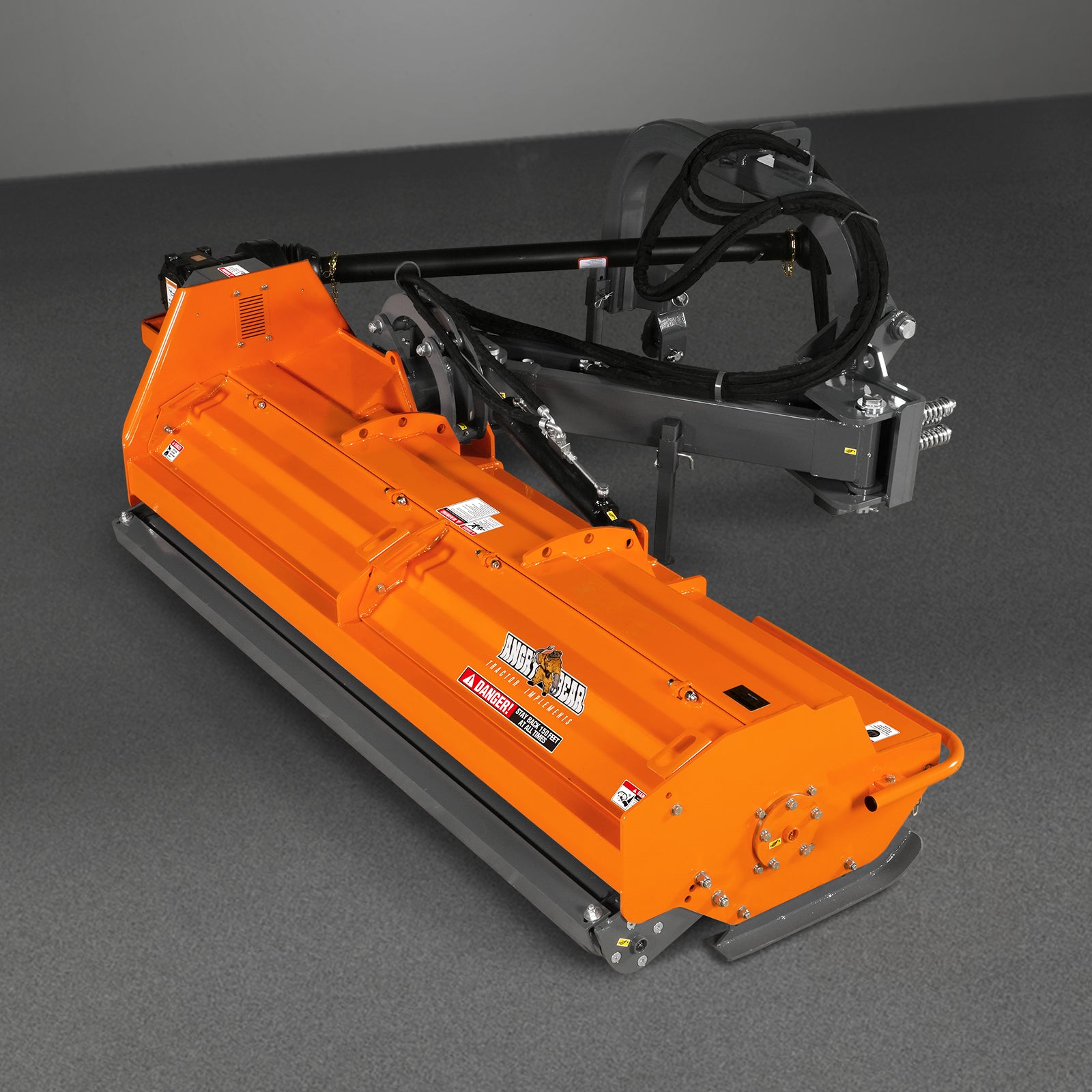

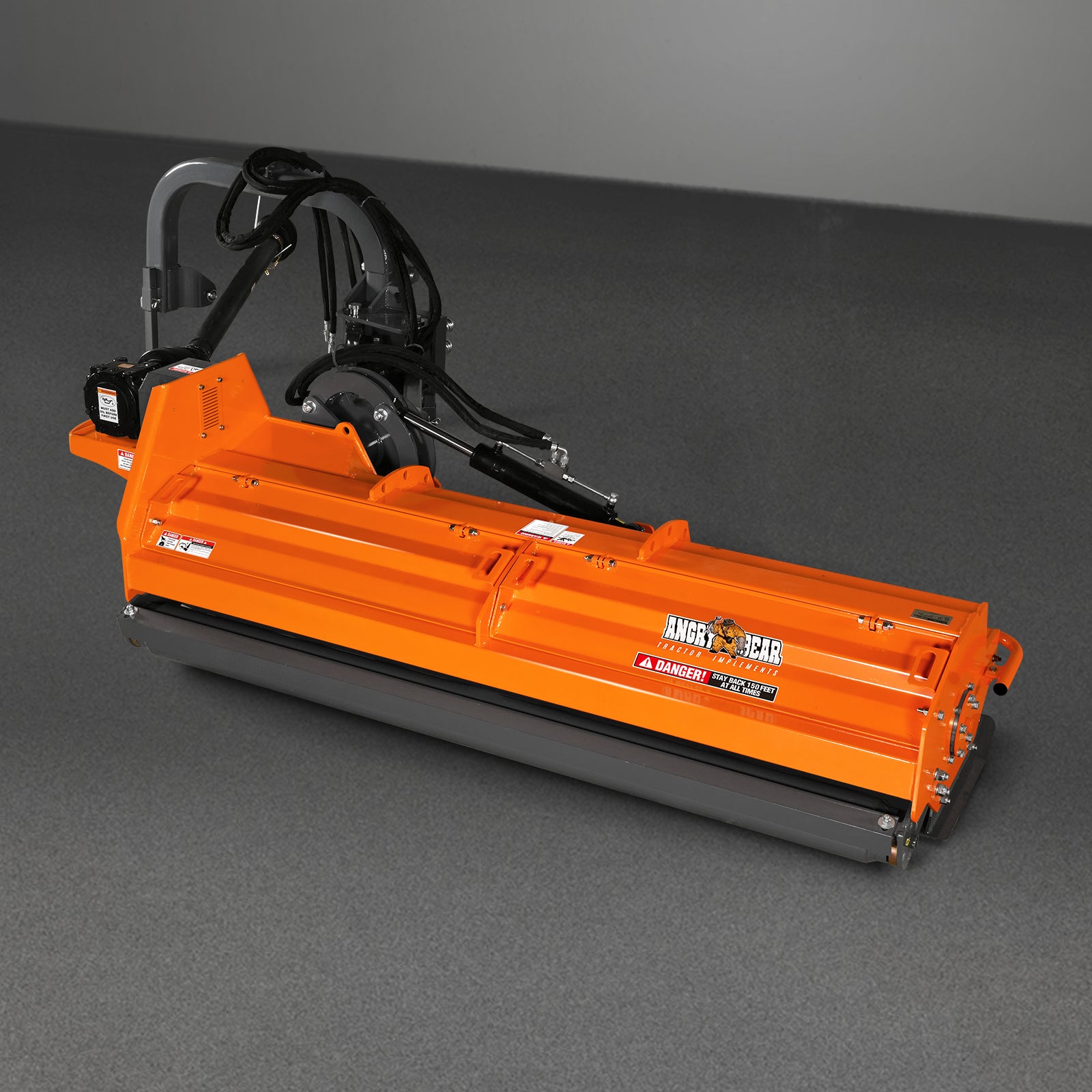

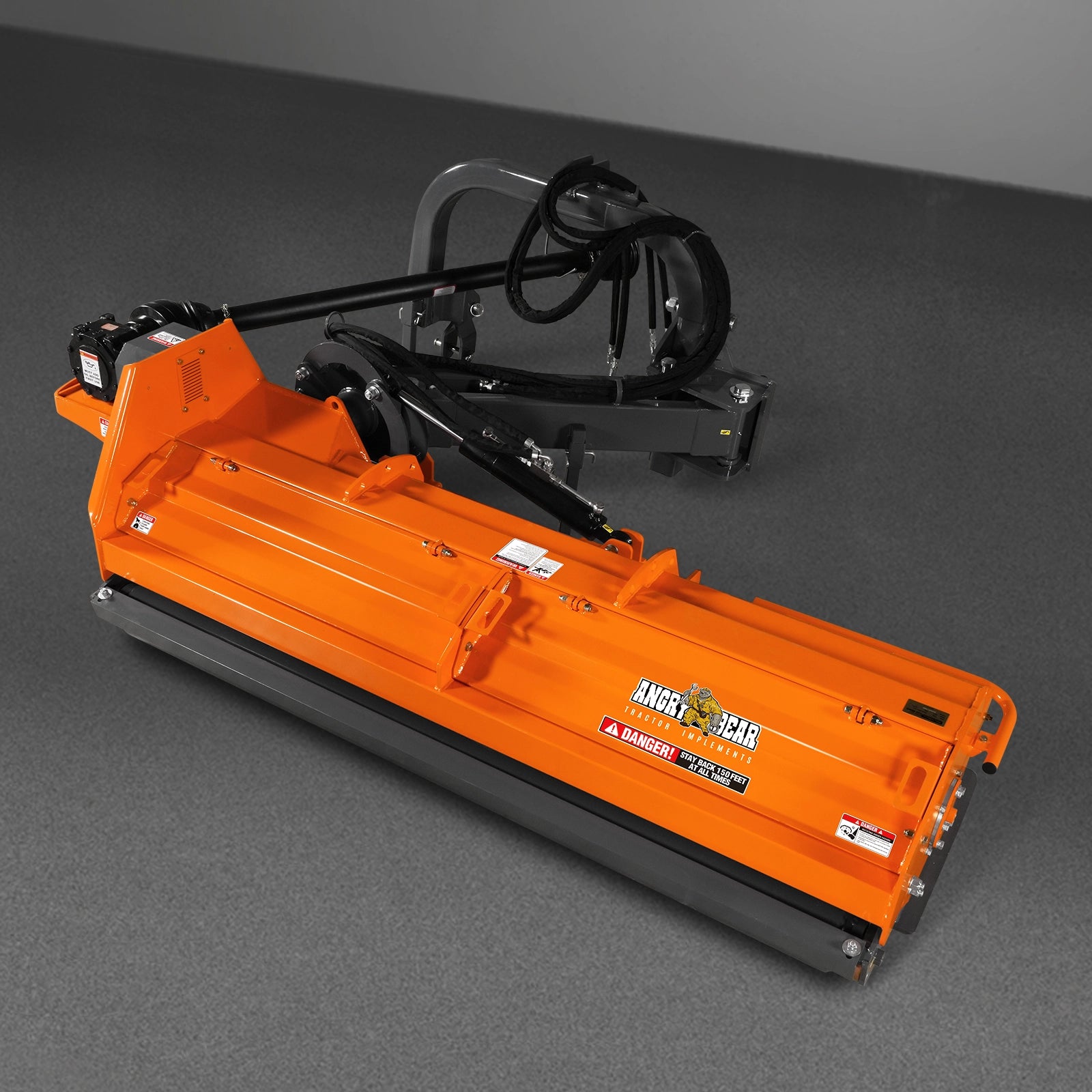

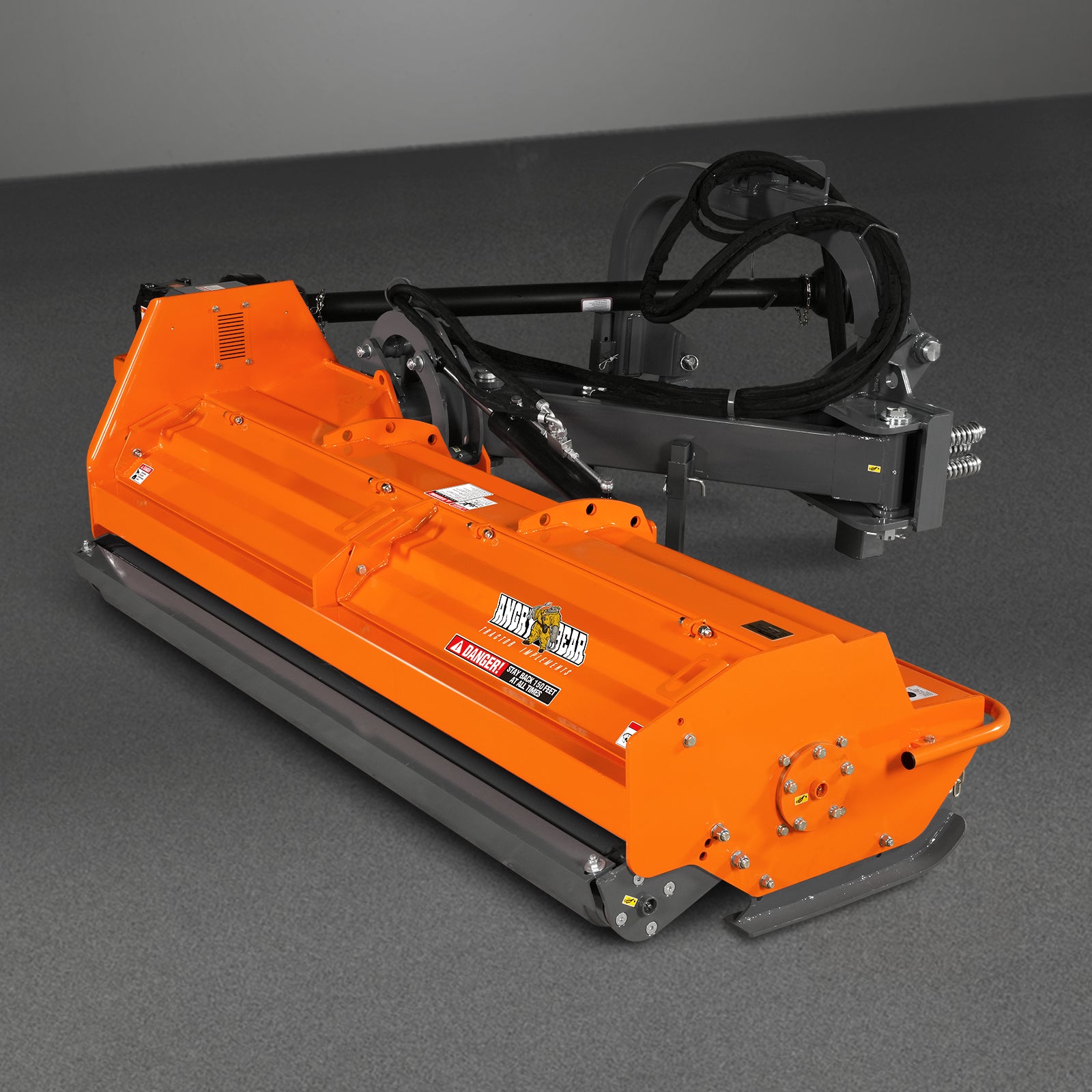

86" Heavy Verge 3Point Offset Flail Ditch Bank Mower, 90-120hp , VBM86

Name: 86" Heavy Verge 3Point Offset Flail Ditch Bank Mower, 90-120hp , VBM86
Brand: MechMaxx
SKU: 150204
Price: 5899.0 USD
Availability: InStock

BLACK FRIDAY SALES Ends in

Days : :

$589900

4 interest-free payments with Afterpay.

Free Shipping (Lift-Gate Included)

Details

Estimated to ship by 2024-12-03. Date is subject to change due to transit delays.

Details

Payment:

213-216-1759

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Missed our Black Friday call? Feel free to text us !

Frequently Bought Together

( 1 Pack / 4 Pcs ) Belt for AGF; VBM Flail Mower (SKU: 150202; 150203; 150204）

( 1 Pack / 8 Pcs ) Hammer for AGF; VBM Flail Mower (SKU: 150202; 150203; 150204）

86" Heavy Verge 3Point Offset Flail Ditch Bank Mower, 90-120hp , VBM86 $589900

( 1 Pack / 4 Pcs ) Belt for AGF; VBM Flail Mower (SKU: 150202; 150203; 150204） $5999 $169.99

( 1 Pack / 8 Pcs ) Hammer for AGF; VBM Flail Mower (SKU: 150202; 150203; 150204） $6999 $129.99

Total Price

$

Product Overview

Made in Italy CMR gearbox
Compatible with 90-120 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities
86” of working width for time-saving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards
Blade rotor shaft driven with four drive belts and protective guards provide forceful energy transfer and safe working output
Heavy-duty, industrial frame built of quality, commercial grade metal will stand up to long working days for many years to come
Mounting plates to reduce vibration inconsistencies while also reducing overall wear and tear
Long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease
Strong enough to tackle tangled growth and vegetation of all kinds for the reclamation and upkeep of once useable areas
Produces consistent, nicely sized mulch that distributes evenly out the back with no need to extra, unnecessary clean up
PTO driveline shaft included for easy hook up to your tractor and allows you to draw power directly from its engine

Note: The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.

Product manual (PDF)

VBM Mower Product manual 1.0.pdf

Product Features

•86 in working width for time-saving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards

•This mower can keep your mowing area as short as possible with 20 number of blades.

•Compatible with 90-120 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities.

Rotation Angle

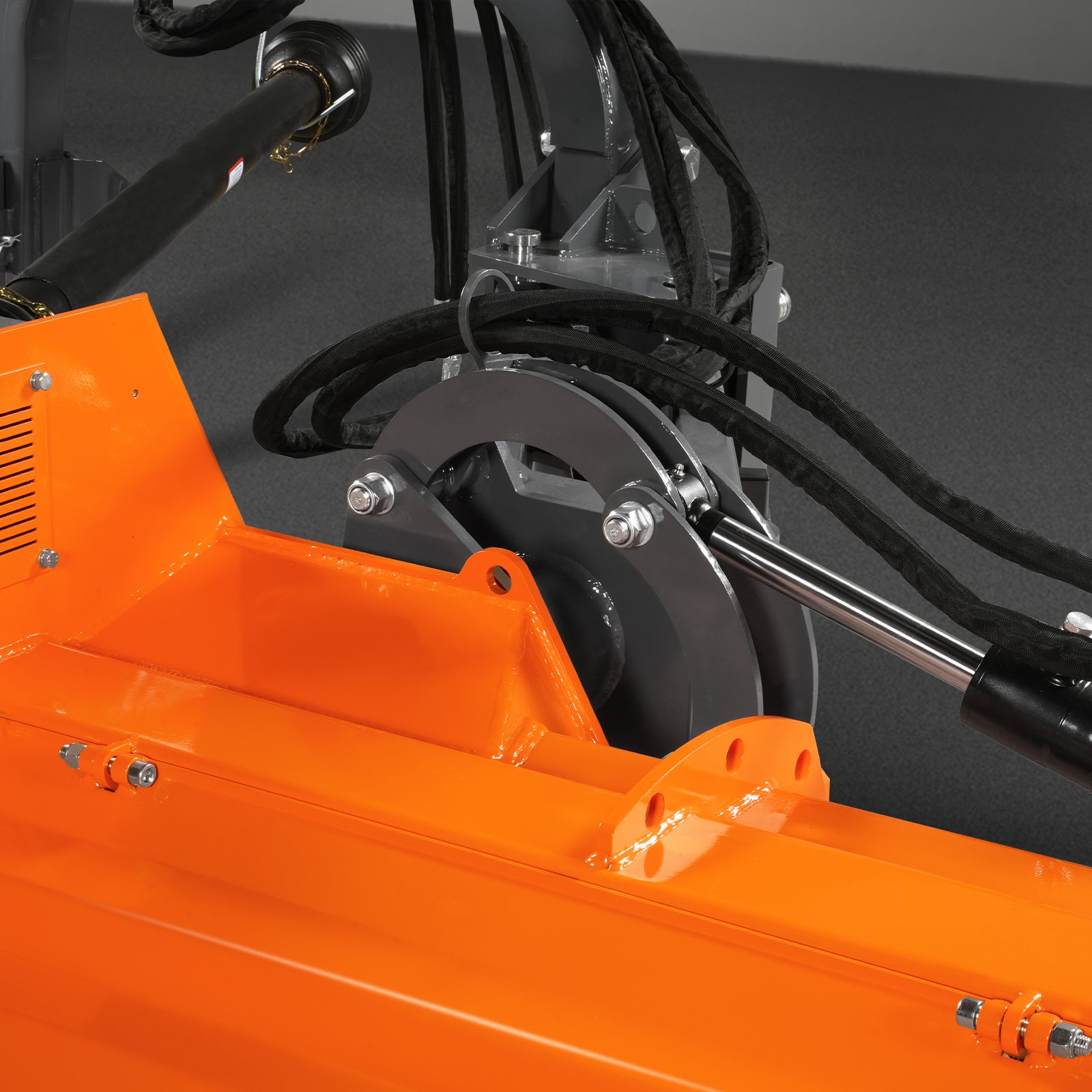

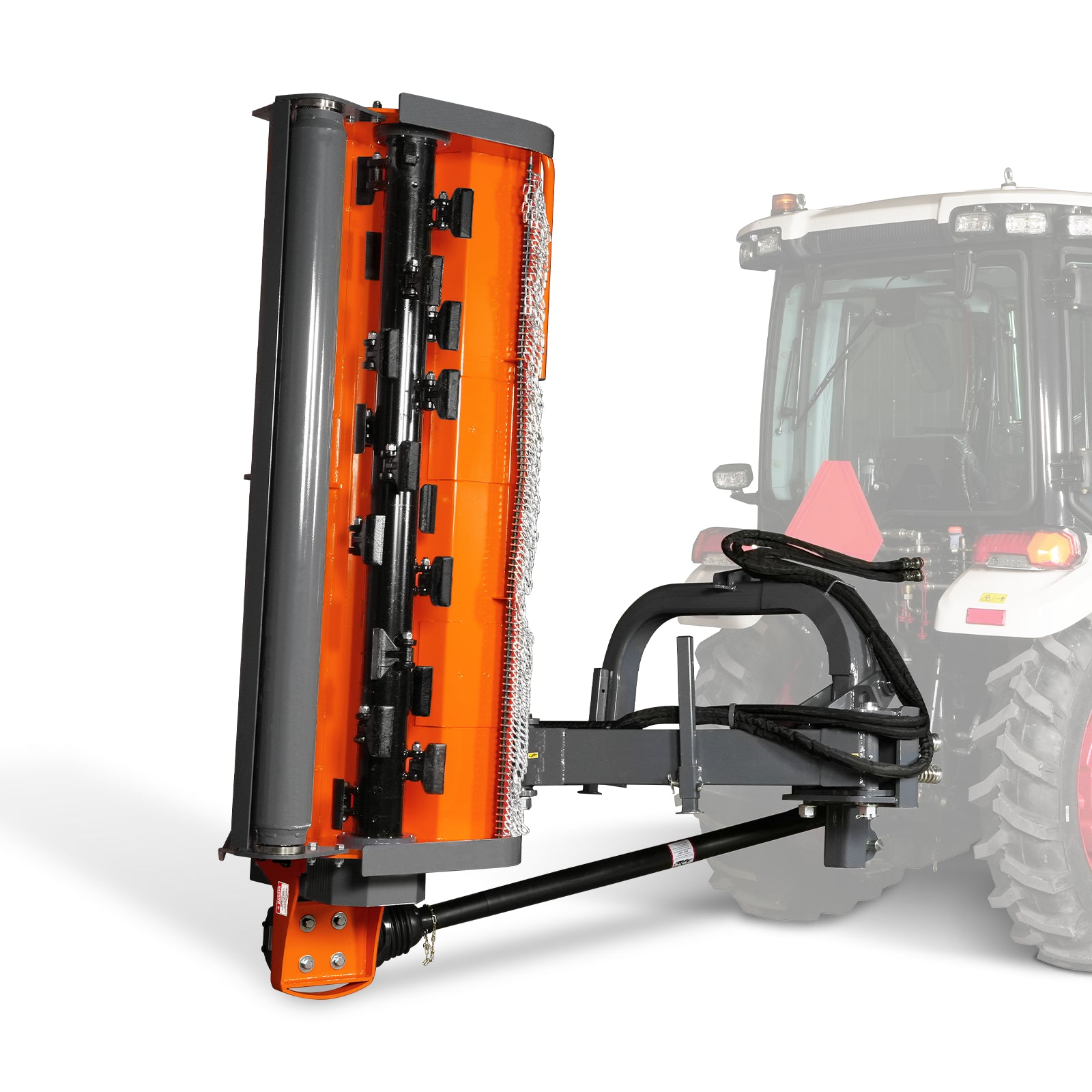

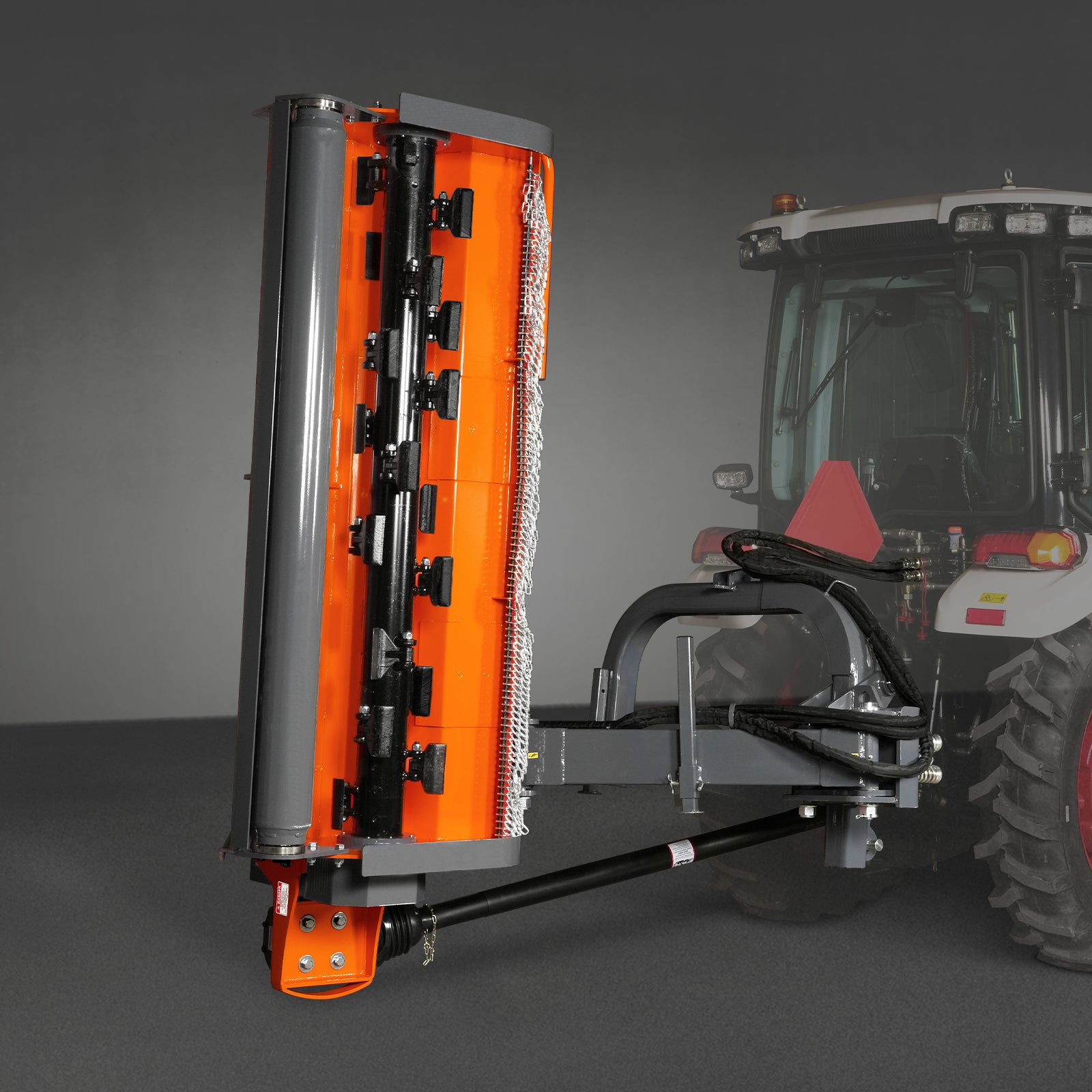

Hydraulically controlled with 55°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities.

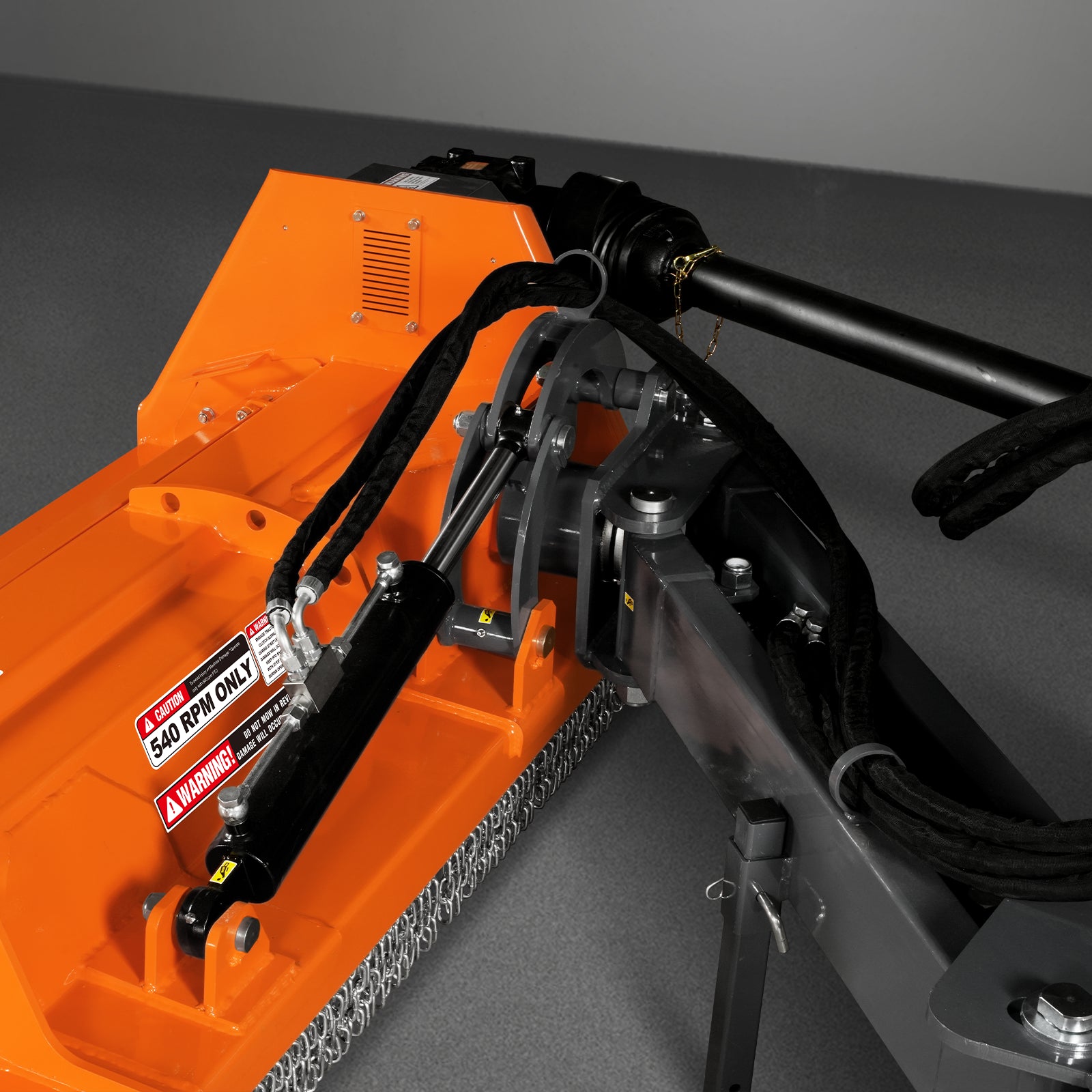

Side Movement

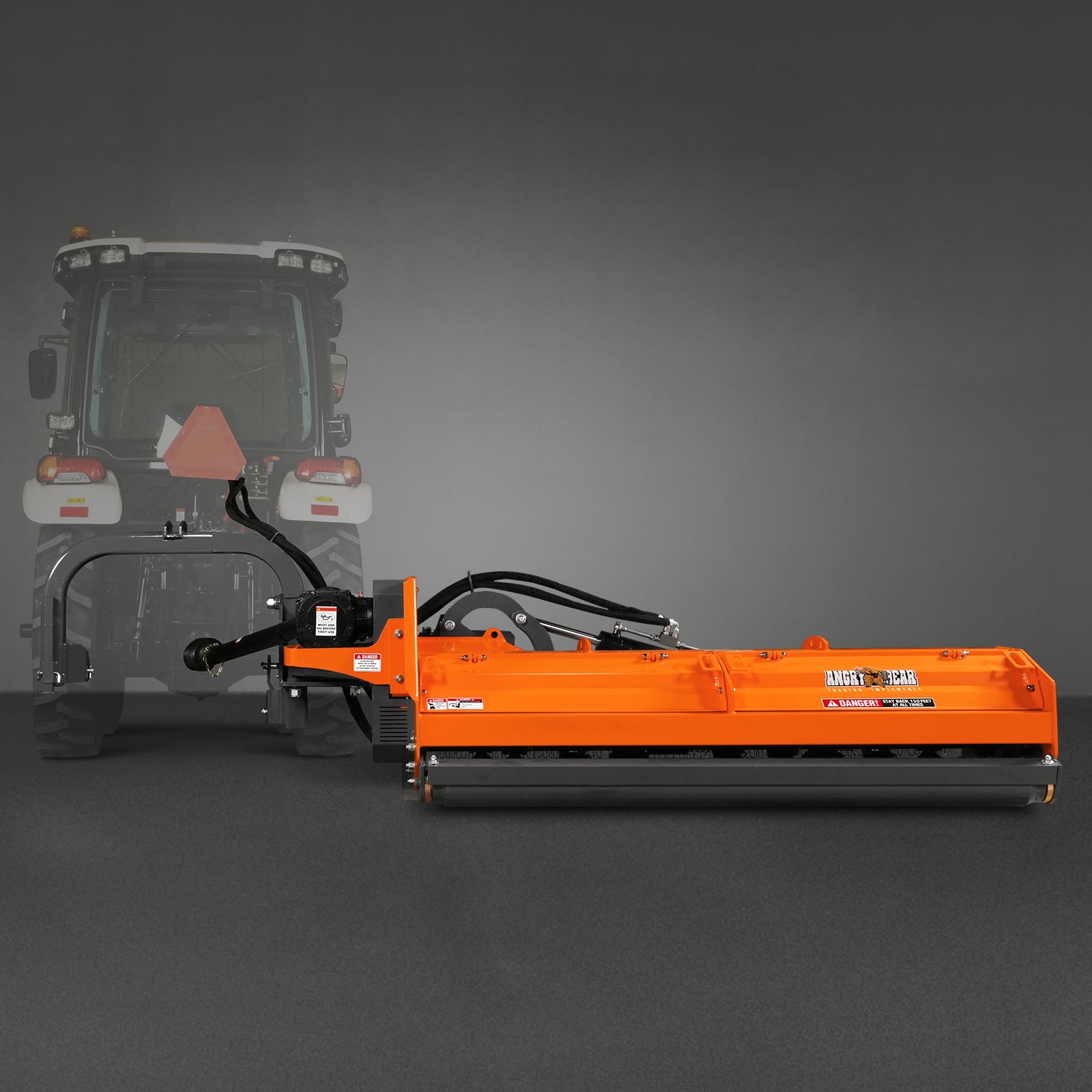

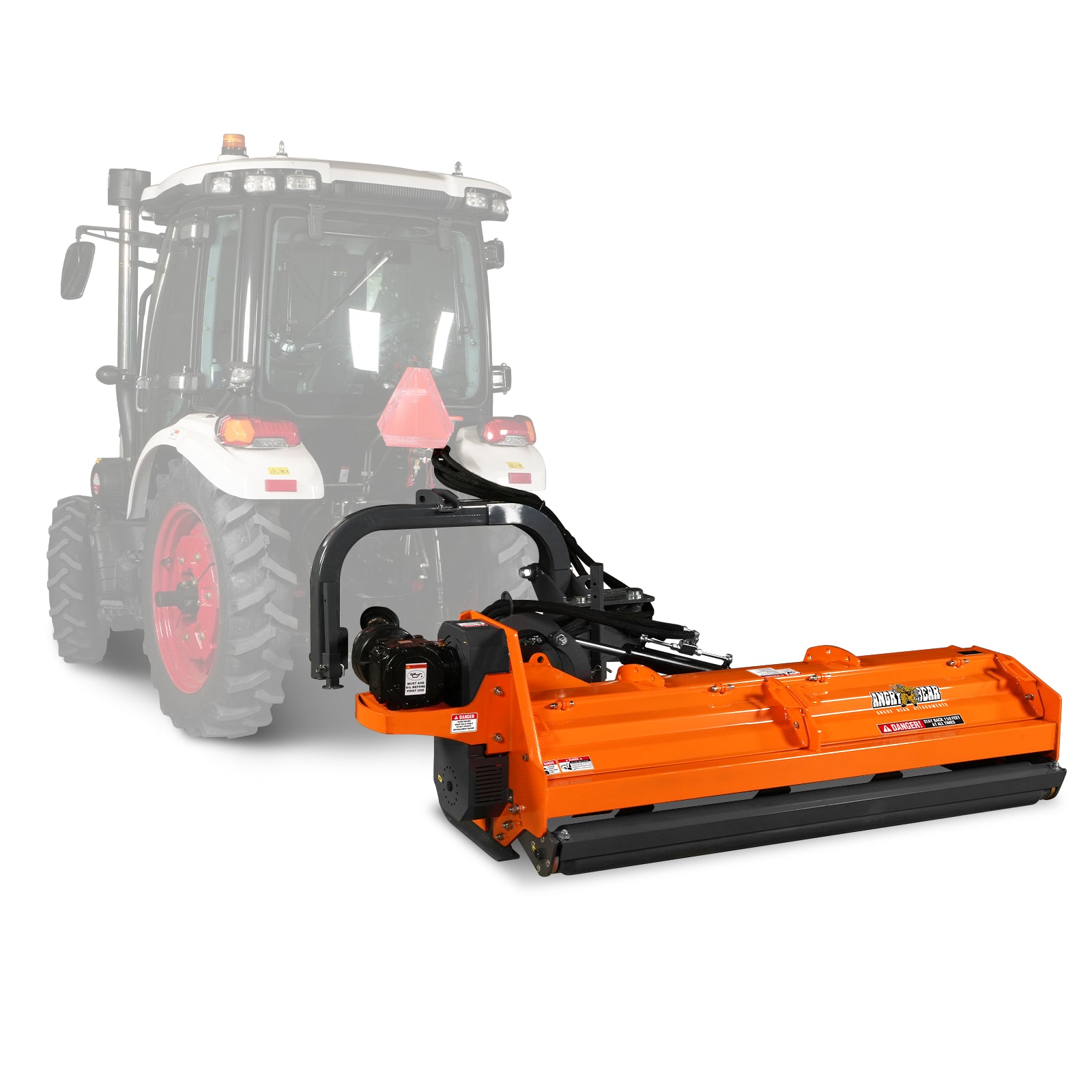

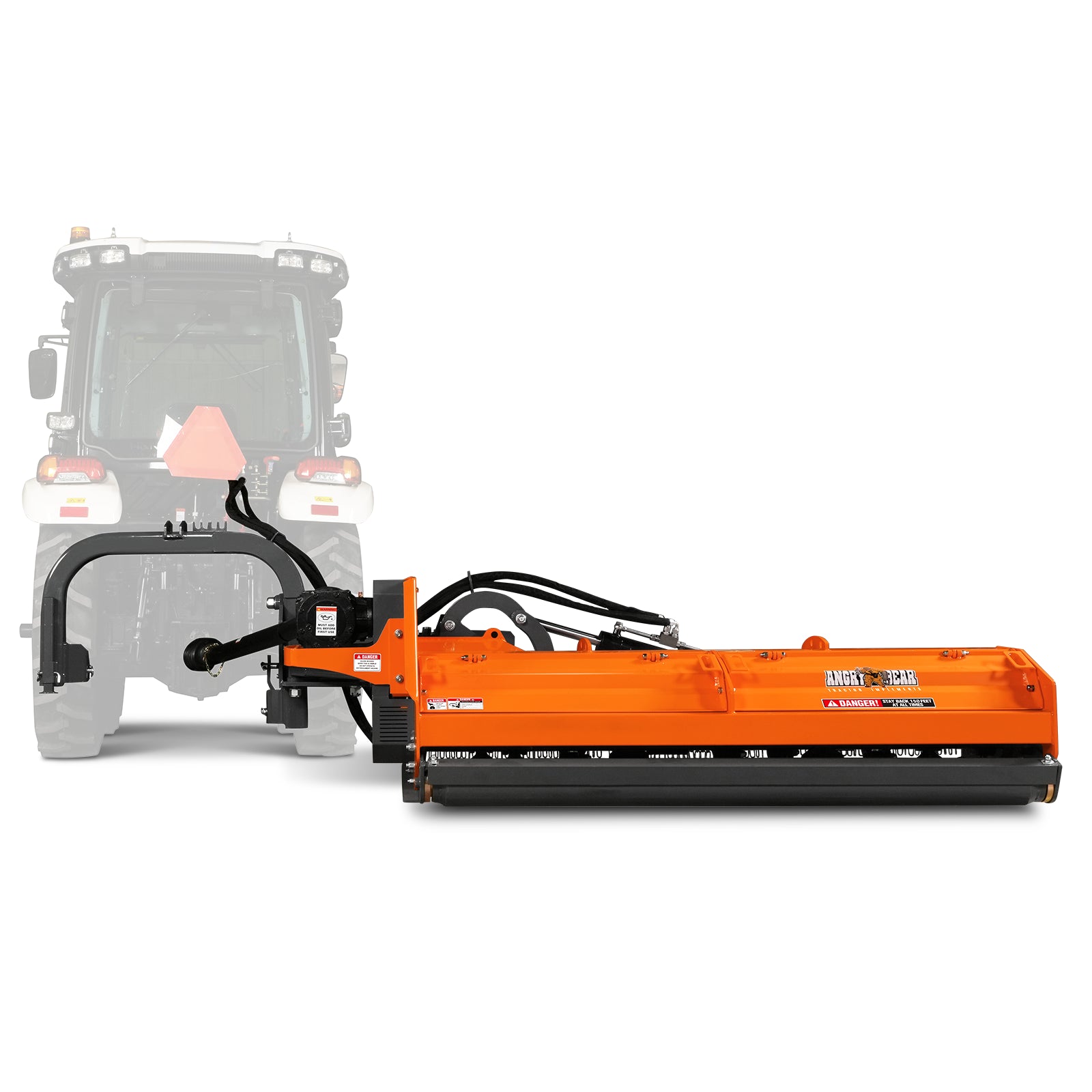

Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.

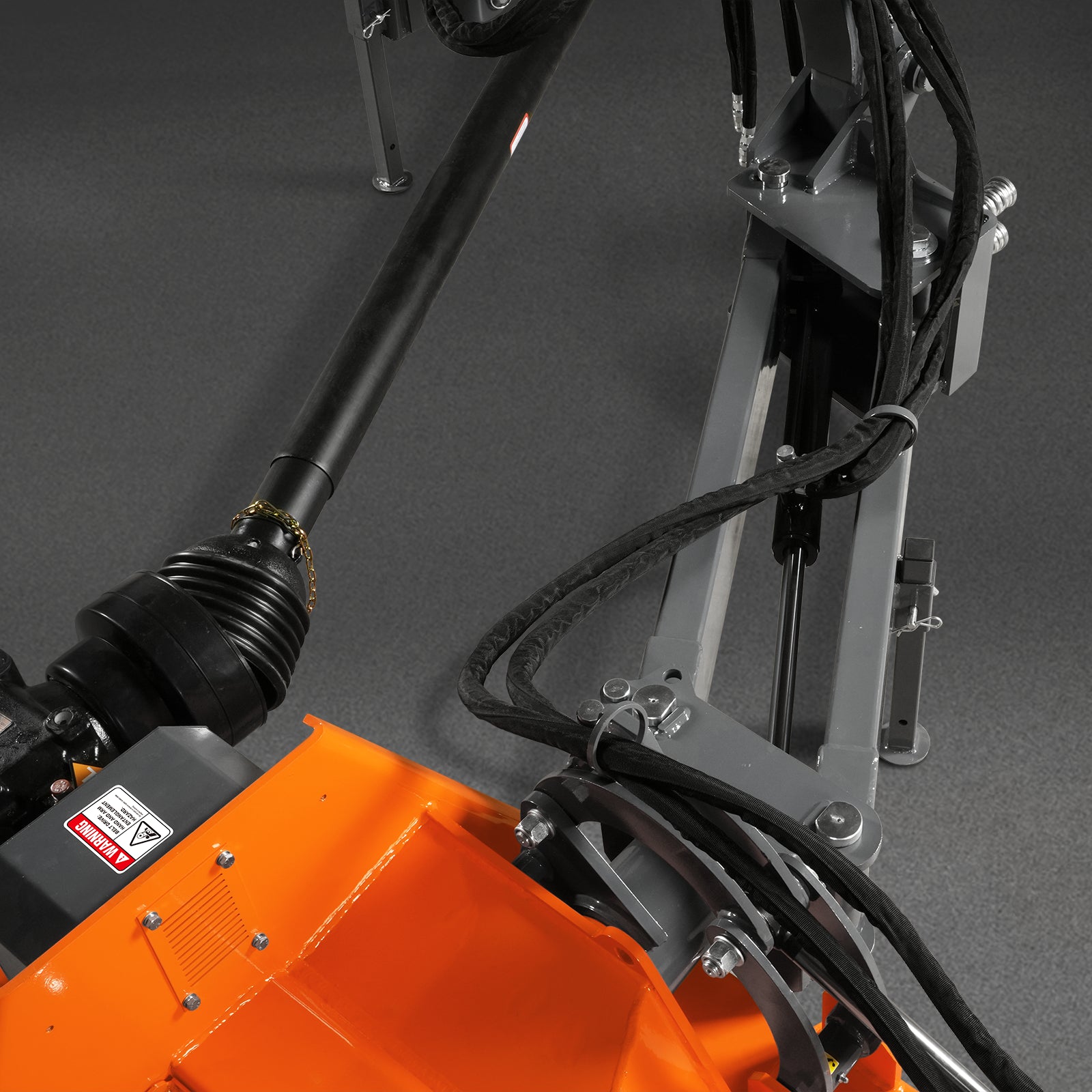

PTO shaft(1- 3/8’’ Z6)

Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T6-LF-73 With Shear Bolt ; 73in-126in

CMR Gearbox

High-quality CMR bearings from Italy transmits motive power to the various other components of the machine.

SKF Shaft Bearing

We use SKF shaft bearings made in Sweden. The high-quality bearings of this type are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly.

Outside Rotor Bearing

The bearings of the VBM mower are external, which is convenient for user maintenance and later repairs.

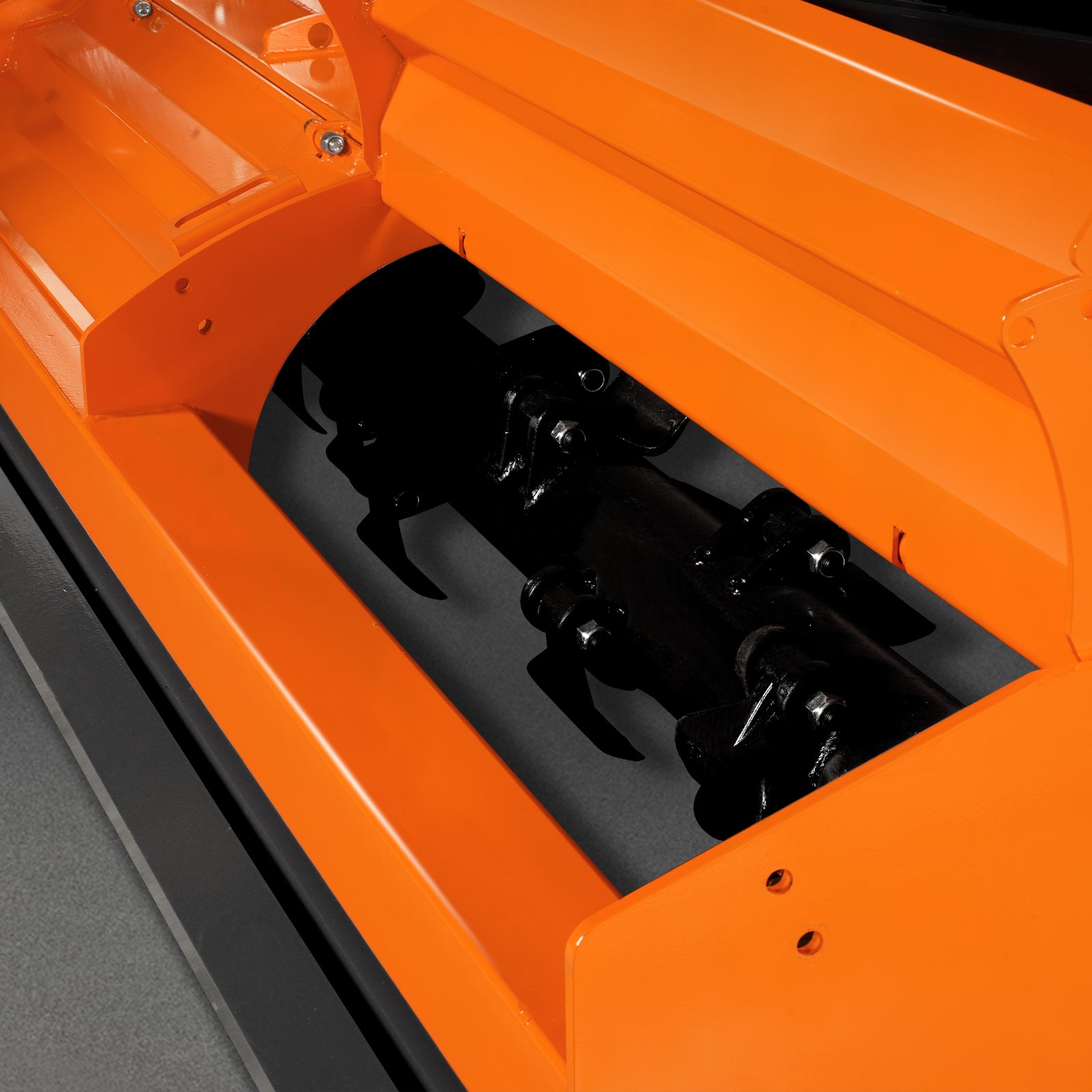

Openable Back Cover

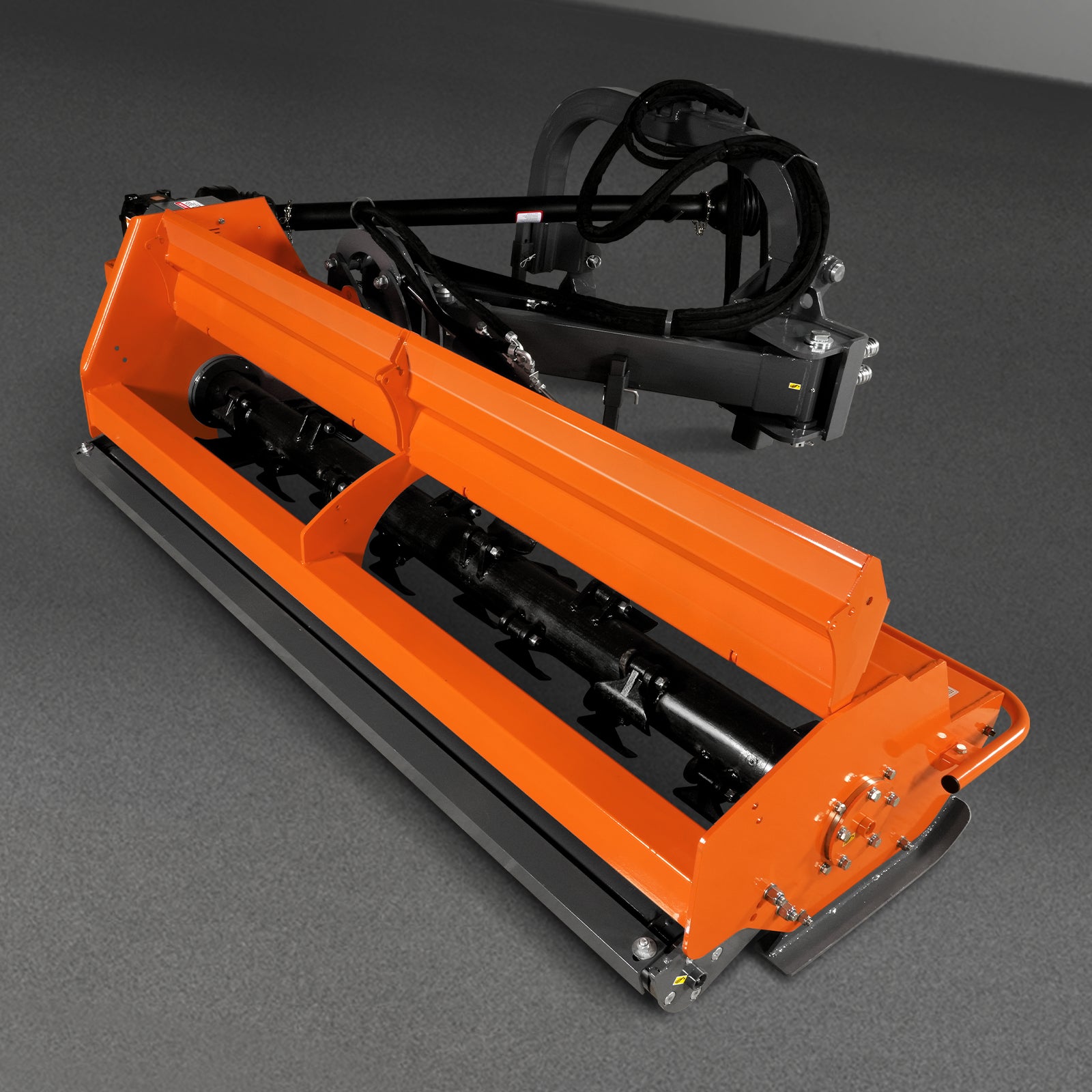

The VBM mower has an openable rear cover for easy replacement of the blade and clearing of blockages. The thickened shaft can improve mowing efficiency.

Anti-collision Bar

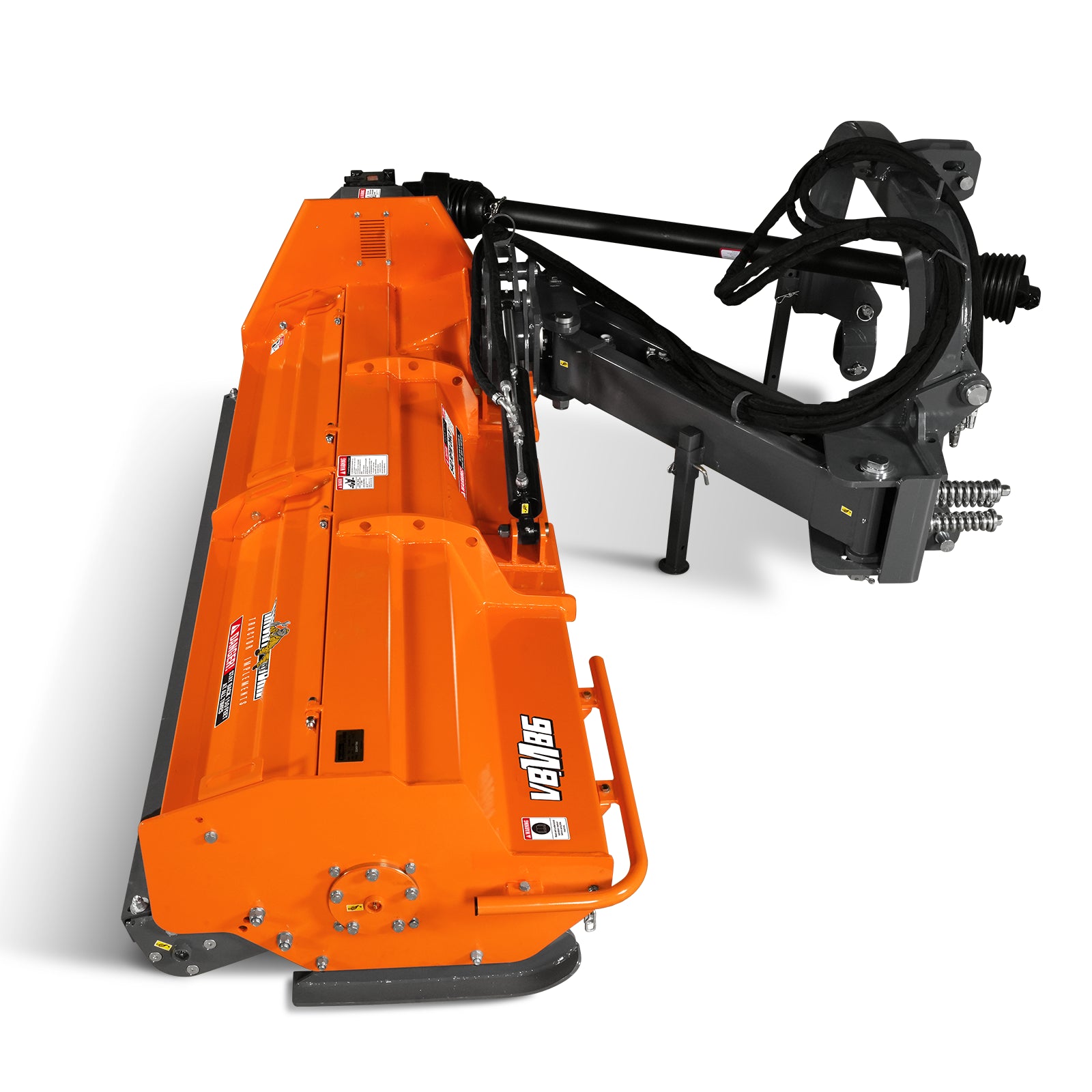

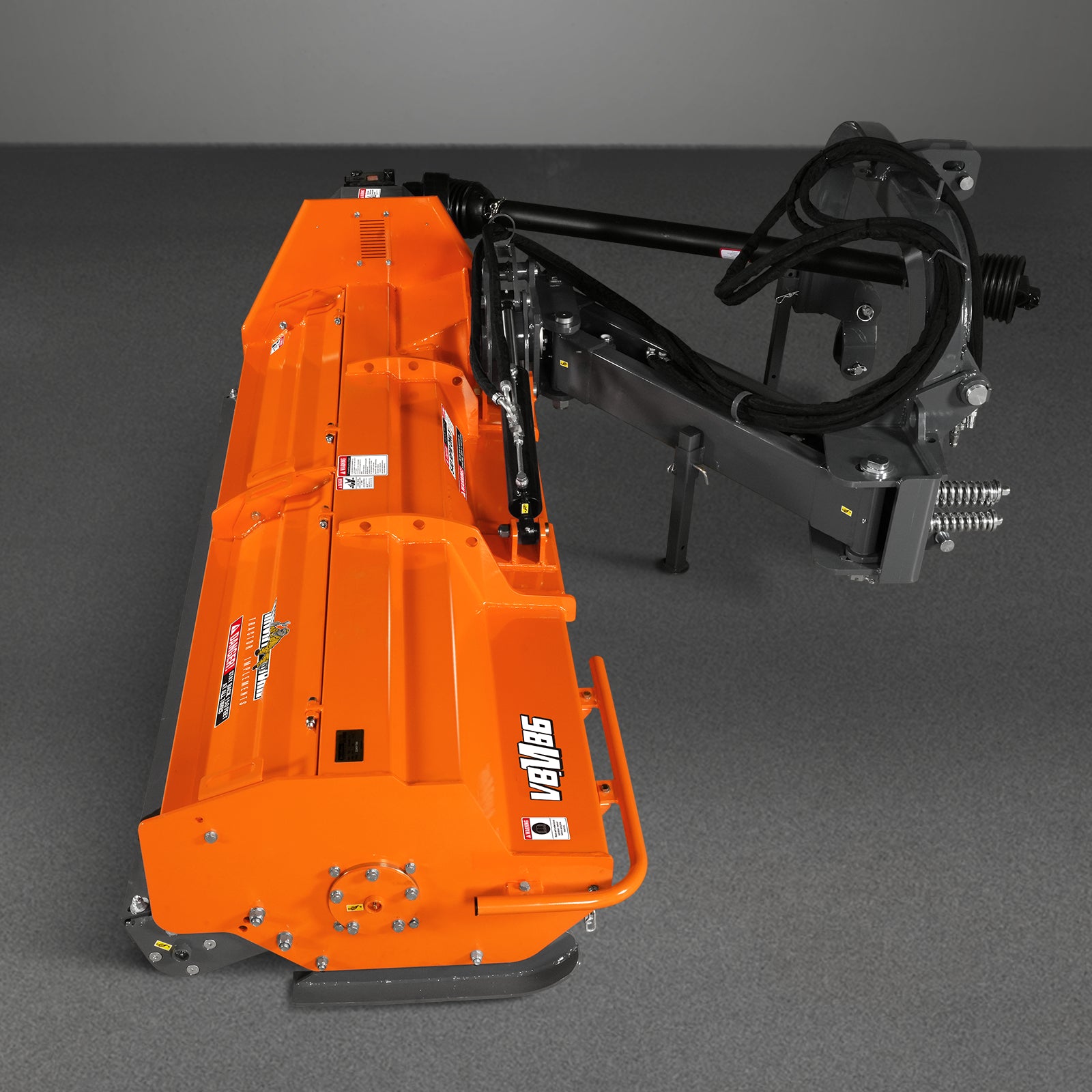

The anti-collision bar can protect the machine and prevent the mower from hitting hard objects such as stones and tree stumps.

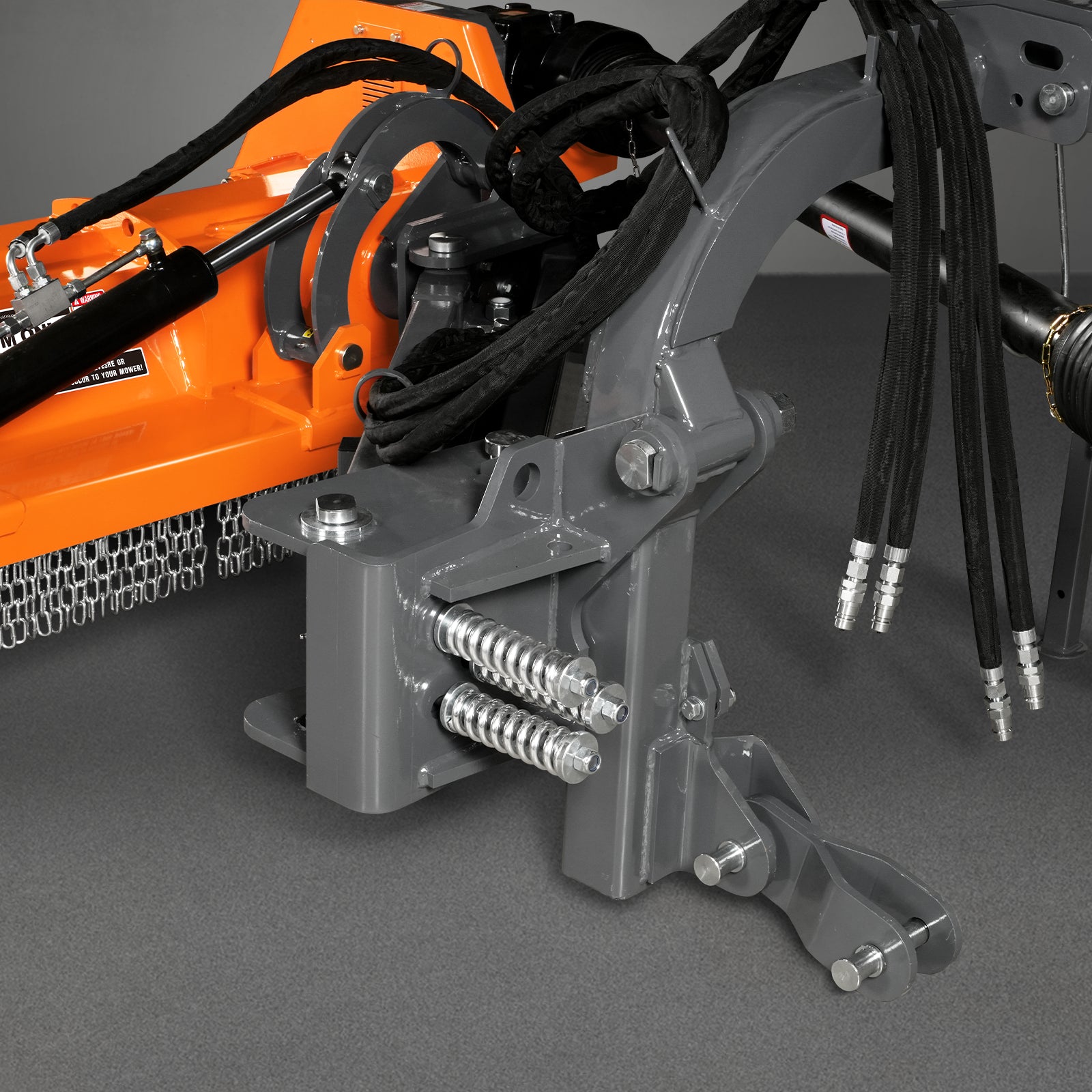

Anti-shock With Spring

Anti-shock With Spring can act as a buffer to protect the machine from damage when it collides with hard objects.

Power Required	90-120 Hp	Belt Adjustment	Bolt Tightening
Working Width	86 in	Working Efficiency450 cu.ft./Hr.	450 cu.ft./Hr.
Overall Width	101 in	PTO Shaft Speed	540 rpm
Blade Ground Clearance	0.5 in-2.6 in	Deck Thickness	2 in
Max. Cutting Diameter	6 in	Side Plate Thickness	0.25 in
Offset Distance from The Center (Maximum)	130 in	Driveline Shaft Length	T6-LF-73 With Shear Bolt ; 73in-126in
Tilt-Up Angle	90°	Spline End	1.375in Z6
Tilt-Down Angle	55°	3-Point Hitch	CAT 2
Number Of Blades	20	Gearbox 0il Type	85W-90
Number of Belts	4	Finish	Powder Coating
Blade Type	Hammer	Warranty	1 Year
Blade Weight	2.6 lbs	Shipping Box	109 X 41 X 31in
Blade Material	Cast Steel	Weight (N.W./G.W.)	1909 /2121 lbs
