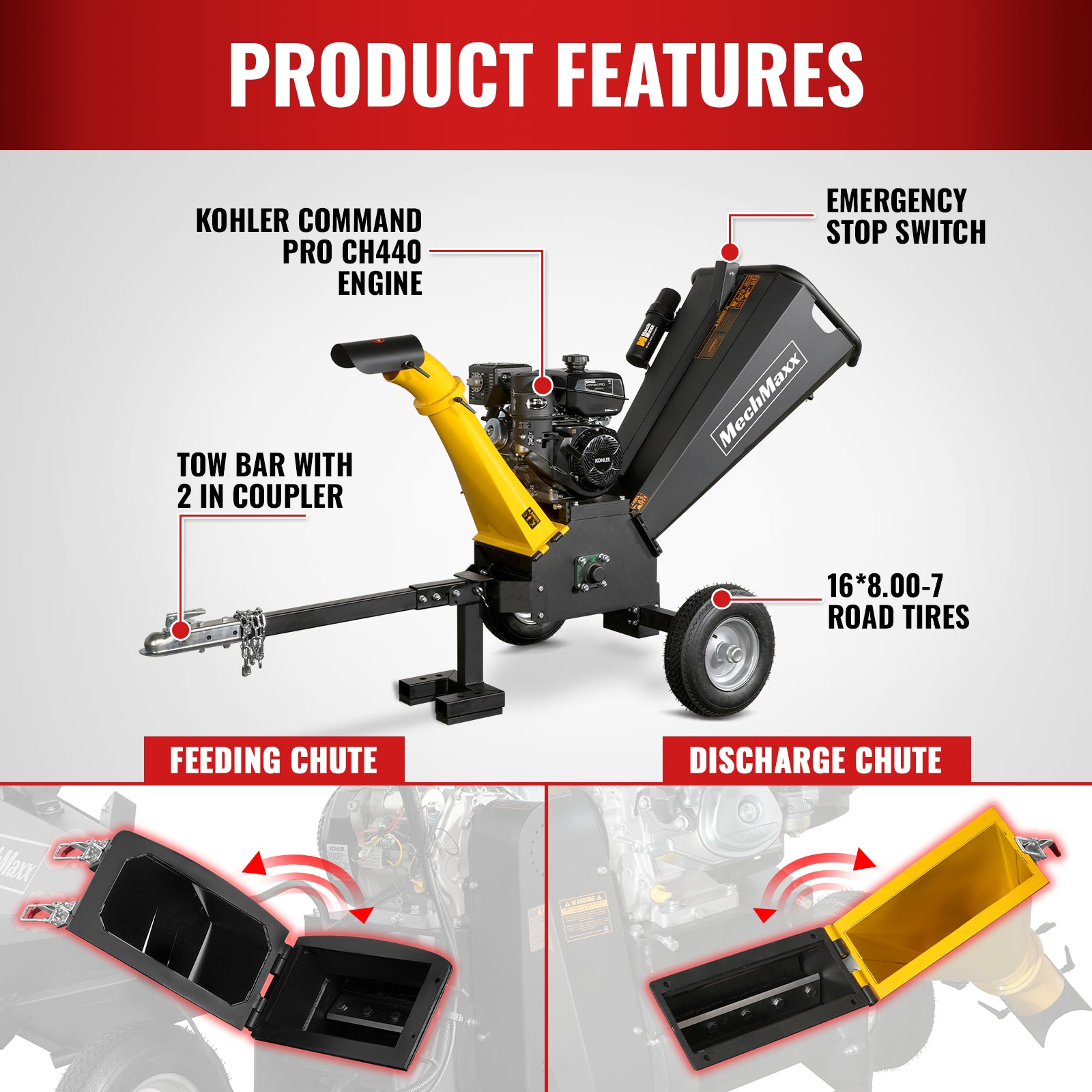

Engine
|
KOHLER Command Pro CH440 |
Blades Type |
Double Edge Blade |
Certification(S) |
EPA Phase III, CARB Phase III |
Discharge Chute |
360 Degree Rotating |
Engine Type |
Single Cylinder, 4 Stroke, Air-Cooled, OHV |

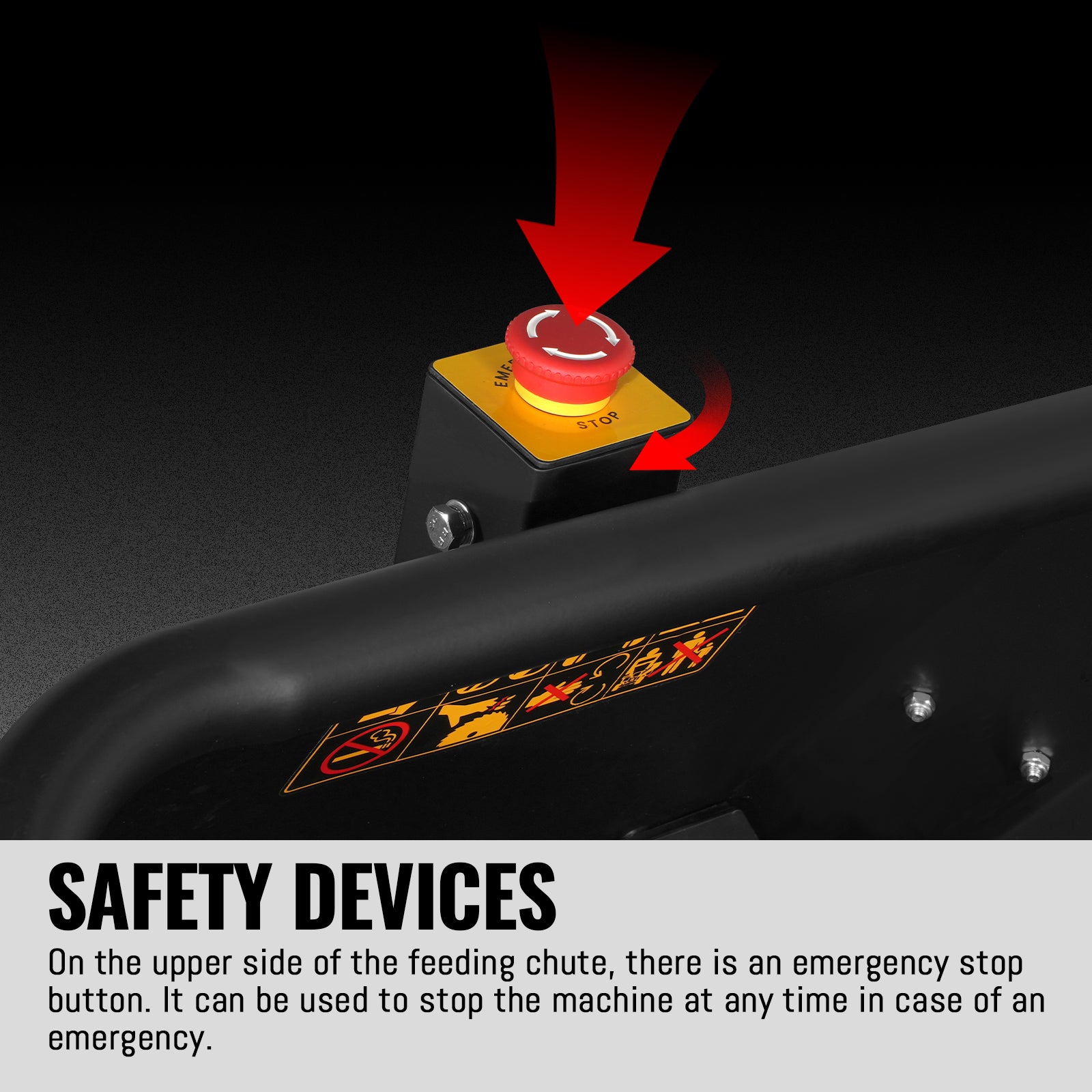

Emergency Stop |
Stop Button |
Displacement |
429 cc; 14 HP |
Feed Chute Opening Method |
Hinge |
Start |
E-Start |
Discharge Chute Opening Method |
Hinge |
Battery |
12V 20Ah Lead-Acid |

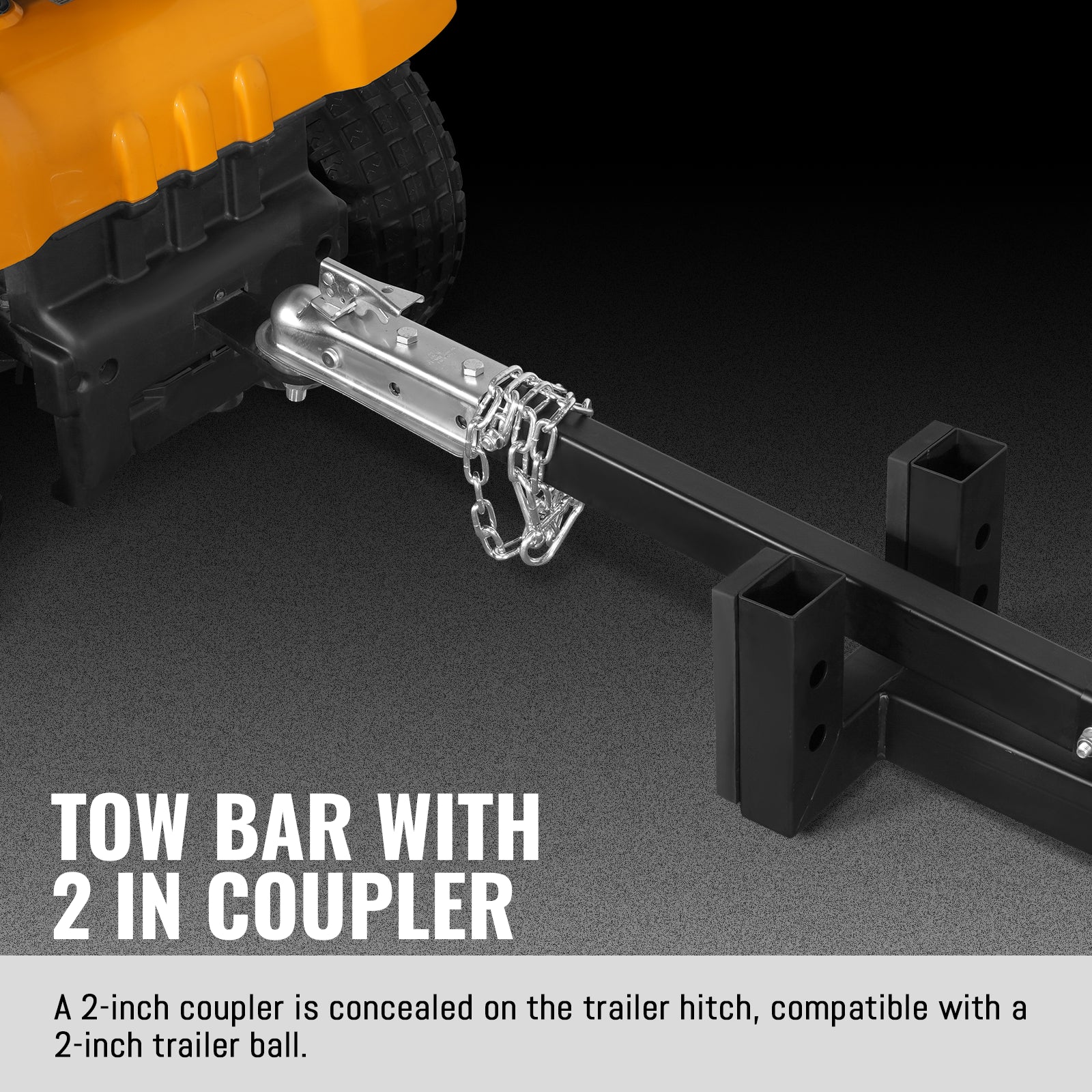

Towing |
Tow Bar With 2 in Coupler |
Belt |
2 x V-Belts |

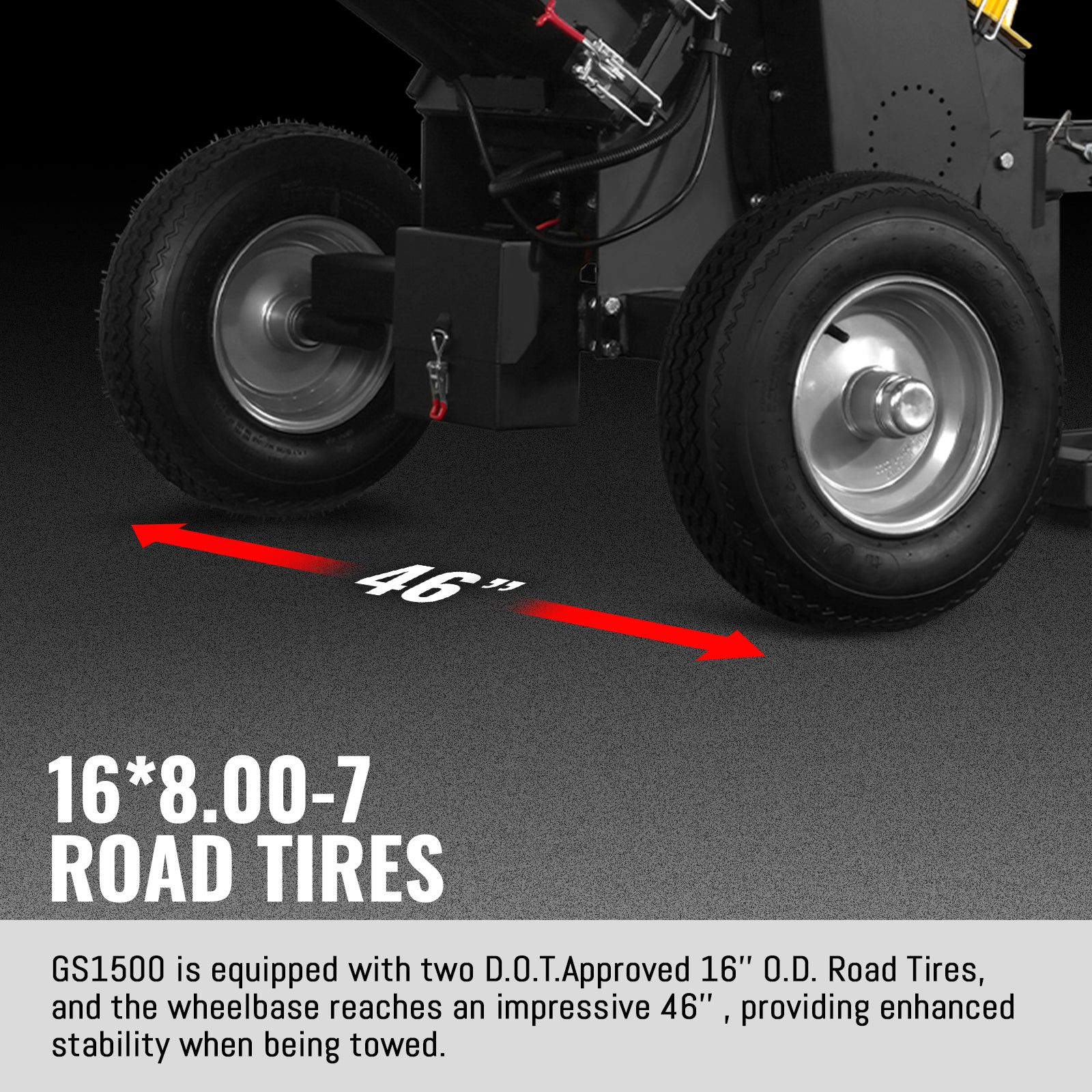

Tire |
16 x 8.00-7 O.D. Road Tires |
Belts Material |
Kevlar |
Wheelbase
|
46 in |
Clutch |
Centrifugal Clutch |
Package Method |
Plywood Case |
Cutting Method |
Drum |
Weight (N.W./G.W.) |
441 / 498 lbs |

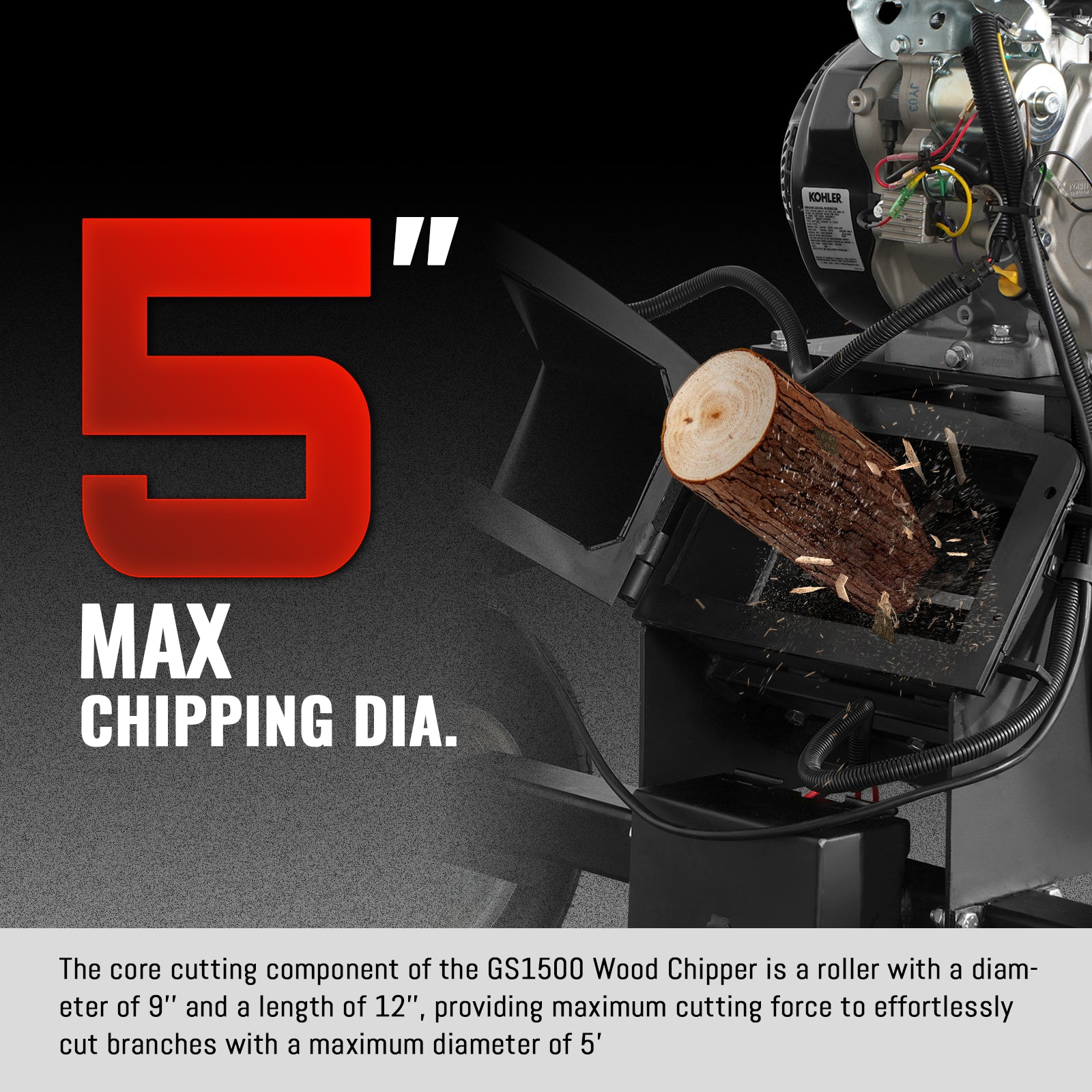

Chipping Dia. |
5 in |

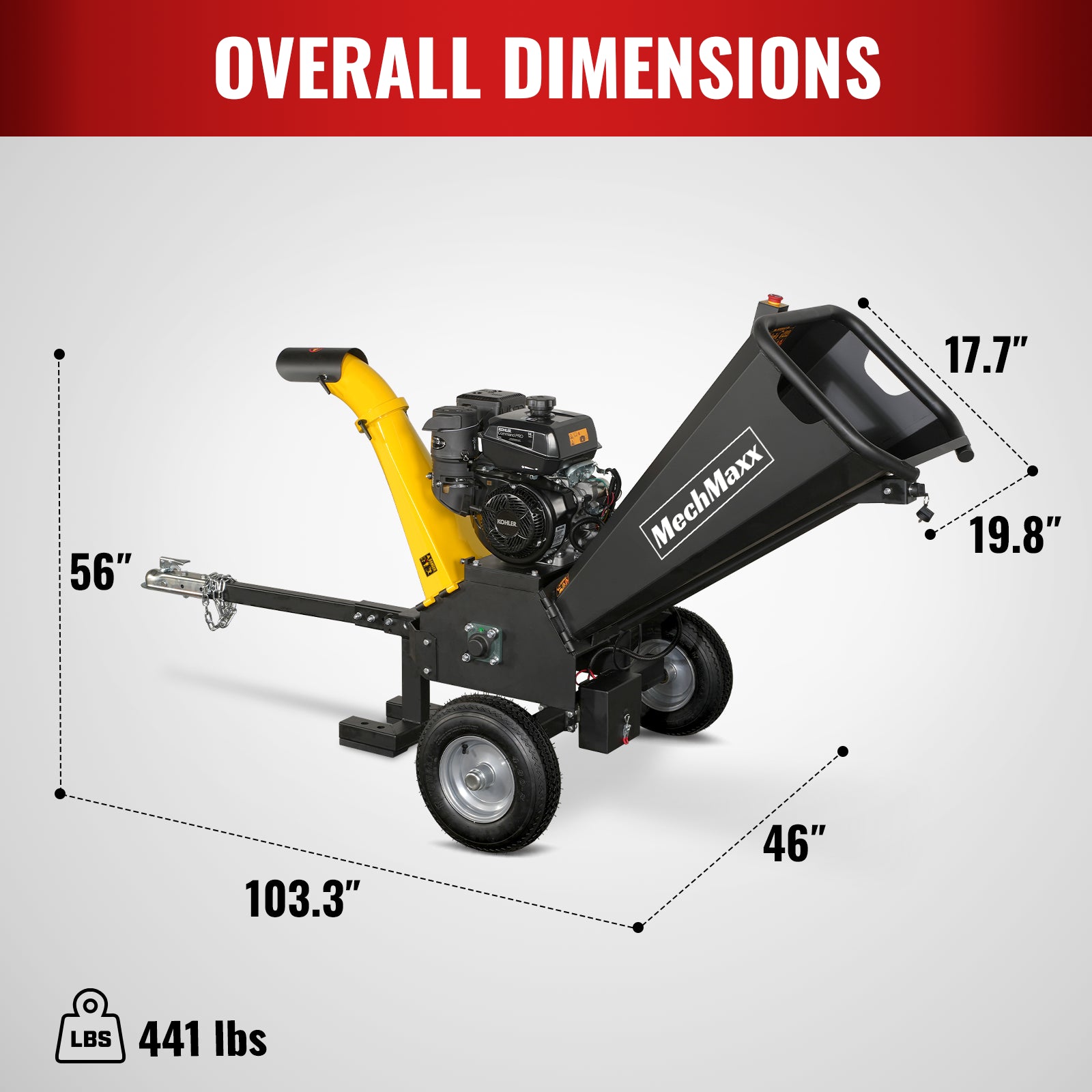

Product Size (L*W*H) |
102 x 46 x 56 in
|
Roller |
13.8 in |
Packing Size (L*W*H) |
36 x 31 x 49 in |
Reduction Ratio |
20:1 |
Machine Warranty |
1 Year |
Knives Nos. |
2 x Blade; 1 x Anvil |
Engine Warranty |
3 Years |
Knives Material |
A8 (5Cr8MoVSi ) |
|
|
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
