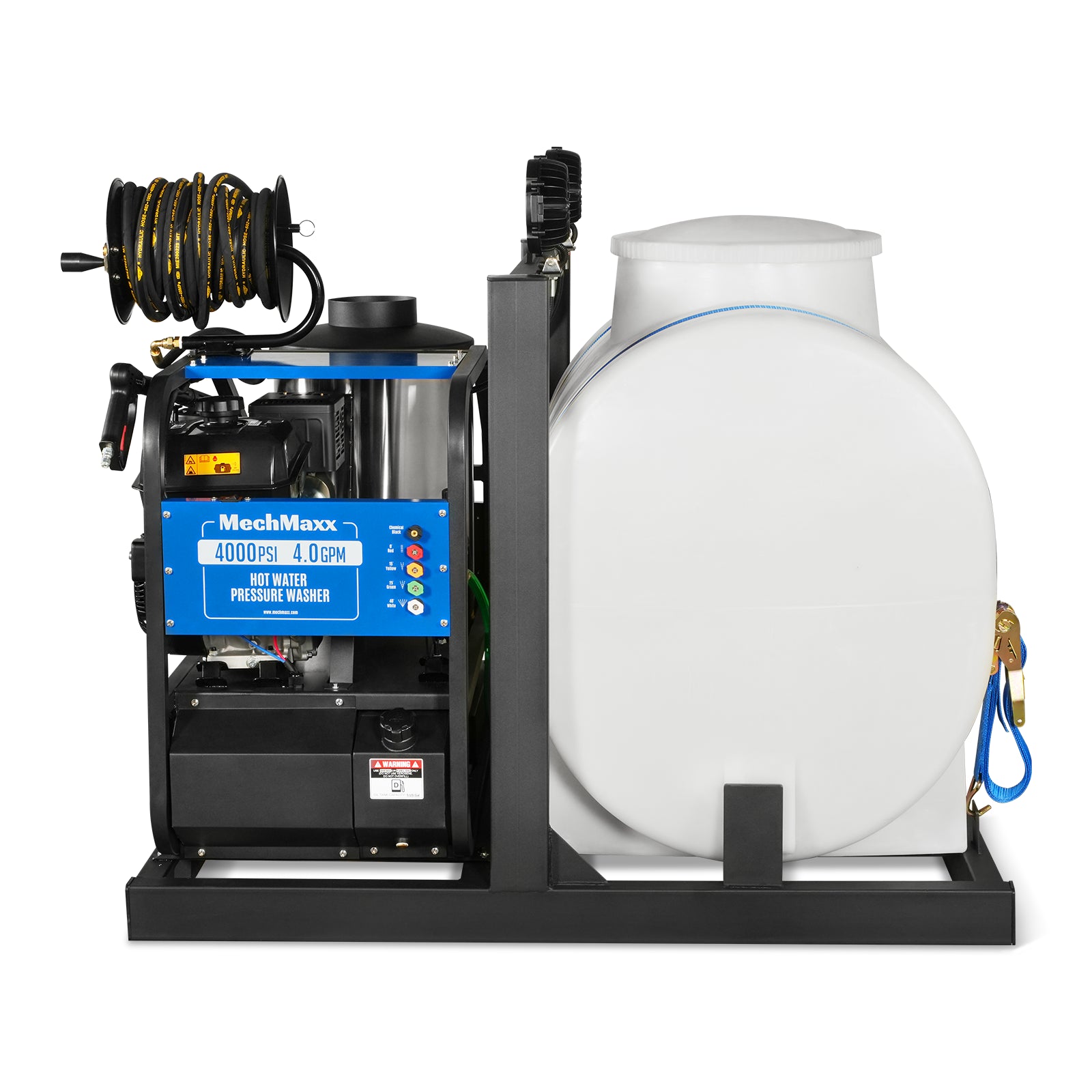

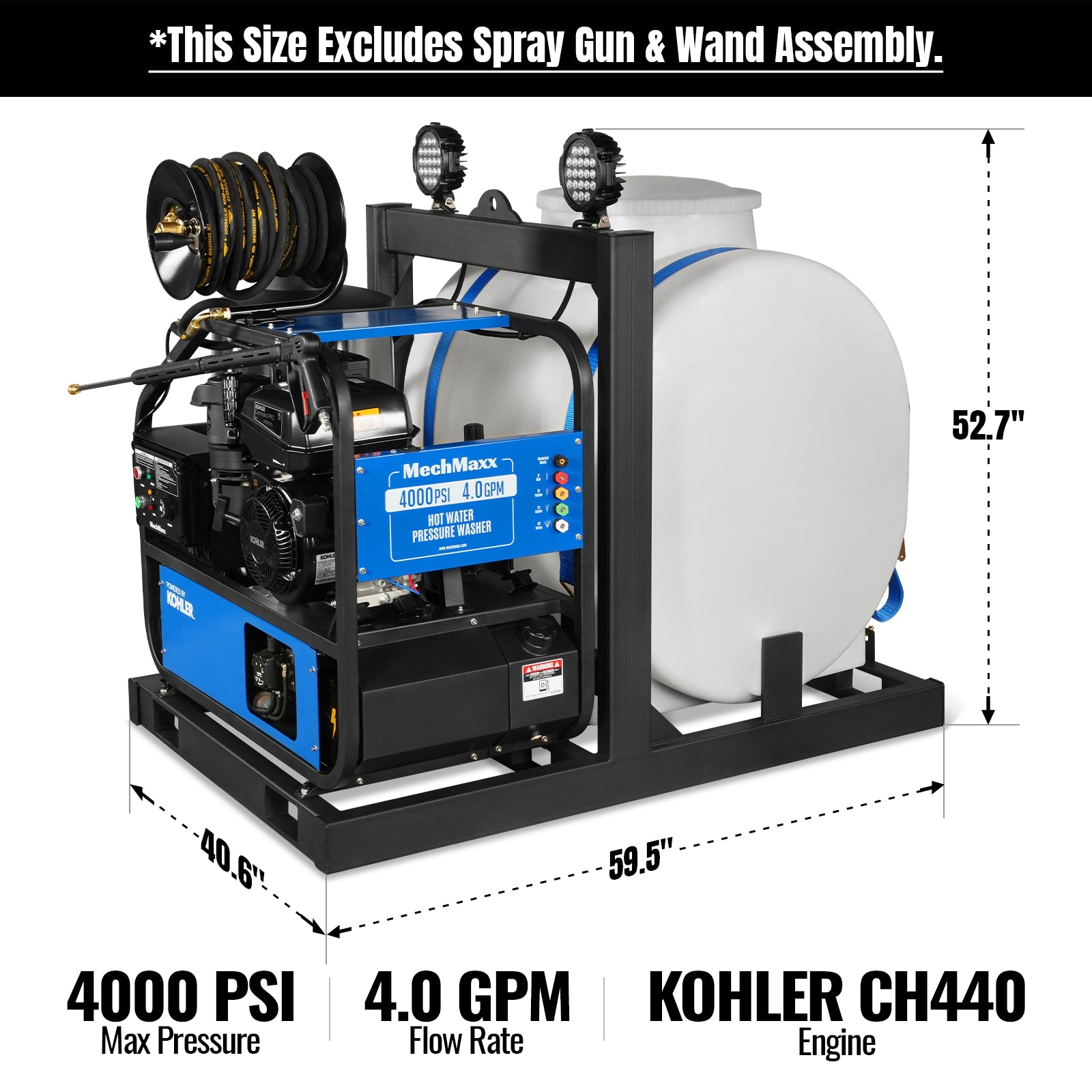

4000 PSI 4 GPM KOHLER E-Start Engine Hot Water Pressure Washer Skid Mounted with 175 Gal Tank, HPW40KT

Name: 4000 PSI 4 GPM KOHLER E-Start Engine Hot Water Pressure Washer Skid Mounted with 175 Gal Tank, HPW40KT
Brand: MechMaxx
SKU: 204011
Price: 4799.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$479900

$5,399.00

Save $600

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Type : Skid with 175 gal Tank, KOHLER

Skid with 175 gal Tank, KOHLER Portable with 13 in Tires, KOHLER Skid with 245 gal Tank, KOHLER Portable with 13 in Tires, HONDA Skid with 175 gal Tank, HONDA Skid with 245 gal Tank, HONDA Portable with 13 in Tires, ZONSEN Skid with 175 gal Tank, ZONSEN Skid with 245 gal Tank, ZONSEN

Availability: In Stock

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

( 1 Pack / 1 Pcs ) Cover for Hot Water Pressure Washer HPW40HT, HPW40DT, HPW40KT(SKU: 204003; 204007; 204011)

3/8" x 100' Hot Water High Pressure Hose (for SKU: 204002, 204003, 204004, 204006, 204007, 204008, 204010, 204011, 204012)

4000 PSI Turbo Rotary Nozzle, 4.0 Orifice, 1/4" Quick Connect, for Hot and Cold Pressure Washers (for SKU: 204002, 204003, 204004, 204006, 204007, 204008, 204010, 204011, 204012)

4000 PSI 4 GPM KOHLER E-Start Engine Hot Water Pressure Washer Skid Mounted with 175 Gal Tank, HPW40KT $479900 $5,399.00

( 1 Pack / 1 Pcs ) Cover for Hot Water Pressure Washer HPW40HT, HPW40DT, HPW40KT(SKU: 204003; 204007; 204011) $6699

3/8" x 100' Hot Water High Pressure Hose (for SKU: 204002, 204003, 204004, 204006, 204007, 204008, 204010, 204011, 204012) $18999 $219.99

4000 PSI Turbo Rotary Nozzle, 4.0 Orifice, 1/4" Quick Connect, for Hot and Cold Pressure Washers (for SKU: 204002, 204003, 204004, 204006, 204007, 204008, 204010, 204011, 204012) $6999 $89.99

Total Price

$

Product Overview

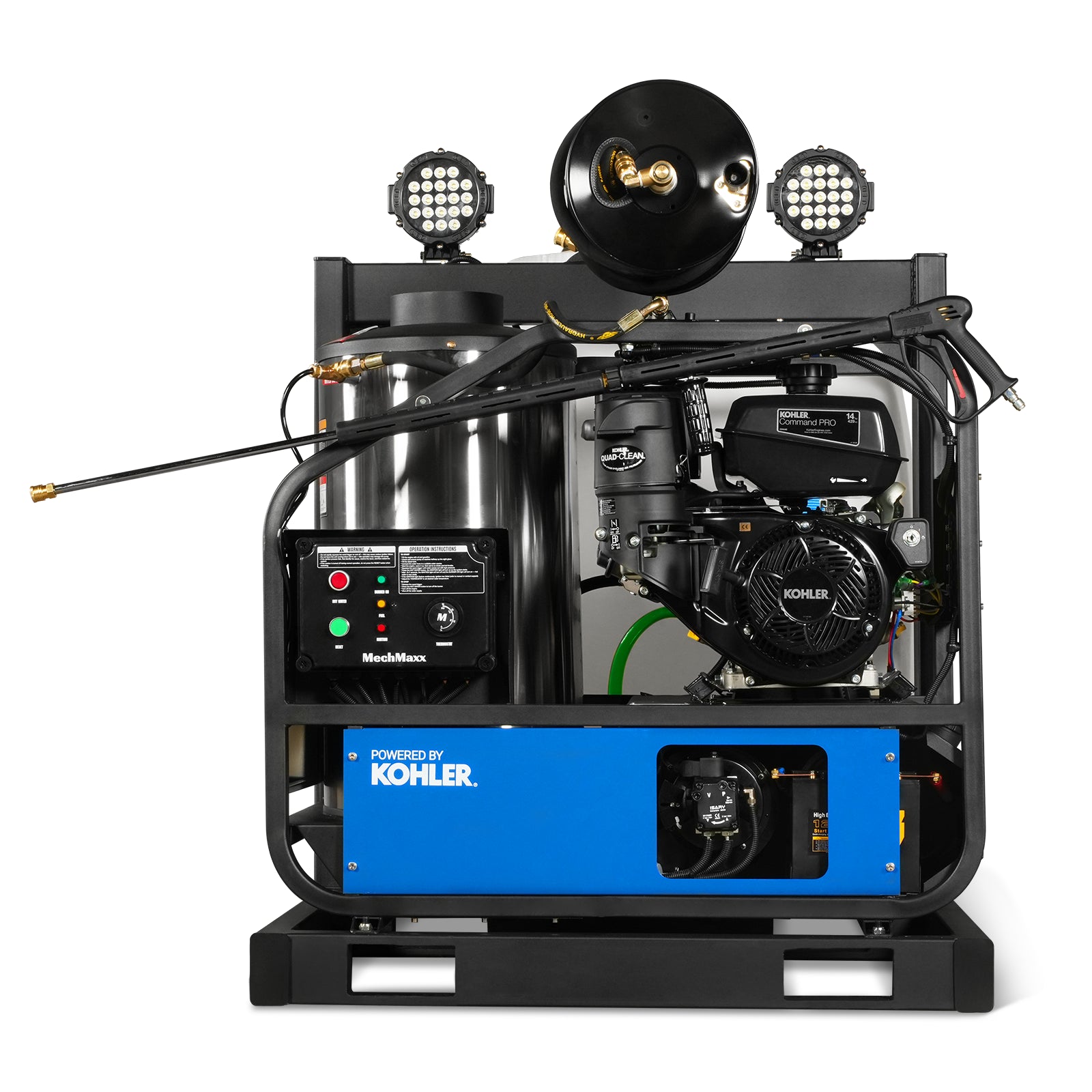

Powered by a KOHLER CH440 Command Pro electric-start engine, the MechMaxx HPW40HT Hot Water Pressure Washer delivers dependable power and strong hot water cleaning performance for demanding washdown jobs. With 3,500–4,000 PSI pressure, 4.0 GPM flow, and water temperature up to 200°F, it helps remove grease, oil, mud, grime, and heavy buildup more effectively than cold water alone.
The unit is equipped with a triplex plunger pump, diesel-fired heating system, integrated control panel, and 175-gallon onboard water tank. This setup allows the washer to operate in locations where a direct water supply may not be available, making it suitable for farm, construction, industrial, fleet, and equipment maintenance applications.
Designed as a skid-mounted model, this pressure washer is built for truck beds, trailers, and utility platforms. Its rugged frame, onboard water tank, lift hook, and forklift slots support mobile cleaning jobs, easier loading, and convenient transport between worksites.

NOTE!
This machine DOES NOT COME WITH OIL AND GASOLINE in the engine. Before starting, fill the engine with both oil and gasoline. Refer to the engine manual for details.
Maximum pump pressure is 4000 PSI, with the factory working pressure preset to about 3500 PSI.
Please read the PRODUCT MANUAL carefully and review all SAFETY WARNING LABELS on the machine before operation.

Product manual (PDF)

Hot Water Pressure Washer Product manual 1.3.pdf

Engine manual (PDF)

Kohler CH440 Manual.pdf

Operation Instruction (PDF)

Quick Operation Guide.pdf

Product Features

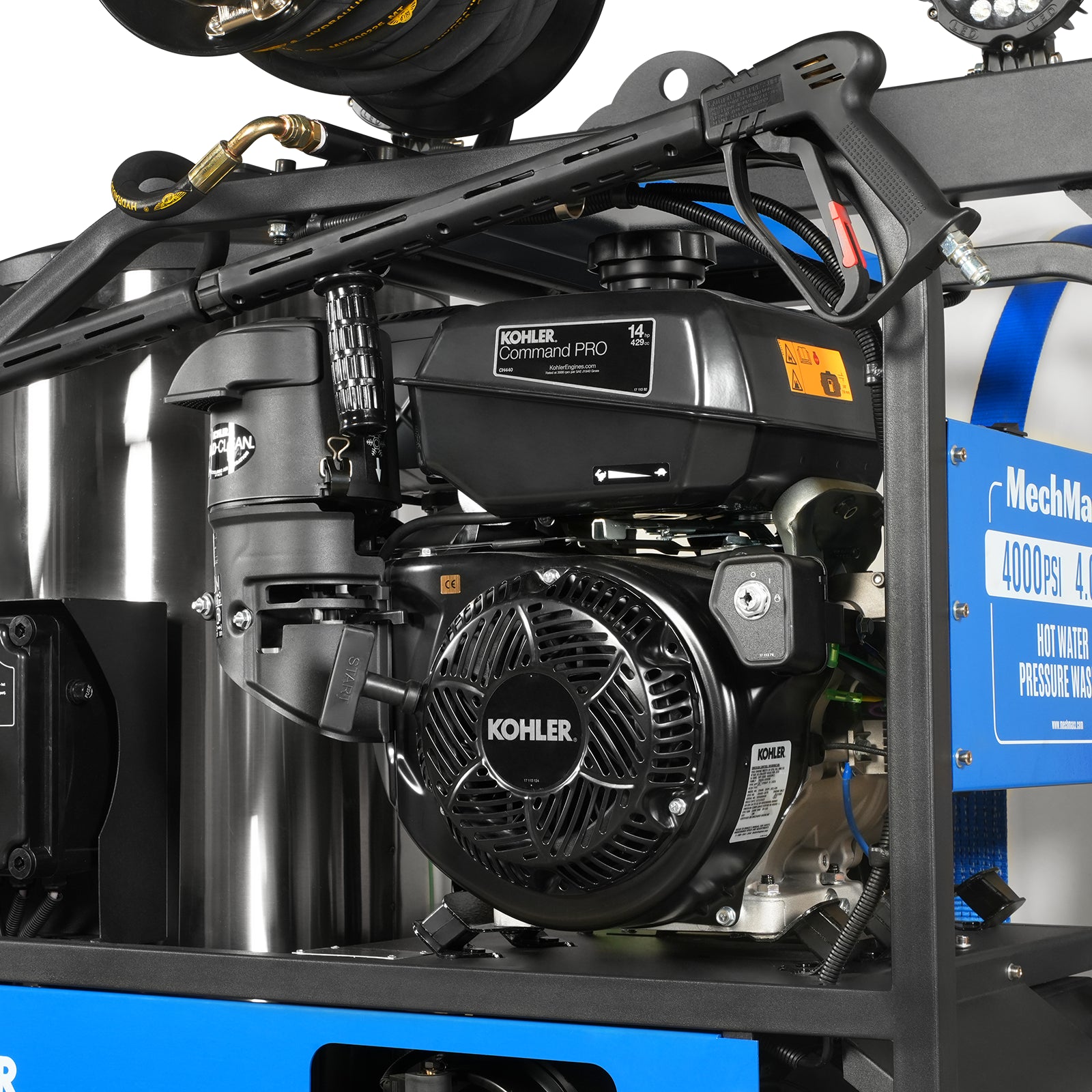

KOHLER® Command PRO®

This is what it takes to be a PRO. Performance-driven features like a heavy-duty air cleaner, forged-steel crankshaft, electronic ignition and cast-iron cylinder liner. KOHLER® Command PRO® is the standard for professional-grade power and performance.

•Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
•Large-capacity fuel tank means more time working, less time filling

•Power or repower your equipment without expensive modifications
• 3-year commercial limited warranty

Electric Start with Battery

Powered by a KOHLER CH440 Command Pro gasoline engine with electric start and a 12V battery, this unit provides easier starting and dependable power for demanding cleaning jobs.

Triplex Plunger Pump

Equipped with a triplex plunger pump, the unit delivers a 4.0 GPM flow rate for powerful cleaning performance. The downstream chemical injection system works with the soap nozzle for detergent application.

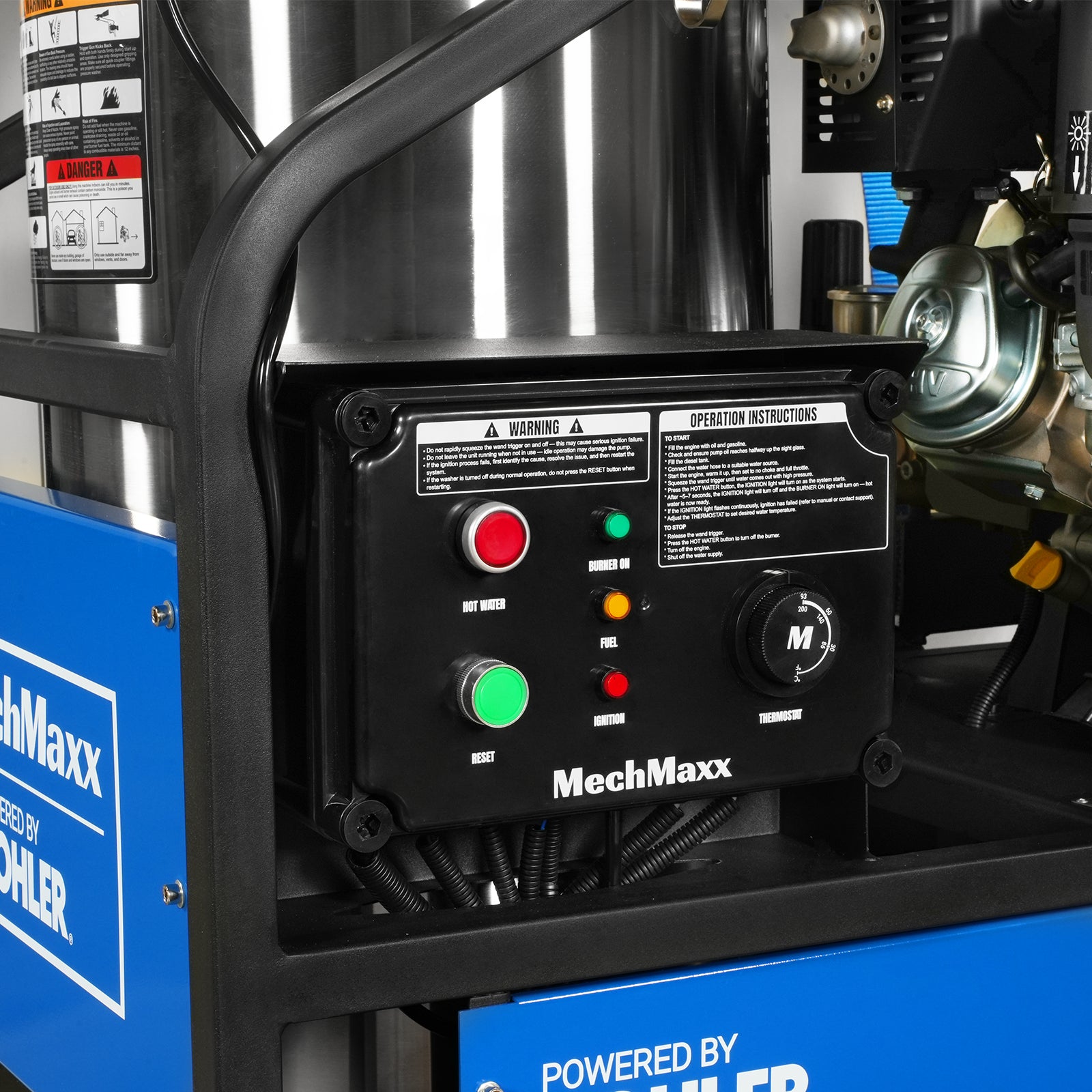

Integrated Control Panel

The integrated control panel combines the hot water switch, reset button, indicator lights, and thermostat for convenient operation and temperature control.

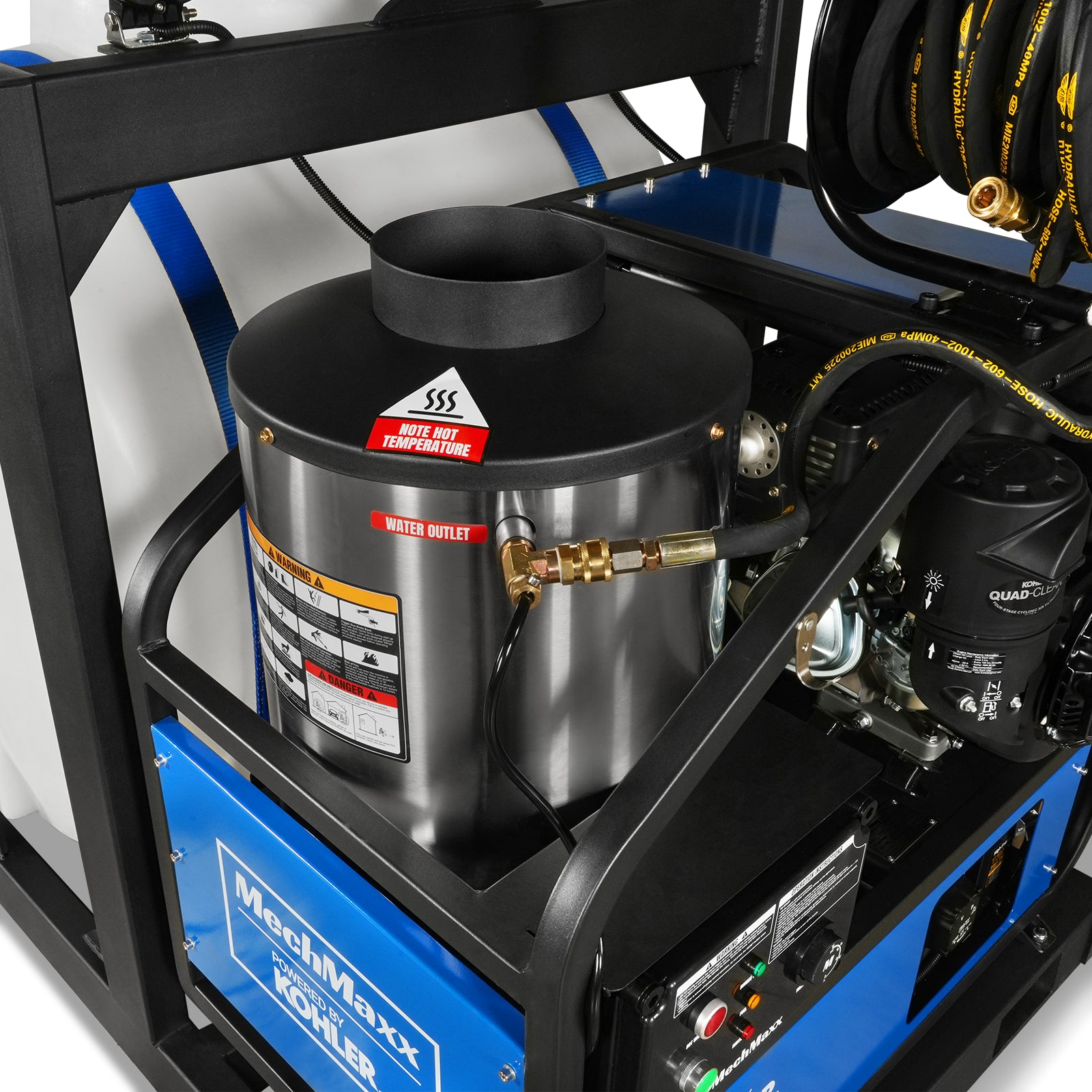

Heating Coil

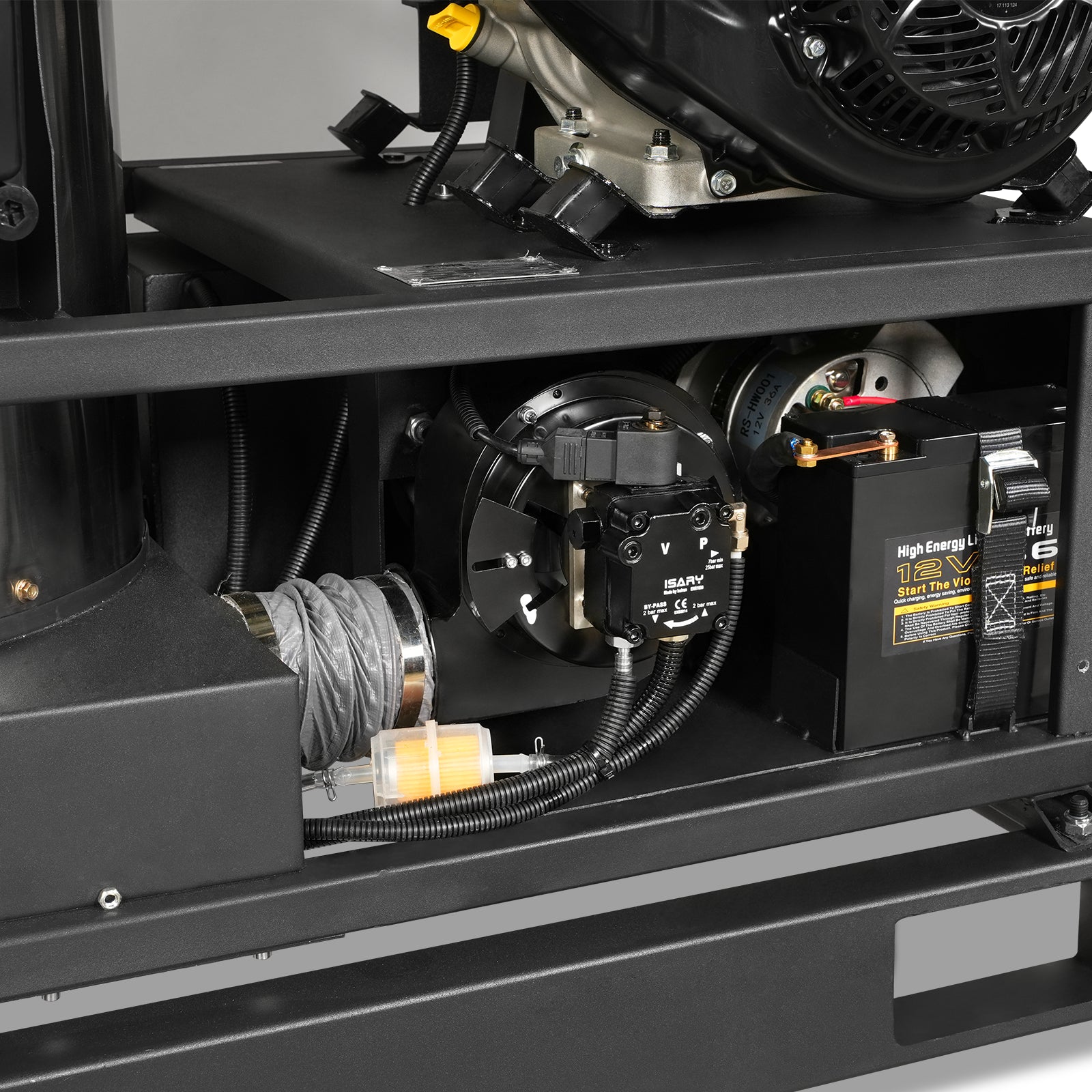

The heating coil crafted from 20mm diameter, 2.5mm thick seamless steel pipes, features a ceramic fiber insulation layer and a stainless steel shell. Ignited by a 12V DC diesel burner, it heats water to approx. 200°F in under 2 minutes. An intelligent temperature control system manages ignition and combustion for stable hot water output.

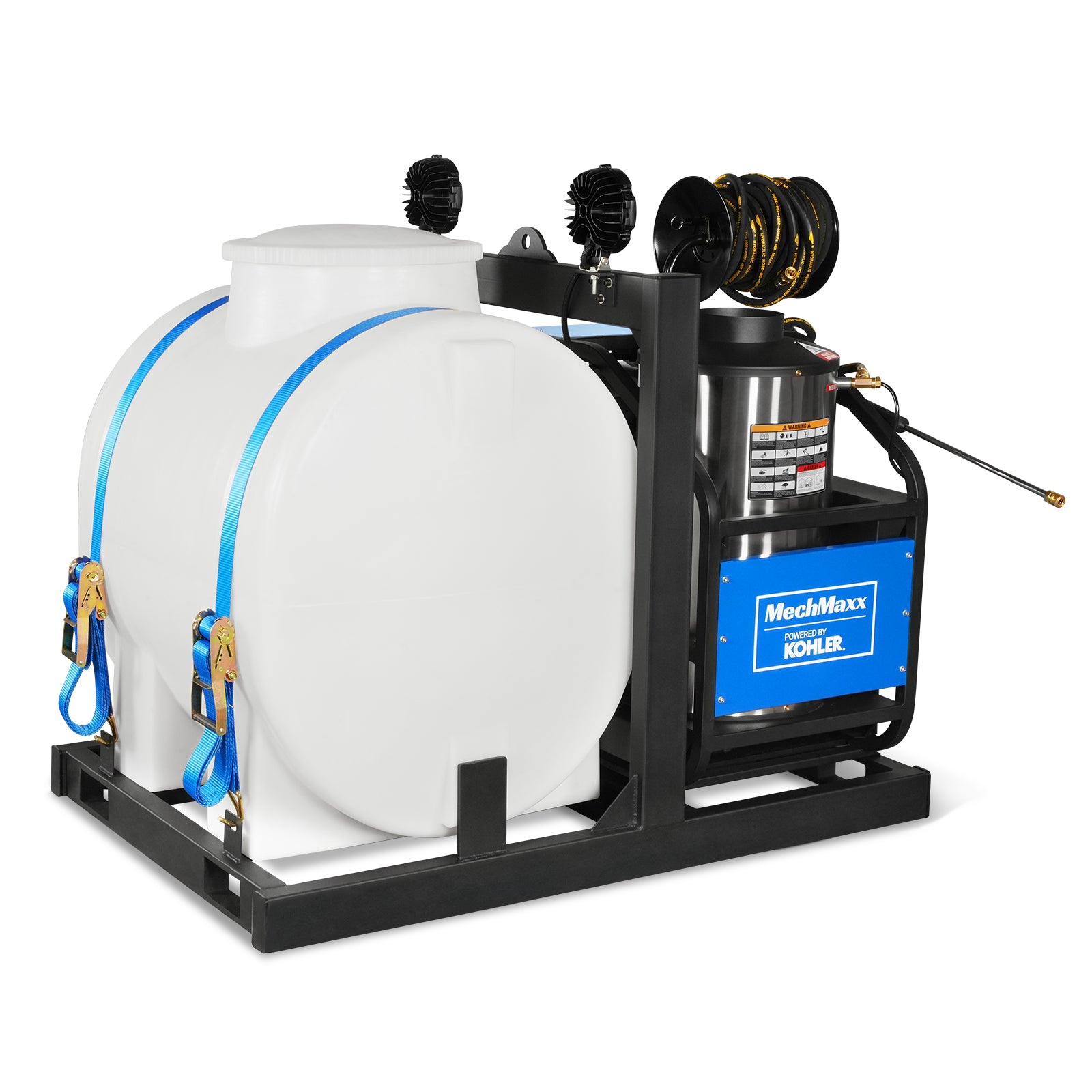

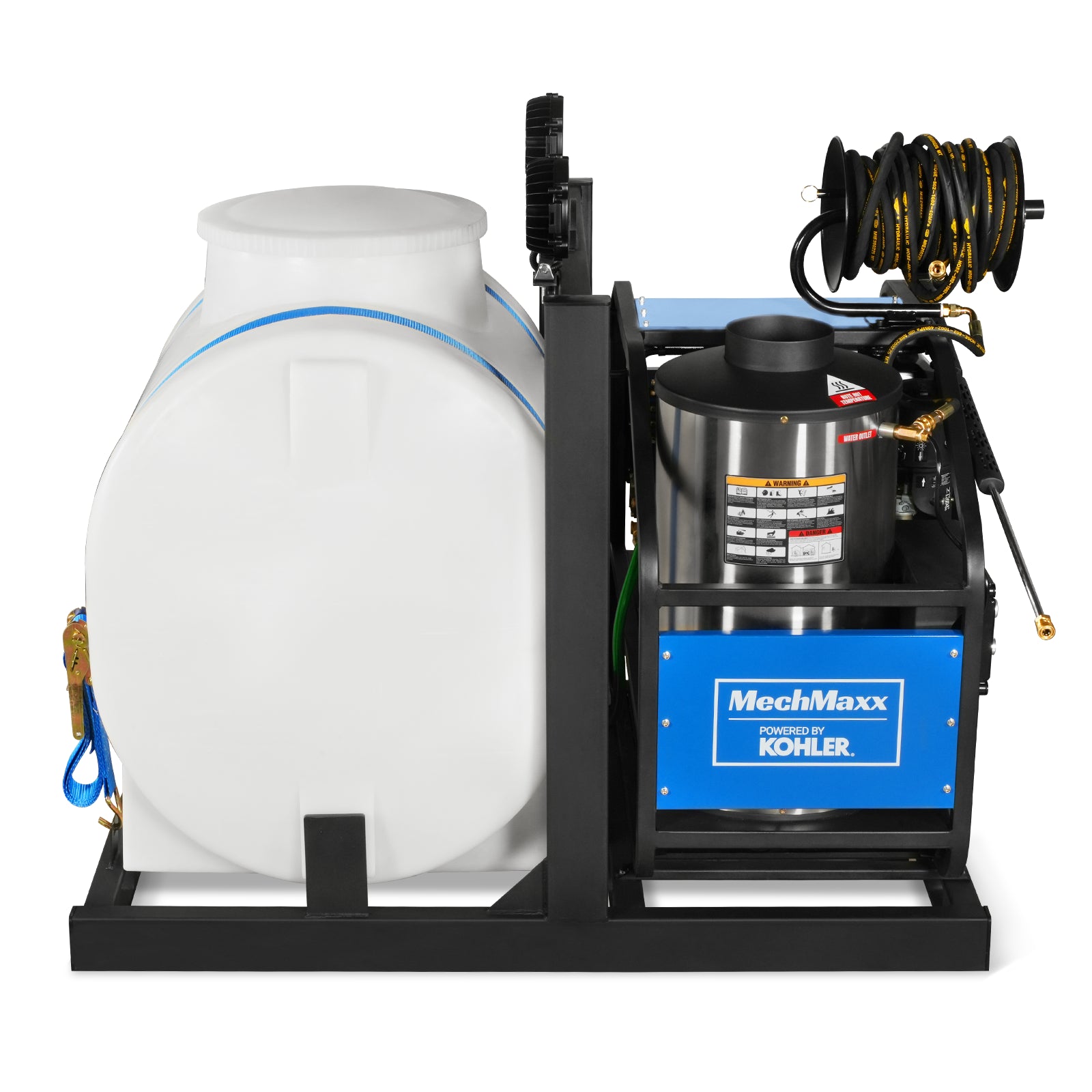

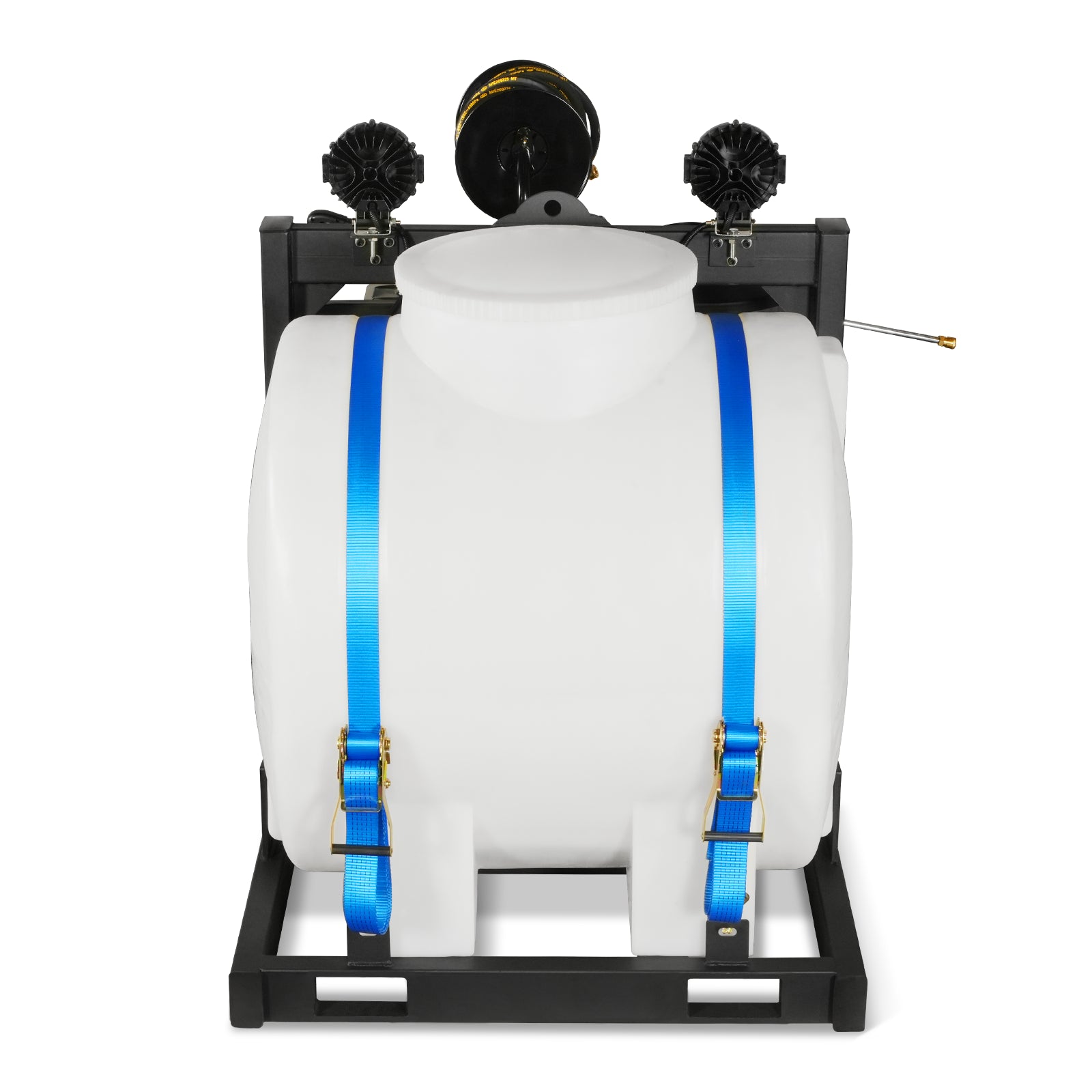

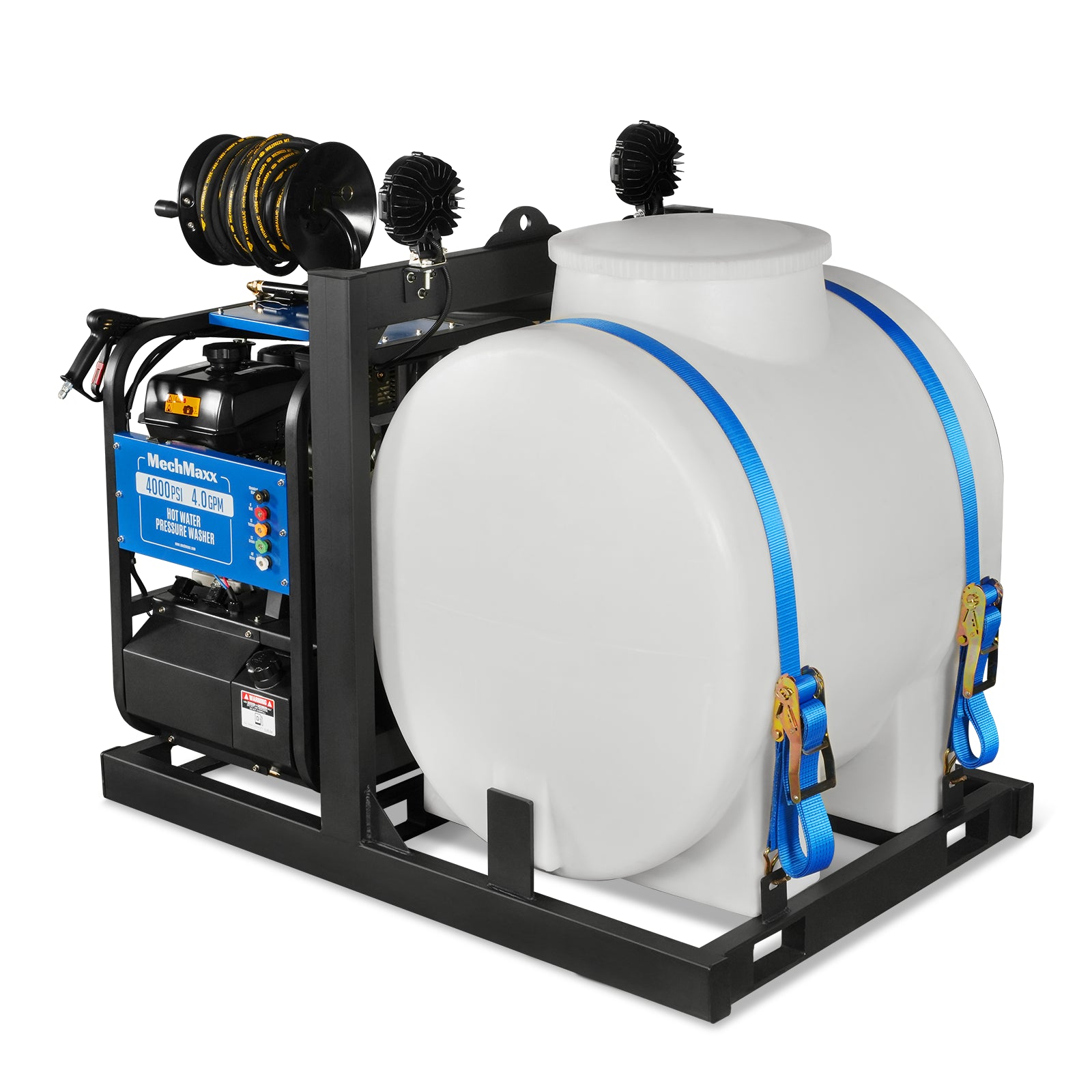

Rugged Steel Frame & 175 Gal Tank

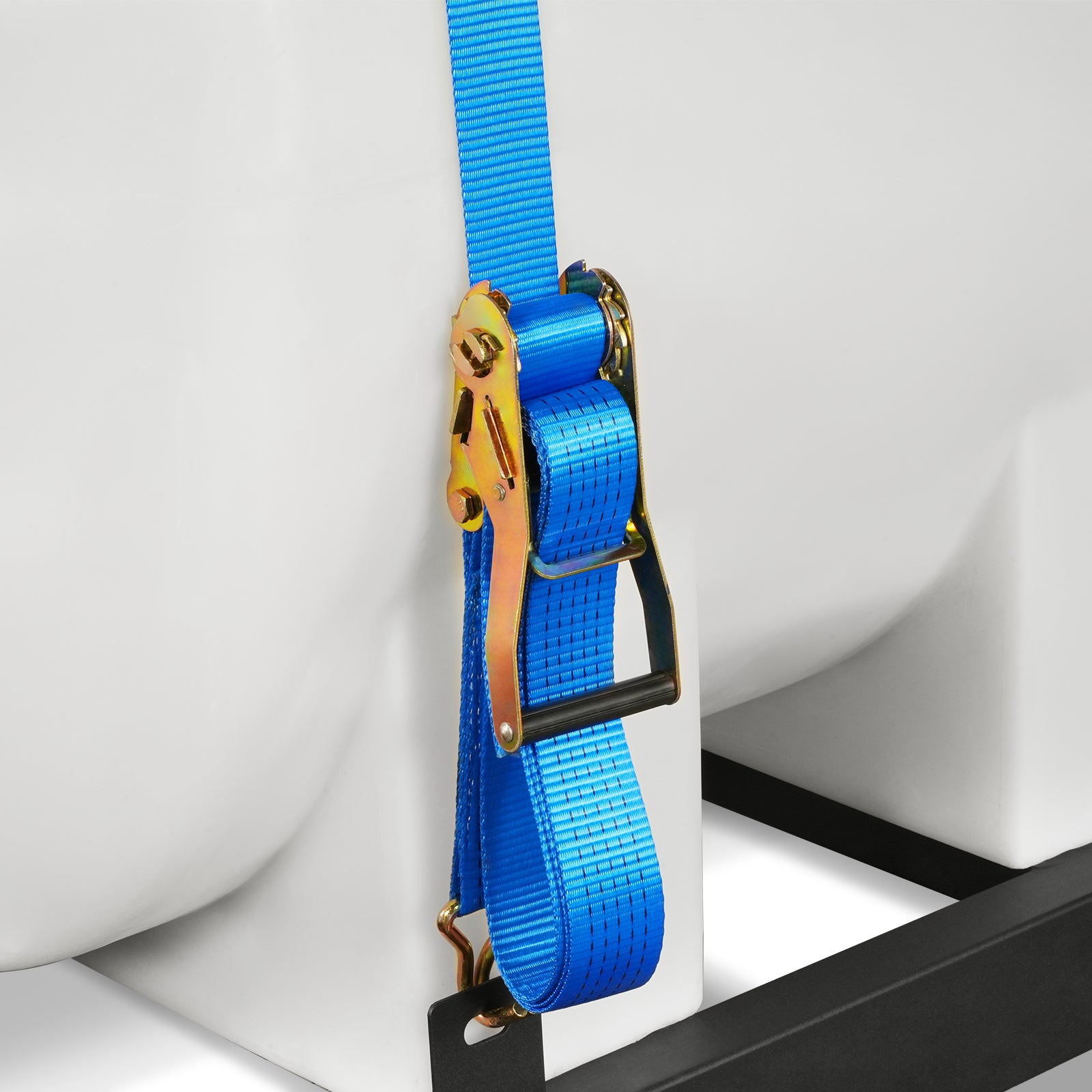

The fully welded steel frame with a powder-coated finish provides durability and corrosion resistance. The 175-gallon poly water tank provides an onboard water supply, making the unit suitable for mobile cleaning jobs where direct water access may be limited.

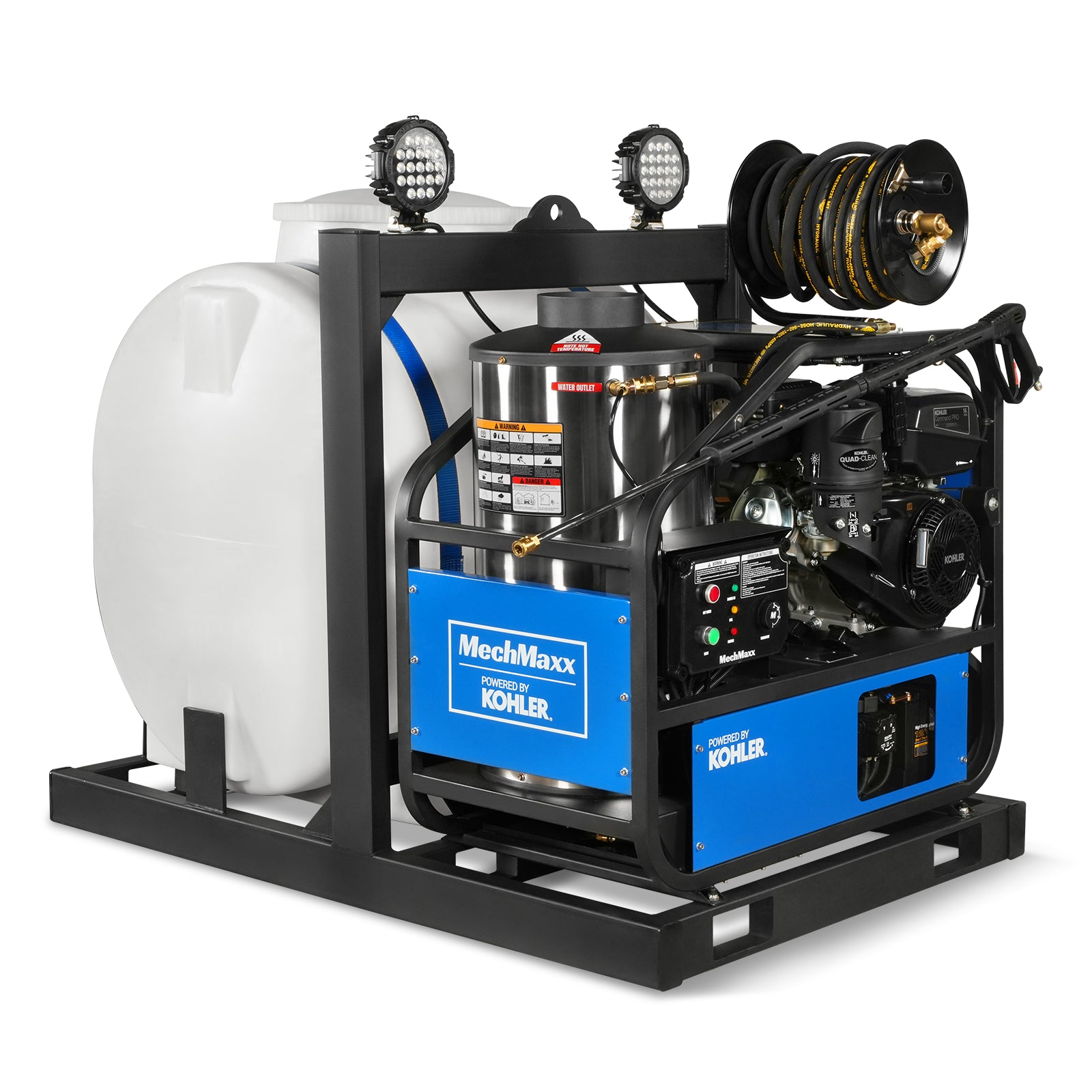

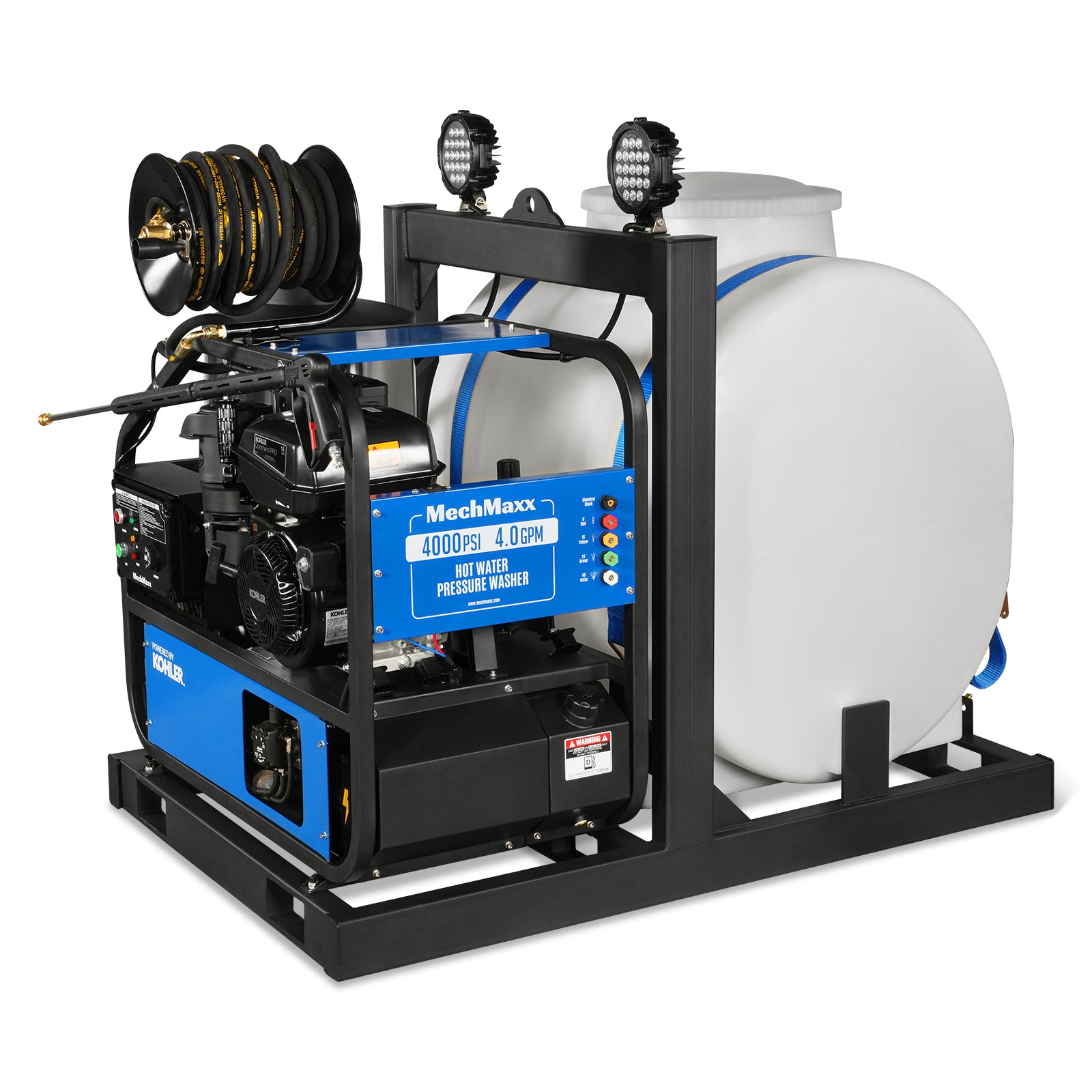

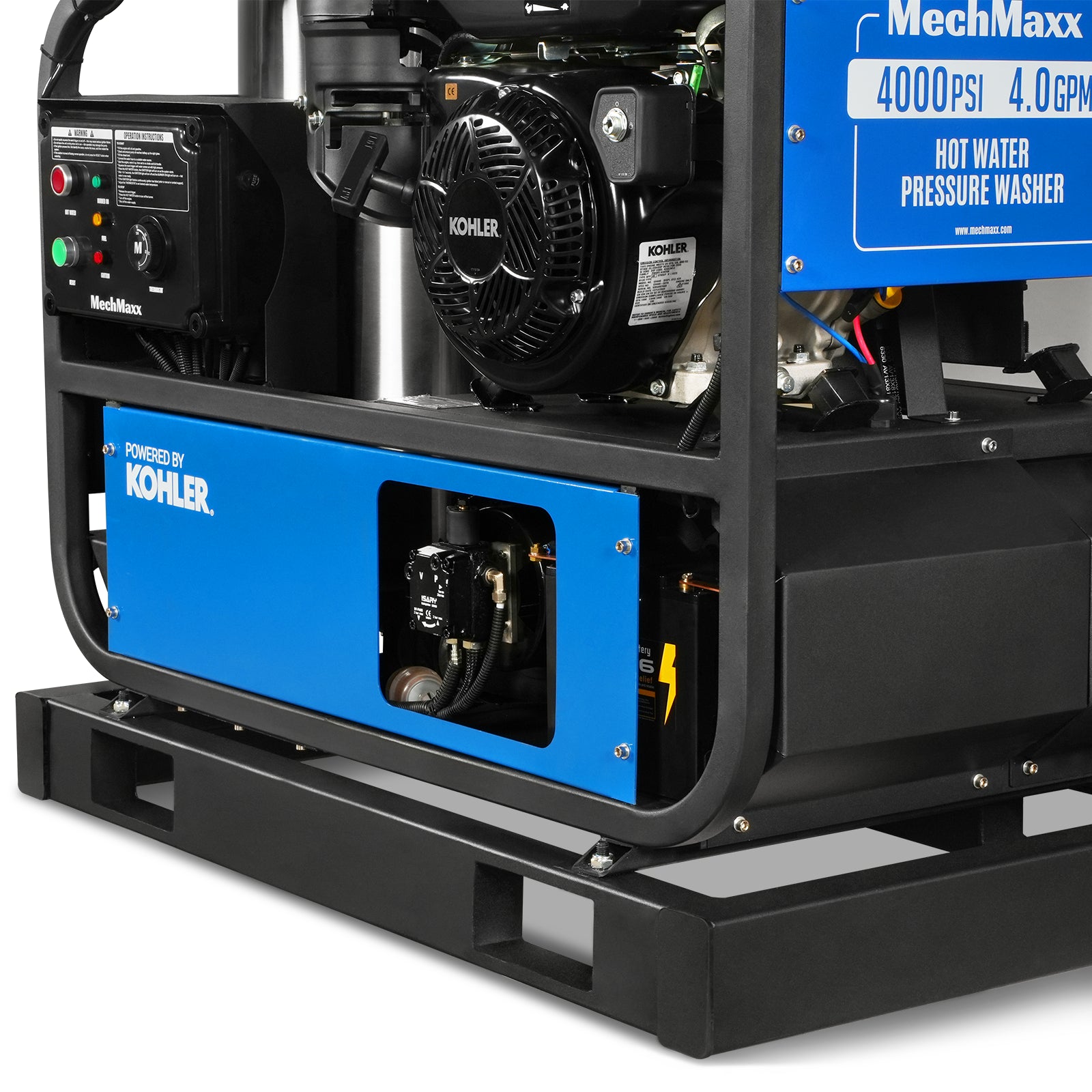

Skid-Mounted Design

This skid-mounted unit features forklift slots and a lift hook for easier loading, unloading, and placement on a pickup truck, flatbed, or trailer. It is designed for mobile cleaning applications across farms, construction sites, fleet yards, and industrial worksites.

Rubber Vibration Pads

Six rubber pads help reduce vibration during operation and protect the frame and components from long-term wear.

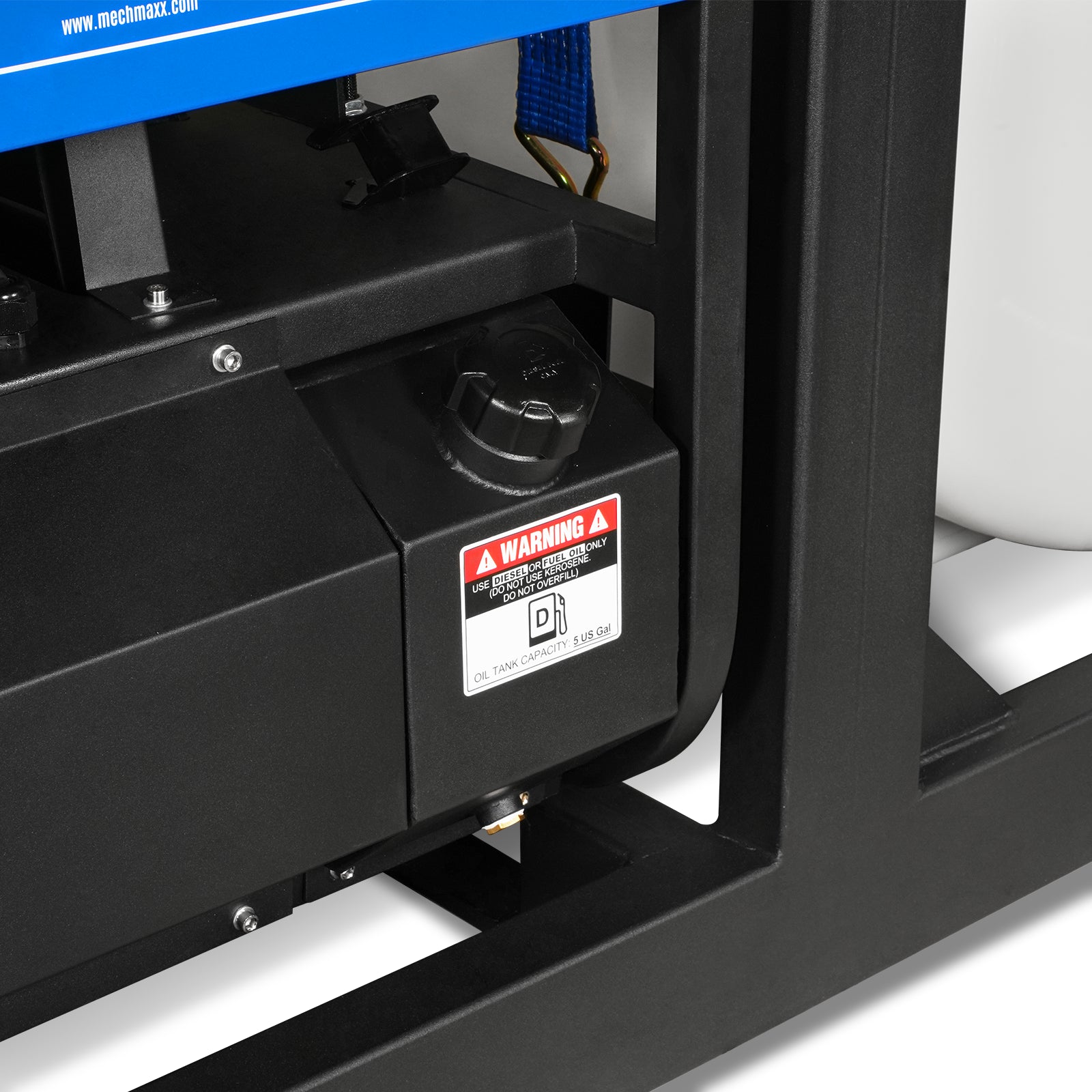

Burner Fuel Tank

The onboard 5-gallon diesel burner fuel tank supports extended hot water operation without requiring an external fuel source for the heating system.

Accessories Included

☑3/8'' x 50' High Pressure Hose,

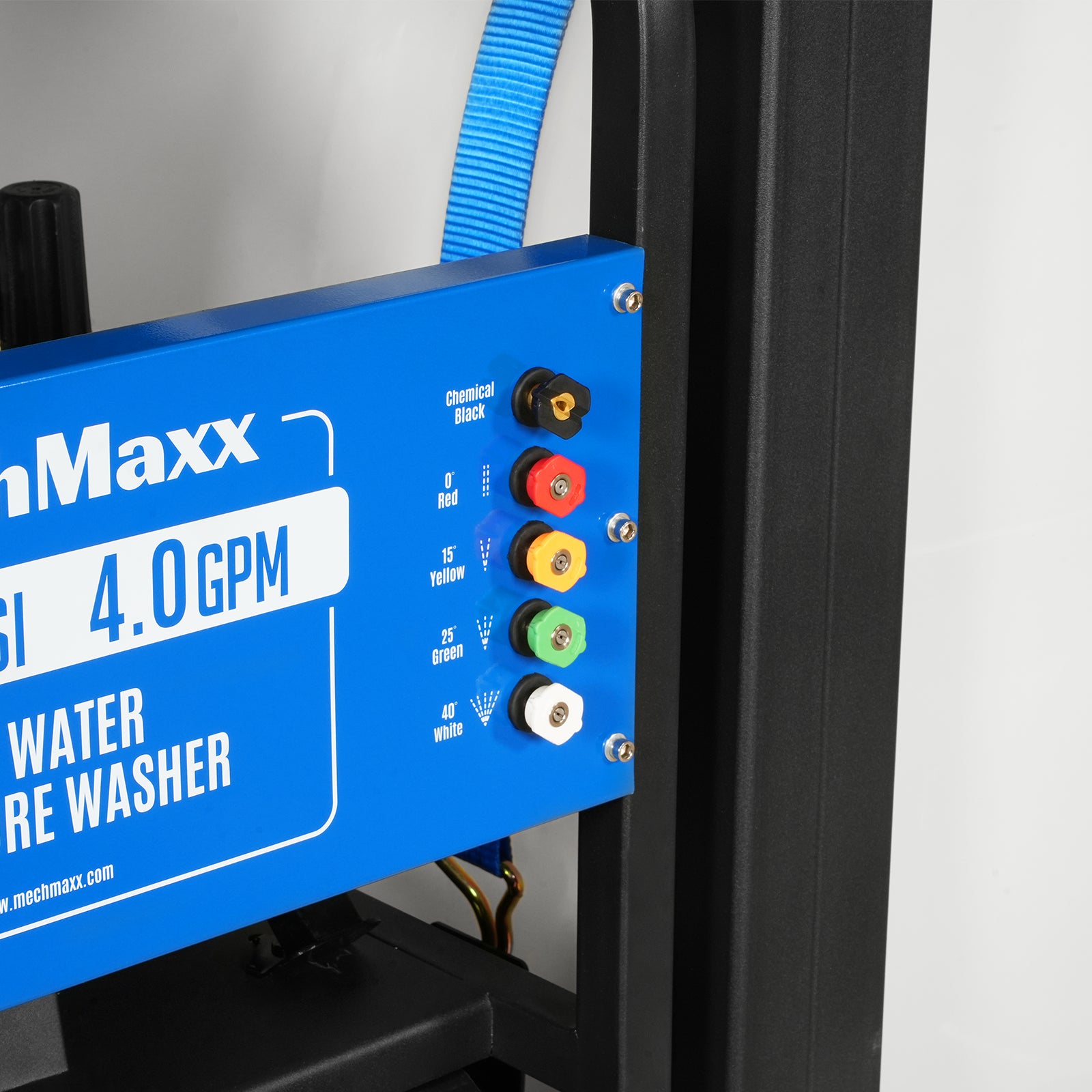

☑0°, 15°, 25°, 40° and Chemical Nozzles,
☑36’’ Spray Gun & Wand Assembly,

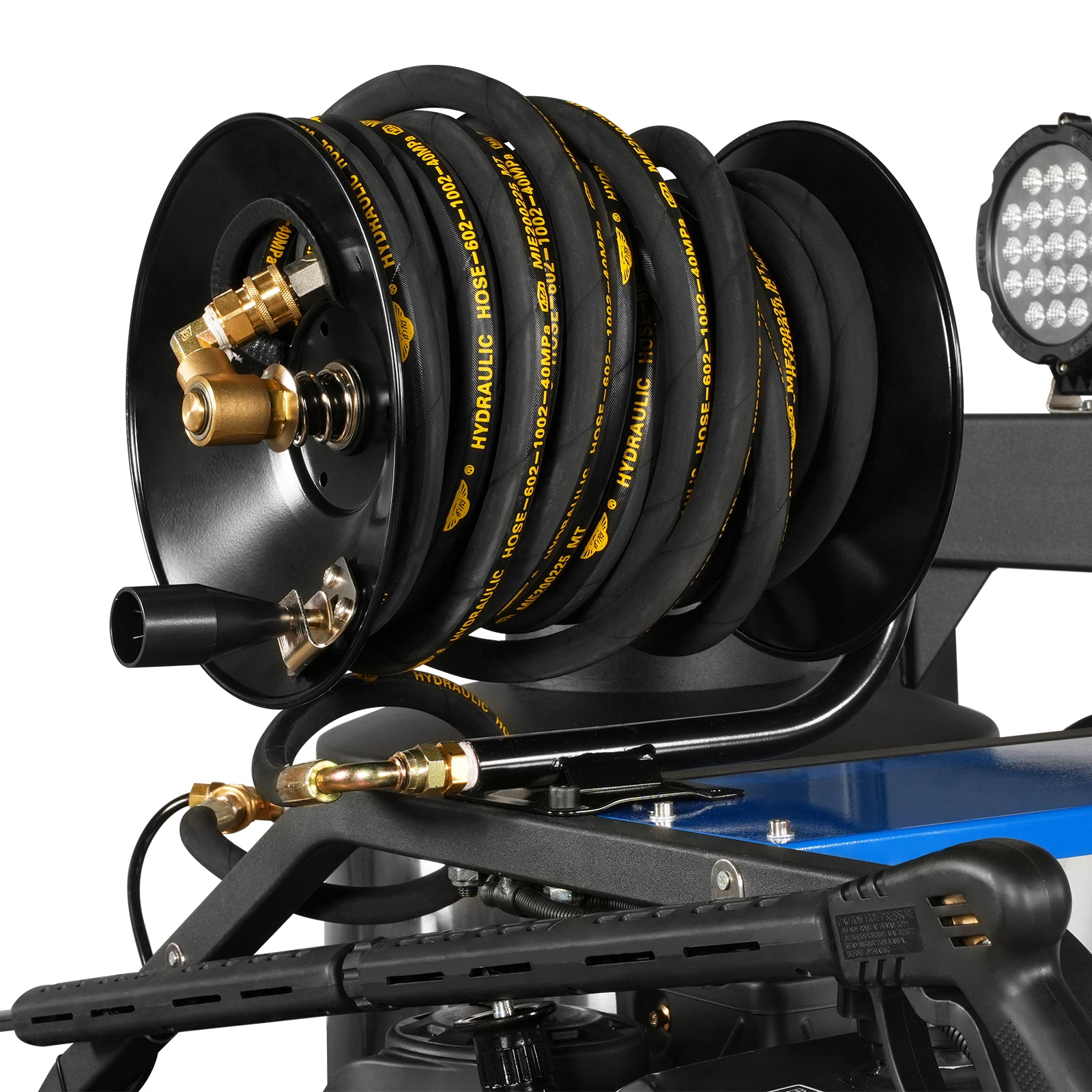

☑Hose Reel,
☑Siphon Tube,

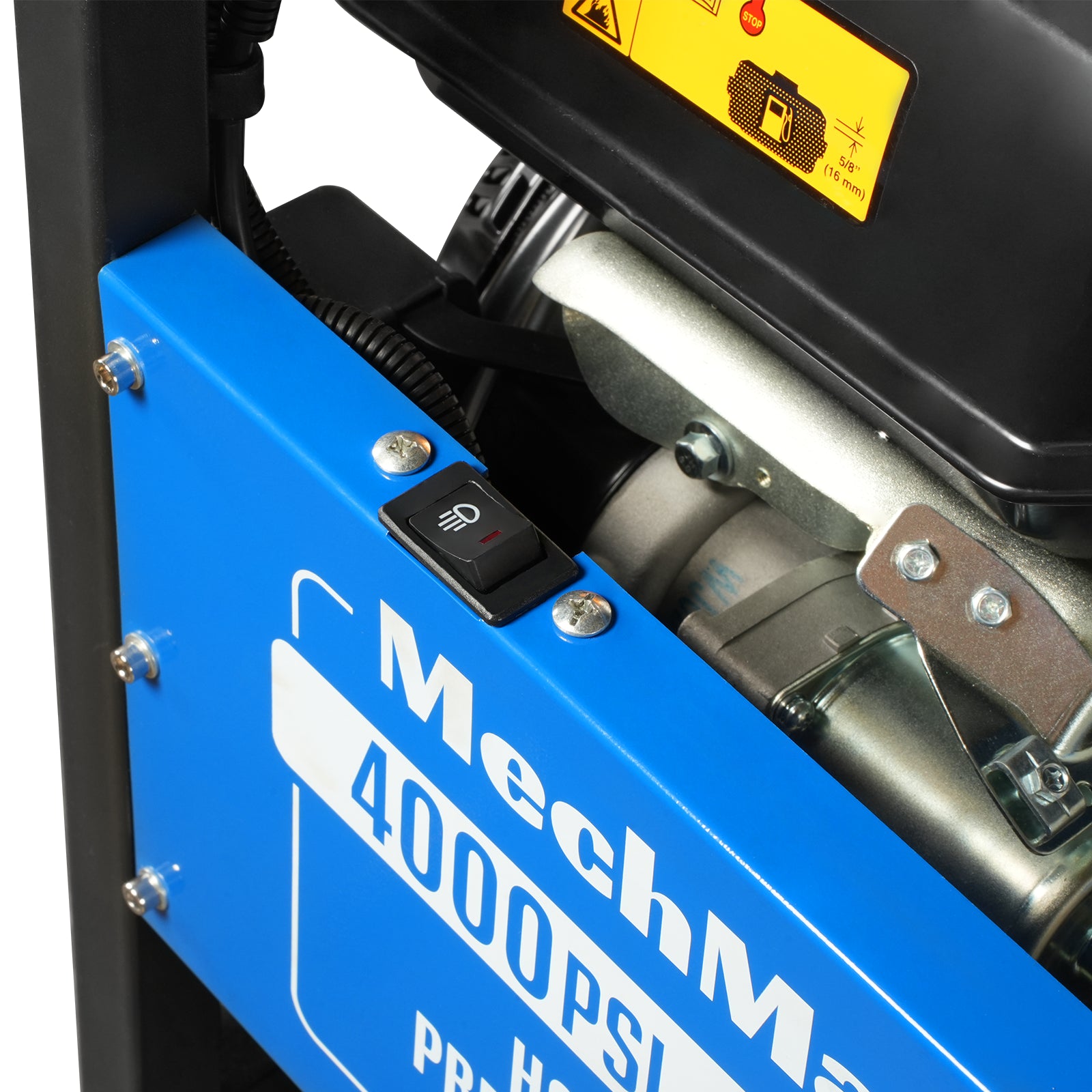

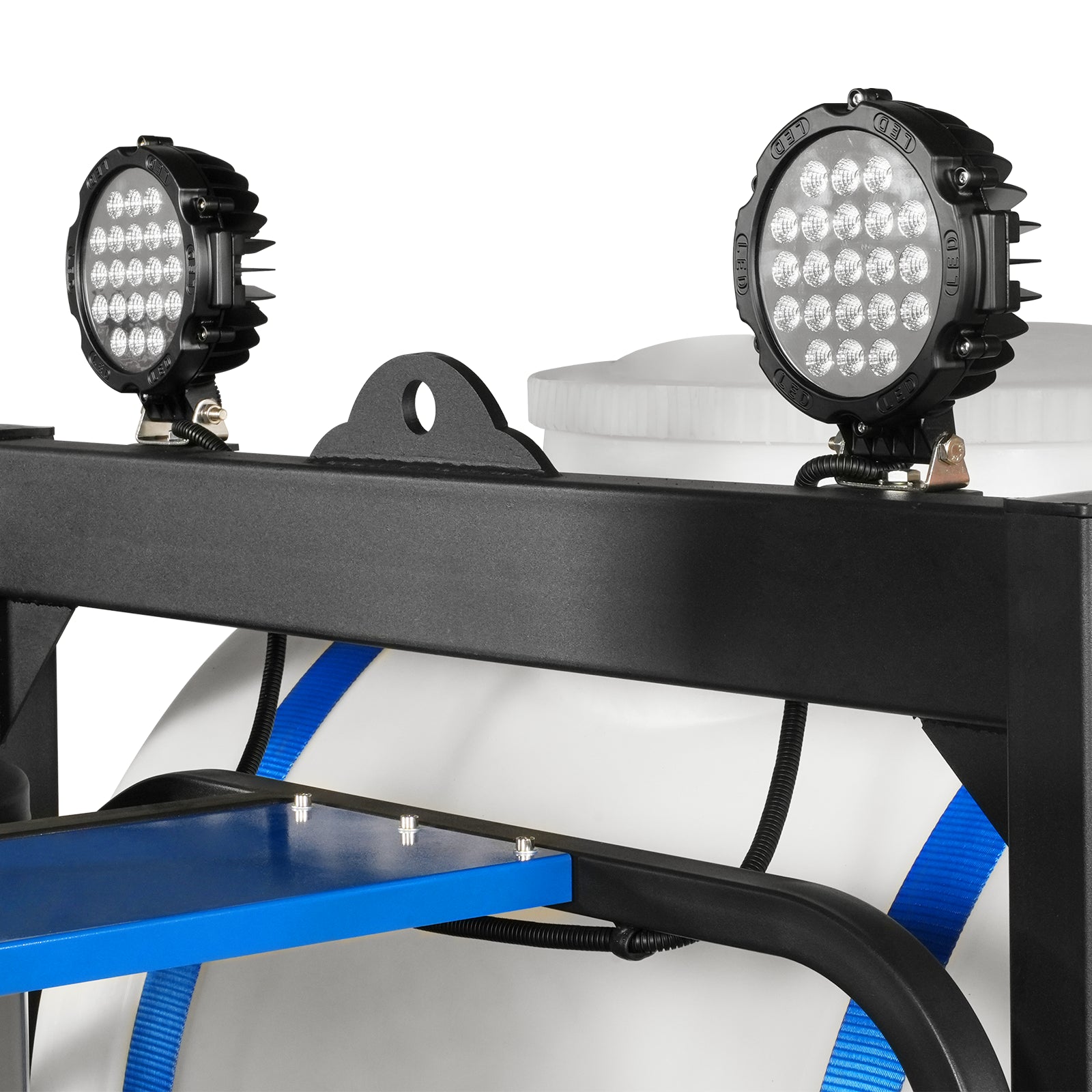

☑LED Work Lights.

Engine	KOHLER CH440	Max Temperature	200℉ (93℃)
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Igniter	12V
Displacement	429 cc; 14 HP	Burner Fuel	5 US gal (19L) Diesel
Start Type	Electric Start (battery included)	Drive	Direct
Engine Fuel	1.6 US gal Clean, fresh, unleaded gasoline	Pump Type	Triplex Plunger Pump / Oil Bath Crankcase
Engine Oil	0.3 US gal SAE 10W-30	Pump Oil	SAE 10W/30 or 15W/40 Non-detergent Oil
Machine Type	Truck Skid Mount with 175 gal Water Tank	Standard Accessories	3/8" x 50' High Pressure Hose; 0°, 15°, 25°, 40° and Chemical Nozzles; 36" Spray Gun & Wand Assembly; Hose Reel; Siphon Tube; LED Work Lights
Pressure Range	3500-4000 PSI	Package Method	Iron Frame

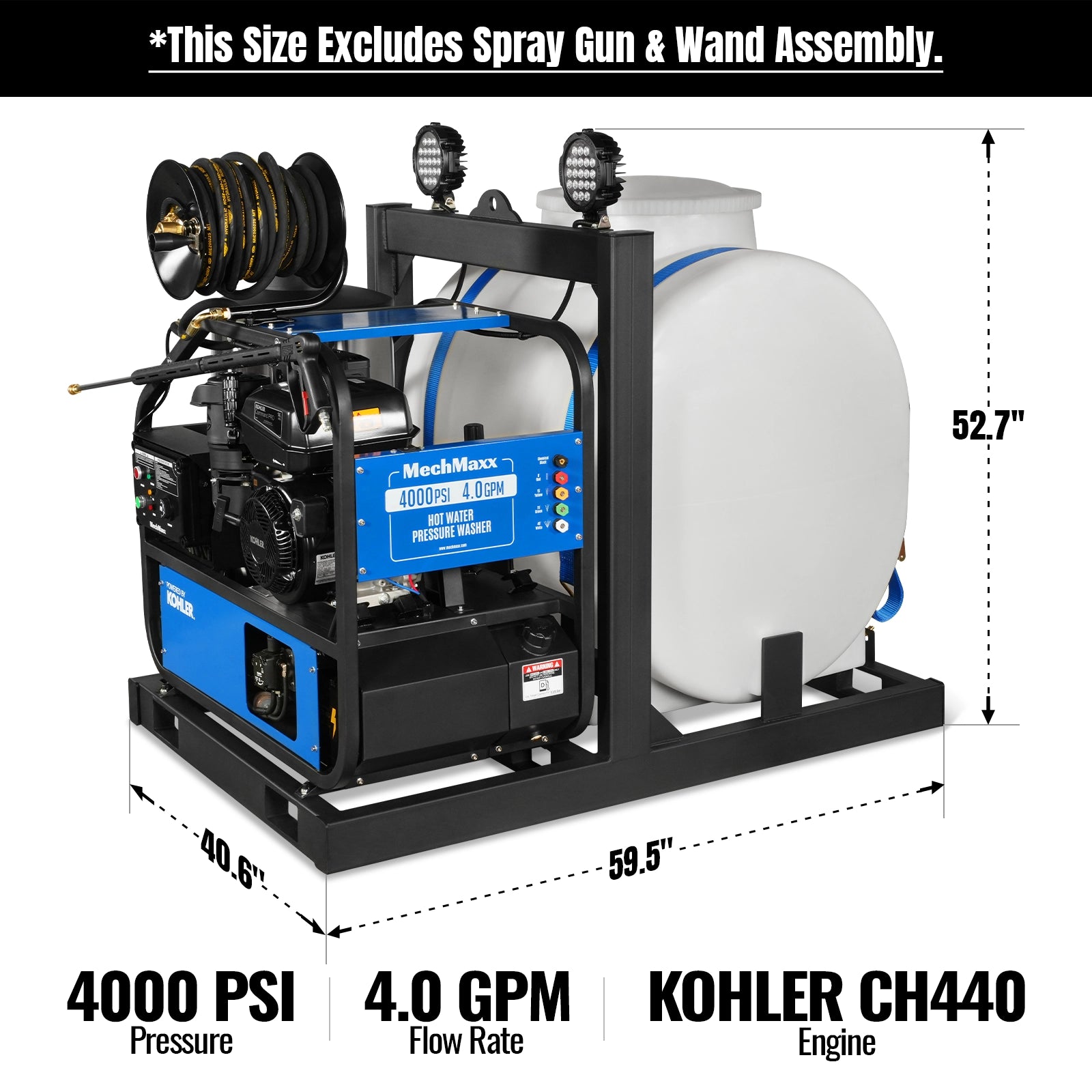

Flow Rate	4.0 GPM	Packing Size	63 x 42.1 x 50.4 in
BTU Per Hour	350,700 BTU	Weight (N.W / G.W.)	631 / 728 lbs
