SKU: 150401

| Model: SG24,BX42S

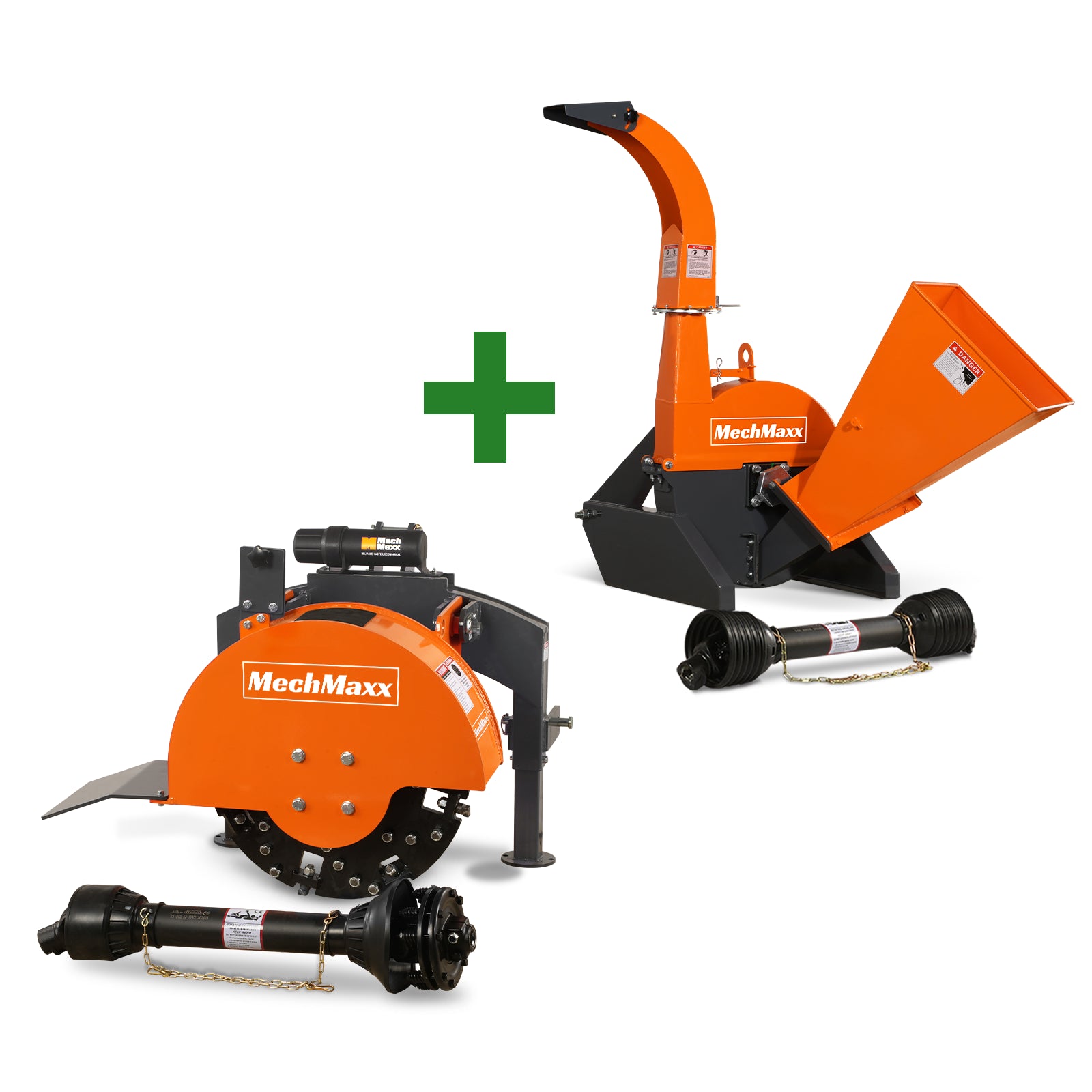

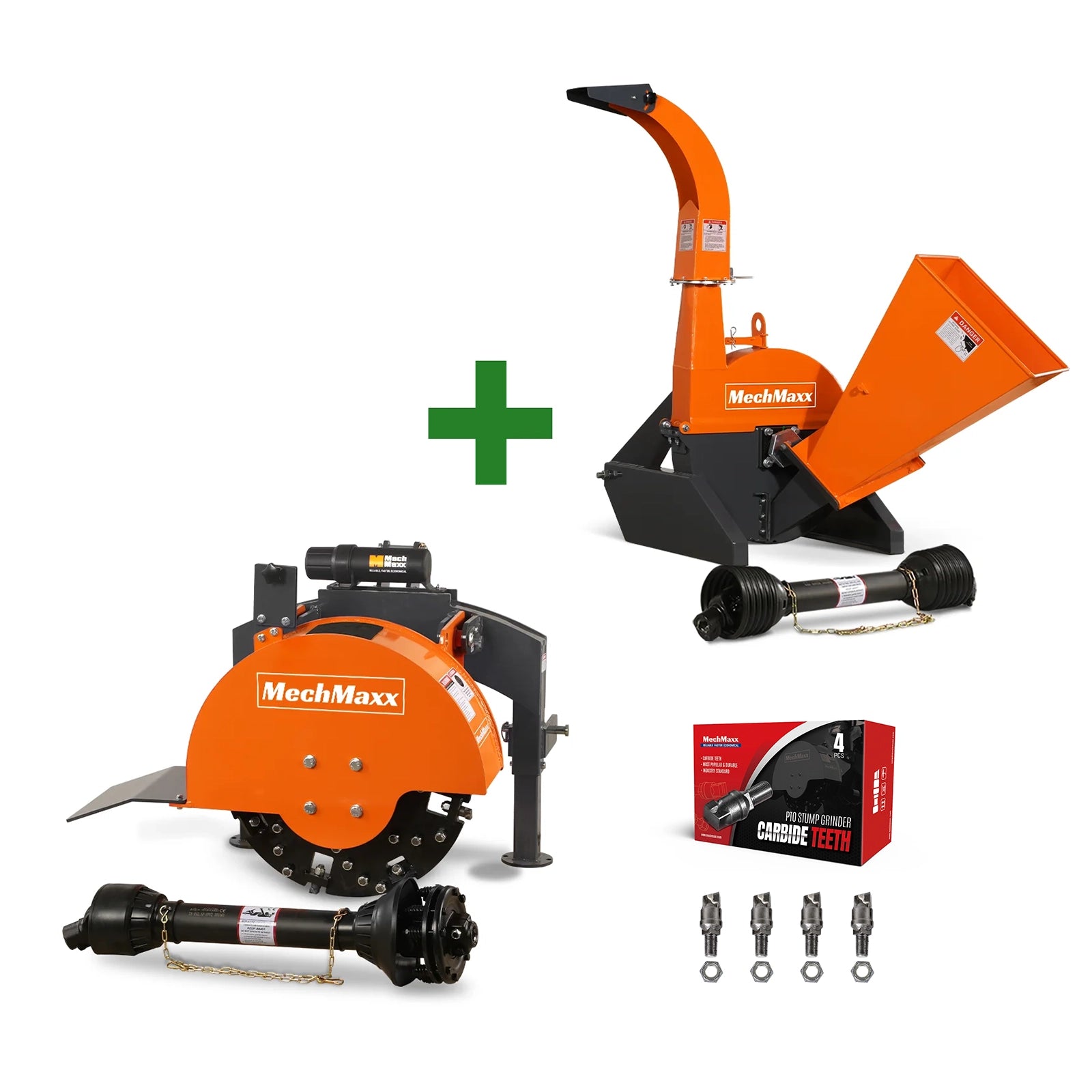

3-Point PTO Stump Grinder & Wood Chipper Combo

Name: 3-Point PTO Stump Grinder & Wood Chipper Combo
Brand: MechMaxx
SKU: 150401
Price: 3098.0 USD
Availability: InStock

$309800

$3,998.00

Save $900

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Model : Buy Together

In Stock

Buy Together SG24-Orange SG24-Green

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

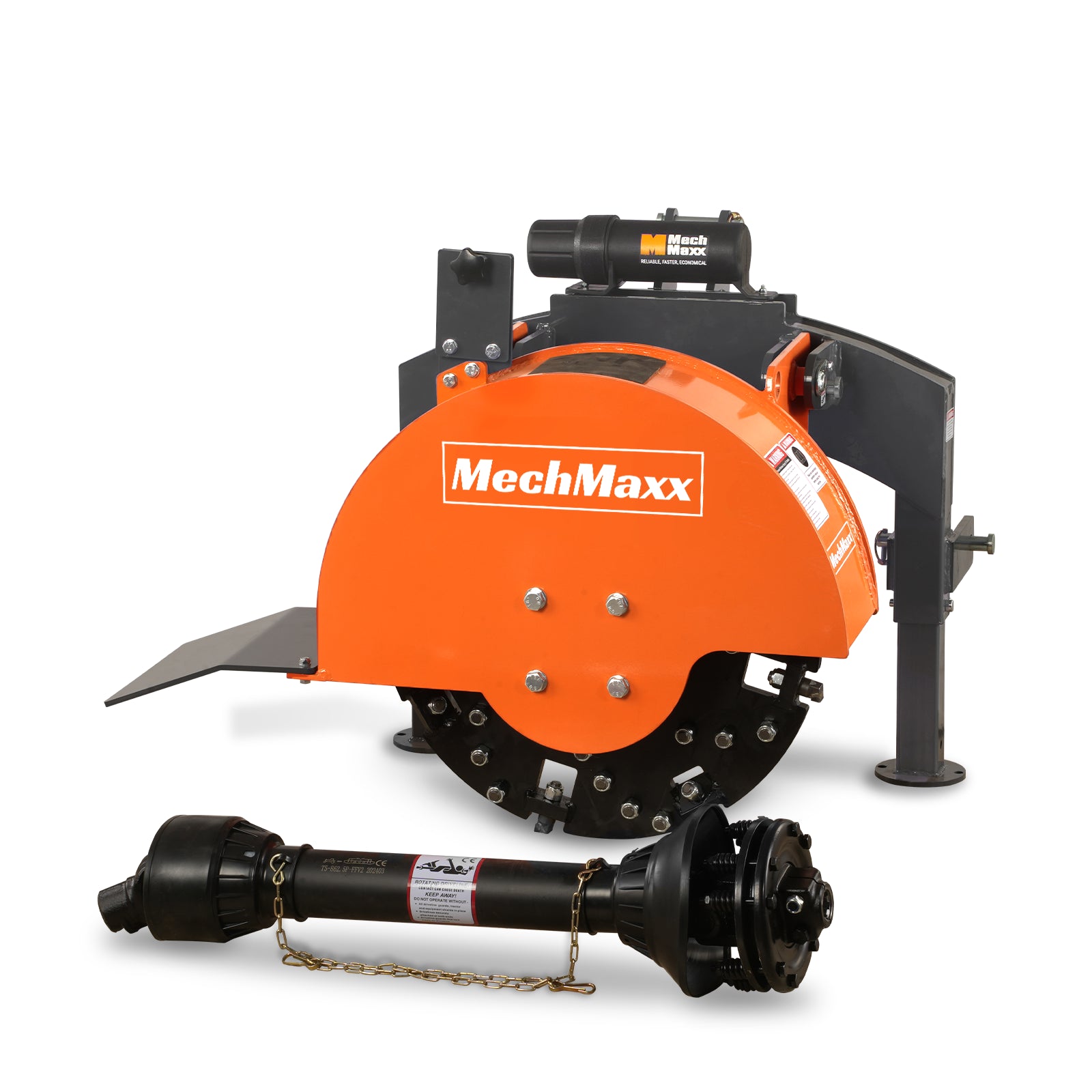

Connects directly to your tractors 3 point hitch system and is equipped with a large 24’’ diameter solid steel grinding flywheel and 34 tungsten carbide cutting teeth to make the removal of tree stumps a breeze!
These extremely rugged stump grinders are engineered to deliver optimal performance when paired with tractors containing 15-45HP at the PTO and will easily grind up to 6’’ below the ground to remove roots and prepare the ground for grading or grass.
Designed to work on tractors with a PTO shaft. The stump grinder works best on tractors featuring PTO shafts that are independent of the tractors transmission drive system. This allows the operator to control the speed of the tractor independently and separately to the PTO speed.
Since the tractor pulls the grinder through the stump, the rate at which the tractor moves is important and should be independent of the PTO shaft.

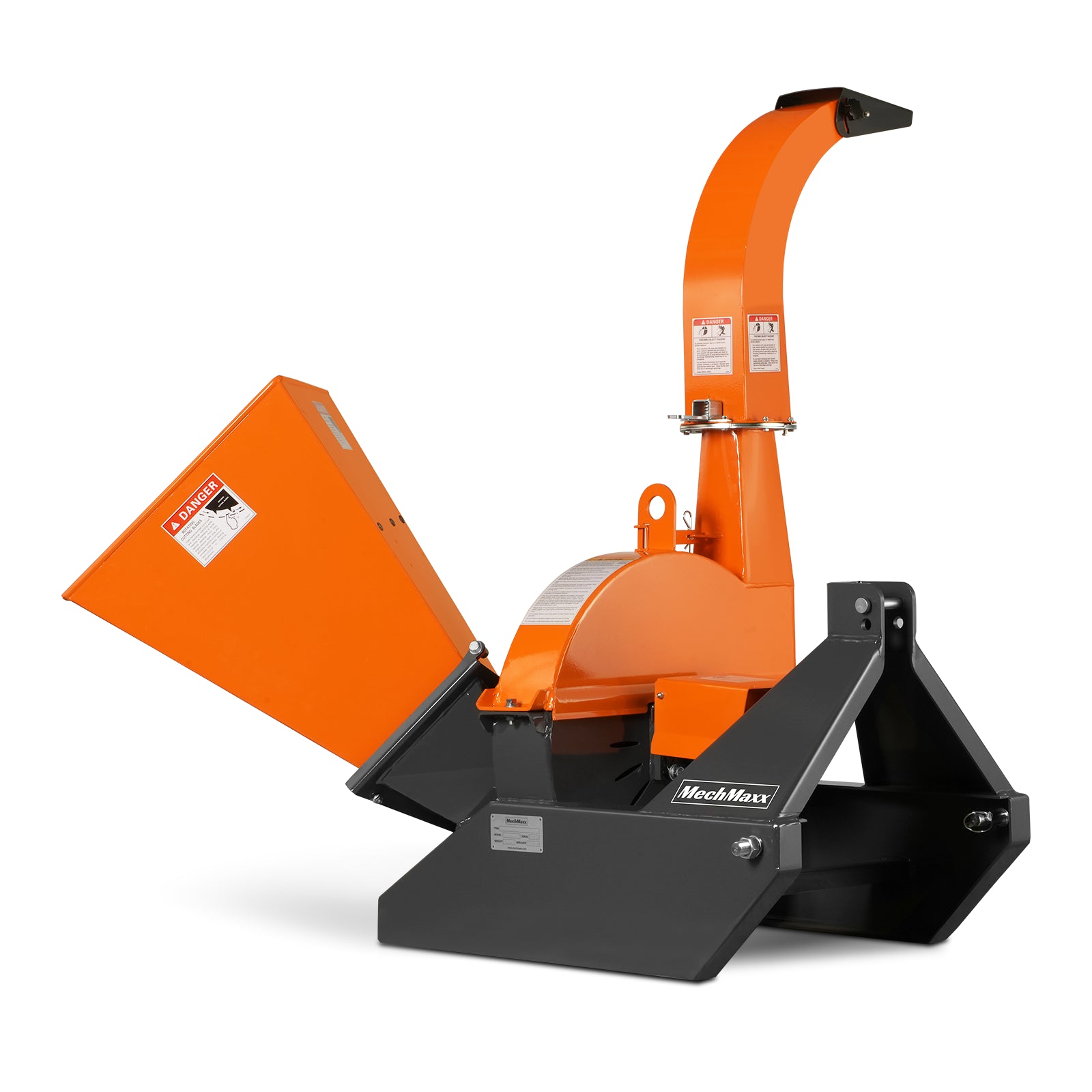

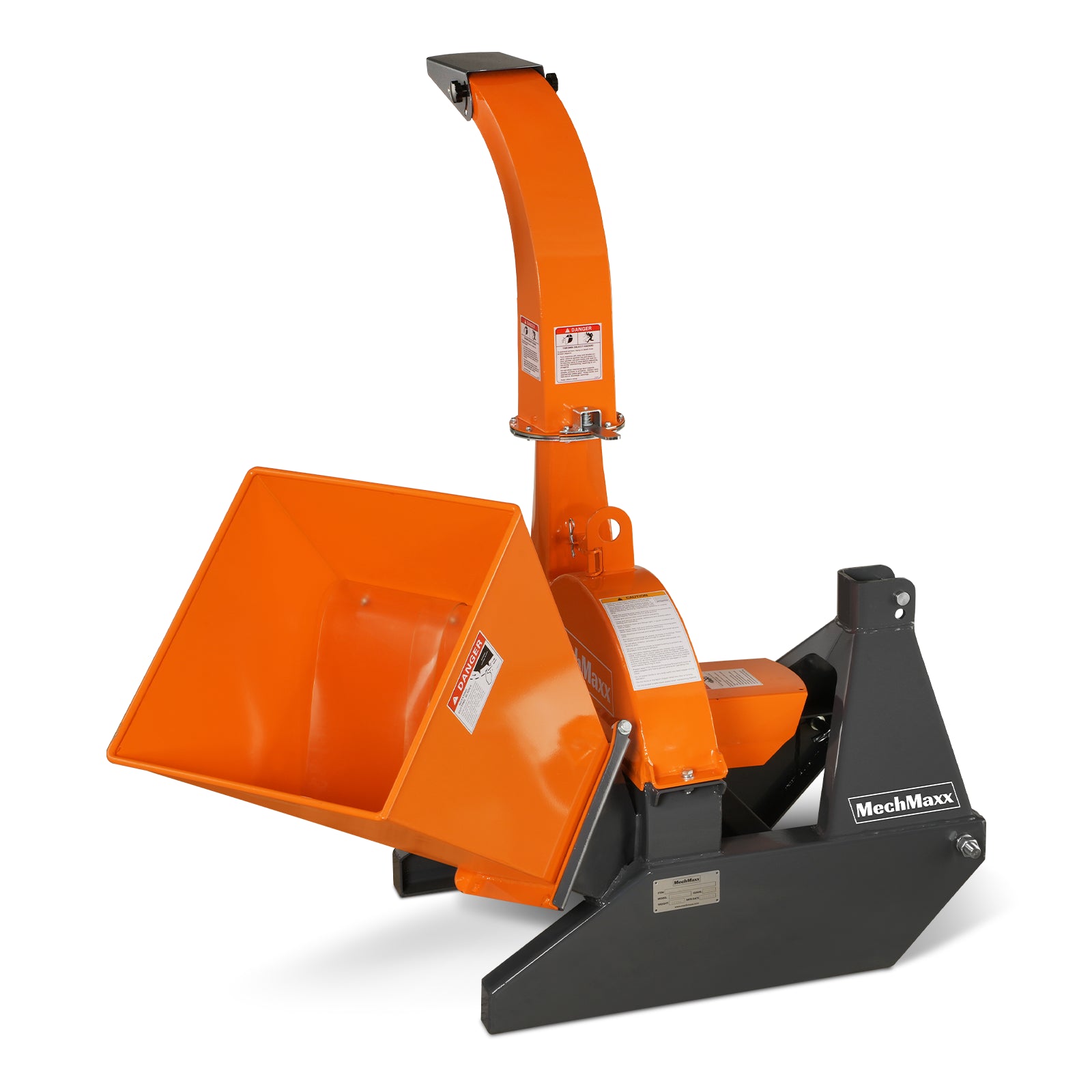

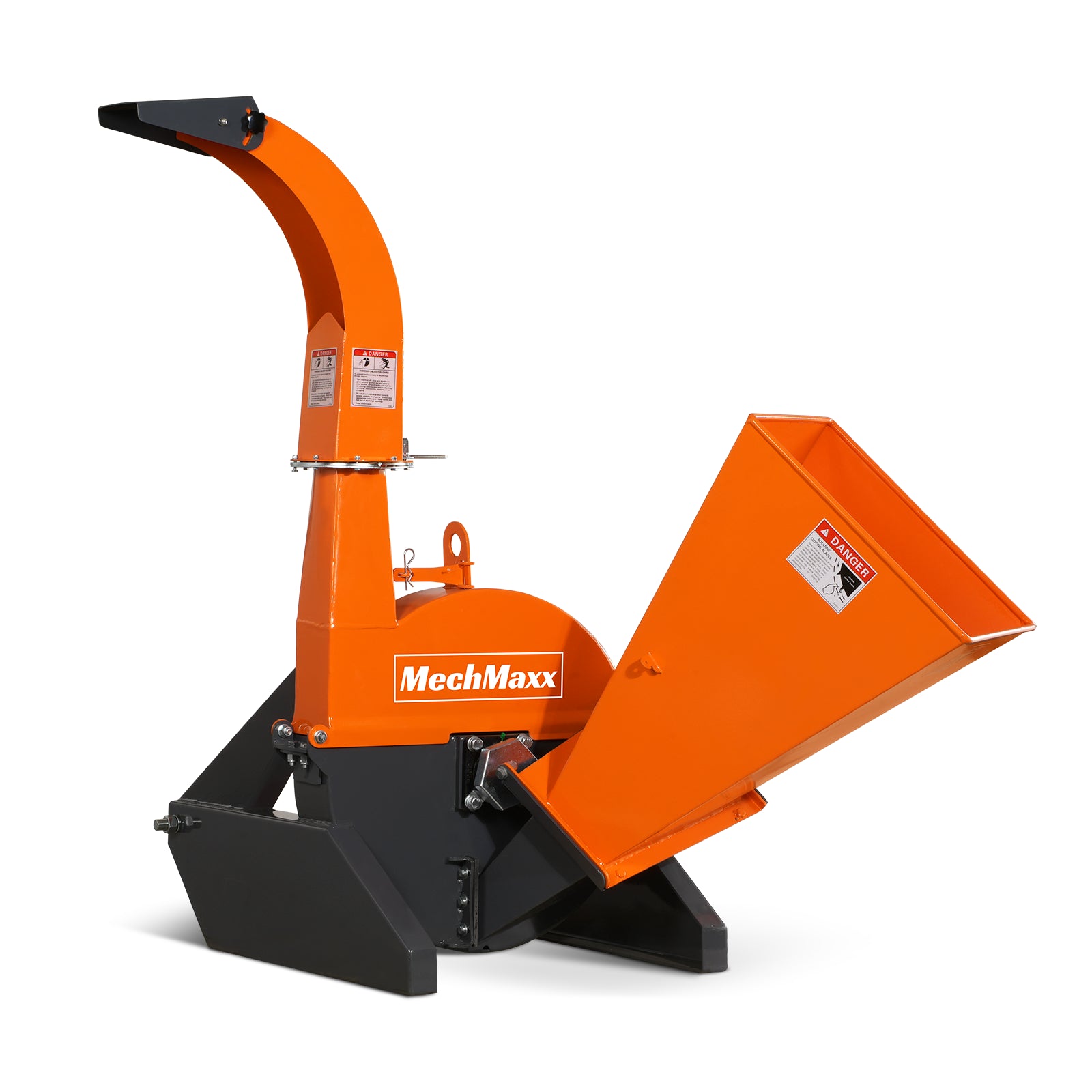

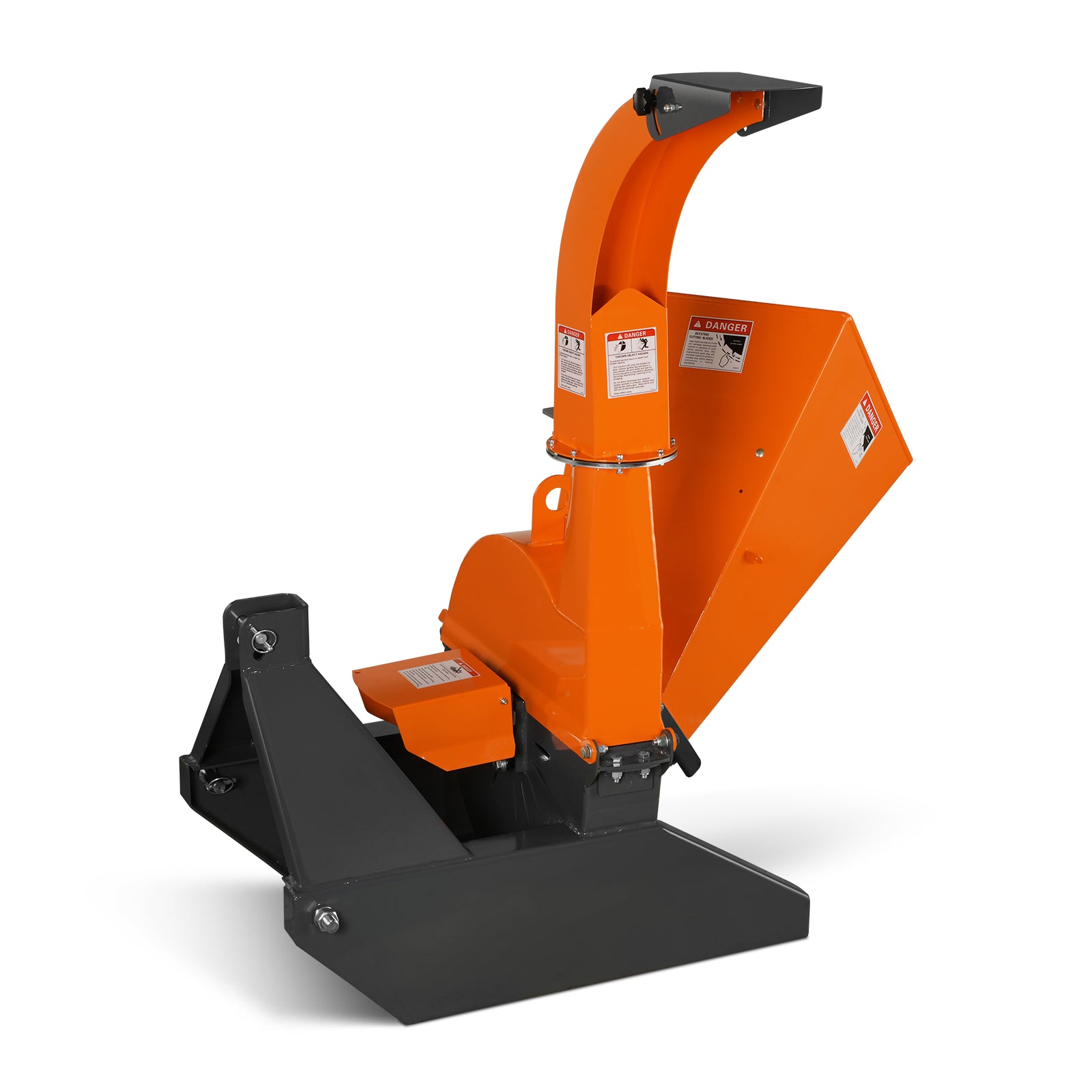

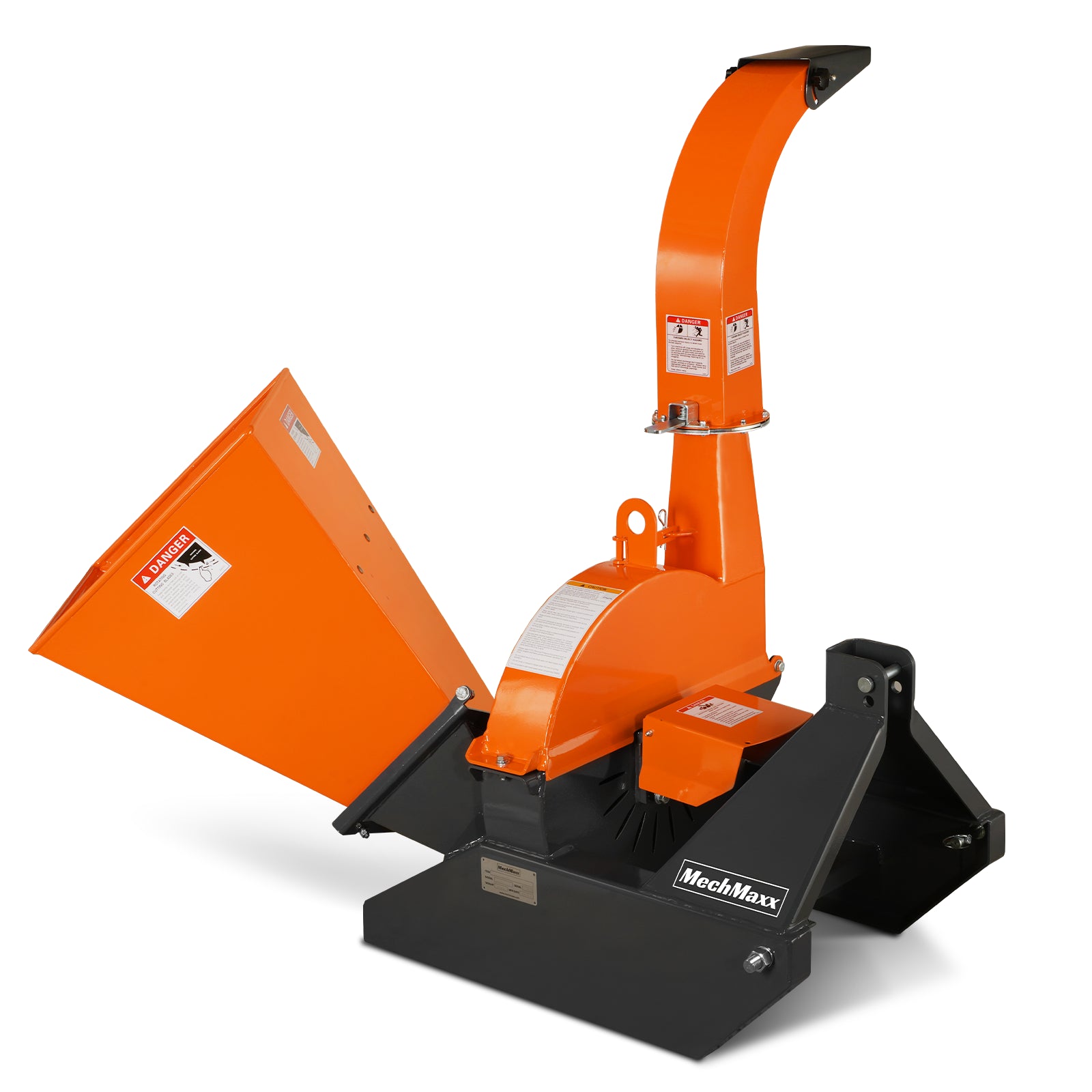

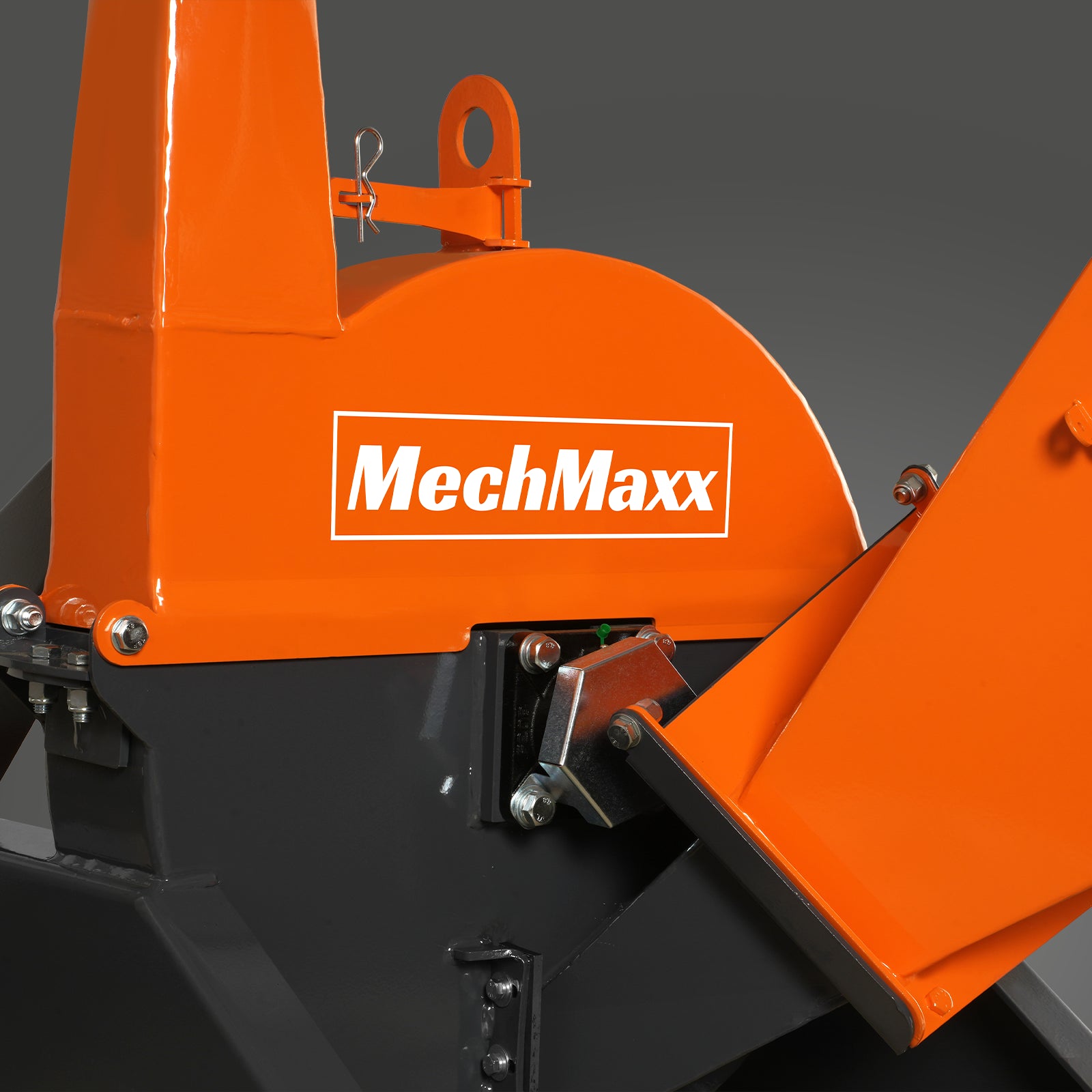

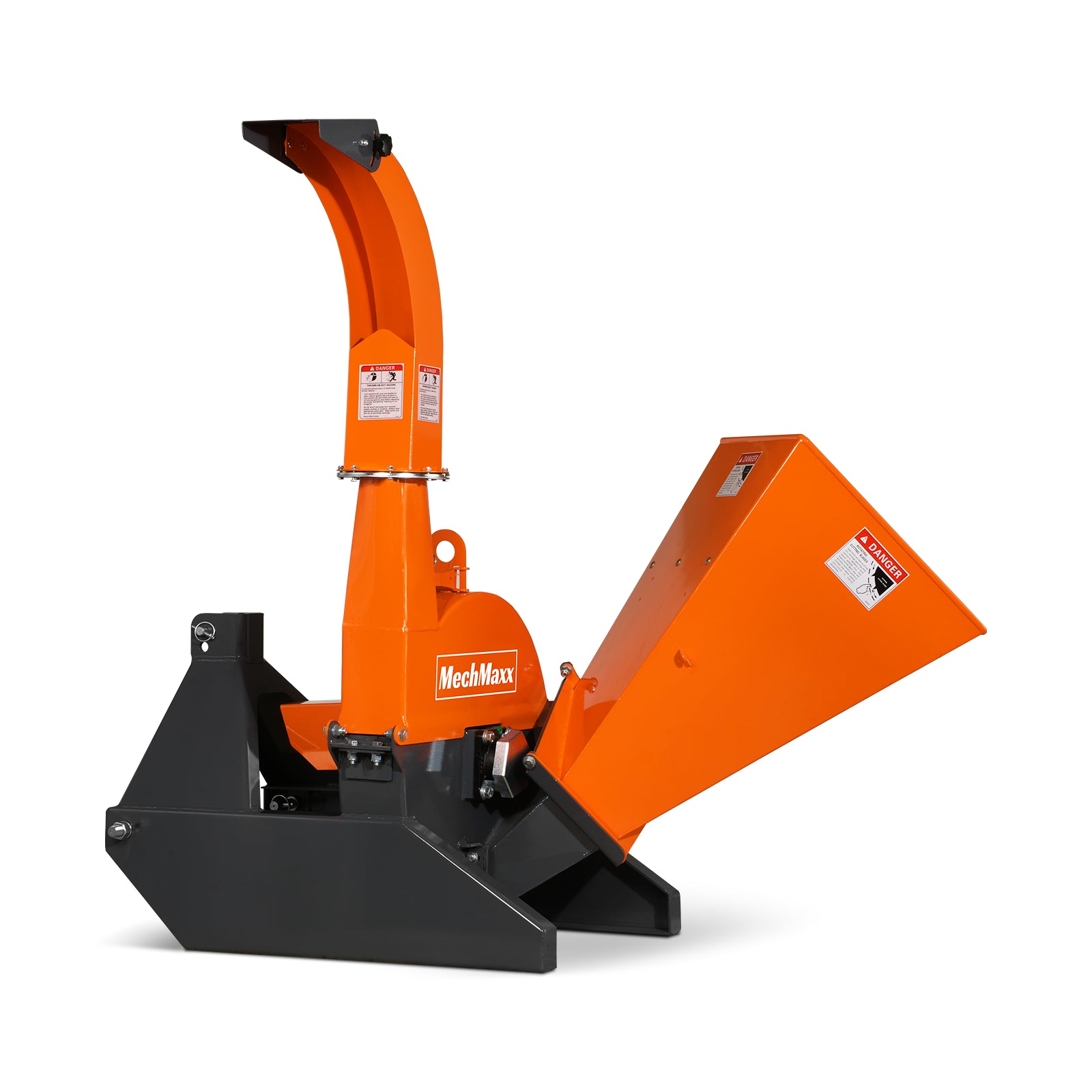

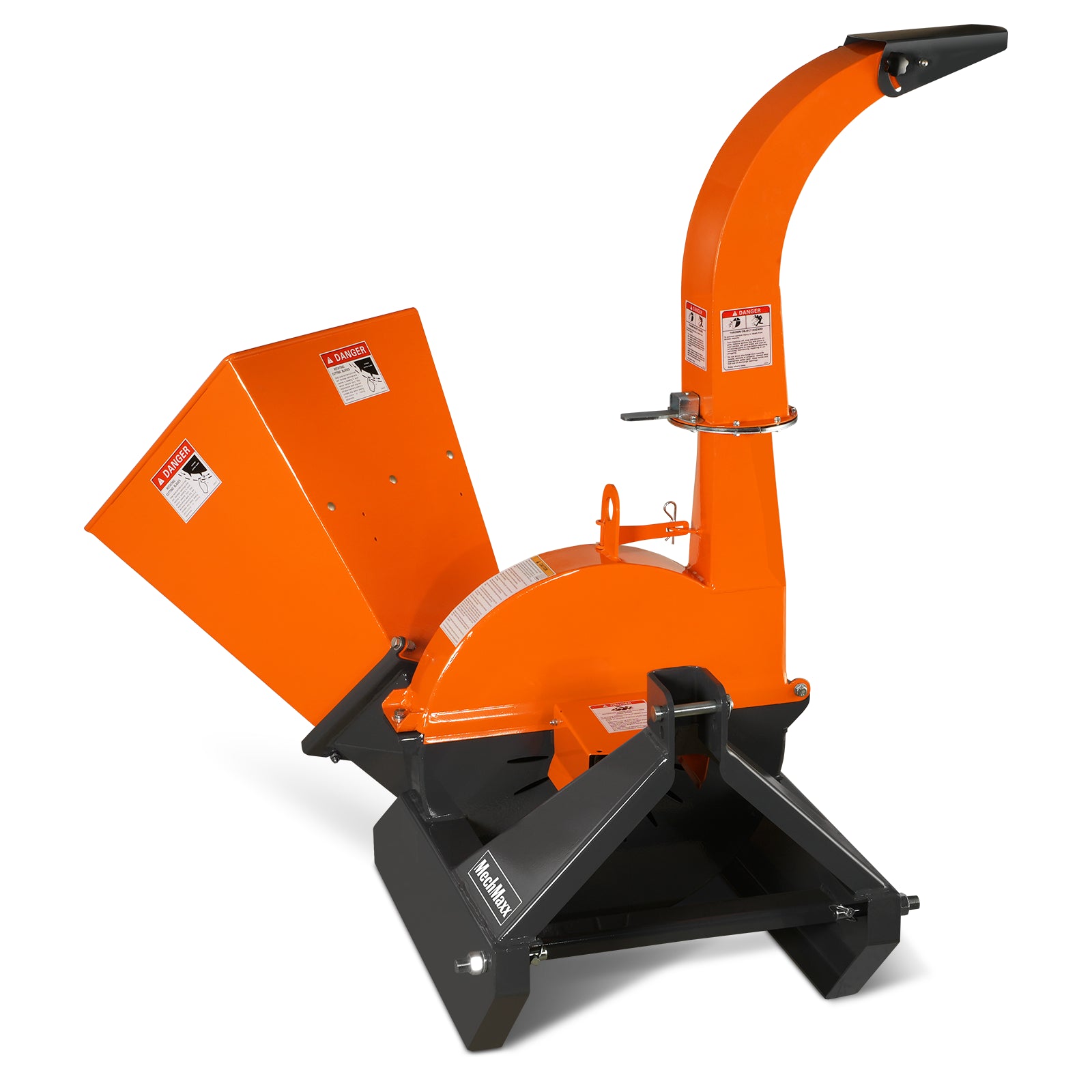

This wood chipper is constructed with heavy-duty materials to withstand demanding conditions and heavy workloads. It features a robust frame, reinforced components, and durable cutting blades, ensuring long-lasting performance and durability.
The wood chipper offers versatile chipping capability, accepting a wide range of branch sizes and wood types. It can efficiently chip branches, limbs, brush, and even smaller trees, providing flexibility for various applications.
The wood chipper is equipped with a self-feeding mechanism that pulls in the branches and debris, reducing the effort required from the operator. This feature enhances efficiency and productivity by automatically feeding the material into the chipper, minimizing manual labor.
The PTO Wood Chipper is designed for easy integration with tractors equipped with a PTO system. It connects to the tractor's PTO shaft and utilizes the tractor's power to drive the chipper, eliminating the need for a separate engine or power source.

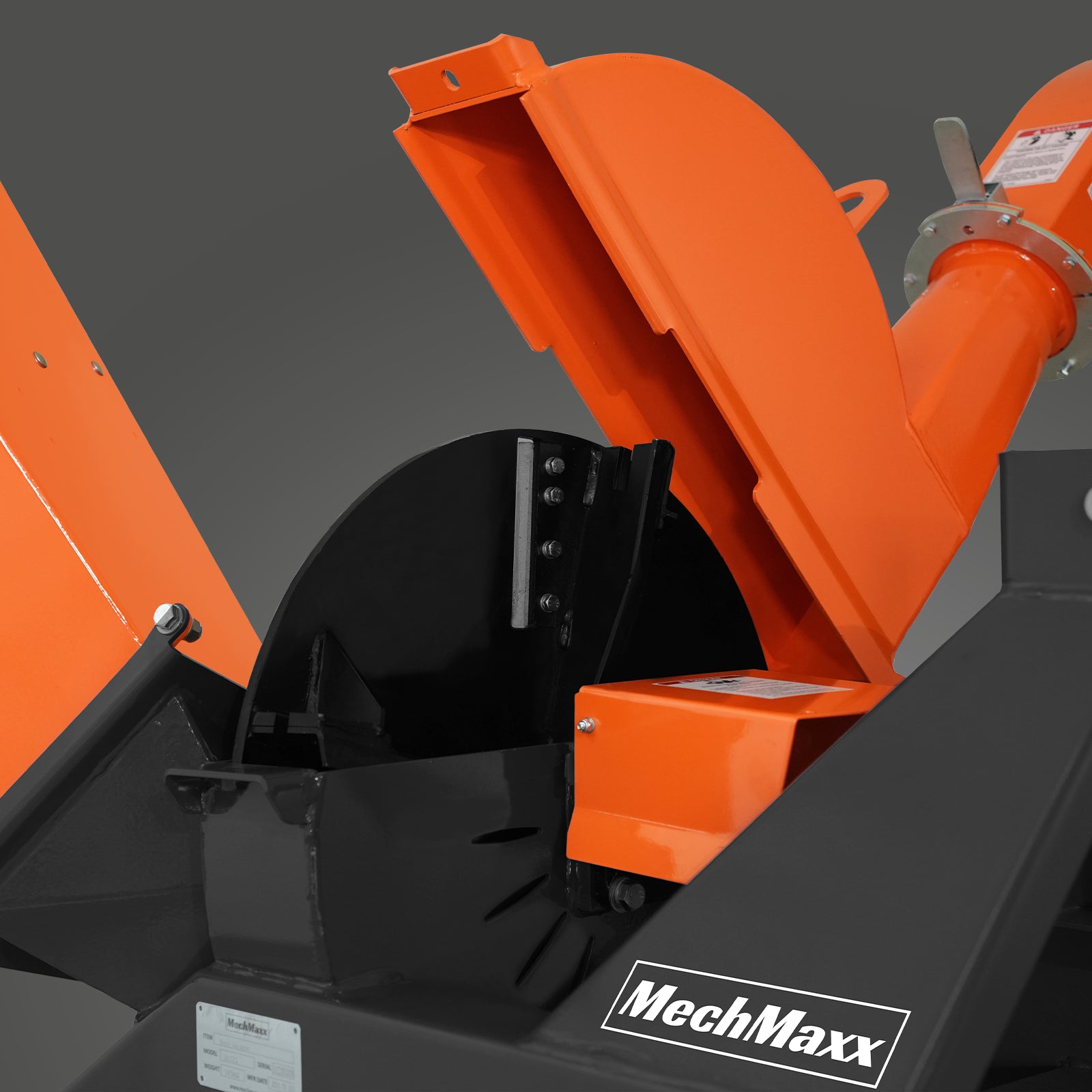

The wood chipper is designed for ease of maintenance. It allows easy access to the cutting blades for sharpening or replacement, simplifying maintenance tasks and ensuring optimal chipping performance.

Product manual (PDF)

SG24 Product manual 1.0.pdf

Product manual (PDF)

BX42S Product manual 1.0.pdf

Product Features

24 '' Flywheel Diameter

a large 24’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 24-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.

34 Tungsten Carbide Cutting Teeth

Equipped with 34 tungsten carbide cutting teeth that sharpen stumps quickly, speeding up work and making stump removal a breeze.

PTO Shaft

1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch. Compatible with reliable 540 rpm dedicated PTO drive power supply, ensuring efficiency and stable performance.

PTO Required

Extremely sturdy stump grinder engineered to provide optimal performance when used with tractors with PTO power of 15-45HP.

3 point hitch Cat. 1

The three-point connection ensures the stability of the root grinder connected to the tractor and remains stable when the machine is running, improving grinding efficiency and reducing working time.

Cutting Depth

Easily grinds underground to a depth of 6 inches to remove tree roots and prepare for grading or lawn.

Tractor Power

BX42s is suitable for most tractors, with a minimum of 18HP and a maximum of 45HP.

PTO Shaft

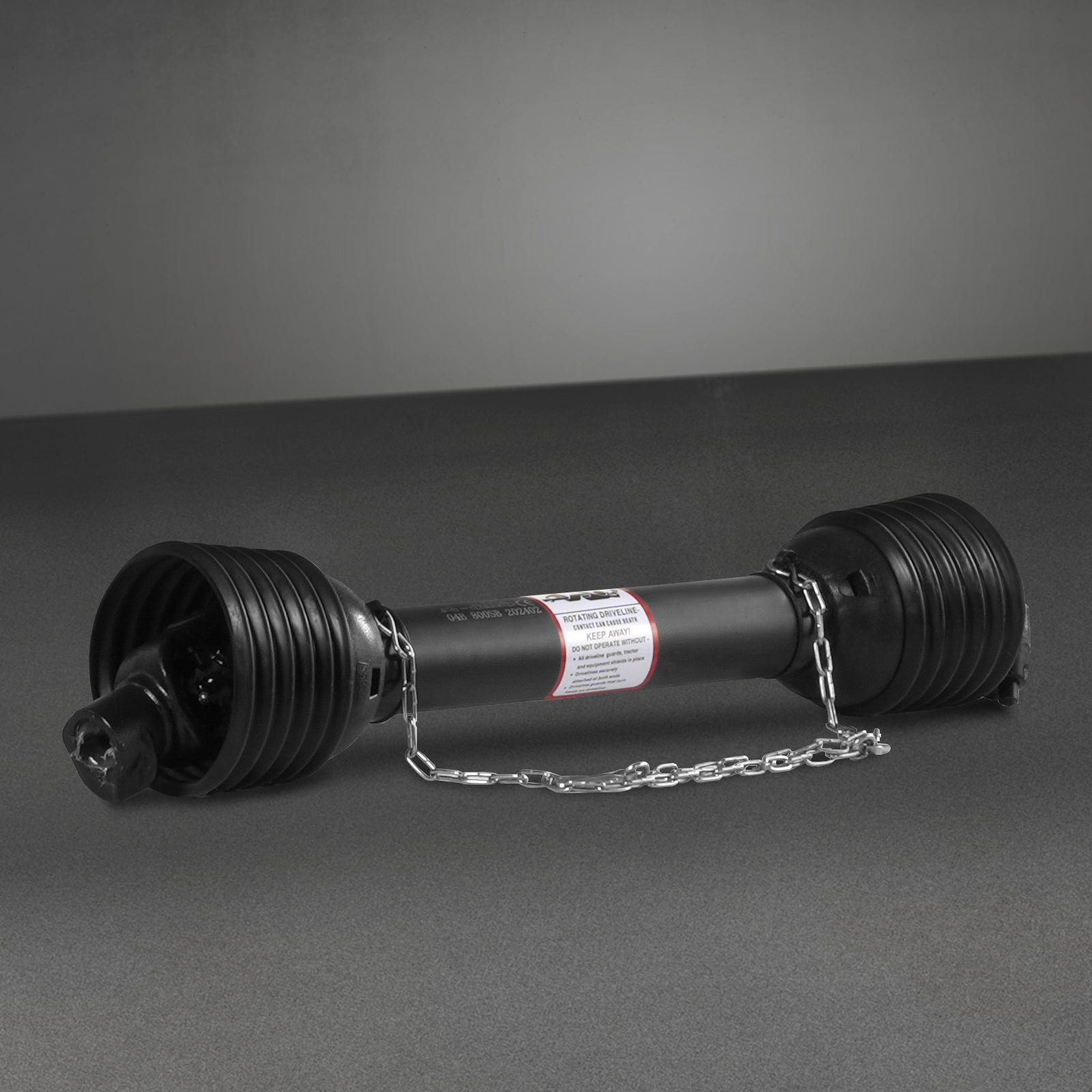

1-3/8” 6 Spline Tractor and Implement Ends. Included PTO shaft for Category 1 hookups make this chipper compatible with most tractor makes and models. Model:T5-LF-31 in with shear bolt ,31.5-43 in

Cutter

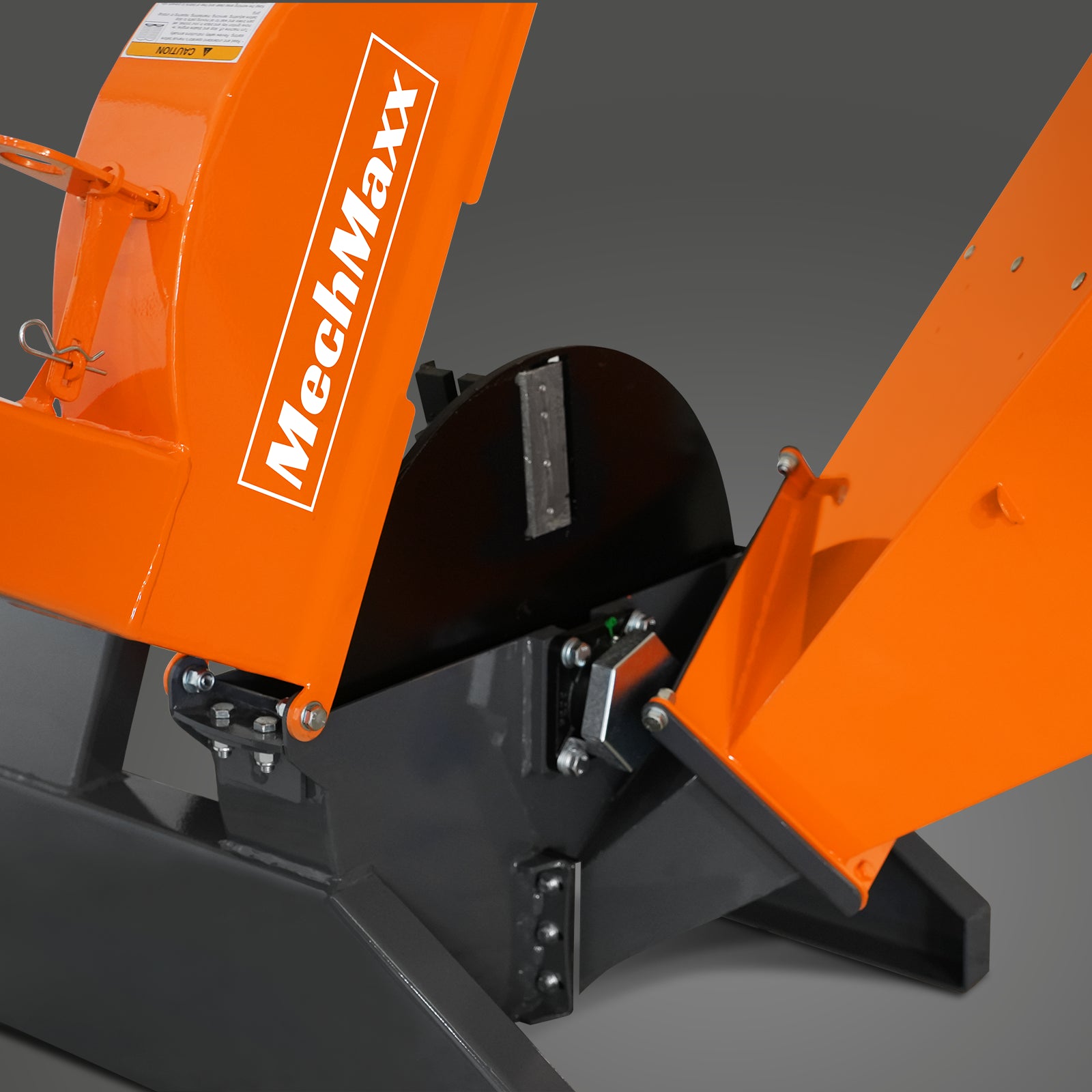

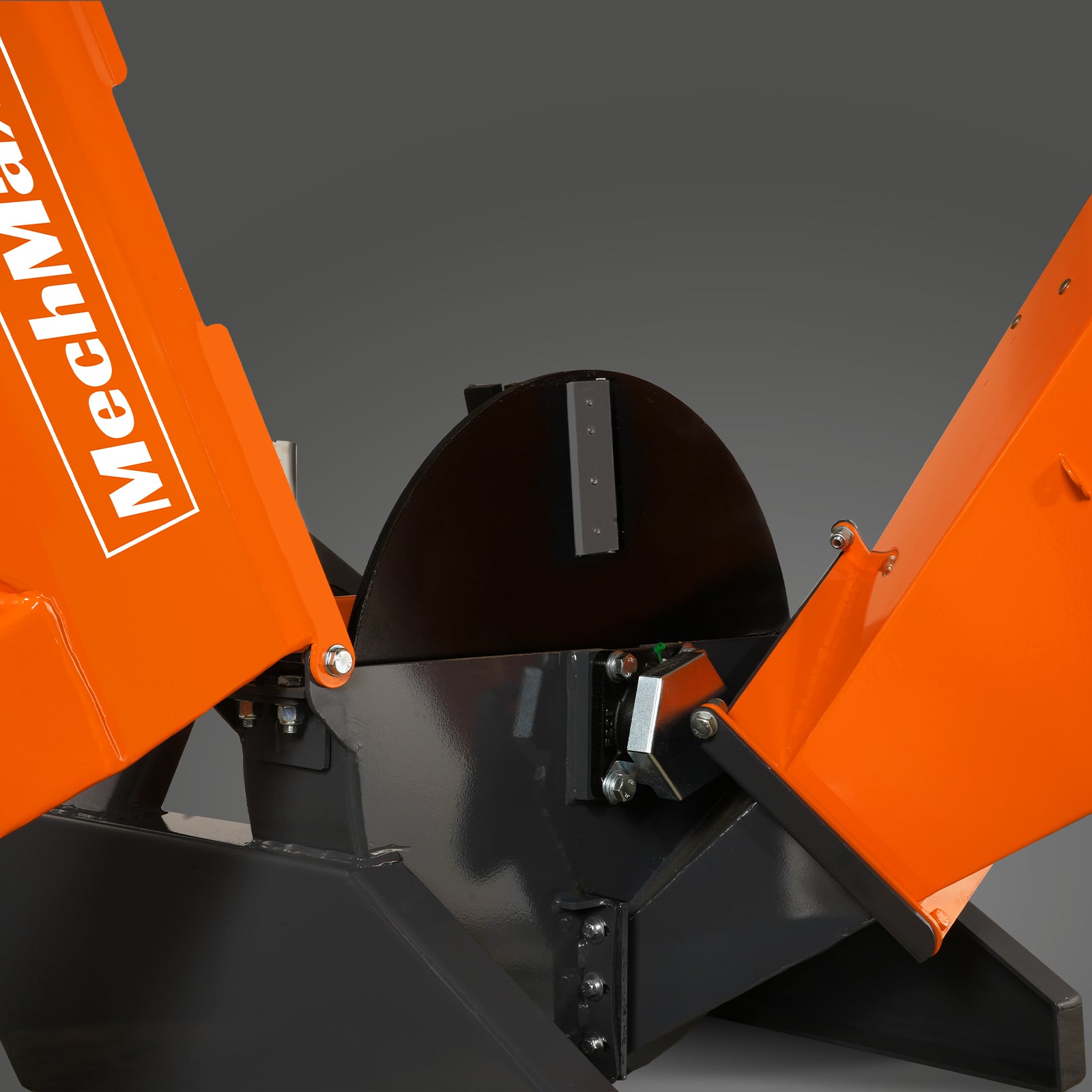

The core cutting component of the BX42S Wood Chipper is a disc. Easy to disassemble for quick blade replacement.

3 Point Hitch

The three-point connection ensures the stability of the root grinder connected to the tractor and remains stable when the machine is running, improving grinding efficiency and reducing working time.

Maximum Wood Chip Diameter 4’’

BX42S provides maximum cutting force to effortlessly cut branches with a maximum diameter of 4’’.

Discharge Chute

The top of the discharge chute can rotate 360 degrees. Easy to disassemble for quick blade replacement.

Tractor Power	18-45HP	Blade (Tines) Material	4CrW2Si
Max. Throughput Capacity	4 in	PTO Shaft RPM	540 RPM
Infeed Opening	4*10 in	Flywheel Speed	540 RPM
lnfeed Chute Opening	20*20 in	Drive Type	PTO
Feeding Opening	Gravity Feed	Driveline Shaft Length	T5-LF-31 in with shear bolt ,31.5-43 in
Discharge Chute Rotation	360 Degrees	3-Point Hitch	CAT 1
Rotor Diameter	26 in	Dimensions (L x Wx H)	38x 33x 43 in
Rotor Thickness	0.2 in	Finsh	Powder Coat Paint Galvanized Steel
Rotor Weight	82 lbs	Warranty	1 year
Number Of Blades	4+1	Net Weight	395 lbs
Blade Weight	0.9 lbs	Gross Weight	439 lbs

Flywheel Diameter	24 in	Mounting	3 point hitch Cat. 1 (Quick attach compatible)
Flywheel Thickness	3/4 in	PTO Input	540 RPM
Carbid Tip	34 pcs	Max. Torque	1200Nm
Carbid Tip Material	YG11C	PTO Shaft Weight	44 lbs
Tip Holder Material	42CrMo	Dimensions	29 x 37x 38 in
PTO HP Required	15–45 HP	Packing	Iron frame + Carton
PTO Shaft (Included Shipping)	1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch	Weight (N.W/G.W.)	450/563 lbs
Friction Torque Limiter (Slip Clutch)	Included
