SKU: 150152

| Model: TSG61

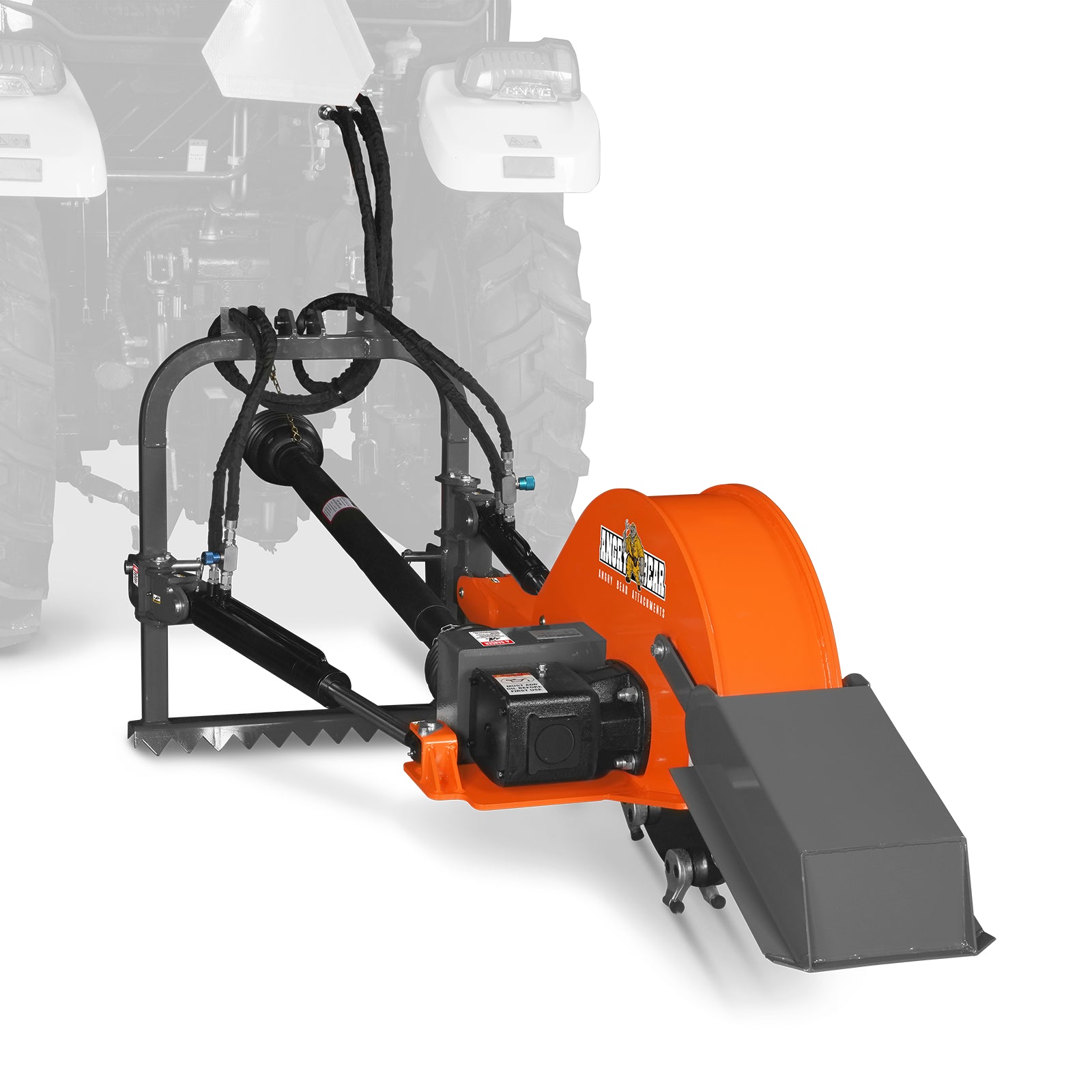

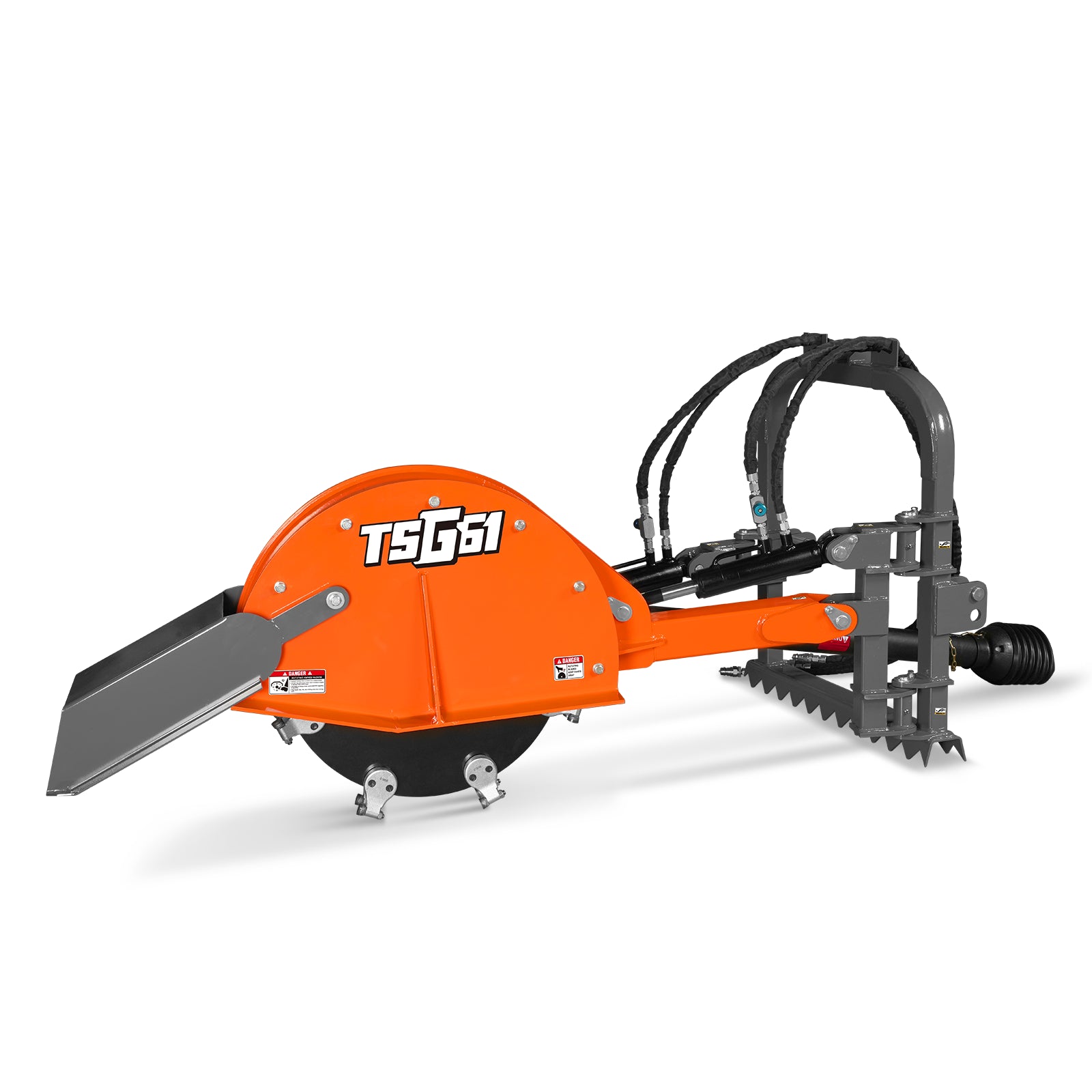

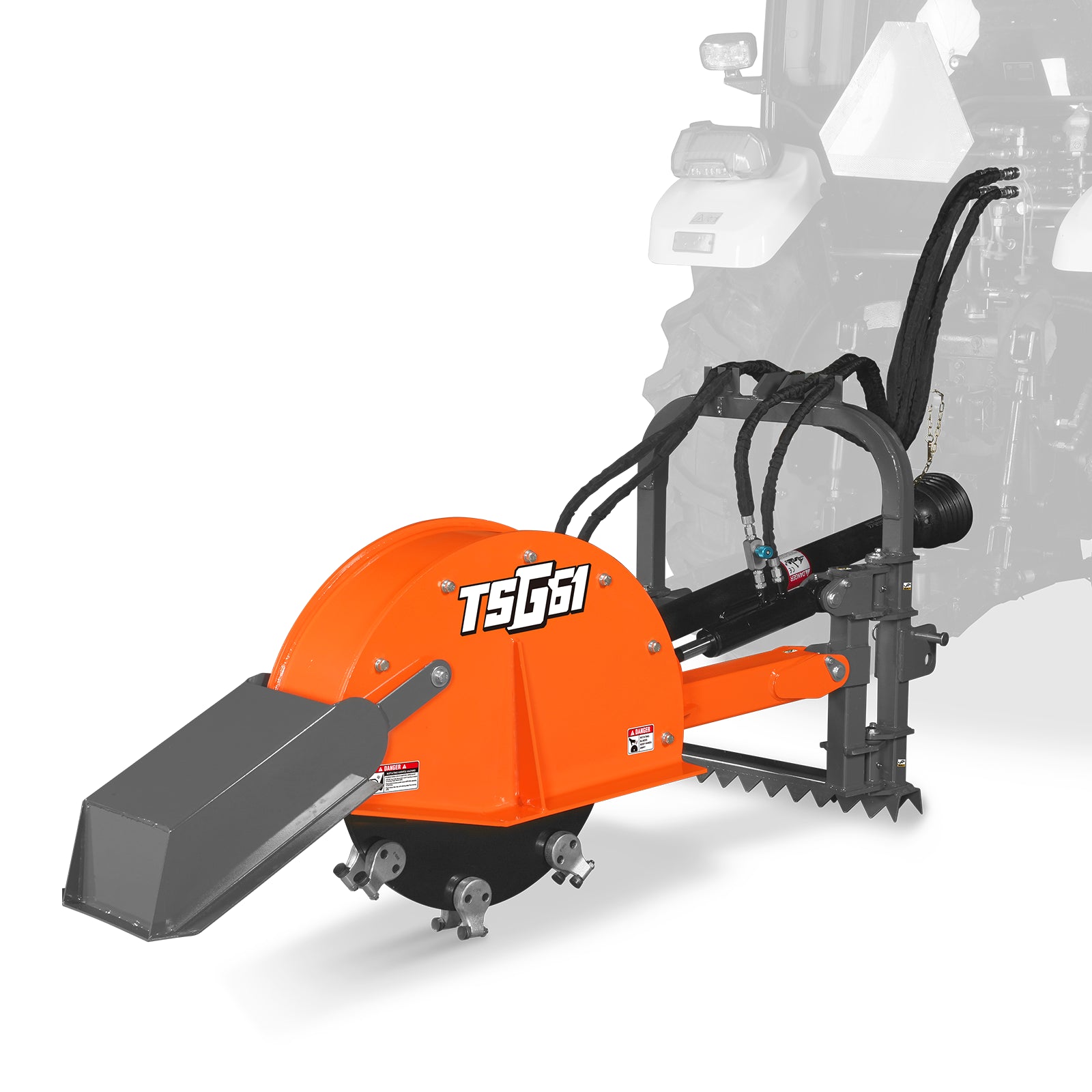

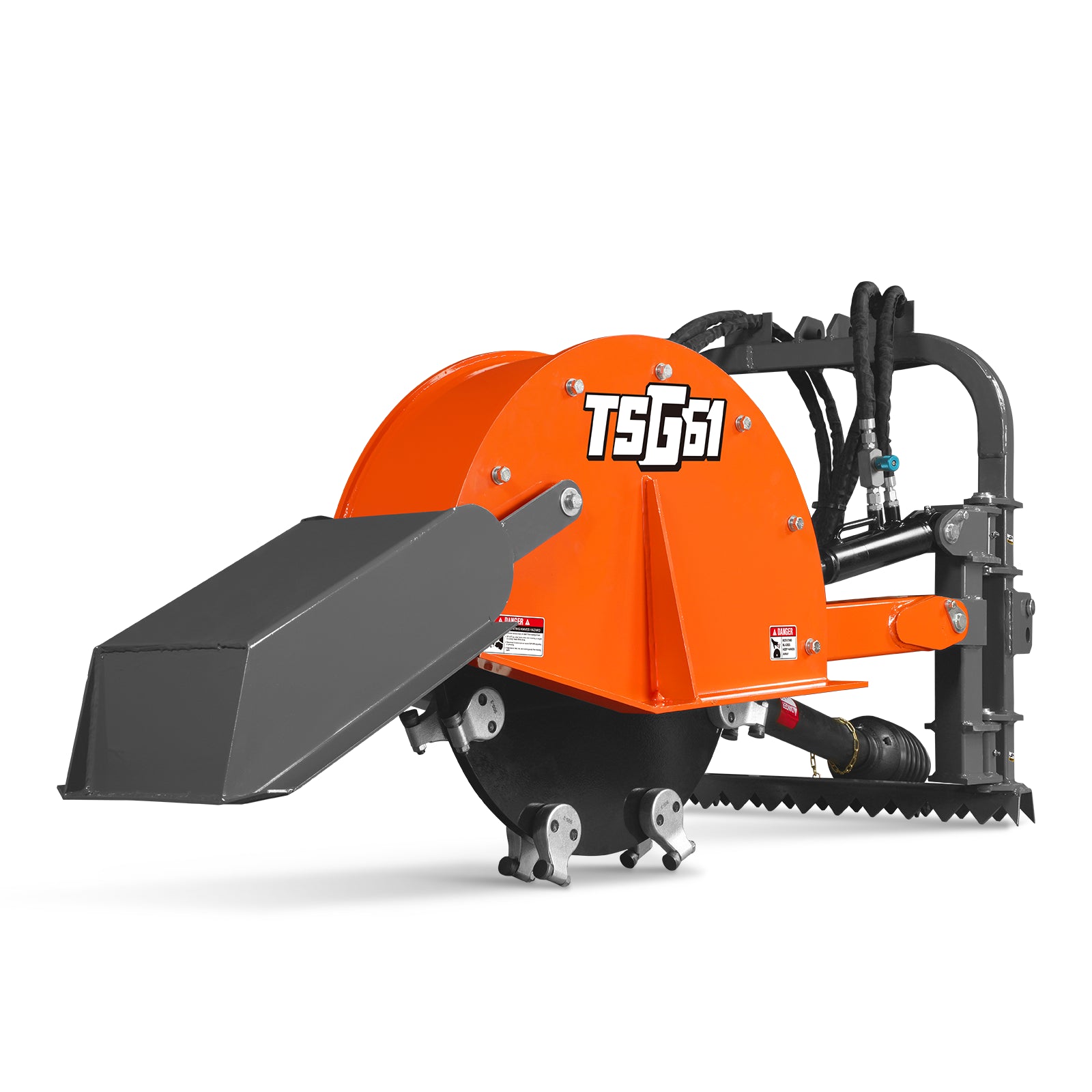

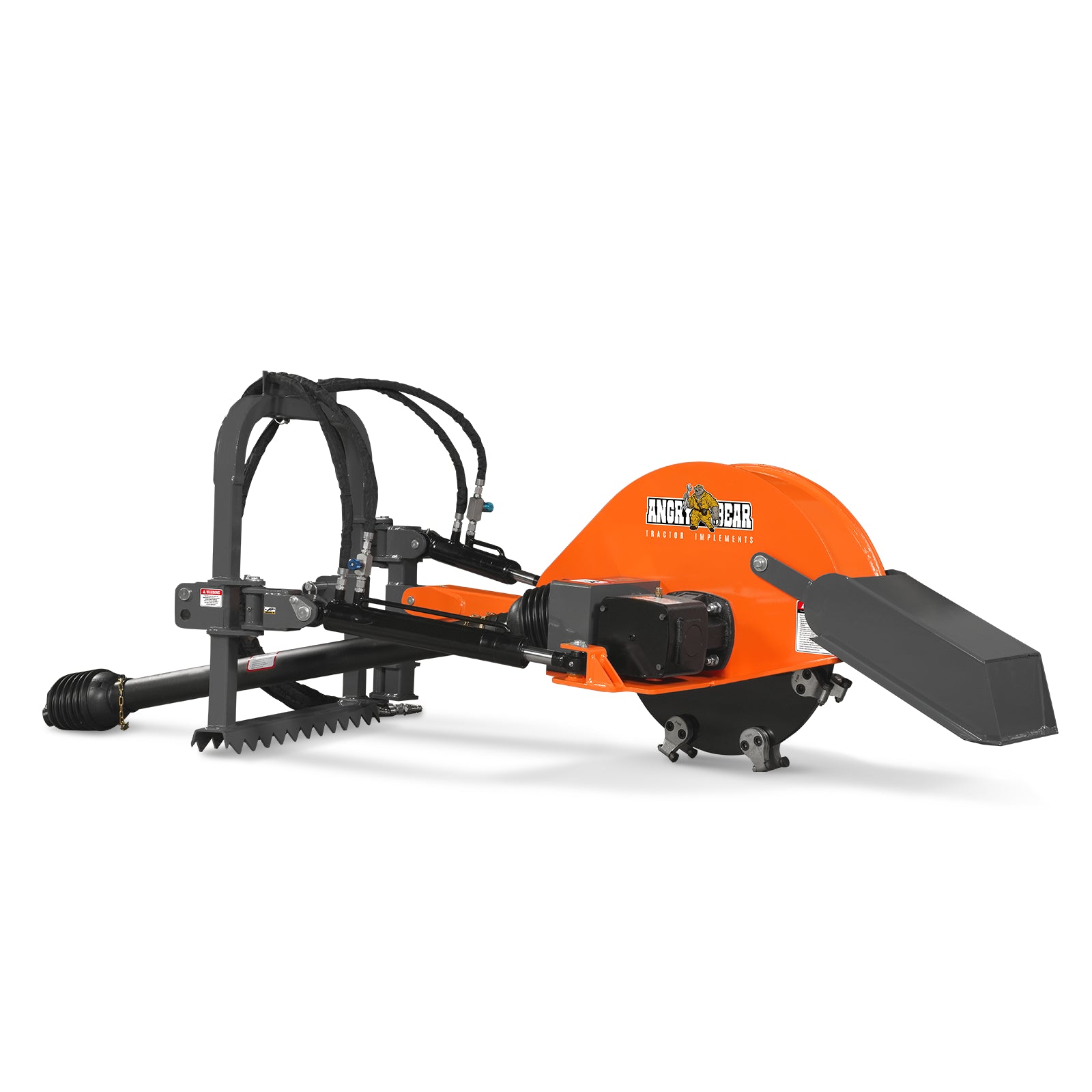

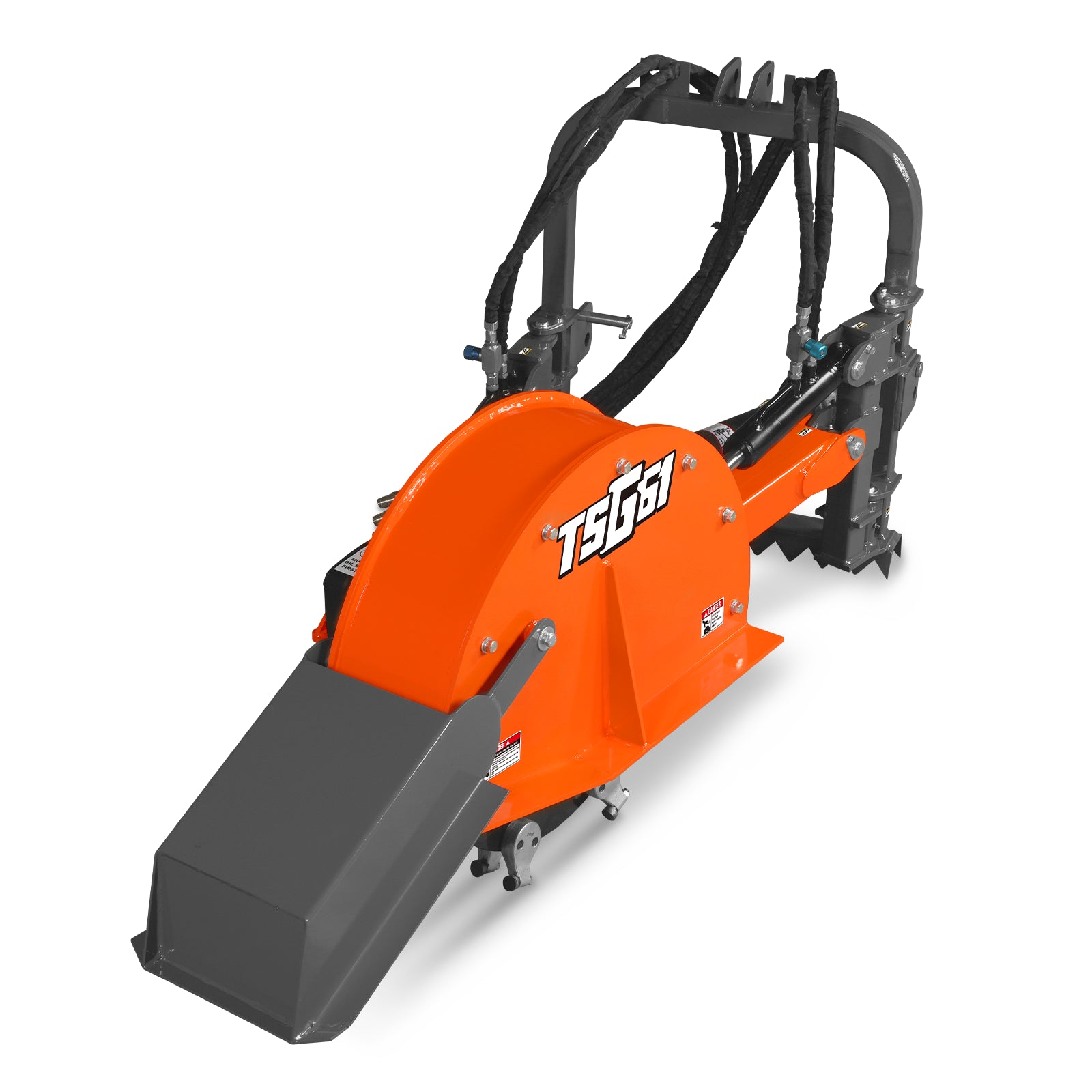

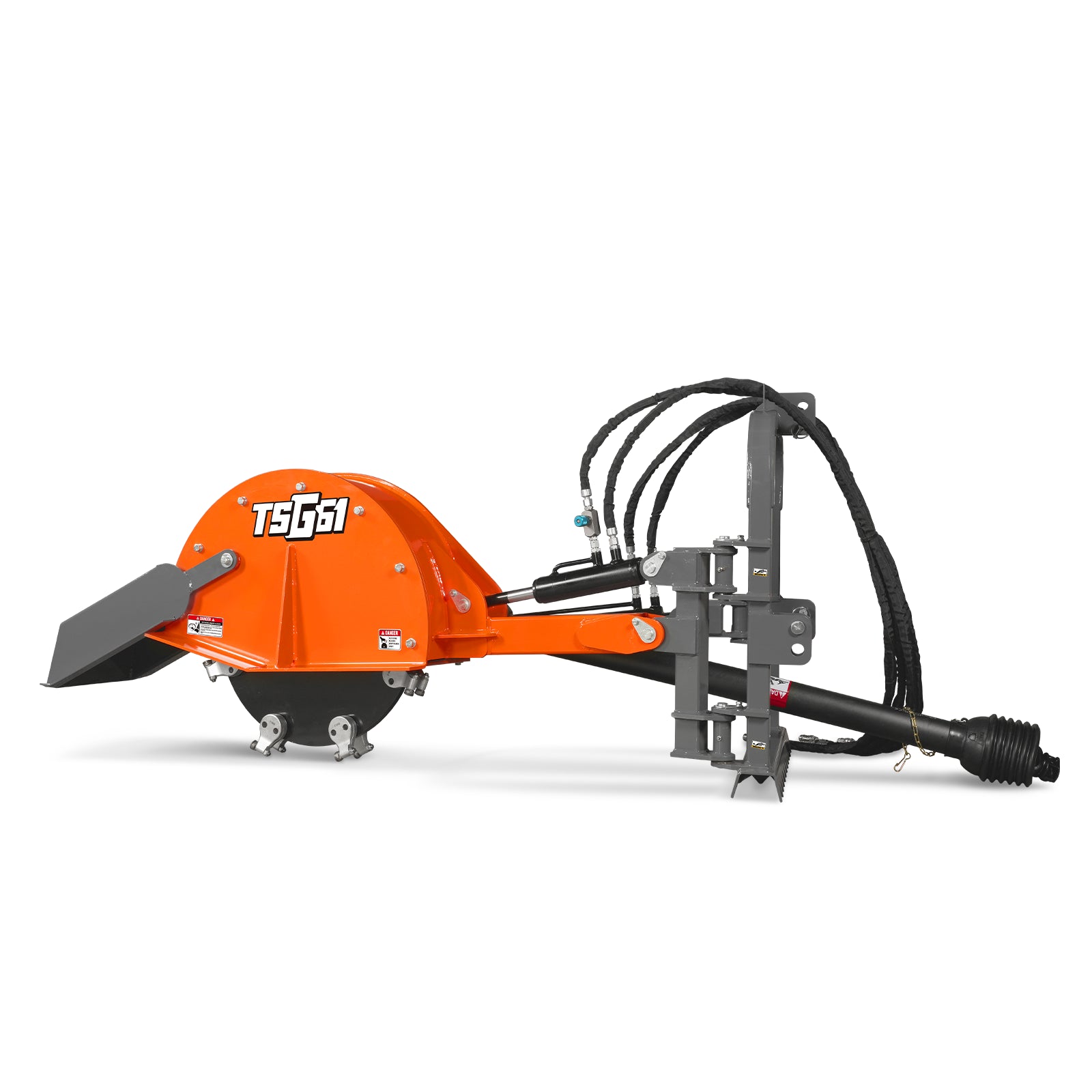

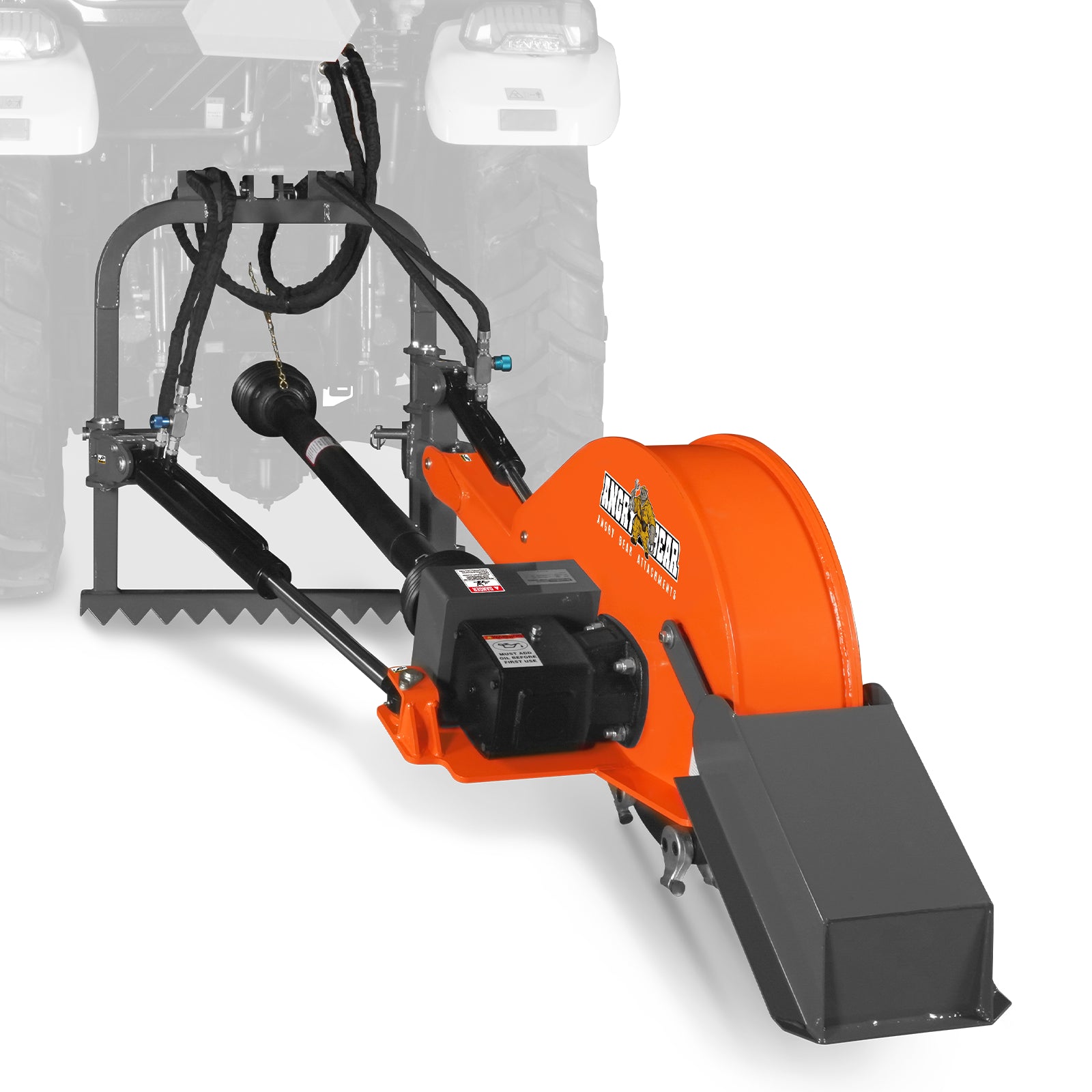

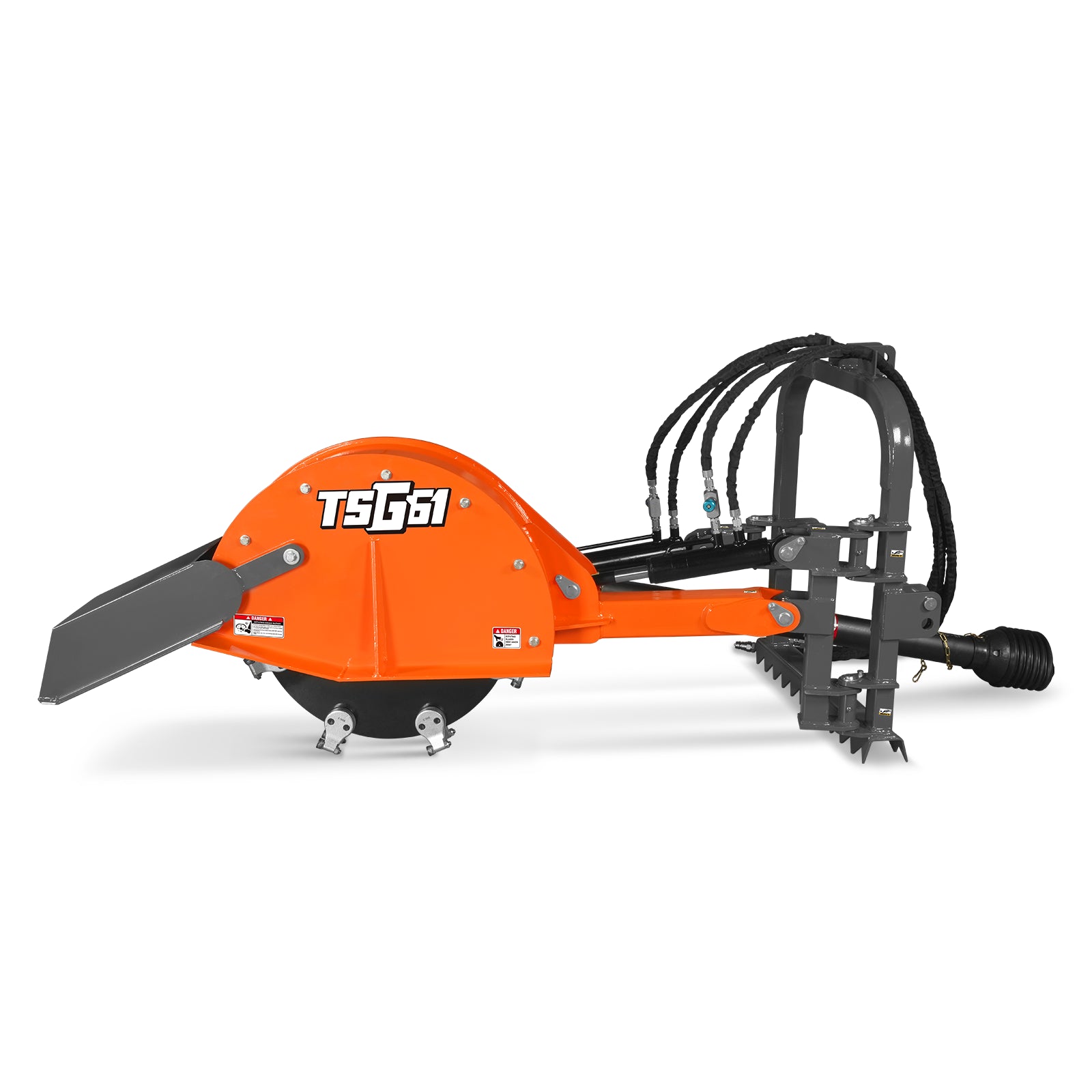

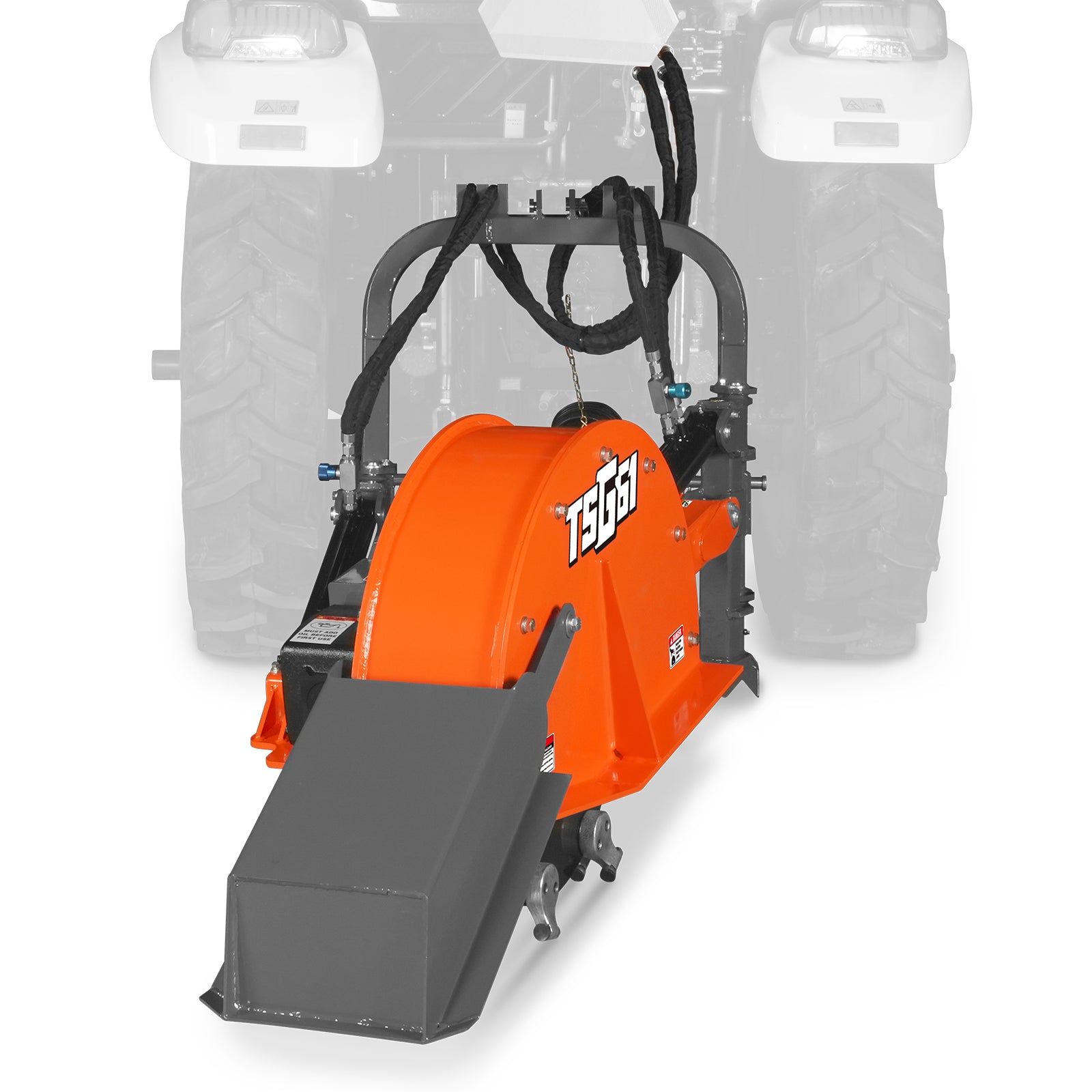

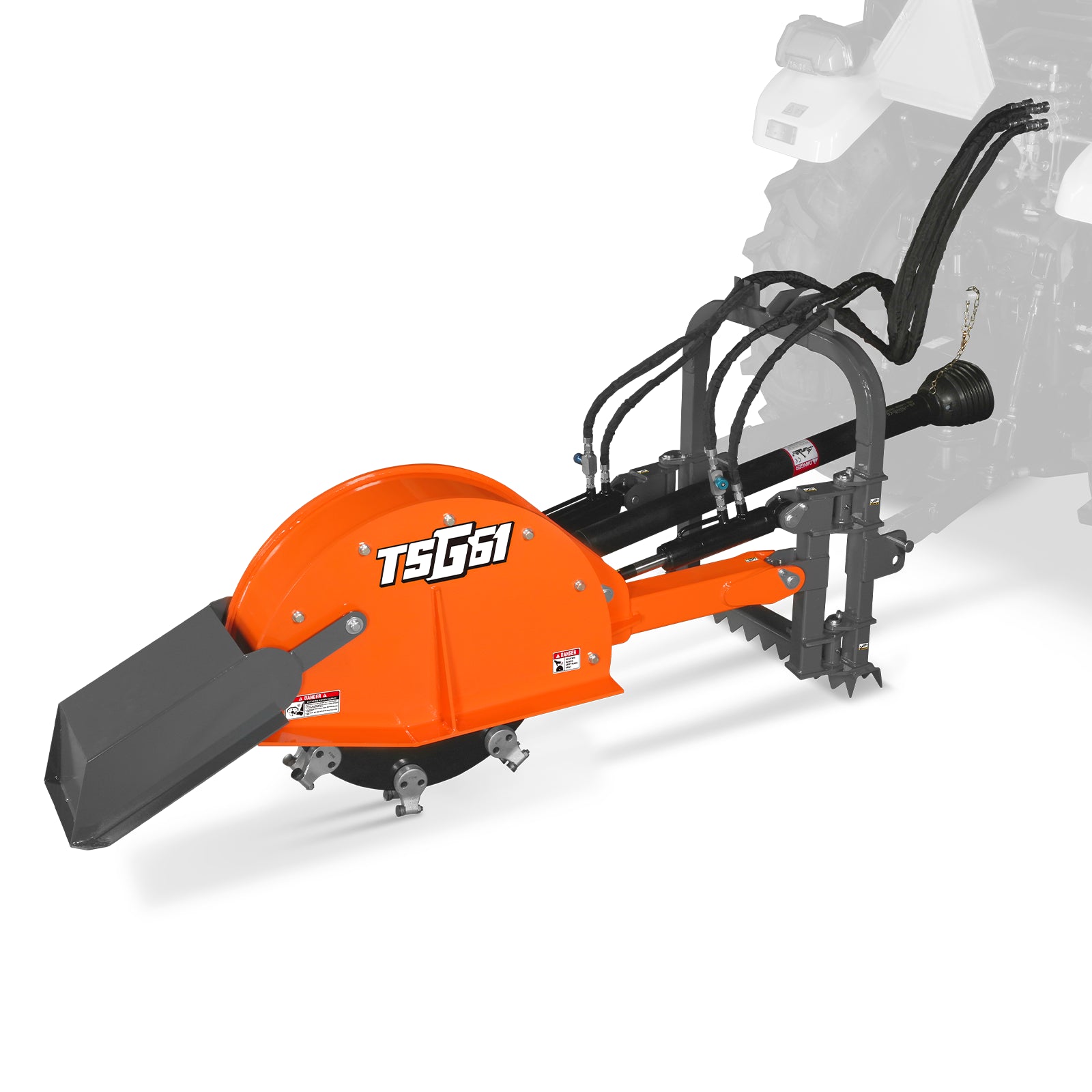

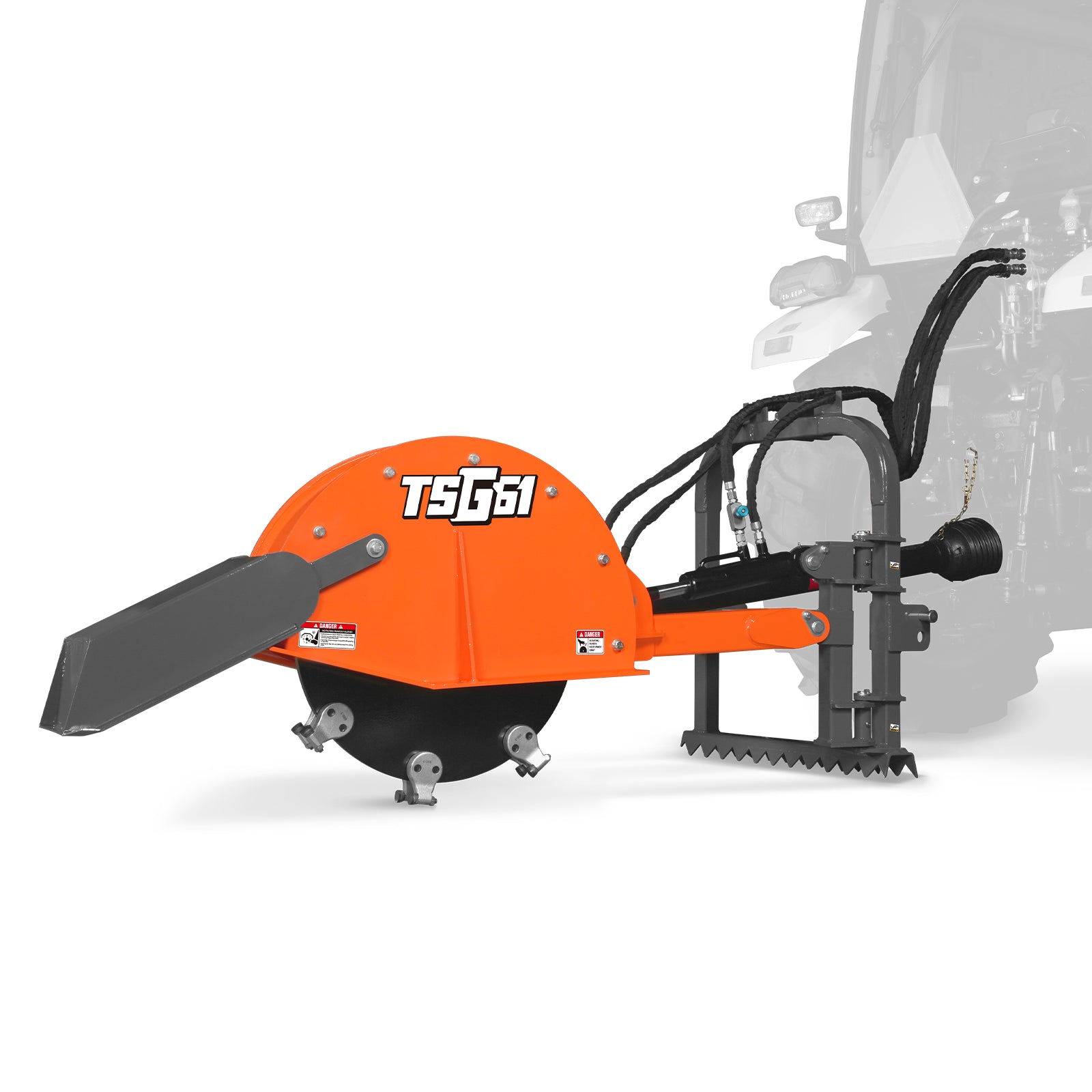

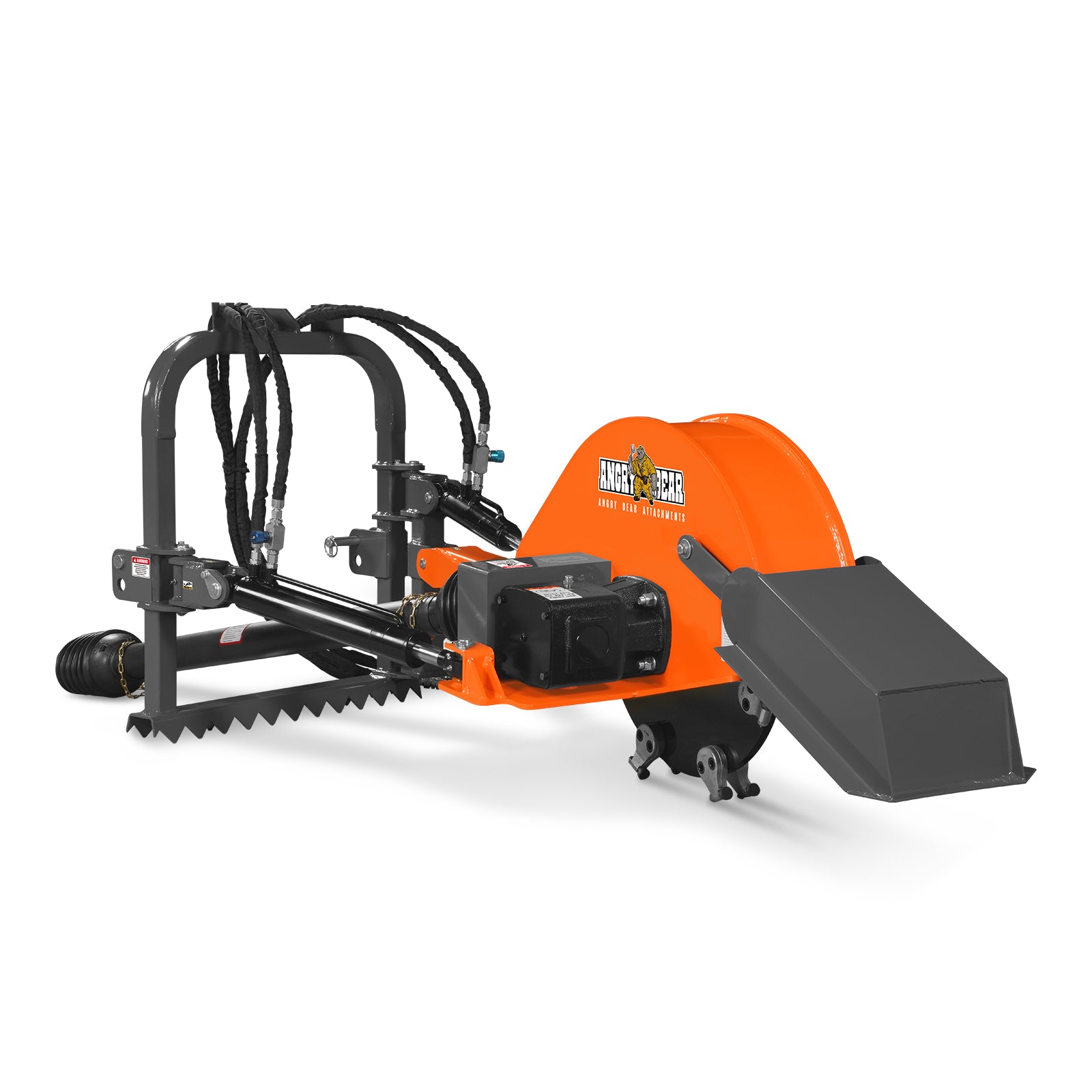

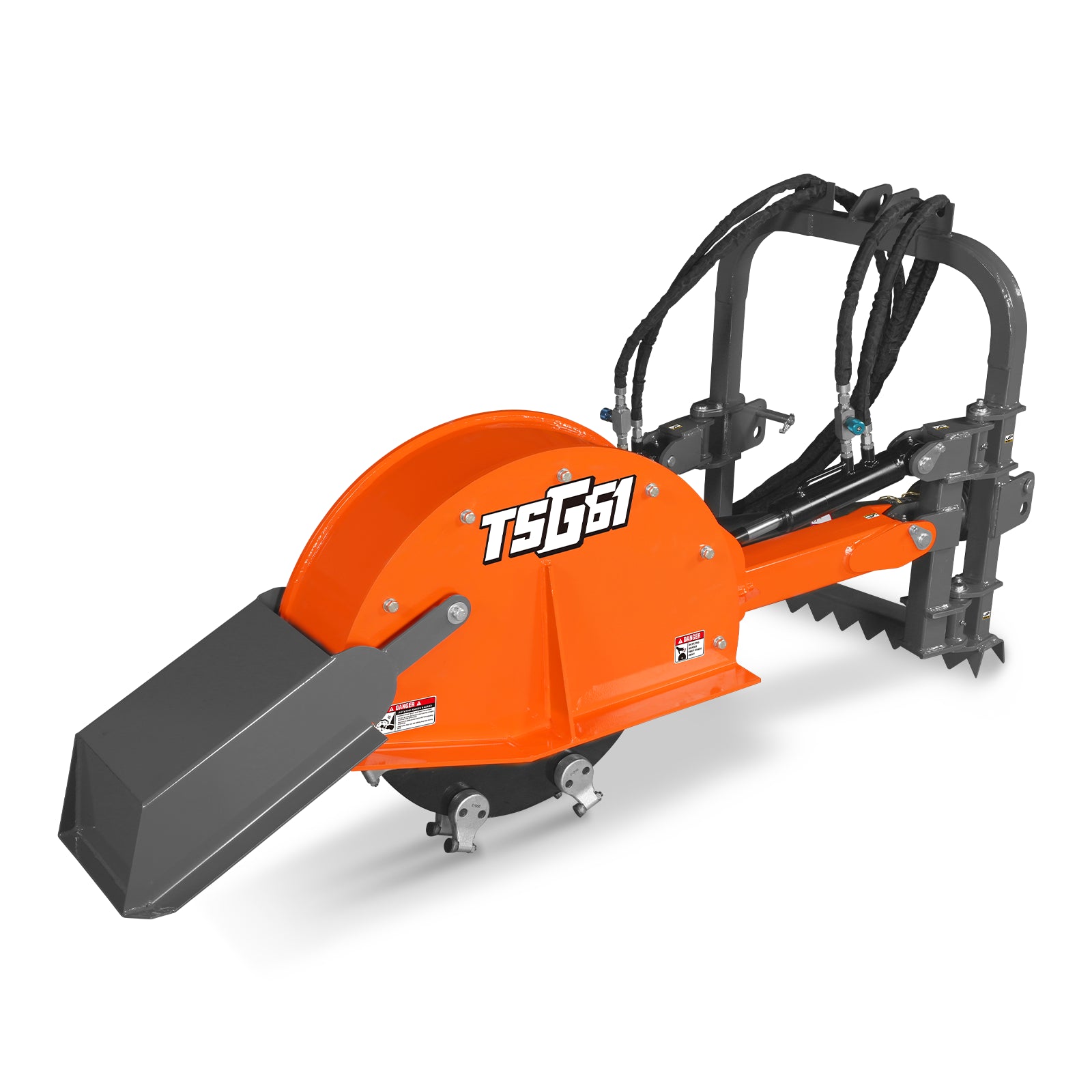

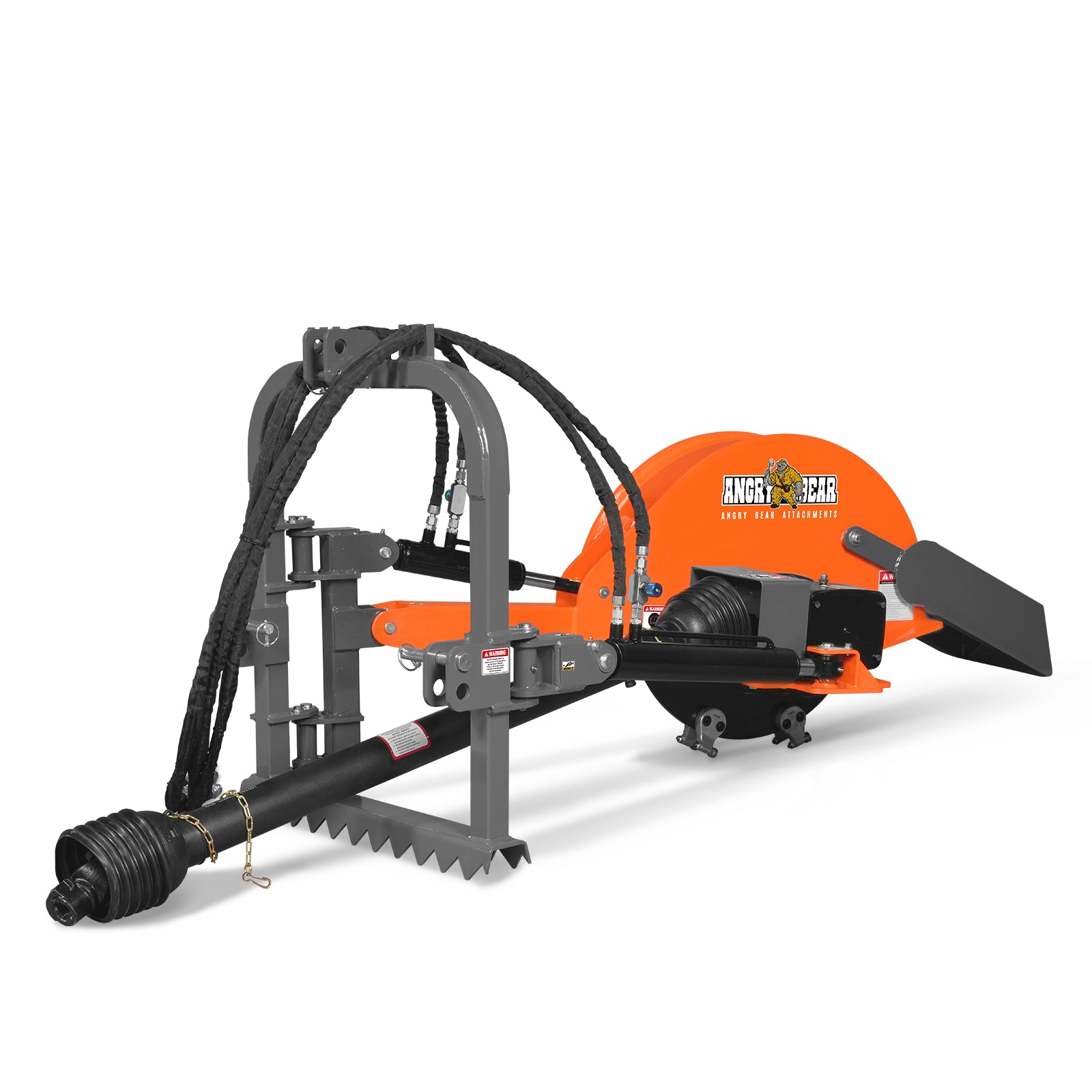

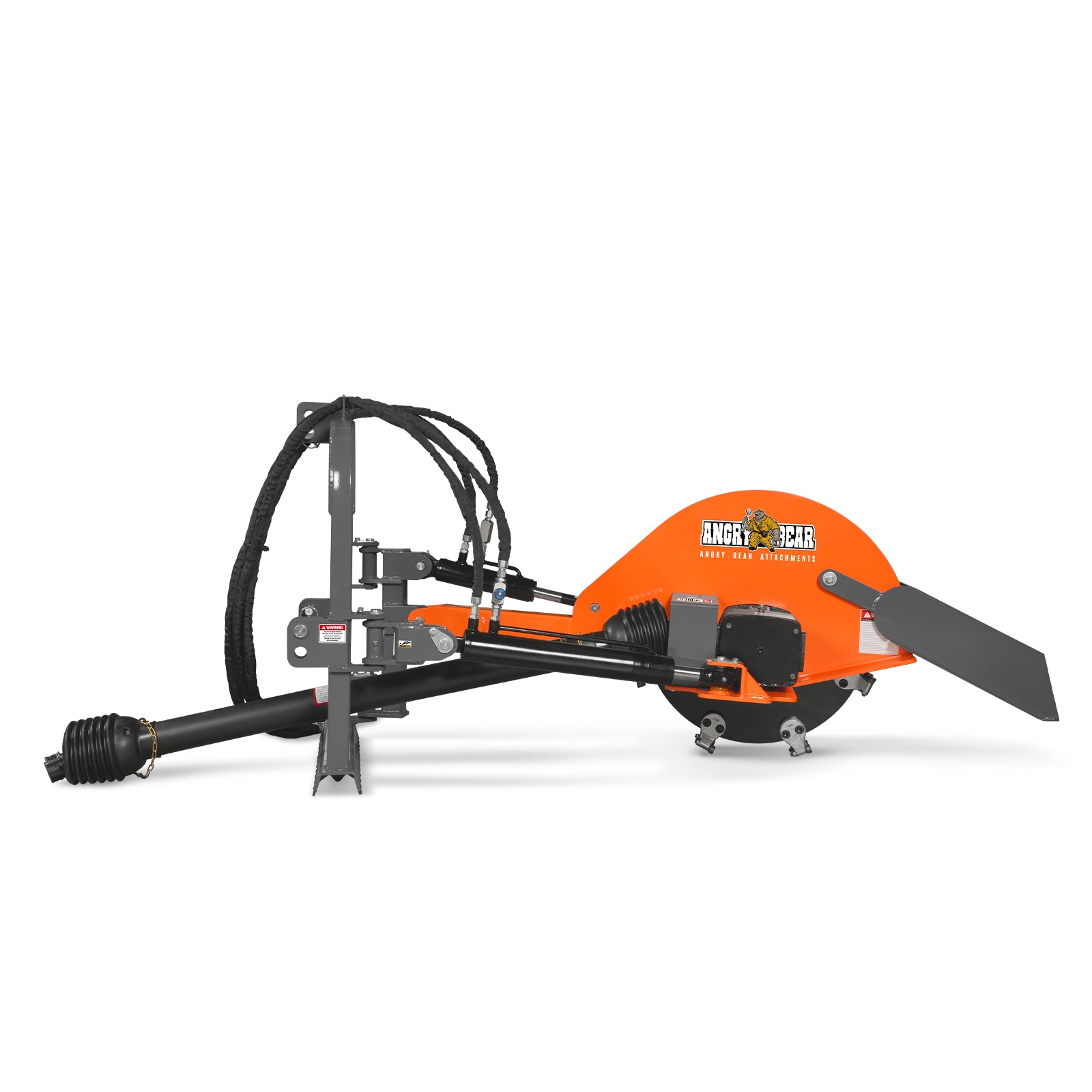

24'' Cutting Wheel Hydraulic Cylinders Stump Grinder, (PTO Shaft Included with Slip Clutch) , 20-60hp, TSG61

Name: 24'' Cutting Wheel Hydraulic Cylinders Stump Grinder, (PTO Shaft Included with Slip Clutch) , 20-60hp, TSG61
Brand: MechMaxx
SKU: 150152
Price: 2899.0 USD
Availability: InStock
Rating: 5.0 (8 reviews)

$289900

4 interest-free payments with Afterpay.

Free Shipping (Lift-Gate Included)

Details

Estimated to ship by 2025-1-26. Date is subject to change due to transit delays.

Details

Payment:

213-216-1759

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Missed our call? Feel free to text us !

Frequently Bought Together

( 1 Pack / 12 Pcs ) Teeth for Stump Grinder SGR1500; SG380; TSG61 (SKU: 130200; 130300; 130400; 150152）

24'' Cutting Wheel Hydraulic Cylinders Stump Grinder, (PTO Shaft Included with Slip Clutch) , 20-60hp, TSG61 $289900

( 1 Pack / 12 Pcs ) Teeth for Stump Grinder SGR1500; SG380; TSG61 (SKU: 130200; 130300; 130400; 150152） $7999

Total Price

$

Product Overview

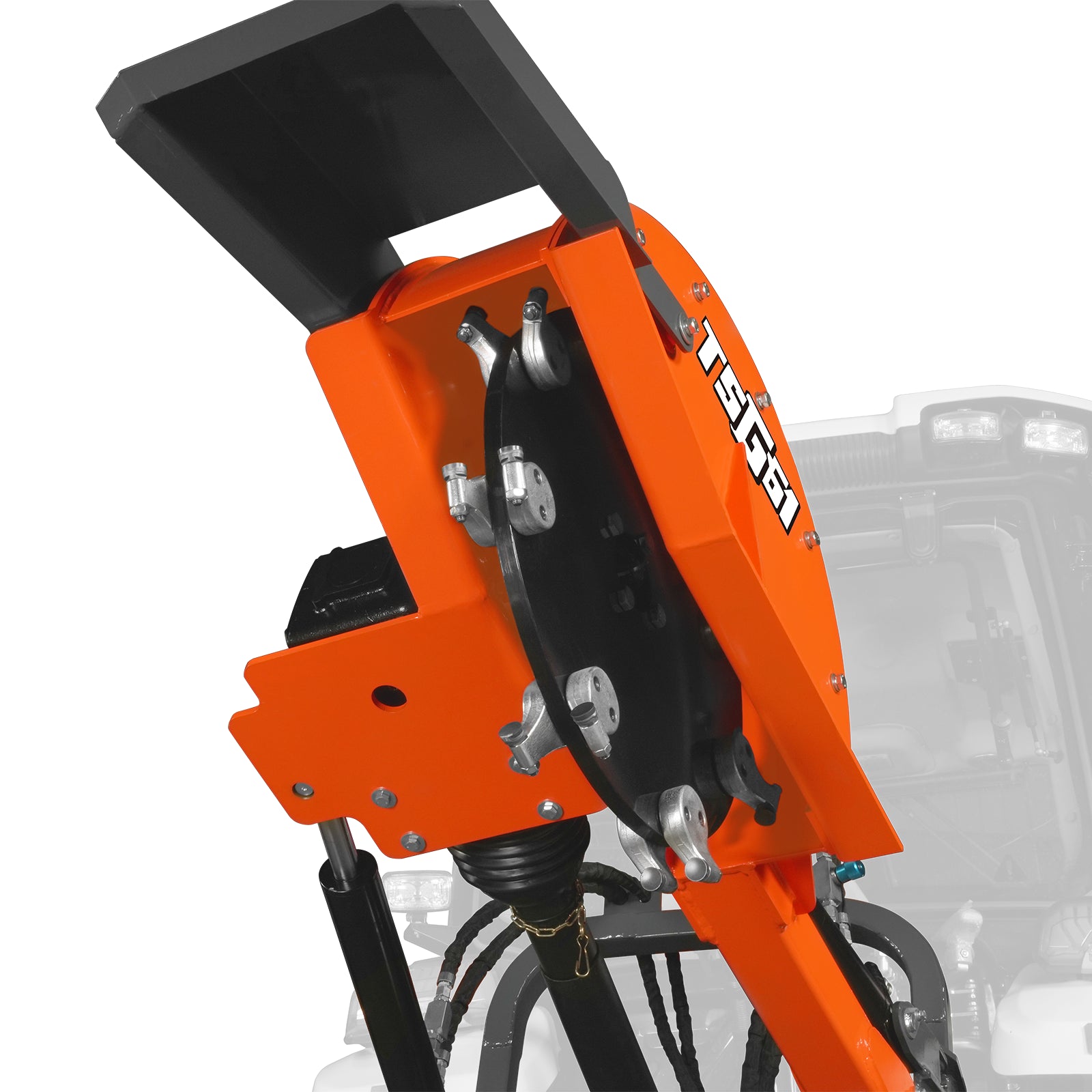

Two hydraulic cylinders position the milling head with different cutting capabilities, which can be easily operated through the tractor cab.
16 carbide steel teeth housed in a 24-inch milling wheel designed to work under heavy working conditions while maintaining sharpness.
It has a cutting depth of 18 inches above the ground and 12 inches below the ground to attack the toughest roots and different stump sizes.
Biting, stable support feet ensure you keep the platform safe and stable while sanding to reduce tractor vibration wear.
PTO is driven by the included telescoping drive shaft for economical power transfer between tractor and grinder.

Product manual (PDF)

TSG61 Product manual 1.0.pdf

Product Features

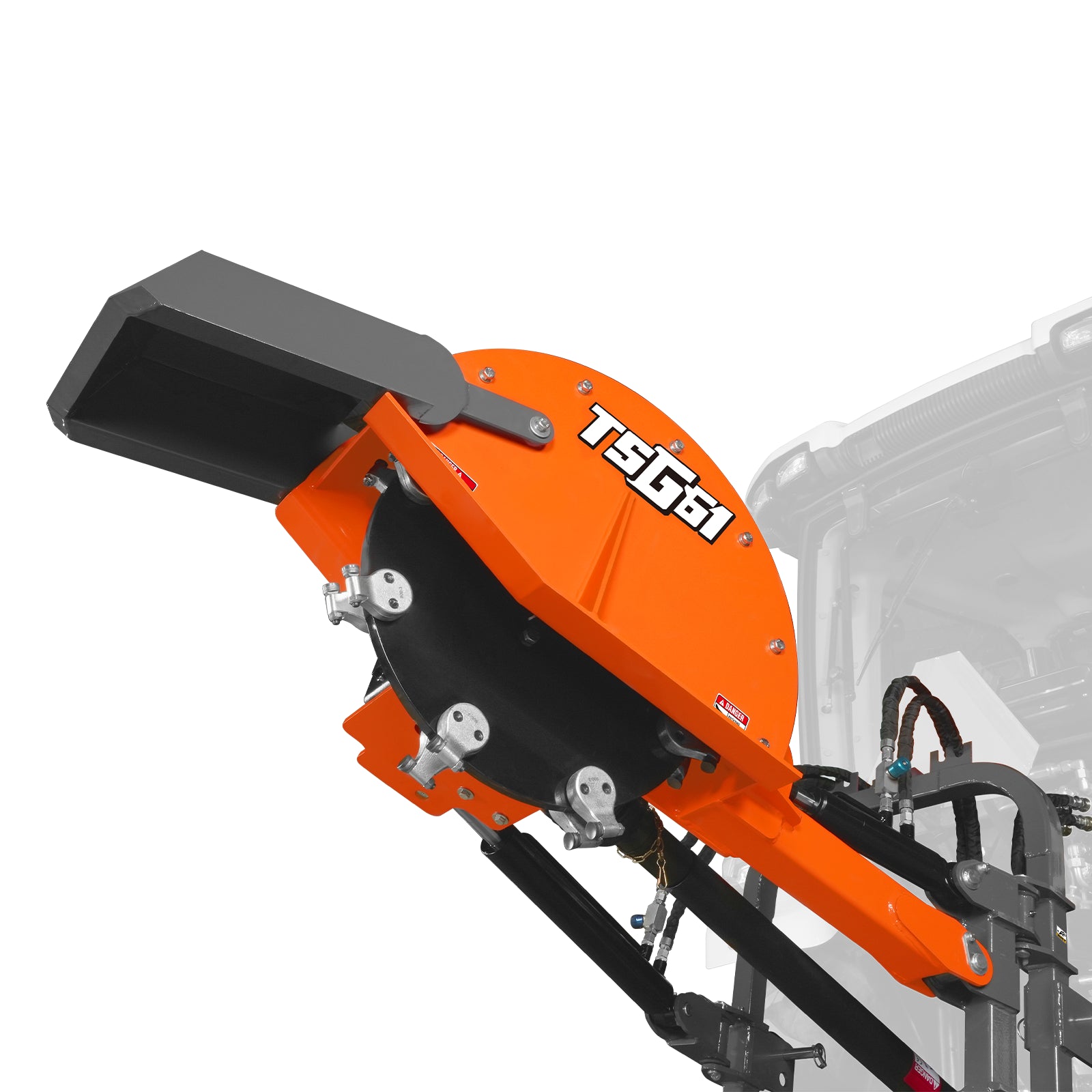

24’’ Flywheel Diameter

a large 24’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 24-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.

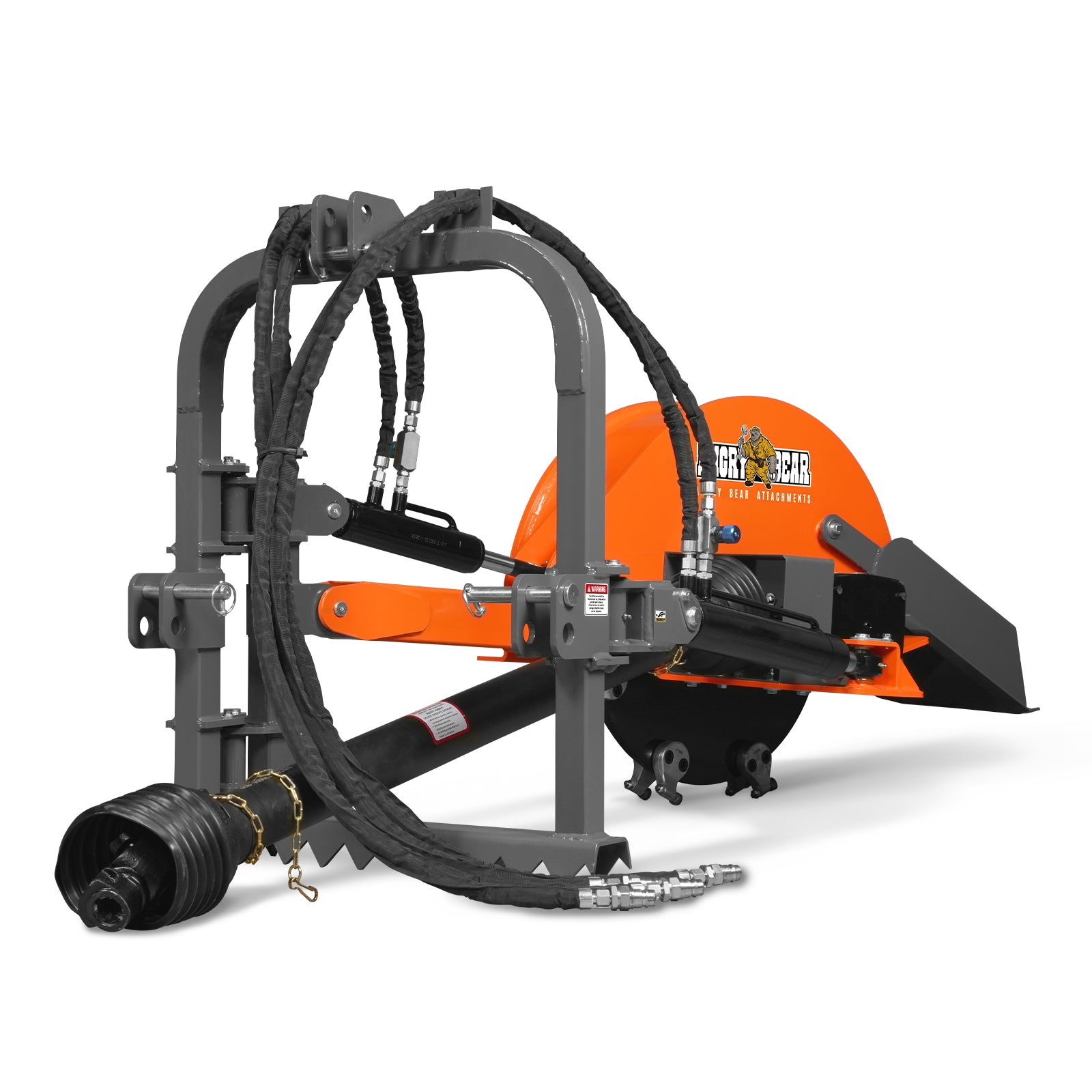

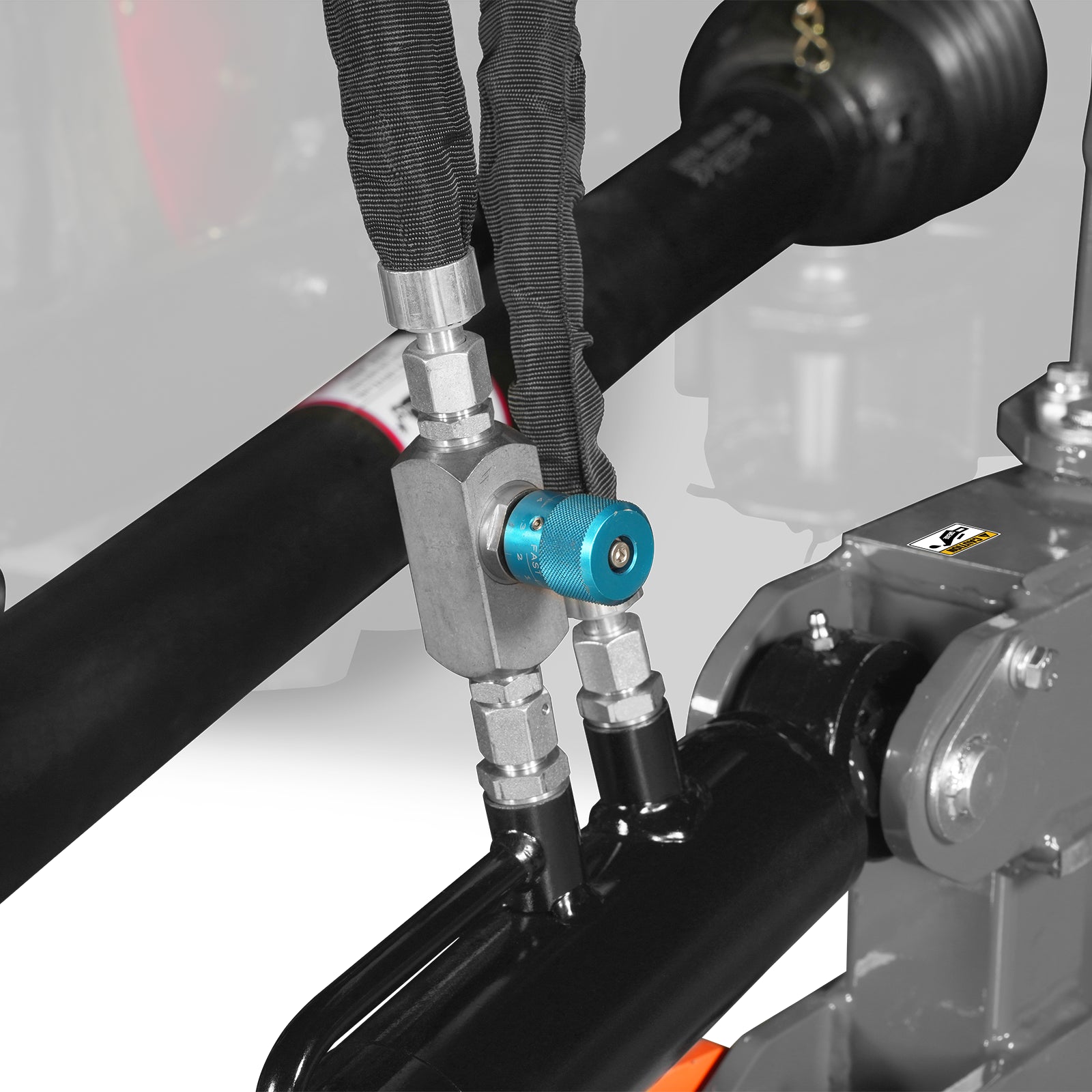

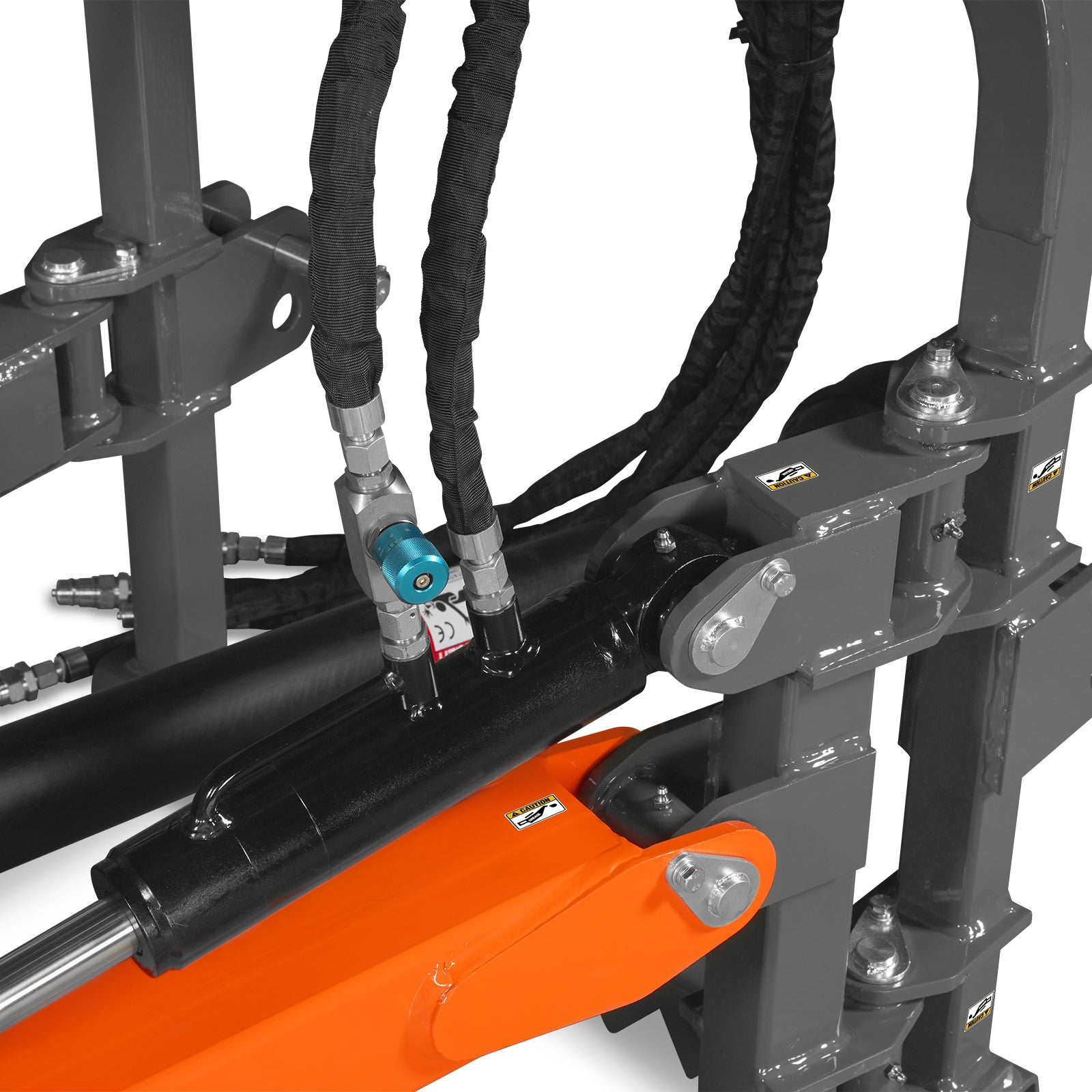

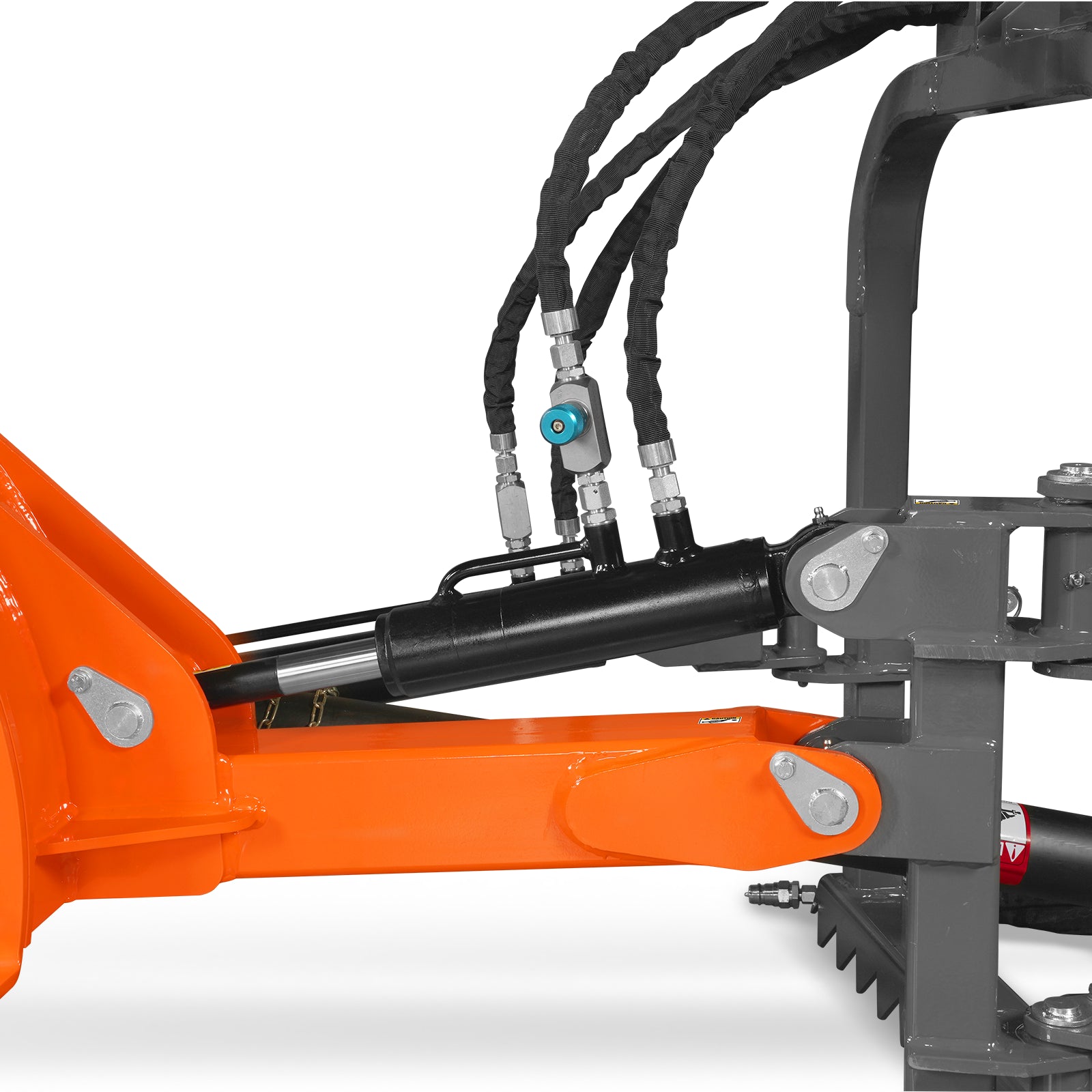

Hydraulic Cylinder

Two hydraulic cylinders position the milling head with different cutting capabilities, which can be easily operated through the tractor cab.

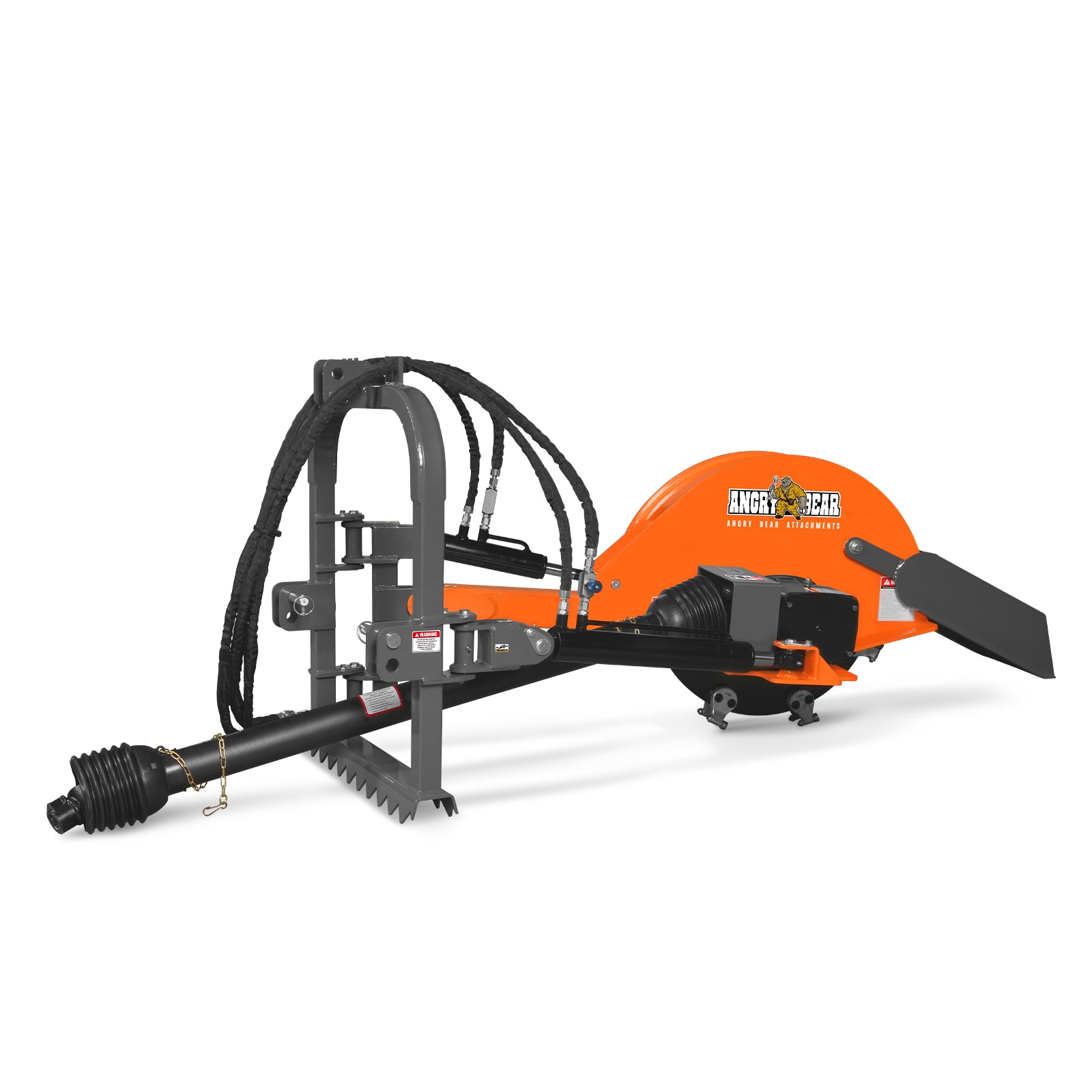

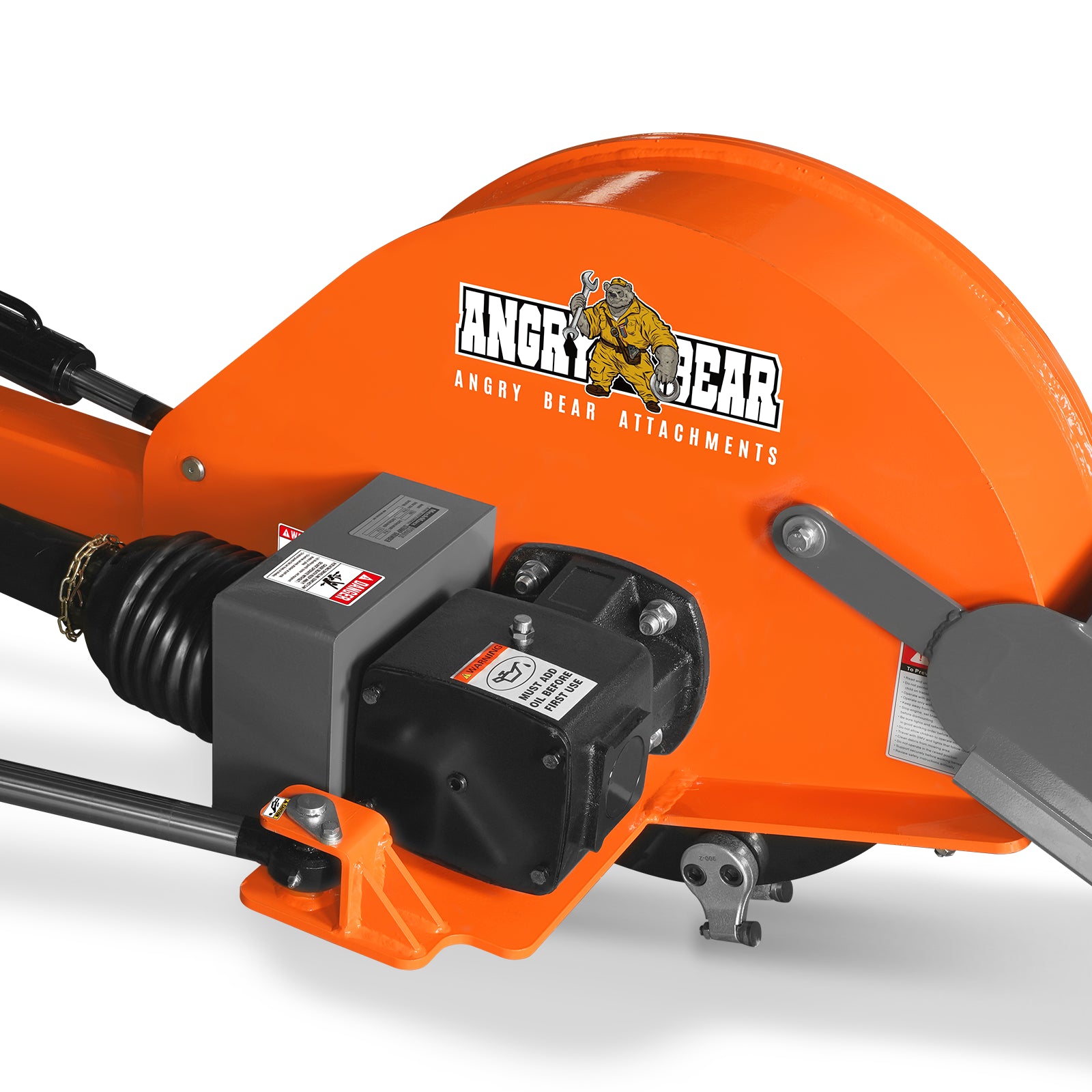

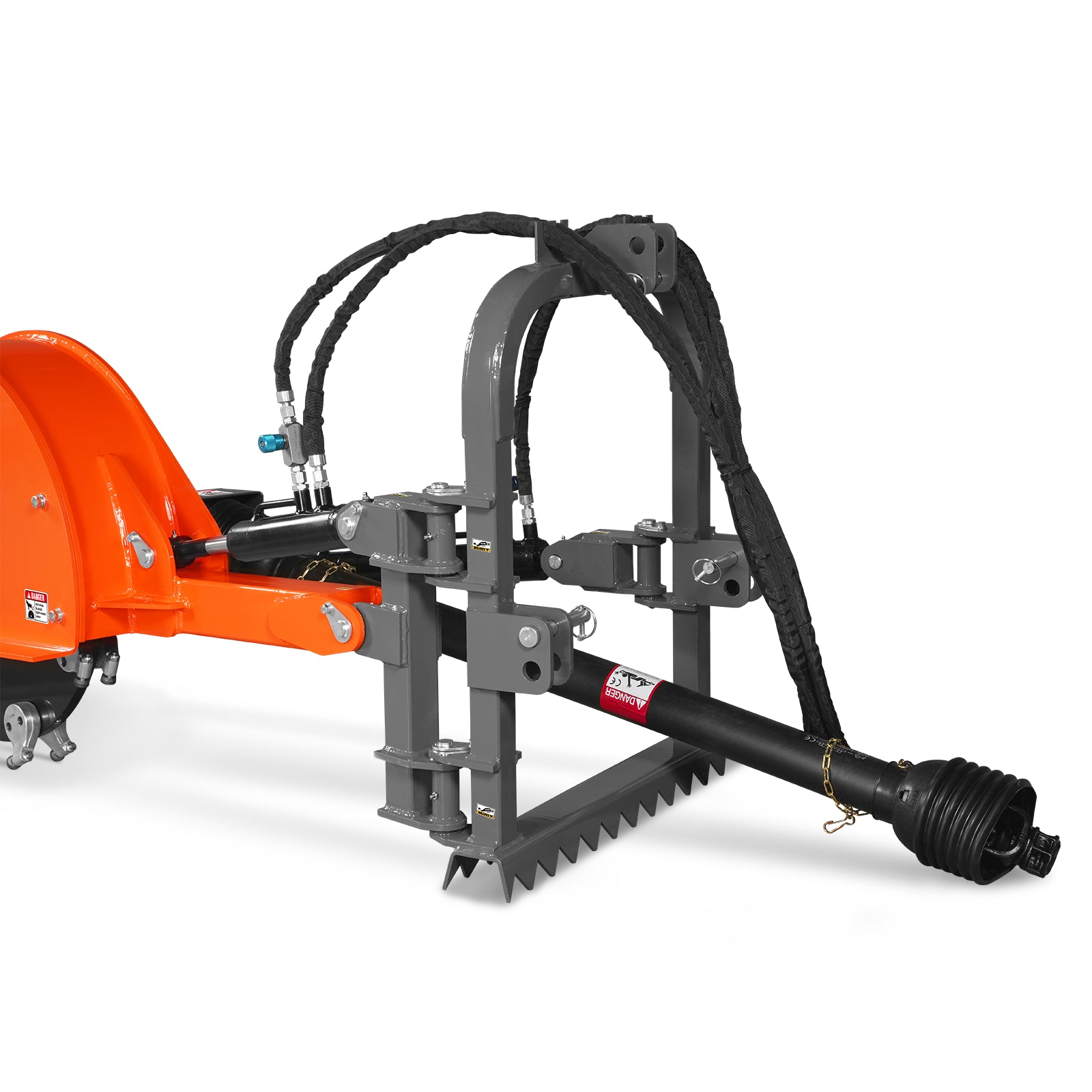

PTO Shaft

1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch. Compatible with reliable 540 rpm dedicated PTO drive power supply, ensuring efficiency and stable performance.

PTO Required

Extremely sturdy stump grinder engineered to provide optimal performance when used with tractors with PTO power of 20-60HP.

Cutting Height and Depth

Easily grinds above ground to a depth of 18 inches and underground to a depth of 12 inches to remove tree roots and prepare for grading or lawn.

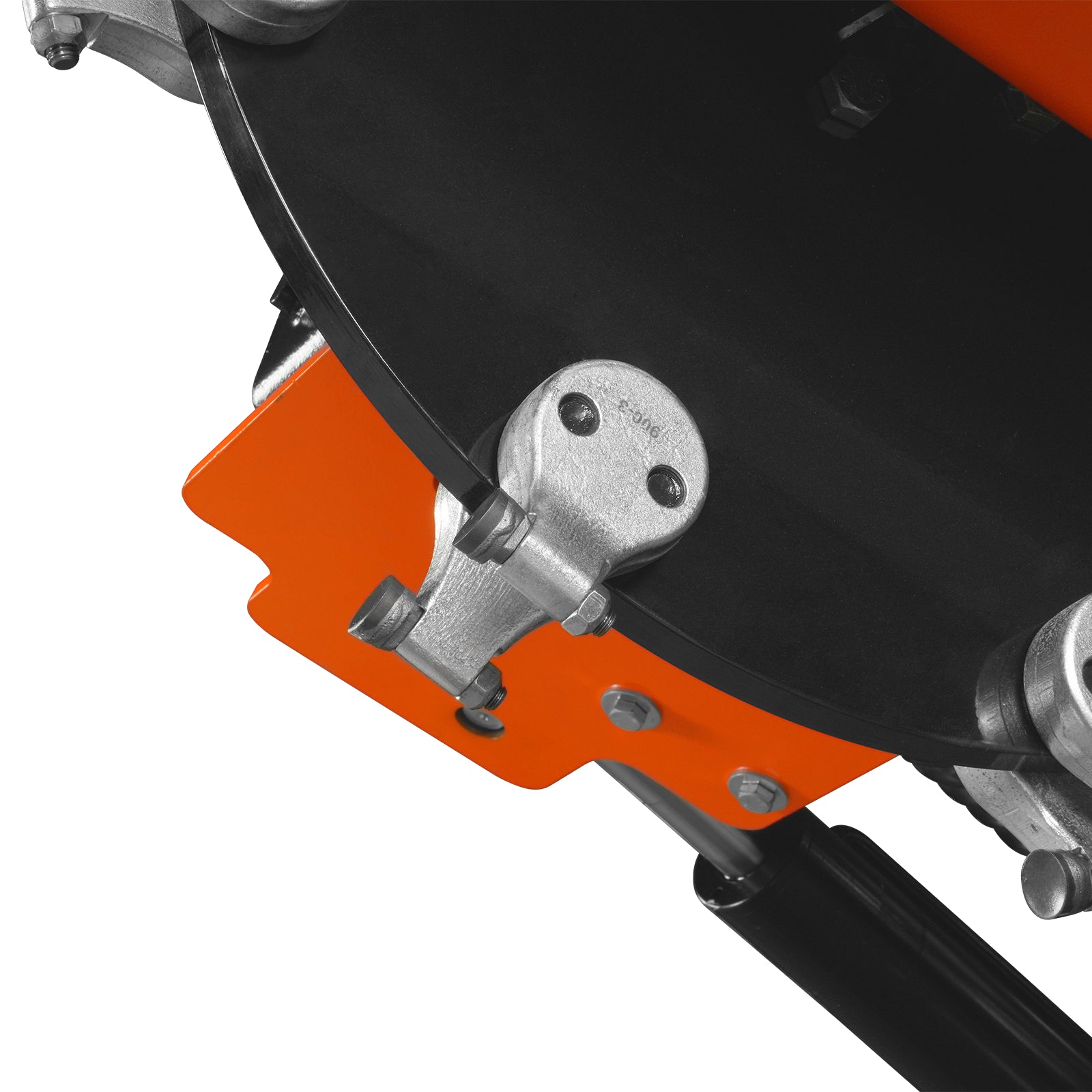

16 Carbide Steel Teeth

16 carbide steel teeth housed in a 24-inch milling wheel designed to work under heavy working conditions while maintaining sharpness.

Power Required	20-60 HP	Cutting Depth Per Pass	6 in
Hydraulic Flow Rate	5-13 GPM	Swing Arc	40°
Rotor Size	24 in	Cutting Direction	Horizontal and vertical
Carbide Steel Bolt-On Teeth	16 (Replaceable)	3-Point Hitch	Category 1& 2
Required PTO Speed	540 RPM	PTO Shaft	05B-LF-1600 With Slip Clutch 63-77 in
Hydraulic Hose Length	6.6 ft	Dimensions (L x W x H)	69 x 34 x 32in
Hydraulic Fittings Size	G1/2 in	Finsh	Powder Coat Paint Galvanized Steel
Cutting Height Above	18 in	Warranty	1 year
Cutting Depth Below	12 in	Weight (N.W./G.W.)	626/692lbs
