SKU: 150164

| Model: BH860

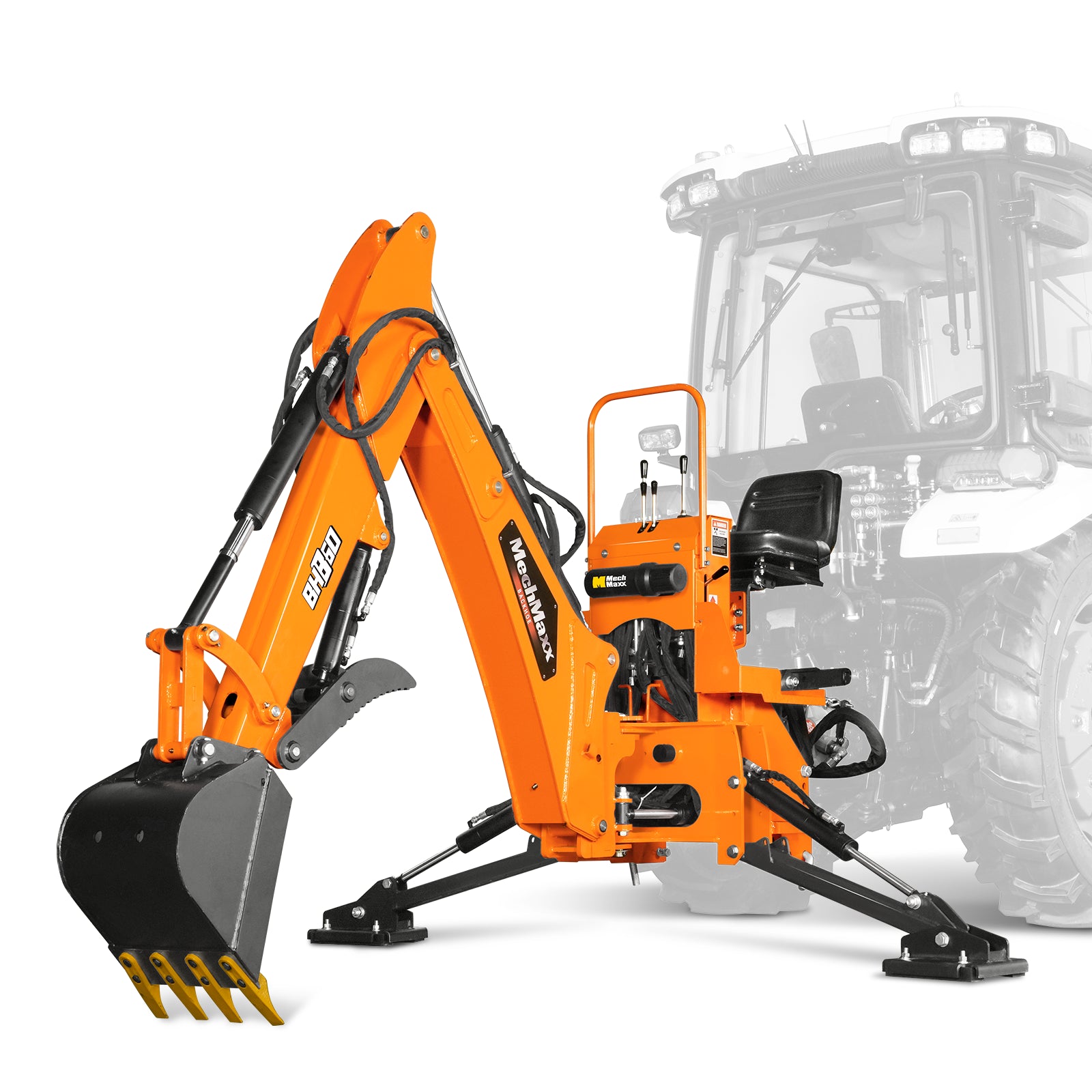

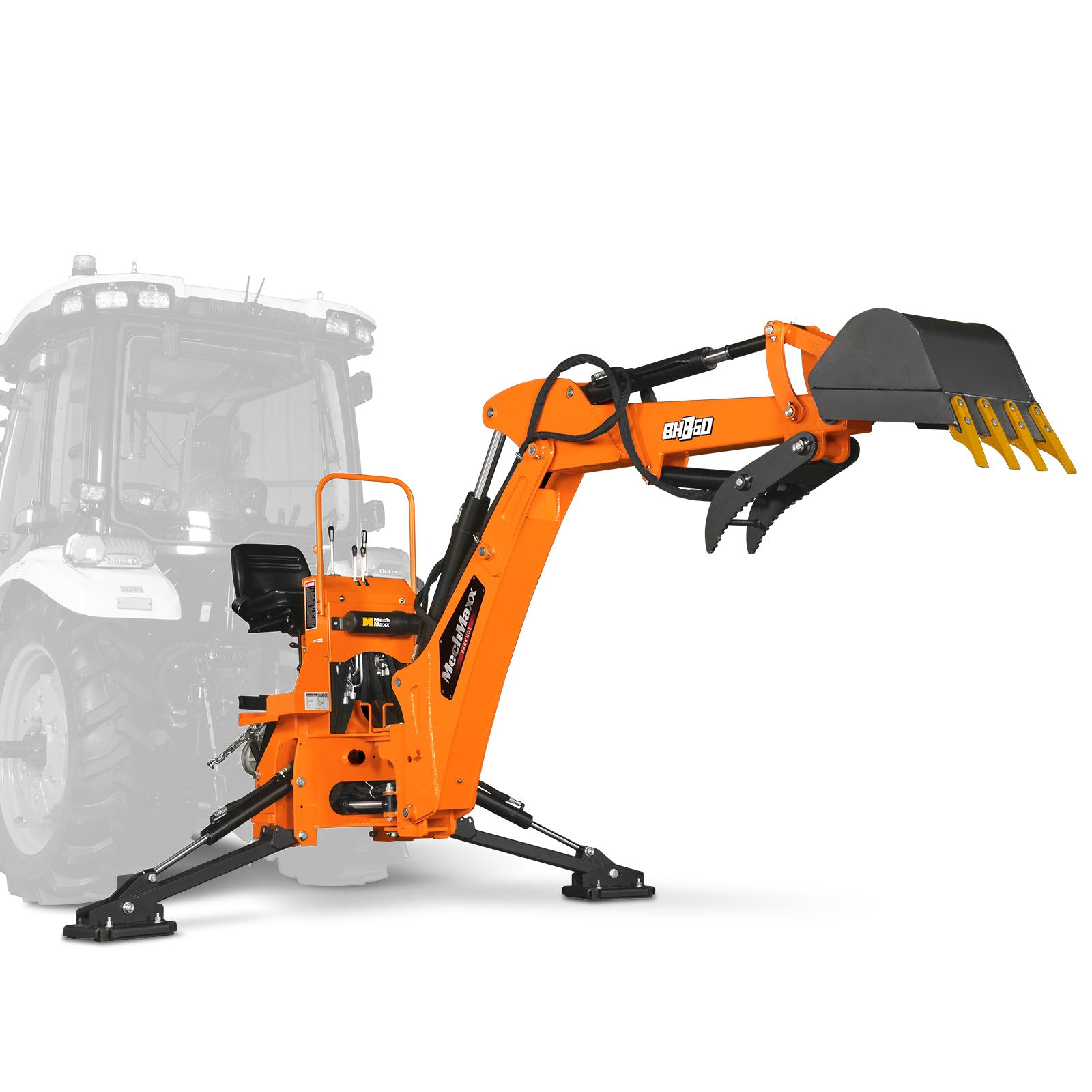

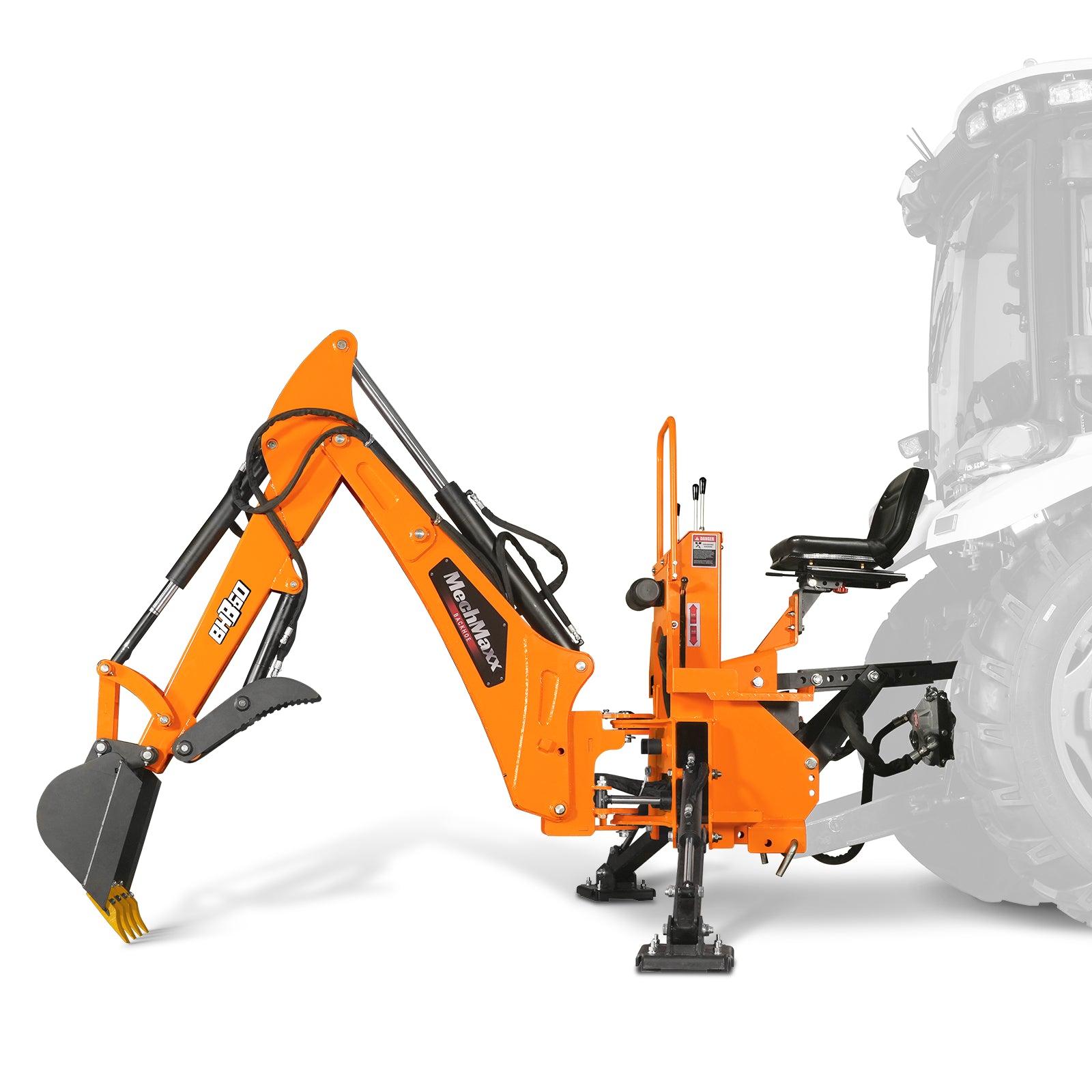

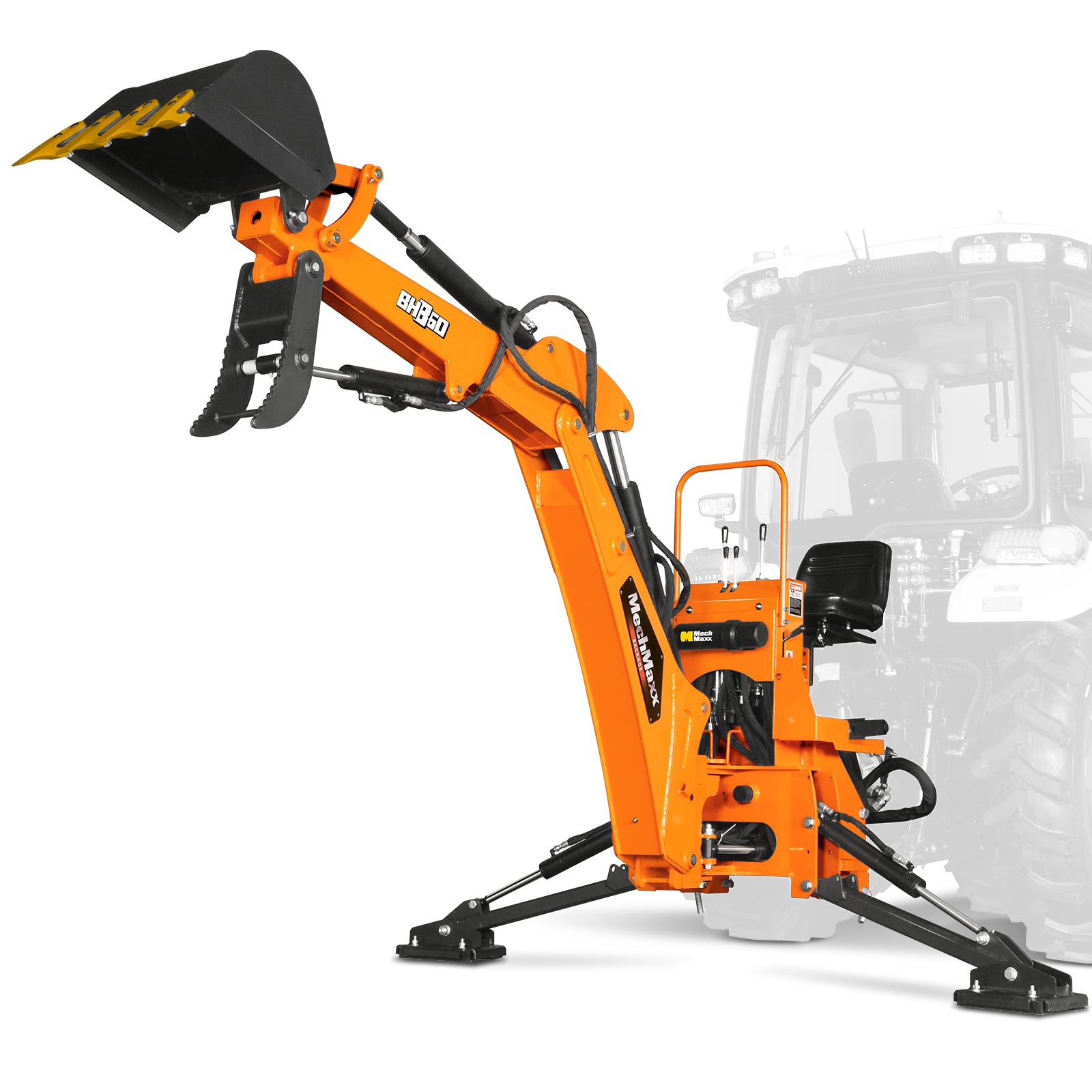

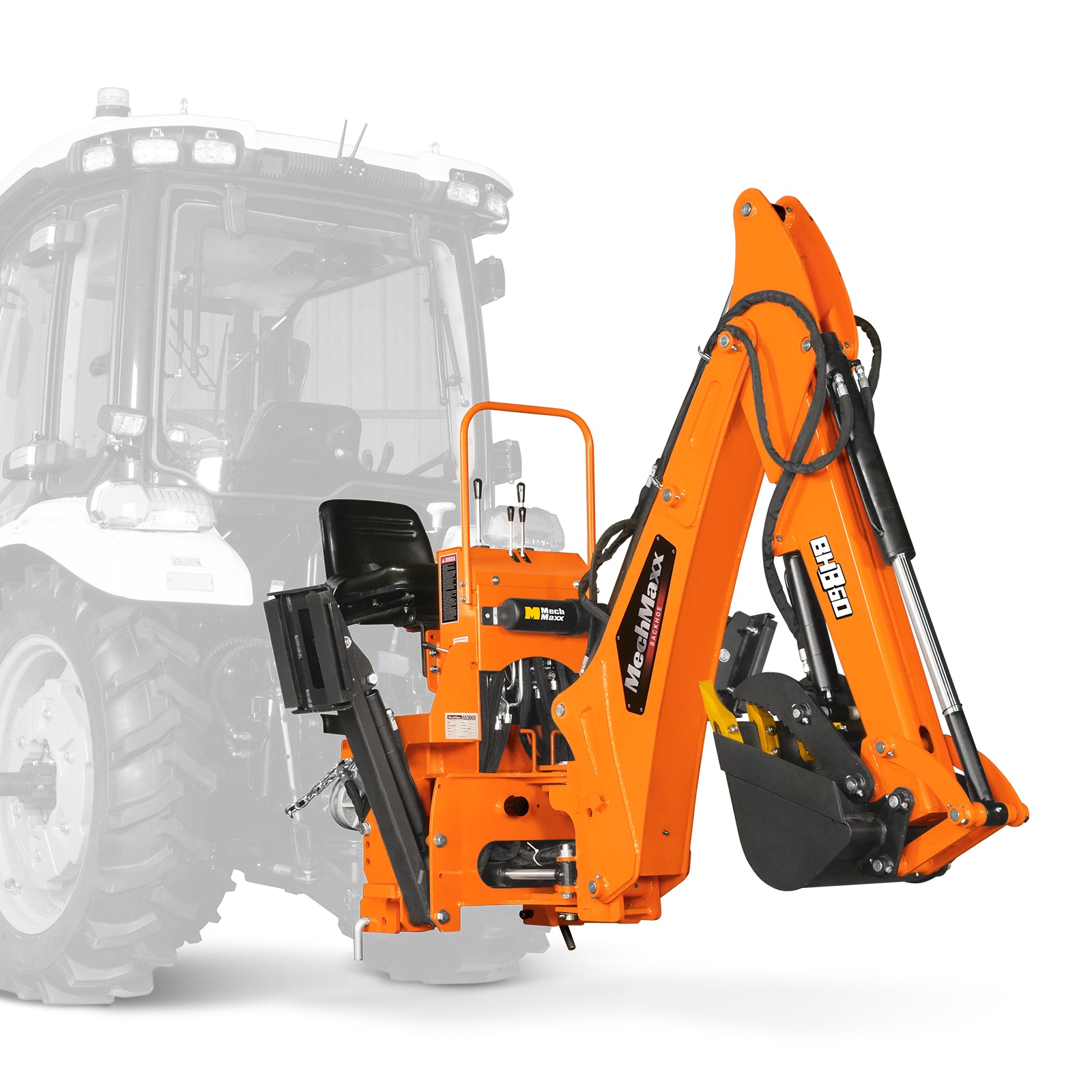

9' Tractor Backhoe Attachment with Hydraulic Thumb, 15" Bucket, Self-Contained Pump, BH860

Name: 9' Tractor Backhoe Attachment with Hydraulic Thumb, 15" Bucket, Self-Contained Pump, BH860
Brand: MechMaxx
SKU: 150164
Price: 5699.0 USD
Availability: InStock
Rating: 5.0 (4 reviews)

NEW YEAR'S SALE Ends in

Days : :

$569900

$6,499.00

Save $800

FREE SHIPPING

Details

Estimated to ship by Jan 31, 2025. Date is subject to change due to transit delays.

Details

Model : 9 ft

9 ft 7 ft 8 ft

Payment:

917-772-7273

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Frequently Bought Together

12" Backhoe Bucket, 3-Carbon Steel Teeth (for SKU: 150162, 150163, 150164）

15" Backhoe Bucket, 4-Carbon Steel Teeth (for SKU: 150162, 150163, 150164）

9' Tractor Backhoe Attachment with Hydraulic Thumb, 15" Bucket, Self-Contained Pump, BH860 $569900 $6,499.00

12" Backhoe Bucket, 3-Carbon Steel Teeth (for SKU: 150162, 150163, 150164） $24999

15" Backhoe Bucket, 4-Carbon Steel Teeth (for SKU: 150162, 150163, 150164） $26999

Total Price

$

Product Overview

This MechMaxx BH860 Backhoe is used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
Max. 9 ft digging depth. 180° boom swing & 180° bucket rotation. Enable you to easily complete comprehensive mining tasks.
Hydraulic thumb and 15" bucket included. More sizes of buckets and attachments available.
Two hydraulic stabilizer legs with replaceable rubber pads, help to prevent tipping, reduce damage to supporting surfaces.
Equipped with a self-contained gear pump and hydraulic oil tank. Quick installation, reliable performance.
Allow you to change the control pattern between ISO or SAE to suit your preference.
Compatible with CAT I & II 3-point hitches. (CAT II lift arm bushing is not included)

Note！
Before use, check and grease all grease fittings on the machine.
Add approx. 4 gal of hydraulic oil before first use. And add an additional 2-3 gal after start.
Do not raise the 3-point hitch after the backhoe is attached to your tractor, as it may cause damage.

Note！
The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.

Product manual (PDF)

BH860 Product manual 1.0.pdf

Parts manual (PDF)

BH860 Parts manual 1.0.pdf

Product Features

Digging Depth (two foot flat bottom)

All-round 8’6” digging depth extension capability allows access to hard-to-reach areas without the need for mobile equipment.

180° Swing Arc

The digging boom allows for a 180-degree swing from side to side. This allows you to dig into those tight spots and dump the dirt where you want it.

Hydraulic Thumb

The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

Smooth Control

High quality control valve are developed by Italian technology, with high precision and shows very exact control features, offers smooth and precise operation.

Self-contained Gear Pump & Hydraulic Oil Tank

The self-contained gear pump and hydraulic tank operate independently of the tractor's hydraulic system. Provide stable flow and pressure. Easy to install, superior to PTO driveshaft.

ISO or SAE Control Pattern

Allow you to change the control pattern between ISO or SAE to suit your preference.

Replaceable Bushings & Pins

Replaceable bushings & pins simply replacing, easy maintenance. A full line of replacement parts can be quickly provided.

Standard Hose Fittings

JIC(Joint Industrial Council) style hose fittings are rated for 5000 psi. Usually easy to get if you need to replace hydraulic hoses. Not troubled by mismatched joint threads.

Optional Attachments (Sold Separately)

Parts and accessories in stock. Optional multiple buckets sizes, ripper and quick attach.

Max. Digging Depth	9 ft	Transport Overhang (maximum)	4 ft 5 in
Digging Depth (two foot flat bottom)	8 ft 6 in	Bucket Cylinder Digging Force	3000 lbs
Swing Arc	180 Degrees	Dipper stick Cylinder Digging Force	2500 lbs
Loading Height (bucket at 60 °)	6 ft 1in	Thumb	Hydraulic
Reach from Center Line of Swing Pivot	10 ft 8 in	Hydraulic Volume Requirements	5 to 6 GPM
Transport Height (maximum)	6 ft 2 in	Hydraulic Pressure Requirements	2250psi
Bucket Rotation	180 Degrees	Min Horsepower	25 HP
Loading Reach (bucket at 60 °)	4 ft 3 in	Min Tractor Weight	3200 lbs
Transport Overhang	5 ft 4 in	Bucket Size	15 in (4 teeth)
Undercut	2 ft 2 in	3-Point Hitch	CAT I & II
Stabilizer Spread (down position)	6 ft 7 in	Self-contained Hydraulic Pump & Tank	Included
Stabilizer Spread (up position)	5 ft 9 in	Hydraulic Tank Capacity	4.1 US Gal (15.5L)
Stabilizer Spread (lifting height)	3 ft 8 in	Hydraulic Type Recommended	AW 46
Transportation Height (maximum altitude)	8 ft 9 in	Packing Size (LxWxH)	56 x 30 x 87 in
Loading Height (bucket at 180 °)	9 ft 10 in	Weight with Bucket (N.W/G.W.)	1265/1373 lbs
