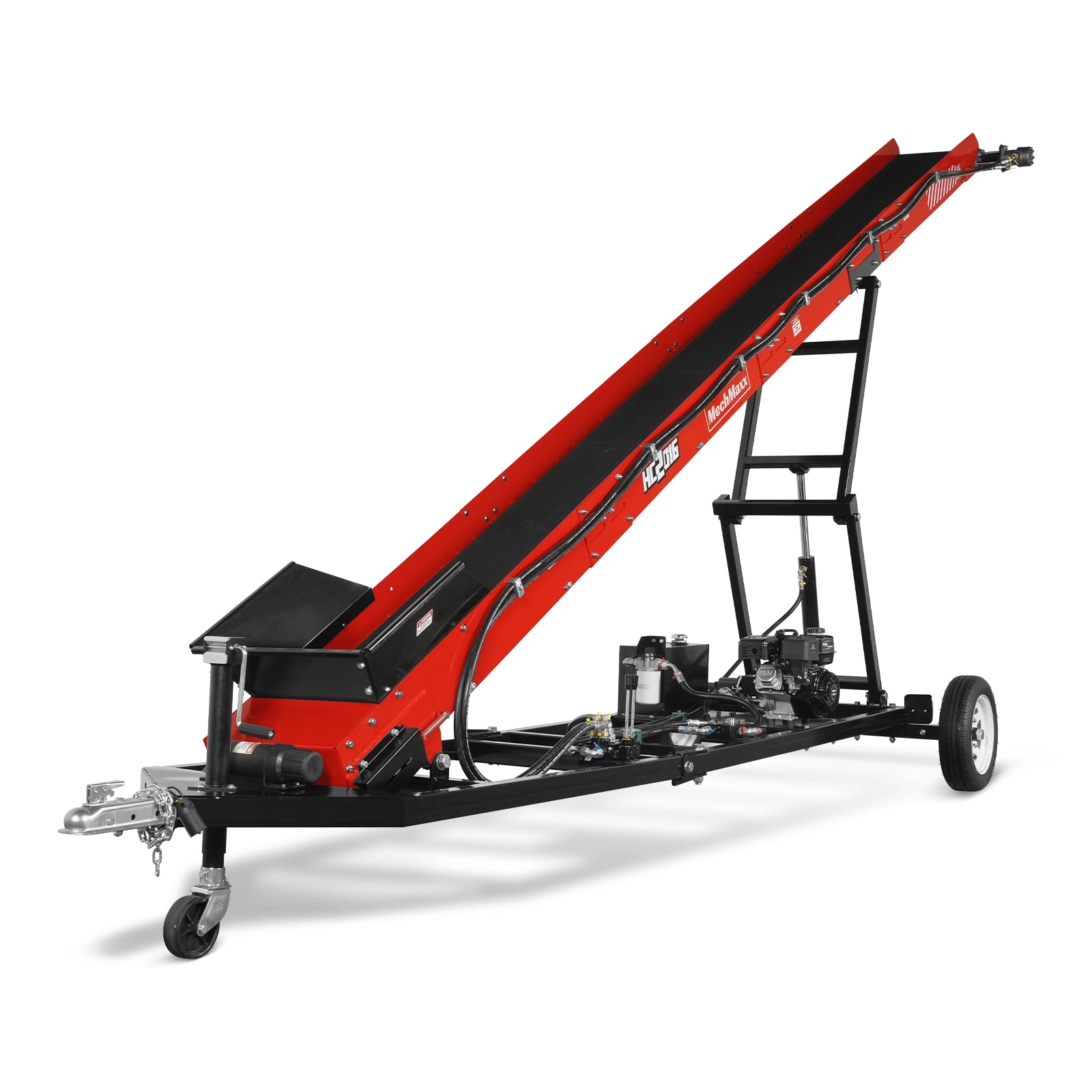

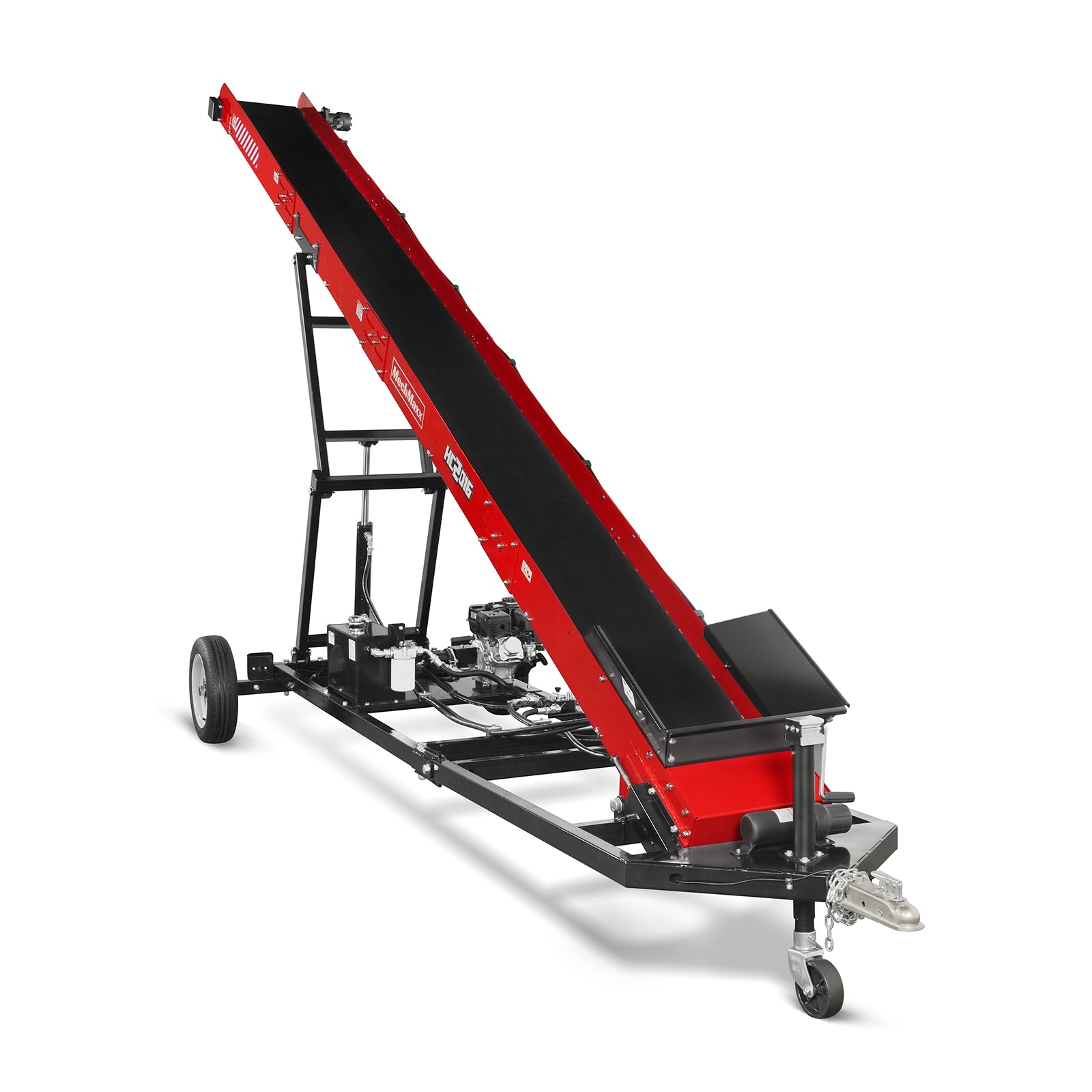

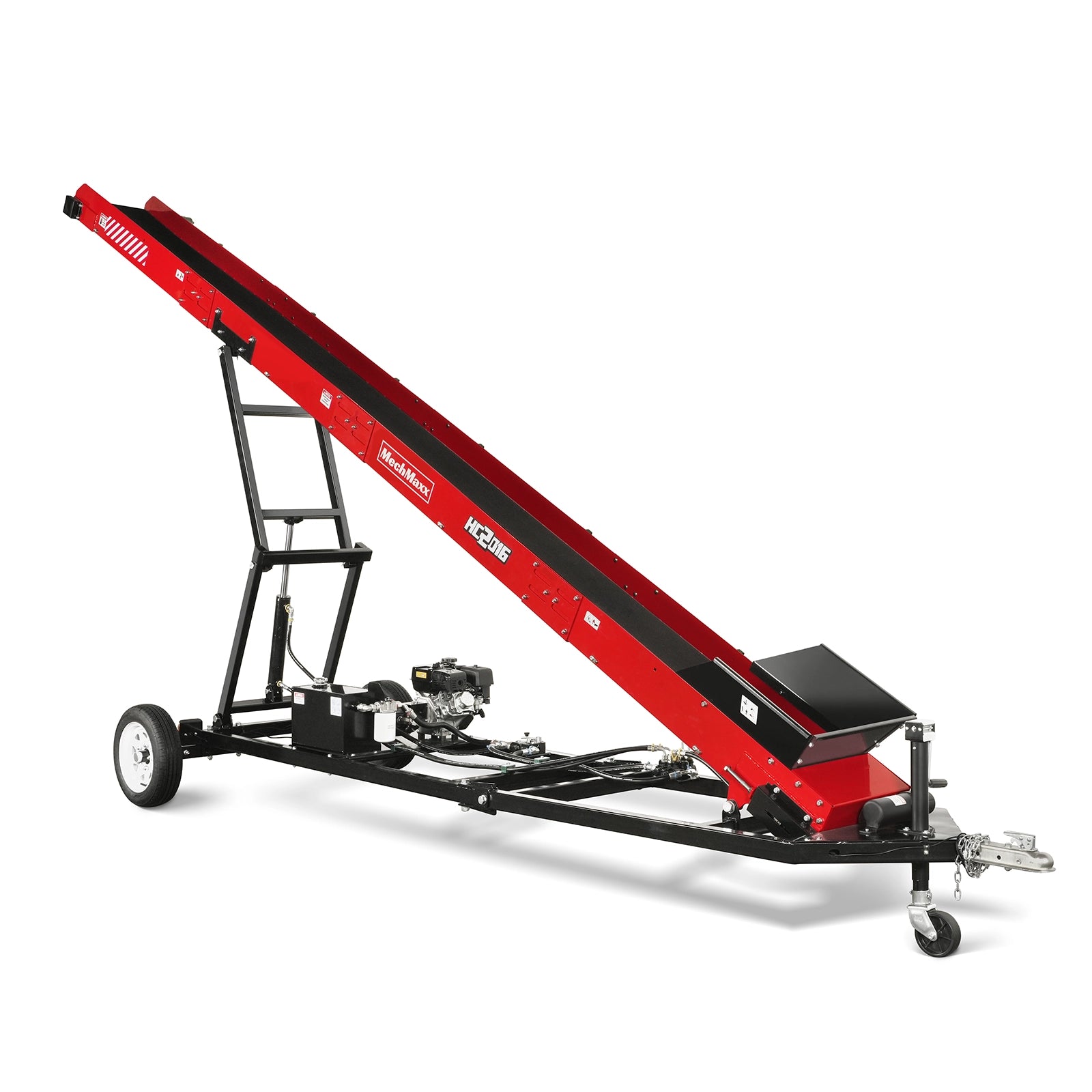

Firewood Conveyor, 7HP 212cc Gasoline Powered Max. 124" Lift Height, 236'' Length, 16" Width, HC2016

Name: Firewood Conveyor, 7HP 212cc Gasoline Powered Max. 124" Lift Height, 236'' Length, 16" Width, HC2016
Brand: MechMaxx
SKU: 150301
Price: 3899.0 USD
Availability: InStock
Rating: 5.0 (7 reviews)

$389900

$5,599.00

Save $1,700

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Model : FIREWOOD CONVEYOR

FIREWOOD CONVEYOR HEAVY DUTY CONVEYOR KINETIC LOG SPLITTER LOG SPLITTER PROCESSOR HONDA LOG SPLITTER PROCESSOR ZONSEN

Availability: In Stock

Payment:

Lifetime Technical Support

Get expert troubleshooting and operational assistance via phone or email for the life of your equipment.

Warranty Coverage

Backed by our dependable equipment warranty for long-term protection.

Official Lowest Price Guarantee

Shop our official website with confidence. If you find the same product at a lower price on another website, we’ll refund the difference.

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

Conveyor Belt for Firewood Conveyor(SKU: 150301）

Oil Return Filter for Conveyor(SKU: 150301; 150302）

Firewood Conveyor, 7HP 212cc Gasoline Powered Max. 124" Lift Height, 236'' Length, 16" Width, HC2016 $389900 $5,599.00

Conveyor Belt for Firewood Conveyor(SKU: 150301） $21299

Oil Return Filter for Conveyor(SKU: 150301; 150302） $6899

Total Price

$

Product Overview

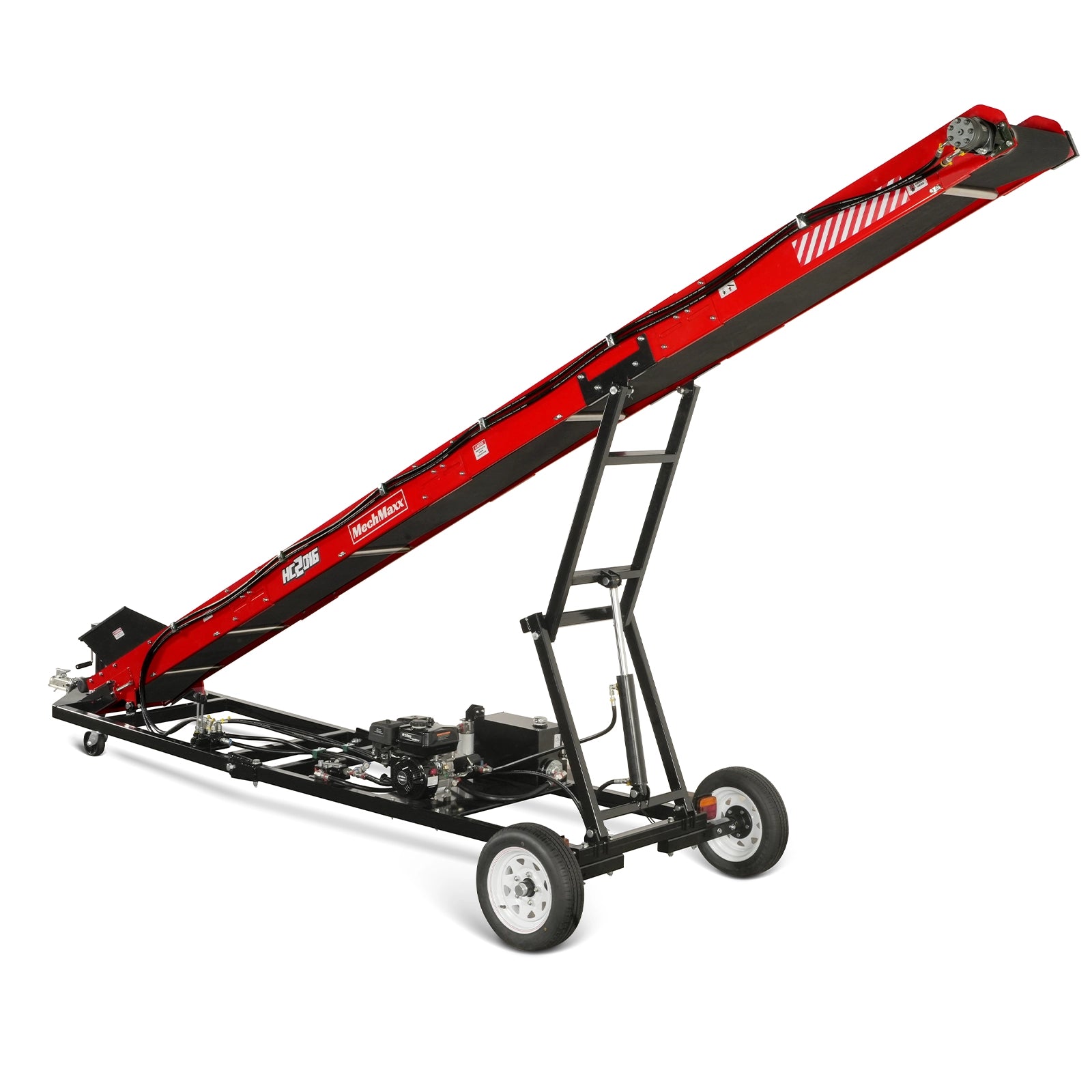

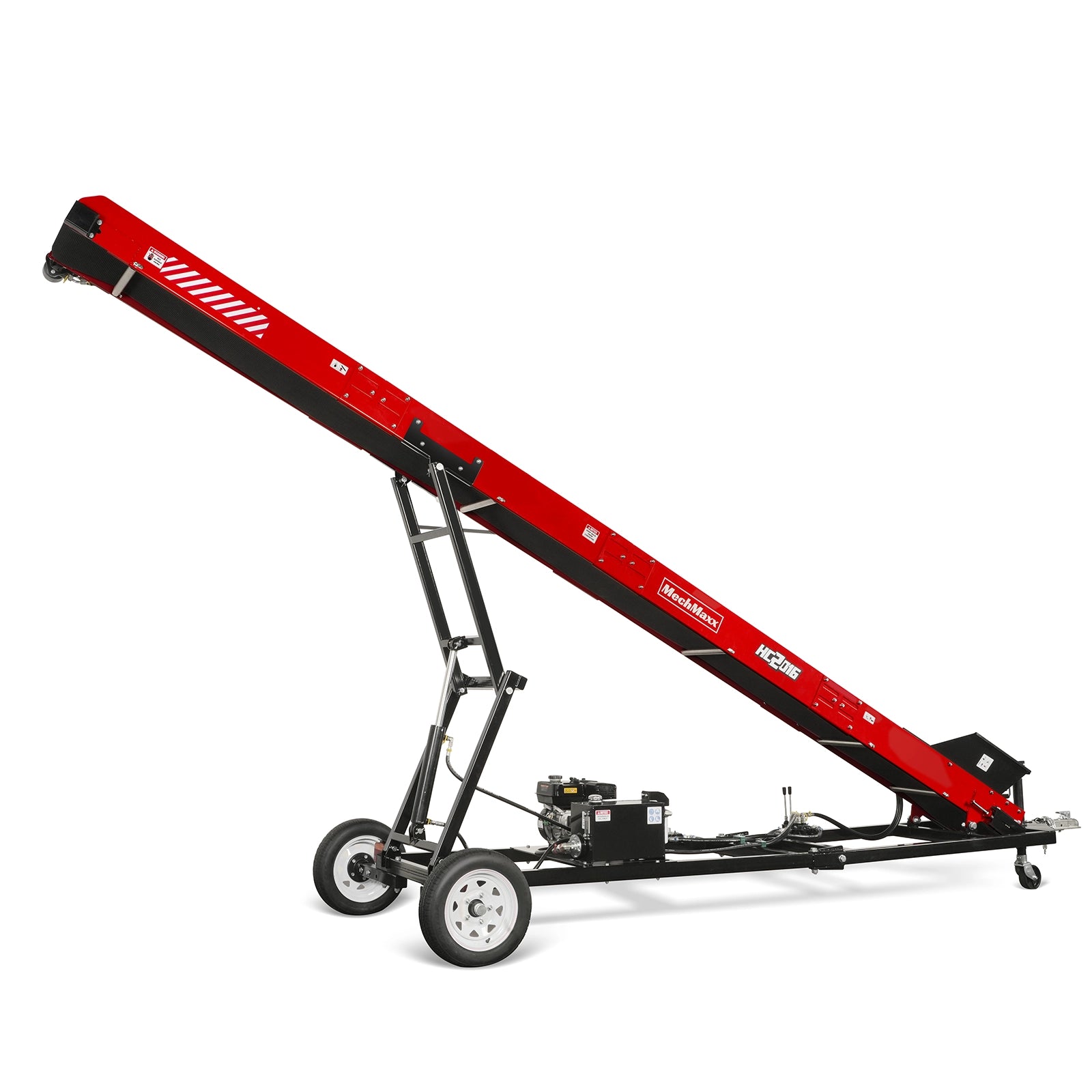

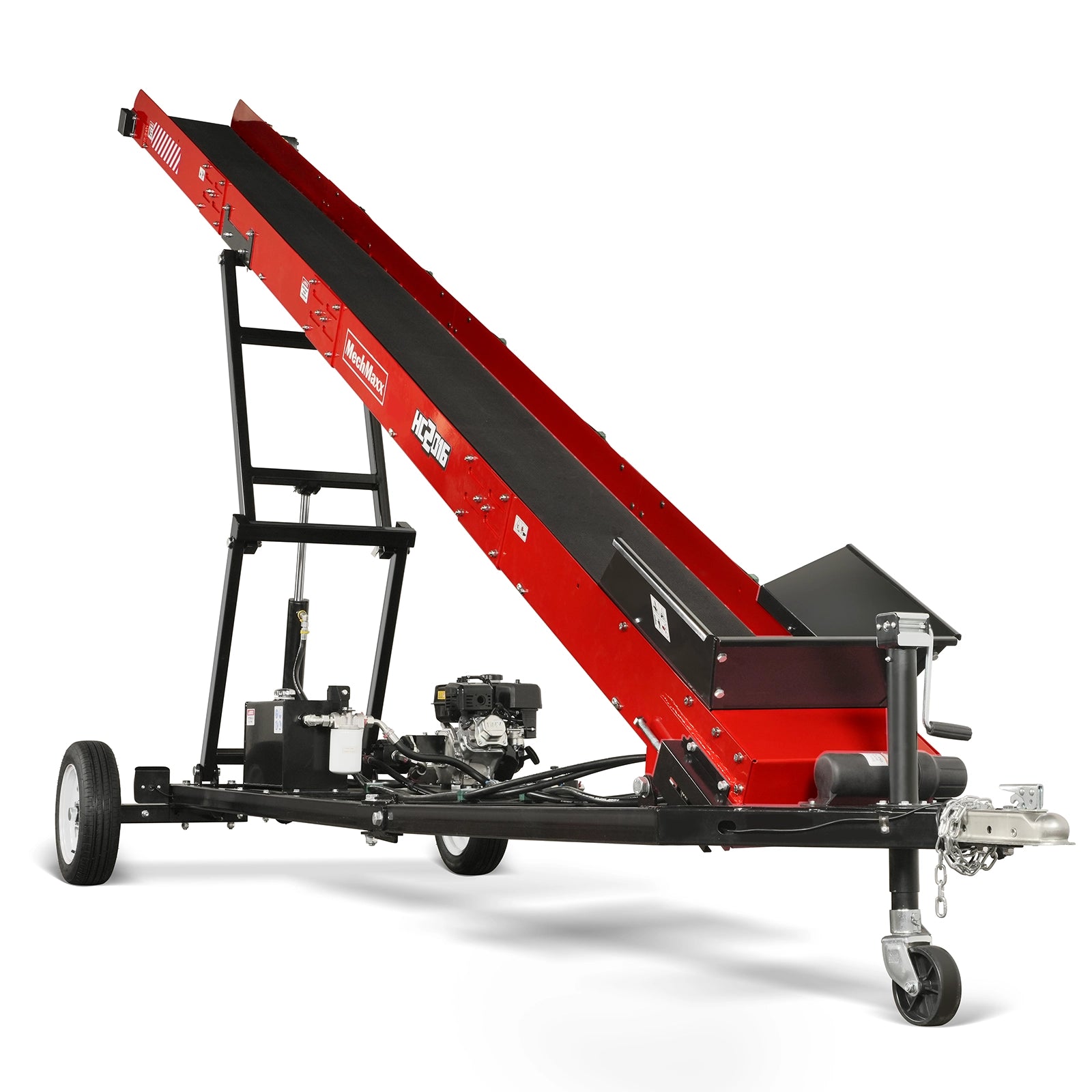

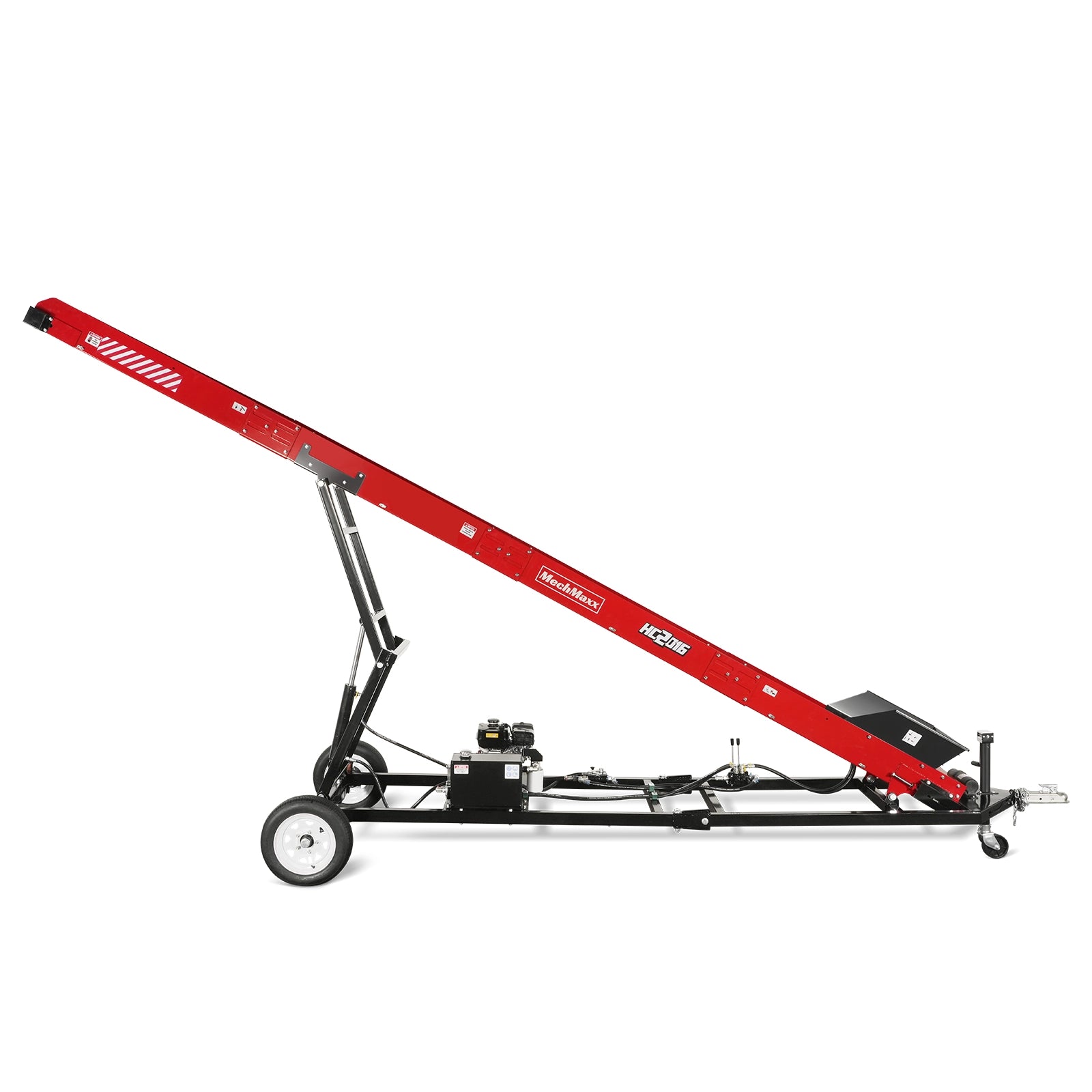

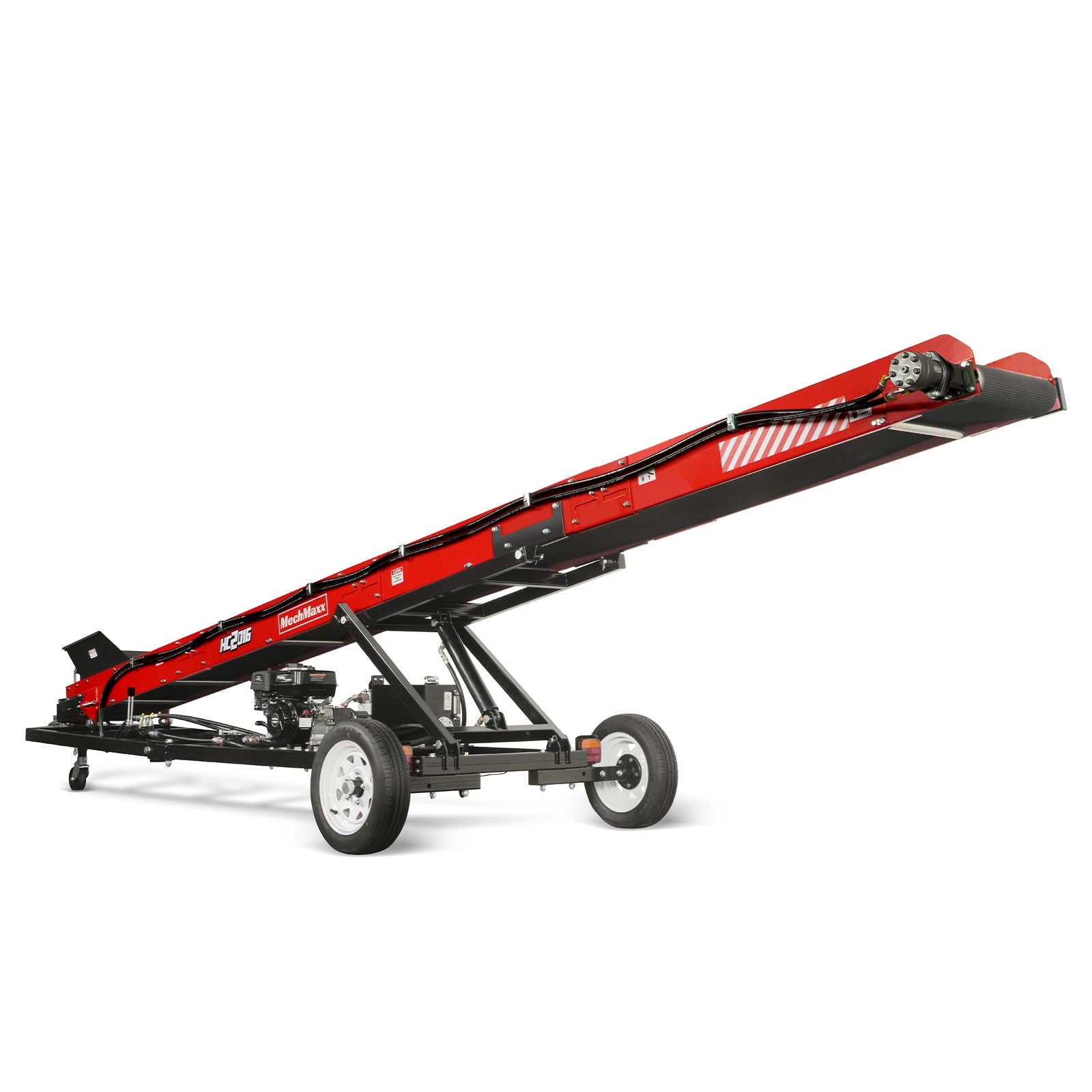

This firewood conveyor offers efficient, powerful and safe performance, making it an essential tool for conveying and lifting firewood in diverse settings.
This wood conveyor equipped with a 7HP gasoline-powered hydraulic driven system operates with high efficiency and powerful performance. The belt speed is variable by changing the engine speed.
With an adjustable reach up to 124 inches, this conveyor's speed, efficiency, reliability, and safety are unmatched in the conveying industry.
Our top priority is the safety of our customers. Our portable concrete conveyor systems can make your job easier for a variety of applications including ready-mix concrete, steel fiber, ice, batching, and more.
Height at lowest point: 5 ft
Maximum conveyor load: 264.5 lbs
Height at highest point: 10.5 ft
Maximum conveyor load: 132 lbs
To ensure safety, when transporting lightweight timber, please ensure that the maximum height does not exceed 8 feet.

Product manual (PDF)

HC2016 Product manual 1.0.pdf

Engine manual (PDF)

DUCAR DH212 Manual.pdf

Product Features

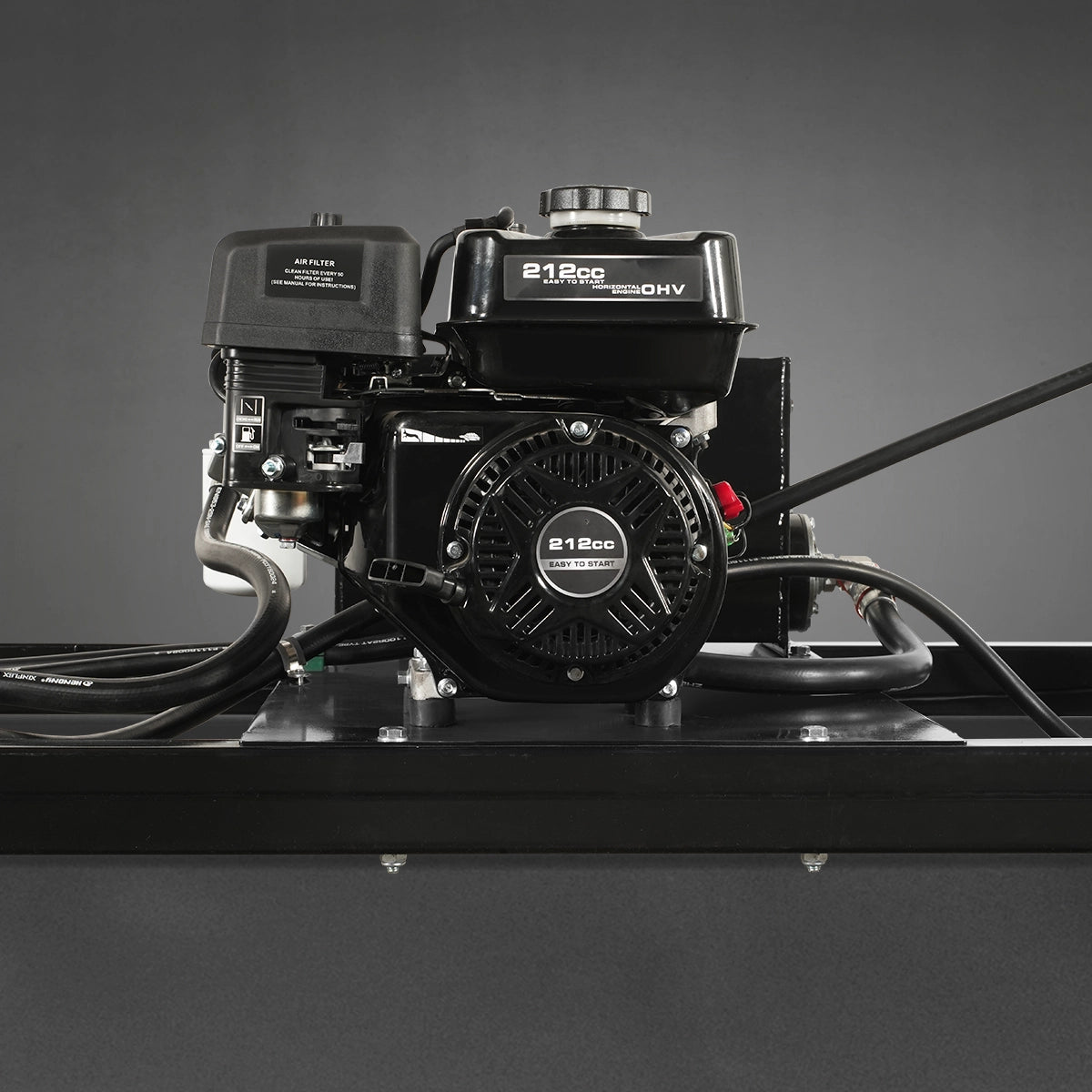

Engine

HC2016 is powered by a DUCAR DH212 7hp gasoline engine, so you can run the conveyor anywhere, from the woods to the neighborhood.

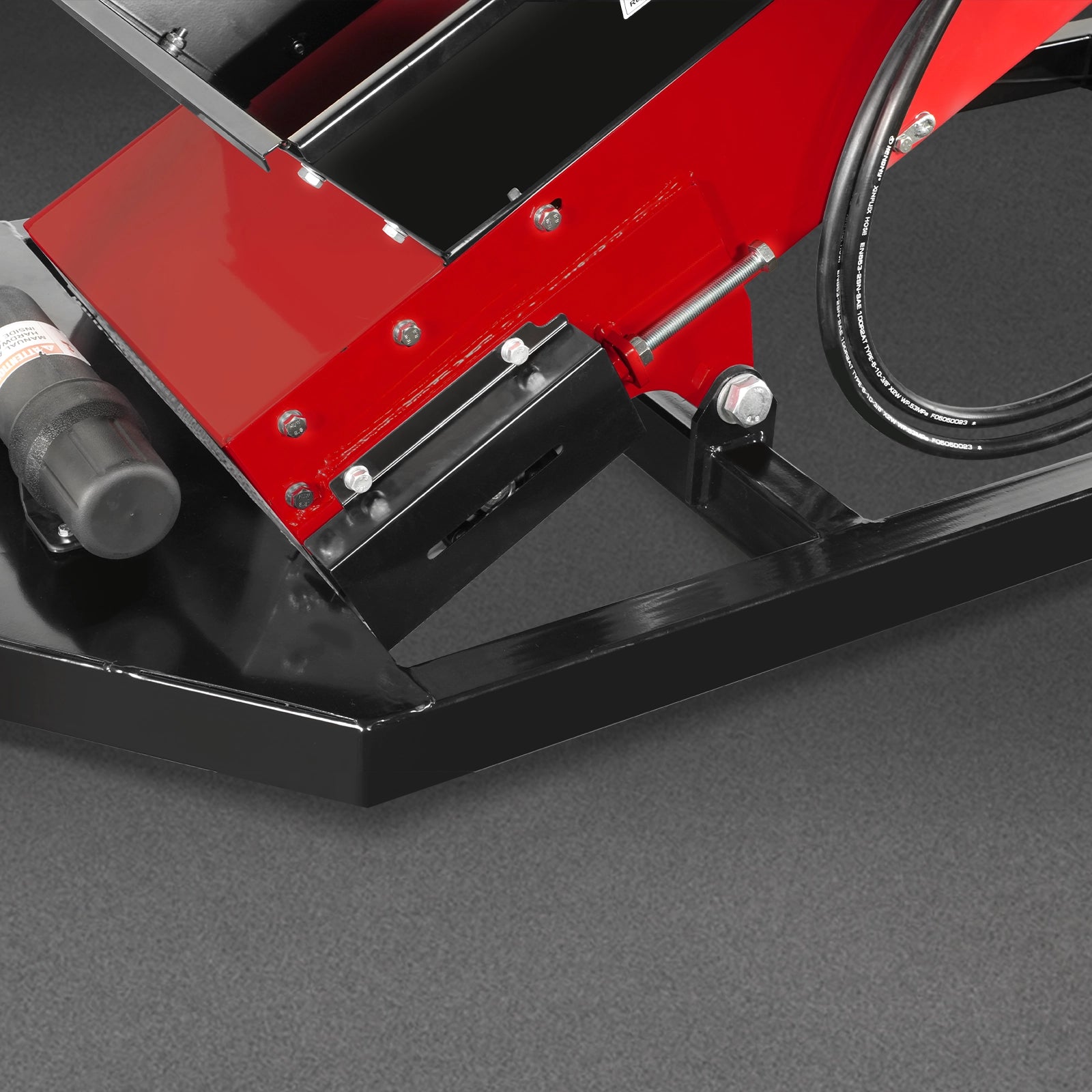

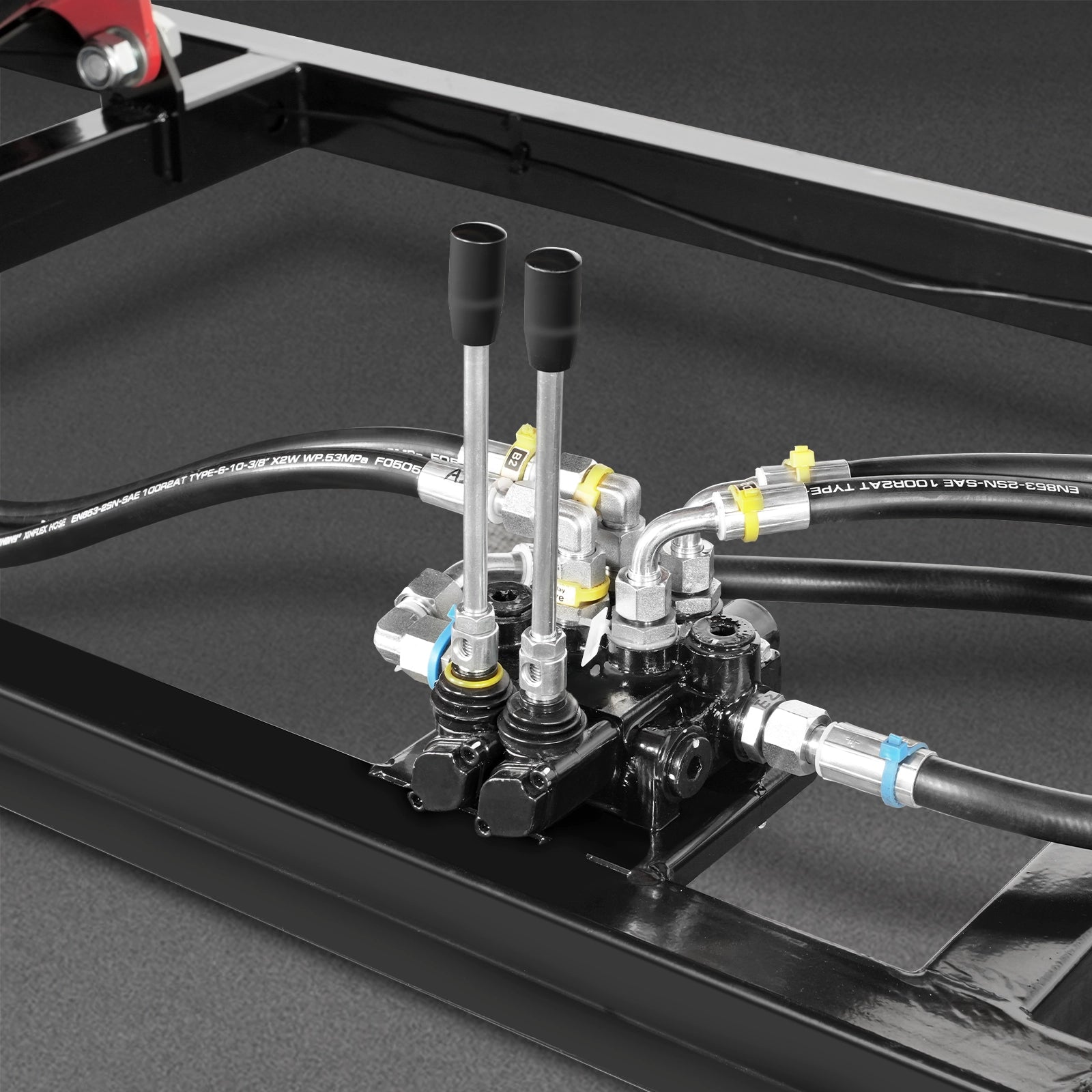

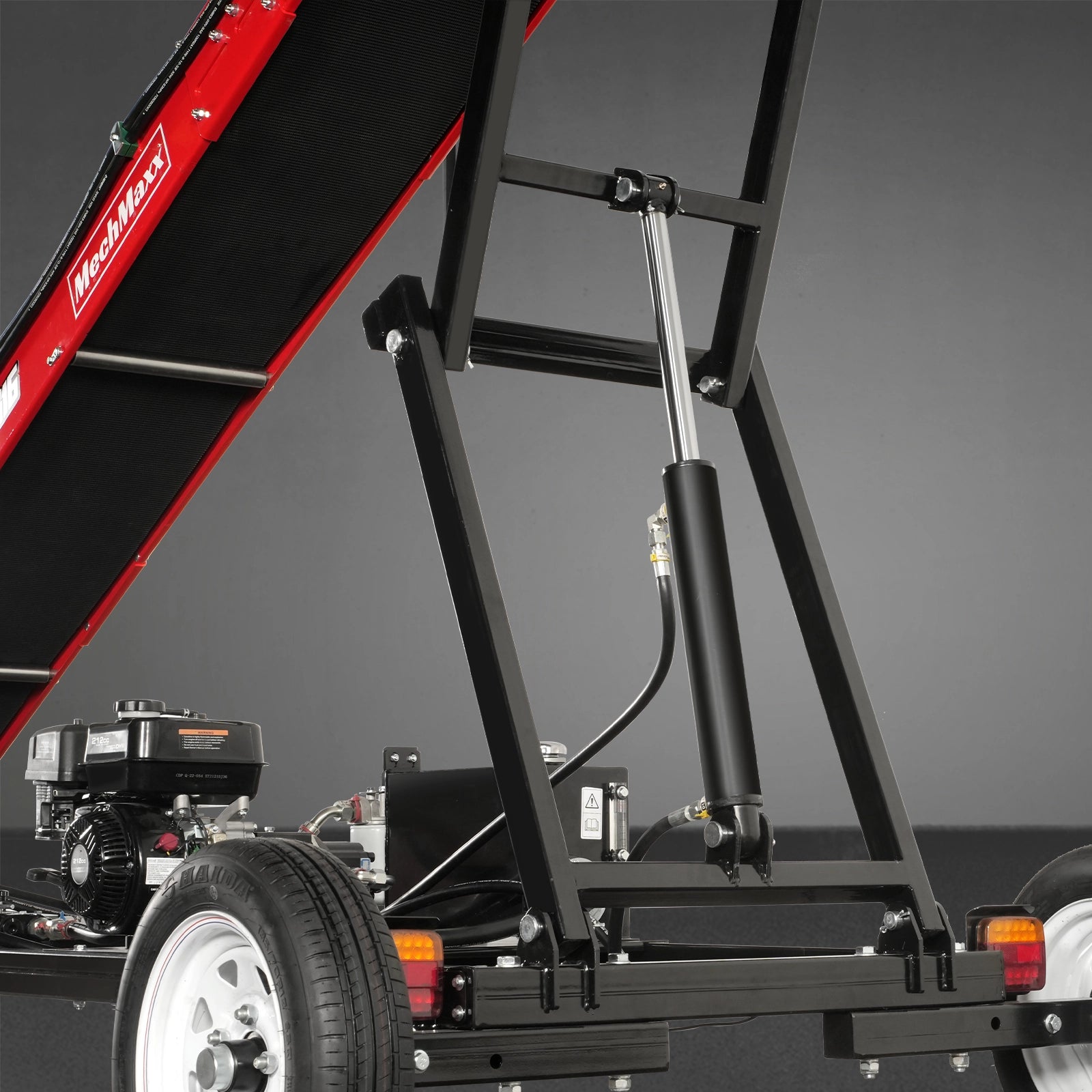

Hydraulic Lift Cylinder Controlled

The height of the HC2016 can be easily adjusted using our hydraulic lift cylinder. Connected to a tandem center spool, the hydraulic lift cylinder is controlled by the operator and can be adjusted multiple times to suit the needs of any project.

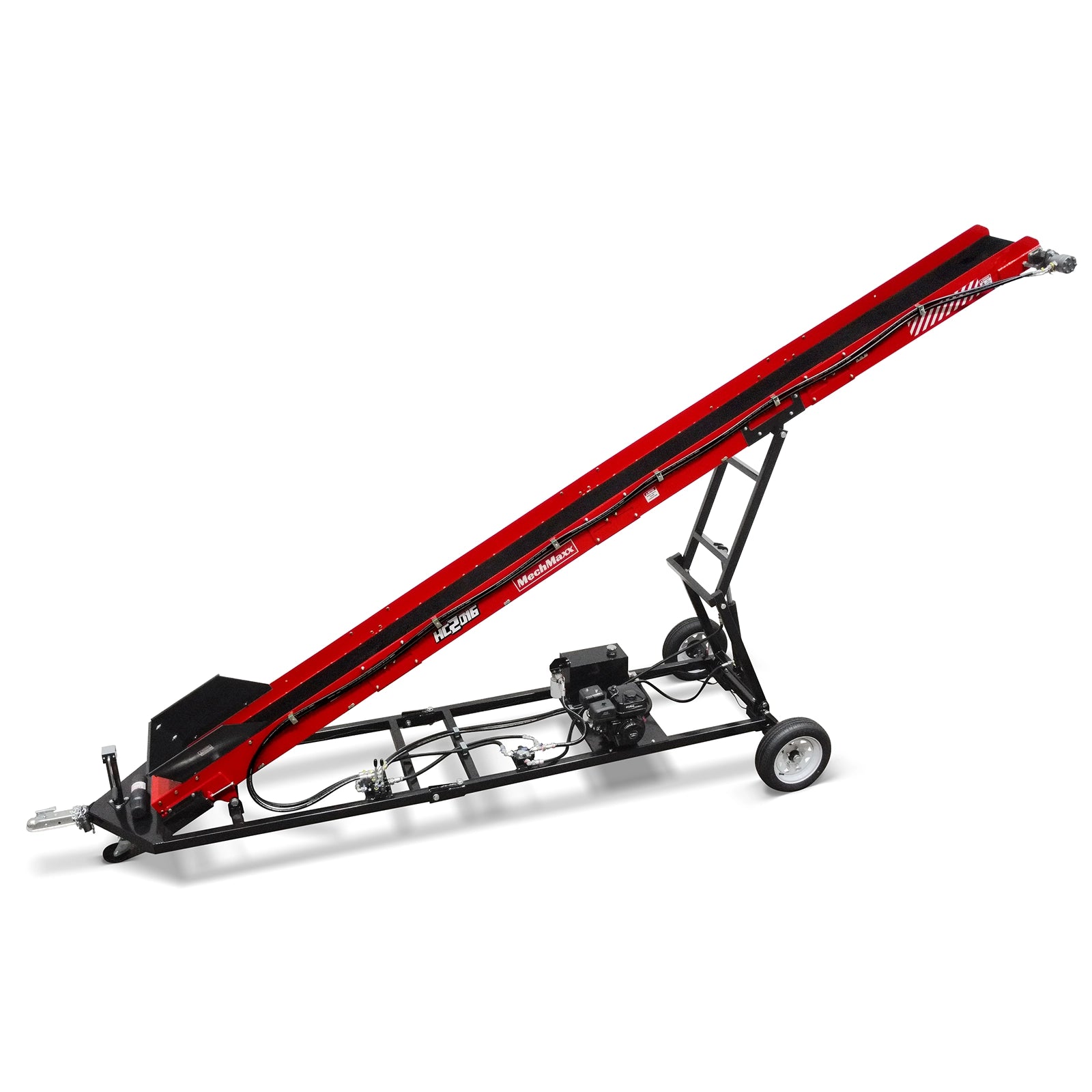

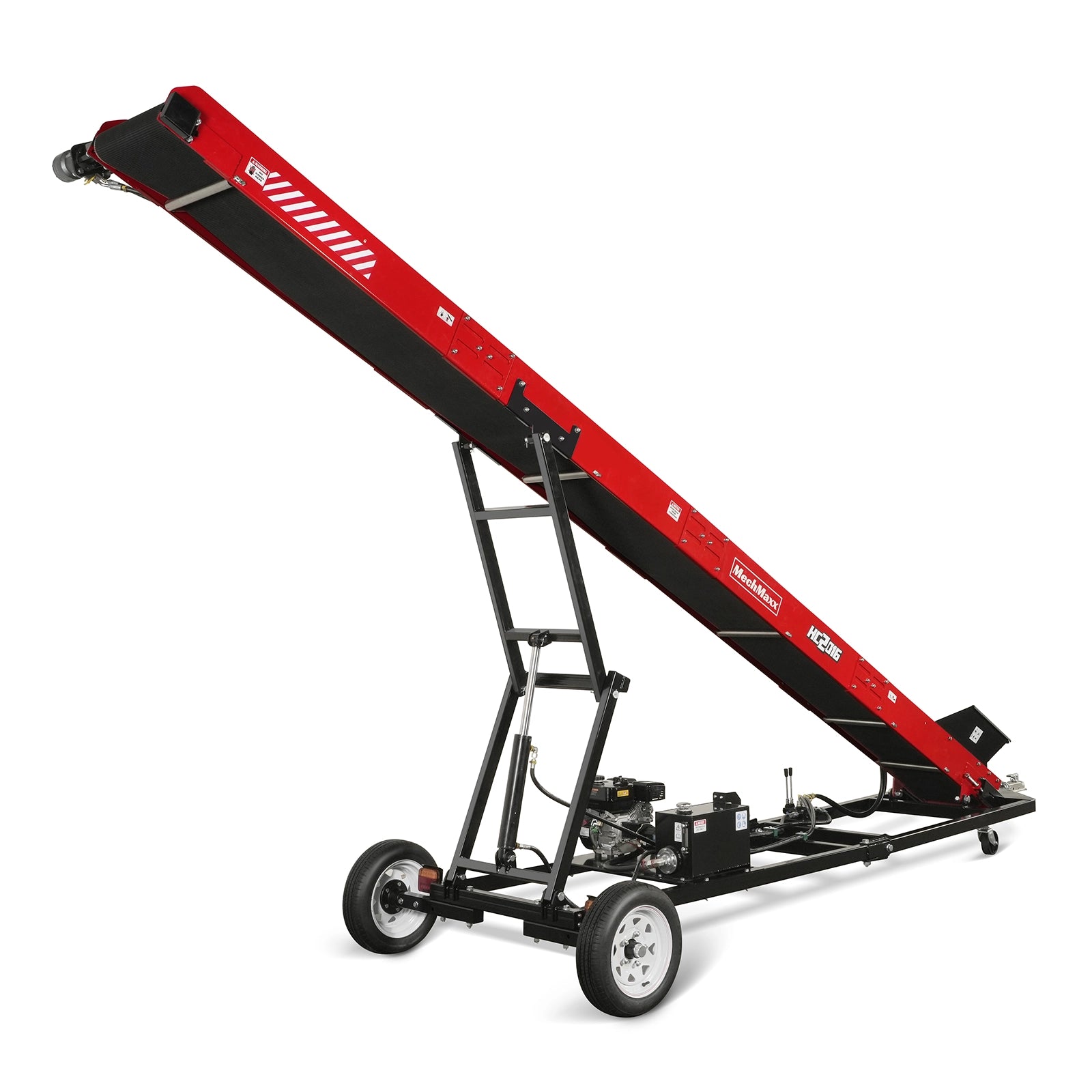

Adjustable Height

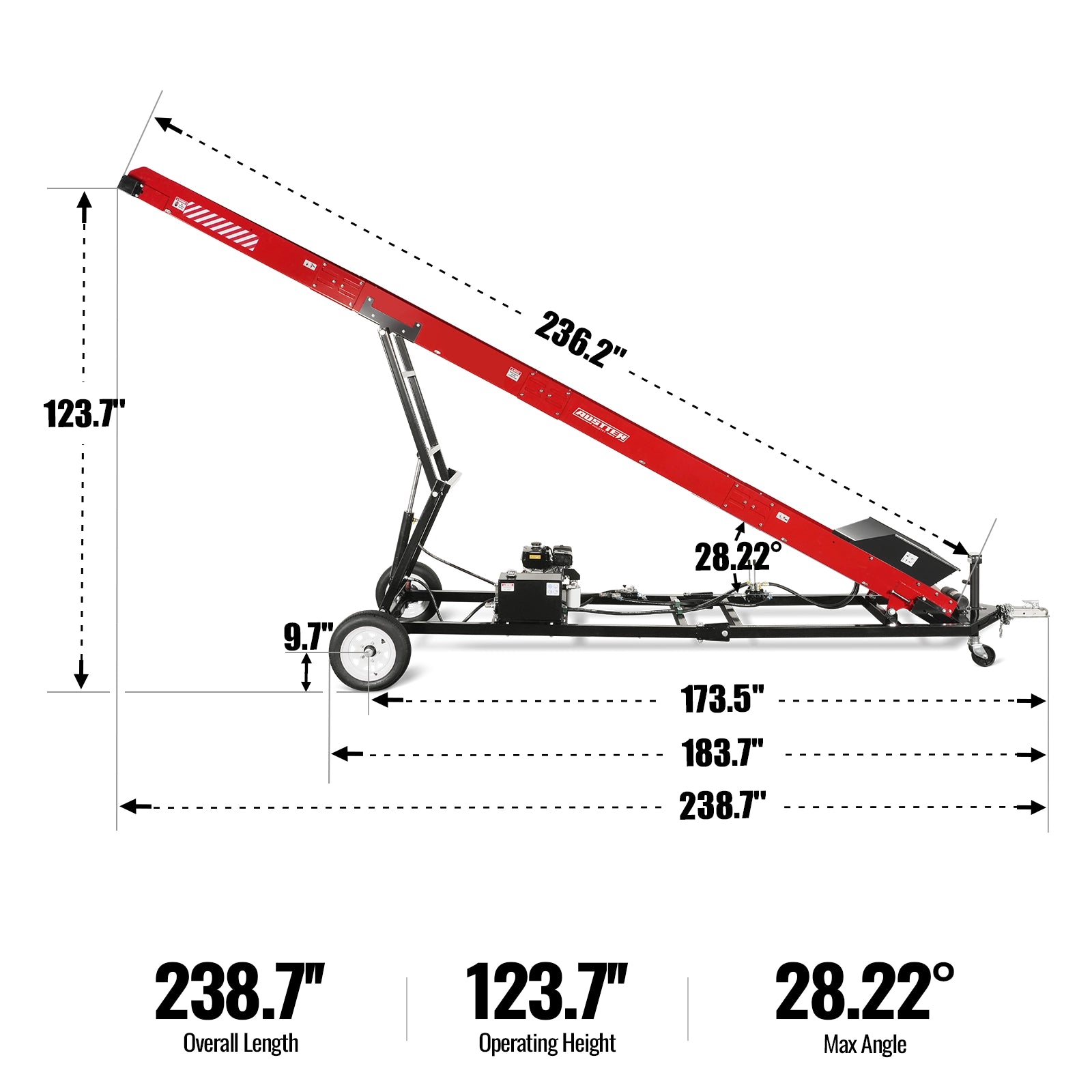

The maximum hydraulic height adjustment angle is 28.22 degrees, and the height can be locked between 60’’ and 124’’ depending on your application. The height can be locked at a maximum height and can be operated at different heights depending on your application.

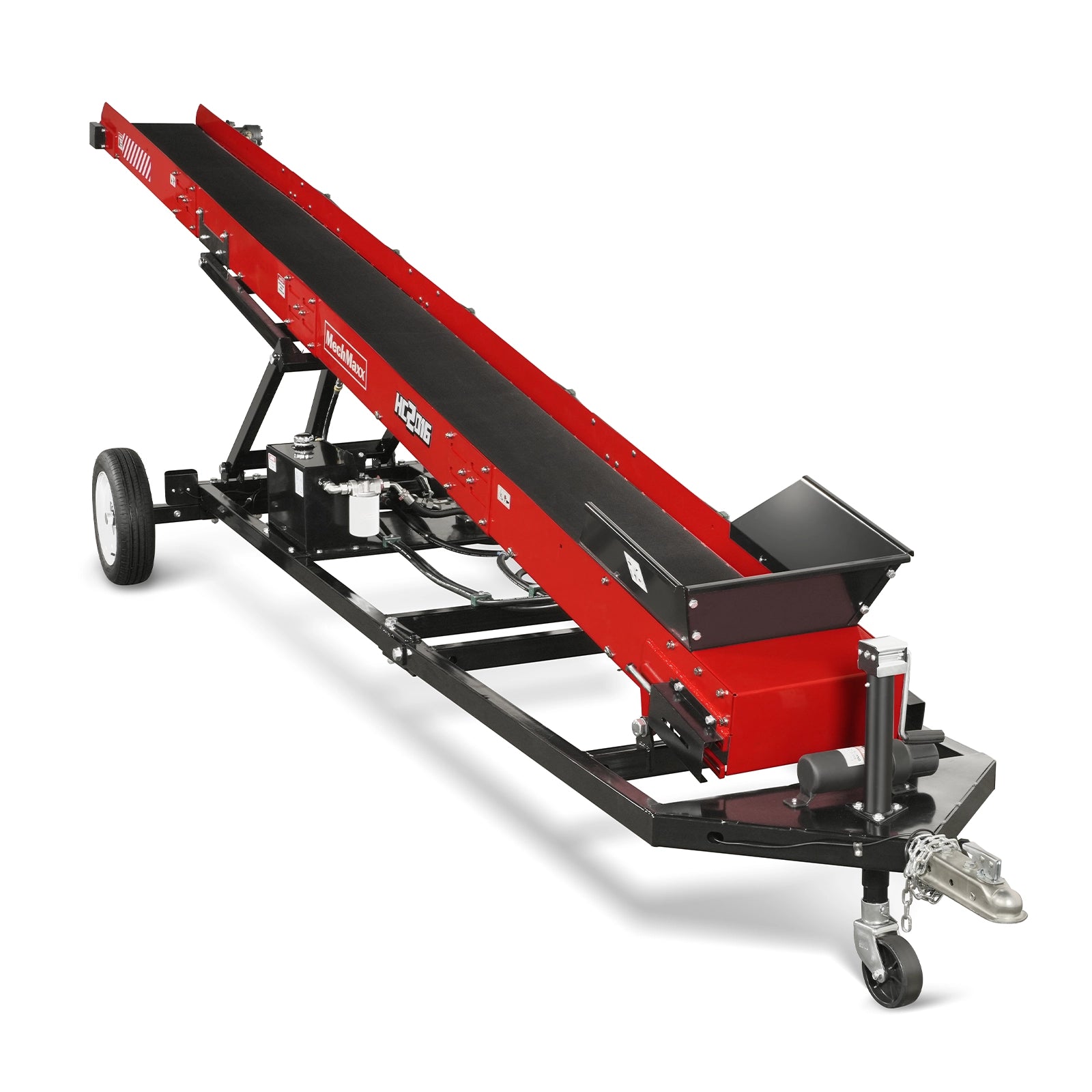

Modular Hopper

The modular hopper on the conveyor makes log loading simple, as it is shaped like a funnel and can be filled directly with the loader bucket. The hopper is bolted on for easy removal and upgrading.

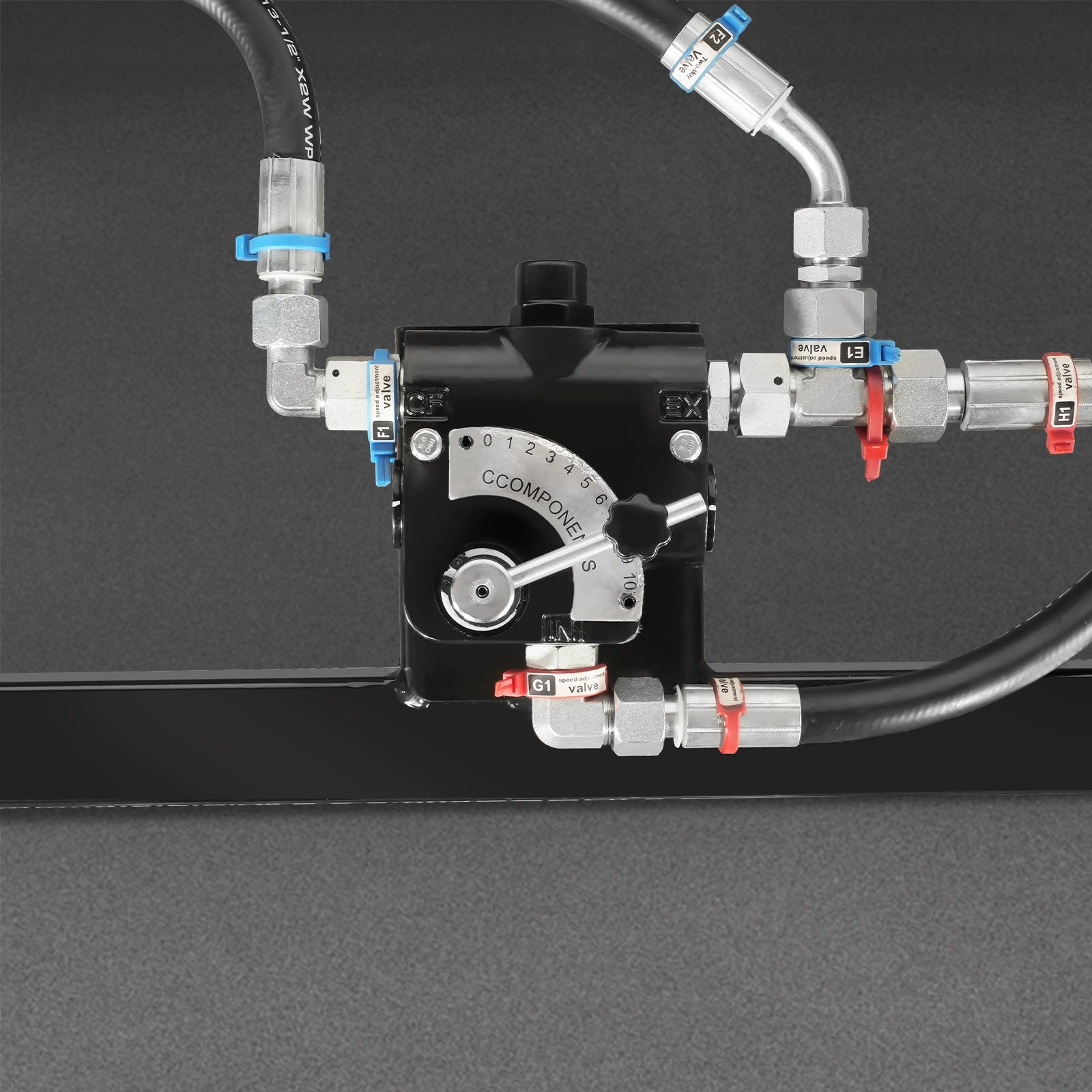

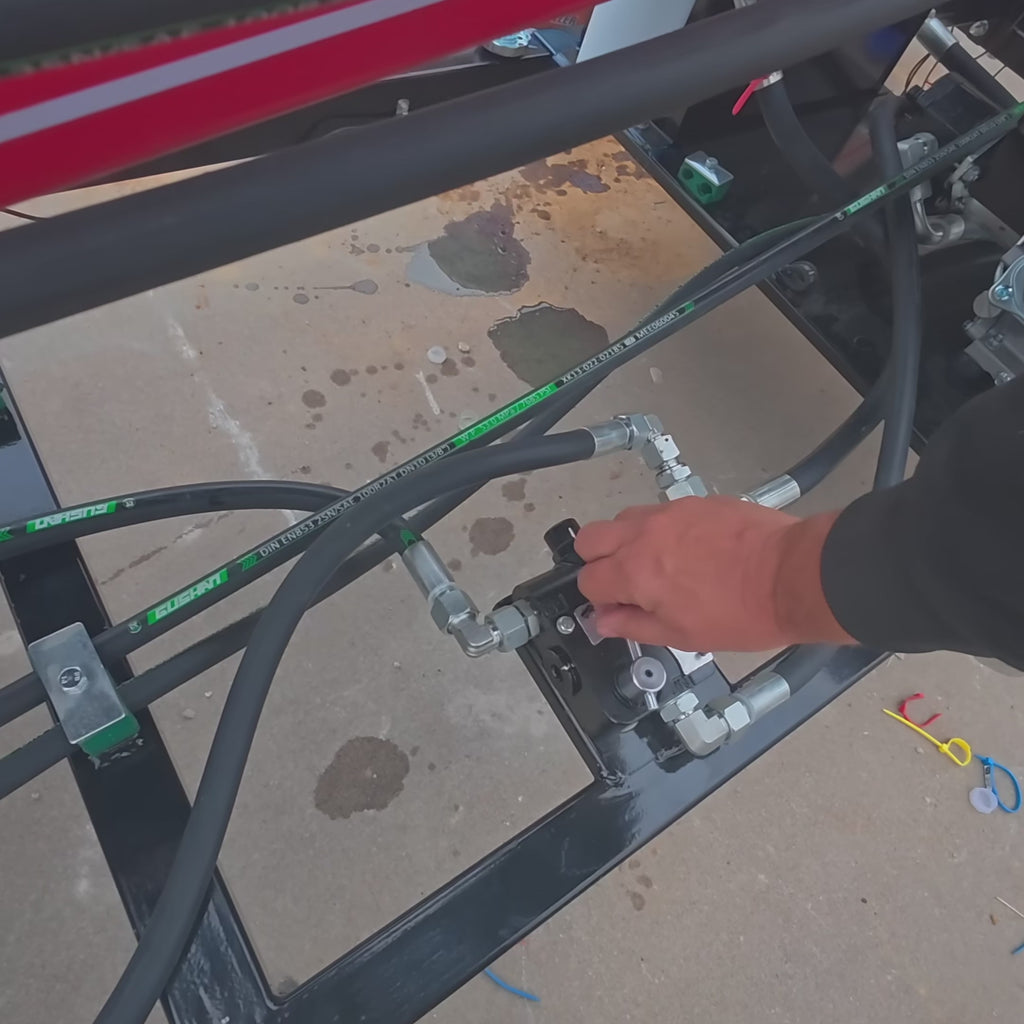

Hydraulic Motor and Speed Adjustment Valve

The speed regulating valve can adjust the running speed of the belt according to actual conditions. The speed indication is 0-9, 0 is the slowest and 9 is the fastest.

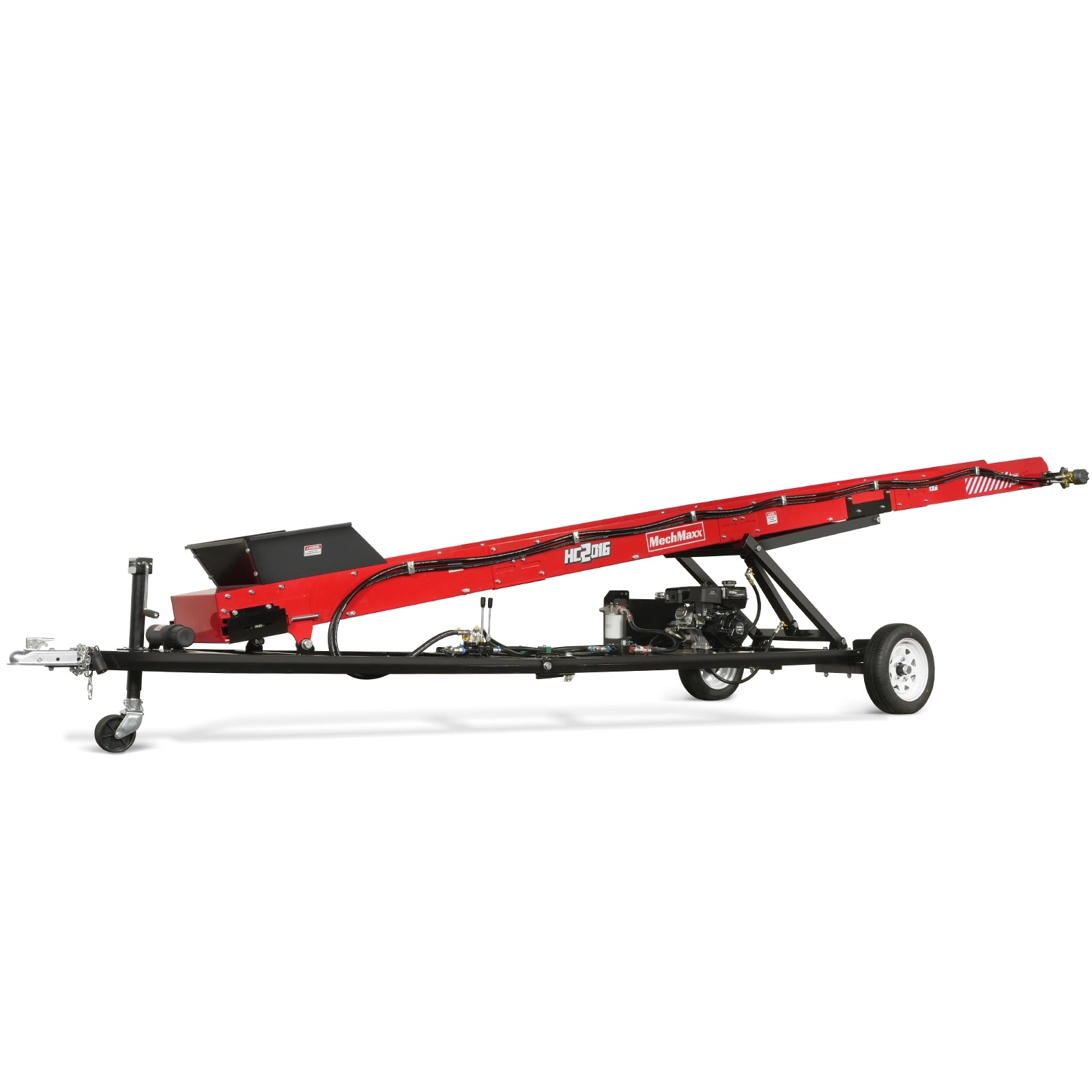

Trailer Hitch and Jockey Wheel

A 2-inch coupler is concealed on the trailer hitch, compatible with a 2-inch trailer ball. The jockey wheel adopts a single wheel design with a wheel diameter of 6 inches and the height can be adjusted during operation.

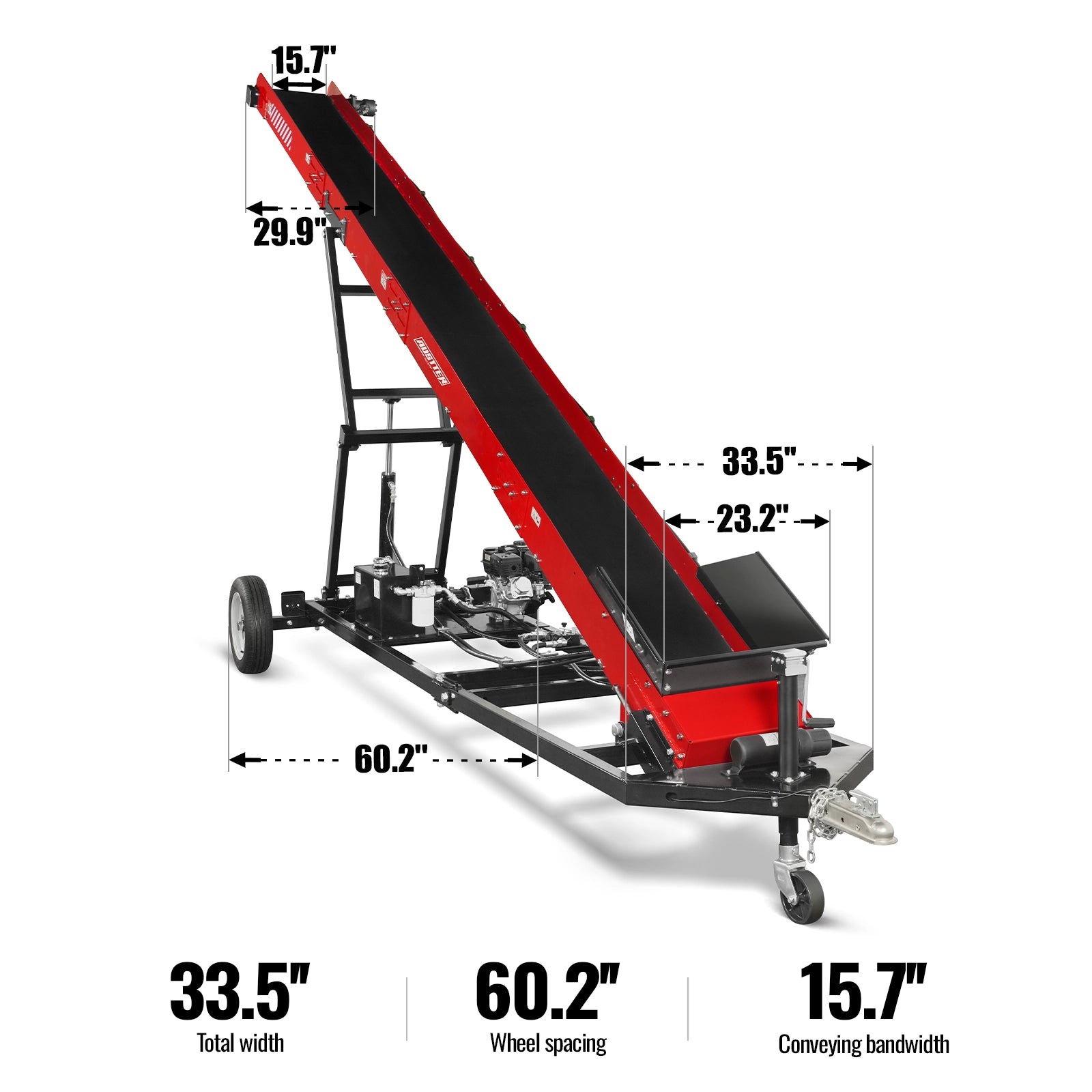

Engine Power	DUCAR DH212 7hp
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV

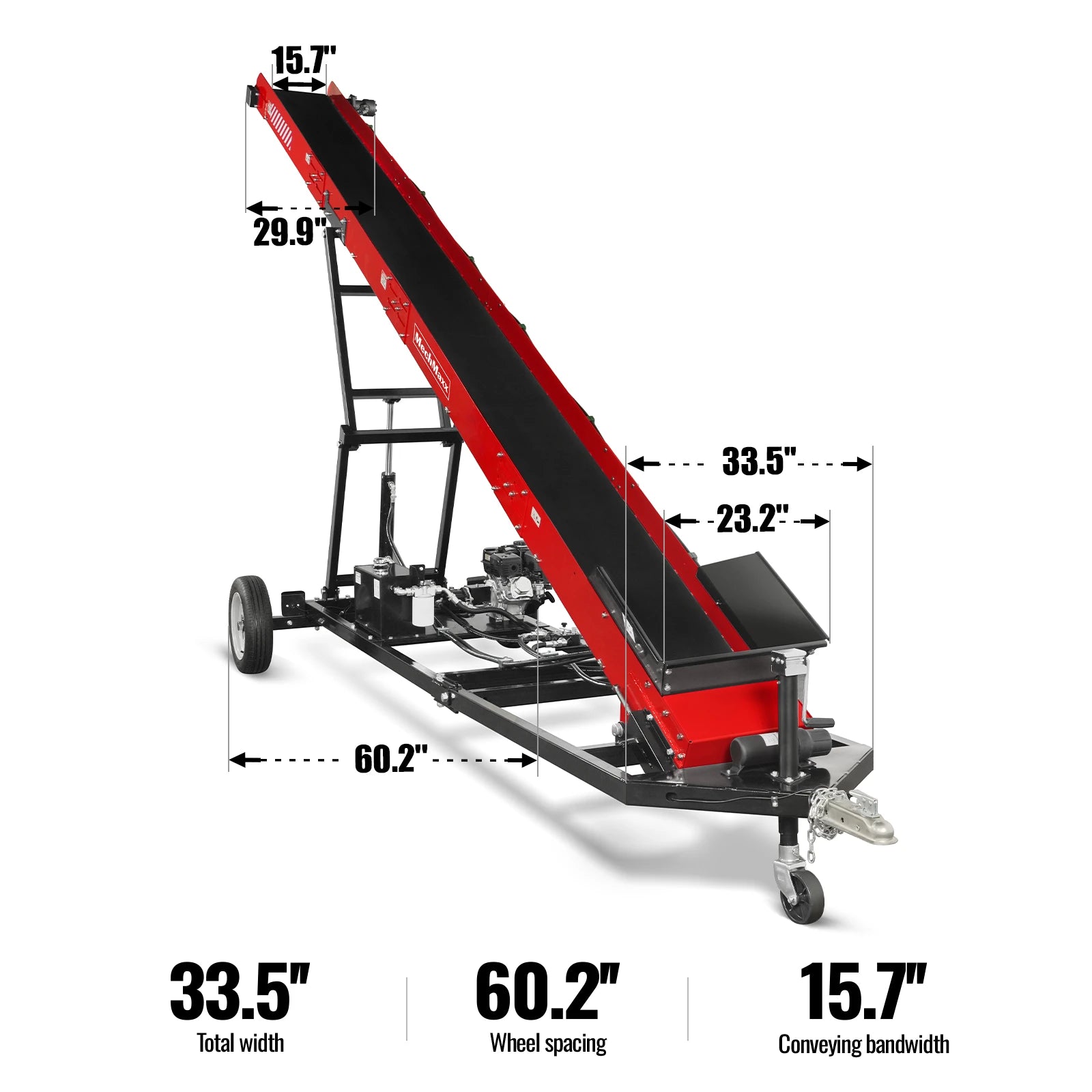

Conveyor Belt length	236 in
Conveyor Belt Wide	16 in
Max Discharge Height	124 in
Min Discharge Height	60 in
Drive System	Hydraulic
Hydraulic Pump	5.7 GPM Single Stage Pump
Hydraulic Fluid Type	AW-46

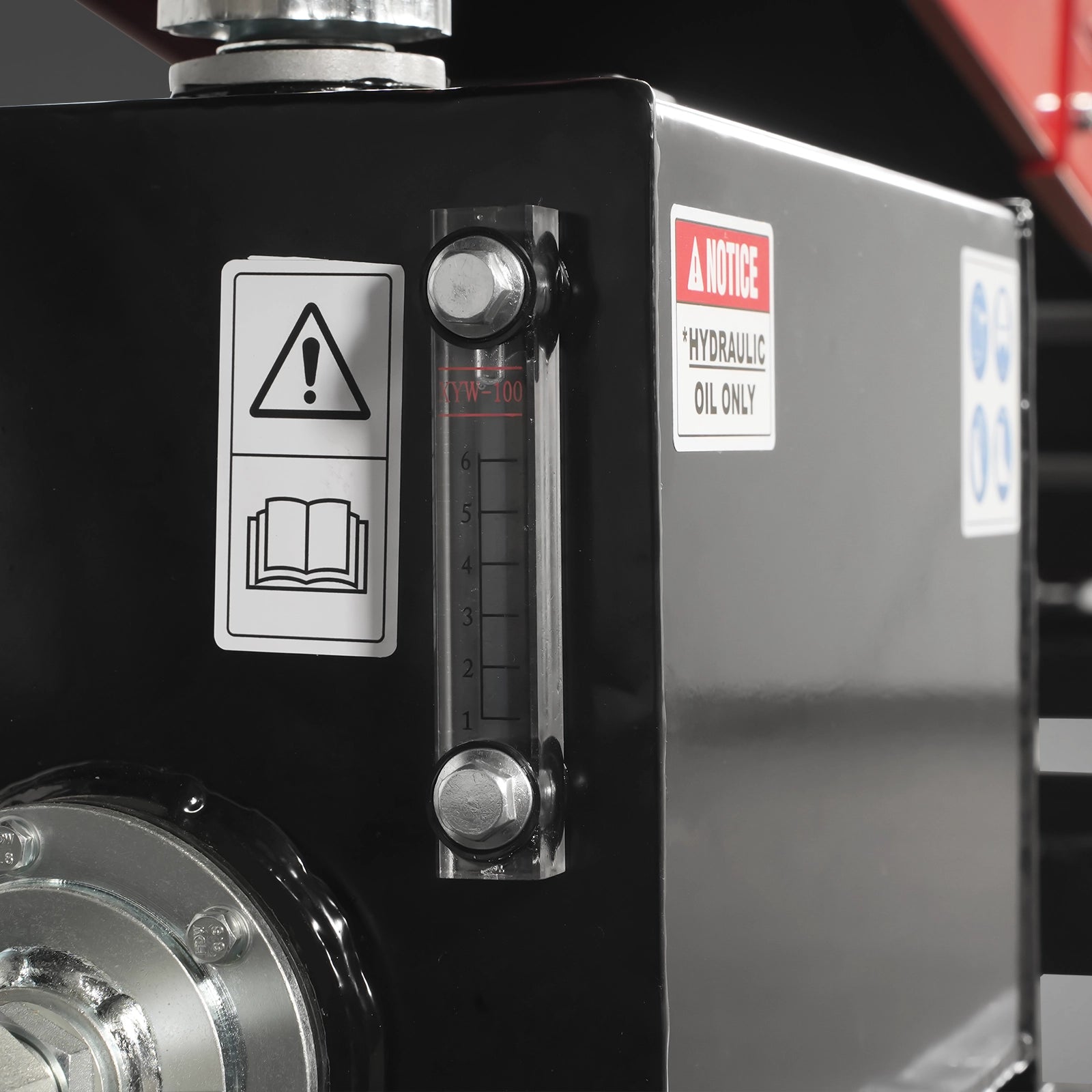

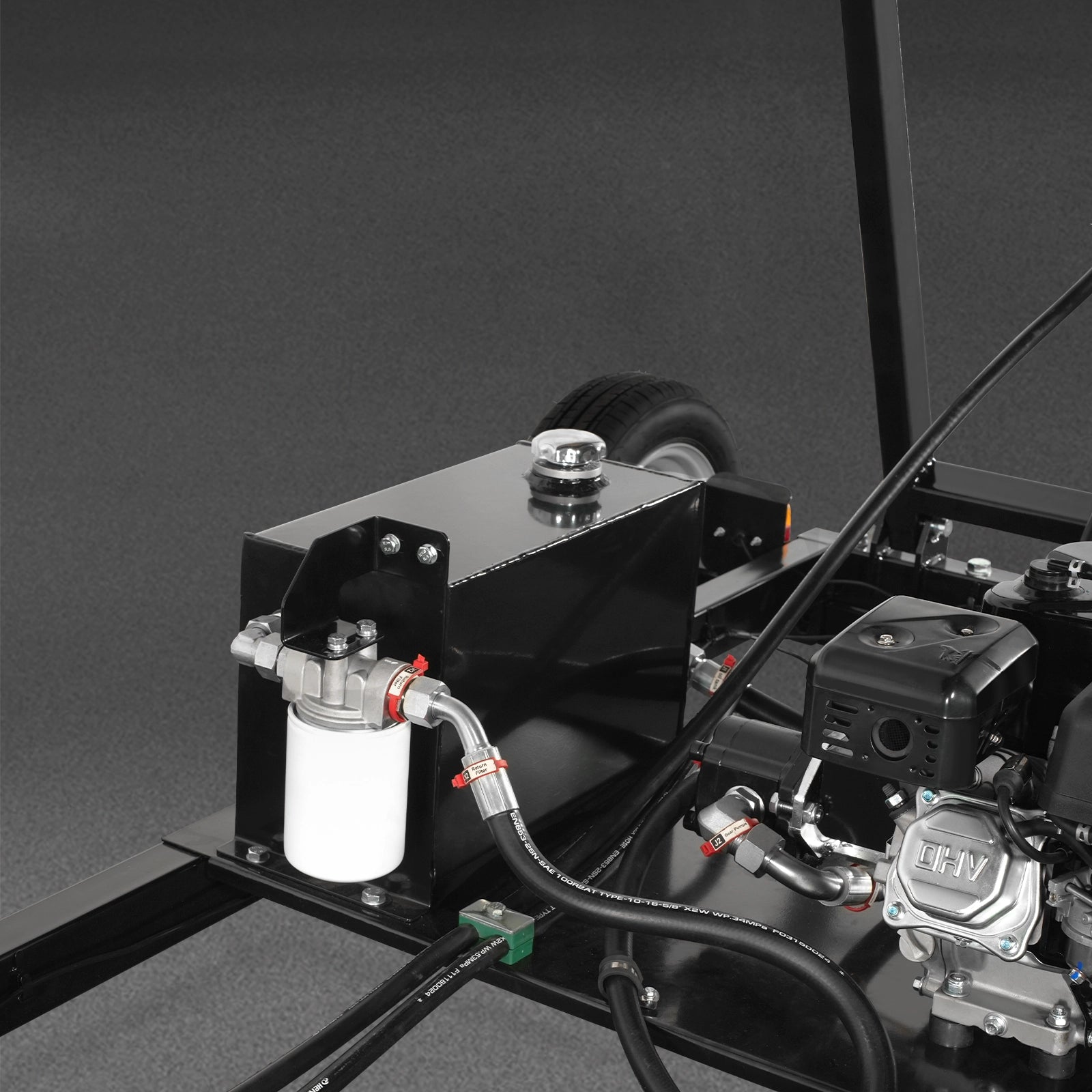

Hydraulic Tank Capacity	4.2 gal
Hydraulic Oil Filter Fineness	10 micron
Towing	Tow Bar with 2 in Coupler
Maximum Towing Speed	45 MPH
Tires Rims	13 in
Tires	19 in Radial (O. D.)
Overall Dimensions (LxWxH)	261x60x63 in
Finish	Powder Coating
Package Method	Plywood Case
Packing Size (LxWxH)	90x38x33 in
Warranty	1year
Weight (N.W./G.W.)	992/1124 lbs
