SKU: 150220

| Model: HB3120 HW20 HT100

Hay Baler & Hay Wrapper & Hay Rake Tedder Combo, HB3120, HW20, HT100

Name: Hay Baler & Hay Wrapper & Hay Rake Tedder Combo, HB3120, HW20, HT100
Brand: MechMaxx
SKU: 150220
Price: 8399.0 USD
Availability: InStock

$839900

$8,699.00

Save $300

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Payment:

917-772-7273

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Frequently Bought Together

Maintenance Kit for Hay Baler HB3120 (150215)

( 1 Pack / 2 Pcs ) Jute Twine for Hay Baler HB3120 (SKU: 150215）

Baler Rake Wheel for Hay Baler HB3120 (SKU: 150215）

( 1 Pack / 2 Pcs ) Belt for HW20 Hay Wrapper (SKU: 150216）

( 1 Pack / 12 Pcs ) Spring Teeth for Hay Tedder HT100 (SKU: 150217）

Hay Baler & Hay Wrapper & Hay Rake Tedder Combo, HB3120, HW20, HT100 $839900 $8,699.00

Maintenance Kit for Hay Baler HB3120 (150215) $8999 $169.99

( 1 Pack / 2 Pcs ) Jute Twine for Hay Baler HB3120 (SKU: 150215） $5999

(2 roll) Silage Wrap for Hay Wrapper $9999

Hay Baler Cover for HB3120 (sku:150215） $6999 $79.99

Baler Rake Wheel for Hay Baler HB3120 (SKU: 150215） $18999

( 1 Pack / 2 Pcs ) Belt for HW20 Hay Wrapper (SKU: 150216） $4999 $79.99

( 1 Pack / 12 Pcs ) Spring Teeth for Hay Tedder HT100 (SKU: 150217） $9999

Total Price

$

Product Overview

Twine auto binding system.
Hydraulic bale ejection system.
Simple mechanism, low maintenance.
Bale counter, easy to know your bale quantity.
Hydraulic lifting system for easy ridge crossing.
Light and round straw bales convenient for transportation.
Remote control easy to release the bale compare to pull the thread to release the bale.
A gasoline hay wrapper is a practical and efficient solution for farmers looking to preserve their hay bales. With its mobility, versatility, and automatic wrapping capabilities, it offers significant advantages over traditional methods. Whether you're operating on a small or large scale farms, a gasoline hay wrapper can help ensure that your forage materials remain fresh and usable throughout the year.
Features automatic wrapping functionality, which simplifies the wrapping process and ensures that the hay bales are fully wrapped, providing better preservation.
It come with a compact structure, making it easy to move around the farm. This portability is enhanced by the use of a gasoline engine, which does not require a power outlet.
Can be used in various terrains, including farms, gardens, and even at home, making it a versatile tool for different environments.
Using a gasoline engine as its power source, this type of hay wrapper offers mobility and efficiency, especially in areas where electric power may not be readily available.

Product manual (PDF)

HB3120 Product manual 1.0.pdf

Product manual (PDF)

HW20 Product manual 1.0.pdf

Product manual (PDF)

HT100 Product manual 1.0.pdf

Product Features

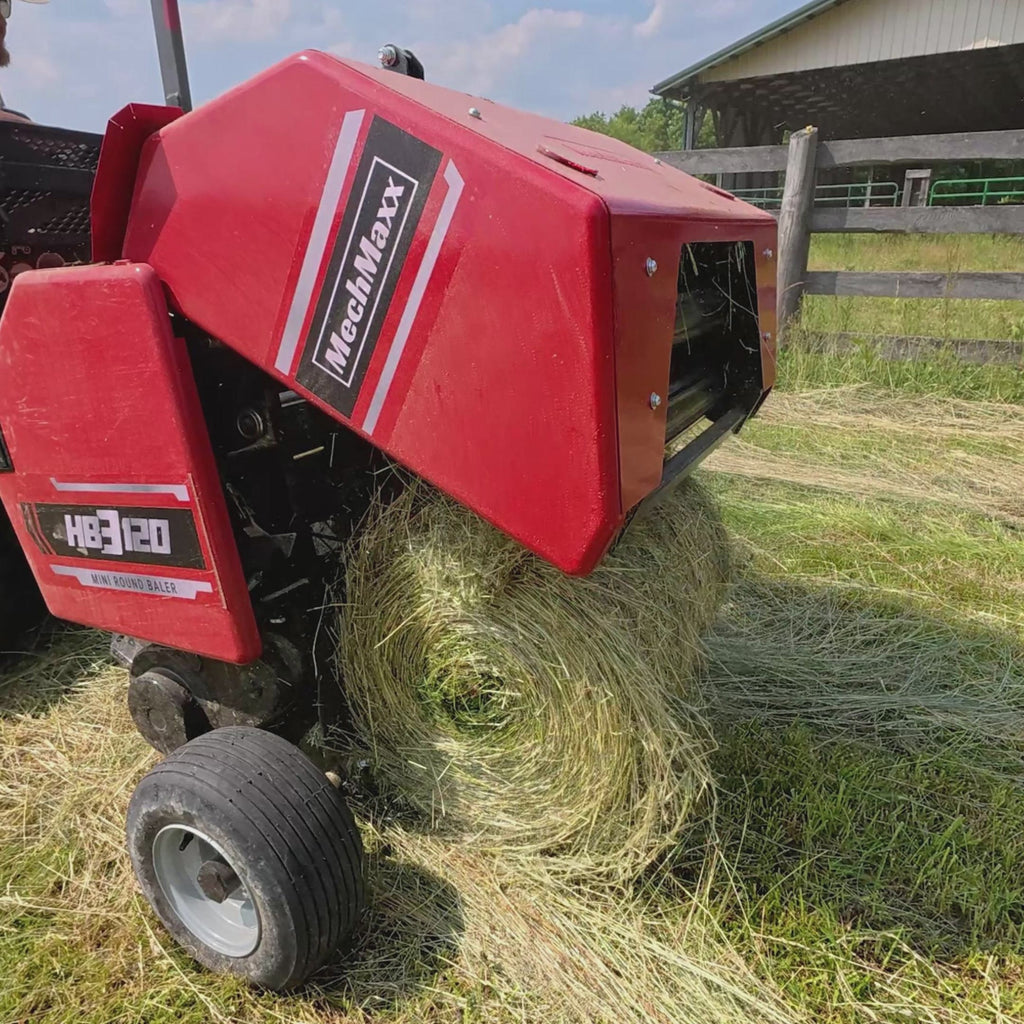

Light And Compact Bales

The HB3120 balers makes ø20 x 28in bales, bale weight 30-50lbs, the bale weight differs from the material you bale, the compact bales are easy to carry and transport.

Simple Mechanism

The HB3120 baler was driven by chains and gears, the simple mechanism structure makes the machine easy for maintenance.

Bale Counter

The HB3120 baler was installed with a simple bale counter, this makes you easily know how many bales you have, and it makes renting much easier.

Easy-Access Covers

The HB3120 comes with easy-access covers which makes opening the bale covers much easier compare the ones which use Star-Handles.

Independent Power Unit

The HB3120 baler comes with an independent hydraulic pump station, thus this machine no need tractor hydraulics. Even the small horsepower tractors without hydraulics can use this machine.

Heavy-duty Caster Stand

The HB3120 baler comes with a heavy-duty caster stand, the strong caster stand is able to rotate as a small wheel thus help move the machine in short distance.

Extra Shear Bolts

The shear bolts act as an important role on the HB3120 baler, it breaks while the baler met big obstacles or bales too big, thus stop the mechanism parts to protect the main body of the machine. We designed an extra plate for holding the extra shear bolts, much convenient.

0.08in steel compress roller

The HB3120 use 10 pieces 0.08in integrated forming compress rollers, each roller with 6 reinforcing ribs, this makes the rollers much stronger.

PTO Shaft( 1-3/8” Z6)

The HB3120 balers use 27.5in 6 x 6 spline PTO shafts, the length is able to be adjusted according to your tractor.

Hydraulic Ejection System

The HB3120 baler releases the bales by hydraulic cylinder, you can adjust the tailgate closing speed by adjusting the throttle valve on the cylinder.

Remote Control To Release The Bales

The HB3120 balers equipped with a remote control box, press the button to release the bale, you no need to pull a string to release the bale.

Full Bale Chamber Alarm

The full chamber horn sounds when the bale cham-ber is full, after the twine arm drops and depresses the activation switch. This begins thetwine wrapping process.

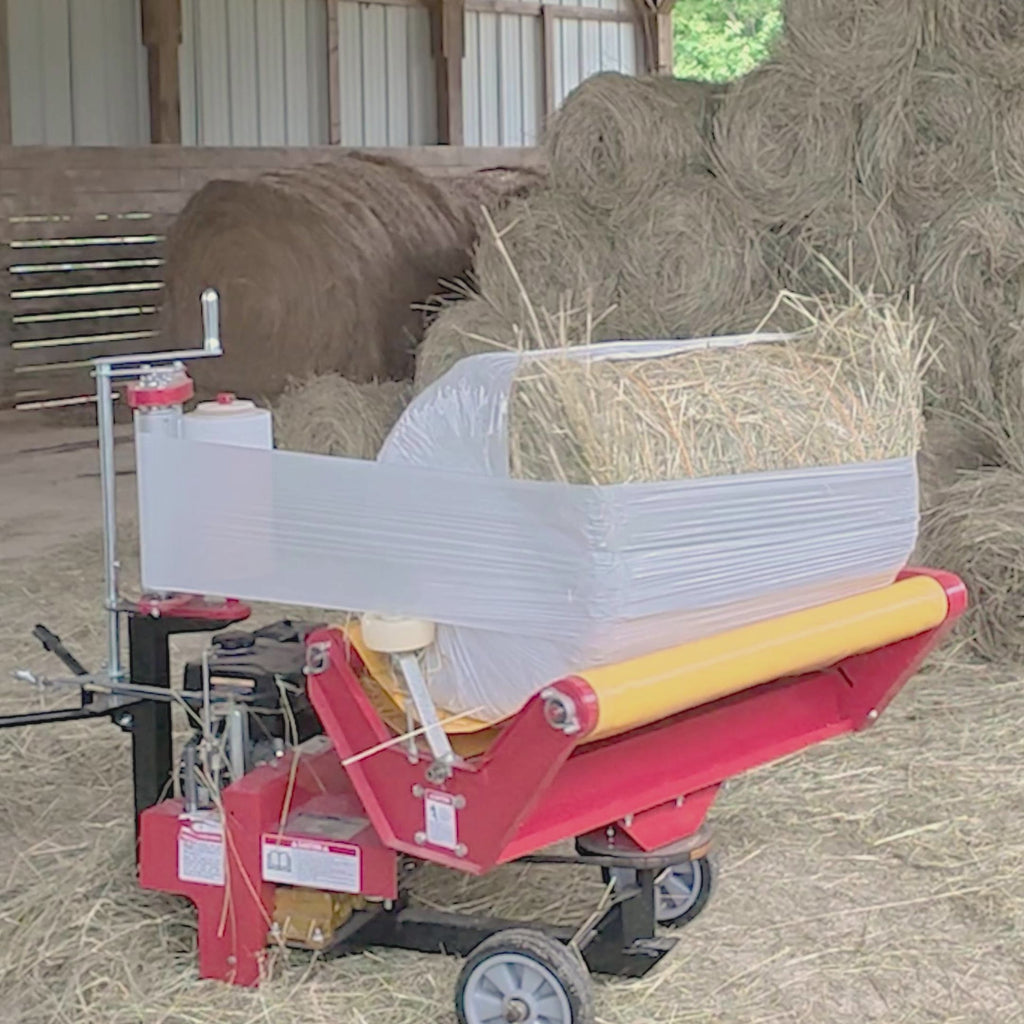

Compact Structure

The HW20 wrapper with compact structure which is only 202.8lbs, enable to pull or push it to it’s working place, easy to transport, and it can work at any working field, even rough terrain.

Work Independently

The HW20 wrapper was powered by a 212cc 7hp gasoline engine which typically provide consistent power, enabling the machine to operate smoothly even in challenging conditions.

Portability

Unlike electric-powered machines, gasoline engines do not require access to electrical outlets, making these wrappers highly portable.

Efficiency

Efficiently wraps round bales from 20” to 24” in diameter in 40 seconds, Requires less effort and time than conventional wrapping methods.

Reliability

The HW20 wrapper is film-layer adjustable, it applies plastic film evenly around the bale, ensuring good coverage and protection.

User-Friendly Interface

The HW20 wrapper is easy to operate which makes the operator easier to use even for less experienced operators.

Durability And Low Maintenance

The HT100 hay rake features durability and low maintenance design to reduce downtime and repair costs.these attachments are made from high-quality materials that ensure longevity and reliability

Multi-functionality

The HT100 hay rake tedder can perform multiple tasks such as tedding, raking, and spreading without requiring additional tools for switching between functions, saving time and labor.

Compatibility With Compact Tractors

The HT100 hay rake tedders are designed to be compatible with compact and subcompact tractors, making it ideal for small to medium-sized farming operations. It provides excellent performance, spreading wet crops evenly for faster drying.

Video

Product Warranty

Specifications

Hay Baler HB3120

Power Required	15-50 Hp
Minimum Tractor Weight	1500 lbs
Bale Size （Diameter X Width）	φ20 X 28 in
Bale Weight	30 - 50 lbs
Overall (L x W x H)	45 x 51 x 47 in
Pickup Width	31.5 in
Efficiency	1.24-3.11 mi/h
Capacity	80 - 100 Bales / Hour
Bale Wrapping	Twine Wrap
Hydraulics	Independent Hydraulic Power Unit, No Need Tractor Hydraulics
Electrical	Aviation Plug, Easy To Connect With Tractor
Tire Size	16 x 6.5 in
PTO Shaft Speed	540 rpm
Spline End	1.375in Z6
3-Point Hitch	CAT 1
Gearbox Oil Type	80W90 EP Gear Oil
Finish	Powder Coating
Warranty	1 Year
Shipping Box	47 X 45 X 47 in
Weight (N.W./G.W.)	970 /992 lbs

Hay Wrapper HW20

Engine	DUCAR DH212
Suitable Bale Size	20 x 28 in ; 24 x 28 in
Overall (L x W x H)	59 x 34 x 40.5 in
Finish	Powder Coating
Warranty	1 Year
Shipping Box	61 X 27 X 27 in
Weight (N.W./G.W.)	276/298 lbs

Hay Tedder Combo HT100

Power Required	15-50 hp
Minimum Tractor Weight	1500 lbs
Working Width	100 in
Rake Diameter	79 in
Spreading With	63 in
Overall (L x W x H)	83 x 98 x 37 in
Arms No.	6
Spring Teeth No.	12
Working Speed	2.5-5 mi/h
Picking Up Objects	Various Types Of Straw, Pasture
Tire Size	13x5.0-6
PTO Shaft Speed	540 rpm
Spline End	1.375in Z6
3-Point Hitch	CAT 1
Gearbox Oil Type	80W90 Gear Oil
Finish	Powder Coating
Warranty	1 Year
Shipping Box	57 X 24 X 29 in
Weight (N.W./G.W.)	357/405 lbs
