SKU: 150208

| Model: KDK87H

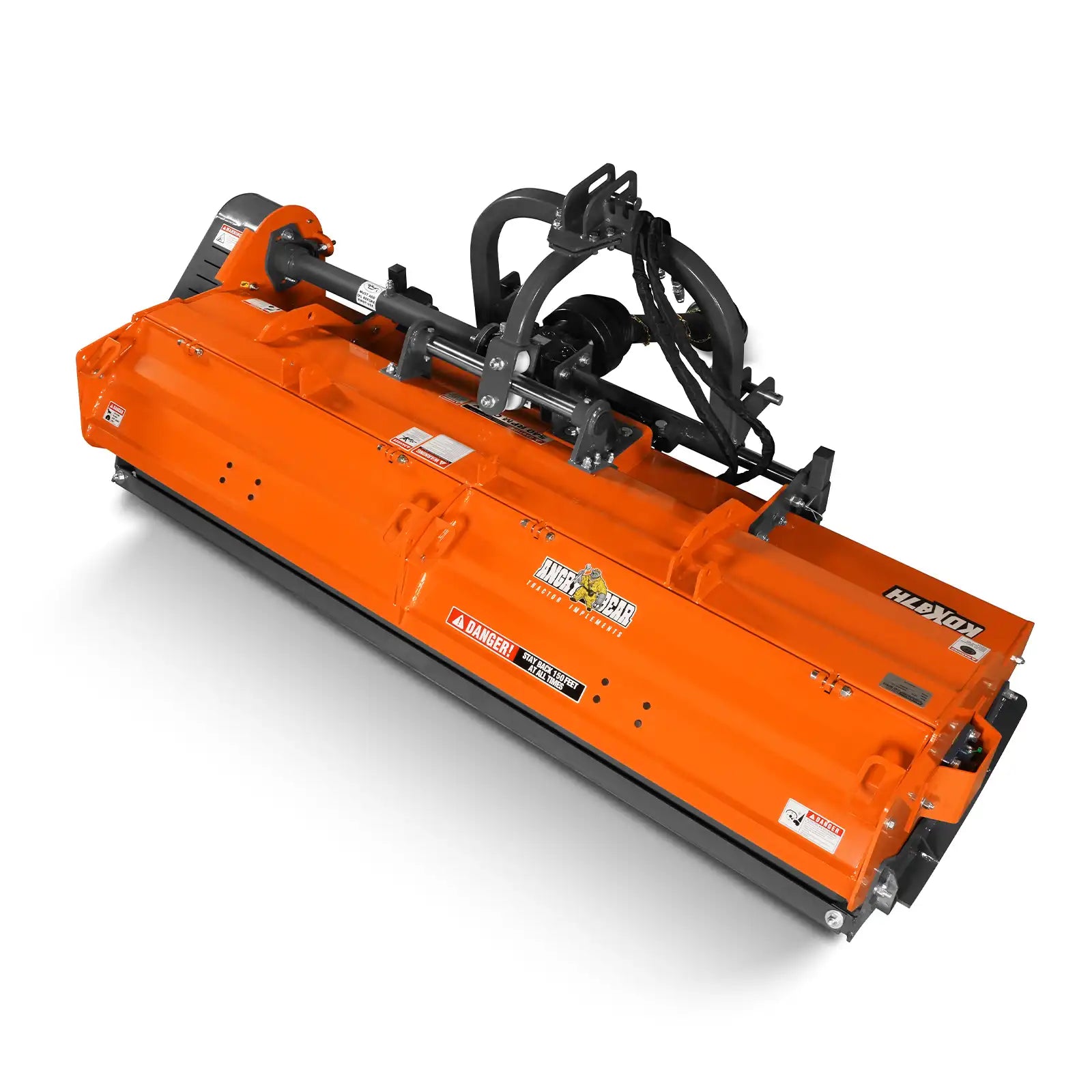

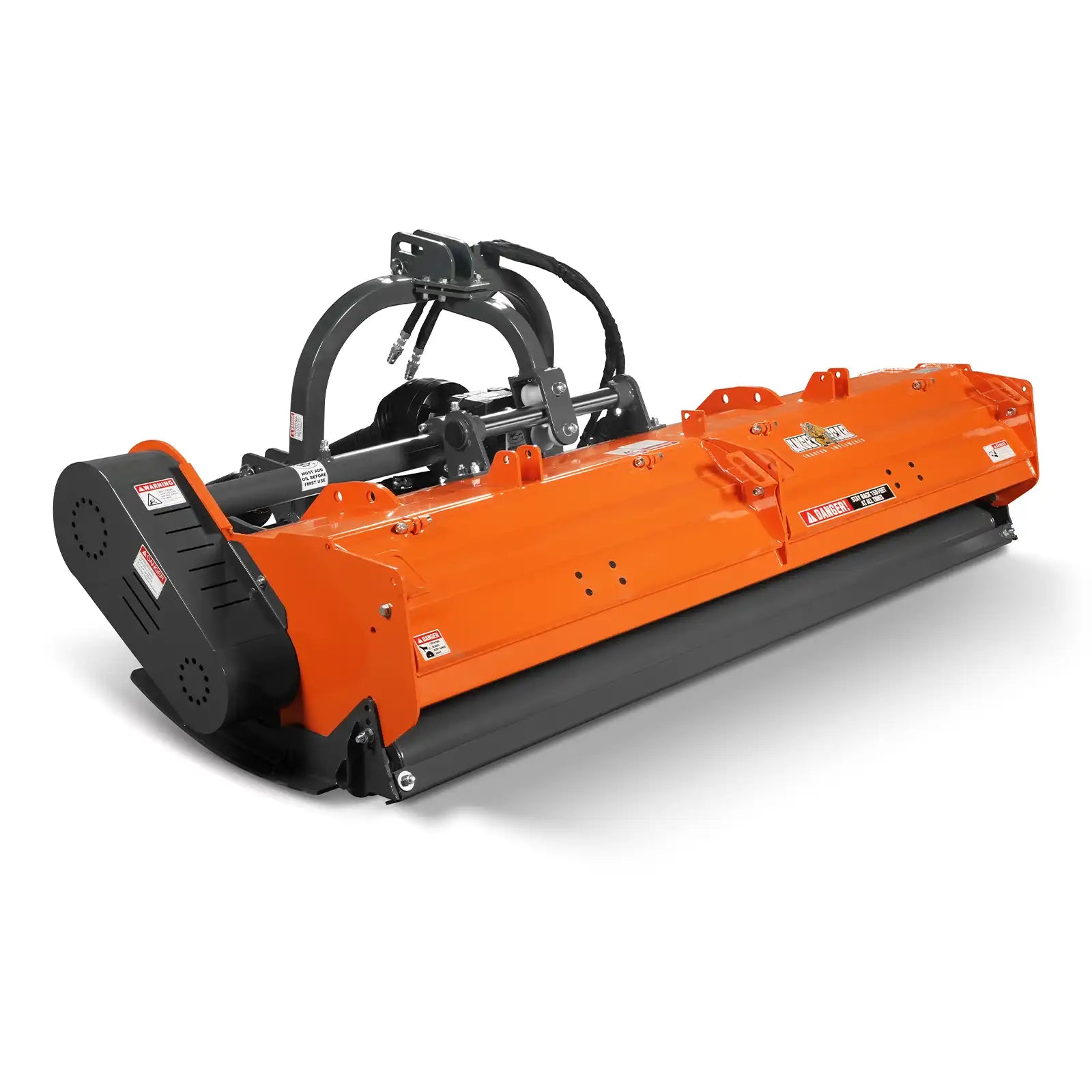

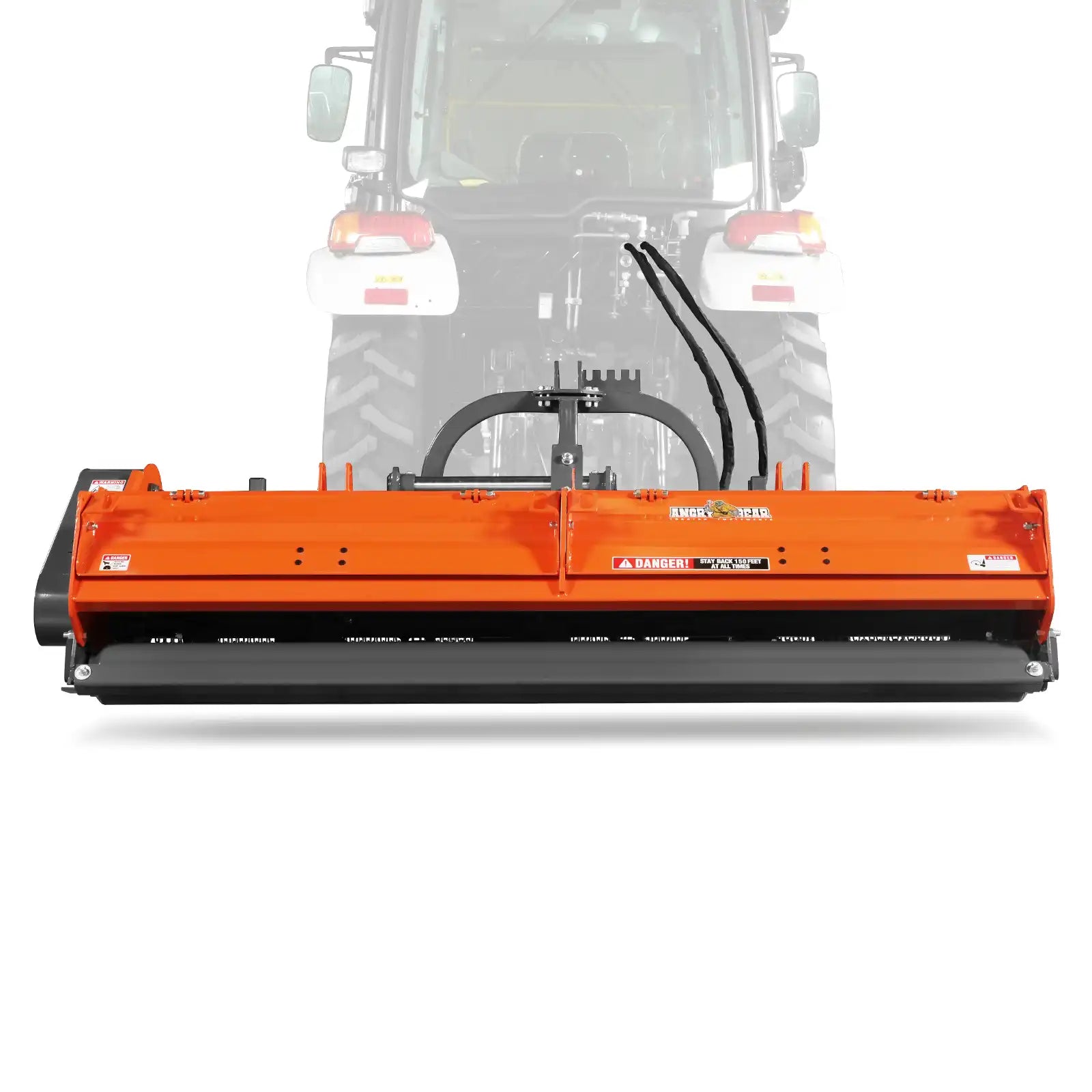

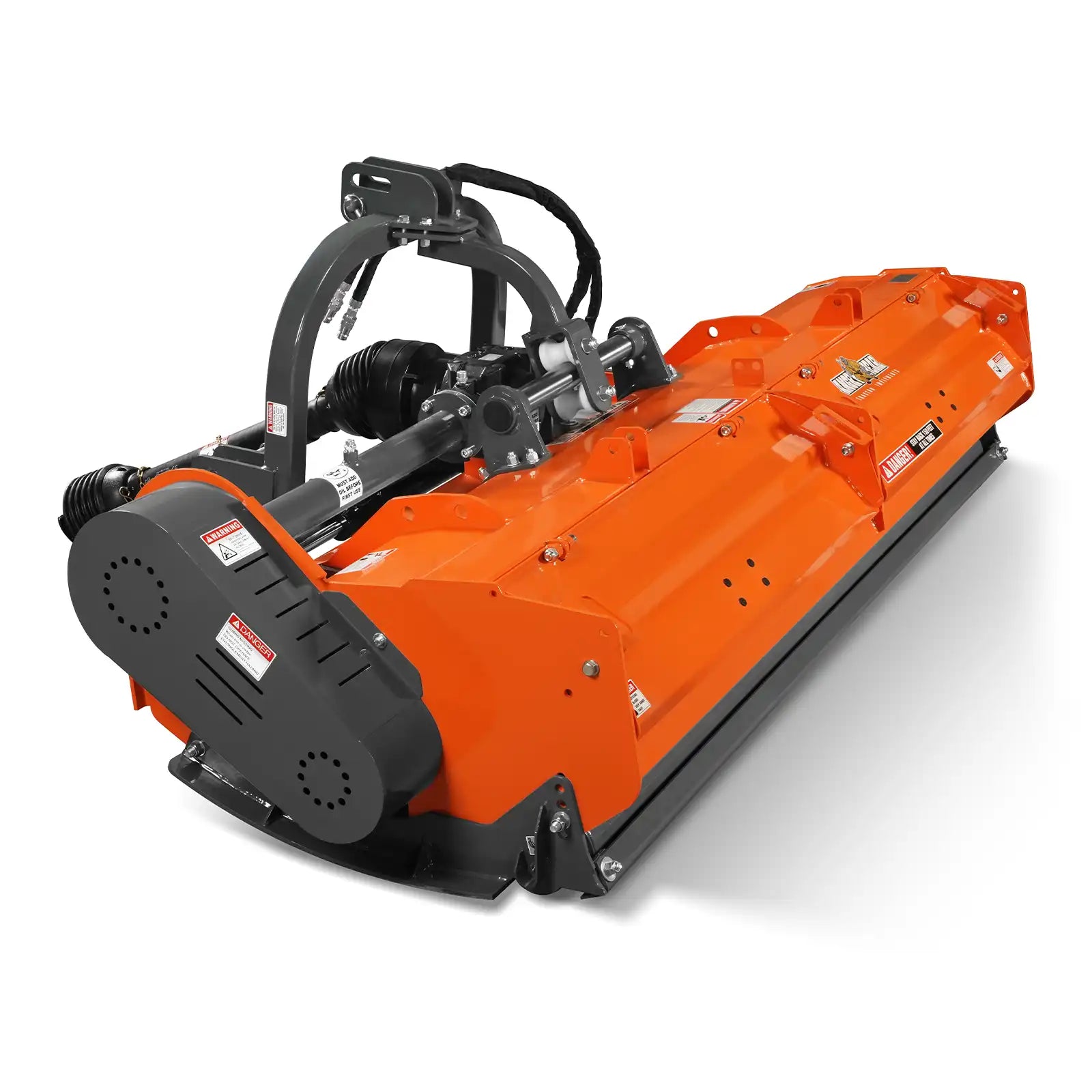

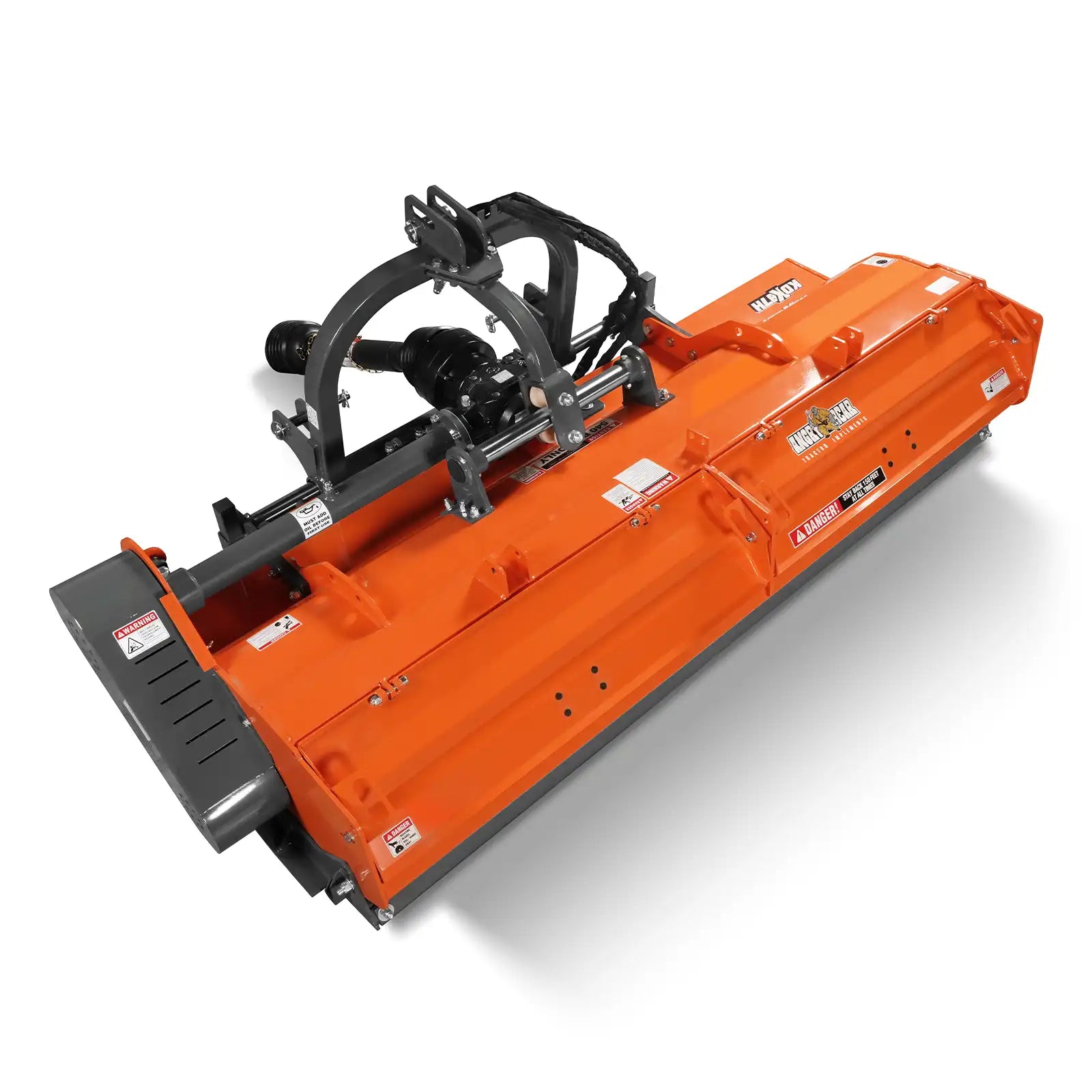

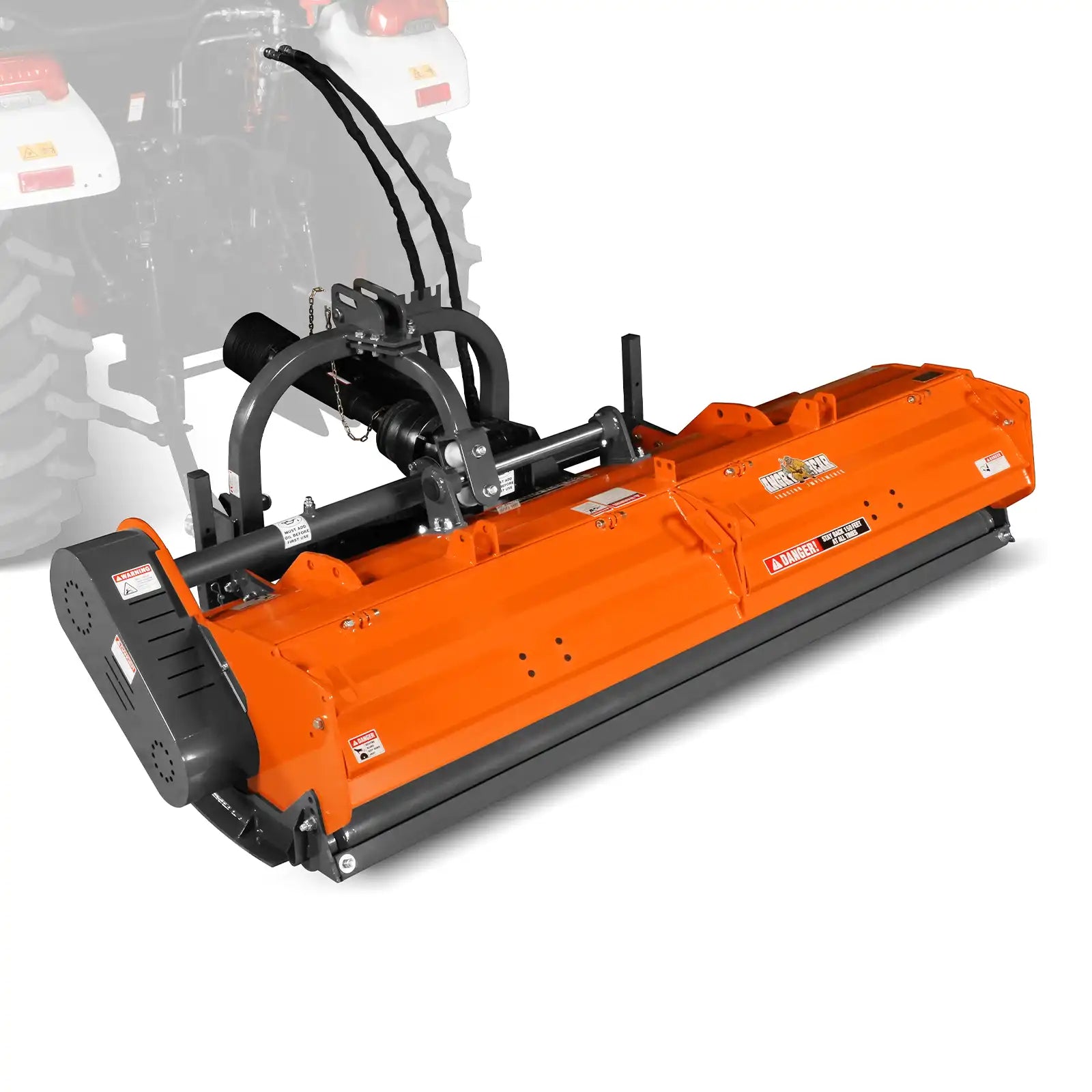

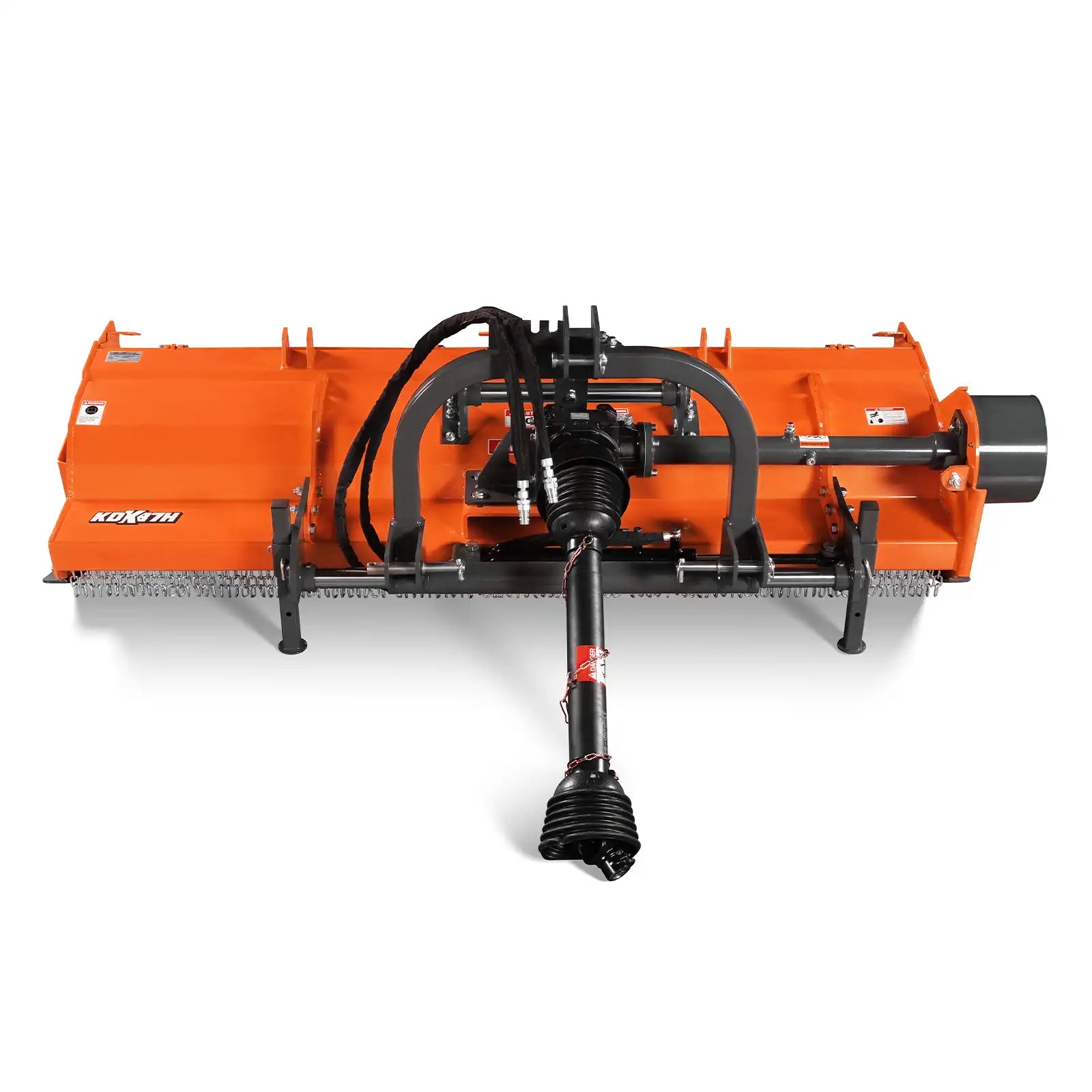

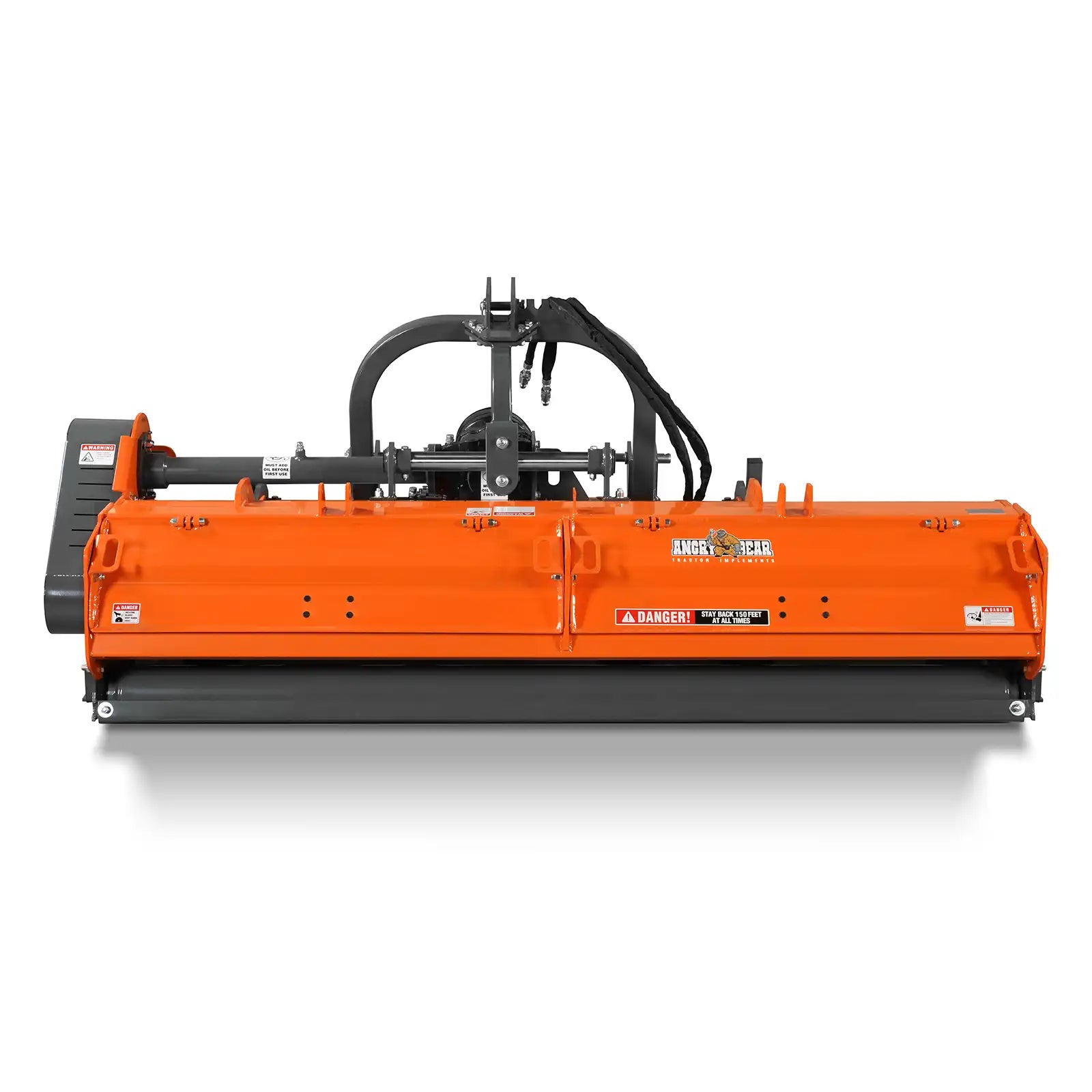

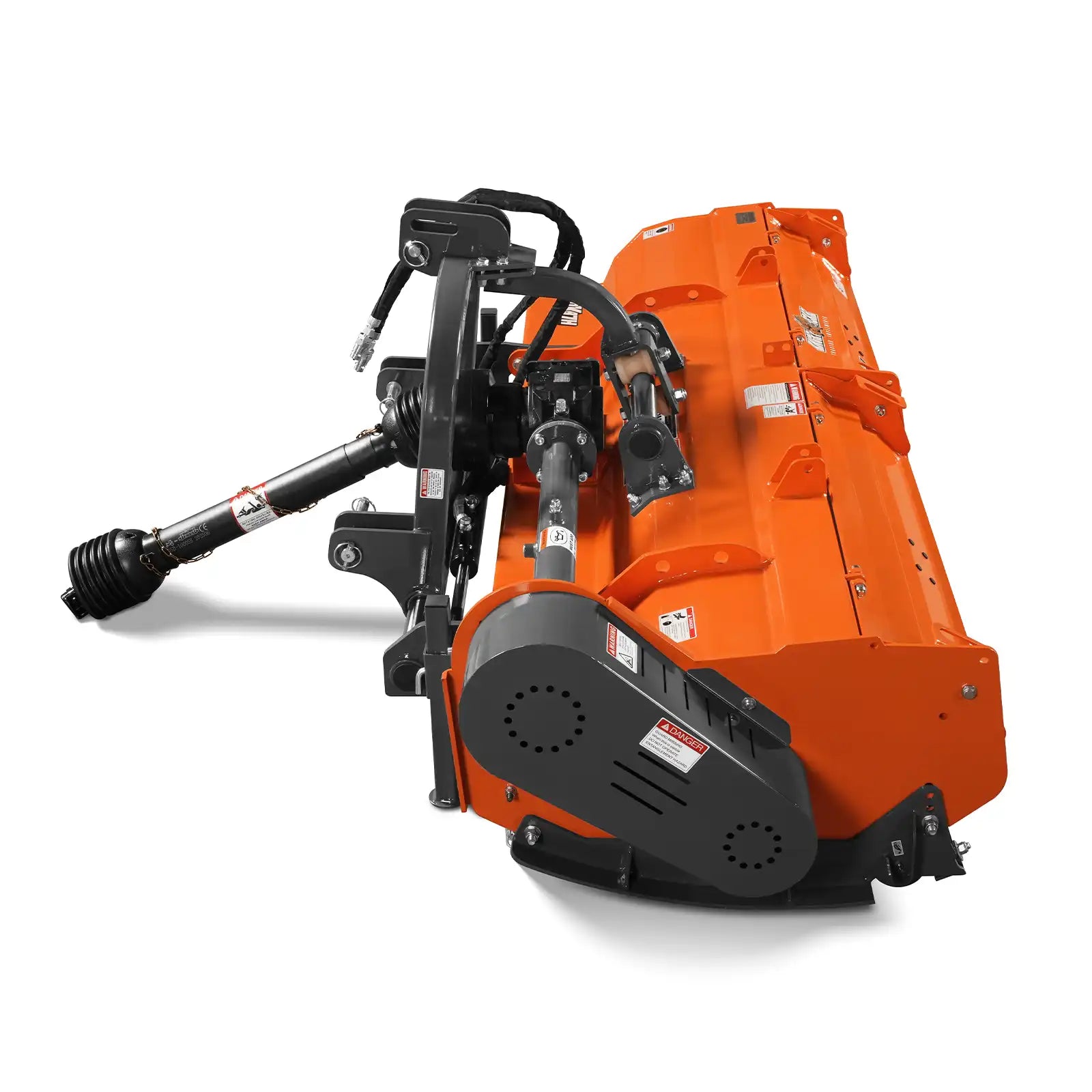

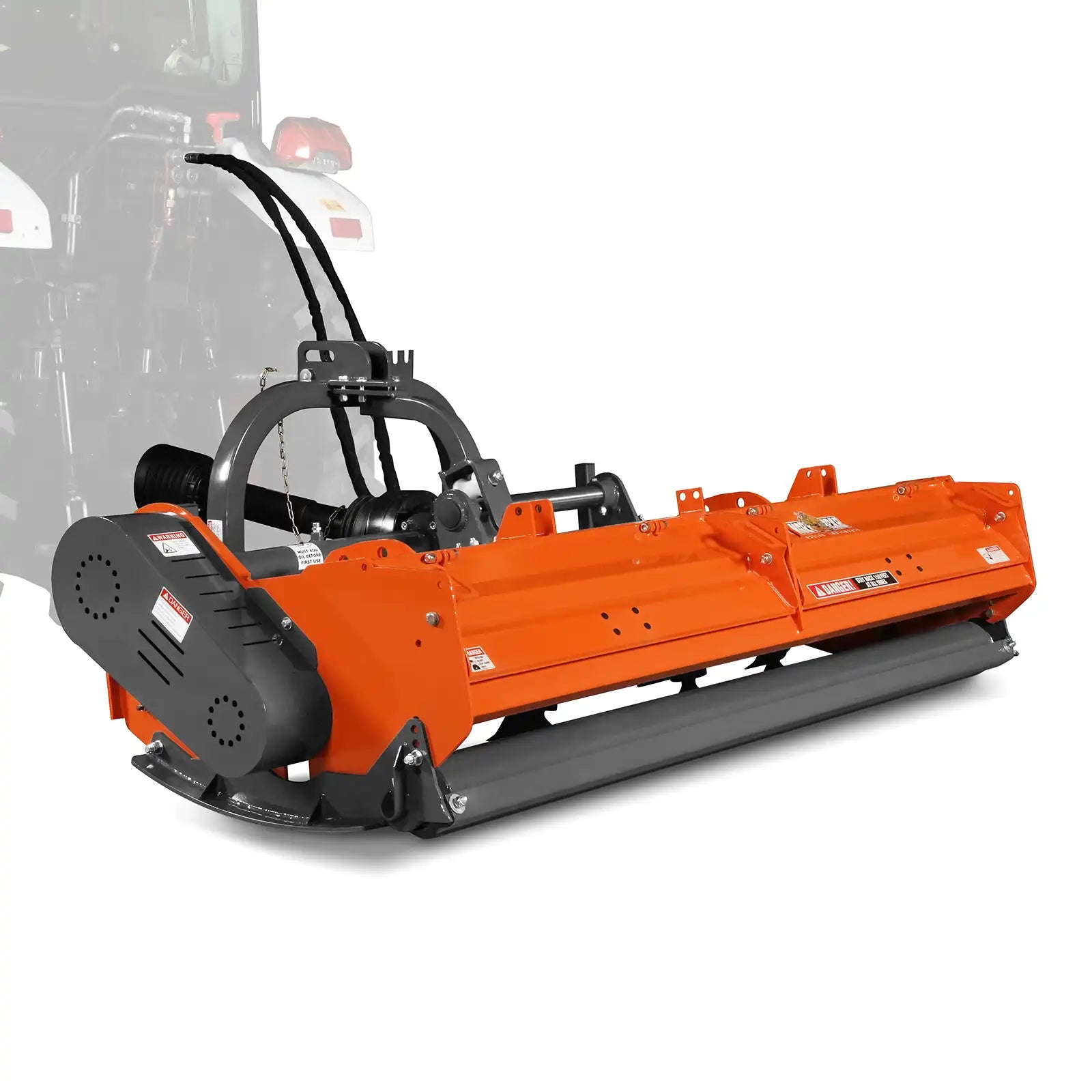

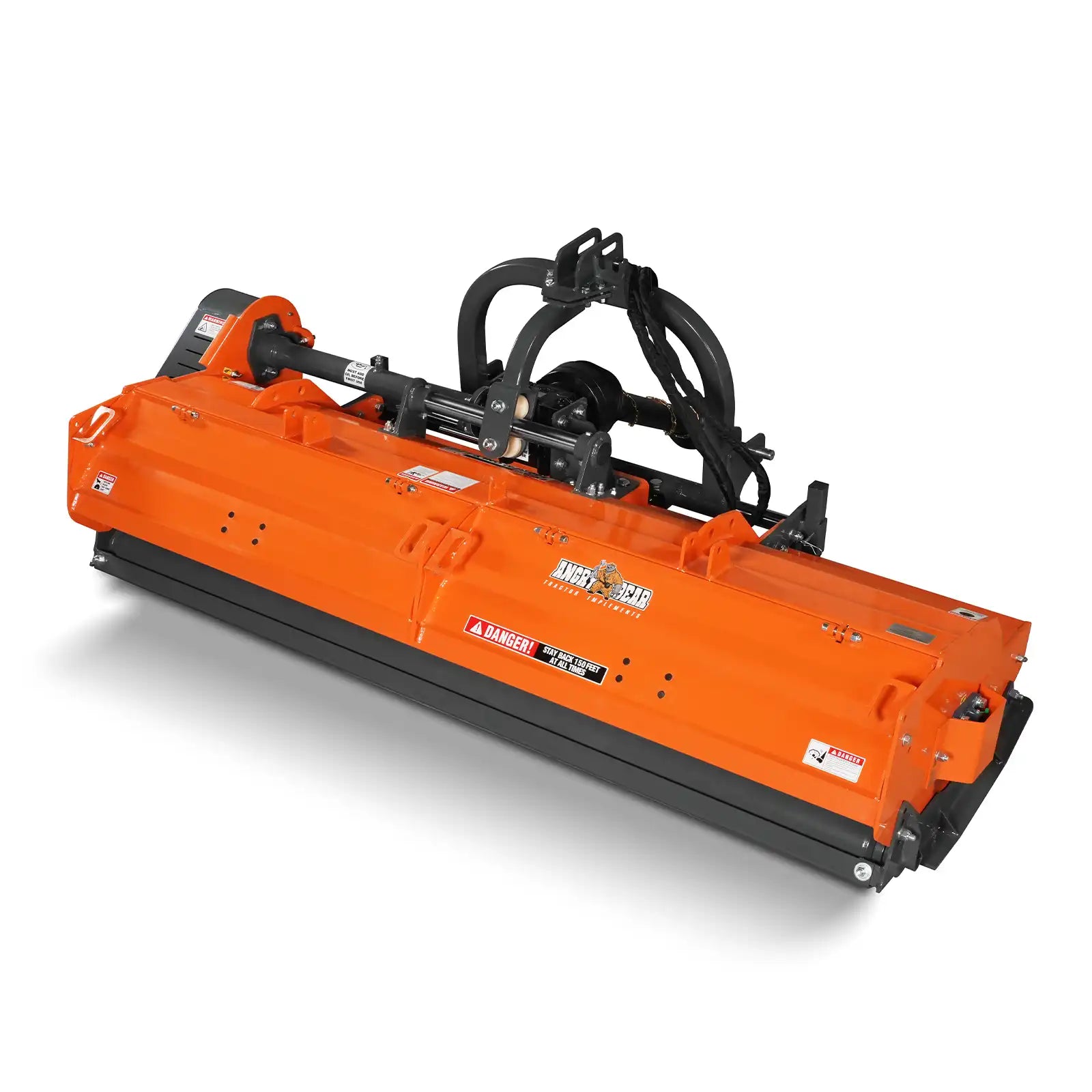

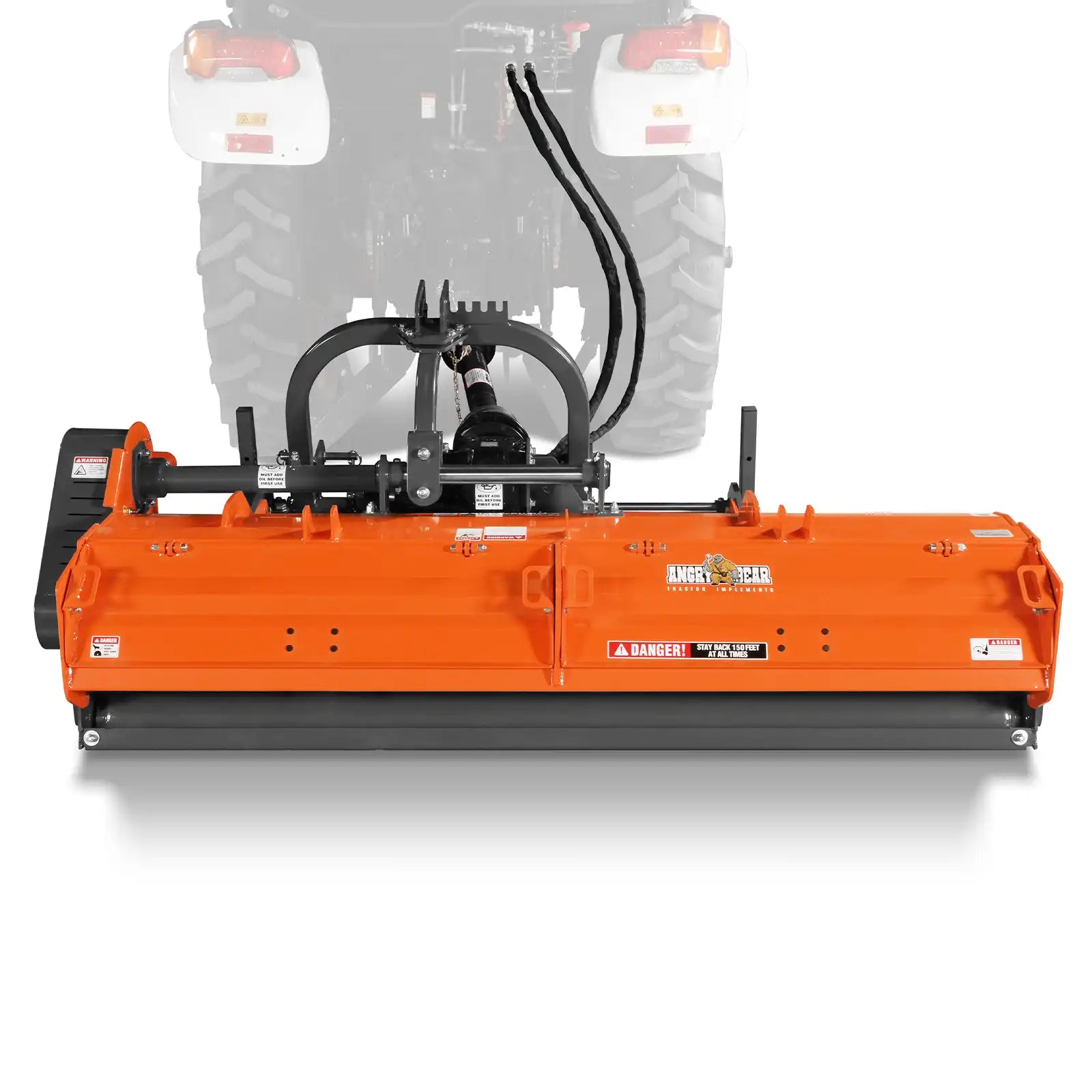

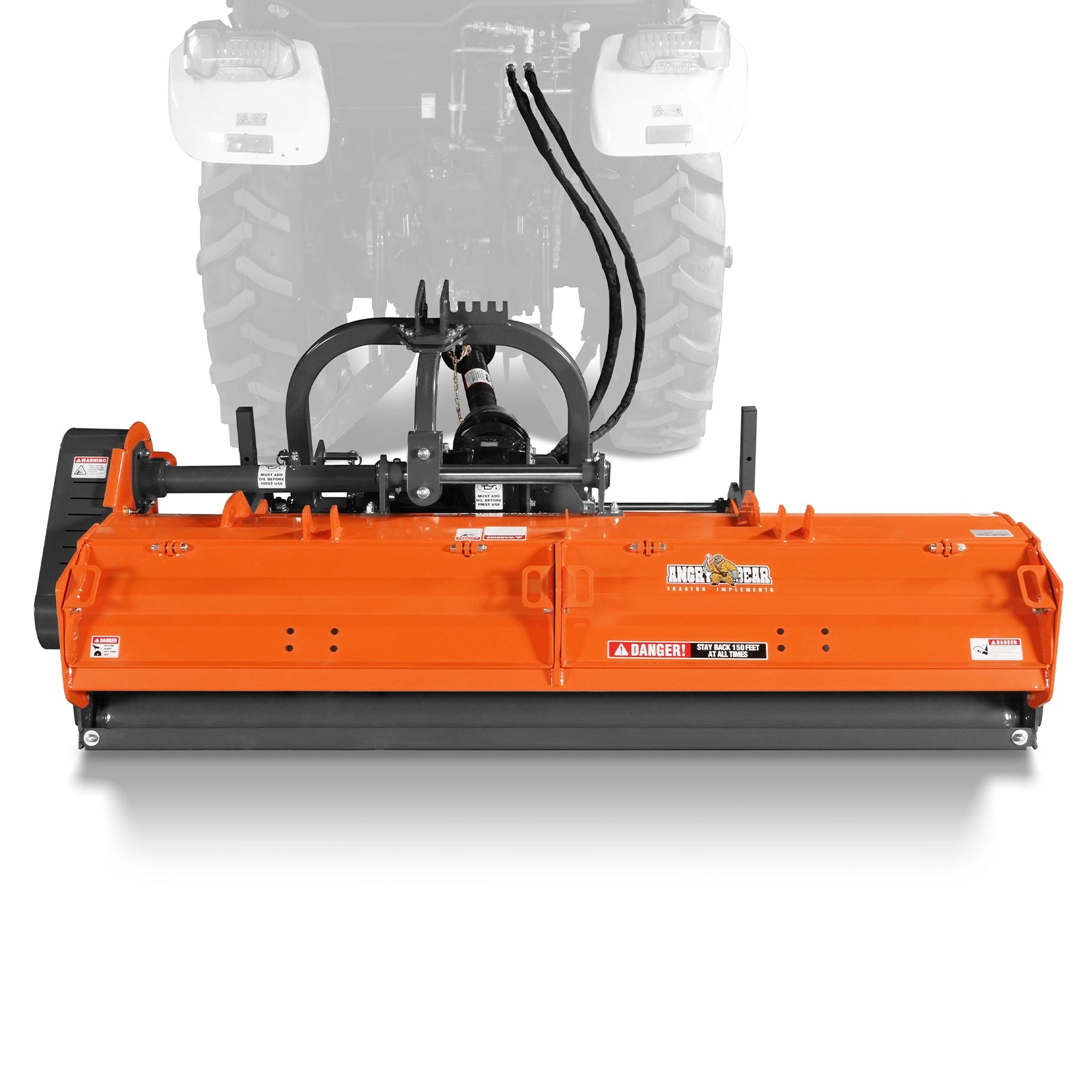

87" Heavy Duty PTO Flail Mower with Hydraulic Side Shift 3 Point 50-90 hp, KDK87H

Name: 87" Heavy Duty PTO Flail Mower with Hydraulic Side Shift 3 Point 50-90 hp, KDK87H
Brand: MechMaxx
SKU: 150208
Price: 4399.0 USD
Availability: InStock

$439900

$5,899.00

Save $1,500

FREE SHIPPING

Details

Delivery in 10 - 15 Business Days

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

( 1 Pack / 8 Pcs ) Hammer for AGF; VBM; KDK Flail Mower (SKU: 150202; 150203; 150204; 150205; 150206; 150207; 150208; 150205; 150206; 150207; 150208）

( 1 Pack / 5 Pcs ) V Belt for Mower KDK63H;KDK72H;KDK78H;KDK87H, AV17x1245Li (SKU: 150205;150206;150207;150208)

87" Heavy Duty PTO Flail Mower with Hydraulic Side Shift 3 Point 50-90 hp, KDK87H $439900 $5,899.00

( 1 Pack / 8 Pcs ) Hammer for AGF; VBM; KDK Flail Mower (SKU: 150202; 150203; 150204; 150205; 150206; 150207; 150208; 150205; 150206; 150207; 150208） $7999 $129.99

( 1 Pack / 5 Pcs ) V Belt for Mower KDK63H;KDK72H;KDK78H;KDK87H, AV17x1245Li (SKU: 150205;150206;150207;150208) $6999 $89.99

Total Price

$

Product Overview

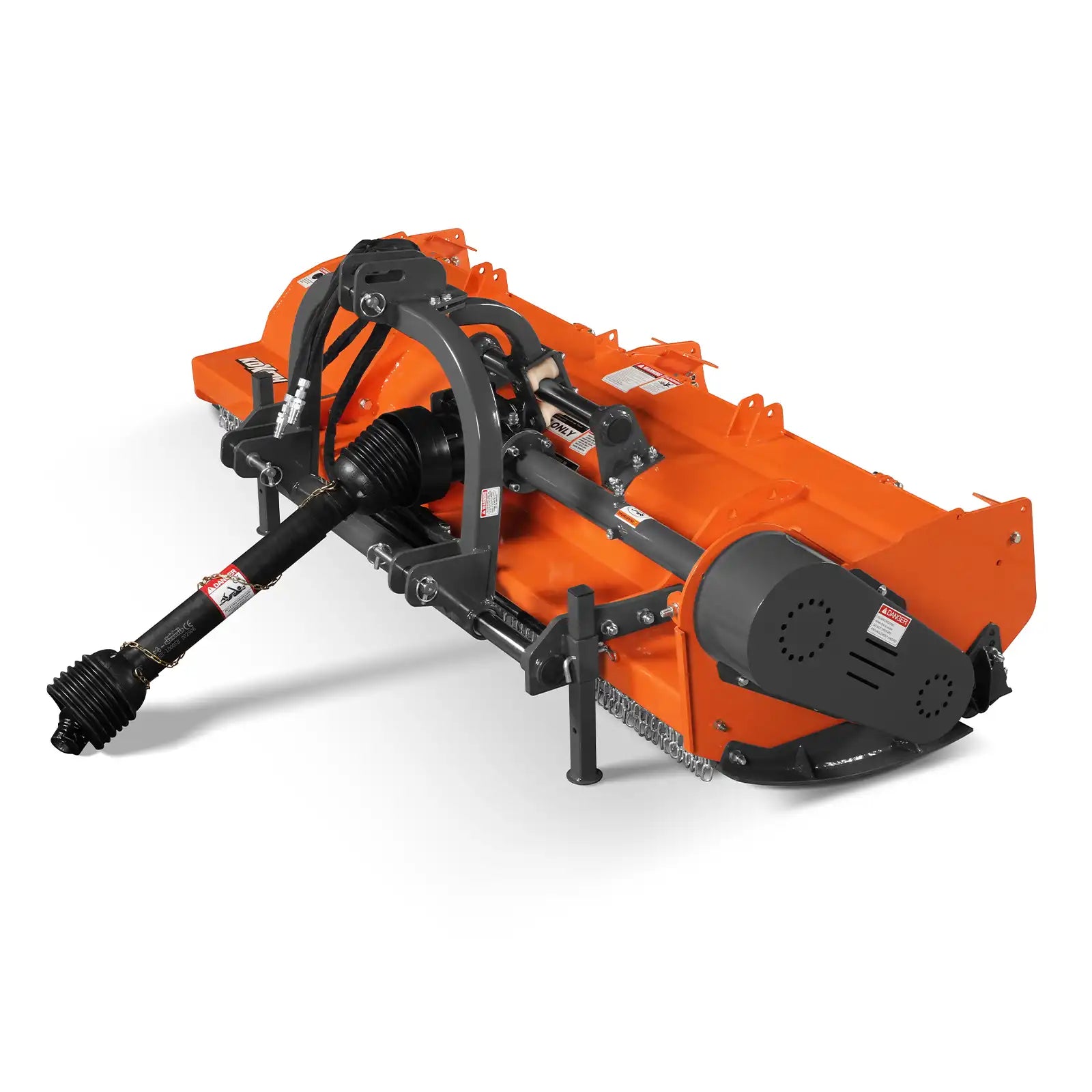

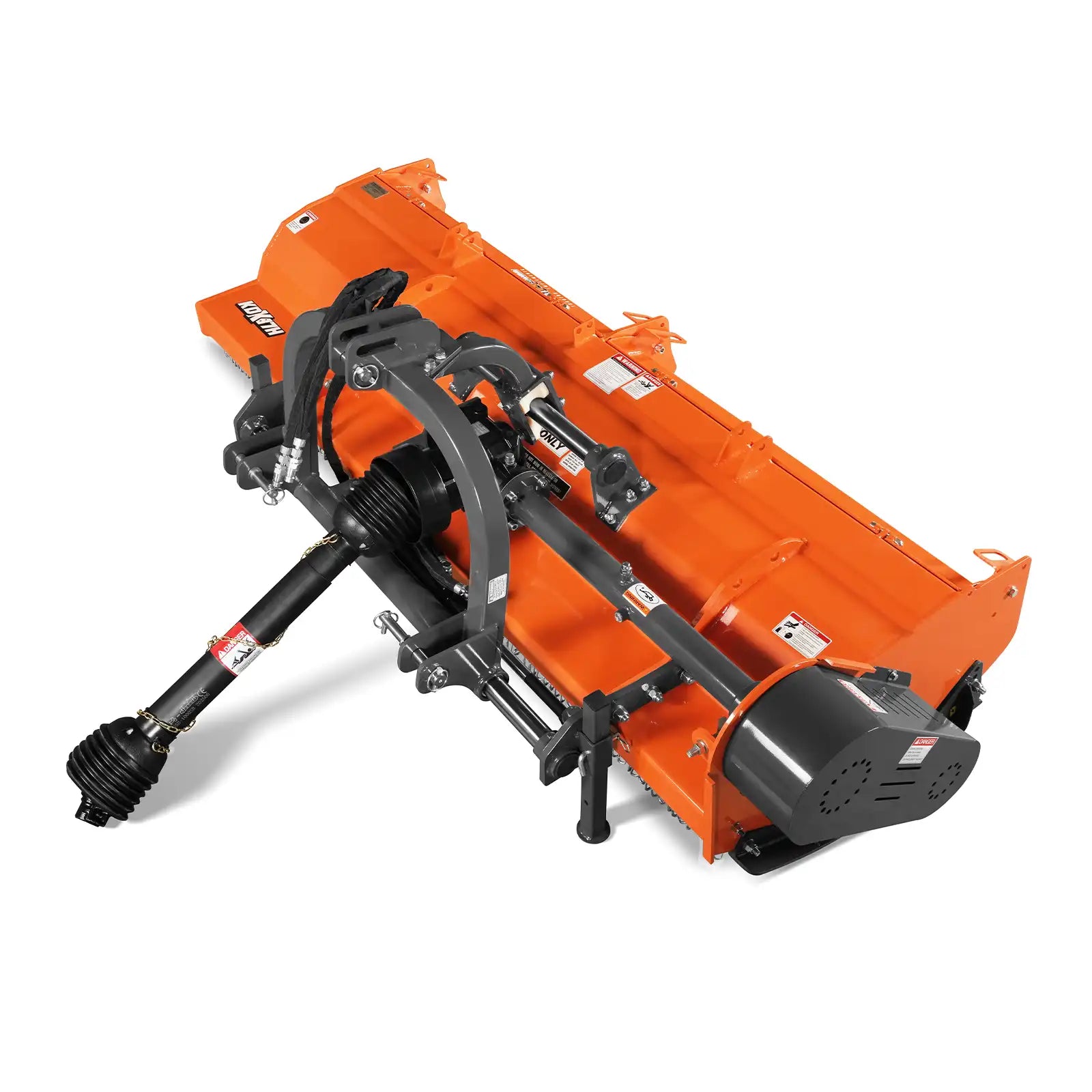

Featuring a Heavy-Duty 1.375" z6 PTO Shaft Spline and the standard 540 RPM PTO speed, this flail mower guarantees maximum universal compatibility for a reliable, plug-and-play connection to the majority of tractors, ensuring efficient and reliable power transmission even in the toughest mowing conditions.

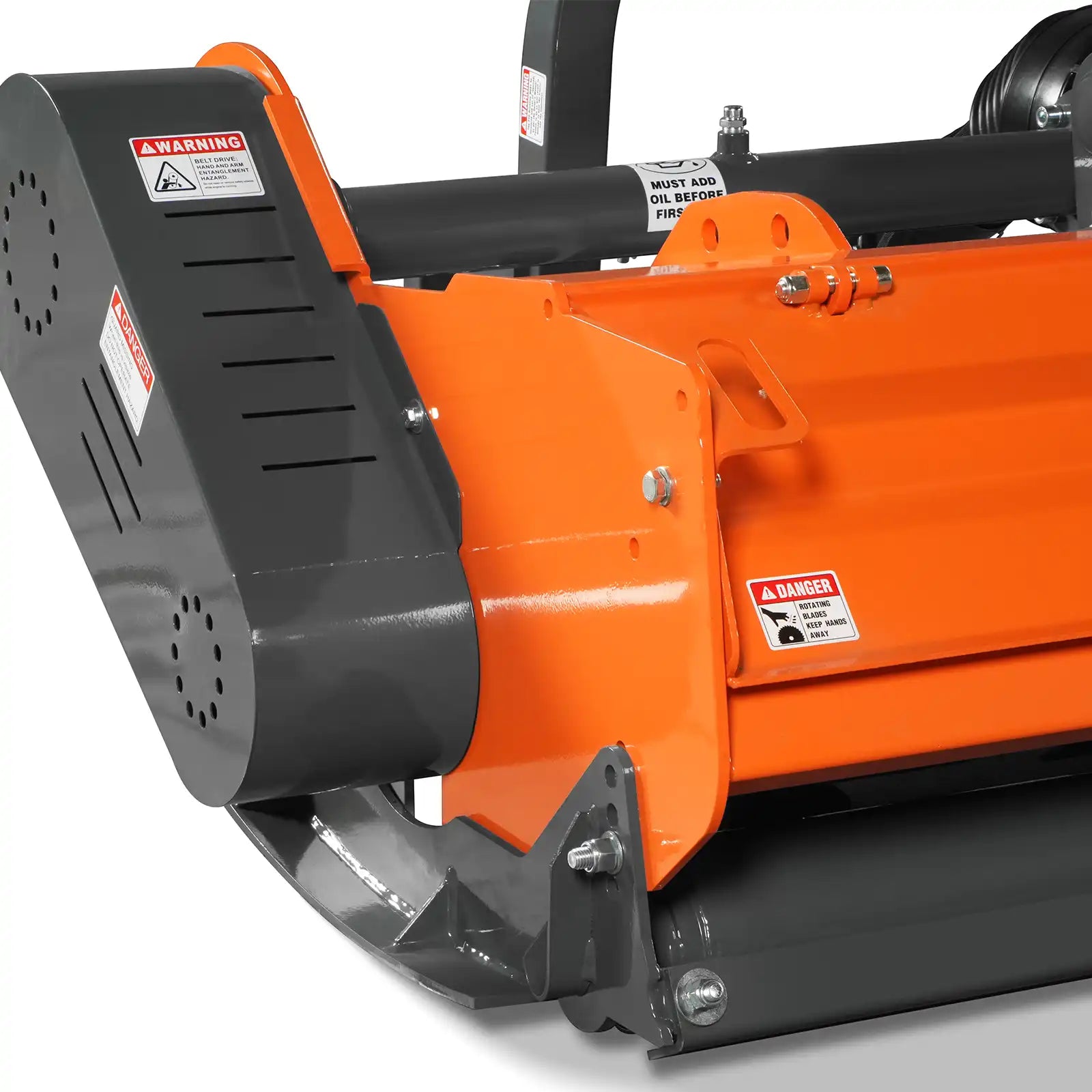

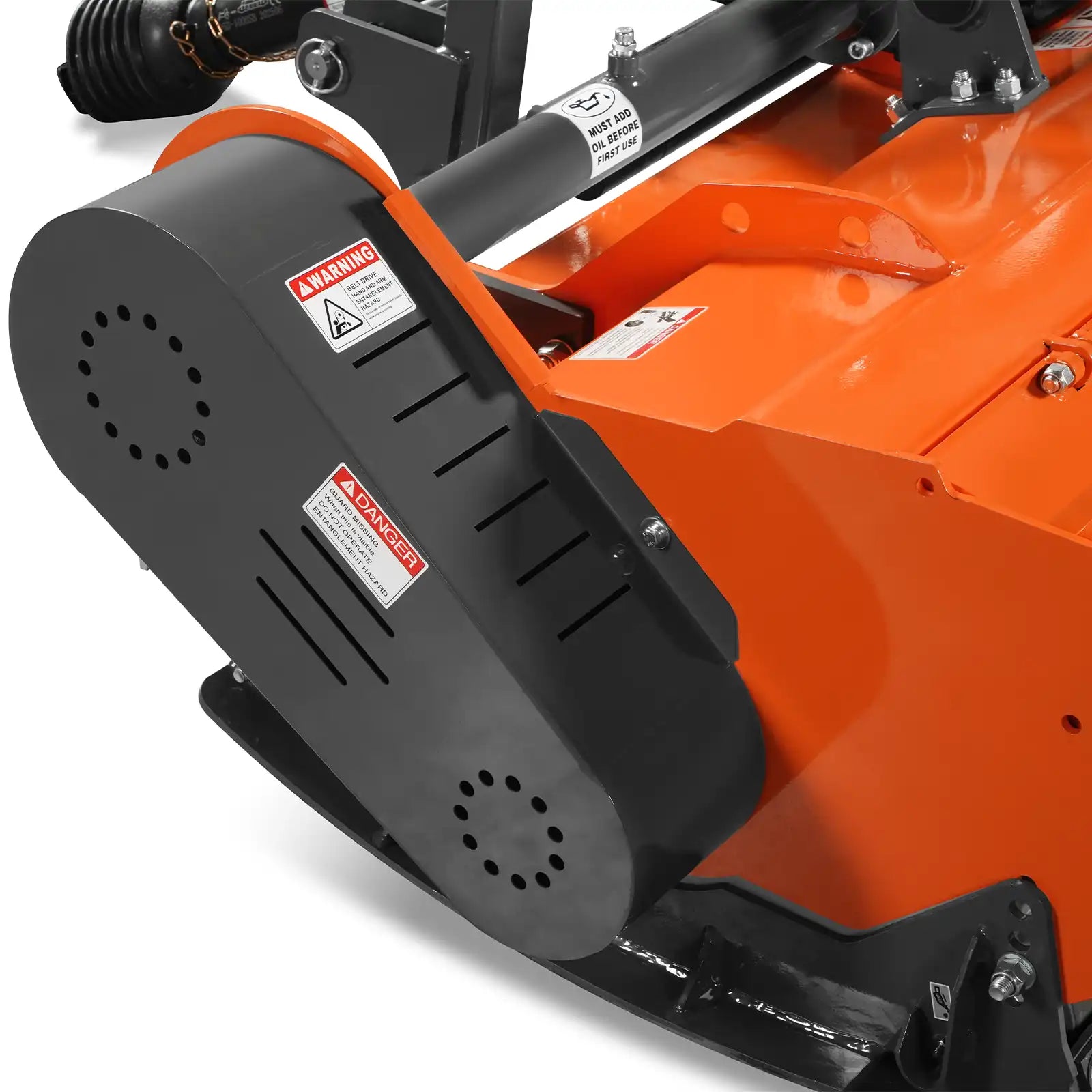

The integrated spring-loaded automatic belt tensioner constantly maintains optimal tension, dramatically boosting mowing efficiency while reducing wear to prolong the machine's lifespan and lower maintenance costs.
With an extra-wide 87-inch cutting width, you can cover large areas quickly and efficiently, making it the perfect choice for major agricultural fields and roadside maintenance projects.

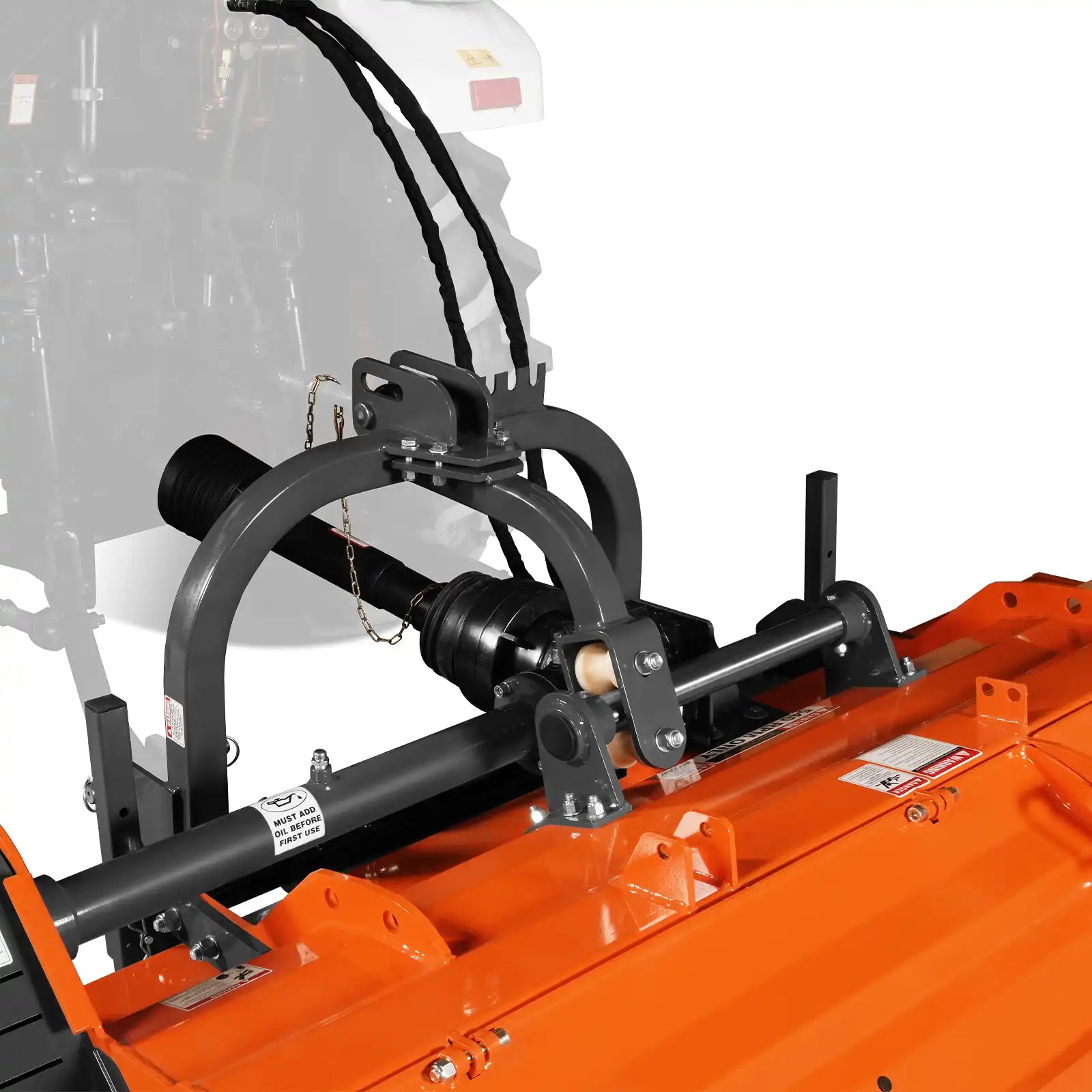

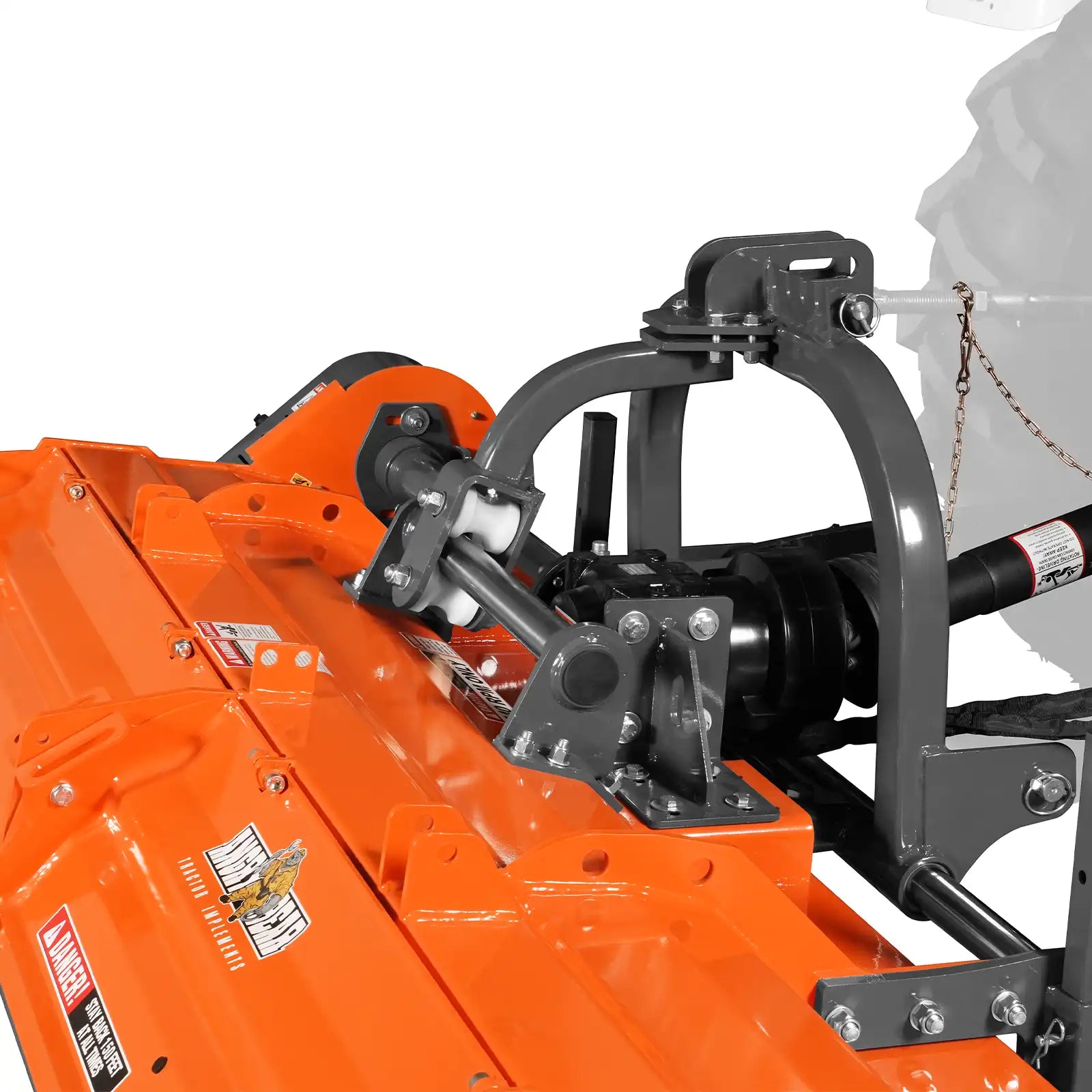

The unit features a robust 3-point linkage that ensures a solid, secure, and wobble-free attachment to your tractor, delivering superior stability during high-speed or challenging operations.

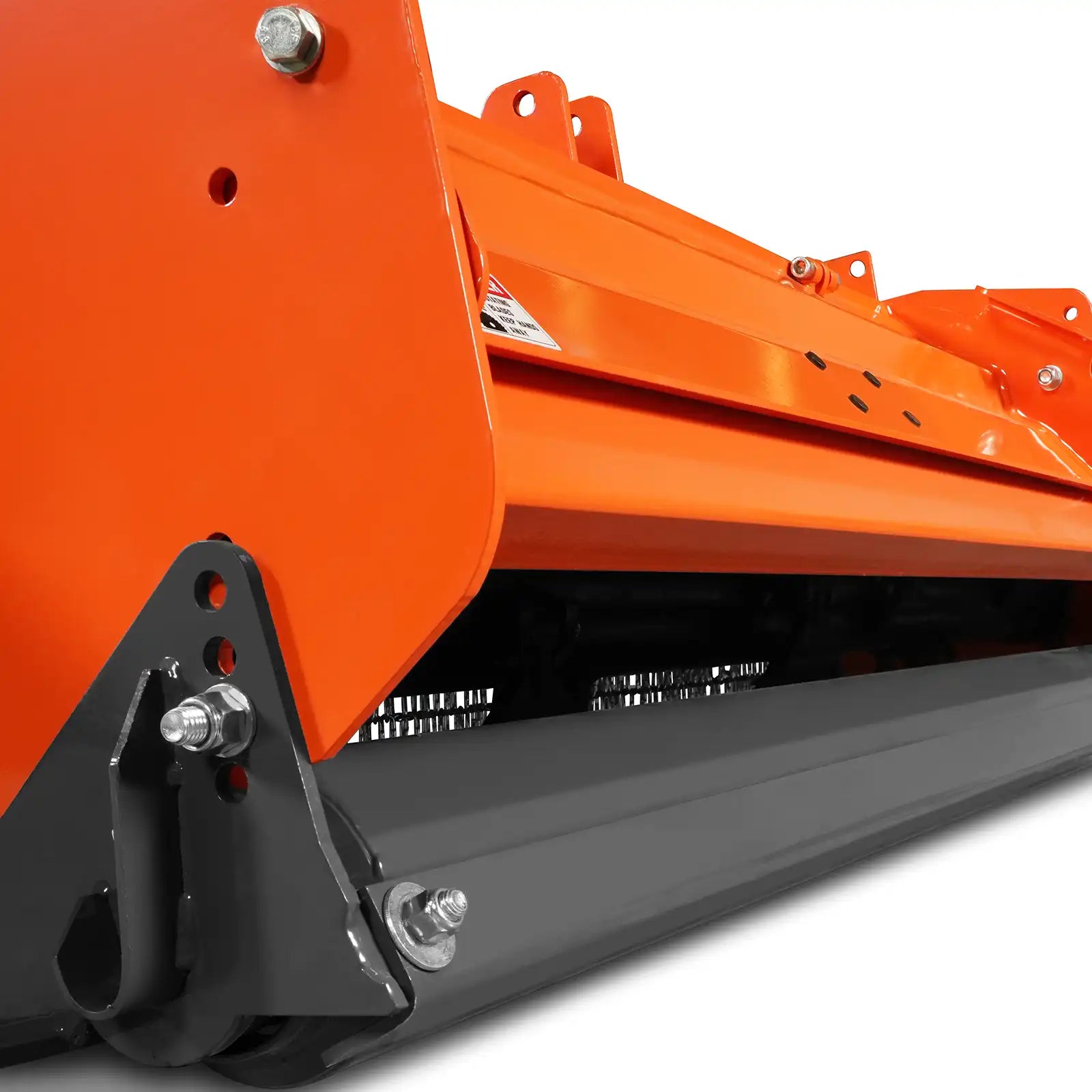

Height-adjustable side skids allow for precise cutting height control, effectively preventing ground damage and ensuring smooth, stable performance across rough and uneven terrain.

Product manual (PDF)

KDK Mower Product manual 1.0.pdf

Product Features

87-Inch High-Efficiency Mower

This mower features a 87-inch working width and is suitable for 50–85 HP tractors. Equipped with a CAT 2 three-point hitch, it can be easily attached and provides stable operation across various working conditions, enhancing both efficiency and ease of use.

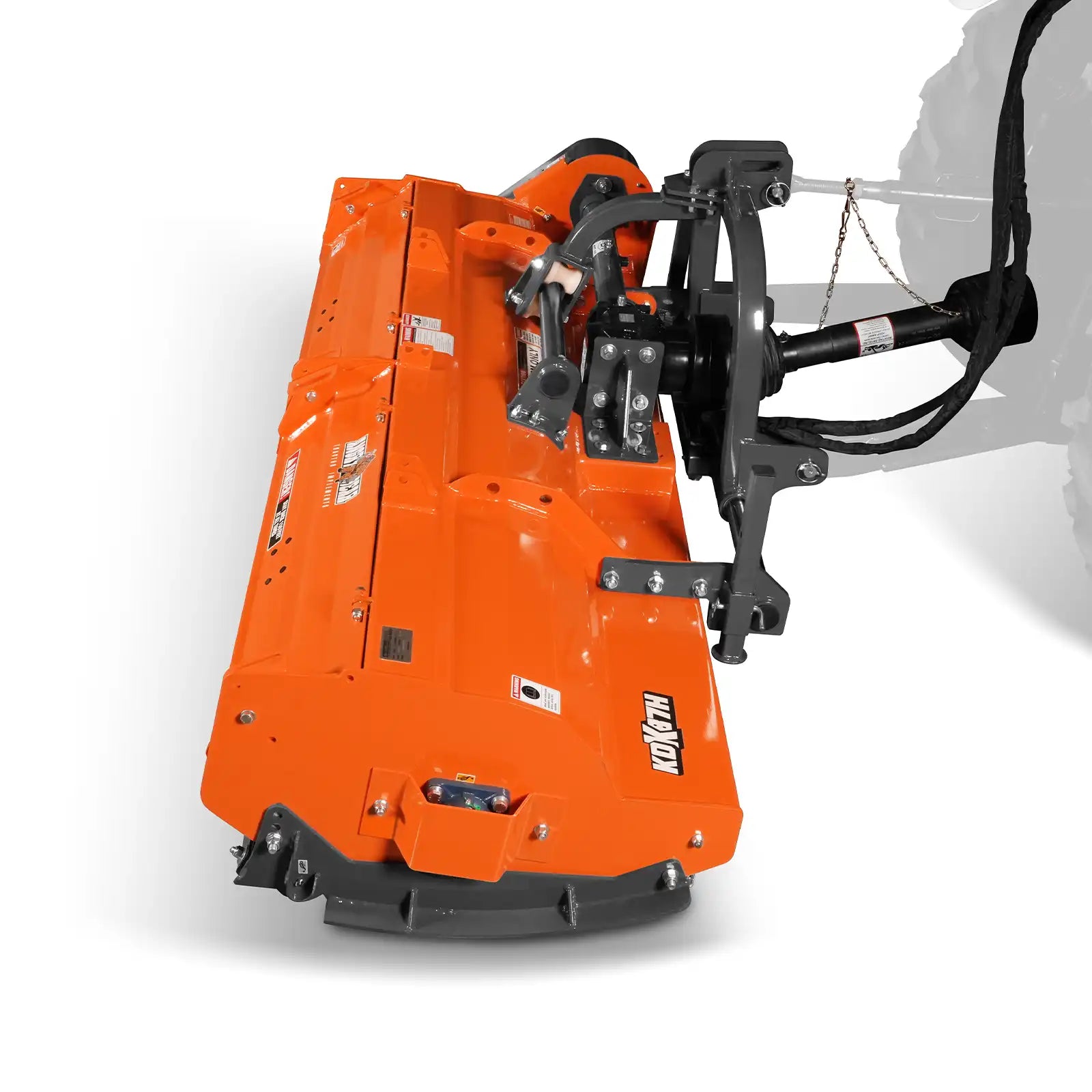

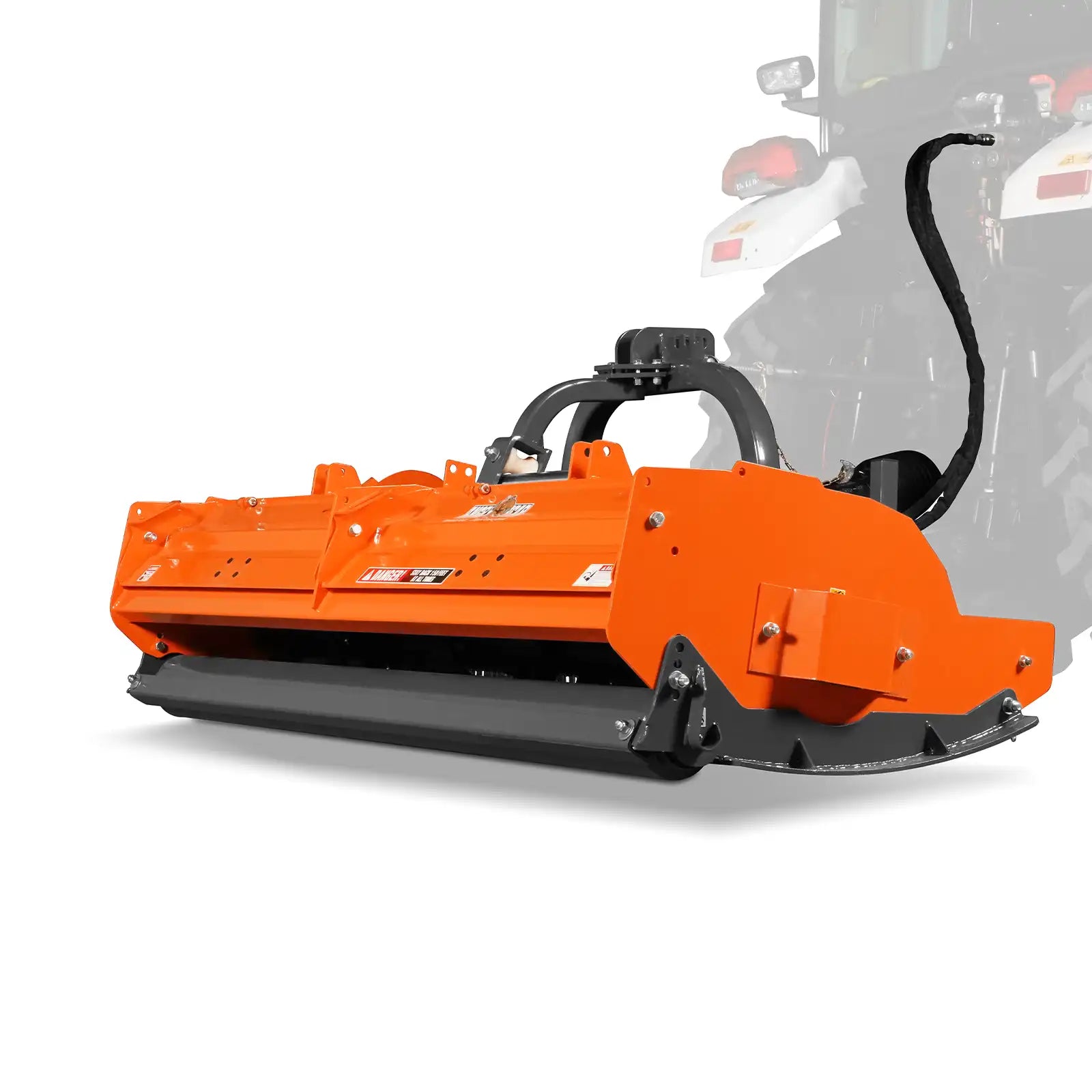

Flexible side offset design

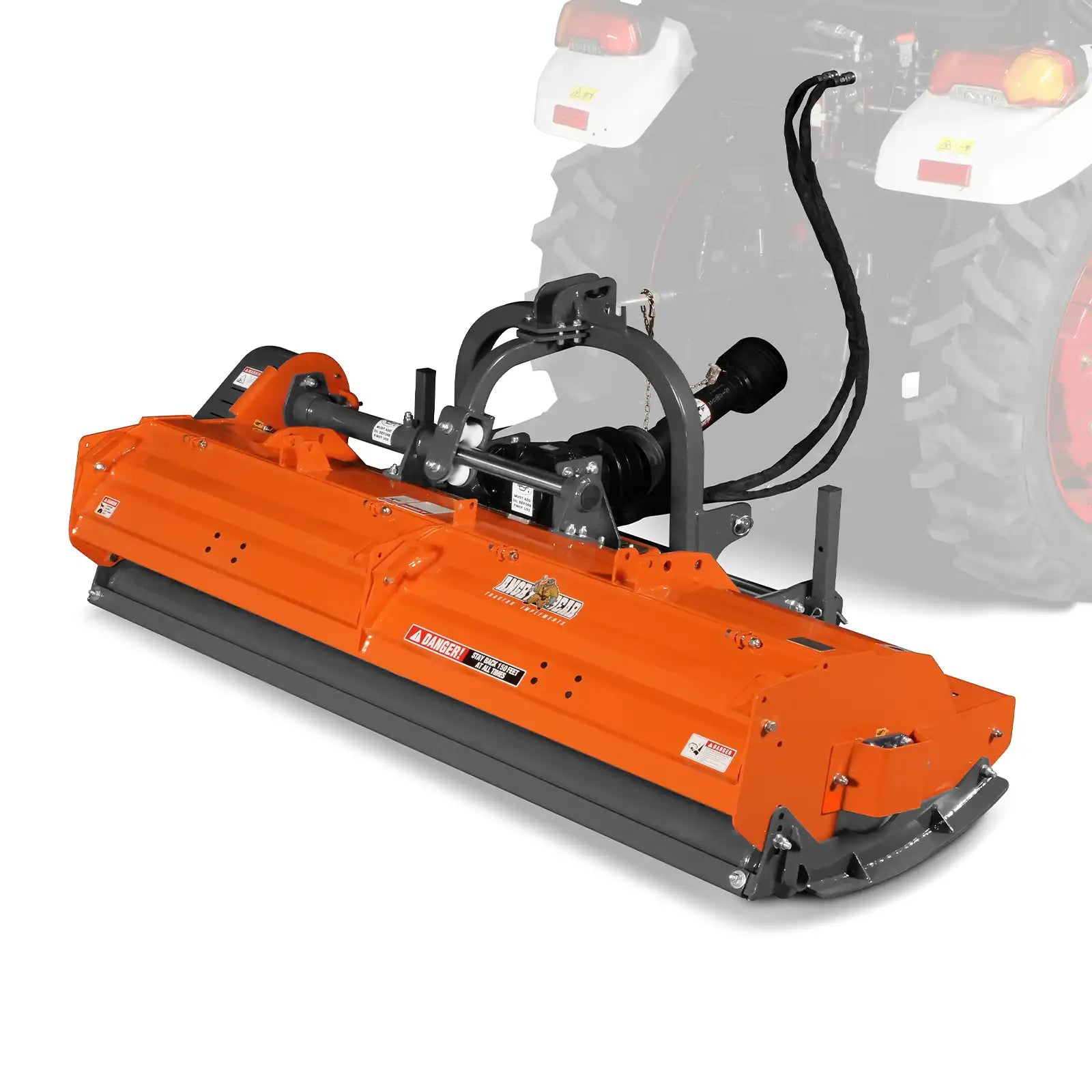

Connects to the tractor via hydraulic hoses, with hydraulic side-to-side control allowing horizontal movement up to 13.4 inches. Adjustable cutting direction enables easy trimming of distant overgrown areas.

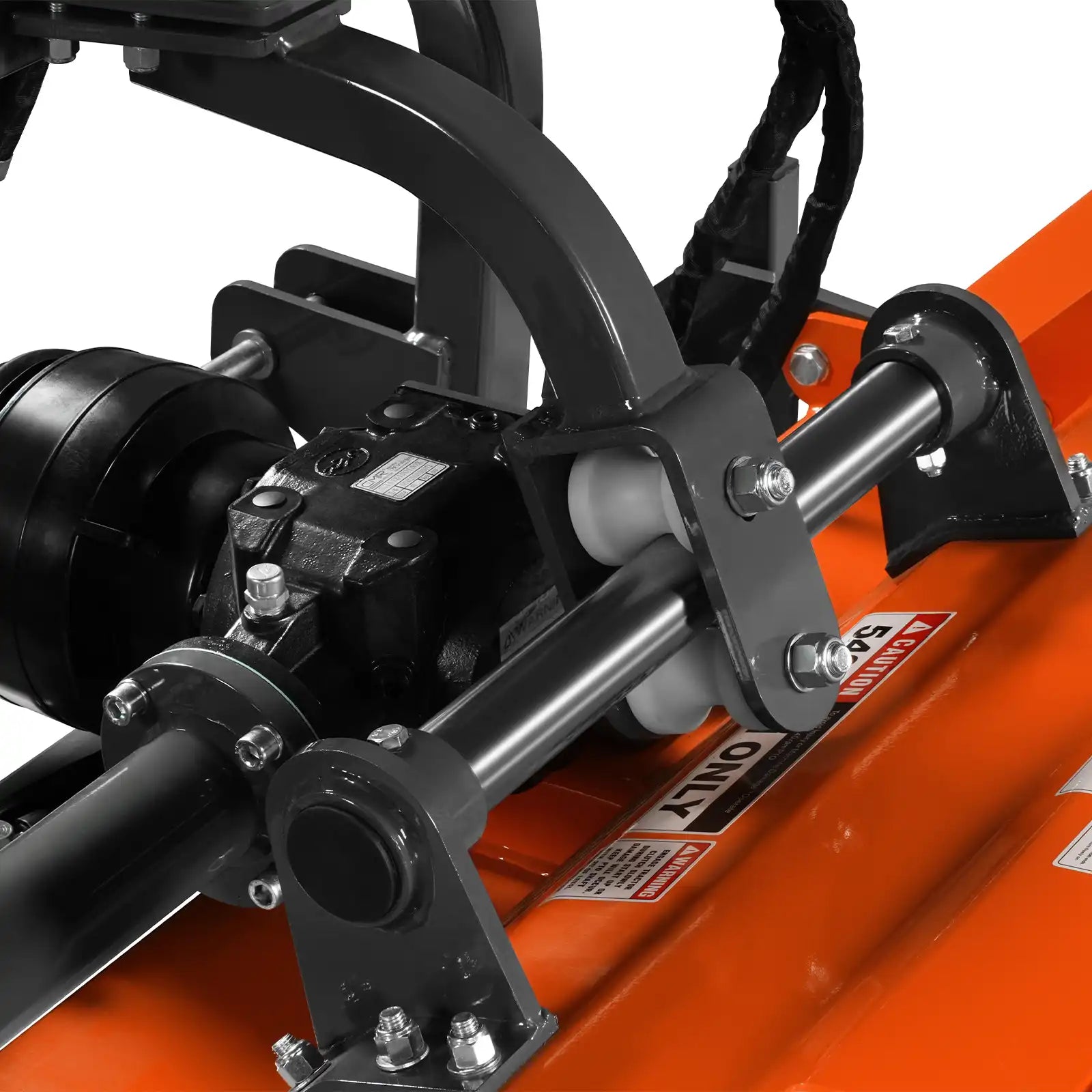

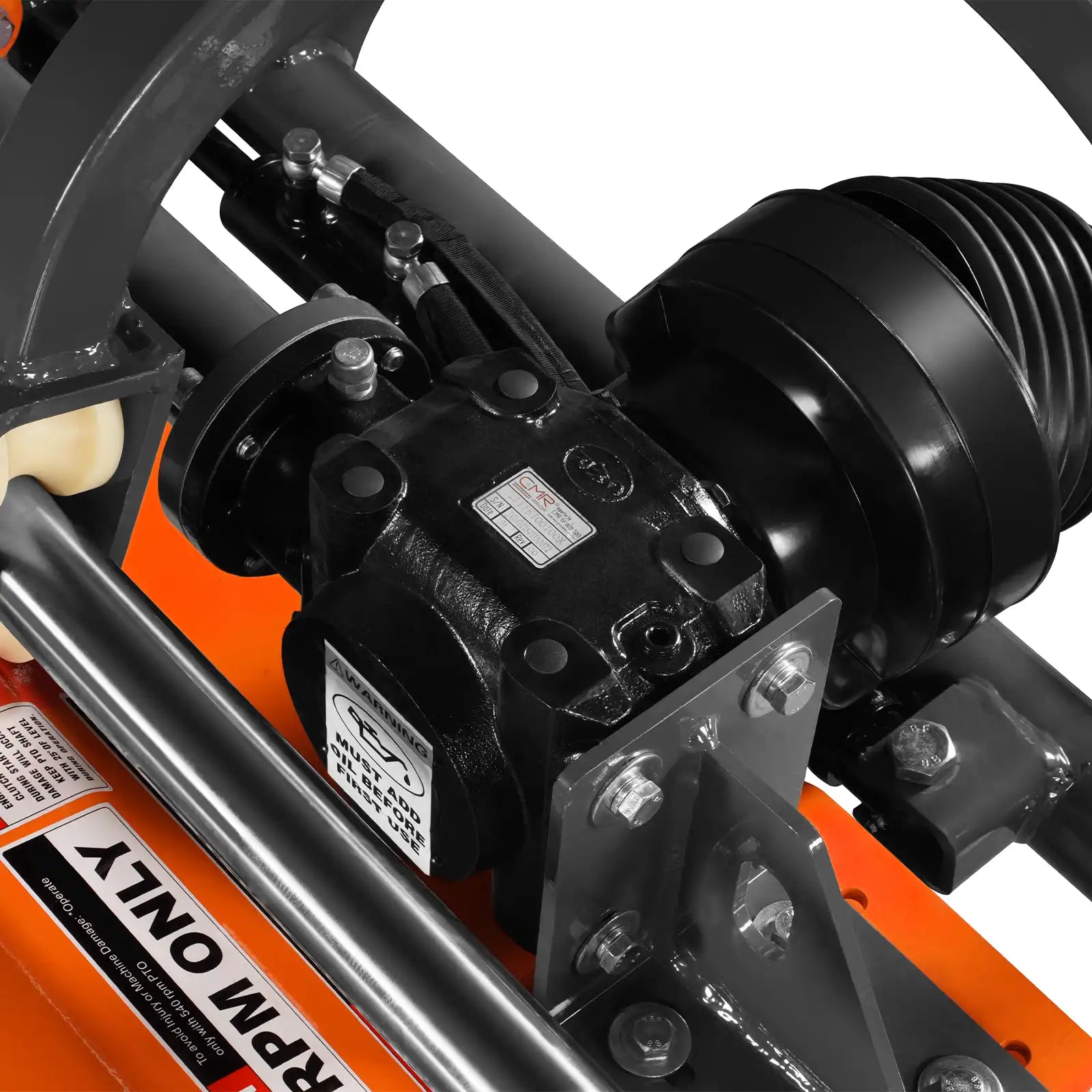

CMR Gearbox

High-quality CMR bearings from Italy efficiently transmit power to all key components of the machine, ensuring smooth and reliable operation, reducing wear, and enhancing both lifespan and efficiency.

Outside Rotor Bearing

Externally mounted bearings allow easy maintenance and repairs. High-quality Swedish SKF shaft bearings handle high loads, run quietly and coolly, ensuring reliable performance.

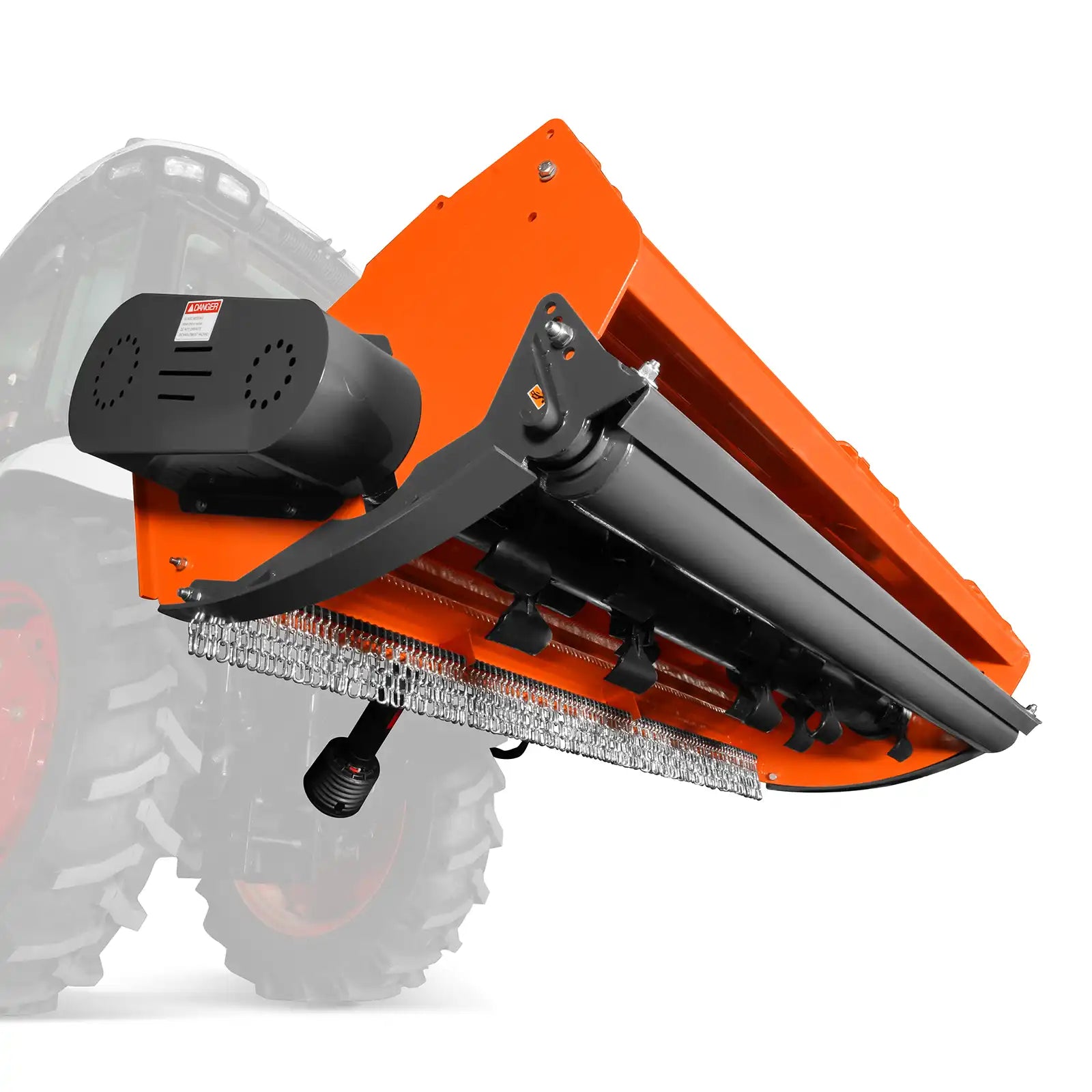

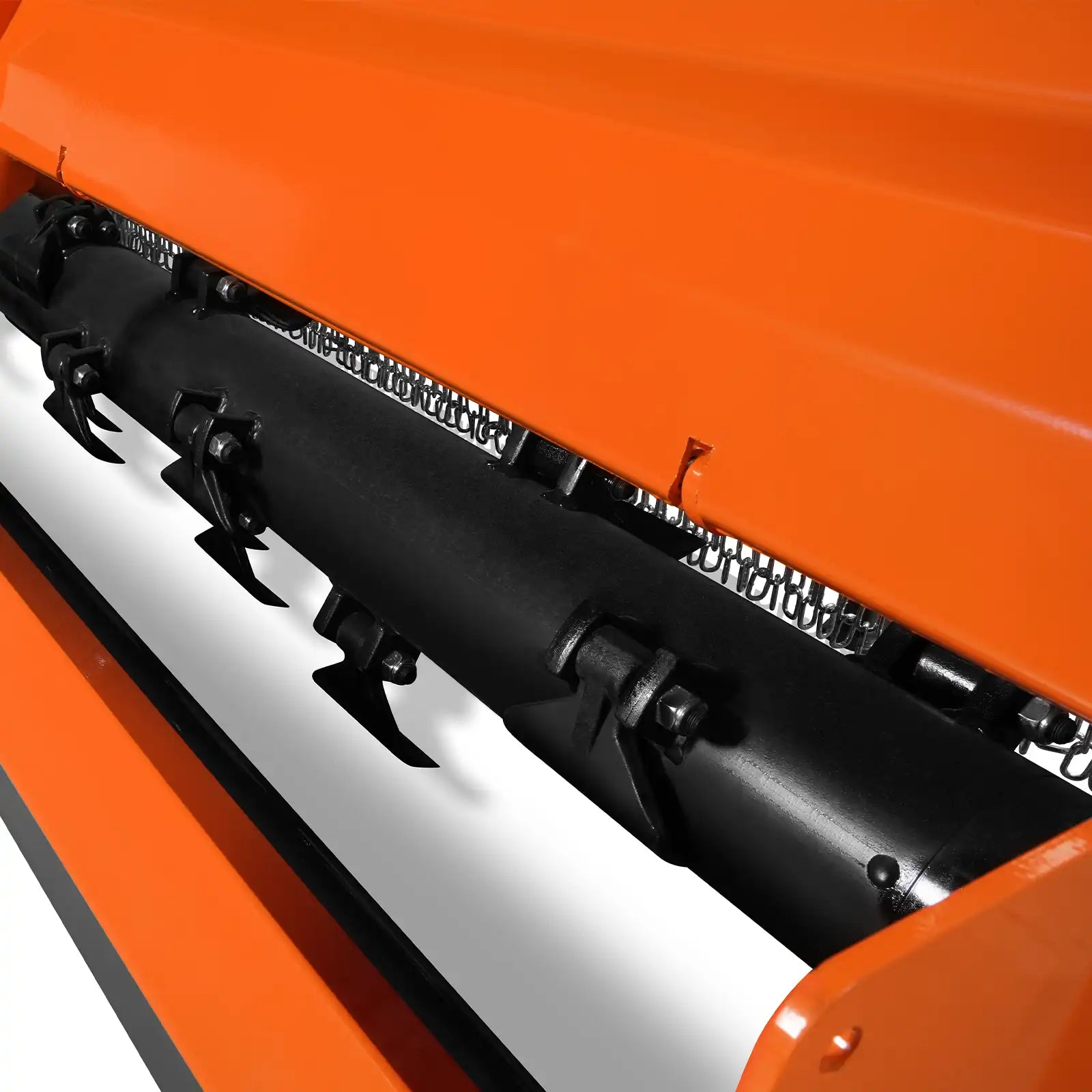

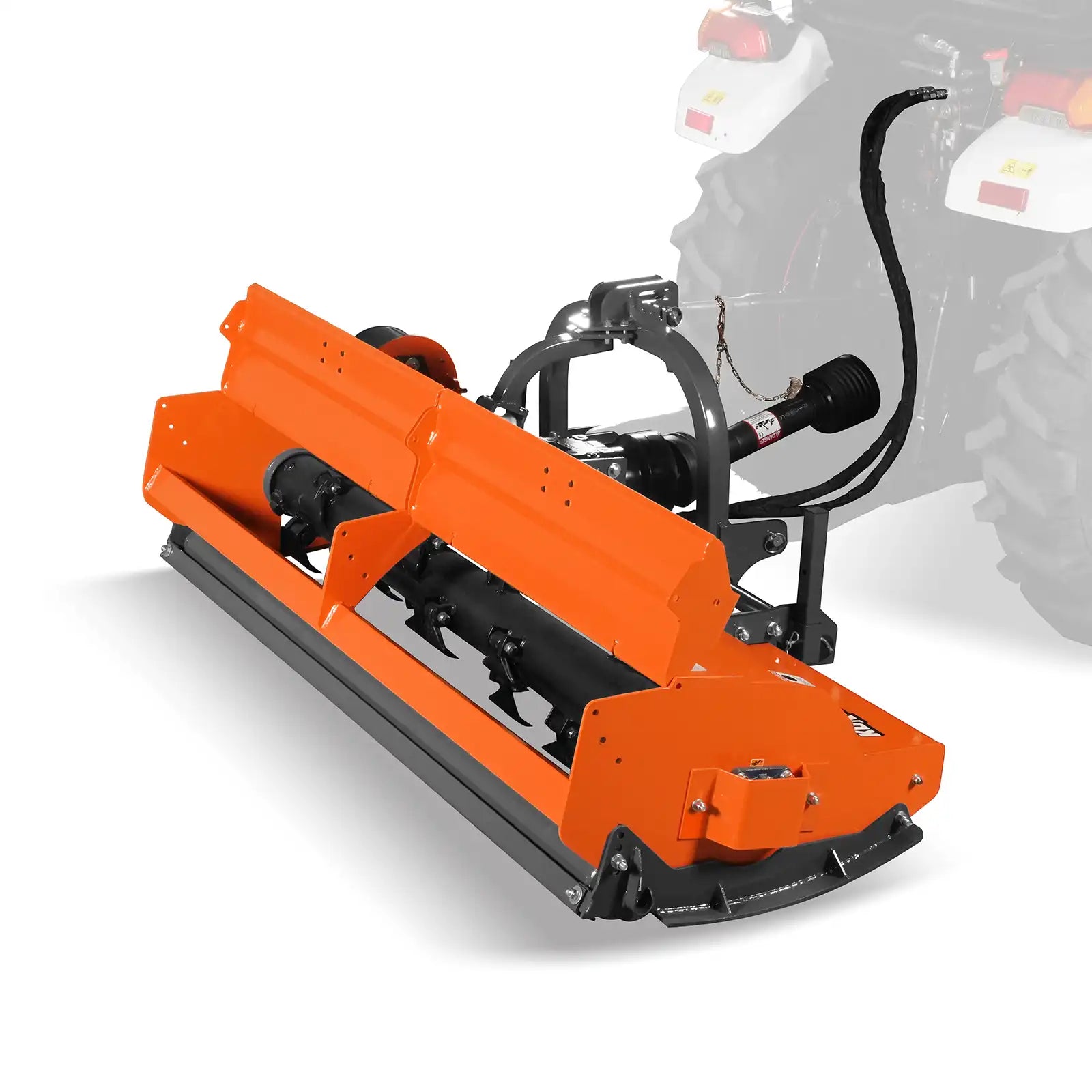

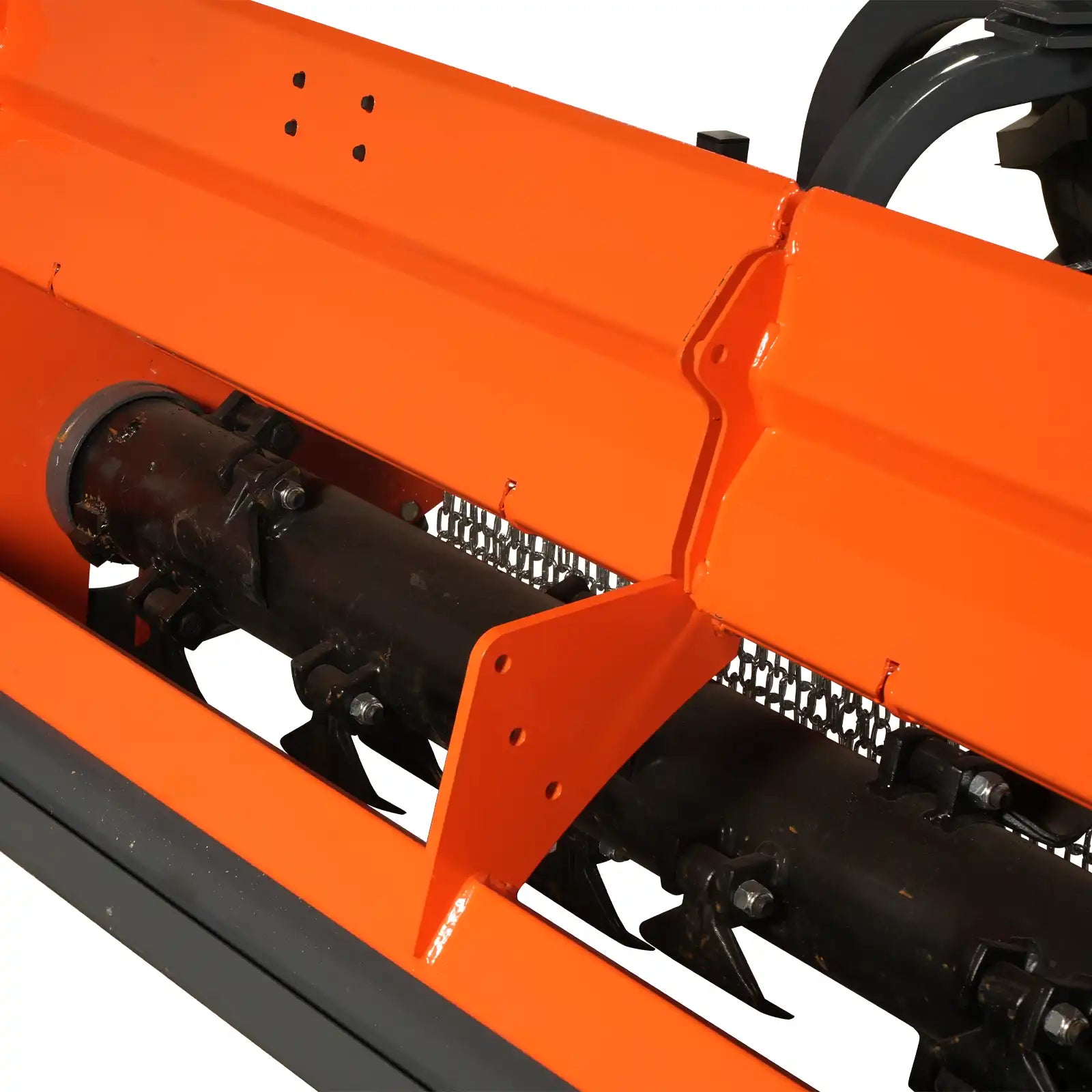

Openable Back Cover

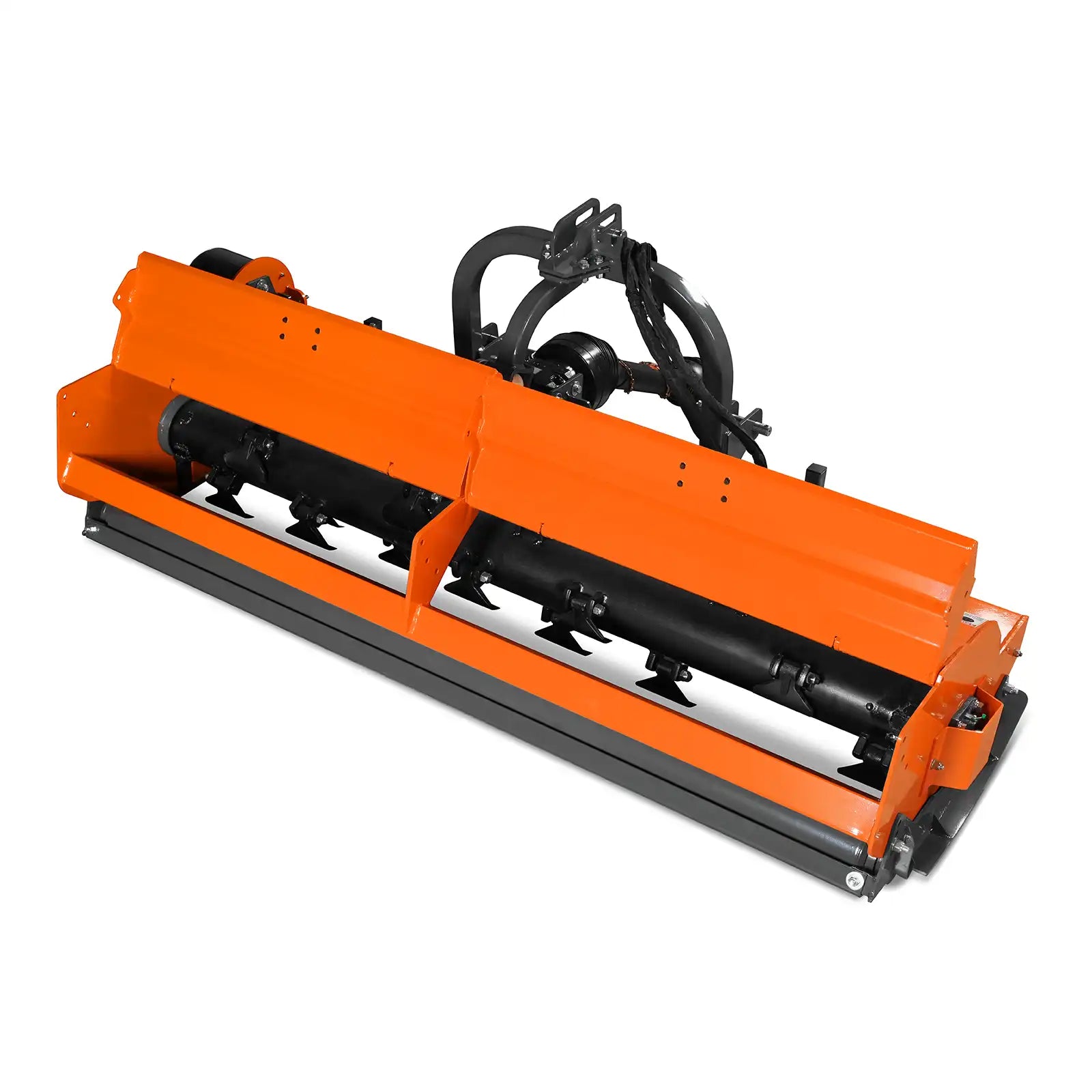

Features an openable rear cover for easy blade replacement and blockage clearing. Thickened shaft improves mowing efficiency for smoother operation.

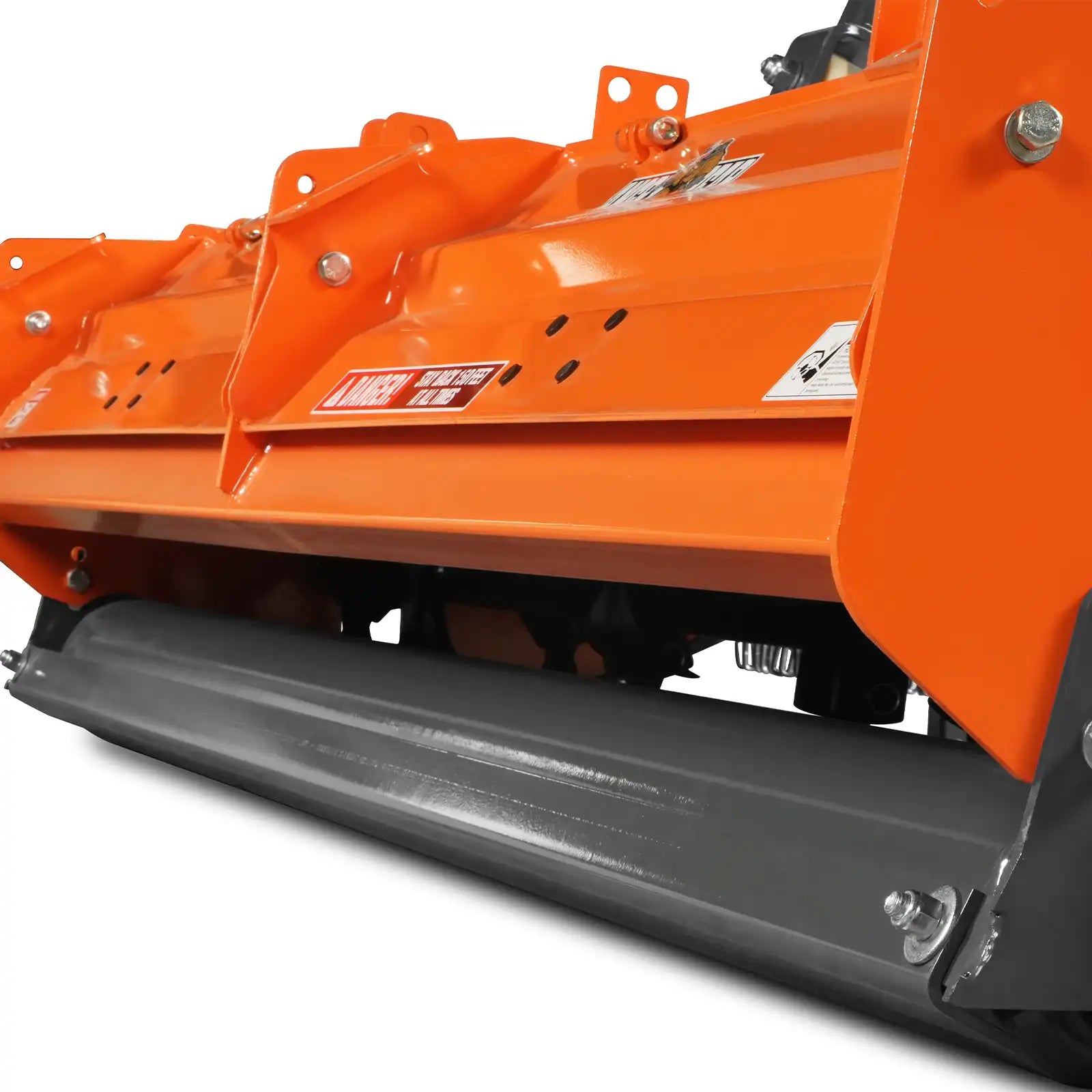

Adjustable Height Roller Bar

The adjustable height roller bar allows you to raise or lower the cutting height to your desired level, and features a self-cleaning scraper to enhance cutting performance.

Power Required	50-90 hp	Drive Type	Gearbox with belt
Minimum Power	50 hp	Number of Belts	5
Working Width	87 in	Belt Type	AV 17*1245
Overall Width	96 in	Drive Blet Tensioner	Yes, bolts tightened
Variable Cutting Height	0-3 in	Deck Material	0.2 in
Horicontal Etending Distance	13 in	Side Plate Material	0.3 in
With Rear Open Door	2 pcs rear open door	PTO Shaft RPM	540 rpm
Blade Number	20	Driveline Shaft Length	39-50 in
Blade Type	Hammer	Spline End: PTO Shaft Spline	1.375" z6
Blade Weight	2.7 lbs	3-Point Hitch	CAT 2
Blade Material	Cast steel	Tractor Mount	Three-point hitch
Rotor Bearing	SKF Bearing	Gearbox 0il Type	85W/90
Rotor Diameter	6 in	Dimensions (L x W x H)	96x46x37 in
Rotor Swing Diameter	16 in	Packing Size	97x38x28 in
Rotor Thickness	0.3 in	Finsh	Durable Powder Coated finish
Rotor Shaft Speed	2082 rpm	Warranty	1 year
Blade Speed	31.5 mph	Net Weight	1221 lbs
Rotor Rotation	Clockwise	Gross Weight	1389 lbs
