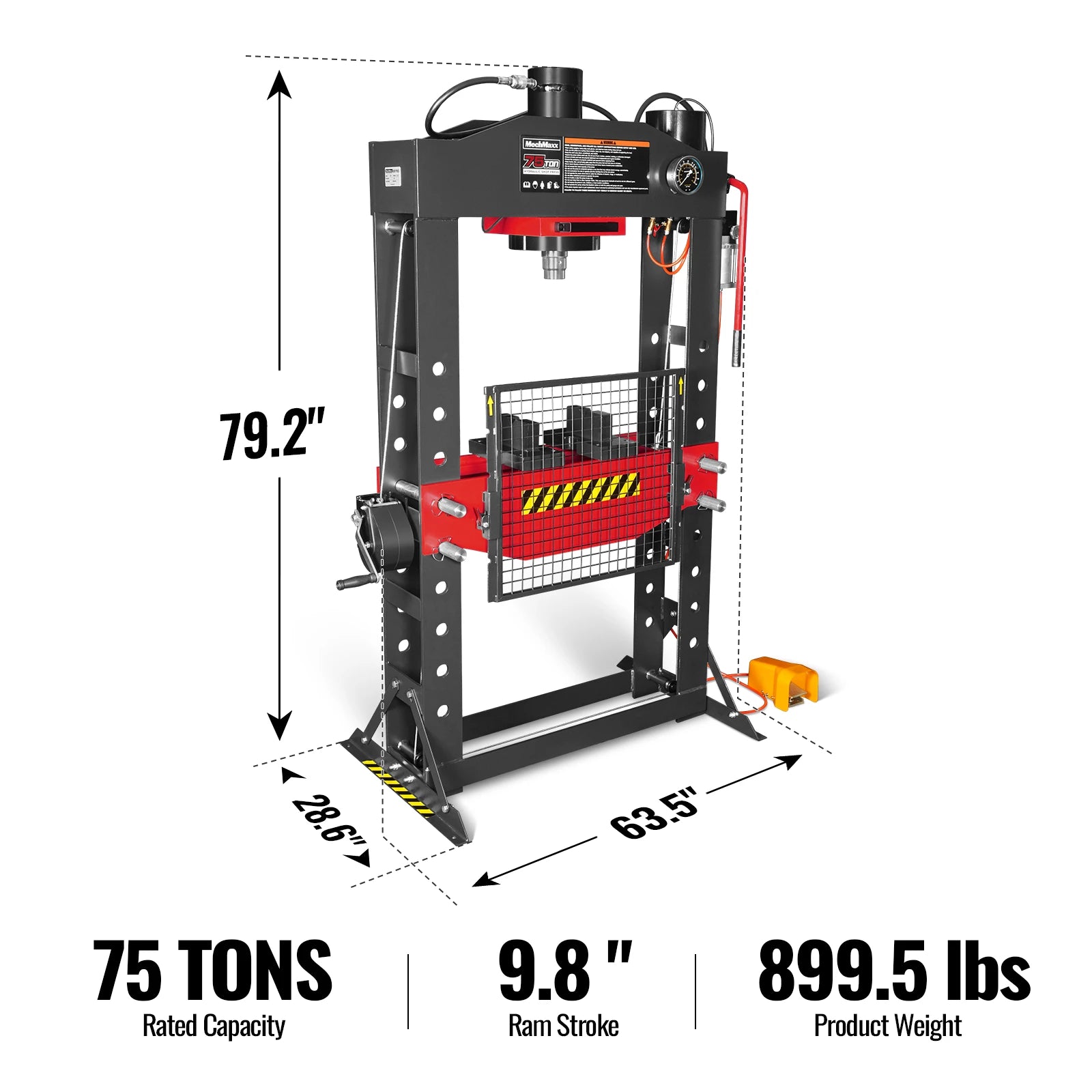

75 Ton H-Frame Air/Hydraulic Shop Press with Hand Winch, Fully Welded Steel Frame, Safety Guard, Foot Pedal Control, HSP75

The MechMaxx 75-Ton hydraulic shop press is designed for users who require dependable pressing power, precise control, and long-term durability for regular automotive, fabrication, and industrial shop work. Built on a fully welded heavy-duty H-frame, this press delivers stable, repeatable performance across a wide range of pressing applications, from bearing and bushing service to metal forming and straightening.

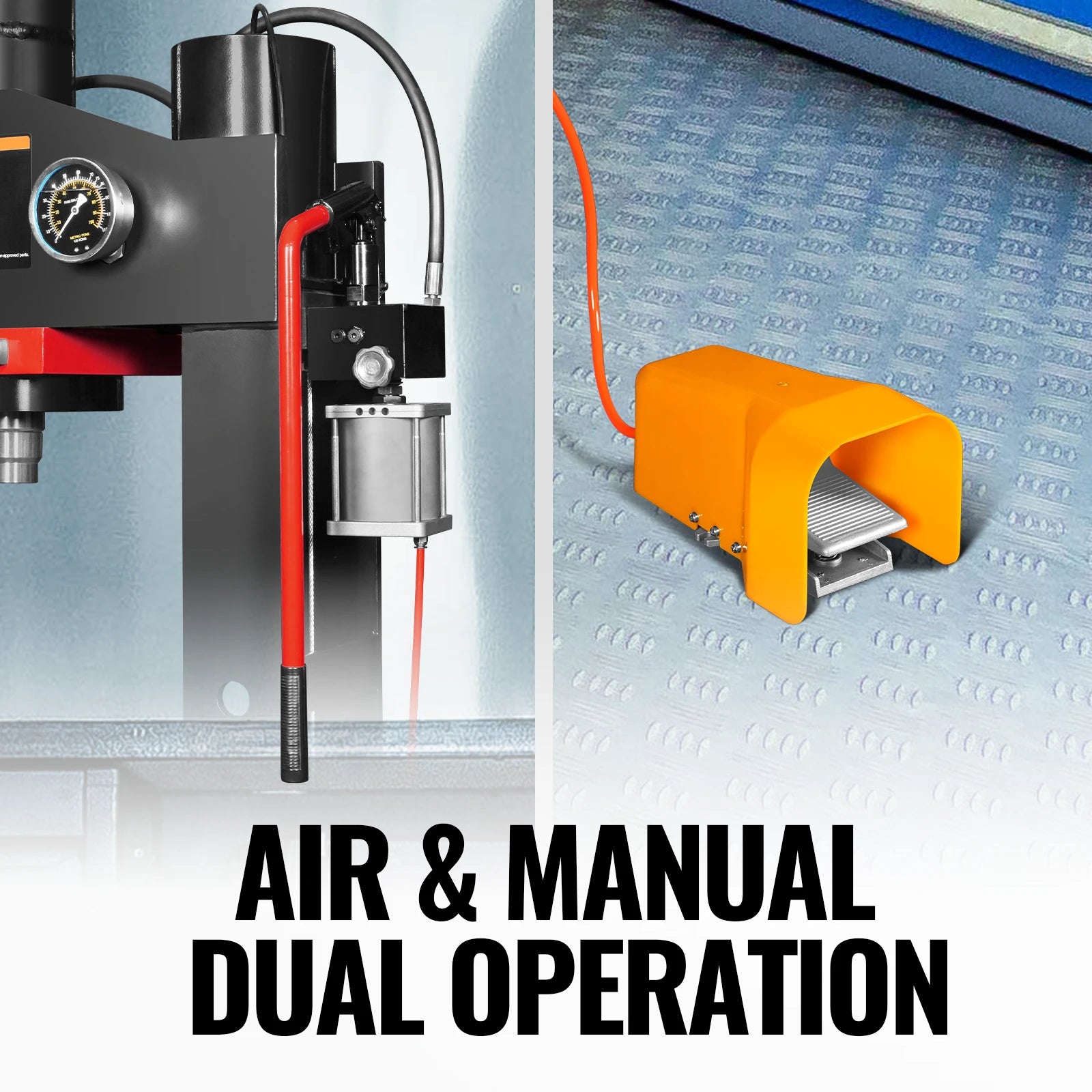

Featuring an air-over-hydraulic system with manual backup operation, the MechMaxx shop press allows operators to balance speed and precision based on the task at hand. Pneumatic operation improves efficiency for repetitive work, while manual control provides smooth, controlled ram movement for detailed pressing jobs. The adjustable press bed, assisted by a hand winch, accommodates various workpiece sizes and reduces operator strain during setup.
Designed with safety and usability in mind, the press includes a protective steel grid guard to help reduce the risk of debris ejection under load. An oil-filled pressure gauge allows accurate monitoring of applied force, while twin return springs assist reliable ram retraction after each press cycle. Rugged construction and field-proven components make the MechMaxx shop press well suited for professional workshops, maintenance facilities, and serious industrial users who demand consistent, repeatable results.

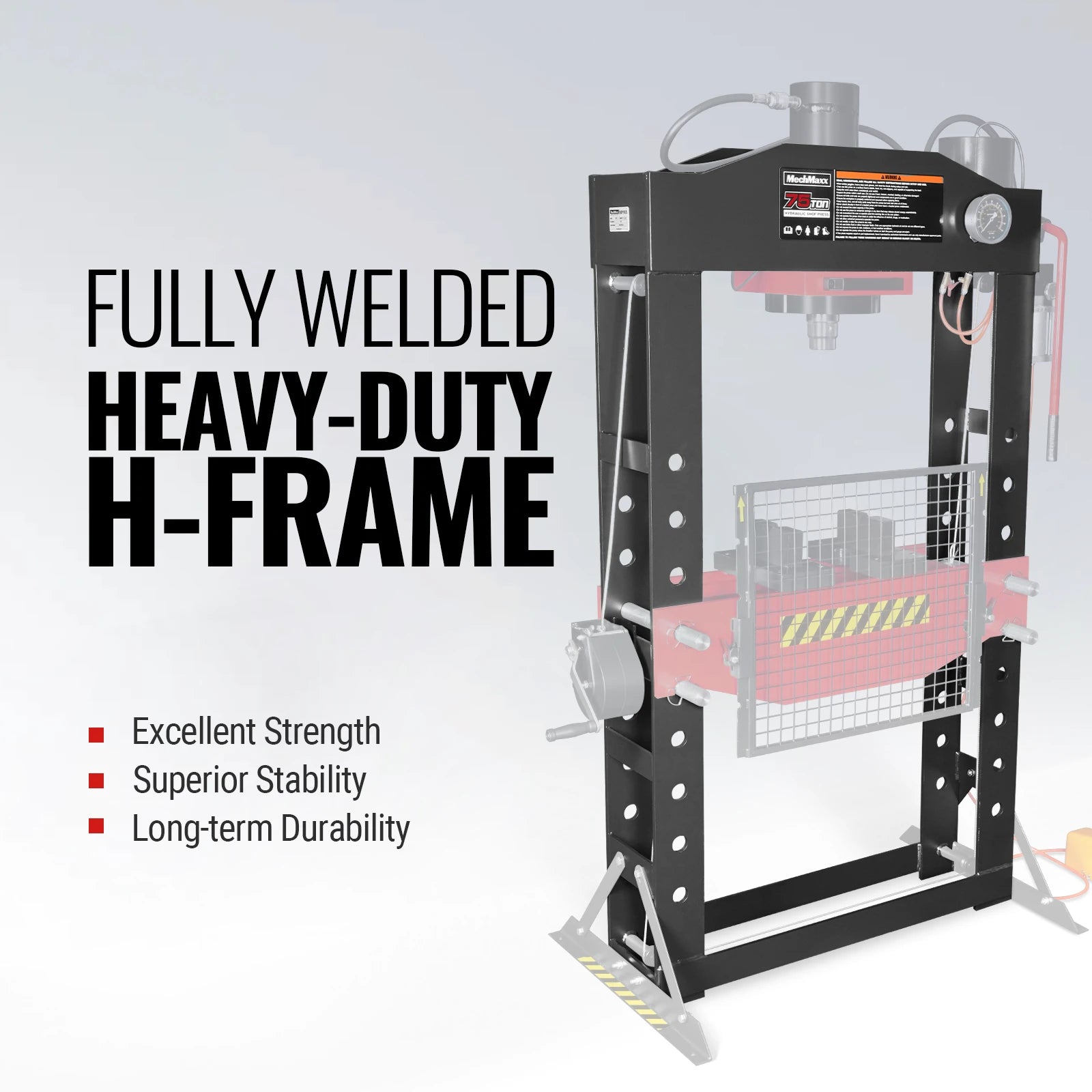

• Fully Welded H-Frame: Heavy-duty steel construction delivers maximum strength, rigidity, and long-term durability under high pressure.

• Foot Pedal Air Control: Hands-free pneumatic operation allows safe, effortless control of the press.

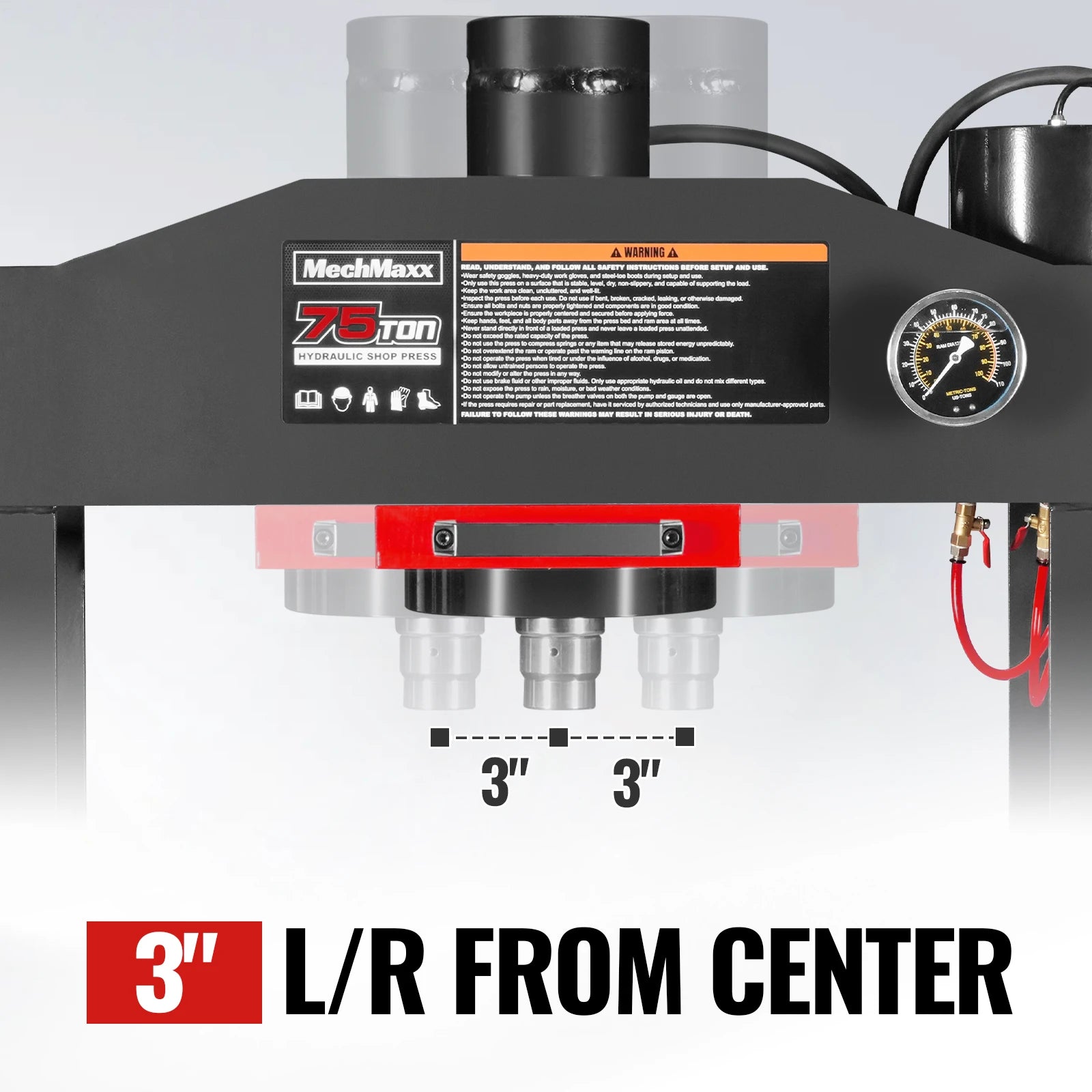

• Movable Ram Head : Cylinder shifts 3" left or right from center, allowing precise off-center pressing and greater working flexibility.

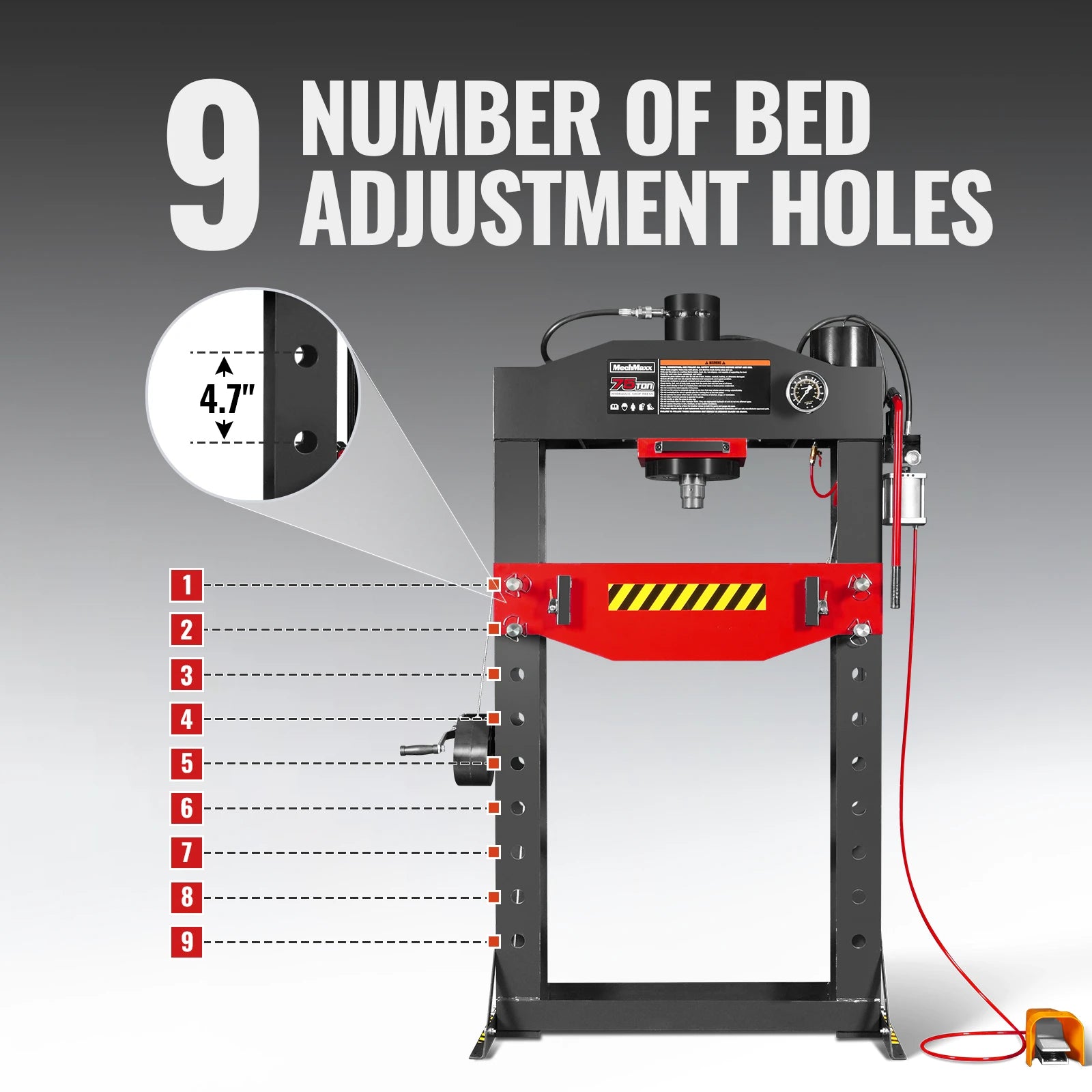

• 9 Position Adjustable Bed: Features 9 bed height settings with 4.7" hole spacing for precise work height adjustment and maximum versatility.

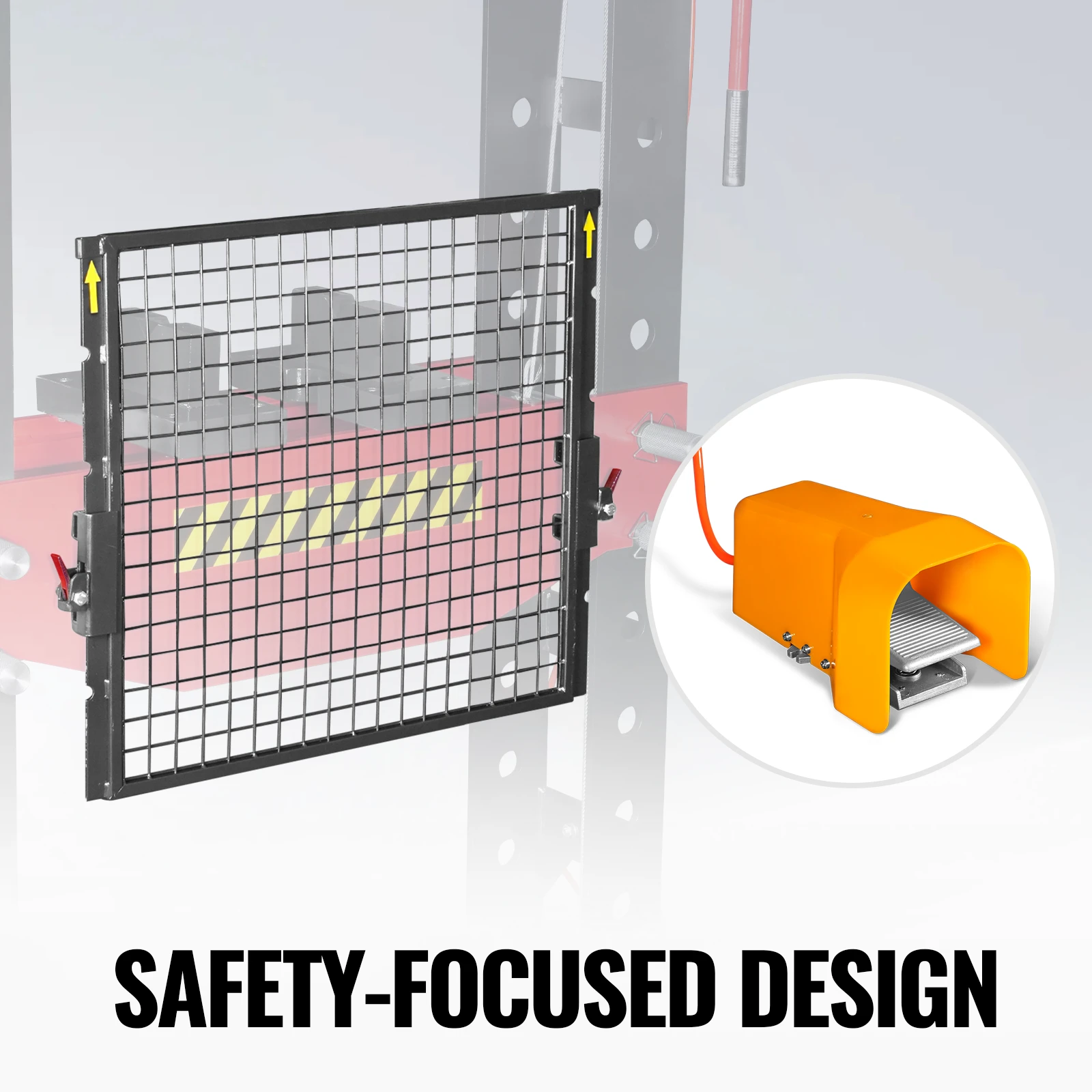

• Protective Grid Guard: Steel safety screen helps shield the operator from debris and flying parts during pressing operations.

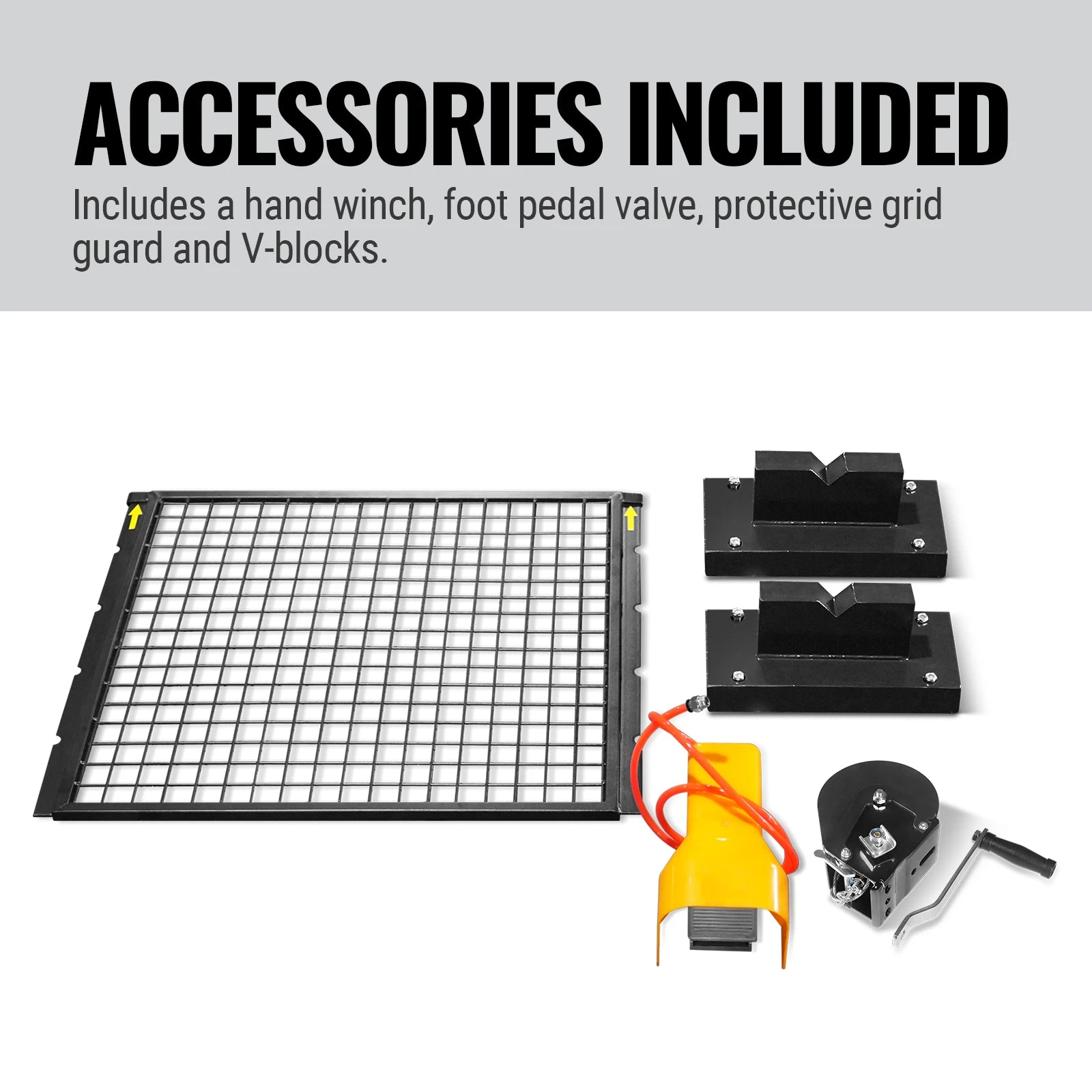

• 8 pc Press Pin Kit & 2 pc V-Blocks Included: Comes standard with 8 pc press pins and 2 pc V-blocks for versatile setups and precise support on a wide range of pressing jobs.

  Note!
• These units are heavy and should not be moved manually. Use appropriate lifting equipment such as a forklift.
• NEVER exceed the rated tonnage capacity.
• Use steel blocks in pairs only. Never operate with a single block.
