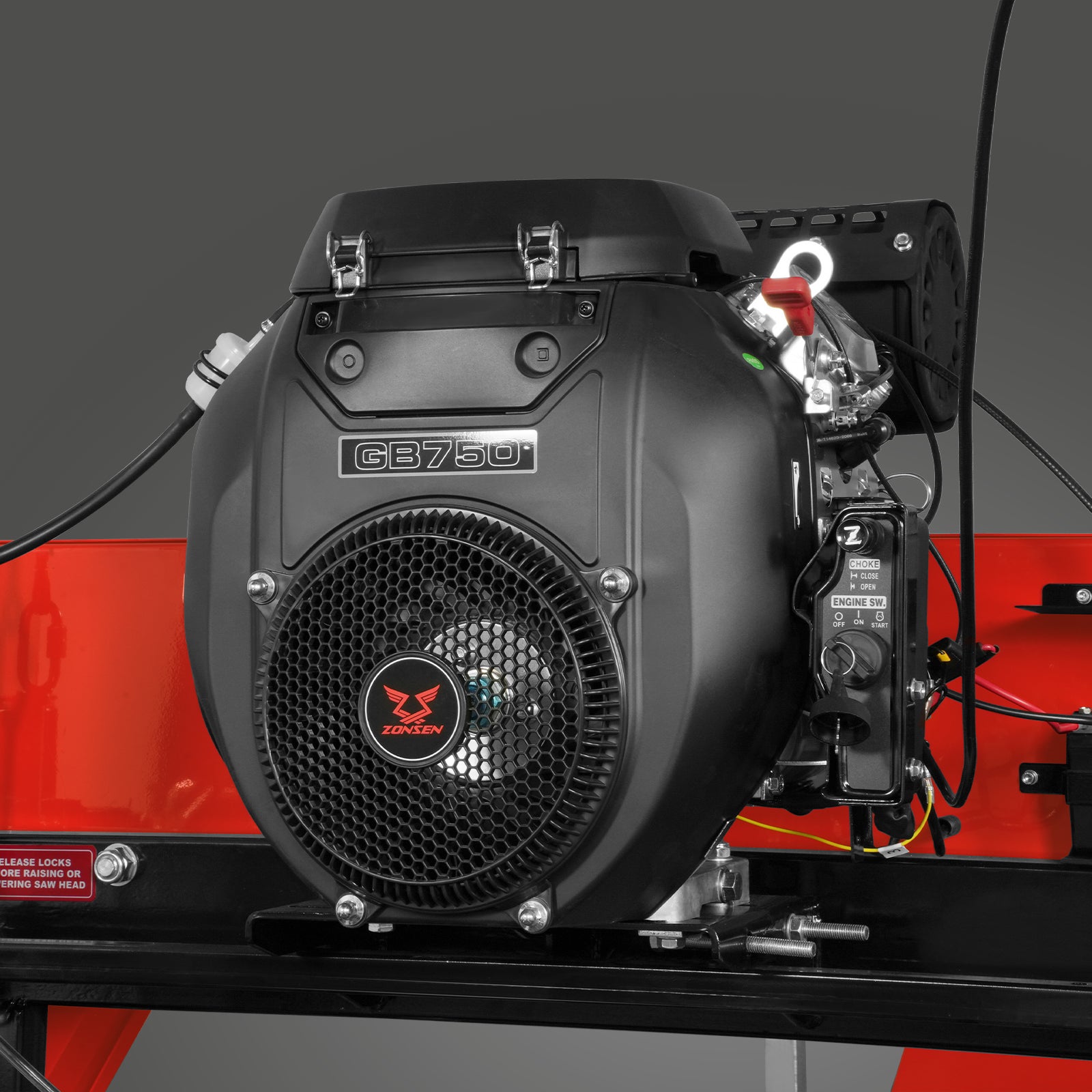

Engine |
ZONSEN GB750 |
Lubricant Tank Size |
4 gal |
Engine Type |
Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling |

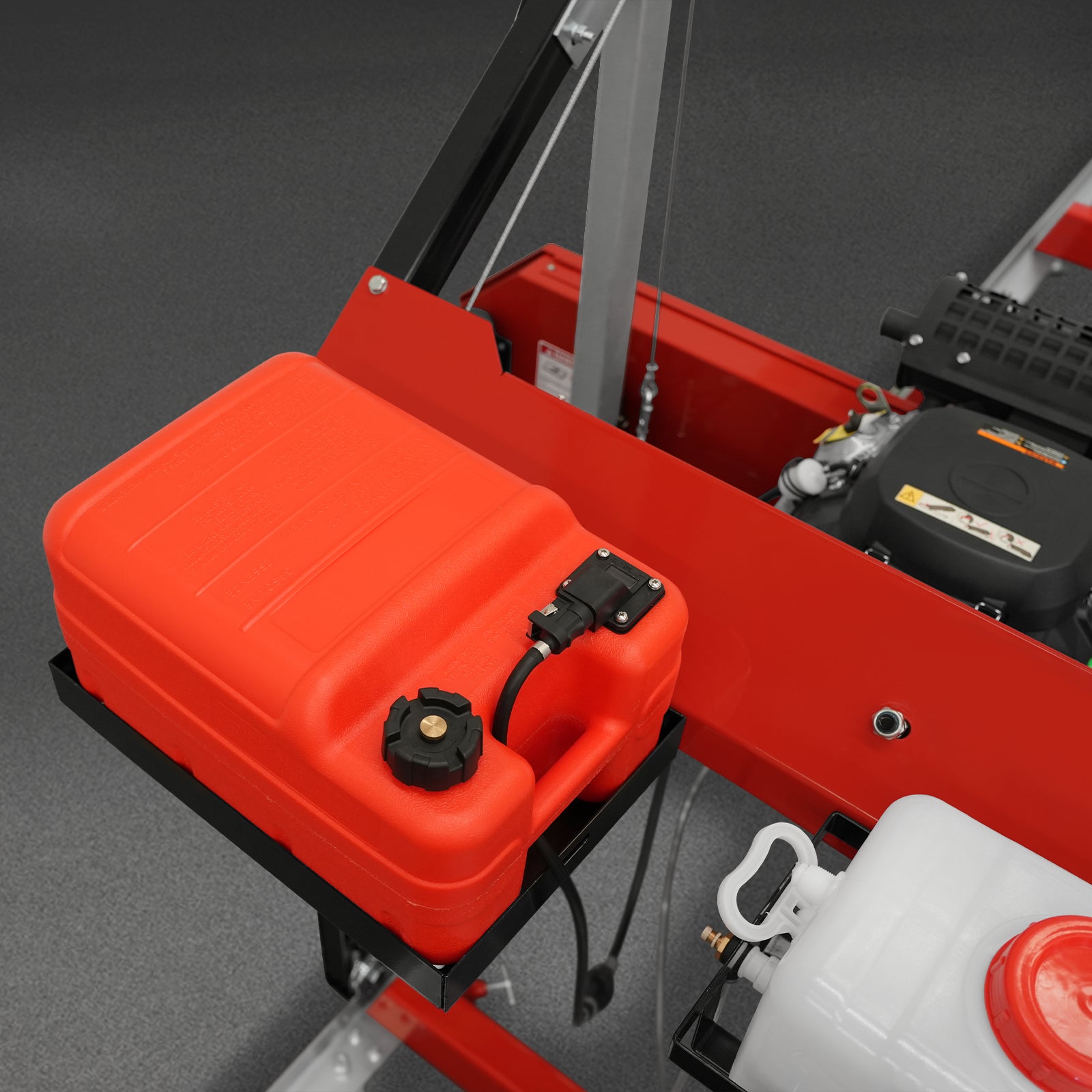

Fuel Tank Size |
6.3 gal |
Engine Displacement |
750 cc |
Track Width |
45.3 in |
Horsepower |
25 HP |

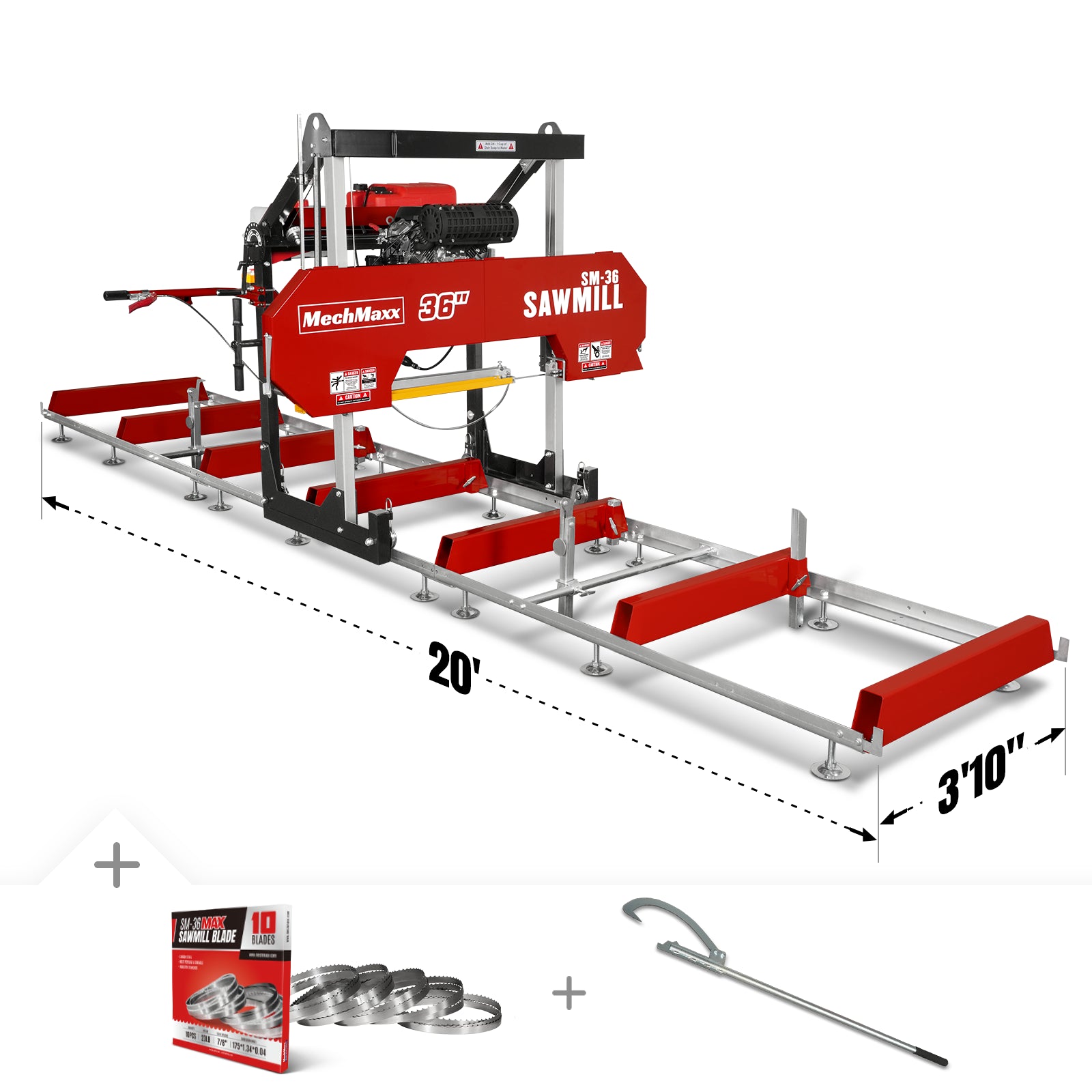

Track Length |
20 ft |
Start |
E-Start |
Track Extension Length |
6 ft 5 in |

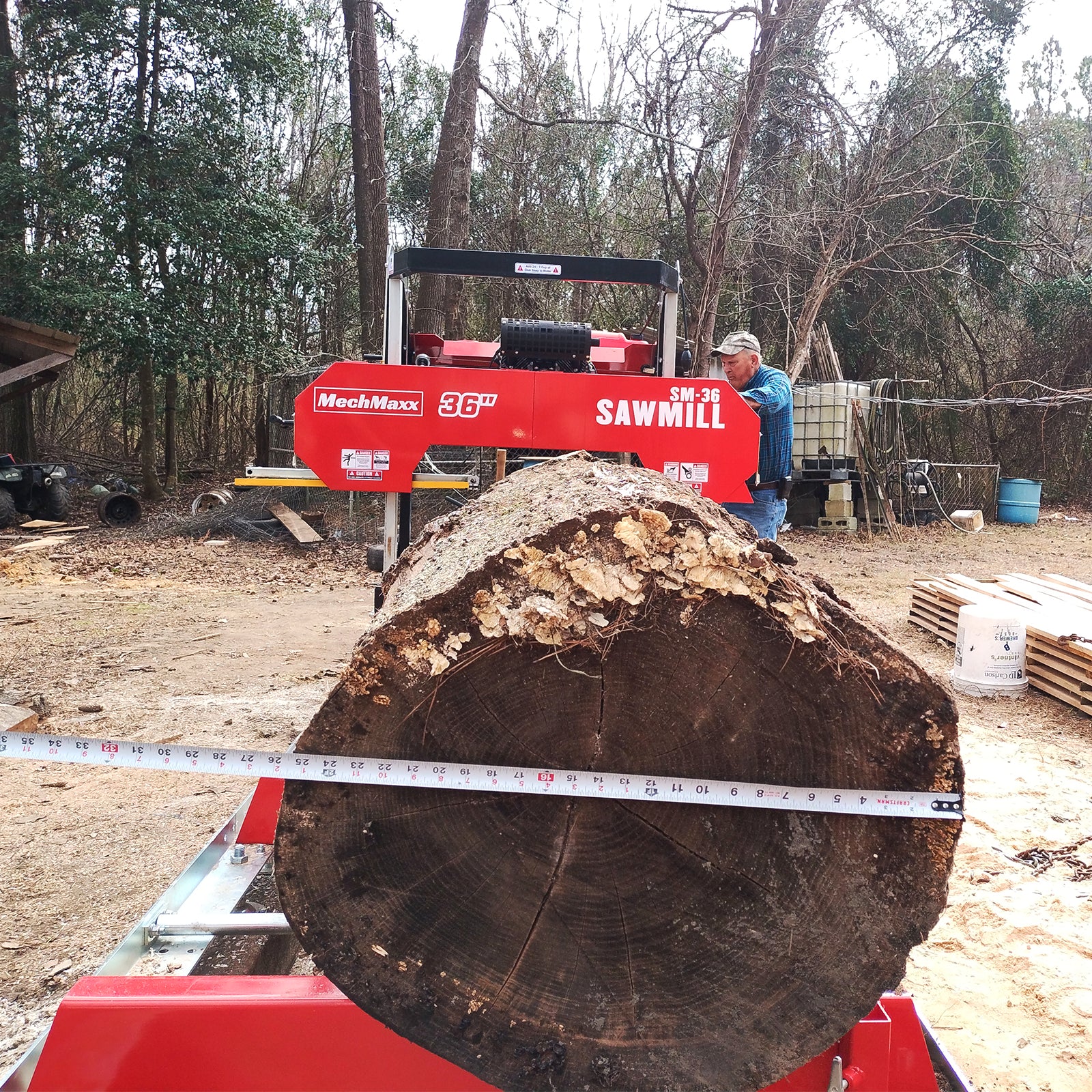

Log Diameter |
36 in |
Levelling Feet |
18 |
Max Live Edge Width |
36 in |

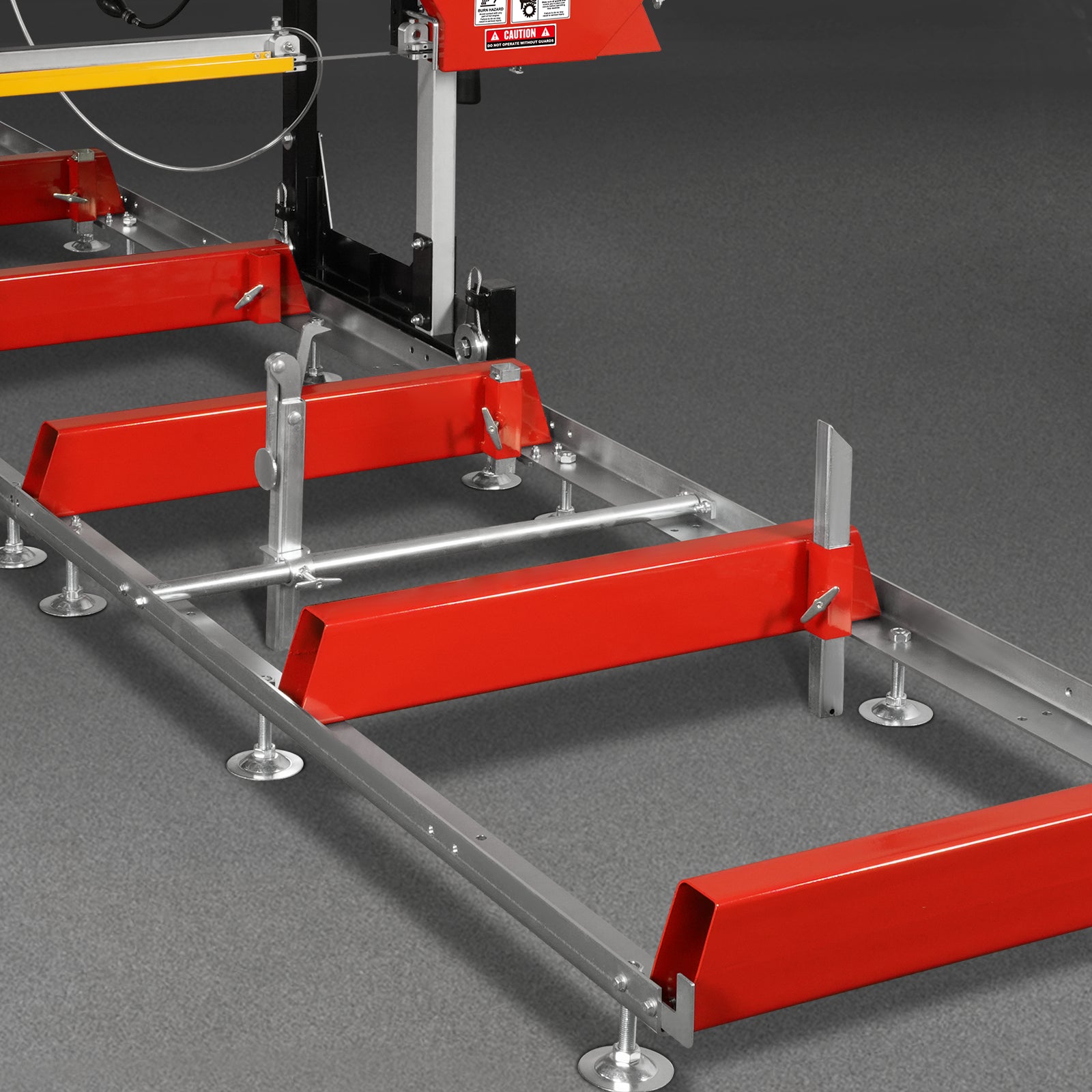

Log Rests |
2 Long and 2 Short Rests |
Standard Cutting Length |
16 ft 8 in |
Log Clamps |
2 x Quick Lock |
Max Board Thickness |
7 in |
Track Bunks |
3 X 6 in |
Blade Engagement System |
Centrifugal Clutch |
4 Post Head Design |
Yes |

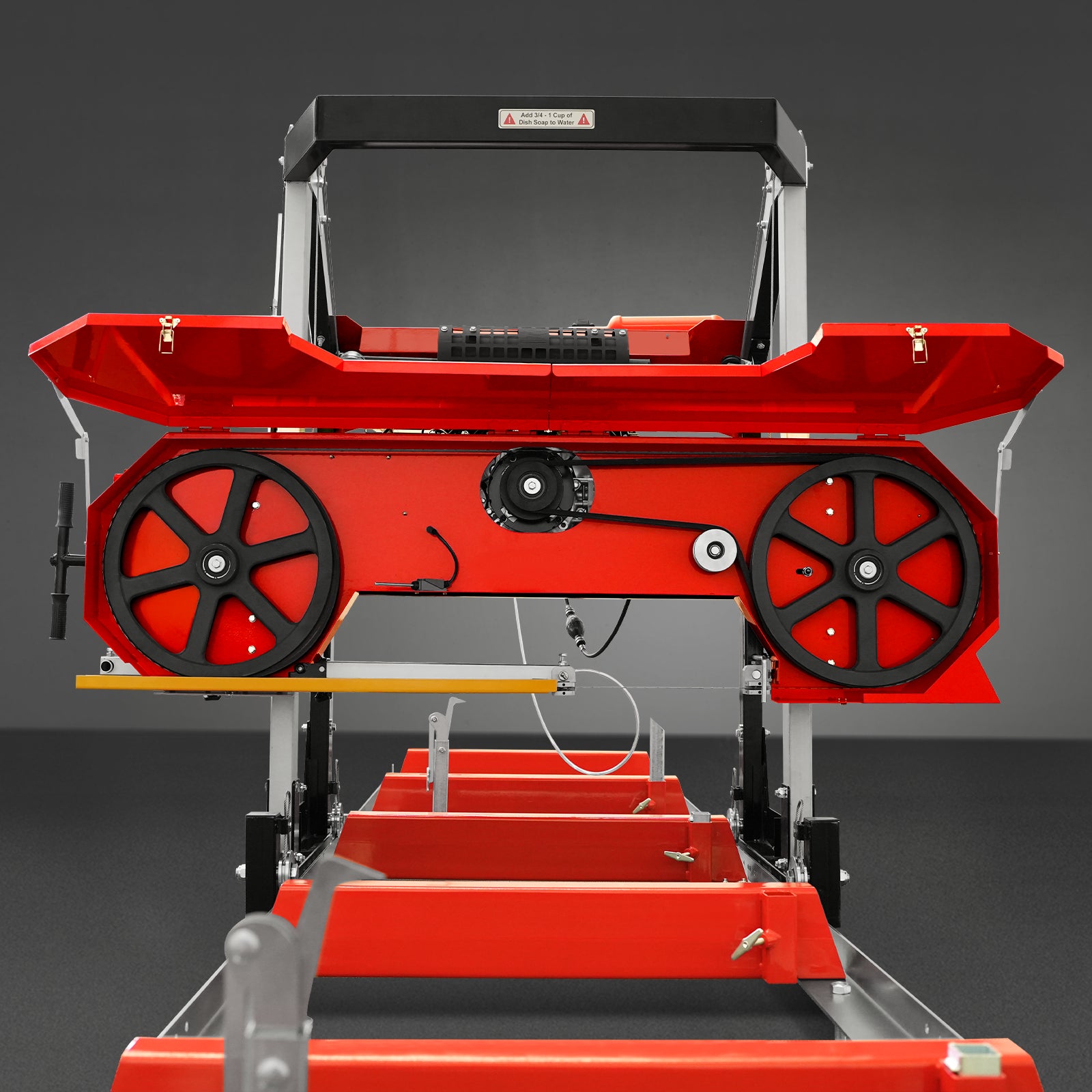

Cast Iron Bandwheel Diameter |
19 in |
Finish |
Powder Coat Paint Galvanized Steel |

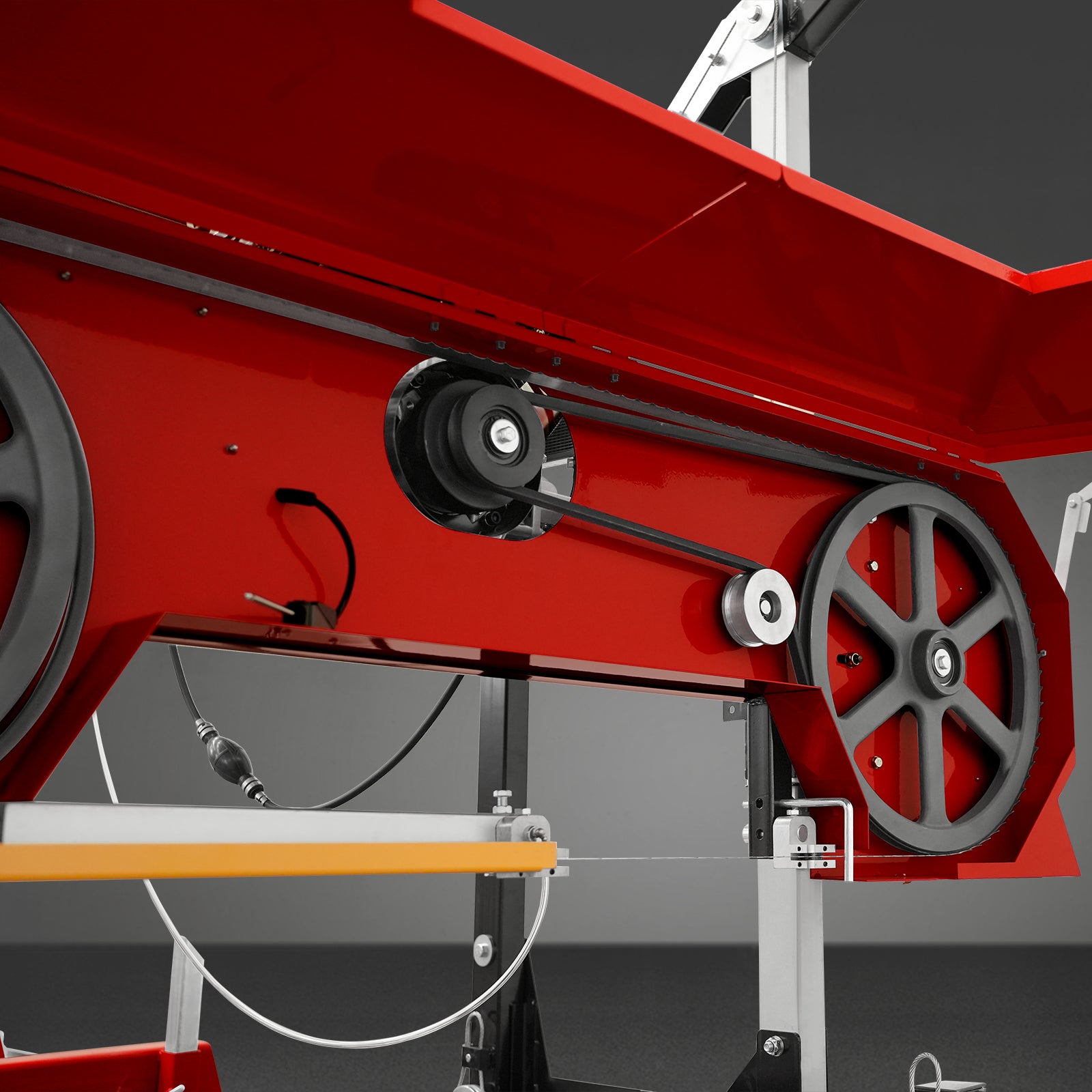

Blade Wheel Engagement |
Belt Drive |
Sawmill Warranty |
2 Years |

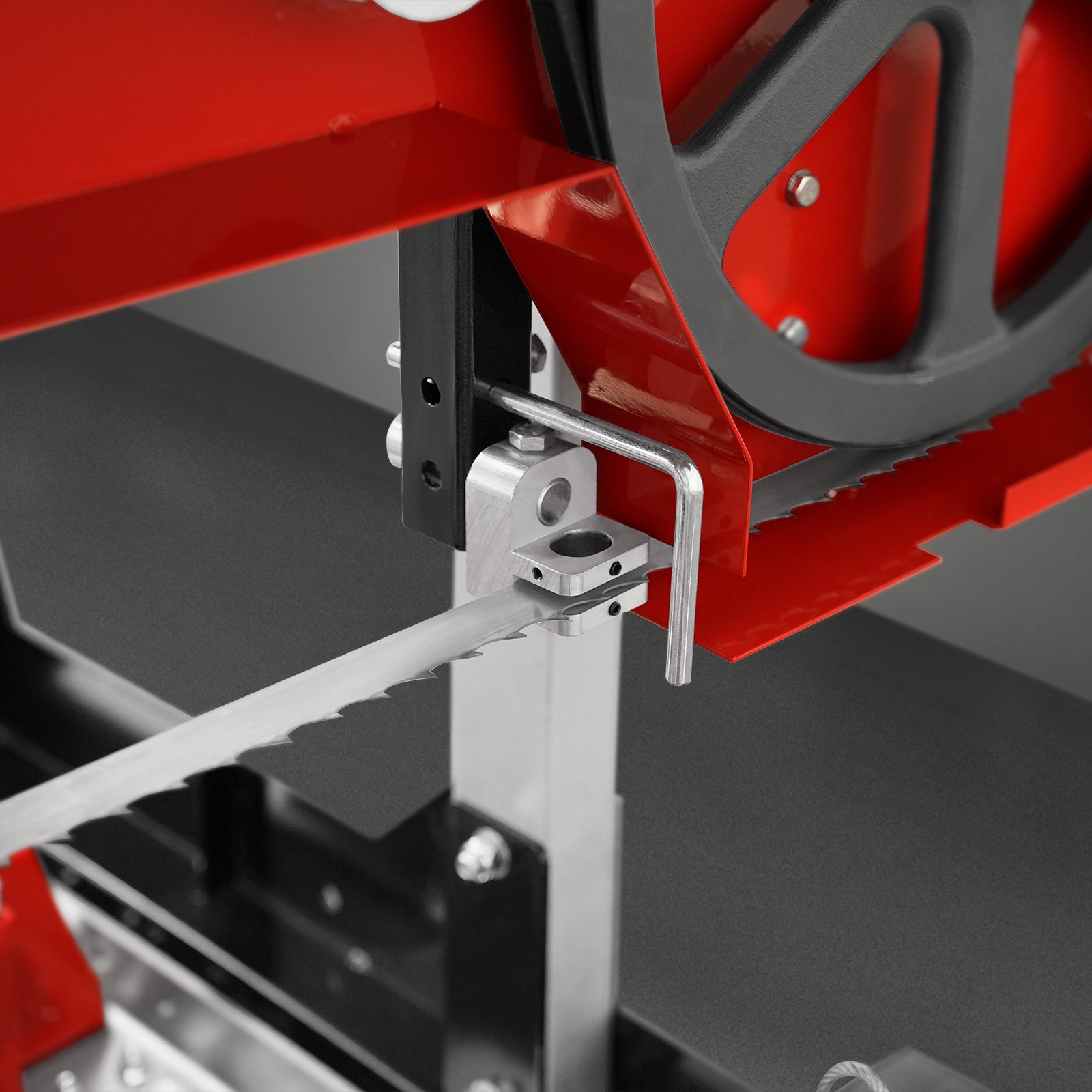

Blade Guide |
By Roller |
Engine Warranty |
1 Year |

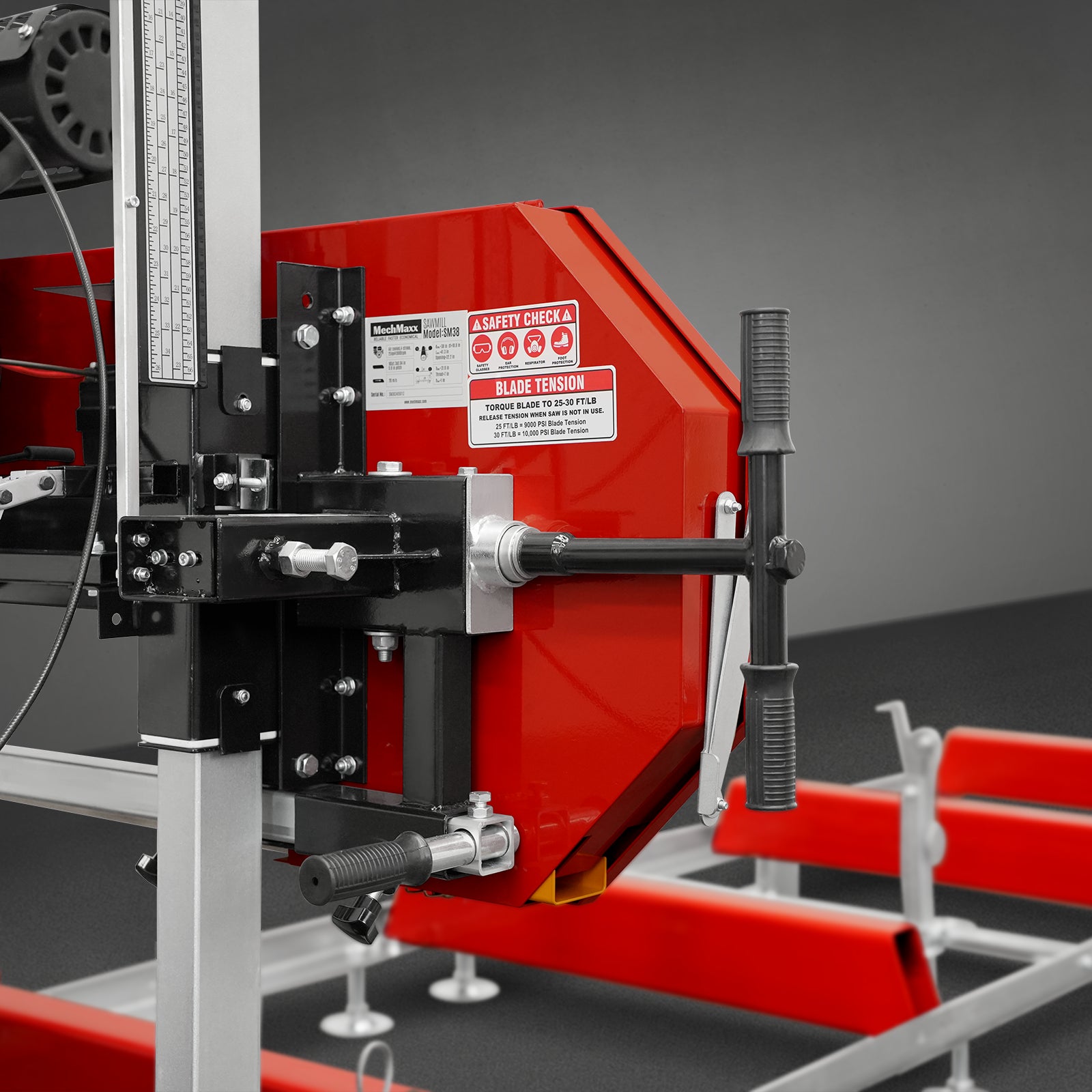

Blade Tension |
By Adjustable Lever |
Package Method |
Wood |
Blade Size |
175 x 1.25 in |
Packing Size |
90 x 28.5 x 34 in |
Blade Pitch |
7/8 in |
Weight(N.W./G.W.) |
1115/1239 lbs |

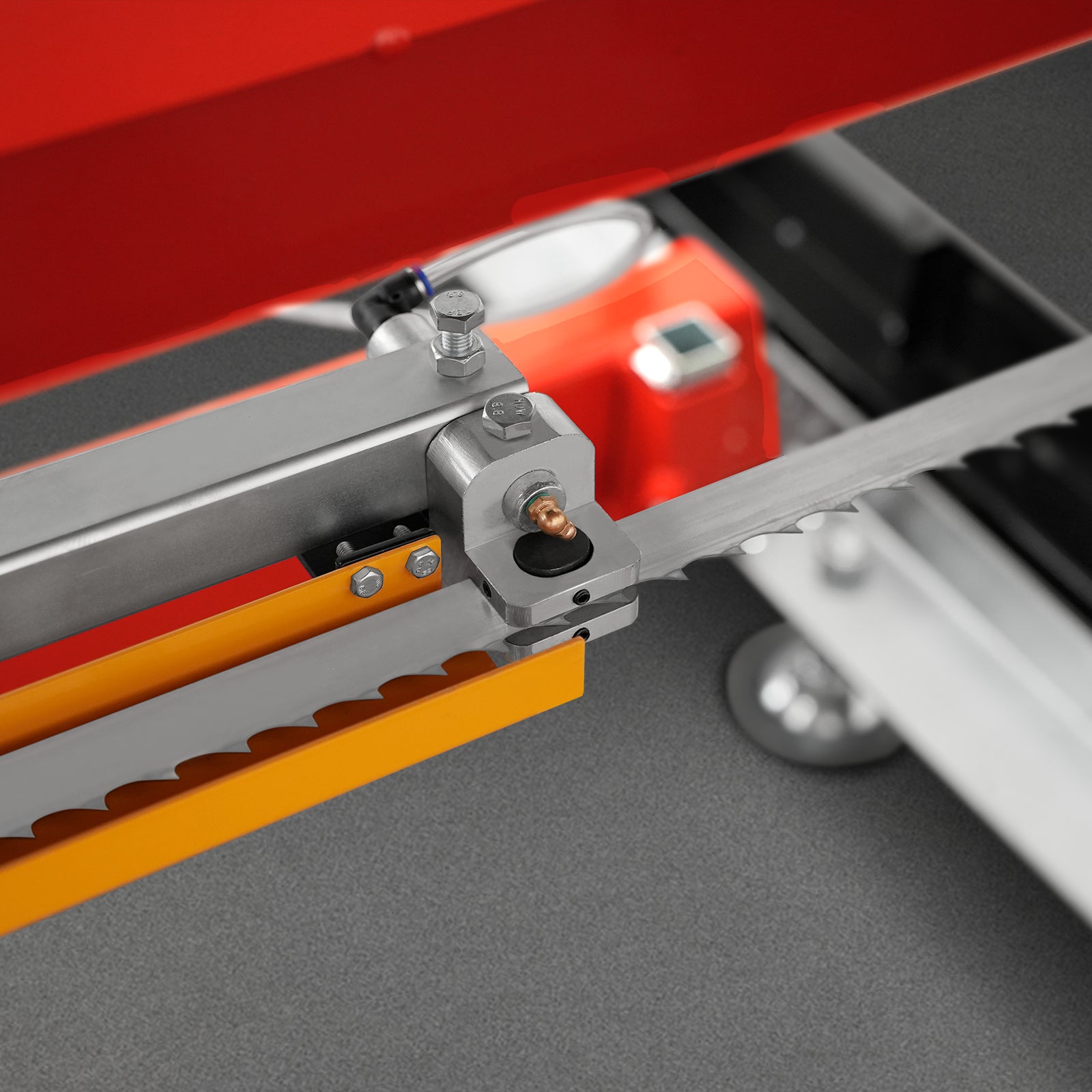

Blade Lubrication |
Water Lube - Manual Valve |
|
|
