SKU: 150416

| Model: SM-36MAX; B200

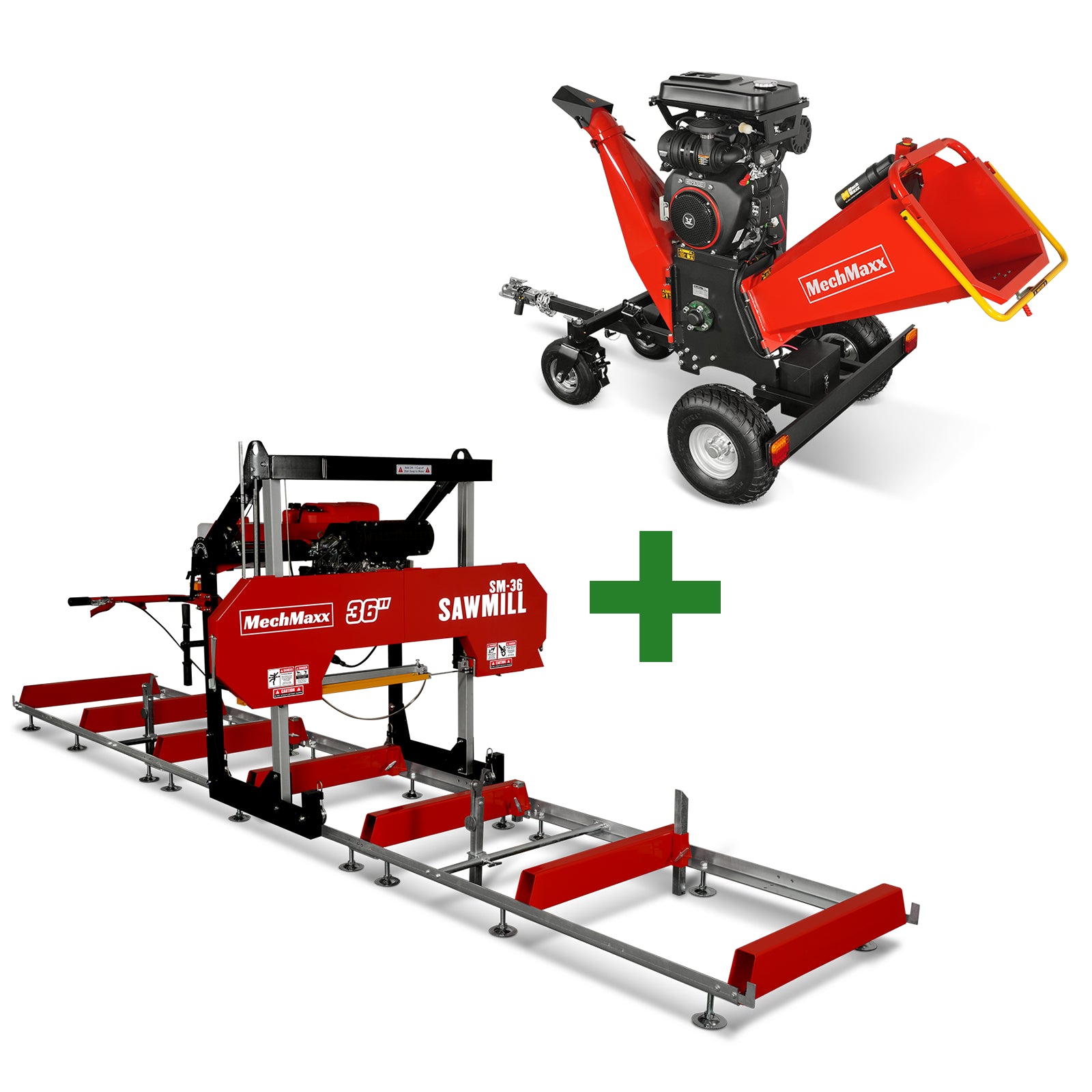

36" MAX Portable Sawmill & 8" Wood Chipper Combo

Name: 36" MAX Portable Sawmill & 8" Wood Chipper Combo
Brand: MechMaxx
SKU: 150416
Price: 6999.0 USD
Availability: InStock

MEMORIAL DAY SALES Ends in

Days : :

$699900

$10,398.00

Save $3,399

MEMORIAL DAY SALES Ends in

Days : :

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Estimated to ship by Jul 13, 2026. Date is subject to change due to transit delays.

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

( 1 Pack / 1 Pcs ) Sawmill Cover - Custom Fitted for 36" MAX Portable Sawmill, SM-36MAX; SM-36HMAX (150168MAX; 150168HMAX; 150268)

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 )

( 1 Pack / 2 Pcs ) Blade for Wood Chipper B200 (SKU: 110810;110811)

Log Loading Ramp Kit for Sawmill Trailer , SM-36MAX; SM-36HMAX

SM-36MAX; SM-36HMAX Trailer Combo Kit (Trailer Hitch; Torsion Axle; Tire)

SM-36MAX; SM-36HMAX Trailer Primary Sub-Frame, 20' Track Length

36" MAX Portable Sawmill & 8" Wood Chipper Combo $699900 $10,398.00

( 1 Pack / 1 Pcs ) Sawmill Cover - Custom Fitted for 36" MAX Portable Sawmill, SM-36MAX; SM-36HMAX (150168MAX; 150168HMAX; 150268) $8999

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 ) $6999

( 1 Pack / 2 Pcs ) Blade for Wood Chipper B200 (SKU: 110810;110811) $9299

Log Loading Ramp Kit for Sawmill Trailer , SM-36MAX; SM-36HMAX $59999

SM-36MAX; SM-36HMAX Trailer Combo Kit (Trailer Hitch; Torsion Axle; Tire) $59900

SM-36MAX; SM-36HMAX Trailer Primary Sub-Frame, 20' Track Length $99900

Total Price

$

Product Overview

36" MAX Portable Sawmill

Fully capable of cutting large 36" logs and planks up to 7" wide in 1/2 the time compared to a regular chainsaw.
It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.
The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
Can withstand heavy workloads for long hours, even in remote areas.
The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.

8" Wood Chipper

MechMaxx 35HP gasoline engine wood chipper, electric start, rated power up to 23.5kw/3600rpm.
This wood chipper has extremely powerful roller with the diameter of 14in., which can shred branches up to 8 inches.
Double-edge cut reversible blades greatly increase the service life.
Both the feeding chute and the discharge chute can be opened quickly and easily for the maintenance and repair.
By adopting whole shaped technology, the discharge chute is both attractive and practical with the ability to rotate 360 degrees.
You can stop the engine quickly in a crisis to improve operator safety with a safety button above the feeding chute and the emergency stop press bar on lower side of the feeding chute.
With front 13x5.00-6; rear 19x7.00-8 Tubeless tires and 48in. super-wide wheelbase, this wood chipper has the ability of driving on steep ground with the high stability.
This is a high-performance wood chipper fit for professionals and leasing companies.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30

Product manual (PDF)

150168MAX Product manual 1.0.pdf

Engine manual (PDF)

Zonsen GB750 Manual.pdf

Product manual (PDF)

B200 Product manual 1.0.pdf

Engine manual (PDF)

Zonsen GB1000 Manual.pdf

Product Features

Electric Start

This sawmill is equipped with an electric-start engine, which has excellent performance, reliable quality and can be used for a long time.

Adjustable Cutting Thickness

The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7’’.

Maximum Log Diameter

This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 36”.

Emergency Stop Button

There is an emergency stop button on the top of the log, which can stop the machine at any time in an emergency.

Maximum Cutting Width

According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 36’’.

Throttle Handle

You can control the cutting speed by pushing this handle, and you can speed up or slow down at any time, making the wood cutting process fast and efficient, and reducing the number of steps required to meet your cutting requirements for wood boards.

Saw Blade

The saw blade made of carbonized steel is very strong, with dimensions of 175*1.3*0.04’’, and the rotation speed can be as high as 787’’ per second, which can ensure smooth and stable cutting while reducing wood chips and increasing the amount of wood.

Spiral Log Clamp

The track features easy-to-use spiral log clamps to hold logs securely while milling.

Cutting Length

The logs are equipped with a 194” standard log track, and you can purchase a 78” extension track at MechMaxx according to your needs.

Electric Start and Battery

The B200 Wood Chipper is powered by a 35hp 1000cc electric start gasoline engine, and equipped with a 45Ah 12V Lead-acid battery.

Feeding Chute

There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

Discharge Chute

Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

Safety Devices

On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

Maximum Wood Chip Diameter 8’’

The core cutting component of the B200 Wood Chipper is a roller with a diameter of 14” and a length of 12”. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 8” .

19*7.00-8 tubeless tire

The B200 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48” , providing enhanced stability when being towed.

Tail Light and Plug

The B200 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of B200 to synchronize with the vehicle's braking and turning signals.

Foldable and Lockable Front Wheels

When the B200 is being towed, the two 13*5.00-6 tubeless tires need to be folded up. When the B200 is operational, they can be lowered. When the B200 needs to be pushed to a designated work area, the two wheels can be locked to ensure straight-line movement.

Discharge Chute Design

The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

Video

Warranty Services

Specifications

36" MAX Portable Sawmill

Engine	ZONSEN GB750	Lubricant Tank Size	4 gal
Engine Type	Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling	Fuel Tank Size	6.3 gal
Engine Displacement	750 cc	Track Width	3 ft 10 in
Horsepower	25 HP	Track Length	20 ft
Start	E-Start	Track Extension Length	6 ft 5 in
Log Diameter	36 in	Levelling Feet	18
Max Live Edge Width	36 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	16 ft 8 in	Log Clamps	2 x Quick Lock
Max Board Thickness	7 in	Track Bunks	3 X 6 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	19 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	2 Years
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	175 x 1.3 in	Packing Size	90 x 28.5 x 34 in
Blade Pitch	7/8 in	Weight(N.W./G.W.)	1115/1239 lbs
Blade Lubrication	Water Lube - Manual Valve

8" Wood Chipper

Engine	ZONSEN GB750	Lubricant Tank Size	4 gal
Engine Type	Dual Cylinder ( 90° V Type ), 4 Stroke, Forced Air Cooling	Fuel Tank Size	6.3 gal
Engine Displacement	750 cc	Track Width	3 ft 10 in
Horsepower	25 HP	Track Length	20 ft
Start	E-Start	Track Extension Length	6 ft 6 in
Log Diameter	36 in	Levelling Feet	18
Max Live Edge Width	36 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	16 ft 2 in	Log Clamps	2 x Quick Lock
Max Board Thickness	7 in	Track Bunks	3 X 6 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	19 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	2 Years
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	175 x 1.3 in	Packing Size	90 x 28.5 x 34 in
Blade Pitch	7/8 in	Weight(N.W./G.W.)	1115/1239 lbs
Blade Lubrication	Water Lube - Manual Valve

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
