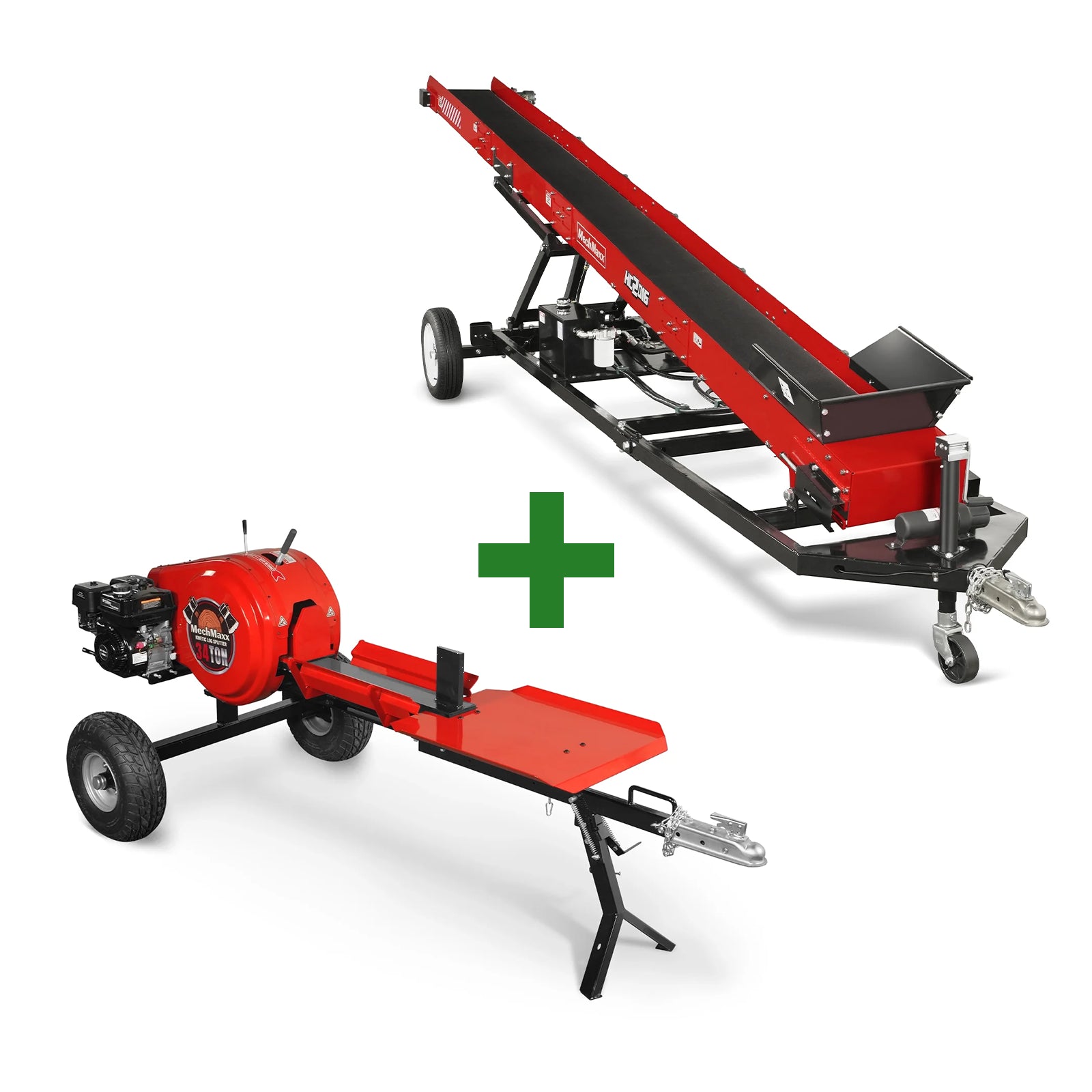

34 Ton Kinetic Log Splitter & Firewood Conveyor Combo, KT34 & HC2016

Name: 34 Ton Kinetic Log Splitter & Firewood Conveyor Combo, KT34 & HC2016
Brand: MechMaxx
SKU: 150418
Price: 5998.0 USD
Availability: InStock

$599800

$8,498.00

Save $2,500

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

( 1 Pack / 2 Pcs ) Push Rod Tension Spring for 34 Ton Kinetic Log Splitter (SKU: 150243)

( 1 Pack / 2 Pcs ) Nylon Pad for 34 Ton Kinetic Log Splitter (SKU: 150243)

( 1 Pack / 1 Pcs ) Belt for 34 Ton Kinetic Log Splitter (SKU: 150243)

34 Ton Kinetic Log Splitter & Firewood Conveyor Combo, KT34 & HC2016 $599800 $8,498.00

( 1 Pack / 2 Pcs ) Push Rod Tension Spring for 34 Ton Kinetic Log Splitter (SKU: 150243) $4999 $65.99

( 1 Pack / 2 Pcs ) Nylon Pad for 34 Ton Kinetic Log Splitter (SKU: 150243) $5999 $79.99

( 1 Pack / 1 Pcs ) Belt for 34 Ton Kinetic Log Splitter (SKU: 150243) $4999 $65.99

Total Price

$

Product Overview

Kinetic Log Splitter

The KT34 34-Ton Kinetic Log Splitter combines raw power, speed, and efficiency for serious wood-splitting performance.
Powered by a reliable 7 HP Ducar gasoline engine, it delivers an incredible 34 tons of splitting force—enough to handle even the toughest hardwoods with ease.
The advanced kinetic flywheel system provides instant power transfer, allowing a remarkable 3-second cycle time—up to six times faster than traditional hydraulic splitters.
Capable of splitting logs up to 28 inches in diameter, the KT34 is built with a heavy-duty steel frame, precision-balanced flywheels, and a stable base for safe, durable operation. This splitter offers easy operation, low maintenance, and long-lasting performance—ideal for homeowners, farmers, and commercial firewood operations seeking high productivity and reliability.
Whether for commercial firewood production, farm use, or large property maintenance, this splitter ensures maximum productivity, minimal fuel use, and easy one-person operation.
Designed for speed, strength, and dependability, the KT34 is the ultimate solution for anyone who needs fast, consistent log splitting all season long. Ideal for homeowners, farmers, and commercial users.

Firewood Conveyor

This firewood conveyor offers efficient, powerful and safe performance, making it an essential tool for conveying and lifting firewood in diverse settings.
This wood conveyor equipped with a 7HP gasoline-powered hydraulic driven system operates with high efficiency and powerful performance. The belt speed is variable by changing the engine speed.
With an adjustable reach up to 124 inches, this conveyor's speed, efficiency, reliability, and safety are unmatched in the conveying industry.
Our top priority is the safety of our customers. Our portable concrete conveyor systems can make your job easier for a variety of applications including ready-mix concrete, steel fiber, ice, batching, and more.
Height at lowest point: 5 ft
Maximum conveyor load: 264.5 lbs
Height at highest point: 10.5 ft
Maximum conveyor load: 132 lbs

Product manual (PDF)

KT34 Product manual 1.0.pdf

Engine manual (PDF)

DUCAR DH212 Manual.pdf

Product manual (PDF)

HC2016 Product manual 1.0.pdf

Product Features

Powerful Engine Performance

Equipped with a reliable 7 HP high-performance gasoline engine, providing strong power and consistent, stable energy input to ensure easy starting and efficient operation in any environment.

Extraordinary Splitting Power

Delivers an astonishing 34 tons of splitting force, which is sufficient to easily handle all types of wood, including the toughest hardwoods, meeting professional-grade wood splitting demands.

Massive Log Handling Capacity

Capable of splitting logs up to 28 inches in diameter and with a maximum length of 23 inches.

Lightning-Fast Cycle Time

Thanks to an advanced kinetic flywheel system, the log splitting cycle time is only 3 seconds, which is up to six times faster than traditional hydraulic splitters, achieving unprecedented high productivity.

Heavy-Duty and Durable Body Design

Features a 7-inch wedge blade and utilizes a heavy-duty steel frame structure with a precision-balanced flywheel system, guaranteeing the product's durability and long service life.

Safe and Reliable Operation Assurance

Equipped with dual operating handles: one locking handle and one working handle, ensuring operational safety and stability even during high-speed operation.

Optimized Design for Enhanced Stability

Specifically designed for commercial and farm use, the axle is widened to 33 inches, providing a stable structure that maintains better balance whether stationary or being towed.

High Mobility and Terrain Capability

Configured with 19*7.0-8 specification vacuum tires, offering strong mobility to adapt to complex ground conditions on farms, large properties, and woodlands, facilitating easy relocation between different work sites.

Versatile Application Scope

Features a Y-shaped support leg design to prevent tipping, ensuring greater stability and safety. It is an ideal choice for homeowners, farmers, and commercial firewood operations, offering maximum productivity.

Engine

HC2016 is powered by a DUCAR DH212 7hp gasoline engine, so you can run the conveyor anywhere, from the woods to the neighborhood.

Hydraulic Lift Cylinder Controlled

The height of the HC2016 can be easily adjusted using our hydraulic lift cylinder. Connected to a tandem center spool, the hydraulic lift cylinder is controlled by the operator and can be adjusted multiple times to suit the needs of any project.

Adjustable Height

The maximum hydraulic height adjustment angle is 28.22 degrees, and the height can be locked between 60’’ and 124’’ depending on your application. The height can be locked at a maximum height and can be operated at different heights depending on your application.

Modular Hopper

The modular hopper on the conveyor makes log loading simple, as it is shaped like a funnel and can be filled directly with the loader bucket. The hopper is bolted on for easy removal and upgrading.

Hydraulic Motor and Speed Adjustment Valve

The speed regulating valve can adjust the running speed of the belt according to actual conditions. The speed indication is 0-9, 0 is the slowest and 9 is the fastest.

Trailer Hitch and Jockey Wheel

A 2-inch coupler is concealed on the trailer hitch, compatible with a 2-inch trailer ball. The jockey wheel adopts a single wheel design with a wheel diameter of 6 inches and the height can be adjusted during operation.

Video

Product Warranty

Specifications

34 Ton Kinetic Log Splitter

Splitting Force	34 Ton
Engine	DUCAR DH212
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV
Displacement	212 cc; 7 HP
Belt	A1524Li*1pcs
Wedge Height	7in
Log Length Capacity	21.5in
Log Diameter Capacity	28 in
Cycle Time	3 seconds (Approximate）
Sprocket Rate	1 : 8
Flywheel Max RPM	450
Tire	19 x 7.0-8 Tubeless
H-beam Height	26in
Wheelbase	87in
Towing	Tow Bar With 2 in Coupler
Product Size (LWH)	1105147in
Packing Size (LWH)	68.529.527.5in
Weight (N.W./G.W.)	545/595 lbs
Machine Warranty	1 Year
Engine Warranty	1 Year

Firewood Conveyor

Engine Power	DUCAR DH212 7hp
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV
Conveyor Belt length	236 in
Conveyor Belt Wide	16 in
Max Discharge Height	124 in
Min Discharge Height	60 in
Drive System	Hydraulic
Hydraulic Pump	5.7 GPM Single Stage Pump
Hydraulic Fluid Type	AW-46
Hydraulic Tank Capacity	4.2 gal
Hydraulic Oil Filter Fineness	10 micron
Towing	Tow Bar with 2 in Coupler
Maximum Towing Speed	45 MPH
Tires Rims	13 in
Tires	19 in Radial (O. D.)
Overall Dimensions (LxWxH)	261x60x63 in
Finish	Powder Coating
Package Method	Plywood Case
Packing Size (LxWxH)	90x38x33 in
Warranty	1year
Weight (N.W./G.W.)	992/1124 lbs
