Aiir Compressor Information |
Voltage |
230V 3PH 60HZ |
Air Flow Capacity |
32.8CFM |
Wire Gauge |
AWG5 |
Air Outlet Thread |
G 3/4" |
Oil Tank Capacity |
1.05Gal (4L) |
Rated Power |
10HP |
Rated Pressure |
116 PSI (0.8 MPa) |
Noise Level |
70dba |
Motor Speed |
3500RPM |
Oil Type |
Oil Lubricated |
Oil System |
Splash Lubricated |
Recommended Oil Grade |
S3R46 |

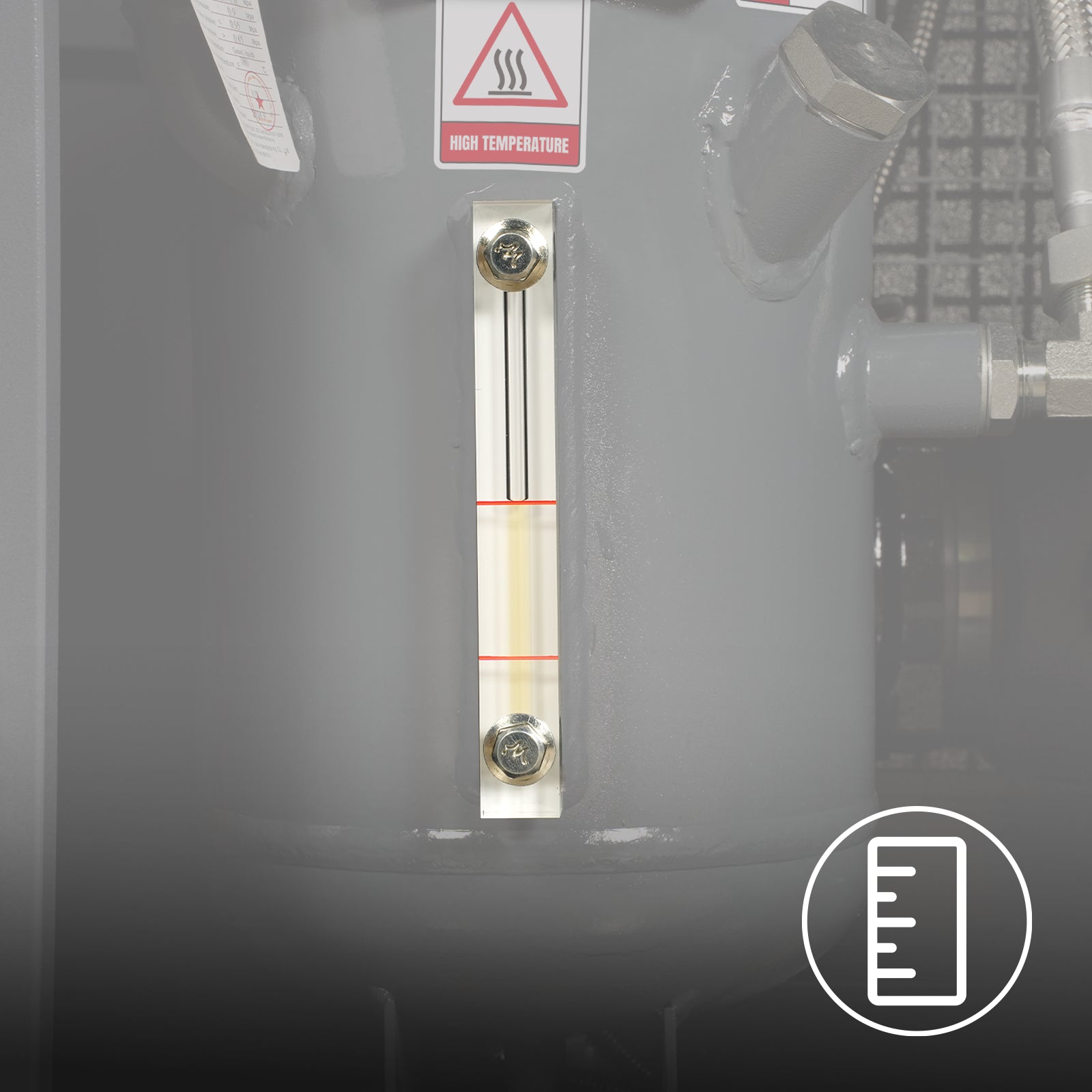

Oil Sight Glass |
Yes |
Pump Drive |
Belt Drive |
Air Tank & Refrigerated Air Dryer Information |
Air Tank Max Working Pressure |
152 PSI (1.05 MPa) |
Air Tank Max Puncture Test Pressure |
229 PSI (1.58 MPa) |
Air Tank Capacity |
62GAL |
Air Dryer Capacity Flow |
50CFM |
|
|
Machine Size: |
67.5" x 31.5" x 54" |
Packing Size: |
68.9" x 34.6" x 61" |
N.W.:/ G.W.: |
419 lb/473 lb |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
