SKU: 150411

| Model: SG24; B200

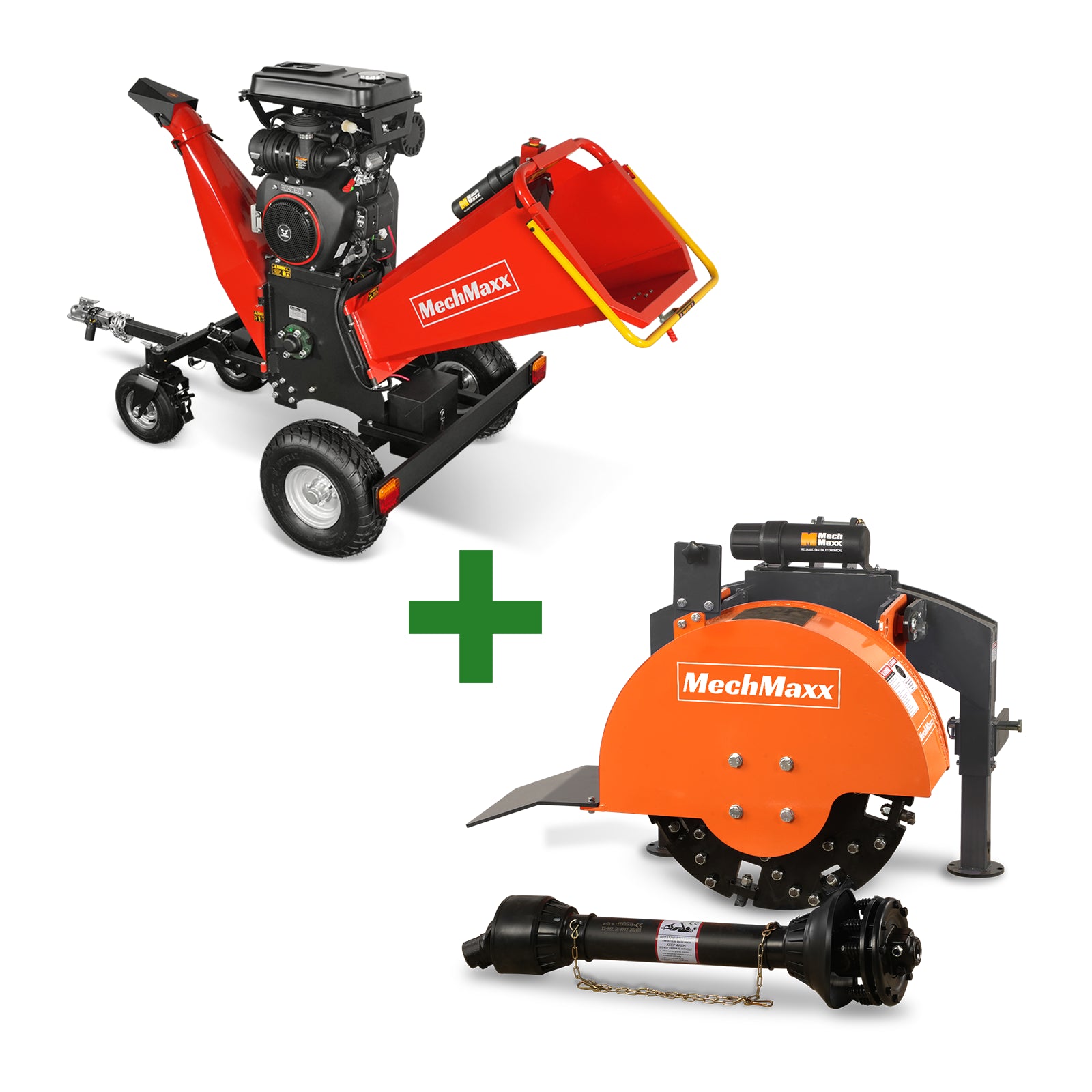

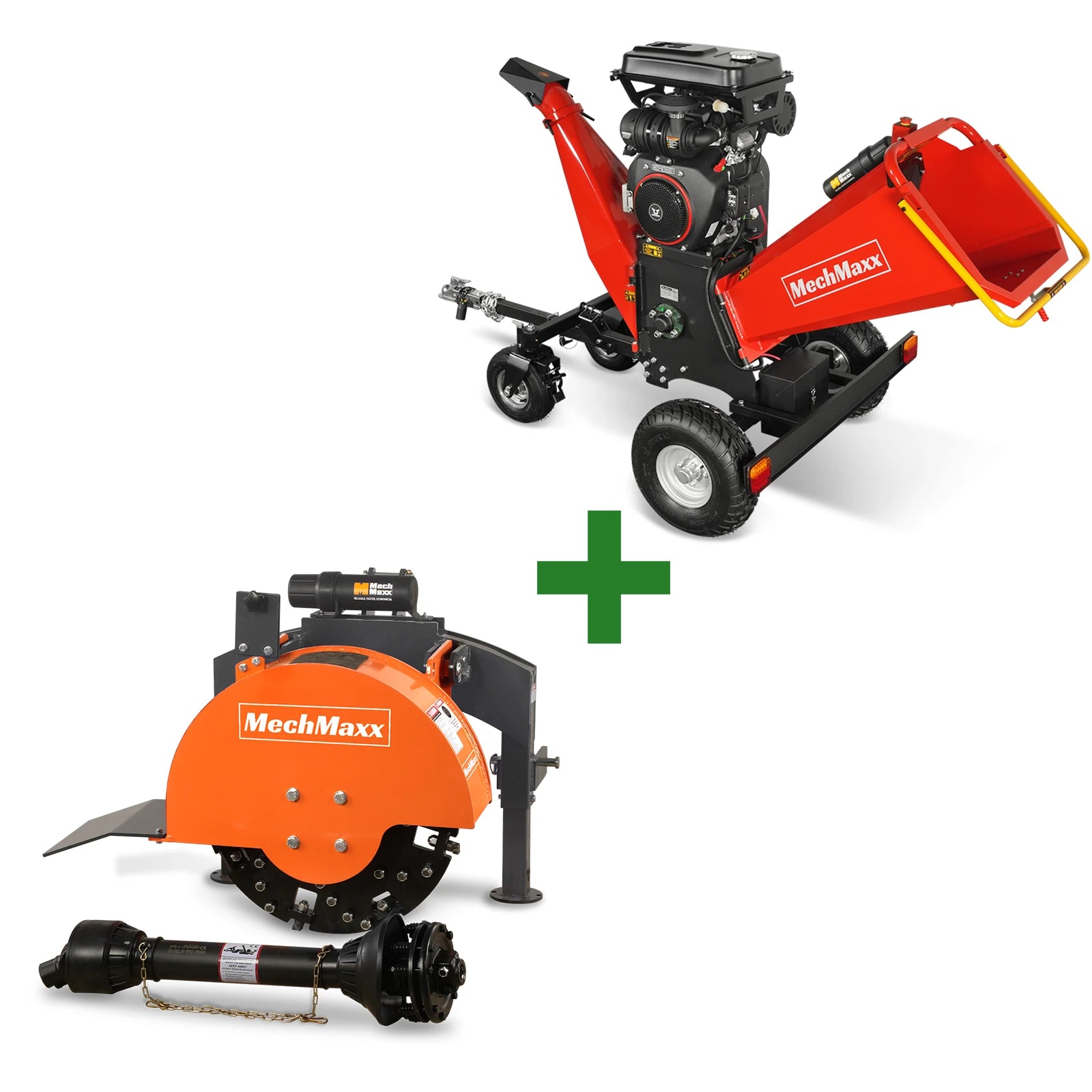

3-Point PTO Stump Grinder & 8 inch ZONSEN E-Start 1000cc 35hp Gas Powered Wood Chipper Bundle, SG24 & B200

Name: 3-Point PTO Stump Grinder & 8 inch ZONSEN E-Start 1000cc 35hp Gas Powered Wood Chipper Bundle, SG24 & B200
Brand: MechMaxx
SKU: 150411
Price: 4698.0 USD
Availability: InStock

$469800

$6,798.00

Save $2,100

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Availability: In Stock

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

PTO Stump Grinder Cover for SG24; SG24PRO (SKU 150151;150151G;150182;150182G）

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 )

( 1 Pack / 2 Pcs ) Blade for Wood Chipper B200 (SKU: 110810;110811)

Farming HD Backup 1080P Camera for Agri Industry 7" LCD

(1 Pack / 18 Pcs) Teeth and Nuts for Stump Grinder SG24; SG24PRO; SG28; SG30PRO; SG61, (SKU: 150151; 150151G; 150181; 150181G; 150182; 150182G; 150183; 150183G; 150501; 150602)

3-Point PTO Stump Grinder & 8 inch ZONSEN E-Start 1000cc 35hp Gas Powered Wood Chipper Bundle, SG24 & B200 $469800 $6,798.00

PTO Stump Grinder Cover for SG24; SG24PRO (SKU 150151;150151G;150182;150182G） $6999 $79.99

( 1 Pack / 1 Pcs ) Wood Chipper Cover for P4206, B150, B200 ( SKU: 110800; 110801; 110802; 110803; 110804; 110805; 110810 ) $6999

( 1 Pack / 2 Pcs ) Blade for Wood Chipper B200 (SKU: 110810;110811) $9299

Farming HD Backup 1080P Camera for Agri Industry 7" LCD $13999 $199.00

(1 Pack / 18 Pcs) Teeth and Nuts for Stump Grinder SG24; SG24PRO; SG28; SG30PRO; SG61, (SKU: 150151; 150151G; 150181; 150181G; 150182; 150182G; 150183; 150183G; 150501; 150602) $23999

Total Price

$

Product Overview

3-Point PTO Stump Grinder

Connects directly to your tractors 3 point hitch system and is equipped with a large 24’’ diameter solid steel grinding flywheel and 34 tungsten carbide cutting teeth to make the removal of tree stumps a breeze!
These extremely rugged stump grinders are engineered to deliver optimal performance when paired with tractors containing 15-45HP at the PTO and will easily grind up to 6’’ below the ground to remove roots and prepare the ground for grading or grass.
Designed to work on tractors with a PTO shaft. The stump grinder works best on tractors featuring PTO shafts that are independent of the tractors transmission drive system. This allows the operator to control the speed of the tractor independently and separately to the PTO speed.
Since the tractor pulls the grinder through the stump, the rate at which the tractor moves is important and should be independent of the PTO shaft.
PTO stump grinder with 34 teeth installed.

8" Wood Chipper

MechMaxx 35HP gasoline engine wood chipper, electric start, rated power up to 23.5kw/3600rpm.
This wood chipper has extremely powerful roller with the diameter of 14in., which can shred branches up to 8 inches.
Double-edge cut reversible blades greatly increase the service life.
Both the feeding chute and the discharge chute can be opened quickly and easily for the maintenance and repair.
By adopting whole shaped technology, the discharge chute is both attractive and practical with the ability to rotate 360 degrees.
You can stop the engine quickly in a crisis to improve operator safety with a safety button above the feeding chute and the emergency stop press bar on lower side of the feeding chute.
With front 13x5.00-6; rear 19x7.00-8 Tubeless tires and 48in. super-wide wheelbase, this wood chipper has the ability of driving on steep ground with the high stability.
This is a high-performance wood chipper fit for professionals and leasing companies.
Gasoline/Petrol: Clean, fresh, unleaded gasoline
Oil: 10W-30

Product manual (PDF)

SG24 Product manual 1.0.pdf

Product manual (PDF)

B200 Product manual 1.0.pdf

Engine manual (PDF)

Zonsen GB1000 Manual.pdf

Product Features

24 '' Flywheel Diameter

a large 24’’ diameter solid steel grinding flywheel This cutting-edge stump grinder features a 24-inch diameter cutting wheel, making it an indispensable tool for agricultural operations.

34 Tungsten Carbide Cutting Teeth

Equipped with 34 tungsten carbide cutting teeth that sharpen stumps quickly, speeding up work and making stump removal a breeze.

PTO Shaft

1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch. Compatible with reliable 540 rpm dedicated PTO drive power supply, ensuring efficiency and stable performance.

PTO Required

Extremely sturdy stump grinder engineered to provide optimal performance when used with tractors with PTO power of 15-45HP.

3 point hitch Cat. 1

The three-point connection ensures the stability of the root grinder connected to the tractor and remains stable when the machine is running, improving grinding efficiency and reducing working time.

Cutting Depth

Easily grinds underground to a depth of 6 inches to remove tree roots and prepare for grading or lawn.

Electric Start and Battery

The B200 Wood Chipper is powered by a 35hp 1000cc electric start gasoline engine, and equipped with a 45Ah 12V Lead-acid battery.

Feeding Chute

There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

Discharge Chute

Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.

Safety Devices

On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.

Maximum Wood Chip Diameter 8’’

The core cutting component of the B200 Wood Chipper is a roller with a diameter of 14” and a length of 12”. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 8” .

19*7.00-8 tubeless tire

The B200 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48” , providing enhanced stability when being towed.

Tail Light and Plug

The B200 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of B200 to synchronize with the vehicle's braking and turning signals.

Foldable and Lockable Front Wheels

When the B200 is being towed, the two 13*5.00-6 tubeless tires need to be folded up. When the B200 is operational, they can be lowered. When the B200 needs to be pushed to a designated work area, the two wheels can be locked to ensure straight-line movement.

Discharge Chute Design

The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.

Video

Demonstration

Highlights

Assembly & Installation-1

Assembly & Installation-2

Demonstration

Highlights

Assembly & Installation-1

Assembly & Installation-2

Assembly & Installation-3

Maintenance & Upkeep

Product Warranty

Specifications

3-Point PTO Stump Grinder

Flywheel Diameter	24 in	Mounting	3 Point Hitch Cat. 1 (Quick Attach Compatible)
Flywheel Thickness	3/4 in	PTO Input	540 RPM
Carbid Tip	34 PCS	Max. Torque	1200 N·m
Carbid Tip Material	YG11C	PTO Shaft Weight	44 LBS
Tip Holder Material	42CrMo	Dimensions	29 × 37 × 38 in
PTO HP Required	15–45 HP	Packing	Iron Frame + Carton
PTO Shaft (Included Shipping)	1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft with Slip Clutch	Weight (N.W/G.W.)	450/563 LBS
Friction Torque Limiter (Slip Clutch)	Included

8 inch 35hp Wood Chipper

Engine	ZONSEN GB1000	Feed Roller	13.8 in
Engine Type	Air cooled 4-stroke OHV petrol engine	Knives Nos.	2 x Blade; 1 x Anvil
Displacement/HP	1000cc；35hp	Knives Material	A8 （5Cr8MoVSi）
Rated Power	23.5 kw/3600 rpm	Discharge Chute	360 Degree Rotating
Max. Net Torque	71.2 Nm/2500 rpm	Emergency Stop	Stop Bar + Button
Fuel Capacity	4.76 gal	Towing	Tow Bar with 2 in Coupler
Starting	Electric Starting	Wheel	19*7.00-8 Tubeless
Battery	45Ah 12V Lead-Acid Battery	Wheel Base	48 in
Belt	4 x V-Belts	Package Method	Plywood Case
Belts Material	Kevlar	Weight (N.W./G.W.)	705/798 lbs
Clutch	Centrifugal Clutch	Packing Size (LWH)	50 x 30 x 49 in
Cutting Method	Drum	Machine Warranty	2 Years
Max. Chipping Dia.	8 in	Engine Warranty	2 Years

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
