SKU: 500422

| Model: GH4228

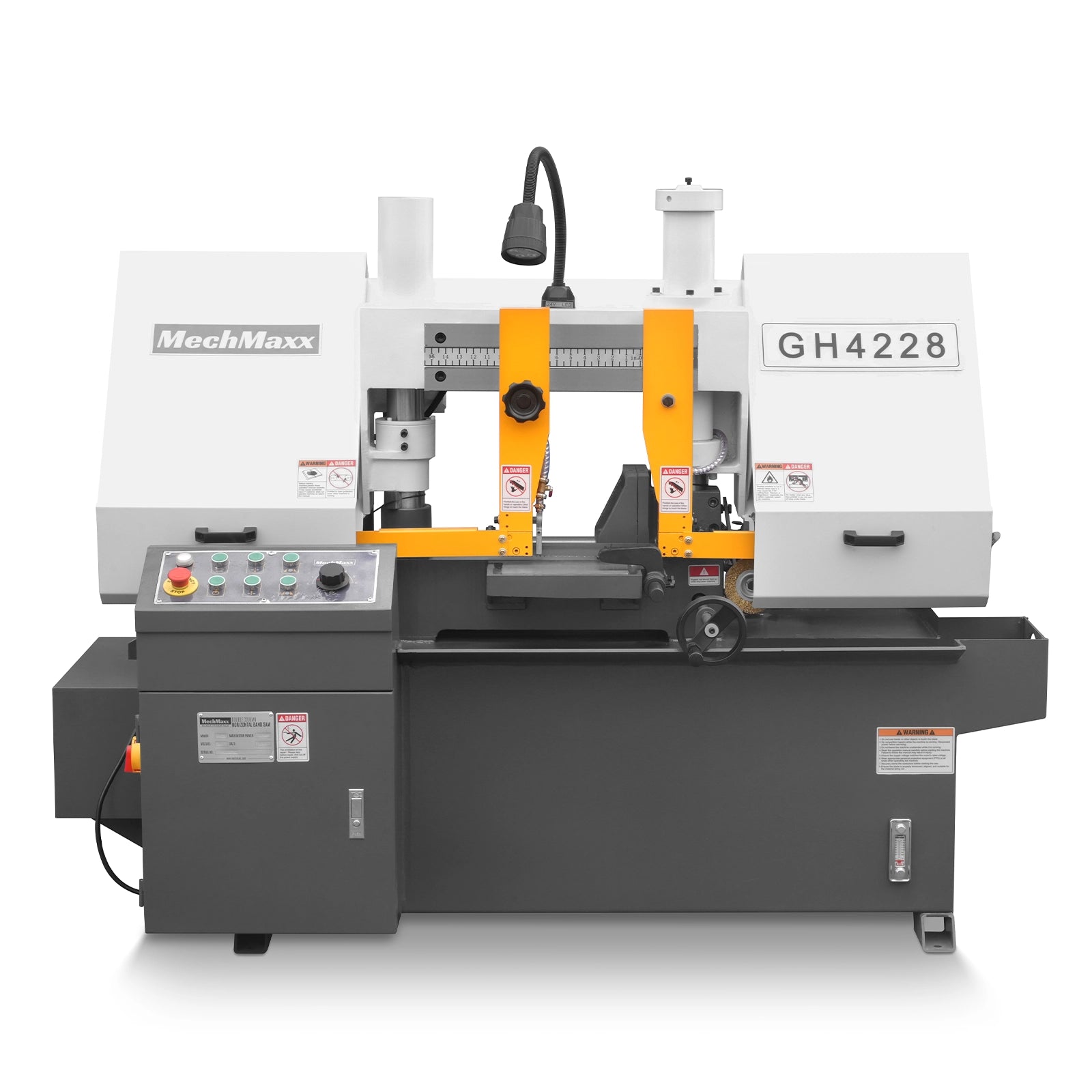

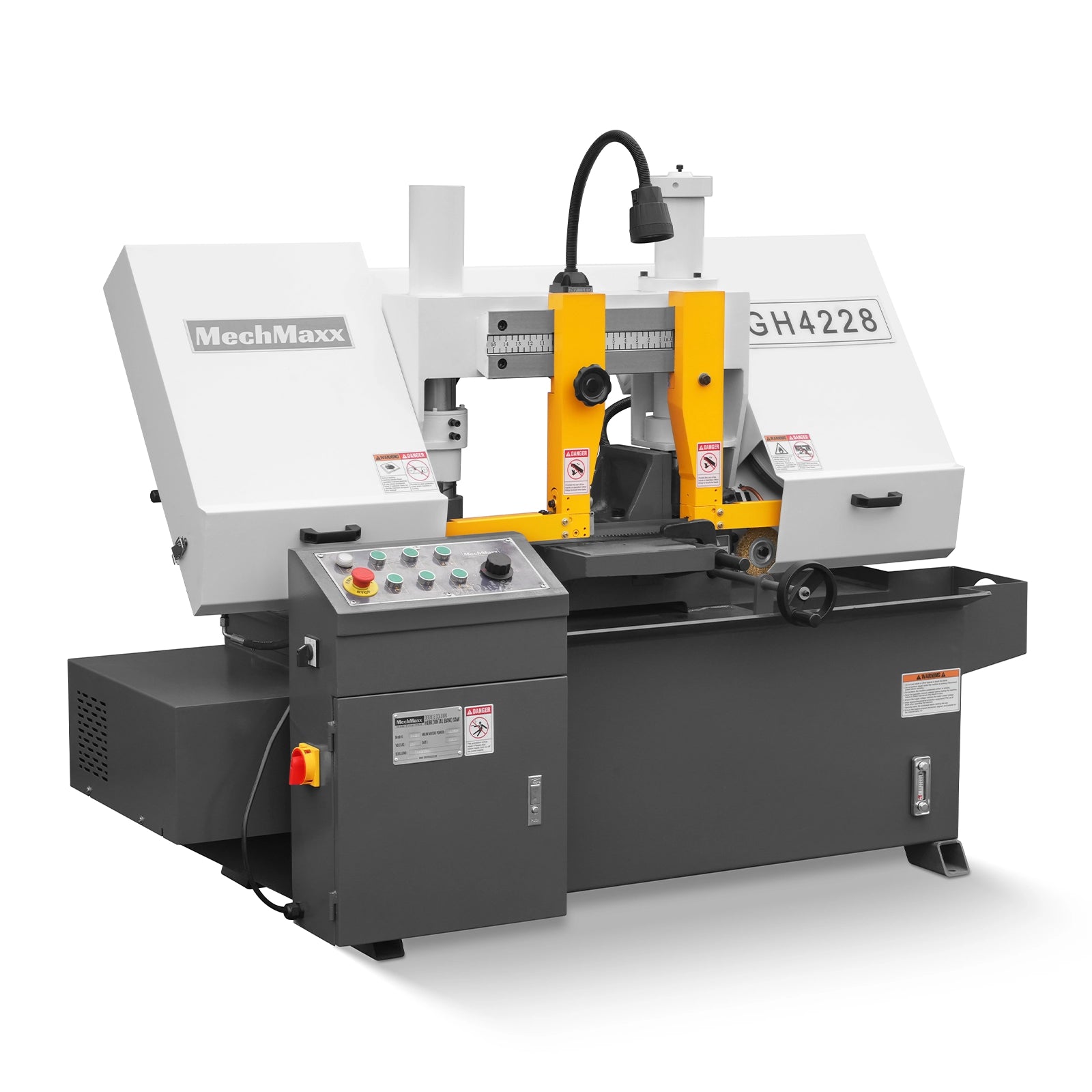

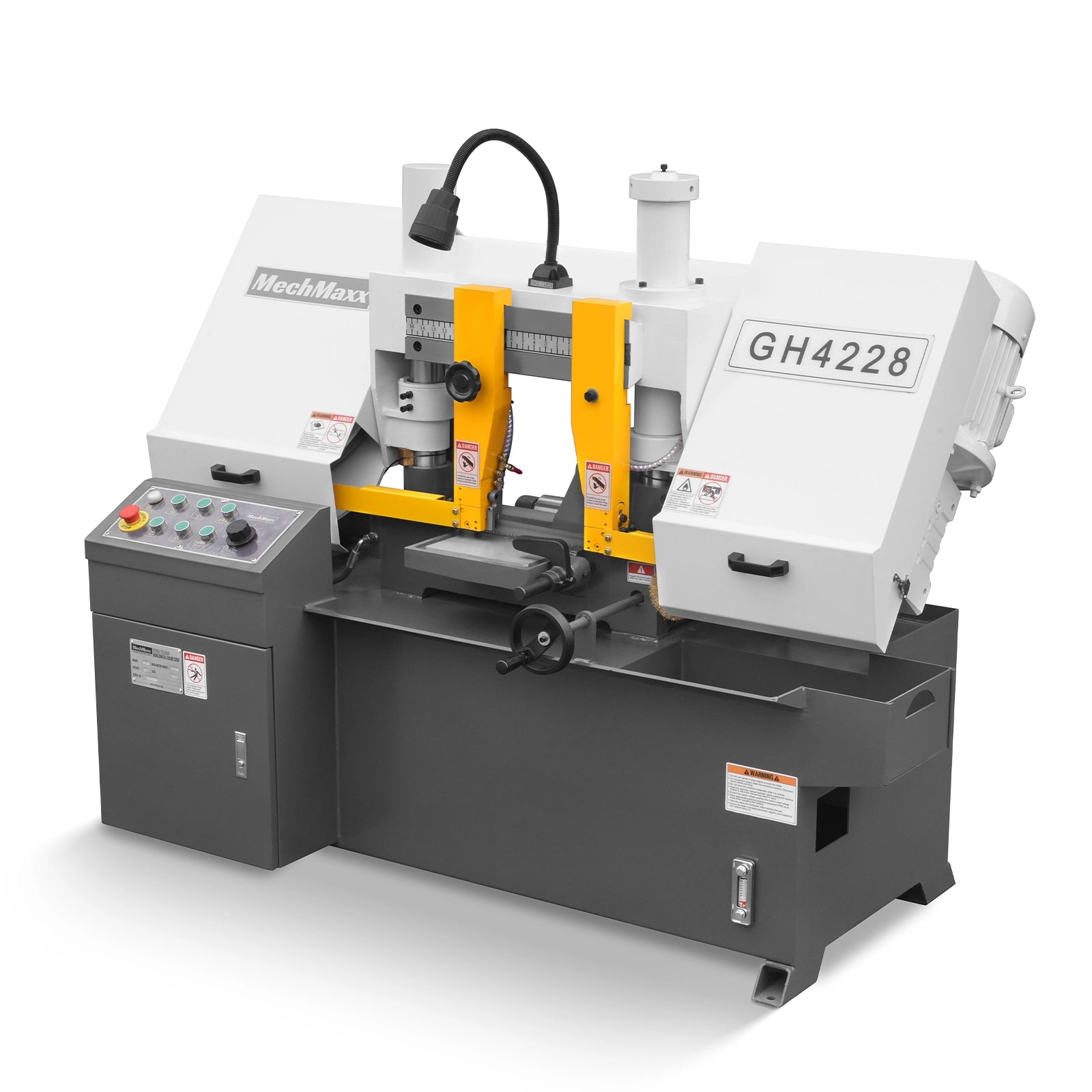

11" Double Column Horizontal Metal Cutting Band Saw, 2-Speed, Hydraulic Feed, 2.8kW Industrial Saw GH4228

Name: 11" Double Column Horizontal Metal Cutting Band Saw, 2-Speed, Hydraulic Feed, 2.8kW Industrial Saw GH4228
Brand: MechMaxx
SKU: 500422
Price: 6954.0 USD
Availability: OutOfStock

$695400

$12,999.00

Save $6,045

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Bandsaw Type : Double Column Bandsaw

Double Column Bandsaw Horizontal Bandsaw

Cutting Capacity & Power : 11" / 280 mm (3.0/3.8 HP)

11" / 280 mm (3.0/3.8 HP) 8" / 200 mm (1.1/2.0 HP) 13" / 350 mm (3.0/3.8 HP) 15.7" / 400 mm (4.0/5.4 HP)

Workpiece Clamping : Hydraulic Clamping

Hydraulic Clamping

Availability: Out of Stock

Payment:

Lifetime Technical Support

Get expert troubleshooting and operational assistance via phone or email for the life of your equipment.

Warranty Coverage

Backed by our dependable equipment warranty for long-term protection.

Official Website Lowest Price Guarantee

Shop directly from our official website with confidence. If you find an identical product currently listed at a lower price on another website, we'll refund the difference.

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

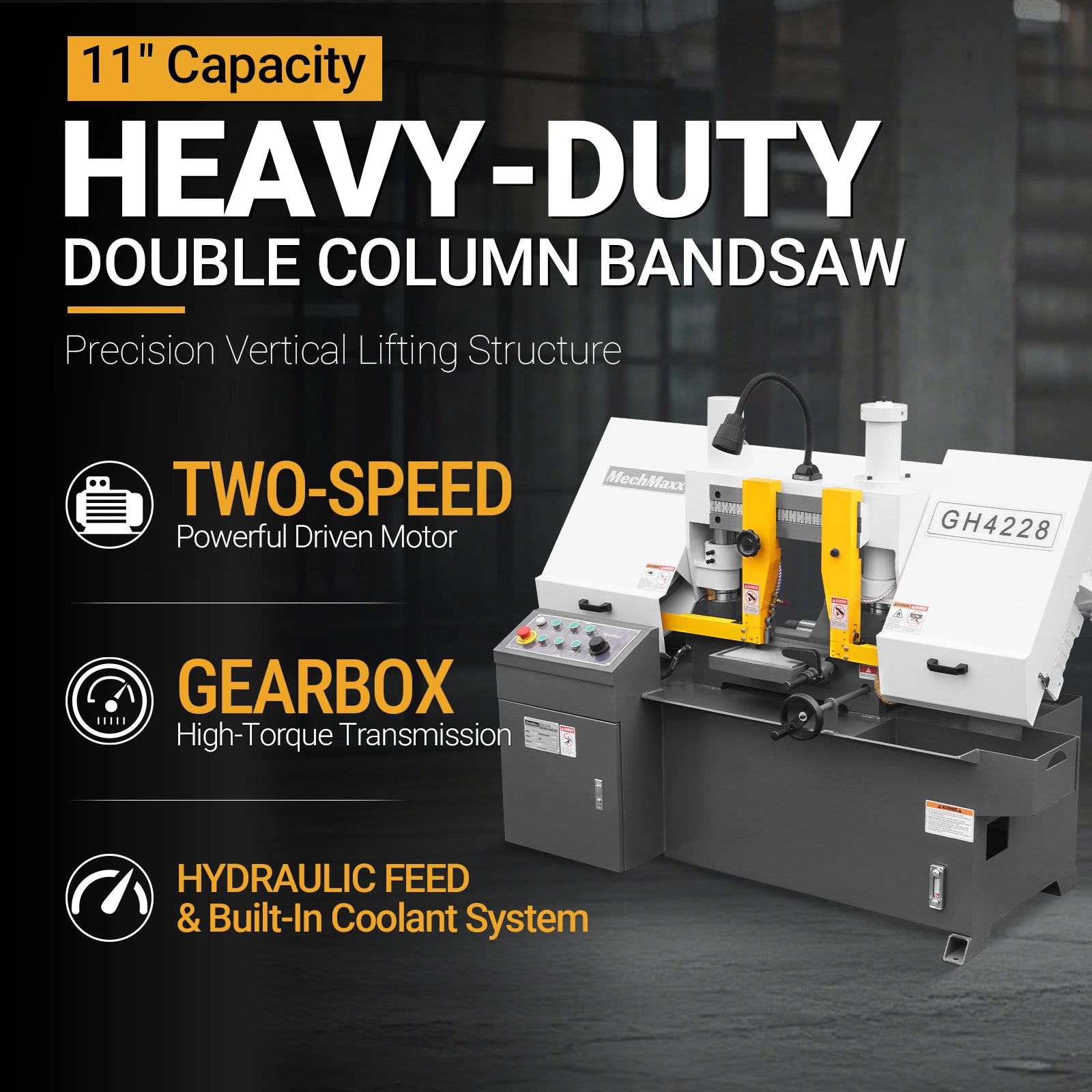

Product Overview

【Max Cutting Capacity】: Cuts round stock up to 11‑3/4" and square stock up to 11‑3/4" × 11‑3/4" for heavy‑duty metal processing.

【2‑Grade Adjustable Speeds】: two cutting speeds (151,230 ft/min) to adapt to different metal hardness for optimized cutting efficiency.

【Hydraulic Stepless Feed】: Infinitely variable hydraulic feed system ensures smooth cutting motion and extends saw blade service life.

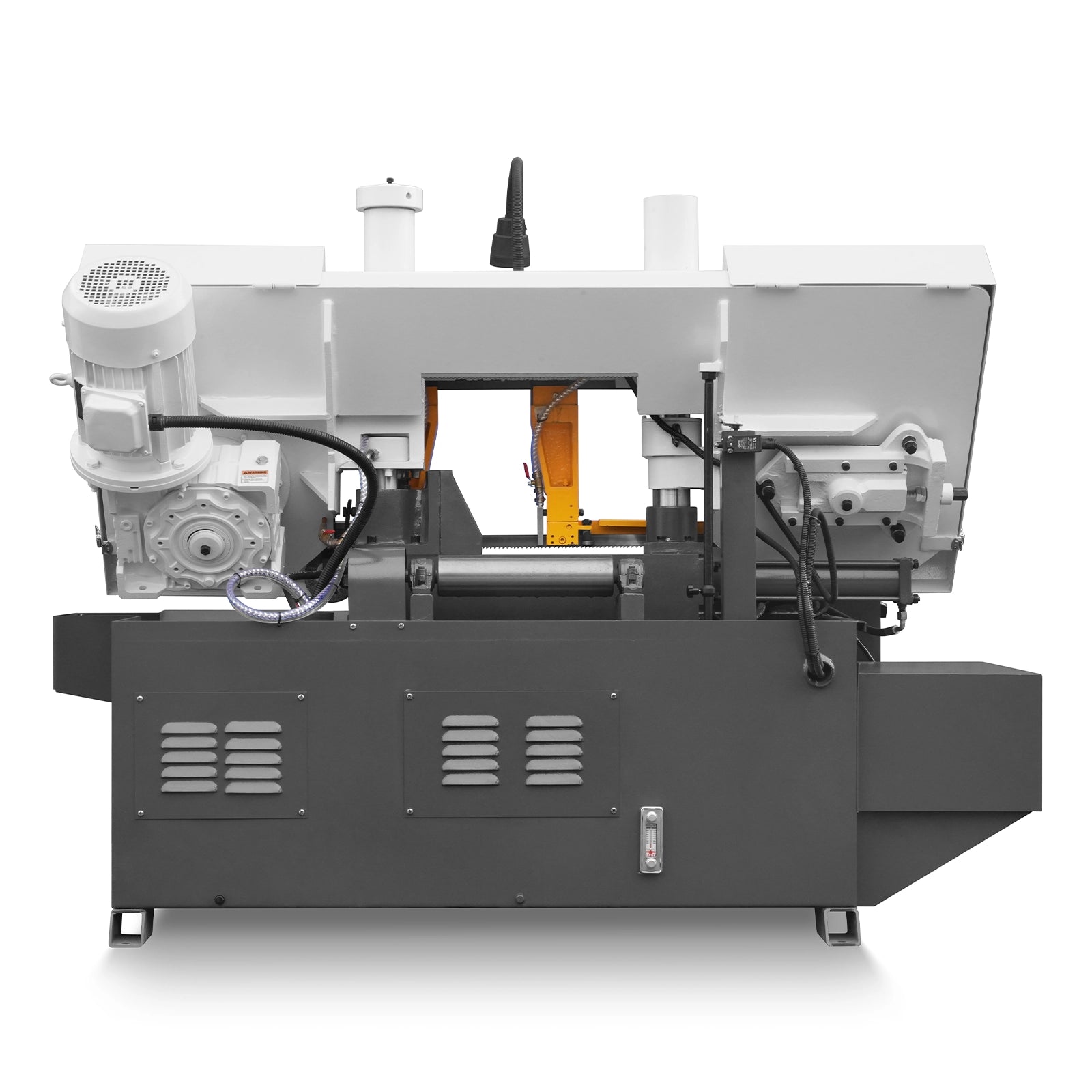

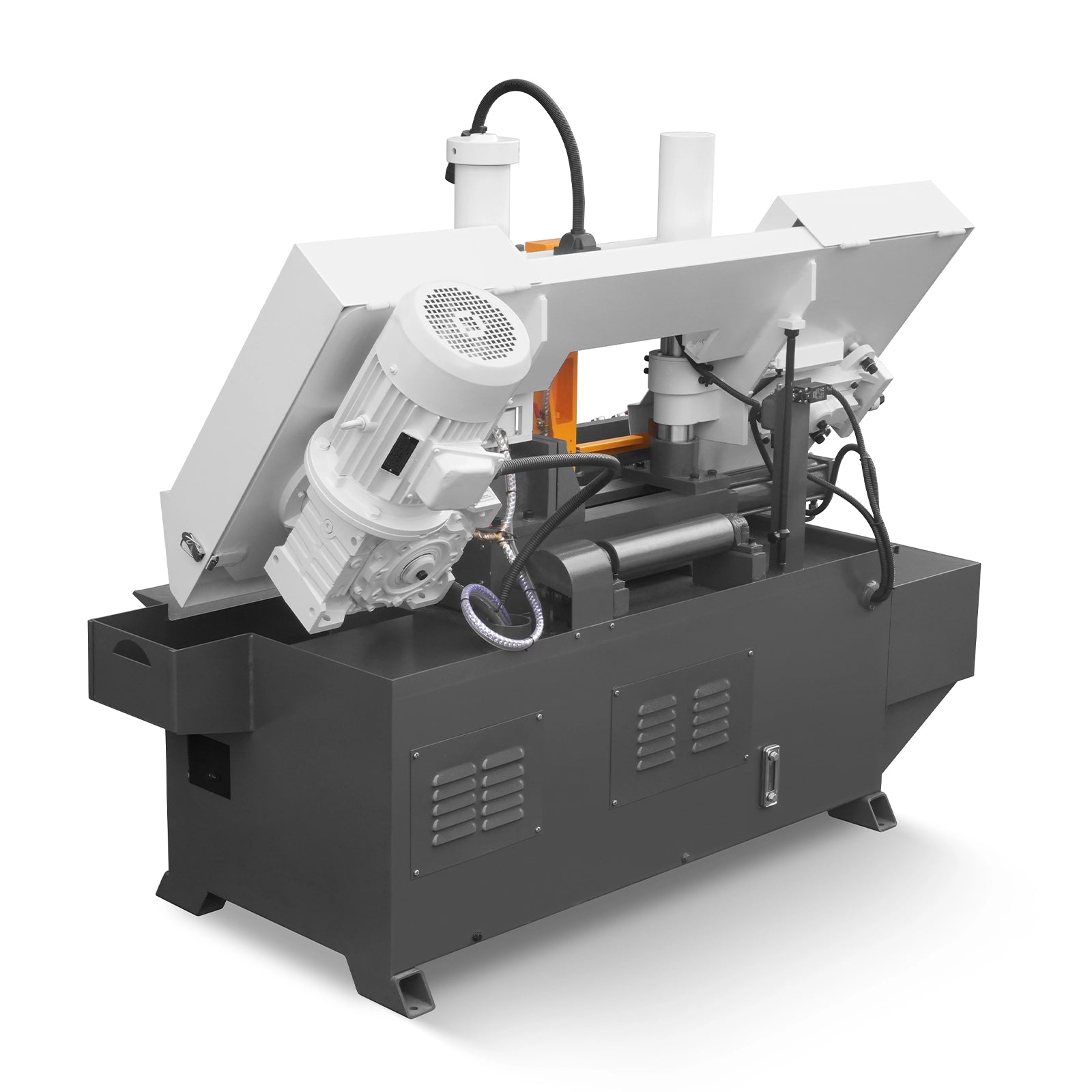

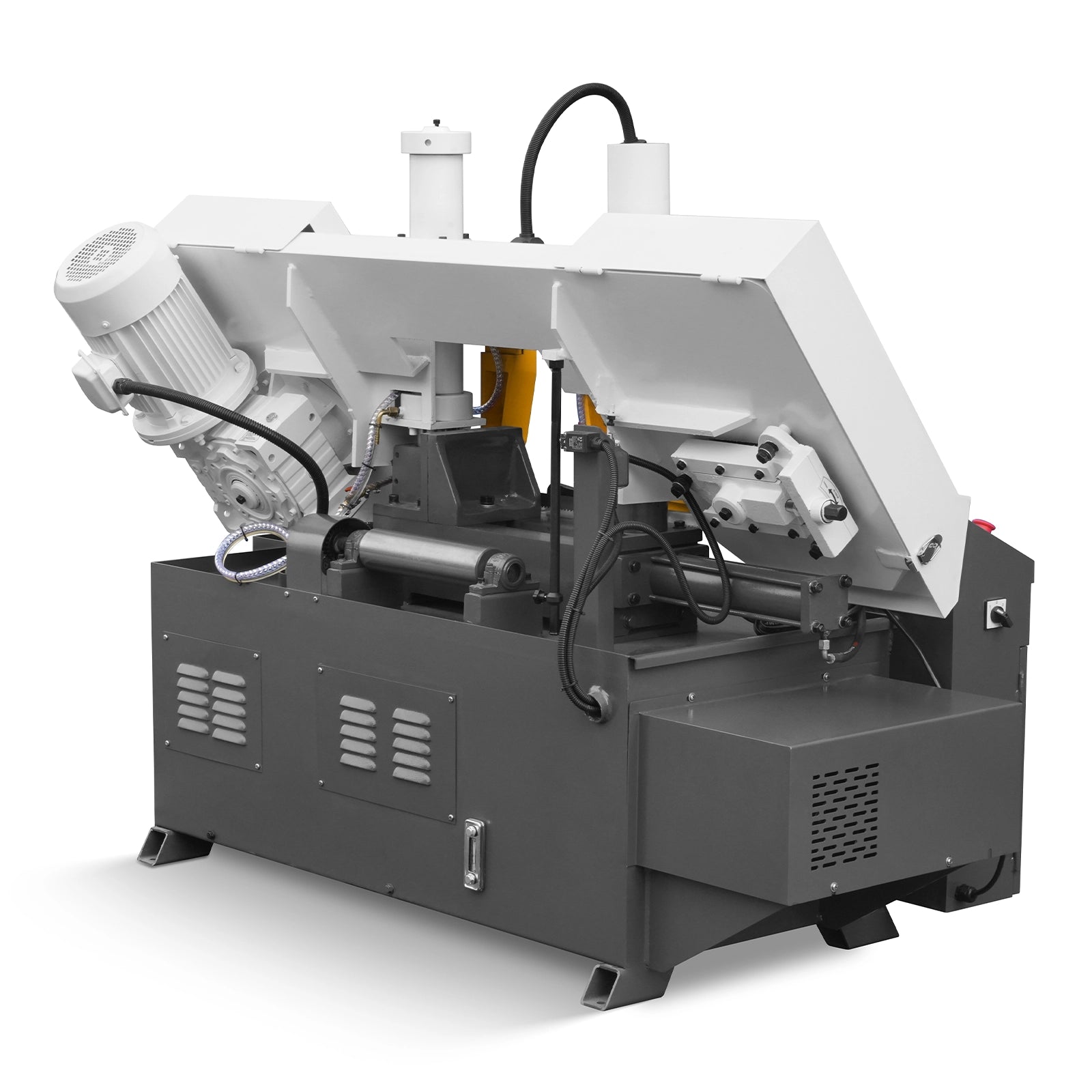

【Powerful Worm‑Bar Drive】: 2.2/2.8kW main motor with worm‑bar transmission delivers high torque, stable operation and low noise.

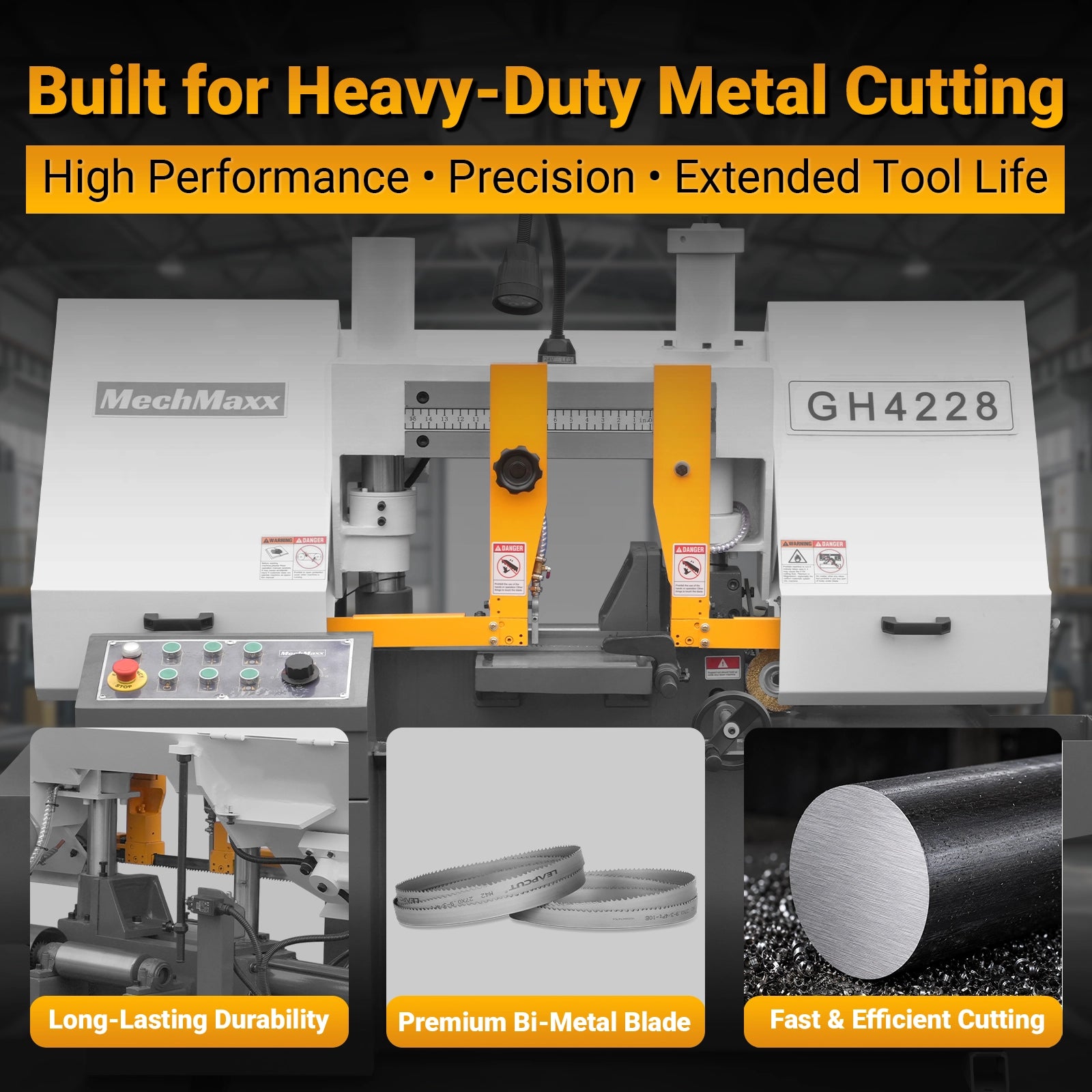

【Heavy‑Duty Double‑Column Structure】: Vertical lifting frame with high rigidity, minimal vibration and long‑term cutting precision.

【Secure Manual Clamping】: Reliable manual clamping mechanism firmly fixes workpieces during continuous cutting tasks.

【Integrated Coolant System】: Built‑in coolant tank and pump provide effective cooling and lubrication for superior cut finish.

Product manual (PDF)

500422 GH4228 11 in Metal Band Saw.pdf

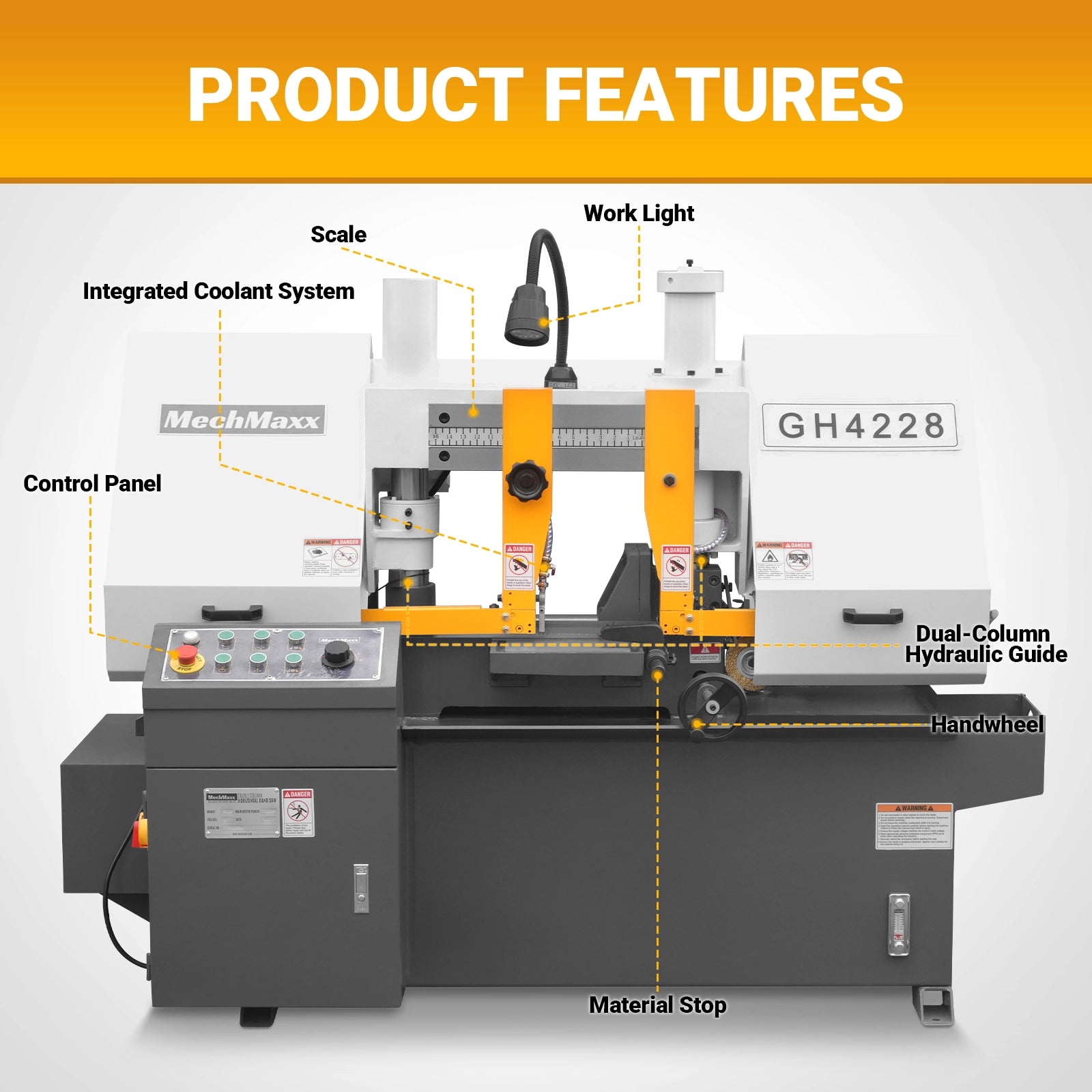

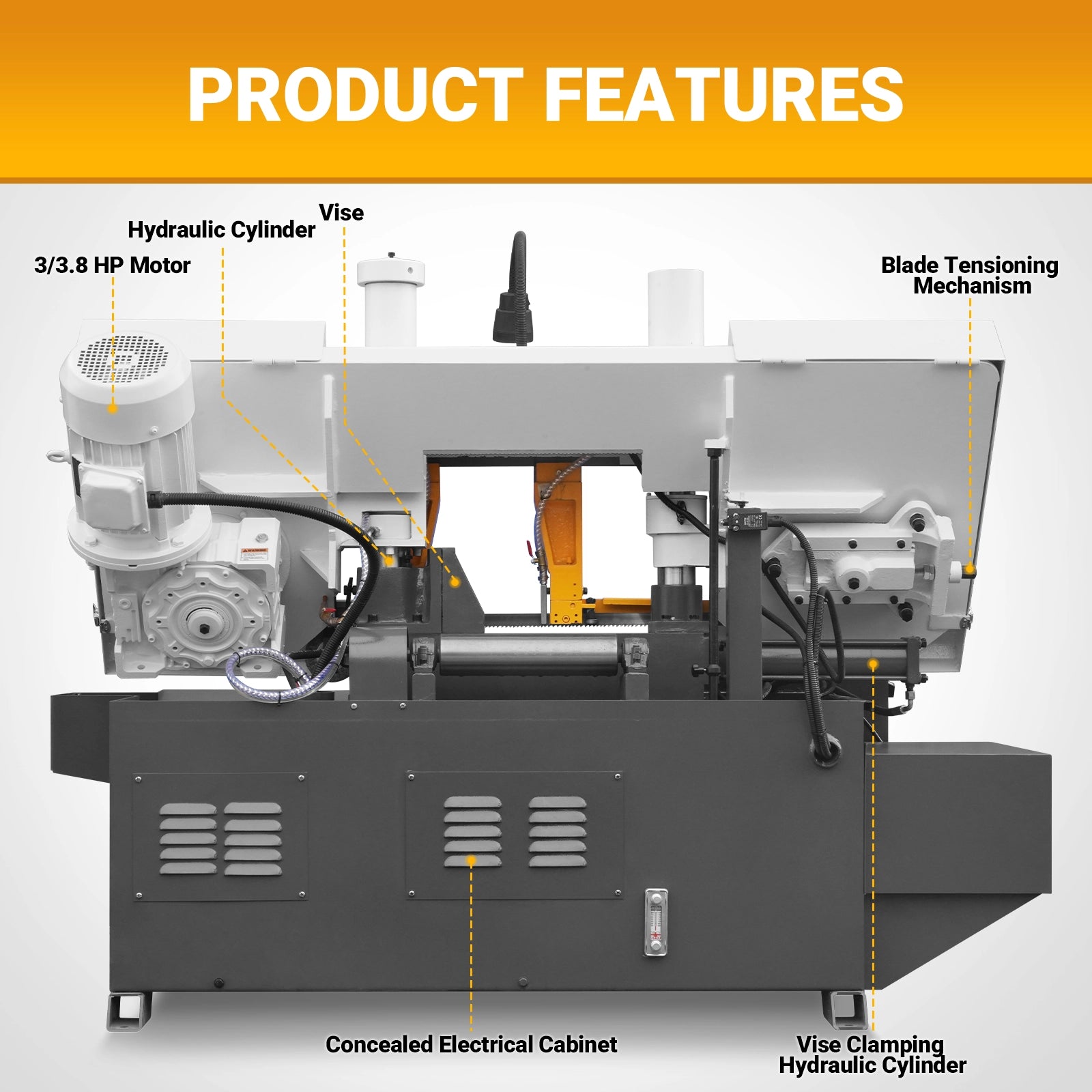

Product Features

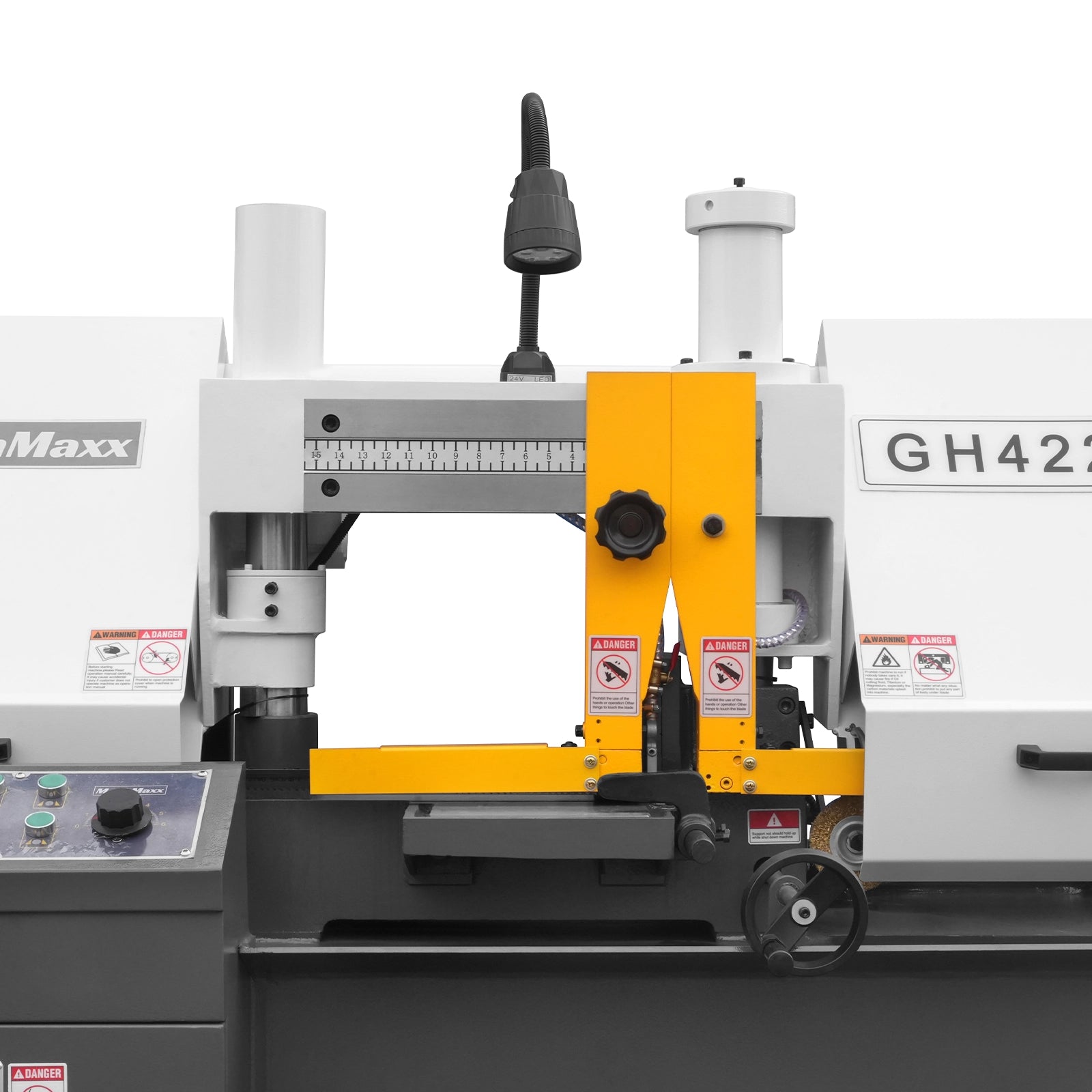

Reinforced Dual-Column Rigidity

Built with reinforced dual chrome-plated guide columns providing unyielding vertical tracking. Minimizes torsional distortion and blade deflection during heavy cuts, ensuring long-term cutting squareness and operational stability.

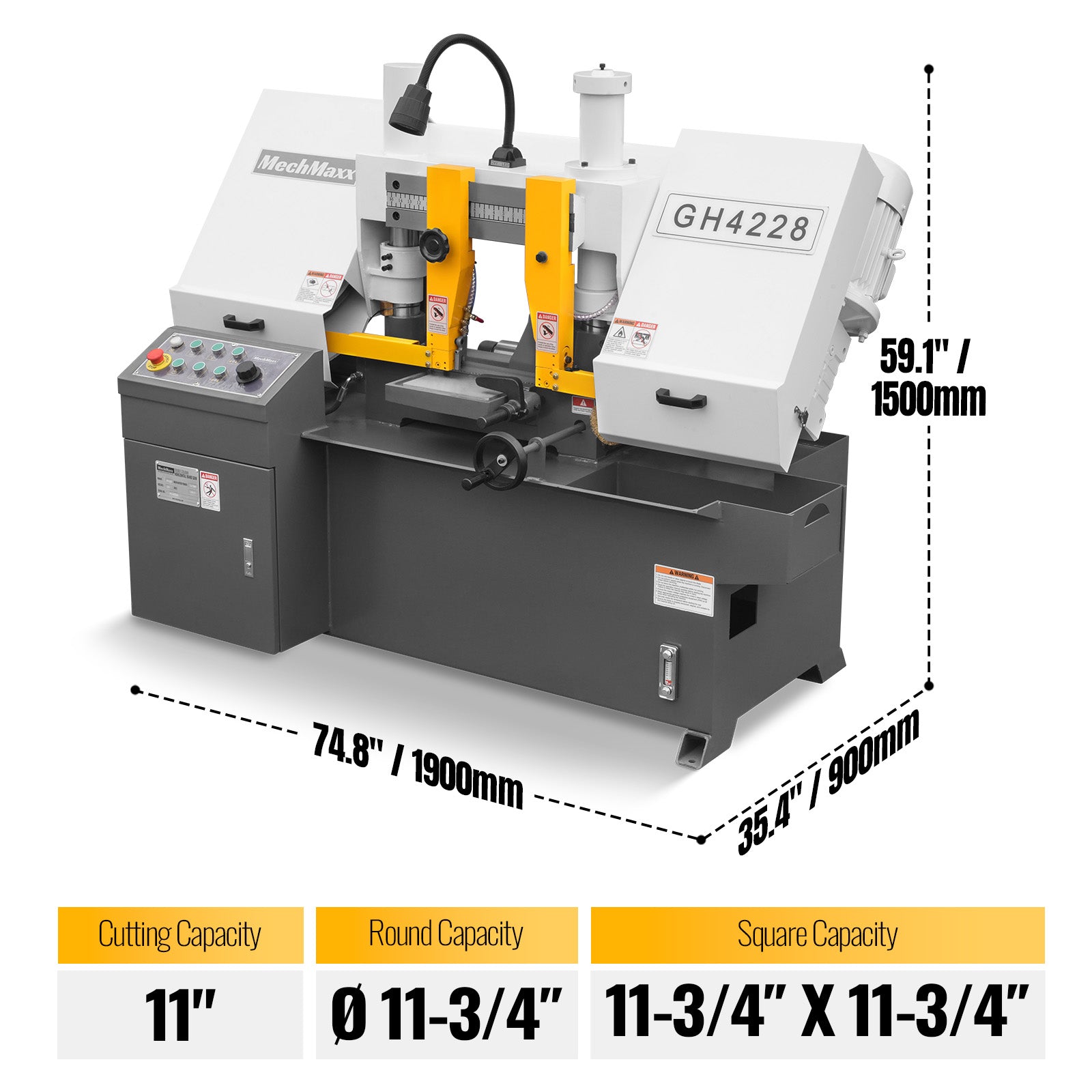

11" (280 mm) Expanded Cutting Capacity

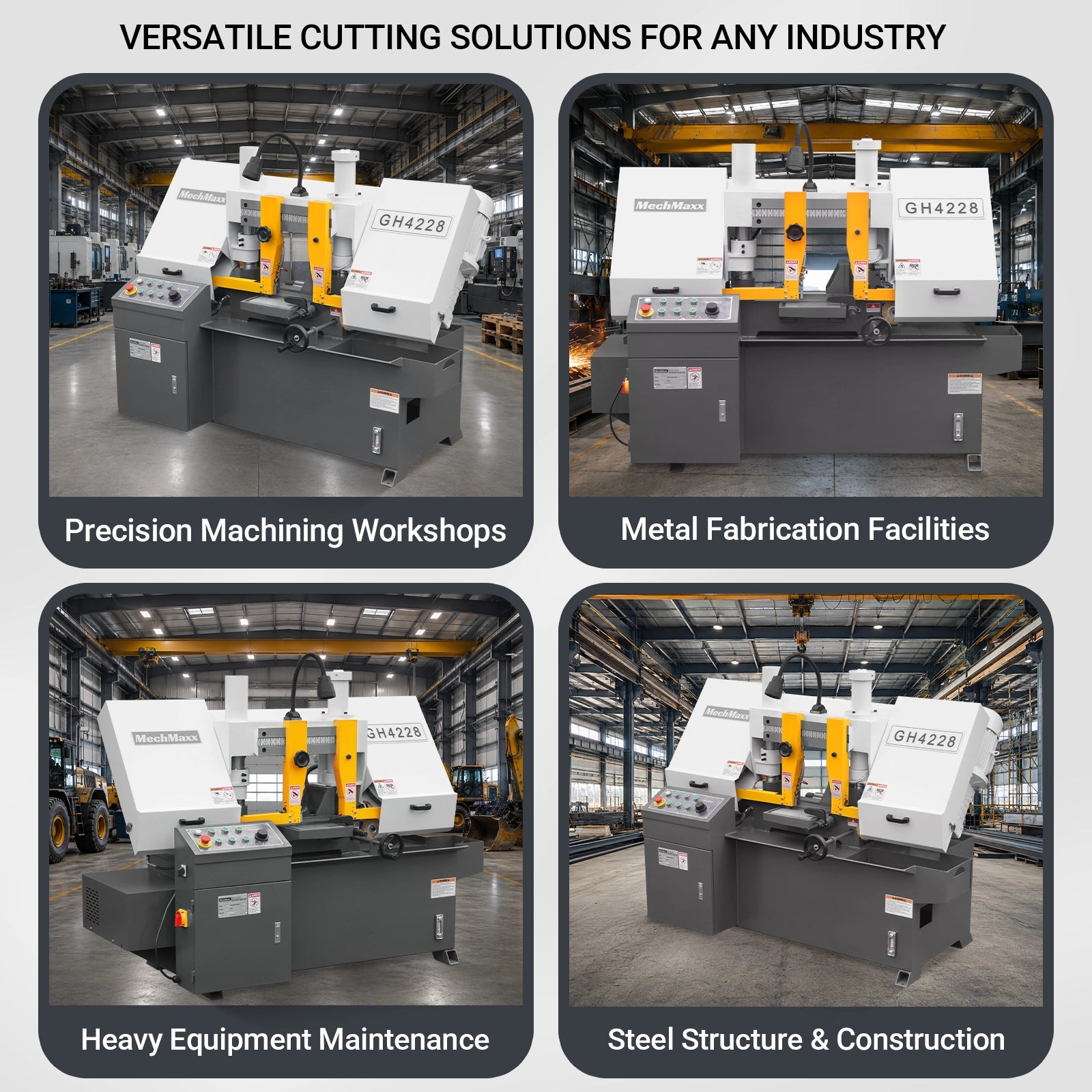

Offers a generous 11" (280 mm) round and 11" × 11" (280 × 280 mm) square cutting capacity. Designed for heavy fab shops and industrial facilities tackling large structural steel, solid billets, heavy pipe, and dense alloy blocks with ease.

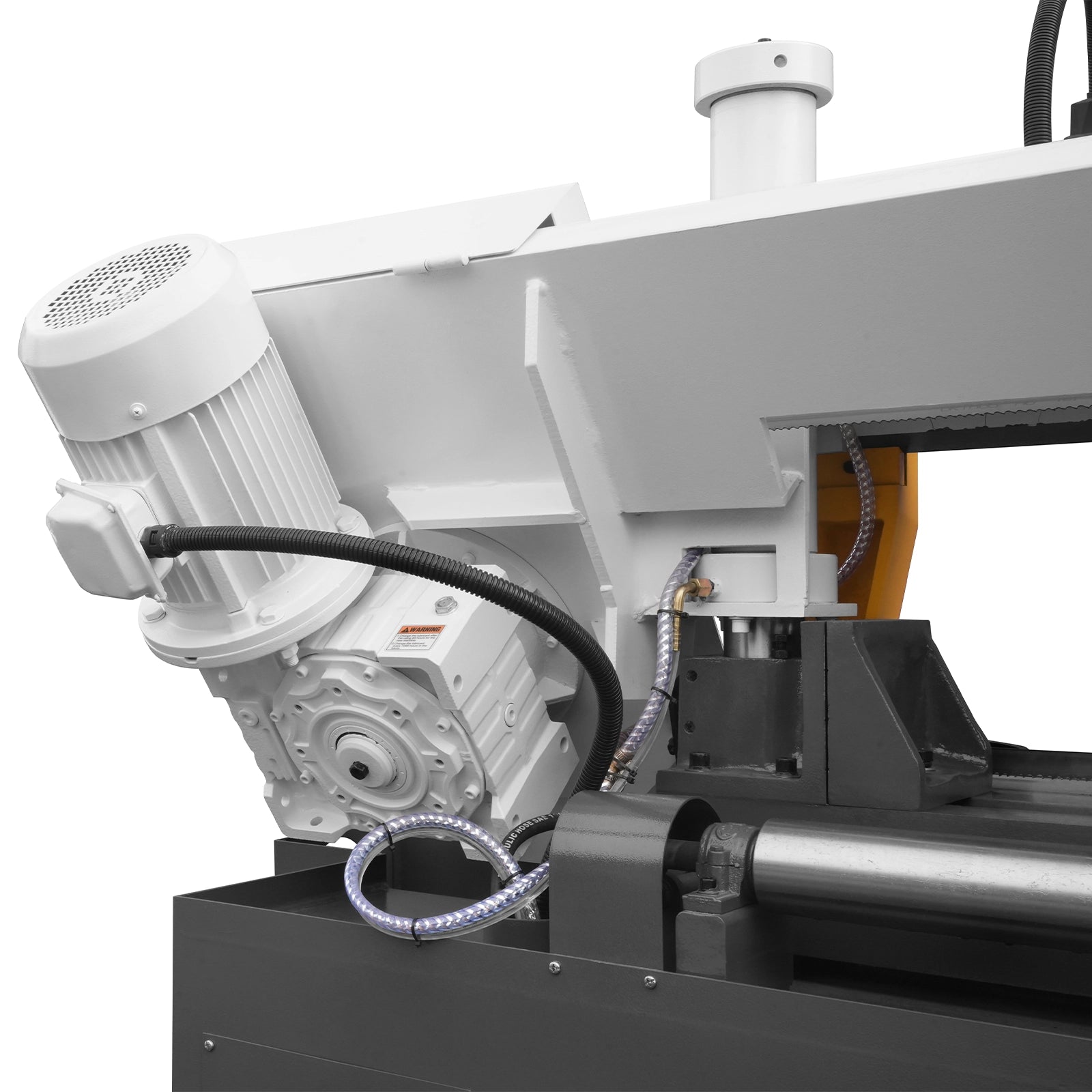

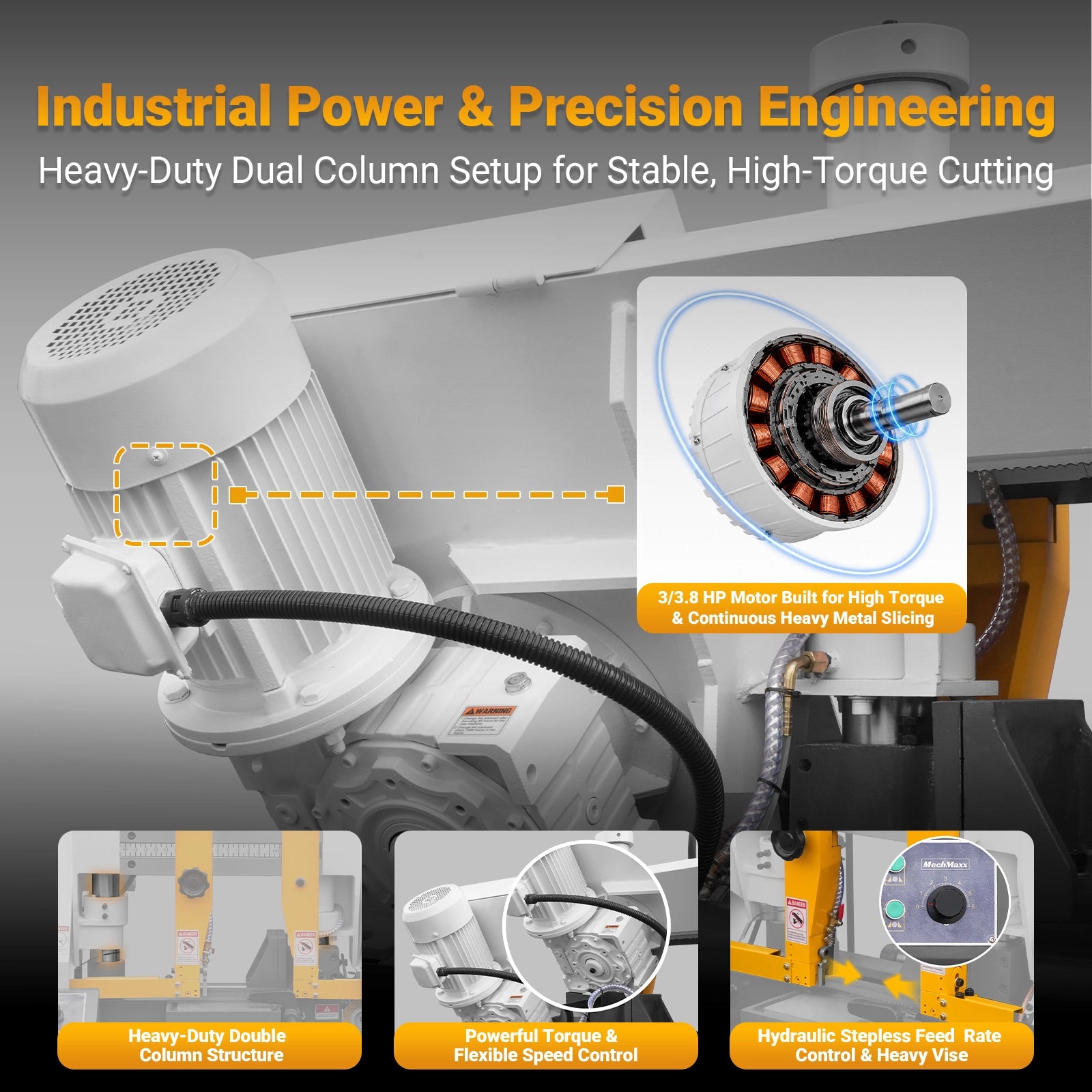

3.0/3.8 HP (2.2/2.8 kW) Motor

Powered by a 3.0/3.8 HP (2.2/2.8 kW) continuous-duty industrial motor. Delivers unrelenting cutting torque to drive thick-gauge band saw blades smoothly through tough stainless steel, tool steel, and alloys without bogging down.

Two-Speed Motor Versatility

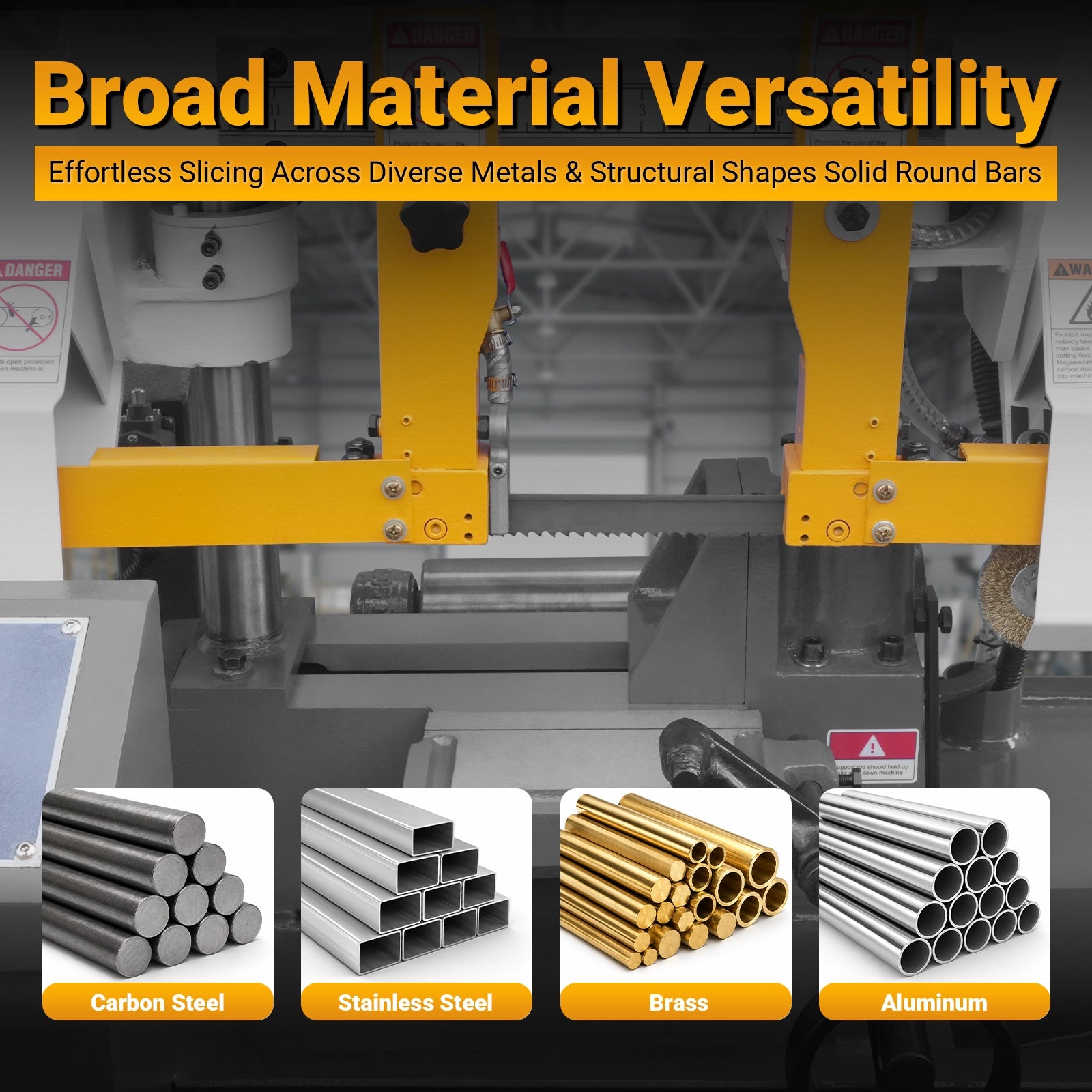

Features convenient two-speed blade regulation to optimize Surface Feet per Minute (SFPM). Run low speed for dense stainless and tool steel to extend tooth life, or high speed for rapid cutting of carbon steel and aluminum.

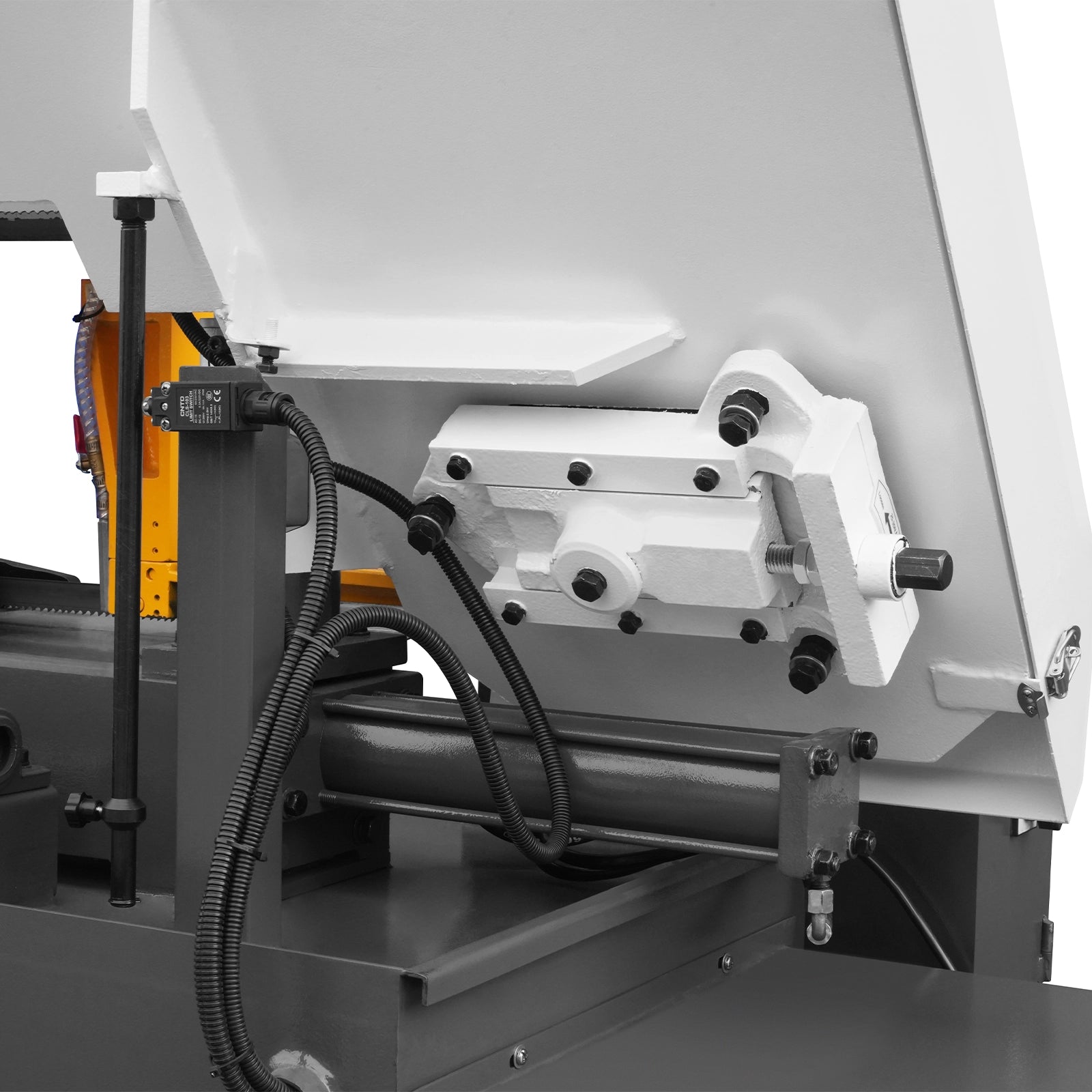

Stepless Hydraulic Downfeed

Equipped with a precision hydraulic cylinder and stepless needle throttling valve. Allows infinitely variable downfeed speed adjustments to match tooth engagement perfectly, preventing tooth stripping upon breakthrough.

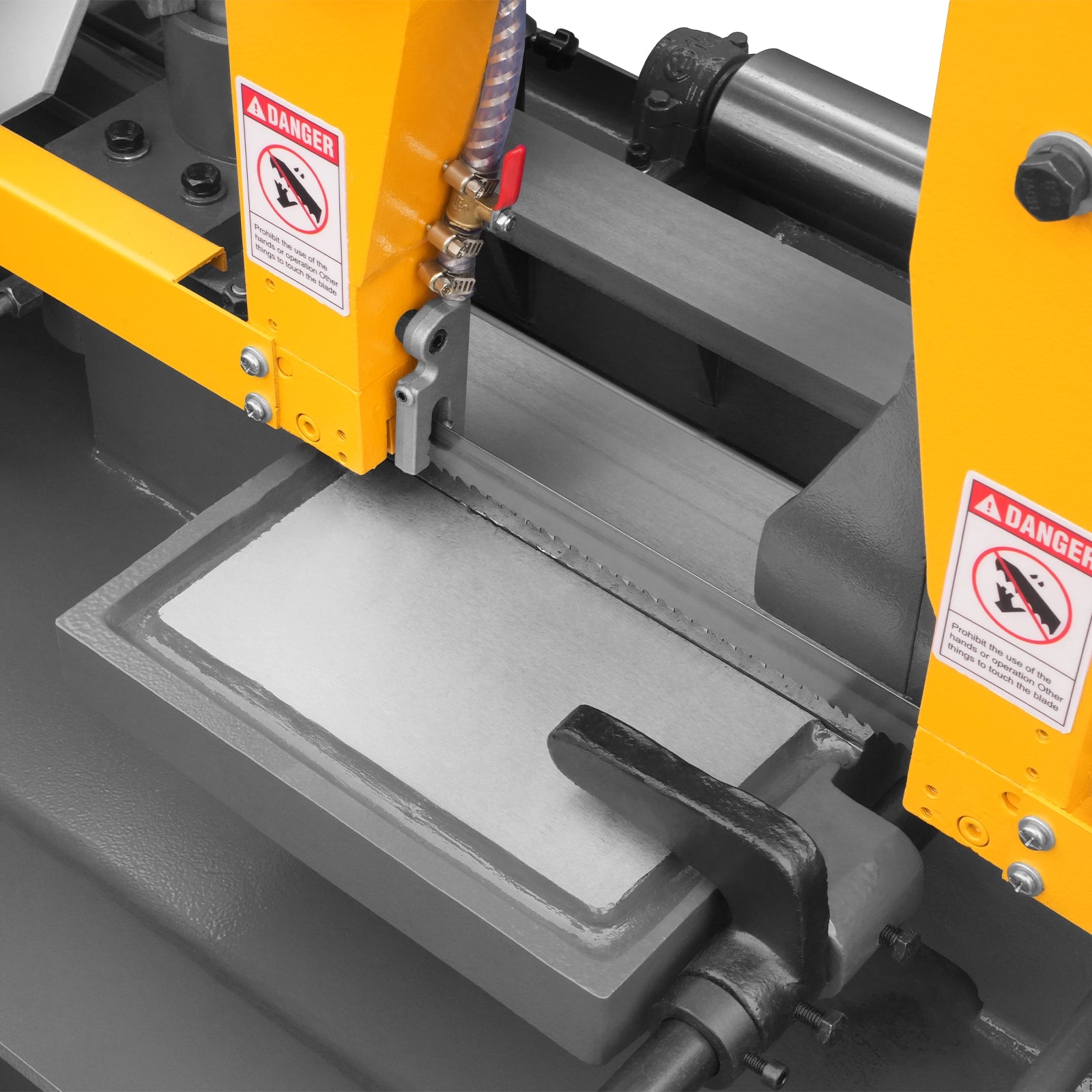

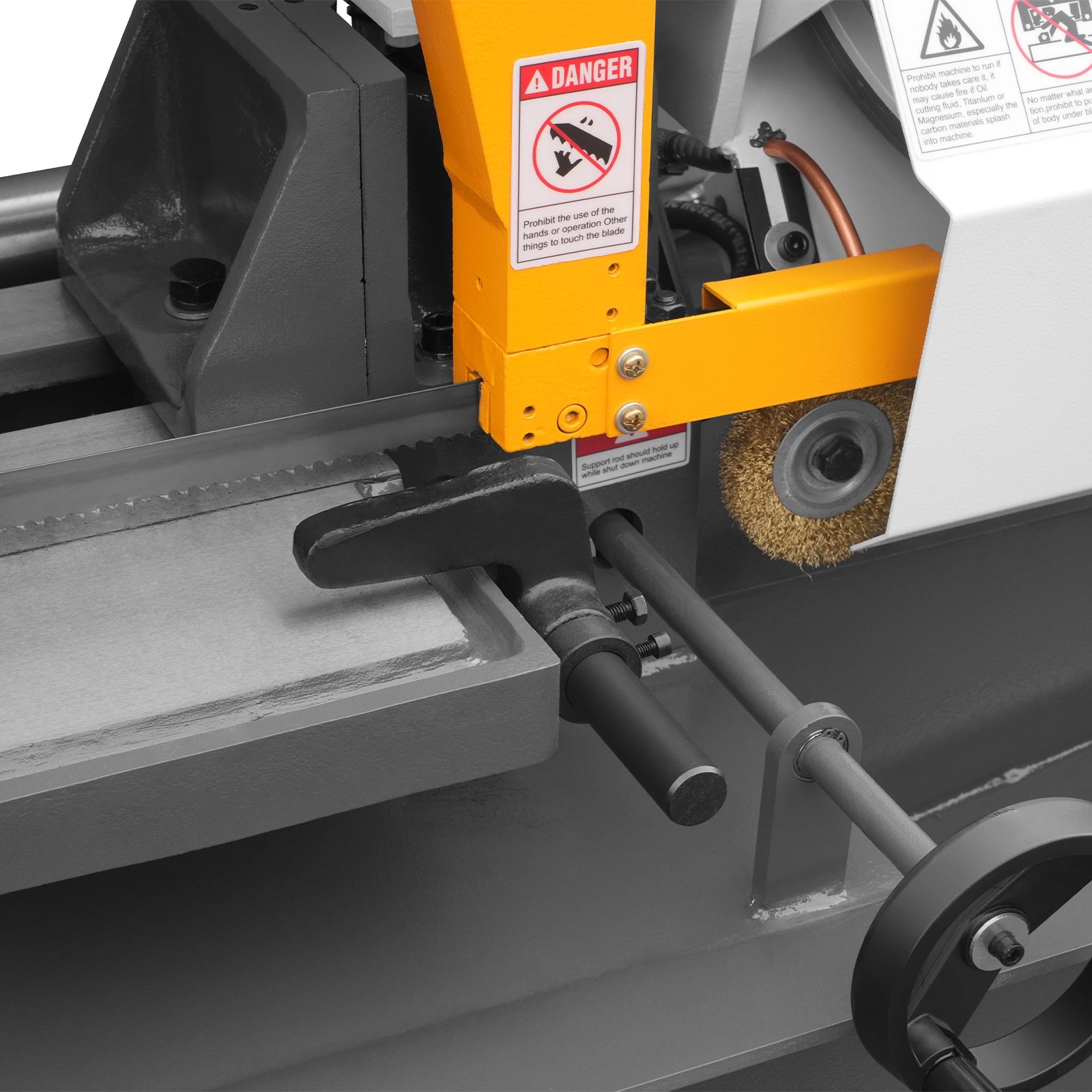

Precision Heavy-Duty Vise

Reinforced cast iron clamping vise with precision ground jaws and high-efficiency acme lead screw. Locks bulky workpieces with massive clamping force to eliminate rotational play and vibration during sawing.

Flood Coolant & Chip Flushing

High-capacity recirculating coolant pump with adjustable dual flex-nozzles rapidly dissipates thermal stress at the cutting interface, flushes swarf away from teeth, and dramatically extends band service life.

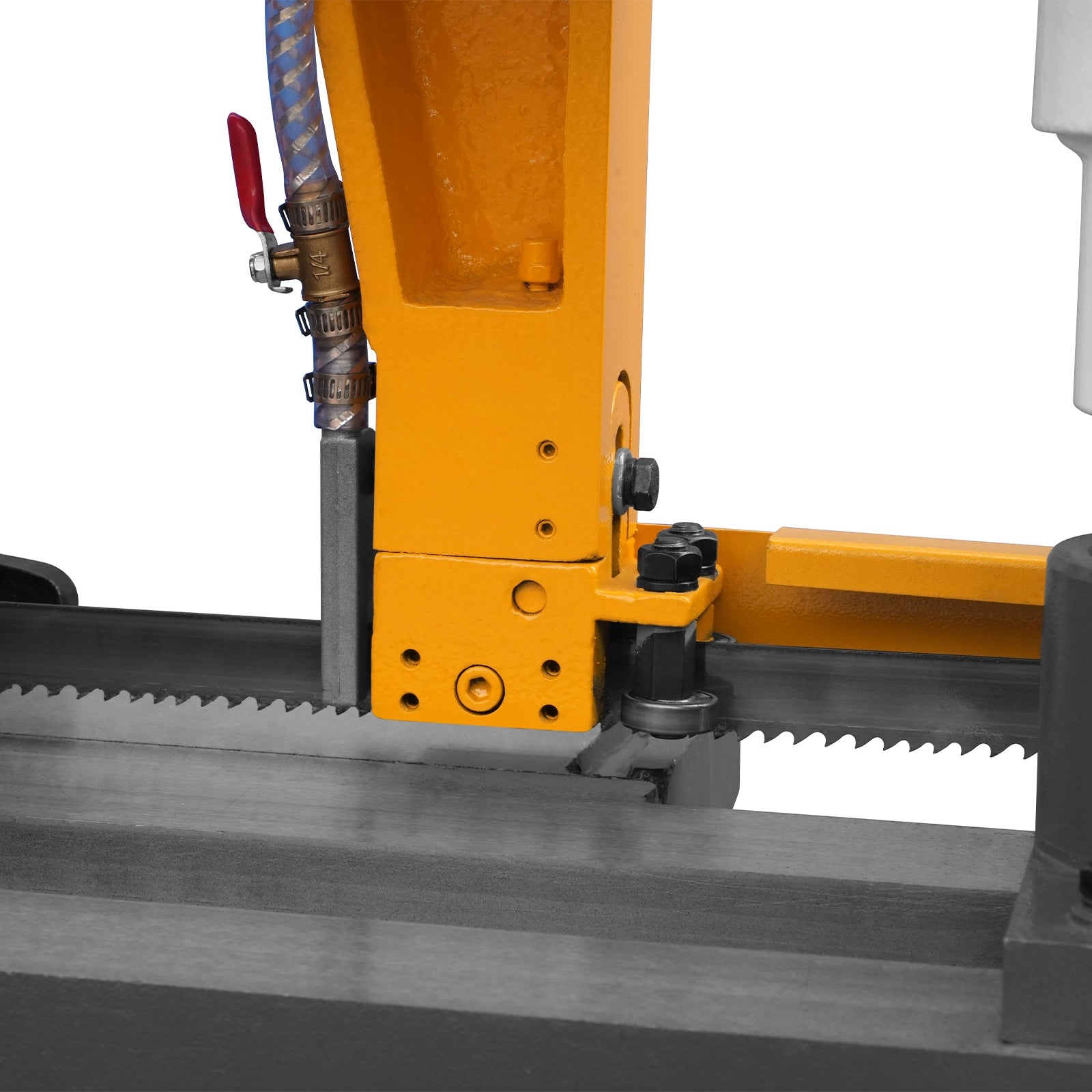

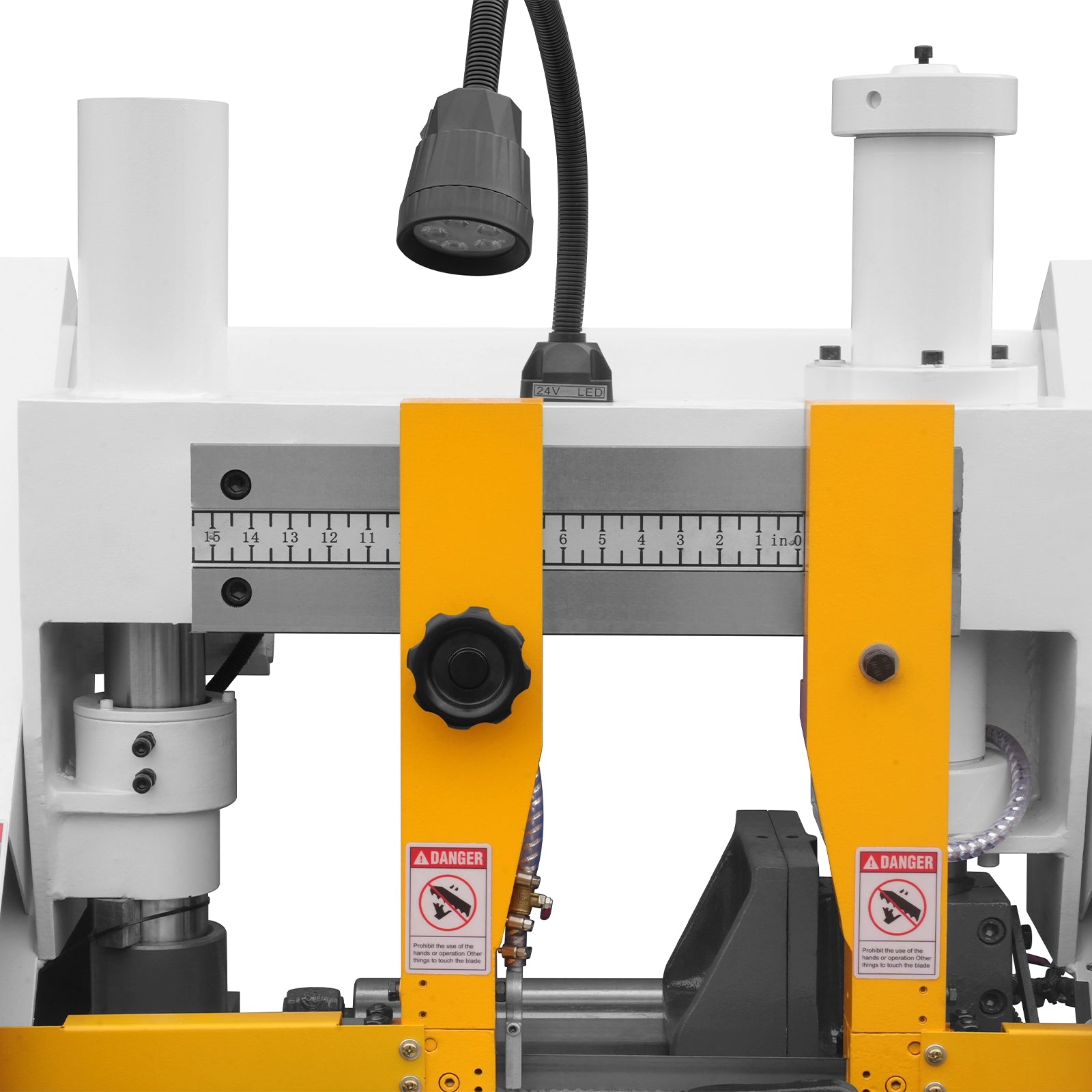

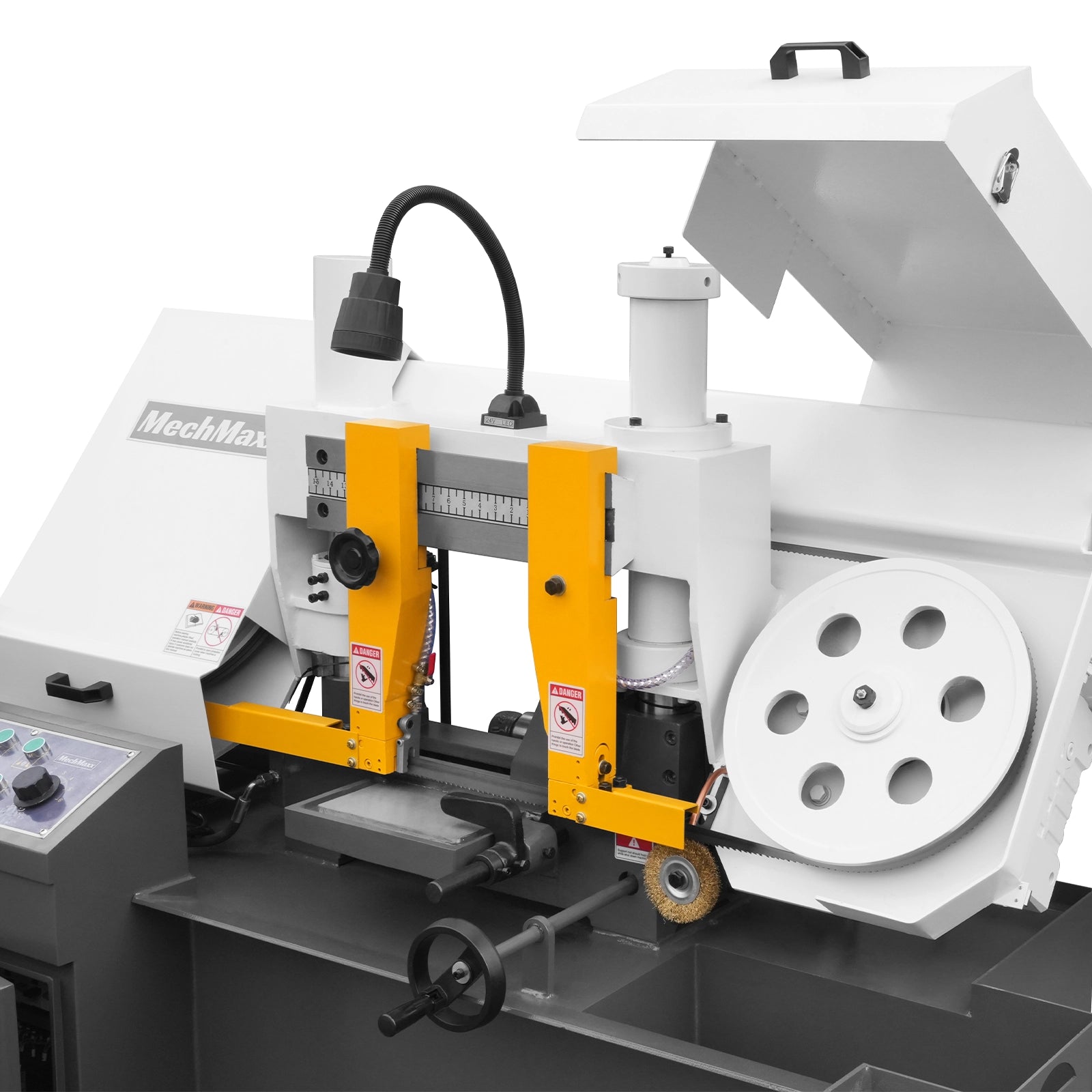

Carbide Guides for True Tracking

Combines heavy-duty ball-bearing side guides with durable tungsten carbide insert blocks to maintain rigid vertical blade alignment, guaranteeing flat, perpendicular, and burr-free end cuts every time.

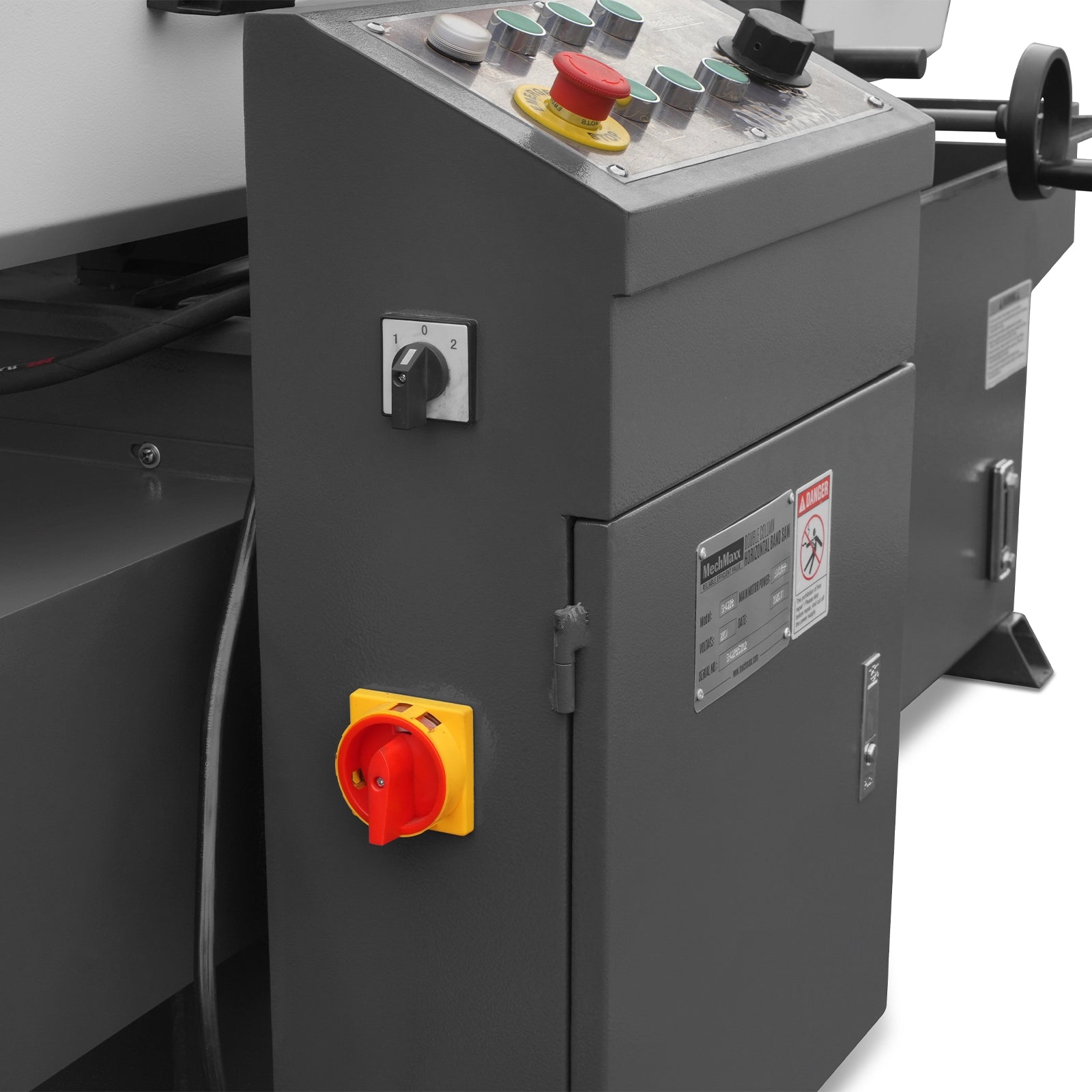

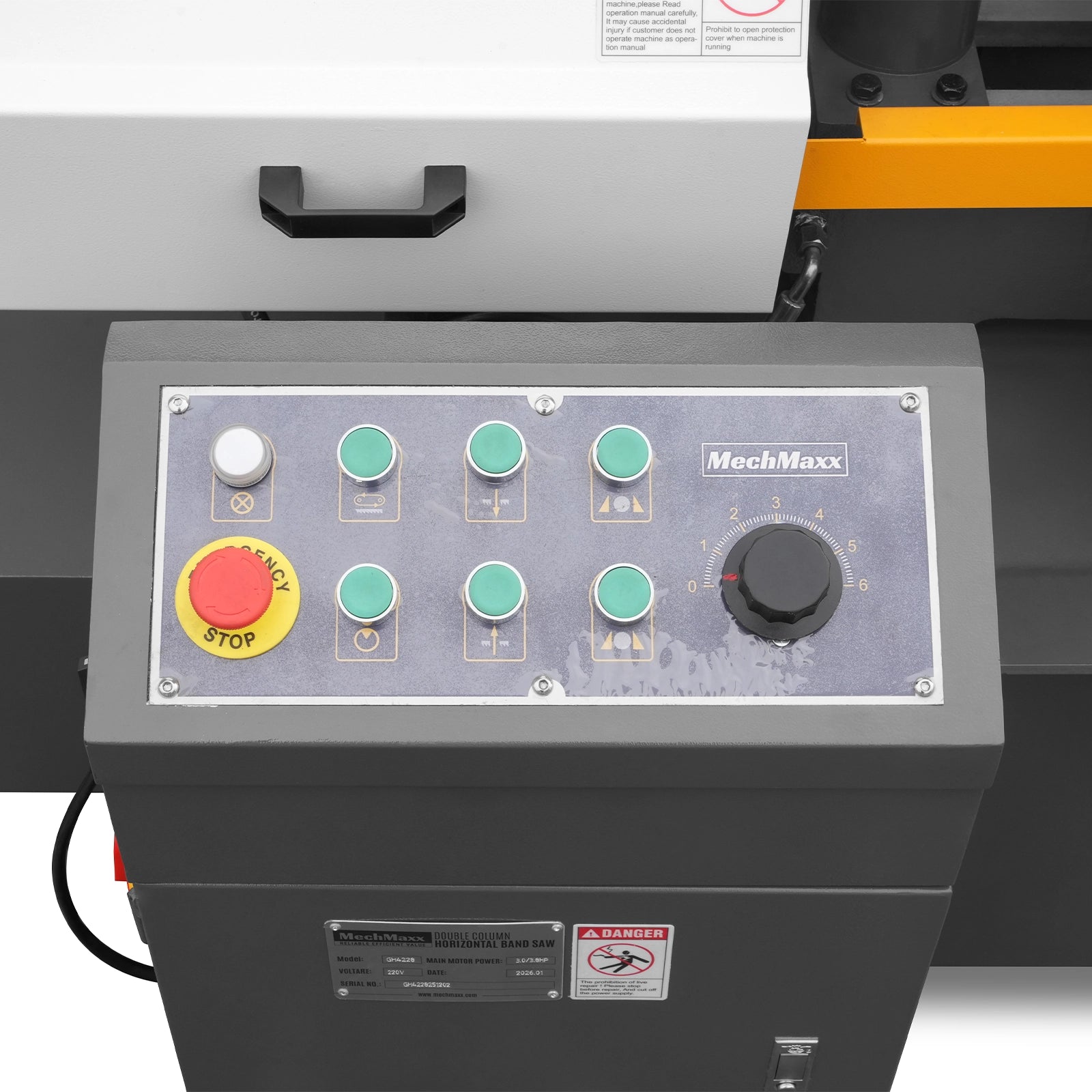

Centralized Panel & Operator Safety

Human-centric control station gathers main switch, motor speed toggle, emergency stop, and coolant control within easy reach. Fully enclosed blade safety guards ensure total compliance with workshop safety.

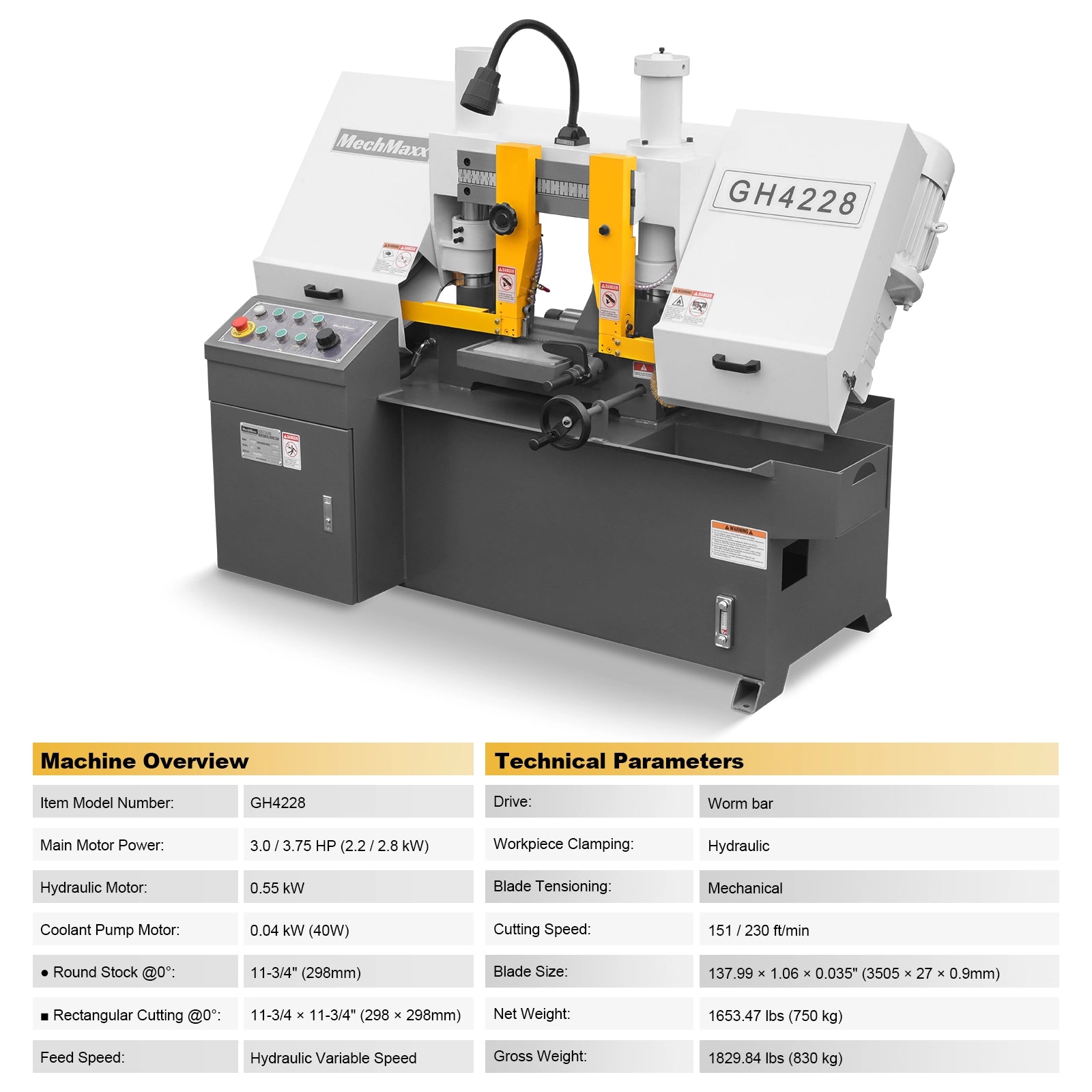

Model	GH4228
SKU / Item No.	500422
Max. Cutting Capacity	● Ø11-3/4" (300 mm) ■ 11-3/4"×11-3/4"
Cutting Speed	151 / 230 ft/min
Feed Speed	Hydraulic Variable Speed
Blade Size	137.99"×1.06"×0.035" (3505×27×0.9 mm)
Workpiece Clamping	Hydraulic
Blade Tensioning	Mechanical
Main Motor Power	2.2 / 2.8 kW (2.95 / 3.75 HP)
voltage	220V/60hz/3ph
Hydraulic Motor	0.55 kW
Coolant Pump Motor	0.04 kW (40W)
Drive	Worm bar
Net Weight	1653.47 lbs (750 kg)
Gross Weight	1829.84 lbs (830 kg)
Packing Dimensions	76.77" × 45.28" × 61.02" (1950 × 1150 × 1550 mm)
