SKU: 201015

| Model: TSB60

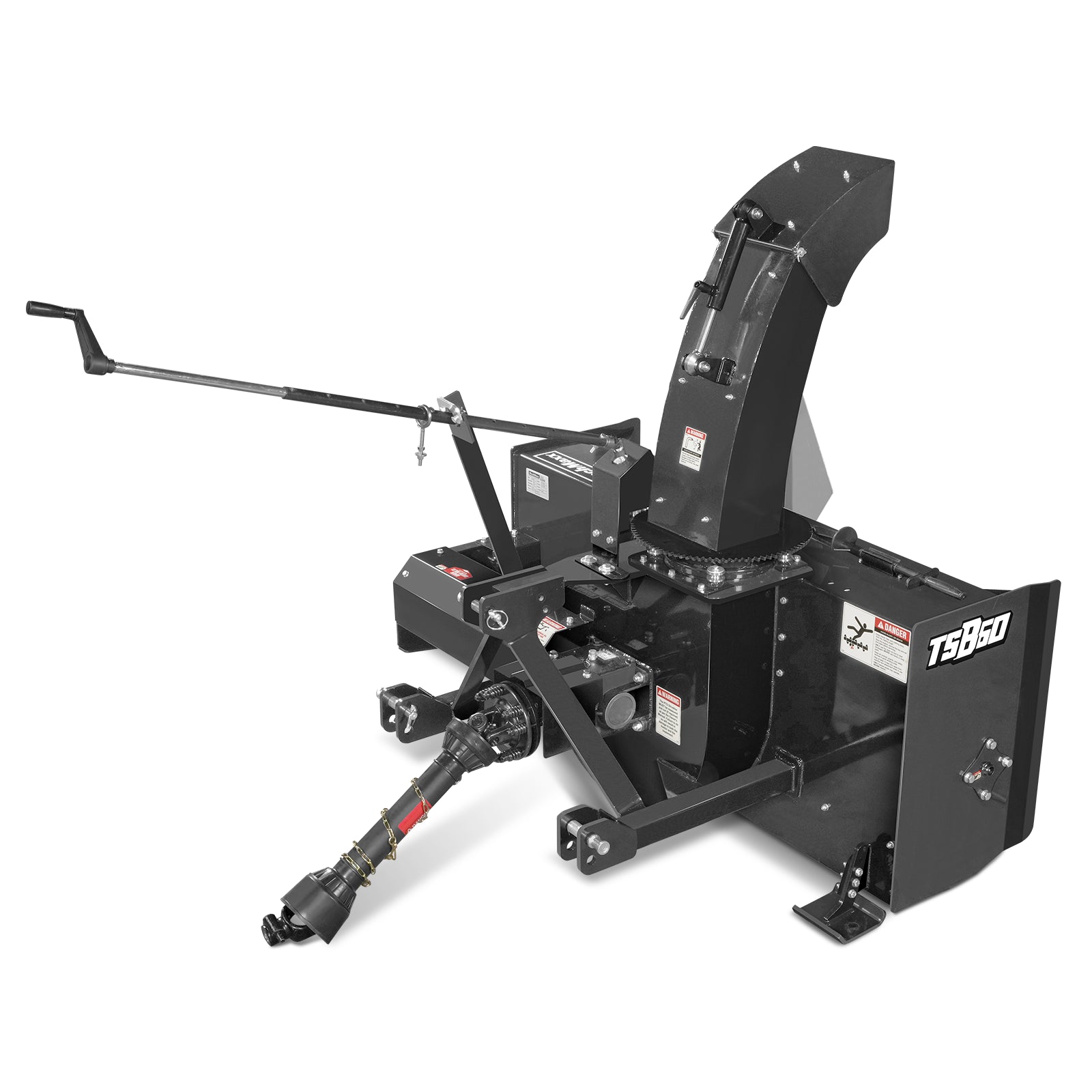

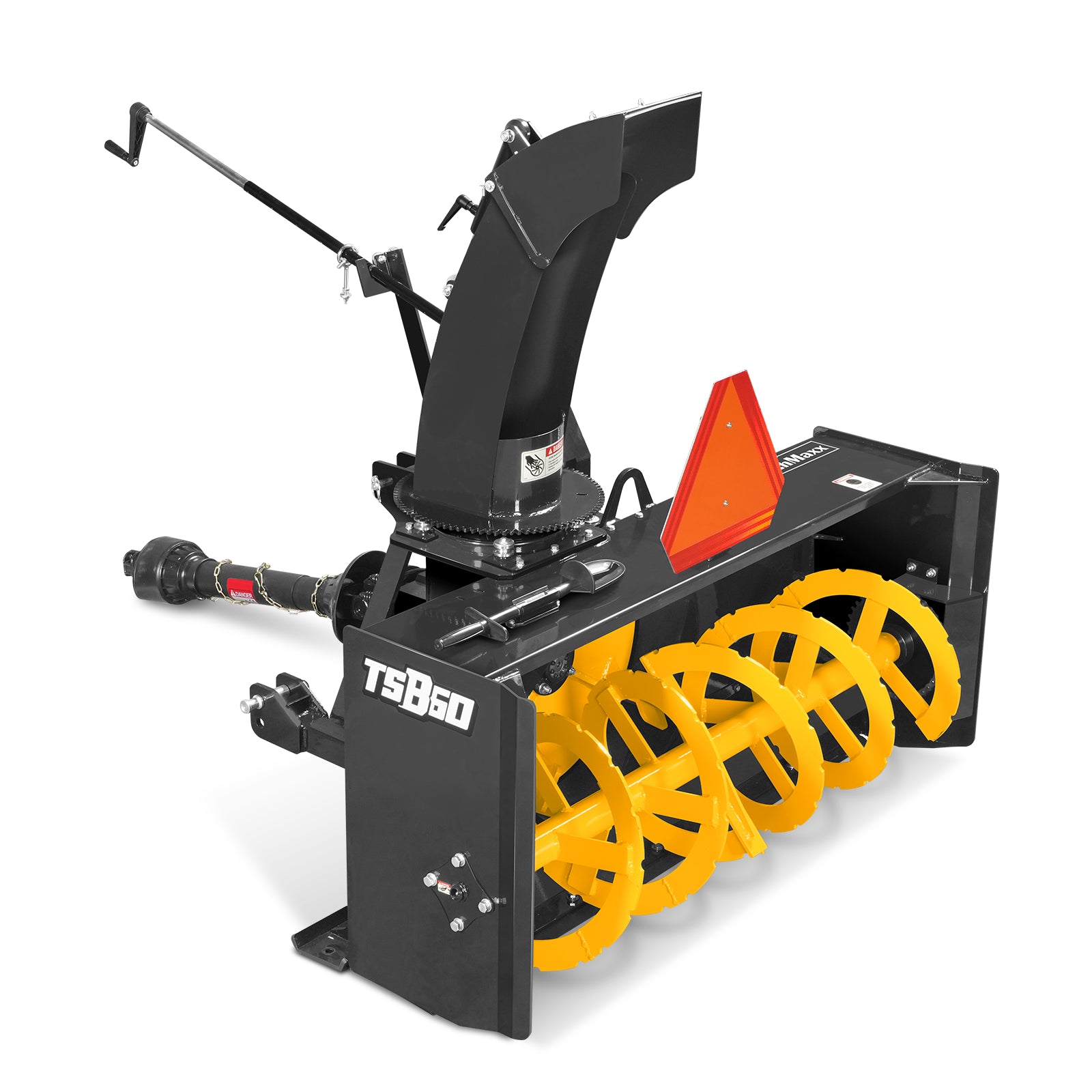

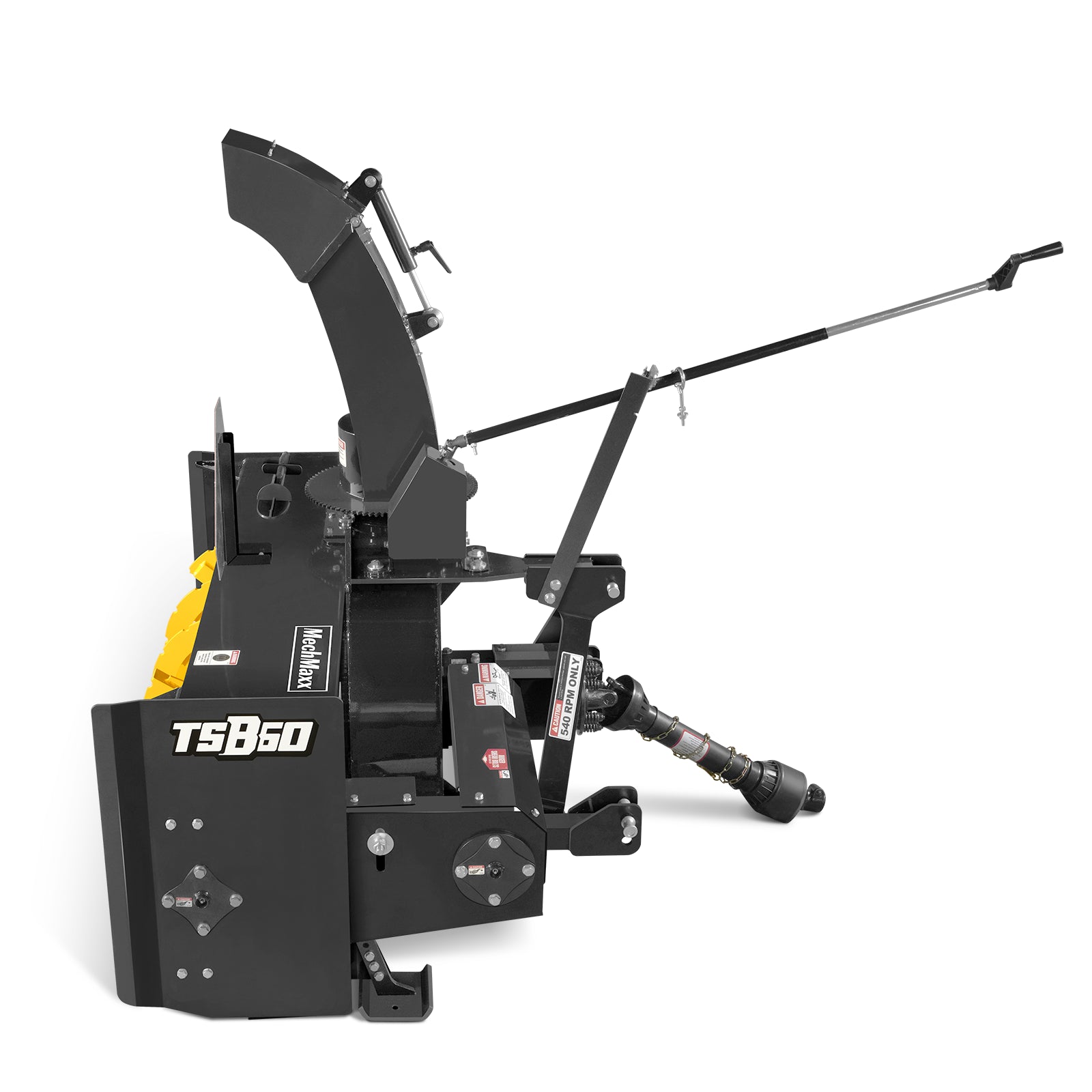

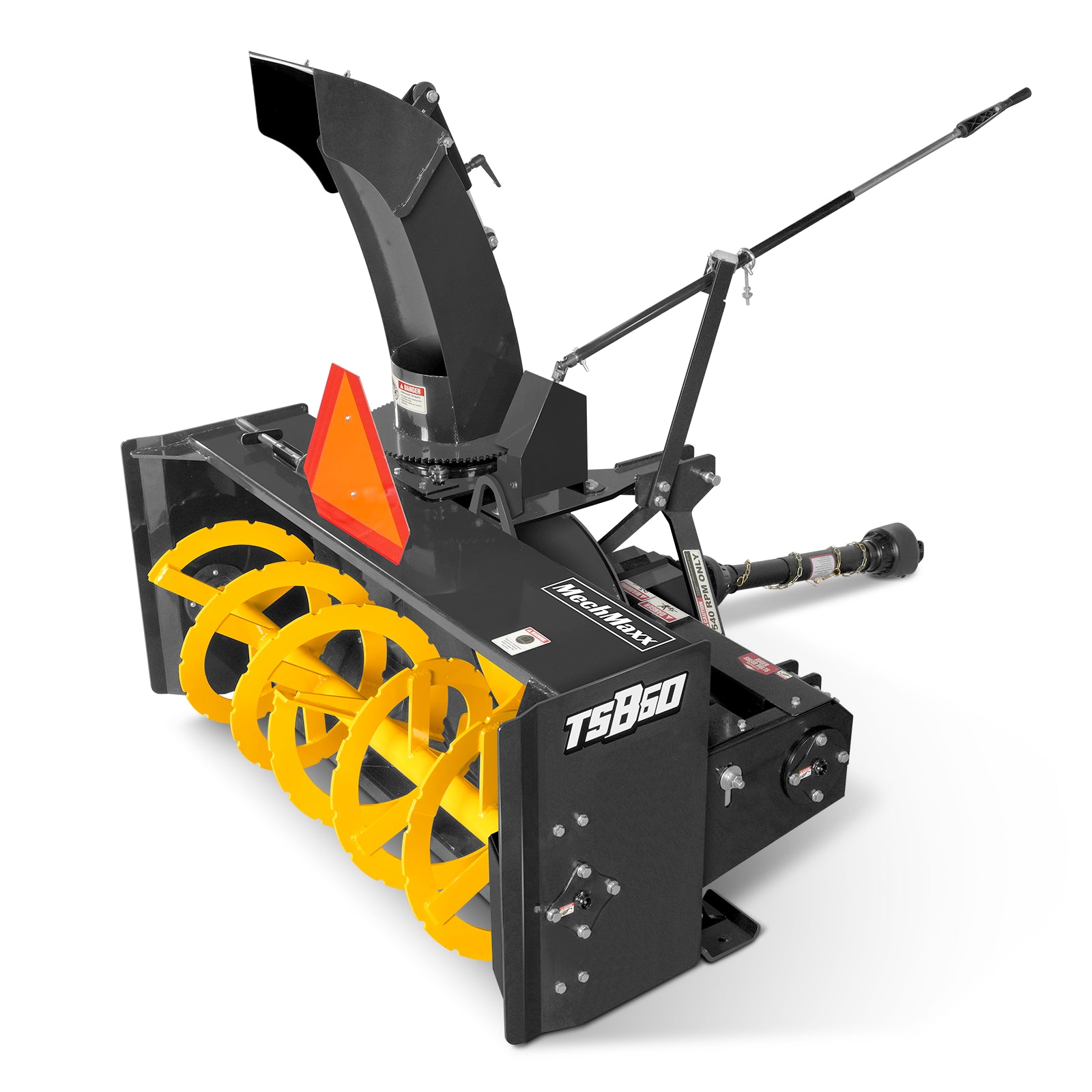

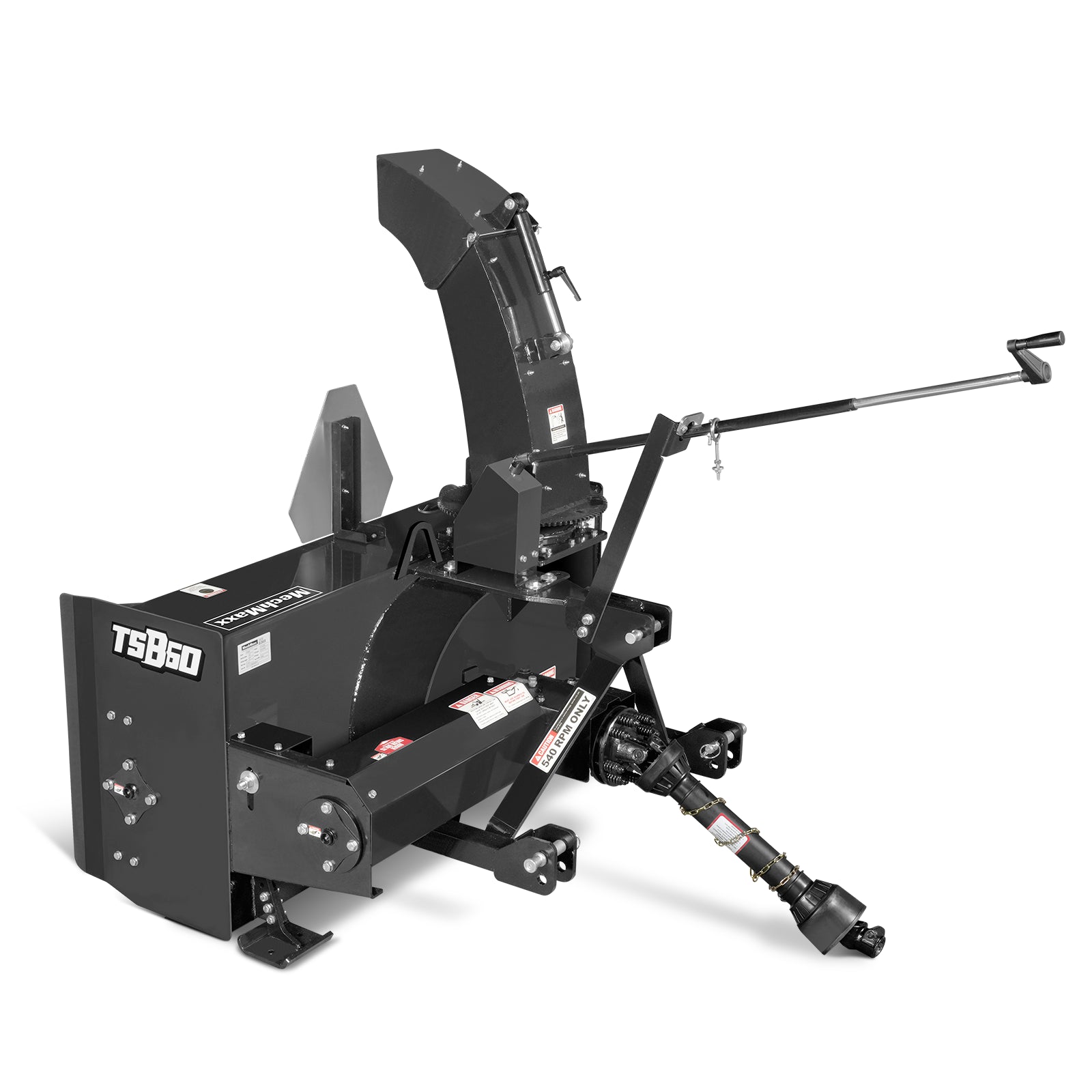

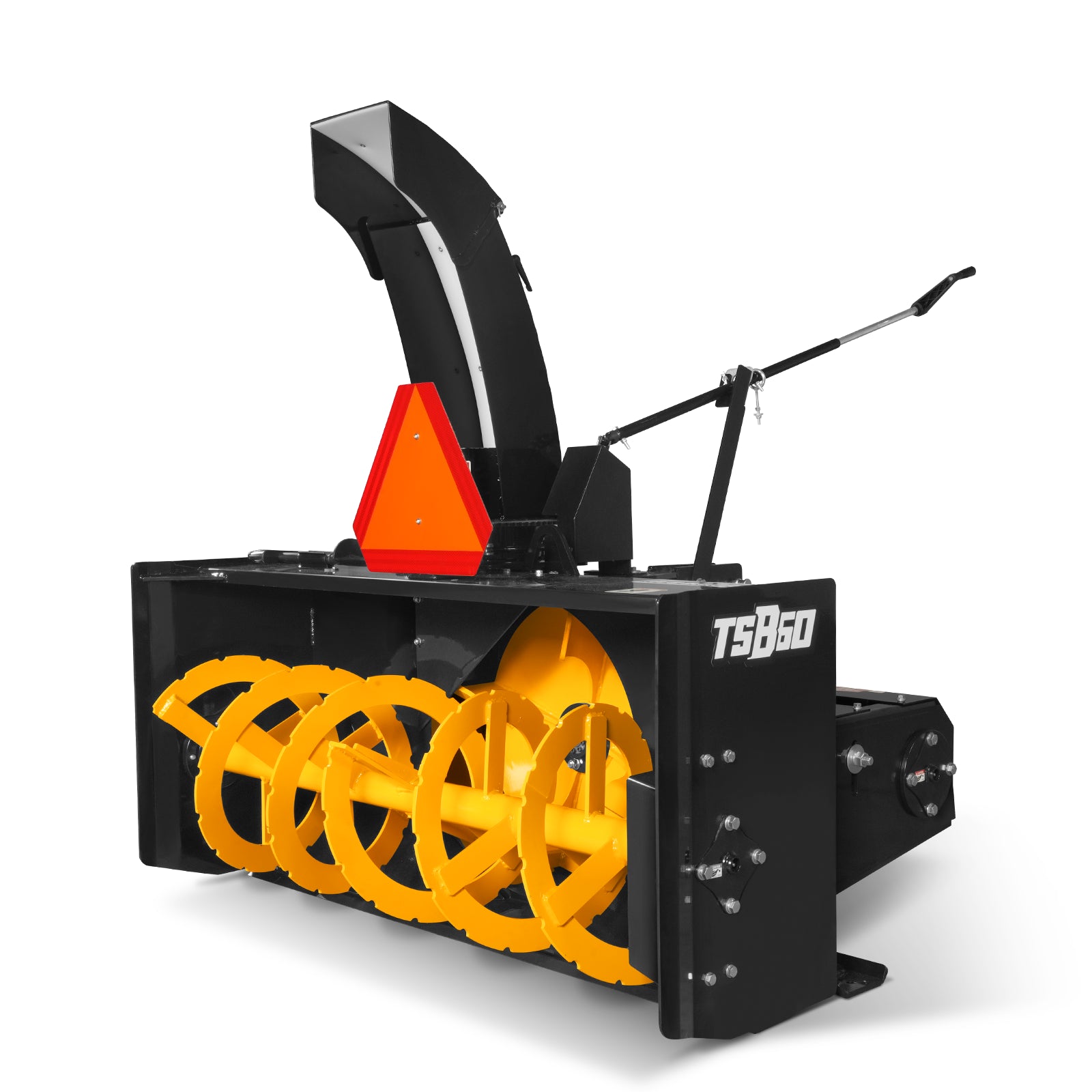

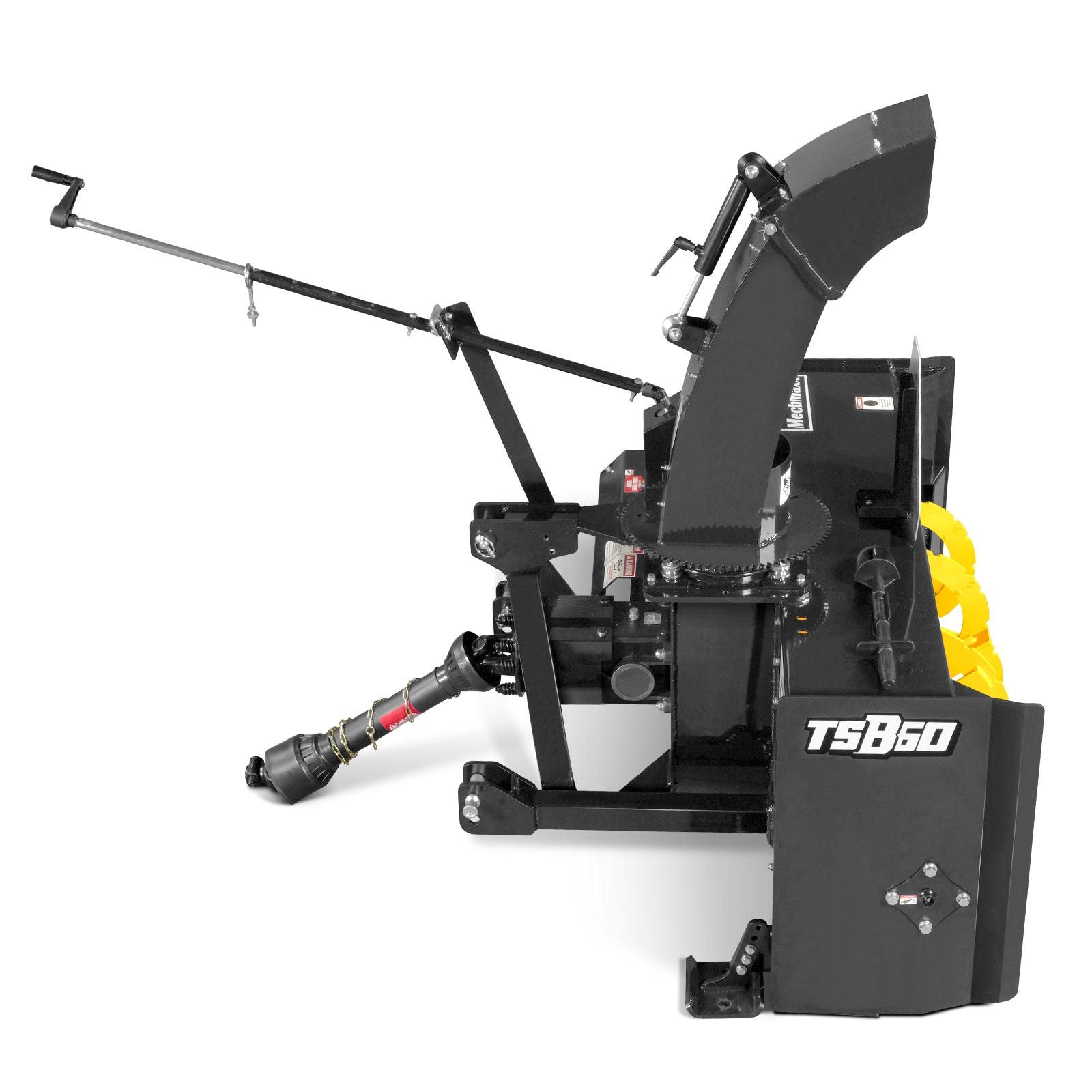

60" 3-Point Hitch Snow Blower PTO Driven for 18-30 HP Tractors, TSB60

Name: 60" 3-Point Hitch Snow Blower PTO Driven for 18-30 HP Tractors, TSB60
Brand: MechMaxx
SKU: 201015
Price: 2999.0 USD
Availability: InStock

$299900

$3,499.00

Save $500

FREE DELIVERY, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Model : 60 in

In Stock

60 in 72 in

Payment:

917-772-7273

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Frequently Bought Together

Snow Blower Hydraulic Chute Rotator & Deflector Kit (for SKU: 201015, 201016)

60" 3-Point Hitch Snow Blower PTO Driven for 18-30 HP Tractors, TSB60 $299900 $3,499.00

Snow Blower Hydraulic Chute Rotator & Deflector Kit (for SKU: 201015, 201016) $49900 $519.00

Total Price

$

Product Overview

This snow blower has 59" cutting width and 27" cutting height, clear the deepest drifts and heavy snow banks.
With 17.5" dia. auger and 24" dia. fan, you can easily and quickly clear snow from driveways, parking lots and roads around your home or workplace.
Mechanical chute rotator and deflector provides trajectory control to throw snow where you want it to go. (Optional Hydraulic Chute Rotator & Deflector, Sold Separately, SKU: 461033)
Compatible with CAT I & II 3-point hitches. Quick attach compatible.
PTO shaft with slip clutch Included. 1-3/8" x 6 Spline Both Ends, 31.5"-39" Length.

Note!
Please note that you need to check and grease all grease fittings and chain on the machine before use.
Must fill about 1.22 quart (1.15L) of gearoil into the gearbox before use. Recommended gearoil type is 85W-90.

Product manual (PDF)

TSB60 Product manual 1.0.pdf

Parts manual (PDF)

TSB60 Parts manual 1.0.pdf

Product Features

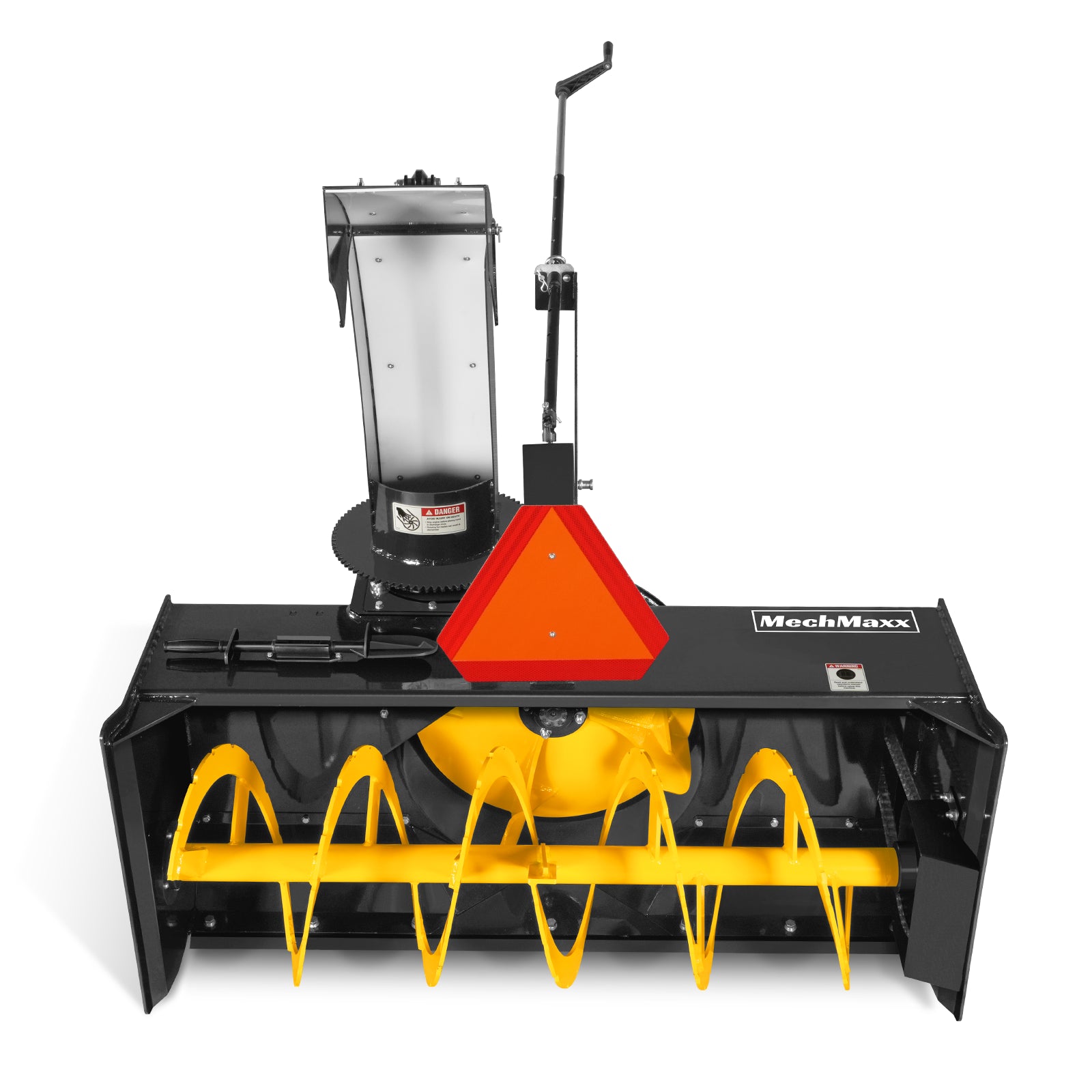

Reinforced Serrated Auger

17.5’’dia. and 5/16’’ thickness serrated auger with excellent feeding capability, provide strength and durability for years to come.

Four Blade Fan

24’’ dia. and 7’’ depth four blade fan, smooth running without vibratio. Evacuate high volumes of snow quickly.

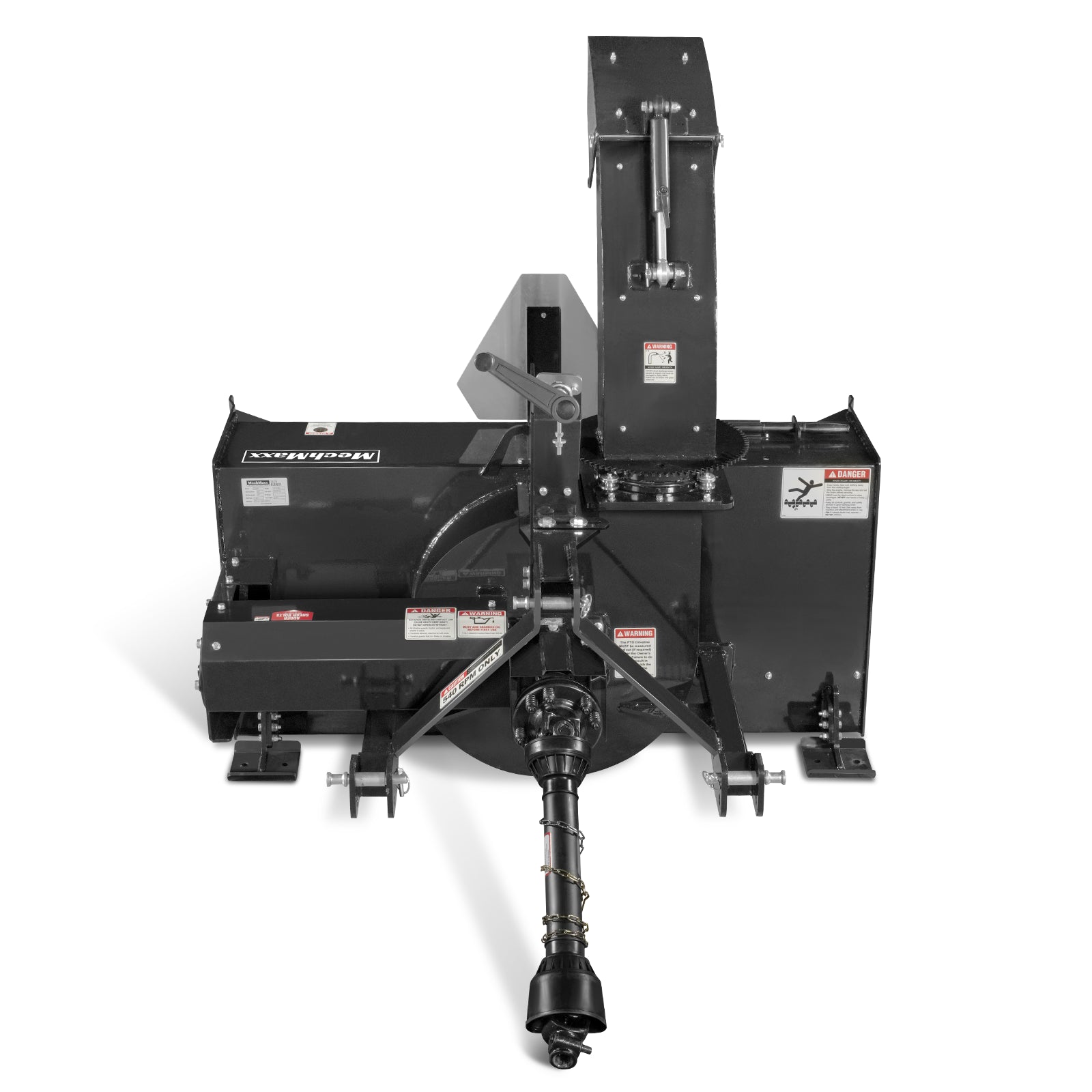

3 Point Quick Attach

Fits CAT I & II 3-point hitch and CAT I quick attach compatible. PTO shaft with slip clutch Included.

Reliable Gear Box

The time-proven gearbox is the heart of this snow blower. It's a right-angle oil bath gear box and built for heavy use. Ensuring consistent power input to the auger and fan assemblies.

Shear Bolt Protection

Equipped with a quick-change shear bolt to protect the drive system from jam damage.

Optional Hydraulic Chute Rotator & Deflector (Sold Separately, SKU: 461033)

You need an optional hydraulic chute rotator & deflector kits. Allow you to remotely operate from the driver's seat.

Cutting Width	59 in	Fan Steel Thickness	13/32 in
Cutting Height	27 in	PTO Range	18-30 HP
Cutting Edge	1/2" x 4" hardened bolt-on replacement	3-Point Hitch	CAT I & II
Auger Diameter	17.5 in	PTO Speed	540 RPM
Auger Thickness	5/16 in	Gearoil Capacity	1.22 quart (1.15L)
Auger Tube Diameter	2 3/4 in	Gearoil Type Recommended	85W-90
Fan Type	4 Blade Fan Style	Packing Size (LxWxH)	61 x 45 x 33 in
Fan Diameter	24 in	Weight (N.W/G.W.)	811/888 lbs
Fan Depth	7 in
