SKU: 150231

| Model: DM6

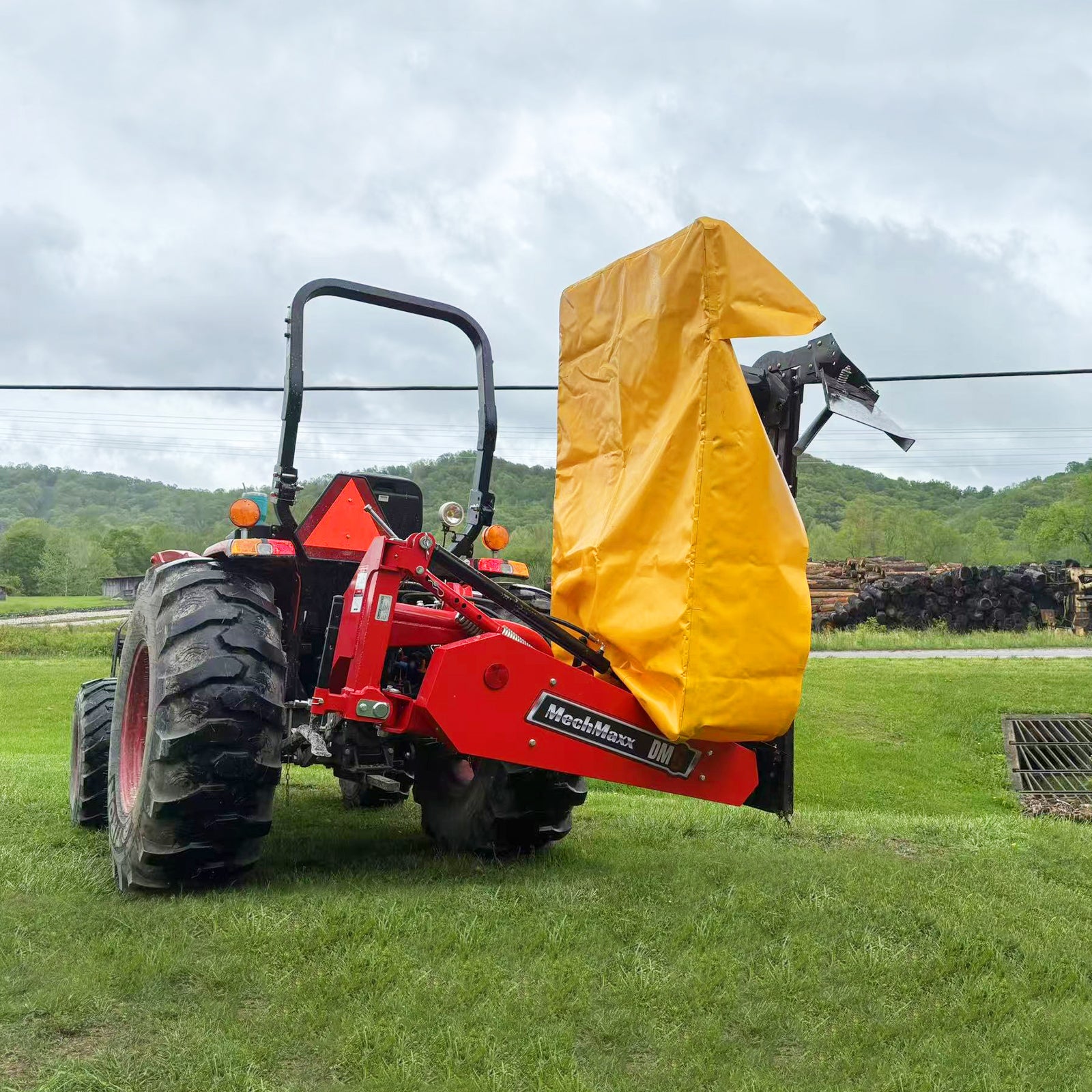

6FT 3-Point Disc Mower, 4 Disc, 35-80HP Tractor, Cat.2, DM6

Name: 6FT 3-Point Disc Mower, 4 Disc, 35-80HP Tractor, Cat.2, DM6
Brand: MechMaxx
SKU: 150231
Price: 4999.0 USD
Availability: InStock
Rating: 5.0 (21 reviews)

Ends in

Days : :

$499900

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

( 1 Pack / 8 Pcs )Blades for Disc Mower(SKU: 150231）

Repair Kit for Disc Mower(SKU: 150231; 150232）

Valve of Disc Mower(SKU: 150231; 150232）

( 1 Pack / 4 Pcs ) Belt for Disc Mower(SKU: 150231; 150232）

6FT 3-Point Disc Mower, 4 Disc, 35-80HP Tractor, Cat.2, DM6 $499900

( 1 Pack / 8 Pcs )Blades for Disc Mower(SKU: 150231） $6899

Repair Kit for Disc Mower(SKU: 150231; 150232） $8699

Valve of Disc Mower(SKU: 150231; 150232） $9299

( 1 Pack / 4 Pcs ) Belt for Disc Mower(SKU: 150231; 150232） $7899

Total Price

$

Product Overview

The mower is fully gear transmission, the gearbox and gears in the cutter bar can quickly transfer power from tractor to blades, improve mowing speed, reduce power lost.
The disc mower was built with high quality robust components, thus suitable to heavy duty and harsh works.
This kind of gear transmission mower can handle various kinds of terrain and cutting fields, also for different types of grasses, including thick and long grasses, stalks, etc..
Gear transmission disc mowers are relatively easy for maintenance, lubricate the main points and change blades according to the instructions.
The mower was designed with safety components thus pullback the cutter bar while it hits heavy obstacles.

Product manual (PDF)

DM6 Product manual 1.0.pdf

Product Features

Gear Transmission, High Efficiency

DM mower is fully gear transmission, the gearbox and gears in the cutter bar can quickly transfer power from tractor to blades, improve mowing speed, reduce power lost.

19-splinebelt Pulley Transmission Shaft

Spline shafts can transmit higher torque than ordinary shafts, provide a larger contact area, and ensure efficient power transmission, improve reliability and reduce maintenance requirements.

Easy For Lubricating

Removing the cover on the cutting deck allows for easy lubrication, simplifying maintenance and repair.

Bronze Decompression Valve On Gearbox

Decompressive valve was designed to release the heat inside the gearbox, thus makes the gears inside a longer life span.

Safety Device

Safety device to pull back the cutter bar when hit strong obstacles to protect the cutter bar.

Quick Coupler Included

The quick hitch is very convenient and can be done by one person. The operator backs up the tractor, hooks up the disc mower with the quick hitch and is ready to operate.

Thickened Safety Canopy

The thickened safety canopy prevents people from the splashed grass residue, also protect the disc mower from being rusted by rain and snow, thus extending the service life of the machine.

Folding

The DM6 mower folds up for easy transport from the seat. The tractor's hydraulic system does all the work.

Versatility

This kind of gear transmission mower can handle various kinds of terrain and cutting fields, also for different types of grasses, including thick and long grasses, stalks, etc..

Power Required	35-80 hp	Tilt-Down Angle	30°-40°
Working Width	5.12 ft	Min. Tractor Weight	2000 lbs
Working Speed	2.5-6.2 mi/h	Gearbox Oil Type	90SAE Oil
Stubble Height	2 in	3-Point Hitch	CAT 2
Number Of Disk	4 pcs	PTO Shaft Speed	540 rpm
Disc Length	15.4 in	Spline End	1.375in Z6
Disc Diameter（Including Blade）	19.7 in	Safety Coth Material	PVC
Side Disc Height	9.5 in	Finsh	Powder Coating
Number Of Blades	8 pcs	Product Size (LWH)	138 x 55 x 30 in
Blades Material	65Mn	Package Size (LWH)	71 x 29 x 67 in
Number Of Belts	4	Machine Warranty	1 Year
Tilt-Up Angle	80°	Weight (N.W./G.W.)	1001/1186 lbs
