SKU: 150167D6

| Model: SM-32

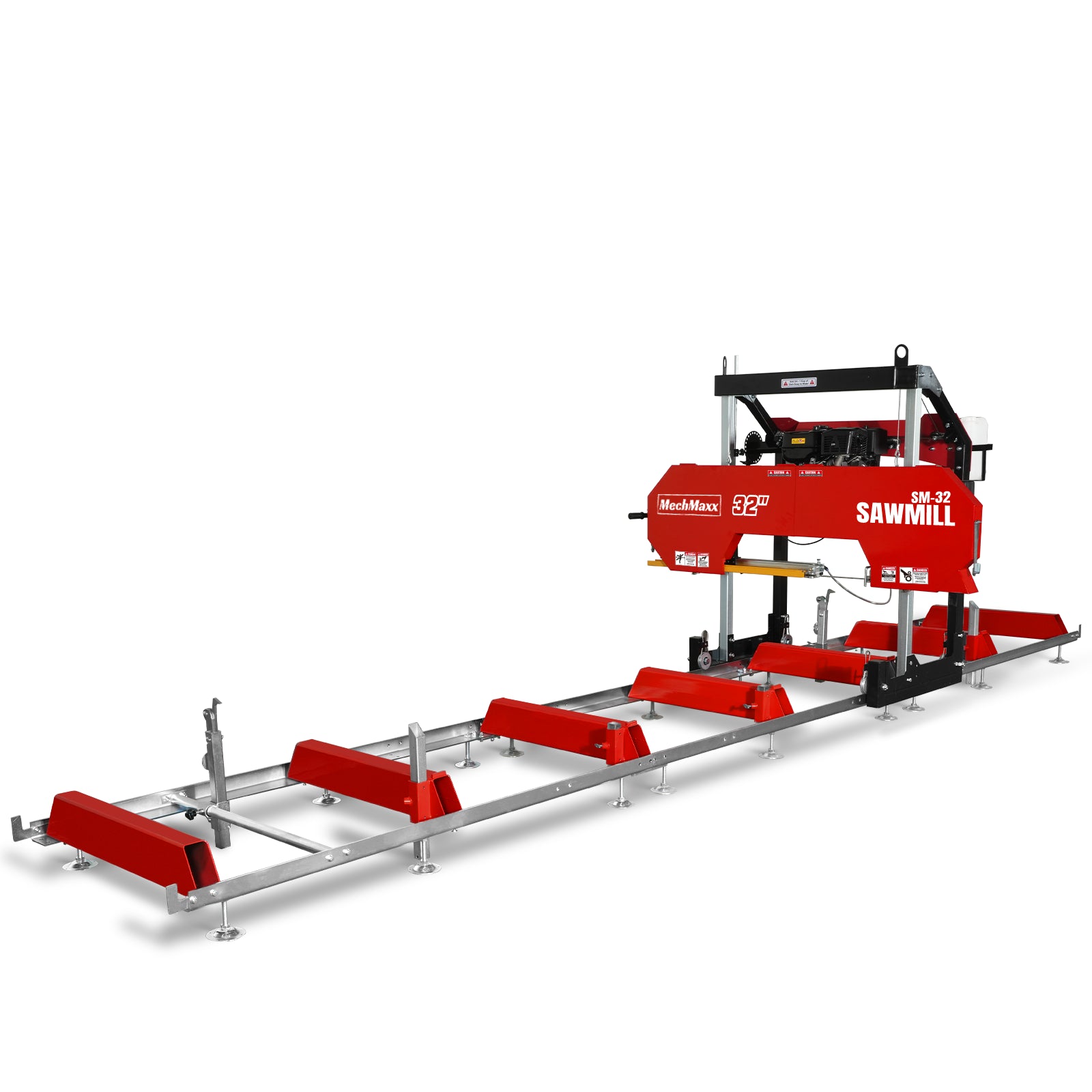

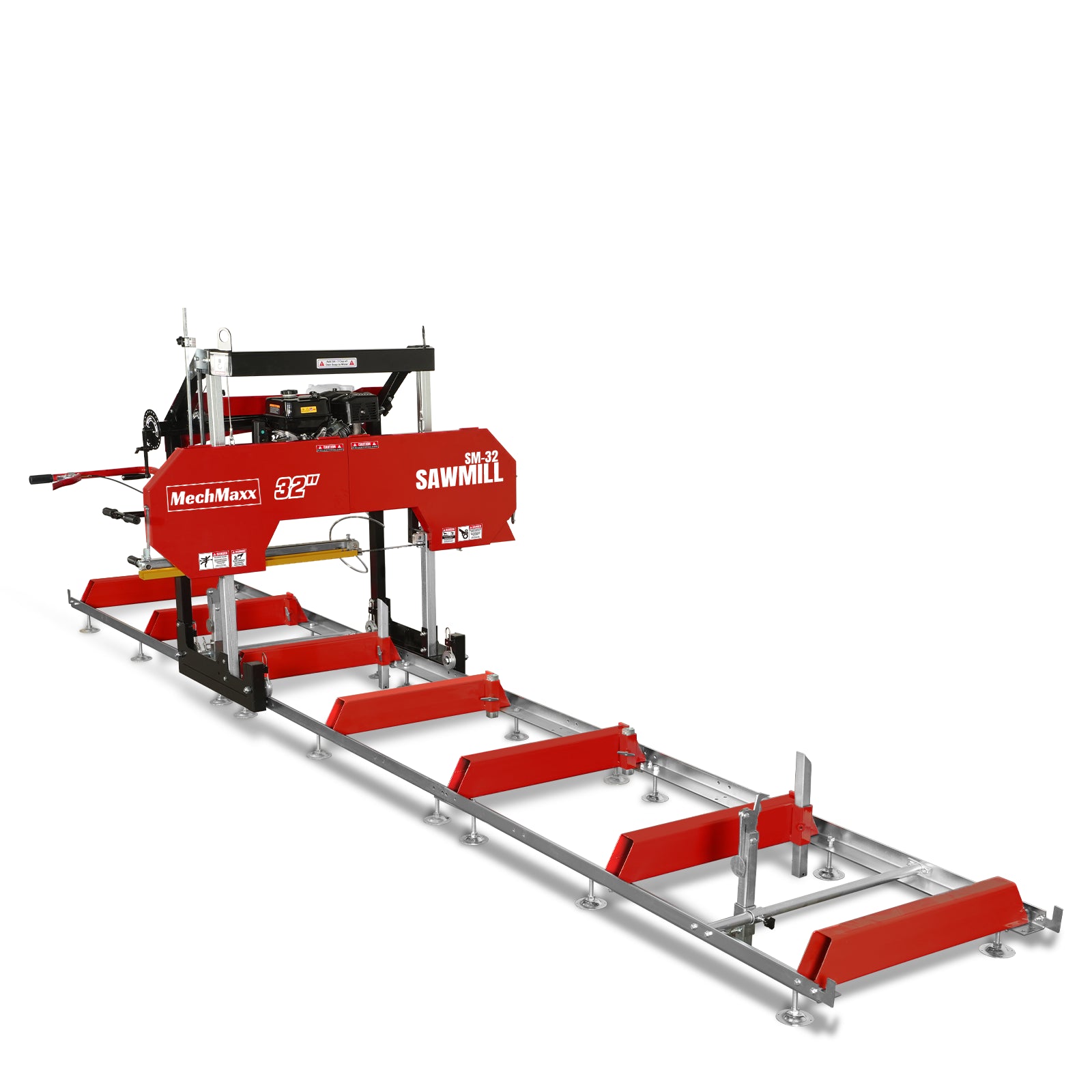

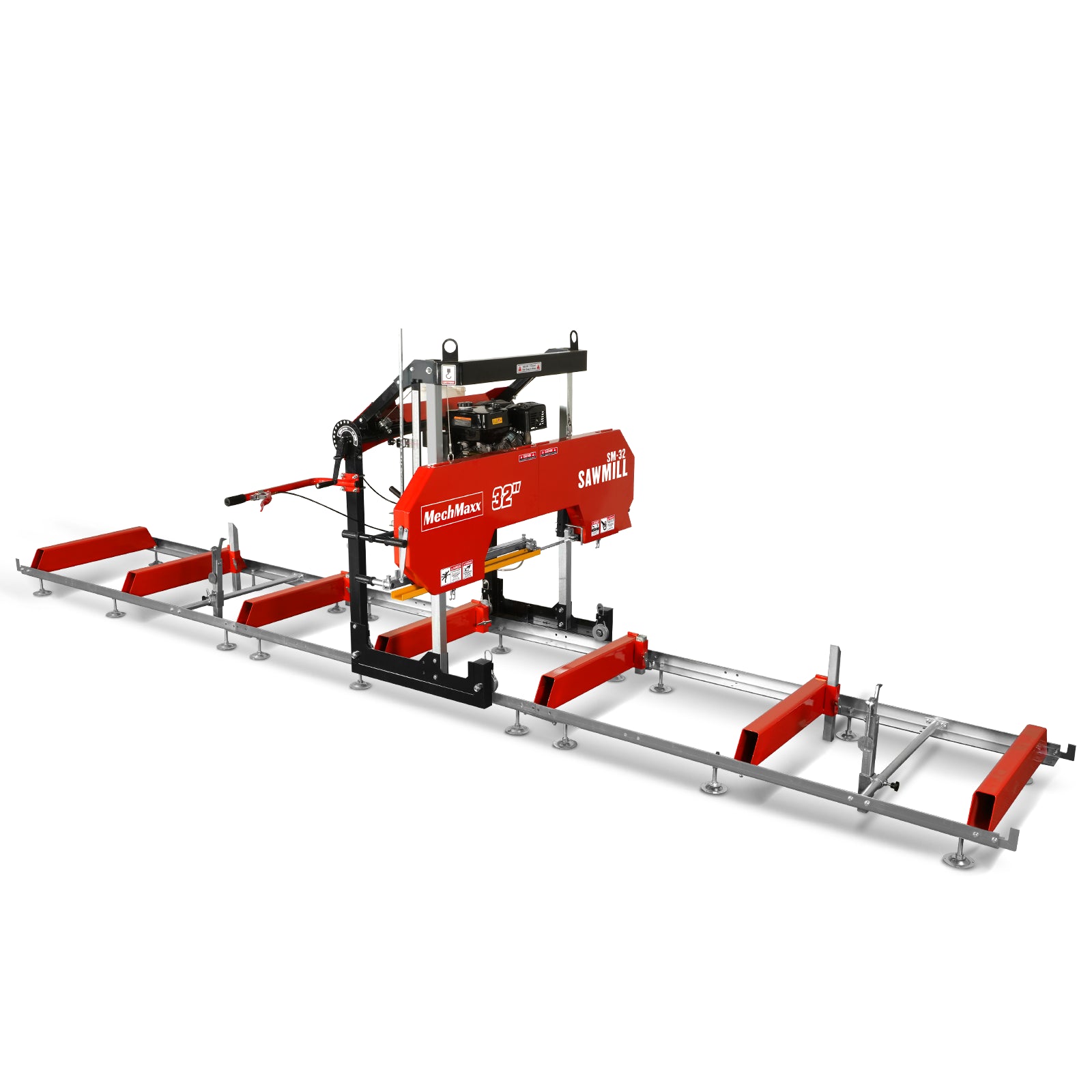

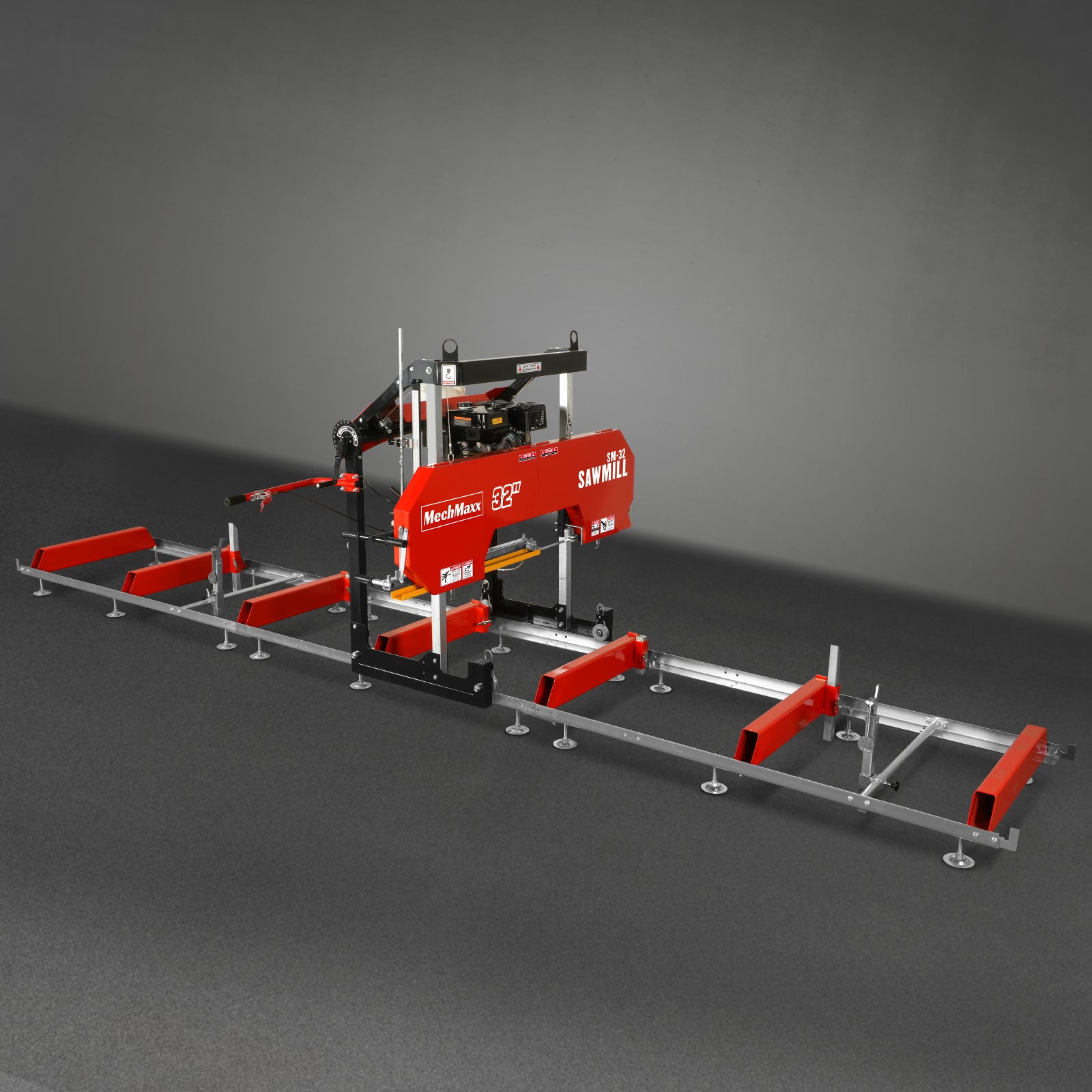

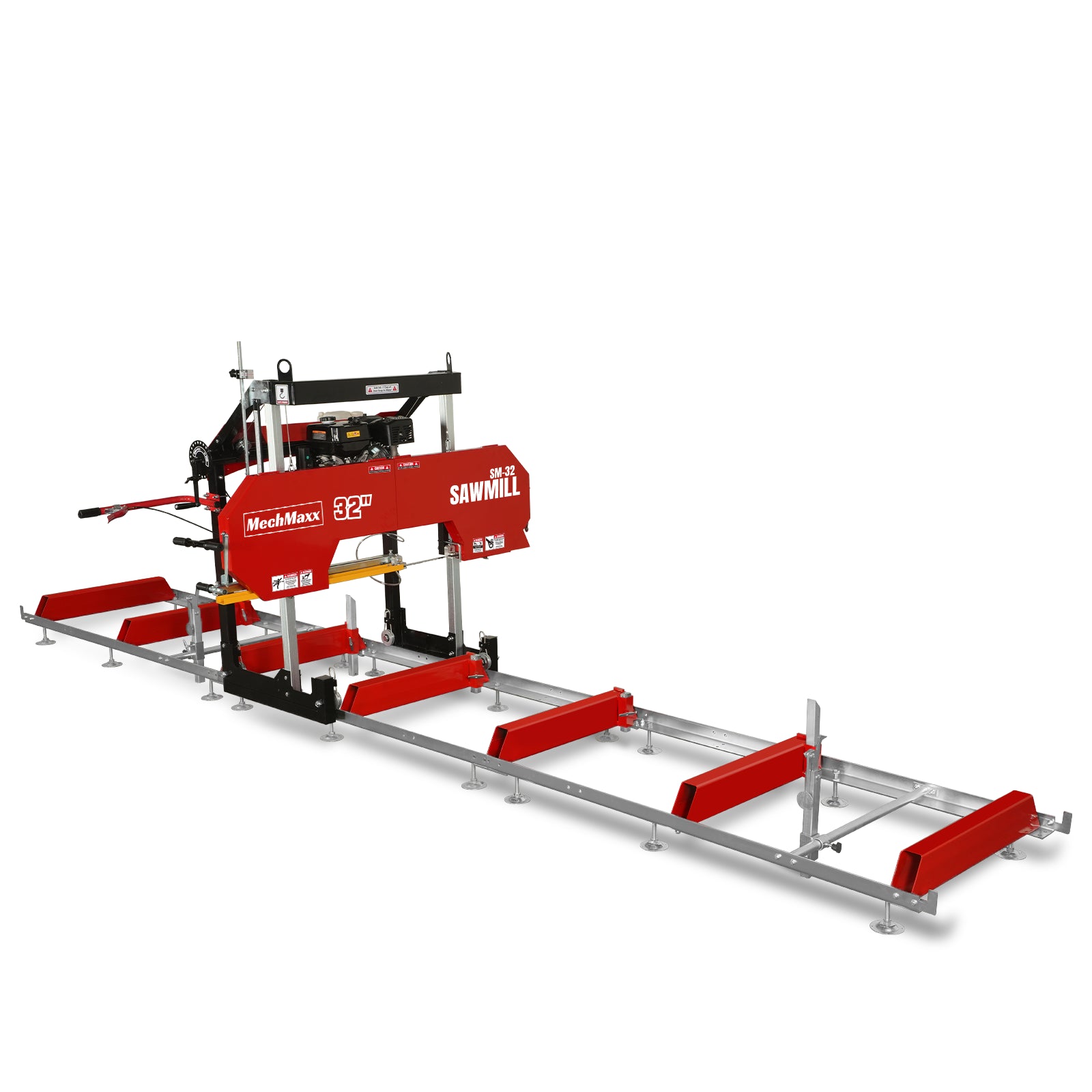

32" Portable Sawmill (5 x Blades Included), 459cc 15HP E-Start Gasoline Engine, 29" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM-32

Name: 32" Portable Sawmill (5 x Blades Included), 459cc 15HP E-Start Gasoline Engine, 29" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM-32
Brand: MechMaxx
SKU: 150167D6
Price: 3399.0 USD
Availability: InStock
Rating: 4.91 (939 reviews)

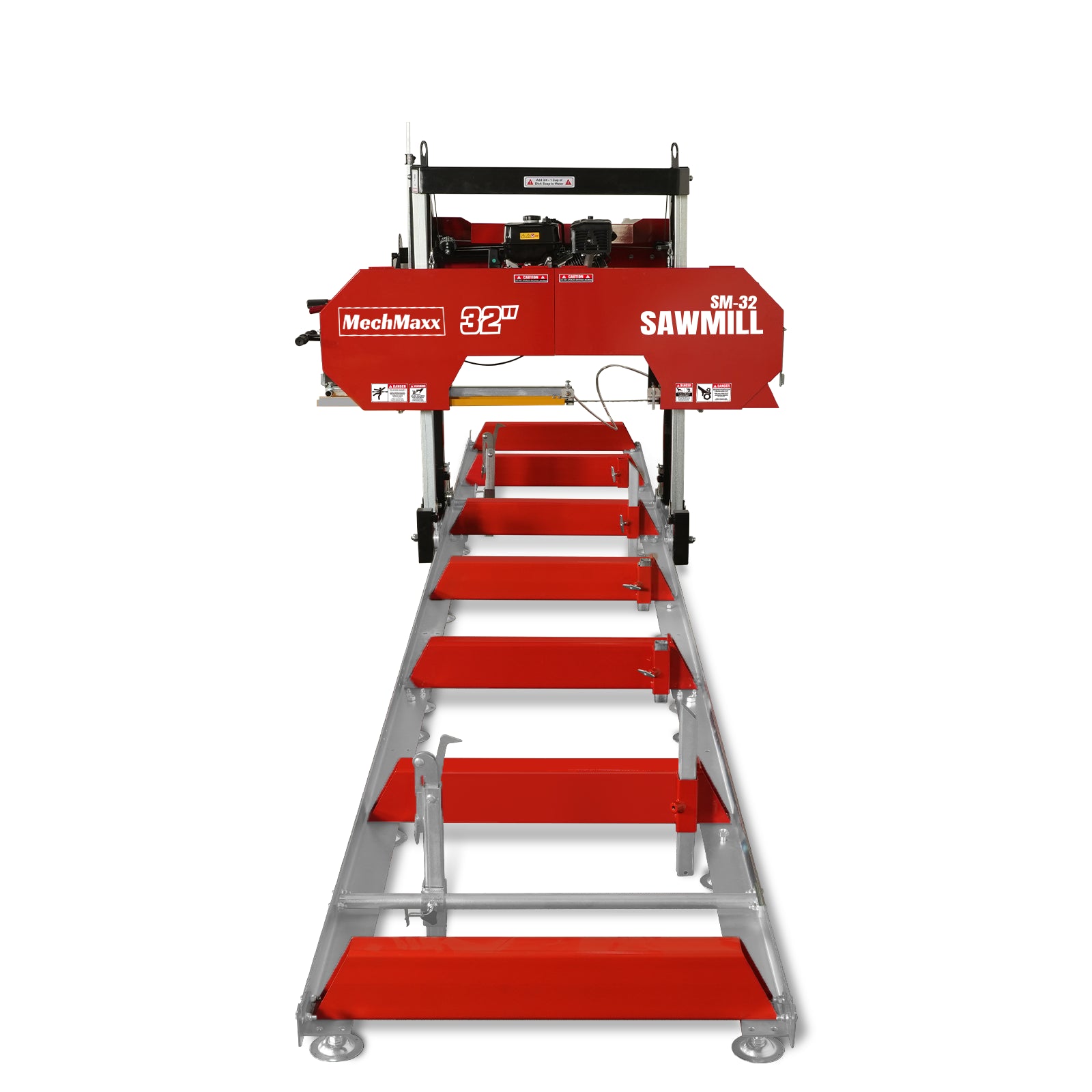

32" Portable Sawmill (5 x Blades Included), 459cc 15HP E-Start Gasoline Engine, 29" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM-32

4TH OF JULY SALE Ends in

Days : :

$339900

$5,499.00

Save $2,100

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

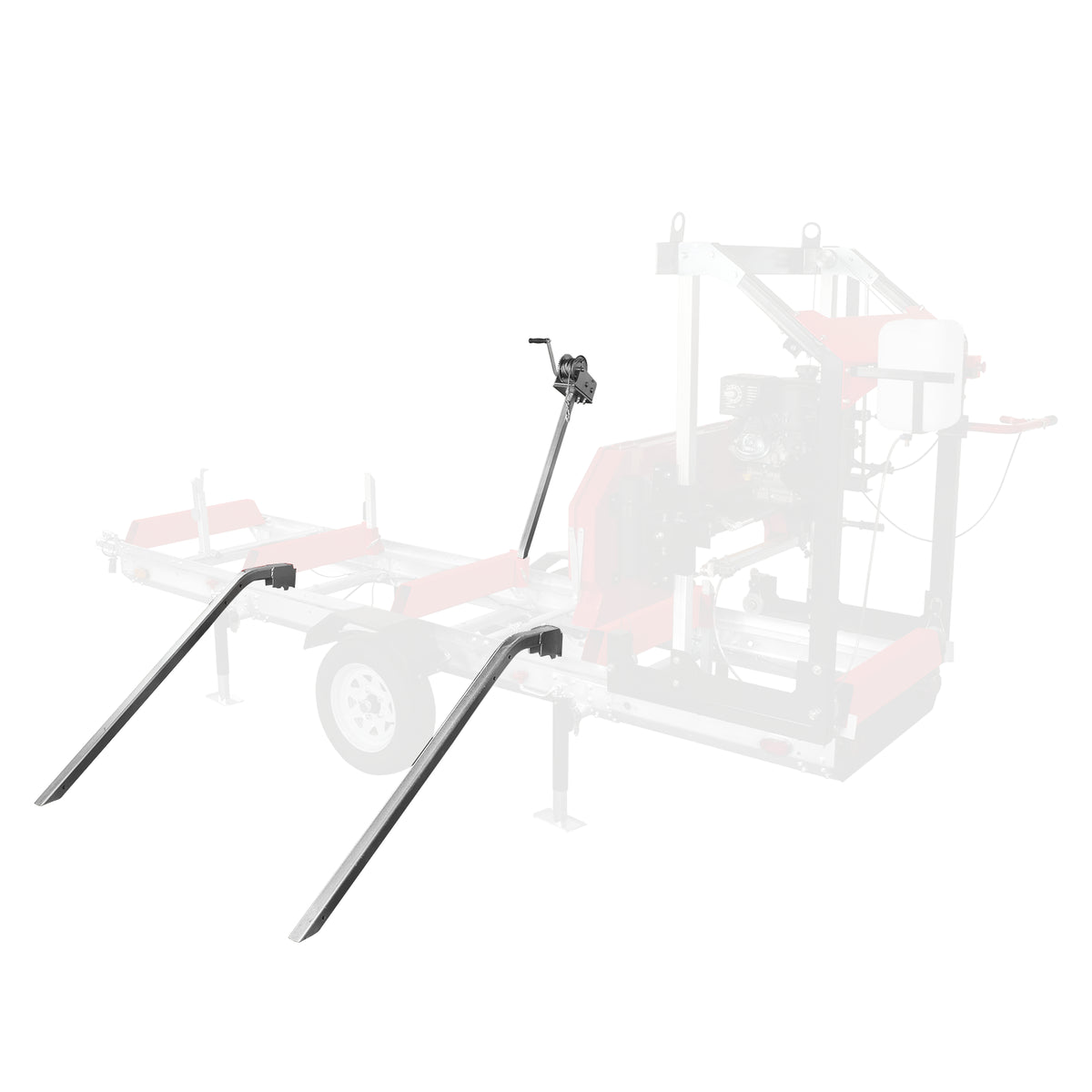

Log Loading Ramp Kit for Sawmill Trailer , SM-26 and SM-32

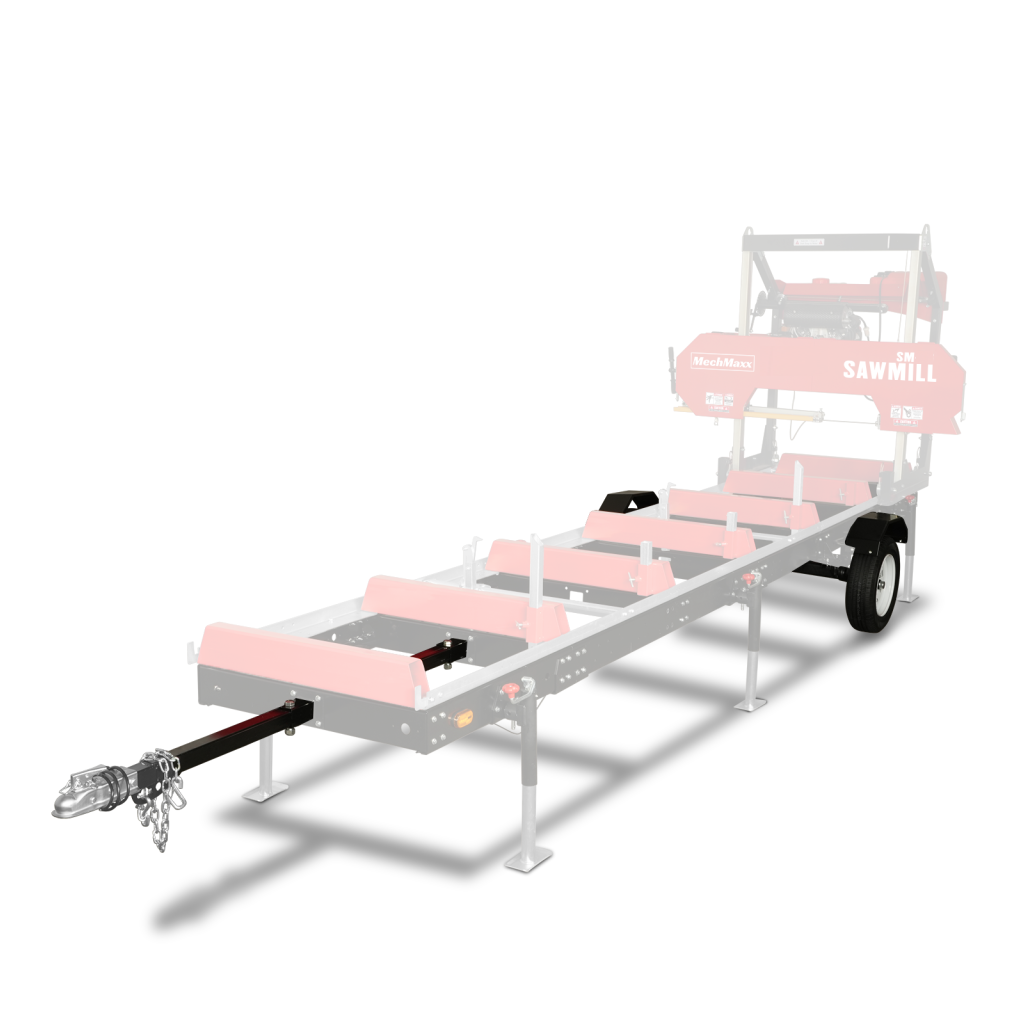

SM-26; SM-32 Trailer Combo Kit (Trailer Hitch; Torsion Axle; Tire)

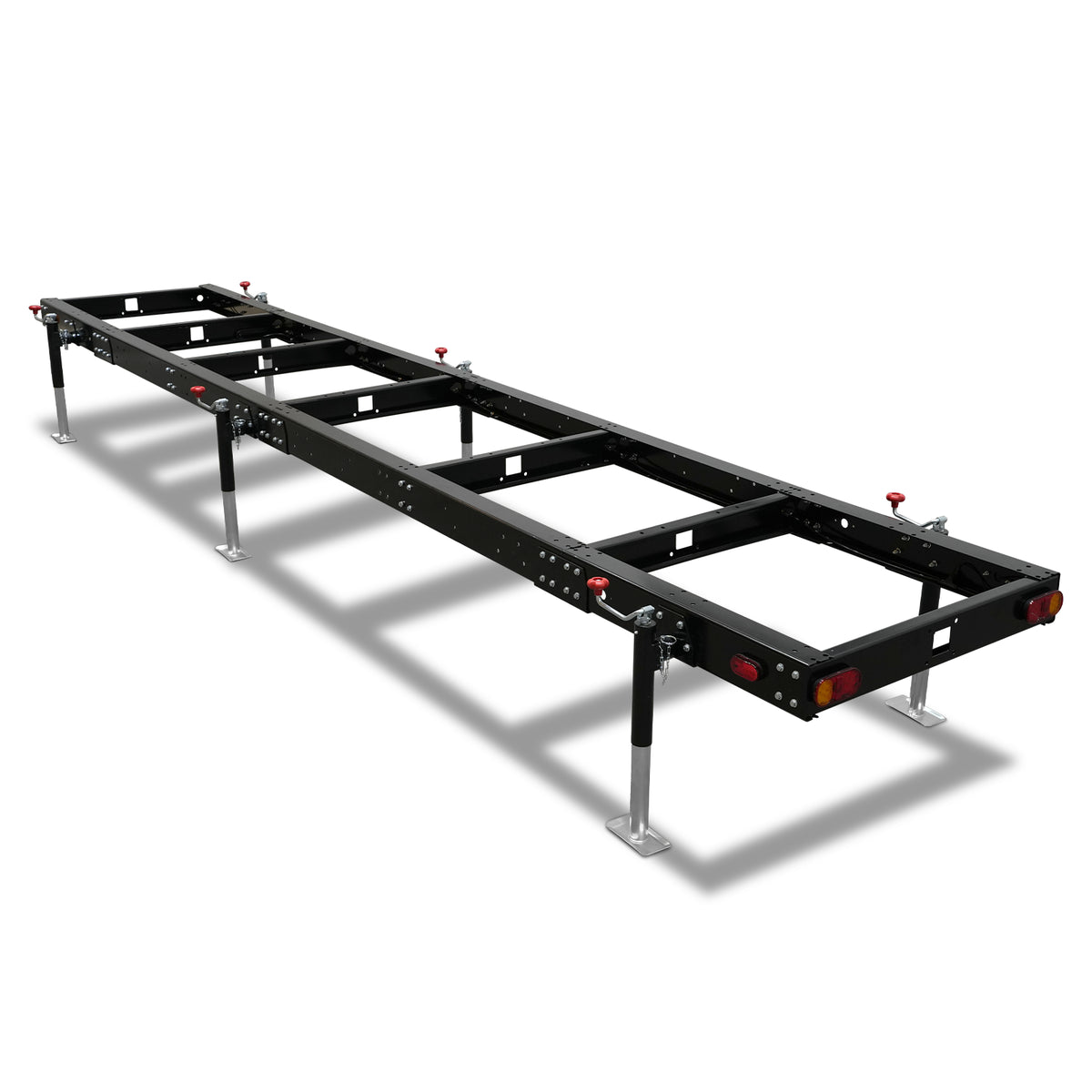

SM-32 Trailer Primary Sub-Frame, 20' Track Length

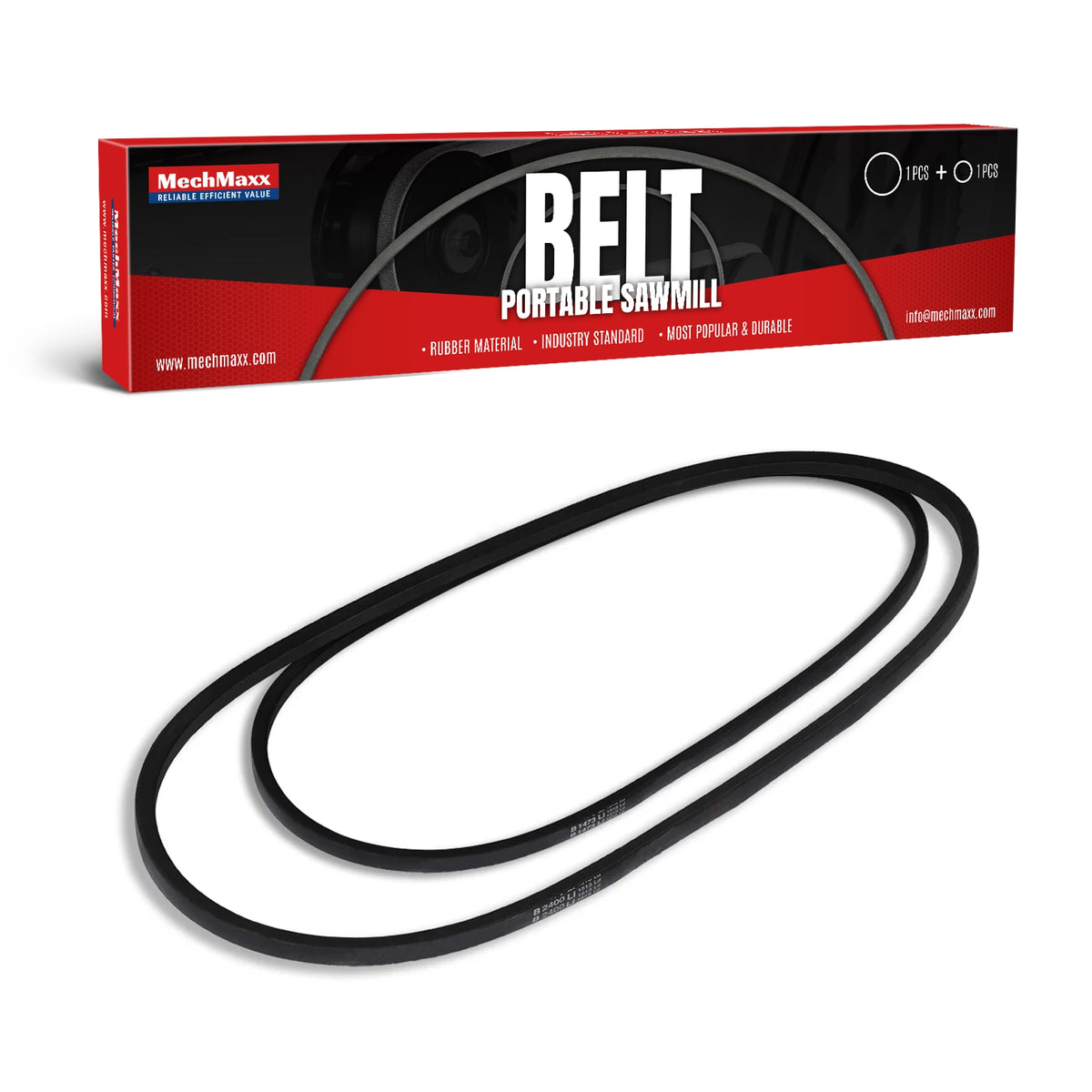

( 1 Pack / 2 Pcs ) Belt for Portable Sawmill, SM-32 & SM-36; SM-36MAX (SKU: 150167; 150168; 150168MAX)

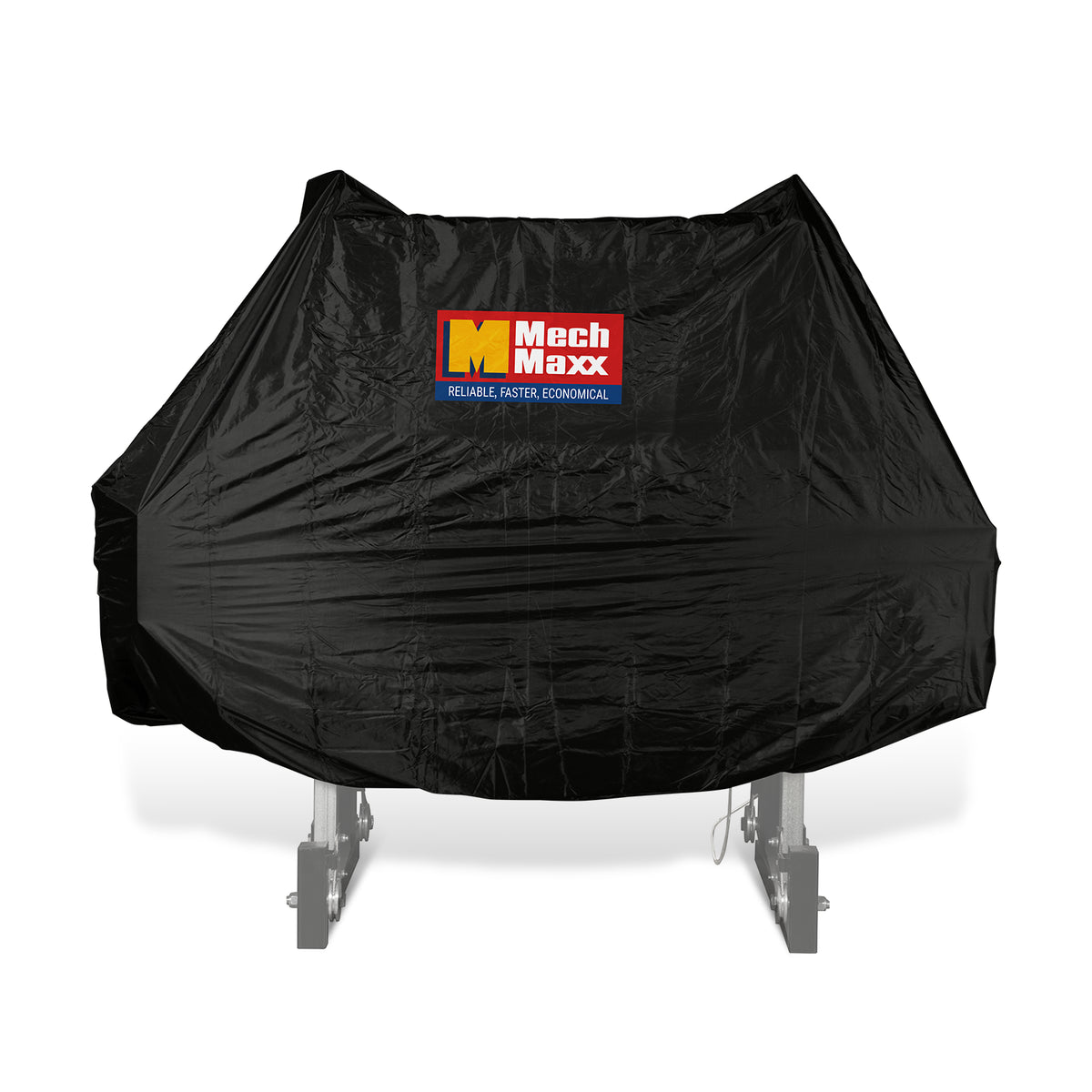

( 1 Pack / 1 Pcs ) Sawmill Cover - Custom Fitted for Portable Sawmill, SM-26; SM-32 (150166; 150166D6; 150167; 150167K4; 150167D6; 150167K6; 150167H6)

32" Portable Sawmill (5 x Blades Included), 459cc 15HP E-Start Gasoline Engine, 29" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM-32 $339900 $5,499.00

Log Loading Ramp Kit for Sawmill Trailer , SM-26 and SM-32 $28999

SM-26; SM-32 Trailer Combo Kit (Trailer Hitch; Torsion Axle; Tire) $59900 $799.00

SM-32 Trailer Primary Sub-Frame, 20' Track Length $99900 $1,299.00

( 1 Pack / 2 Pcs ) Belt for Portable Sawmill, SM-32 & SM-36; SM-36MAX (SKU: 150167; 150168; 150168MAX) $5499

( 1 Pack / 1 Pcs ) Sawmill Cover - Custom Fitted for Portable Sawmill, SM-26; SM-32 (150166; 150166D6; 150167; 150167K4; 150167D6; 150167K6; 150167H6) $7999

Total Price

$

Product Overview

Fully capable of cutting large 32" logs and planks up to 7" wide in 1/2 the time compared to a regular chainsaw.
It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.

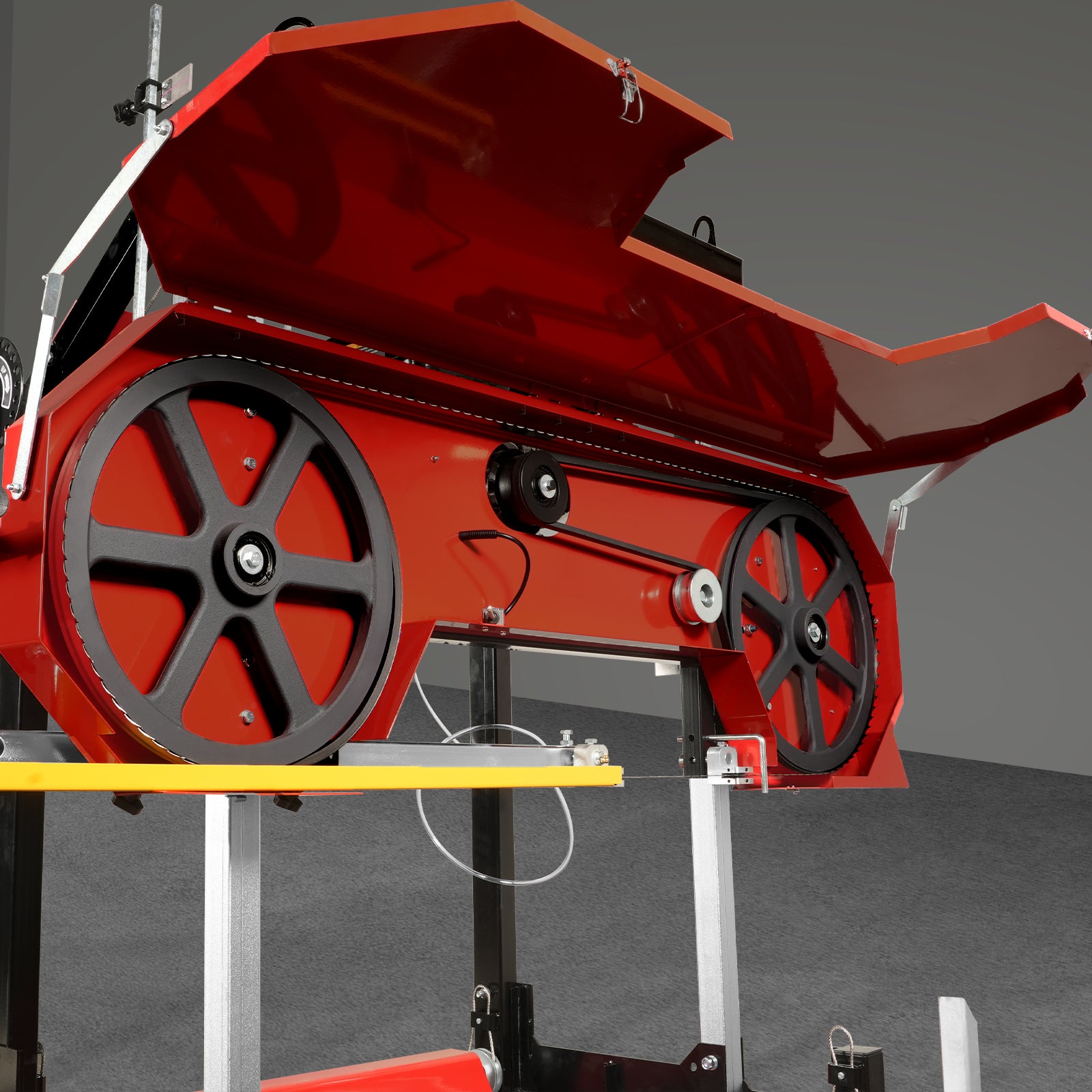

The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
Can withstand heavy workloads for long hours, even in remote areas.
The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.

Product manual (PDF)

SM-32 Product manual 1.0.pdf

Engine manual (PDF)

ZONSEN GB460 Manual.pdf

Assembly guide (PDF)

Sawmill Quick Installation Guide.pdf

Product Features

Engine

This sawmill is equipped with a 15HP 459cc ZONSEN engine, which has excellent performance, reliable quality, and can be used for a long time.

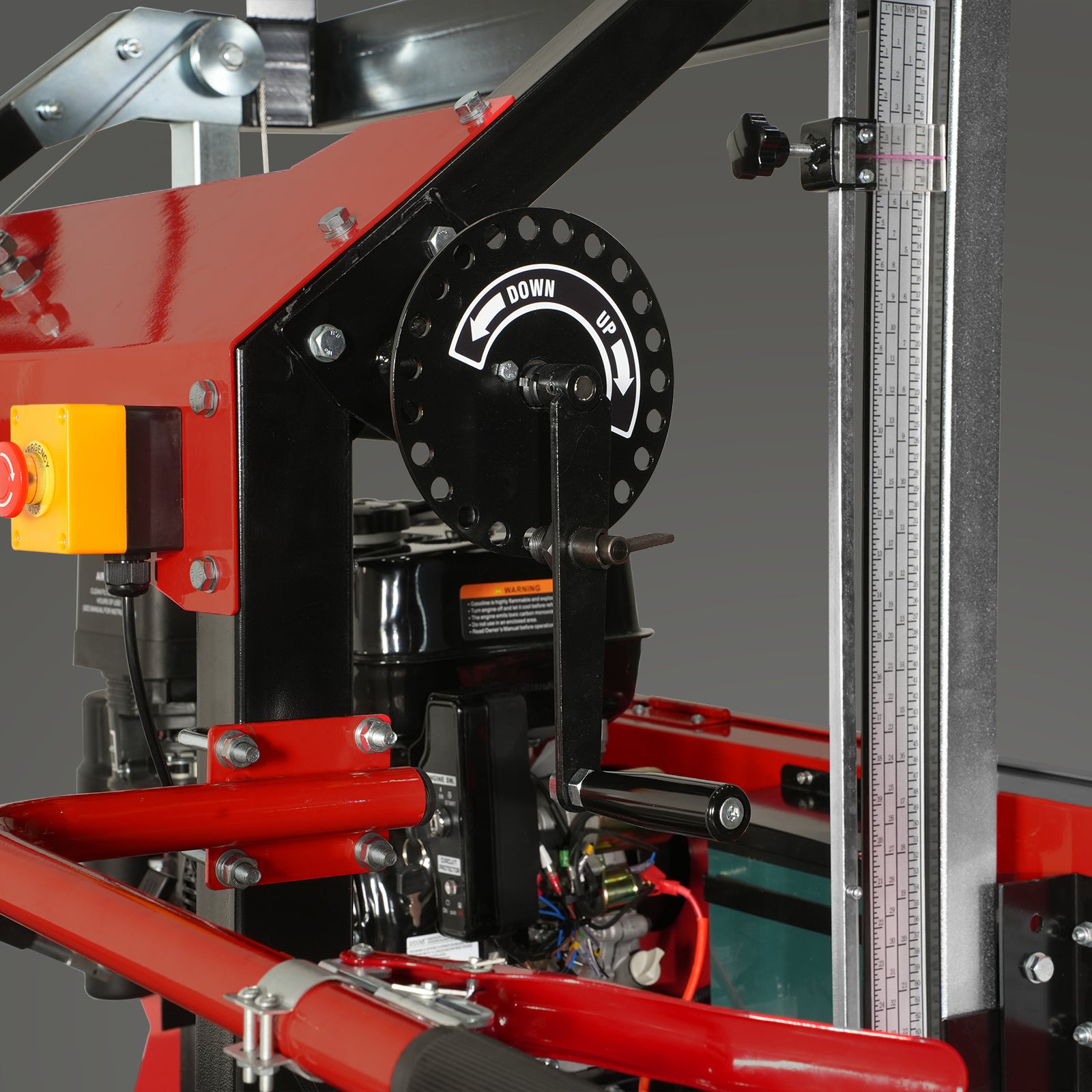

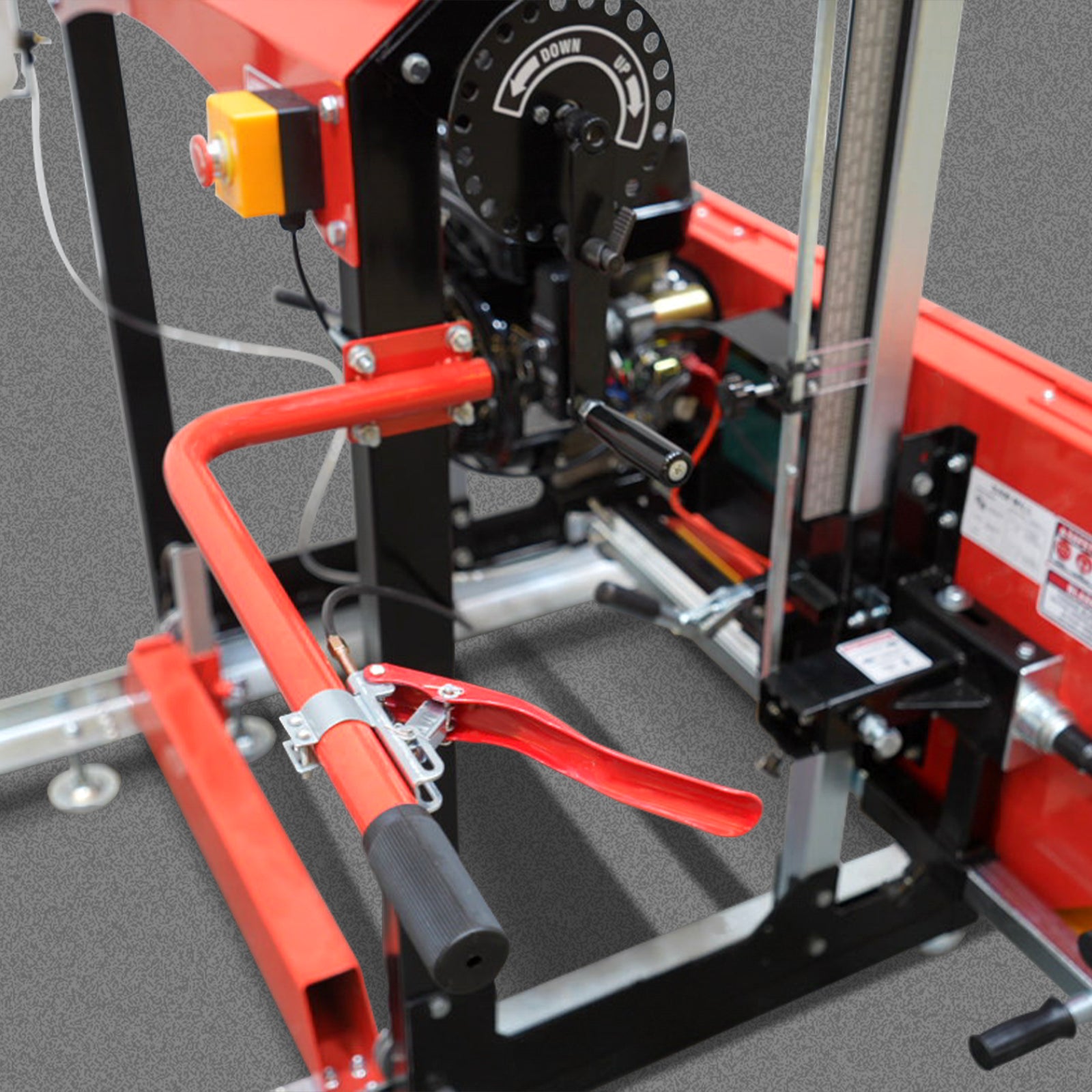

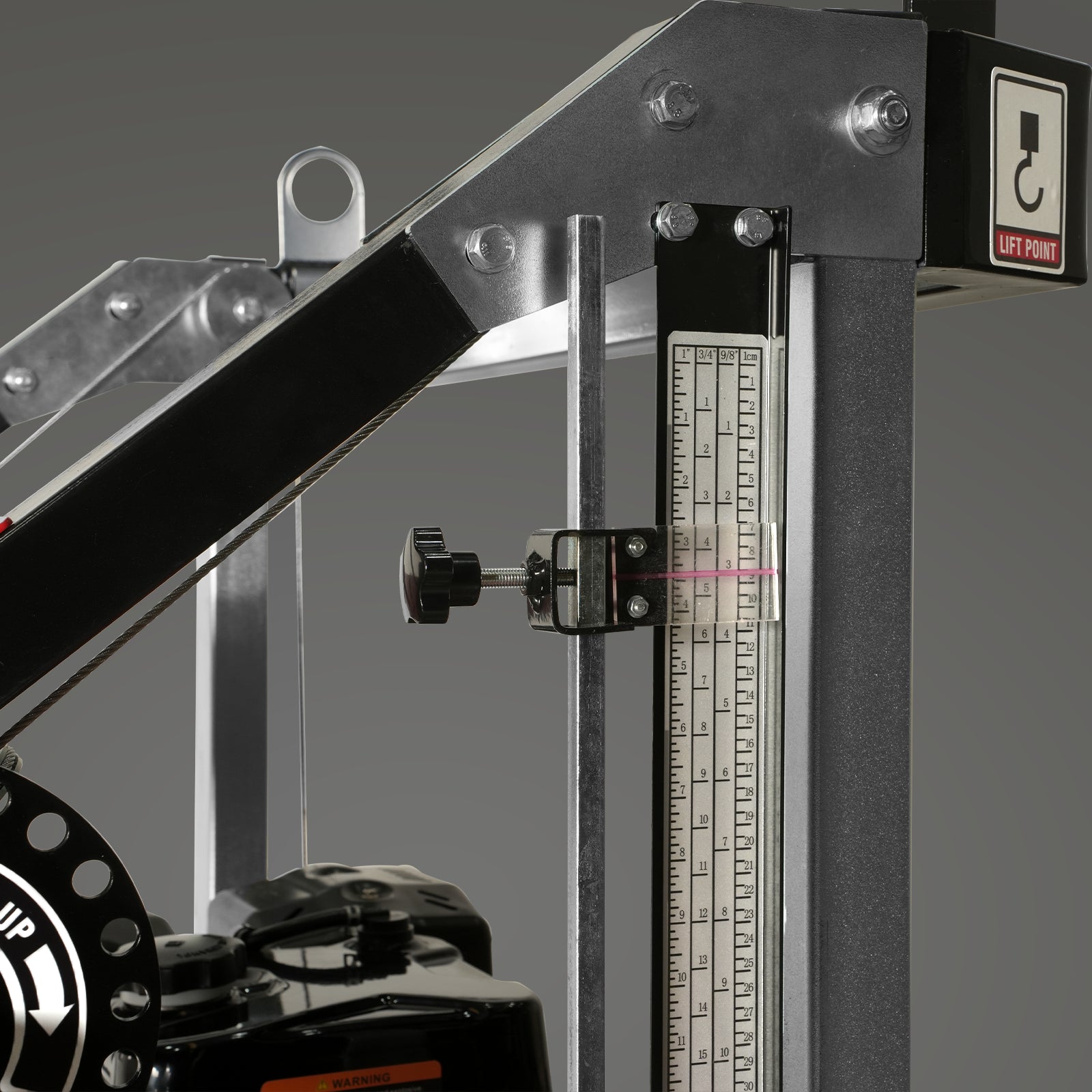

Adjustable Cutting Thickness

The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7’’.

Maximum Log Diameter

This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 32”.

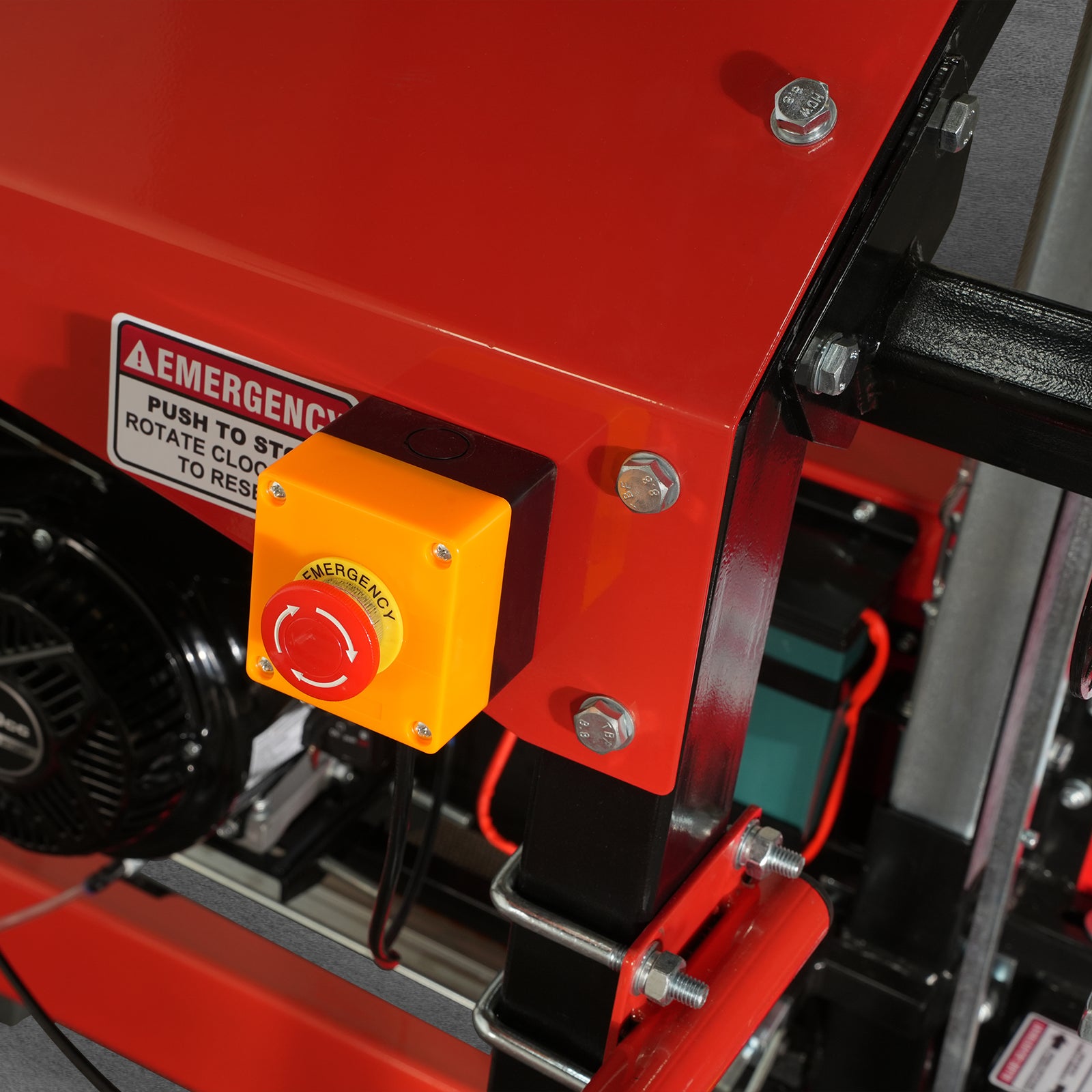

Emergency Stop Button

There is an emergency stop button on the top of the handle, which can stop the machine at any time in an emergency.

Maximum Cutting Width

According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 29’’.

Throttle Handle

You can control the cutting speed by pushing this handle, which reduces the number of required steps and speeds up your woodcutting process; making it more efficient.

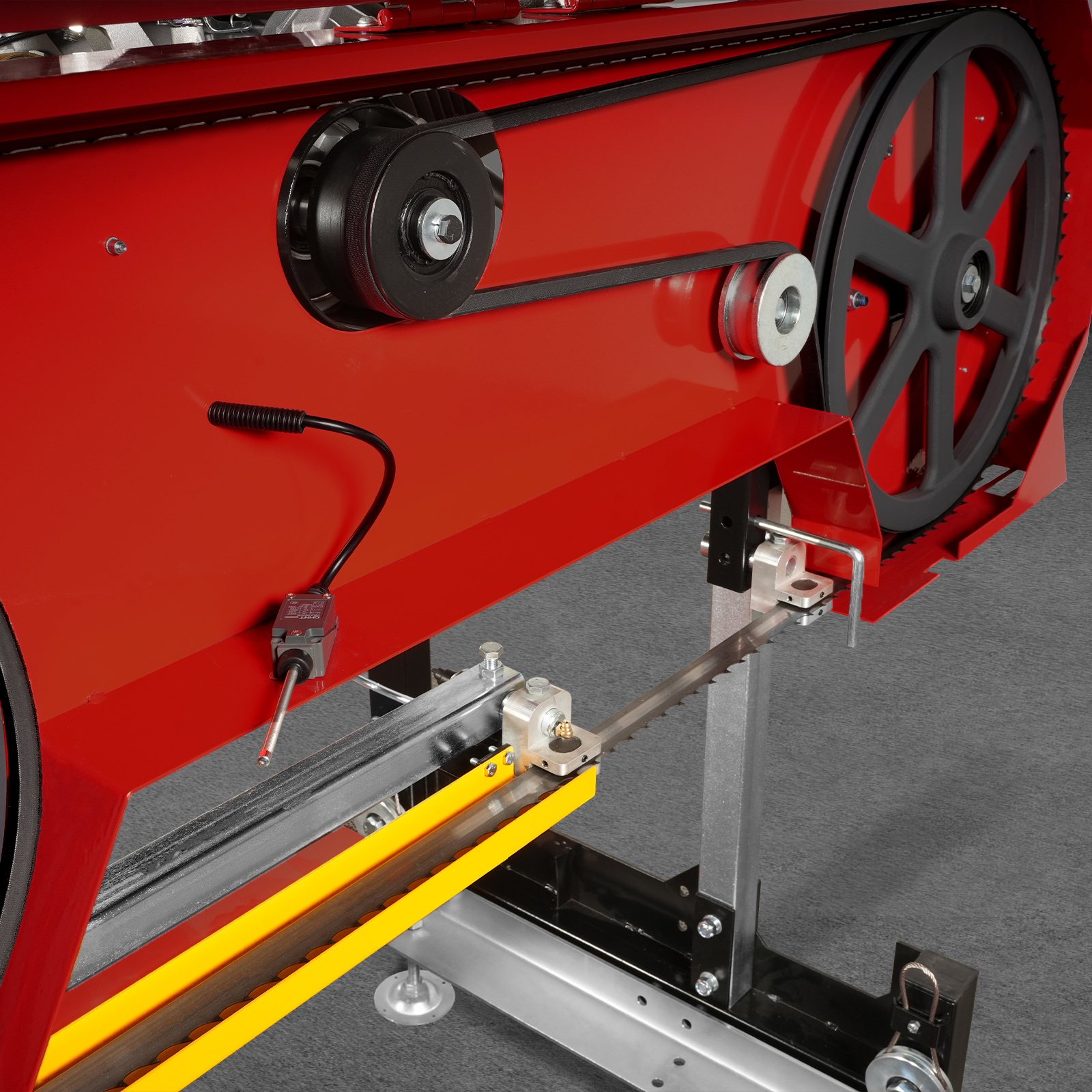

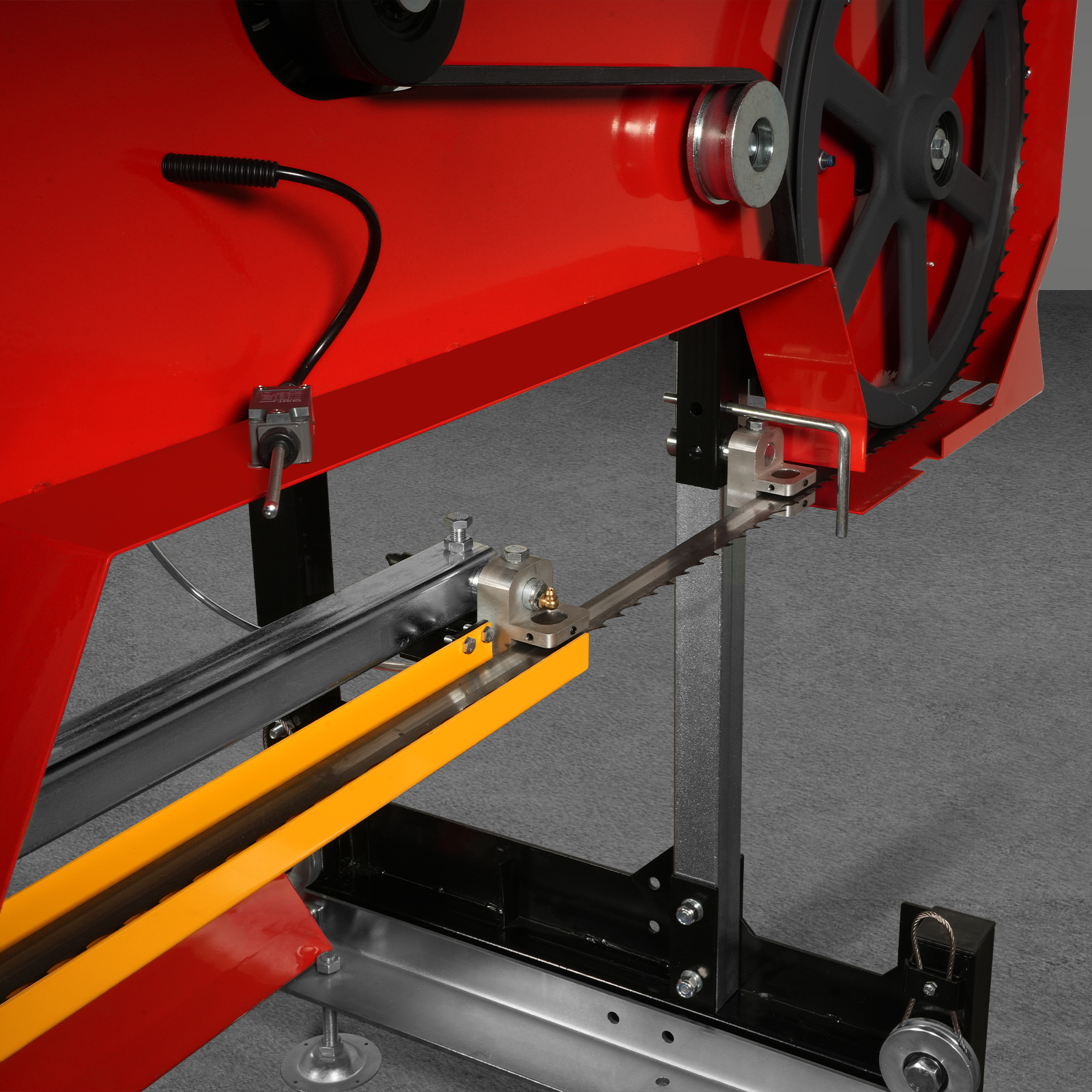

Saw Blade

The saw blade is made out of carbonized steel, with dimensions of 158*1.3*0.04’’, and a rotational speed reaching as high as 787’’ per second. This will ensure a smooth and stable cutting process while also reducing the amount of wood ships.

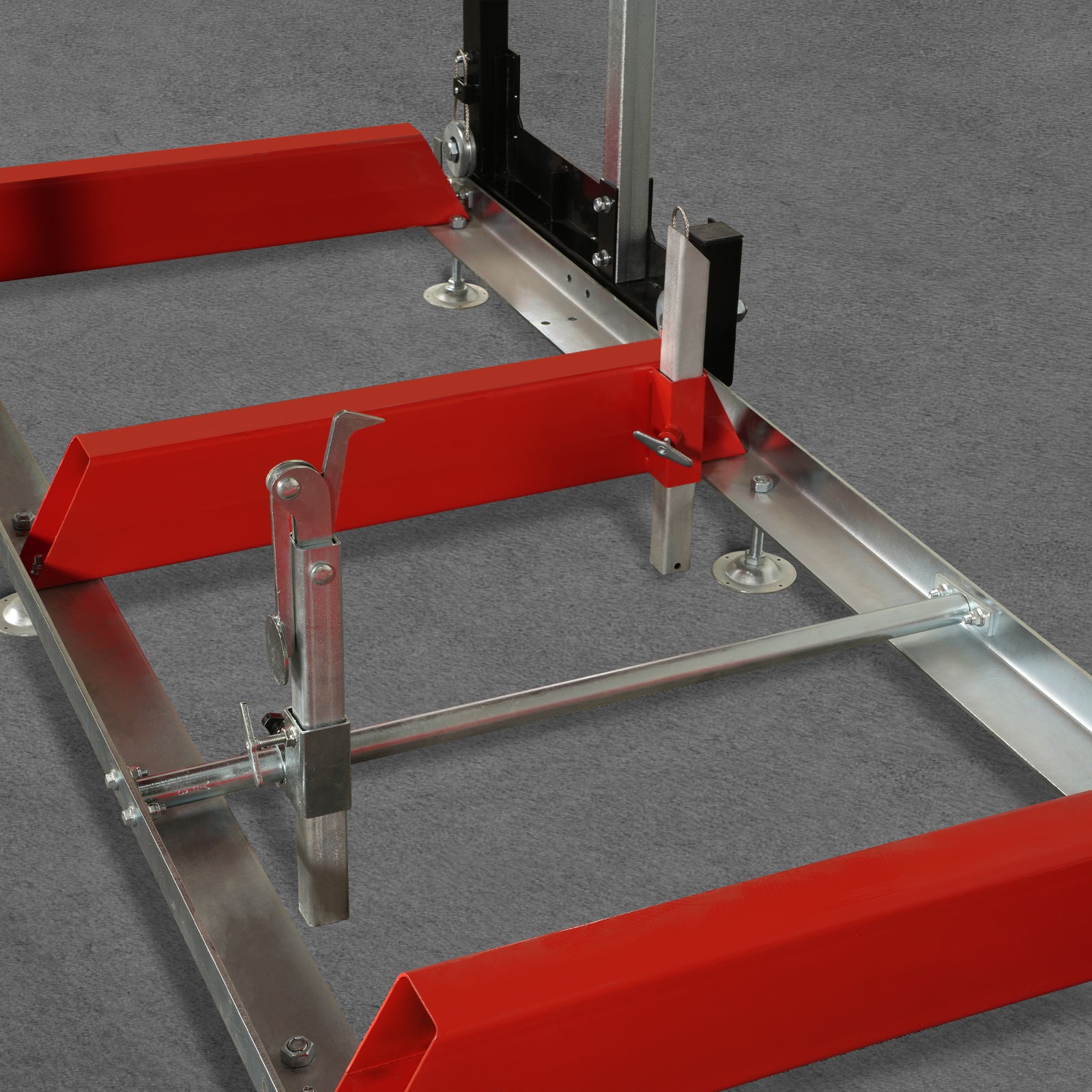

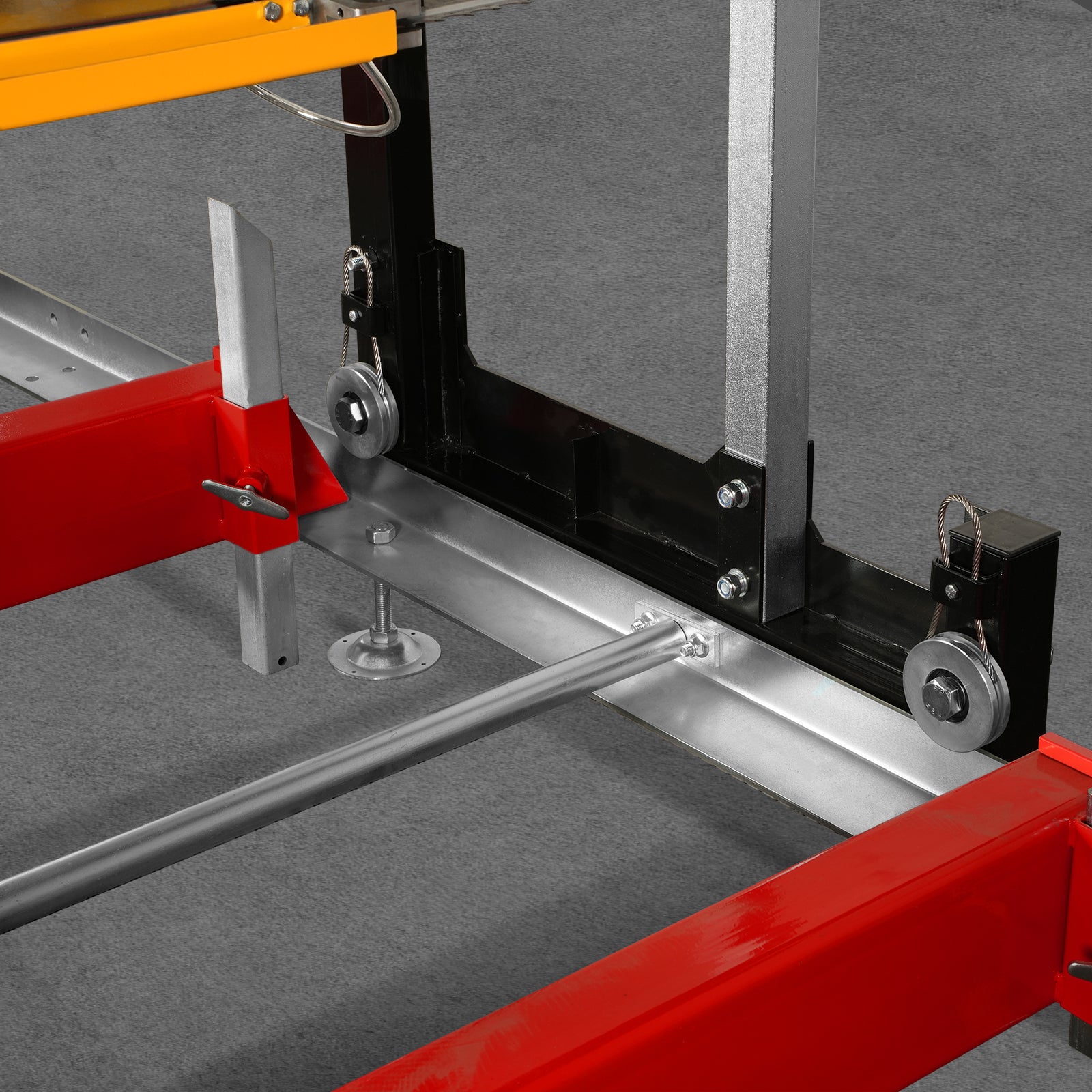

Spiral Log Clamp

The track features easy-to-use spiral log clamps to hold logs securely while milling.

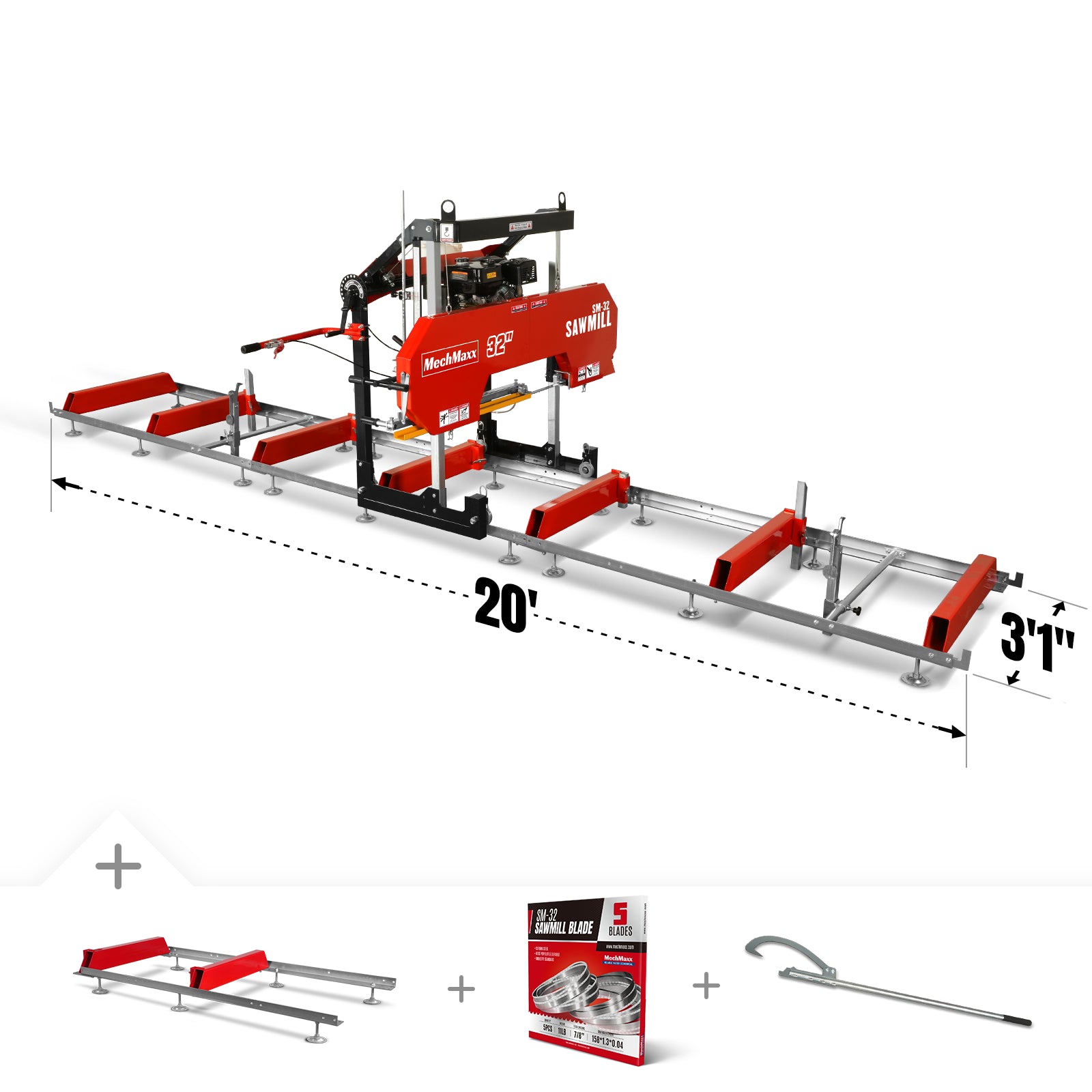

Cutting Length

The logs are equipped with a 201” standard log track, and you can purchase a 77” extension track at MechMaxx according to your needs.

Engine	ZONSEN	Lubricant Tank Size	2.6 gal
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled,OHV	Track Width	3 ft 1 in
Engine Displacement	459 cc	Track Length	20 ft
Horsepower	15 HP	Track Extension Length	6 ft 5 in
Start	E-Start	Height (Max Head Position)	83 in
Log Diameter	32 in	Levelling Feet	18
Max Live Edge Width	29 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	17 ft	Log Clamps	2 x Quick Lock
Max Board Thickness	7 in	Track Bunks	3 x 6 in

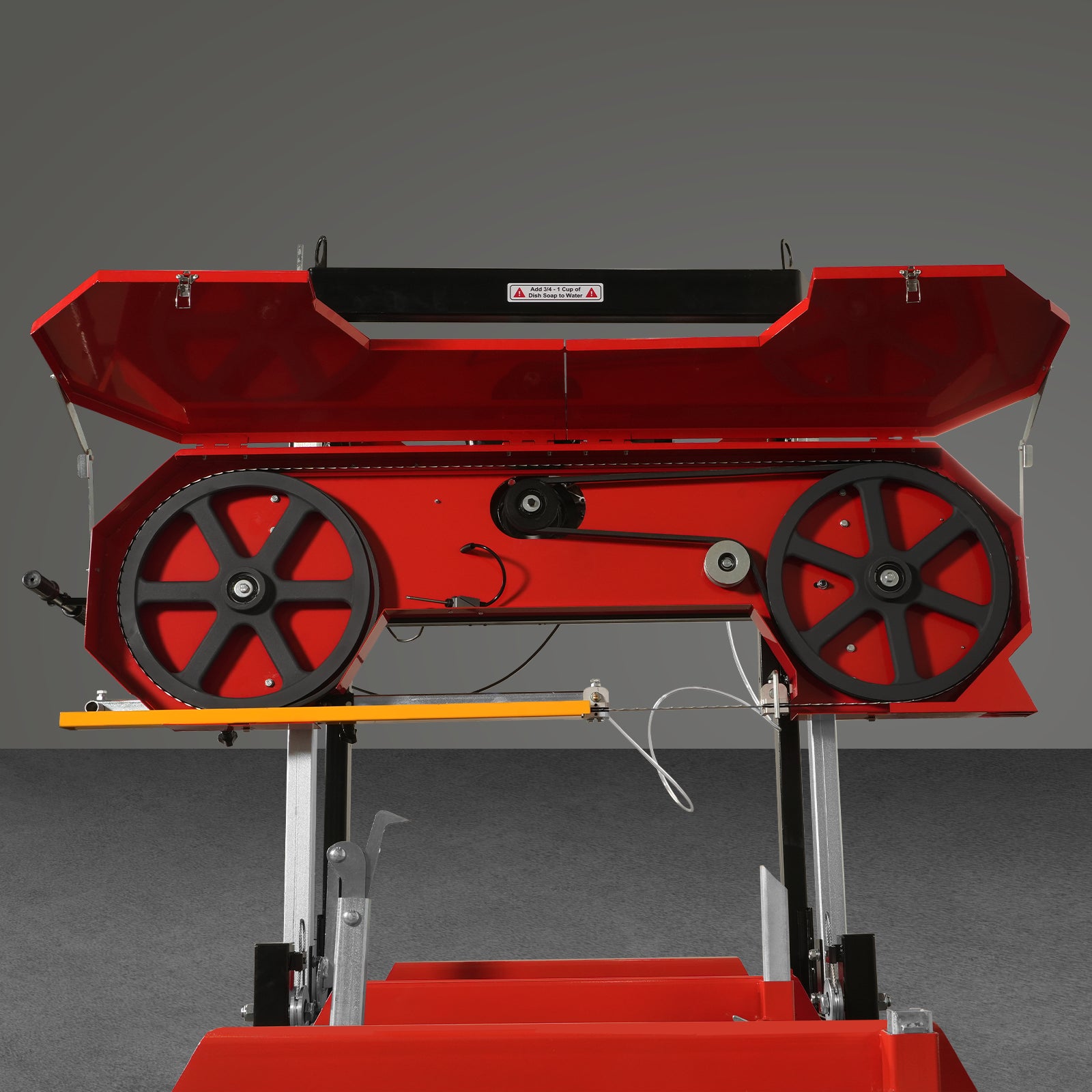

Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes
Cast Iron Bandwheel Diameter	19 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagement	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	1 Year
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	158 x 1.3 in	Packing Size	90 x 25 x 34 in
Blade Pitch	7/8 in	Weight (N.W./G.W.)	937/1031 lbs
Blade Lubrication	Water Lube - Manual Valve	Package Contents	Sawmill x 1, Blade x 5, Cant Hook x 1
