SKU: 101301

| Model: T80HL

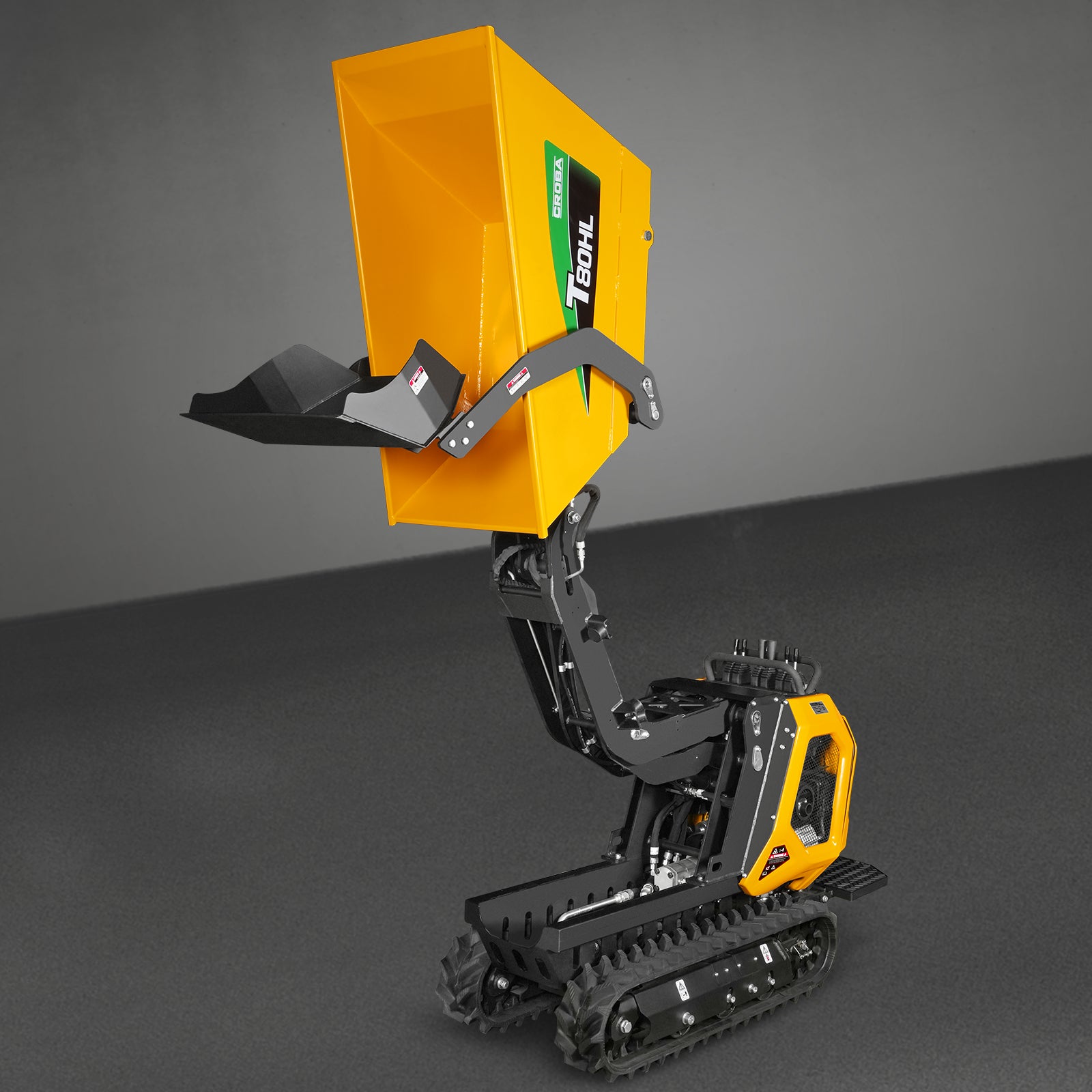

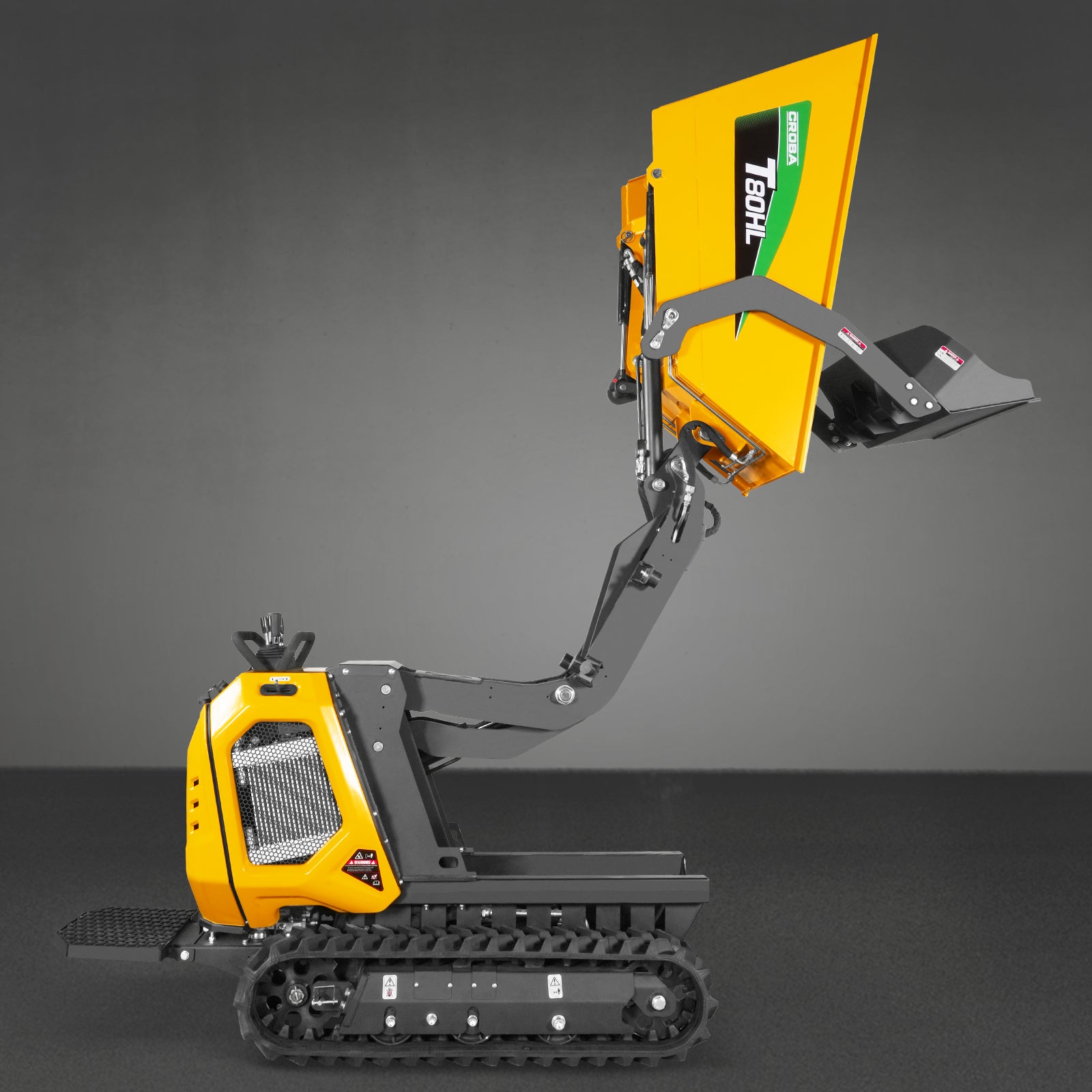

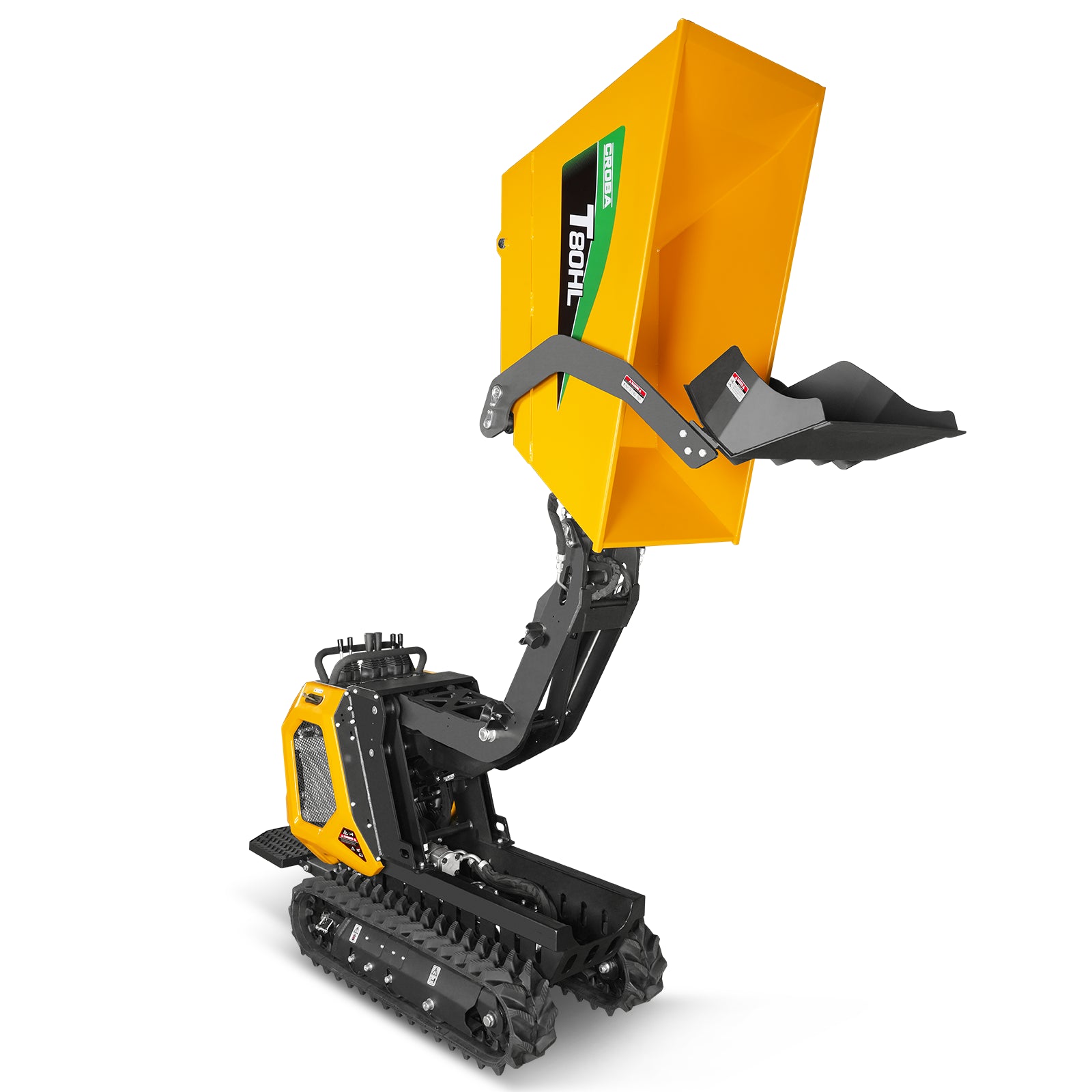

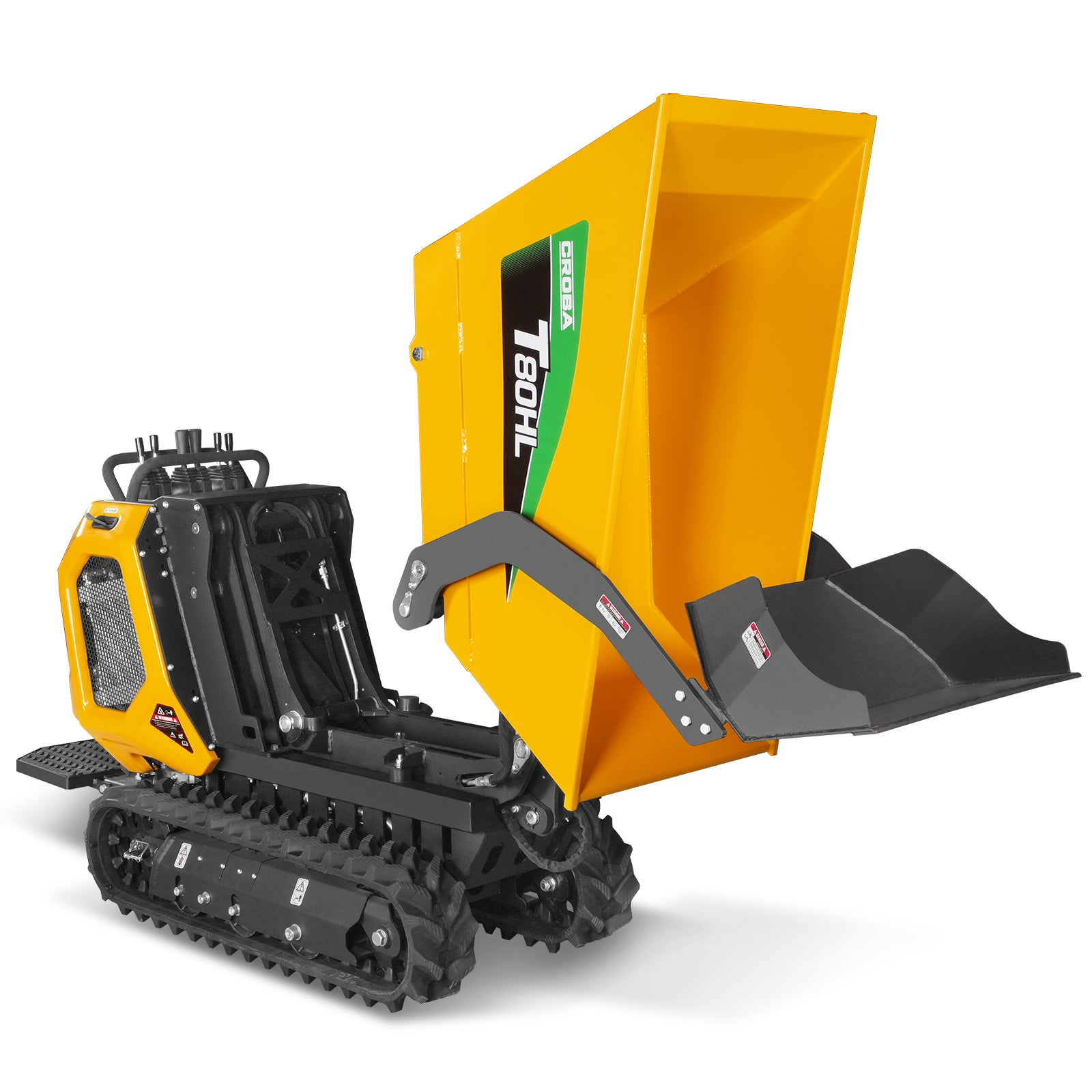

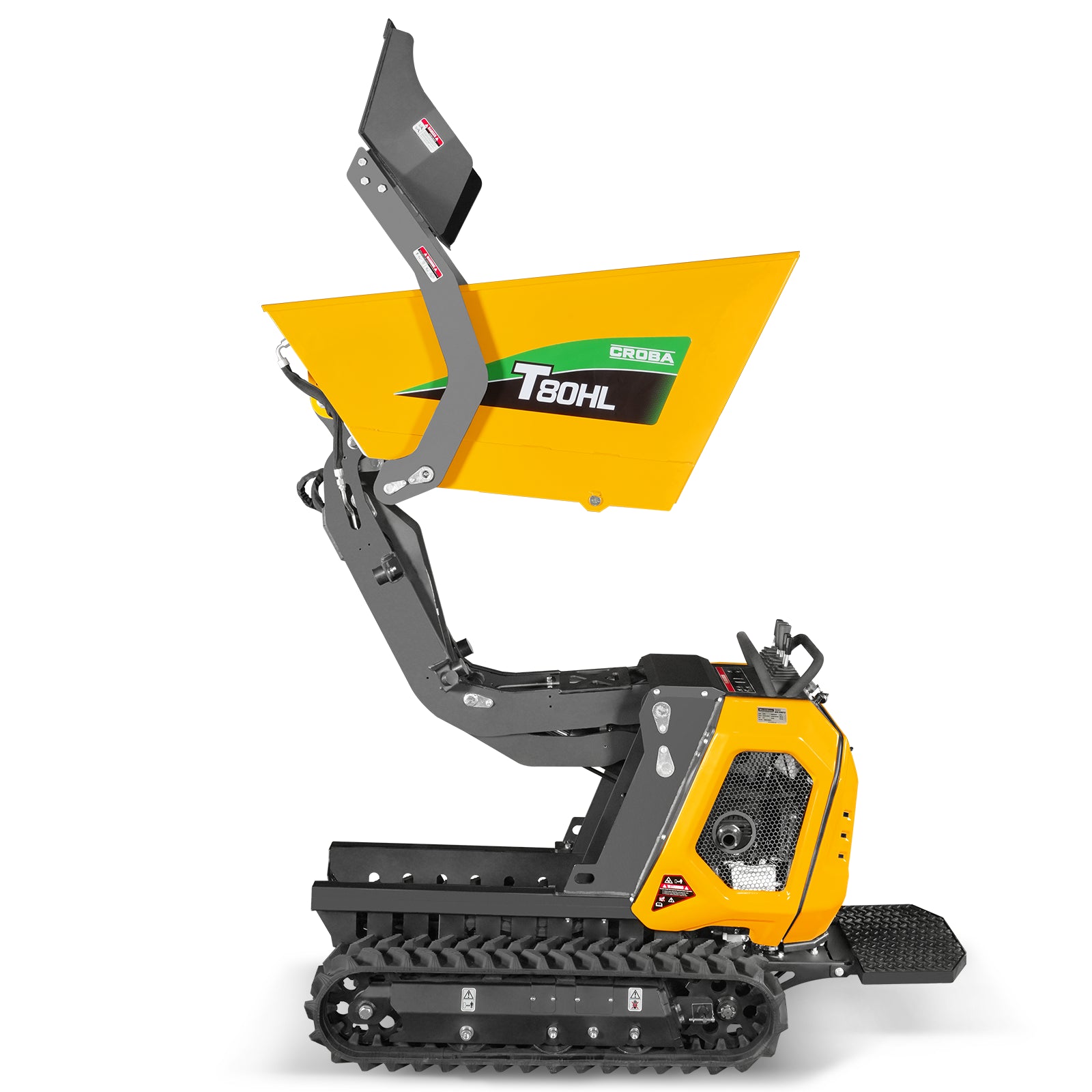

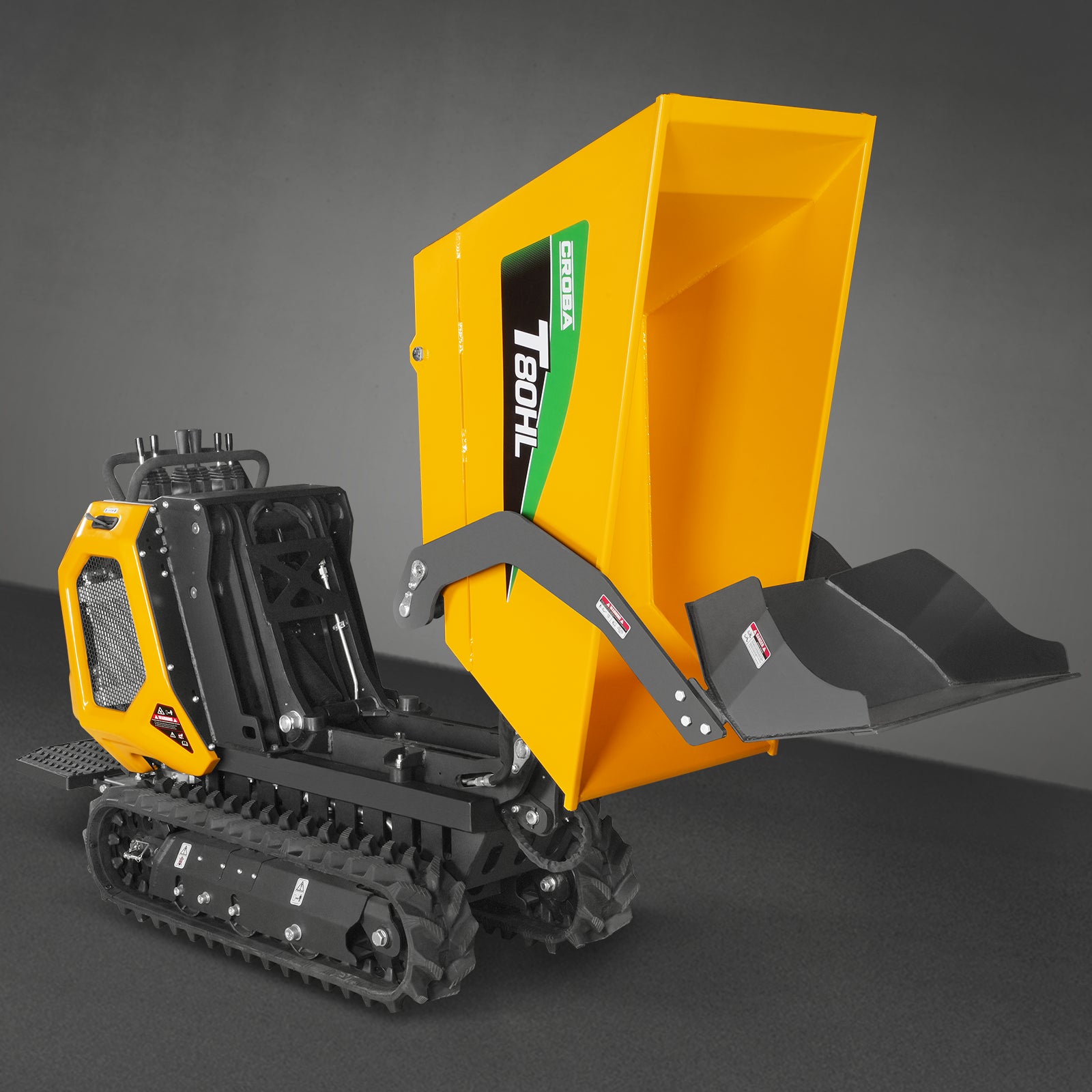

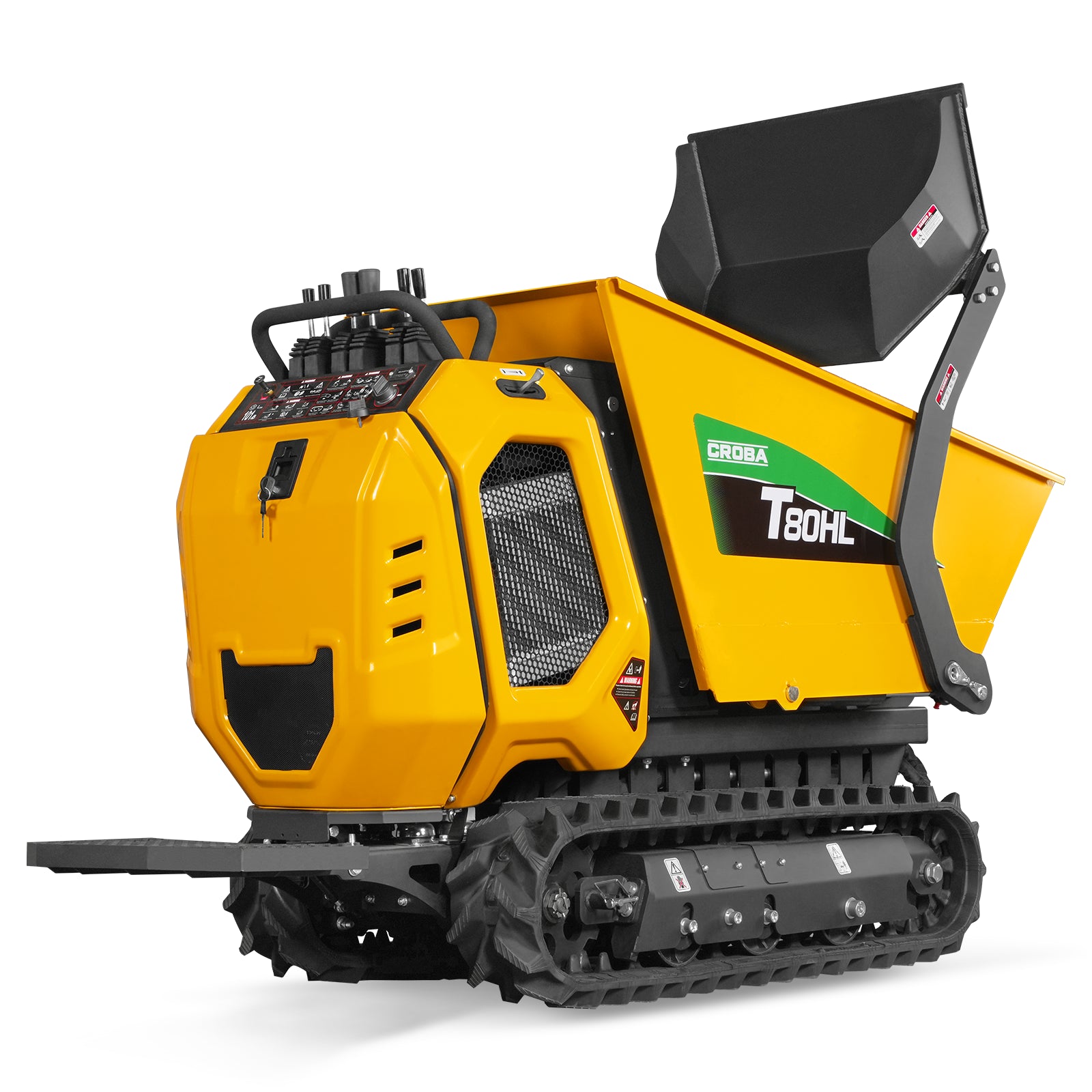

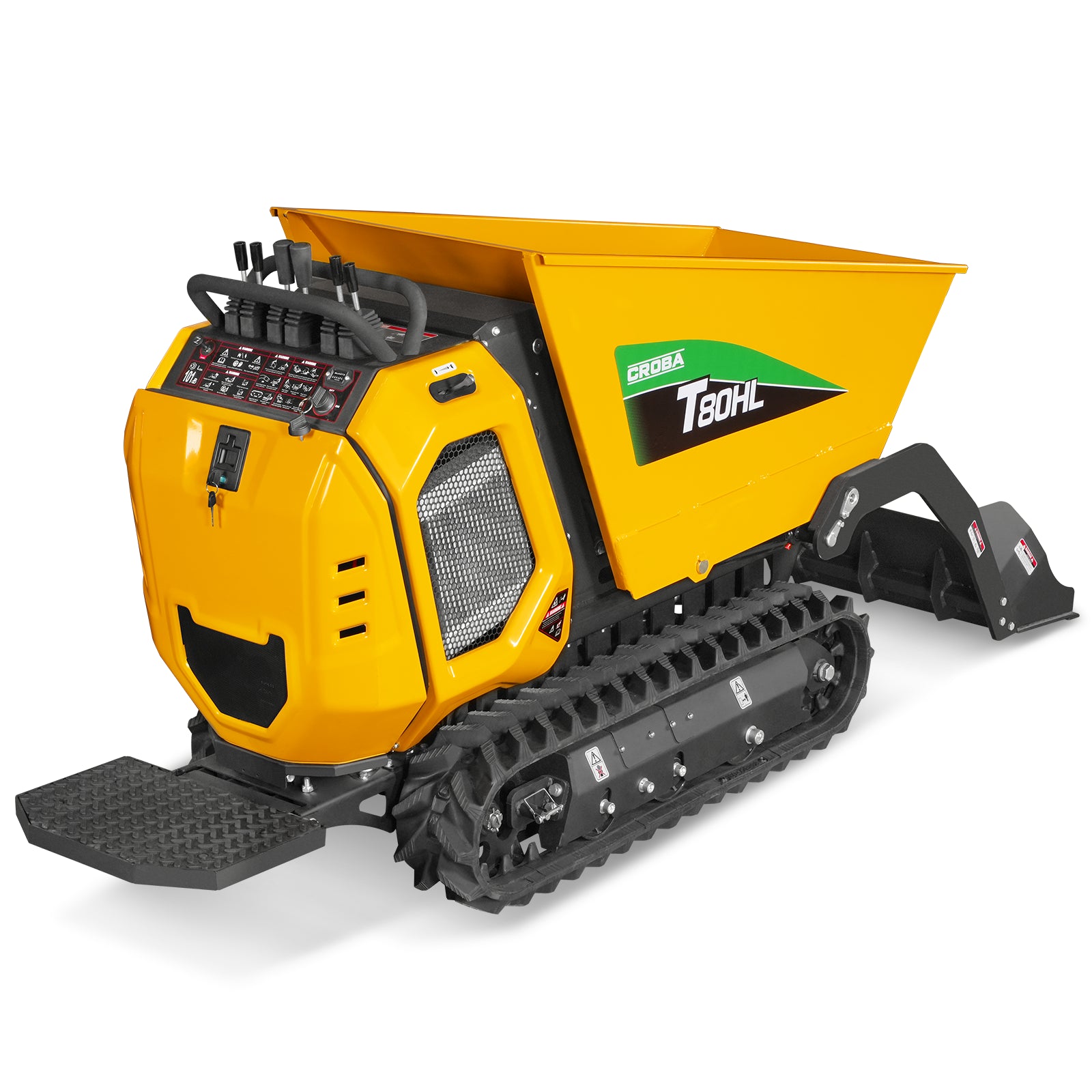

1100lb 420cc E-start Gas Engine Stand-ON Hydraulic Track Dumper Hydraulic Tipping and Lifting with Self-Loading, T80HL

Name: 1100lb 420cc E-start Gas Engine Stand-ON Hydraulic Track Dumper Hydraulic Tipping and Lifting with Self-Loading, T80HL
Brand: MechMaxx
SKU: 101301
Price: 7299.0 USD
Availability: InStock
Rating: 4.94 (16 reviews)

$729900

$9,499.00

Save $2,200

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

Two speed travelling speed: low speed to make sure the precision in operation and high speed at 2.7 mph allows for quicker travel around site.

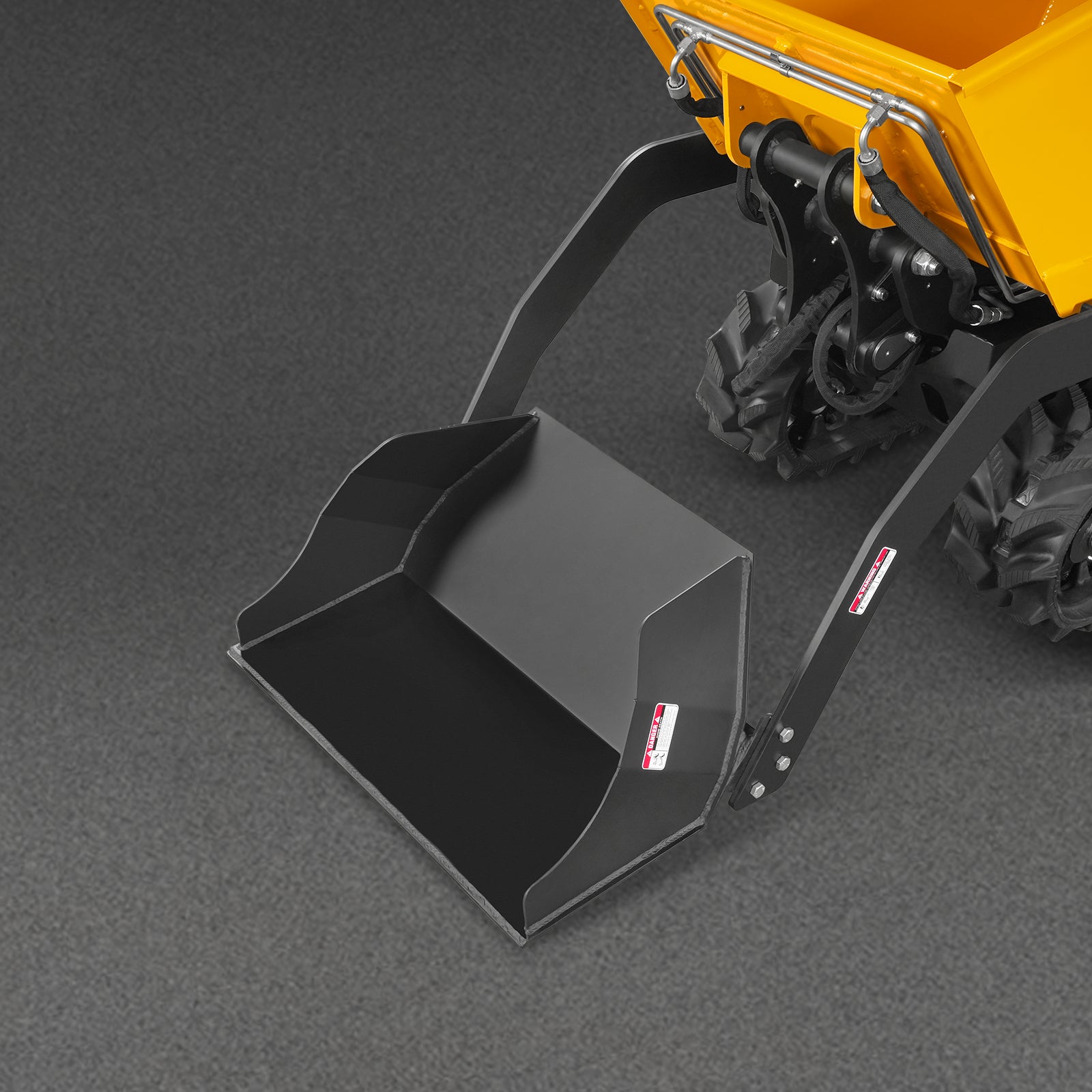

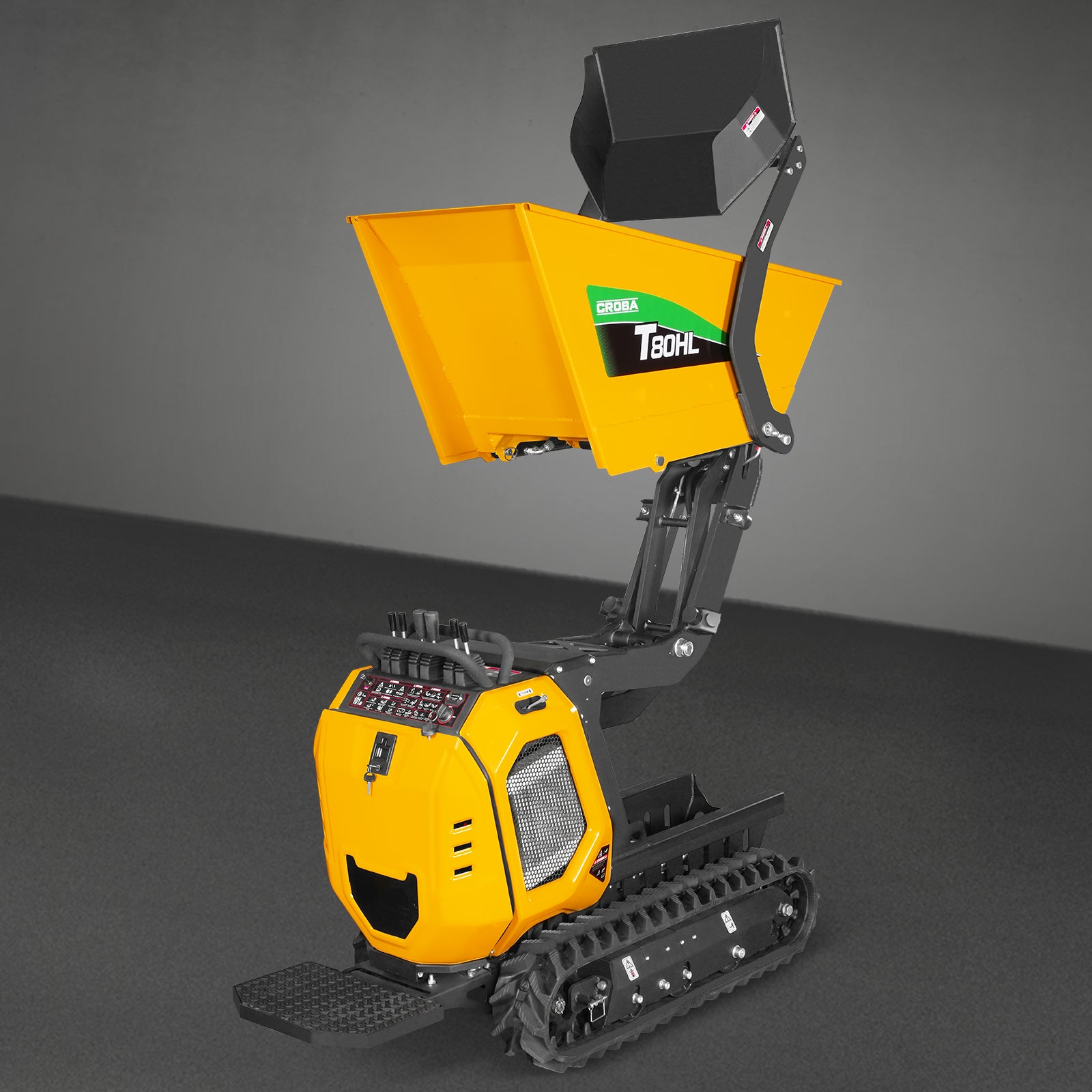

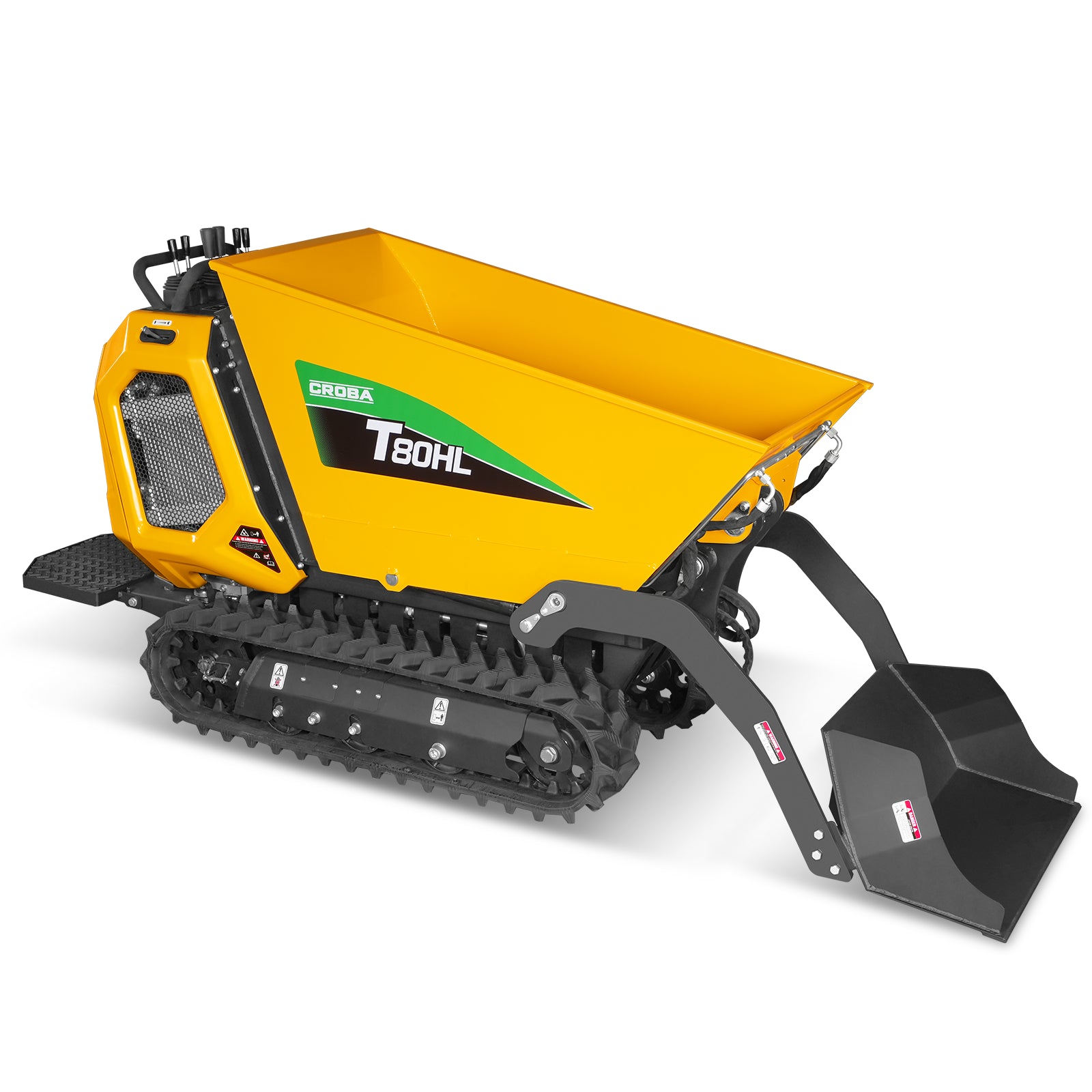

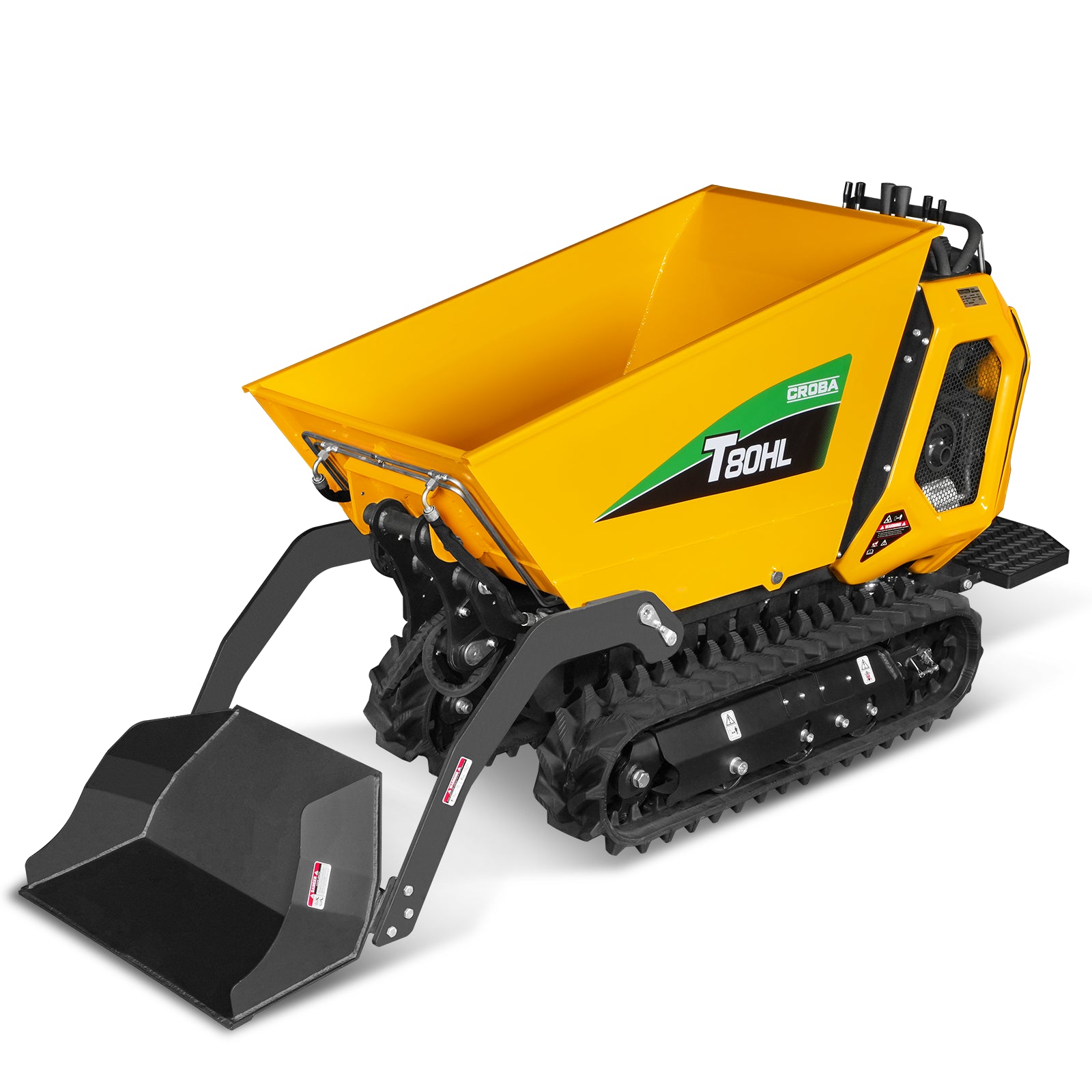

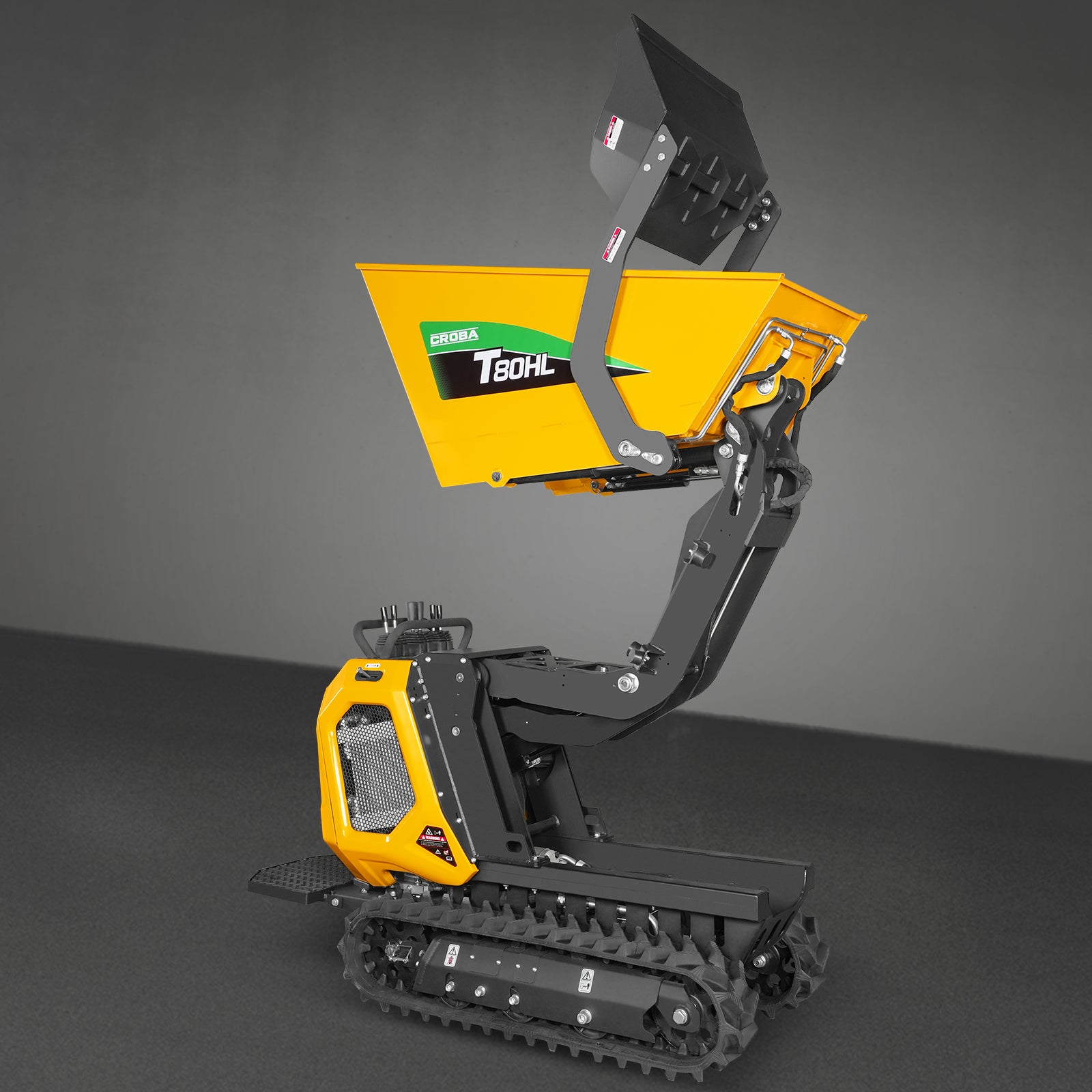

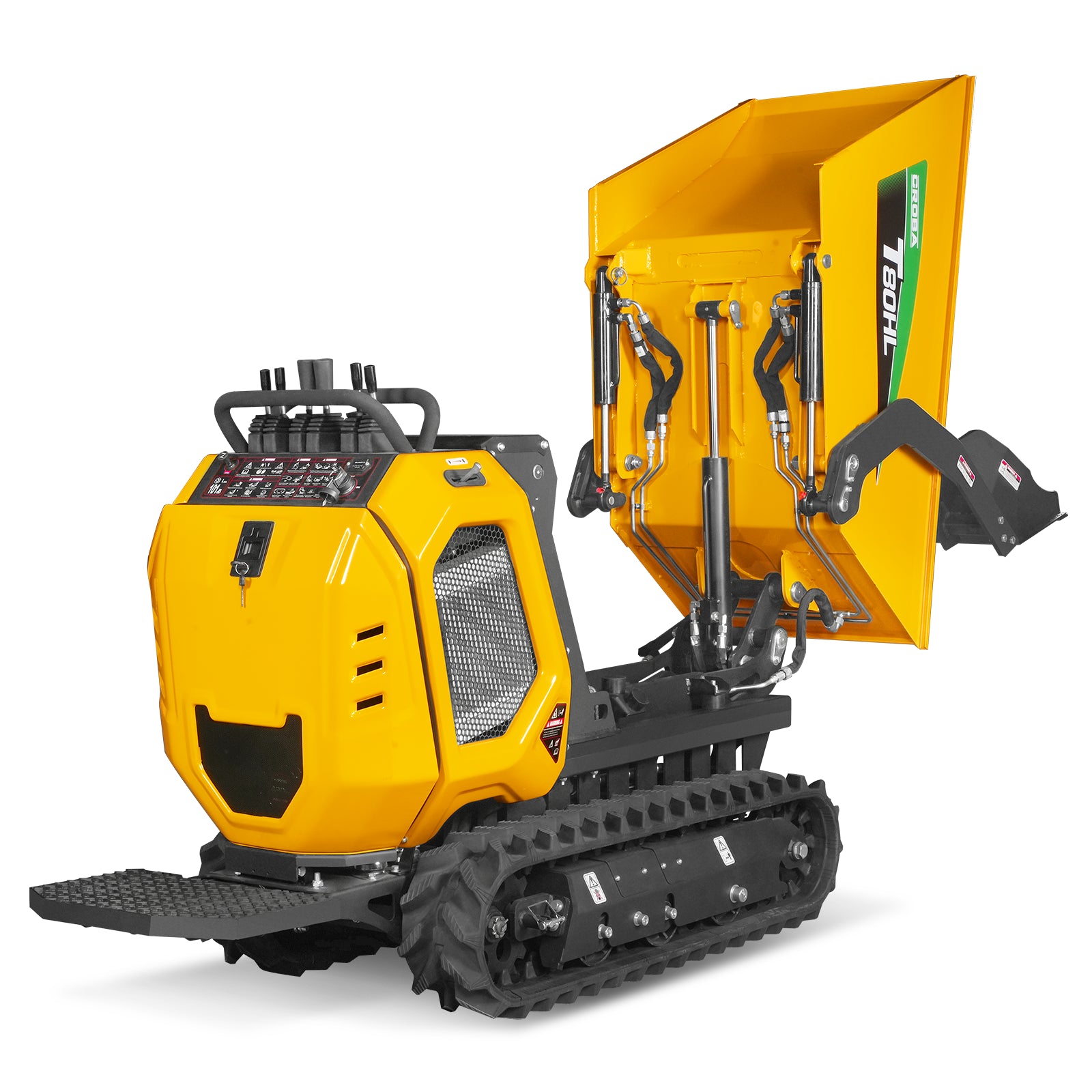

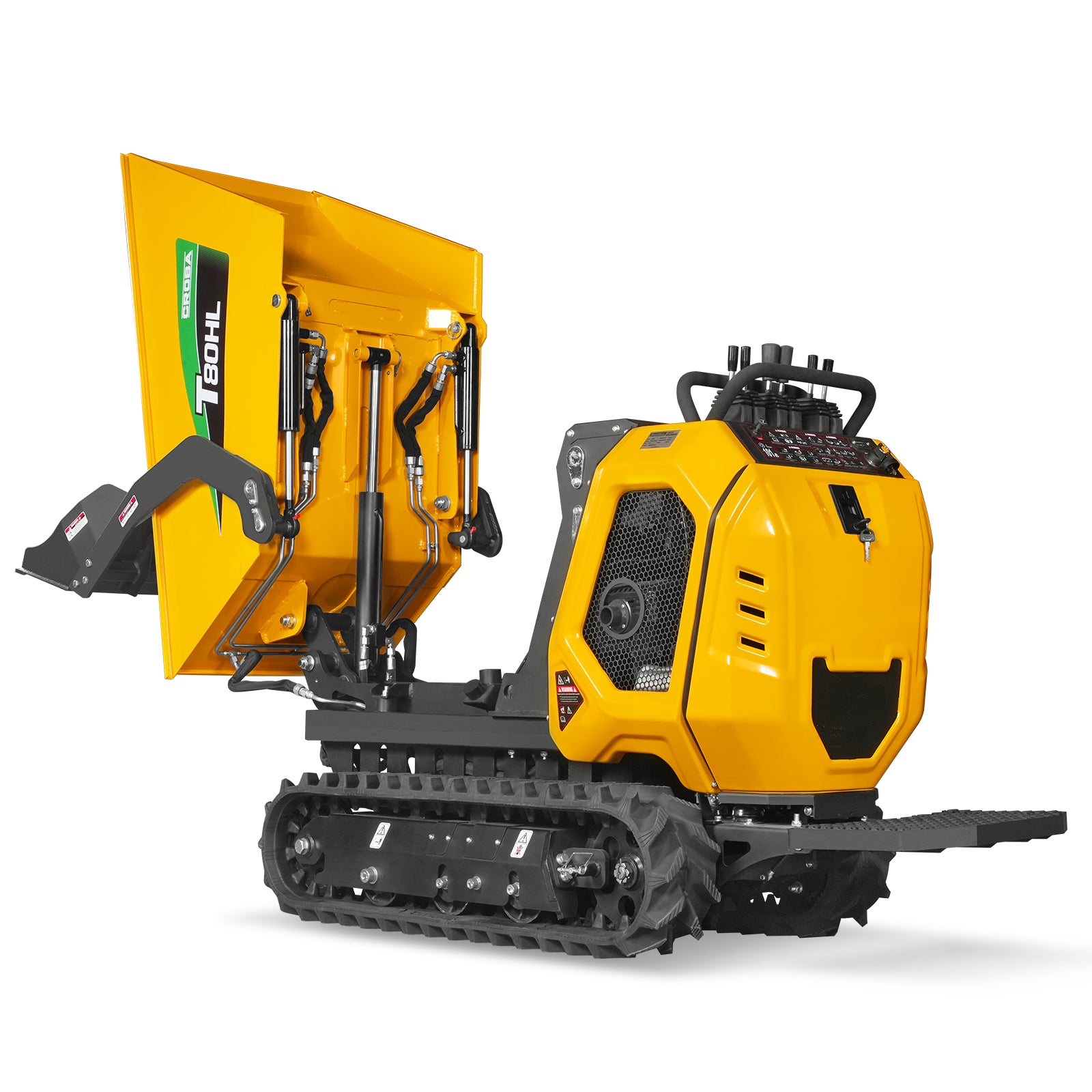

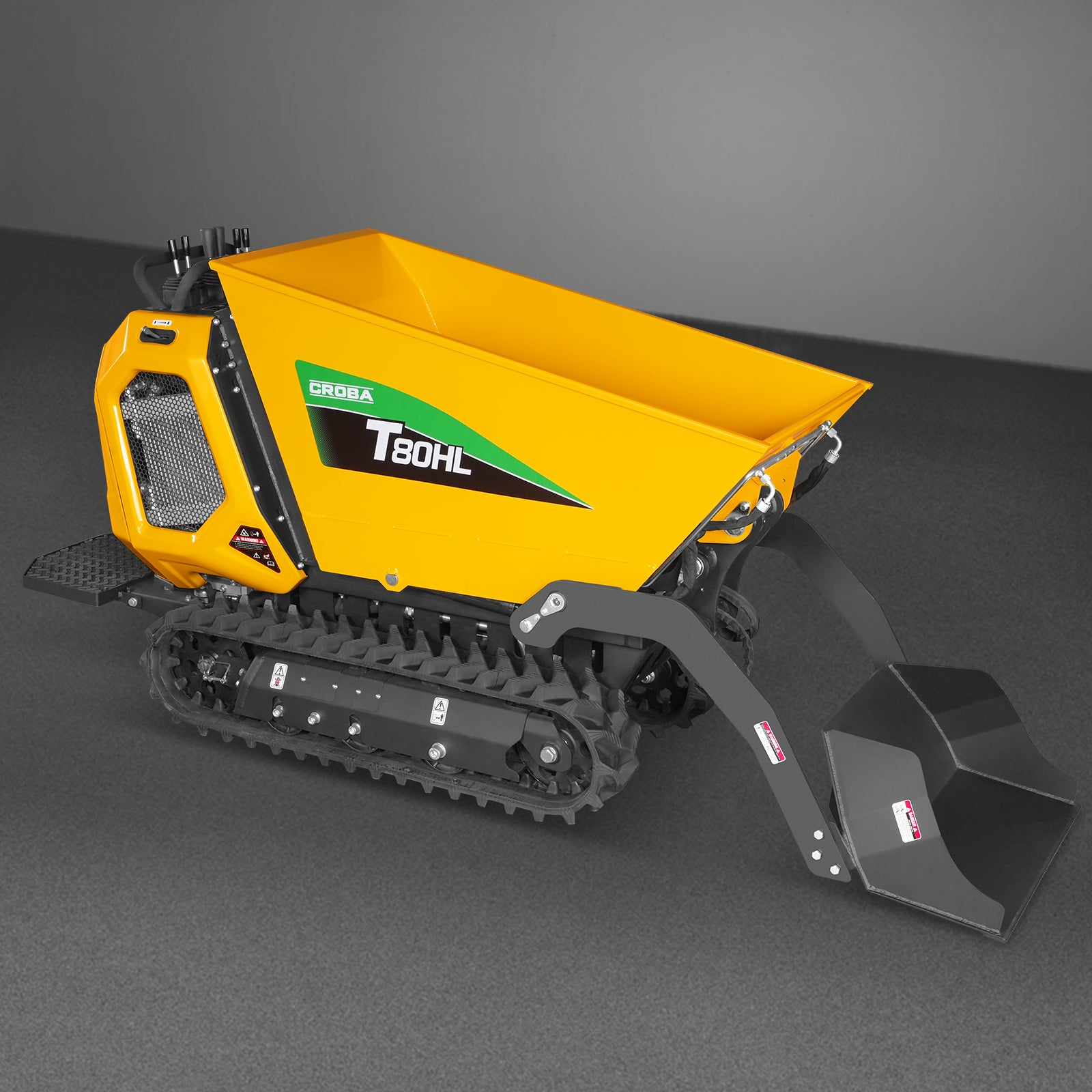

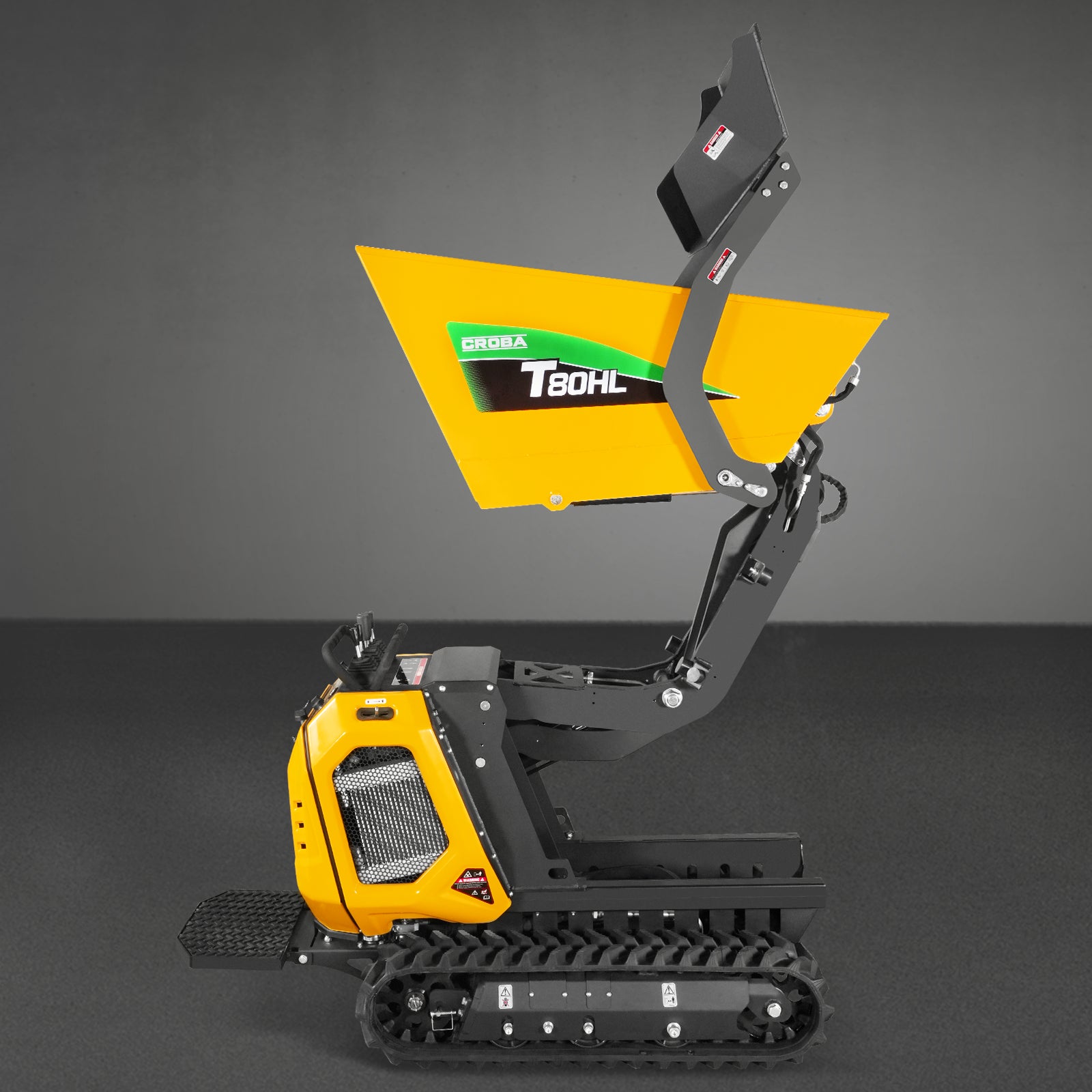

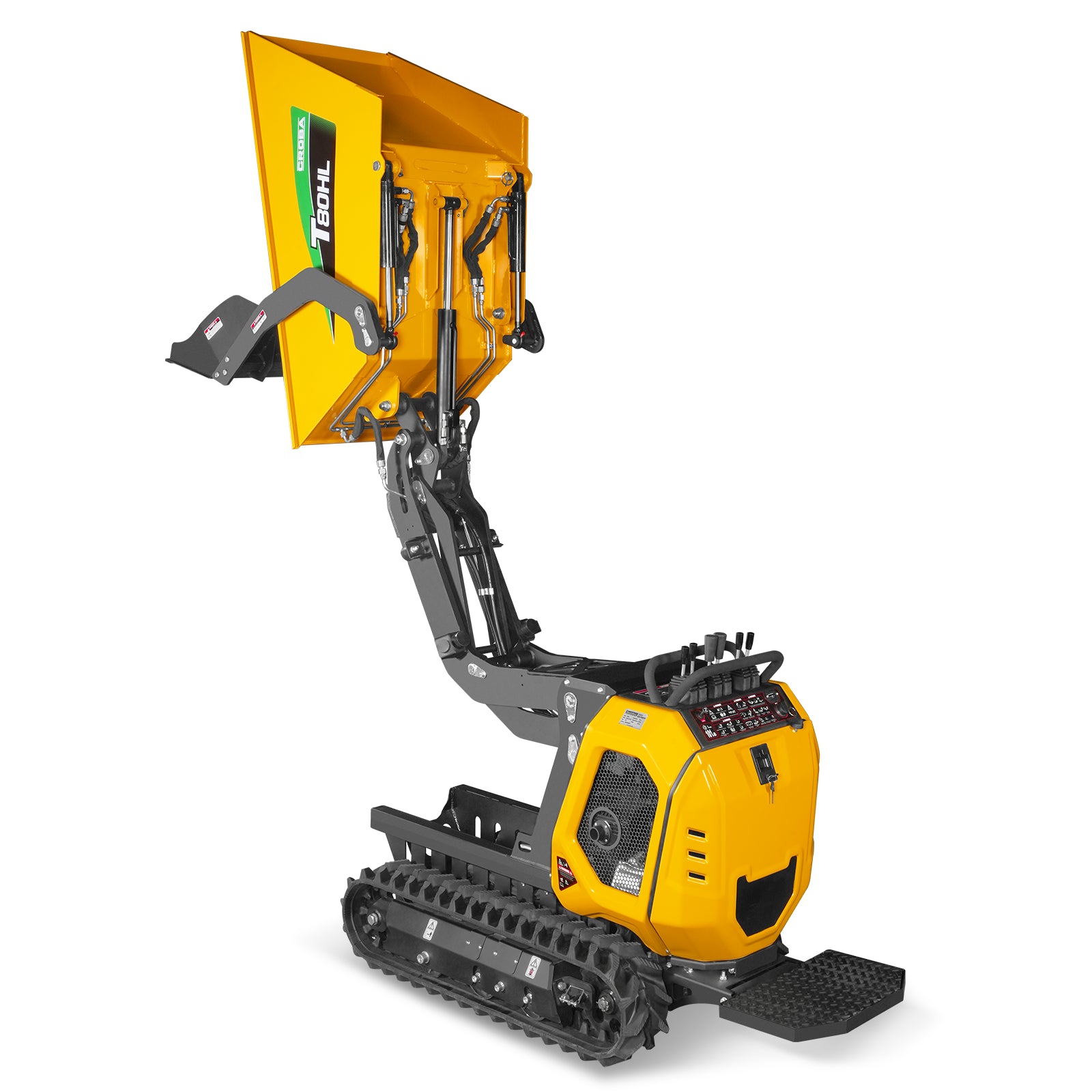

15hp gasoline engine provides more power for the machine and enhance the work performance in dumping and tracking. Its integrated self-loading shovel reduces manual labor, while the hydraulic lifting and tipping system ensures fast, controlled dumping.
Machine width at 29in allows you to fit through any standard doorway or gate.
1100lbs loading capacity, fully Hydraulic system, Exclusive BONDIOLI&PAVESI hydraulic control valve for T80HL.
Triple gear pump, 30% max gradeability, 26.5Nm/2500rpm max torque

Product manual (PDF)

T80HL Product manual 1.0.pdf

Engine manual (PDF)

Loncin G420F Manual.pdf

Product Features

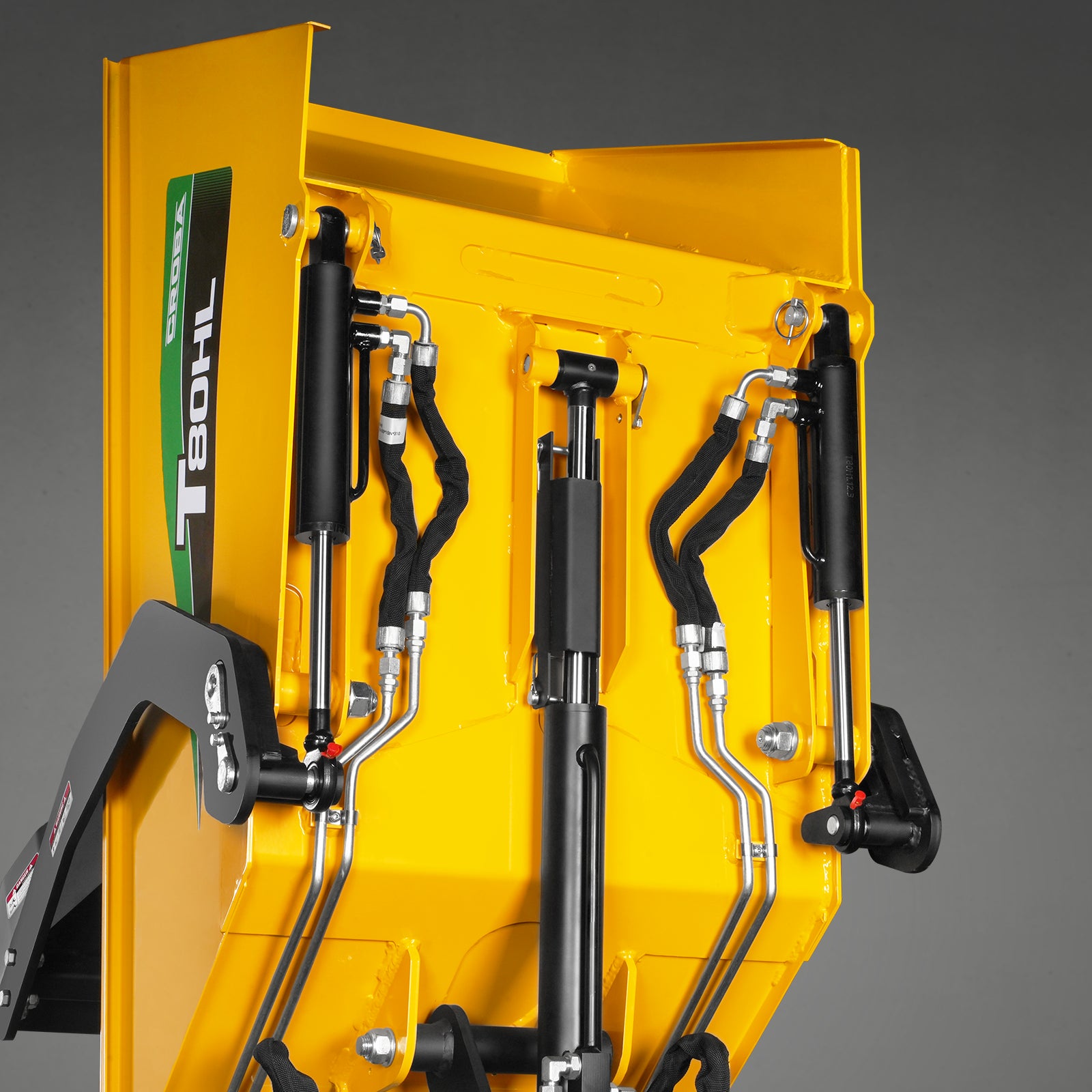

The T80HL features a powerful hydraulic system with an integrated control panel and joystick, paired with an exclusive BONDIOLI & PAVESI hydraulic control valve designed specifically for the T80HL, ensuring smoother, more stable, and more reliable bucket lifting and tilting operations, significantly improving working efficiency.

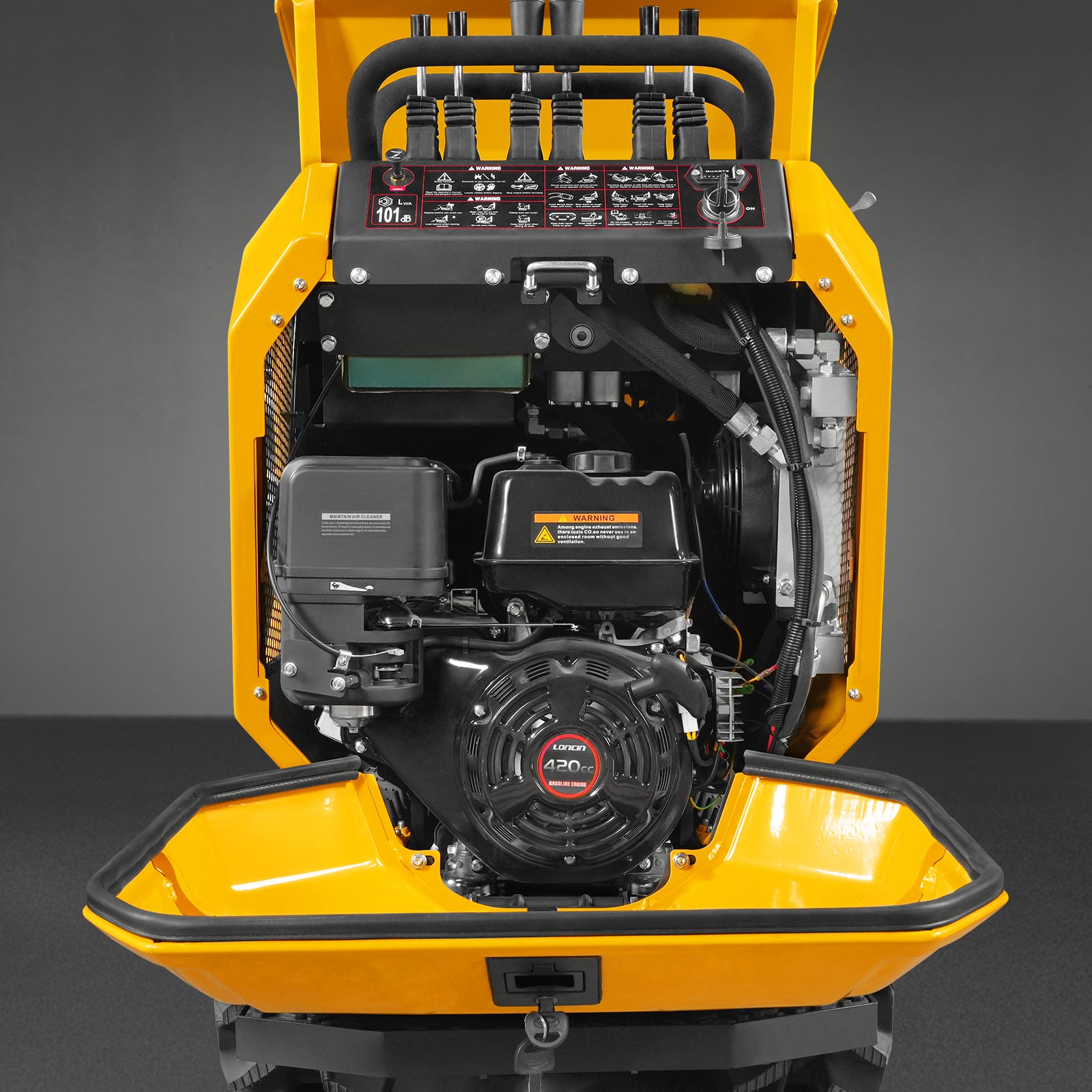

Electric-Start Engine

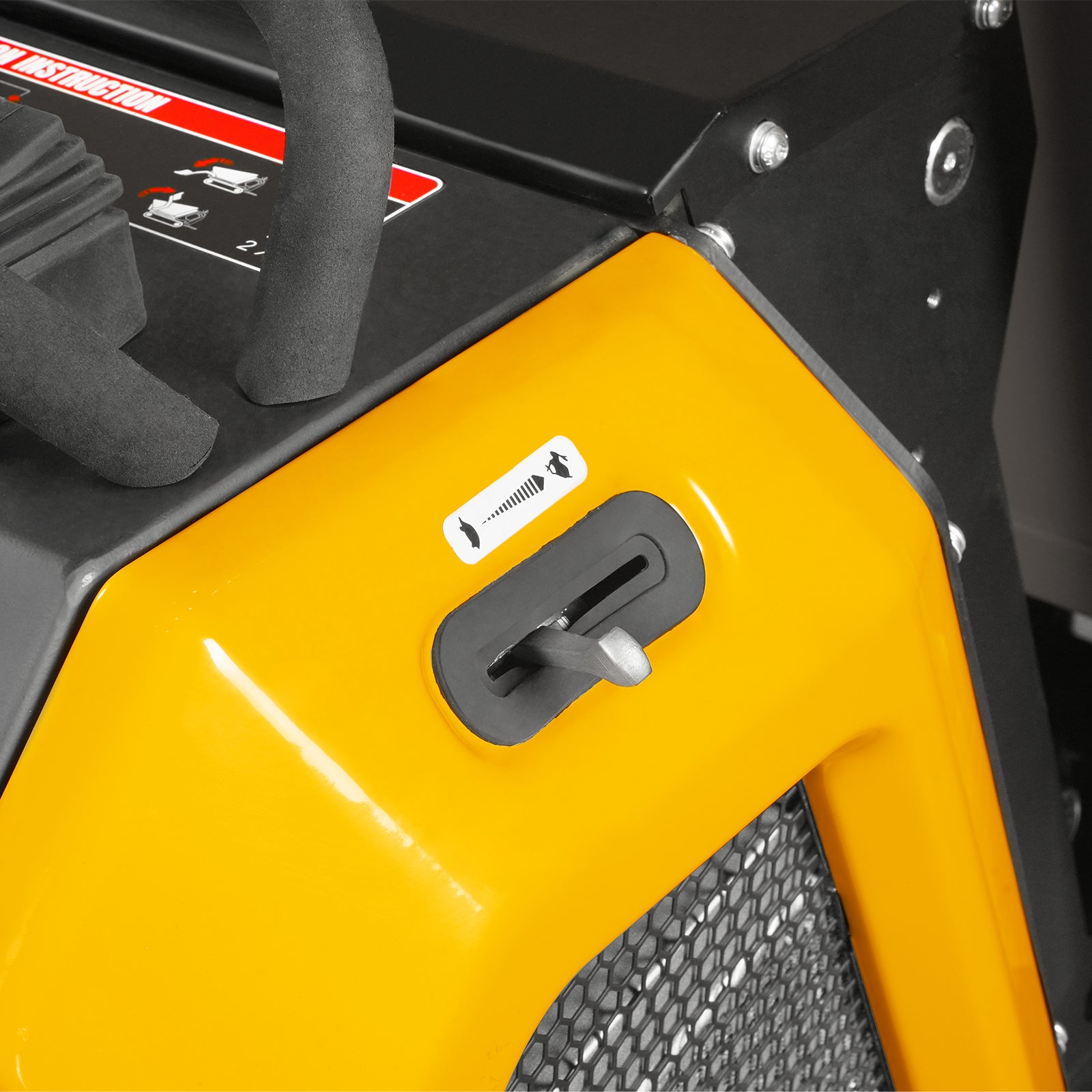

The T80HL is equipped with a 15HP 420cc electric-start gasoline engine, with the start key and damper switch conveniently integrated into the control panel for intuitive operation.

Control Valve Imported From Italy

High-quality control valves imported from Italy can extend the service life and effectively improve work efficiency.

Load 1100lbs

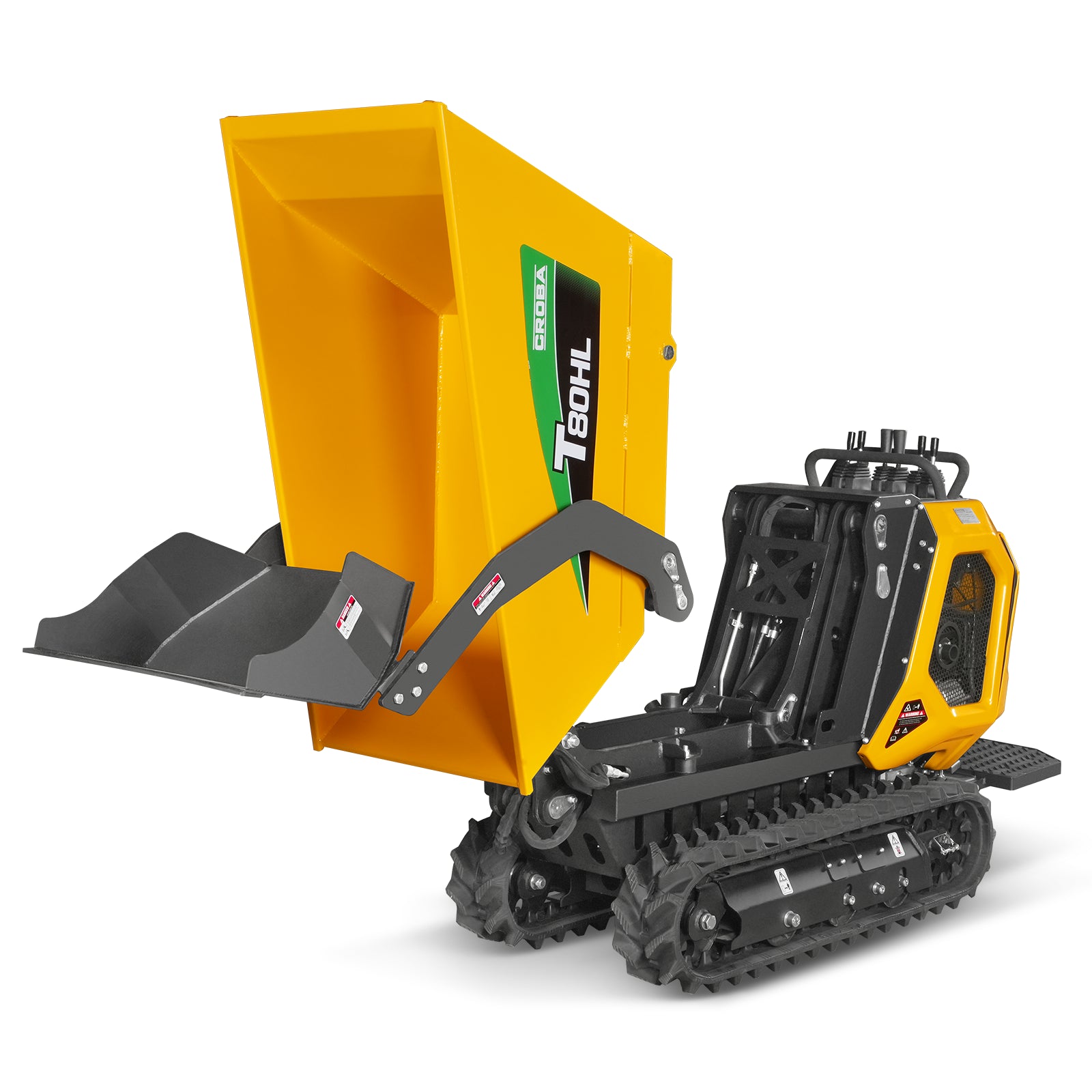

With a safe load capacity of 1,100 lb and a 9.5 cu.ft. bucket capacity, the dump truck features a compact design for flexible use on small construction sites, farms, and yards.

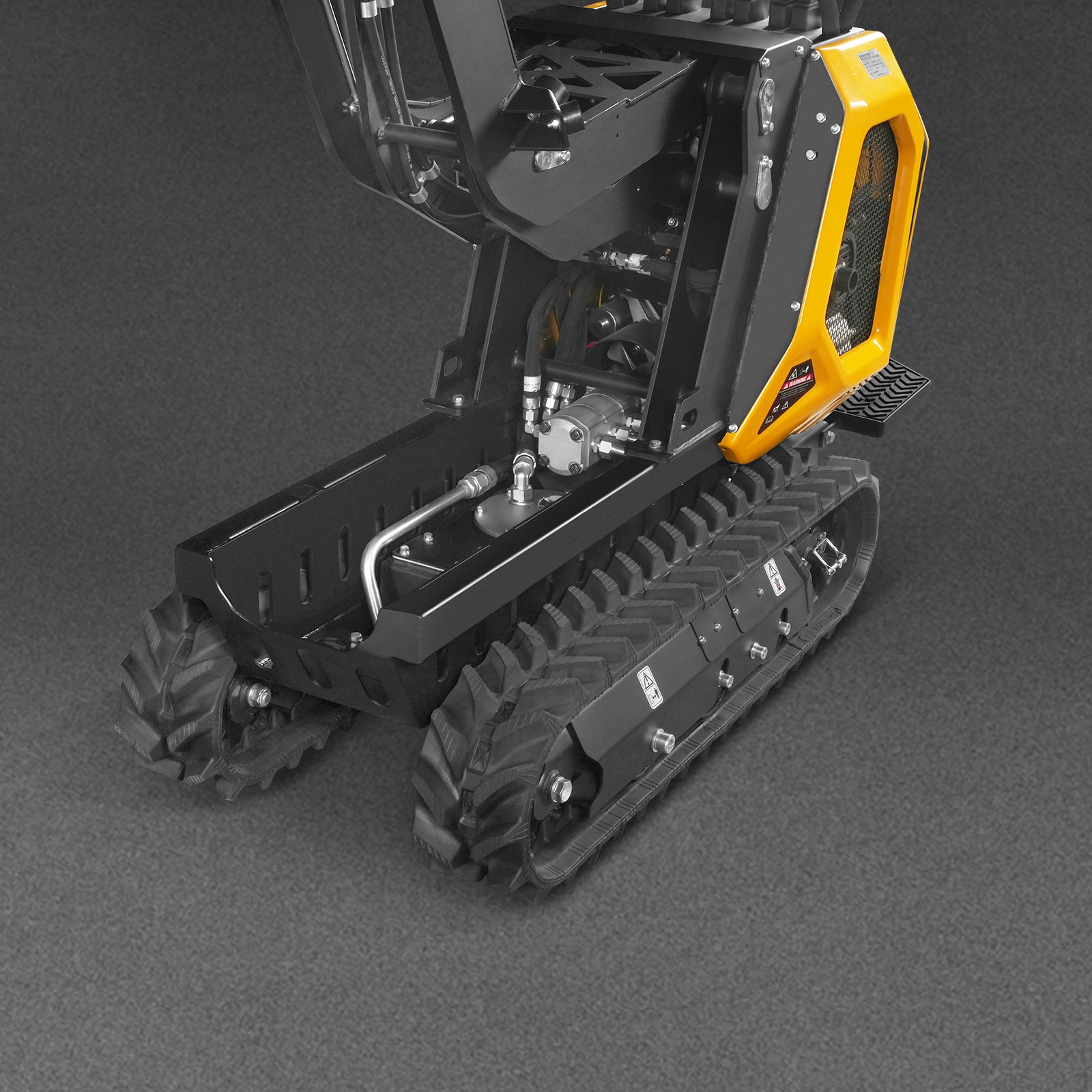

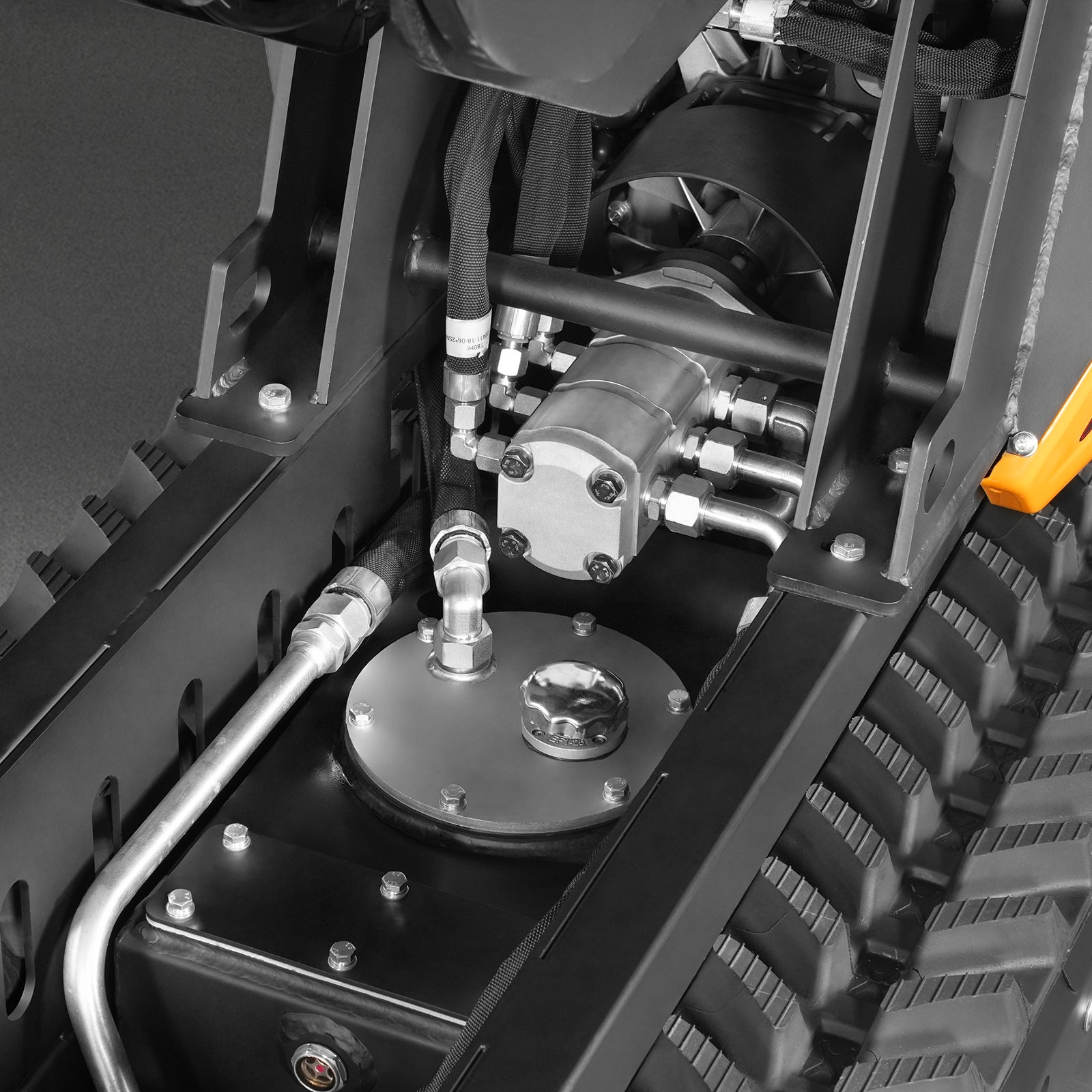

Triple Gear Pump

The hydraulic system design of the triple gear pump can make the vehicle more stable when the hydraulic system is working.

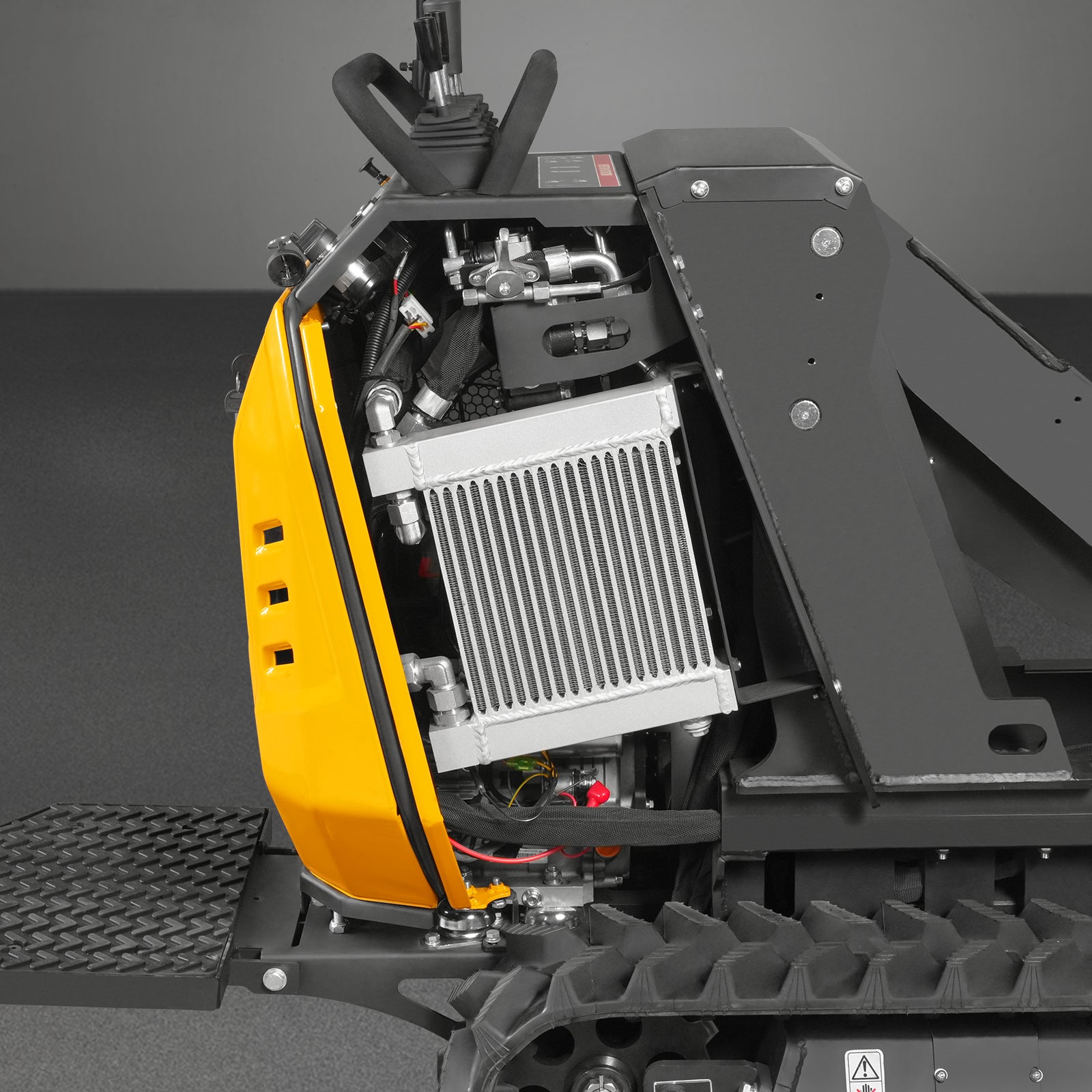

Hydraulic Oil Radiator

The fully enclosed cabin design allows the operator to avoid noise during work. The hydraulic oil radiator and engine shaft end fan inside the cabin perfectly reduce the temperature of the console to within 104.0 °F.

Timer

There is a timer at the control panel to meet customer needs to record the running time of the machine.

Video

Product Warranty

Specifications

ENGINE
Engine Type	Single cylinder; 4 stroke; air cooled; OHV
Model Name	Loncin G420F(D)
Displacement/Horsepower	420cc; 15HP
Engine Power	9.0 kW / 3600 rpm
Start	E-start
Maximum Torque	26.5 Nm/2500 rpm
DIMENSIONS & SPECIFICATIONS
Overall Length (w/o Shovel)	85.5 in
Overall Length with Shovel	112 in
Overall Height	47 in
Lifting Overall Height	98.5 in
Overall Width	29 in
Max. Overall Height	120 in
Max. dumping height	65.4 in
Loading Capacity	1102 lbs
Weight	1631 lbs
Operating Weight	1786 lbs
Wheelbase	38.8 in
Bucket Capacity	9.5 cu ft
Track Width	7.09 in
Track Length	51.2 in
Track Height	11.8 in
Dump Front End Height	33.3 in
Dump Back End Height	43.3 in
Dump Width	24.3 in
Console Height	40.2 in
Platform Ground Clearance	10.4 in
OPERATION
Working Type	Self Loading and Unloading
Transmission	Hydrostatic Track Drive System
Parking Brake	Yes
Operator Platform	Stand-on
PERFORMANCE
Max.Travel Speed	0-2.73 mph
Min. Travel Speed	0-1.37 mph
Max. Gradeability	30%
Ground Pressure (with Operator)	2.9 psi
Battery Capacity	12V 20Ah
Pump Type	Triple Gear Pump
Hydraulic pressure	2900 psi
SERVICE & FILL CAPACITIES
Fuel Tank Capacity	1.72 gal
Hydraulic System	6.13 gal

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
