SKU: 202022

| Model: IVB230

Industrial Wet/Dry Vacuum Cleaner with HEPA Filter Continuous Duty 8.6 HP 364 CFM 26.4 Gallon - 230V 3Phase, IVB230

Name: Industrial Wet/Dry Vacuum Cleaner with HEPA Filter Continuous Duty 8.6 HP 364 CFM 26.4 Gallon - 230V 3Phase, IVB230
Brand: MechMaxx
SKU: 202022
Price: 4499.0 USD
Availability: InStock

$449900

$5,099.00

Save $600

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Estimated to ship by Apr 07, 2025. Date is subject to change due to transit delays.

Details

Type : 230V 3Phase

230V 3Phase 110V 1Phase 480V 3Phase

Payment:

917-772-7273

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

This industrial vacuum cleaner is conceived for continuous and heavy duty applications. The maintenance - free turbine motor is suitable for 24/7 continuous work. Three phase vacuum cleaners are the best solution to be integrated into production lines or for centralized vacuum system installations. This industrial vacuum can safely collect heavy media such as sand, chips, and large quantities of dust and dirt.

Input Power 230V, 60Hz, 3 Phase, 20.1Amps.
Heavy-duty turbine motor. 8.6 HP power. 24/7 continuous work.
364 CFM Airflow, 128 in waterlift.
H-Class HEPA Filter, 32 ft² filter area, ＞99% efficiency @ 0.3 μm, superior filtration.
External Jet Pulse Filter Cleaning System, keeps filter clear.
26.4 gallons detachable collection tank, easy dumping.
4 Casters (2 with Brakes), ensures smooth mobility and secure positioning.

Note!
Do not use in explosive, flammable, or combustible environments!
Do not use to pick up flammable or explosive materials!

Product manual (PDF)

IVB230 Product Manual1.0.pdf

Product Features

Heavy-duty Turbine Motor

Equipped with a 6.3 KW 3-phase turbine, this vacuum cleaner delivers superior power, ensuring effective and consistent suction. It's maintenance free for continuous duty, allowing 24/7 use. The turbine motor has a metal silencer to keep noise levels low, making it ideal for industrial settings needing both performance and quiet operation.

Jet Pulse Filter Cleaning System

The vacuum cleaner is outfitted with a highly efficient Jet Pulse Filter Cleaning System. Leveraging the pressure differential between the exterior and interior of the vacuum cleaner, this system ingeniously generates an air flow. This air flow forcefully passes through the cartridge, effectively dislodging dust accumulated on the filter surface.

H-Class HEPA Filter

Filtration is accomplished by a PTFE coated “TORAY” polyester H-class HEPA filter. The filter cartridge is engineered to maintain a large 32 ft² filter surface area within a compact space. The filtration system can trap particles as small as 0.3 microns. This design ensures that air can still pass through smoothly even when the filter gets dirty.

26.4 Gallon Detachable Tank

The debris is collected within a 26.4 gallon container equipped with a metal handle. Four robust pivoting wheels are attached to the container. These wheels allow for effortless mobility, making it simple to dispose of the collected material. Each wheel is reinforced to ensure optimal stability during transportation. This design renders the dust dumping process a breeze.

Robust and Flexibility

This industrial vacuum cleaner is highly robust and flexible. Its sturdy construction guarantees stability during heavy - duty use. Equipped with 4 PU casters, it moves smoothly without scratching the floor. Notably, 2 of these casters have brakes, allowing for easy positioning and enhanced safety in diverse work areas.

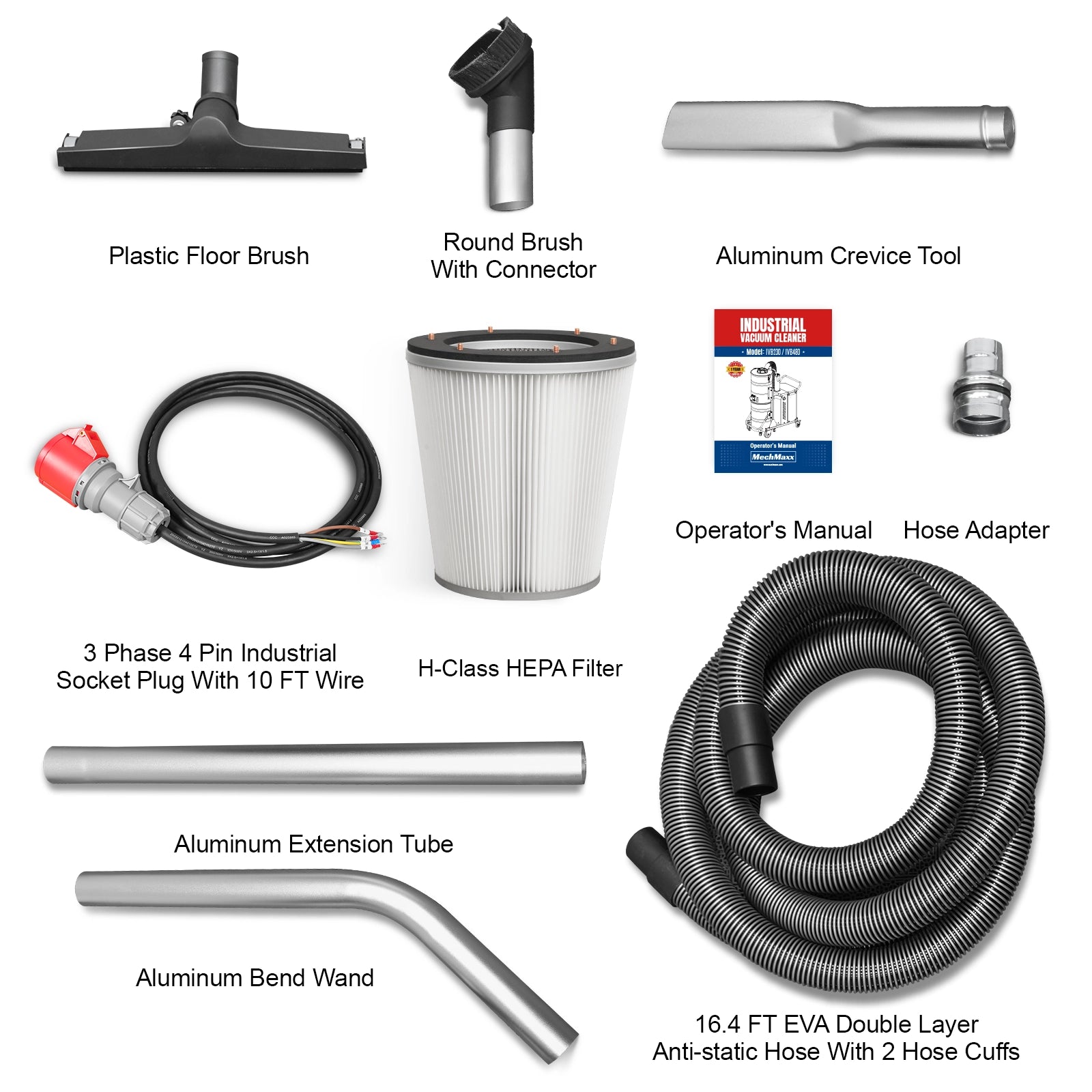

Accessories Included

16.4 FT EVA Double Layer Anti-static Hose with 2 Hose Cuffs,
Hose Adapter,
Round Brush with Connector,
Plastic Floor Brush,
Aluminum Crevice Tool,
Aluminum Extension Tube,
Aluminum Bend Wand

Model	IVB230
Voltage	230V, 60Hz, 3 Phase, 20.1Amps
Power	8.6 HP (6.3 KW)
Airflow	364 CFM
Waterlift	128 in
Filter Cleaning	Jet-pulse Filter Cleaning
Filter Type	H11 class HEPA filter, PTFE coated
Filter Area	32 ft²
Filter Efficiency	Class H 11, ＞99% @ 0.3 μm
Tank Capacity	26.4 gallons
Packing Size	45 x 26 x 65 in
Weight (N.W / G.W.)	304 / 386 lbs
