SKU: 150162

| Model: BH660

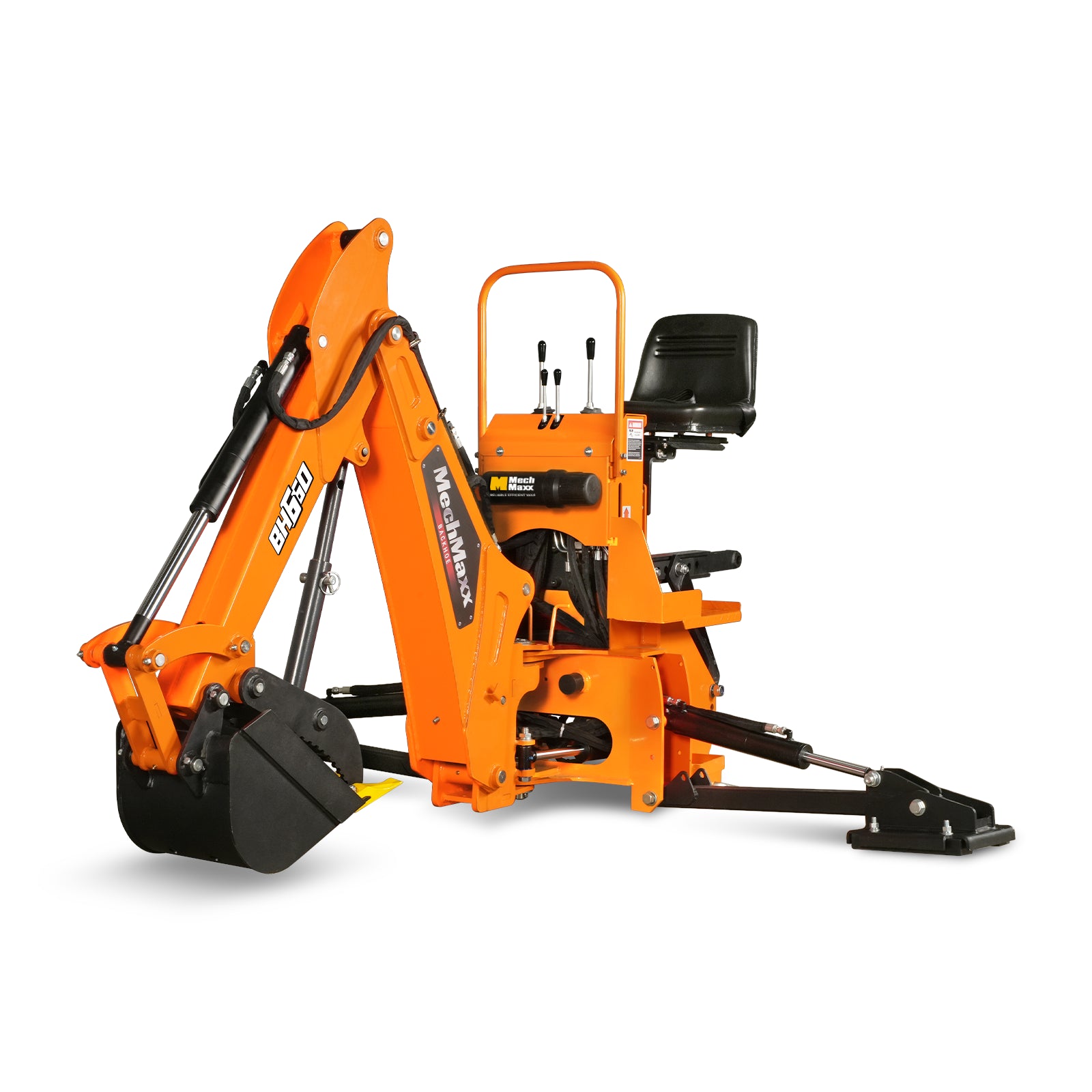

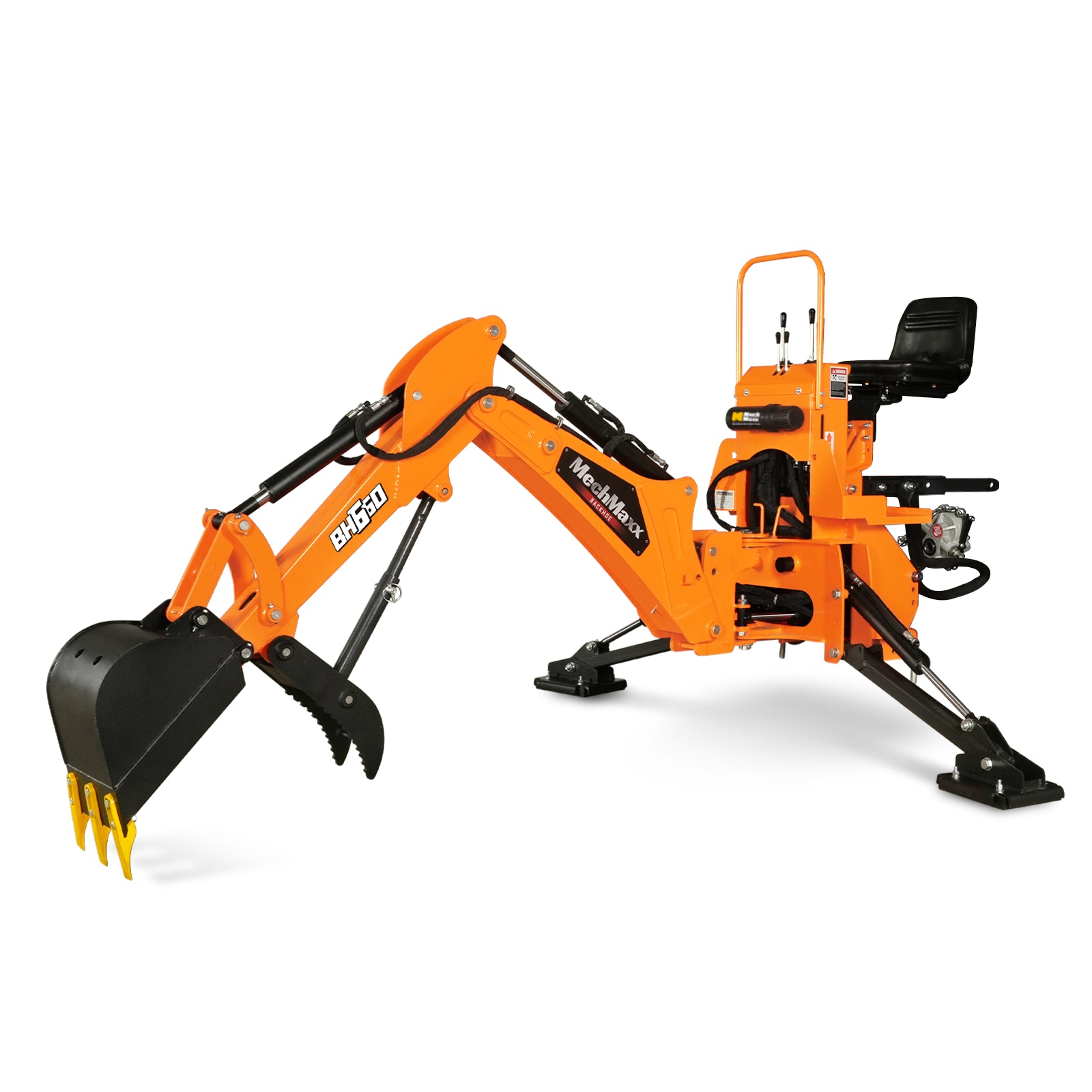

7' Tractor Backhoe Attachment with Mechanical Thumb, 12" Bucket, Self-Contained Pump, for 15-50 HP, Cat. 1 Tractor, BH660

Name: 7' Tractor Backhoe Attachment with Mechanical Thumb, 12" Bucket, Self-Contained Pump, for 15-50 HP, Cat. 1 Tractor, BH660
Brand: MECHMAXX INC
SKU: 150162
Price: 4499.0 USD
Availability: OutOfStock
Rating: 5.0 (6 reviews)

NEW YEAR'S SALE Ends in

Days : :

$449900

$5,499.00

Save $1,000

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 10 - 15 Business Days

Details

Max. Depth : 7 ft

Out of Stock

7 ft 8 ft 9 ft

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

15" Backhoe Bucket, 4-Carbon Steel Teeth (for SKU: 150162, 150163, 150164)

20" Backhoe Bucket, 5-Carbon Steel Teeth (for SKU: 150162, 150163, 150164)

7' Tractor Backhoe Attachment with Mechanical Thumb, 12" Bucket, Self-Contained Pump, for 15-50 HP, Cat. 1 Tractor, BH660 $449900 $5,499.00

15" Backhoe Bucket, 4-Carbon Steel Teeth (for SKU: 150162, 150163, 150164) $29999

20" Backhoe Bucket, 5-Carbon Steel Teeth (for SKU: 150162, 150163, 150164) $35900 $379.00

Total Price

$

Product Overview

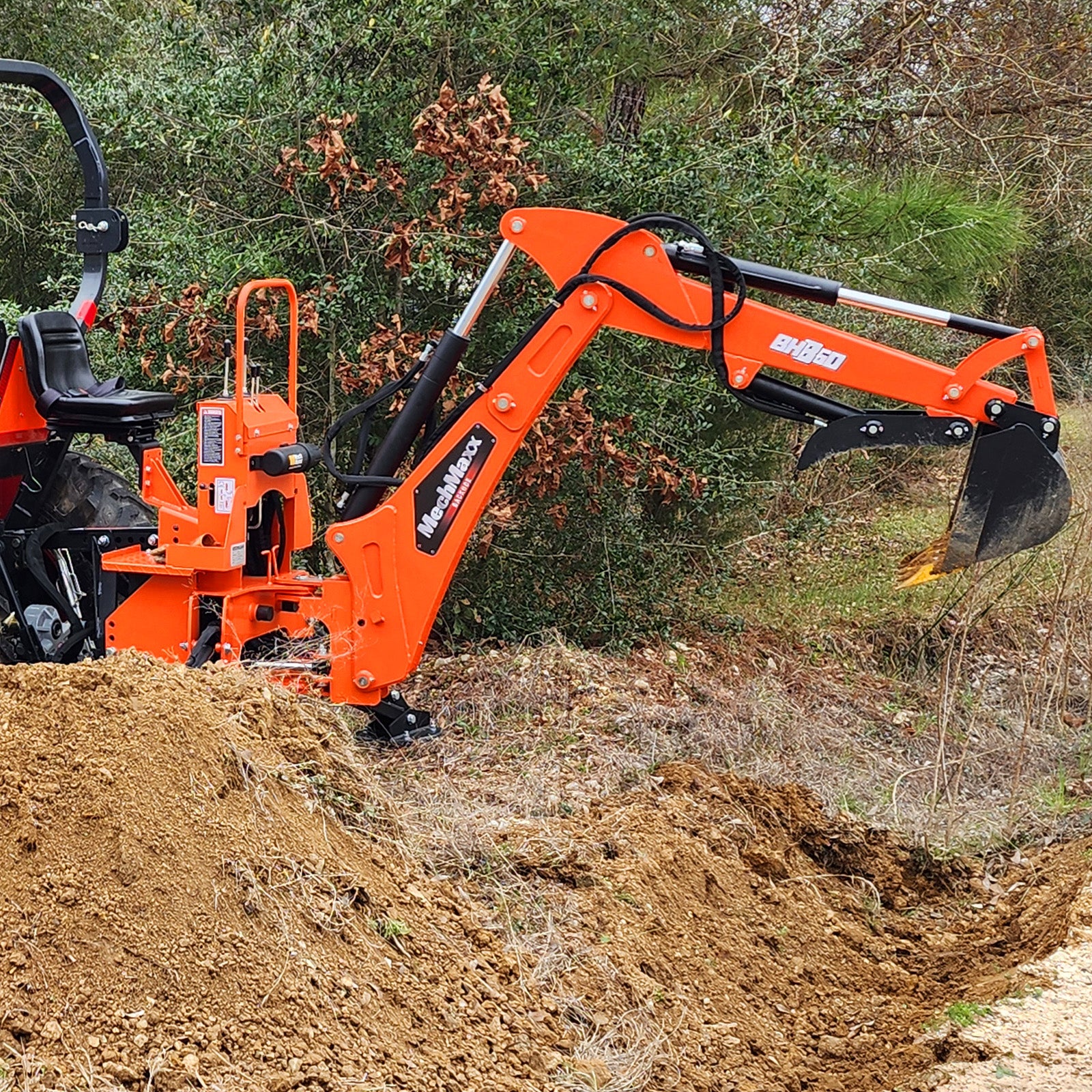

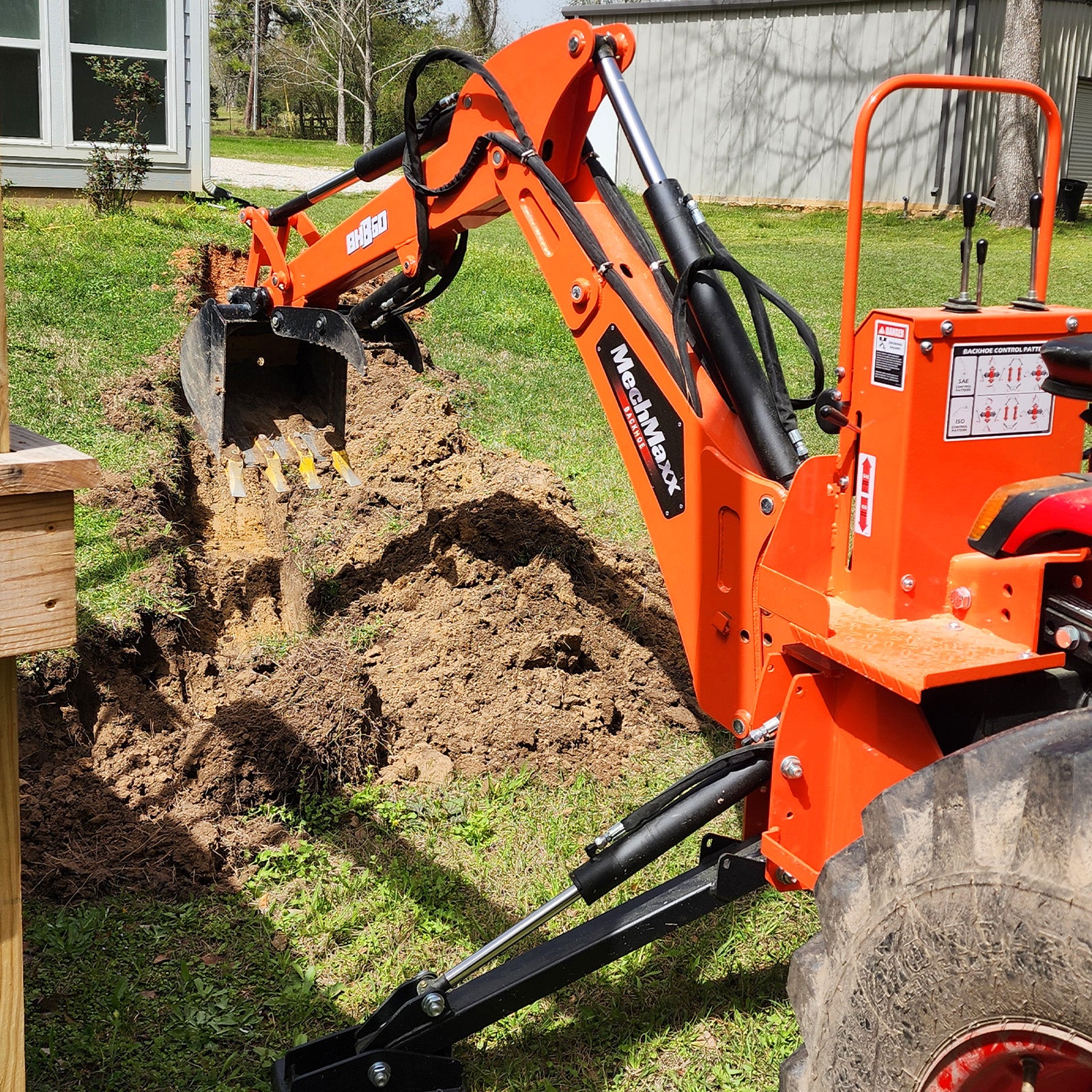

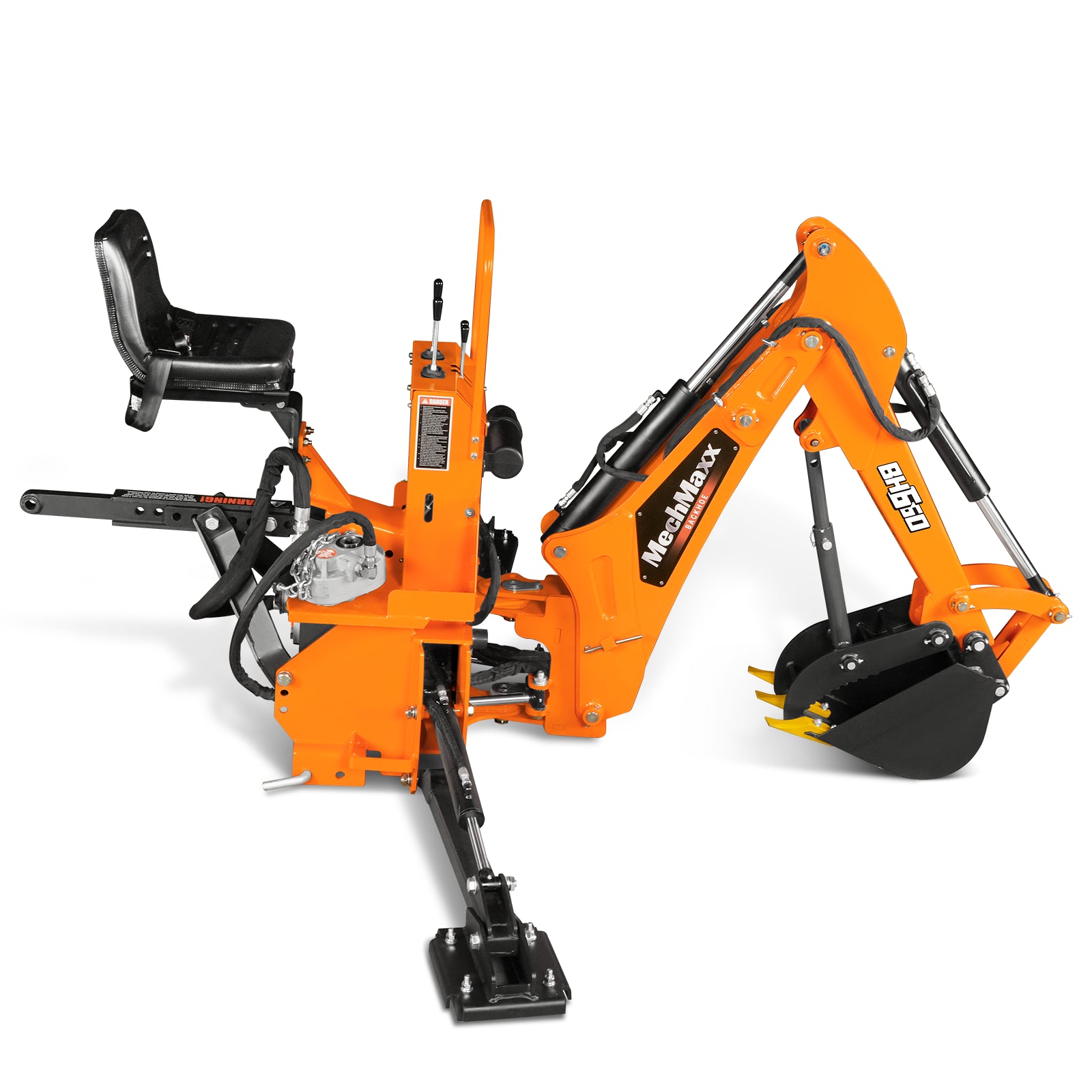

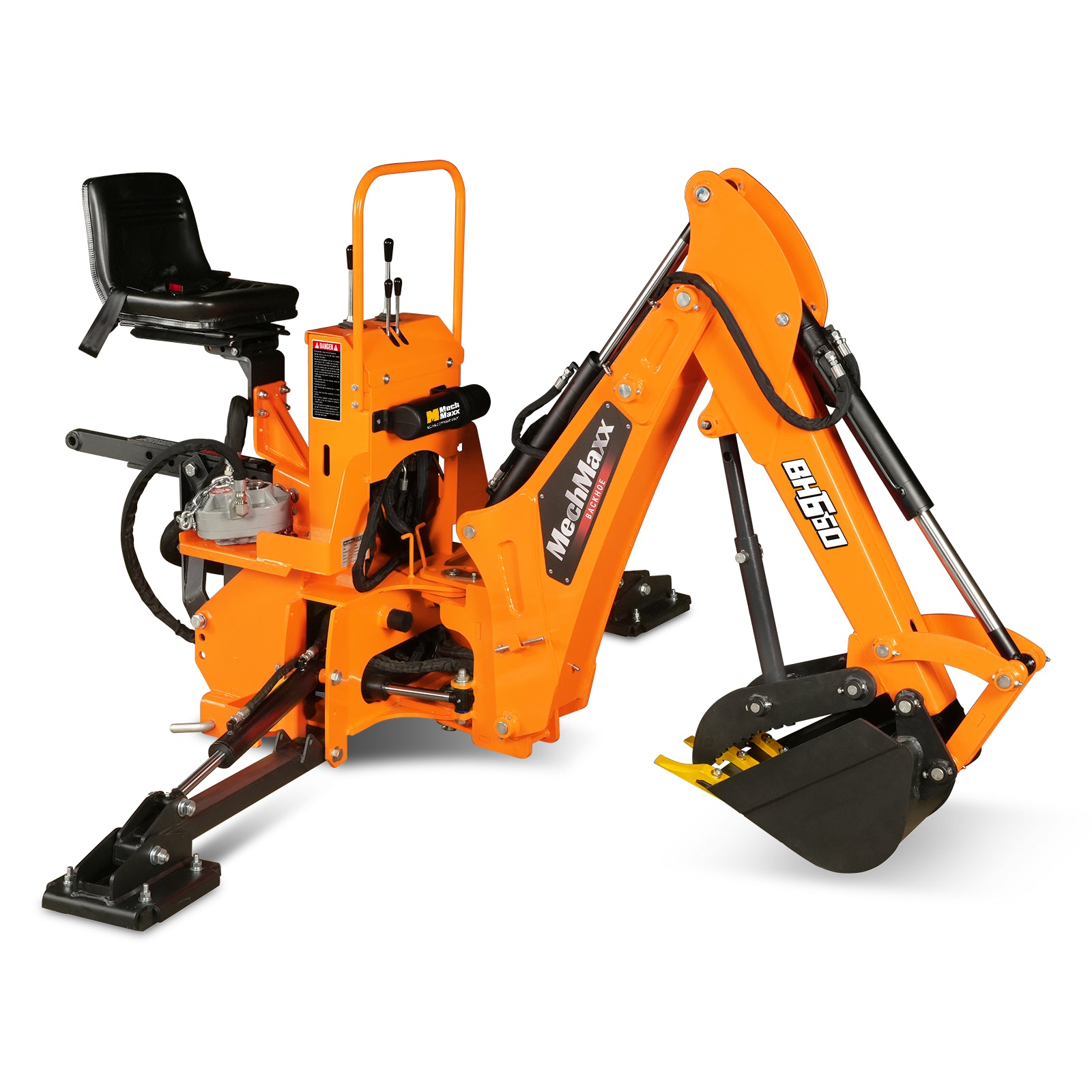

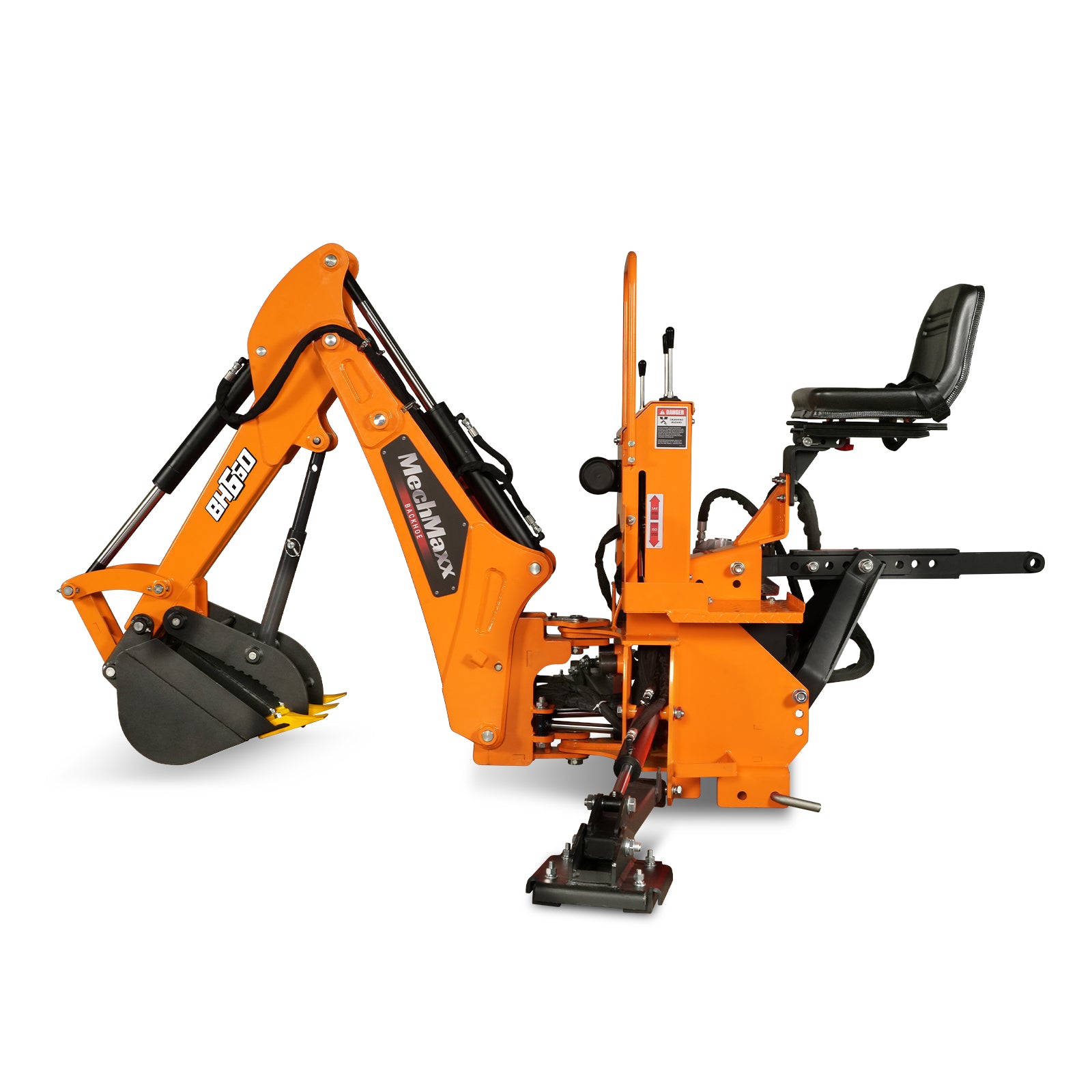

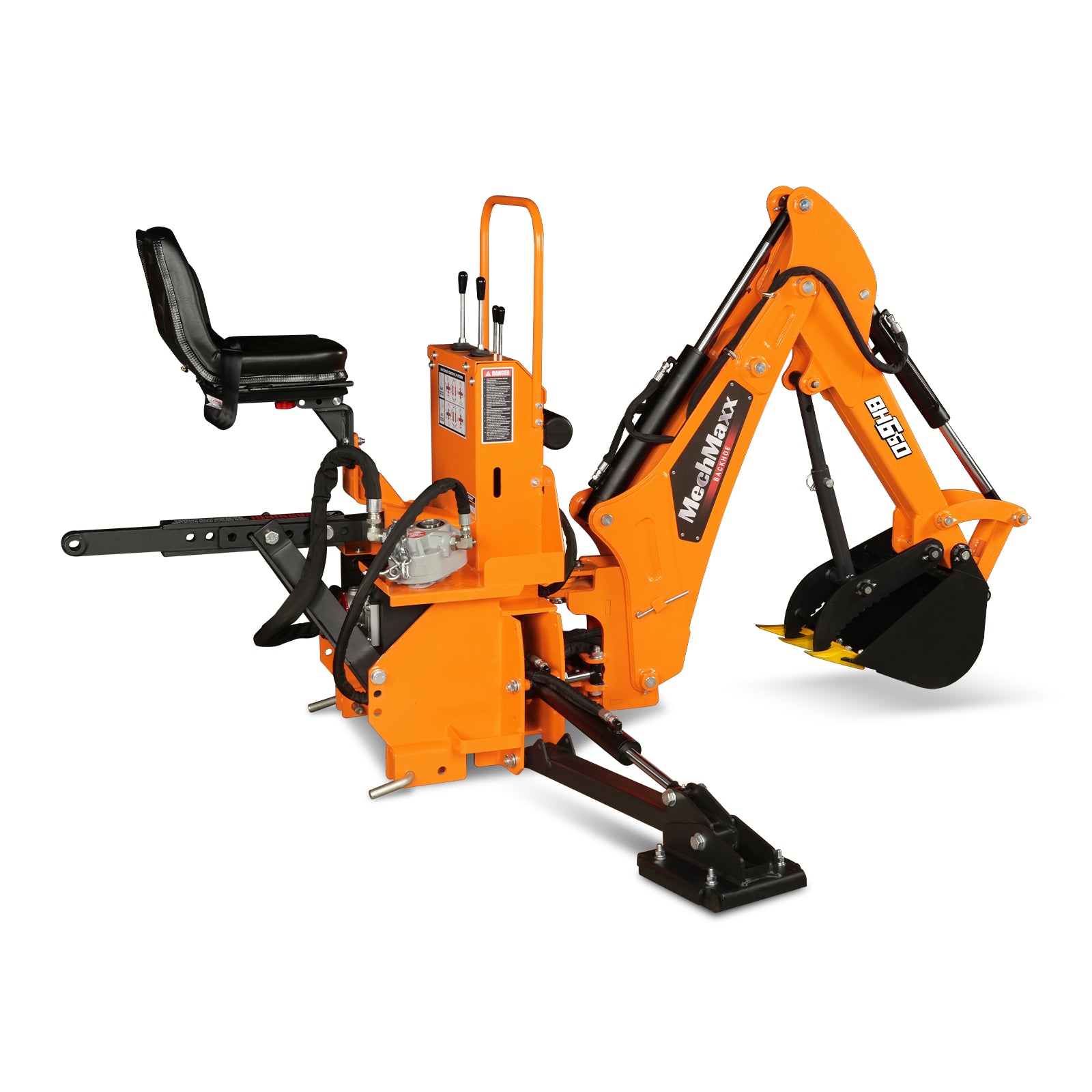

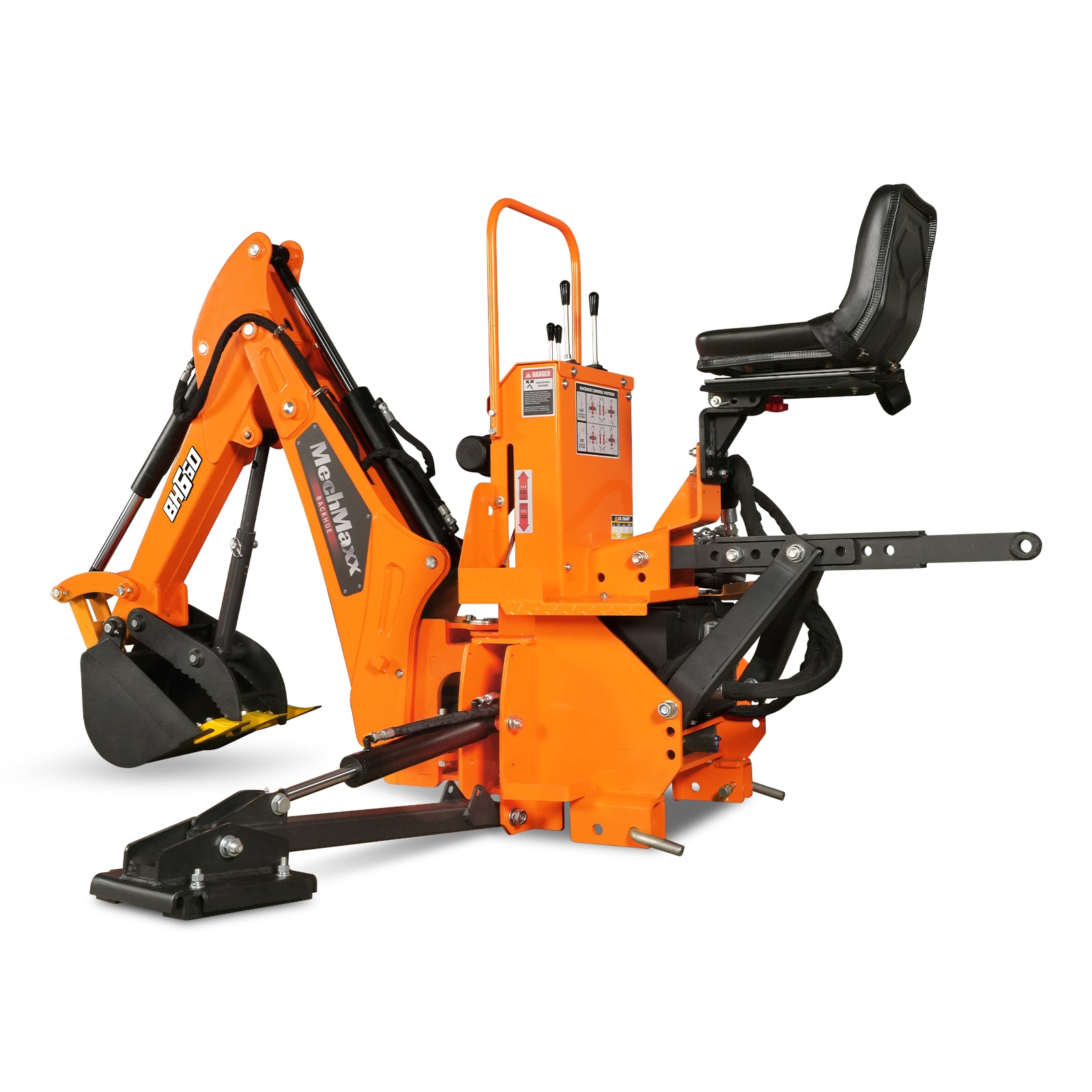

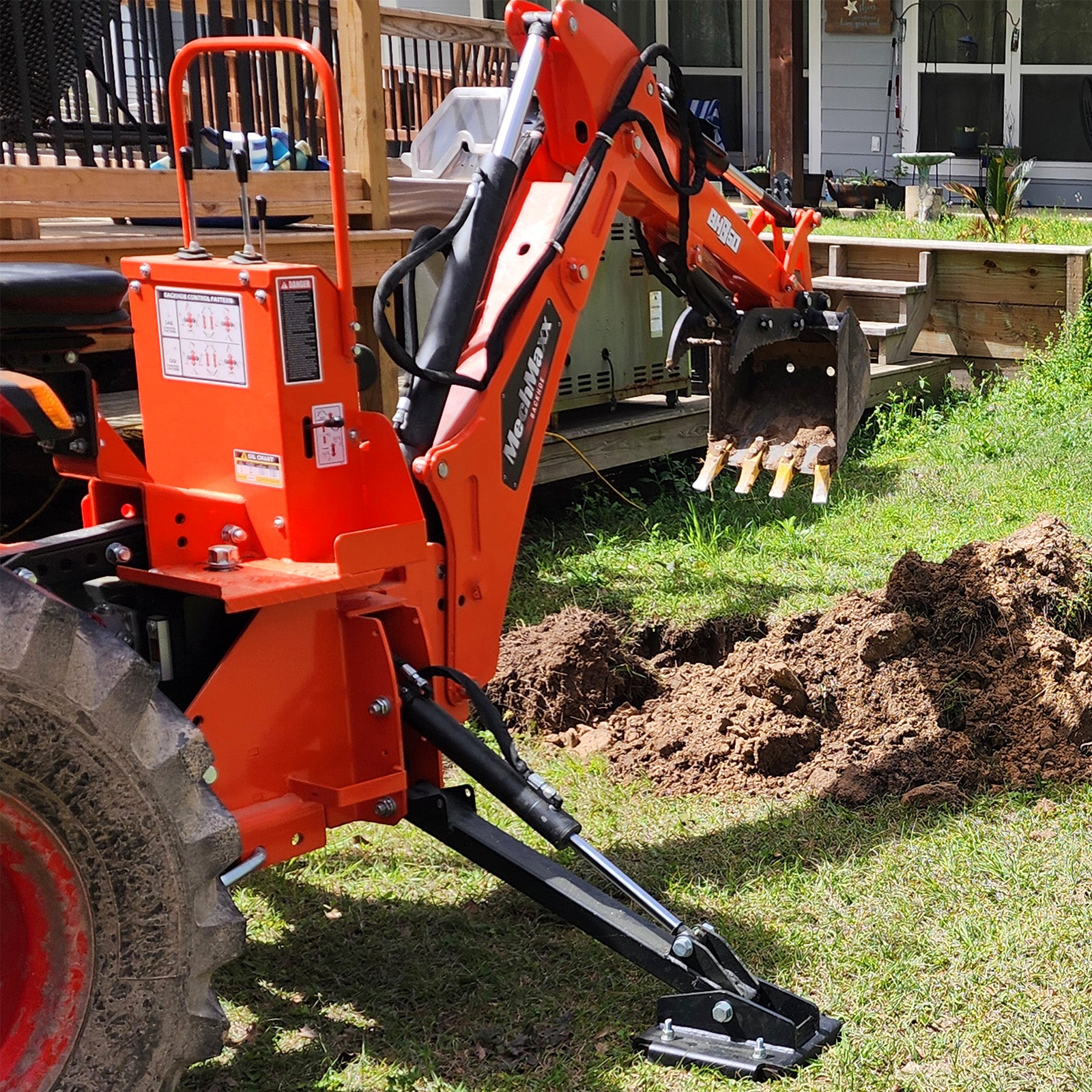

This MechMaxx BH660 Backhoe is used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
Max. 7 ft digging depth. 180° boom swing & 180° bucket rotation. Enable you to easily complete comprehensive mining tasks.
Mechanical thumb and 12" bucket included. More sizes of buckets and attachments available.

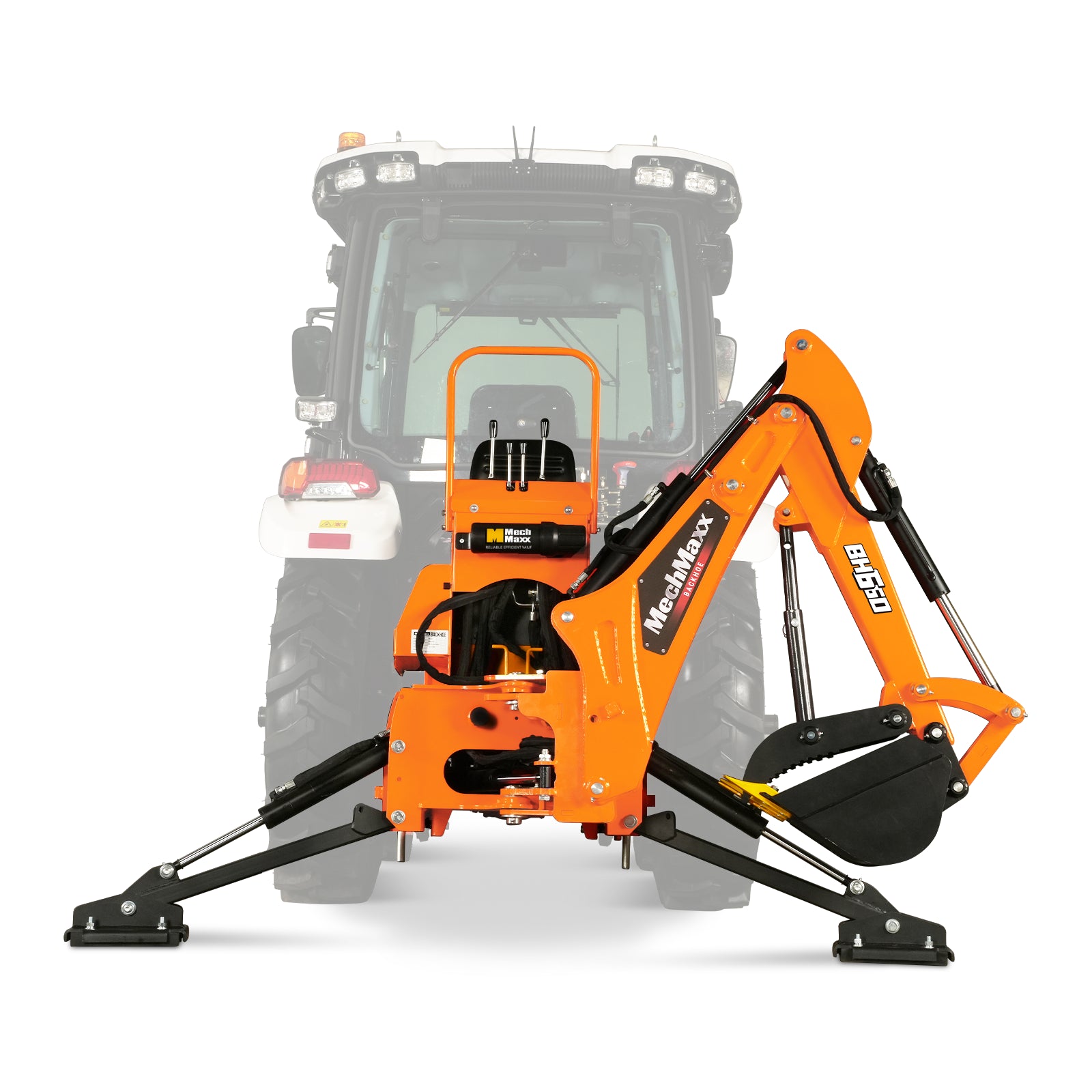

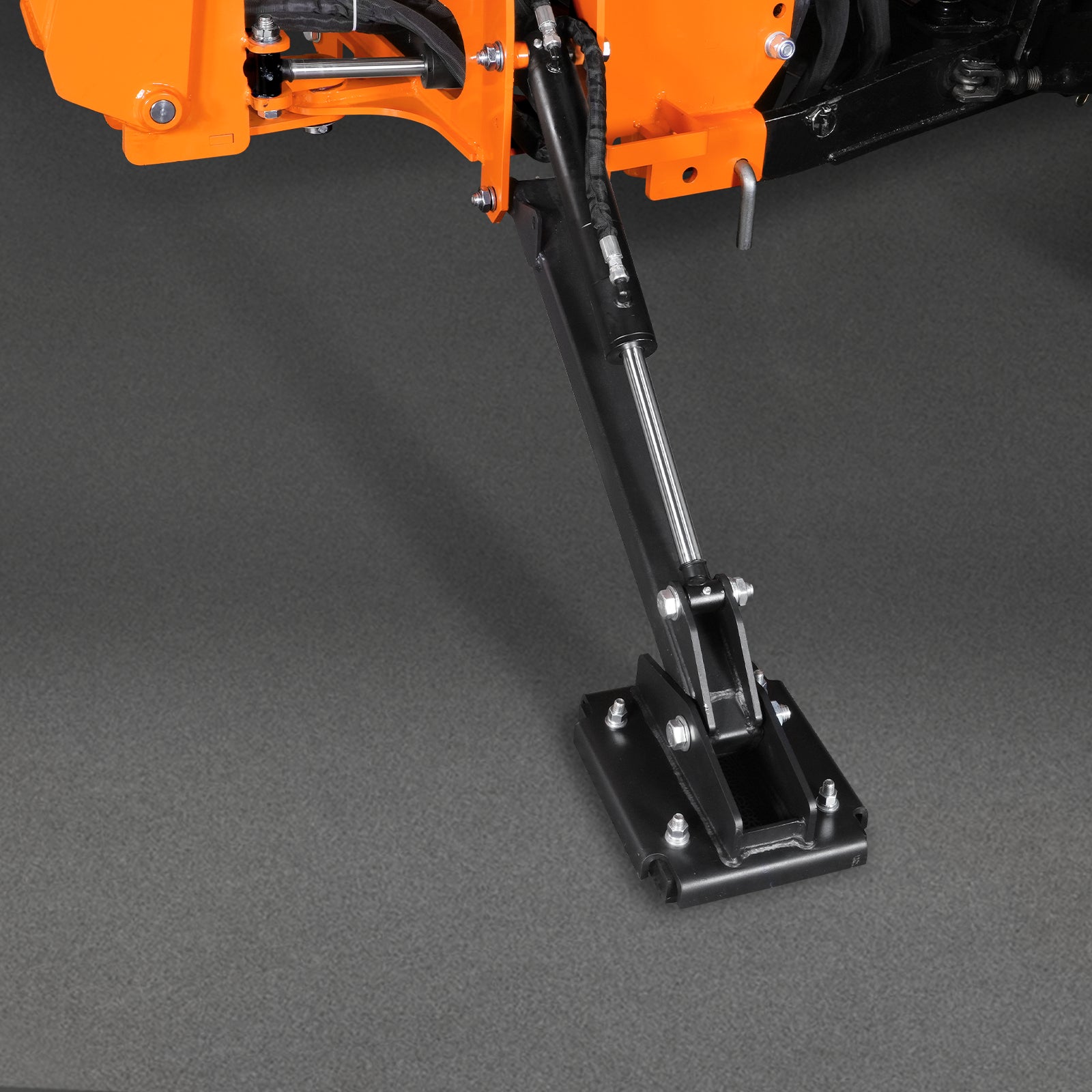

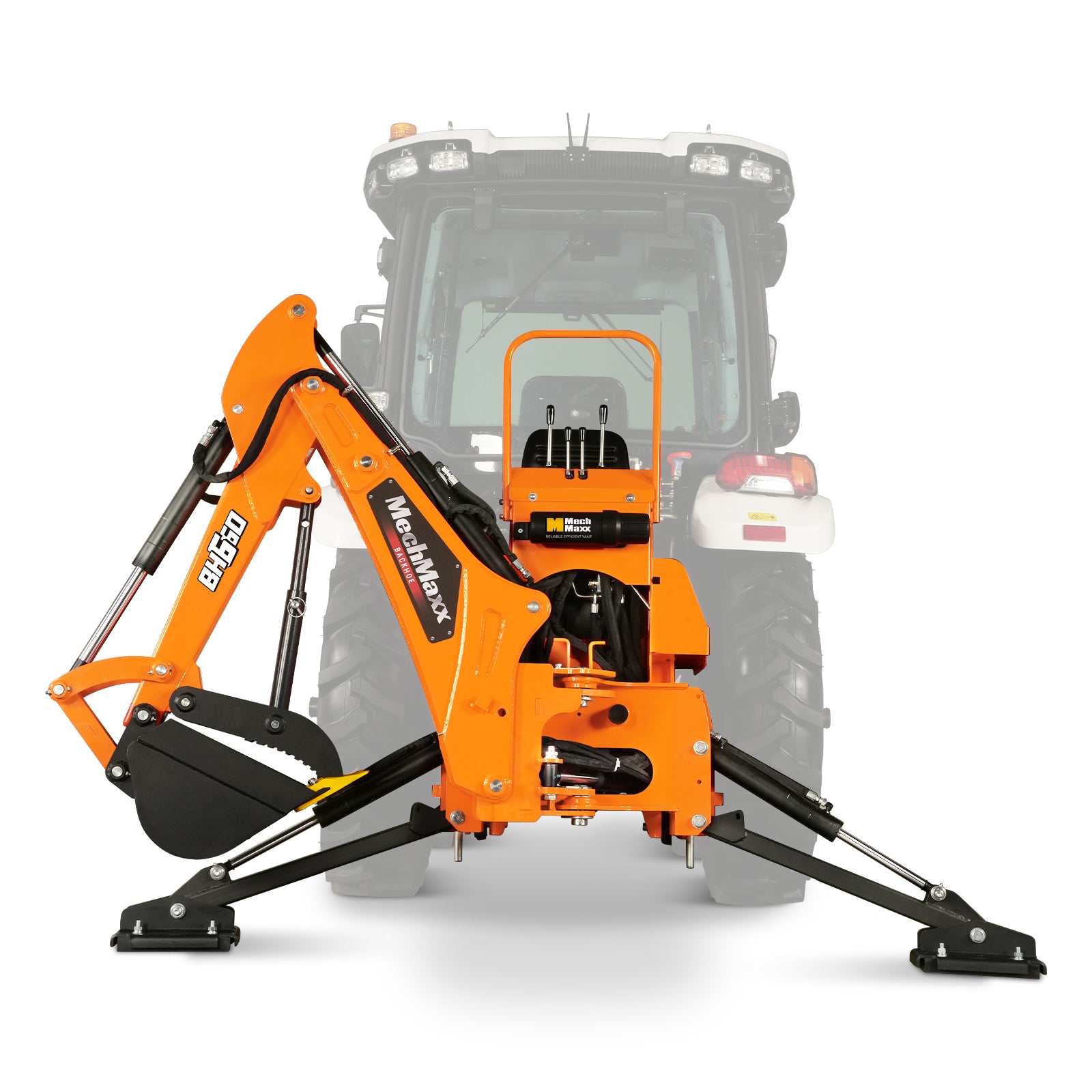

Two hydraulic stabilizer legs with replaceable rubber pads, help to prevent tipping, reduce damage to supporting surfaces.
Equipped with a self-contained gear pump and hydraulic oil tank. Quick installation, reliable performance.
Allow you to change the control pattern between ISO or SAE to suit your preference.

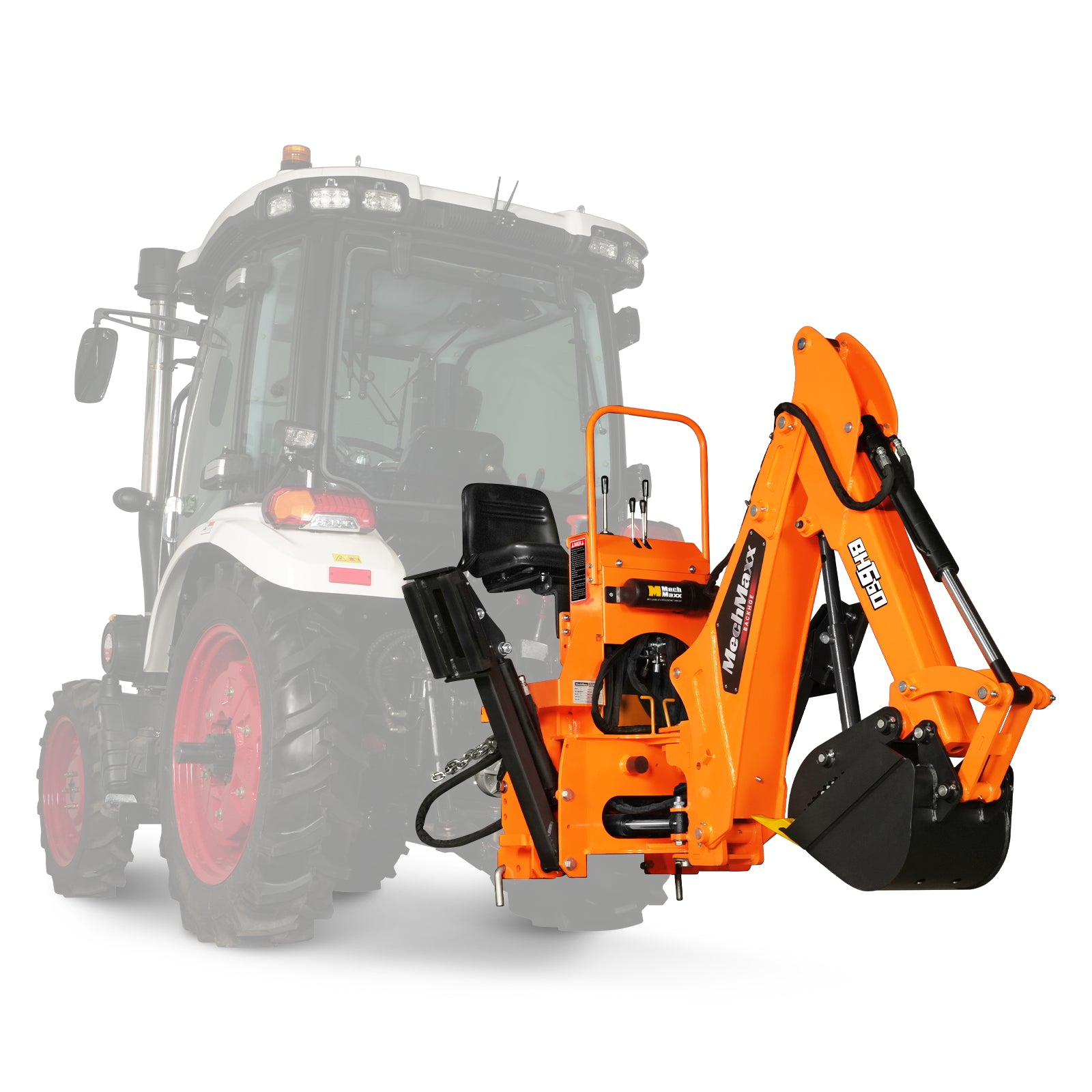

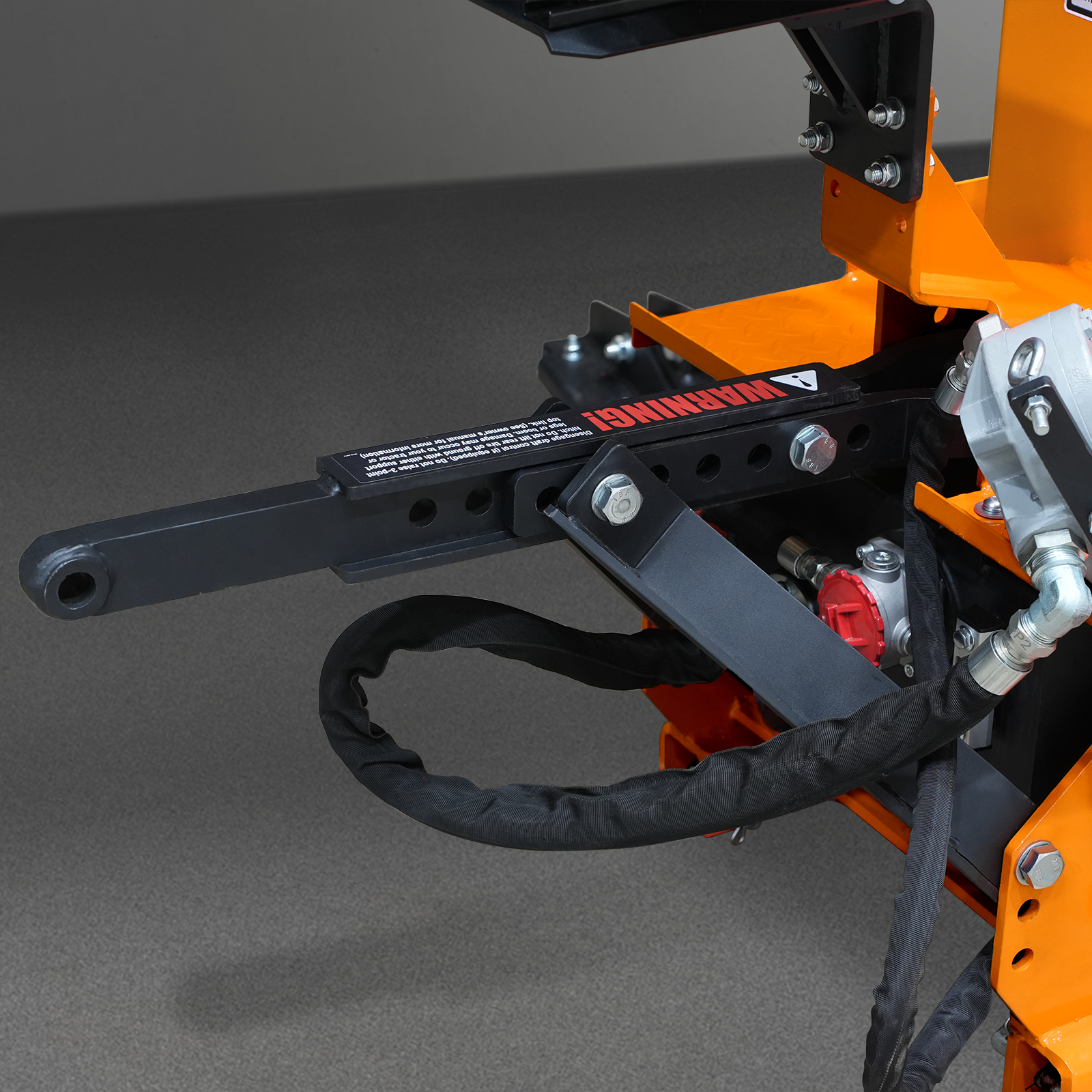

Compatible with CAT I 3-point hitches.

Note！
Check the specifications of both the backhoe and your tractor to ensure that the selected backhoe is compatible with your tractor.
Before use, check and grease all grease fittings on the machine.
Add approx. 4 gal of hydraulic oil before first use. And add an additional 2-3 gal after start.
Do not raise the 3-point hitch after the backhoe is attached to your tractor, as it may cause damage.

Product manual (PDF)

BH660 Product manual 1.0.pdf

Parts manual (PDF)

BH660 Parts manual 1.0.pdf

Product Features

Digging Depth (two foot flat bottom)

All-round 6’6” digging depth extension capability allows access to hard-to-reach areas without the need for mobile equipment.

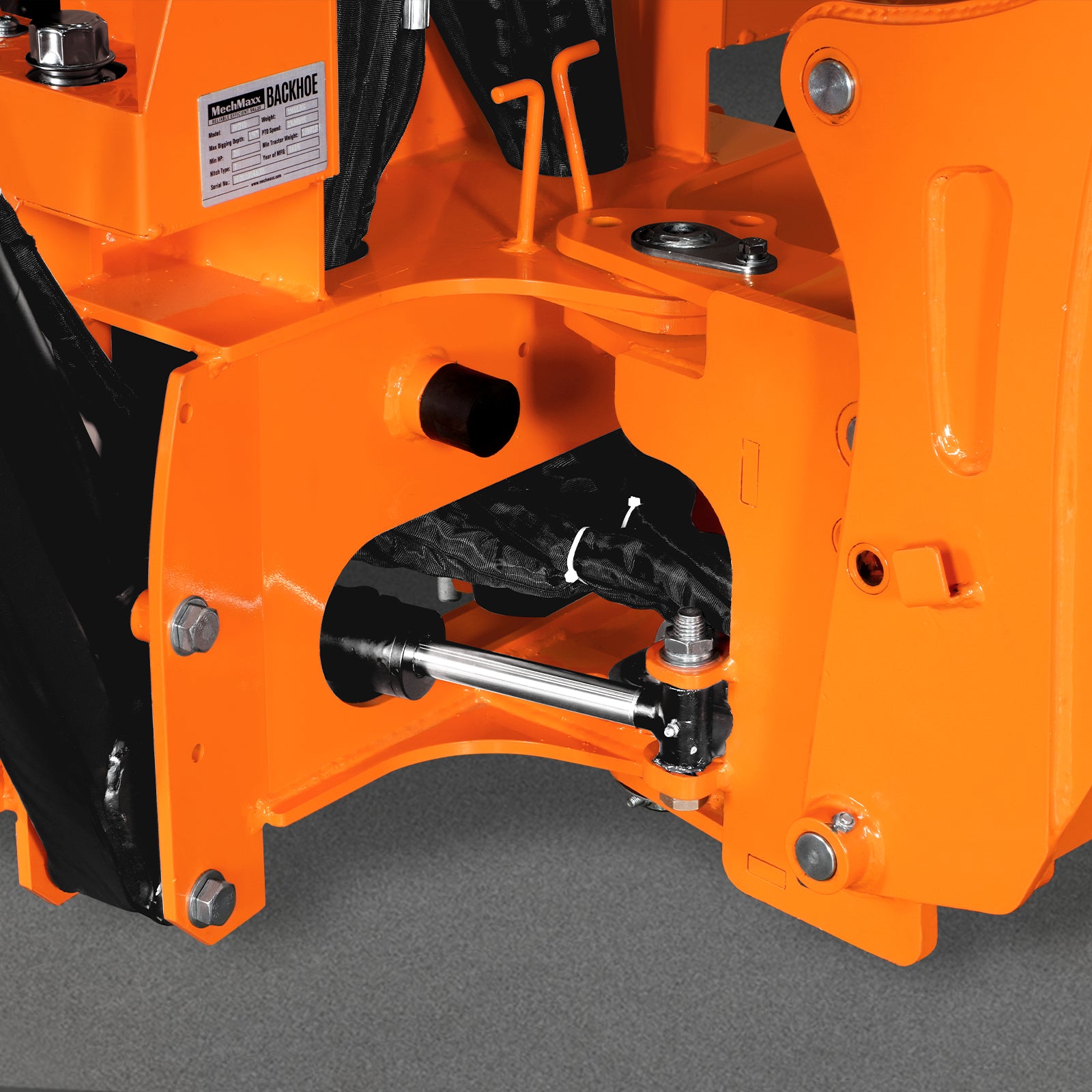

180° Swing Arc

The digging boom allows for a 180-degree swing from side to side. This allows you to dig into those tight spots and dump the dirt where you want it.

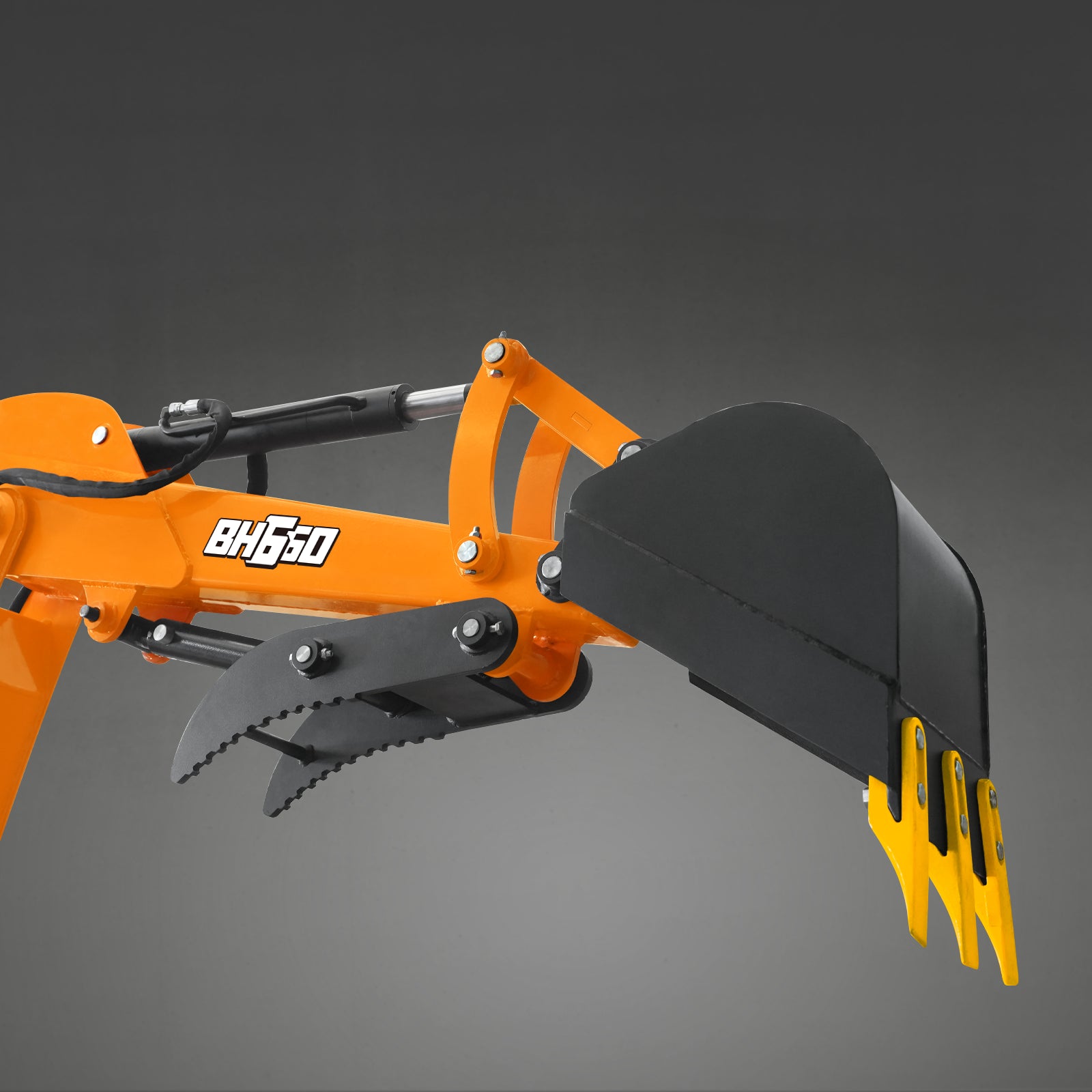

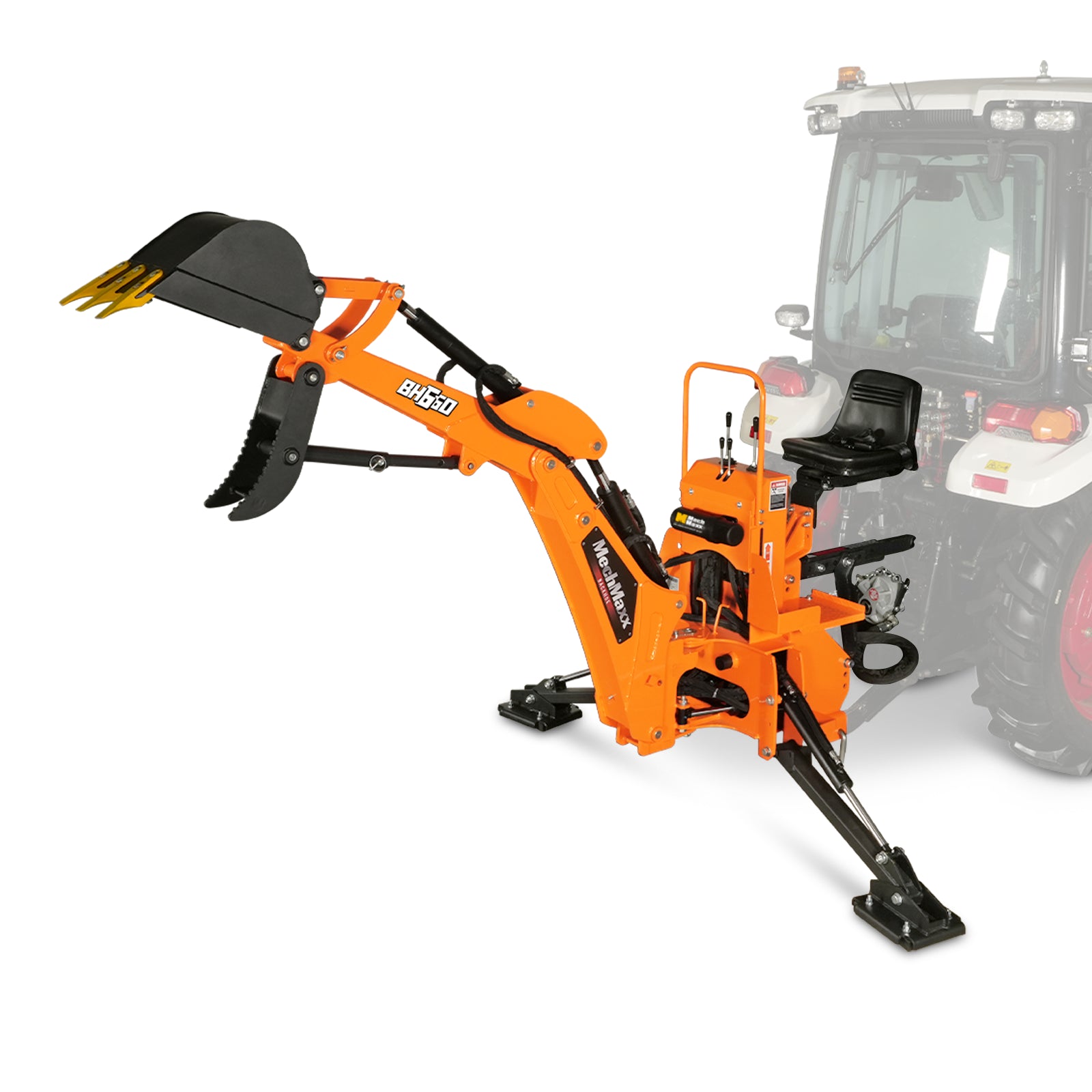

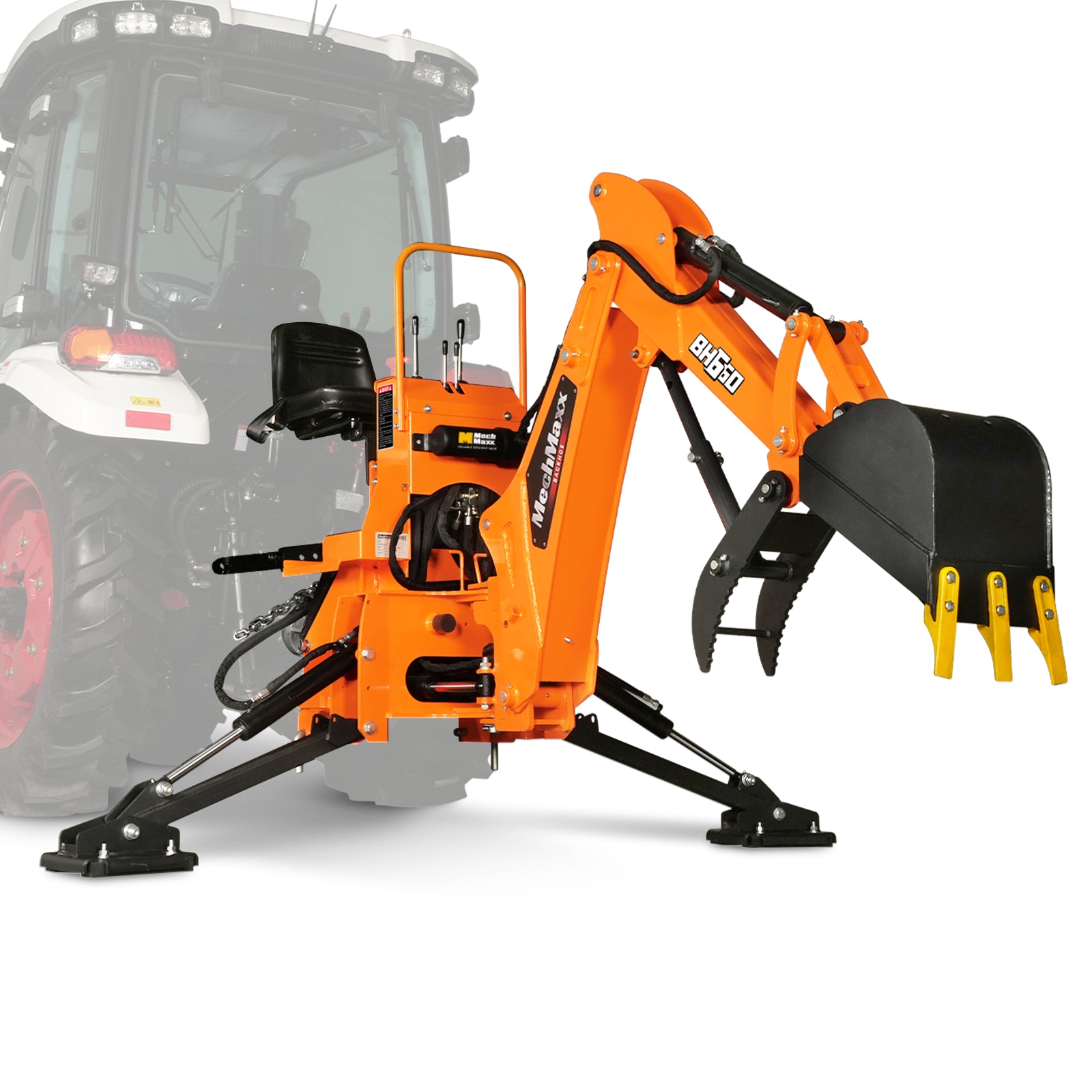

Mechanical Thumb

The mechanical thumb's design makes it suitable for gripping, lifting, and moving. This thumb enhances what this backhoe does.

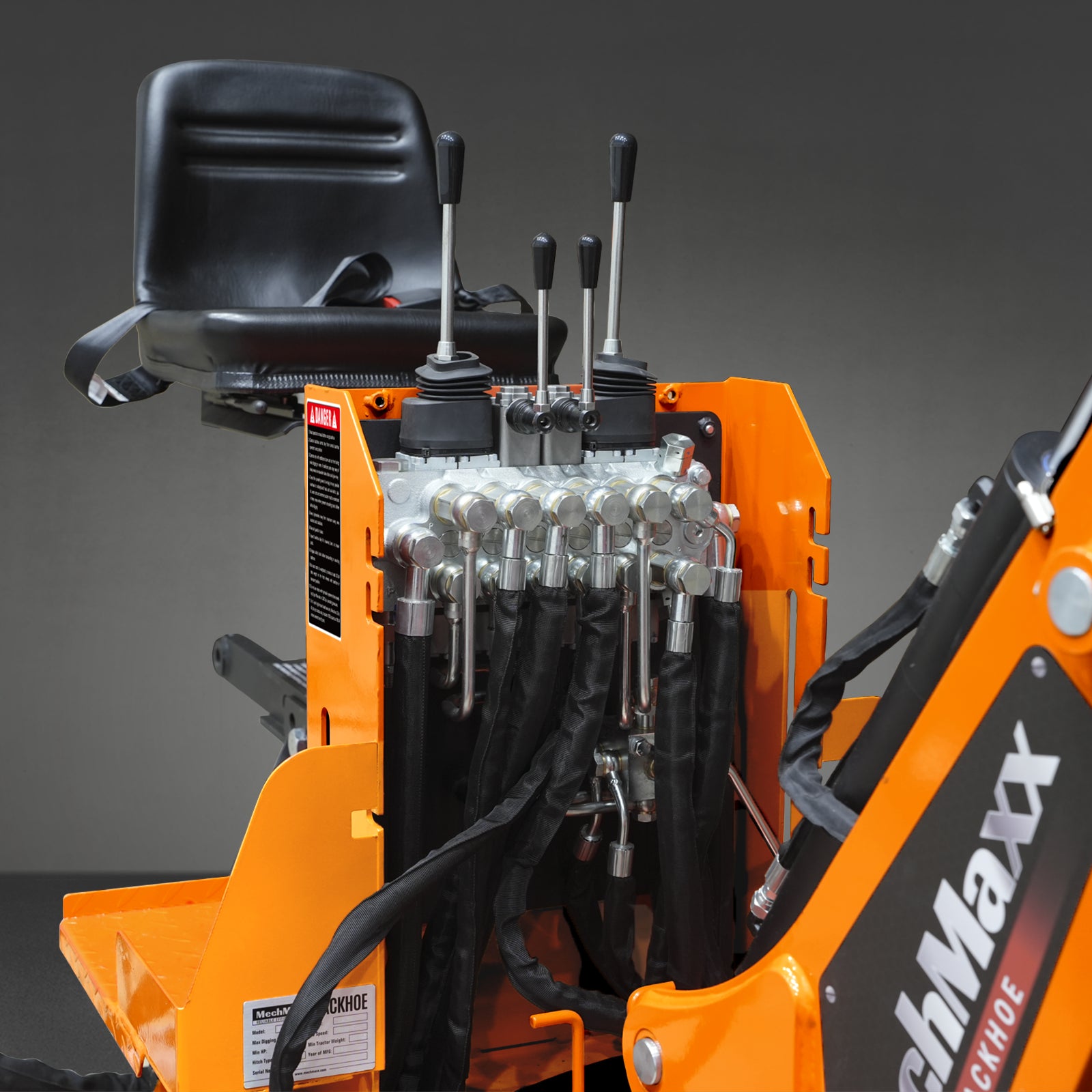

Smooth Control

High quality control valve are developed by Italian technology, with high precision and shows very exact control features, offers smooth and precise operation.

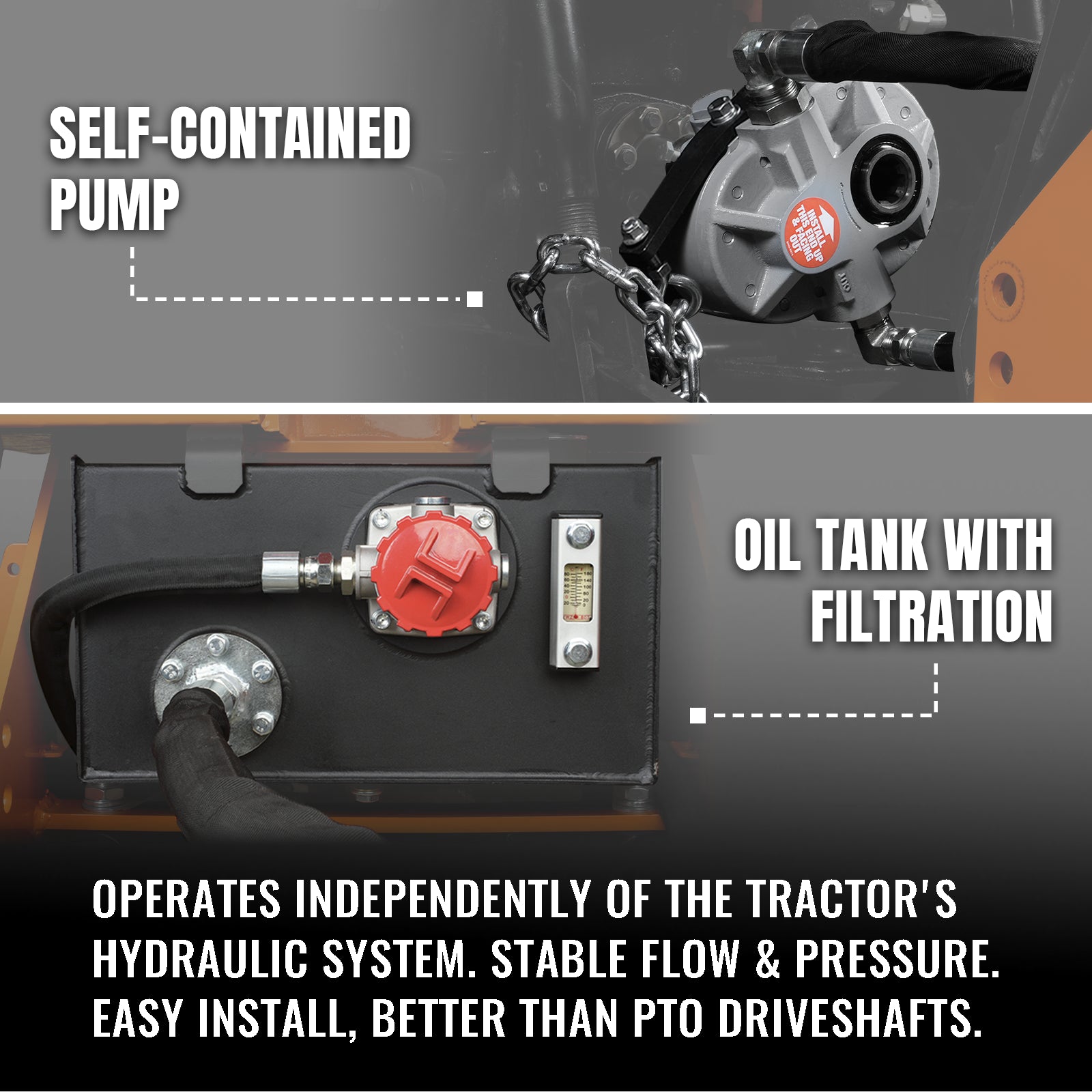

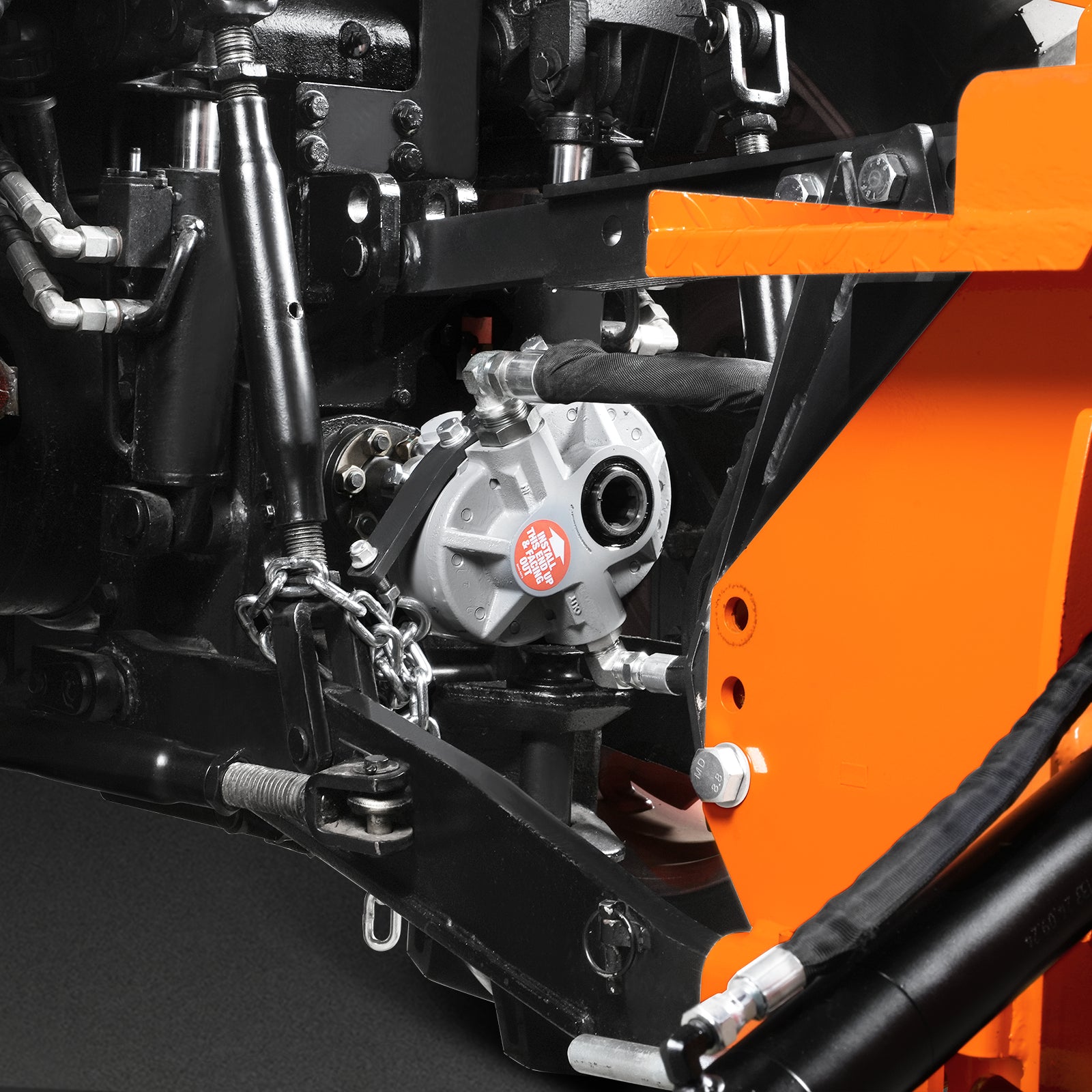

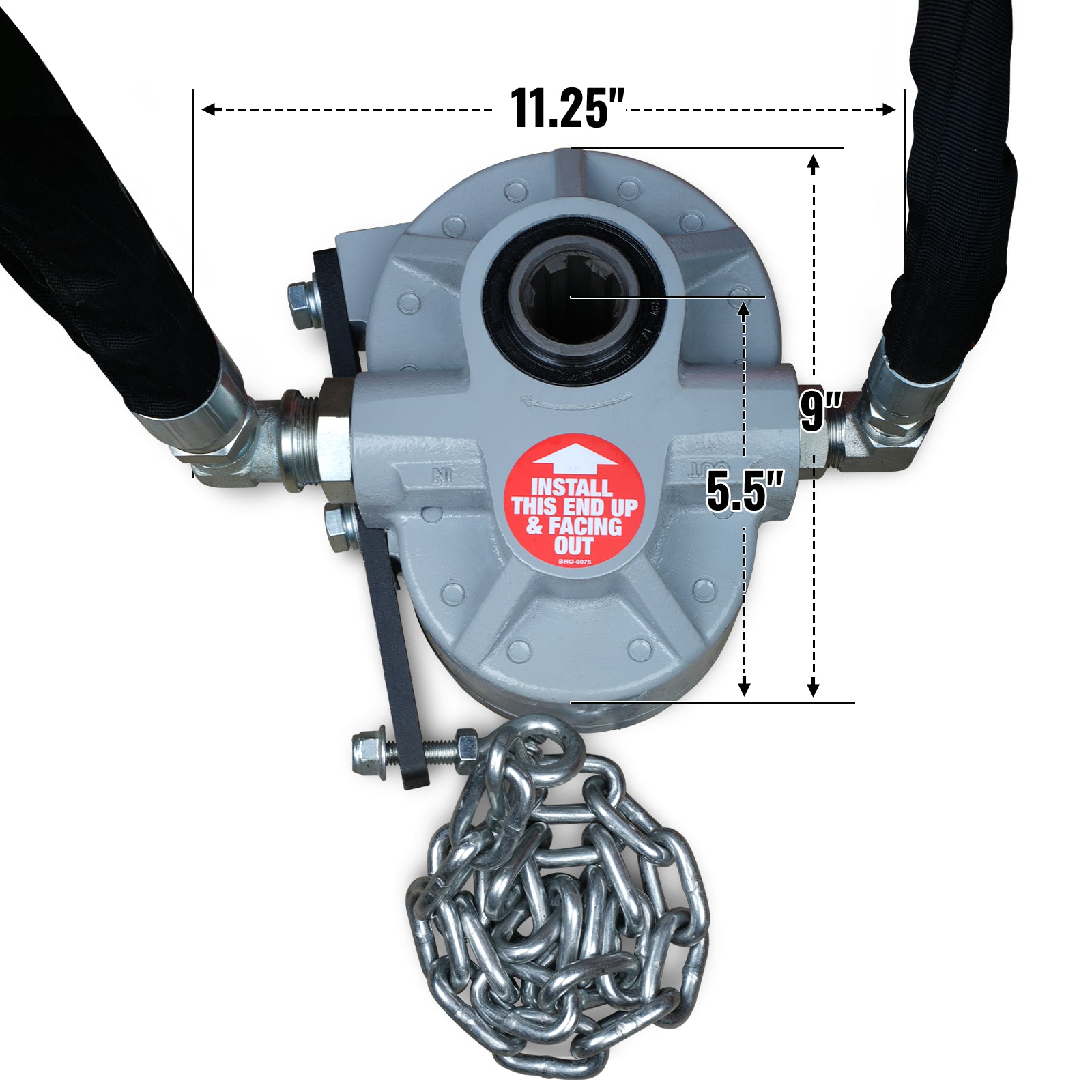

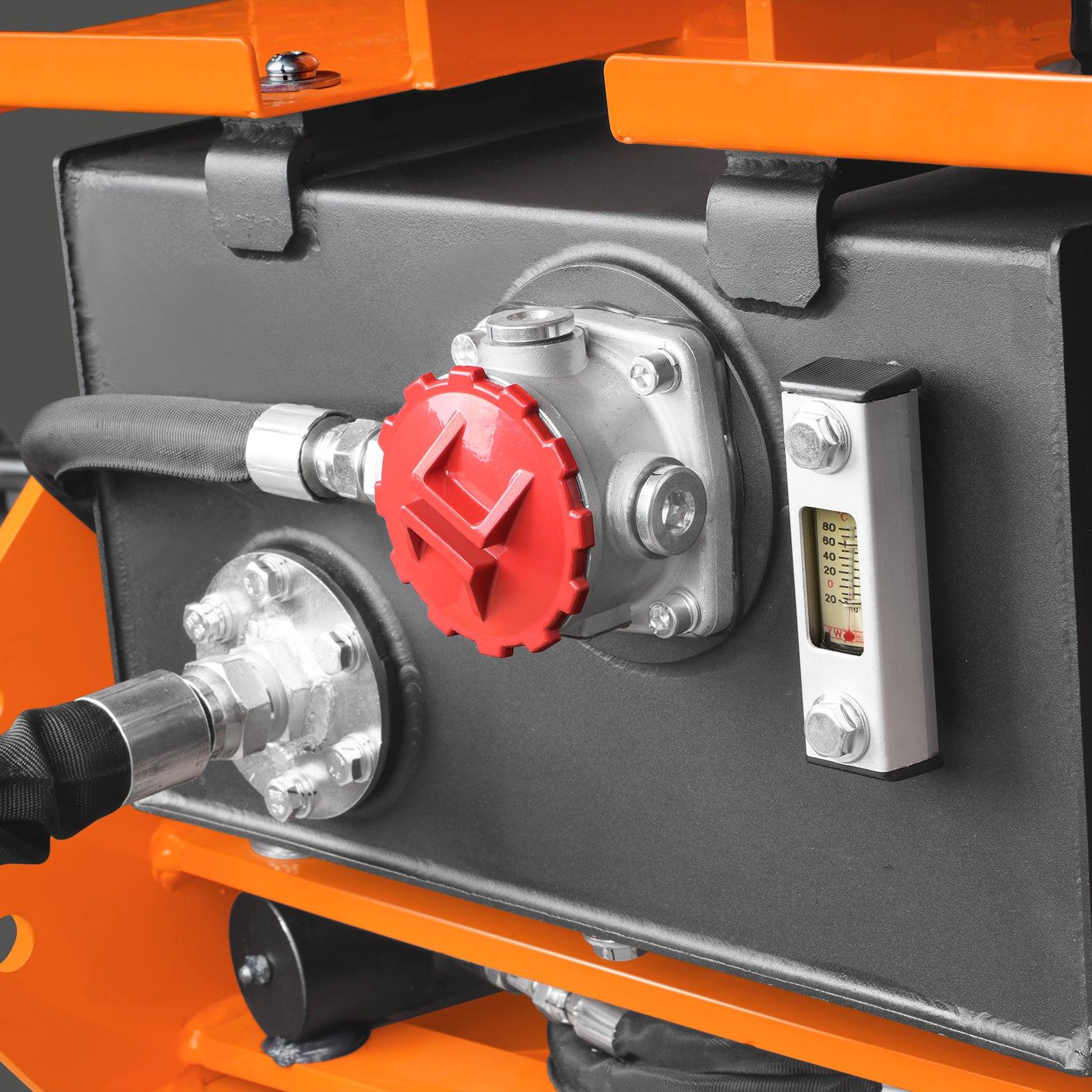

Self-contained Gear Pump & Hydraulic Oil Tank

The self-contained gear pump and hydraulic tank operate independently of the tractor's hydraulic system. Provide stable flow and pressure. Easy to install, superior to PTO driveshaft. (Note! We don't recommend using the tractor's hydraulic ports to power the backhoe. Unstable flow can cause unsmooth operation. Moreover, the MechMaxx backhoe has its own filtration system. Using tractor hydraulics may contaminate the hydraulic oil, damaging components like pump and cylinder.)

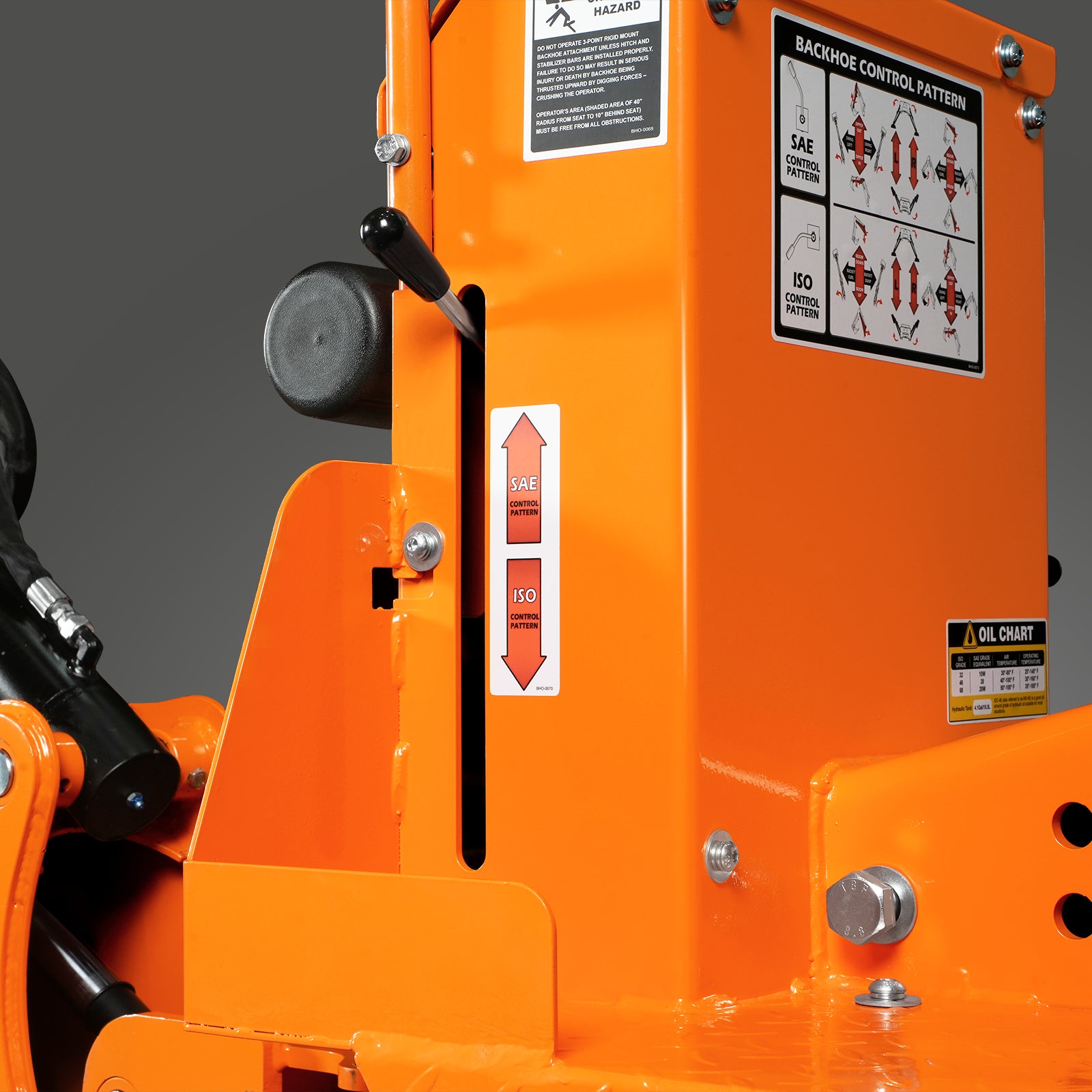

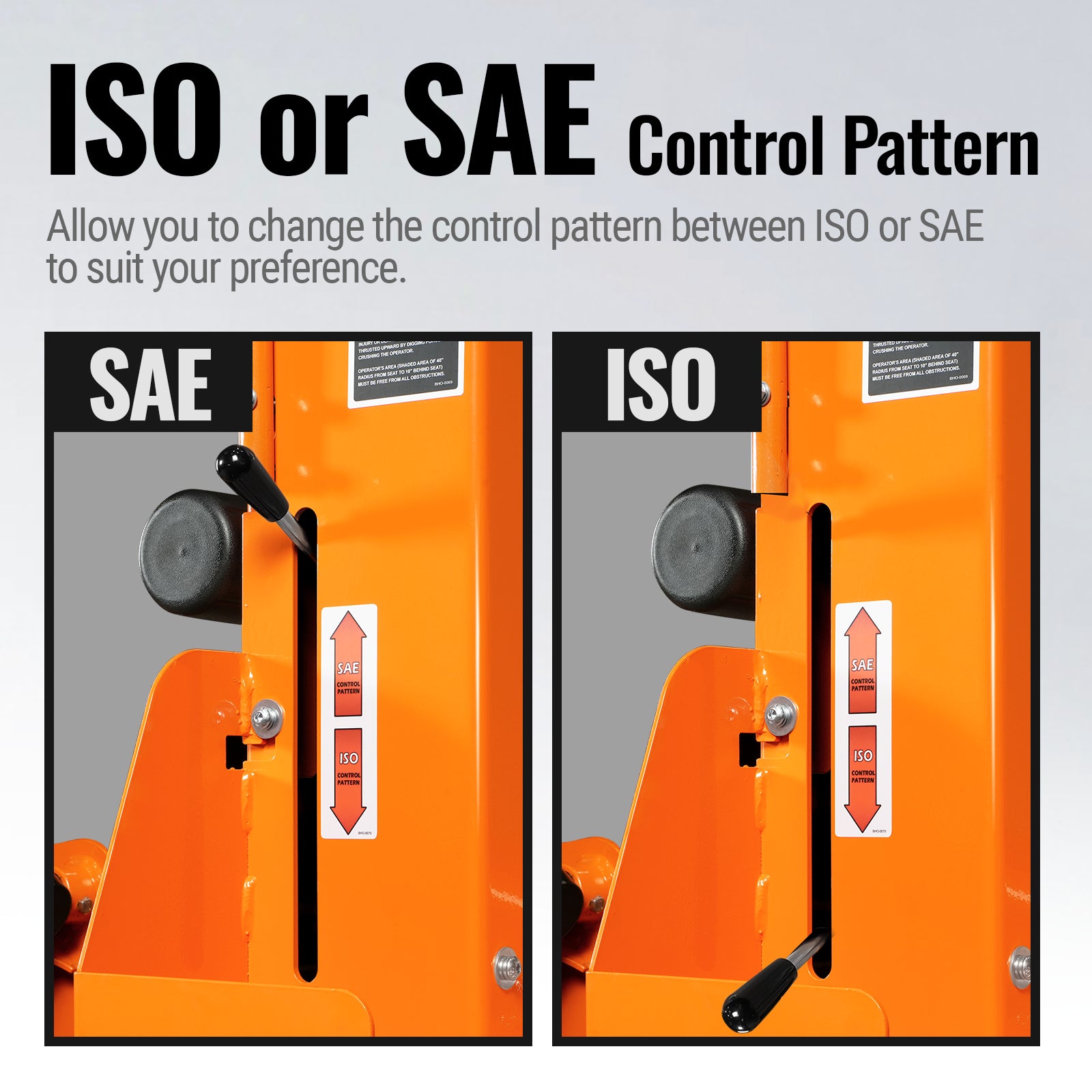

ISO or SAE Control Pattern

Allow you to change the control pattern between ISO or SAE to suit your preference.

Replaceable Bushings & Pins

Replaceable bushings & pins simply replacing, easy maintenance. A full line of replacement parts can be quickly provided.

Standard Hose Fittings

JIC(Joint Industrial Council) style hose fittings are rated for 5000 psi. Usually easy to get if you need to replace hydraulic hoses. Not troubled by mismatched joint threads.

Optional Attachments (Sold Separately)

Parts and accessories in stock. Optional multiple buckets sizes, ripper and quick attach.

Video

Product Warranty

Specifications

Max. Digging Depth	7 ft	Hydraulic Volume Requirements	4 to 5 GPM
Digging Depth (two foot flat bottom)	6 ft 6 in	Hydraulic Pressure Requirements	2250psi
Swing Arc	180 Degrees	Hydraulic Tank Capacity	4.1 US Gal (15.5L)
Loading Height (bucket at 60 °)	4 ft 9 in	Hydraulic Type Recommended	AW 46
Reach from Center Line of Swing Pivot	9 ft 1 in	Self-contained PTO Pump & Tank	Included
Transport Height (maximum)	5 ft 2 in	ISO or SAE Switch	Included
Bucket Rotation	180 Degrees	Standard Thumb	Mechanical
Loading Reach (bucket at 60 °)	3 ft 8 in	Standard Bucket Size	12 in (3 teeth)
Transport Overhang	4 ft 9 in	PTO Speed	540 RPM
Undercut	1 ft 6 in	PTO Connection	1-3/8" 6 Spline
Stabilizer Spread (down position)	6 ft 7 in	Recommended Tractor HP	15 to 50 HP
Stabilizer Spread (up position)	5 ft 9 in	3-Point Hitch	CAT I
Stabilizer Spread (lifting height)	3 ft 8 in	Min Tractor Weight	1500 lbs
Transportation Height (maximum altitude)	7 ft 2 in	Regarding tractor compatibility, ensure that the tractor’s HP and 3-point hitch are compatible with the backhoe, and that it meets the minimum weight requirement for safe operation. If the tractor is too light, it can become unstable during travel or operation. To improve stability and reduce tipping hazards, add front ballast as needed. Additionally, take into account factors like speed and terrain slope. Above all, always prioritize safety during operation.
Loading Height (bucket at 180 °)	8 ft 4 in
Transport Overhang (maximum)	4 ft 2 in
Bucket Cylinder Digging Force	2840 lbs	Packing Size (LxWxH)	56 x 29 x 71 in
Dipper Stick Cylinder Digging Force	2005 lbs	Weight with Bucket (N.W/G.W.)	1113/1208 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.

Customer Reviews

Waiting on on a pin hope to have it soon looks lt will do the job

Tractor 3 Point backhoe

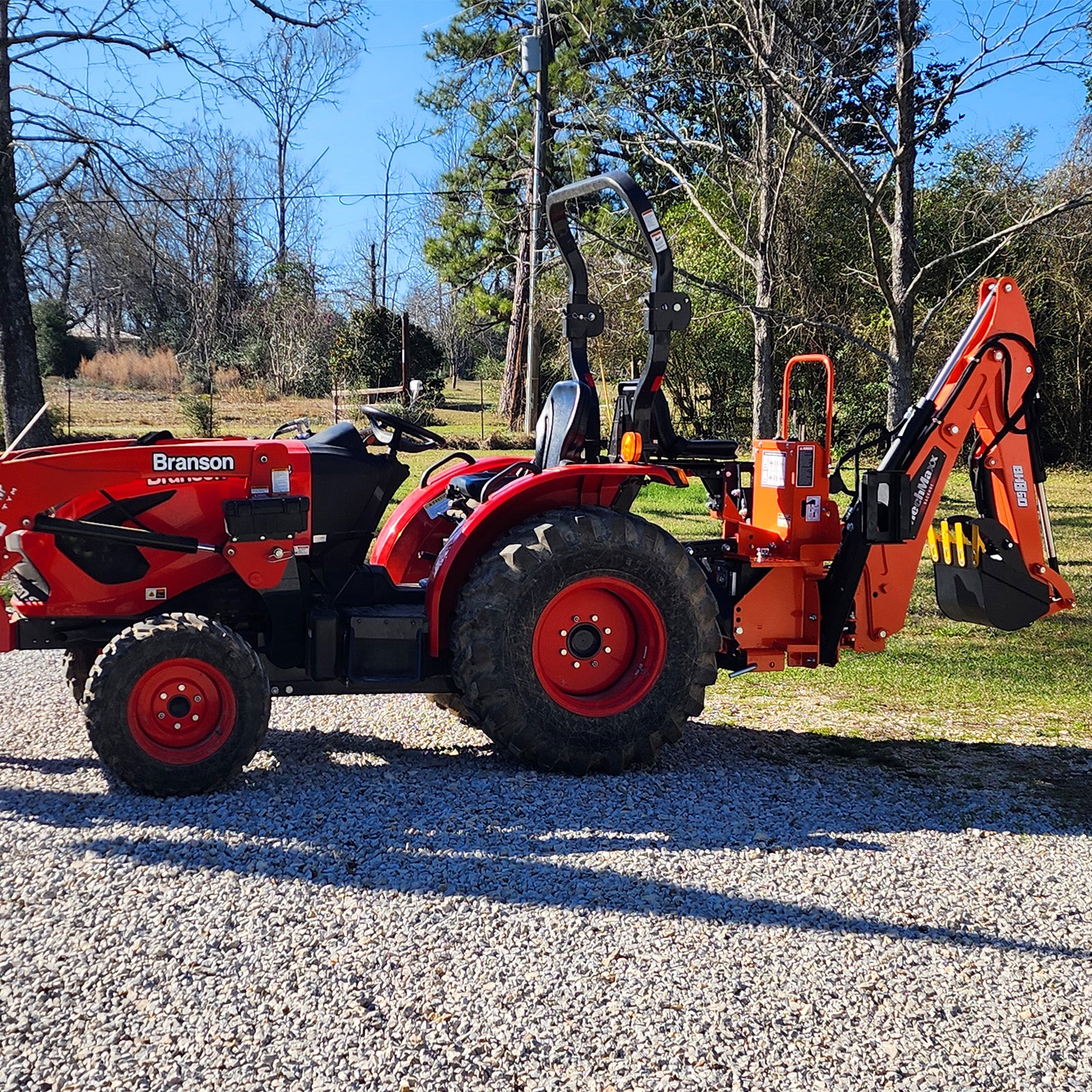

I received it promptly, appears well built, and packed nicely in a welded frame for shipping. Installed easily on my tractor and i hope that it holds up but so far i am overall impressed with customer service and delivery and product quality.
