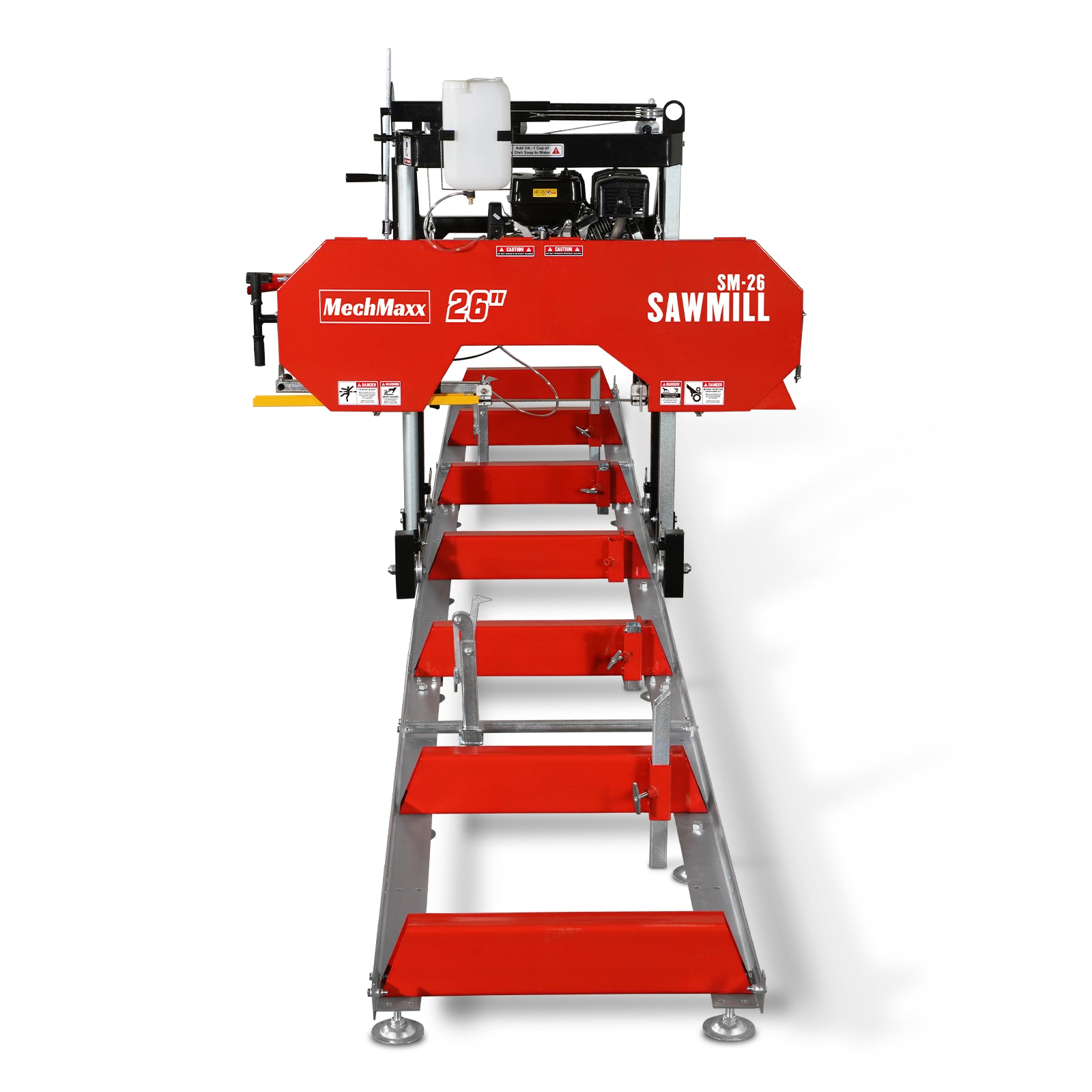

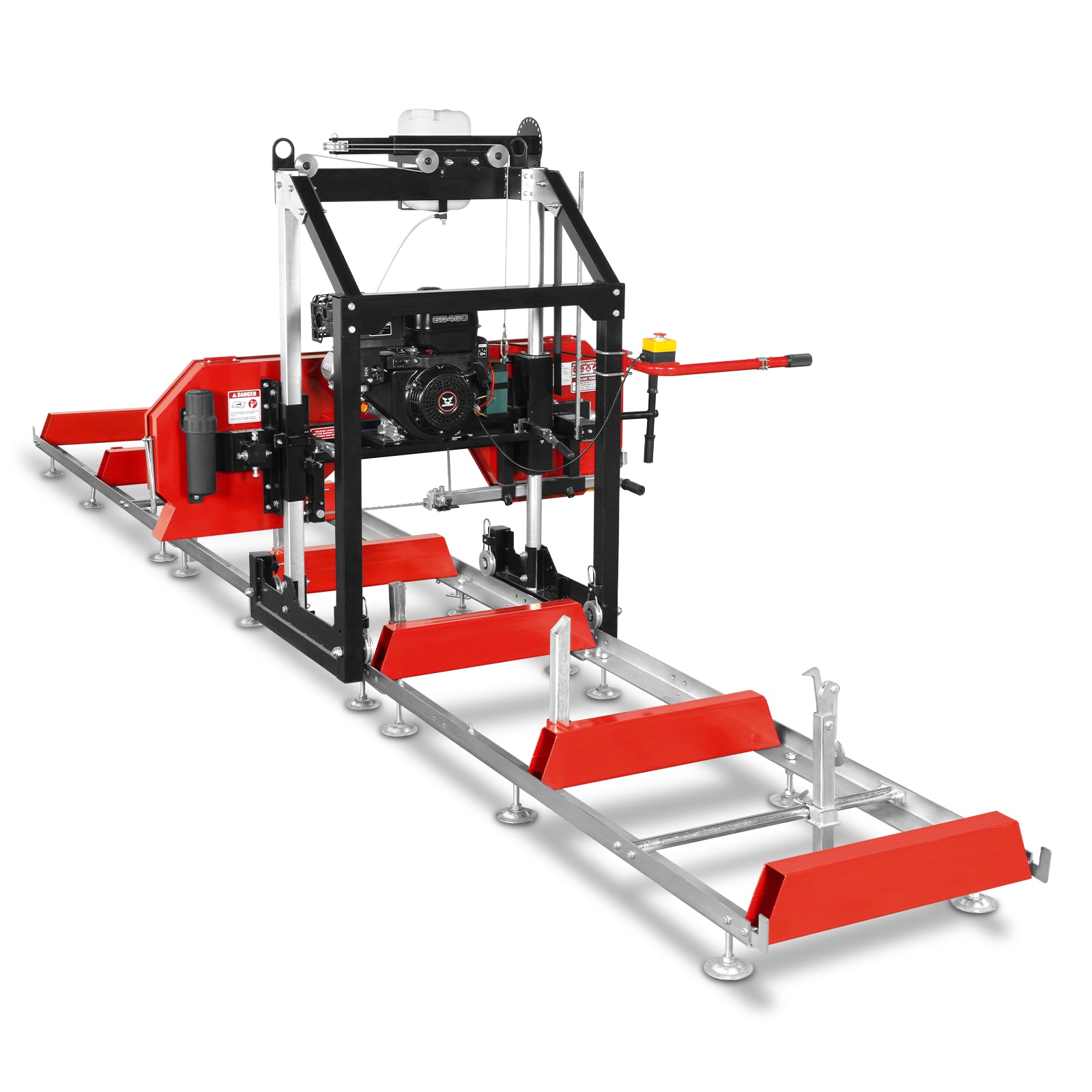

SKU: 150166D6

| Model: SM-26

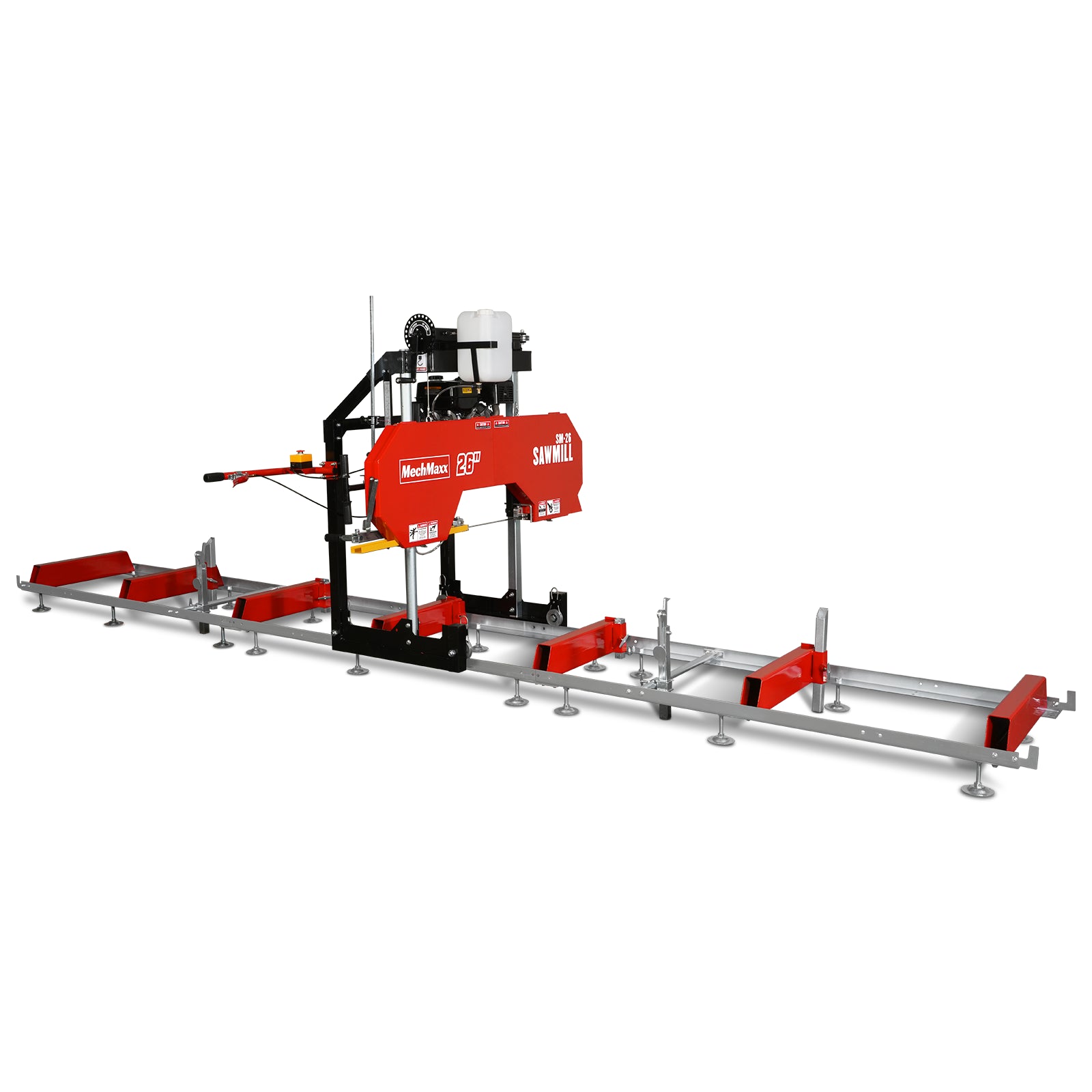

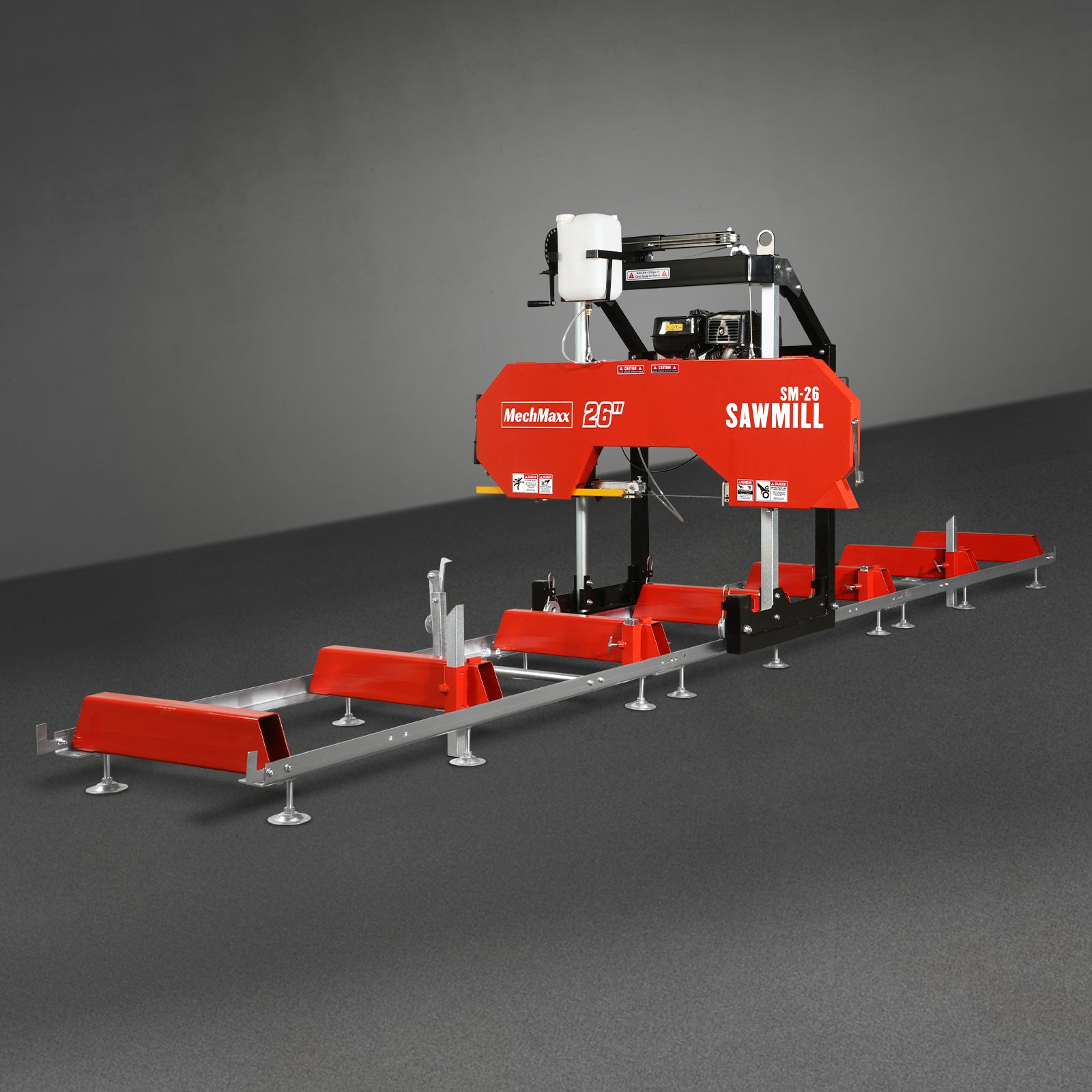

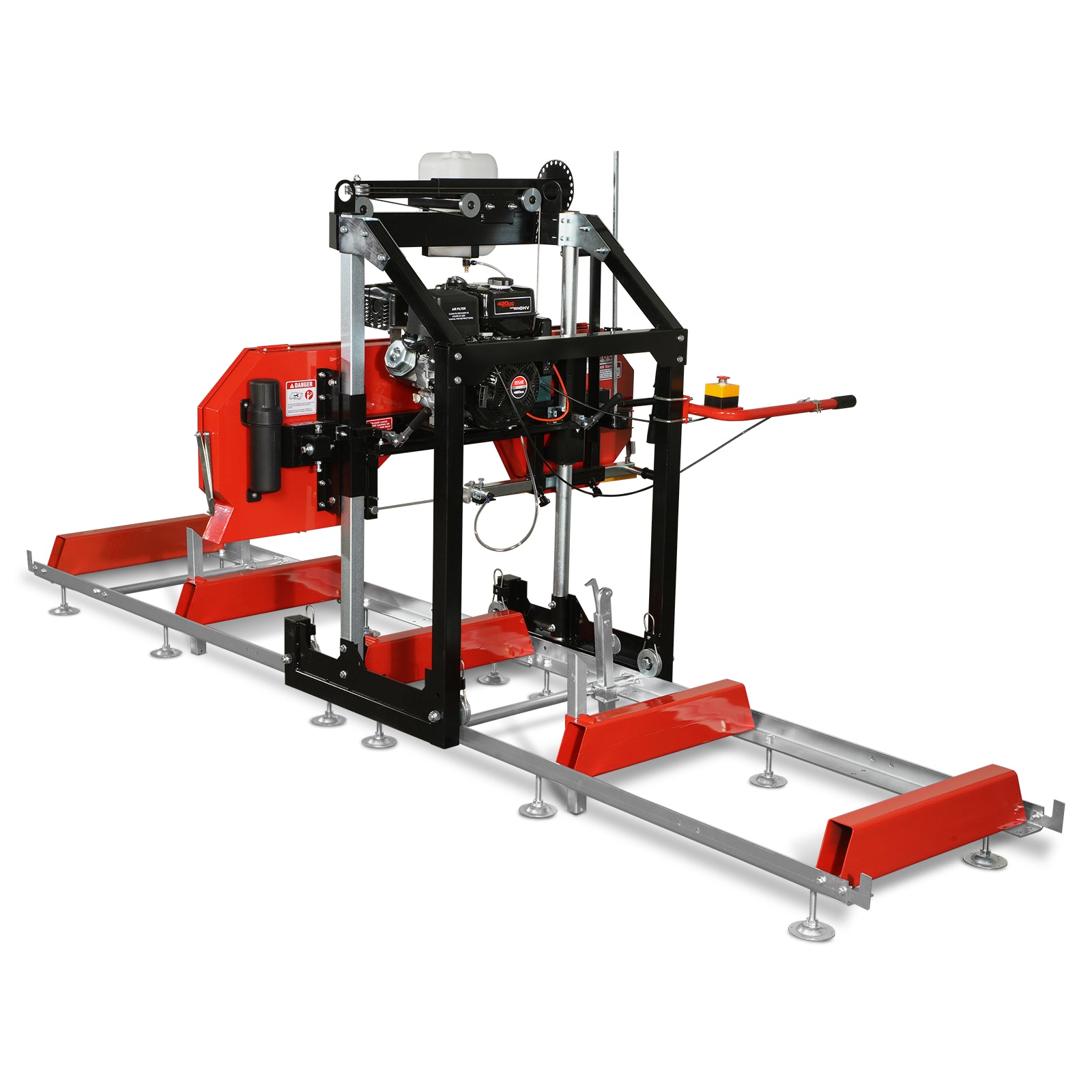

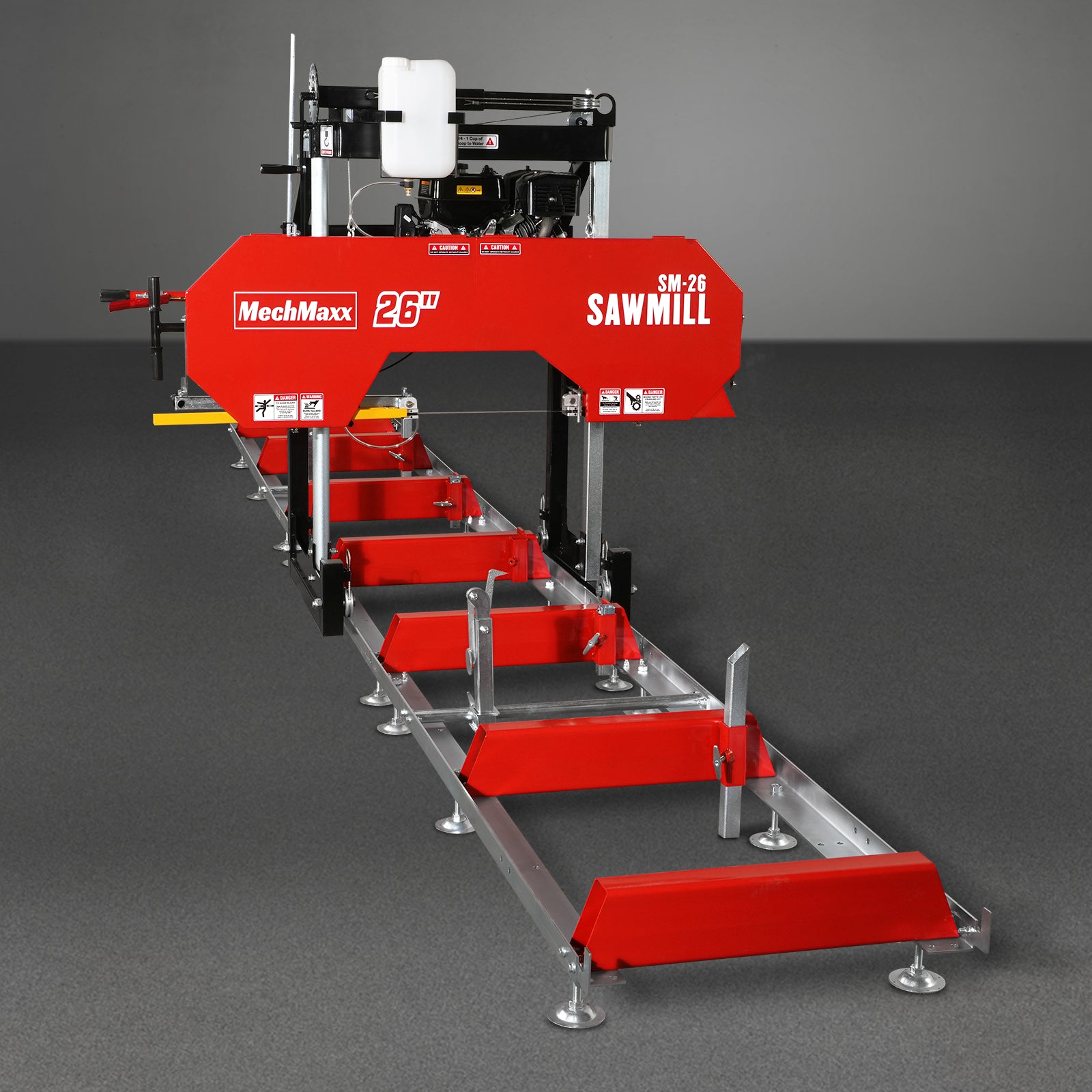

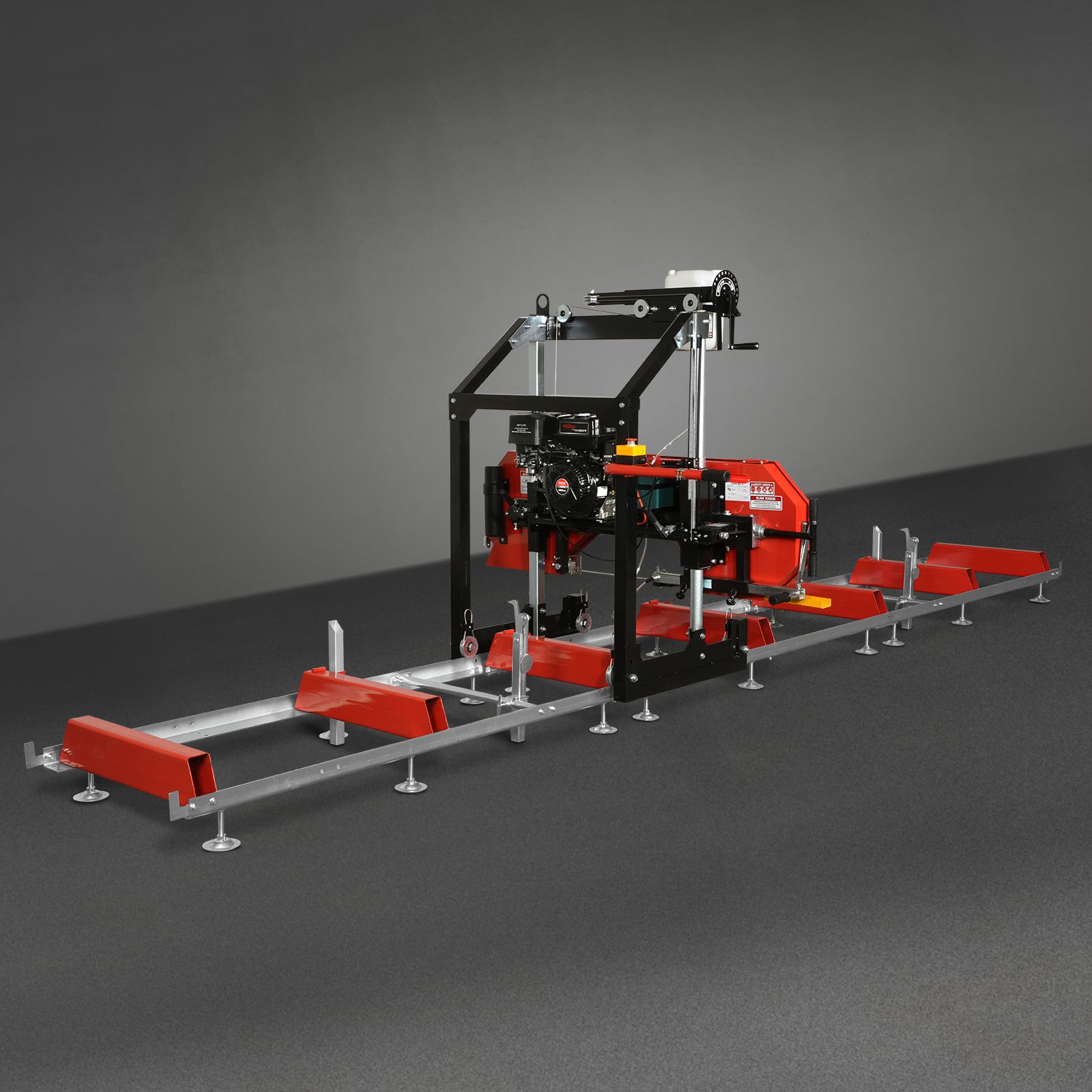

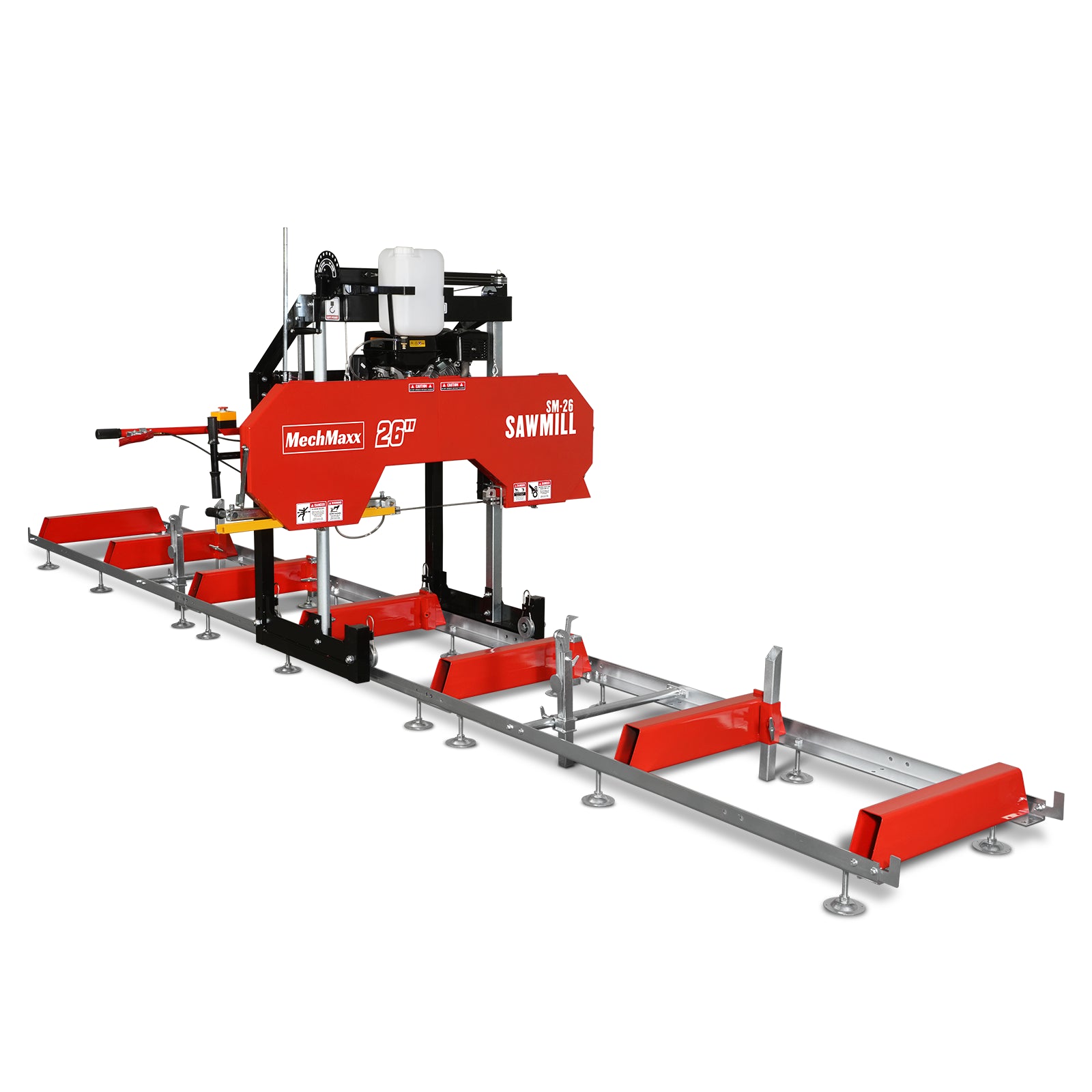

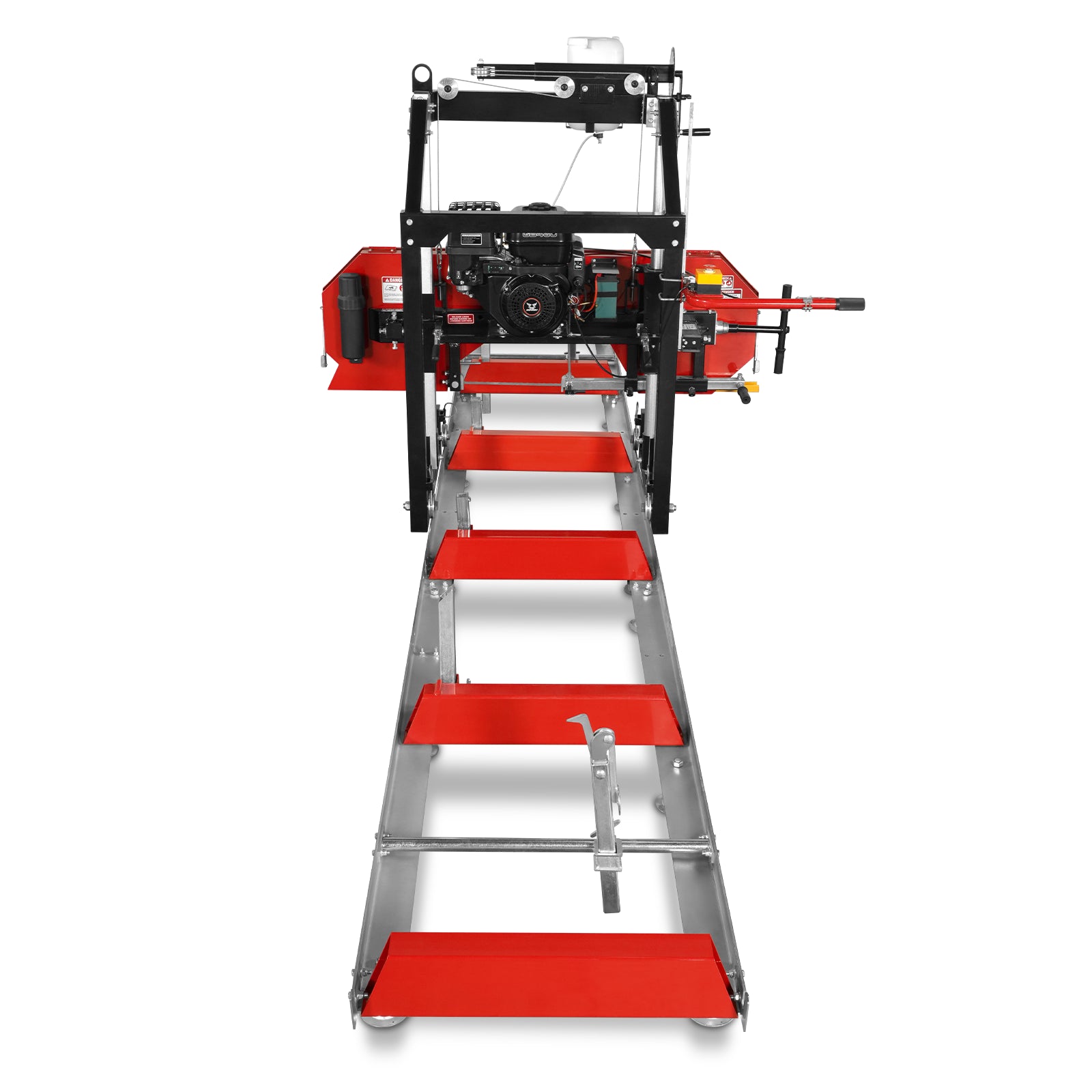

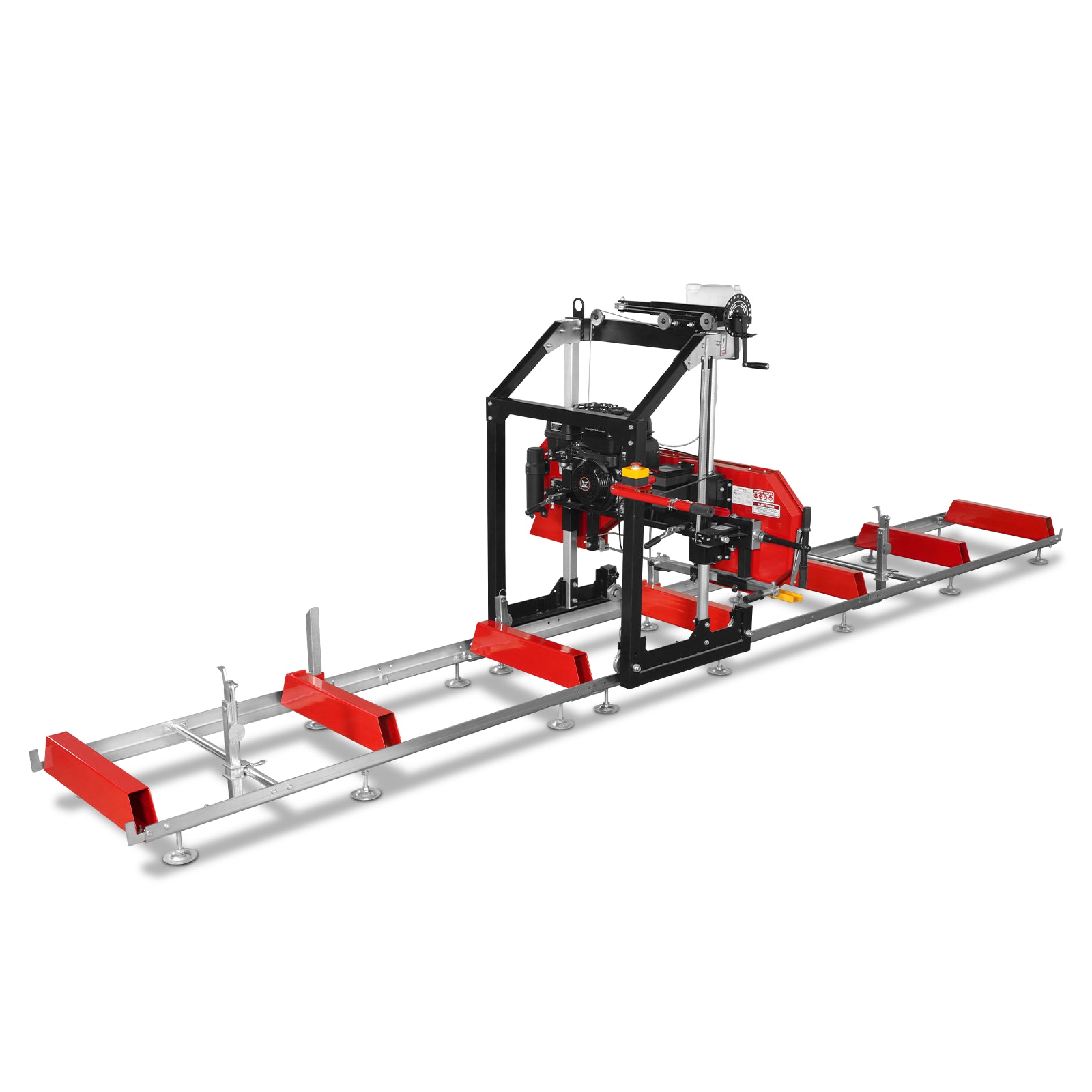

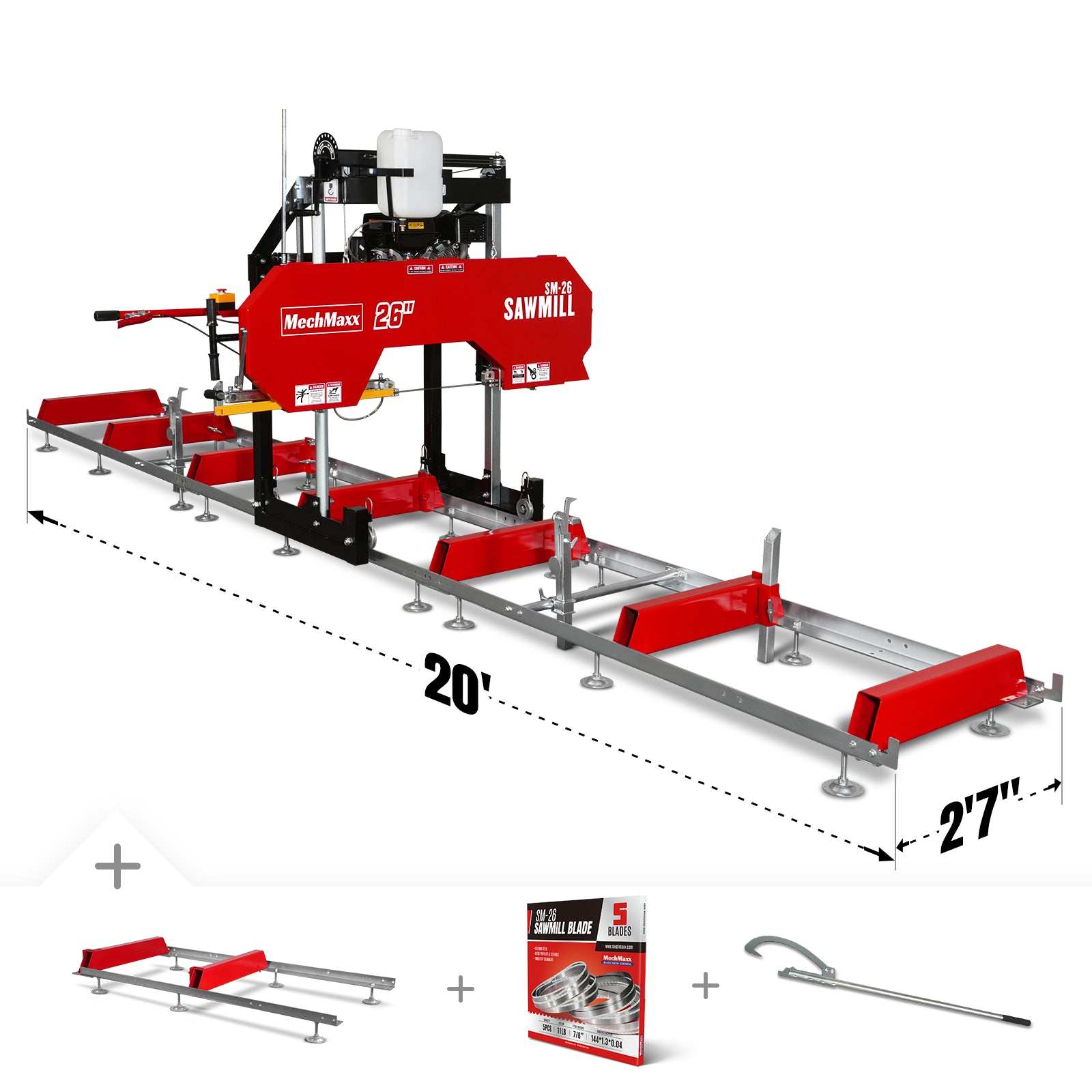

26" Portable Sawmill (5x Blades Included), 420cc 15HP E-Start Gasoline Engine, 22" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM26

Name: 26" Portable Sawmill (5x Blades Included), 420cc 15HP E-Start Gasoline Engine, 22" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM26
Brand: MechMaxx
SKU: 150166D6
Price: 3099.0 USD
Availability: InStock
Rating: 4.2 (5 reviews)

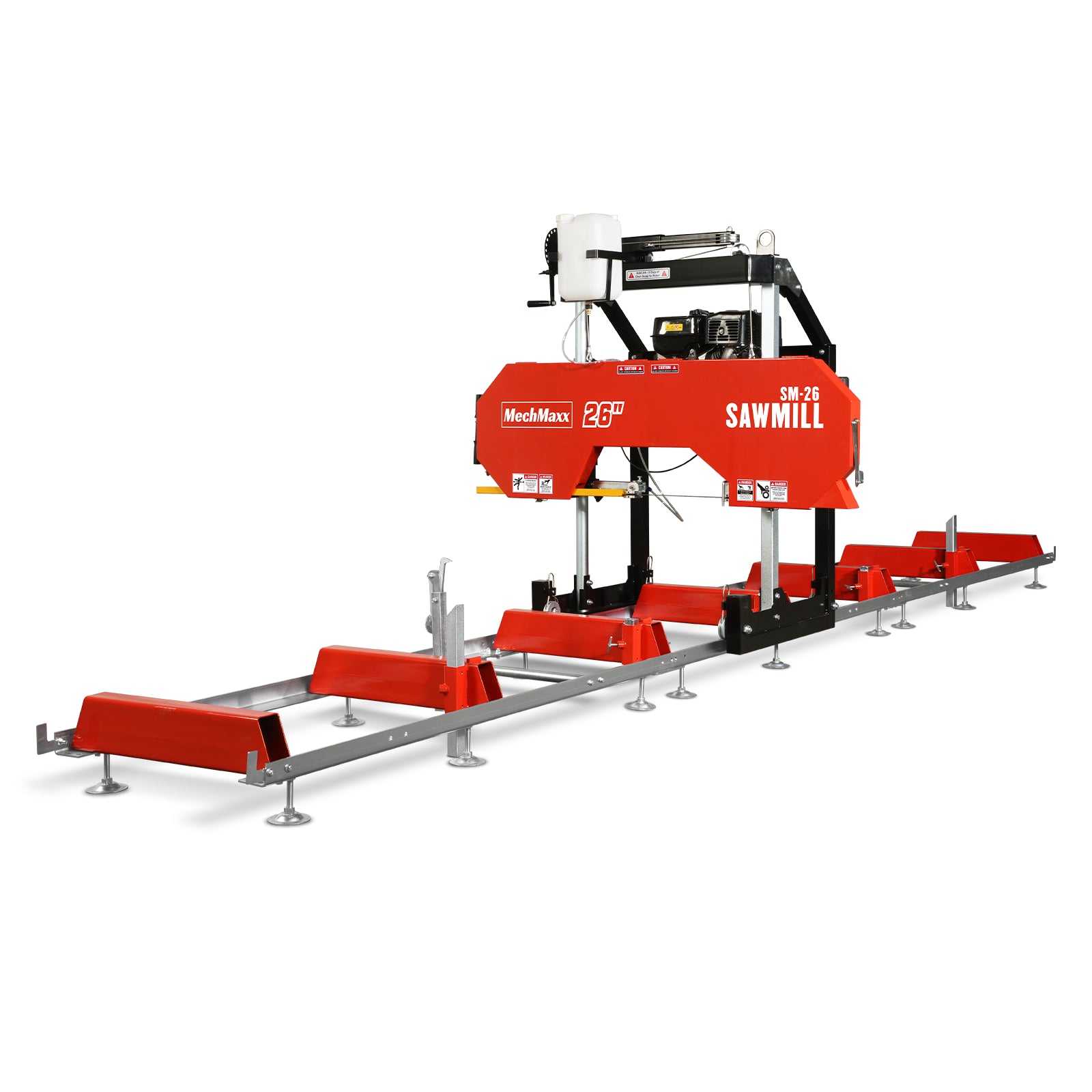

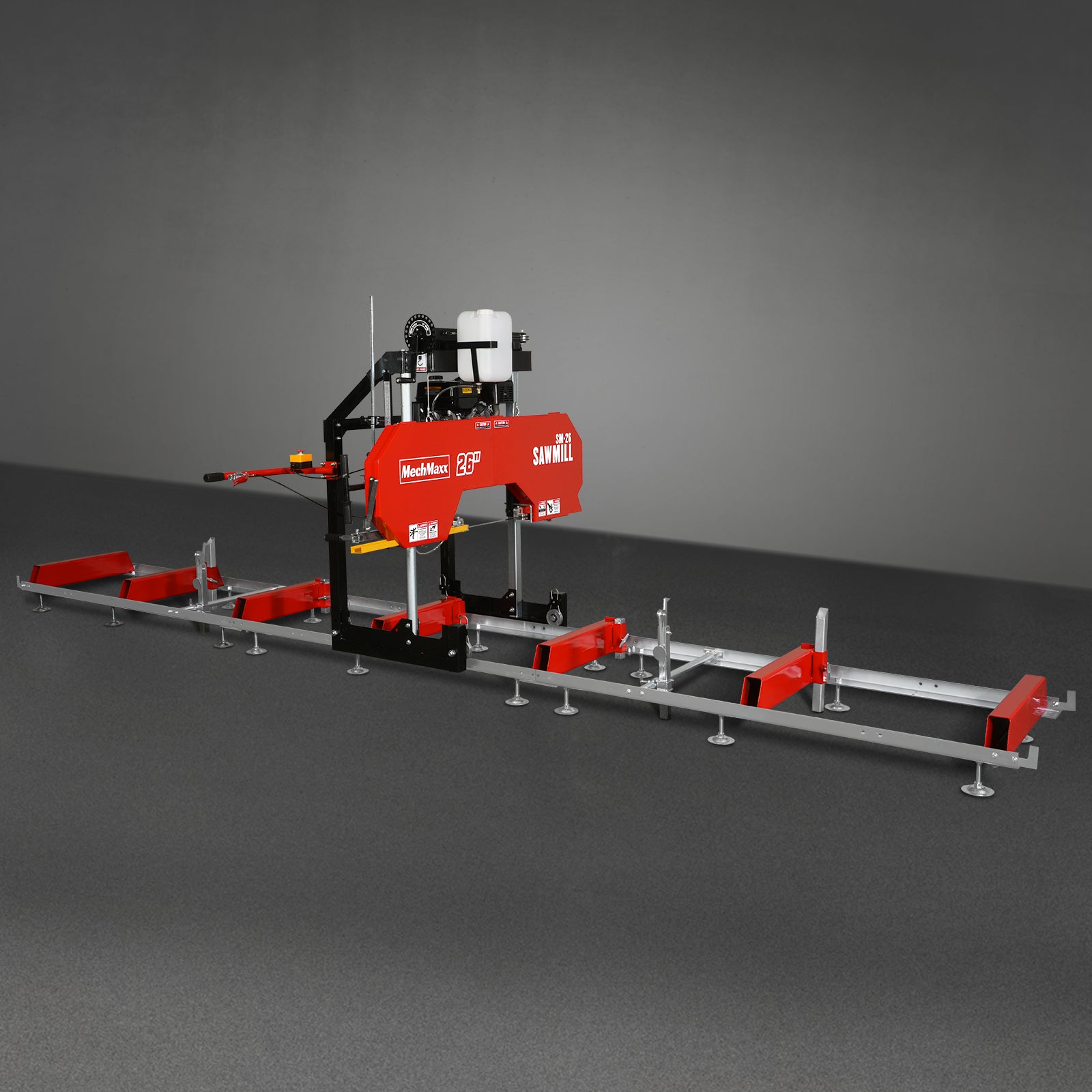

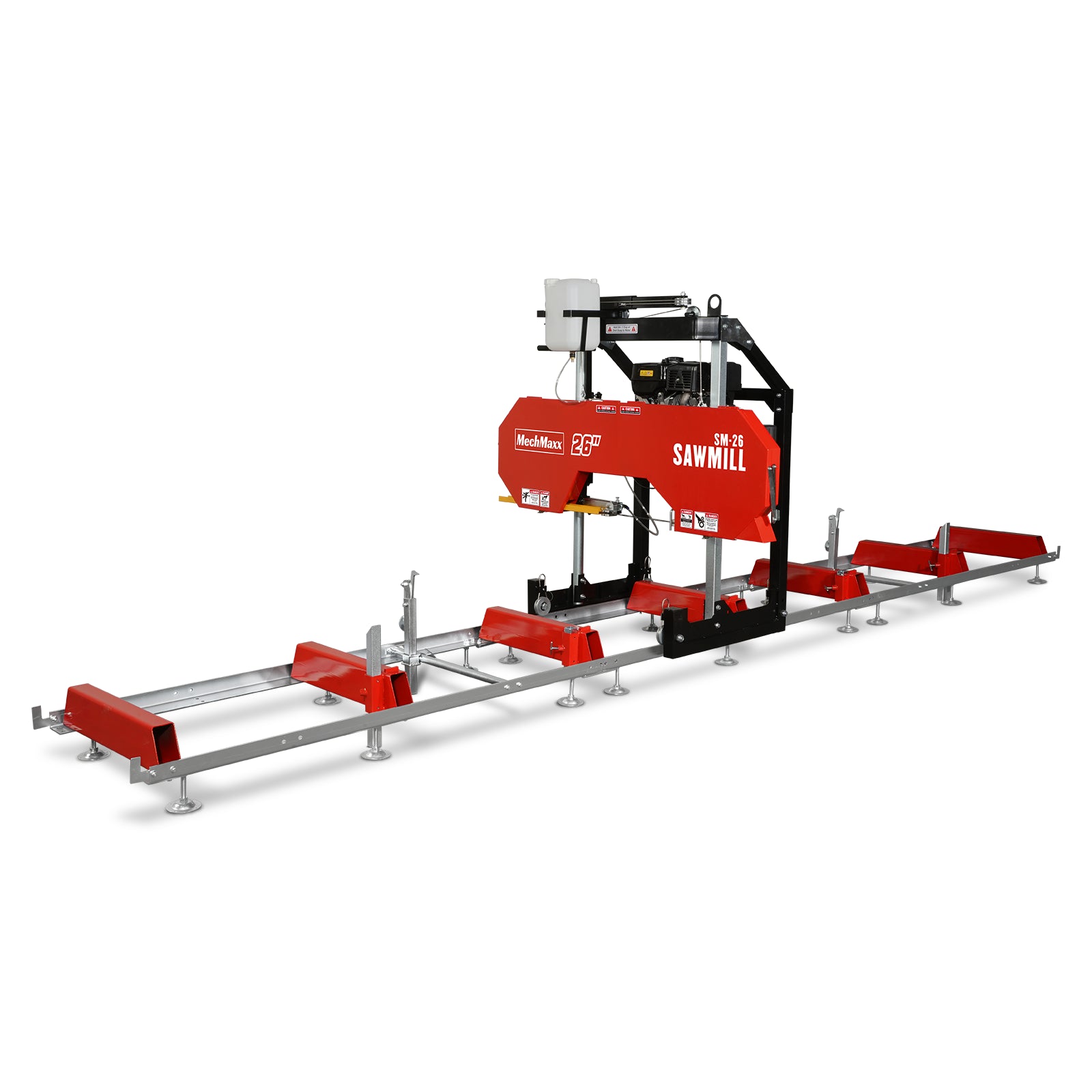

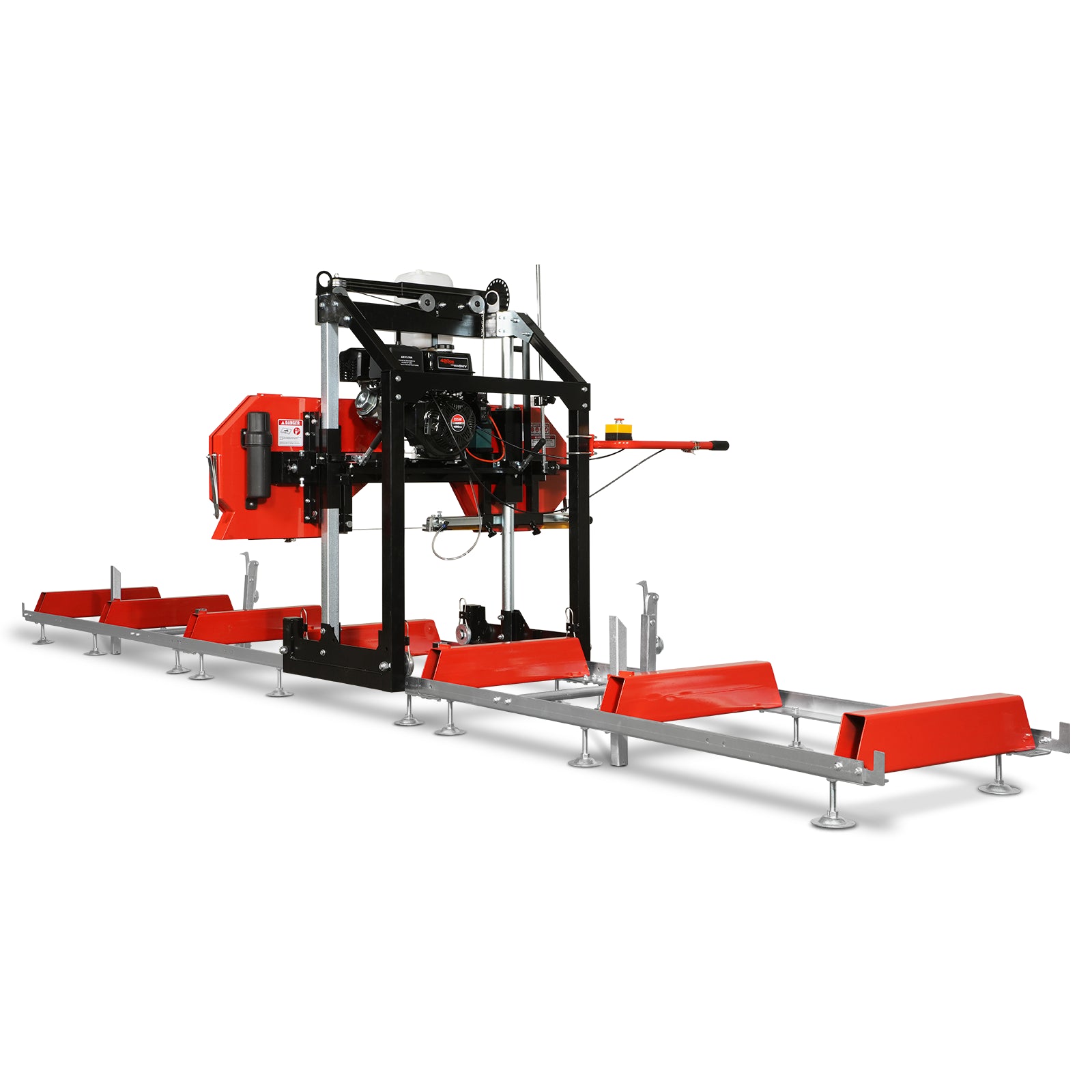

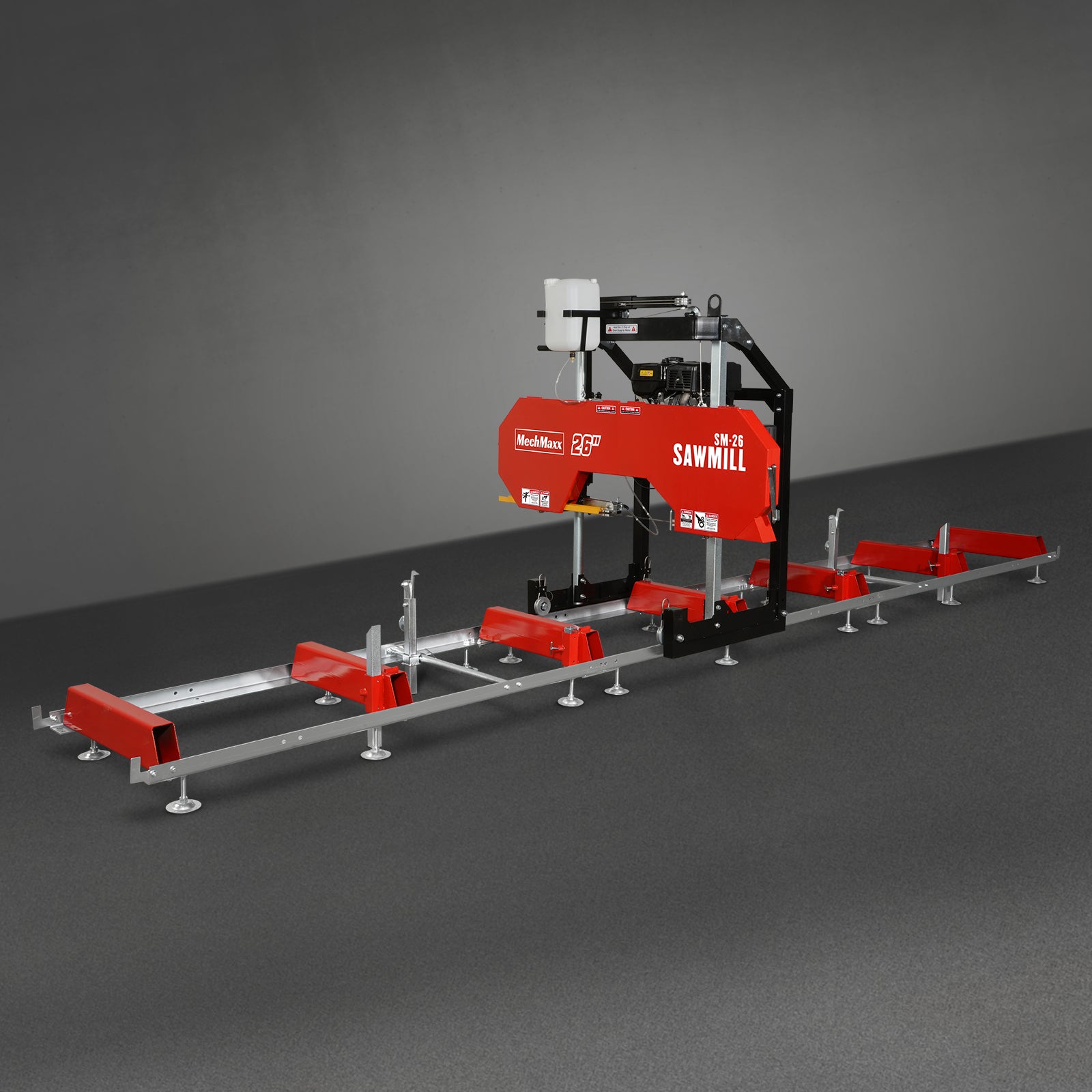

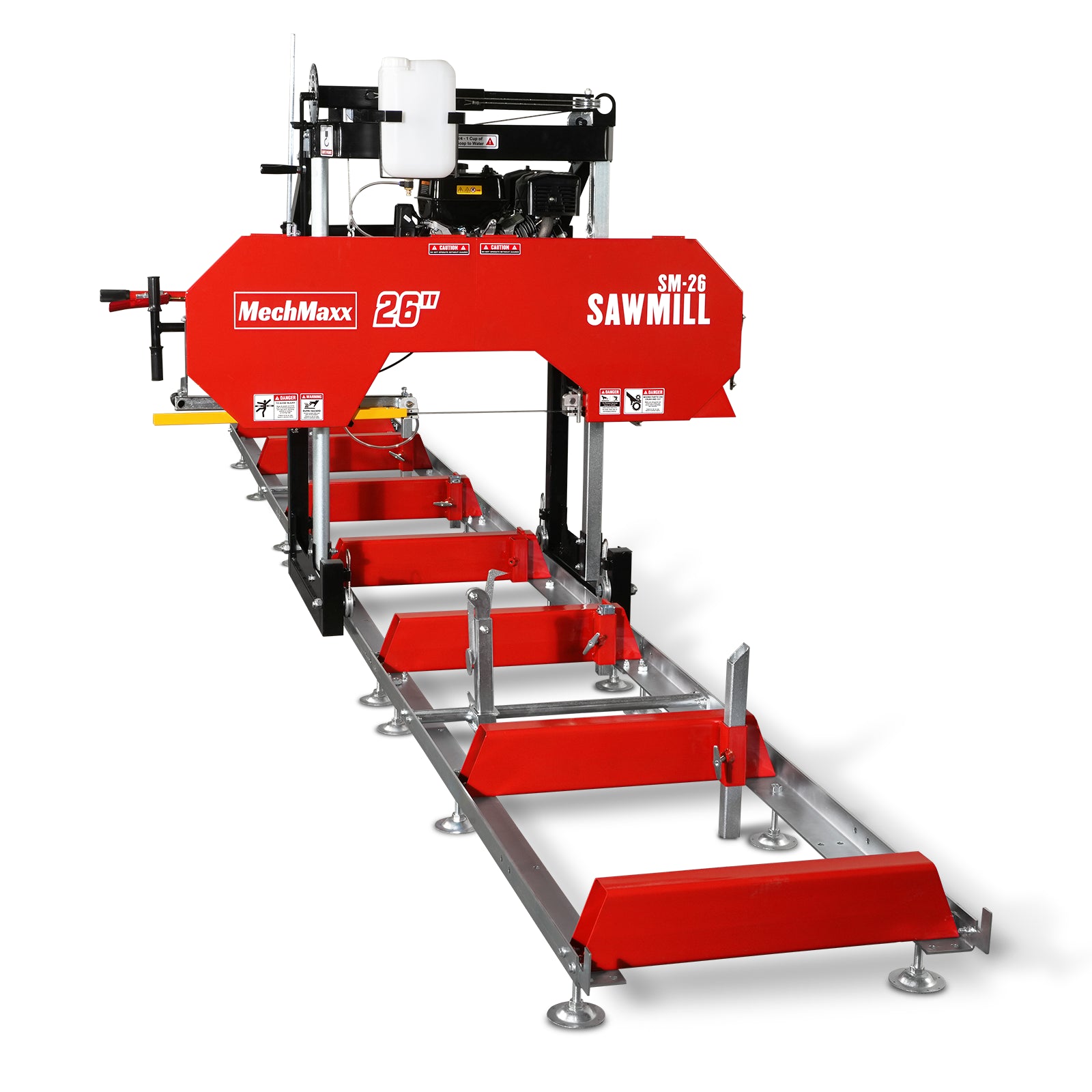

26" Portable Sawmill (5x Blades Included), 420cc 15HP E-Start Gasoline Engine, 22" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM26

NEW YEAR'S SALE Ends in

Days : :

$309900

$4,399.00

Save $1,300

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Estimated to ship by Feb 7, 2025. Date is subject to change due to transit delays.

Details

Payment:

917-772-7273

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Frequently Bought Together

Mobility Combo Kit for Sawmill Trailer, SM-26 and SM-32

Primary Sub-Frame for Sawmill Trailer , 20' Track Length ( Compatible for SM-26 )

Log Loading Ramp Kit for Sawmill Trailer , SM-26 and SM-32

( 1 Pack / 2 Pcs ) Belt for 26" Portable Sawmill, SM-26 (SKU: 150166）

( 1 Pack / 1 Pcs ) Sawmill Cover - Custom Fitted for Portable Sawmill, SM-26; SM-32 (150166; 150166D6; 150167; 150167K4; 150167D6; 150167K6)

26" Portable Sawmill (5x Blades Included), 420cc 15HP E-Start Gasoline Engine, 22" Board Width, 20' Track Length (13' Track Length + 6.6' Track Extension Included) , SM26 $309900 $4,399.00

Mobility Combo Kit for Sawmill Trailer, SM-26 and SM-32 $69900 $799.00

Primary Sub-Frame for Sawmill Trailer , 20' Track Length ( Compatible for SM-26 ) $109900 $1,199.00

Log Loading Ramp Kit for Sawmill Trailer , SM-26 and SM-32 $28900

( 1 Pack / 2 Pcs ) Belt for 26" Portable Sawmill, SM-26 (SKU: 150166） $3699 $49.99

( 1 Pack / 1 Pcs ) Sawmill Cover - Custom Fitted for Portable Sawmill, SM-26; SM-32 (150166; 150166D6; 150167; 150167K4; 150167D6; 150167K6) $5999

Total Price

$

Product Overview

Fully capable of cutting large 26" logs and planks up to 7" wide in half the time compared to a regular chainsaw.
Comes fully equipped with a reliable, high-performing engine that can be used for an extended period of time.

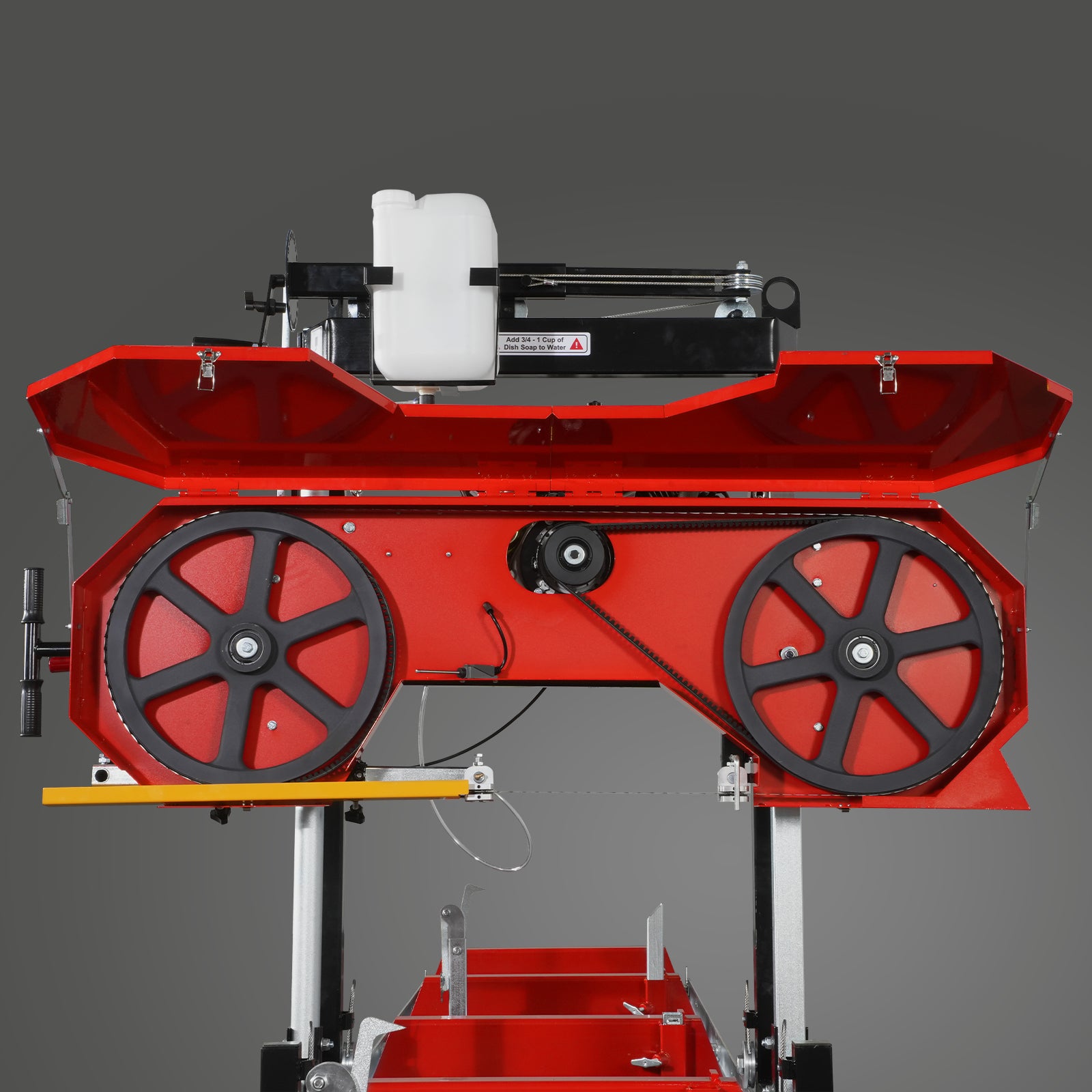

The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
Can withstand heavy workloads for long hours, even in remote areas.
The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.
You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.

Product manual (PDF)

SM-26 Product manual 1.0.pdf

Engine manual (PDF)

Ducar DH420E Manual.pdf

Product Features

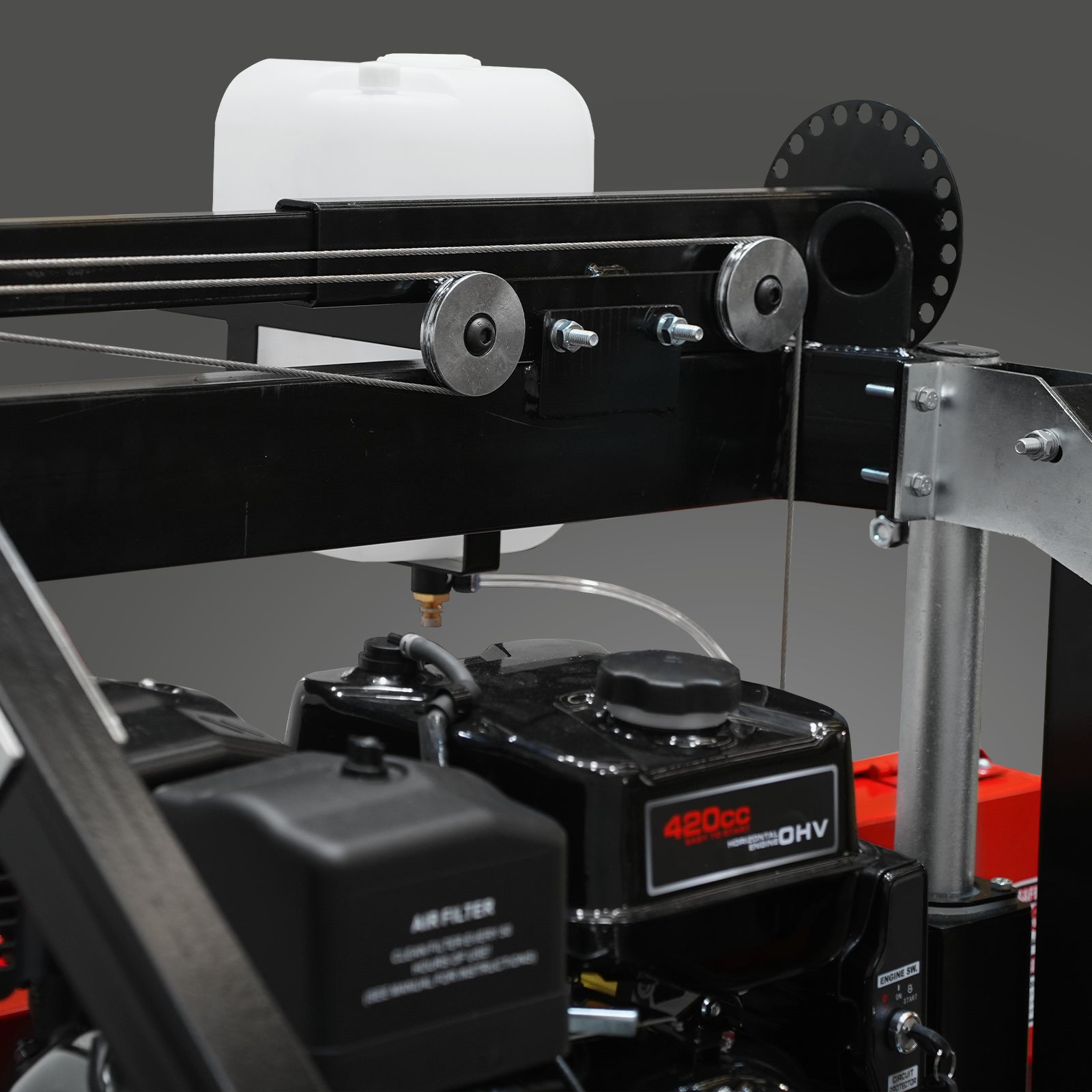

Electric Start

This sawmill is equipped with an electric-start Ducar engine, which has excellent performance, reliable quality, and can be used for a long time.

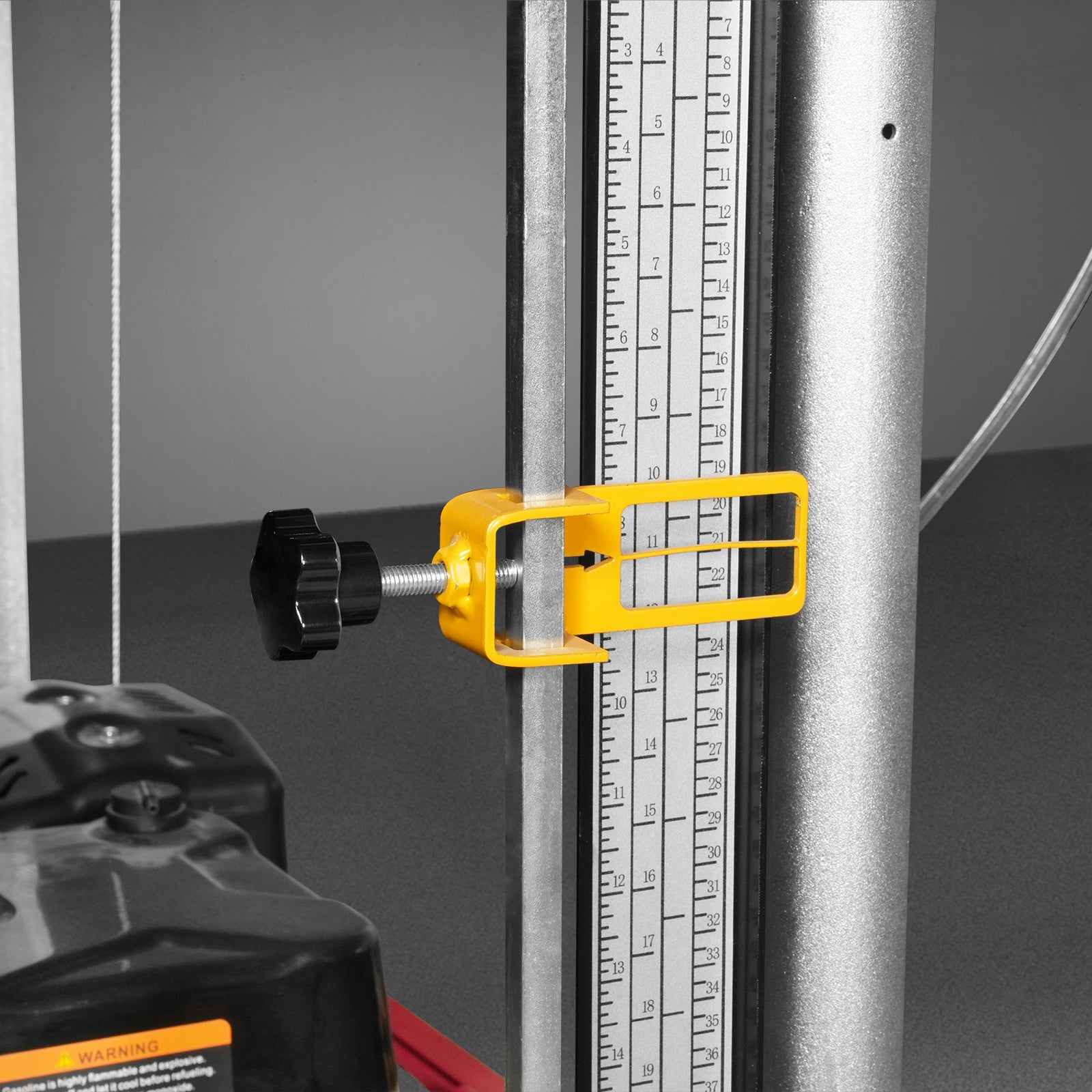

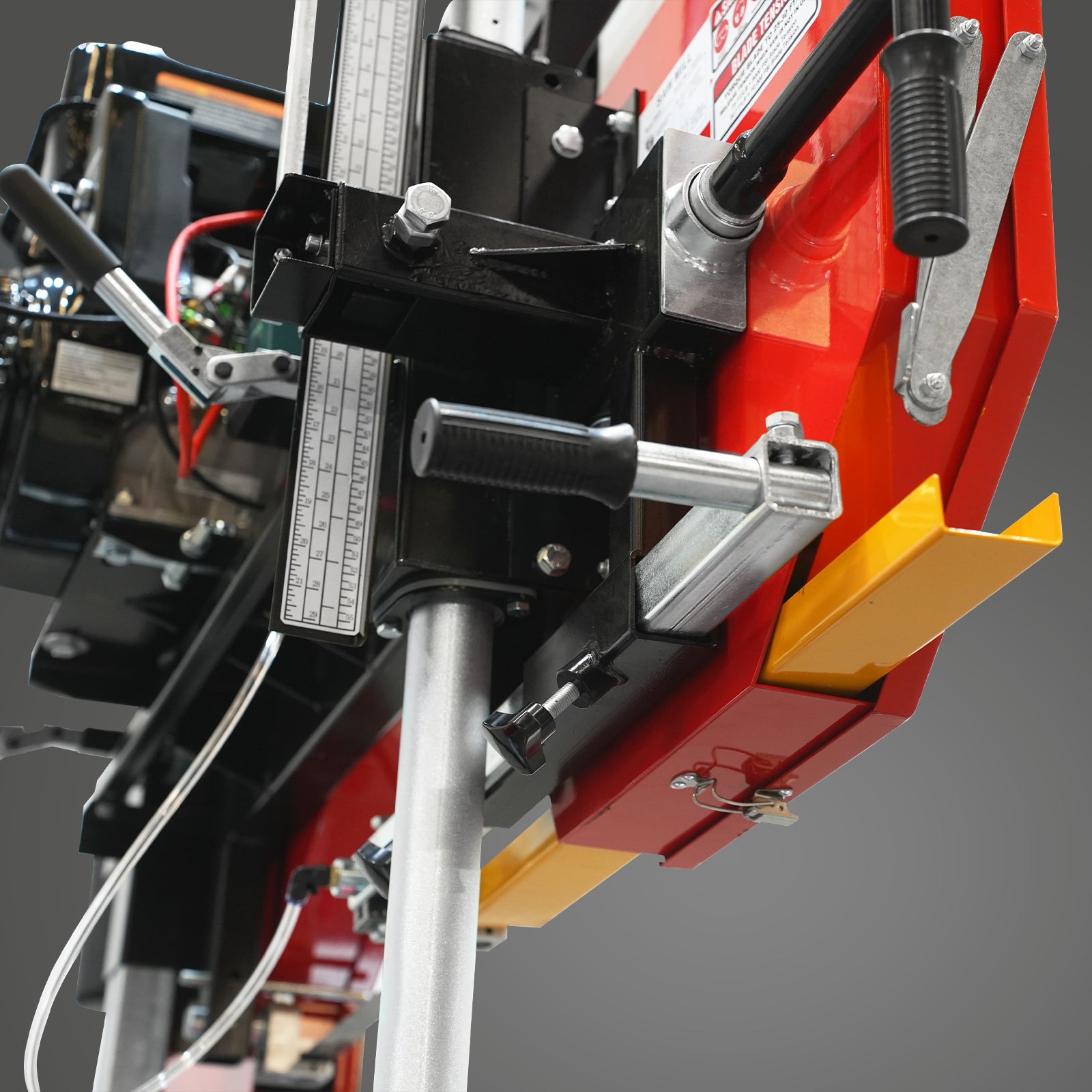

Adjustable Cutting Thickness

The handle rotates through 23 locking locations ensuring precise and consistent control. The cutting thickness can be adjusted by rotating the handle to choose the right board for you, and the maximum thickness of the board can be cut up to 7’’.

Maximum Log Diameter

This sawmill can cut a variety of logs, and can cut logs with a maximum log diameter of 26”.

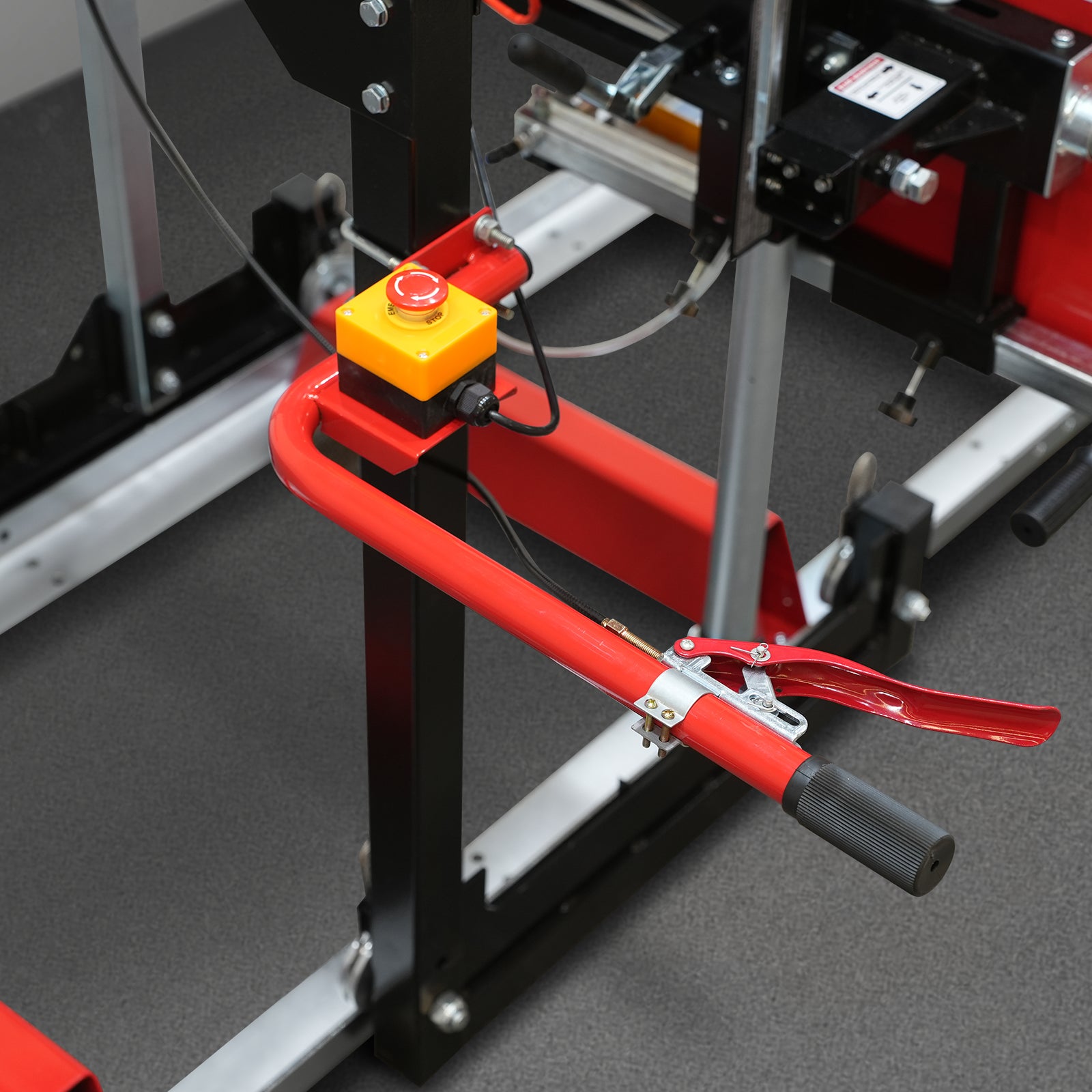

Emergency Stop Button

There is an emergency stop button on the top of the handle, which can stop the machine at any time in an emergency.

Maximum Cutting Width

According to the diameter of the log, the cutting width of the log can be adjusted by adjusting the length of the saw blade. The maximum cutting width is 22’’.

Throttle Handle

You can control the cutting speed by pushing this handle, which reduces the number of required steps and speeds up your woodcutting process; making it more efficient.

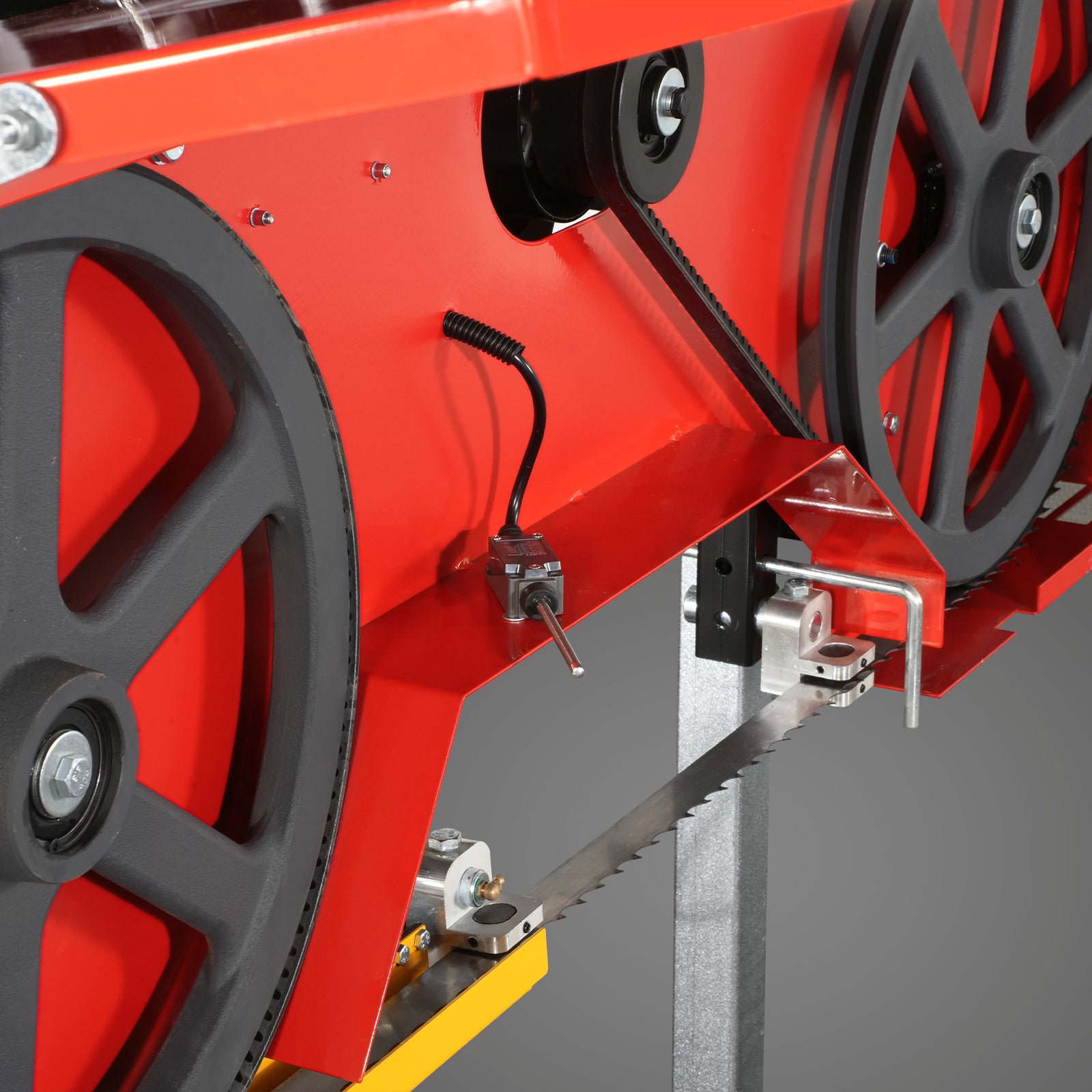

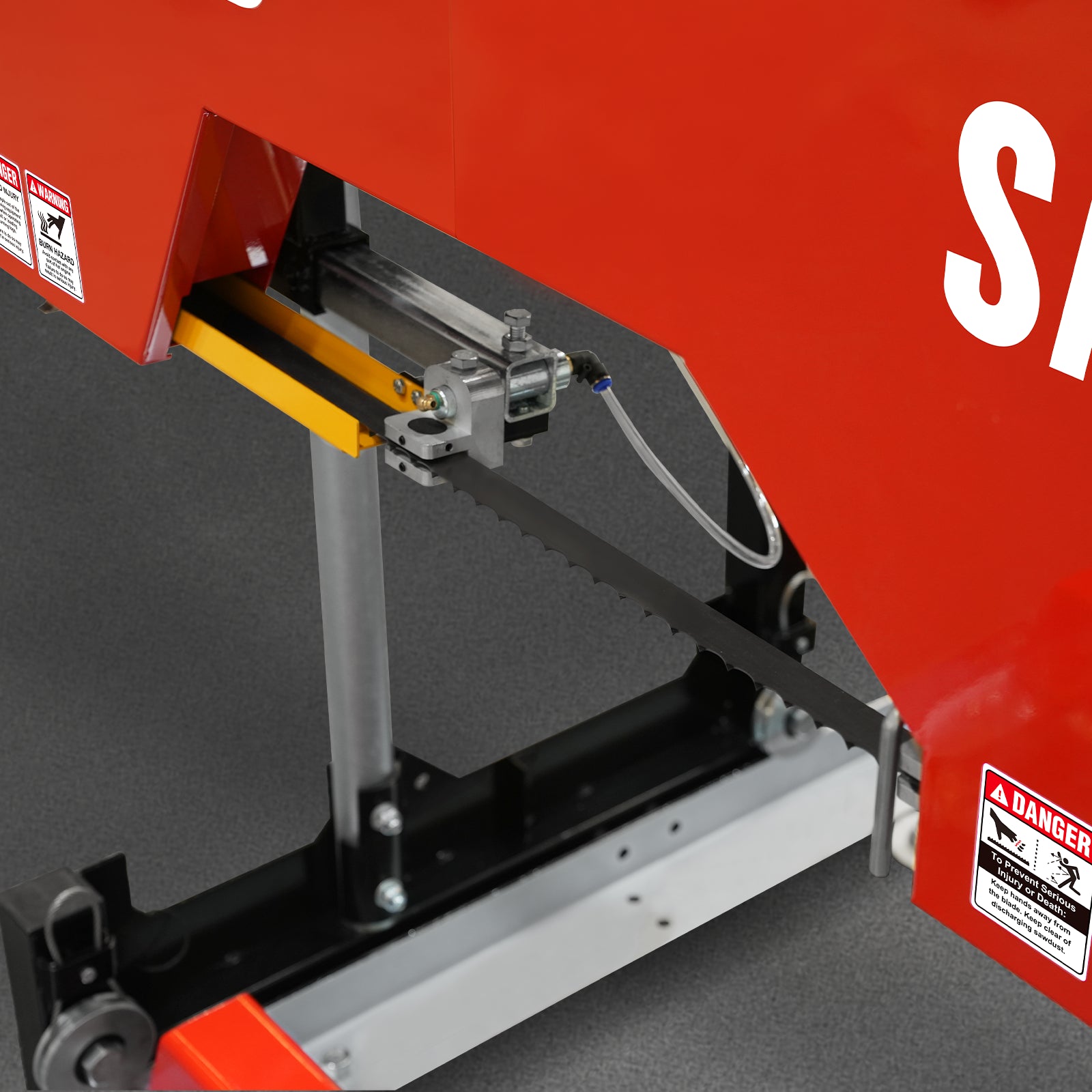

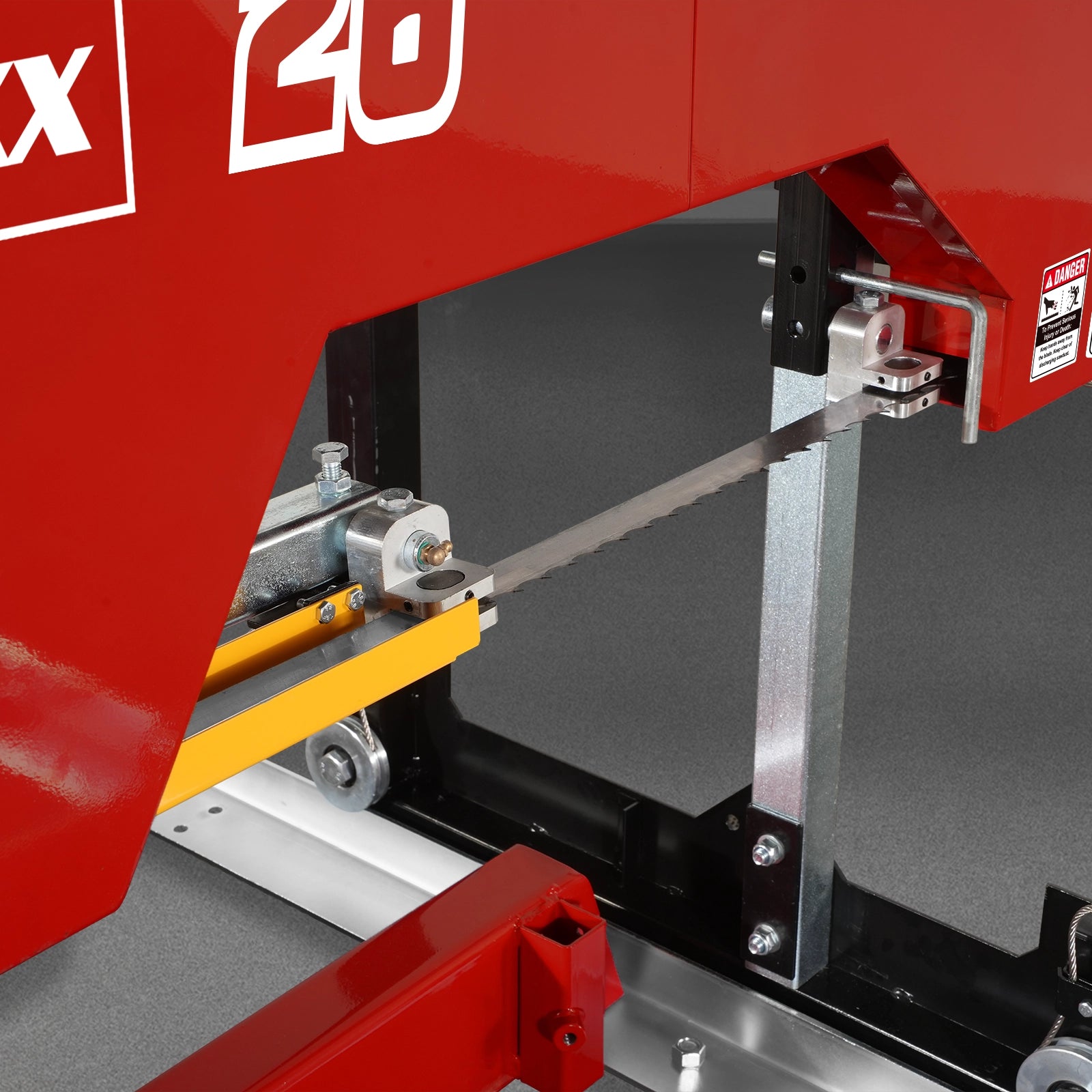

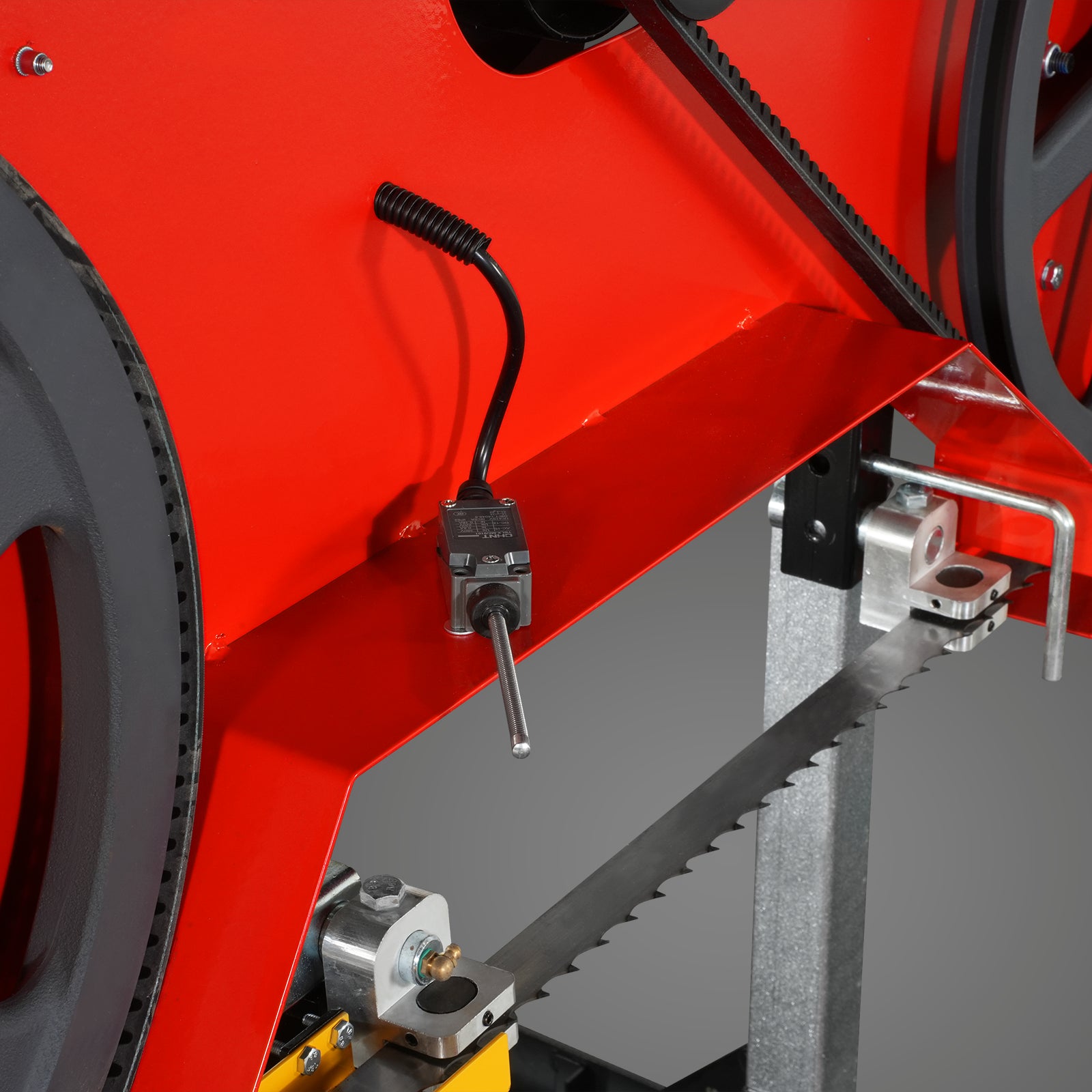

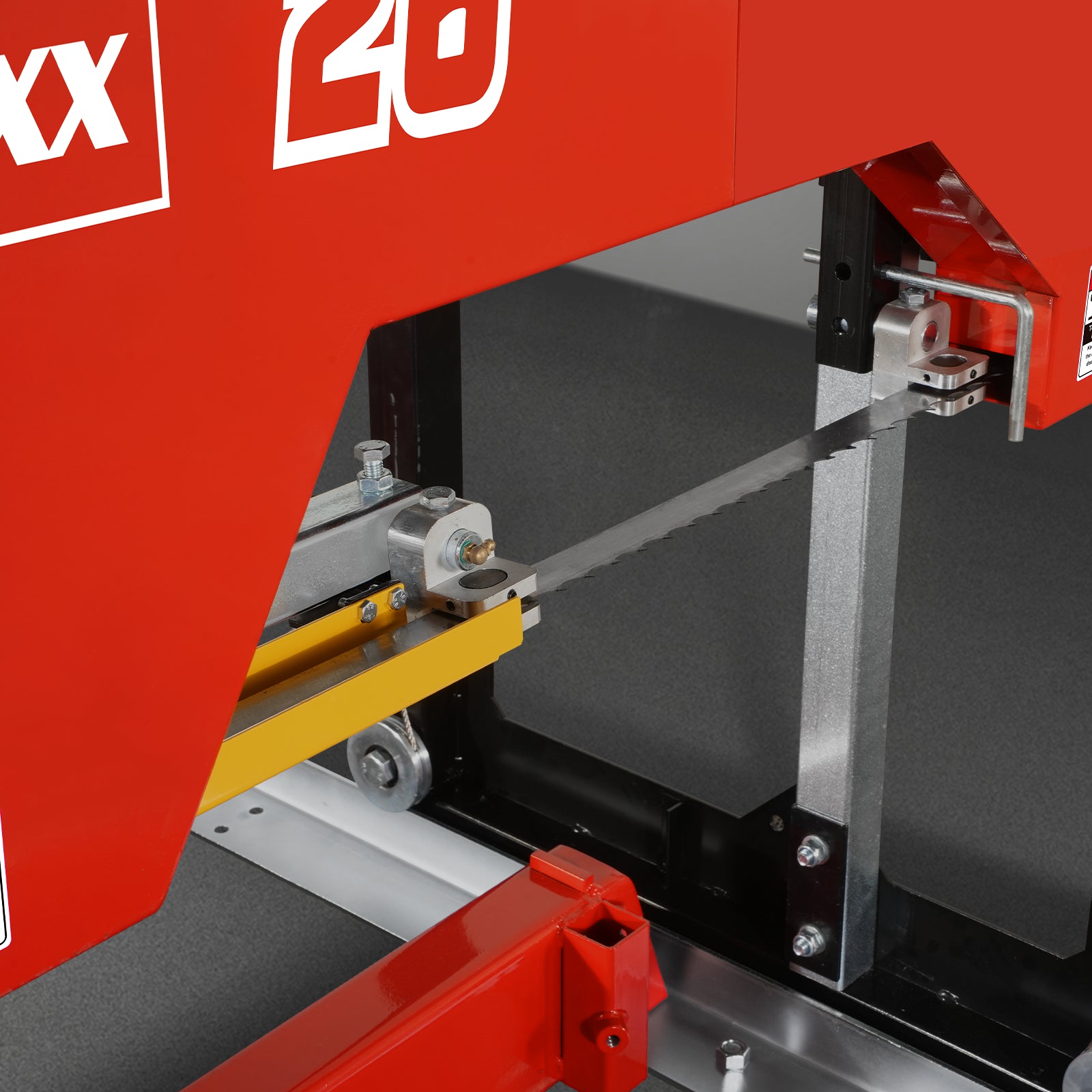

Saw Blade

The saw blade is made out of carbonized steel, with dimensions of 144*1.3*0.04’’, and a rotational speed reaching as high as 787’’ per second. This will ensure a smooth and stable cutting process while also reducing the amount of wood ships.

Spiral Log Clamp

The track features easy-to-use spiral log clamps to hold logs securely while milling.

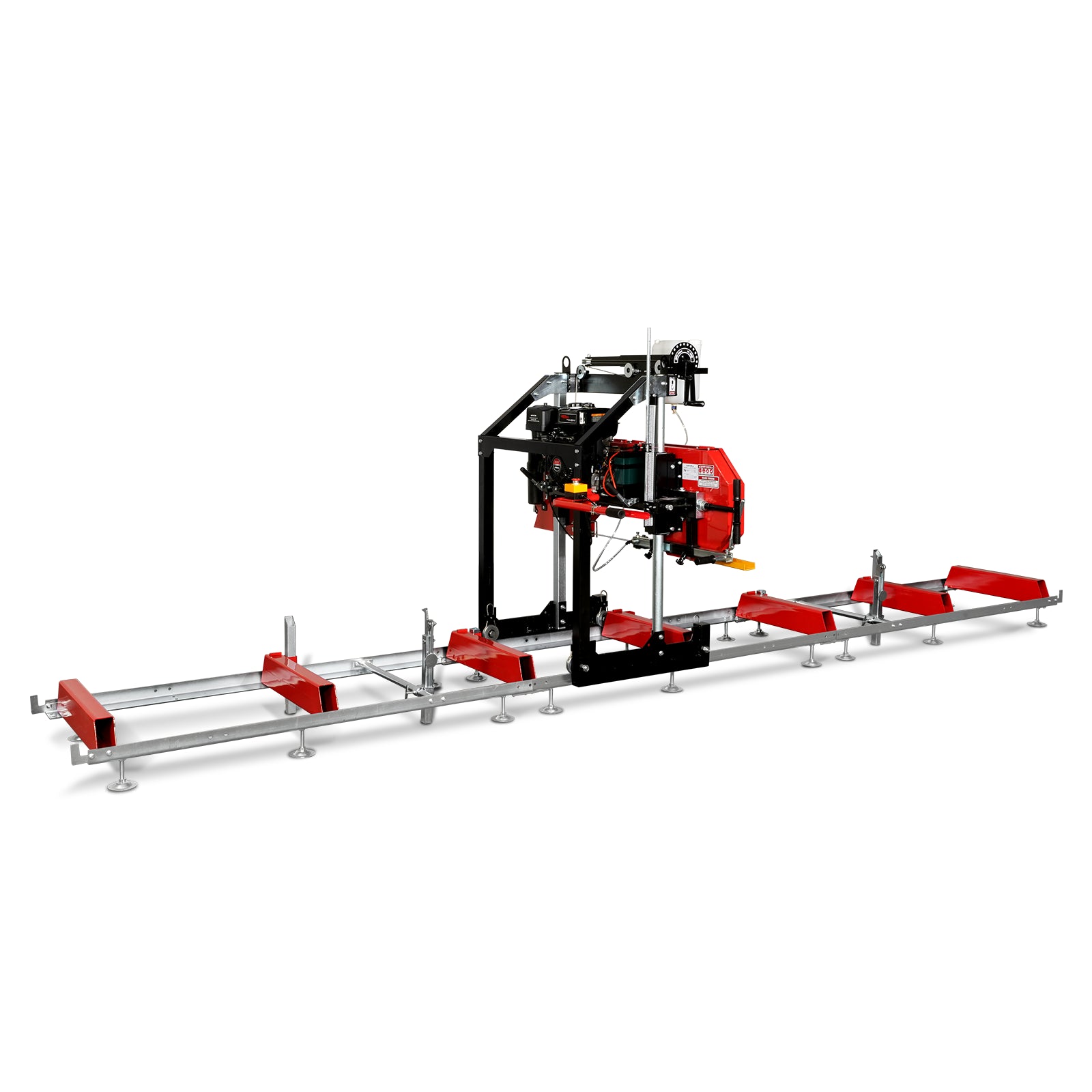

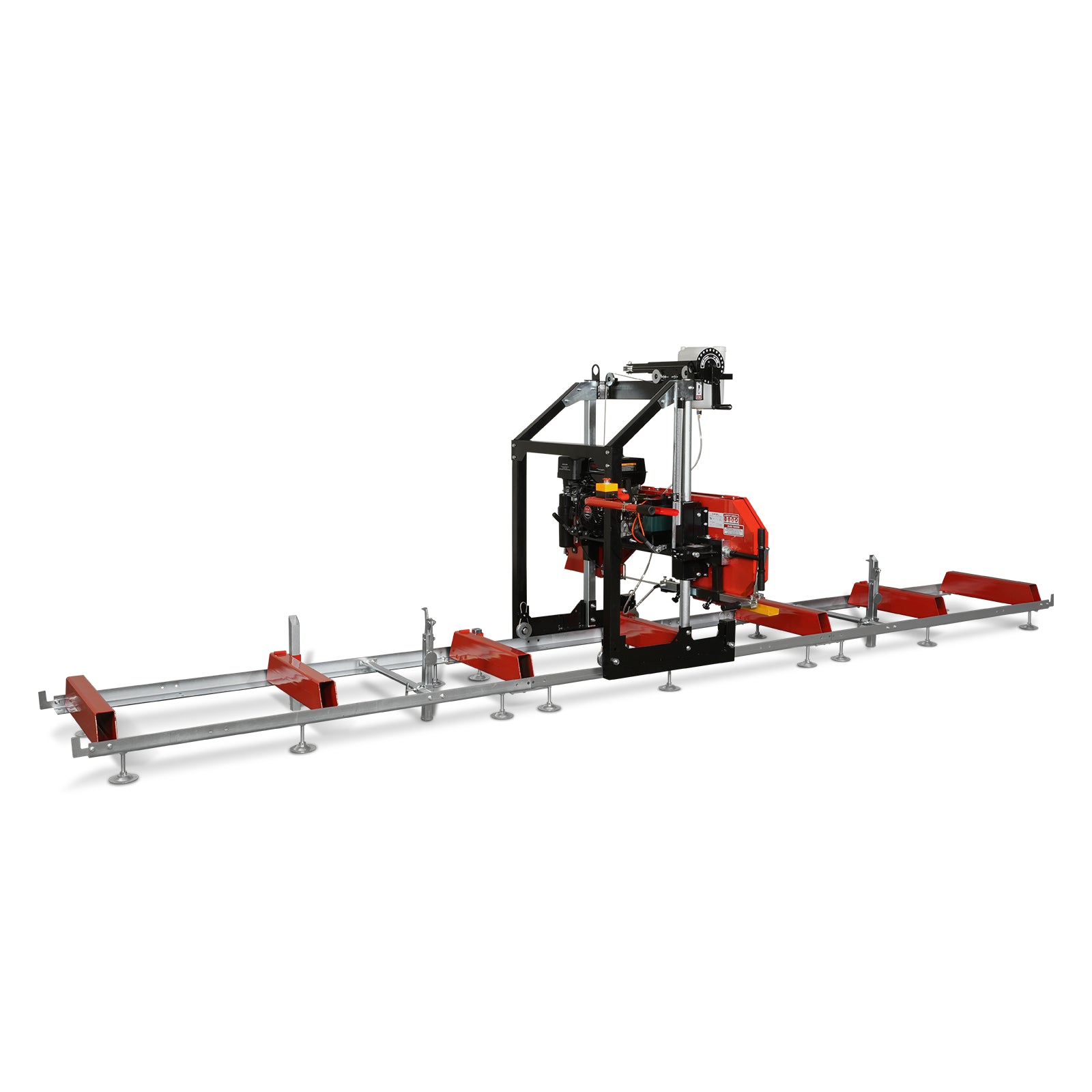

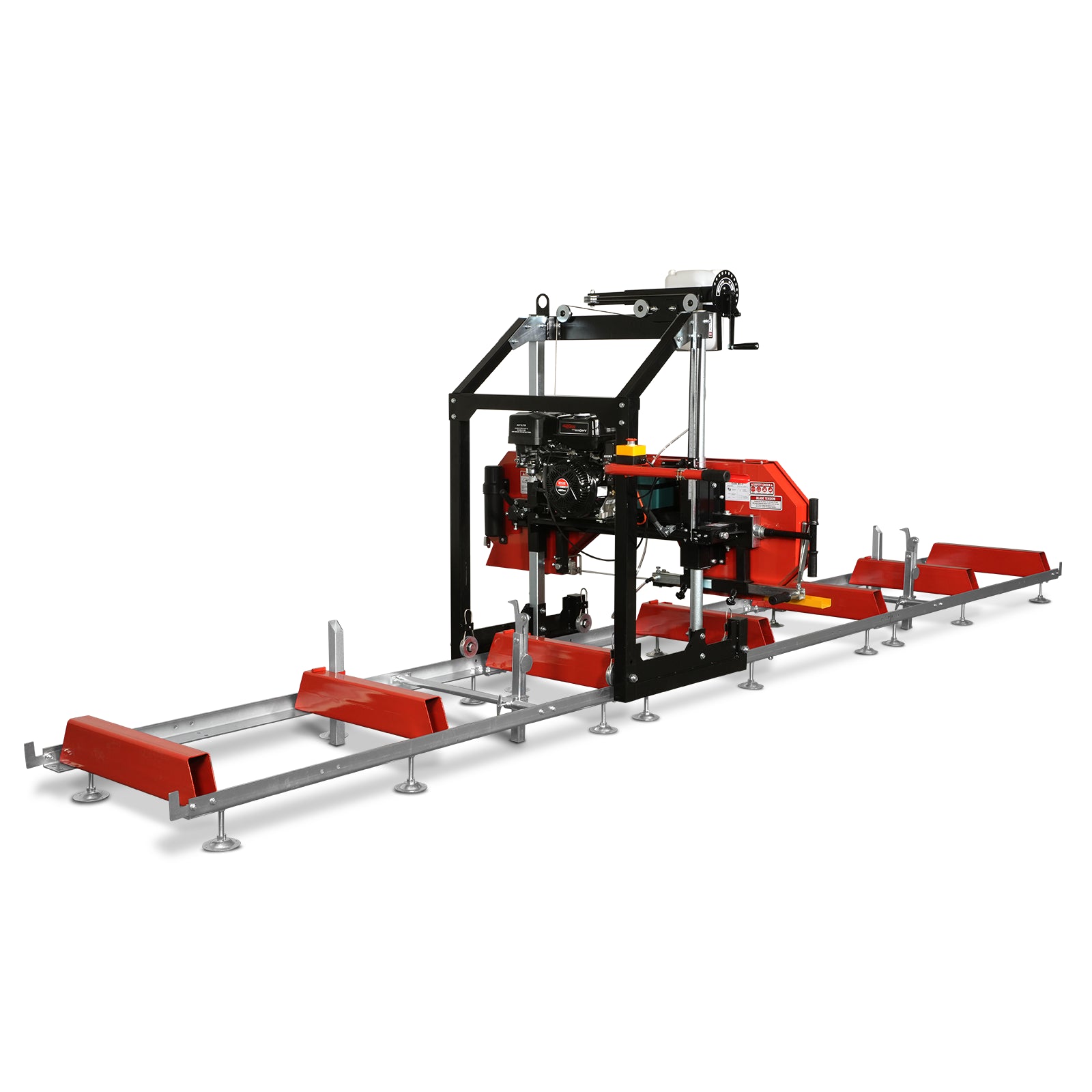

Cutting Length

The logs are equipped with a 201” standard log track, and you can purchase a 77” extension track at MechMaxx according to your needs.

Engine	DUCAR	Lubricant Tank Size	2.6 gal
Engine Type	Single Cylinder, 4 Stroke, Air-Cooled, OHV	Track Width	30.5 in
Engine Displacement	420 cc	Track Length	20 ft
Horsepower	15 HP	Track Extension Length	6 ft 5 in
Start	E-Start	Height (Max Head Position)	79 in
Log Diameter	26 in	Levelling Feet	18
Max Live Edge Width	22 in	Log Rests	2 Long and 2 Short Rests
Standard Cutting Length	17 ft	Log Clamps	2 x Quick Lock
Max Board Thickness	7 in	Track Bunks	3 x 6 in
Blade Engagement System	Centrifugal Clutch	4 Post Head Design	Yes

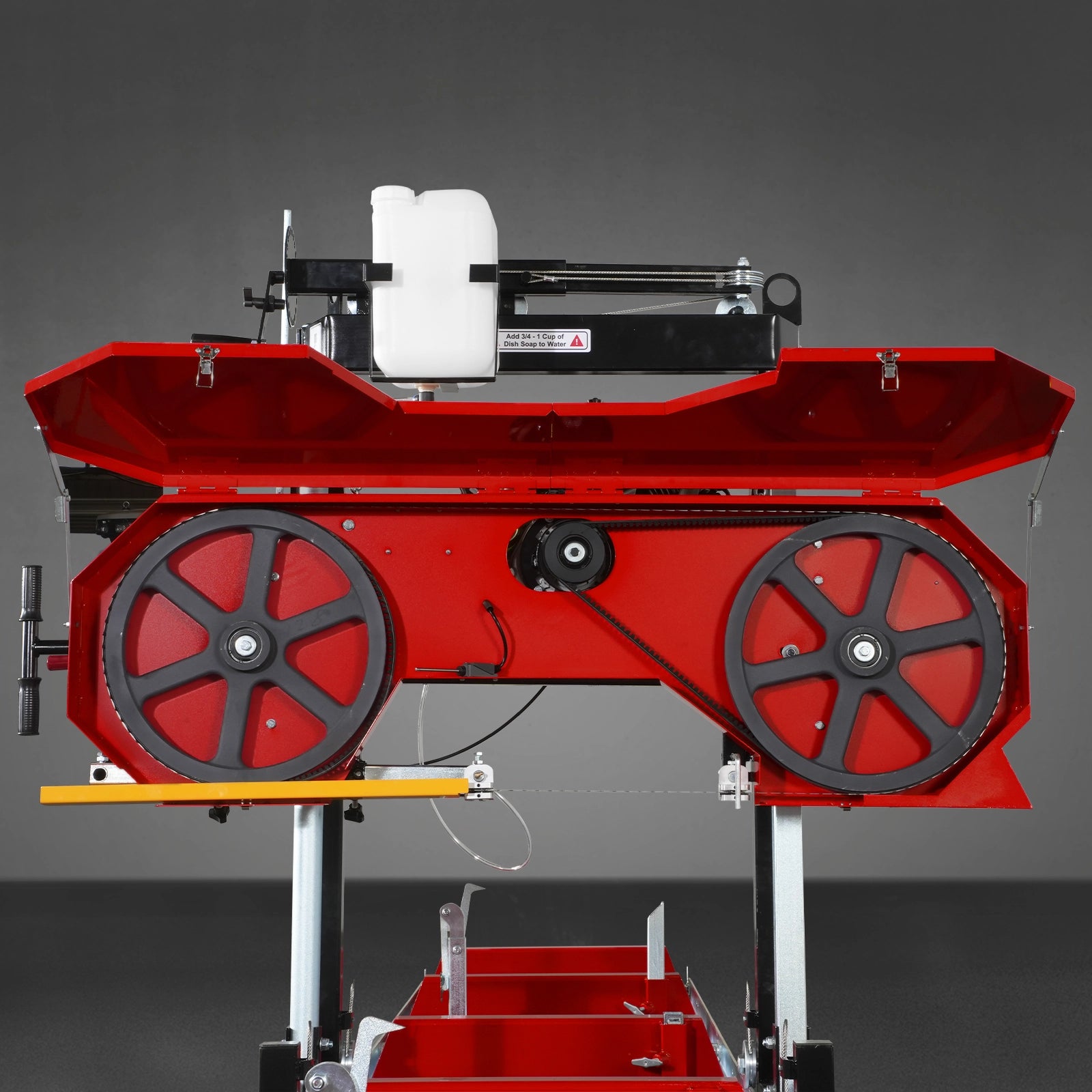

Cast Iron Bandwheel Diameter	19 in	Finish	Powder Coat Paint Galvanized Steel
Blade Wheel Engagemen	Belt Drive	Sawmill Warranty	2 Years
Blade Guide	By Roller	Engine Warranty	1 Year
Blade Tension	By Adjustable Lever	Package Method	Wood
Blade Size	144 x 1.3 in	Packing Size	89 x 25 x 34 in
Blade Pitch	7/8 in	Weight (N.W./G.W.)	864/944 lbs
Blade Lubrication	Water Lube - Manual Valve
