SKU: 480063 | Model: CAF501

254 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge

254 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge
254 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge
254 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge
254 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge
254 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge
254 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge
$31999
FREE SHIPPING
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Estimated to ship by Jun 10, 2026. Date is subject to change due to transit delays.
Details

Please Allow for 2 to 3 Business Days to Process Order, 4 to 11 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.

Model : 254CFM|1μm|1ppm
254CFM|1μm|1ppm 254CFM|0.01μm|0.01ppm 254CFM|0.01μm|0.001ppm 53CFM|1μm|1ppm 53CFM|0.01μm|0.01ppm 53CFM|0.01μm|0.001ppm 63CFM|1μm|1ppm 63CFM|0.01μm|0.01ppm 63CFM|0.01μm|0.001ppm 98CFM|1μm|1ppm 98CFM|0.01μm|0.01ppm 98CFM|0.01μm|0.001ppm 127CFM|1μm|1ppm 127CFM|0.01μm|0.01ppm 127CFM|0.01μm|0.001ppm
Payment:  
Mastercard Visa American Express PayPal Afterpay Discover
Trust Guard Security Scanned
315-750-4008
Sales Contact Number
sales@mechmaxx.com
Sales Contact Email

Product Overview

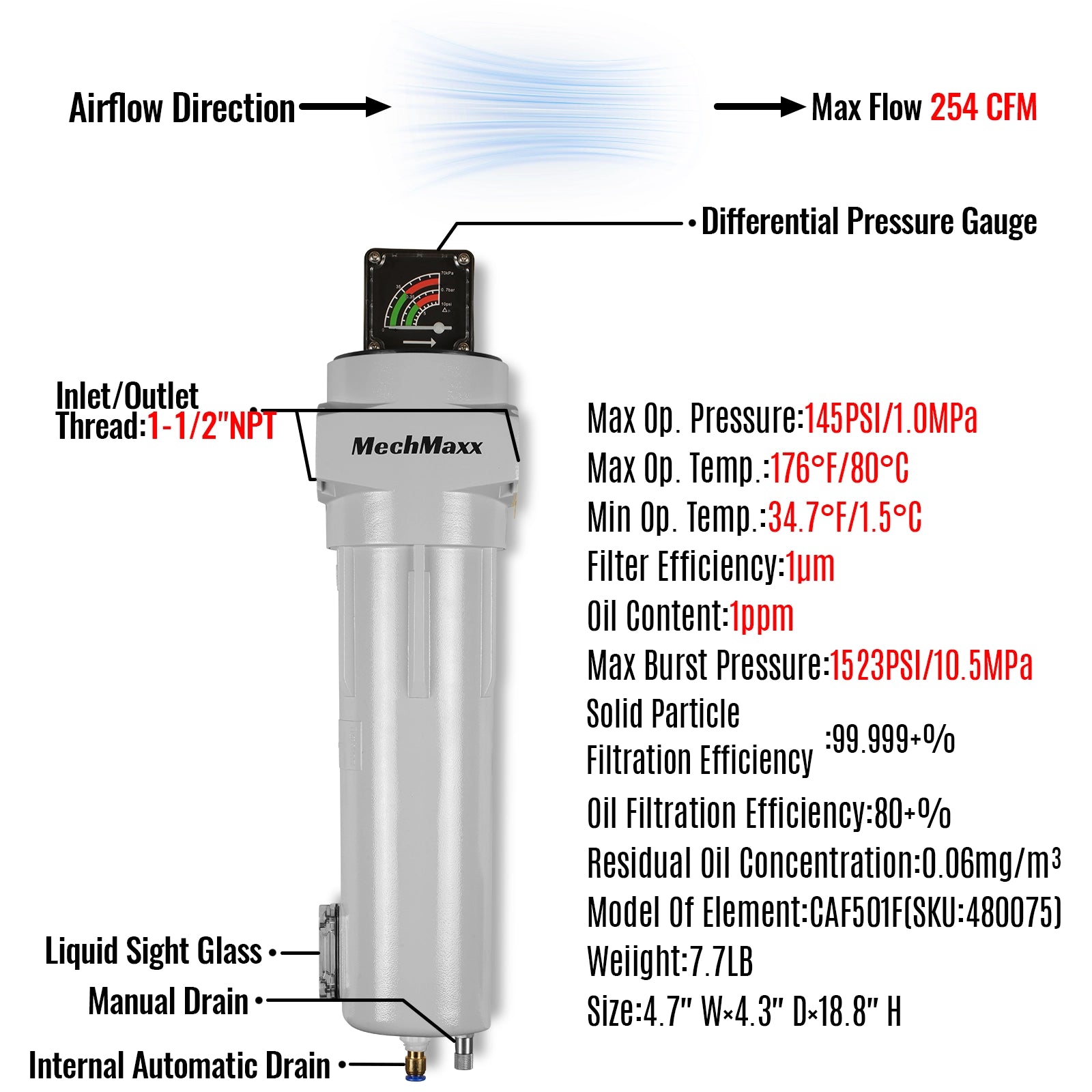

  • Max Flow:254 CFM ,Recommended for use with Mechmaxx 50HP air compressors or other air compressor brands with matching airflow capacity.
  • The housing is made of die-cast aluminum alloy with a compact structure to ensure safe use, capable of withstanding 464 PSI(3.2 MPa) for 96 hours and a maximum burst pressure of 1,523 PSI (10.5 MPa).
  • The housings undergo cleaning, degreasing, and special anti-corrosion treatment before coating to enhance durability, making them suitable for offshore platform operations.
  • Under operating conditions of 35–176°F (1.5~80℃)and pressure not exceeding 232 PSI(1.6MPa), the housing has a service life of up to 15 years, and the filter element lasts 6,000–8,000 hours.
  • The differential pressure gauge or indicator can easily measure differential pressure and indicate when the filter element is clogging prematurely, thereby preventing excessive pressure or abnormal clogging. If the indicator needle points to the green area, this means that the filter element does not need to be replaced.
  • Liquid sight glass made from unique materials is used to check if the drain is blocked.
  • The arrow markings clearly show the users the direction of the airflow.

Specifications
