SKU: 480060

| Model: CAF301

127 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge

Name: 127 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge
Brand: MechMaxx
SKU: 480060
Price: 269.99 USD
Availability: InStock

$26999

FREE SHIPPING

Details

Delivery in 10 - 15 Business Days

Details

Model : 127CFM|1μm|1ppm

127CFM|1μm|1ppm 127CFM|0.01μm|0.01ppm 127CFM|0.01μm|0.001ppm 254CFM|1μm|1ppm 254CFM|0.01μm|0.01ppm 254CFM|0.01μm|0.001ppm 53CFM|1μm|1ppm 53CFM|0.01μm|0.01ppm 53CFM|0.01μm|0.001ppm 63CFM|1μm|1ppm 63CFM|0.01μm|0.01ppm 63CFM|0.01μm|0.001ppm 98CFM|1μm|1ppm 98CFM|0.01μm|0.01ppm 98CFM|0.01μm|0.001ppm

Availability: In Stock

Payment:

Lifetime Technical Support

Get expert troubleshooting and operational assistance via phone or email for the life of your equipment.

Warranty Coverage

Backed by our dependable equipment warranty for long-term protection.

Official Lowest Price Guarantee

Shop our official website with confidence. If you find the same product at a lower price on another website, we’ll refund the difference.

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Frequently Bought Together

$Replacement Filter For CAF201\CAF301(SKU:480057\480060)$

127 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.01ppm, With Auto Drain, Pressure Gauge

127 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.001ppm, With Auto Drain, Pressure Gauge

127 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge $26999

Replacement Filter For CAF201\CAF301(SKU:480057\480060) $13999

127 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.01ppm, With Auto Drain, Pressure Gauge $26999

127 CFM Compressed Air Oil-Water Separator Precision Filter,0.01μm,Oil Content 0.001ppm, With Auto Drain, Pressure Gauge $26999

Total Price

$

Product Overview

Max Flow:127 CFM ,Recommended for use with Mechmaxx 30HP air compressors or other air compressor brands with matching airflow capacity.
The housing is made of die-cast aluminum alloy with a compact structure to ensure safe use, capable of withstanding 464 PSI(3.2 MPa) for 96 hours and a maximum burst pressure of 1,523 PSI (10.5 MPa).
The housings undergo cleaning, degreasing, and special anti-corrosion treatment before coating to enhance durability, making them suitable for offshore platform operations.
Under operating conditions of 35–176°F (1.5~80℃)and pressure not exceeding 232 PSI(1.6MPa), the housing has a service life of up to 15 years, and the filter element lasts 6,000–8,000 hours.
The differential pressure gauge or indicator can easily measure differential pressure and indicate when the filter element is clogging prematurely, thereby preventing excessive pressure or abnormal clogging. If the indicator needle points to the green area, this means that the filter element does not need to be replaced.

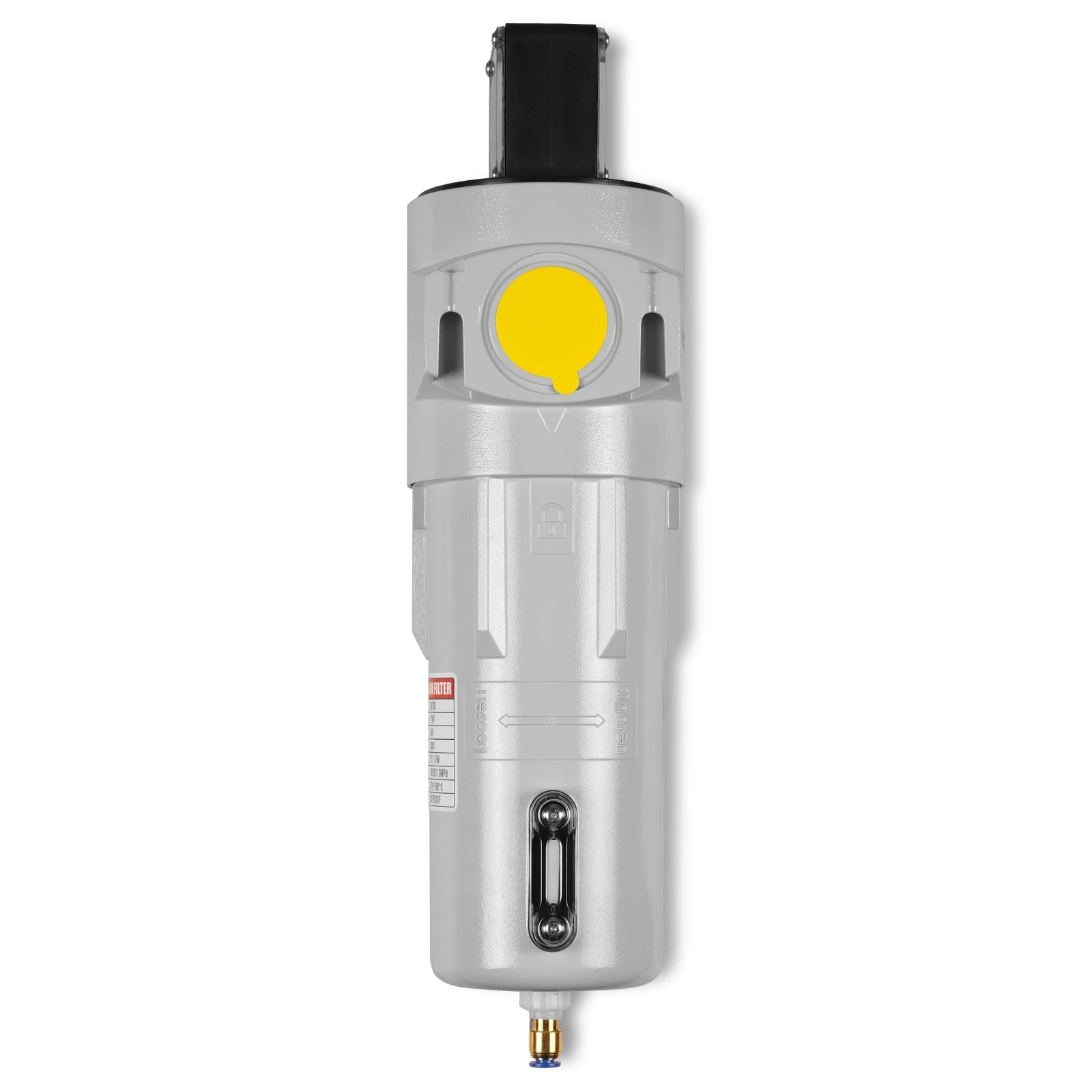

Liquid sight glass made from unique materials is used to check if the drain is blocked.
The arrow markings clearly show the users the direction of the airflow.

MODEL	CAF301
Configuration	Differential Pressure Gauge; Liquid Sight Glass; Internal Automatic Drain; Manual Drain
Max Flow	127.1 CFM
Inlet/Outlet Thread	1"NPT
Max Op. Pressure	145PSI/1.0MPa
Max Op. Temp.	176℉/80℃
Min Op. Temp.	34.7℉/1.5℃
Filter Efficiency	1μm
Oil Content	1ppm
Maximum Burst Pressure	1,523PSI/10.5MPa
Solid Particle Filtration Efficiency	99.999+%
Oil Filtration Efficiency	80+%
Residual Oil Concentration	0.06mg/m³

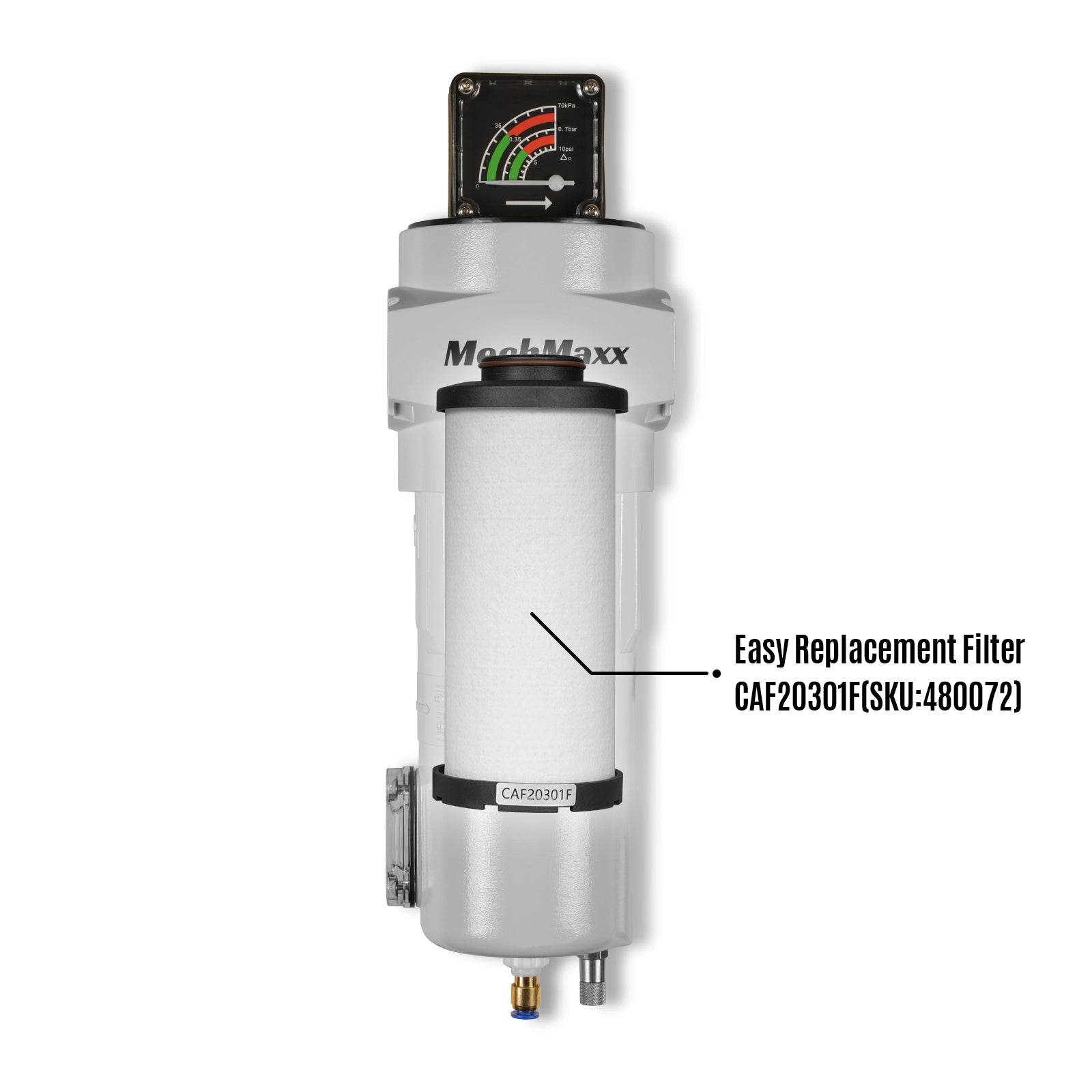

Model Of Element	CAF20301F（SKU:480072）
Weight	6.8LB
Size（WDH）	4.7×4.3×14.8in

127 CFM Compressed Air Oil-Water Separator Precision Filter,1μm,Oil Content 1ppm, With Auto Drain, Pressure Gauge
