SKU: 150536

| Model: MEC06

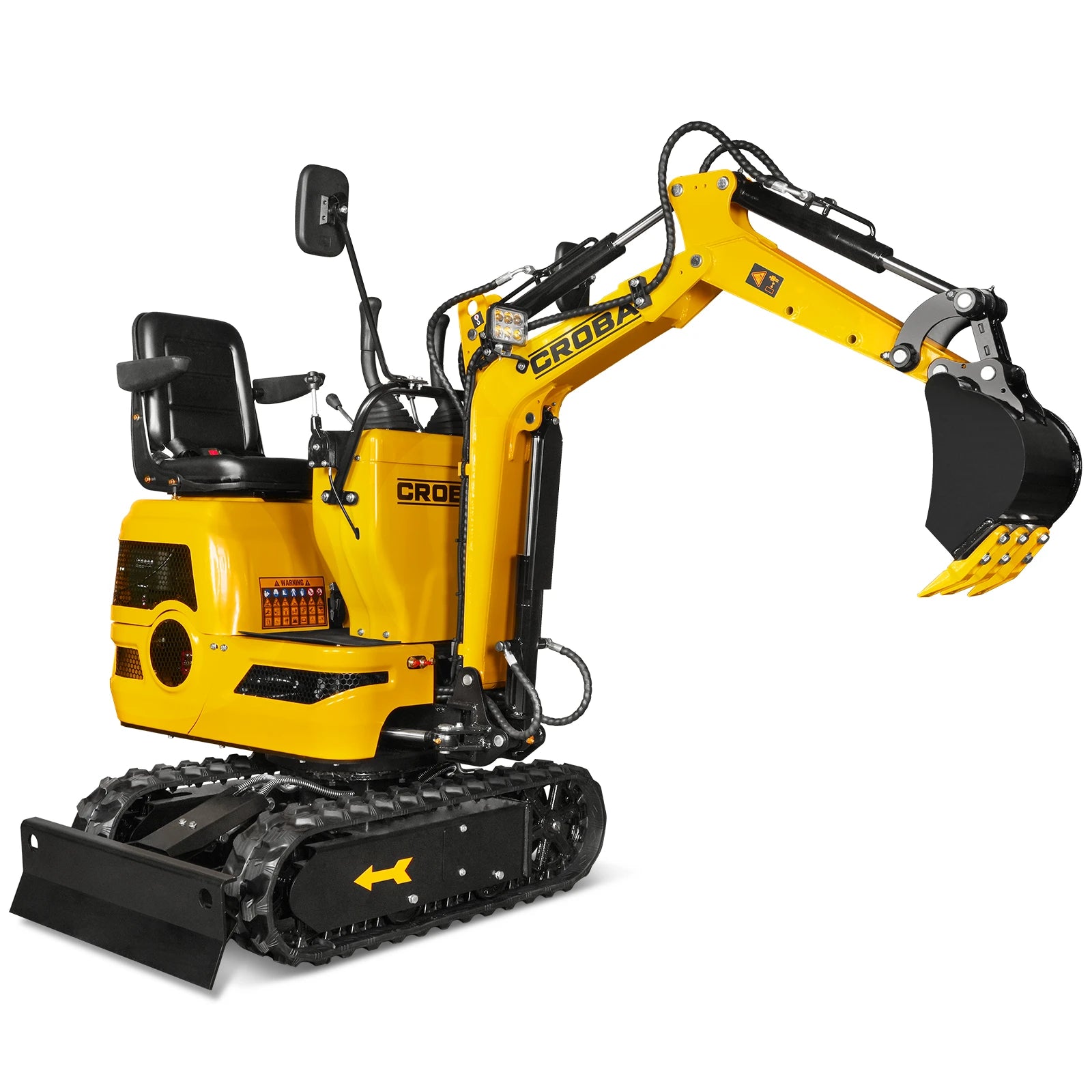

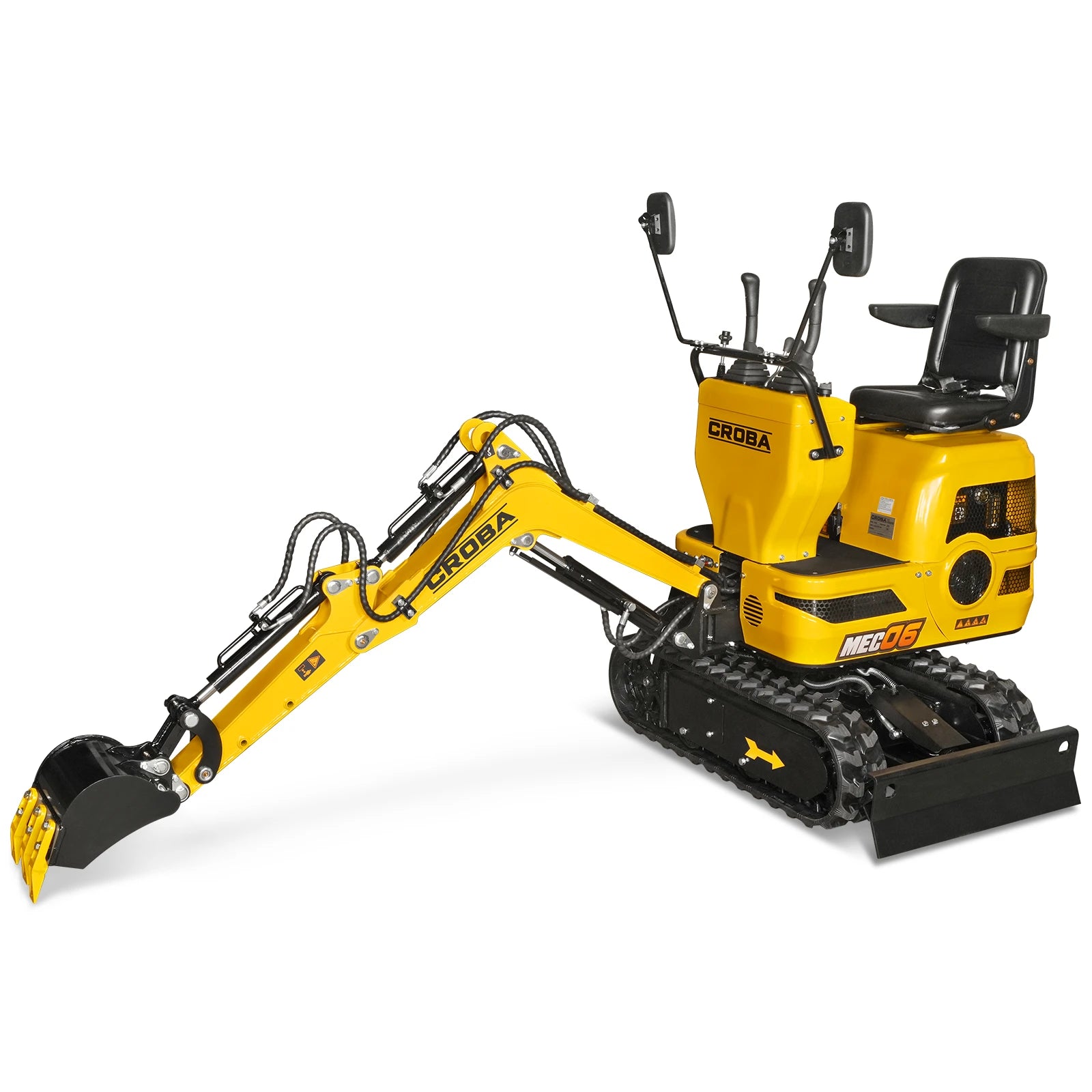

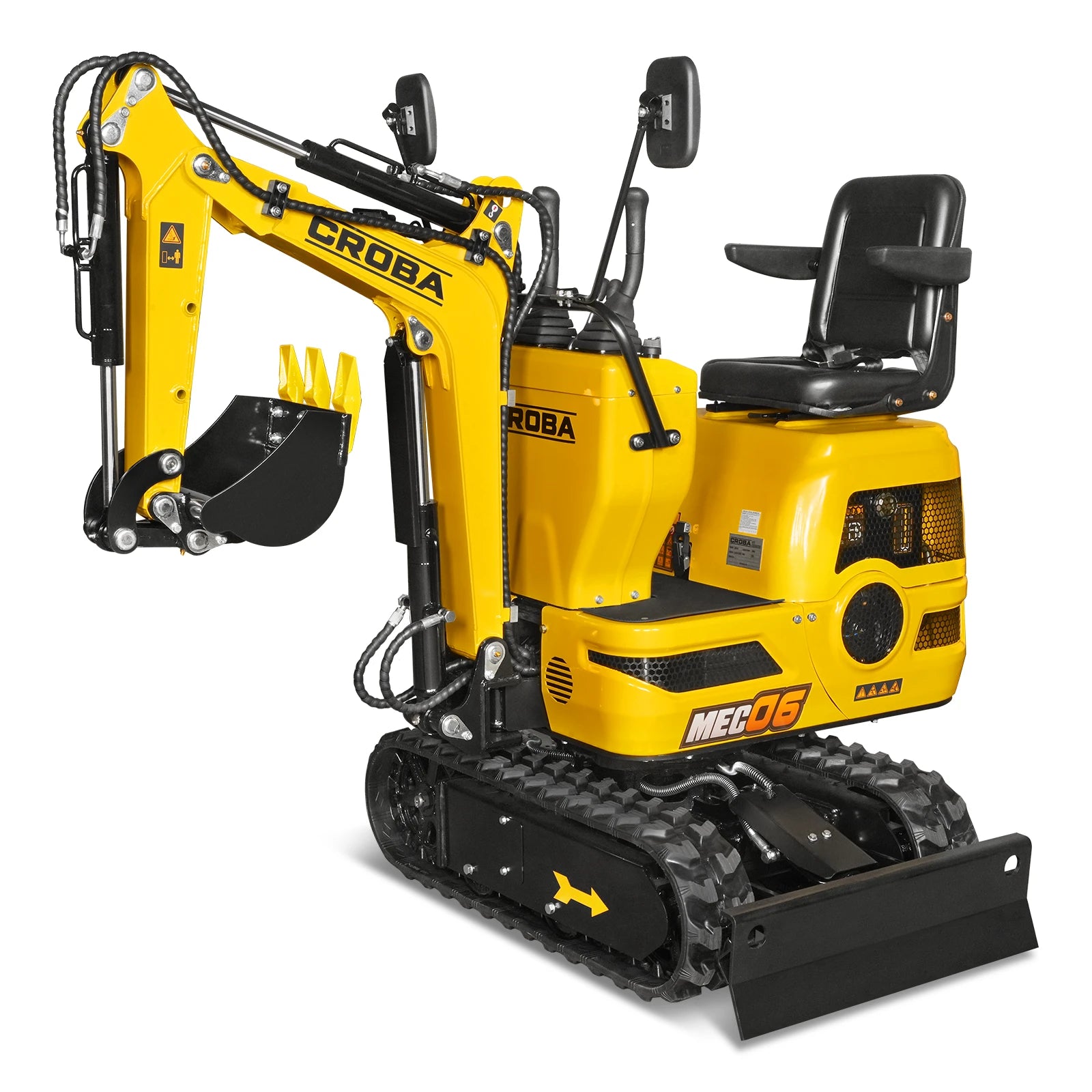

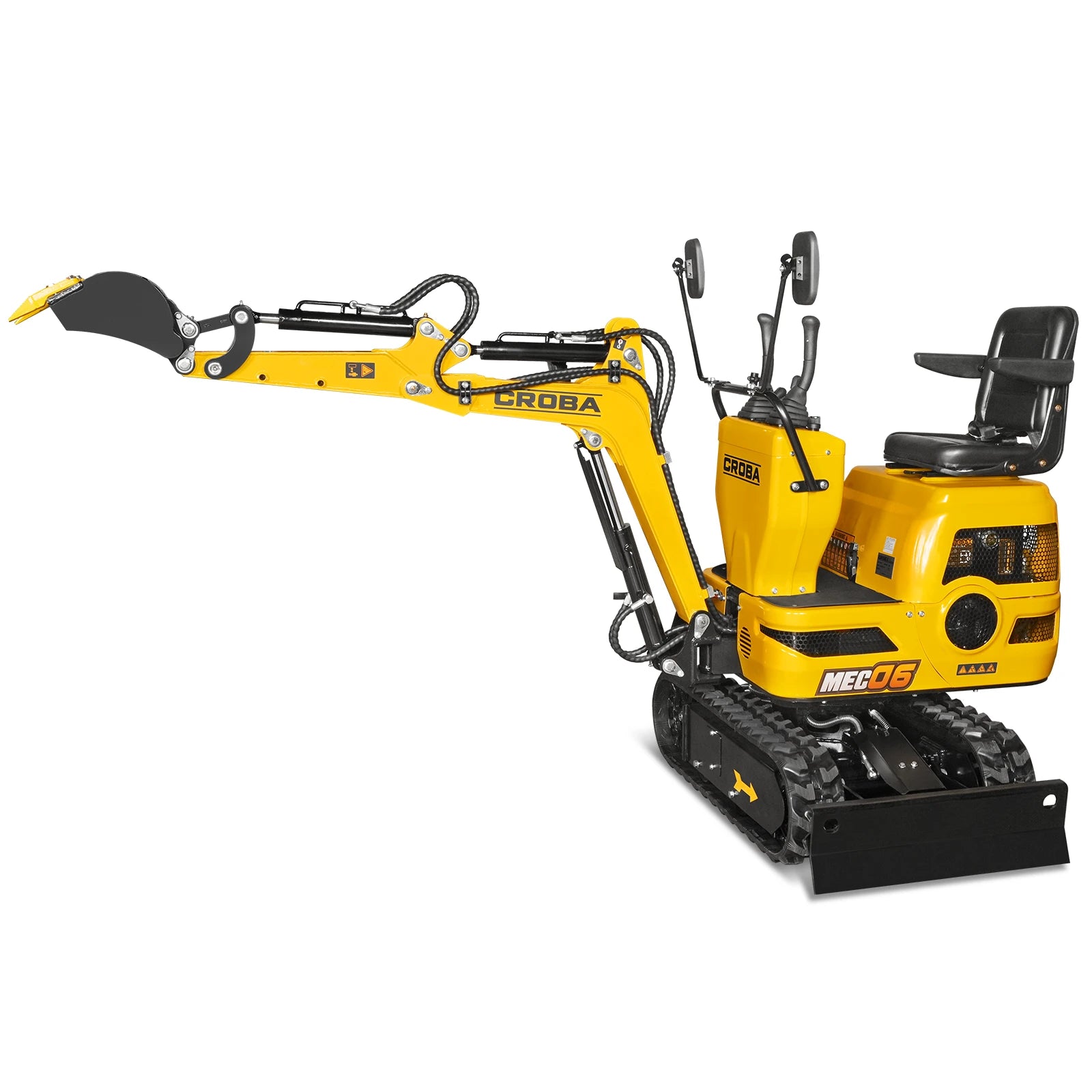

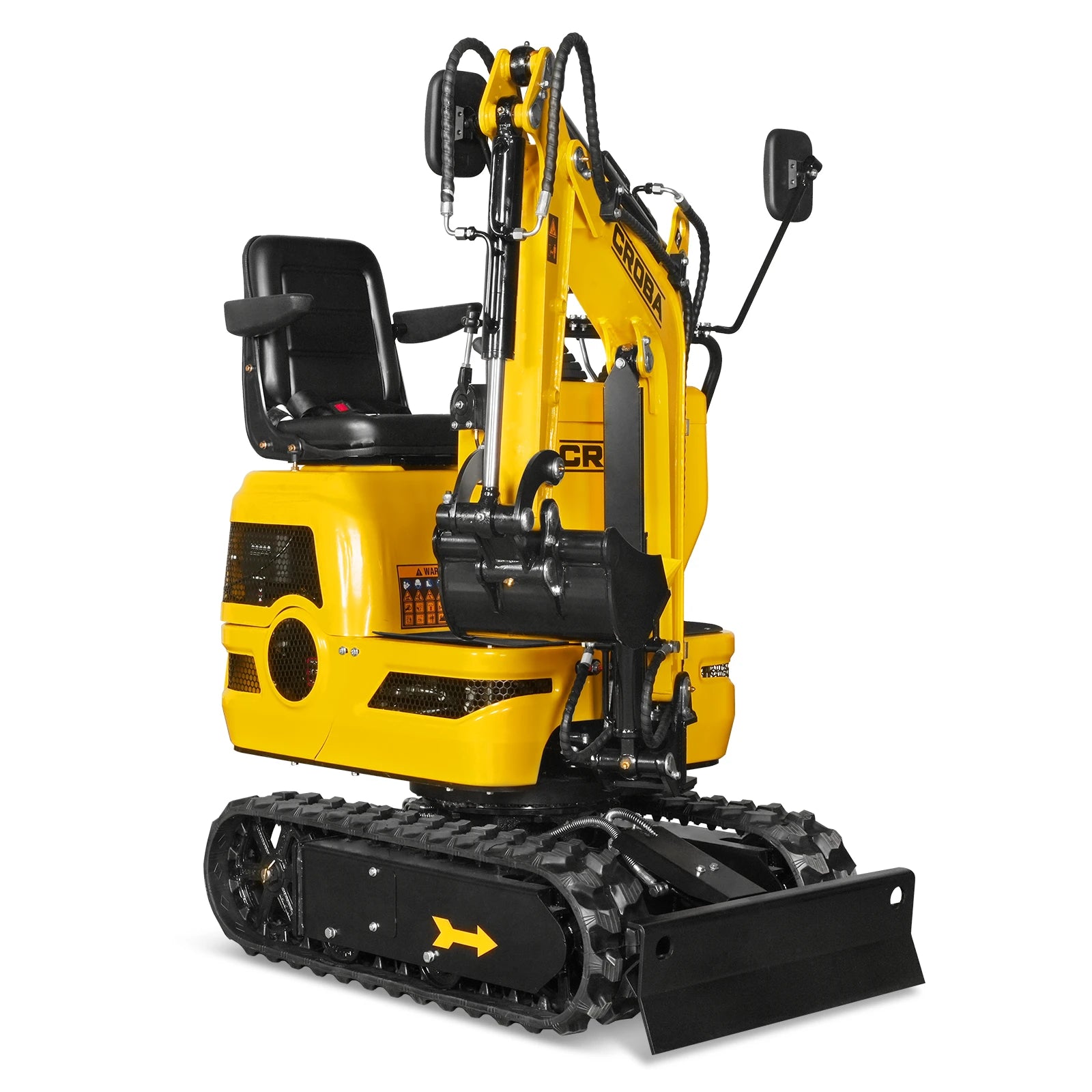

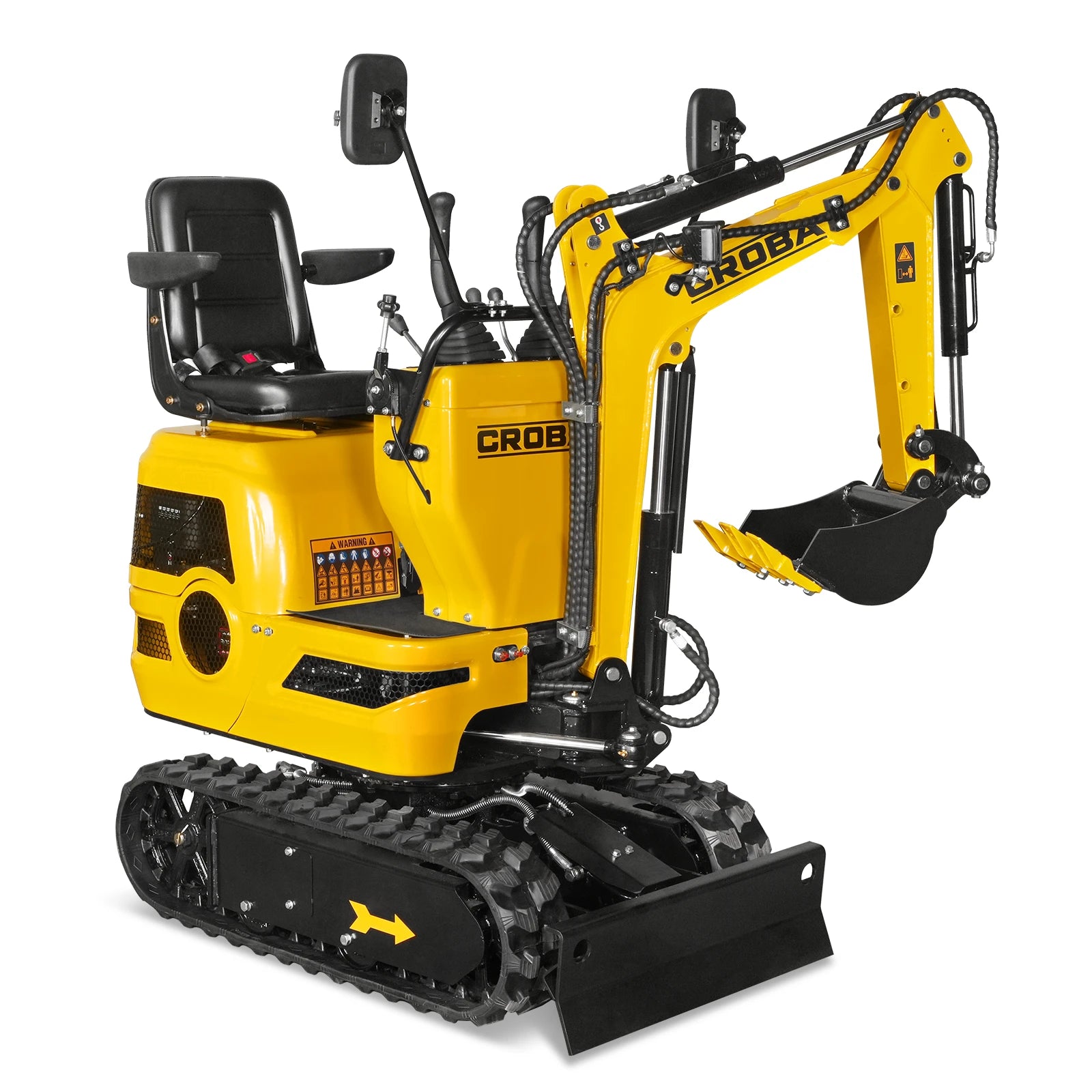

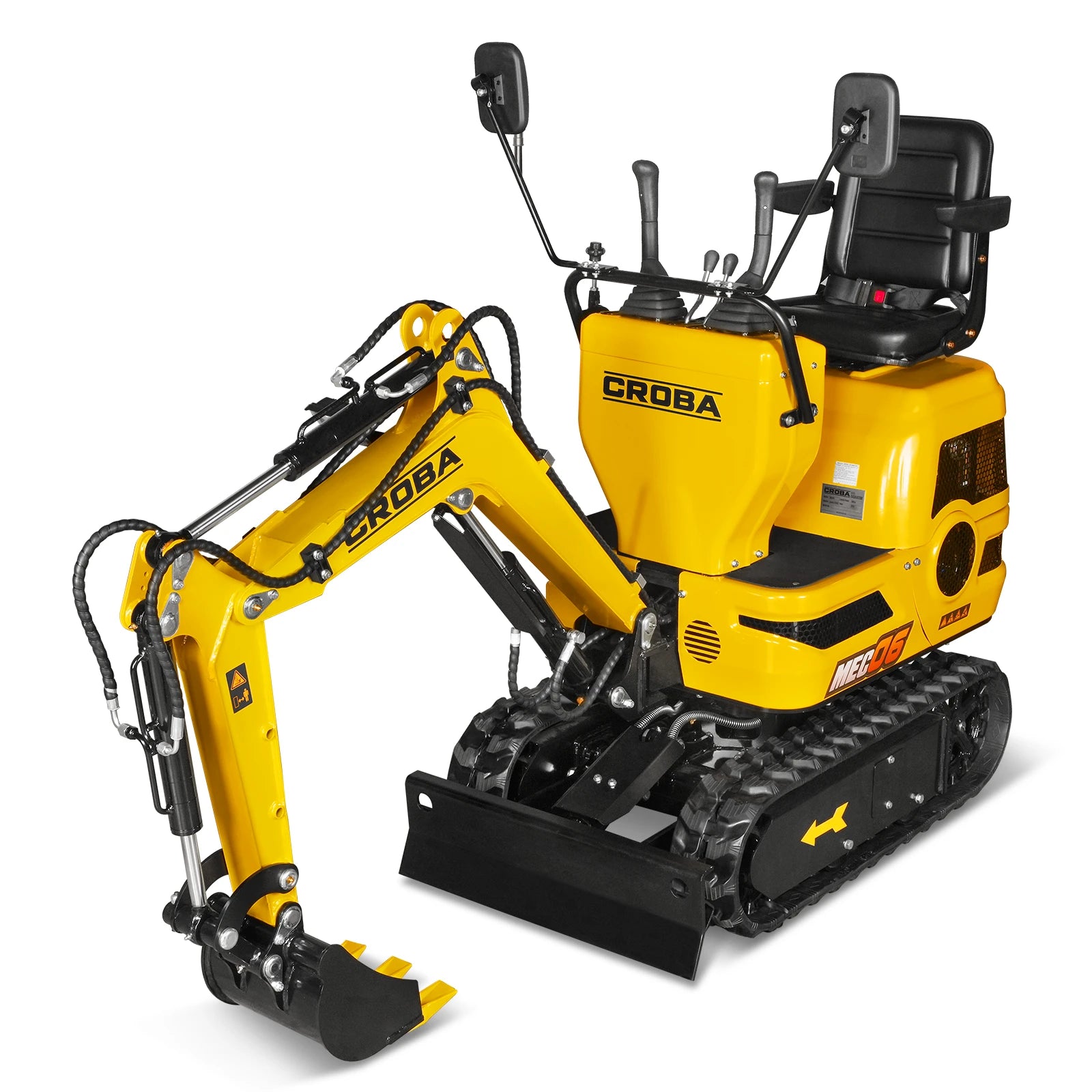

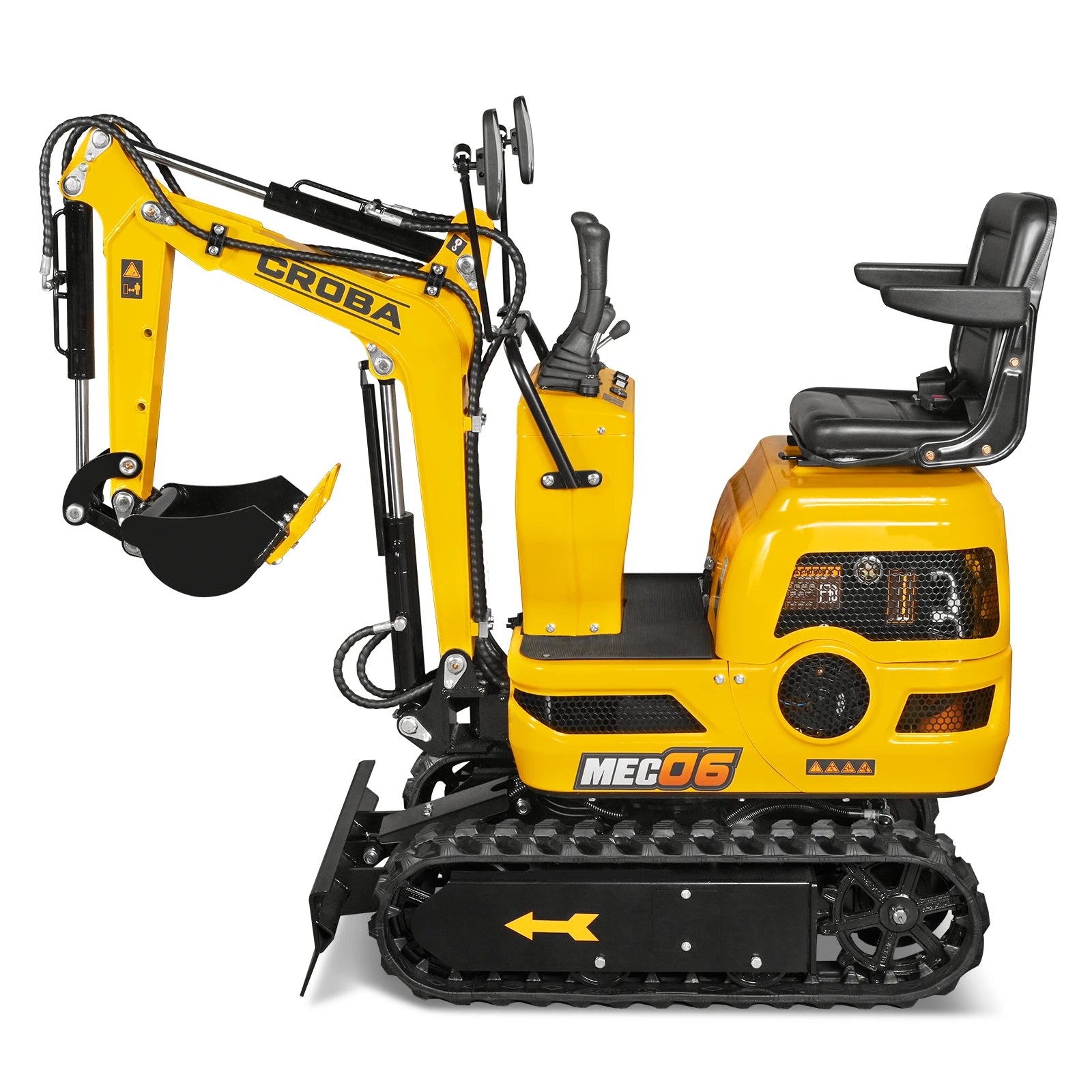

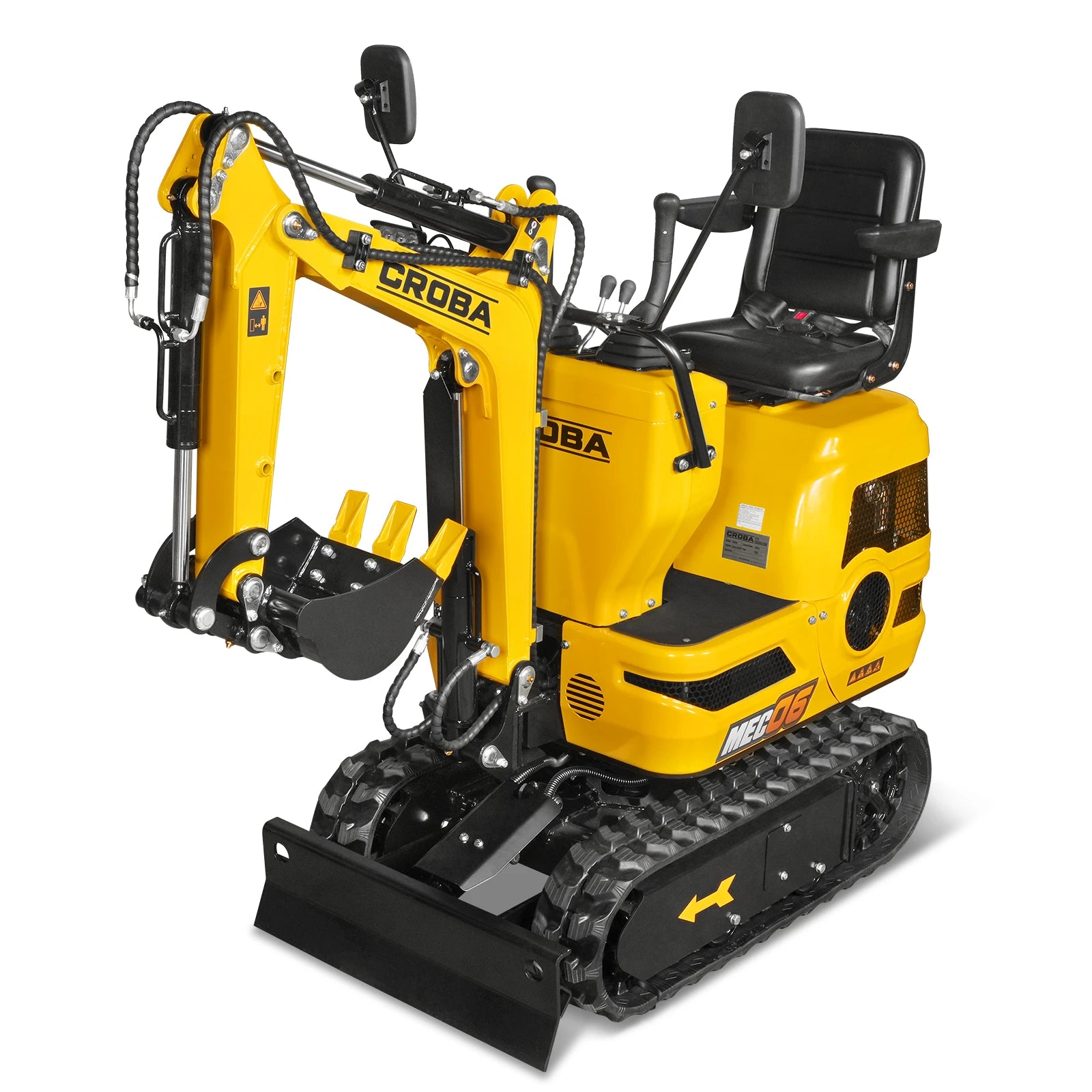

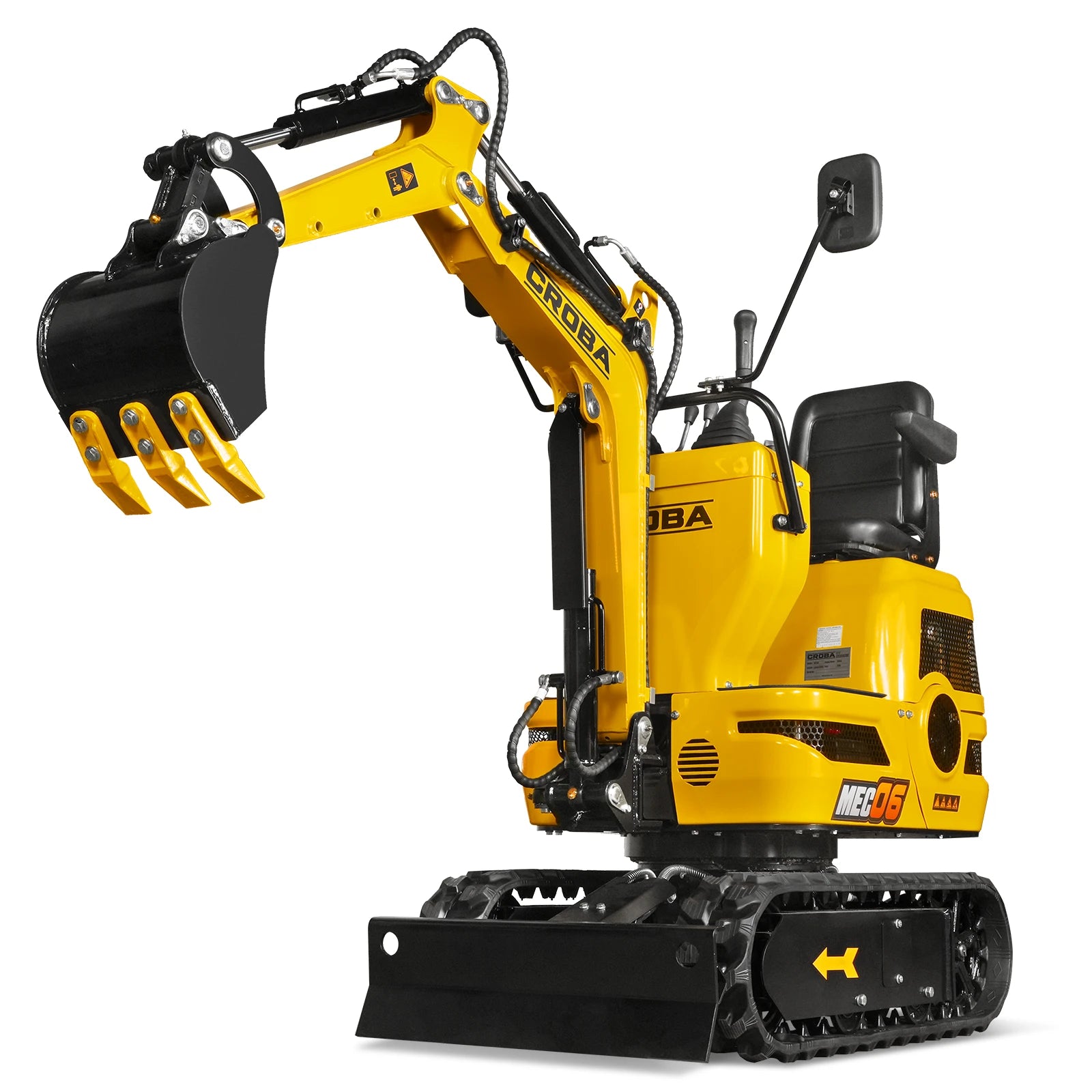

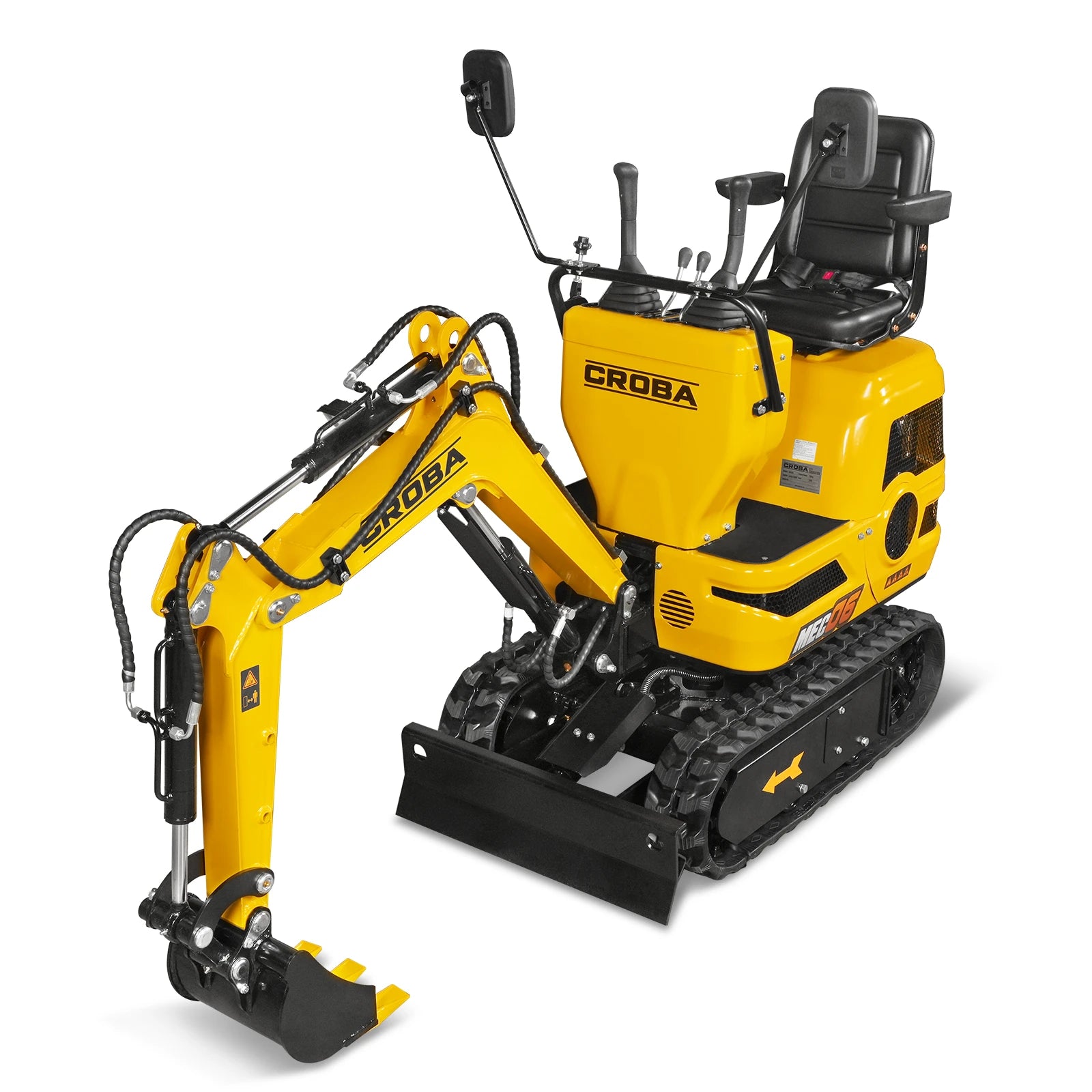

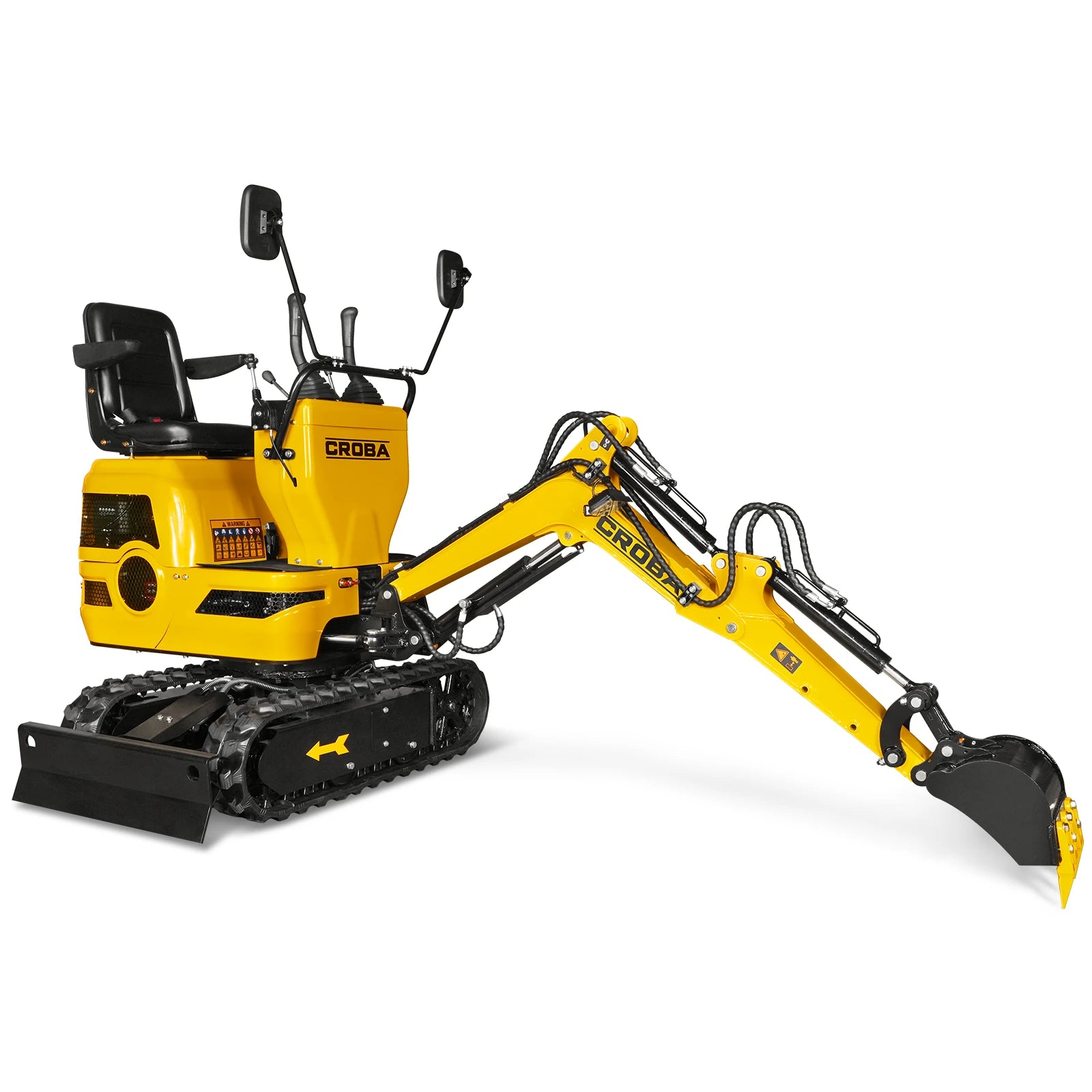

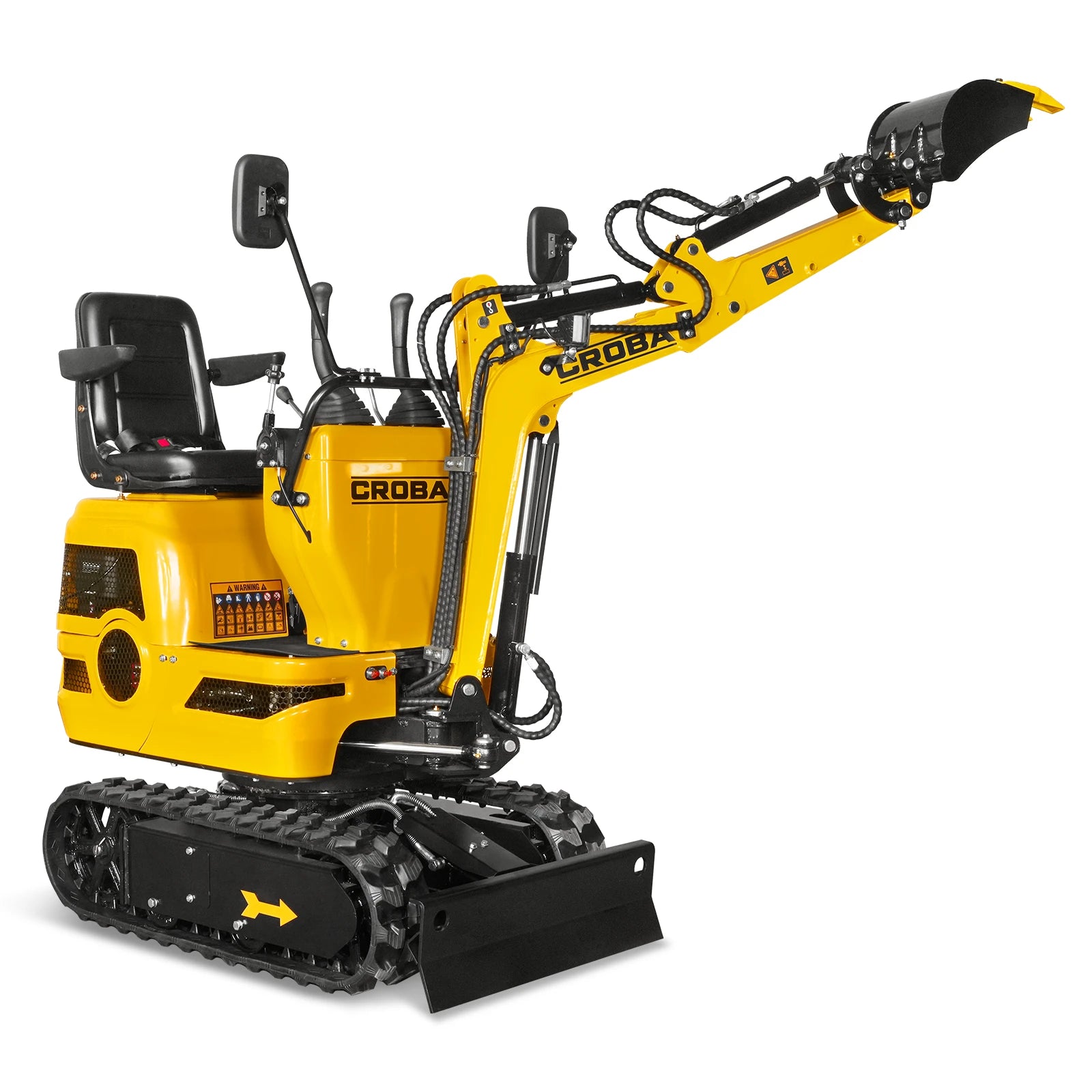

Mini Compact Excavator Loncin 300cc 9hp Engine, 43.3" Max. Digging Depth, 1510 LBS Operating Weight, MEC06

Name: Mini Compact Excavator Loncin 300cc 9hp Engine, 43.3" Max. Digging Depth, 1510 LBS Operating Weight, MEC06
Brand: MechMaxx
SKU: 150536
Price: 4999.0 USD
Availability: InStock

$499900

$5,499.00

Save $500

FREE SHIPPING

Details

Estimated to ship by Jul 3, 2026. Date is subject to change due to transit delays.

Details

Payment:

315-750-4008

Sales Contact Number

sales@mechmaxx.com

Sales Contact Email

Product Overview

MEC06 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
Powered by Loncin G300FDA 300cc 9hp Engine, high compression ratio for better fuel efficiency.
Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.

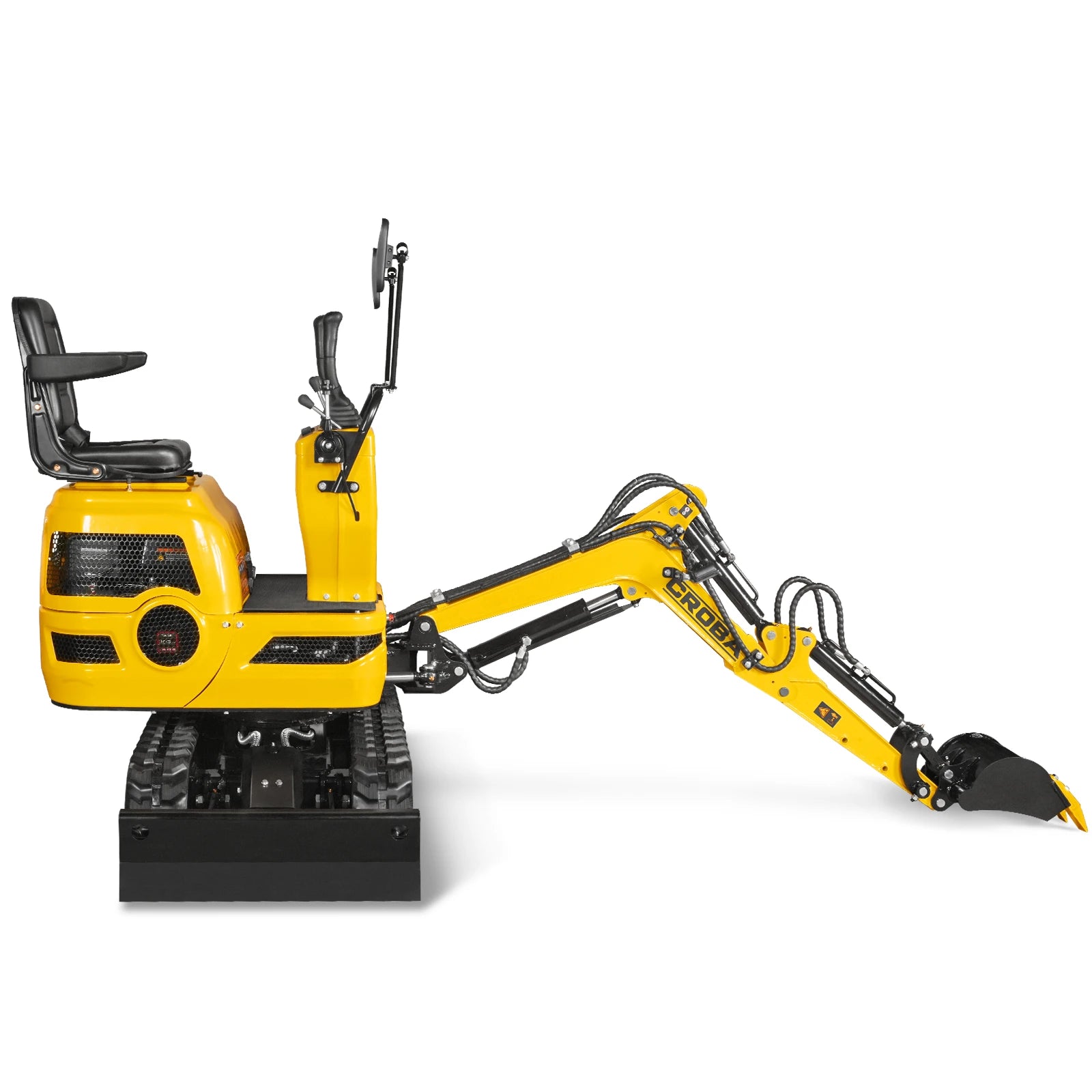

43.3-inch digging depth reach capability and a 82.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
Can rotate 360 degrees.

Product manual (PDF)

MEC06 Product manual 1.0.pdf

Product Features

Chassis Width

At 28 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.

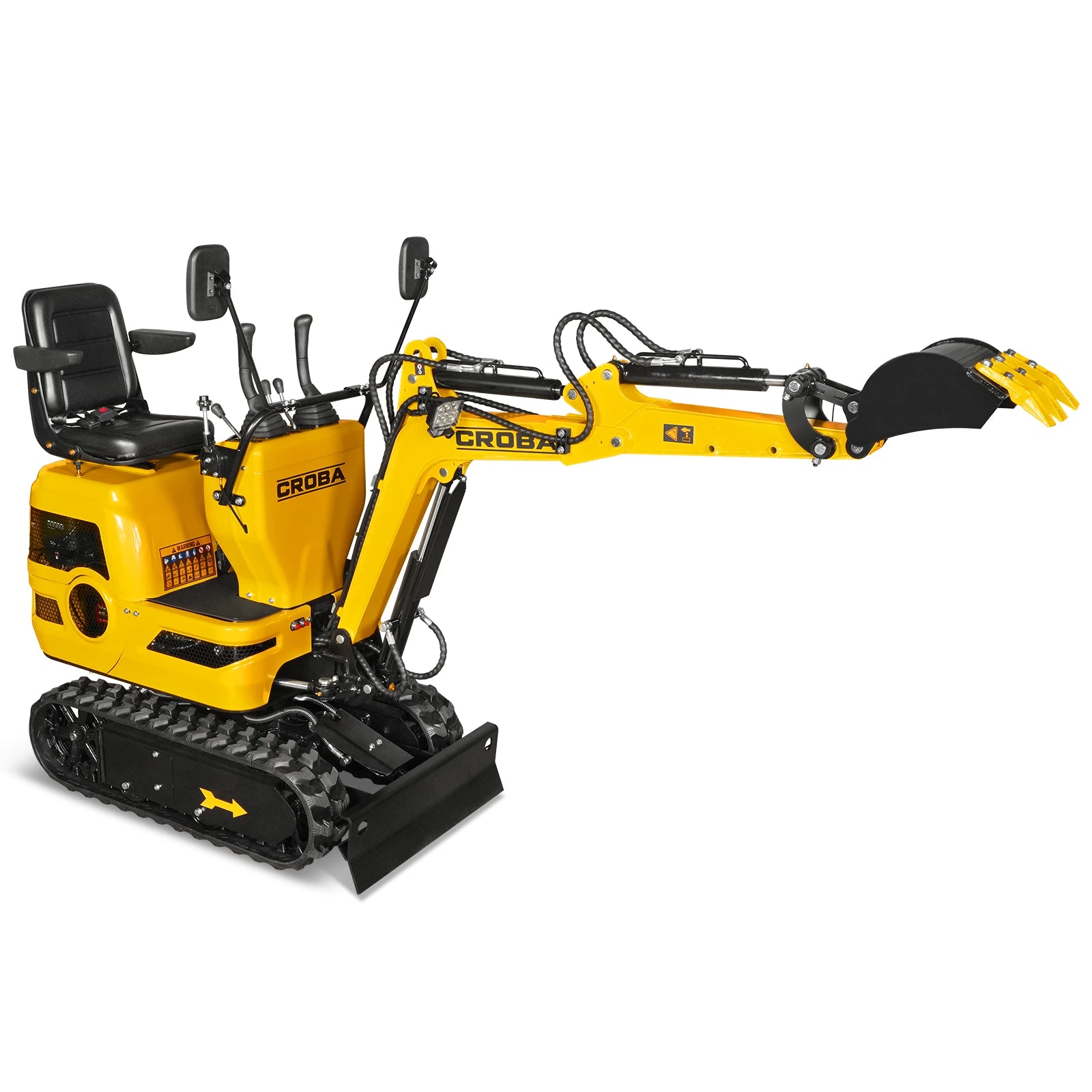

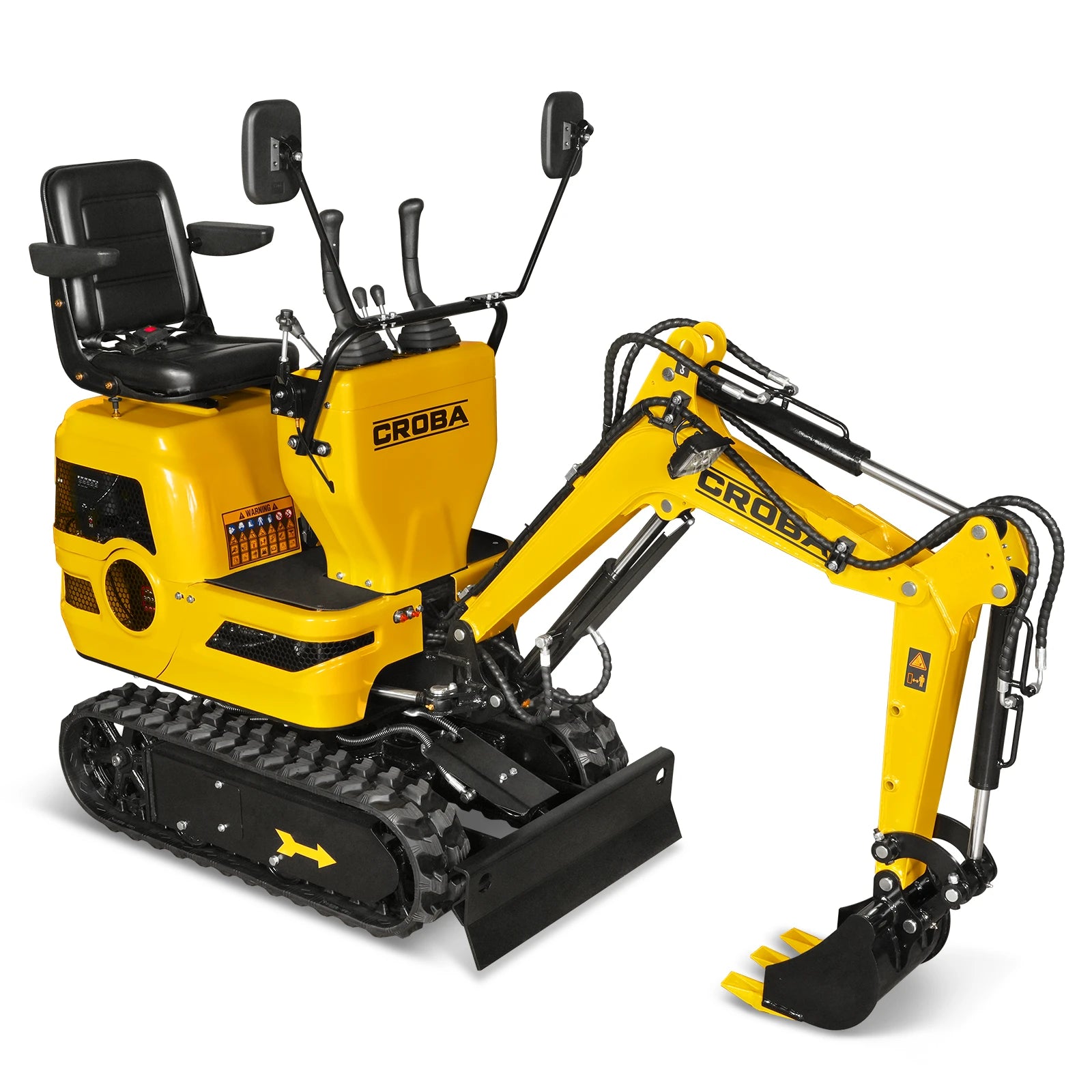

Swing Arc

The digging arm can swing left and right, turn 55 degrees to the left and 65 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.

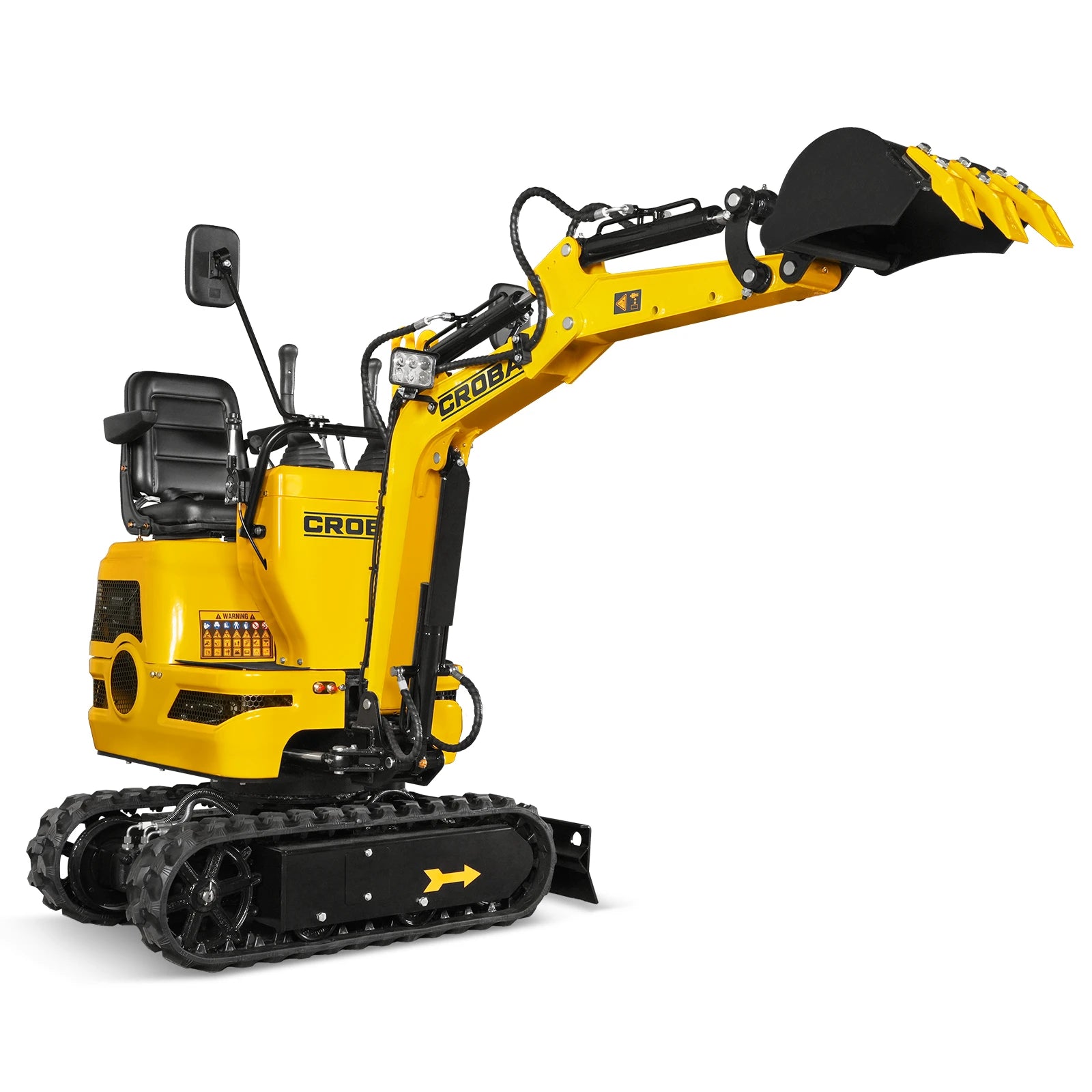

Digging Depth

It features an all-around 43.3-inch digging depth reach capability and a 82.7-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

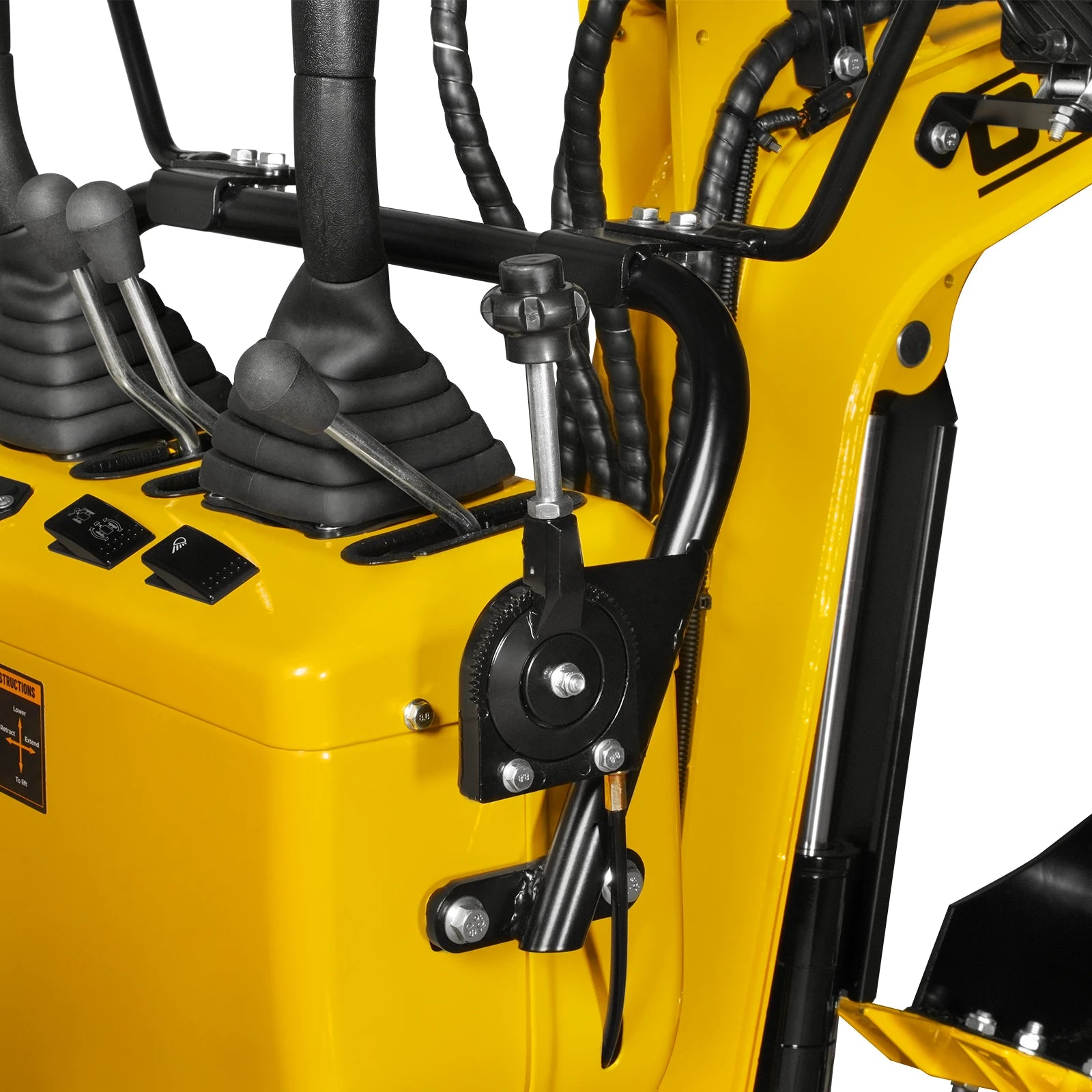

Advanced Hydraulics

Experience superior control and performance with an advanced hydraulic system designed for smooth, responsive operation.

360° Full-Rotation Capability

The excavator features a 360-degree rotating platform, allowing operators to work efficiently in any direction without repositioning the machine.

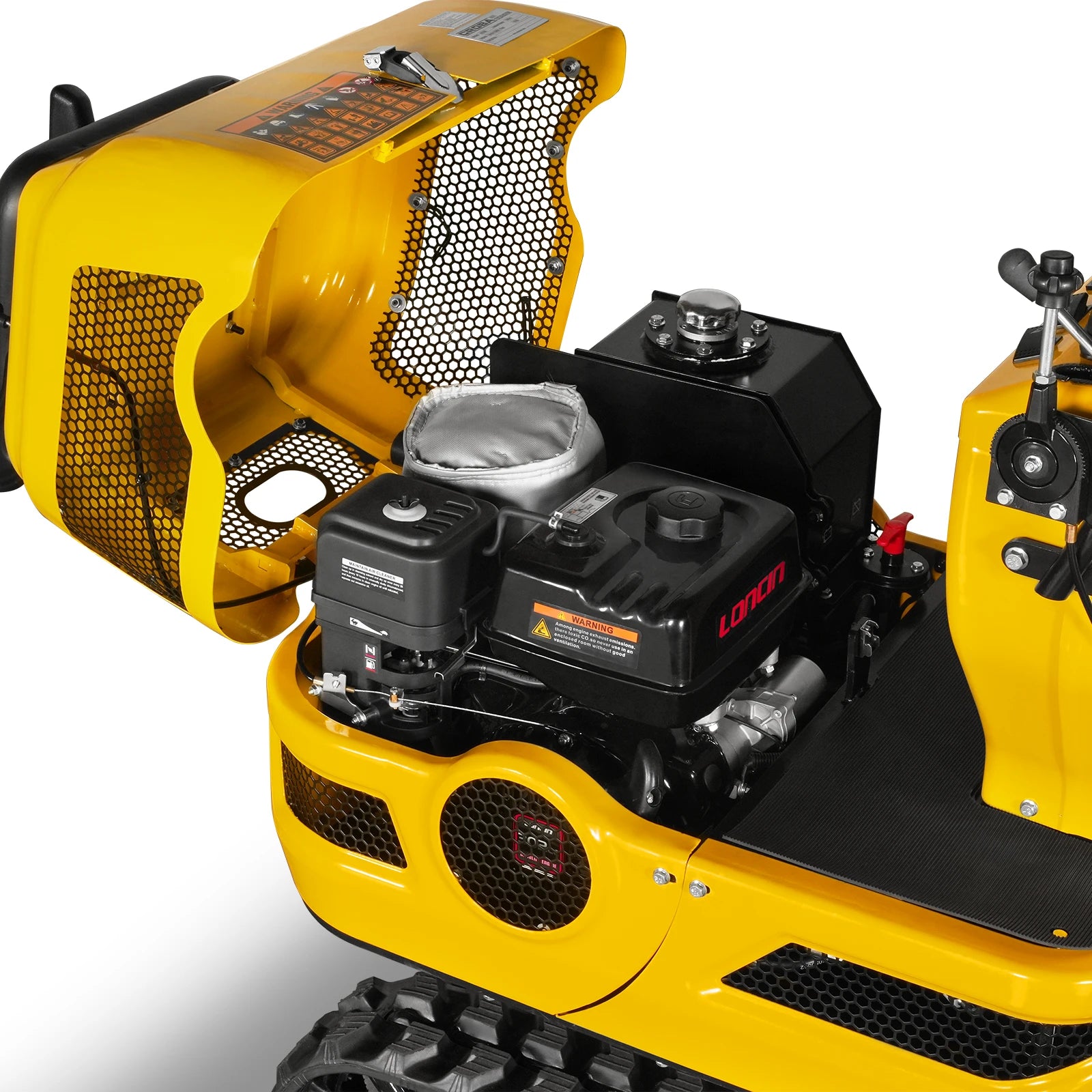

High-Performance Engine

Purpose-built for excavation tasks, the Loncin engine provides powerful performance, excellent fuel economy, and dependable durability for efficient operation in demanding conditions.

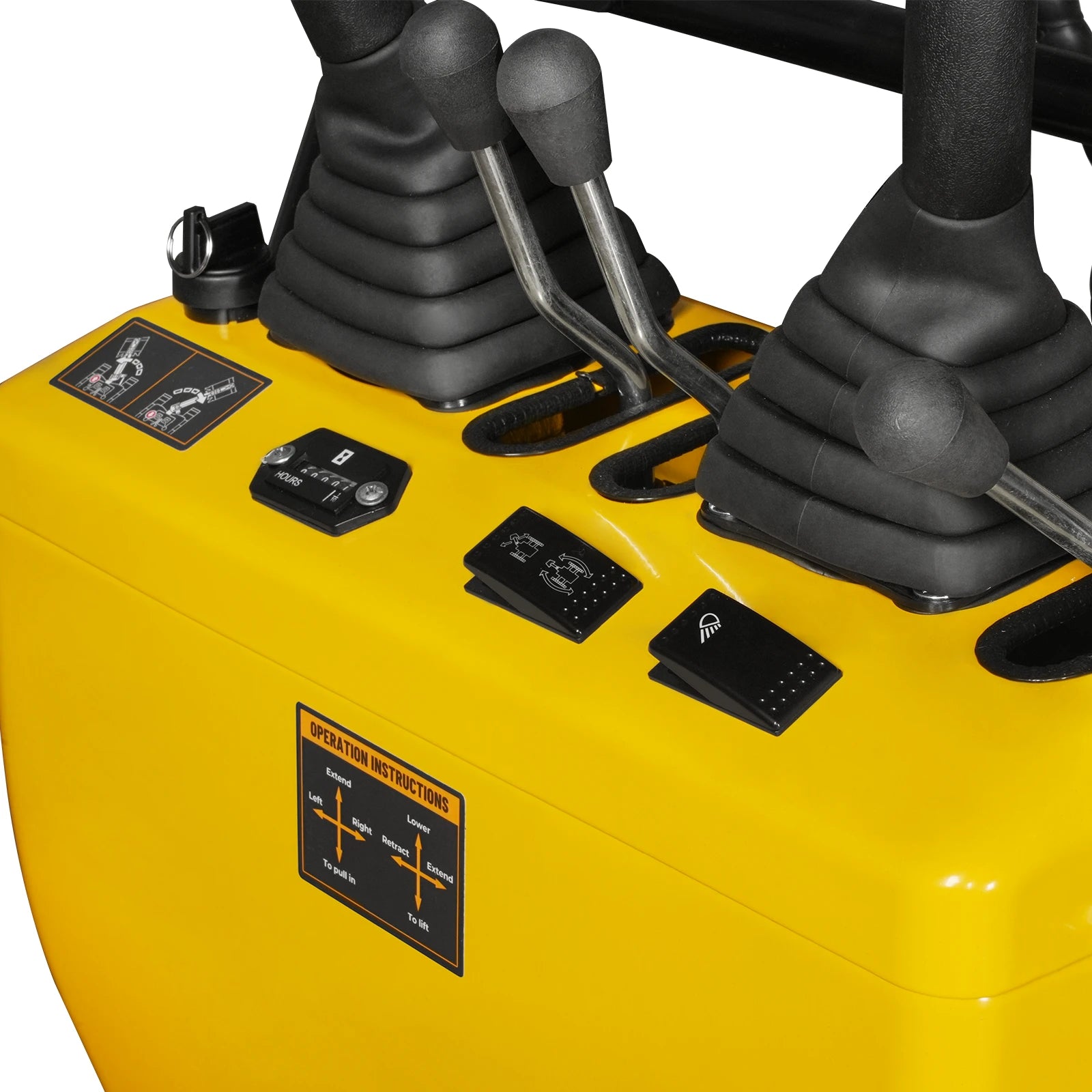

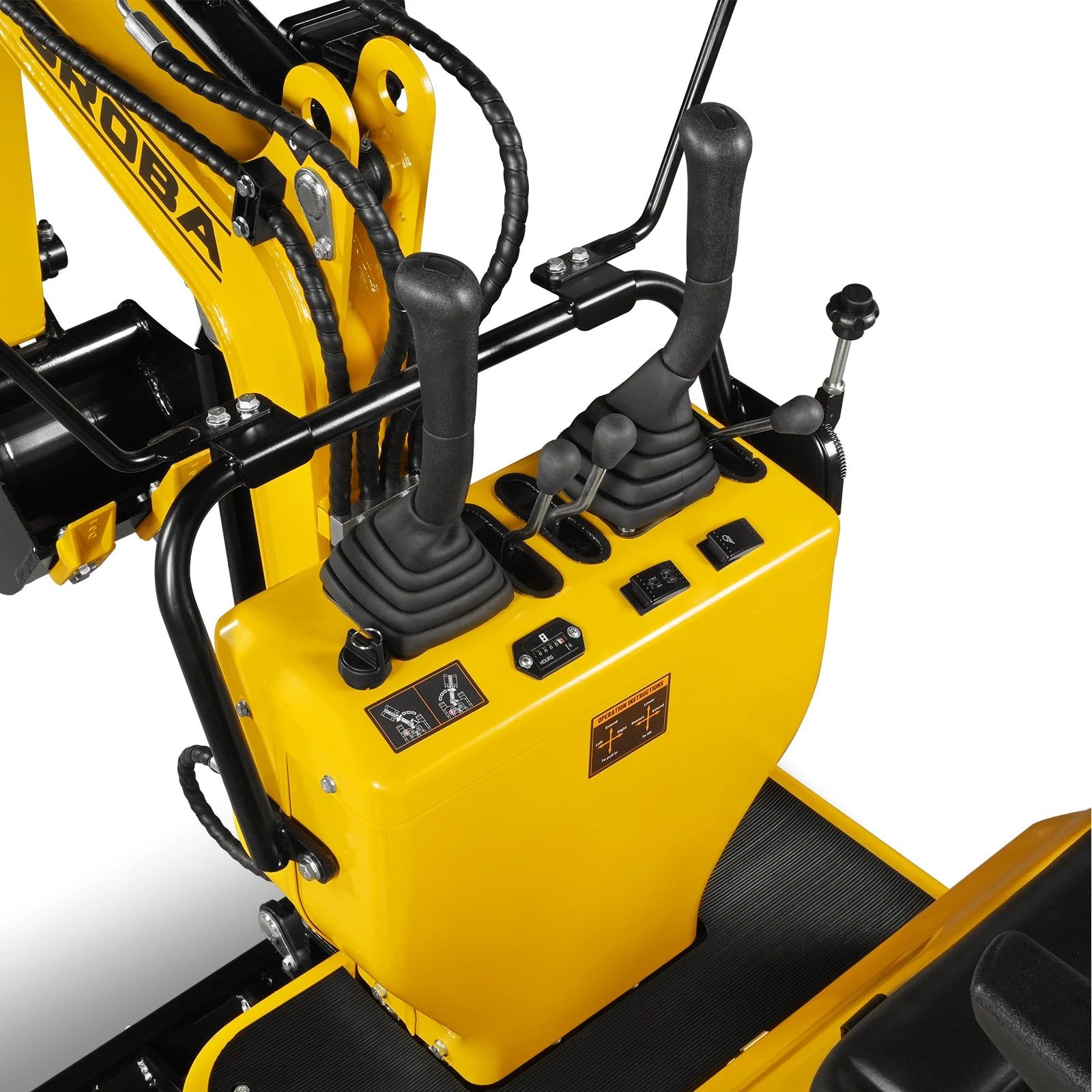

Timer

There is a timer at the control panel to meet customer needs to record the running time of the machine.

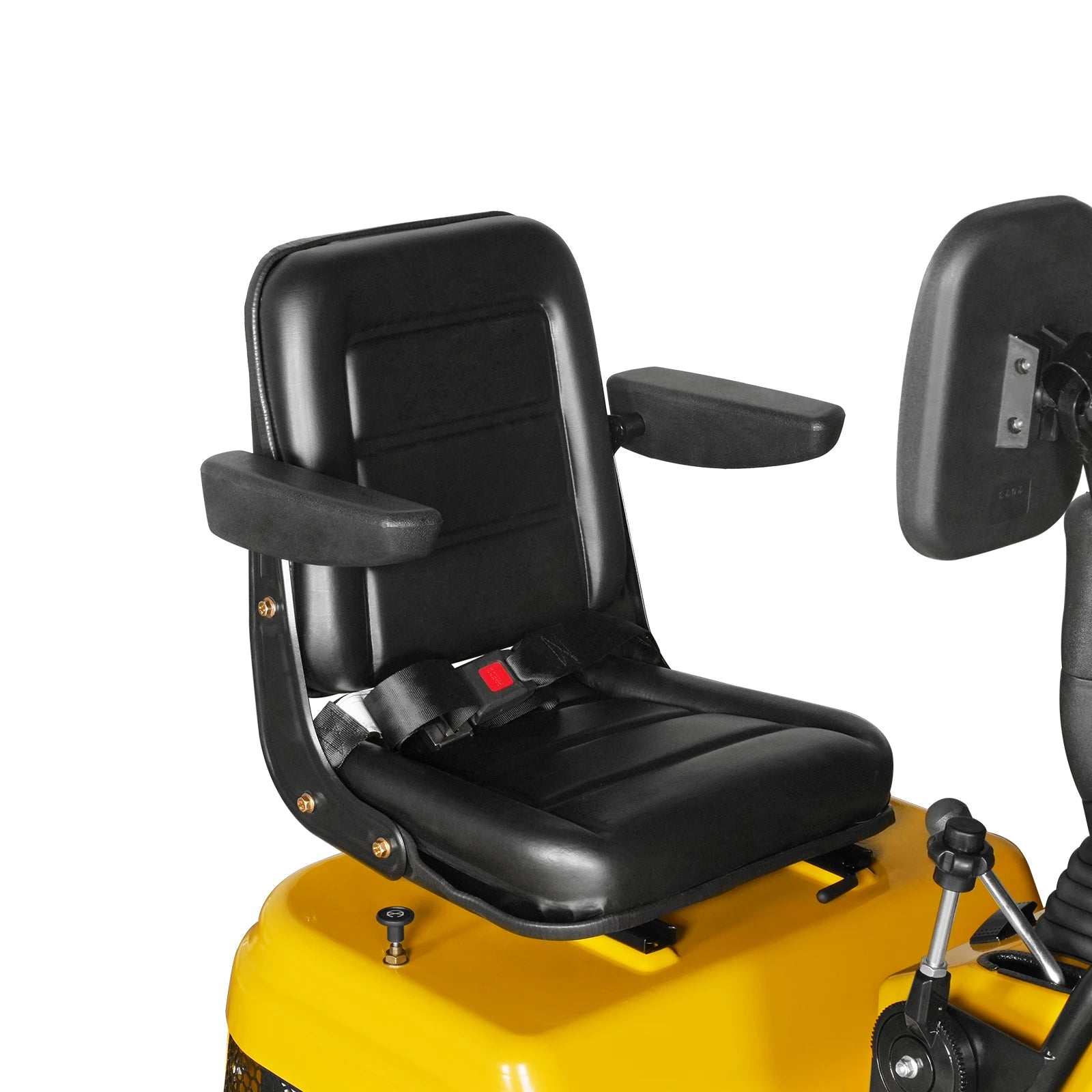

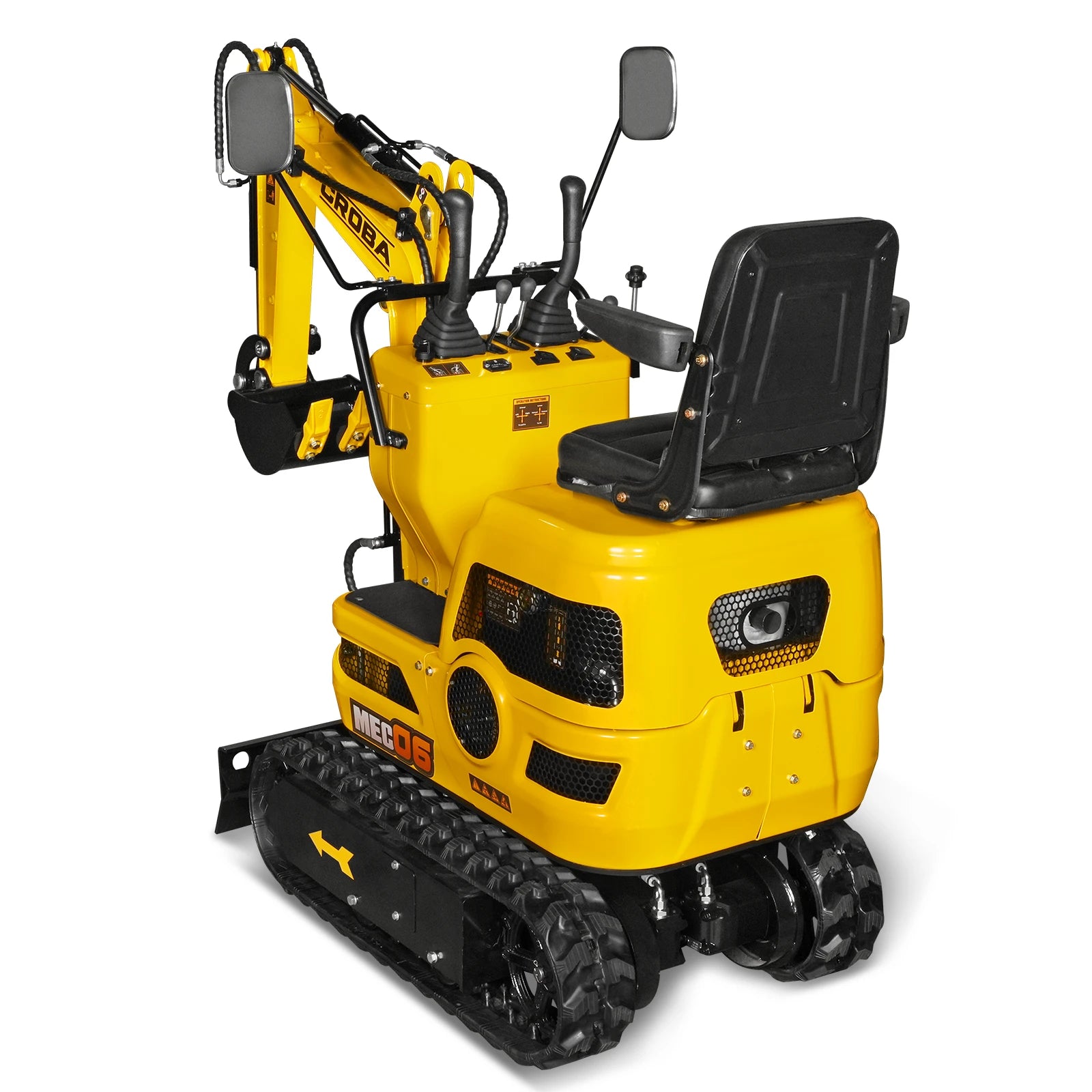

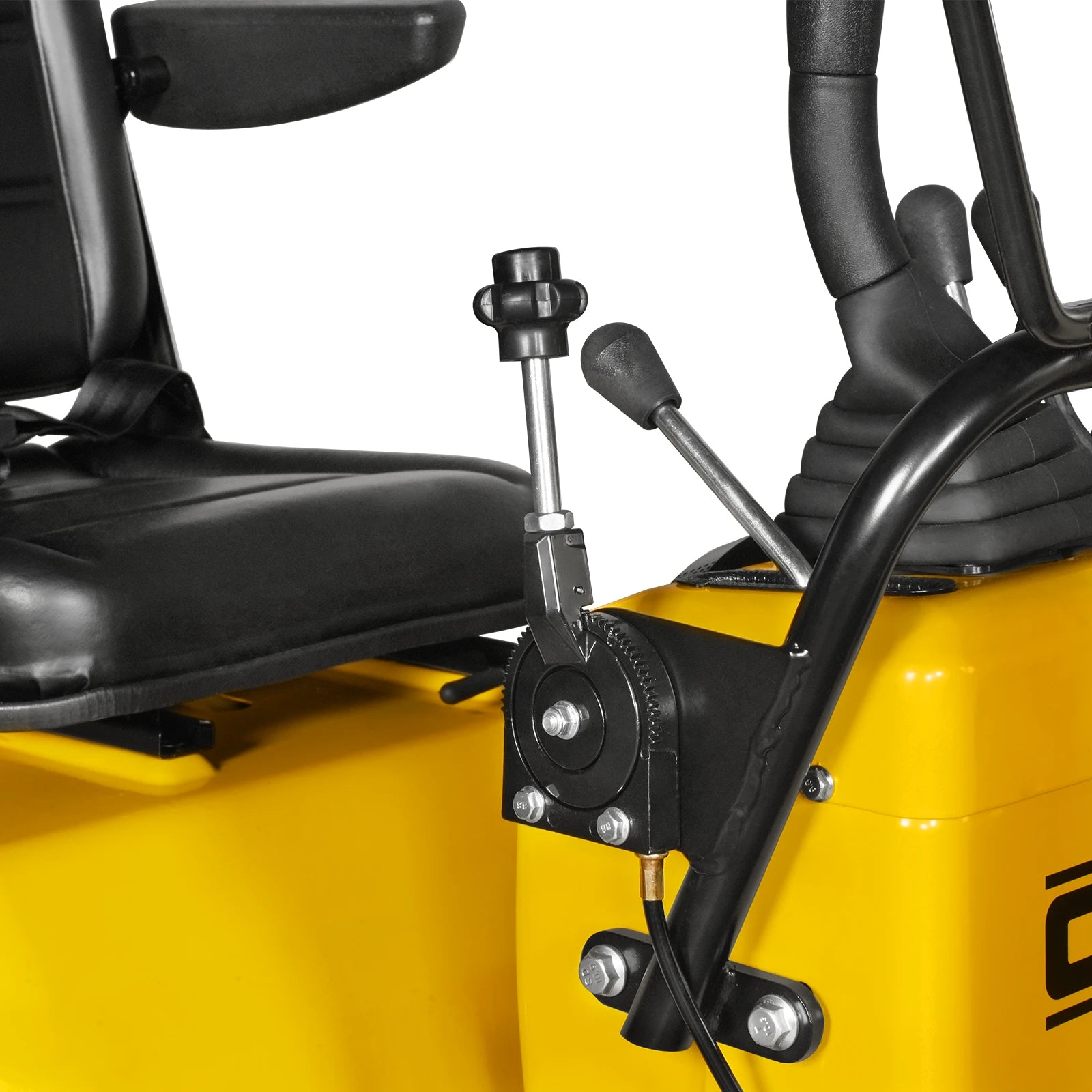

Adjustable Operator Seat

The operator seat can be adjusted forward and backward to accommodate different users, providing enhanced comfort and ergonomic support for reduced fatigue during long working hours.

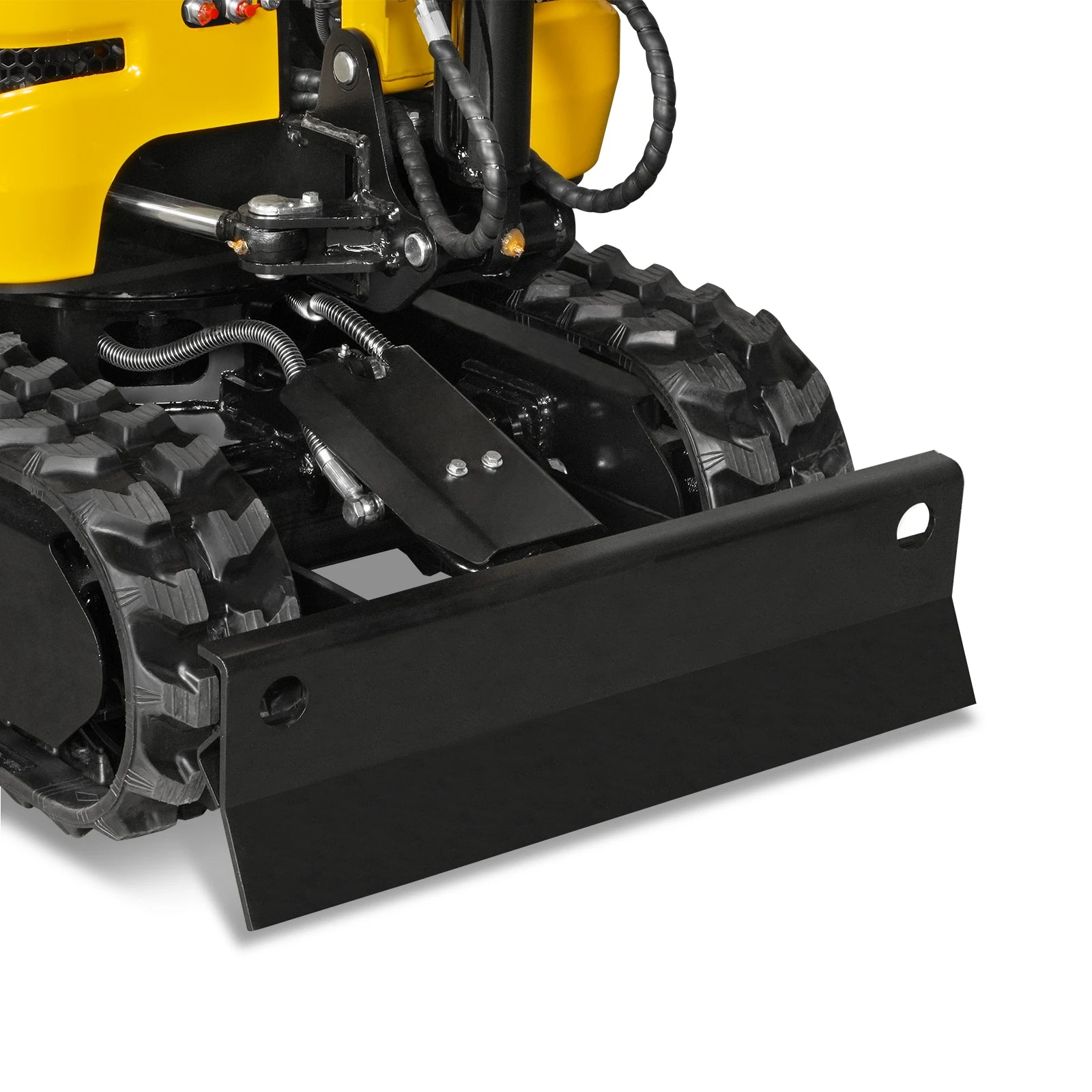

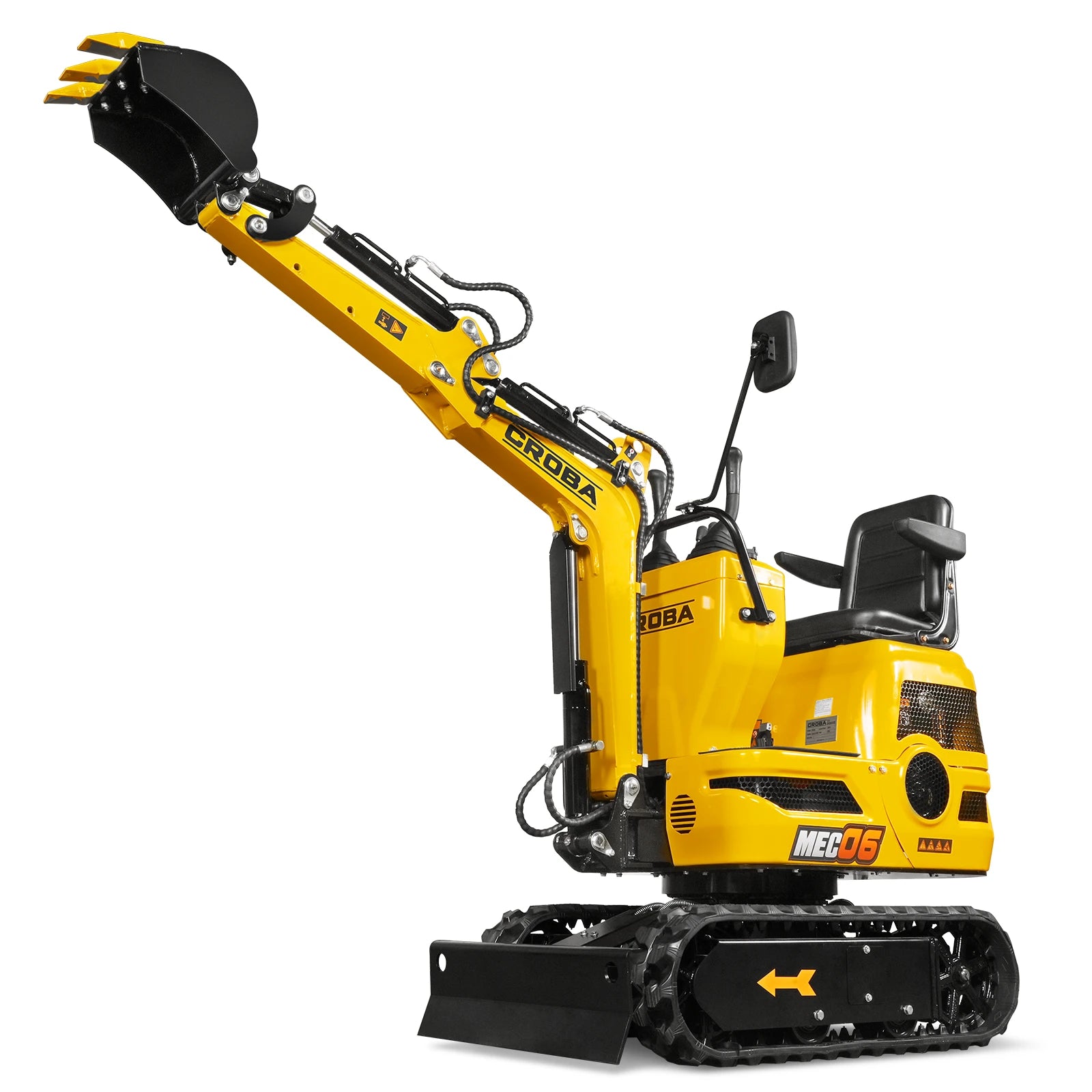

Dozer Blade

The hydraulic dozer blade with locking function improves machine stability and operational efficiency, ensuring smoother and more precise performance on the job site.

Video

Warranty Services

Specifications

Operating Weight	1510 lb
Standard Bucket Capacity	0.53 ft³
Standard Bucket Width	11.4 in
Max. Travel Speed	1.12 mile/h
Slewing Speed	9.5 RPM
Max. Gradeability	15°
Track Ground Pressure	3.84 psi
Hydraulic Oil Tank Capacity	2.64 gal
Auxiliary Std Flow	4.76 gal/min
Max. Tractive Force	742 lbf
Arm Digging Force	1012 lbf
Bucket Digging Force	1911 lbf
Rated Lift Capacity	lb
Lift Radius	in

Operating Range
Max.Digging Radius On Ground	119 in
Max. Digging Depth	65.7 in
Overall Operating Height (Fully Raised)	111.8 in
Max. Digging Radius	121 in
Max. Unloading Height	81.8 in
Max. Vertical Digging Depth	63.3 in
Min. Turning Radius	46.8 in
Max. Lifting Height Dozer Blade	5.9 in
Max. Depth Dozer Blade	7.4 in

Main Dimensions
Wheel Track	35.8 in
Track Length	48.6 in
Upper Chassis Ground Clearance	15.7 in
Counterweight Turning Radius	32.6 in
Chassis Width	37 in
Track Width	in
Track Height	12.6 in
Transportation Length	92.5/113 in
Height Of Seat To Ground	61.4 in
Overall Height	89.3 in
Boom Swing-Right	65°
Boom Swing-Left	55°

Engine
Model	Loncin G300FDA
Displacement	300 cc; 9 HP
Engine Type	4-stroke, overhead valve, single cylinder
Start Type	Electric start
Rated Power	6.8 KW/3600 RPM
Max. Net Torque	20.3 N.m/2500 RPM
Fuel Tank Capacity	1.45 gal
Engine Oil Capacity	0.25 gal
Engine Oil Type	10W-30
SERVICE
Package Method	Steel Frame Packaging
Warranty for Machine	1 Year
Warranty for Engine	1 Year
Package Dimensions	89x29x49 in

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
