SKU: 150201

| Model: VAM72

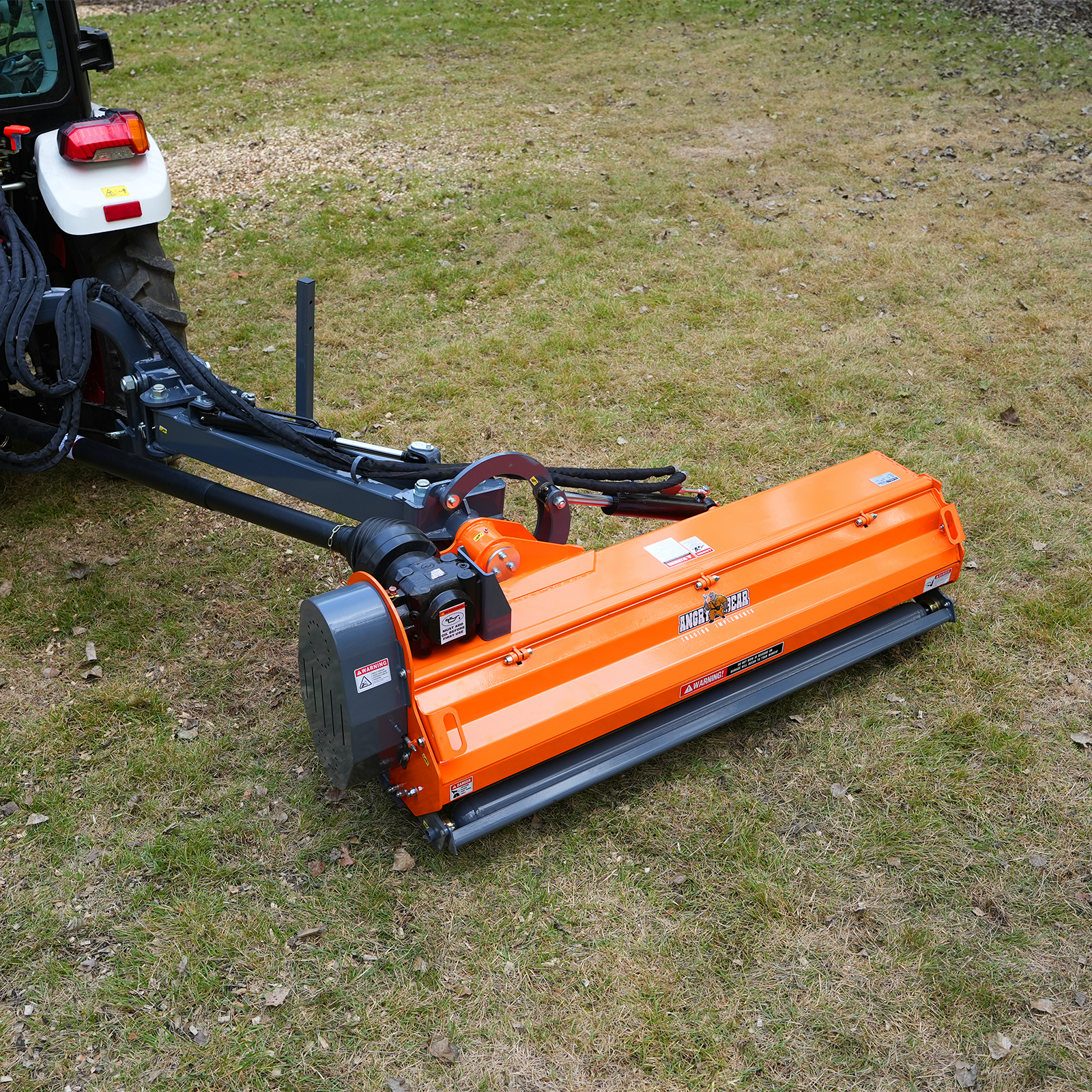

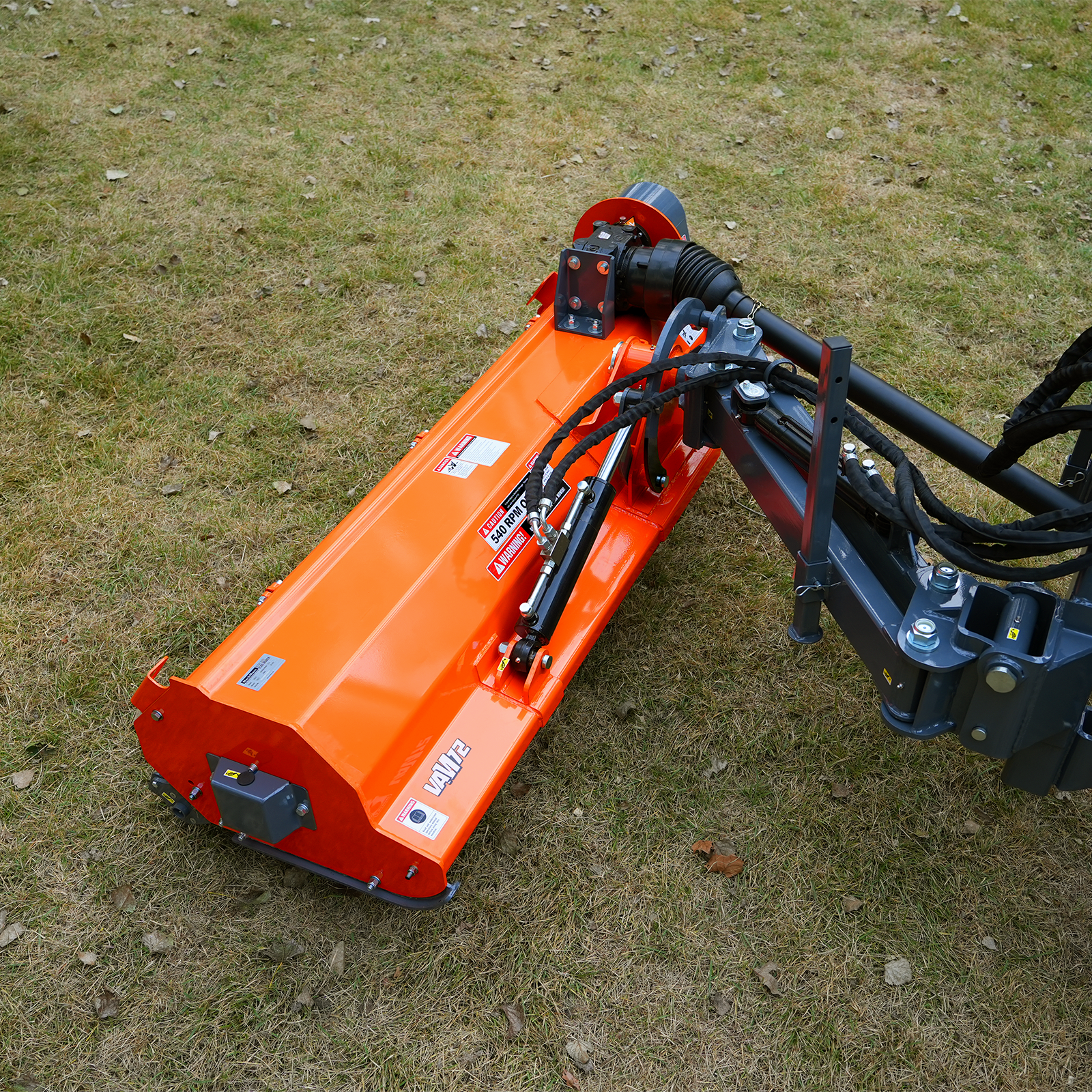

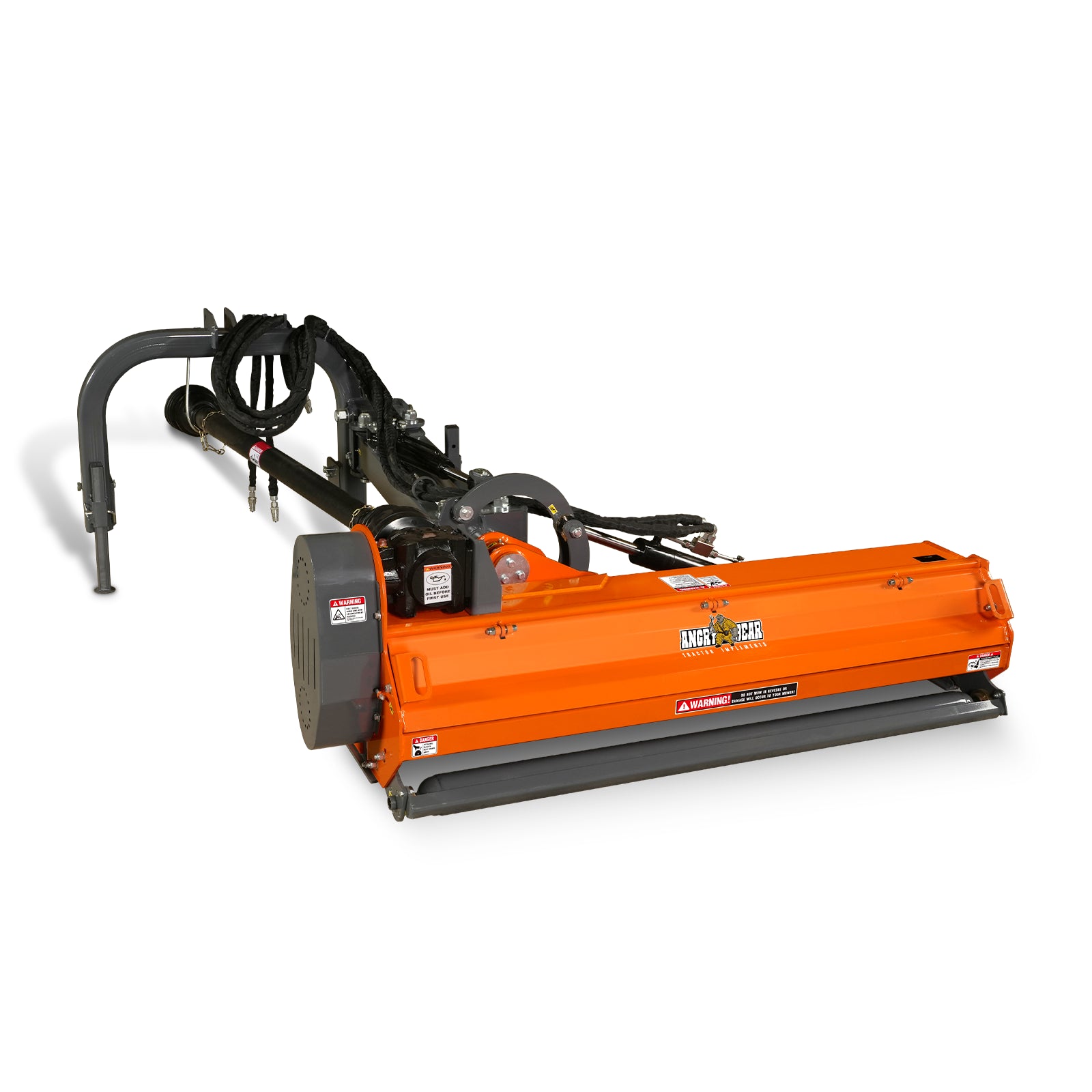

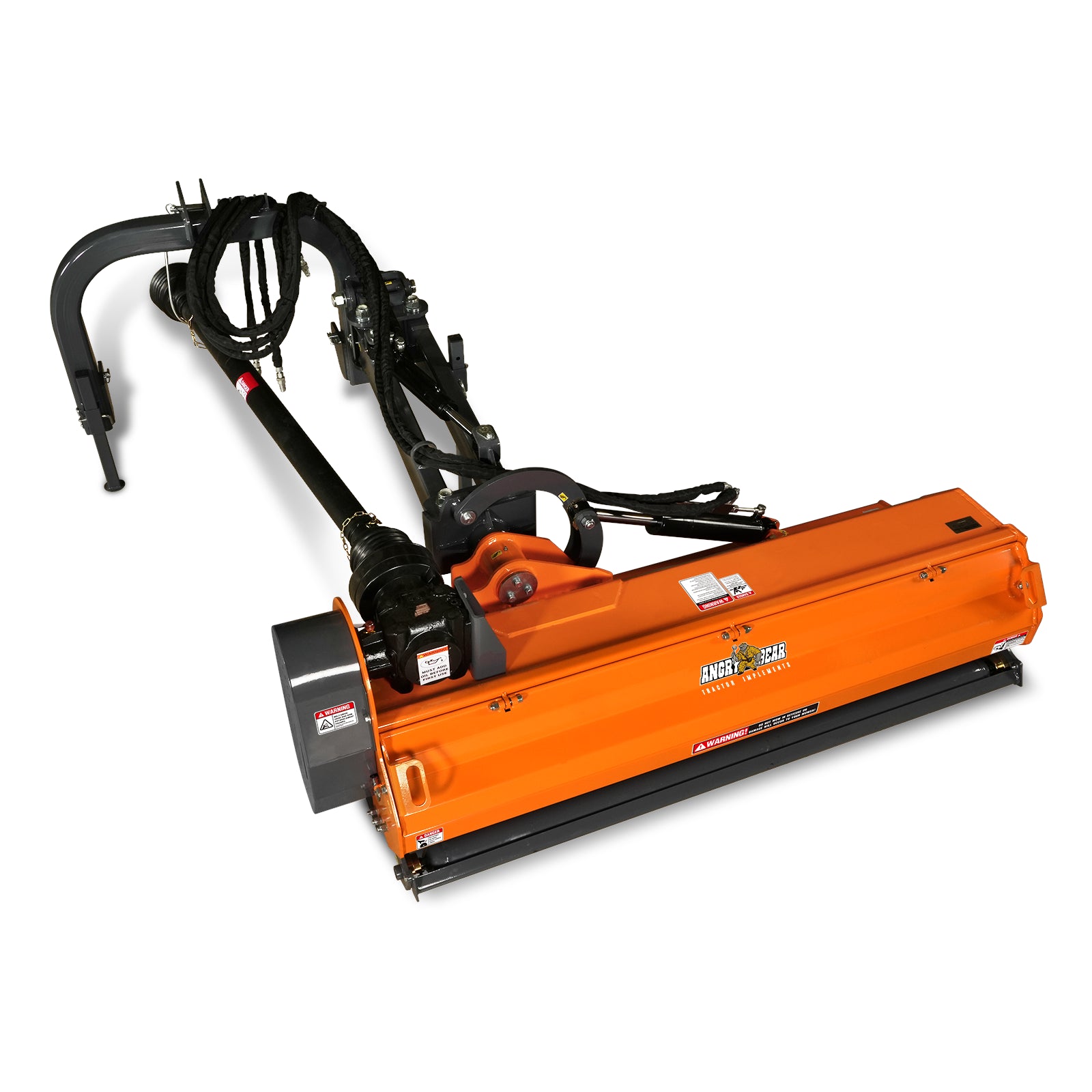

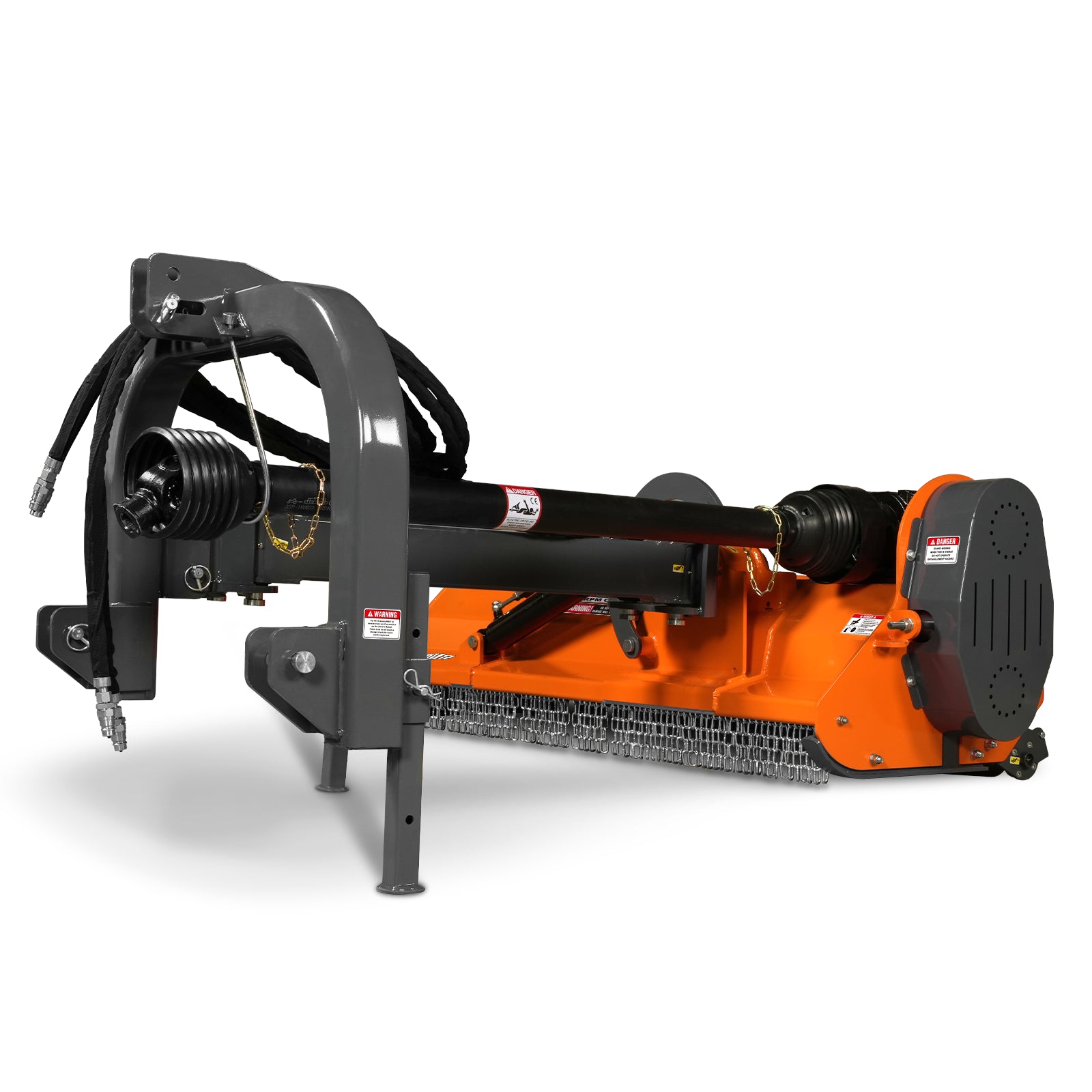

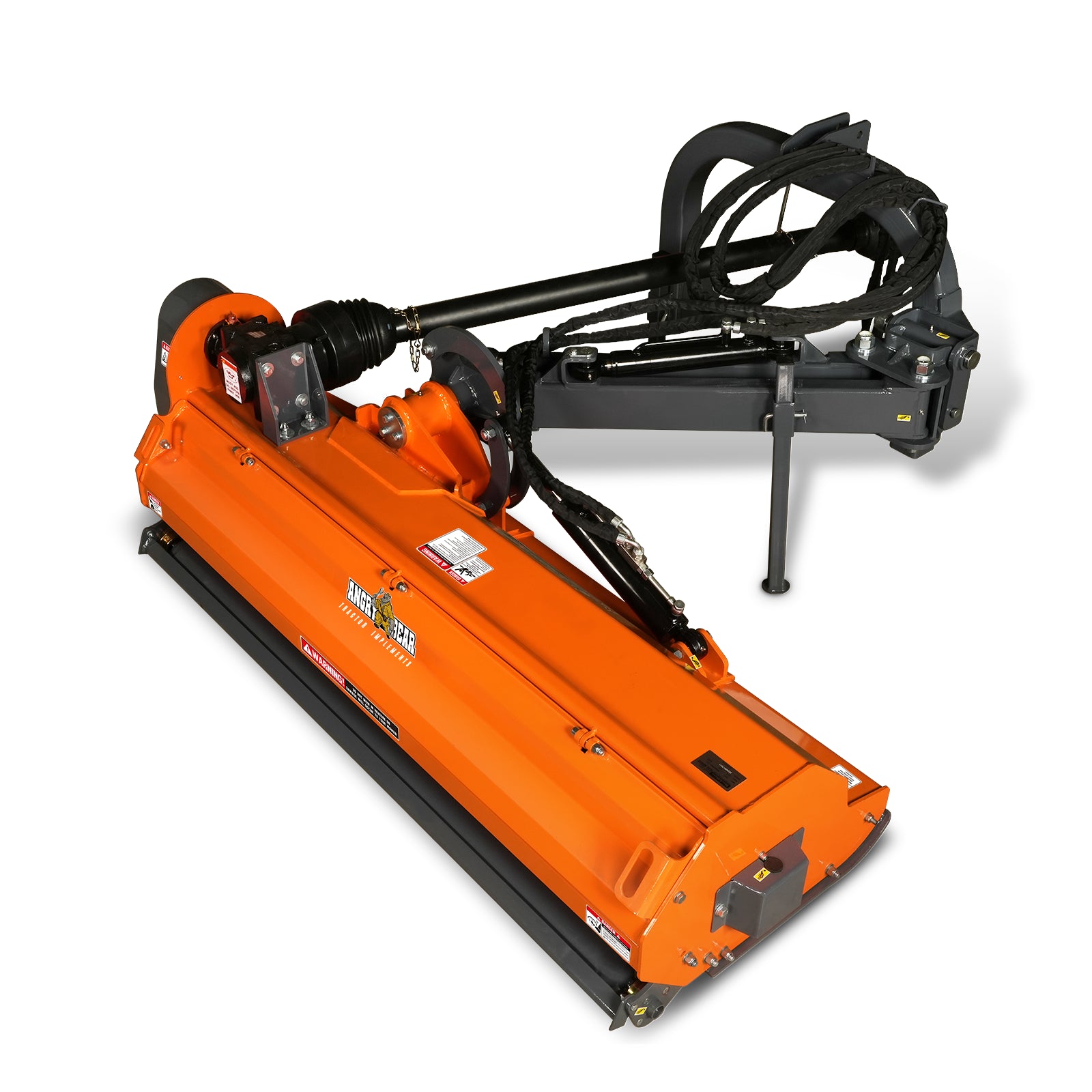

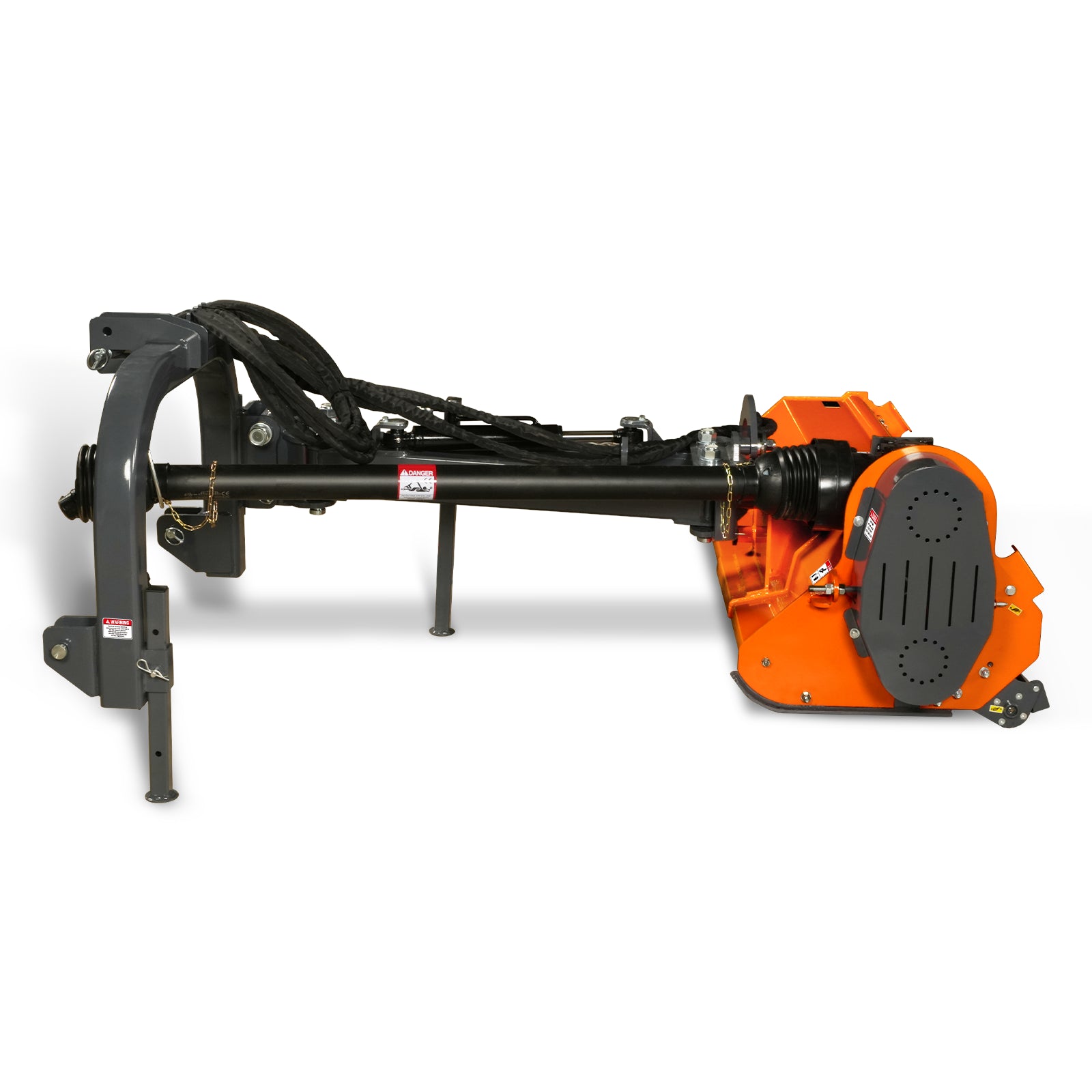

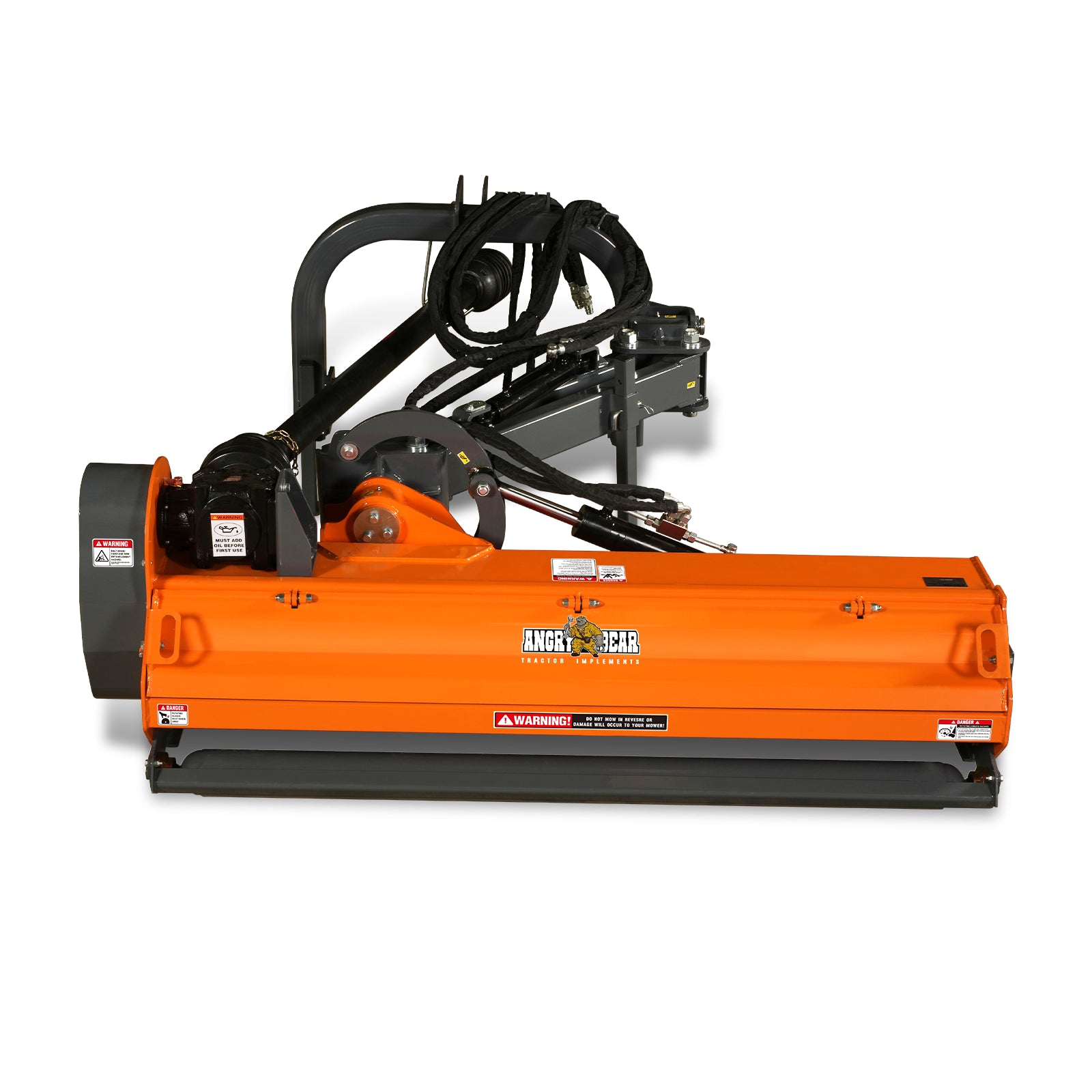

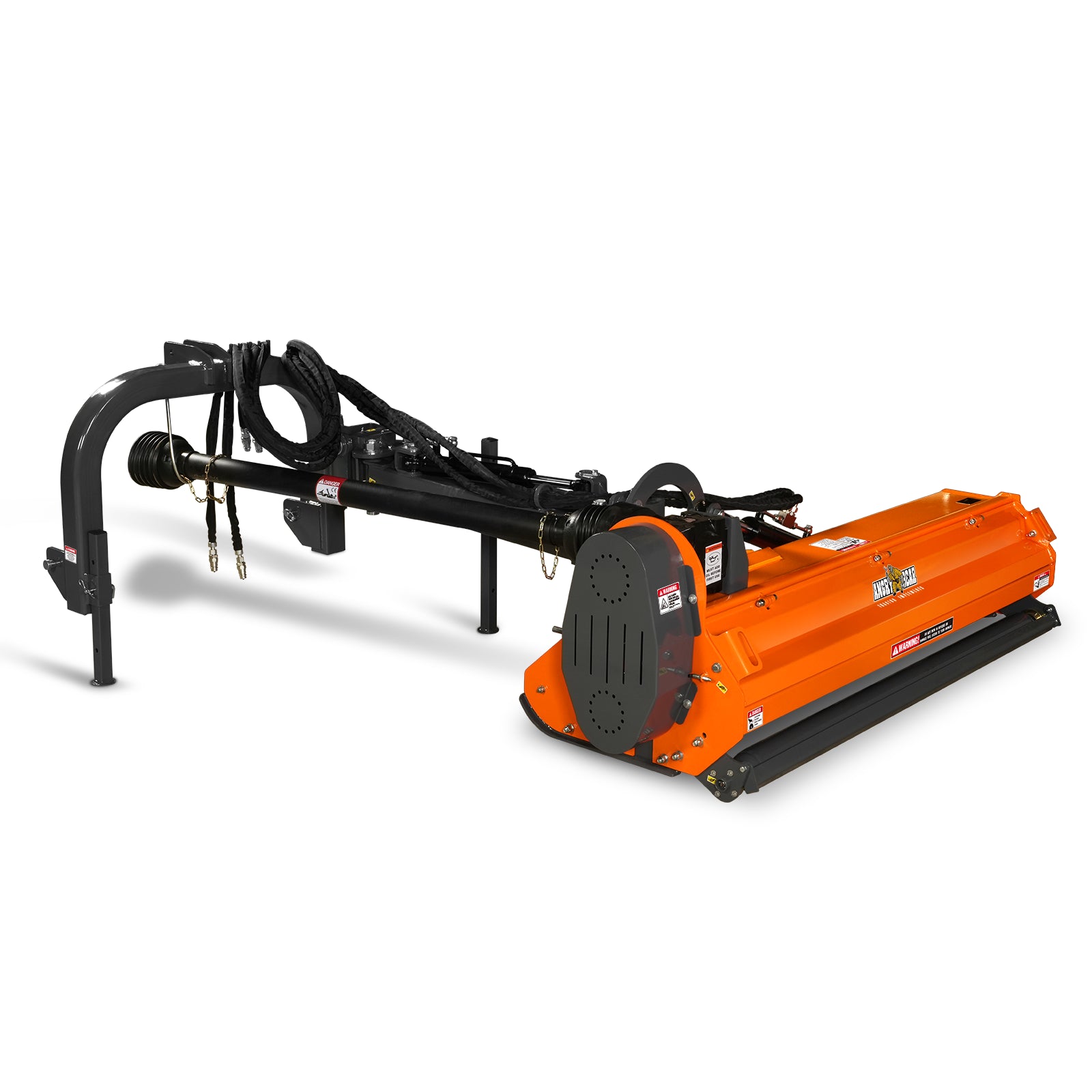

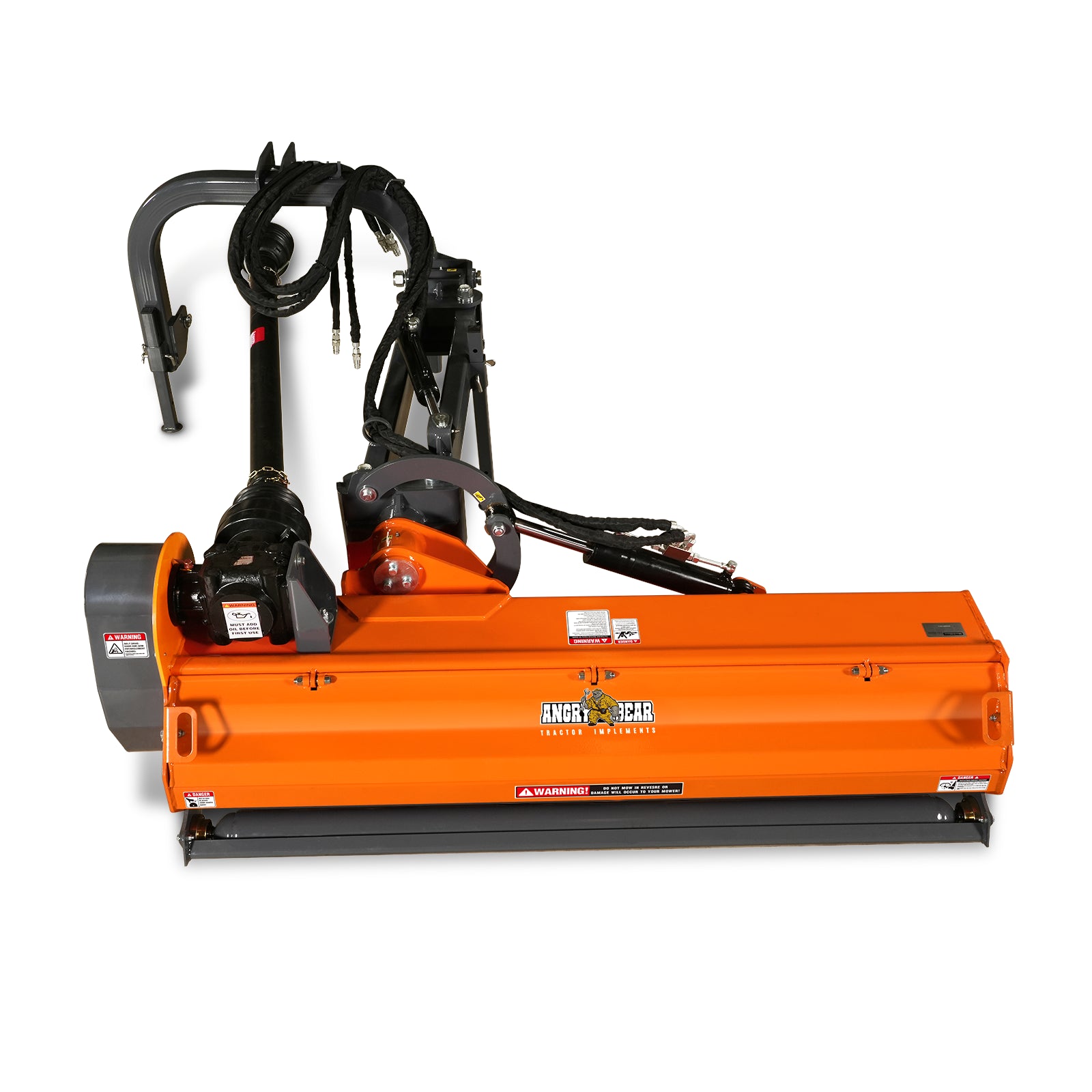

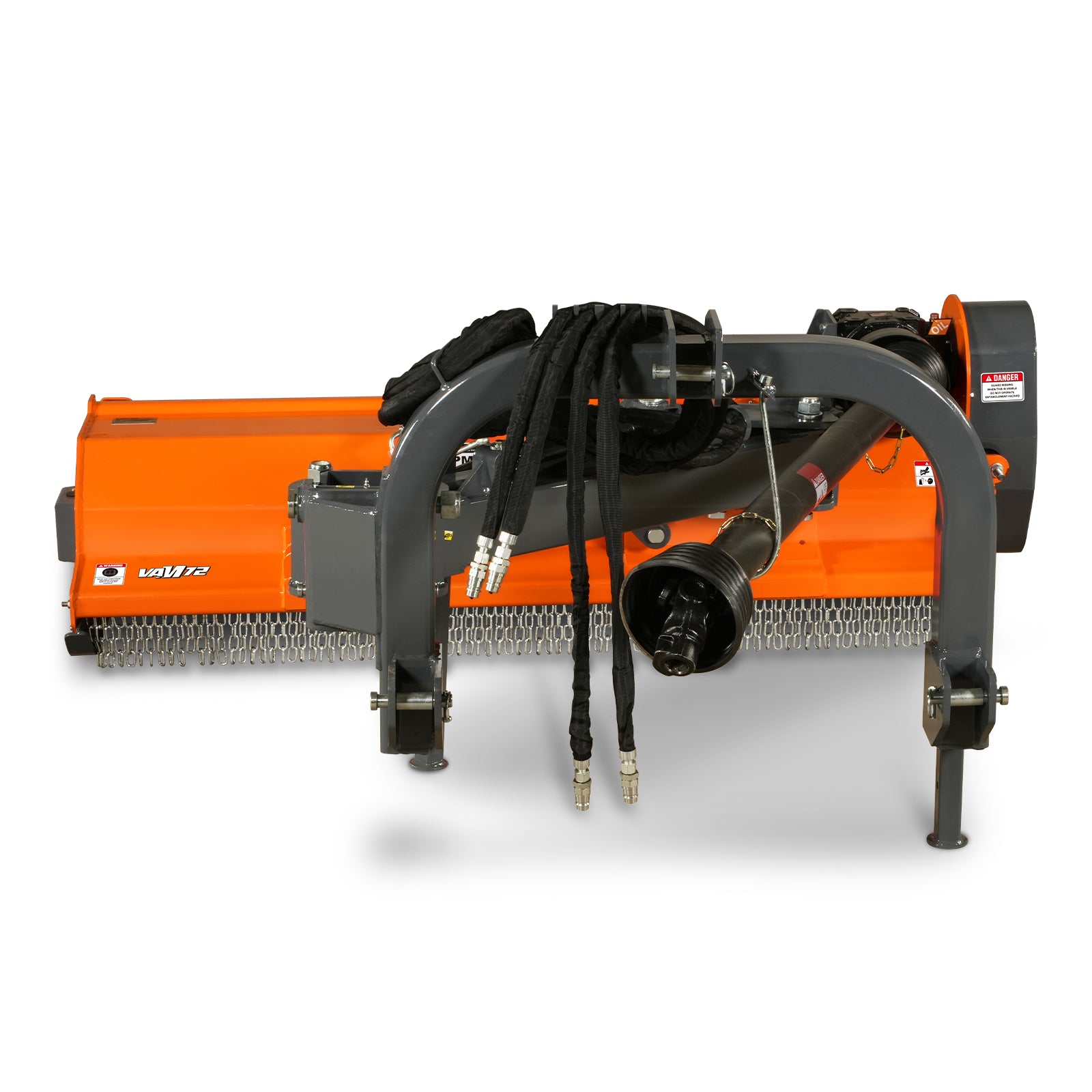

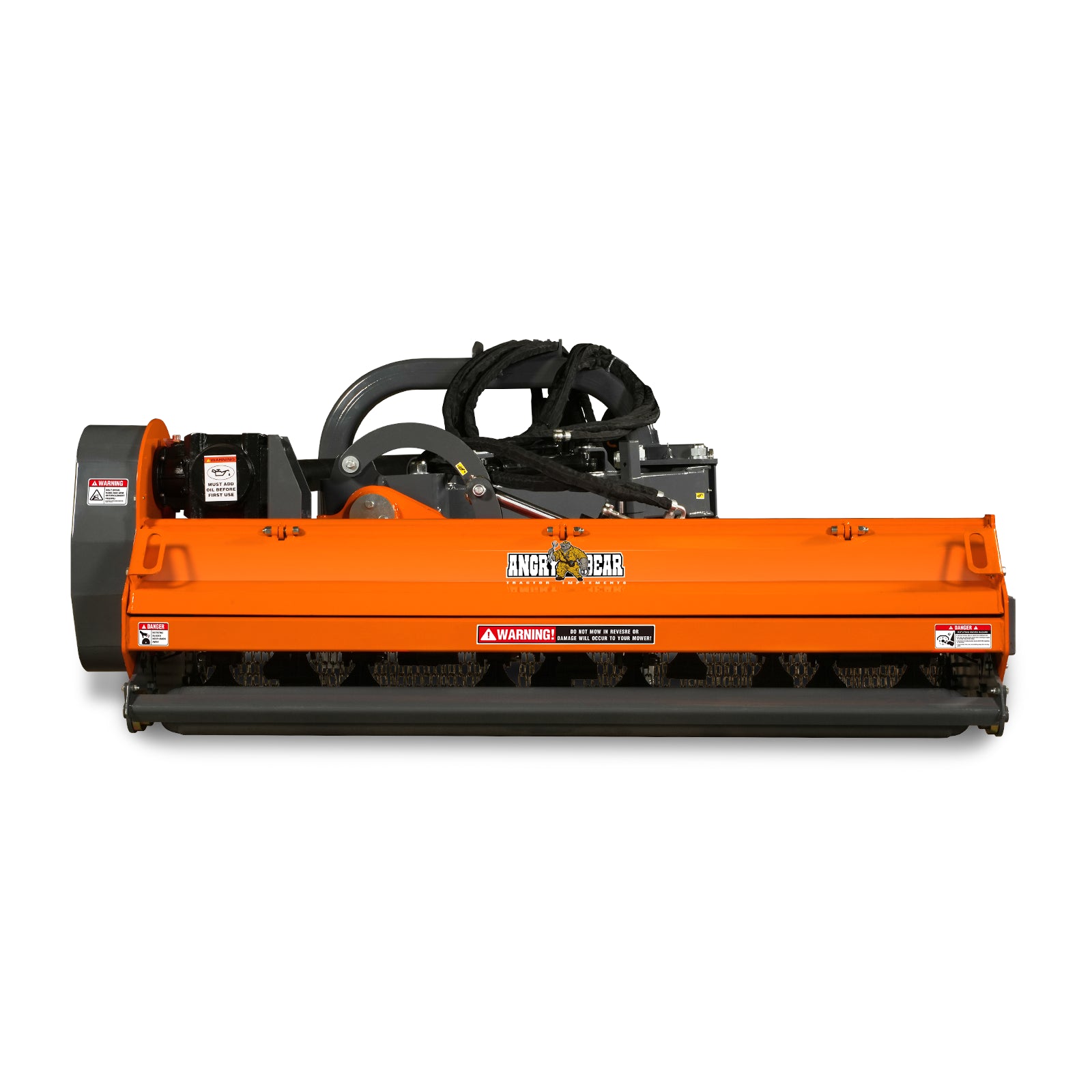

72” Offset Ditch Bank Flail Mower with 90° Tilt, 70-90 HP Tractor, 3-Point Hitch, PTO Drive Shaft, VAM72

Name: 72” Offset Ditch Bank Flail Mower with 90° Tilt, 70-90 HP Tractor, 3-Point Hitch, PTO Drive Shaft, VAM72
Brand: MechMaxx
SKU: 150201
Price: 4199.0 USD
Availability: InStock

BLACK FRIDAY SALES Ends in

Days : :

$419900

4 interest-free payments with Afterpay.

Free Shipping (Lift-Gate Included)

Details

Estimated to ship by 2024-12-15. Date is subject to change due to transit delays.

Details

Payment:

213-216-1759

Sales Contact Number

service@mechmaxx.com

Sales Contact Email

Missed our Black Friday call? Feel free to text us !

Frequently Bought Together

( 1 Pack / 4 Pcs ) Belt for VAM72 Flail Mower (SKU: 150201）

( 1 Pack / 8 Pcs ) Hammers for NAM; NAM-H; VAM72 Mowers (SKU: 150137; 150138; 150139; 150140; 150141; 150142; 150201）

72” Offset Ditch Bank Flail Mower with 90° Tilt, 70-90 HP Tractor, 3-Point Hitch, PTO Drive Shaft, VAM72 $419900

( 1 Pack / 4 Pcs ) Belt for VAM72 Flail Mower (SKU: 150201） $5999 $169.99

( 1 Pack / 8 Pcs ) Hammers for NAM; NAM-H; VAM72 Mowers (SKU: 150137; 150138; 150139; 150140; 150141; 150142; 150201） $6999 $119.99

Total Price

$

Product Overview

Made in Italy CMR gearbox
Compatible with 70-90 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities
72” of working width for time-saving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards
Blade rotor shaft driven with four drive belts and protective guards provide forceful energy transfer and safe working output
Heavy-duty, industrial frame built of quality, commercial grade metal will stand up to long working days for many years to come
Mounting plates to reduce vibration inconsistencies while also reducing overall wear and tear
Long lasting and durable forged flail hammers grind through tough matted grass, weeds and other overgrown vegetation with ease
Strong enough to tackle tangled growth and vegetation of all kinds for the reclamation and upkeep of once useable areas
Produces consistent, nicely sized mulch that distributes evenly out the back with no need to extra, unnecessary clean up

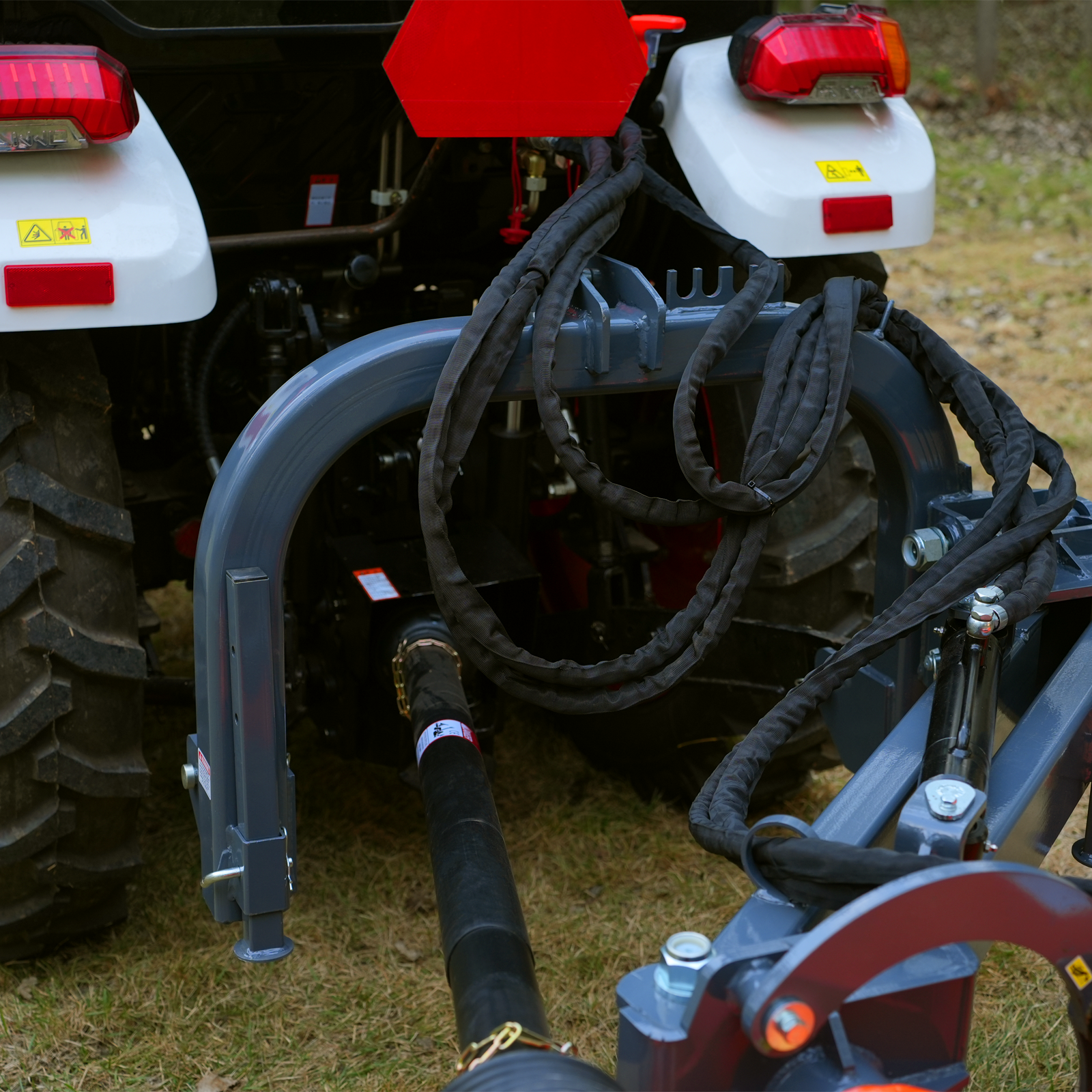

PTO driveline shaft included for easy hook up to your tractor and allows you to draw power directly from its engine

Product manual (PDF)

VAM 72 Mower Product manual 1.0.pdf

Product Features

•72 in working width for time-saving, economical mowing of bigger areas such as fields, long ditches, building perimeters and large yards

•This mower can keep your mowing area as short as possible with 18 number of blades.

•Compatible with 70-90 HP tractors and operable at 540 RPM for powerful, efficient mowing capabilities.

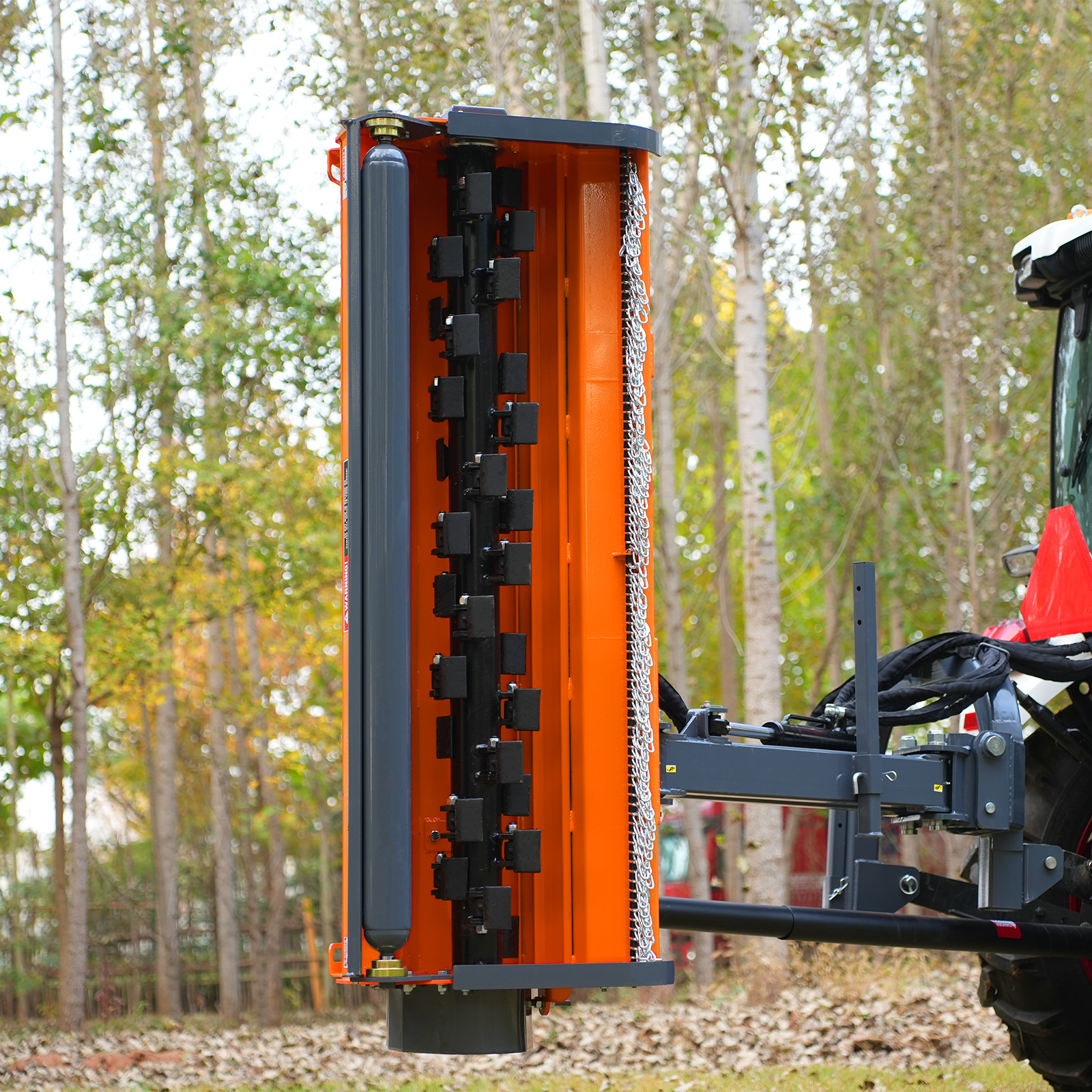

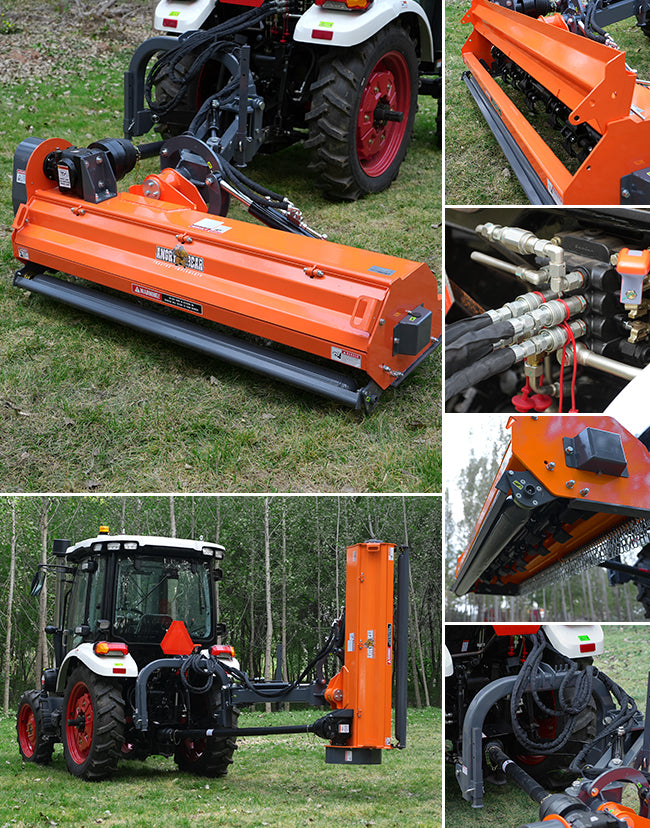

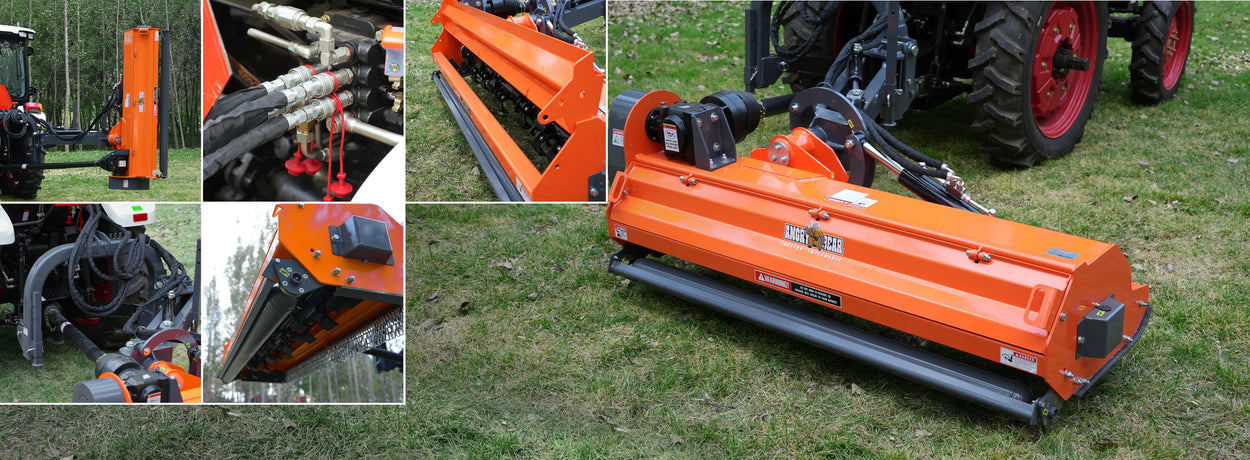

Rotation Angle

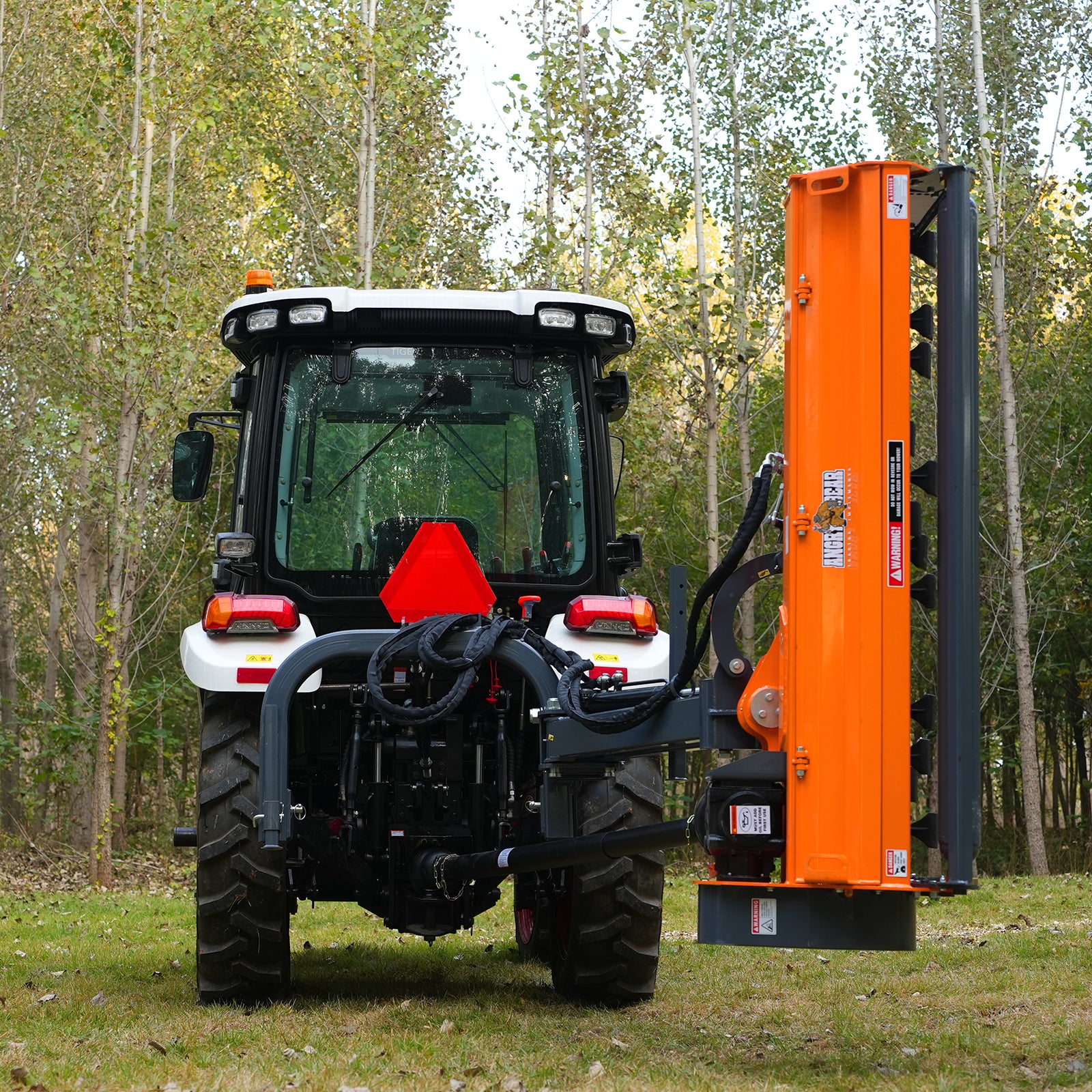

Hydraulically controlled with 55°Tilt-Down Angle and 90°upwards tilt for versatile cutting capabilities.

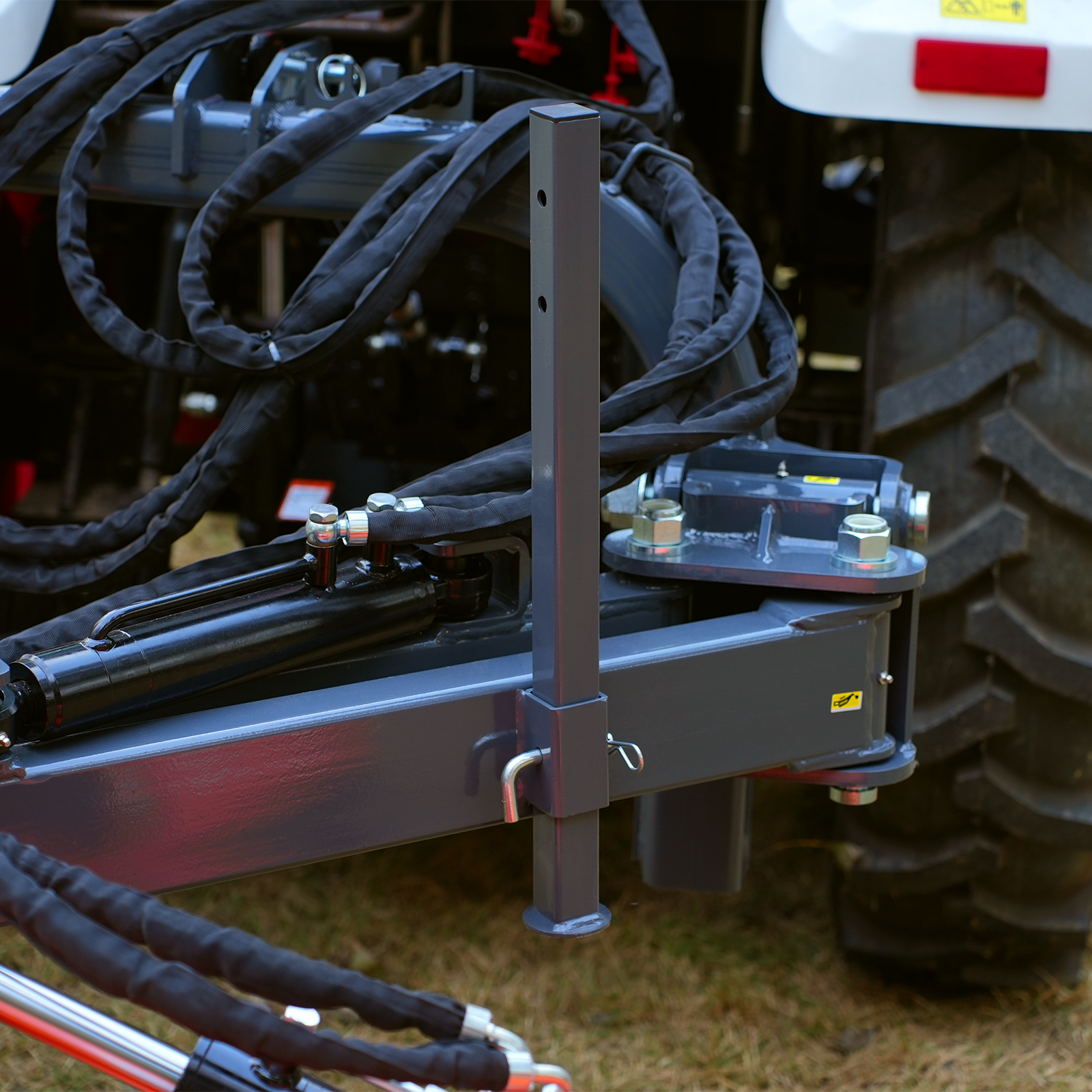

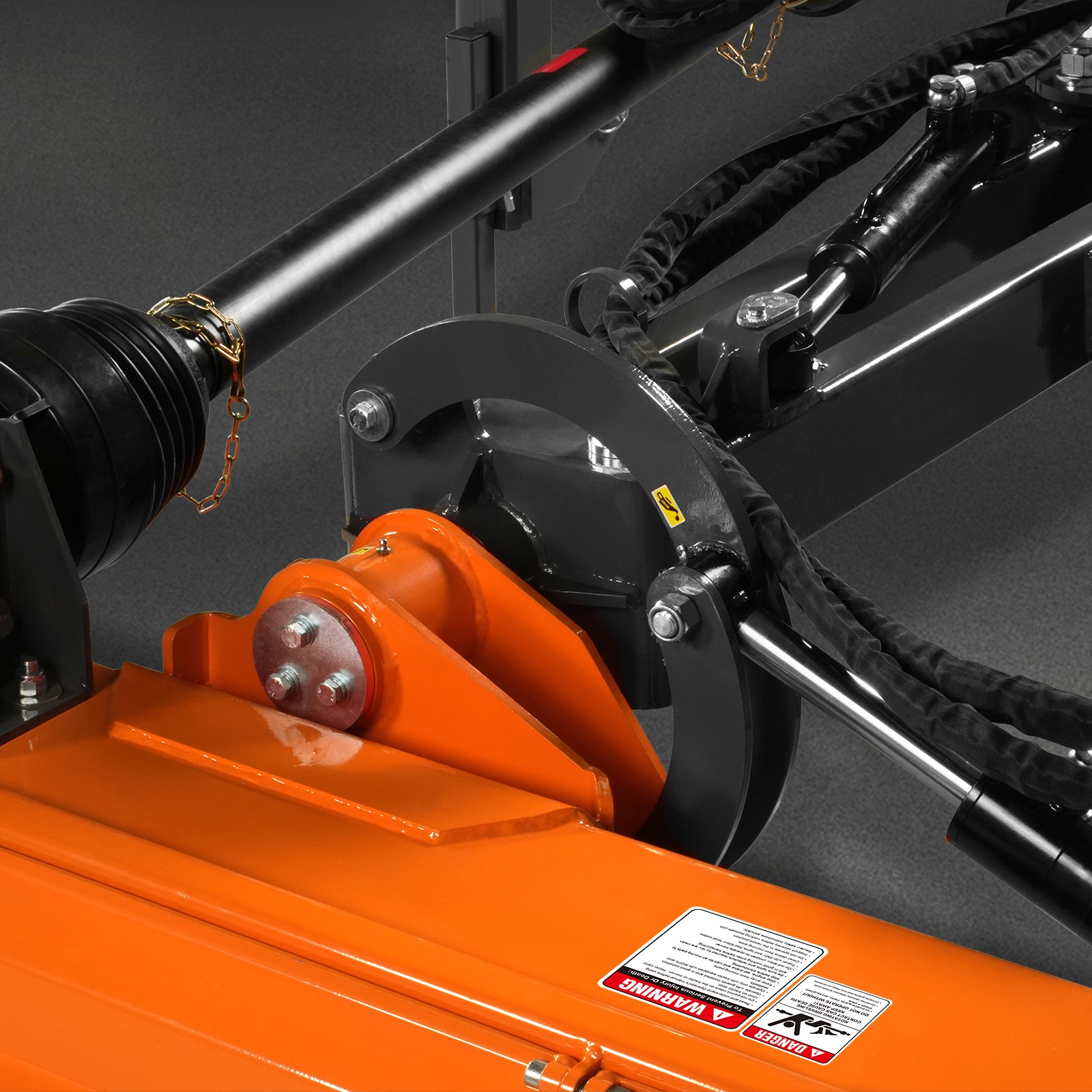

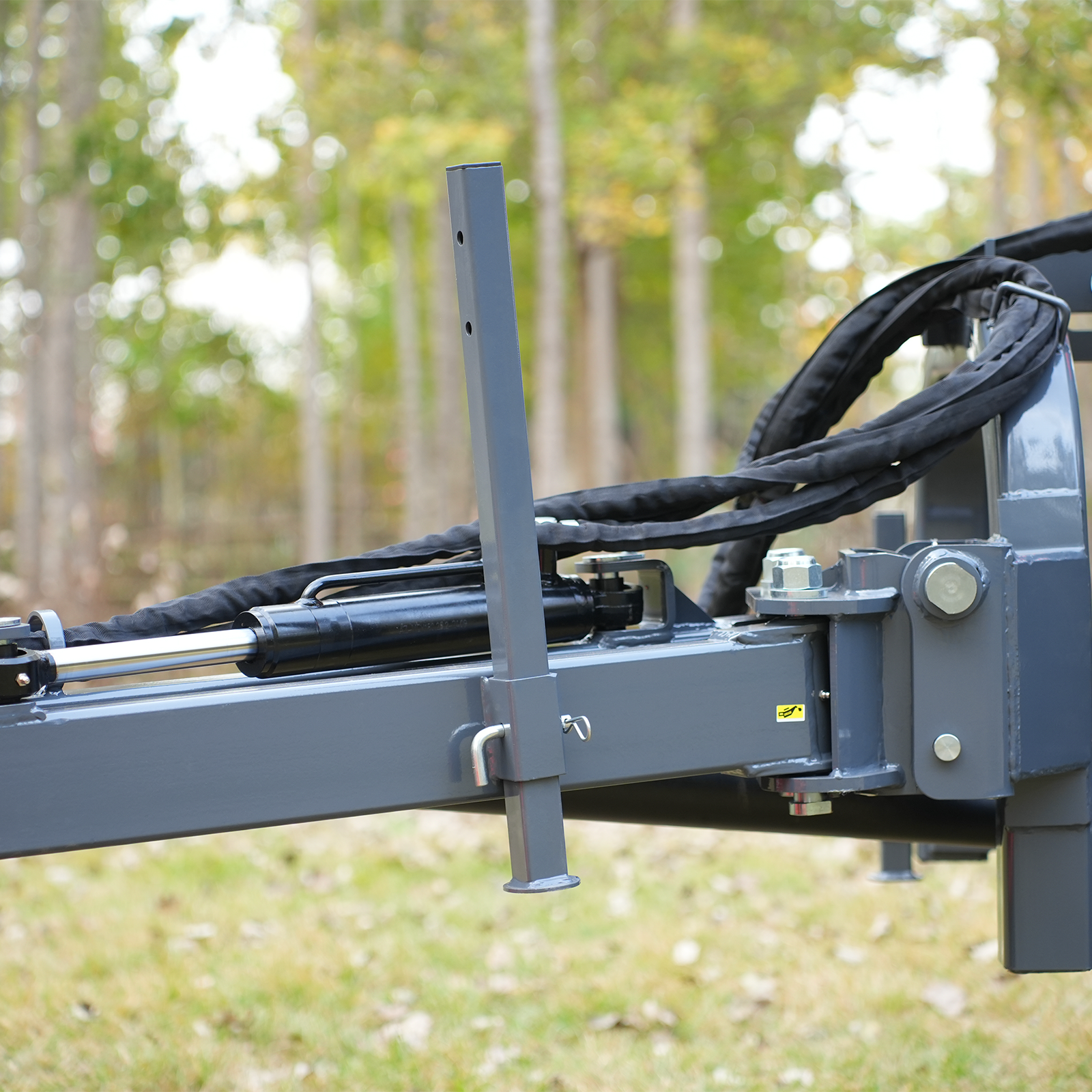

Side Movement

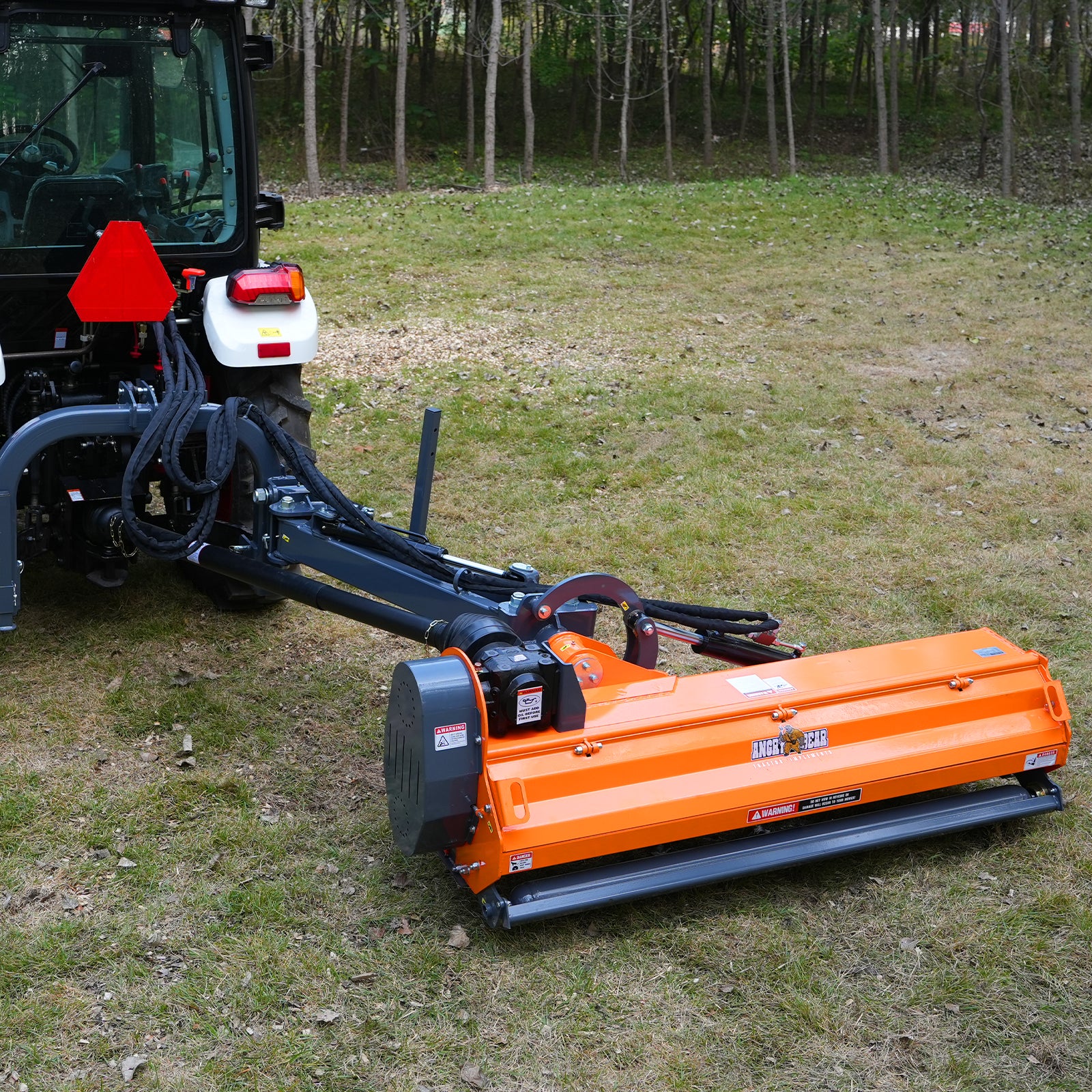

Hydraulically controlled side to side movement & right side offset, adjustable cutting direction to cut distant overgrown areas.

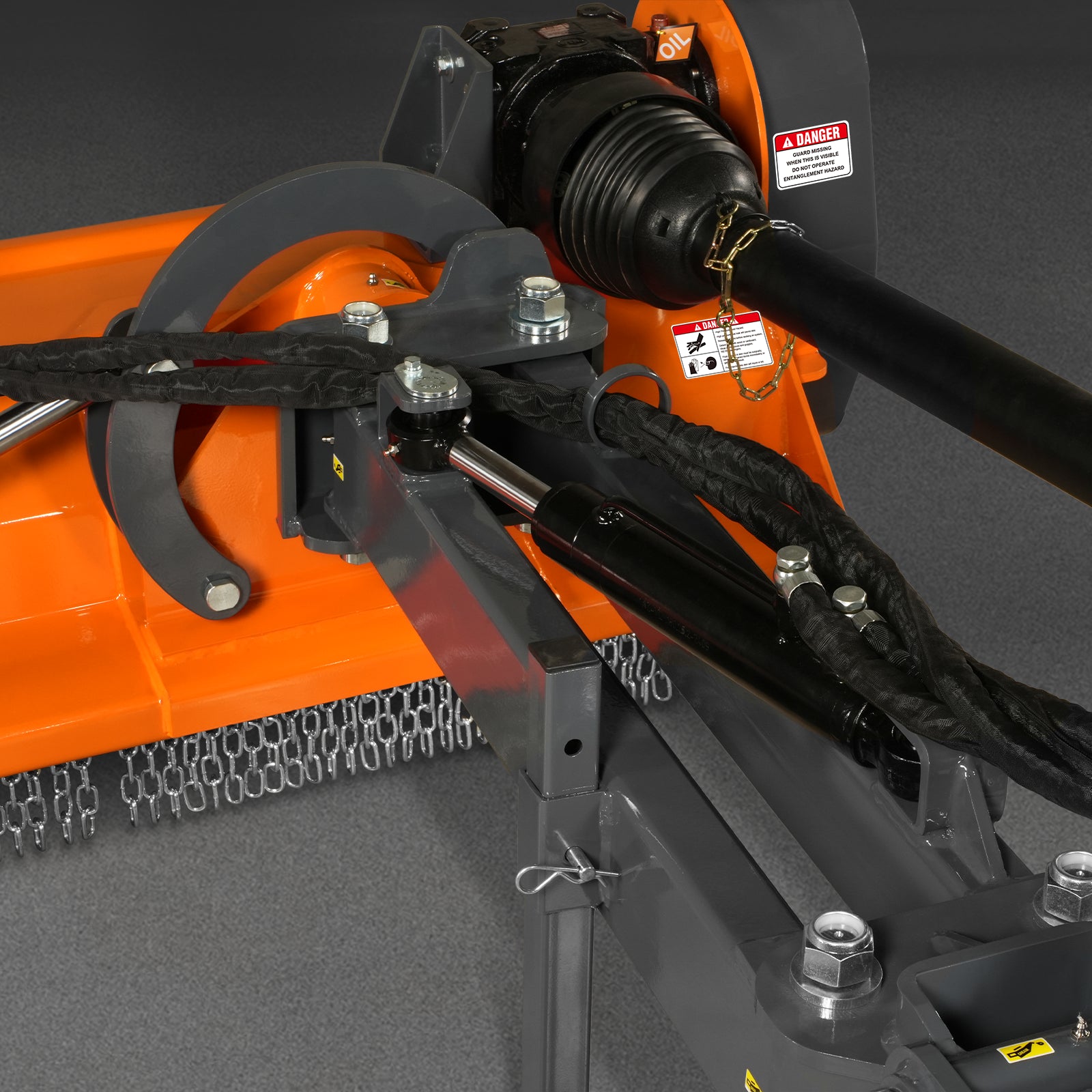

PTO shaft(1- 3/8’’ Z6)

Included PTO shaft for Category 1 hookups make this tiller compatible with most tractor makes and models. T5-LF-63 With Shear Bolt ; 63in-106in

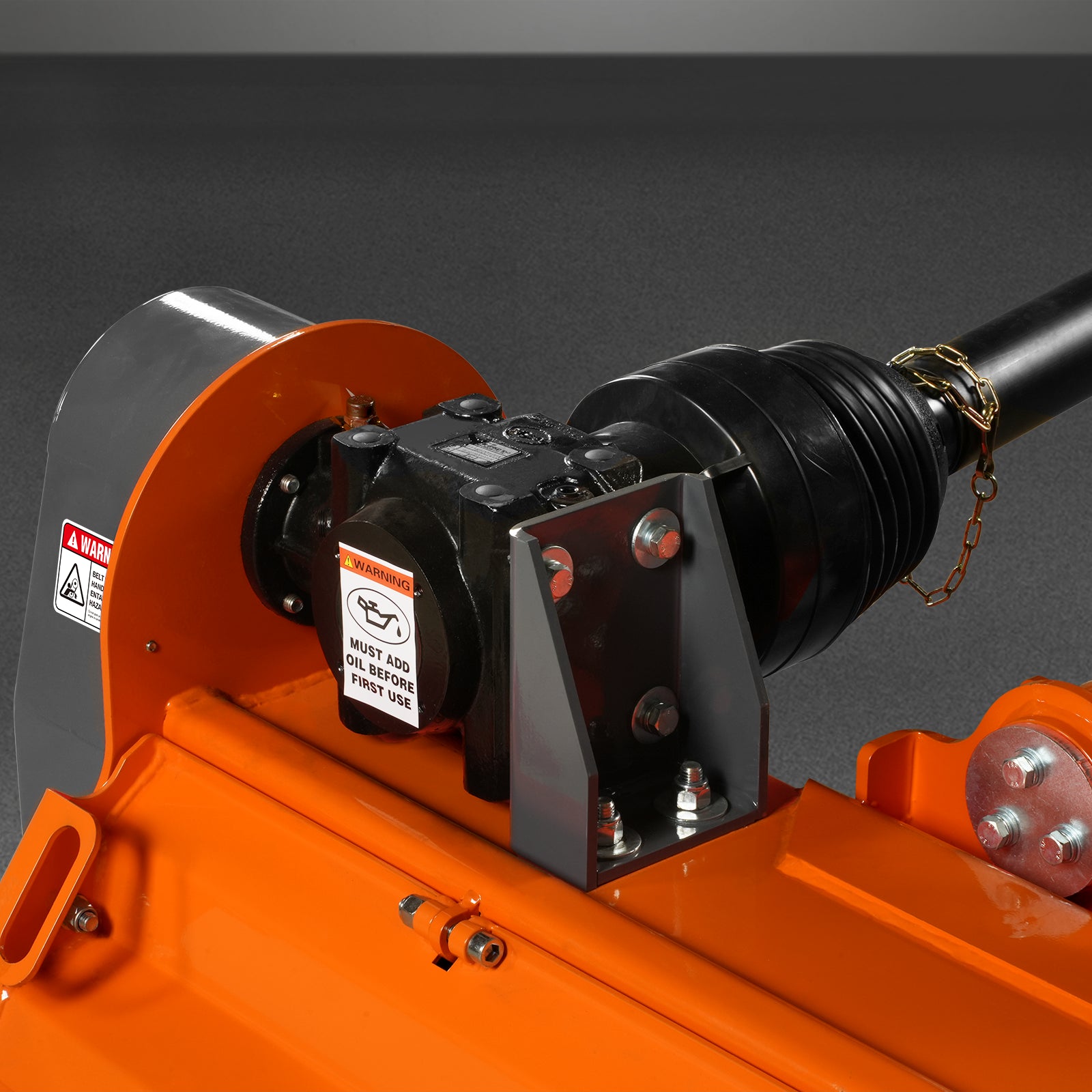

CMR Gearbox

High-quality CMR bearings from Italy transmits motive power to the various other components of the machine.

SKF Shaft Bearing And Outside Rotor Bearing

We use SKF shaft bearings made in Sweden. The high-quality bearings of this type are required in applications with high loads and dynamic forces. These bearings run smoothly, quietly, and coolly. The bearings of the VAM mower are external, which is convenient for user maintenance and later repairs.

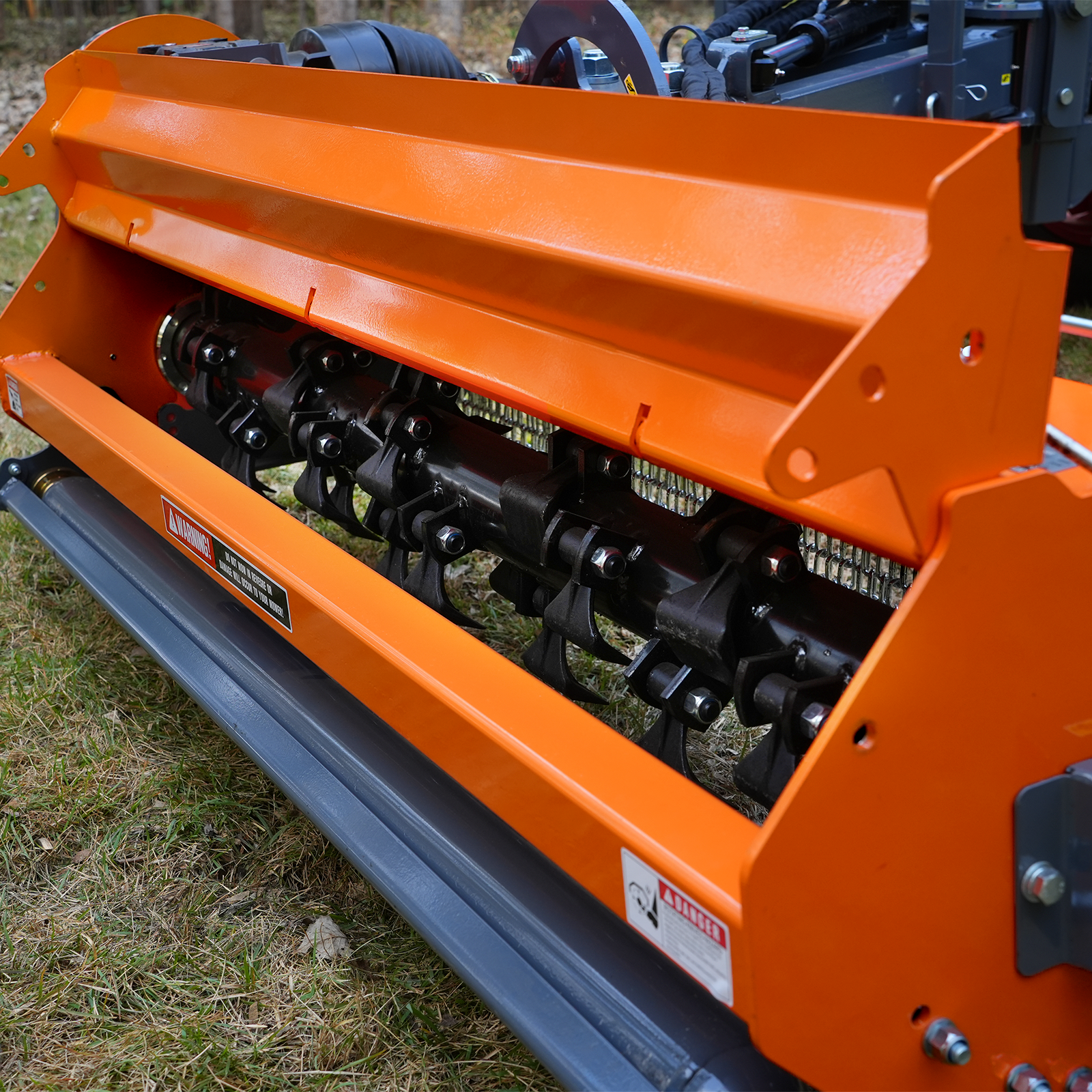

Openable Back Cover

The VAM mower has an openable rear cover for easy replacement of the blade and clearing of blockages. The thickened shaft can improve mowing efficiency.

Power Required	70-90 Hp	Belt Adjustment	Bolt Tightening
Working Width	72in	Working Efficiency450 cu.ft./Hr.	450 cu.ft./Hr.
Overall Width	79 in	PTO Shaft Speed	540 rpm
Blade Ground Clearance	0.6 in-3 in	Deck Thickness	2 in
Max. Cutting Diameter	3 in	Side Plate Thickness	0.25 in
Offset Distance from The Center (Maximum)	90 in	Driveline Shaft Length	T5-LF-63 With Shear Bolt ; 63in-106in
Tilt-Up Angle	90°	Spline End	1.375in Z6
Tilt-Down Angle	55°	3-Point Hitch	CAT 2

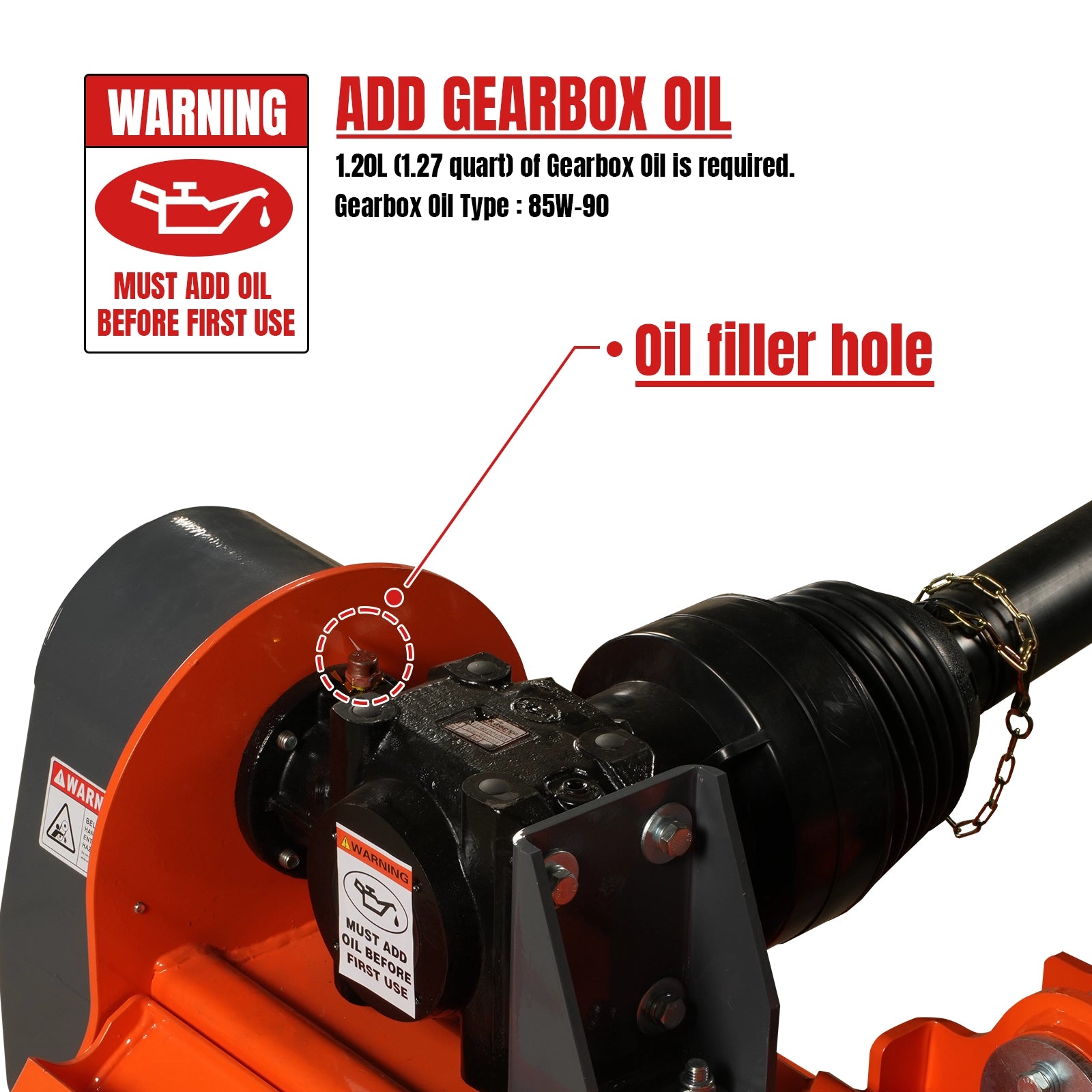

Number Of Blades	18	Gearbox 0il Type	85W-90
Number of Belts	4	Finish	Powder Coating
Blade Type	Hammer	Warranty	1 Year
Blade Weight	1.8 lbs	Shipping Box	90 X 39 X 31in
Blade Material	Cast Steel	Weight (N.W./G.W.)	1235/1336 lbs
